1. io 3d
product overview

2. light is evolution
In the beginning there was light, and light is
evolution. A concept that is with us every
day. It is constantly being reborn and will never
end. We are fascinated by the concept of
allowing people to shape the lightscapes of
their personal spaces, using light to enhance
their quality of life. Everything is in a state of
constant change. Nothing ever remains as
it is at a given moment. In order to exist, things
must continue to develop. Just like Occhio.
Concentrating on one idea and one system
gives the product quality a unique depth
and level of detail. It is the joy of offering a
perfect solution for all spatial circumstan-
ces and requirements that inspires us. Con-
stantly – every day.

3. Design Axel Meise, Christoph Kügler

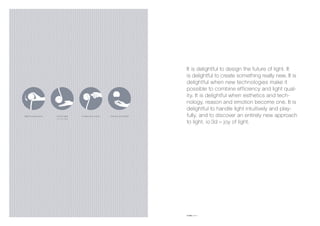

4. create your styletouch light
on/off, dim
light in your hand choose your light
It is delightful to design the future of light. It
is delightful to create something really new. It is
delightful when new technologies make it
possible to combine efficiency and light qual-
ity. It is delightful when esthetics and tech-
nology, reason and emotion become one. It is
delightful to handle light intuitively and play-
fully, and to discover an entirely new approach
to light. io 3d – joy of light.
io (ital.) me, I

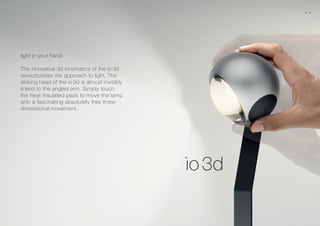

5. light in your hand
The innovative 3d kinematics of the io 3d
revolutionizes the approach to light. The
striking head of the io 3d is almost invisibly
linked to the angled arm. Simply touch
the heat insulated pads to move the lamp
with a fascinating absolutely free three-
dimensional movement.
06 07

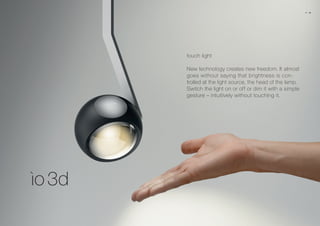

6. touch light
New technology creates new freedom. It almost
goes without saying that brightness is con-
trolled at the light source, the head of the lamp.
Switch the light on or off or dim it with a simple
gesture – intuitively without touching it.
08 09

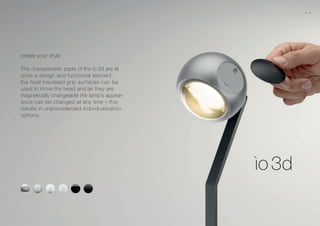

7. create your style
The characteristic pads of the io 3d are at
once a design and functional element:
the heat insulated grip surfaces can be
used to move the head and as they are
magnetically changeable the lamp’s appear-
ance can be changed at any time – this
results in unprecedented individualization
options.
10 11

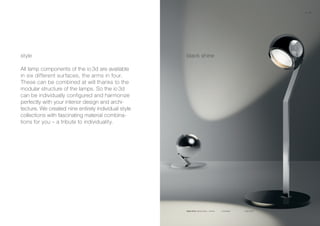

8. io 3d basso io 3d tavolo
black shinestyle
All lamp components of the io 3d are available
in six different surfaces, the arms in four.
These can be combined at will thanks to the
modular structure of the lamps. So the io 3d
can be individually configured and harmonize
perfectly with your interior design and archi-
tecture. We created nine entirely individual style
collections with fascinating material combina-
tions for you – a tribute to individuality.
black shine glossy black + chrome
12 13

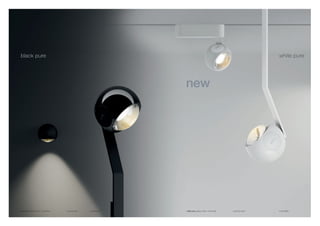

9. black pure
io 3d pico trackio 3d pico flat io 3d lettura io 3d soffitto
white pure
white pure glossy white + matt whiteblack pure glossy black + matt black

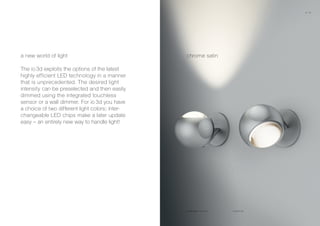

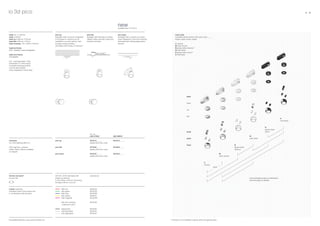

10. io 3d pico flat
chrome satina new world of light
The io 3d exploits the options of the latest
highly efficient LED technology in a manner
that is unprecedented. The desired light
intensity can be preselected and then easily
dimmed using the integrated touchless
sensor or a wall dimmer. For io 3d you have
a choice of two different light colors; inter-
changeable LED chips make a later update
easy – an entirely new way to handle light!
chrome satin matt chrome
16 17

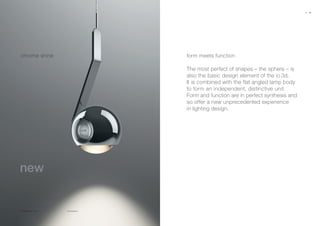

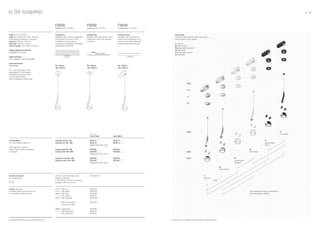

11. io 3d sospeso
chrome shine form meets function
The most perfect of shapes – the sphere – is
also the basic design element of the io 3d.
It is combined with the flat angled lamp body
to form an independent, distinctive unit.
Form and function are in perfect synthesis and
so offer a new unprecedented experience
in lighting design.
chrome shine chrome
18 19

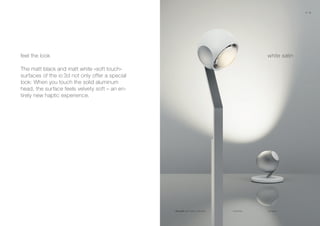

12. white satin
io 3d lettura io 3d basso
feel the look
The matt black and matt white »soft touch«
surfaces of the io 3d not only offer a special
look: When you touch the solid aluminum
head, the surface feels velvety soft – an en-
tirely new haptic experience.
white satin matt chrome + matt white
20 21

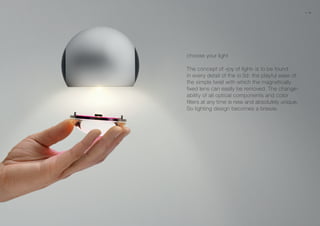

13. choose your light
The concept of »joy of light« is to be found
in every detail of the io 3d: the playful ease of
the simple twist with which the magnetically
fixed lens can easily be removed. The change-
ability of all optical components and color
filters at any time is new and absolutely unique.
So lighting design becomes a breeze.
22 23

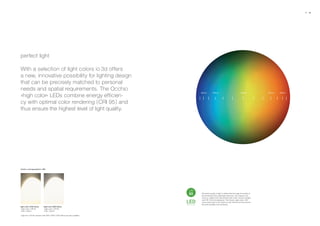

14. 460 nm 650 nm500 nm 560 nm 620 nm
Occhio »next generation« LED
perfect light
With a selection of light colors io 3d offers
a new, innovative possibility for lighting design
that can be precisely matched to personal
needs and spatial requirements. The Occhio
»high color« LEDs combine energy efficien-
cy with optimal color rendering (CRI 95) and
thus ensure the highest level of light quality.
light color 3000 Kelvin
»high color« CRI 95
18 W, 1250 lm
light color 2700 Kelvin
»high color« CRI 95
18 W, 1250 lm
»high flux« CRI 85 versions with 3000 / 3500 / 4000 Kelvin are also available
Perceived quality of light is determined through the quality of
the rendering of the visible light spectrum. The measury unit
is the so-called Color Rendering Index (CRI); natural sunlight
with CRI 100 is the reference. The Occhio »high color« LED
come quite close to this optimum with CRI 95 and thus ensure
the best possible color rendering.
24 25

15. lighting effects
head
switchable 13 W /18 W output,
touchless dimmer (can be deactivated),
driver integrated in lamp head
lens
for glare-free, directed light
LED-chip
»next generation« LED,
»high color« CRI 95,
2700 / 3000 K, exchangeable
filter
for colored light
inserts
(optional)
fresnel lens
for additional focusing
satinised glass
for a soft
distribution of light
soft edge glass
for soft contours
of light
filter
red, green, blue, yellow, magenta
(optional)
io 3d B
diffusor disc
diffuse light
io 3d C
lens
80°, directional light
io 3d C
lens + satinised glass
100°, diffusion of light
io 3d C
lens + fresnel lens
60°, bundling of light
io 3d C
lens + soft edge glass
80°, soft contour
io 3d C
lens + filter yellow
io 3d C
lens + filter red
io 3d C
lens + filter magenta
io 3d C
lens + filter green
io 3d C
lens + filter blue
filter (optional)
diffusor disc
filter (optional)
lens
filter (optional)
satinised glass
lens
filter (optional)
fresnel lens
lens
filter (optional)
soft edge glass
lens
lighting effect Blighting effect C
26 27

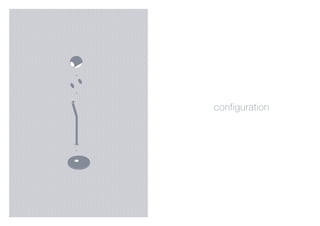

16. configuration

17. io 3d lettura
head
pads
body
base
pads
LED 3000 K
5L 27 03 _ _ _ _lettura
6K 60 2R
6K 60 2G
6K 60 2B
6K 60 2Y
6K 60 2M
6K 60 2S
6K 60 80
6K 60 40
6K 60 35
head 22,5°, ø 100 mm
body H 1200 –1500 mm
base ø 260 mm, H 22 mm
head and body
360° rotatable, head changeable
pads and inserts
changeable
incl.»next generation« LED,
power 13 /18 W switchable,
recommended power setting 13 W,
switchable and dimmable via touchless
sensor (integrated in lamp head)
incl. power supply plug unit
cable length 180 cm (can be rolled up)
io 3d lettura
incl. lens (lighting effect C)
LED »high flux« versions
(3000 / 3500 / 4000 K) available
on request
art. no.
LED 2700 K
5L 27 02 _ _ _ _
please add color code
C
chrome
M
matt chrome
B
glossy white
(bianco)
W
matt white
N
glossy black
(nero)
S
matt black

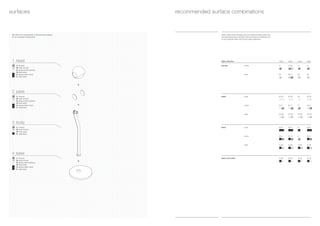

recommended surface combinations
(see last page for details)
color code
complete article number with color code: _ _ _ _
(head + pads + body + base)
C chrome
M matt chrome
B glossy white (bianco)*
W matt white
N glossy black (nero)*
S matt black
inserts (optional)
individual order of the inserts only
in combination with the lamp
filter red
filter green
filter blue
filter yellow
filter magenta
filter set (5 pieces,
1 piece per color)
fresnel lens
satinised glass
soft edge glass
*the body is not available in glossy white and glossy black.
30 31

18. io 3d tavolo
head
pads
body
base
pads
LED 3000 K
5T 23 03 _ _ _ _tavolo
6K 60 2R
6K 60 2G
6K 60 2B
6K 60 2Y
6K 60 2M
6K 60 2S
6K 60 80
6K 60 40
6K 60 35
head 22,5°, ø 100 mm
body H 400 mm
base ø 180 mm, H 14 mm
head and body
360° rotatable, head changeable
pads and inserts
changeable
incl.»next generation« LED,
power 13 /18 W switchable,
recommended power setting 13 W,
switchable and dimmable via touchless
sensor (integrated in lamp head)
incl. power supply plug unit
cable length 180 cm (can be rolled up)
io 3d tavolo
incl. lens (lighting effect C)
LED »high flux« versions
(3000 / 3500 / 4000 K) available
on request
art. no.
LED 2700 K
5T 23 02 _ _ _ _
please add color code
C
chrome
M
matt chrome
B
glossy white
(bianco)
W
matt white
N
glossy black
(nero)
S
matt black
recommended surface combinations
(see last page for details)
color code
complete article number with color code: _ _ _ _
(head + pads + body + base)
C chrome
M matt chrome
B glossy white (bianco)*
W matt white
N glossy black (nero)*
S matt black
inserts (optional)
individual order of the inserts only
in combination with the lamp
filter red
filter green
filter blue
filter yellow
filter magenta
filter set (5 pieces,
1 piece per color)
fresnel lens
satinised glass
soft edge glass
*the body is not available in glossy white and glossy black.
32 33

19. io 3d basso
head
pads
body
base
pads
LED 3000 K
5B 40 03 _ _ _ _basso
6K 60 2R
6K 60 2G
6K 60 2B
6K 60 2Y
6K 60 2M
6K 60 2S
6K 60 80
6K 60 40
6K 60 35
head 45°, ø 100 mm
body H 80 mm
base ø 140 mm, H 12 mm
head and body
360° rotatable, head changeable
pads and inserts
changeable
incl.»next generation« LED,
power 13 /18 W switchable,
recommended power setting 13 W,
switchable and dimmable via touchless
sensor (integrated in lamp head)
incl. power supply plug unit
cable length 180 cm (can be rolled up)
io 3d basso
incl. lens (lighting effect C)
LED »high flux« versions
(3000 / 3500 / 4000 K) available
on request
art. no.
LED 2700 K
5B 40 02 _ _ _ _
please add color code
C
chrome
M
matt chrome
B
glossy white
(bianco)
W
matt white
N
glossy black
(nero)
S
matt black
recommended surface combinations
(see last page for details)
color code
complete article number with color code: _ _ _ _
(head + pads + body + base)
C chrome
M matt chrome
B glossy white (bianco)*
W matt white
N glossy black (nero)*
S matt black
inserts (optional)
individual order of the inserts only
in combination with the lamp
filter red
filter green
filter blue
filter yellow
filter magenta
filter set (5 pieces,
1 piece per color)
fresnel lens
satinised glass
soft edge glass
*the body is not available in glossy white and glossy black.
34 35

20. io 3d pico
pads
up
flat
track
base
body
pads
head
LED 3000 K
5V 40 13 _ _ _ _
5V 40 03 _ _ _ _
5V 40 43 _ _ _ _
pico up
pico flat
pico track
6Z 48 52 0Z
6K 60 2R
6K 60 2G
6K 60 2B
6K 60 2Y
6K 60 2M
6K 60 2S
6K 60 80
6K 60 40
6K 60 35
head 45°, ø 100 mm
body H 80 mm
base up ø 88 mm, H 29 mm
base flat ø 88 mm, H 8 mm
track housing L181× W 46 × H 46 mm
head and body
360° rotatable, head changeable
pads and inserts
changeable
incl. »next generation« LED,
switchable 13 /18 W output,
touchless dimming function
(can be deactivated),
driver integrated in lamp head
io 3d pico
incl. lens (lighting effect C)
LED »high flux« versions
(3000 / 3500 / 4000 K) available
on request
art. no.
LED 2700 K
5V 40 12 _ _ _ _
please add color code
5V 40 02 _ _ _ _
please add color code
5V 40 42 _ _ _ _
please add color code
color code
complete article number with color code: _ _ _ _
(head + pads + body + base)
C chrome
M matt chrome
B glossy white (bianco)**
W matt white
N glossy black (nero)**
S matt black
C
chrome
M
matt chrome
B
glossy white
(bianco)
W
matt white
N
glossy black
(nero)
S
matt black
recommended surface combinations
(see last page for details)
*compatible dimmers: www.occhio.de/dim_en
pico flat
Spotlight with flat base for hollow
ceiling / hollow wall with cavity box,
external converter
pico track
Spotlight with converter for power
track integrated in the track housing,
dimmable with trailing edge phase
dimmer*
available from 10 / 2013
pico up
Spotlight with converter integrated
in the base for surface-mount
installation on solid ceiling / wall,
through-wiring possible,
dimmable with phase-cut dimmer*
converter
48 V DC, 25 W, dimmable with
phase-cut dimmer
L105 × W 65 × H 25 mm (mounting
through ø 68 mm cut-out)
Occhio converter*
for pico flat
inserts (optional)
individual order of the inserts only
in combination with the lamp
filter red
filter green
filter blue
filter yellow
filter magenta
filter set (5 pieces,
1 piece per color)
fresnel lens
satinised glass
soft edge glass
converter
converter
**the body is not available in glossy white and glossy black.
36 37

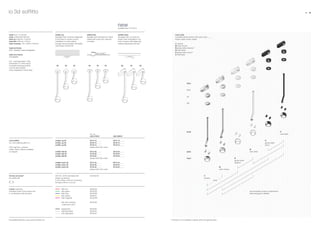

21. io 3d soffitto
pads
body
pads
head
203060 203060 203060
up
flat
track
base
LED 3000 K
5F 21 13 _ _ _ _
5F 22 13 _ _ _ _
5F 24 13 _ _ _ _
5F 21 03 _ _ _ _
5F 22 03 _ _ _ _
5F 24 03 _ _ _ _
5F 21 43 _ _ _ _
5F 22 43 _ _ _ _
5F 24 43 _ _ _ _
soffitto up 20
soffitto up 30
soffitto up 60
soffitto flat 20
soffitto flat 30
soffitto flat 60
soffitto track 20
soffitto track 30
soffitto track 60
6Z 48 52 0Z
6K 60 2R
6K 60 2G
6K 60 2B
6K 60 2Y
6K 60 2M
6K 60 2S
6K 60 80
6K 60 40
6K 60 35
head 22,5°, ø 100 mm
body H 600/320/200 mm
base up ø 88 mm, H 29 mm
base flat ø 88 mm, H 8 mm
track housing L181× W 46 × H 46 mm
head and body
360° rotatable, head changeable
pads and inserts
changeable
incl. »next generation« LED,
switchable 13 /18 W output,
touchless dimming function
(can be deactivated),
driver integrated in lamp head
C
chrome
M
matt chrome
B
glossy white
(bianco)
W
matt white
N
glossy black
(nero)
S
matt black
recommended surface combinations
(see last page for details)
io 3d soffitto
incl. lens (lighting effect C)
LED »high flux« versions
(3000 / 3500 / 4000 K) available
on request
art. no.
LED 2700 K
5F 21 12 _ _ _ _
5F 22 12 _ _ _ _
5F 24 12 _ _ _ _
please add color code
5F 21 02 _ _ _ _
5F 22 02 _ _ _ _
5F 24 02 _ _ _ _
please add color code
5F 21 42 _ _ _ _
5F 22 42 _ _ _ _
5F 24 42 _ _ _ _
please add color code
48 V DC, 25 W, dimmable with
phase-cut dimmer
L105 × W 65 × H 25 mm (mounting
through ø 68 mm cut-out)
Occhio converter*
for soffitto flat
soffitto track
Spotlight with converter for
power track integrated in the
track housing, dimmable with
trailing edge phase dimmer*
soffitto flat
Spotlight with flat base for hollow
ceiling with cavity box, external
converter
soffitto up
Spotlight with converter integrated
in the base for surface-mount
installation on solid ceiling,
through-wiring possible, dimmable
with phase-cut dimmer*
inserts (optional)
individual order of the inserts only
in combination with the lamp
filter red
filter green
filter blue
filter yellow
filter magenta
filter set (5 pieces,
1 piece per color)
fresnel lens
satinised glass
soft edge glass
converter
*compatible dimmers: www.occhio.de/dim_en
available from 10 / 2013
converter
converter
color code
complete article number with color code: _ _ _ _
(head + pads + body + base)
C chrome
M matt chrome
B glossy white (bianco)**
W matt white
N glossy black (nero)**
S matt black
**the body is not available in glossy white and glossy black.
38 39

22. io 3d sospeso
pads
80 – 180 cm
180 – 280 cm
80 – 180 cm
180 – 280 cm
80 – 180 cm
180 – 280 cm
body
pads
head
up
flat
track
base
LED 3000 K
5E 28 13 _ _ _ _
5E 29 13 _ _ _ _
5E 28 03 _ _ _ _
5E 29 03 _ _ _ _
5E 28 43 _ _ _ _
5E 29 43 _ _ _ _
sospeso up 80 – 180
sospeso up 180 – 280
sospeso flat 80 – 180
sospeso flat 180 – 280
sospeso track 80 – 180
sospeso track 180 – 280
6Z 48 52 0Z
6K 60 2R
6K 60 2G
6K 60 2B
6K 60 2Y
6K 60 2M
6K 60 2S
6K 60 80
6K 60 40
6K 60 35
head 22,5°, ø 100 mm
body 800 –1800 mm /1800 – 2800 mm
(other lengths available on request)
base up ø 88 mm, H 35 mm
base flat ø 88 mm, H 8 mm
track housing L181× W 46 × H 46 mm
height adjustment element
integrated in the base
head and body
360° rotatable, head changeable
pads and inserts
changeable
incl. »next generation« LED,
switchable 13 /18 W output,
touchless dimming function
(can be deactivated),
driver integrated in lamp head
C
chrome
M
matt chrome
B
glossy white
(bianco)
W
matt white
N
glossy black
(nero)
S
matt black
recommended surface combinations
(see last page for details)
sospeso track
Spotlight with converter for
power track integrated in the
track housing, dimmable with
trailing edge phase dimmer*
io 3d sospeso
incl. lens (lighting effect C)
LED »high flux« versions
(3000 / 3500 / 4000 K) available
on request
Occhio converter*
for sospeso flat
sospeso flat
Spotlight with flat base for hollow
ceiling with cavity box, external
converter
sospeso up
Spotlight with converter integrated
in the base for surface-mount
installation on solid ceiling,
through-wiring possible, dimmable
with phase-cut dimmer*
inserts (optional)
individual order of the inserts only
in combination with the lamp
5E 28 12 _ _ _ _
5E 29 12 _ _ _ _
please add color code
5E 28 02 _ _ _ _
5E 29 02 _ _ _ _
please add color code
5E 28 42 _ _ _ _
5E 29 42 _ _ _ _
please add color code
48 V DC, 25 W, dimmable with
phase-cut dimmer
L105 × W 65 × H 25 mm (mounting
through ø 68 mm cut-out)
filter red
filter green
filter blue
filter yellow
filter magenta
filter set (5 pieces,
1 piece per color)
fresnel lens
satinised glass
soft edge glass
art. no.
LED 2700 K
*compatible dimmers: www.occhio.de/dim_en
converter
converter
converter
color code
complete article number with color code: _ _ _ _
(head + pads + body + base)
C chrome
M matt chrome
B glossy white (bianco)**
W matt white
N glossy black (nero)**
S matt black
**the body is not available in glossy white and glossy black.
available from 10 / 2013 available from 10 / 2013 available from 10 / 2013
40 41

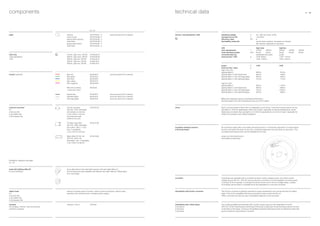

23. 18 W
18 W Sensor
13 W
13 W Sensor
U
t
EFI
P
φ
T
CRI
φ
13 W
660 lm
560 lm
600 lm
510 lm
820 lm
690 lm
750 lm
640 lm
18 W
910 lm
780 lm
840 lm
710 lm
1130 lm
960 lm
1040 lm
880 lm
5K P0 00 0C – V
5K P0 00 0M– V
5K P0 00 0B – V
5K P0 00 0W– V
5K P0 00 0N – V
5K P0 00 0S – V
6K 60 2R 5
6K 60 2G 5
6K 60 2B 5
6K 60 2Y 5
6K 60 2M 5
6K 60 2S
6K 60 80 5
6K 60 40 5
6K 60 35 5
6Z 48 52 0Z
6Z 48 10 00
6Z 48 18 80
618 50 95 27
618 50 95 30
618 85 30 D
618 85 35 D
618 85 40 D
pads price per piece (PU 3 pieces)
price per piece (PU 5 pieces)
price per piece (PU 5 pieces)
price per piece (PU 5 pieces)
price per piece (PU 5 pieces)
chrome
matt chrome
glossy white (bianco)
matt white
glossy black (nero)
matt black
inserts (optional) filter red
filter green
filter blue
filter yellow
filter magenta
filter set (5 pieces,
1 piece per color)
fresnel lens
satinised glass
soft edge glass
components
art. no.

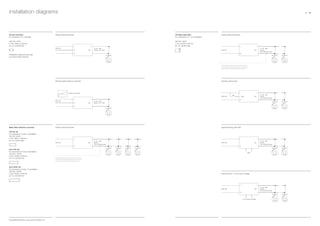

*installation diagrams see page
44 – 45
Occhio converter
48 V DC, 25 W, dimmable
with phase-cut dimmer,
L105 × W 65 × H 25 mm
(mounting through
ø 68 mm cut-out)
TCI Maxi Jolly DALI
48 V DC, 48 W, dimmable
per button, DALI, 1–10 V,
max. 2 spotlights,
L124 × W 79 × H 22 mm
Mean Well LPF 90–48
48 V DC, 90 W, not
dimmable, max. 4 spotlights,
L161× W 61× H 36 mm
external converter*
for
io 3d pico flat
io 3d soffitto flat
io 3d sospeso flat
io 3d lamps are operated with a converter as direct current voltage source. Any direct current
voltage source with 42…48 V DC can be used as a converter, for io 3d spotlights converter power
of at least 22 W is required. In precisely the same manner as for the low voltage lamps, multiple
io 3d lamps can be wired in a parallel circuit and operated on a common converter.
The Occhio converter is perfectly matched to these requirements and can be dimmed via trailing
edge. A list of all compatible dimmers is provided at www.occhio.de/dim_en
Other converters can also be used; dimmability depends on the converter.
dimmability floor / table lamps
io 3d lettura
io 3d tavolo
io 3d basso
The mobile spotlights are delivered with a power supply plug unit with integrated converter
(48 V DC / 25 W). Switching and dimming of the lamps is executed via the touchless sensor function
in the head of the lamps. To ensure the faultless touchless dimming function an electrical outlet with
ground conductor (grounding) is required.
converter
dimmability with Occhio converter
XZ 00 00cleanser, 125 mlcleanser
(for all glass, chrome, matt chrome and
synthetic surfaces)
object head
for
io 3d pico flat
io 3d soffitto flat
io 3d sospeso flat
head with lighting effect B
for all io 3d lamps
without touchless sensor function, without power switchover, without pads,
operation with external driver (constant power supply)
Occhio »next generation« LED
high color
2700 K 3000 K
Ra 95 Ra 95
residential and public
13 W: 900 lm
18 W: 1250 lm
high flux
3000 K 3500 K 4000 K
Ra 85 Ra 85 Ra 85
public
13 W: 1120 lm
18 W: 1550 lm
operating voltage
average service life
efficiency class
dimmability (external)
LED
color temperature
Color Rendering Index
recommended use
luminous flux* LED
*Effectively measured values at operating temperature.
Nominal values from LED manufacturer are up to 20 % higher.
42...48 V DC (mind. 22 W)
> 50.000 h
A
up and track versions: via phase-cut dimmer
flat versions: depends on converter
All io 3d lamp heads offer a touchless dimming function. A momentary approach of a hand below
the lens will switch the lamp on and off, a sustained approach dims the lamp up and down. This
touchless dimming function can be disabled by the user.
touchless dimming function
io 3d lamp heads
Each io 3d lamp head is fitted with an integrated current driver. There the luminary power can be
set either to 13 W (for applications within arm’s reach, especially for lettura reading lamp, tavolo
table lamp and basso floor spotlight) or to 18 W (for applications out of arm’s reach, especially for
soffitto and sospeso wall /ceiling spotlights)
driver
technical data
power and dimming function
switchable at lamp head
power
luminous flux* lamp
high color LED
lighting effect C
lighting effect C with fresnel lens
lighting effect C with soft edge glass
lighting effect C with satinised glass
high flux LED
lighting effect C
lighting effect C with fresnel lens
lighting effect C with soft edge glass
lighting effect C with satinised glass
LED-chip
»next generation«
18 W
2700 K, high color, CRI 95
3000 K, high color, CRI 95
3000 K, high flux, CRI 85
3500 K, high flux, CRI 85
4000 K, high flux, CRI 85
As an alternative to the standard versions with lens (light effect C),
all io 3d lamps are also available with diffuser disc (light effect B, diffuse light)
at no surcharge.
42 43

24. +
–
+–
+
–
+ +– – + +– –
+
–
+–
+
–
+ +– –
+ +– –
–
+
+ +– –
+
–
+ +– –
+
–
DCN
DCN
C
230 V AC DC
L
N
230 V AC
N
L
DCpush
230 V AC
L
N
DC
230 V AC
L
N
DC
230 V AC DC
DALI
L
L
L
N
230 V AC
230 V AC
installation diagrams
Occhio converter
for connection of 1 spotlight
48 V DC, 25 W
L105 × W 65 × H 25 mm
art. no. 6Z 48 52 0Z
TCI Maxi Jolly DALI
for connection of 1 or 2 spotlights
48 V DC, 48 W
L124 × W 79 × H 22 mm
art. no. 6Z 48 10 00
Mean Well collective converter
LPF 90–48
for connection of max. 4 spotlights
48 V DC, 90 W
L161× W 61× H 36 mm
art. no. 6Z 48 18 80
CLG 150–48
for connection of max. 6 spotlights
48 V DC, 150 W
L 222 × W 68 × H 39 mm
art. no. 6Z 48 81 50
HLG 320H–48
for connection of max. 14 spotlights
48 V DC, 320 W
L 252 × W 90 × H 44 mm
art. no. 6Z 48 67 00
without external dimmer
without external dimmer
without external dimmer
dimming with phase-cut dimmer*
installation diagrams also valid
for up and track versions
dimming with button
digital dimming with DALI
dimming with 1–10 V control voltage
U= 42…48 V
power: min. 22 W
U= 42…48 V
power:
min. 22 W per lamp
U= 42…48 V
power: min. 22 W
U= 42…48 V
power:
min. 22 W per lamp
U= 42…48 V
power:
min. 22 W per lamp
U= 42…48 V
power:
min. 22 W per lamp
1–10 V control voltage
phase-cut dimmer
The mains-side ground conductors must be
connected to the negative pole on the output
side to ensure flawless dimming function.
The mains-side ground conductors must be
connected to the negative pole on the output
side to ensure flawless dimming function.
*compatible dimmers: www.occhio.de/dim_en
U= 42…48 V
power:
min. 22 W per lamp
44 45

25. head
C
M
B / W
B / C
W / M
N / S
N / C
S / M
S / W
pads
C / M
M / C
B / W
B / C
W / M
N / S
N / C
S / M
S / W
shine
satin
pure
shine
satin
pure
shine
satin
chrome
white
black
black-and-white
base
C
M
B / W
B / C
W / M
N / S
N / C
S / M
S / W
body
C
M
W
C
W / M
S
C
S / M
S / W
surfaces
2 pads
C chrome
M matt chrome
B glossy white (bianco)
W matt white
N glossy black (nero)
S matt black
1 head
C chrome
M matt chrome
B glossy white (bianco)
W matt white
N glossy black (nero)
S matt black
4 base
C chrome
M matt chrome
B glossy white (bianco)
W matt white
N glossy black (nero)
S matt black
3 body
C chrome
M matt chrome
W matt white
S matt black
We offer io 3d components in the following surfaces
for an individual configuration.
head, pads, body and base can be combined freely within the
corresponding style collection. We recommend combining one
or two surfaces within the Occhio style collections.
recommended surface combinations
style collection

26. Occhio GmbH
Wiener Platz 7
D 81667 München
Fon +49-89-44 77 86 30
Fax +49-89-44 77 86 39
info@occhio.de
www.occhio.de
