Alfresco: What every developer should know
- 1. What Every New Developer Should Know About Alfresco Jeff Potts Chief Community Officer

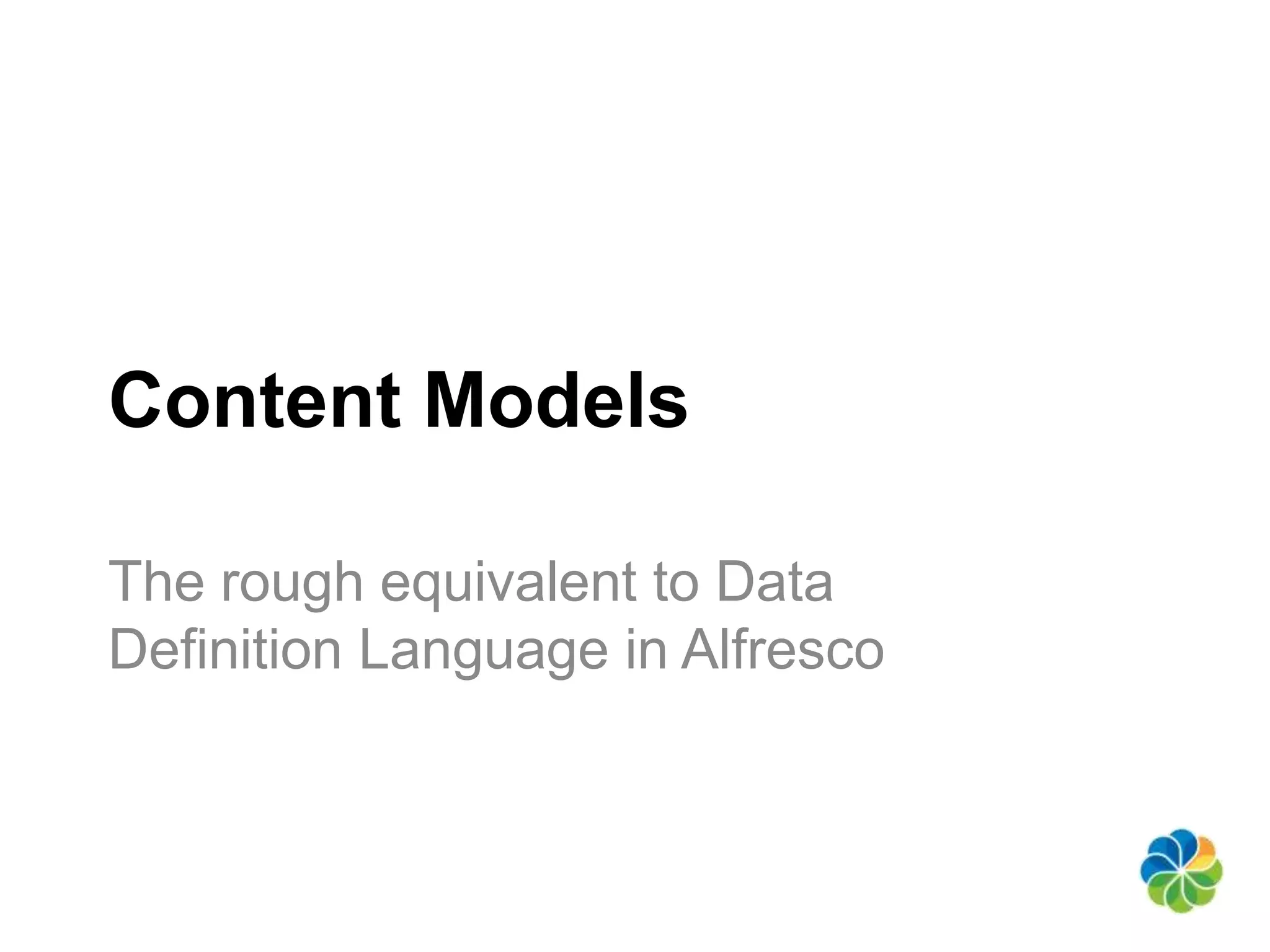

- 3. Content Models The rough equivalent to Data Definition Language in Alfresco

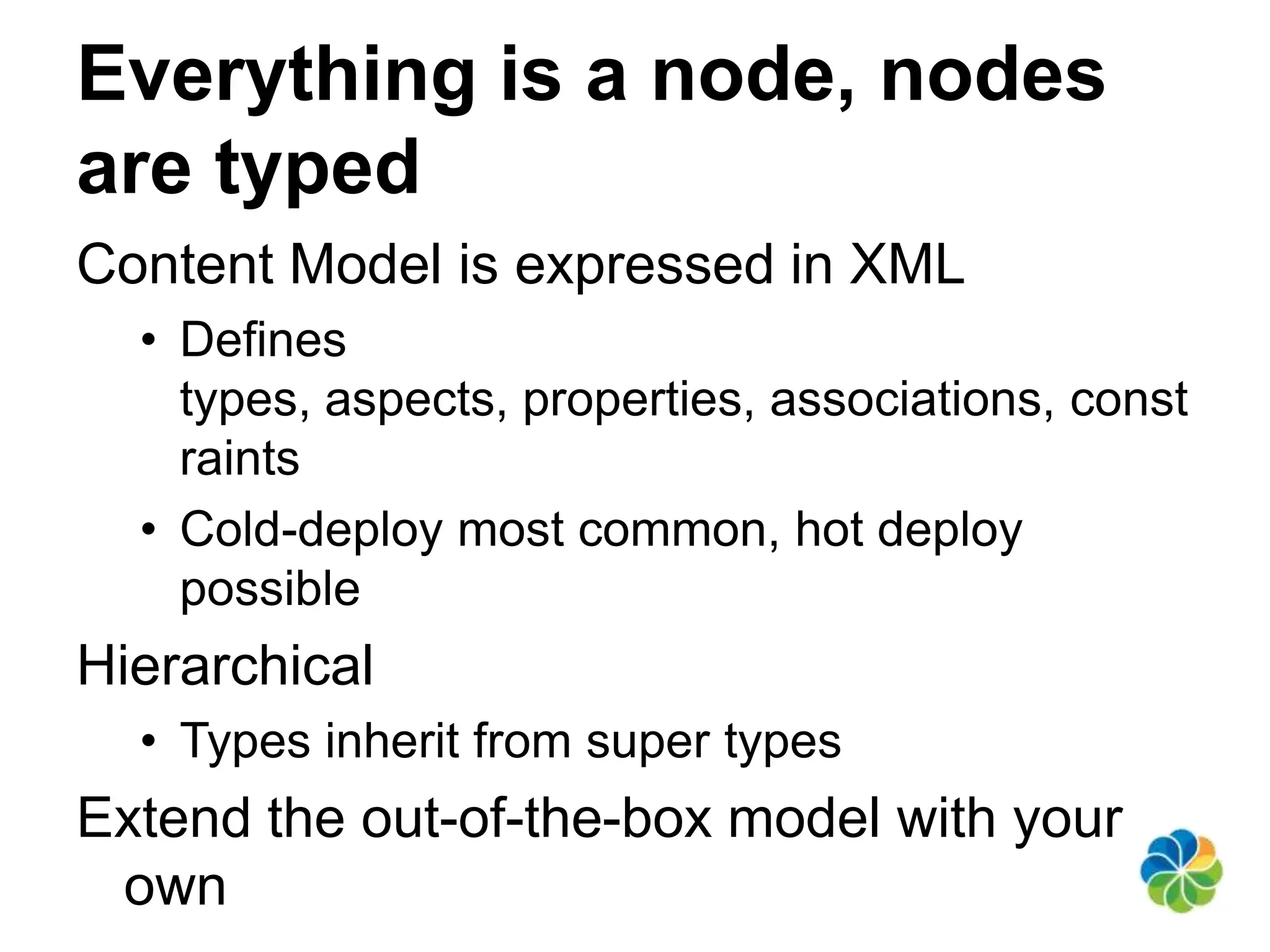

- 4. Everything is a node, nodes are typed Content Model is expressed in XML • Defines types, aspects, properties, associations, const raints • Cold-deploy most common, hot deploy possible Hierarchical • Types inherit from super types Extend the out-of-the-box model with your own

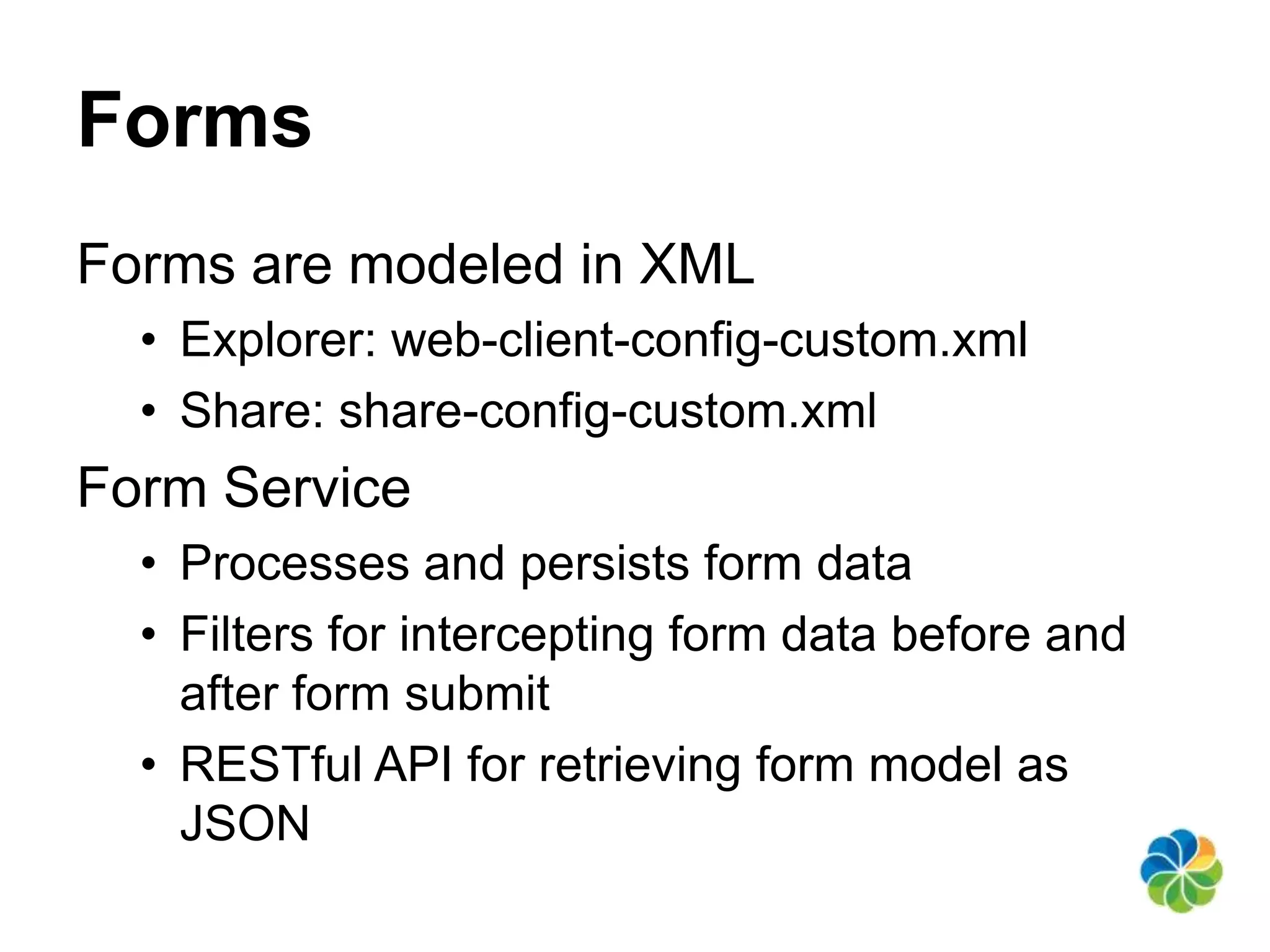

- 5. Forms Forms are modeled in XML • Explorer: web-client-config-custom.xml • Share: share-config-custom.xml Form Service • Processes and persists form data • Filters for intercepting form data before and after form submit • RESTful API for retrieving form model as JSON

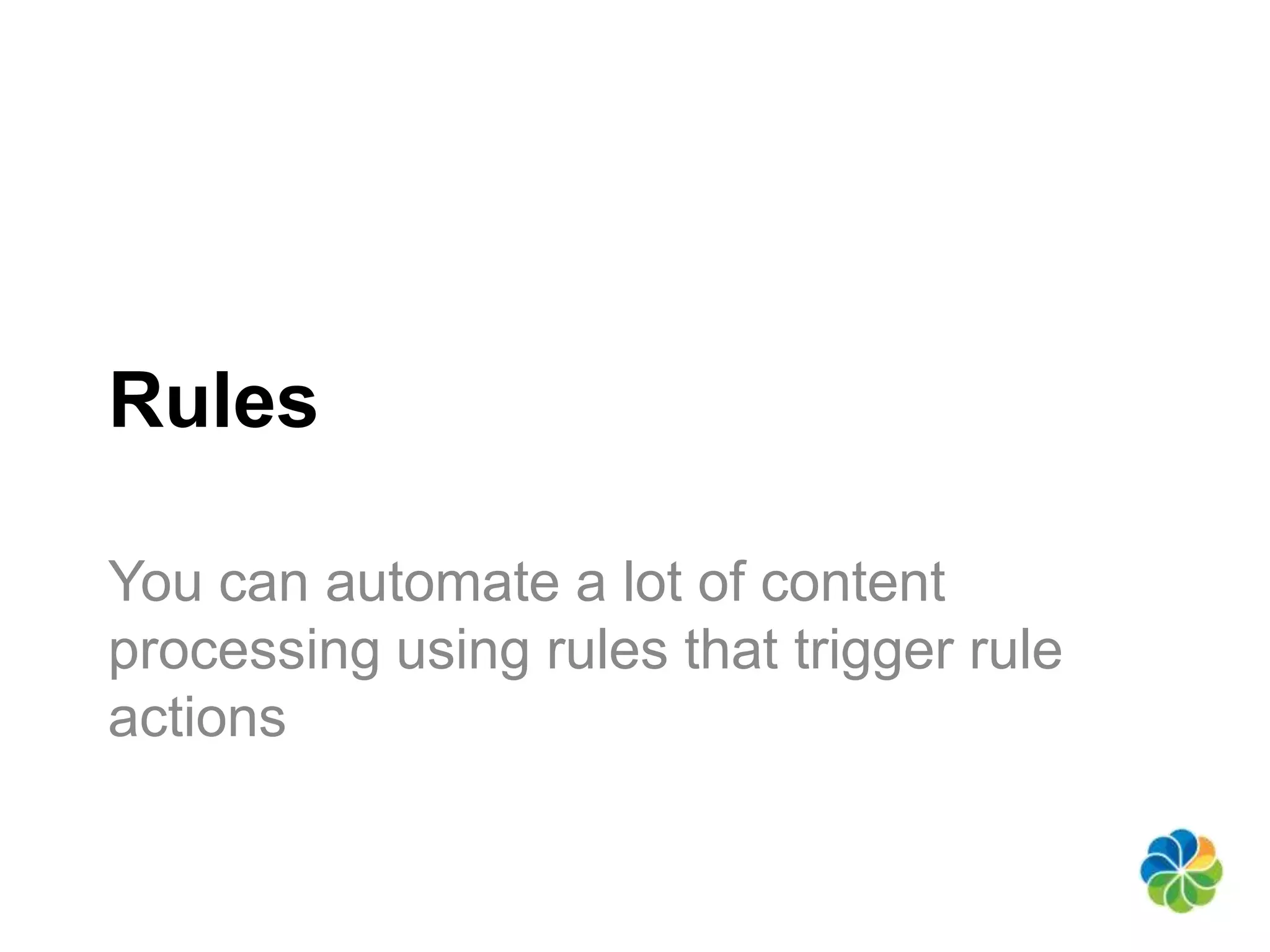

- 6. Rules You can automate a lot of content processing using rules that trigger rule actions

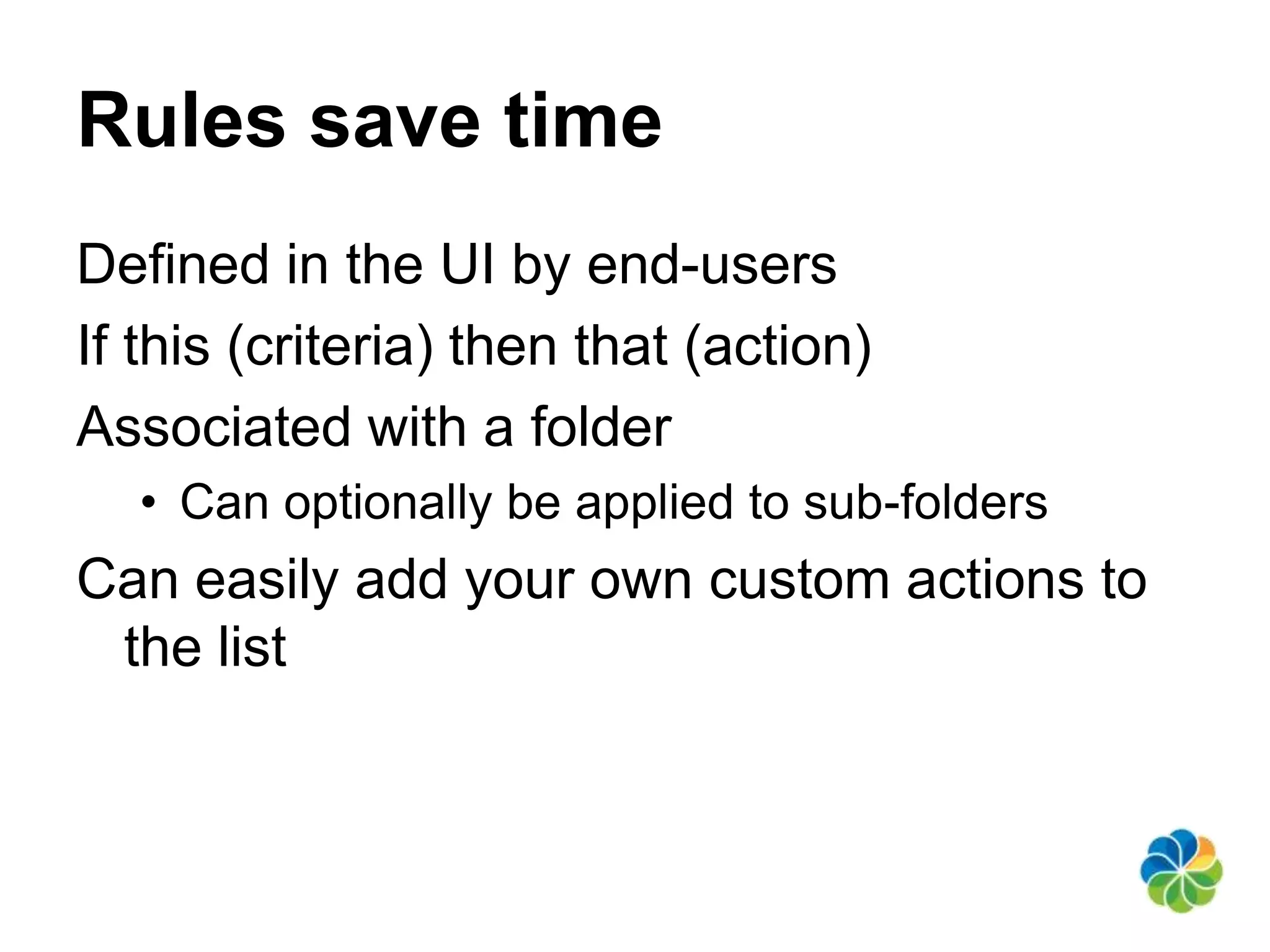

- 7. Rules save time Defined in the UI by end-users If this (criteria) then that (action) Associated with a folder • Can optionally be applied to sub-folders Can easily add your own custom actions to the list

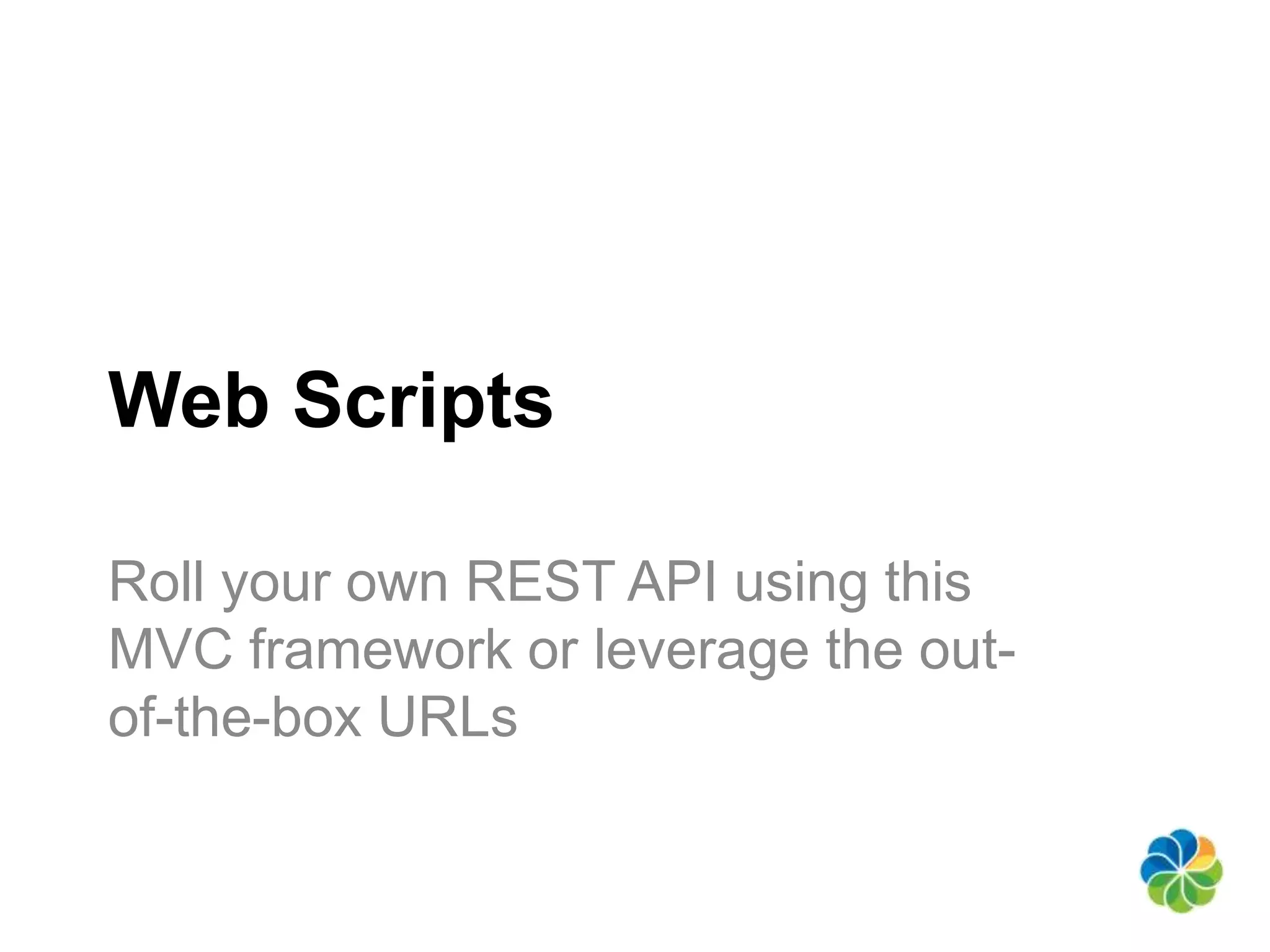

- 8. Web Scripts Roll your own REST API using this MVC framework or leverage the out- of-the-box URLs

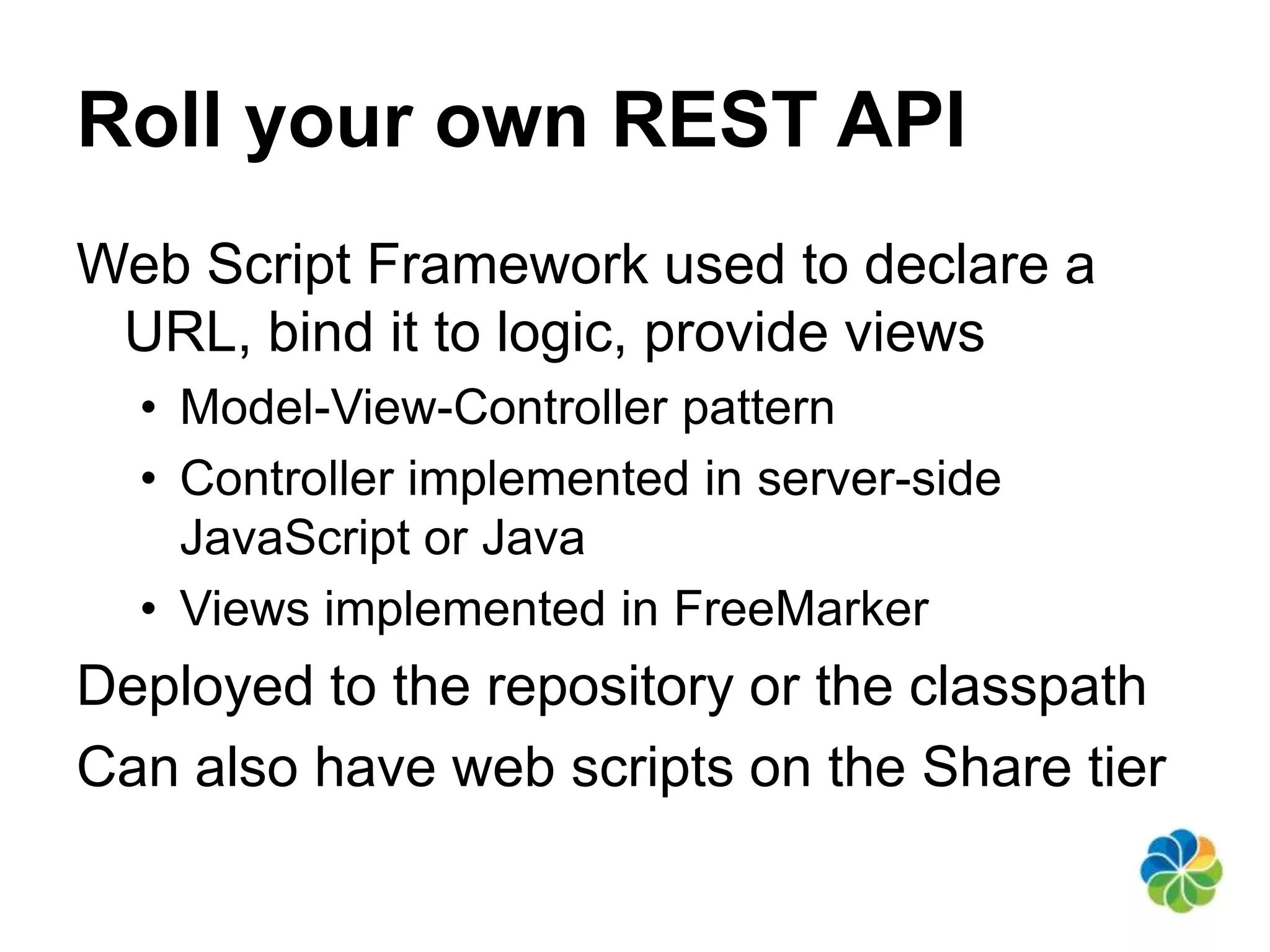

- 9. Roll your own REST API Web Script Framework used to declare a URL, bind it to logic, provide views • Model-View-Controller pattern • Controller implemented in server-side JavaScript or Java • Views implemented in FreeMarker Deployed to the repository or the classpath Can also have web scripts on the Share tier

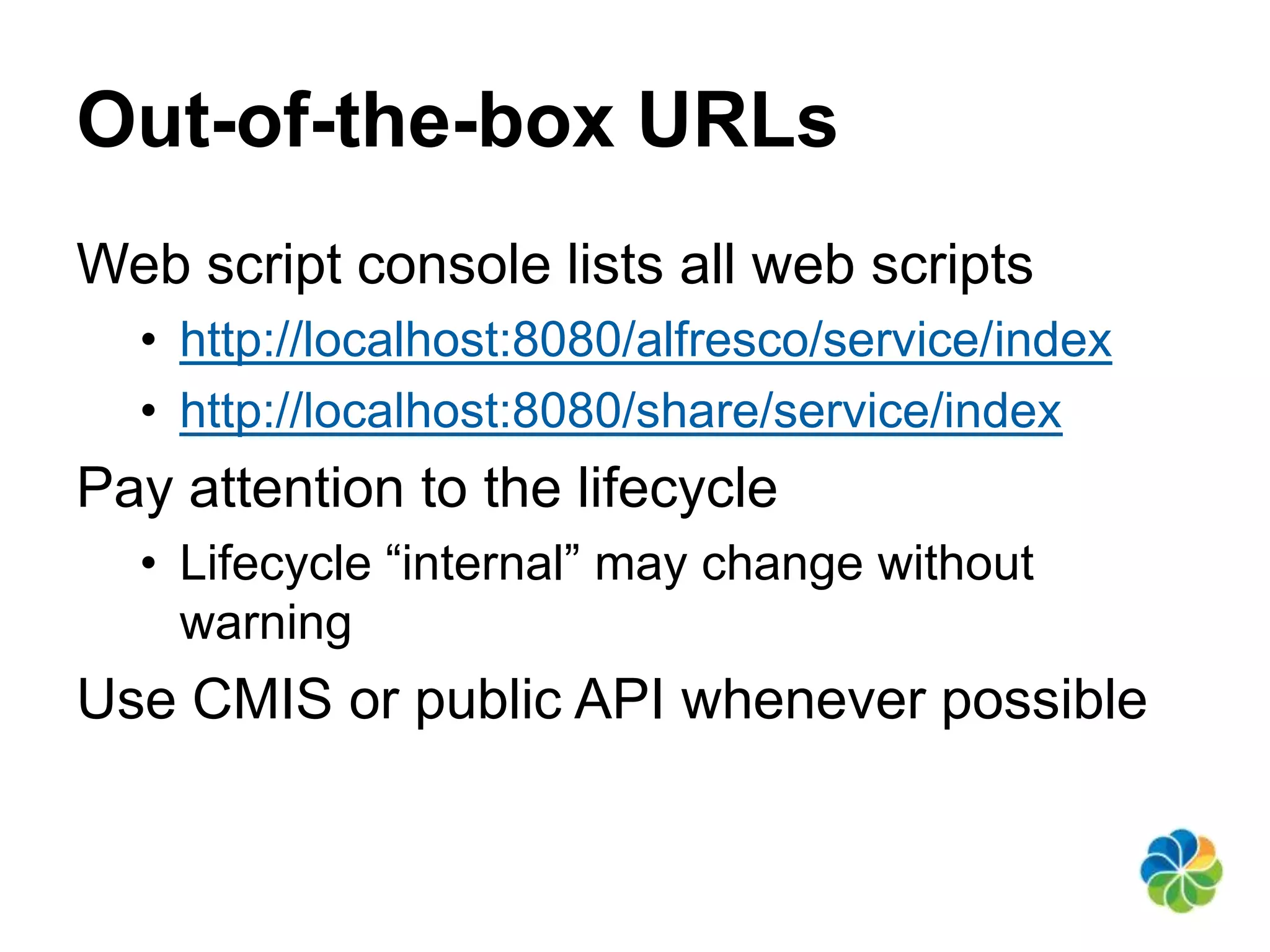

- 10. Out-of-the-box URLs Web script console lists all web scripts • http://localhost:8080/alfresco/service/index • http://localhost:8080/share/service/index Pay attention to the lifecycle • Lifecycle “internal” may change without warning Use CMIS or public API whenever possible

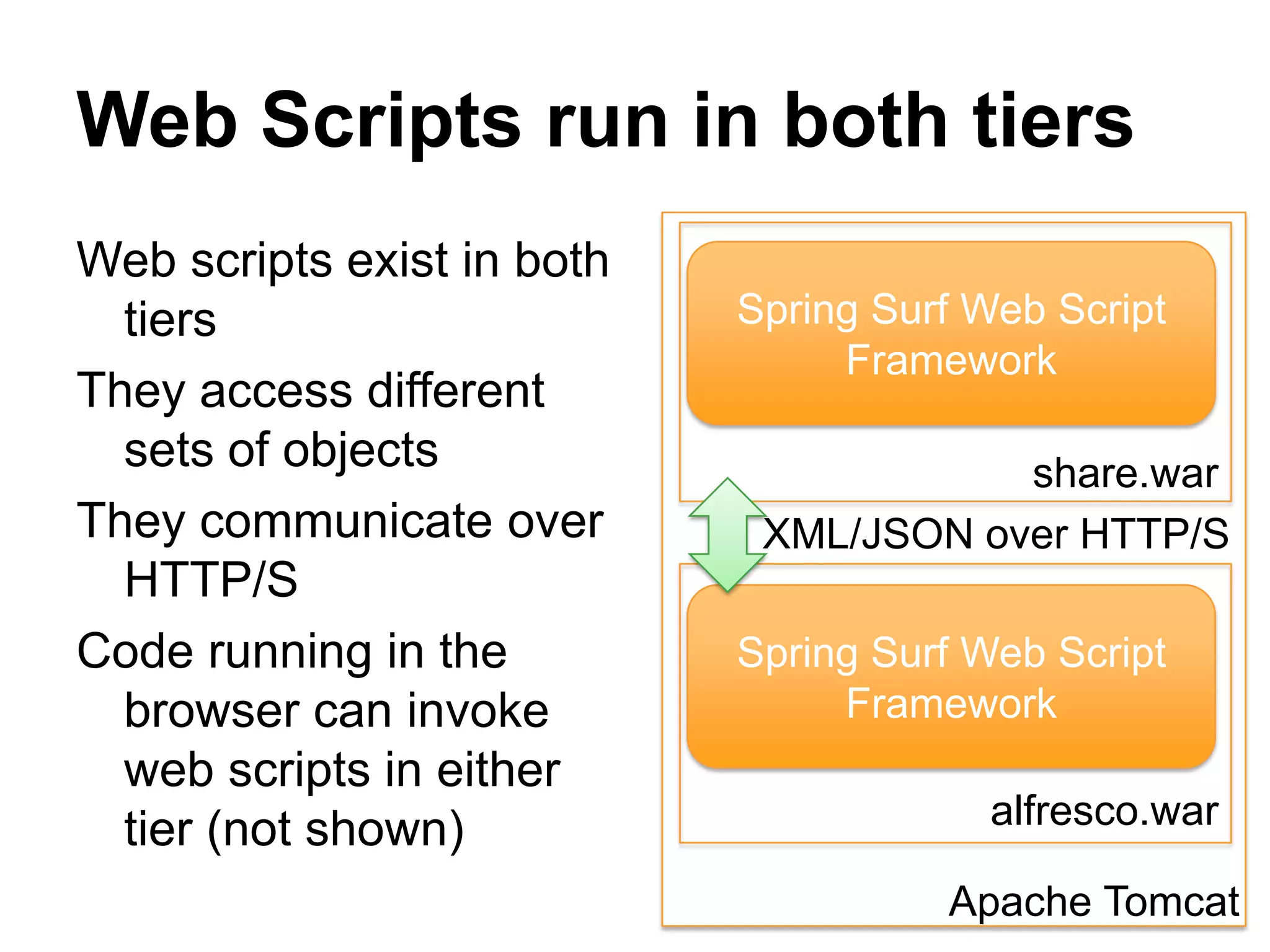

- 11. Web Scripts run in both tiers Web scripts exist in both tiers They access different sets of objects They communicate over HTTP/S Code running in the browser can invoke web scripts in either tier (not shown) XML/JSON over HTTP/S Apache Tomcat Spring Surf Web Script Framework alfresco.war Spring Surf Web Script Framework share.war

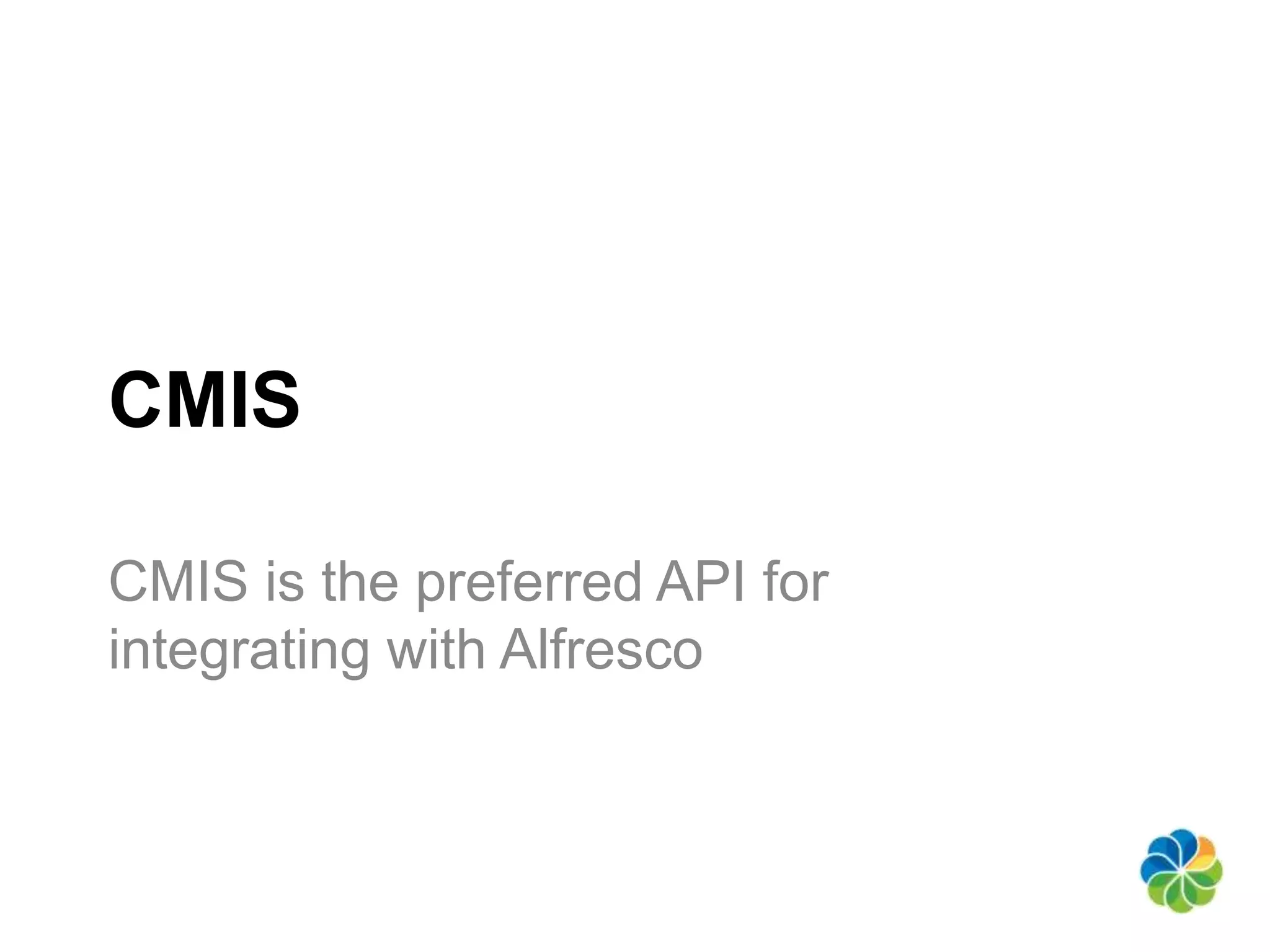

- 12. CMIS CMIS is the preferred API for integrating with Alfresco

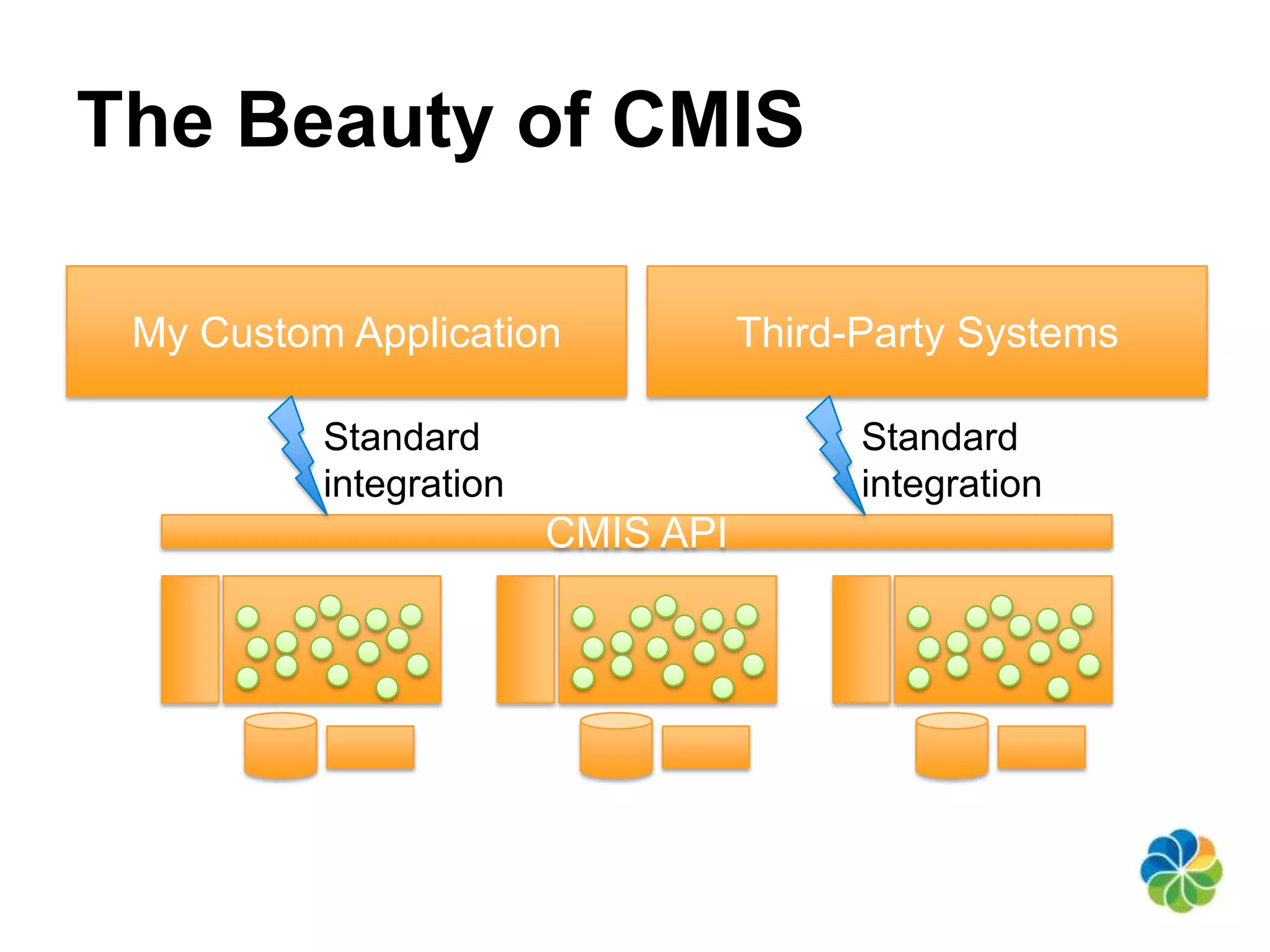

- 13. The Beauty of CMIS My Custom Application Third-Party Systems CMIS API Standard integration Standard integration

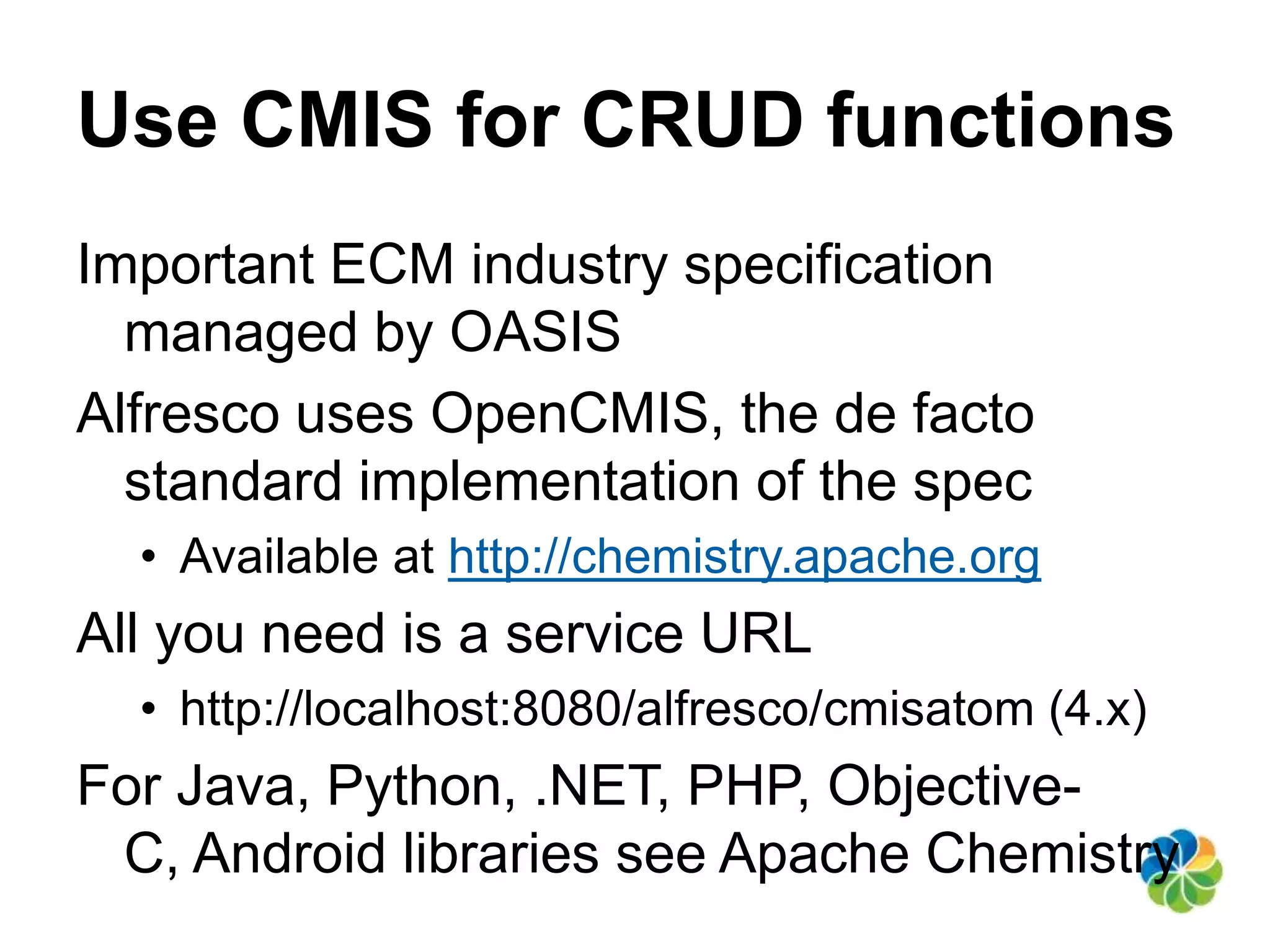

- 14. Use CMIS for CRUD functions Important ECM industry specification managed by OASIS Alfresco uses OpenCMIS, the de facto standard implementation of the spec • Available at http://chemistry.apache.org All you need is a service URL • http://localhost:8080/alfresco/cmisatom (4.x) For Java, Python, .NET, PHP, Objective- C, Android libraries see Apache Chemistry

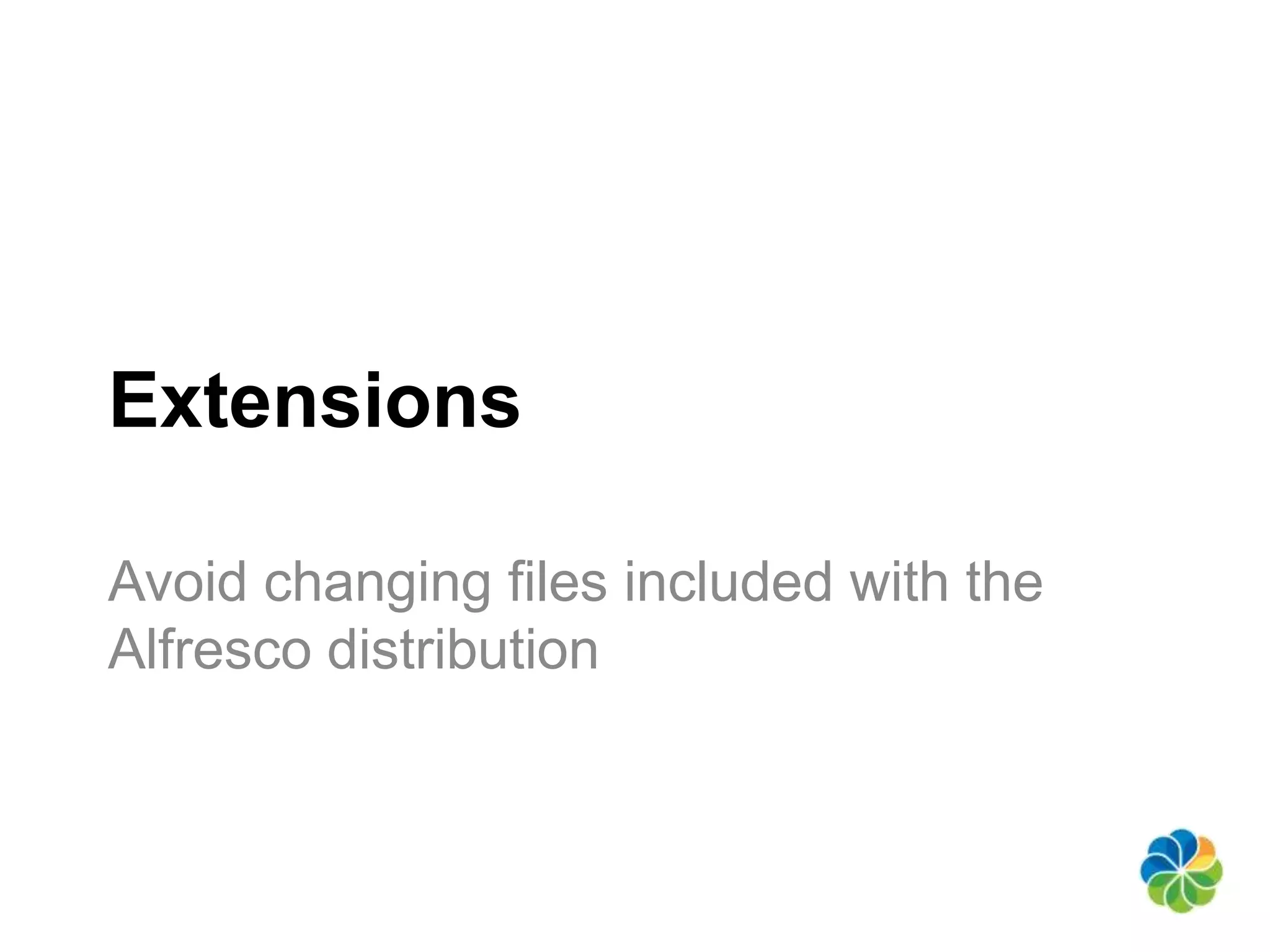

- 15. Extensions Avoid changing files included with the Alfresco distribution

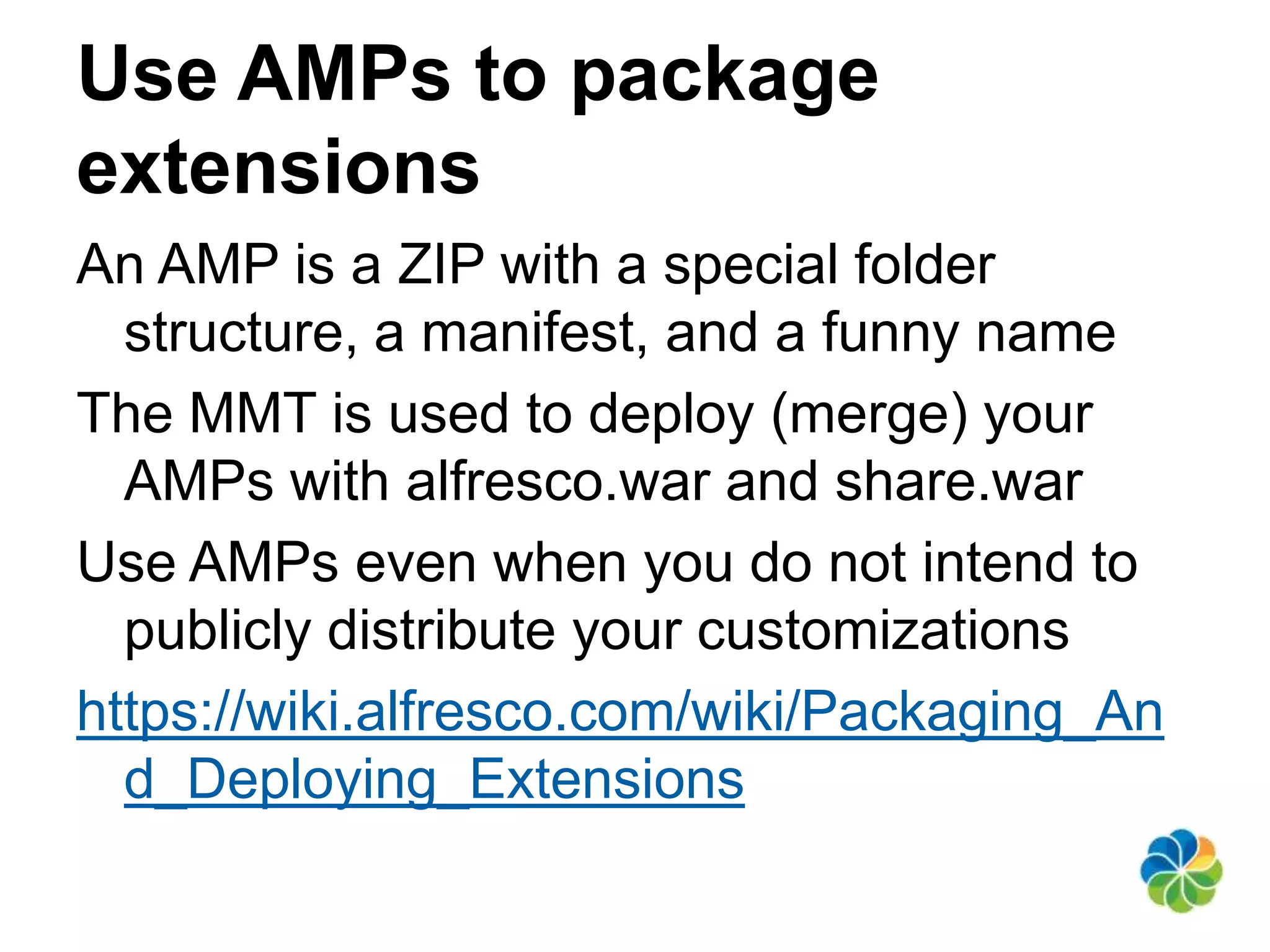

- 16. Use AMPs to package extensions An AMP is a ZIP with a special folder structure, a manifest, and a funny name The MMT is used to deploy (merge) your AMPs with alfresco.war and share.war Use AMPs even when you do not intend to publicly distribute your customizations https://wiki.alfresco.com/wiki/Packaging_An d_Deploying_Extensions

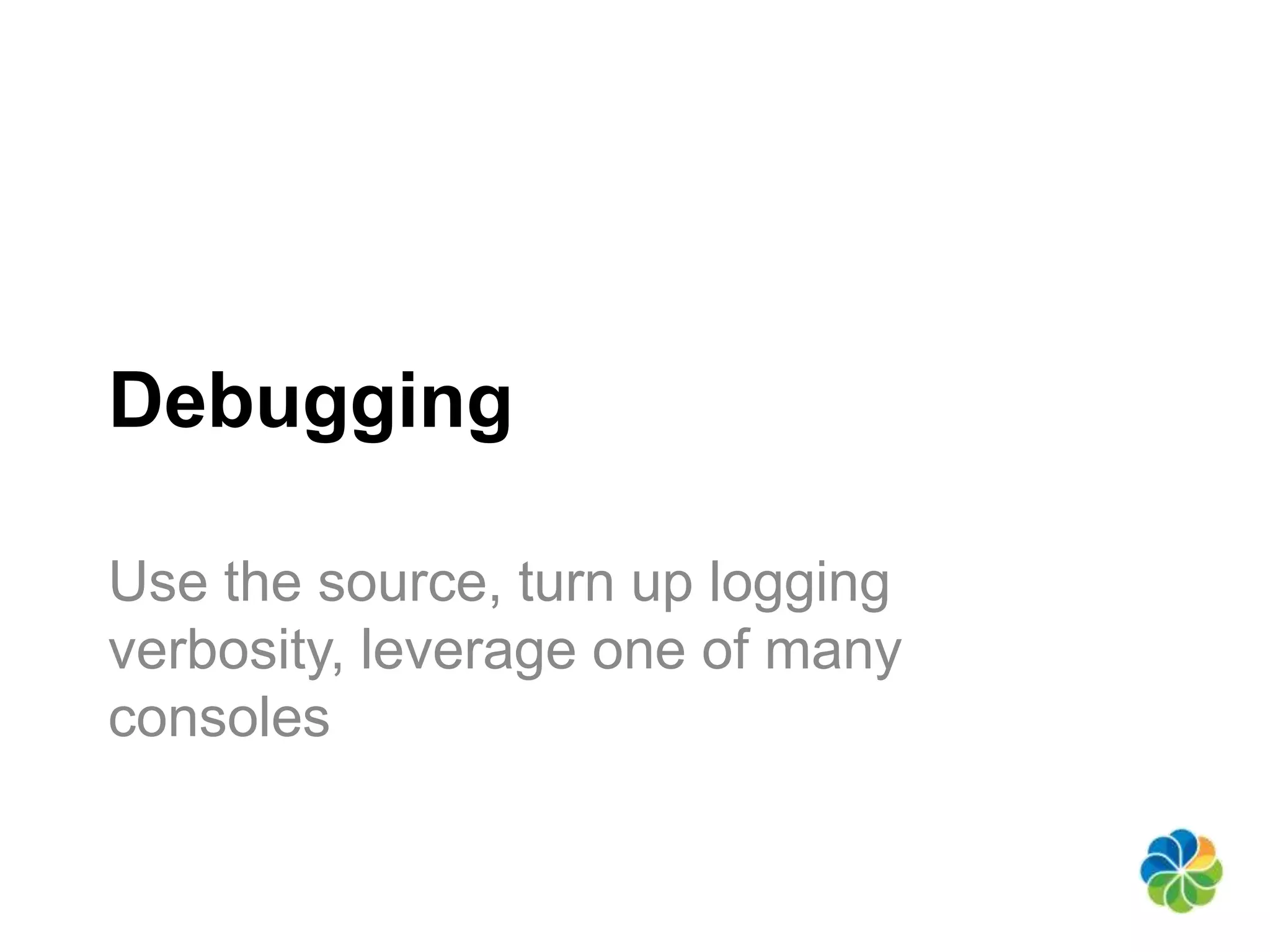

- 17. Debugging Use the source, turn up logging verbosity, leverage one of many consoles

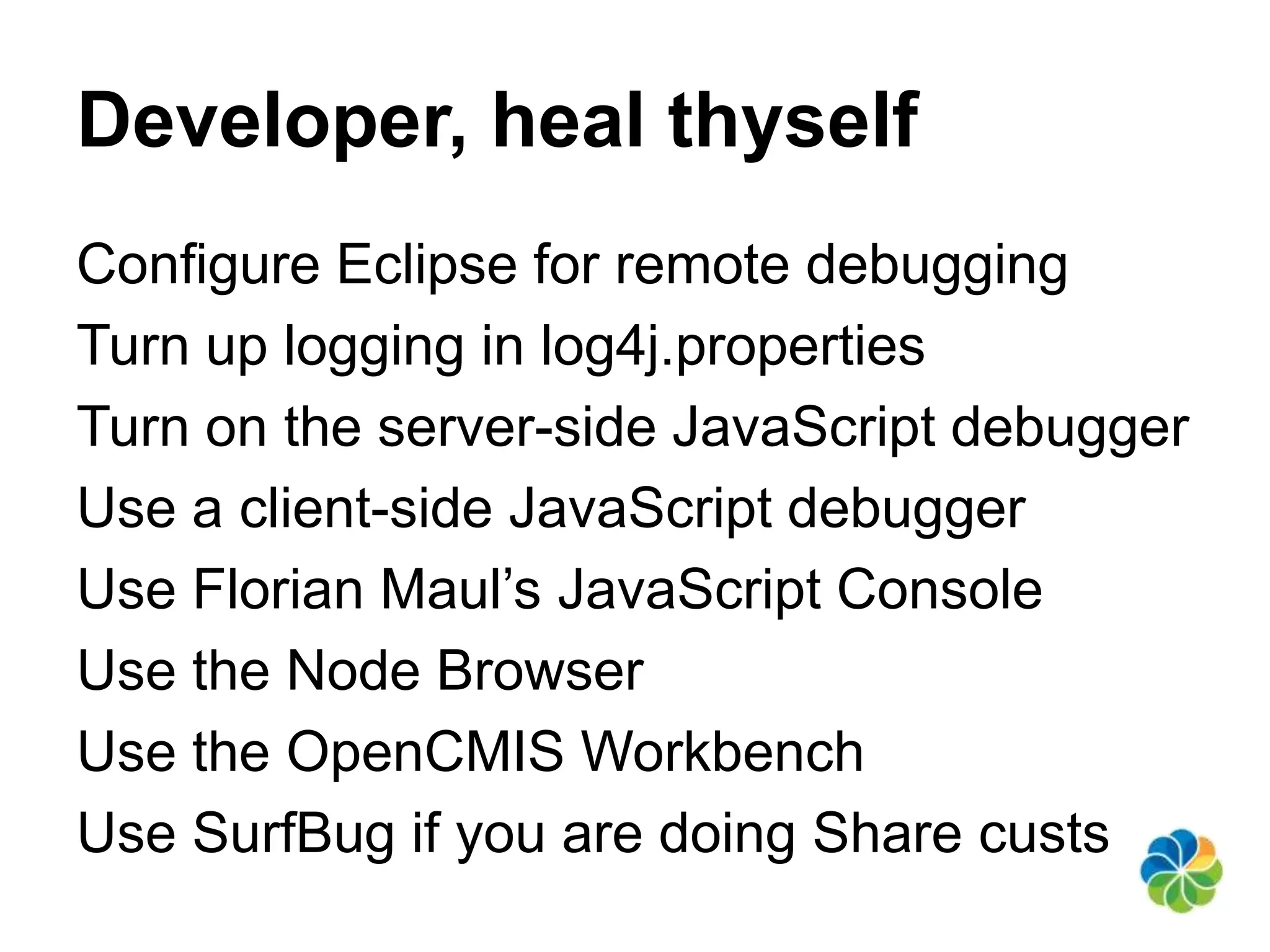

- 18. Developer, heal thyself Configure Eclipse for remote debugging Turn up logging in log4j.properties Turn on the server-side JavaScript debugger Use a client-side JavaScript debugger Use Florian Maul’s JavaScript Console Use the Node Browser Use the OpenCMIS Workbench Use SurfBug if you are doing Share custs

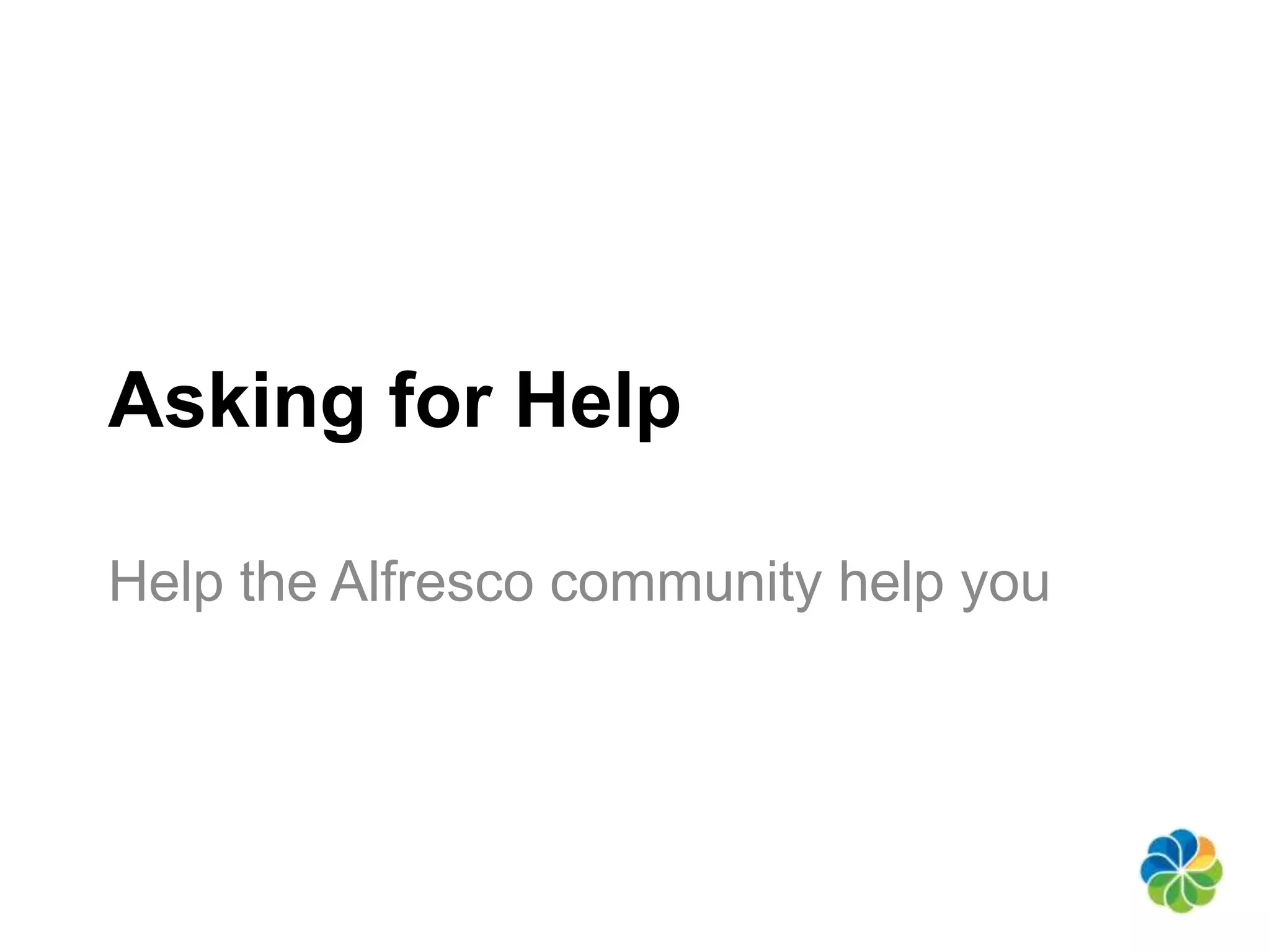

- 19. Asking for Help Help the Alfresco community help you

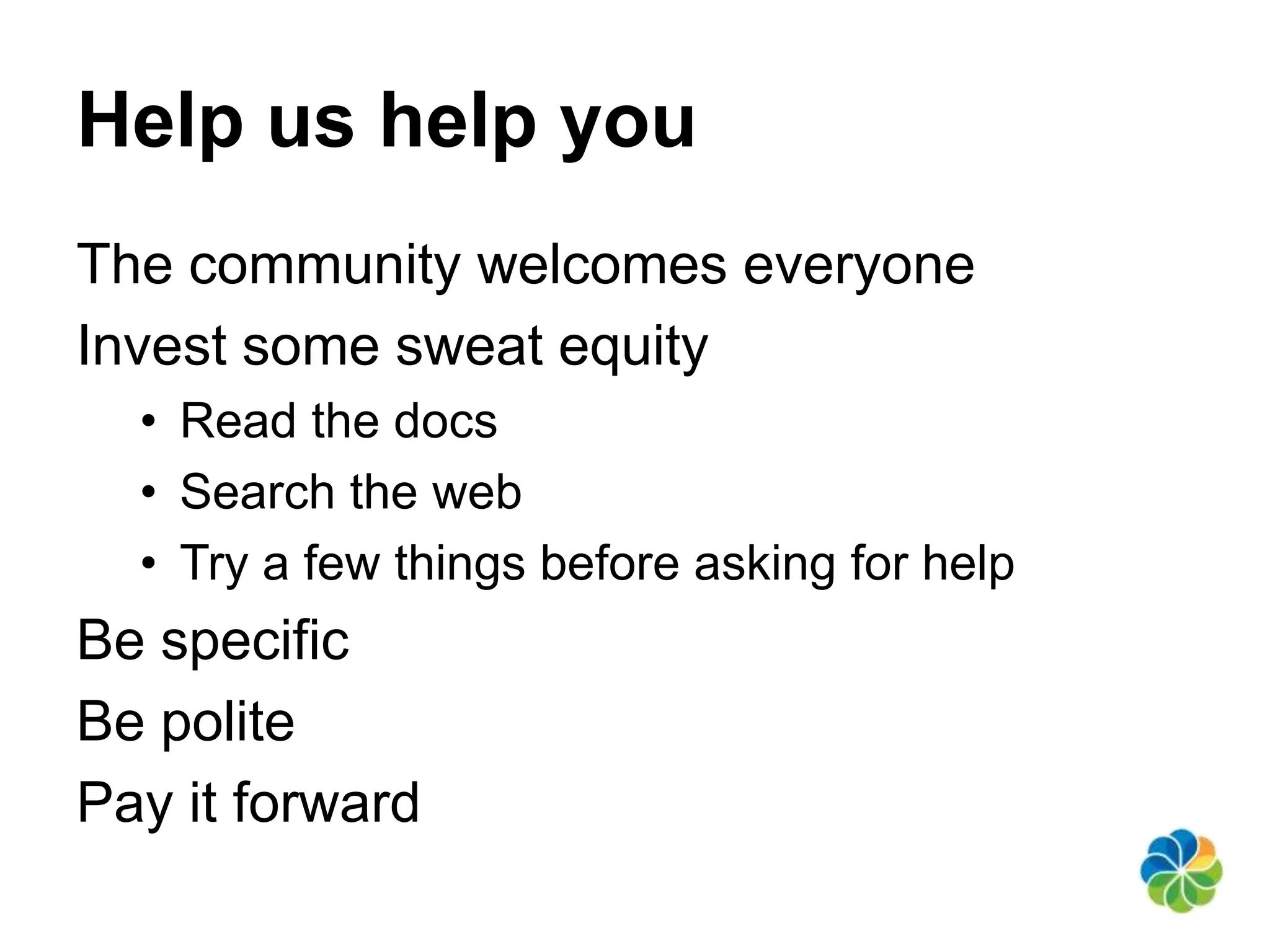

- 20. Help us help you The community welcomes everyone Invest some sweat equity • Read the docs • Search the web • Try a few things before asking for help Be specific Be polite Pay it forward

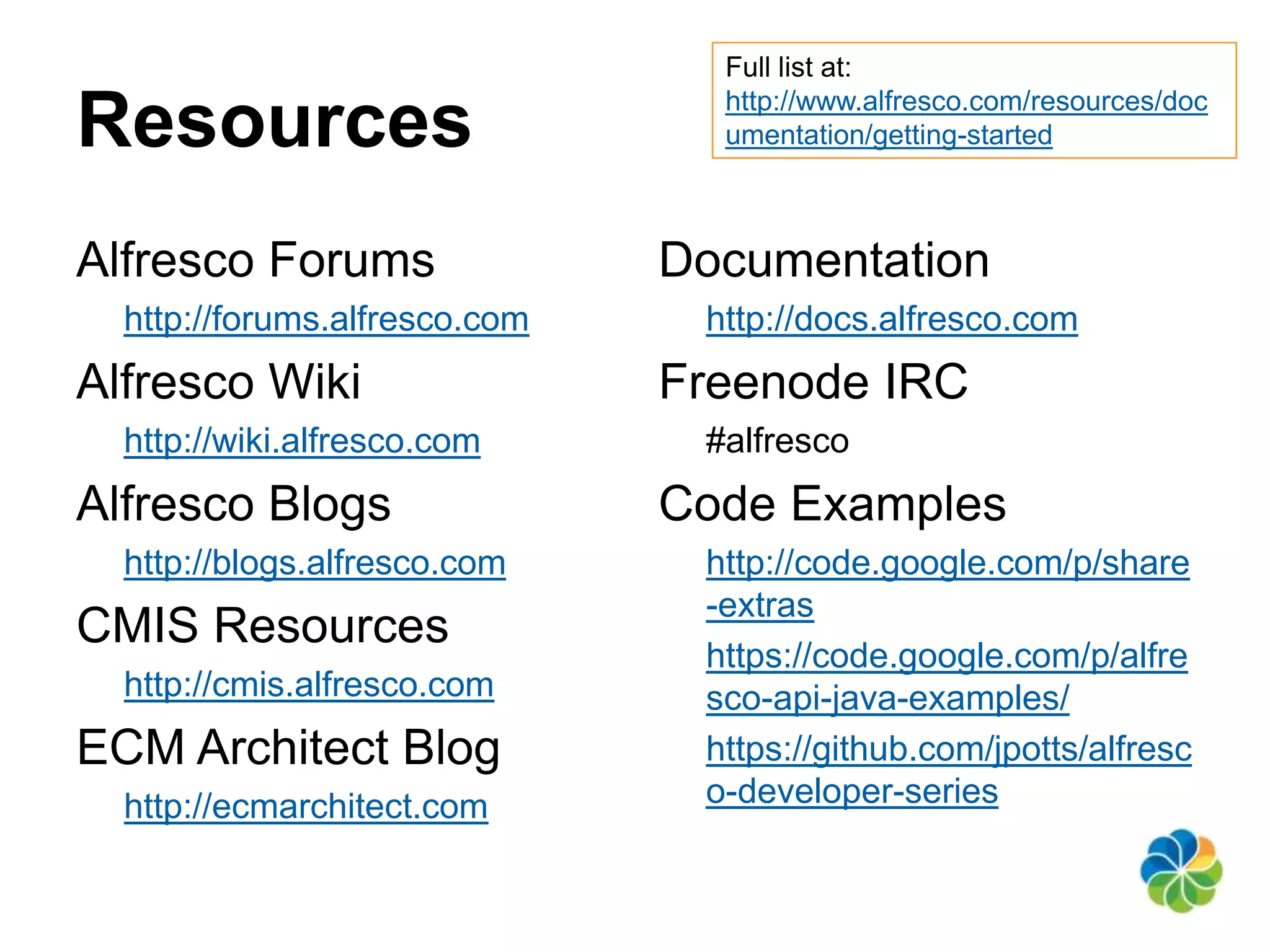

- 21. Resources Alfresco Forums http://forums.alfresco.com Alfresco Wiki http://wiki.alfresco.com Alfresco Blogs http://blogs.alfresco.com CMIS Resources http://cmis.alfresco.com ECM Architect Blog http://ecmarchitect.com Documentation http://docs.alfresco.com Freenode IRC #alfresco Code Examples http://code.google.com/p/share -extras https://code.google.com/p/alfre sco-api-java-examples/ https://github.com/jpotts/alfresc o-developer-series Full list at: http://www.alfresco.com/resources/doc umentation/getting-started
Editor's Notes
- This is not an exhaustive or very detailed list. This is basically what I’d tell someone just getting started with Alfresco if we had just enough time for a coffeePHOTO CREDIT: Coffee Shop by bunchofpants, cc by-nc-sa, http://www.flickr.com/photos/bunchofpants/100442520/
- Look for model management tools on http://addons.alfresco.comAt a bare minimum, you need a model-context.xml and a model.xml file. Most people will also have a UI config file for Share. See http://ecmarchitect.com for a tutorial.
- See http://ecmarchitect.com for a rule actions tutorial.
- See http://ecmarchitect.com for a web scripts tutorial.
- Emphasize the different set of objects point. This trips up a lot of people.A side-note, somewhat related is that JavaScript exists in both tiers and in the browser. So when you are debugging JavaScript or asking someone a question, it usually saves time if you clarify exactly where your JavaScript is running.
- See CMIS & Apache Chemistry in Action, by Florian Mueller, Jay Brown, and Jeff Potts, Manning (2013)
- Ruby, Perl, C++ libraries available elsewhere, not in Apache Chemistry (yet)
- Use a standard extension mechanism instead.
