This document discusses how to connect smart home devices like PlayBulb to voice assistants using IFTTT and Watson IoT Platform. Devices can publish events to WIoTP which then trigger IFTTT recipes. IFTTT uses webhooks to send commands to devices or trigger Alexa/Google Home. Node-RED flows show how commands from voice assistants can control devices via WIoTP, IFTTT, and MQTT. References provide code and recipes for setting up the connections.

1. IFTTT, Alexa, Google Home &
Watson IoT Platform
Markus van Kempen
Executive Architect &
Venture Capitalist
E: mvk@ca.ibm.com
T: @markusvankempen

2. 2

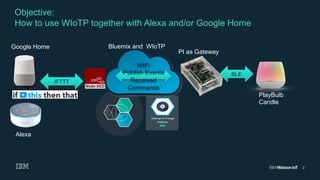

Objective:
How to use WIoTP together with Alexa and/or Google Home
BLE
Bluemix and WIoTP
PI as Gateway
WIFI
Publish Events
Received
Commands
IFTTT
Alexa
Google Home
PlayBulb
Candle

3. 3
• Bluemix + WIoTP
• Device connect to WIoTP like PlayBlub
• https://developer.ibm.com/recipes/tutorials/playbulb-candle-watson-iot-platform-using-watson-apis-and-twitter/
• Node-RED e.g IoT starter app
• IFTTT account
• Amazon Account
• Echo or Alexa or Google Home
Ingredients

4. 4

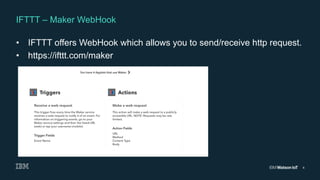

• IFTTT offers WebHook which allows you to send/receive http request.
• https://ifttt.com/maker
IFTTT – Maker WebHook

5. 5

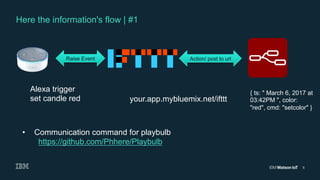

Here the information's flow | #1
Raise Event Action/ post to url
Alexa trigger
set candle red your.app.mybluemix.net/ifttt
{ ts: " March 6, 2017 at
03:42PM ", color:
"red", cmd: "setcolor" }
• Communication command for playbulb
https://github.com/Phhere/Playbulb

6. 6

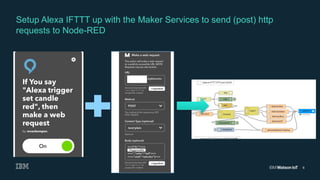

Setup Alexa IFTTT up with the Maker Services to send (post) http
requests to Node-RED

7. 7

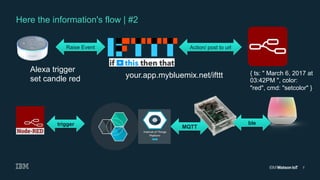

Here the information's flow | #2
Raise Event Action/ post to url
Alexa trigger
set candle red your.app.mybluemix.net/ifttt { ts: " March 6, 2017 at
03:42PM ", color:
"red", cmd: "setcolor" }
MQTT
trigger ble

8. 8

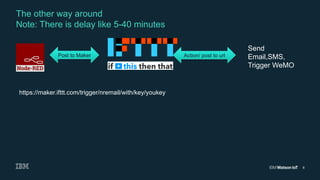

The other way around
Note: There is delay like 5-40 minutes
Post to Maker
https://maker.ifttt.com/trigger/nremail/with/key/youkey
Action/ post to url
Send
Email,SMS,
Trigger WeMO

9. 9
Markus van Kempen
Executive Architect & Venture Capitalist
IBM Corporate Strategy
Innovating with People and Technology
email: mvk@ ca.ibm.com
Twitter: @markusvankempen
HashtagJ: #MVK

10. 10
• Communication command for playbulb
• https://github.com/Phhere/Playbulb
• Pi / PlayBulb node.js code and Node-red flows
• https://github.com/markusvankempen/playbulb
• Recipe on IBM DeveloperWorks
• PlayBlub
– https://developer.ibm.com/recipes/tutorials/playbulb-candle-watson-iot-platform-using-watson-apis-and-twitter/
• Alexa and WIoTP
• Node-RED flow
• https://raw.githubusercontent.com/markusvankempen/playbulb/master/node-red-flows/alexa.flow
• Shopping list
• https://www.amazon.com/gp/registry/wishlist/1870QQ55J0VTO/ref=nav_wishlist_lists_2?
cm_mc_uid=30806442456714843264946&cm_mc_sid_50200000=1484603129

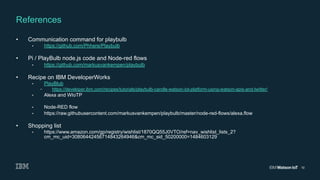

References
