This document contains specifications for various aluminum anodes, including their dimensions, weights, and materials. It lists 10 different anode models ranging in length from 1,190 to 4,350 mm, width from 135 to 257 mm, and depth from 25 to 220 mm. The anodes are made of aluminum alloys according to Det Norske Veritas standards and can be custom designed for different applications. Contact information is provided for Aberdeen Foundries to discuss project requirements.

1. 23 - 41 Willowdale Place, Aberdeen, AB24 5AQ

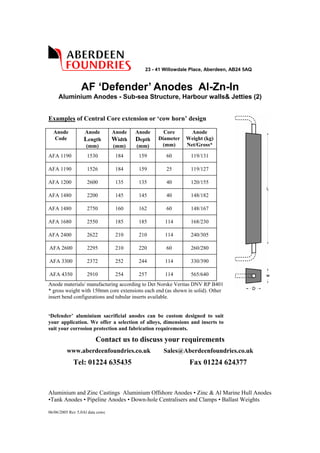

AF ‘Defender’ Anodes Al-Zn-In
Aluminium Anodes - Sub-sea Structure, Harbour walls& Jetties (2)
Examples of Central Core extension or ‘cow horn’ design
Anode
Code
Anode
Length
(mm)
Anode
Width
(mm)
Anode
Depth
(mm)
Core
Diameter
(mm)
Anode
Weight (kg)
Net/Gross*
AFA 1190 1530 184 159 60 119/131
AFA 1190 1526 184 159 25 119/127
AFA 1200 2600 135 135 40 120/155
AFA 1480 2200 145 145 40 148/182
AFA 1480 2750 160 162 60 148/167
AFA 1680 2550 185 185 114 168/230
AFA 2400 2622 210 210 114 240/305
AFA 2600 2295 210 220 60 260/280
AFA 3300 2372 252 244 114 330/390
AFA 4350 2910 254 257 114 565/640
Aluminium and Zinc Castings Aluminium Offshore Anodes • Zinc & Al Marine Hull Anodes
•Tank Anodes • Pipeline Anodes • Down-hole Centralisers and Clamps • Ballast Weights
06/06/2005 Rev 5.0Al data cowc
Anode materials/ manufacturing according to Det Norske Veritas DNV RP B401
* gross weight with 150mm core extensions each end (as shown in solid). Other
insert bend configurations and tubular inserts available.
‘Defender’ aluminium sacrificial anodes can be custom designed to suit
your application. We offer a selection of alloys, dimensions and inserts to
suit your corrosion protection and fabrication requirements.
Contact us to discuss your requirements
www.aberdeenfoundries.co.uk Sales@Aberdeenfoundries.co.uk
Tel: 01224 635435 Fax 01224 624377
