1. Agile Methods

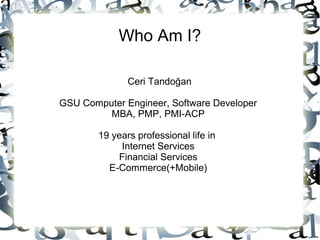

2. Who Am I?
Ceri Tandoğan
GSU Computer Engineer, Software Developer
MBA, PMP, PMI-ACP
19 years professional life in
Internet Services
Financial Services
E-Commerce(+Mobile)

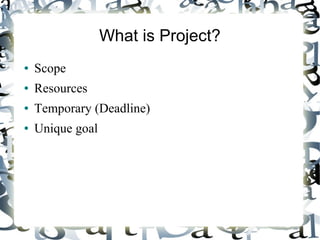

3. What is Project?
● Scope
● Resources
● Temporary (Deadline)
● Unique goal

4. Books

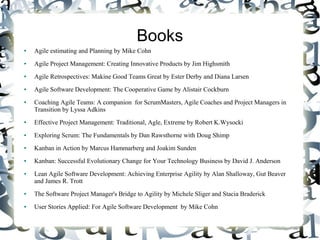

5. Books
● Agile estimating and Planning by Mike Cohn
● Agile Project Management: Creating Innovative Products by Jim Highsmith
● Agile Retrospectives: Makine Good Teams Great by Ester Derby and Diana Larsen
● Agile Software Development: The Cooperative Game by Alistair Cockburn
● Coaching Agile Teams: A companion for ScrumMasters, Agile Coaches and Project Managers in
Transition by Lyssa Adkins
● Effective Project Management: Traditional, Agle, Extreme by Robert K.Wysocki
● Exploring Scrum: The Fundamentals by Dan Rawsthorne with Doug Shimp
● Kanban in Action by Marcus Hammarberg and Joakim Sunden
● Kanban: Successful Evolutionary Change for Your Technology Business by David J. Anderson
● Lean Agile Software Development: Achieving Enterprise Agility by Alan Shalloway, Gut Beaver
and James R. Trott
● The Software Project Manager's Bridge to Agility by Michele Sliger and Stacia Braderick
● User Stories Applied: For Agile Software Development by Mike Cohn

6. Agile Manifesto
● 4 values
– Individuals and interactions over processes
and tools
– Working software over comprehensive
documentation
– Customer collaboration over contract
negotiation
– Responding to change over following a plan
●

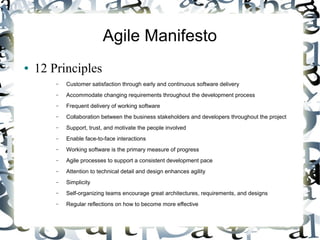

7. Agile Manifesto
● 12 Principles
– Customer satisfaction through early and continuous software delivery
– Accommodate changing requirements throughout the development process
– Frequent delivery of working software
– Collaboration between the business stakeholders and developers throughout the project
– Support, trust, and motivate the people involved
– Enable face-to-face interactions
– Working software is the primary measure of progress
– Agile processes to support a consistent development pace
– Attention to technical detail and design enhances agility
– Simplicity
– Self-organizing teams encourage great architectures, requirements, and designs
– Regular reflections on how to become more effective

8. Agile Team Roles
● Product Owner(Customer, Value management
Team, Business Representative)
● ScrumMaster (Coach,Team Leader)
● Project Sponsor
● Development Team(Delivery Team)
– Generalizing Specialists
● T-Shaped : Generalized
● I-Shaped: One Tech Domain specialist

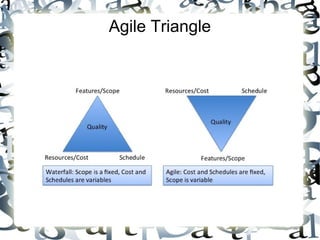

9. Agile Triangle

10. Agile Value Proposition

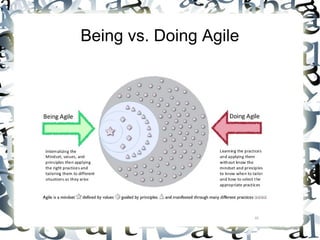

11. Being vs. Doing Agile

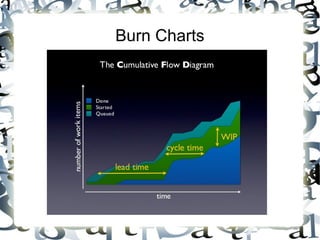

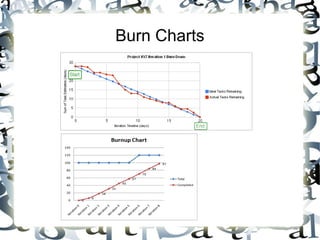

12. Burn Charts

13. Burn Charts

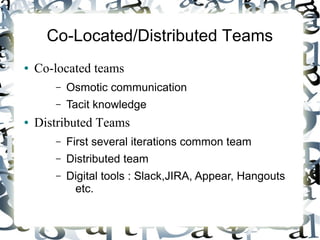

14. Co-Located/Distributed Teams
● Co-located teams
– Osmotic communication
– Tacit knowledge
● Distributed Teams
– First several iterations common team
– Distributed team
– Digital tools : Slack,JIRA, Appear, Hangouts
etc.

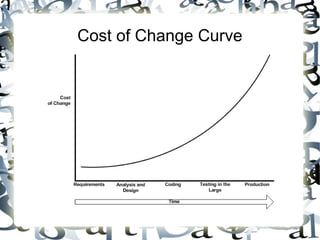

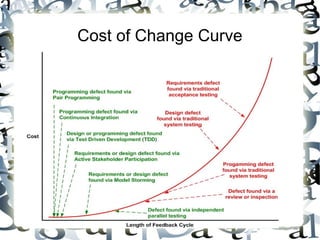

15. Cost of Change Curve

16. Cost of Change Curve

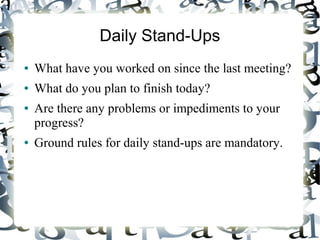

17. Daily Stand-Ups
● What have you worked on since the last meeting?
● What do you plan to finish today?
● Are there any problems or impediments to your
progress?
● Ground rules for daily stand-ups are mandatory.

18. Definition of Done
● User Stories
● Release
● Final Project Deliverables.

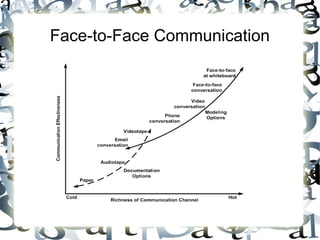

19. Face-to-Face Communication

20. Five Whys
● Finding root cause of problems

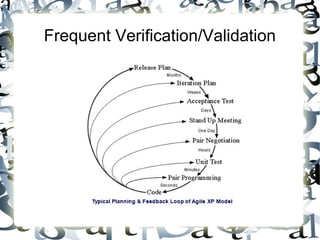

21. Frequent Verification/Validation

22. Ideal Time
● How long a task will take without any
interruptions.

23. Incremental Delivery

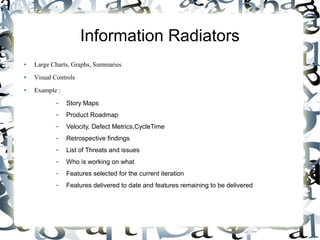

24. Information Radiators
● Large Charts, Graphs, Summaries
● Visual Controls
● Example :
– Story Maps
– Product Roadmap
– Velocity, Defect Metrics,CycleTime
– Retrospective findings
– List of Threats and issues
– Who is working on what
– Features selected for the current iteration
– Features delivered to date and features remaining to be delivered

25. Iteration Planning
● Customer → priorities
● Development Team → Amount of work
● Discuss user stories
● Select user stories
● Define acceptance tests
● Break into tasks
● Estimate tasks in ideal time and assign

26. Kaizen
● “Change for the better”
● Manufacturind process focused on making small
improvements → continuous improvement
● Lessons learned → Five Whys and Fishbone
analysis.

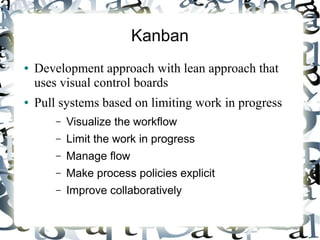

27. Kanban
● Development approach with lean approach that
uses visual control boards
● Pull systems based on limiting work in progress
– Visualize the workflow
– Limit the work in progress
– Manage flow
– Make process policies explicit
– Improve collaboratively

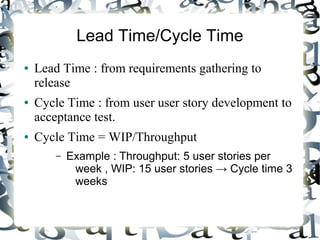

28. Lead Time/Cycle Time
● Lead Time : from requirements gathering to
release
● Cycle Time : from user user story development to
acceptance test.
● Cycle Time = WIP/Throughput
– Example : Throughput: 5 user stories per
week , WIP: 15 user stories → Cycle time 3
weeks

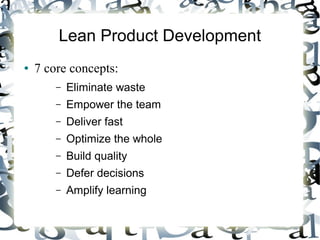

29. Lean Product Development
● 7 core concepts:
– Eliminate waste
– Empower the team
– Deliver fast
– Optimize the whole
– Build quality
– Defer decisions
– Amplify learning

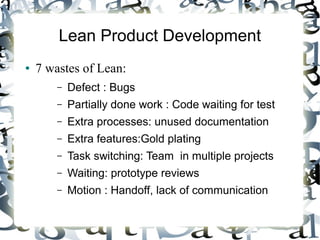

30. Lean Product Development
● 7 wastes of Lean:
– Defect : Bugs
– Partially done work : Code waiting for test
– Extra processes: unused documentation
– Extra features:Gold plating
– Task switching: Team in multiple projects
– Waiting: prototype reviews
– Motion : Handoff, lack of communication

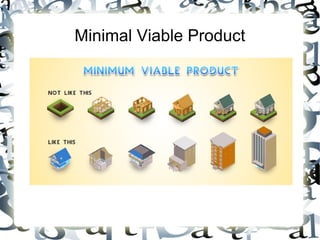

31. Minimal Viable Product

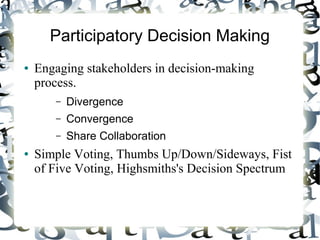

32. Participatory Decision Making
● Engaging stakeholders in decision-making
process.
– Divergence
– Convergence
– Share Collaboration
● Simple Voting, Thumbs Up/Down/Sideways, Fist
of Five Voting, Highsmiths's Decision Spectrum

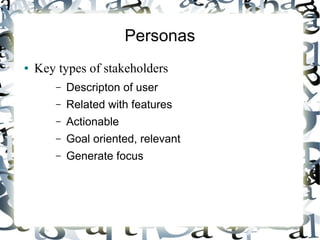

33. Personas
● Key types of stakeholders
– Descripton of user
– Related with features
– Actionable
– Goal oriented, relevant
– Generate focus

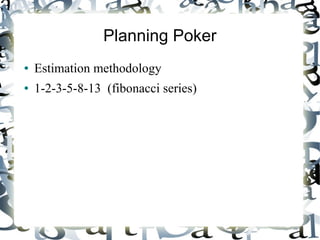

34. Planning Poker
● Estimation methodology
● 1-2-3-5-8-13 (fibonacci series)

35. Prioritization Schemes
● Simple prioritizing
● Moscow
● 100 point Method
● Monopoly Money
● Dot Voting
● Kano Analysis

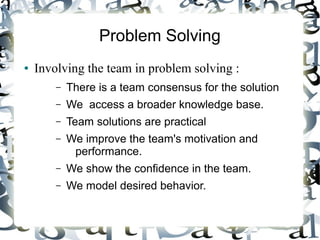

36. Problem Solving
● Involving the team in problem solving :
– There is a team consensus for the solution
– We access a broader knowledge base.
– Team solutions are practical
– We improve the team's motivation and
performance.
– We show the confidence in the team.
– We model desired behavior.

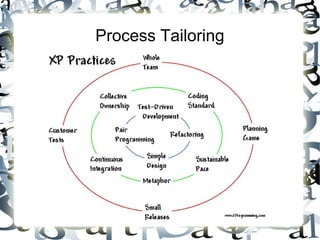

37. Process Tailoring

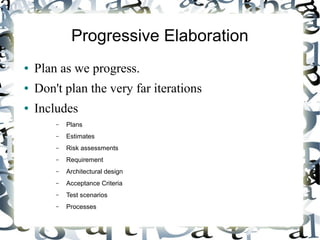

38. Progressive Elaboration
● Plan as we progress.
● Don't plan the very far iterations
● Includes
– Plans
– Estimates
– Risk assessments
– Requirement
– Architectural design
– Acceptance Criteria
– Test scenarios
– Processes

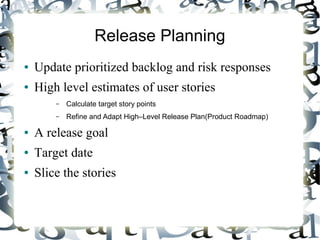

39. Release Planning
● Update prioritized backlog and risk responses
● High level estimates of user stories
– Calculate target story points
– Refine and Adapt High–Level Release Plan(Product Roadmap)
● A release goal
● Target date
● Slice the stories

40. Retrospectives
● What is going well?
● What areas could use improvement?
● What should we be doing differently?

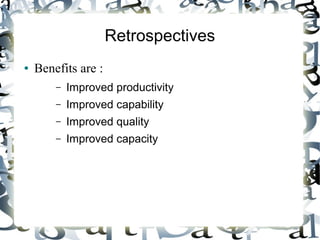

41. Retrospectives
● Benefits are :
– Improved productivity
– Improved capability
– Improved quality
– Improved capacity

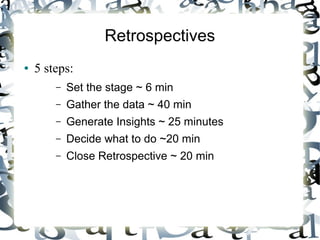

42. Retrospectives
● 5 steps:
– Set the stage ~ 6 min
– Gather the data ~ 40 min
– Generate Insights ~ 25 minutes
– Decide what to do ~20 min
– Close Retrospective ~ 20 min

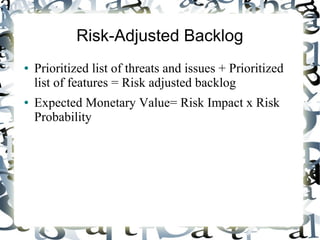

43. Risk-Adjusted Backlog
● Prioritized list of threats and issues + Prioritized
list of features = Risk adjusted backlog
● Expected Monetary Value= Risk Impact x Risk
Probability

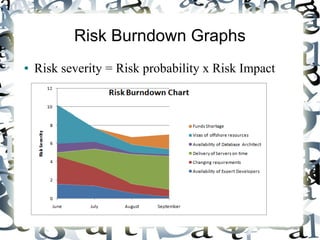

44. Risk Burndown Graphs
● Risk severity = Risk probability x Risk Impact

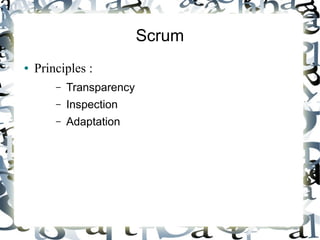

45. Scrum
● Principles :
– Transparency
– Inspection
– Adaptation

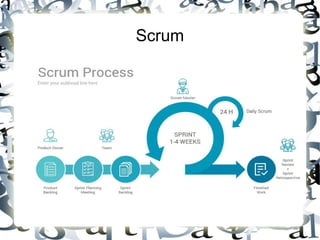

46. Scrum

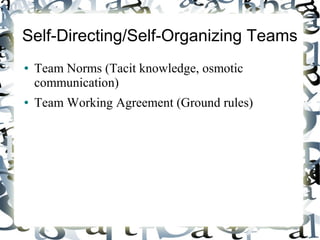

47. Self-Directing/Self-Organizing Teams
● Team Norms (Tacit knowledge, osmotic
communication)
● Team Working Agreement (Ground rules)

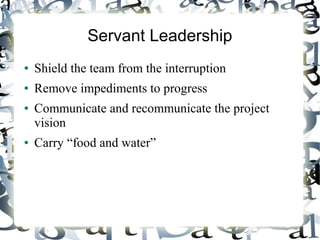

48. Servant Leadership
● Shield the team from the interruption
● Remove impediments to progress
● Communicate and recommunicate the project
vision
● Carry “food and water”

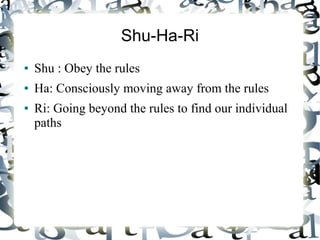

49. Shu-Ha-Ri
● Shu : Obey the rules
● Ha: Consciously moving away from the rules
● Ri: Going beyond the rules to find our individual
paths

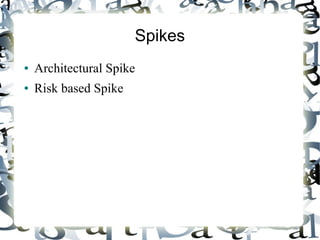

50. Spikes
● Architectural Spike
● Risk based Spike

51. Story Points/Relative Sizing
● Story Points
– All inclusive
– Team owns it
– Point sizes are consistent over the project
– Decomposing a user story estimate, total
don't need to match
– Story point estimates include the complexity,
work effort and risk of the work.

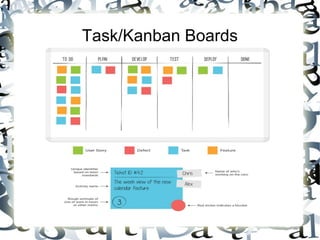

52. Task/Kanban Boards

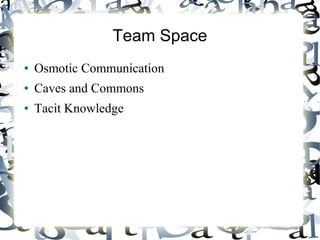

53. Team Space
● Osmotic Communication
● Caves and Commons
● Tacit Knowledge

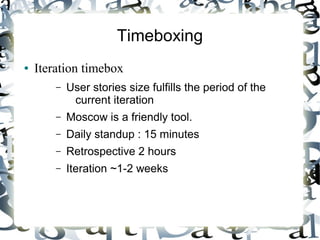

54. ● Iteration timebox
– User stories size fulfills the period of the
current iteration
– Moscow is a friendly tool.
– Daily standup : 15 minutes
– Retrospective 2 hours
– Iteration ~1-2 weeks
Timeboxing

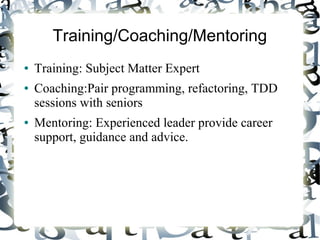

55. Training/Coaching/Mentoring
● Training: Subject Matter Expert
● Coaching:Pair programming, refactoring, TDD
sessions with seniors
● Mentoring: Experienced leader provide career
support, guidance and advice.

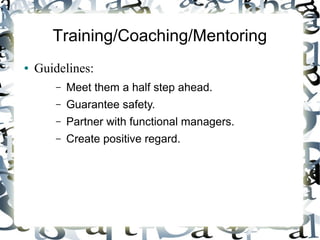

56. Training/Coaching/Mentoring
● Guidelines:
– Meet them a half step ahead.
– Guarantee safety.
– Partner with functional managers.
– Create positive regard.

57. Tuckman Model of Team Development
● Forming ← Directing
● Storming ← Coaching
● Norming ← Supporting
● Performing ← Delegating
● Adjourning
● Adaptive and Situational Leadership is the key
method for Team development

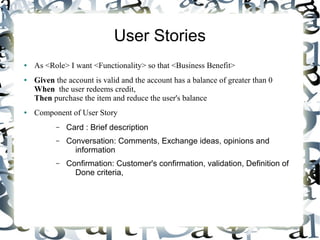

58. User Stories
● As <Role> I want <Functionality> so that <Business Benefit>
● Given the account is valid and the account has a balance of greater than 0
When the user redeems credit,
Then purchase the item and reduce the user's balance
● Component of User Story
– Card : Brief description
– Conversation: Comments, Exchange ideas, opinions and
information
– Confirmation: Customer's confirmation, validation, Definition of
Done criteria,

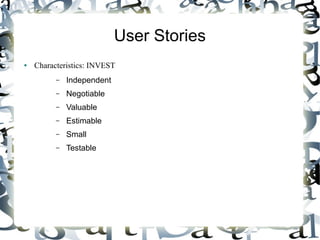

59. User Stories
● Characteristics: INVEST
– Independent
– Negotiable
– Valuable
– Estimable
– Small
– Testable

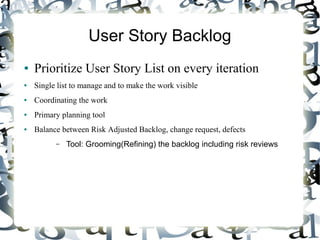

60. User Story Backlog
● Prioritize User Story List on every iteration
● Single list to manage and to make the work visible
● Coordinating the work
● Primary planning tool
● Balance between Risk Adjusted Backlog, change request, defects
– Tool: Grooming(Refining) the backlog including risk reviews

61. Value Stream Mapping
● Identifying waste, delays and constraints.
● Process cycle efficiency:Efficient time/Total Time

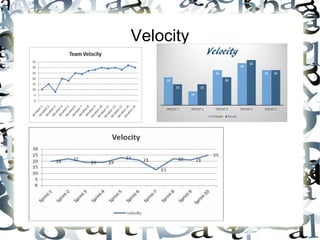

62. Velocity

63. Work In Progress/WIP Limits
● WIP consumes investment capital delivers no ROI
until it turns accepted
● WIP hides bottleneck, efficiency issues
● Potential reworks because changes to work items
until it is accepted
● Little's Law: reducing work in progress
increases team's productivity.

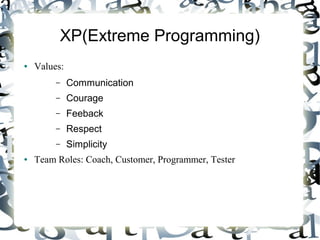

64. XP(Extreme Programming)
● Values:
– Communication
– Courage
– Feeback
– Respect
– Simplicity
● Team Roles: Coach, Customer, Programmer, Tester
