This document discusses creating and customizing jQuery plugins. It begins with an overview and agenda, then covers topics like common jQuery plugins, rules for developing plugins, how to create a basic plugin, customizing existing plugins, and debugging JavaScript/jQuery issues. The document provides code examples for each topic and emphasizes naming conventions, default options, the plugin constructor, and animations.

1. NGUYEN TUAN LAM
CWI Team

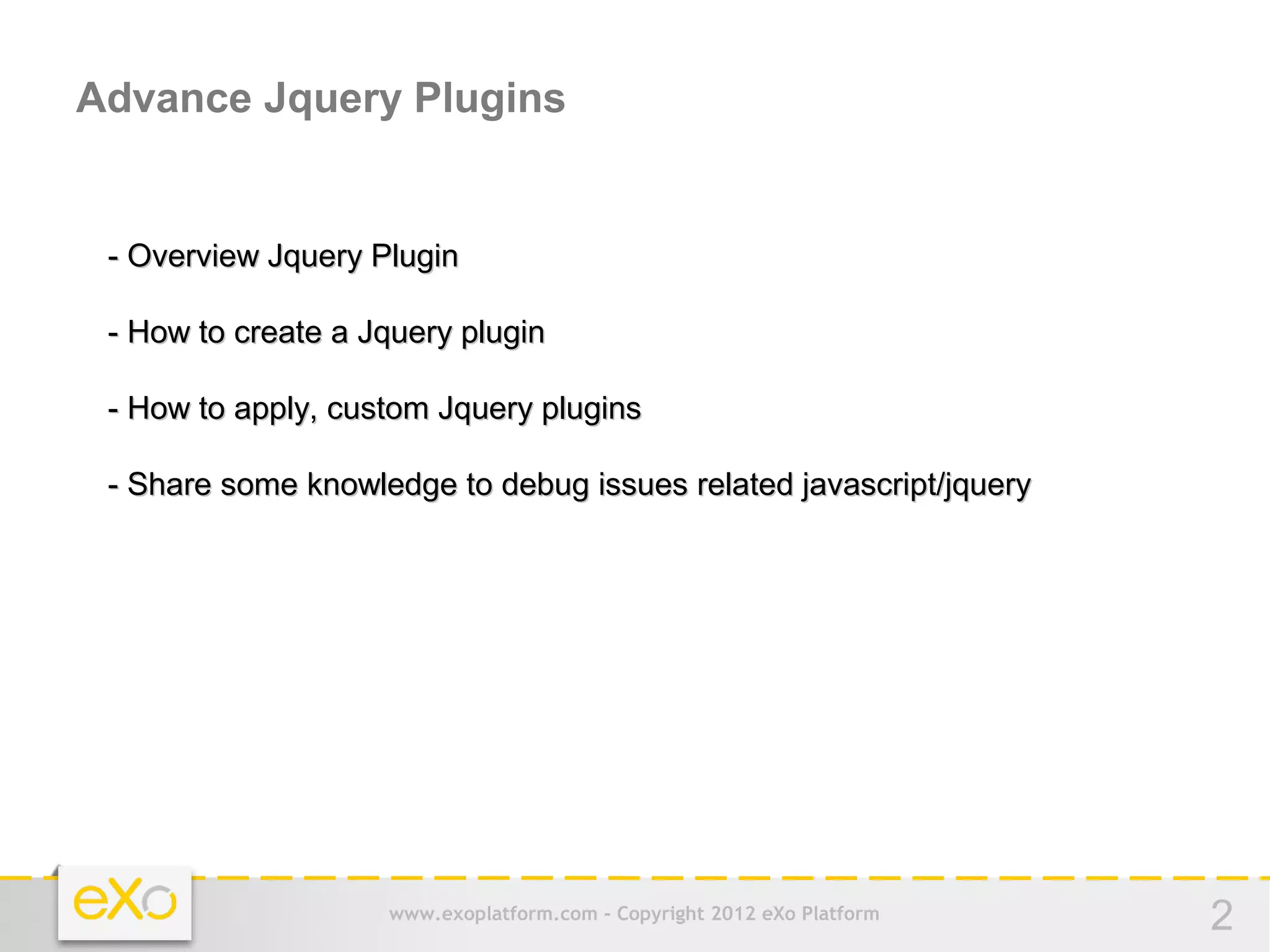

2. Advance Jquery Plugins
- Overview Jquery Plugin
- How to create a Jquery plugin
- How to apply, custom Jquery plugins
- Share some knowledge to debug issues related javascript/jquery
www.exoplatform.com - Copyright 2012 eXo Platform 2

3. Agenda
- Introduce some common jquery plugins
- Some rules of Jquery plugins development
- How to create a Jquery plugin
- How to custom Jquery plugins
- Share some knowledge related
javascript/jquery
www.exoplatform.com - Copyright 2012 eXo Platform 3

4. Overview some jquery plugin
- Jquery plugin simple slideshow
- Jquery plugin rotator slider
- Jquery plugin modal/lightbox
- Jquery plugin dropdown menu
www.exoplatform.com - Copyright 2012 eXo Platform 4

5. Some rules of Jquery plugin development

Naming your file

Naming prefix for all related files with your plugin
jquery.myplugin.js
jquery.myplugin.css

Register in Jquery.fn
(function($){
//Attach this new method to jQuery
$.fn.myplugin = function(instanceSettings) {
// code plugin in here...
}
})(jQuery);
www.exoplatform.com - Copyright 2012 eXo Platform 5

6. Some rules of Jquery plugin development (Continue...)

Register in Jquery.fn(Continue...) :
(function($){
//Attach this new method to jQuery
$.fn.extend({
// pluginname is myplugin – constructor should be myplugin
myplugin: function() {
}
});
})(jQuery);
www.exoplatform.com - Copyright 2012 eXo Platform 6

7. Some rules of Jquery plugin development (Continue...)

Jquery plugin name same the method constructor
(function($){
$.fn.extend({
// pluginname is myplugin – constructor should be myplugin
myplugin: function() {
}
});
})(jQuery);
www.exoplatform.com - Copyright 2012 eXo Platform 7

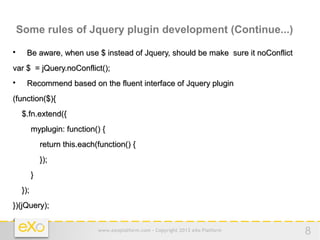

8. Some rules of Jquery plugin development (Continue...)

Be aware, when use $ instead of Jquery, should be make sure it noConflict
var $ = jQuery.noConflict();

Recommend based on the fluent interface of Jquery plugin
(function($){
$.fn.extend({
myplugin: function() {
return this.each(function() {
});
}
});
})(jQuery);
www.exoplatform.com - Copyright 2012 eXo Platform 8

9. Some rules of Jquery plugin development (Continue...)
Handle sets one or multiple elements
(function($){
$.fn.extend({
myplugin: function() {
return this.each(function() { //set for one or multiple elements
});
}
});
})(jQuery);
www.exoplatform.com - Copyright 2012 eXo Platform 9

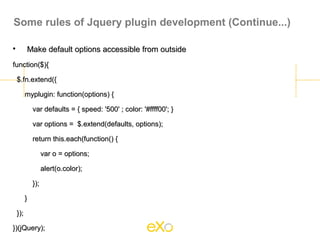

10. Some rules of Jquery plugin development (Continue...)

Make default options accessible from outside
function($){
$.fn.extend({
myplugin: function(options) {
var defaults = { speed: '500' ; color: '#ffff00'; }
var options = $.extend(defaults, options);
return this.each(function() {
var o = options;
alert(o.color);
});
}
});
})(jQuery);

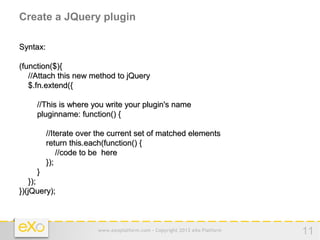

11. Create a JQuery plugin
Syntax:
(function($){
//Attach this new method to jQuery
$.fn.extend({
//This is where you write your plugin's name
pluginname: function() {
//Iterate over the current set of matched elements
return this.each(function() {
//code to be here
});
}
});
})(jQuery);
www.exoplatform.com - Copyright 2012 eXo Platform 11

12. Create a Jquery plugin (continue...)
Optional:
(function($){
$.fn.extend({
//pass the options variable to the function
myplugin: function(options) {
//Set the default values, use comma to separate the settings, example:
var defaults = {
'foo' : 'bar'
}
var options = $.extend(defaults, options);
return this.each(function() {
var o = options;
alert(o.foo);
});
}
});
})(jQuery);
www.exoplatform.com - Copyright 2012 eXo Platform 12

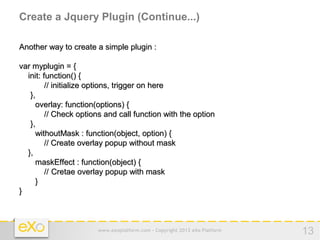

13. Create a Jquery Plugin (Continue...)
Another way to create a simple plugin :
var myplugin = {
init: function() {
// initialize options, trigger on here
},
overlay: function(options) {
// Check options and call function with the option
},
withoutMask : function(object, option) {
// Create overlay popup without mask
},
maskEffect : function(object) {
// Cretae overlay popup with mask
}
}
www.exoplatform.com - Copyright 2012 eXo Platform 13

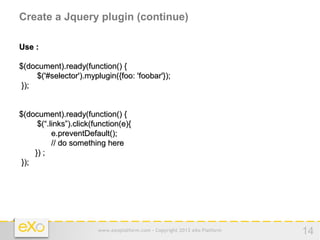

14. Create a Jquery plugin (continue)
Use :
$(document).ready(function() {
$('#selector').myplugin({foo: 'foobar'});
});
$(document).ready(function() {
$(“.links”).click(function(e){
e.preventDefault();
// do something here
}) ;
});
www.exoplatform.com - Copyright 2012 eXo Platform 14

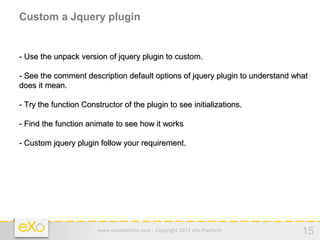

15. Custom a Jquery plugin
- Use the unpack version of jquery plugin to custom.
- See the comment description default options of jquery plugin to understand what
does it mean.
- Try the function Constructor of the plugin to see initializations.
- Find the function animate to see how it works
- Custom jquery plugin follow your requirement.
www.exoplatform.com - Copyright 2012 eXo Platform 15

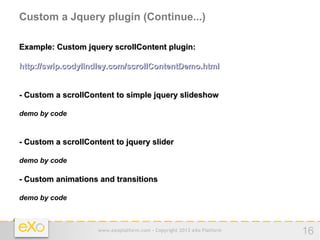

16. Custom a Jquery plugin (Continue...)
Example: Custom jquery scrollContent plugin:
http://swip.codylindley.com/scrollContentDemo.html
- Custom a scrollContent to simple jquery slideshow
demo by code
- Custom a scrollContent to jquery slider
demo by code
- Custom animations and transitions
demo by code
www.exoplatform.com - Copyright 2012 eXo Platform 16

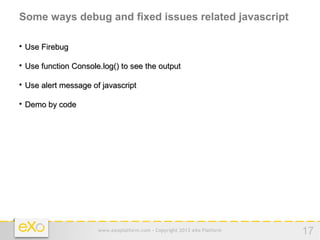

17. Some ways debug and fixed issues related javascript

Use Firebug

Use function Console.log() to see the output

Use alert message of javascript

Demo by code
www.exoplatform.com - Copyright 2012 eXo Platform 17

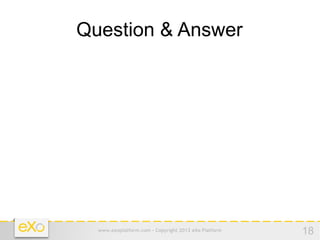

18. Question & Answer
www.exoplatform.com - Copyright 2012 eXo Platform 18
