2. ENTERPRISE PRAGMATIC IT
Consulting Training Development
Oracle Fusion Oracle Oracle Oracle
Middleware WebCenter ADF WebLogic
Enable productive IT by Oracle Technologies
Andreas Koop, 12.10.2012, German ADF Community

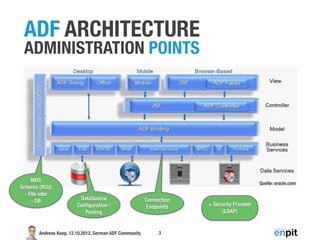

3. ADF ARCHITECTURE
ADMINISTRATION POINTS
MDS Quelle: oracle.com
Schema (RCU)
- File oder
- DB DataSource Connection
Configuration / Endpoints + Security Provider
Pooling (LDAP)
Andreas Koop, 12.10.2012, German ADF Community 3

4. ADF ADMINISTRATION TASKS
‣ WebLogic Basics / mod_wls
‣ App Deployment
‣ DataSource, Connection
Pooling, Application Module
Pooling
‣ Performance Monitoring ‣ Administration Tools
(Enterprise Manager,
‣ JVM Tuning AdminConsole, WLST)
‣ Security Provider ‣ JMX / MBeans
Andreas Koop, 12.10.2012, German ADF Community 4

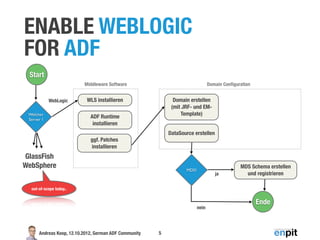

5. ENABLE WEBLOGIC
FOR ADF
Start
Middleware Software Domain Configuration
WebLogic WLS installieren Domain erstellen
(mit JRF- und EM-
Welcher Template)
Server ?
ADF Runtime
installieren
DataSource erstellen
ggf. Patches
installieren
GlassFish
WebSphere MDS Schema erstellen
MDS?
ja und registrieren
out-of-scope today..
Ende
nein
Andreas Koop, 12.10.2012, German ADF Community 5

6. DEPLOY ADF APPLICATIONS
‣ Enterprise Application Archive (EAR) verstehen
‣ WebApp, Datenquellen, JNDI, MDS
‣ Deploymentstrategien beherrschen
‣ Adminstration Console
‣ Enterprise Manager FMW Control
‣ WebLogic Scripting Tool (Empfehlung)
Andreas Koop, 12.10.2012, German ADF Community 6

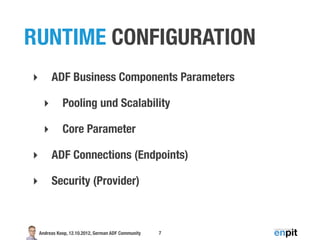

7. RUNTIME CONFIGURATION
‣ ADF Business Components Parameters
‣ Pooling und Scalability
‣ Core Parameter
‣ ADF Connections (Endpoints)
‣ Security (Provider)
Andreas Koop, 12.10.2012, German ADF Community 7

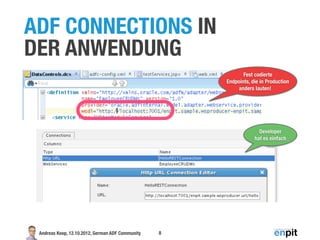

8. ADF CONNECTIONS IN
DER ANWENDUNG
Fest codierte
Endpoints, die in Production
anders lauten!
Developer
hat es einfach
Andreas Koop, 12.10.2012, German ADF Community 8

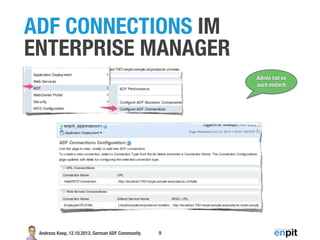

9. ADF CONNECTIONS IM
ENTERPRISE MANAGER
Admin hat es
auch einfach
Andreas Koop, 12.10.2012, German ADF Community 9

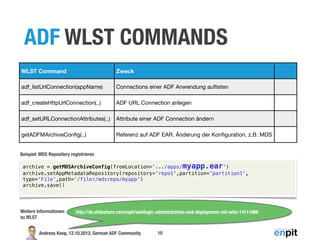

10. ADF WLST COMMANDS
WLST Command Zweck
adf_listUrlConnection(appName) Connections einer ADF Anwendung auflisten
adf_createHttpUrlConnection(..) ADF URL Connection anlegen
adf_setURLConnectionAttributes(..) Attribute einer ADF Connection ändern
getADFMArchiveConfig(..) Referenz auf ADF EAR. Änderung der Konfiguration, z.B. MDS
Beispiel: MDS Repository registrieren
archive = getMDSArchiveConfig(fromLocation='.../apps/myapp.ear')
archive.setAppMetadataRepository(repository='repo1',partition='partition1',
type='File',path='/filer/mdsrepo/myapp')
archive.save()
Weitere Informationen http://de.slideshare.net/enpit/weblogic-administration-und-deployment-mit-wlst-14111066
zu WLST
Andreas Koop, 12.10.2012, German ADF Community 10

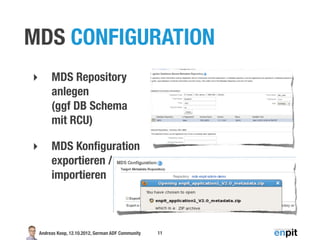

11. MDS CONFIGURATION
‣ MDS Repository
anlegen
(ggf DB Schema
mit RCU)
‣ MDS Konfiguration
exportieren /
importieren
Andreas Koop, 12.10.2012, German ADF Community 11

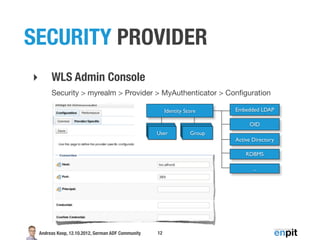

12. SECURITY PROVIDER
‣ WLS Admin Console
Security > myrealm > Provider > MyAuthenticator > Configuration
Identity Store Embedded LDAP
OID
User
User User
User
User Group
Active Directory
RDBMS
...
Andreas Koop, 12.10.2012, German ADF Community 12

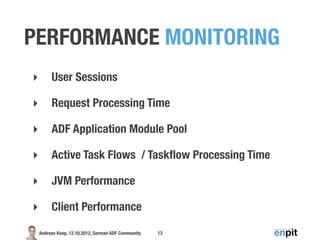

13. PERFORMANCE MONITORING
‣ User Sessions
‣ Request Processing Time
‣ ADF Application Module Pool
‣ Active Task Flows / Taskflow Processing Time
‣ JVM Performance
‣ Client Performance
Andreas Koop, 12.10.2012, German ADF Community 13

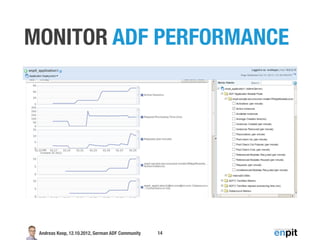

14. MONITOR ADF PERFORMANCE
Andreas Koop, 12.10.2012, German ADF Community 14

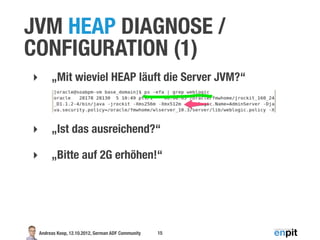

15. JVM HEAP DIAGNOSE /
CONFIGURATION (1)
‣ „Mit wieviel HEAP läuft die Server JVM?“
‣ „Ist das ausreichend?“
‣ „Bitte auf 2G erhöhen!“
Andreas Koop, 12.10.2012, German ADF Community 15

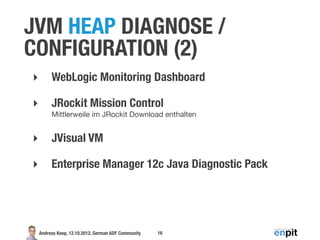

16. JVM HEAP DIAGNOSE /
CONFIGURATION (2)
‣ WebLogic Monitoring Dashboard
‣ JRockit Mission Control
Mittlerweile im JRockit Download enthalten
‣ JVisual VM
‣ Enterprise Manager 12c Java Diagnostic Pack
Andreas Koop, 12.10.2012, German ADF Community 16

17. WEBLOGIC
MONITORING DASHBOARD
Andreas Koop, 12.10.2012, German ADF Community 17

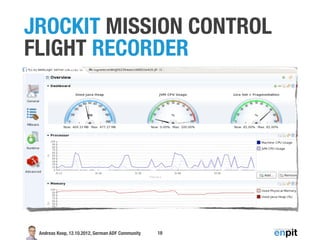

18. JROCKIT MISSION CONTROL
FLIGHT RECORDER
Andreas Koop, 12.10.2012, German ADF Community 18

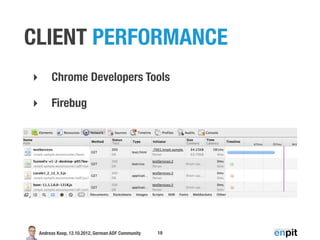

19. CLIENT PERFORMANCE
‣ Chrome Developers Tools
‣ Firebug
Andreas Koop, 12.10.2012, German ADF Community 19

20. DEMO
ADF Administration

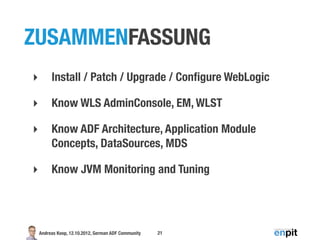

21. ZUSAMMENFASSUNG
‣ Install / Patch / Upgrade / Configure WebLogic
‣ Know WLS AdminConsole, EM, WLST
‣ Know ADF Architecture, Application Module
Concepts, DataSources, MDS
‣ Know JVM Monitoring and Tuning
Andreas Koop, 12.10.2012, German ADF Community 21

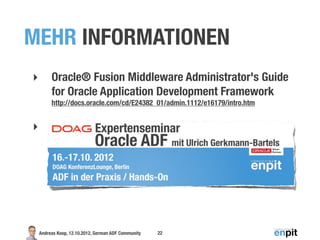

22. MEHR INFORMATIONEN
‣ Oracle® Fusion Middleware Administrator's Guide
for Oracle Application Development Framework
http://docs.oracle.com/cd/E24382_01/admin.1112/e16179/intro.htm
‣
Andreas Koop, 12.10.2012, German ADF Community 22
