1. Adapter Pattern
Shahriar Iqbal Chowdhury & Monjurul Habib
Code Name: Remington
http://www.facebook.com/groups/netter/

2. What is Adapter
• A device for connecting pieces of equipment that
cannot be connected directly
• An adapter allows classes to work together that
normally could not because of incompatible
interfaces

3. Missing something??

4. How does it work?

5. When we need?
• Convert the interface of a class into another
interface that client expects.
• Allow classes to work together that couldn’t
because of incompatible interfaces.
• Future clients can be satisfied through the creation
of additional concrete Adapter.
• Adapter is meant to change the interface of an
existing object.
• A way to achieve OCP(Open/Closed Principle)

6. Client Component

7. Client
Adapter
Component/
Adaptee

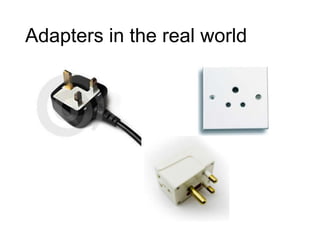

8. Adapters in the real world

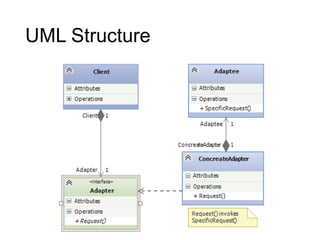

9. UML Structure

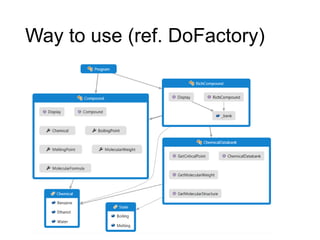

10. Way to use (ref. DoFactory)

11. Client

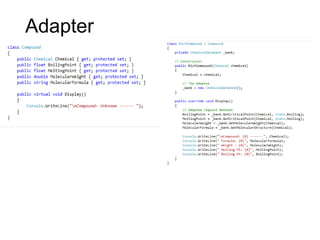

12. Adapter

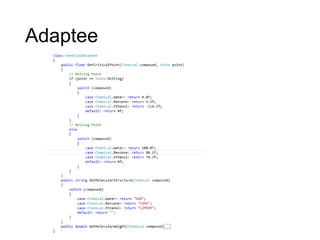

13. Adaptee

14. Another shocking example

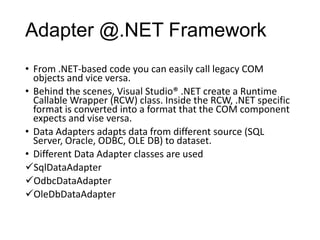

15. Adapter @.NET Framework
• From .NET-based code you can easily call legacy COM
objects and vice versa.
• Behind the scenes, Visual Studio® .NET create a Runtime
Callable Wrapper (RCW) class. Inside the RCW, .NET specific
format is converted into a format that the COM component
expects and vise versa.
• Data Adapters adapts data from different source (SQL
Server, Oracle, ODBC, OLE DB) to dataset.
• Different Data Adapter classes are used
SqlDataAdapter
OdbcDataAdapter
OleDbDataAdapter

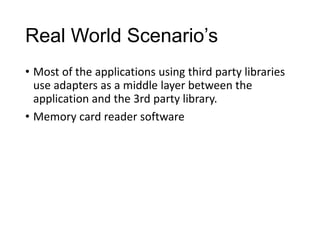

16. Real World Scenario’s
• Most of the applications using third party libraries
use adapters as a middle layer between the
application and the 3rd party library.
• Memory card reader software
