1. API-First
development
From specification to code and back
Photo by Edho Pratama on Unsplash

2. Your host today
• Vasco Veloso
• Working in software development since 1996.
• Currently interested in designing software systems
and giving back to the community.
• Author and speaker.
• Portuguese living in the Netherlands.
linkedin.com/in/vascoveloso @vveloso

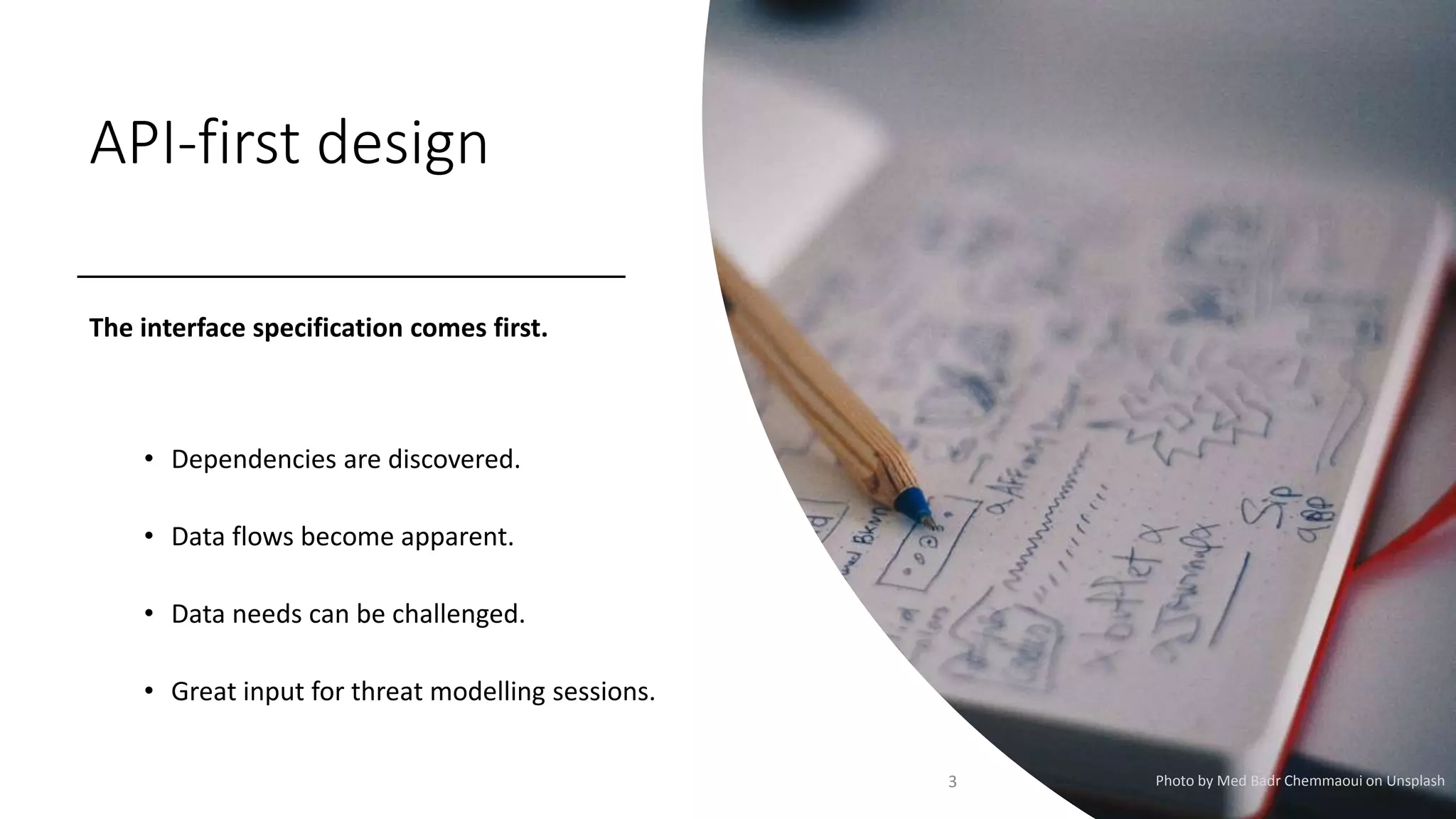

3. API-first design
The interface specification comes first.
• Dependencies are discovered.
• Data flows become apparent.
• Data needs can be challenged.
• Great input for threat modelling sessions.
3 Photo by Med Badr Chemmaoui on Unsplash

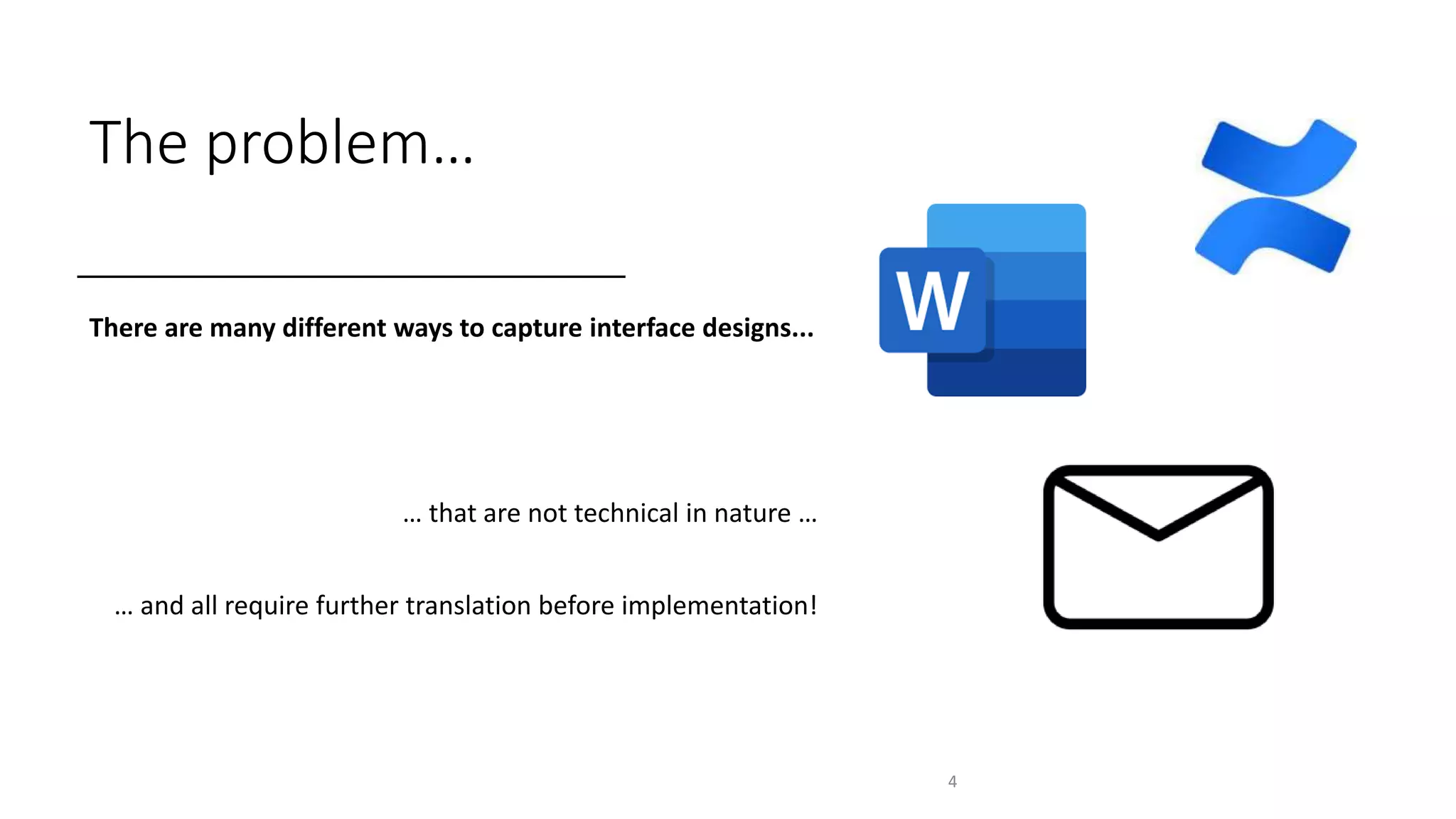

4. The problem…
There are many different ways to capture interface designs...
… that are not technical in nature …
… and all require further translation before implementation!
4

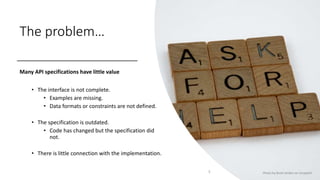

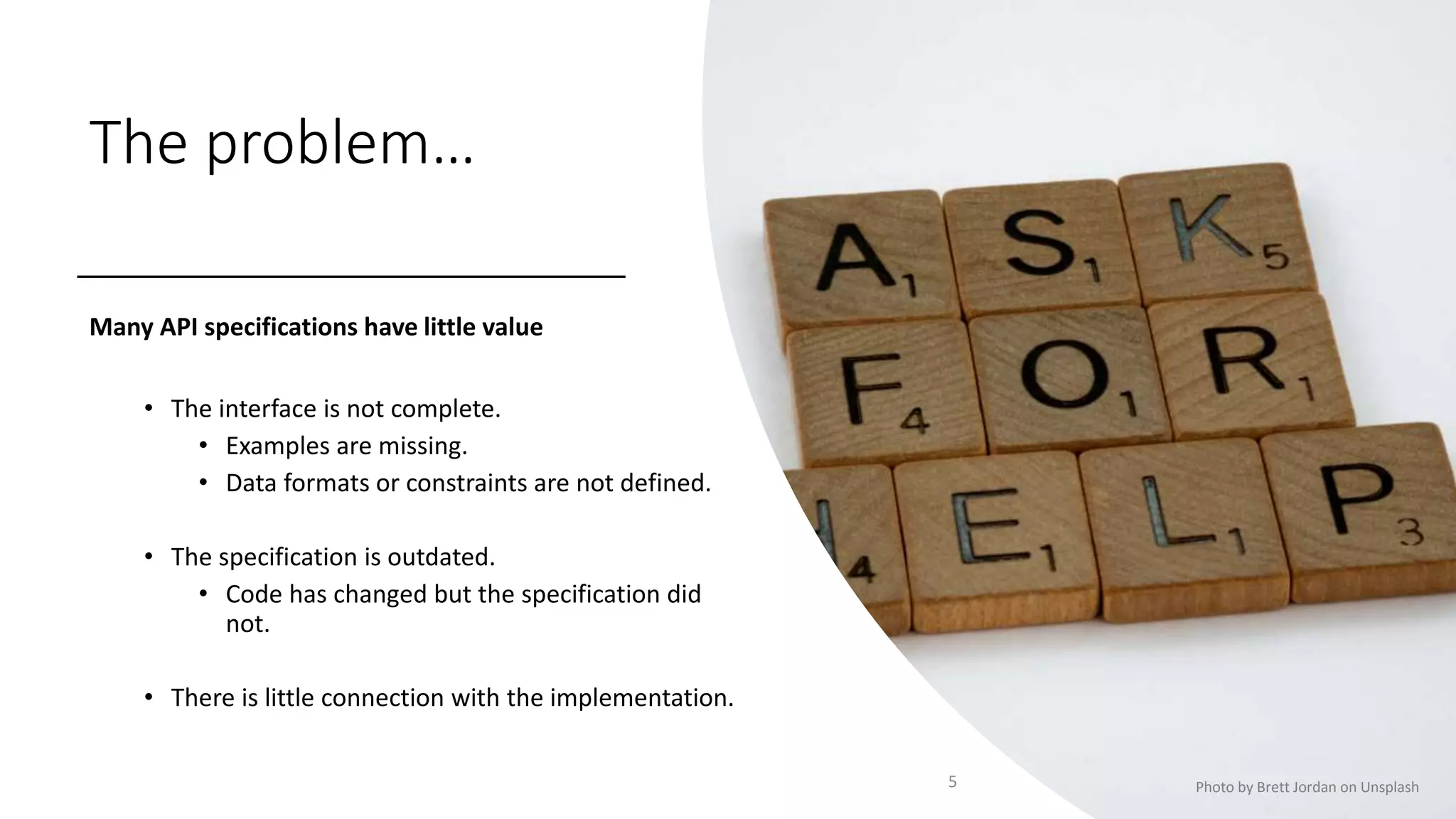

5. The problem…
Many API specifications have little value
• The interface is not complete.
• Examples are missing.
• Data formats or constraints are not defined.
• The specification is outdated.
• Code has changed but the specification did
not.
• There is little connection with the implementation.
5 Photo by Brett Jordan on Unsplash

6. API-First
Development
Photo by Andrew George on Unsplash

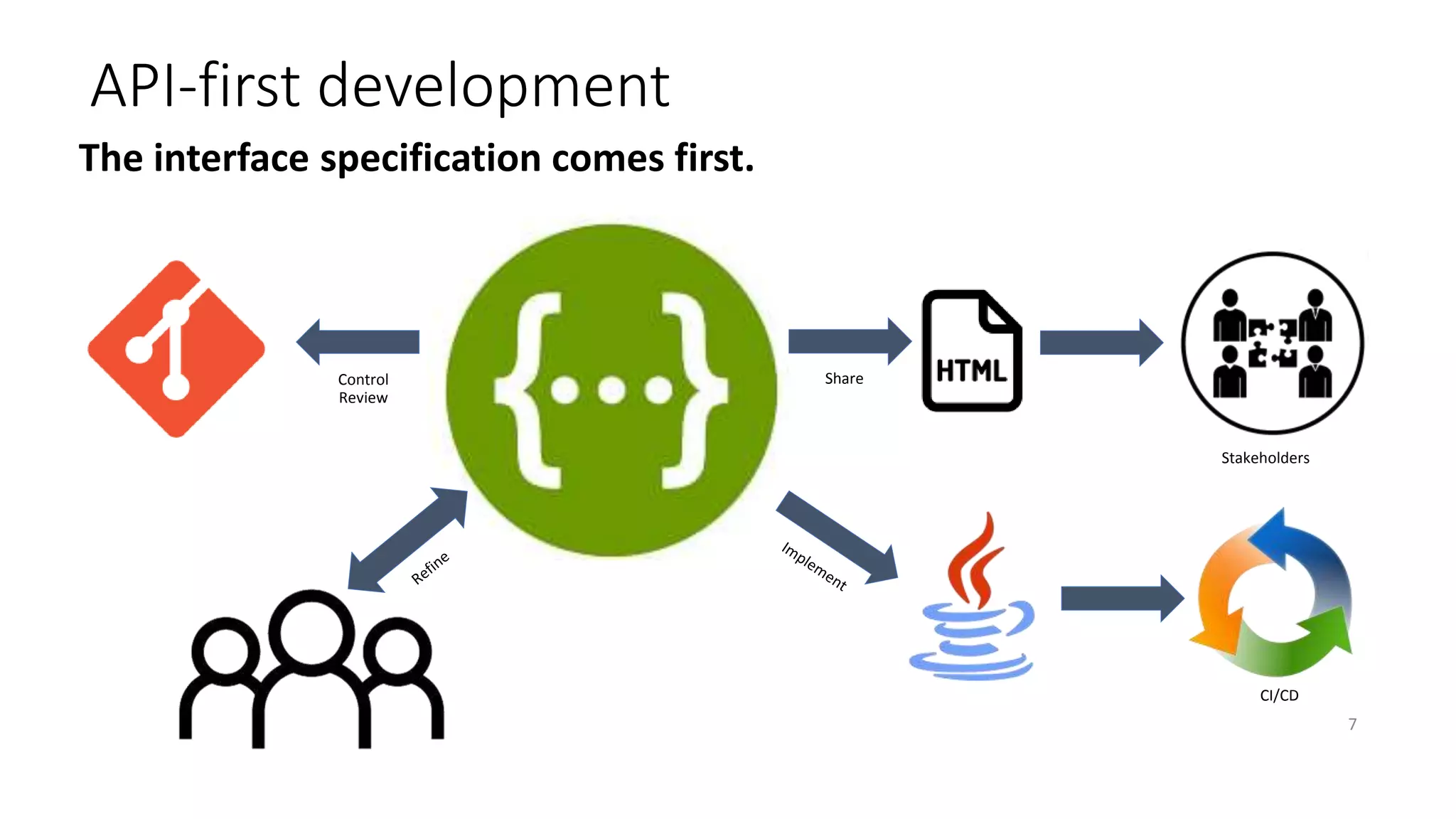

7. 7
API-first development
The interface specification comes first.
Share
Control
Review
Stakeholders
CI/CD

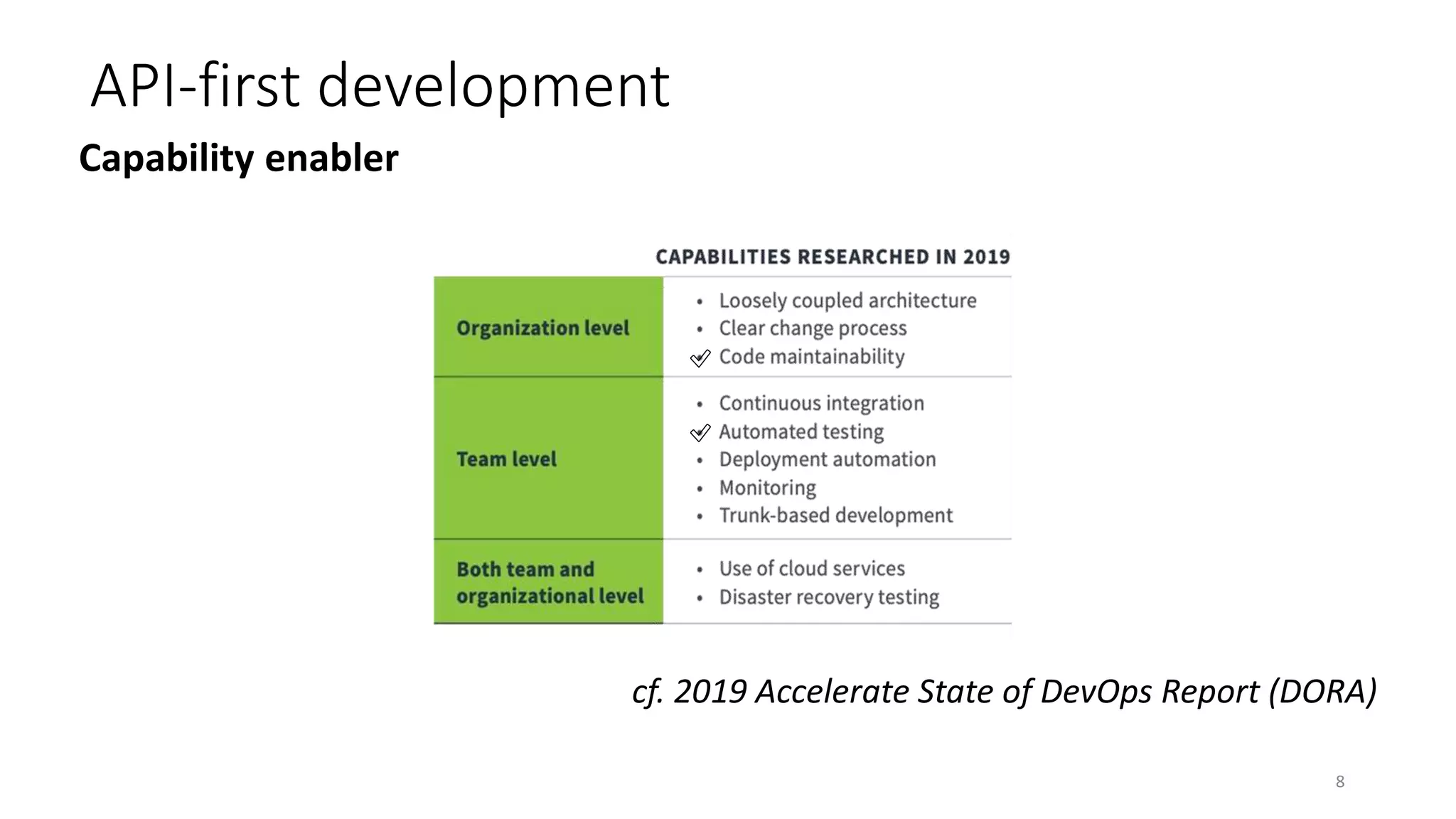

8. 8
API-first development
Capability enabler
cf. 2019 Accelerate State of DevOps Report (DORA)
✅
✅

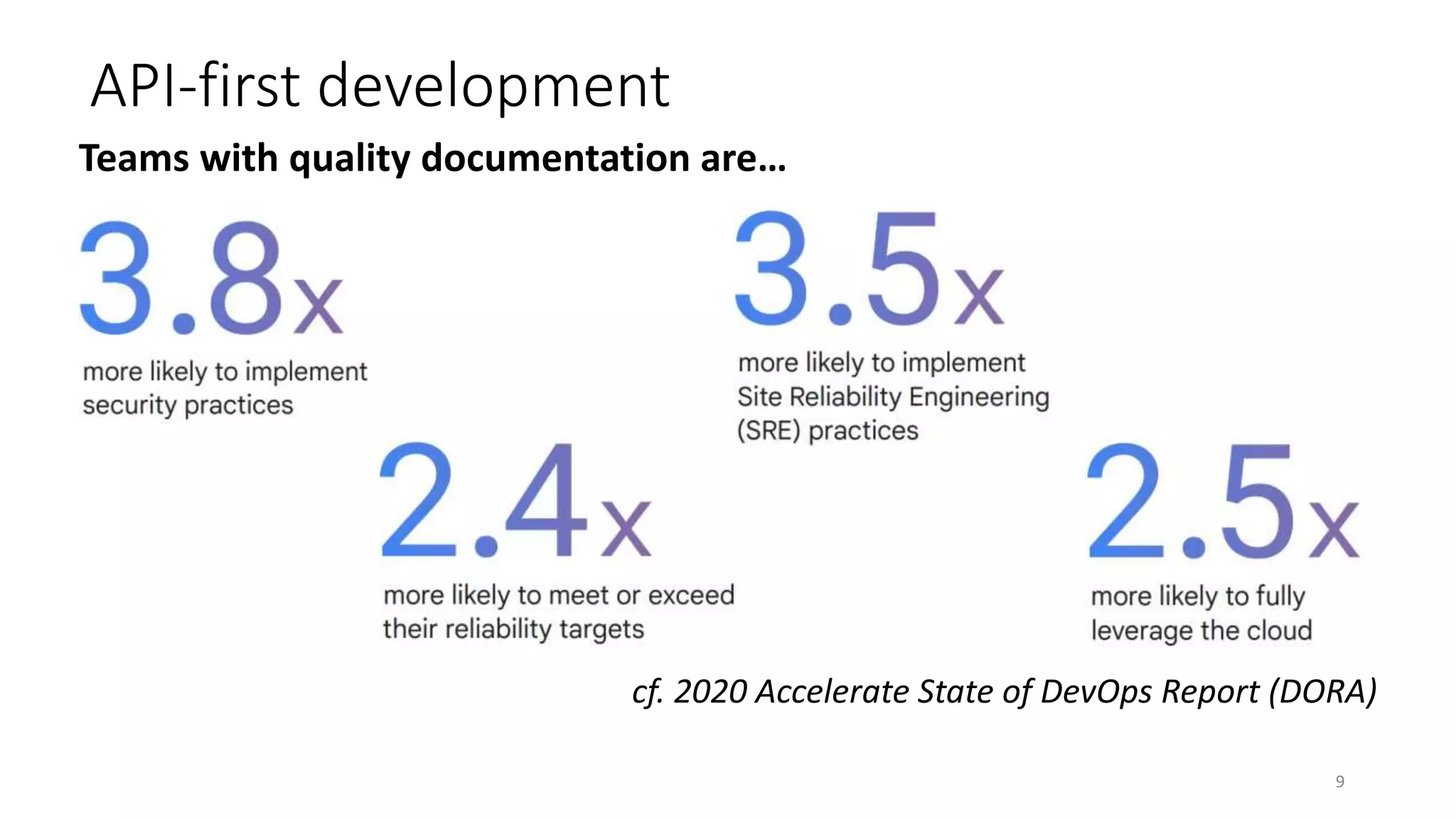

9. 9
API-first development
Teams with quality documentation are…
cf. 2020 Accelerate State of DevOps Report (DORA)

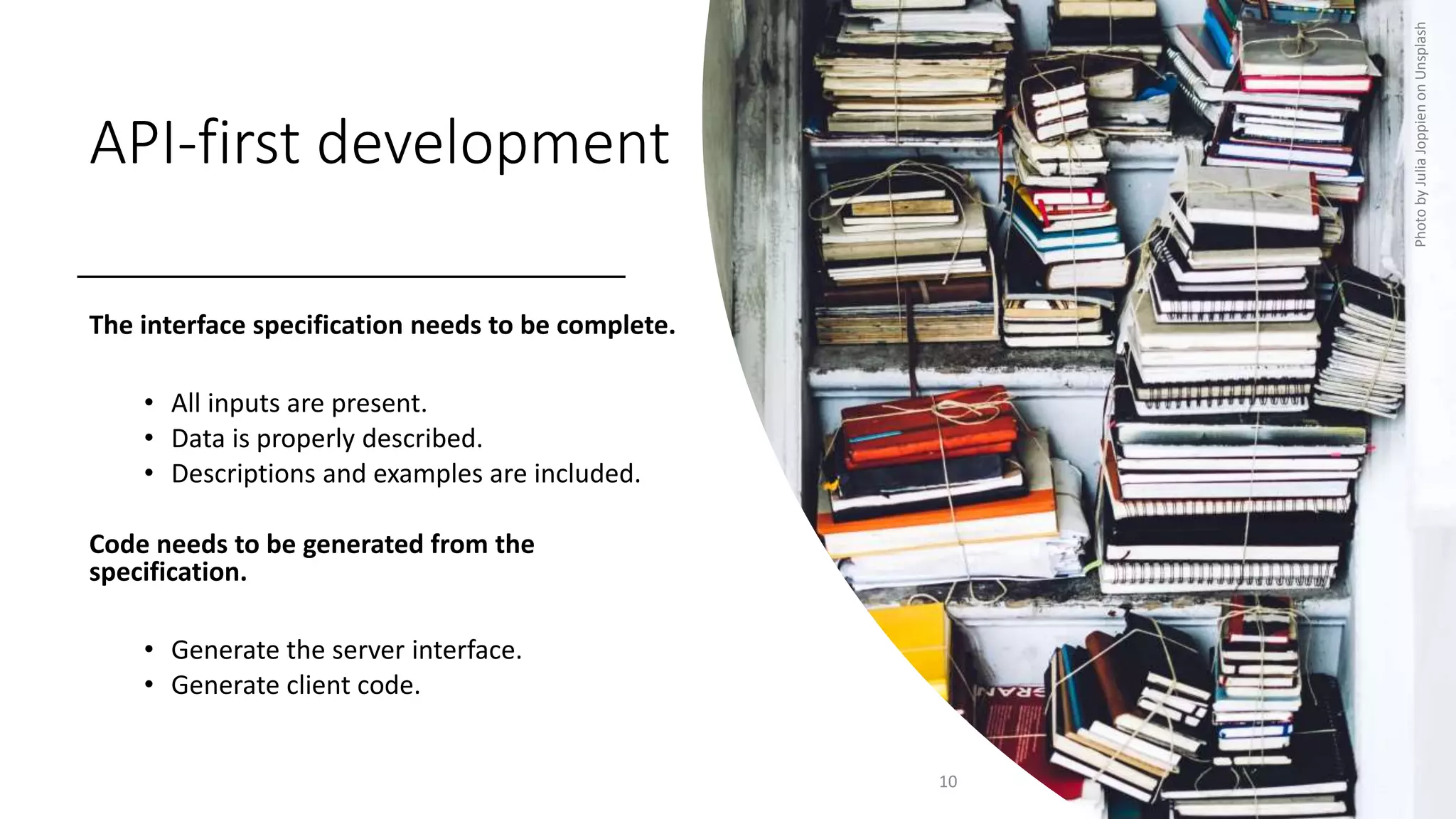

10. API-first development
The interface specification needs to be complete.
• All inputs are present.
• Data is properly described.
• Descriptions and examples are included.
Code needs to be generated from the
specification.
• Generate the server interface.
• Generate client code.
10
by
Julia
Joppien
on
Unsplash

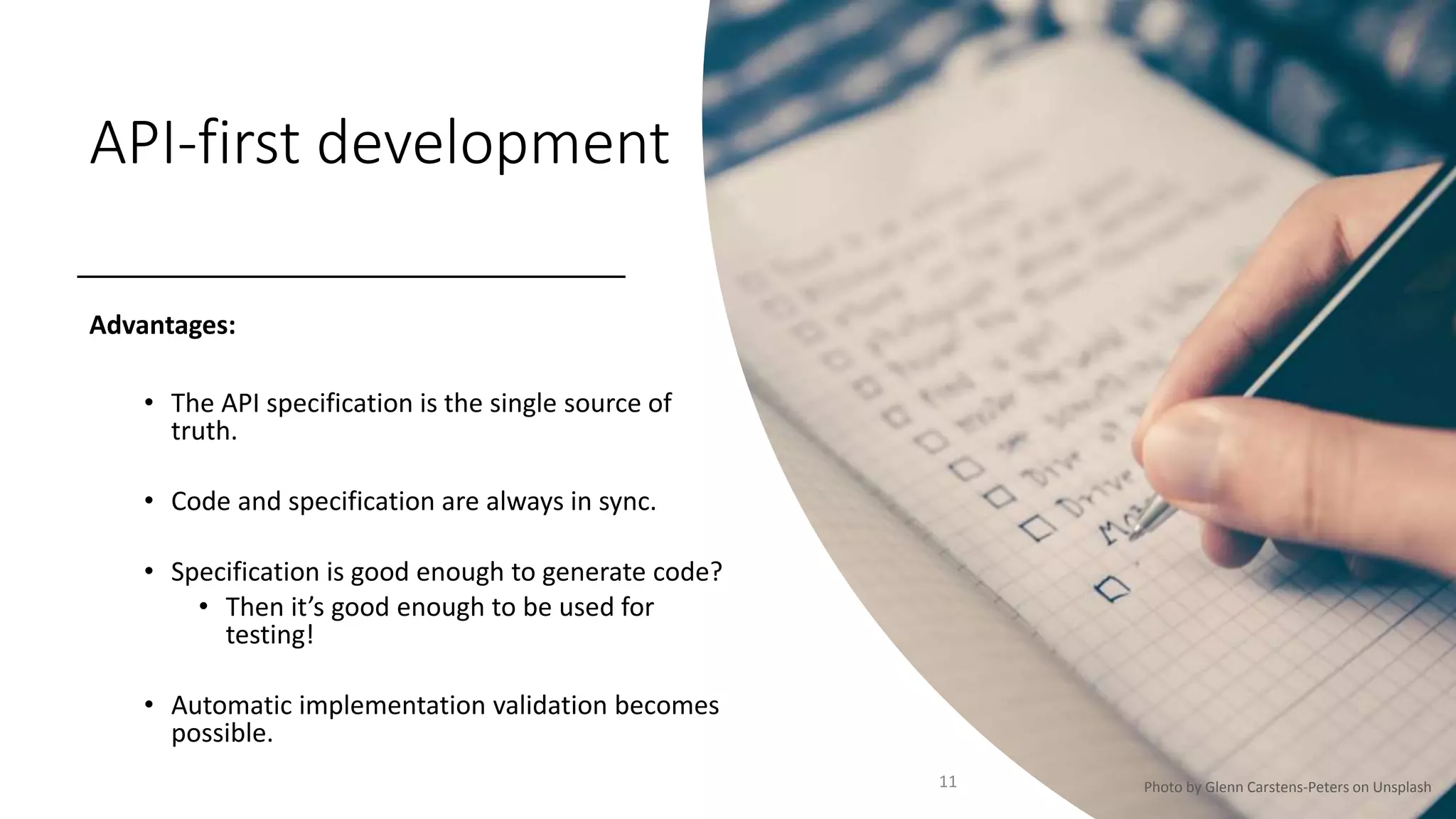

11. API-first development
Advantages:
• The API specification is the single source of
truth.
• Code and specification are always in sync.
• Specification is good enough to generate code?
• Then it’s good enough to be used for
testing!
• Automatic implementation validation becomes
possible.
11 Photo by Glenn Carstens-Peters on Unsplash

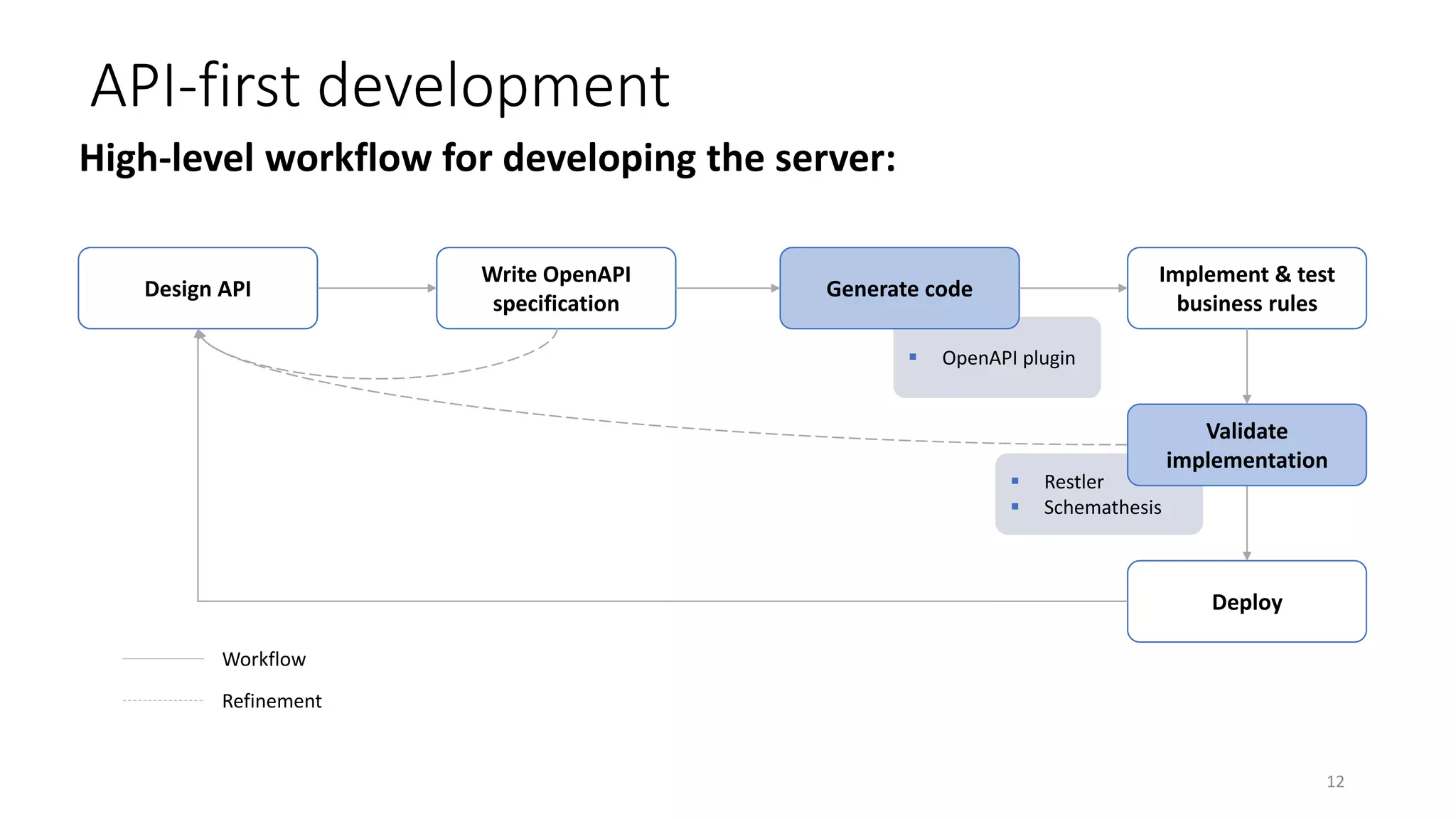

12.  OpenAPI plugin
 Restler
 Schemathesis
12
API-first development
High-level workflow for developing the server:
Design API
Write OpenAPI
specification
Generate code
Implement & test
business rules
Deploy
Workflow
Refinement
Validate
implementation

13. Imagine a Java
service using
Spring…
Photo by Scott Graham on Unsplash

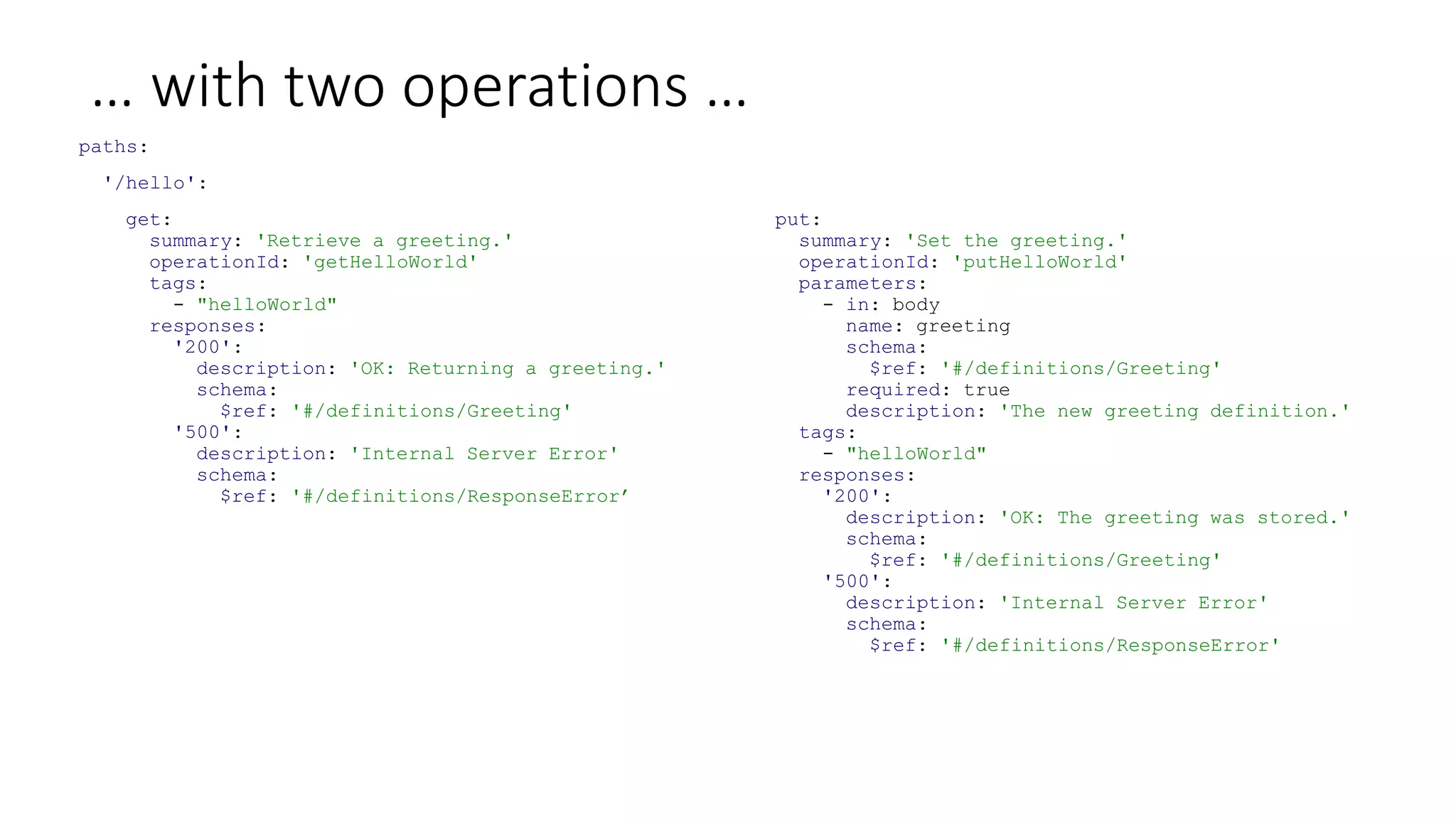

14. … with two operations …
paths:
'/hello':
get:
summary: 'Retrieve a greeting.'
operationId: 'getHelloWorld'
tags:
- "helloWorld"
responses:
'200':
description: 'OK: Returning a greeting.'
schema:
$ref: '#/definitions/Greeting'
'500':
description: 'Internal Server Error'
schema:
$ref: '#/definitions/ResponseError’
put:
summary: 'Set the greeting.'
operationId: 'putHelloWorld'
parameters:
- in: body
name: greeting
schema:
$ref: '#/definitions/Greeting'
required: true
description: 'The new greeting definition.'
tags:
- "helloWorld"
responses:
'200':
description: 'OK: The greeting was stored.'
schema:
$ref: '#/definitions/Greeting'
'500':
description: 'Internal Server Error'
schema:
$ref: '#/definitions/ResponseError'

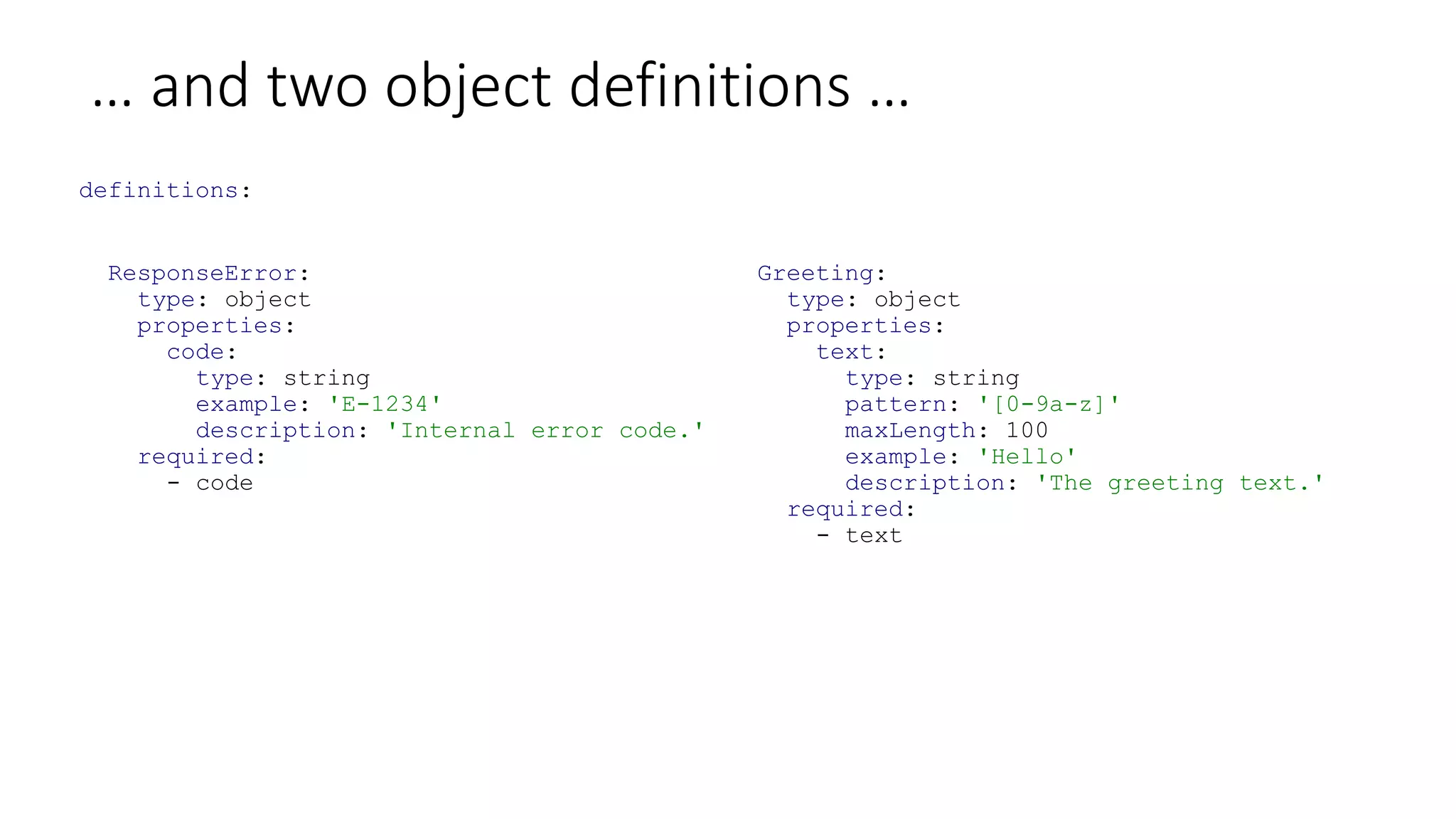

15. … and two object definitions …
definitions:
ResponseError:
type: object
properties:
code:
type: string
example: 'E-1234'
description: 'Internal error code.'
required:
- code
Greeting:
type: object
properties:
text:
type: string
pattern: '[0-9a-z]'
maxLength: 100
example: 'Hello'
description: 'The greeting text.'
required:
- text

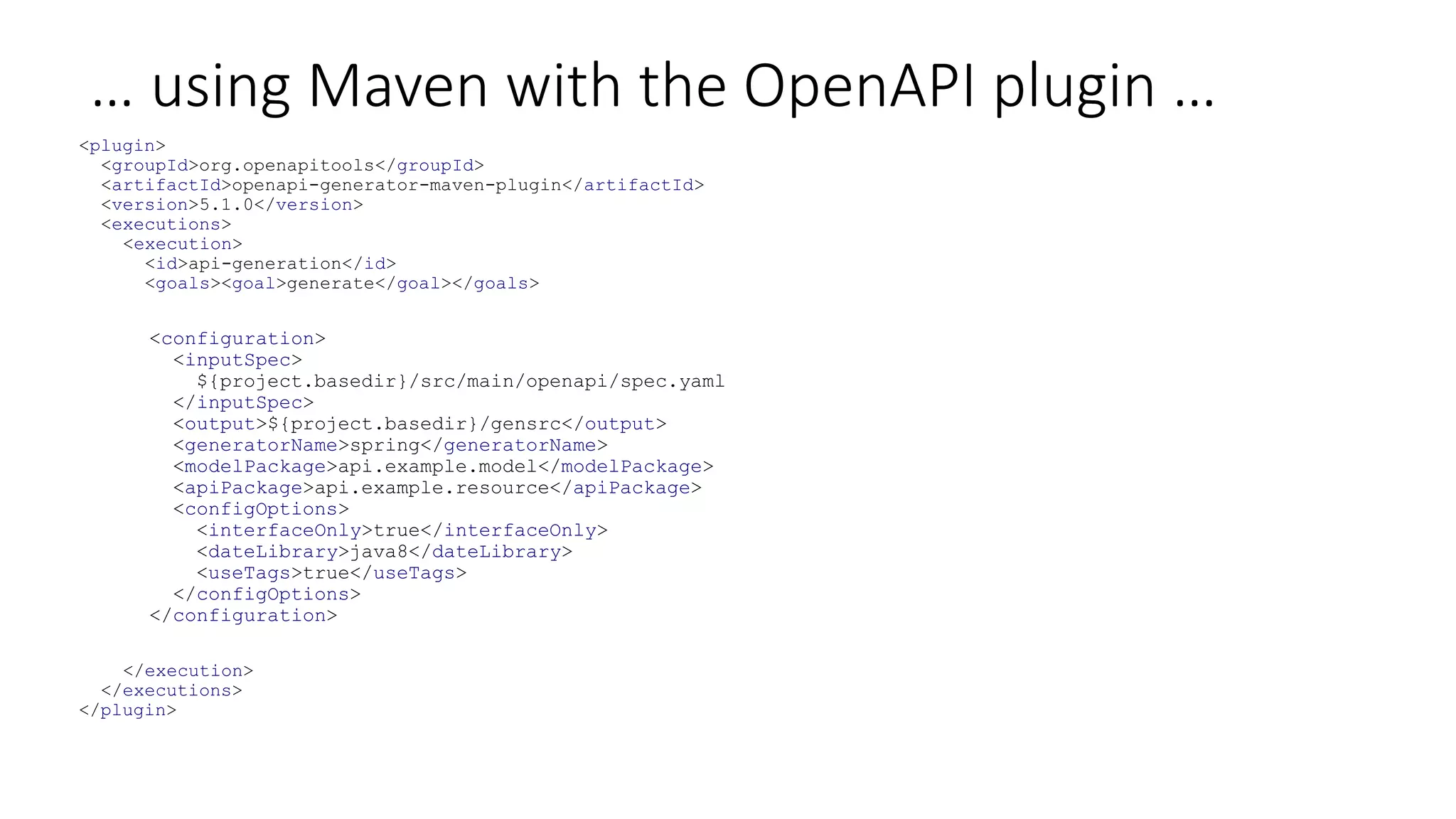

16. … using Maven with the OpenAPI plugin …
<plugin>
<groupId>org.openapitools</groupId>
<artifactId>openapi-generator-maven-plugin</artifactId>
<version>5.1.0</version>
<executions>
<execution>
<id>api-generation</id>
<goals><goal>generate</goal></goals>
<configuration>
<inputSpec>
${project.basedir}/src/main/openapi/spec.yaml
</inputSpec>
<output>${project.basedir}/gensrc</output>
<generatorName>spring</generatorName>
<modelPackage>api.example.model</modelPackage>
<apiPackage>api.example.resource</apiPackage>
<configOptions>
<interfaceOnly>true</interfaceOnly>
<dateLibrary>java8</dateLibrary>
<useTags>true</useTags>
</configOptions>
</configuration>
</execution>
</executions>
</plugin>

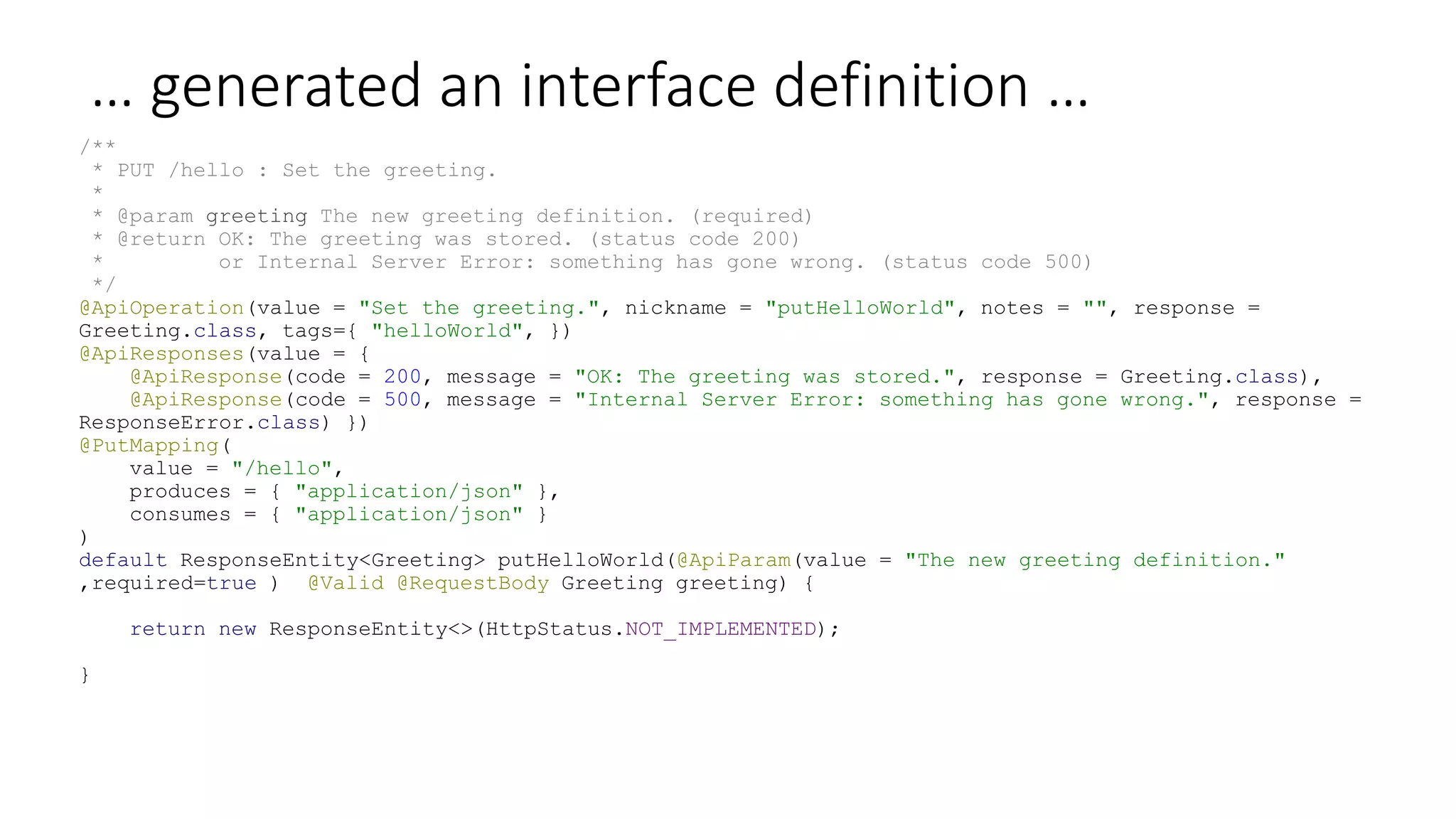

17. … generated an interface definition …
/**
* PUT /hello : Set the greeting.
*
* @param greeting The new greeting definition. (required)
* @return OK: The greeting was stored. (status code 200)
* or Internal Server Error: something has gone wrong. (status code 500)
*/
@ApiOperation(value = "Set the greeting.", nickname = "putHelloWorld", notes = "", response =
Greeting.class, tags={ "helloWorld", })
@ApiResponses(value = {
@ApiResponse(code = 200, message = "OK: The greeting was stored.", response = Greeting.class),
@ApiResponse(code = 500, message = "Internal Server Error: something has gone wrong.", response =
ResponseError.class) })
@PutMapping(
value = "/hello",
produces = { "application/json" },
consumes = { "application/json" }
)
default ResponseEntity<Greeting> putHelloWorld(@ApiParam(value = "The new greeting definition."
,required=true ) @Valid @RequestBody Greeting greeting) {
return new ResponseEntity<>(HttpStatus.NOT_IMPLEMENTED);
}

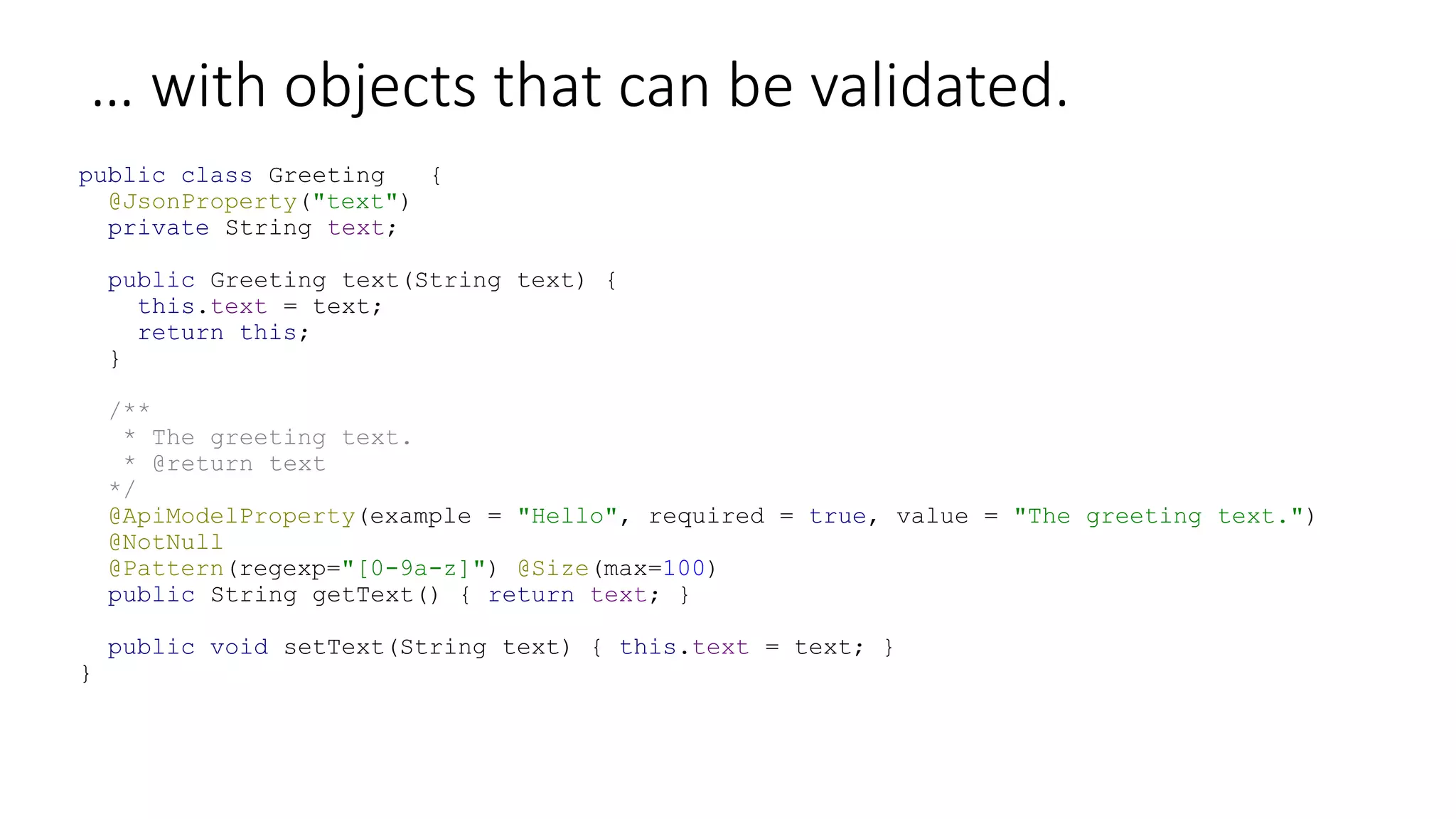

18. … with objects that can be validated.
public class Greeting {
@JsonProperty("text")
private String text;
public Greeting text(String text) {
this.text = text;
return this;
}
/**
* The greeting text.
* @return text
*/
@ApiModelProperty(example = "Hello", required = true, value = "The greeting text.")
@NotNull
@Pattern(regexp="[0-9a-z]") @Size(max=100)
public String getText() { return text; }
public void setText(String text) { this.text = text; }
}

19. Flipping it
around
Photo by Persnickety Prints on Unsplash

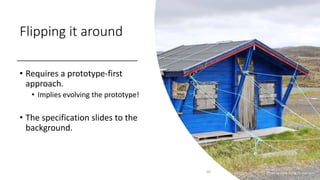

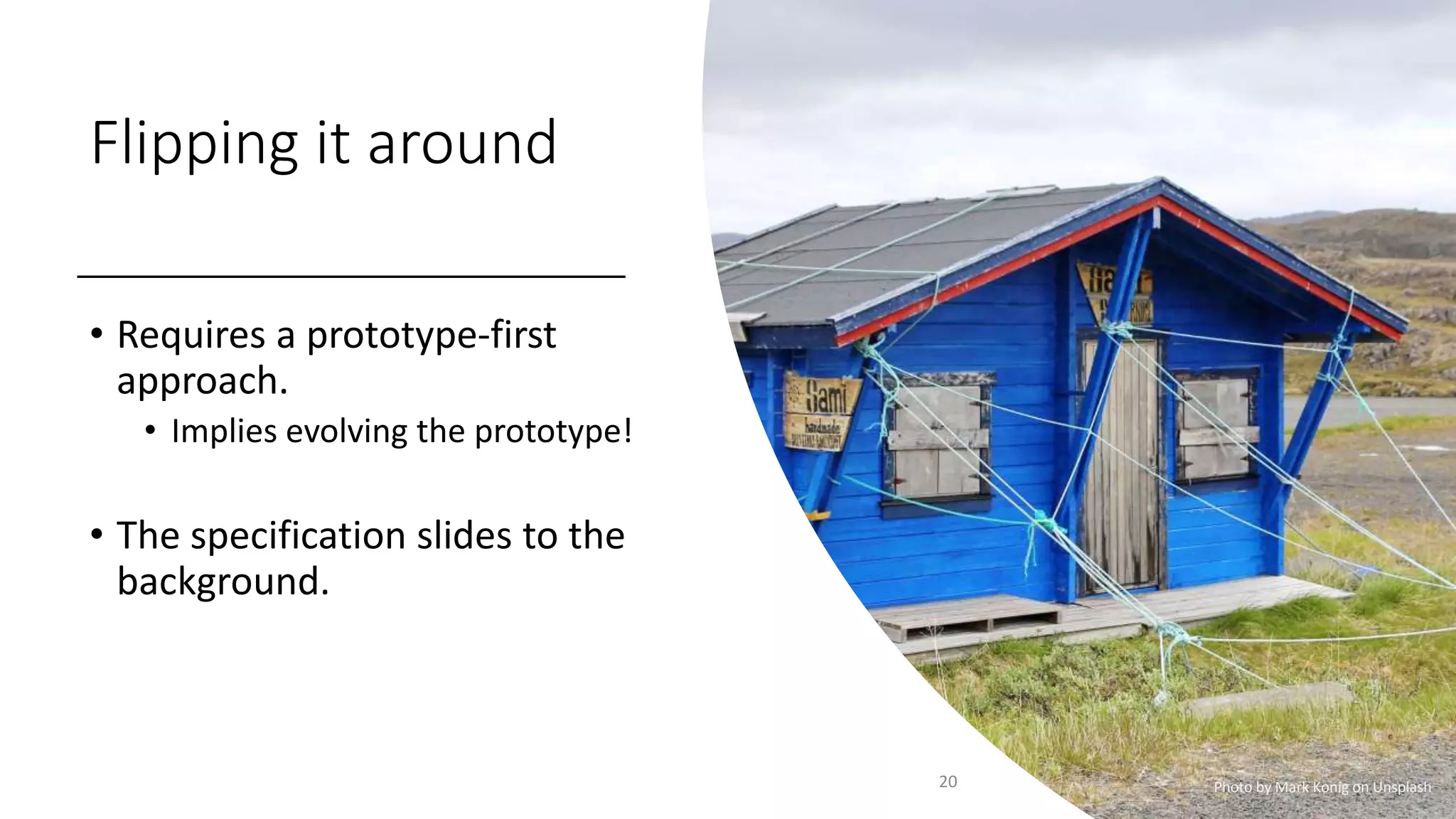

20. Flipping it around
• Requires a prototype-first
approach.
• Implies evolving the prototype!
• The specification slides to the
background.
20 Photo by Mark Konig on Unsplash

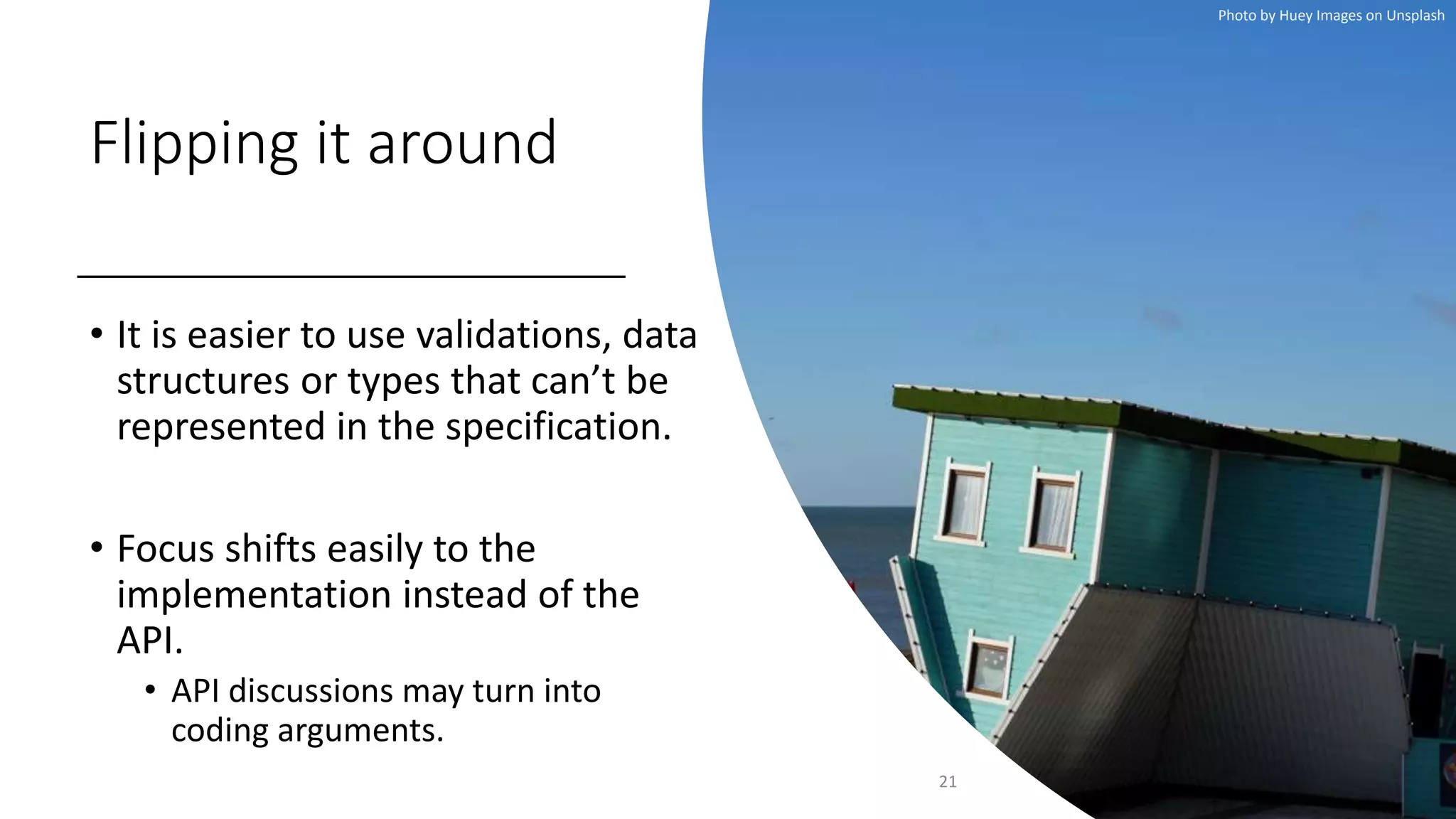

21. Flipping it around
• It is easier to use validations, data
structures or types that can’t be
represented in the specification.
• Focus shifts easily to the
implementation instead of the
API.
• API discussions may turn into
coding arguments.
21
Photo by Huey Images on Unsplash

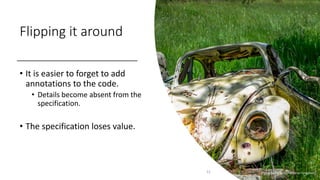

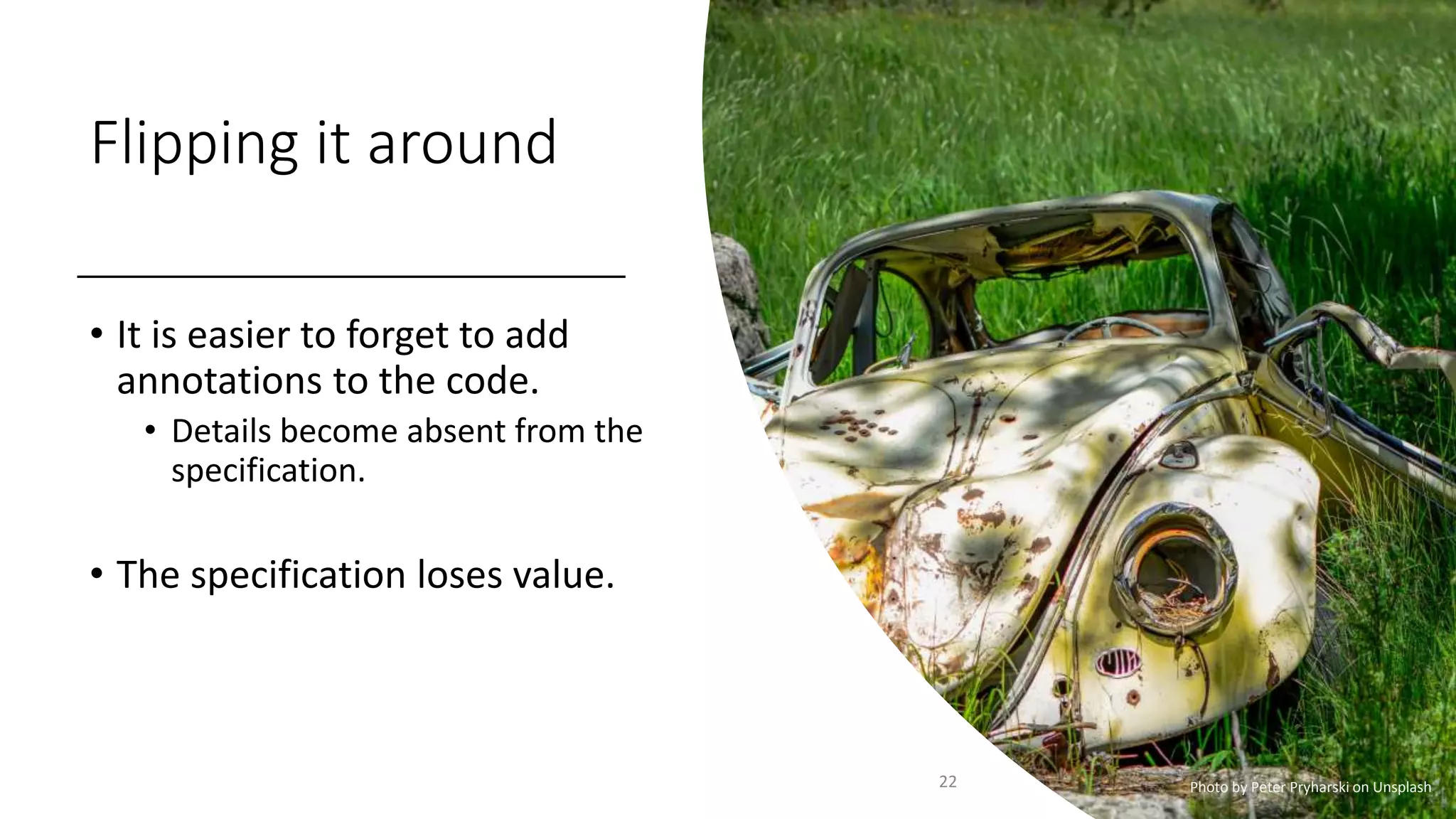

22. Flipping it around
• It is easier to forget to add
annotations to the code.
• Details become absent from the
specification.
• The specification loses value.
22 Photo by Peter Pryharski on Unsplash

23. Now what?
Photo by Tom Ramalho on Unsplash

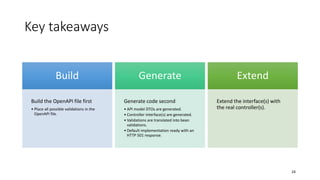

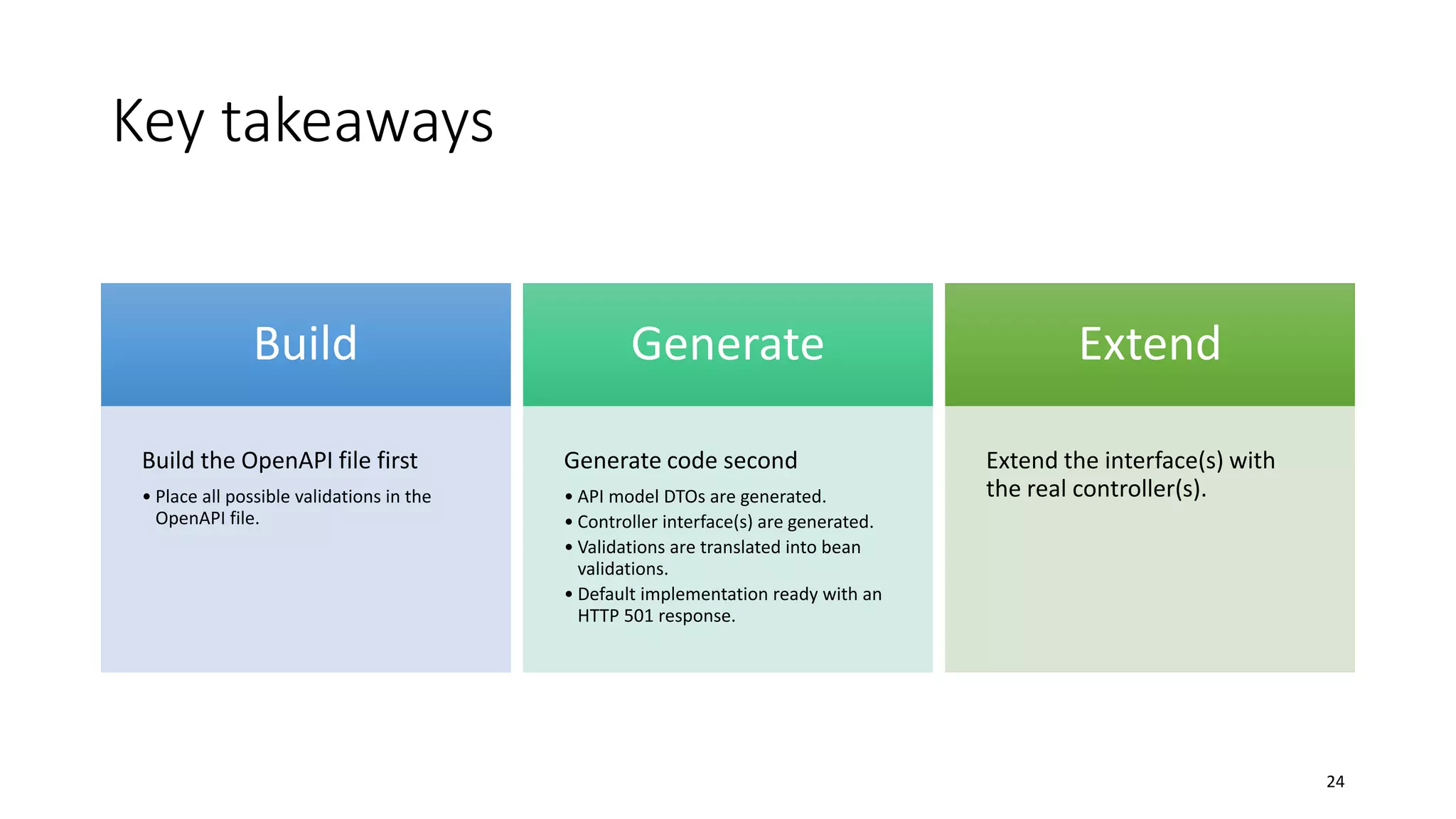

24. Key takeaways
24
Build
Build the OpenAPI file first
• Place all possible validations in the
OpenAPI file.
Generate
Generate code second
• API model DTOs are generated.
• Controller interface(s) are generated.
• Validations are translated into bean
validations.
• Default implementation ready with an
HTTP 501 response.
Extend
Extend the interface(s) with
the real controller(s).

25. Thank you!
Photo by Camylla Battani on Unsplash
linkedin.com/in/vascoveloso
@vveloso
