The Siemens Acuson X300 premium is a mid-range cardiovascular ultrasound system intended to replace the highly popular Sequoia 512. It adds 4D imaging capabilities and over doubles the number of probe choices while including many high-end features at a mid-range price point. The system supports applications in OB/GYN, cardiac, vascular, MSK, abdominal, small parts, and urology with various imaging modes and features like stress echo and several contrast agent technologies. It includes a 15" LCD screen, 3 probe ports, and a height adjustable backlit keyboard along with a wide variety of probe options.

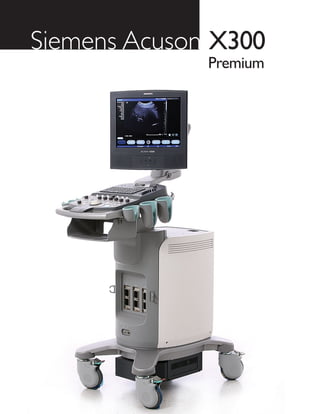

1. Siemens Acuson X300
Premium

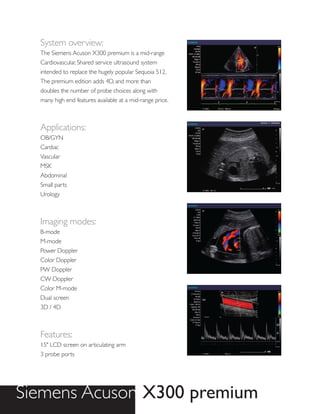

2. System overview:
The Siemens Acuson X300 premium is a mid-range
Cardiovascular, Shared service ultrasound system
intended to replace the hugely popular Sequoia 512.
The premium edition adds 4D, and more than
doubles the number of probe choices along with
many high end features available at a mid-range price.
Applications:
OB/GYN
Cardiac
Vascular
MSK
Abdominal
Small parts
Urology
Imaging modes:
B-mode
M-mode
Power Doppler
Color Doppler
PW Doppler
CW Doppler
Color M-mode
Dual screen
3D / 4D
Features:
15" LCD screen on articulating arm
3 probe ports
Siemens Acuson X300 premium

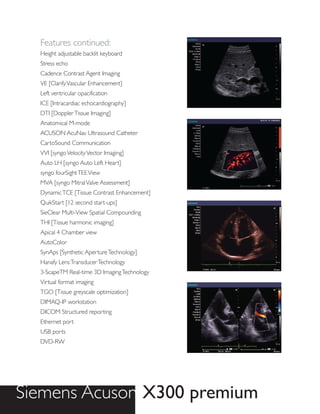

3. Features continued:
Height adjustable backlit keyboard
Stress echo
Cadence Contrast Agent Imaging
VE [Clarify Vascular Enhancement]
Left ventricular opacification
ICE [Intracardiac echocardiography]
DTI [Doppler Tissue Imaging]
Anatomical M-mode
ACUSON AcuNav Ultrasound Catheter
CartoSound Communication
VVI [syngo Velocity Vector Imaging]
Auto LH [syngo Auto Left Heart]
syngo fourSight TEE View
MVA [syngo Mitral Valve Assessment]
Dynamic TCE [Tissue Contrast Enhancement]
QuikStart [12 second start-ups]
SieClear Multi-View Spatial Compounding
THI [Tissue harmonic imaging]
Apical 4 Chamber view
AutoColor
SynAps [Synthetic Aperture Technology]
Hanafy Lens Transducer Technology
3-ScapeTM Real-time 3D Imaging Technology
Virtual format imaging
TGO [Tissue greyscale optimization]
DIMAQ-IP workstation
DICOM Structured reporting
Ethernet port
USB ports
DVD-RW
Siemens Acuson X300 premium

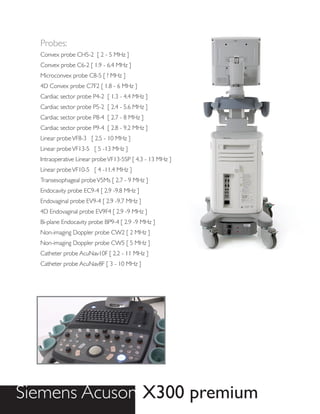

4. Probes:
Convex probe CH5-2 [ 2 - 5 MHz ]
Convex probe C6-2 [ 1.9 - 6.4 MHz ]
Microconvex probe C8-5 [ ? MHz ]
4D Convex probe C7F2 [ 1.8 - 6 MHz ]
Cardiac sector probe P4-2 [ 1.3 - 4.4 MHz ]
Cardiac sector probe P5-2 [ 2.4 - 5.6 MHz ]
Cardiac sector probe P8-4 [ 2.7 - 8 MHz ]
Cardiac sector probe P9-4 [ 2.8 - 9.2 MHz ]
Linear probe VF8-3 [ 2.5 - 10 MHz ]
Linear probe VF13-5 [ 5 -13 MHz ]
Intraoperative Linear probe VF13-5SP [ 4.3 - 13 MHz ]
Linear probe VF10-5 [ 4 -11.4 MHz ]
Transesophageal probe V5Ms [ 2.7 - 9 MHz ]
Endocavity probe EC9-4 [ 2.9 -9.8 MHz ]
Endovaginal probe EV9-4 [ 2.9 -9.7 MHz ]
4D Endovaginal probe EV9F4 [ 2.9 -9 MHz ]
Bi-plane Endocavity probe BP9-4 [ 2.9 -9 MHz ]
Non-imaging Doppler probe CW2 [ 2 MHz ]
Non-imaging Doppler probe CW5 [ 5 MHz ]
Catheter probe AcuNav10F [ 2.2 - 11 MHz ]
Catheter probe AcuNav8F [ 3 - 10 MHz ]
Siemens Acuson X300 premium
