![Options:
Anatomic M-Mode
LOGIQView
ECG
DICOM 3.0
CW Doppler
Easy 3D (Baby Face, Vascular)
Advanced 3D, with 3D Landscape
4D
SRI-HD [High-Def Speckle Reduction]
CrossXBeam Imaging
B-Flow
AMM
3-Pedal Foot Switch
Probes / Transducers:
4D Convex probe 4D3C-L [ 2 - 5 MHz ]
Convex probe 4C [ 1.4 - 4.8 MHz ]
Convex probe 5CS [ 1.4 - 4.8 MHz ]
Convex probe 3.5C [ 2 - 5 MHz ]
Convex probe 8C [ 4 - 11 MHz ]
Cardiac sector probe 7S [ 3 - 8 MHz ]
Cardiac sector probe 5S [ 2.2 - 5.3 MHz ]
Cardiac sector probe 3S [ 1.5 - 3.5 MHz ]
Linear probe 8L [ 3.5 - 10.5 MHz ]
Linear probe 9L [ 2.7 - 7.8 MHz ]
Linear probe 10L [ 3.5 - 9.5 MHz ]
Linear probe 12L [ 5 - 12 MHz ]
Non-Imaging Doppler probe P2D CWD [ 2 MHz ]
Non-Imaging Doppler probe 6DP CWD [ 5 MHz ]
Intraoperative I-shape probe i739 [ 3.5 - 9.5 ]
Intraoperative T-shape probe T739 [ 3.5 - 9.5 ]
Bi-plane intracavity probe ERB [ 4.7 - 9.5 MHz lin. 4.5, 8.8 MHz conv.]
Intracavity probe E8C [ 4 - 11 MHz ]
Bi-plane intracavity probe BE9CS [ 4 - 11 MHz ]
GE Logiq P5](https://image.slidesharecdn.com/gelogiqp5-120702061353-phpapp02/75/Ge-logiq-p5-3-2048.jpg)
![Features:
Keyboard with user-defined keys
HPRF
CrossXBeam
3D multi-slice imaging
ATO [Automatic Tissue Optimization]
ASO [Automatic Spectrum Optimization]
ACO [Automatic Color Optimization]
Auto TGC
ACE
THI [Tissue Harmonics]
Virtual Convex
Patient Information Database
Easy Backup for Media
Vascular, Cardiac, OB, Renal, Urological Calculations
Fetal Trending Calculations
Multi Gestational Calculations
Hip Dysplasia Calculations
Auto Doppler Calculations
Raw Data Processing
On-board Reporting
PDI with Directional Map
TruScan
TruAccess
SmartScan
ComfortScan
Phase Inversion Harmonics
80 GB hard-drive
DVD-RW drive
USB ports
Ethernet port
Options:
3rd probe port
InSite Capability
Coded Contrast Imaging
GE Logiq P5](https://image.slidesharecdn.com/gelogiqp5-120702061353-phpapp02/75/Ge-logiq-p5-4-2048.jpg)
Ge logiq p5
- 1.

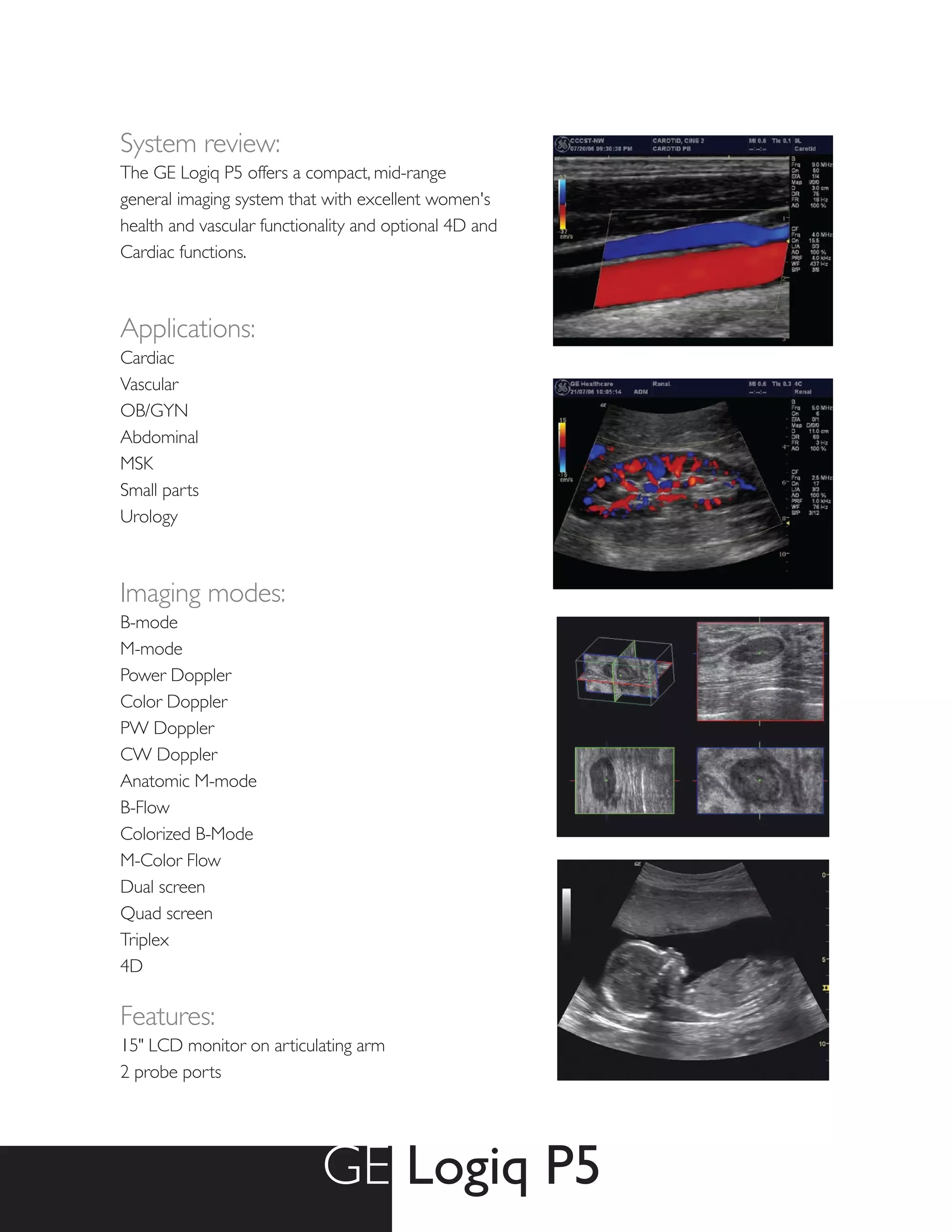

- 2. System review: The GELogiq P5 offers a compact, mid-range general imaging system that with excellent women's health and vascular functionality and optional 4D and Cardiac functions. Applications: Cardiac Vascular OB/GYN Abdominal MSK Small parts Urology Imaging modes: B-mode M-mode Power Doppler Color Doppler PW Doppler CW Doppler Anatomic M-mode B-Flow Colorized B-Mode M-Color Flow Dual screen Quad screen Triplex 4D Features: 15" LCD monitor on articulating arm 2 probe ports GE Logiq P5

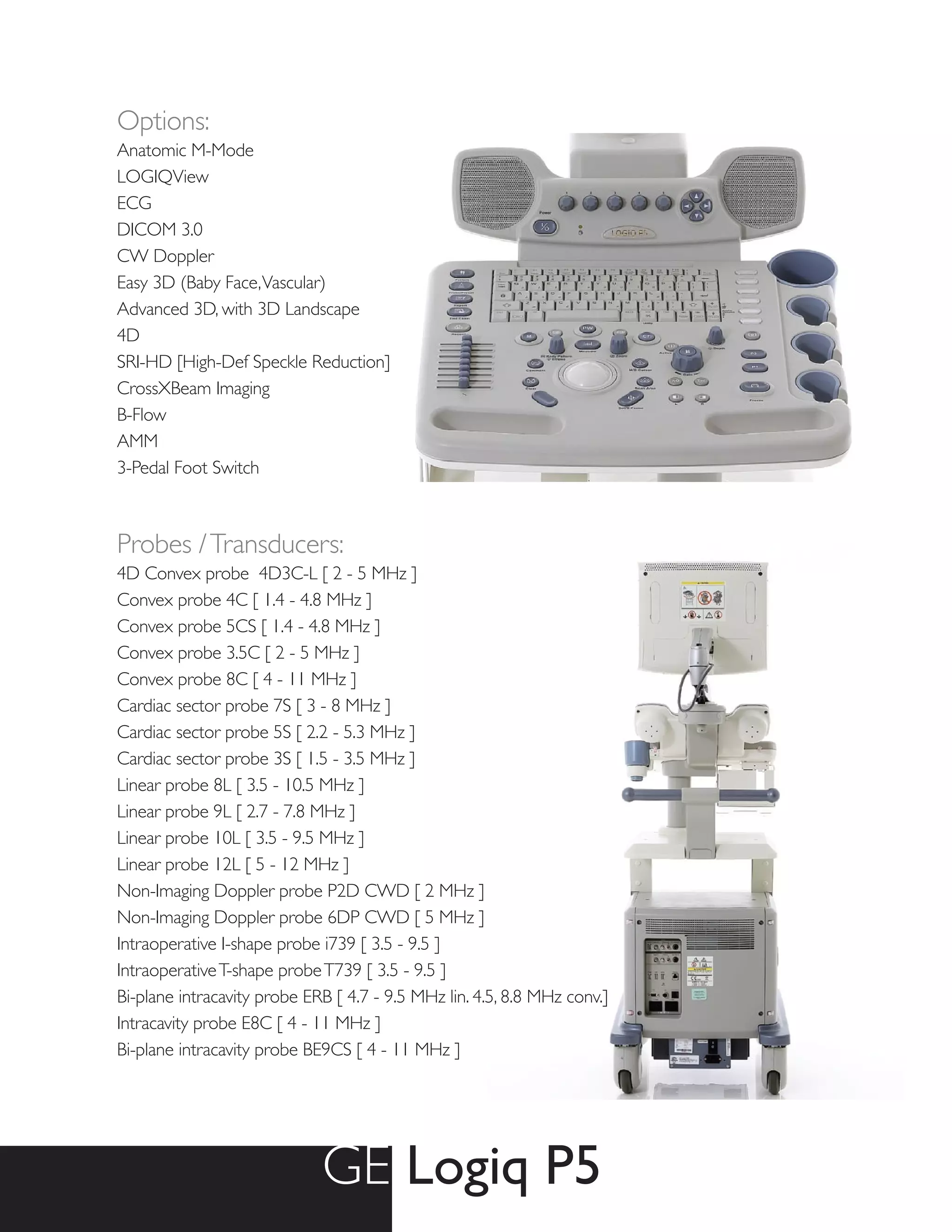

- 3. Options: Anatomic M-Mode LOGIQView ECG DICOM 3.0 CWDoppler Easy 3D (Baby Face, Vascular) Advanced 3D, with 3D Landscape 4D SRI-HD [High-Def Speckle Reduction] CrossXBeam Imaging B-Flow AMM 3-Pedal Foot Switch Probes / Transducers: 4D Convex probe 4D3C-L [ 2 - 5 MHz ] Convex probe 4C [ 1.4 - 4.8 MHz ] Convex probe 5CS [ 1.4 - 4.8 MHz ] Convex probe 3.5C [ 2 - 5 MHz ] Convex probe 8C [ 4 - 11 MHz ] Cardiac sector probe 7S [ 3 - 8 MHz ] Cardiac sector probe 5S [ 2.2 - 5.3 MHz ] Cardiac sector probe 3S [ 1.5 - 3.5 MHz ] Linear probe 8L [ 3.5 - 10.5 MHz ] Linear probe 9L [ 2.7 - 7.8 MHz ] Linear probe 10L [ 3.5 - 9.5 MHz ] Linear probe 12L [ 5 - 12 MHz ] Non-Imaging Doppler probe P2D CWD [ 2 MHz ] Non-Imaging Doppler probe 6DP CWD [ 5 MHz ] Intraoperative I-shape probe i739 [ 3.5 - 9.5 ] Intraoperative T-shape probe T739 [ 3.5 - 9.5 ] Bi-plane intracavity probe ERB [ 4.7 - 9.5 MHz lin. 4.5, 8.8 MHz conv.] Intracavity probe E8C [ 4 - 11 MHz ] Bi-plane intracavity probe BE9CS [ 4 - 11 MHz ] GE Logiq P5

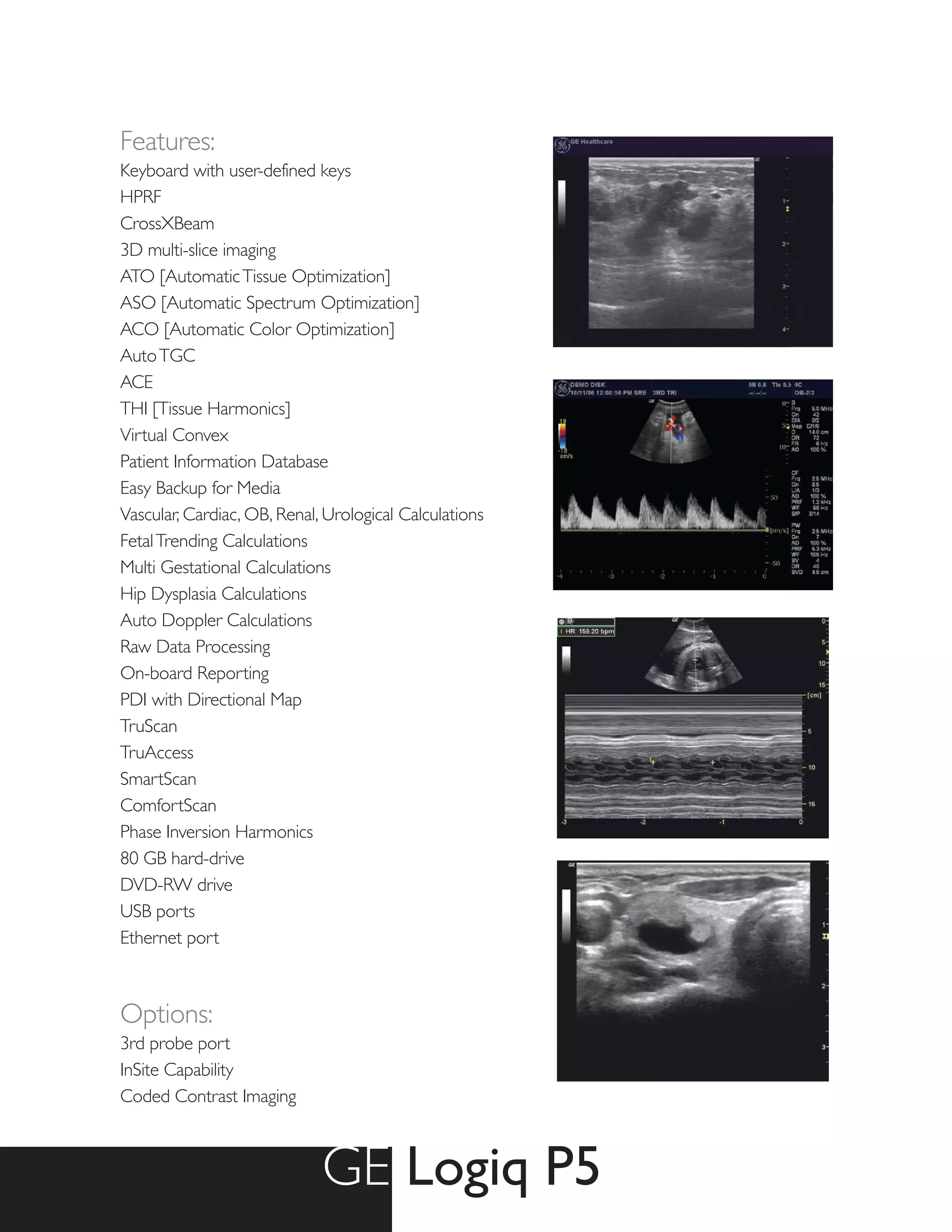

- 4. Features: Keyboard with user-definedkeys HPRF CrossXBeam 3D multi-slice imaging ATO [Automatic Tissue Optimization] ASO [Automatic Spectrum Optimization] ACO [Automatic Color Optimization] Auto TGC ACE THI [Tissue Harmonics] Virtual Convex Patient Information Database Easy Backup for Media Vascular, Cardiac, OB, Renal, Urological Calculations Fetal Trending Calculations Multi Gestational Calculations Hip Dysplasia Calculations Auto Doppler Calculations Raw Data Processing On-board Reporting PDI with Directional Map TruScan TruAccess SmartScan ComfortScan Phase Inversion Harmonics 80 GB hard-drive DVD-RW drive USB ports Ethernet port Options: 3rd probe port InSite Capability Coded Contrast Imaging GE Logiq P5
