This document summarizes the specifications of the AA-2812-DIV auto iris varifocal lens. The lens has a focal length range of 2.8-12mm, a maximum aperture rate of F1.4, and is designed for 1/3" image formats. Additional features include anti-pollution optical glass, stable performance, compact body, and direct iris control with a voltage range of DC6-12V. The lens has dimensions of 45.6*47*71.6mm and a weight of 108.5g.

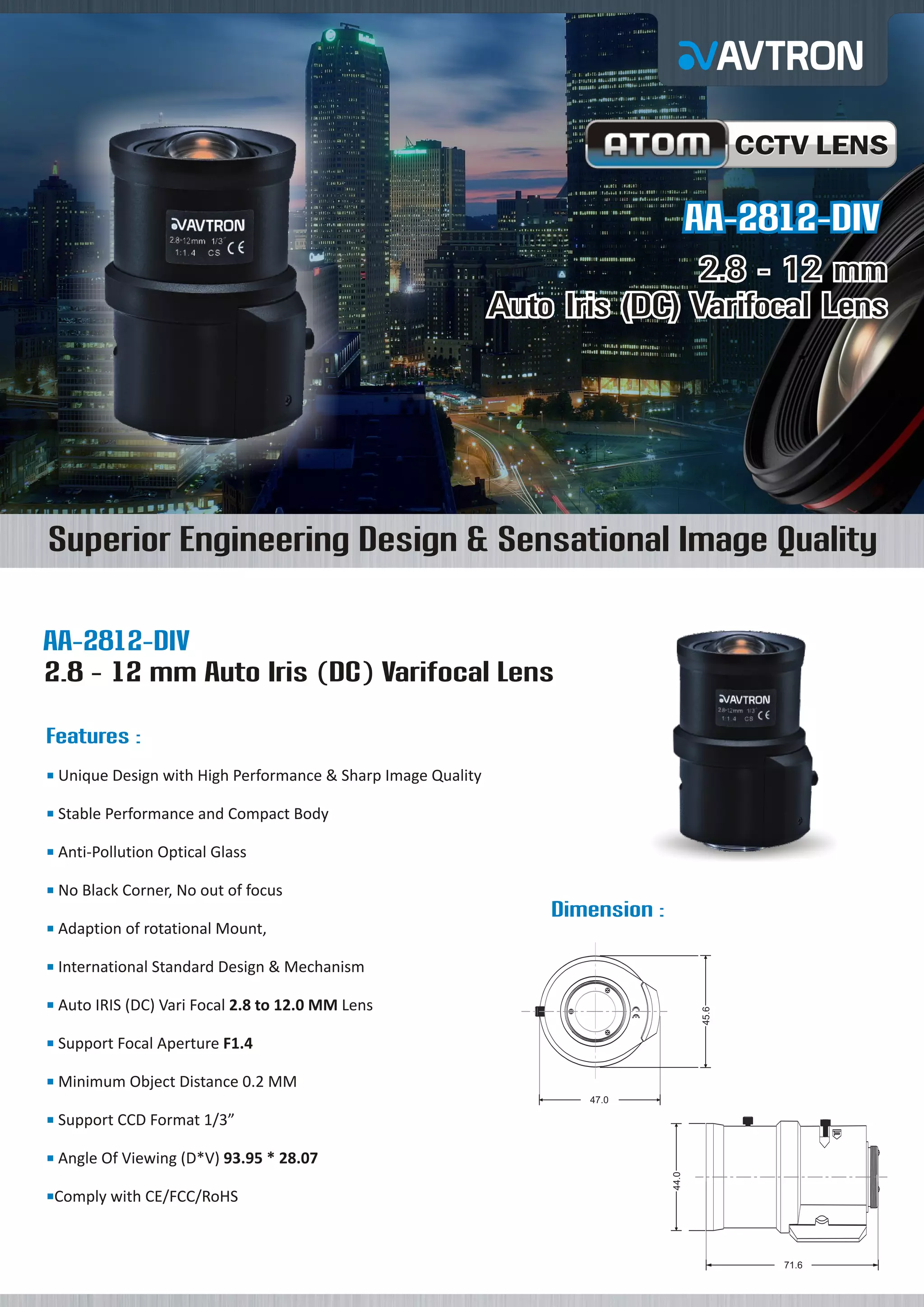

1. CCTV LENS
AA-2812-DIV
2.8 - 12 mm
Auto Iris (DC) Varifocal Lens
Superior Engineering Design & Sensational Image Quality
AA-2812-DIV
2.8 - 12 mm Auto Iris (DC) Varifocal Lens
Features :
Unique
¡ Design with High Performance & Sharp Image Quality
Stable
¡ Performance and Compact Body
Anti-Pollution Optical Glass
¡
No Black Corner, No out of focus
¡
Dimension :
Adaption of rotational Mount,
¡
International Standard Design & Mechanism
¡
45.6
Auto
¡ IRIS (DC) Vari Focal 2.8 to 12.0 MM Lens
Support Focal Aperture F1.4
¡
Minimum Object Distance 0.2 MM
¡
47.0
Support CCD Format 1/3”
¡
Comply
¡ with CE/FCC/RoHS
44.0
Angle
¡ Of Viewing (D*V) 93.95 * 28.07
71.6

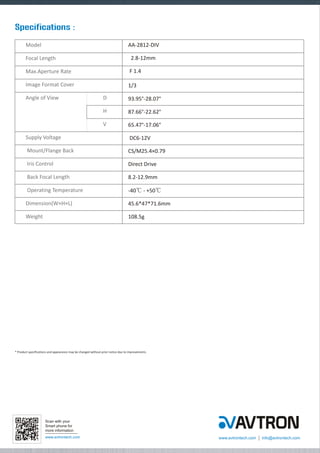

2. Specifications :
Model
AA-2812-DIV
Focal Length
2.8-12mm
Max.Aperture Rate
F 1.4
Image Format Cover
1/3〞
Angle of View
D
93.95°-28.07°
H
87.66°-22.62°
V
65.47°-17.06°
Supply Voltage
DC6-12V
Mount/Flange Back
CS/M25.4×0.79
Iris Control
Direct Drive
Back Focal Length
8.2-12.9mm
Operating Temperature
-40? - +50?
Dimension(W×H×L)
45.6*47*71.6mm
Weight
108.5g
* Product specifications and appearance may be changed without prior notice due to improvements.
