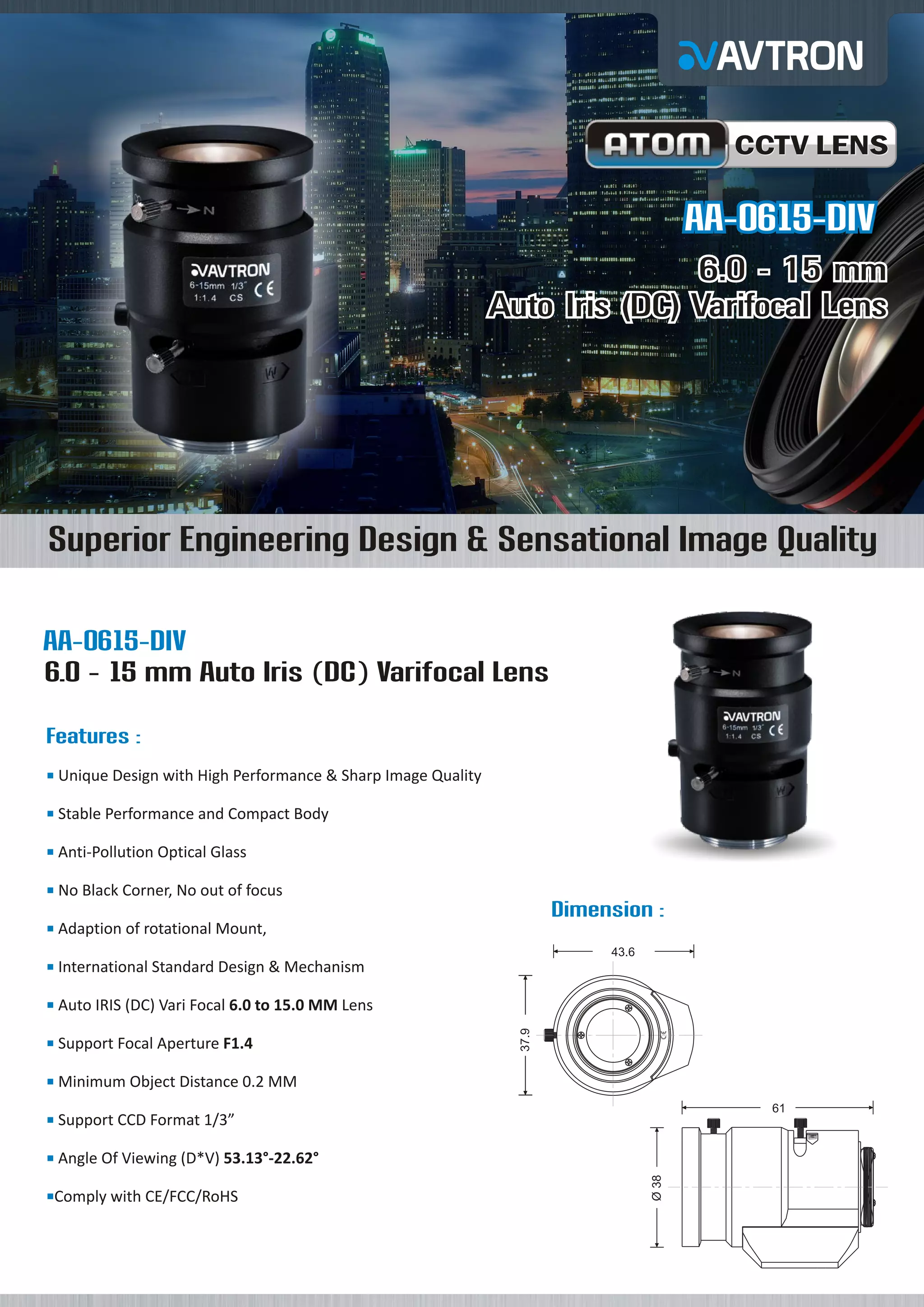

1. CCTV LENS
AA-0615-DIV
6.0 - 15 mm
Auto Iris (DC) Varifocal Lens
Superior Engineering Design & Sensational Image Quality
AA-0615-DIV
6.0 - 15 mm Auto Iris (DC) Varifocal Lens
Features :
Unique
¡ Design with High Performance & Sharp Image Quality
Stable
¡ Performance and Compact Body
Anti-Pollution Optical Glass
¡
No Black Corner, No out of focus
¡
Dimension :
Adaption of rotational Mount,
¡
43.6
International Standard Design & Mechanism
¡
Support Focal Aperture F1.4
¡
37.9
Auto
¡ IRIS (DC) Vari Focal 6.0 to 15.0 MM Lens
Minimum Object Distance 0.2 MM
¡
61
Support CCD Format 1/3”
¡
Comply
¡ with CE/FCC/RoHS
Ø 38
Angle
¡ Of Viewing (D*V) 53.13°-22.62°

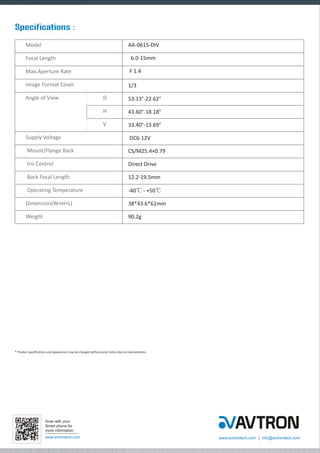

2. Specifications :
Model
AA-0615-DIV
Focal Length
6.0-15mm
Max.Aperture Rate
F 1.4
Image Format Cover
1/3〞
Angle of View
D
53.13°-22.62°
H
43.60°-18.18°
V
33.40°-13.69°
Supply Voltage
DC6-12V
Mount/Flange Back
CS/M25.4×0.79
Iris Control
Direct Drive
Back Focal Length
12.2-19.5mm
Operating Temperature
-40? - +50?
Dimension(W×H×L)
38*43.6*61mm
Weight
90.2g
* Product specifications and appearance may be changed without prior notice due to improvements.
