Panasonic AG-HPX255

AG-HPX255
AG-HPX250
P2 Handheld Memory Card Camera Recorder
(AG-HPX255P/HPX250P, AG-HPX255EJ/HPX250EJ, AG-HPX255EN/HPX250EN)

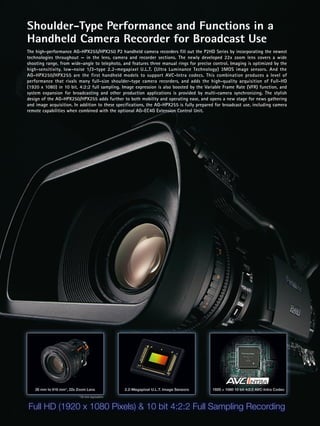

Shoulder-Type Performance and Functions in a
Handheld Camera Recorder for Broadcast Use
The high-performance AG-HPX255/HPX250 P2 handheld camera recorders fill out the P2HD Series by incorporating the newest
technologies throughout — in the lens, camera and recorder sections. The newly developed 22x zoom lens covers a wide
shooting range, from wide-angle to telephoto, and features three manual rings for precise control. Imaging is optimized by the
high-sensitivity, low-noise 1/3-type 2.2-megapixel U.L.T. (Ultra Luminance Technology) 3MOS image sensors. And the
AG-HPX250/HPX255 are the first handheld models to support AVC-Intra codecs. This combination produces a level of
performance that rivals many full-size shoulder-type camera recorders, and adds the high-quality acquisition of Full-HD
(1920 x 1080) in 10 bit, 4:2:2 full sampling. Image expression is also boosted by the Variable Frame Rate (VFR) function, and
system expansion for broadcasting and other production applications is provided by multi-camera synchronizing. The stylish
design of the AG-HPX250/HPX255 adds further to both mobility and operating ease, and opens a new stage for news gathering
and image acquisition. In addition to these specifications, the AG-HPX255 is fully prepared for broadcast use, including camera
remote capabilities when combined with the optional AG-EC4G Extension Control Unit.

28 mm to 616 mm*, 22x Zoom Lens 2.2-Megapixel U.L.T. Image Sensors 1920 × 1080 10 bit 4:2:2 AVC-Intra Codec
*35 mm equivalent

Full HD (1920 x 1080 Pixels) & 10 bit 4:2:2 Full Sampling Recording
1

22x Panasonic Lens — Zooming in on New Levels of Image Expression AG-HPX255/HPX250

Packed with Panasonic Optical Technology Optical Image Stabilizer, Digital Zoom, and ND Filter
The high-performance zoom lens was developed specifically for • Hand-shake correction with the Optical Image Stabilizer (OIS).
professional HD video production. While inheriting the wide-angle • Digital Zoom function.* It can be assigned to an user button and close
capabilities of the DVX and HVX Series, it adds the same level of up to 2x, 5x, and 10x. In combination with the optical zoom, this
operating ease as you'd expect from an interchangeable lens model for function provides a telephoto capability up to 220x.
broadcasting and other professional uses. Combining 18 lens elements in • Four-position (OFF, 1/4 ND, 1/16 ND, 1/64 ND) optical neutral density
12 groups, this advanced lens unit further adds a UHR (Ultra High filter wheel.
Refractive) glass element, a low dispersion element and aspherical * The digital zoom cannot be used while operating the Dynamic Range Stretch (DRS) or Scan Reverse
lenses. This newest optical technology can provide high resolution. functions. If either function is operated while digital zooming, the zoom will be automatically turned off.
Also, Flash Band Compensation (FBC) will not operate while digital zooming.
In addition, it is combined with a unique Panasonic digital signal
processing technology called Chromatic Aberration Compensation
(CAC) to minimize color bleeding in the surrounding image and achieve Focus Ring Zoom Ring
rich expression with finely rendered nuances and excellent shading.
Iris Ring
Zooming from 28mm to 616mm (35mm equivalent), this 22x zoom lens
covers a wide field of view, from wide-angle to telephoto, without a
conversion lens.

Wide 28 mm Tele 616 mm (22x) 22x optical zoom x
10x digital zoom (220x)

Three Manual Rings — Zoom, Focus and Iris
The lens unit is provided with three rings — a mechanical (cam-driven)
zoom ring, a focus ring, and an iris ring. You can operate them manually
almost like an interchangeable lens including rugged operation of
zoom ring.

High-Sensitivity, Low-Noise U.L.T. Image Sensor AG-HPX255/HPX250

pixels. This lowers power consumption and enables high-speed drive, but
because the exposure timing differs for each line, when an external flash
is used, it tends to produce images where the brightness is divided
between the top and bottom of the image. This is called the flash band
effect. The AG-HPX255/HPX250 are equipped with highly accurate flash
band detection and compensation software. By generating pairs of
frames containing flash bands, and frames in which a flash extends from
the previous frame to the entire screen, and then using the
compensation process to adjust the level, the flash band effect of
MOS-based imagers is eliminated.

MOS Output After
U.L.T. image sensor
Image Sensor Image Compensation

High-Sensitivity F10*, 2.2-Megapixel, Low-Noise U.L.T. Image
1 1
Sensor and Optimized Signal Processing Circuit
Flash Band
The AG-HPX255/HPX250 feature the Ultra Luminance Technology (U.L.T.)
1/3-type 2.2-megapixel 3MOS image sensor that is incorporated in our Compensation
Flash
shoulder-type P2HD camera recorders. This advanced image sensor is set 2
Process
2
to maximize the performance of the lens and signal processing circuit
under standard shooting conditions. Progressive Advanced Processing
(PAP) technology, which is driven by 3D adaptive processing, has also
Time Flow 3 3
been further refined to enable high-sensitivity F10*, low-noise shooting
in dimly lit places.
*AG-HPX255/HPX250 sensitivity is selectable, F10 is PAP Filter Type1 and F7 is PAP Filter Type2 in
59.94Hz mode.
In 50Hz mode, F11 is PAP Filter Type1 and F8 is PAP Filter Type2. The default setting is PAP Filter Type2.

Flash Band Compensation
In contrast with the CCD image sensor, which accumulates still images
of single frames that are exposed with identical timing, the MOS image
sensor uses a rolling shutter system that sequentially scans each line of MOS Output Imager After Compensation Imager
2

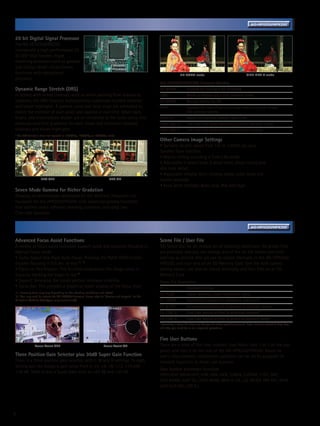

The High-Quality DSP Matches Image Processing and Quality to match Each Shooting Situation AG-HPX255/HPX250

20 bit Digital Signal Processor
The AG-HPX255/HPX250
incorporate a high-performance 20
bit DSP that handles image
rendering processes such as gamma
and various detail enhancement DSP Processor
functions with exceptional HD NORM mode CINE-LIKE D mode
precision.
AG-HPX255/HPX250 Gamma Modes
Dynamic Range Stretch (DRS) HD NORM: Suitable for standard HD recording.
In scenes with mixed contrast, such as when panning from indoors to LOW: Works to flatten out a high contrast scene.
outdoors, the DRS function automatically suppresses blocked shadows SD NORM: Normal setting for SD.
and blown highlights. A gamma curve and knee slope are estimated to HIGH: Expands the tone of dark parts and makes a brighter image.
match the contrast of each pixel, and applied in real time. When dark, The contrast softens.
bright, and intermediate shades are all contained in the same scene, this B.PRESS: Makes the contrast sharper than LOW.
produces excellent gradation for each shade and minimizes blocked CINE-LIKE D: The Cine-Like mode shifted to prioritize dynamic range.
shadows and blown highlights. CINE-LIKE V: The Cine-Like mode shifted to prioritize contrast.
* The DRS function does not operate in 1080/24p, 1080/25p or 1080/30p mode.
Other Camera Image Settings
• Variable shutter speed from 1/6 to 1/2000 sec. plus
Synchro Scan function.
• Matrix setting including a Cine-Like mode
• Adjustable H detail level, V detail level, detail coring and
skin tone detail.
• Adjustable chroma level, chroma phase, color temp and
DRS OFF DRS ON master pedestal.
• Knee point settings: Auto, Low, Mid and High.
Seven Mode Gamma for Richer Gradation
Drawing on technologies developed for the VariCam, Panasonic has
equipped the AG-HPX255/HPX250 with advanced gamma functions
that address seven different shooting scenarios, including two
Cine-Like Gammas.

Rapid Response with Agile Shooting Assist Functions AG-HPX255/HPX250

Advanced Focus Assist Functions Scene File / User File
A variety of focus assist functions support quick and accurate focusing in Set Scene dial for an instant set of shooting conditions. Six preset files
Manual Focus mode. are provided, and you can change any of the six file names and their
• Turbo-Speed One-Push Auto-Focus: Pressing the PUSH AUTO button settings as desired. One set can be stored internally in the AG-HPX255/
enables focusing in 0.5 sec. or less.*1 *2 HPX250, and four sets on an SD Memory Card. One file with camera
• Focus-In-Red Display: This function emphasizes the image areas in setting values can also be stored internally, and four files on an SD
focus by marking the edges in red.*2 Memory Card.
• Expand: Enlarging the center portion increases visibility. Scene File Description
• Focus Bar: This provides a graphical meter display of the focus level. F1: — Standard settings
*1: Focusing time may vary depending on the shooting conditions and object.
F2: FLUO. Indoor shooting under fluorescent lights
*2: You may need to update the AG-HPX250 firmware. Please refer to Service and Support on the
Panasonic Website (http://pro-av.panasonic.net/). F3: SPARK Highlighting subjects at receptions, events etc.
F4: B-STR Enhanced gradations of luminance in low light scenes
F5: CINE V Cine-Like setting shifted to prioritize contrast*
F6: CINE D Cine-Like setting shifted to prioritize dynamic range*
* Selecting a scene file does not change the video recording format. If you want to switch to 25p, 24p
and 30p, you must do so as a separate procedure.

Five User Buttons
Focus Assist OFF Focus Assist ON There are a total of five User buttons: User Main, User 1 to 3 on the top
panel, and User 4 on the rear of the AG-HPX255/HPX250. Based on
Three Position Gain Selector plus 30dB Super Gain Function user's requirements, customized operation can be set by assigned 18
There is a three position gain selector, with L, M and H settings. To each versatile functions to these user buttons.
setting you can assign a gain value from 0, +3, +6, +9, +12, +15 and
User button allotment function
+18 dB. There is also a Super Gain such as +24 dB and +30 dB.
SPOTLIGHT, BACKLIGHT, ATW, ATW LOCK, S.GAIN, D.ZOOM, Y GET, DRS,
TEXT MEMO, SLOT SEL, SHOT MARK, MAG A. LVL, LVL METER, PRE REC, WFM,
LAST CLIP, FBC, LCD B.L.

3

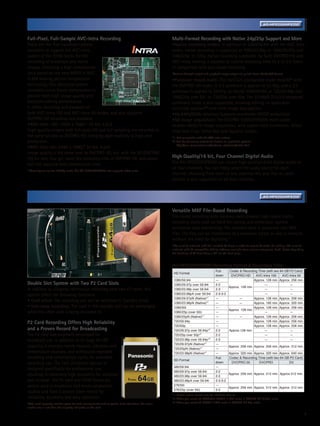

Exclusive P2HD High Image Quality: 10 bit, 4:2:2, AVC-Intra 100 Codec AG-HPX255/HPX250

Full-Pixel, Full-Sample AVC-Intra Recording Multi-Format Recording with Native 24p/25p Support and More
These are the first handheld camera- •Native recording modes: In addition to 1080/59.94i with the AVC-Intra
recorders to support the AVC-Intra codec, native recording is supported at 1080/23.98p or 1080/29.97p and
codecs of the P2HD Series for HD 1080/25p. In 720p, native recording is possible for both DVCPRO HD and
recording of broadcast and movie AVC-Intra, making it possible to extend recording time by 2 to 2.5 times
images. Featuring a high compression in comparison with pull-down recording.
ratio based on the new MPEG-4 AVC/ *Camera through output and playback image output are pulled-down 59.94 (50) frames.
H.264 moving picture compression •Pulldown record mode: This VariCam-compatible mode records*1 with
technology, this advanced system the DVCPRO HD codec. A 2:3 pulldown is applied to 23.98p, and a 2:2
maintains intra-frame compression to pulldown is applied to 29.97p, to record 1080/59.94i or 720/59.94p and
provide both high image quality and 1080/25p over 50i or 720/25p over 50p. The 23.98pA (2:3:3:2 advanced
excellent editing performance. AVC-Intra Codec LSI
pulldown) mode is also supported, allowing editing on applicable
It offers recording and playback of nonlinear systems*2 with little image degradation.
both AVC-Intra 100 and AVC-Intra 50 modes, and also supports •59.94Hz/50Hz selector: Supports worldwide HD/SD production.
DVCPRO HD recording and playback. •SD image acquisition: The DVCPRO 50/DVCPRO/DV multi-codec
•AVC-Intra 100: 1920 x 1080,* 10 bit, 4:2:2 enables 480/576 image acquisition, with aspect ratio conversion. Select
High-quality images with full-pixel HD and full sampling are recorded at from Side Crop, Letter Box and Squeeze modes.
the same bit rate as DVCPRO HD, bringing agile mobility to high-end *1: Not compatible with the AVC-Intra codecs.
production. *2: See the following website for details on applicable systems.
http://pro-av.panasonic.net/en/sales_o/p2comp/index.html
•AVC-Intra 50: 1440 x 1080,* 10 bit, 4:2:0
Image quality is the same level as DVCPRO HD, but with the SD (DVCPRO
50) bit rate. You get twice the recording time of DVCPRO HD, and about High Quality/16 bit, Four Channel Digital Audio
half the required data transmission time. The AG-HPX255/HPX250 can record high quality/16 bit digital audio on
all four channels. You can freely select the audio source for each
* These figures are for 1080i/p mode. The AG-HPX255/HPX250 also supports 720p mode.
channel, choosing from built-in mic, external mic and line-in. Level
volume is also supported on all four channels.

P2 Card Recording Boasts High Reliability and Easy Operation AG-HPX255/HPX250

Versatile MXF File-Based Recording
File-based recording onto memory cards enables high-speed starts,
recording starts with no need for cueing, and protection against
accidental data overwriting. The recorded data is organized into MXF
files. The files can be transferred to a nonlinear editor or over a network
without the need for digitizing.*
*PCs must be installed with the included P2 driver in order to mount P2 cards. For editing, PCs must be
installed with P2-compatible editing software available from various companies. Read Notes Regarding
the Handling of P2 Files Using a PC on the back page.

AG-HPX255/HPX250 Recording Format Recording Time
Pull Codec Recording Time (with two 64 GB P2 Card)
HD Format
down DVCPRO HD AVC-Intra 100 AVC-Intra 50
1080/59.94i — Approx. 128 min. Approx. 256 min.
Double Slot System with Two P2 Card Slots 1080/29.97p over 59.94i 2-2 — —
Approx. 128 min.
In addition to allowing continuous recording onto two P2 cards, this 1080/23.98p over 59.94i 2-3 — —
system offers the following functions. 1080/23.98pA over 59.94i 2-3-3-2 — —
1080/29.97pN (Native)*1 — — Approx. 128 min. Approx. 256 min.
• Card select: The recording slot can be switched in Standby mode. 1080/23.98pN (Native)*1 — — Approx. 160 min. Approx. 320 min.
• Hot-swap recording: The card in the standby slot can be exchanged 1080/50i — Approx. 128 min. Approx. 256 min.
Approx. 128 min.
while the other card is being recorded on. 1080/25p (over 50i) — — —
1080/25pN (Native)*1 — — Approx. 128 min. Approx. 256 min.
P2 Card Recording Offers High Reliability 720/59.94p — Approx. 128 min. Approx. 256 min.
720/50p — Approx. 128 min. Approx. 256 min.
and a Proven Record for Broadcasting 720/29.97p over 59.94p*2 2-2 Approx.128 min. — —
The P2 card was originally developed for 720/25p over 50p*3 2-2 — —
broadcast use. In addition to its large 64 GB* 720/23.98p over 59.94p*2 2-3 — —
720/29.97pN (Native)*1 —
capacity, it strongly resists impacts, vibration and Approx. 256 min. Approx. 256 min. Approx. 512 min.
720/25pN (Native)*1 —
temperature changes, and withstands repeated 720/23.98pN (Native)*1 — Approx. 320 min. Approx. 320 min. Approx. 640 min.
recording and initialization cycles for extended Pull Codec Recording Time (with two 64 GB P2 Card)
SD Format
recording use. The card connector section is down DVCPRO 50 DVCPRO DV
480/59.94i —
designed specifically for professional use,
480/29.97p over 59.94i 2-2
resulting in extremely high durability for insertion 480/23.98p over 59.94i 2-3
Approx. 256 min. Approx. 512 min. Approx.512 min.

and removal. The P2 card and P2HD Series are 480/23.98pA over 59.94i 2-3-3-2
widely used in broadcast and movie production 576/50i —
Approx. 256 min. Approx. 512 min. Approx. 512 min.
576/25p (over 50i) 2-2
studios and have a proven track record for
*1: Native modes record only the effective frames.
reliability, durability and easy operation. *2: When you select 24 FRAME/30 FRAME in VFR mode in DVCPRO HD 59.94p mode.
*Total card capacity includes space for data management such as system data; therefore, the actual *3: When you select 25 FRAME in VFR mode in DVCPRO HD 50p mode.
usable area is less than the capacity indicated on the card.

4

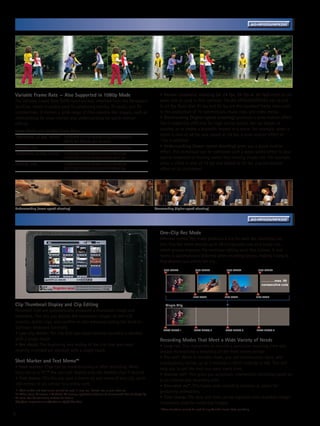

Variable Frame Rate Function Enhances the Image Expression AG-HPX255/HPX250

Variable Frame Rate — Also Supported in 1080p Mode • Normal cinematic shooting (at 24 fps, 25 fps or 30 fps) refers to the
The Variable Frame Rate (VFR) function was inherited from the Panasonic same rate as used in film cameras. The AG-HPX255/HPX250 can record
VariCam, which is widely used for producing movies, TV series, and TV in 24 fps. Note that 25 fps and 30 fps are the standard frame rates used
commercials. It creates a wide range of film-camera-like images, such as in the production of TV commercials, music clips and video media.
overcranking for slow-motion and undercranking for quick-motion • Overcranking (higher-speed shooting) produces a slow-motion effect.
effects. This is especially effective for high-action scenes like car chases or
Image Modes and Variable Frame Rates crashes, or to create a dramatic impact in a scene. For example, when a
1080/59.94i, 23.98p, 29.97p: 1/2/4/6/9/12/15/18/20/21/22/24/25/26/27/
scene is shot at 48 fps and played at 24 fps, a slow-motion effect of
28/30 fps (frames per second) 1/2x is attained.
1080/50i, 25p: 1/2/4/6/9/12/15/18/20/21/22/23/24/25 fps • Undercranking (lower-speed shooting) gives you a quick-motion
720/59.94p, 23.98p, 29.97p: 1/2/4/6/9/12/15/18/20/21/22/24/25/26/ effect. This technique can be combined with a warp-speed effect to give
27/28/30/32/34/36/40/44/48/54/60 fps special emphasis to flowing water, fast-moving clouds, etc. For example,
720/50p, 25p: 1/2/4/6/9/12/15/18/20/21/22/23/24/25/ when a scene is shot at 12 fps and played at 24 fps, a quick-motion
26/27/28/30/32/34/37/42/45/48/50 fps effect of 2x is attained.

Undercranking (lower-speed shooting) Overcranking (higher-speed shooting)

Versatile Recording Functions Enabled by File-Based Recording AG-HPX255/HPX250

One-Clip Rec Mode
Whereas normal Rec mode produces a clip for each Rec start/stop cut,
One-Clip Rec mode records up to 99 consecutive cuts as a single clip,
which greatly improves the nonlinear editing work that follows. A text
memo is automatically attached when recording begins, making it easy to
find desired cuts within the clip.
REC START REC START REC START REC START

…………max. 99
consecutive cuts

REC STOP REC STOP REC STOP

Clip Thumbnail Display and Clip Editing Single Clip
Recorded clips are automatically allocated a thumbnail image and
metadata. This lets you display the thumbnail images on the LCD
monitor, delete clips, and confirm or edit metadata (using the built-in
Software Keyboard function). TEXT MEMO 1 TEXT MEMO 2 TEXT MEMO 3 TEXT MEMO 4
• Last clip delete: The clip that was most recently recorded is deleted
with a single touch. Recording Modes That Meet a Wide Variety of Needs
• Rec check: The beginning and ending of the clip that was most • Loop rec: This repeatedly re-records a particular recurring time slot,
recently recorded are checked with a single touch. always maintaining a recording of the most recent period.
• Pre-rec*: While in standby mode, you can continuously store, and
Shot Marker and Text Memo*1 subsequently record, up to 3 seconds in HD (7 seconds in SD). This will
• Shot marker: Clips can be marked during or after recording. When help you to get the shot you want every time.
mounted to a PC,*2 the user can display only the marked clips if desired. • Interval rec*: This gives you automatic intermittent recording based on
• Text memo: This lets you post a memo on any scene of any clip, up to a set interval and recording time.
100 memos in all, similar to a sticky note. • One-shot rec*: This frame-shot recording function is useful for
*1: Shot marker and text memo cannot be used in loop rec, interval rec, or one-shot rec. producing animations.
*2: When using P2 viewer, a Windows PC viewing application that can be downloaded free of charge by
P2 users. See the following website for details. • Time stamp: The date and time can be stamped onto recorded images.
http://pro-av.panasonic.net/en/sales_o/p2/index.html Commonly used for evidential images.
* These functions cannot be used during Variable Frame Rate recording.
5

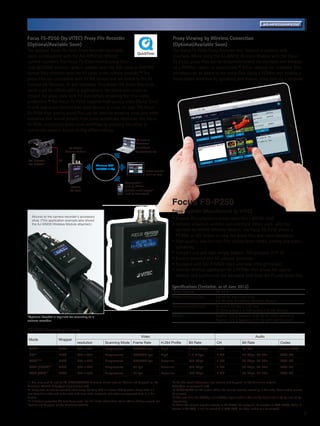

Proxy Image Recording and Wireless Connection Option*1 (Available Soon) AG-HPX255/HPX250

Focus FS-P250 (by Vitec) Proxy File Recorder Proxy Viewing by Wireless Connection
(Optional/Available Soon) (Optional/Available Soon)
The optional Focus FS-P250 Proxy Recorder (available The Focus FS-P250 Proxy Recorder also features a wireless web
soon) is compatible with the AG-HPX255/ HPX250 interface. When using the AJ-WM30 Wireless Module with the Focus
camera recorders. The Focus FS-P250 records proxy files FS-P250, proxy files can be streamed / viewed via standard web browser
onto SD/SDHC memory cards in parallel with the AVC-Intra or DVCPRO on a PC/Mac, tablet, or smartphone.*4 While viewing the streamed files,
format files recorded onto the P2 cards in the camera recorder.*2 The metadata can be added to the proxy files. Using a PC/Mac also enables a
proxy files are compatible with P2 file format and are linked to the P2 cloud-based workflow by uploading and sharing video data via a network.
footage via filename, ID and metadata. This allows the proxy files to be
easily used for offline editing applications; the editor only needs to
replace the proxy data with P2 data before rendering the final video
production.*3 The Focus FS-P250 supports high quality video (Quick Time/
H.264) and audio formats (see chart below) at a low bit rate. The Focus
FS-P250 high quality proxy files can be used for breaking news and other
scenarios that would benefit from proxy workflows. Moreover, the Focus
FS-P250 streamlines production workflow by allowing the editor to
review the content details during offline editing.

PC such as
Panasonic
AJ-WM30 Toughbook
Wireless Module MacBook Air etc.

AG-HPX255*1 SDI
AG-HPX250*1 Wireless LAN
IEEE802.11b/g
Tablet terminal
such as iPad

Smartphone*4
FOCUS such as iPhone
FS-P250 Portable media player*4
such as iPod Touch

Focus FS-P250
Proxy Recorder (Manufactured by VITEC)
Mounts to the camera recorder's accessory
shoe. (This application example also shows
• Records P2-compatible proxy video files (.MOV/H.264).
the AJ-WM30 Wireless Module attached.) • Includes a built-in wireless web interface. When used with the
optional AJ-WM30 Wireless Module, the Focus FS-P250 allows a
PC/Mac or iOS device to view the proxy files and input metadata.
• High quality, low-bit-rate files enable faster media sharing and video
uploading.
• Compact size and light weight (approx. 320 g/approx. 0.71 lb).
• Battery powered and AC adaptor operation.
• Equipped with SDI (HD/SD) input and loop-through output.
• Includes desktop application for a PC/Mac that allows the user to
manage and synchronize the metadata form both the P2 and proxy files.

Specifications (Tentative, as of June 2012)
Power Source: DC 12 V
Power Consumption: 3.6 W for main unit only,
4.2 W with AJ-WM30 Wireless Module
Dimensions (WxHxD): 84 mm x 34 mm x 135 mm
(3-5/16 inches x 1-3/8 inches x 5-3/8 inches)
*Optional bracket is required for mounting to a Weight: Approx. 210 g (approx. 0.46 lb) for main unit only,
camera recorder. Approx. 320 g (approx. 0.71 lb) with battery pack

FS-P250 Recording Format
Video Audio
Mode Wrapper
resolution Scanning Mode Frame Rate H.264 Profile Bit Rate CH Bit Rate Codec
SHQ*5 MOV 960 x 540 Progressive 30/25/24 fps High 3 to 4 Mbps 2 CH 48 kHz Linear PCM
HQ*5 MOV 640 x 360 Progressive 30/25/24 fps High 1.5 Mbps 2 CH 64 kbps, 48 kHz AAC-LC
LOW*5*6 MOV 480 x 270 Progressive 30/25/24 fps Baseline 800 kbps 2 CH 64 kbps, 48 kHz AAC-LC
LOW (NTSC)*7 MOV 352 x 240 Progressive 30 fps Baseline 800 kbps 2 CH 64 kbps, 48 kHz AAC-LC
LOW (PAL)*7 MOV 352 x 288 Progressive 25 fps Baseline 800 kbps 2 CH 64 kbps, 48 kHz AAC-LC

*1: You may need to update AG-HPX255/HPX250 firmware. Please refer to Service and Support on the *4: For the latest information, see Service and Support on the Panasonic website
Panasonic Website (http://pro-av.panasonic.net/). (http://pro-av.panasonic.net/).
*2: Proxy data cannot be recorded when using the Loop REC or Interval REC function. Proxy data is a *5: SHQ/HQ/LOW are HD modes. When the camera recorder recording in SD mode, these modes cannot
low-resolution video and audio data with time code, metadata, and other management data in a file be selected.
format. *6: The resolution for 720/60p and 720/50p input is 320 x 180, and the frame rate is 60 fps and 50 fps,
*3: It doesn't guarantee the zero frame error. For the latest information about offline editing support, see respectively.
Service and Support on the Panasonic website. *7: When the camera recorder records in SD (NTSC), the proxy will be recorder in LOW (NTSC). When it
records in SD (PAL), it will be recorded in LOW (PAL). No other modes can be selected.
6

A Camera Remote Function Prepares the AG-HPX255 for Studio Use AG-HPX255

AG-EC4G
Extension Control Unit
• Compatible camera recorders: AG-HPX255, AG-HPX370 series,
New 10-pin Remote Terminal AG-HPX500 series, AJ-HPX3100G
A remote terminal is provided for
• The maximum length of the remote control cable is 50 m (164 feet).
the optional AG-EC4G Extension
• A 10 m (32 feet) remote cable is bundled.
Control Unit. This enables camera
• The AG-EC4G is both compact and light at 630 g (1.4 lb).
settings to be made and recording
to be controlled while watching the Control Functions
monitor at the remote end.* This Camera Settings: Gain Up/Down, White Balance A/B/Preset Selection and
handheld unit also supports studio AWB/ABB Execution, Iris Auto/Manual Selection and
Adjustment, Master Pedestal, Painting,
integration. Shutter SS/Fix/Off Selection and Speed Setting
AG-HPX255 Remote Tterminal
Operation: Menu Operation, User Buttons (x3),
Rec/Play/FF/Rew/Rec Check
Monitor Output: Cam/Bar Select (linked to Auto Knee), Character On/Off

Specifications
10-pin Cable (10m/50ｍ) VBS
→ Camera Image Power Supply: DC 12 V
AG-HPX255 ← Remote Control AG-EC4G BT-LH910G Power Consumption: 2.5 W
Extension Control Unit LCD Monitor etc. Weight: 630 g (1.4 lb)
Dimensions (WxHxD): 82 mm x 180 mm x 56 mm
*Only functions that are supported by the AG-HPX255 can be controlled. (3-1/4 inches x 7-1/8 inches x 2-1/4 inches)
excluding knobs

High Resolution and High Brightness Color Viewfinder and LCD AG-HPX255/HPX250

High Resolution and High Simplified Waveform and Vectorscope Display
Brightness Color Viewfinder The AG-HPX255/HPX250 have Waveform and Vectorscope Display
and LCD functions for the captured video signal on the LCD monitor.
The AG-HPX255/HPX250's color
EVF uses a 11.43 mm (0.45 inches),
approximately 1,226,000
dot-equivalent (852 x 480 x 3
[RGB]) LCOS (liquid crystal on
silicon) display panel. It delivers
bright, detailed, high-resolution LCOS Color EVF

images and a high response speed. Waveform Vectorscope

Other Functions
High Resolution LCD Monitor • White Balance Selector: Two values (A/B) memory and one value preset.
The AG-HPX255/HPX250's LCD
• ATW (Automatic Tracing White balance) function.
monitor has a 87.63 mm (3.45
• Mode check: Displays a list of the camera settings on the viewfinder
inches), approximately
and LCD monitor.
921,000-dot (1920 x 480) high-
• Zebra: Select any two levels from among 50% to 109%, in 1% steps.
resolution panel.
• Y-GET: Measures brightness at the screen center and displays precise
numerical data.
Color LCD Monitor
• Tally lamps: Provided on the unit's front and rear.
7

System Functions for Multi-Camera and Other Broadcast Applications AG-HPX255/HPX250

Multi-Camera Synchronizing with Genlock IN and TC IN/OUT Digital A/V Output with SDI and HDMI
These handheld cameras support a multi-camera configuration. They • SDI OUT (HD/SD): Allows camera-through output during HD/SD
feature a built-in SMPTE time-code generator/reader, TC input/output, recording, or outputs high-quality 10 bit, 4:2:2 images for playback of
and Genlock input for multi-camera recording with time-code AVC-Intra 100 footage. Includes embedded audio, and supports Rec S/S
synchronization. Images can be synched and output to a switcher, linked backup recording with a Panasonic recorder equipped with HD SDI
providing the same level of operation as many shoulder-type models. input. When outputting SD SDI down-converted from an HD source, the
Aspect Ratio Conversion mode can also be selected.
• HDMI OUT: This is a next-generation interface for HD video and audio.
It allows digital A/V output from a wide range of devices with both
HD SDI OUT
REMOTE
professional and consumer specifications.
GENLOCK IN • VIDEO OUT: SD composite output. HD playback is down-converted.

Switcher/AV Mixer Other Interfaces
AG-HPX255
• USB 2.0 HOST: This allows files to be copied between an external HDD
and a P2 card *1, and lets you view the thumbnails of P2 files saved onto
the HDD.
• USB 2.0 DEVICE: Uploads P2 card files to a PC/Mac.
• DVCPRO/DV (IEEE 1394): Enables backup recording and dubbing by
inputting or outputting a DV stream, including DVCPRO HD.*2
AG-HPX255 • Camera Remote: Controls focus, iris, zoom and REC start/stop.
• XLR audio input: 2-channel mic/line inputs supporting 48V phantom
power supply.
*1: AG-HPX255EJ/HPX250EJ don't support to copy the files onto a P2 card via USB 2.0.
*2: Excluding 720p native mode. Does not support AVC-Intra input/output. Also does not output loop rec,
interval rec or one-shot rec content. AG-HPX255EJ/HPX250EJ don't support input.

AG-HPX255

AG-EC4G
MONITOR
(VBS)

GENLOCK

Monitor
A multi-camera system using GENLOCK synchronization
(only the AG-HPX255 is able to use the AG-EC4G and monitor).

The TC value of the
camera 2 and 3 are
matched to the camera 1

TC IN/OUT

A multi-camera system using TC IN/OUT synchronization.

Advanced Design and Versatile Specifications Facilitate Interviews and Production Work AG-HPX255/HPX250

New, Stylish Design Boosts Mobility
Even with its high-powered zoom lens, the integrated camera and
recorder sections are compact and stylish. Shifting the handle grip and
LCD position forward (toward the lens) has improved the weight balance
and visibility for handheld shooting, enabling a comfortably wide view.
The magnesium alloy die cast chassis also excels in both ruggedness and
durability.

Low-Angle Shots and Interviews
• The upper part of the handle grip contains both the Rec Start/Stop
button and a lens zoom speed control (three speed levels). This design
assures easy shooting even at low angles.
• The LCD monitor mirror mode is convenient when shooting interviews.

8

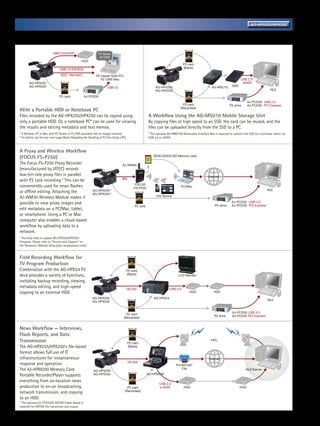

P2HD Interview and Recording Workflows Using the AG-HPX255/HPX250 AG-HPX255/HPX250

USB 2.0 (HOST) P2 Viewer
P2 CMS
HDD
P2 card
USB 2.0 (DEVICE) (Blank)

IEEE 1394 (AVC) P2 Viewer Note PC/
P2 CMS Mac USB 2.0*
AG-HPX255 eSATA
AG-HPX250 AG-HPX255 AG-MSU10 SSD
USB 3.0
AG-HPX250 NLE

P2 card AJ-PCD30
AJ-PCD30 USB 3.0
P2 card P2 drive AJ-PCD35 PCI Express
(Recorded)
With a Portable HDD or Notebook PC
Files recorded by the AG-HPX255/HPX250 can be copied using A Workflow Using the AG-MSU10 Mobile Storage Unit
only a portable HDD. Or, a notebook PC* can be used for viewing By copying files at high speed to an SSD, the card can be reused, and the
the results and editing metadata and text memos. files can be uploaded directly from the SSD to a PC.
* A Windows PC or Mac with P2 Viewer or P2 CMS (available free of charge) installed. * The optional AG-MBX10G Removable Interface Box is required to connect the SSD to a nonlinear editor via
* For details, see the rear cover page (Notes Regarding the Handling of P2 Files Using a PC). USB 2.0 or eSATA.

A Proxy and Wireless Workflow
(FOCUS FS-P250) SDXC/SDHC/SD Memory card

The Focus FS-P250 Proxy Recorder AJ-WM30
(manufactured by VITEC) records
low-bit-rate proxy files in parallel Internet
SDI
with P2 card recording.* This can be
FOCUS
conveniently used for news flashes FS-P250 PC/Mac
AG-HPX255*1 NLE
or offline editing. Attaching the AG-HPX250*1
iOS Device
AJ-WM30 Wireless Module makes it
possible to view proxy images and AJ-PCD30 USB 3.0
P2 card P2 drive AJ-PCD35 PCI Express
edit metadata on a PC/Mac, tablet,
or smartphone. Using a PC or Mac
computer also enables a cloud-based
workflow by uploading data to a
network.
* You may need to update AG-HPX255/HPX250
firmware. Please refer to Service and Support on
the Panasonic Website (http://pro-av.panasonic.net/).

Field Recording Workflow for
TV Program Production
Combination with the AG-HPD24 P2 P2 card
deck provides a variety of functions, (Blank) LCD Monitor
including backup recording, viewing,
metadata editing, and high-speed HD SDI USB 3.0
copying to an external HDD. HDD HDD
AG-HPX255 AG-HPD24
NLE
AG-HPX250

AJ-PCD30 USB 3.0
P2 card
P2 drive AJ-PCD35 PCI Express
(Recorded)

News Workflow — Interviews,
Flash Reports, and Data
Transmission P2 card
FPU

The AG-HPX255/HPX250's file-based (Blank)
format allows full use of IT
infrastructures for instantaneous Internet
HD SDI
response and operation. P2/AVCHD*
The AJ-HPM200 Memory Card AG-HPX255
File NLE/Server
Portable Recorder/Player supports AG-HPX250 AJ-HPM200

everything from on-location news
USB 2.0
production to on-air broadcasting, P2 card e-SATA HDD HDD
network transmission, and copying (Recorded)

to an HDD.
* The optional AJ-YCX250G AVCHD Codec Board is
required for AVCHD file conversion and output.

9

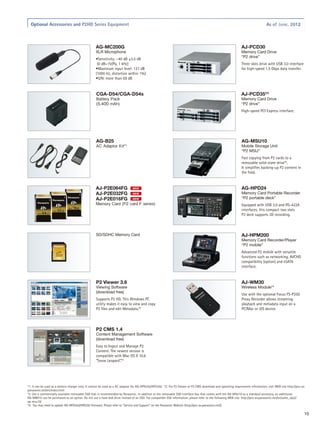

Optional Accessories and P2HD Series Equipment As of June, 2012

AG-MC200G AJ-PCD30
XLR Microphone Memory Card Drive
“P2 drive”
•Sensitivity: –40 dB ±3.5 dB
(0 dB=1V/Pa, 1 kHz) Three slots drive with USB 3.0 interface
•Maximum input level: 127 dB for high-speed 1.5 Gbps data transfer.
(1000 Hz, distortion within 1%)
•S/N: more than 69 dB

CGA-D54/CGA-D54s AJ-PCD35*3
Battery Pack Memory Card Drive
(5,400 mAh) “P2 drive”
High-speed PCI Express interface.

AG-B25 AG-MSU10
AC Adaptor Kit*1 Mobile Storage Unit
“P2 MSU”
Fast copying from P2 cards to a
removable solid-state drive*3.
It simplifies backing-up P2 content in
the field.

AJ-P2E064FG NEW AG-HPD24
AJ-P2E032FG NEW Memory Card Portable Recorder
AJ-P2E016FG NEW “P2 portable deck”
Memory Card (P2 card F series) Equipped with USB 3.0 and RS-422A
interfaces, this compact two slots
P2 deck supports 3D recording.

SD/SDHC Memory Card AJ-HPM200
Memory Card Recorder/Player
“P2 mobile”
Advanced P2 mobile with versatile
functions such as networking, AVCHD
compatibility (option) and eSATA
interface.

P2 Viewer 3.6 AJ-WM30
Viewing Software Wireless Module*4
(download free)
Use with the optional Focus FS-P250
Supports P2 HD. This Windows PC Proxy Recorder allows streaming
utility makes it easy to view and copy playback and metadata input on a
P2 files and edit Metadata.*2 PC/Mac or iOS device.

P2 CMS 1.4
Content Management Software
(download free)
Easy to Ingest and Manage P2
Content. The newest version is
compatible with Mac OS X 10.6
“Snow Leopard”.*2

*1: It can be used as a battery charger only. It cannot be used as a AC adaptor for AG-HPX255/HPX250. *2: For P2 Viewer or P2 CMS download and operating requirement information, visit WEB site http://pro-av.
panasonic.net/en/index.html
*3: Use a commercially available removable SSD that is recommended by Panasonic. In addition to the removable SSD interface box that comes with the AG-MSU10 as a standard accessory, an additional
AG-MBX10 can be purchased as an option. Do not use a hard disk drive instead of an SSD. For compatible SSD information, please refer to the following WEB site: http://pro-av.panasonic.net/en/sales_o/p2/
ag-msu10/
*4: You may need to update AG-HPX255/HPX250 firmware. Please refer to Service and Support on the Panasonic Website (http://pro-av.panasonic.net/).

10

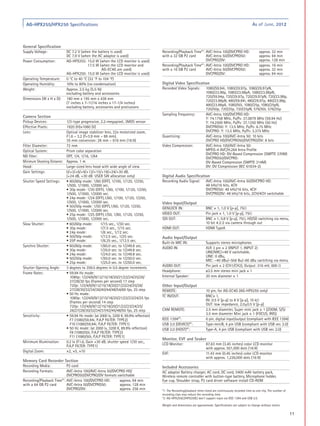

AG-HPX255/HPX250 Specifications As of June, 2012

General Specification
Supply Voltage: DC 7.2 V (when the battery is used) Recording/Playback Time*1: AVC-Intra 100/DVCPRO HD: approx. 32 min
DC 7.9 V (when the AC adaptor is used) with a 32 GB P2 card AVC-Intra 50/DVCPRO50: approx. 64 min
Power Consumption: AG-HPX255: 15.0 W (when the LCD monitor is used) DVCPRO/DV: approx. 128 min
17.5 W (when the LCD monitor and Recording/Playback Time*1: AVC-Intra 100/DVCPRO HD: approx. 16 min
AG-EC4G are used) with a 16 GB P2 card AVC-Intra 50/DVCPRO50: approx. 32 min
AG-HPX250: 15.0 W (when the LCD monitor is used) DVCPRO/DV: approx. 64 min
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 10% to 80% (no condensation) Digital Video Specification
Weight: Approx. 2.5 kg (5.5 lb) Recorded Video Signals: 1080/59.94i, 1080/29.97p, 1080/29.97pN,
excluding battery and accessories 1080/23.98p, 1080/23.98pA, 1080/23.98pN,
720/59.94p, 720/29.97p, 720/29.97pN, 720/23.98p,
Dimensions (W x H x D): 180 mm x 195 mm x 438 mm
720/23.98pN, 480/59.94i, 480/29.97p, 480/23.98p,
(7 inches x 7-11/16 inches x 17-1/4 inches)
480/23.98pA, 1080/50i, 1080/25p, 1080/25pN,
excluding battery, accessories and protrusions
720/50p, 720/25p, 720/25pN, 576/50i, 576/25p
Sampling Frequency: AVC-Intra 100/DVCPRO HD:
Camera Section Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz)
Pickup Devices: 1/3-type progressive, 2.2-megapixel, 3MOS sensor Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz)
Effective Pixels: 1920 (H)×1080 (V) DVCPRO50: Y: 13.5 MHz, PB/PR: 6.75 MHz
Lens: Optical image stabilizer lens, 22x motorized zoom, DVCPRO: Y: 13.5 MHz, PB/PR: 3.375 MHz
F1.6 – 3.2 (f=3.9 mm – 86 mm), Quantizing: AVC-Intra 100/AVC-Intra 50: 10 bits
35 mm conversion: 28 mm – 616 mm (16:9) DVCPRO HD/DVCPRO50/DVCPRO/DV: 8 bits
Filter Diameter: 72 mm Video Compression: AVC-Intra 100/AVC-Intra 50:
Optical System: Prism color separation MPEG-4 AVC/H.264 Intra Profile
DVCPRO HD: DV-Based Compression (SMPTE 370M)
ND filter: OFF, 1/4, 1/16, 1/64 DVCPRO50/DVCPRO:
Minimum Shooting Distance: Approx. 1 m DV-Based Compression (SMPTE 314M)
Hood: Large-sized lens hood with wide angle of view DV: DV Compression (IEC 61834-2)
Gain Settings: 0/+3/+6/+9/+12/+15/+18/+24/+30 dB,
(+24 dB, +30 dB: USER SW allocation only) Digital Audio Specification
Shutter Speed Settings: • 60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, Recording Audio Signal: AVC-Intra 100/AVC-Intra 50/DVCPRO HD:
1/500, 1/1000, 1/2000 sec. 48 kHz/16 bits, 4CH
• 30p mode: 1/30 (OFF), 1/60, 1/100, 1/120, 1/250, DVCPRO50: 48 kHz/16 bits, 4CH
1/500, 1/1000, 1/2000 sec. DVCPRO/DV: 48 kHz/16 bits, 2CH/4CH switchable
• 24p mode: 1/24 (OFF),1/60, 1/100, 1/120, 1/250,
1/500, 1/1000, 1/2000 sec. Video Input/Output
• 50i/50p mode: 1/50 (OFF),1/60, 1/120, 1/250, GENLOCK IN: BNC × 1, 1.0 V [p-p], 75Ω
1/500, 1/1000, 1/2000 sec.
• 25p mode: 1/25 (OFF),1/50, 1/60, 1/120, 1/250, VIDEO OUT: Pin jack × 1, 1.0 V [p-p], 75Ω
1/500, 1/1000, 1/2000 sec. SDI OUT: BNC × 1, 0.8 V [p-p], 75Ω, HD/SD switching via menu,
Slow Shutter: • 60i/60p mode: 1/15 sec., 1/30 sec. 10 bit 4:2:2 via camera through out
• 30p mode: 1/7.5 sec., 1/15 sec. HDMI OUT: HDMI TypeA
• 24p mode: 1/6 sec., 1/12 sec.
• 50i/50p mode: 1/12.5 sec., 1/25 sec. Audio Input/Output
• 25P mode: 1/6.25 sec., 1/12.5 sec.
Built-In MIC IN: Supports stereo microphones
Synchro Shutter: • 60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
AUDIO IN: XLR 3 pin × 2 (INPUT 1, INPUT 2)
• 30p mode: 1/30.0 sec. to 1/249.8 sec.
LINE/MIC/+48 V switchable,
• 24p mode: 1/24.0 sec. to 1/249.8 sec.
LINE: 0 dBu,
• 50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
MIC: –40 dBu/–50d Bu/–60 dBu switching via menu
• 25p mode: 1/25.0 sec. to 1/250.0 sec.
AUDIO OUT: Pin jack × 2 (CH1/CH2), Output: 316 mV, 600 Ω
Shutter Opening Angle: 3 degrees to 359.5 degrees in 0.5 degree increments
Headphone: ø3.5 mm stereo mini jack × 1
Frame Rates: • 59.94 Hz mode:
1080p: 1/2/4/6/9/12/15/18/20/21/22/24/25/26/ Internal Speaker: 20 mm diameter × 1
27/28/30 fps (frames per second) 17 step
720p: 1/2/4/6/9/12/15/18/20/21/22/24/25/26/ Other Input/Output
27/28/30/32/34/36/40/44/48/54/60 fps, 25 step REMOTE: 10 pin, for AG-EC4G (AG-HPX255 only)
• 50 Hz mode:
1080p: 1/2/4/6/9/12/15/18/20/21/22/23/24/25 fps TC IN/OUT: BNC× 1,
(frames per second) 14 step IN: 0.5 V [p-p] to 8 V [p-p], 10 kΩ
720p: 1/2/4/6/9/12/15/18/20/21/22/23/24/25/ OUT: low impedance, 2.0±0.5 V [p-p]
26/27/28/30/32/34/37/42/45/48/50 fps, 25 step CAM REMOTE: 2.5 mm diameter, Super mini jack × 1 (ZOOM, S/S)
Sensitivity: • 59.94 Hz mode: (at 2000 lx, 3200 K, 89.9% reflection) 3.5 mm diameter Mini jack × 1 (FOCUS, IRIS)
F7 (1080/59.94i, P.A.P FILTER: TYPE2) IEEE 1394*2: 6 pin, digital input/output (compliant with IEEE 1394)
F10 (1080/59.94i, P.A.P FILTER: TYPE1) USB 2.0 (DEVICE)*2: Type-miniB, 4 pin USB (compliant with USB ver. 2.0)
• 50 Hz mode: (at 2000 lx, 3200 K, 89.9% reflection) USB 2.0 (HOST)*2: Type-A, 4 pin USB (compliant with USB ver. 2.0)
F8 (1080/50i, P.A.P FILTER: TYPE2)
F11 (1080/50i, P.A.P FILTER: TYPE1)
Monitor, EVF and Seaker
Minimum Illumination: 0.2 lx (F1.6, Gain +30 dB, shutter speed 1/30 sec.,
P.A.P FILTER: TYPE1) LCD Monitor: 87.63 mm (3.45 inches) color LCD monitor
with approx. 921,000 dots (16:9)
Digital Zoom: ×2, ×5, ×10
EVF: 11.43 mm (0.45 inches) color LCD monitor
with approx. 1,226,000 dots (16:9)
Memory Card Recorder Section
Recording Media: P2 card Included Accessories
Recording Formats: AVC-Intra 100/AVC-Intra 50/DVCPRO HD/ AC adaptor Battery charger, AC cord, DC cord, 5400 mAh battery pack,
DVCPRO50/DVCPRO/DV formats switchable Wireless remote controller with button-type battery, Microphone holder,
1
Recording/Playback Time* : AVC-Intra 100/DVCPRO HD: approx. 64 min Eye cup, Shoulder strap, P2 card driver software install CD-ROM
with a 64 GB P2 card AVC-Intra 50/DVCPRO50: approx. 128 min
DVCPRO/DV: approx. 256 min *1: The Recording/playback times listed are continuously recorded time as one clip. The number of
recording clips may reduce the recording time.
*2: AG-HPX255EJ/HPX250EJ don't support input via IEEE 1394 and USB 2.0.

Weight and dimensions are approximate. Specifications are subject to change without notice.

11

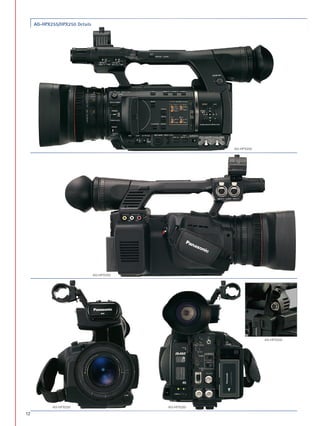

AG-HPX255/HPX250 Details

AG-HPX250

AG-HPX250

AG-HPX255

AG-HPX250 AG-HPX250

12

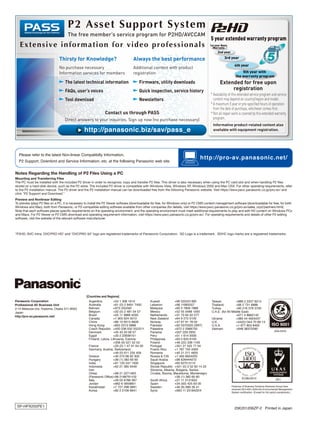

Please refer to the latest Non-linear Compatibilty Information,
http://pro-av.panasonic.net/
P2 Support, Downlord and Service Information, etc. at the following Panasonic web site.

Notes Regarding the Handling of P2 Files Using a PC
Mounting and Transferring Files
The PC must be installed with the included P2 driver in order to recognize, copy and transfer P2 files. This driver is also necessary when using the PC card slot and when handling P2 files
stored on a hard-disk device, such as the P2 store. The included P2 driver is compatible with Windows Vista, Windows XP, Windows 2000 and Mac OSX. For other operating requirements, refer
to the P2 installation manual. The P2 driver and the P2 installation manual can be downloaded free from the following Panasonic website. Visit https://eww.pavc.panasonic.co.jp/pro-av/ and
click P2 Support and Download.
Preview and Nonlinear Editing
To preview (play) P2 files on a PC, it is necessary to install the P2 Viewer software (downloadable for free, for Windows only) or P2 CMS content management software (downloadable for free, for both
Windows and Mac), both from Panasonic, or P2-compatible editing software available from other companies (for details, visit https://eww.pavc.panasonic.co.jp/pro-av/sales_o/p2/partners.html).
Note that each software places specific requirements on the operating environment, and the operating environment must meet additional requirements to play and edit HD content on Windows PCs
and Macs. For P2 Viewer or P2 CMS download and operating requirement information, visit https://eww.pavc.panasonic.co.jp/pro-av/. For operating requirements and details of other P2 editing
software, visit the website of the relevant software manufacturer.

*P2HD, AVC-Intra, DVCPRO HD” and “DVCPRO 50” logo are registered trademarks of Panasonic Corporation. SD Logo is a trademark. SDHC logo marks are a registered trademarks.

[Countries and Regions]
Panasonic Corporation Argentina +54 1 308 1610 Kuwait +96 522431385 Taiwan +886 2 2227 6214
Professional AV Business Unit Australia +61 (0) 2 9491 7400 Lebanon +96 11665557 Thailand +66 2 731 8888
2-15 Matsuba-cho, Kadoma, Osaka 571-8503 Bahrain +973 252292 Malaysia +60 3 7809 7888 Turkey +90 216 578 3700
Japan Belgium +32 (0) 2 481 04 57 Mexico +52 55 5488 1000 U.A.E. (for All Middle East)
http://pro-av.panasonic.net/ Brazil +55 11 3889 4035 Netherlands +31 73 64 02 577 +971 4 8862142
Canada +1 905 624 5010 New Zealand +64 9 272 0100 Ukraine +380 44 4903437
China +86 10 6515 8828 Norway +47 67 91 78 00 U.K. +44(0)1344 70 69 13
Hong Kong +852 2313 0888 Pakistan +92 5370320 (SNT) U.S.A. +1 877 803 8492
Czech Republic +420 236 032 552/511 Palestine +972 2 2988750 Vietnam +848 38370280
Denmark +45 43 20 08 57 Panama +507 229 2955
Egypt +20 2 23938151 Peru +51 1 614 0000
Finland, Latvia, Lithuania, Estonia Philippines +63 2 633 6163
+358 (9) 521 52 53 Poland +48 (22) 338 1100
France +33 (0) 1 47 91 64 00 Portugal +351 21 425 77 04
Germany, Austria, Switzerland Puerto Rico +1 787 750 4300
+49 (0) 611 235 459 Romania +40 21 211 4855
Greece +30 210 96 92 300 Russia CIS +7 495 6654205
Hungary +36 (1) 382 60 60 Saudi Arabia +96 626444072
India +91 120 247 1000 Singapore +65 6270 0110
Indonesia +62 21 385 9449 Slovak Republic +421 (0) 2 52 92 14 23
Iran Slovenia, Albania, Bulgaria, Serbia,
(Vida) +98 21 2271463 Croatia, Bosnia, Macedonia, Montenegro
(Panasonic Office) 98 2188791102
+ +36 (1) 382 60 60
Italy +39 02 6788 367 South Africa +27 11 3131622
Jordan +962 6 5859801 Spain +34 (93) 425 93 00
Kazakhstan +7 727 298 0891 Sweden +46 (8) 680 26 41 Factories of Business Solutions Business Group have
received ISO14001:2004-the Environmental Management
Korea +82 2 2106 6641 Syria +963 11 2318422/4
System certification. (Except for 3rd party’s peripherals.)

SP-HPX255PE1
25K201206ZP-2 Printed in Japan

Panasonic AG-HPX255

More Related Content

What's hot

Similar to Panasonic AG-HPX255

More from AVNed

Recently uploaded

Panasonic AG-HPX255
