- 2. IDEATE. INNOVATE. INSPIRE. • At theheart of Salt Lake Electronics Complex, Kolkata • A 50,000+ Sq. Ft. facility • Equipped with state of the art technology • 70+ Engineers in our 300+ team Power Electronics Solutions

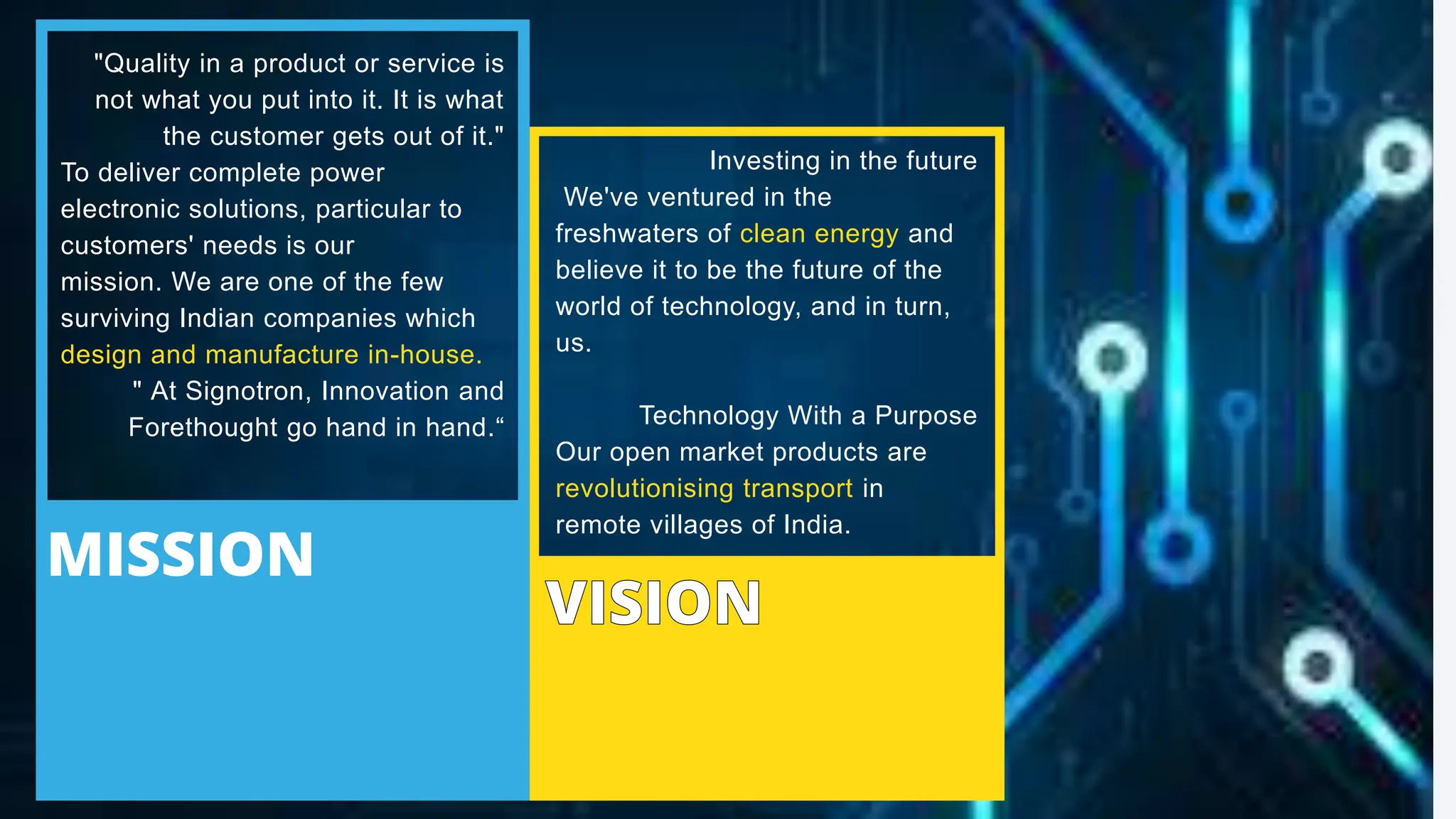

- 3. MISSION Investing in thefuture We've ventured in the freshwaters of clean energy and believe it to be the future of the world of technology, and in turn, us. Technology With a Purpose Our open market products are revolutionising transport in remote villages of India. "Quality in a product or service is not what you put into it. It is what the customer gets out of it." To deliver complete power electronic solutions, particular to customers' needs is our mission. We are one of the few surviving Indian companies which design and manufacture in-house. " At Signotron, Innovation and Forethought go hand in hand.“

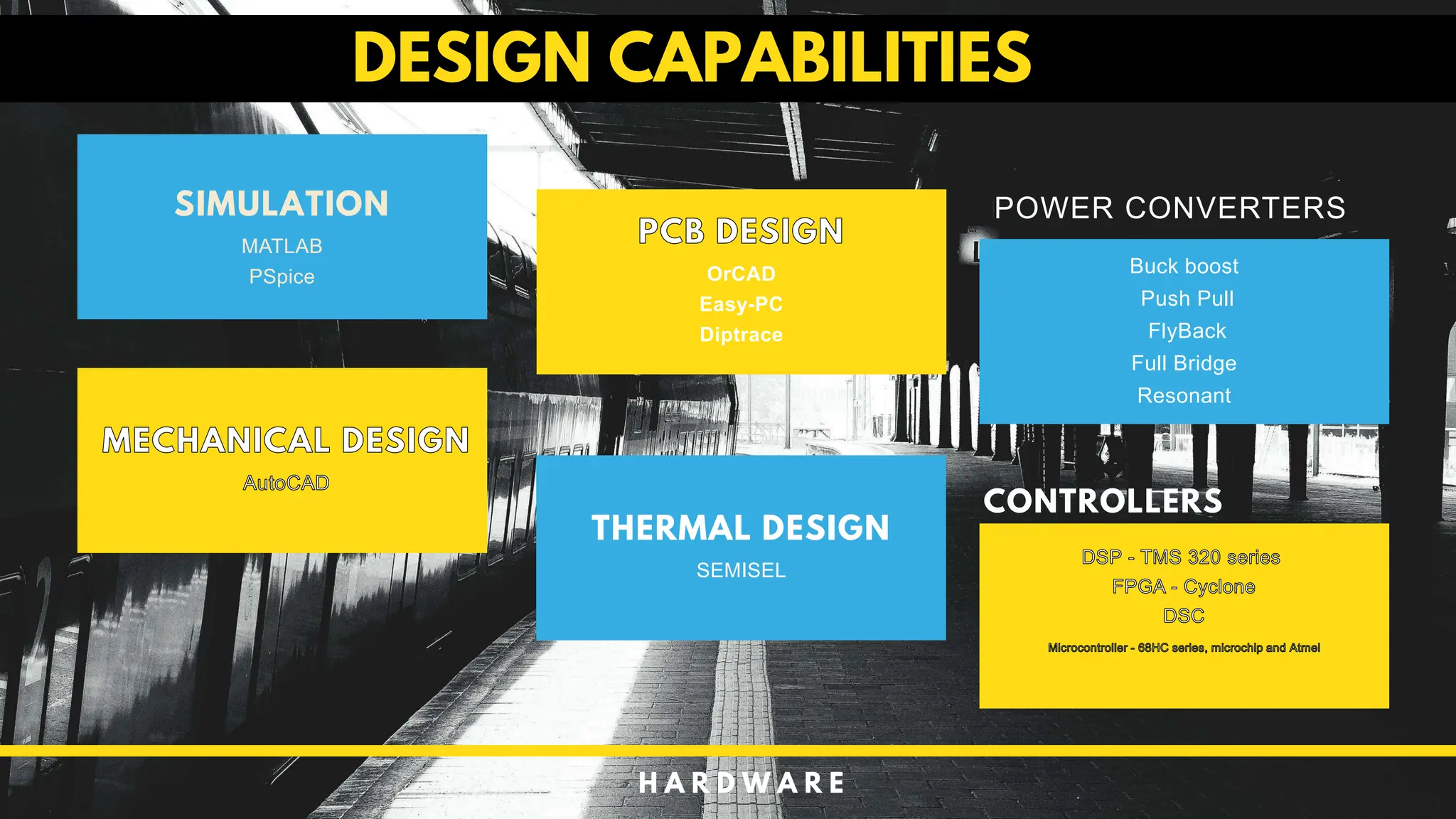

- 4. Buck boost Push Pull FlyBack FullBridge Resonant MATLAB PSpice SIMULATION OrCAD Easy-PC Diptrace CONTROLLERS POWER CONVERTERS SEMISEL THERMAL DESIGN H A R D W A R E DESIGN CAPABILITIES
- 5. DESIGN CAPABILITIES CC Studio Win IDE MPLAB AVRStudio ELNEC EMBEDDED SOFTWARE DESIGN Embedded C C++ PHP XML MySQL Visual C HTML 5 CSS BOOTSTRAP JAVASCRIPT JQUERY AJAX ANGULAR JS PHP 7 S O F T W A R E
- 6.
- 7. Solar | ElectricVehicle Accessories CLEAN ENERGY Our engineers work tirelessly to handcraft the best electronic solutions to YOUR needs. Converters | Inverters | Chargers | Headlights RAILWAYS Battery Chargers | Active Harmonic Filters INDUSTRY OUR WORK

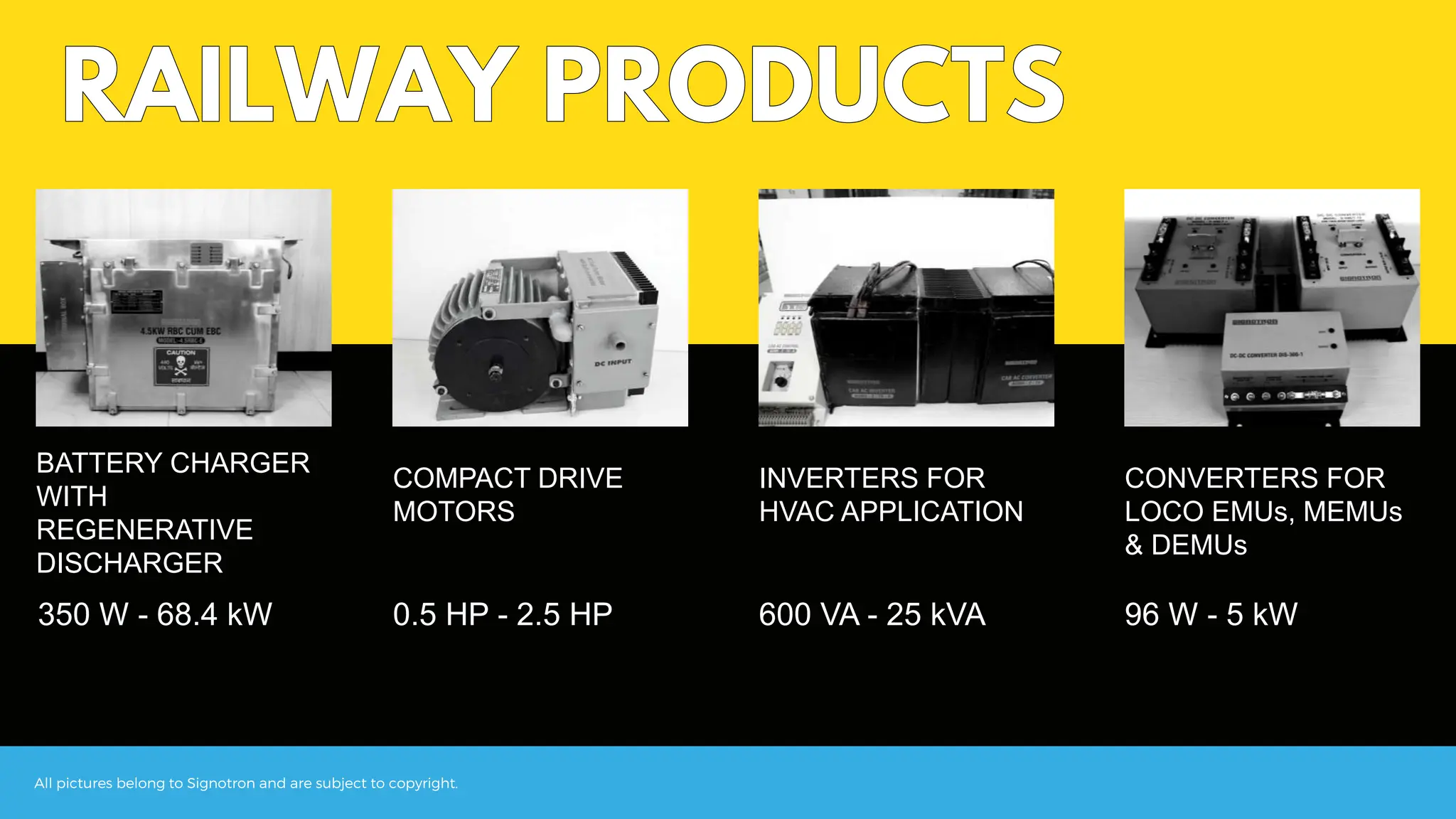

- 8. All pictures belongto Signotron and are subject to copyright. BATTERY CHARGER WITH REGENERATIVE DISCHARGER CONVERTERS FOR LOCO EMUs, MEMUs & DEMUs INVERTERS FOR HVAC APPLICATION COMPACT DRIVE MOTORS 350 W - 68.4 kW 0.5 HP - 2.5 HP 600 VA - 25 kVA 96 W - 5 kW

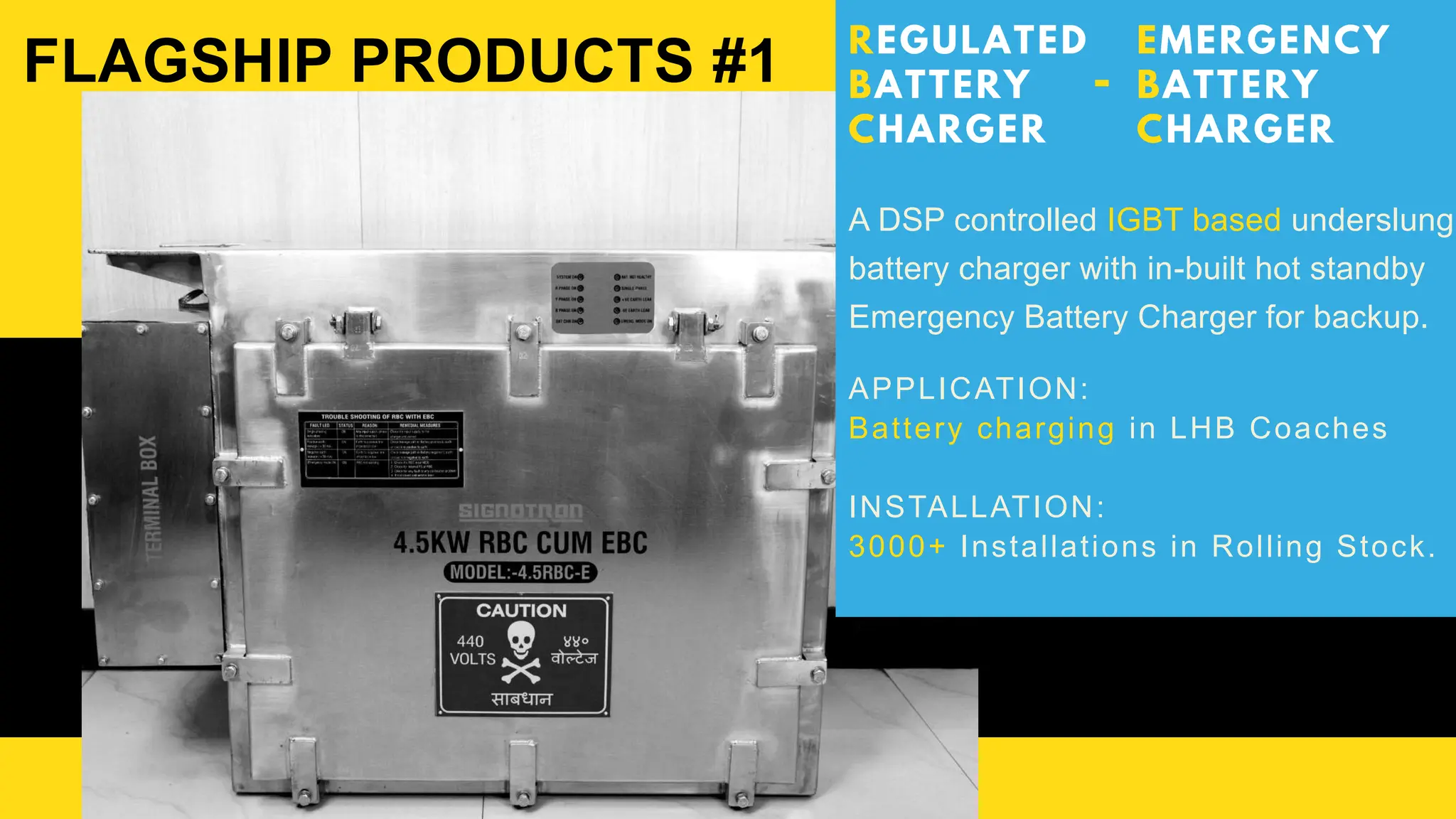

- 9. REGULATED BATTERY CHARGER A DSP controlledIGBT based underslung battery charger with in-built hot standby Emergency Battery Charger for backup. APPLICATION: Battery charging in LHB Coaches INSTALLATION: 3000+ Installations in Rolling Stock. FLAGSHIP PRODUCTS #1 EMERGENCY BATTERY CHARGER -

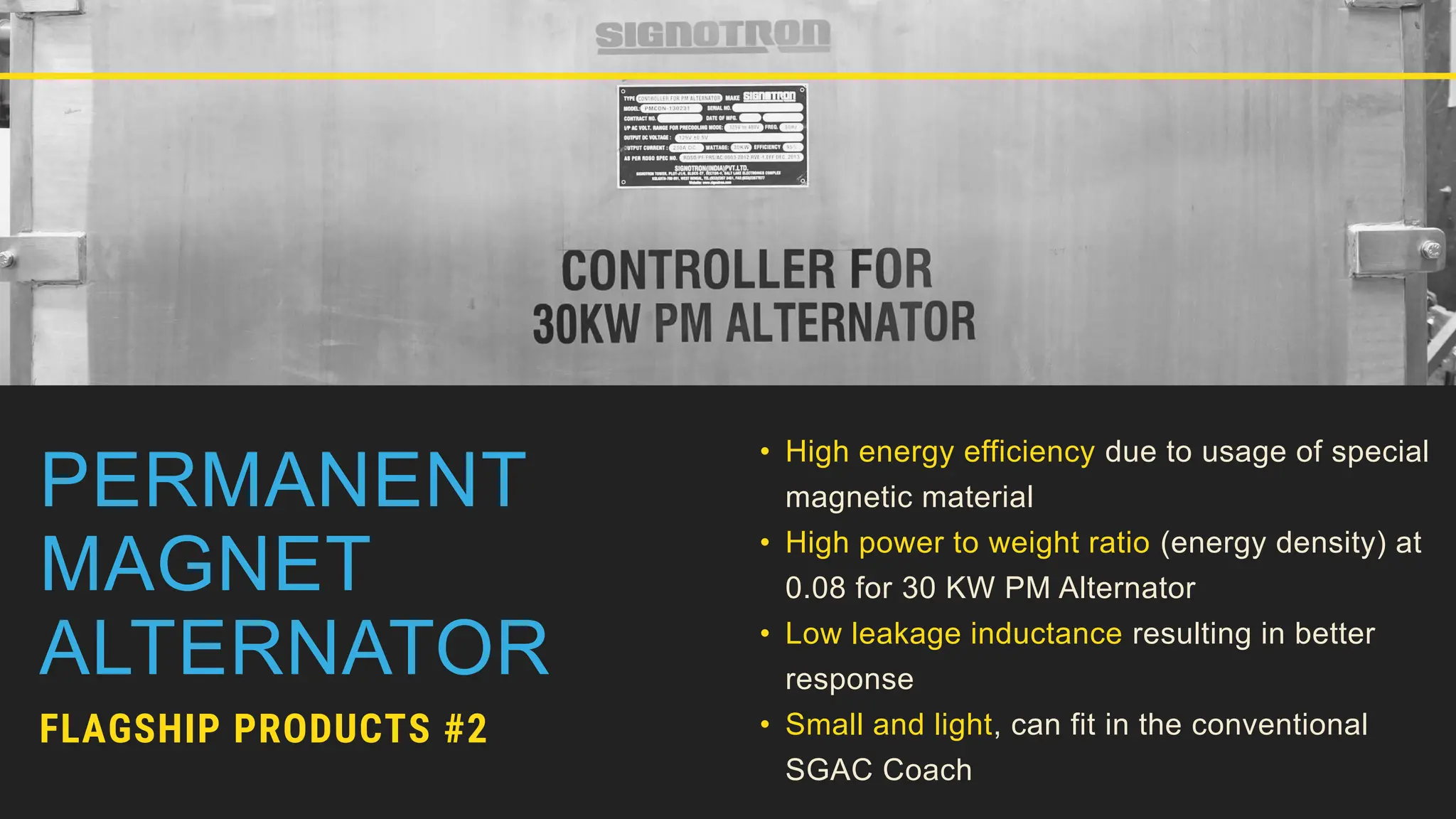

- 10. PERMANENT MAGNET ALTERNATOR FLAGSHIP PRODUCTS #2 •High energy efficiency due to usage of special magnetic material • High power to weight ratio (energy density) at 0.08 for 30 KW PM Alternator • Low leakage inductance resulting in better response • Small and light, can fit in the conventional SGAC Coach

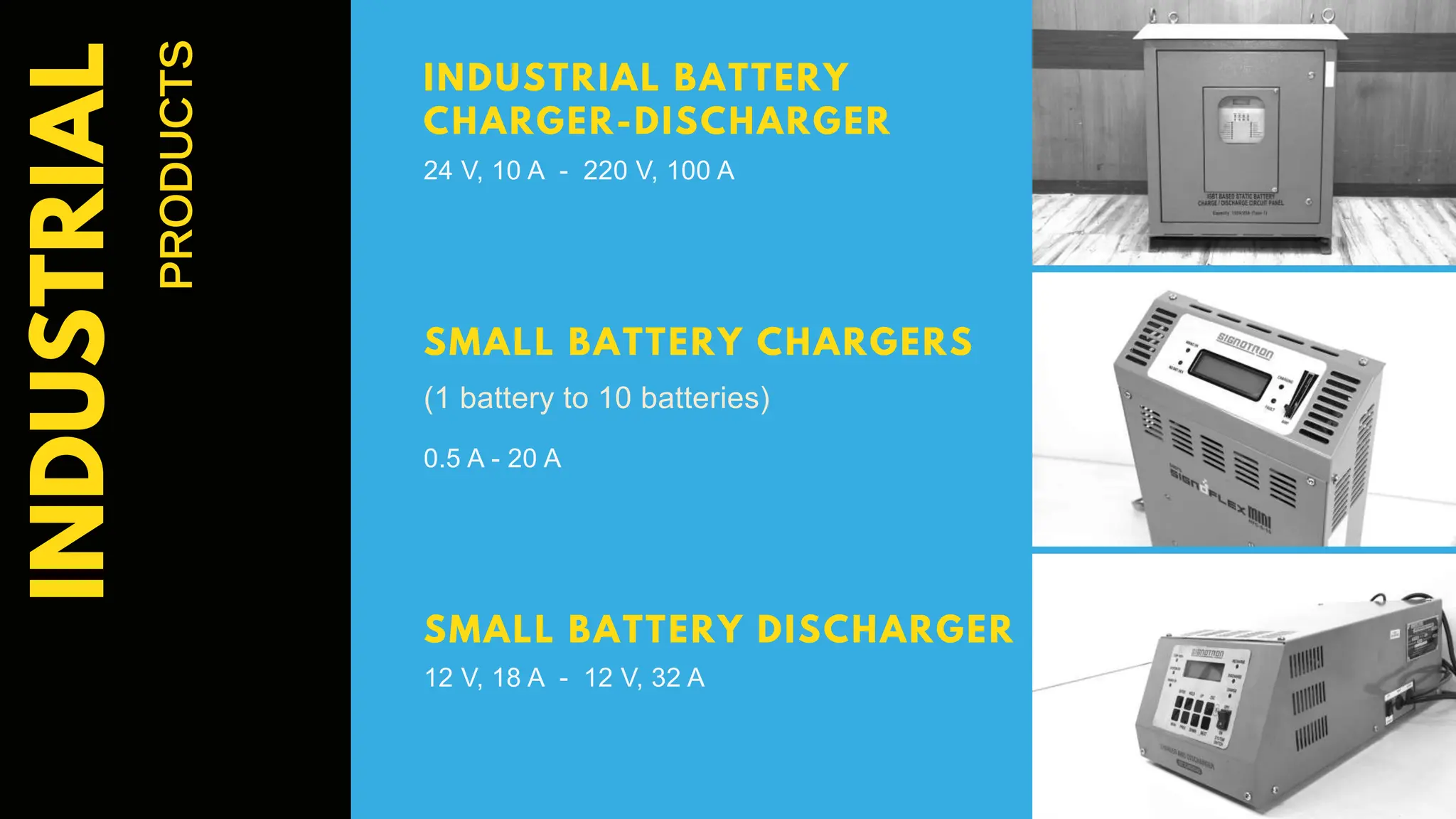

- 11. INDUSTRIAL PRODUCTS INDUSTRIAL BATTERY CHARGER-DISCHARGER 24 V,10 A - 220 V, 100 A SMALL BATTERY CHARGERS (1 battery to 10 batteries) 0.5 A - 20 A SMALL BATTERY DISCHARGER 12 V, 18 A - 12 V, 32 A

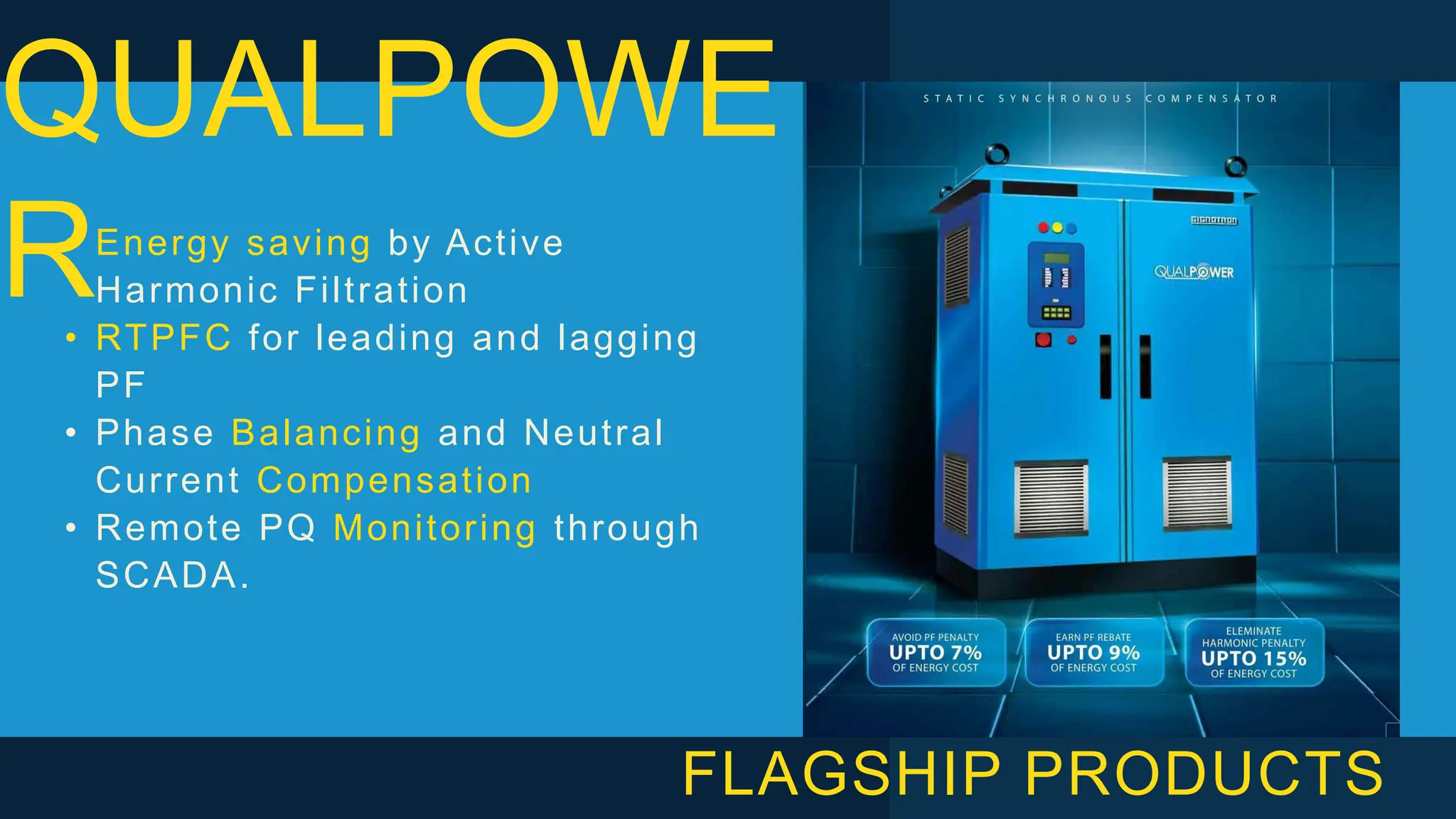

- 12. • Energy savingby Active Harmonic Filtration • RTPFC for leading and lagging PF • Phase Balancing and Neutral Current Compensation • Remote PQ Monitoring through SCADA. QUALPOWE R FLAGSHIP PRODUCTS

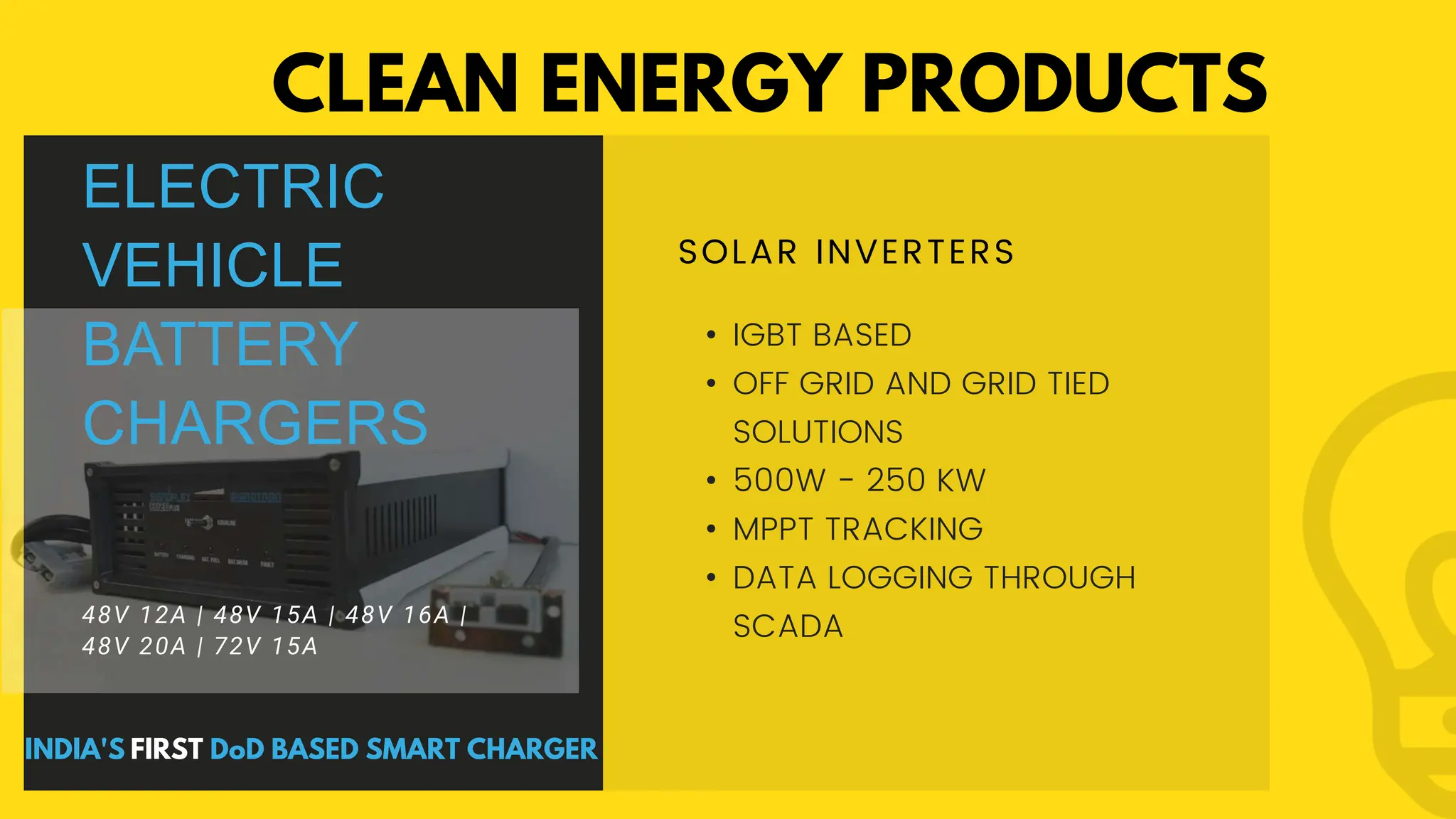

- 13. 48V 12A |48V 15A | 48V 16A | 48V 20A | 72V 15A ELECTRIC VEHICLE BATTERY CHARGERS SOLAR INVERTERS • IGBT BASED • OFF GRID AND GRID TIED SOLUTIONS • 500W - 250 KW • MPPT TRACKING • DATA LOGGING THROUGH SCADA CLEAN ENERGY PRODUCTS INDIA'S FIRST DoD BASED SMART CHARGER

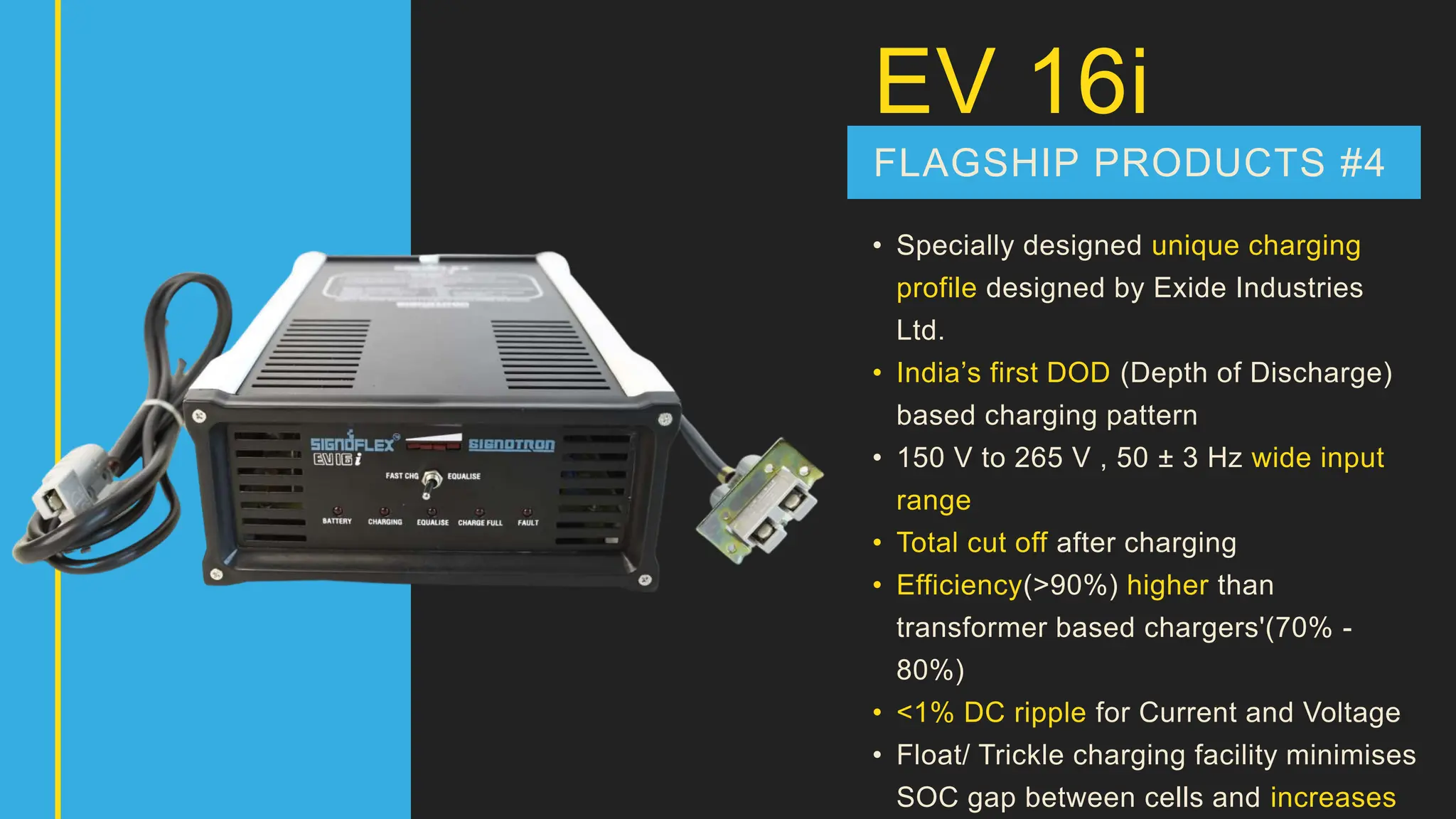

- 14. EV 16i FLAGSHIP PRODUCTS#4 • Specially designed unique charging profile designed by Exide Industries Ltd. • India’s first DOD (Depth of Discharge) based charging pattern • 150 V to 265 V , 50 ± 3 Hz wide input range • Total cut off after charging • Efficiency(>90%) higher than transformer based chargers'(70% - 80%) • <1% DC ripple for Current and Voltage • Float/ Trickle charging facility minimises SOC gap between cells and increases
