This document discusses augmented reality (AR) and virtual reality (VR) capabilities in web browsers. It begins with an overview of AR and VR technologies like A-Frame and WebXR for building AR and VR experiences. It then demonstrates various AR and VR demos created with A-Frame, including galleries, art viewing, and using markers for AR. The document concludes with recommendations for optimizing assets like images, 3D models and videos for improved performance of AR and VR experiences in the browser.

1. @dougsillars

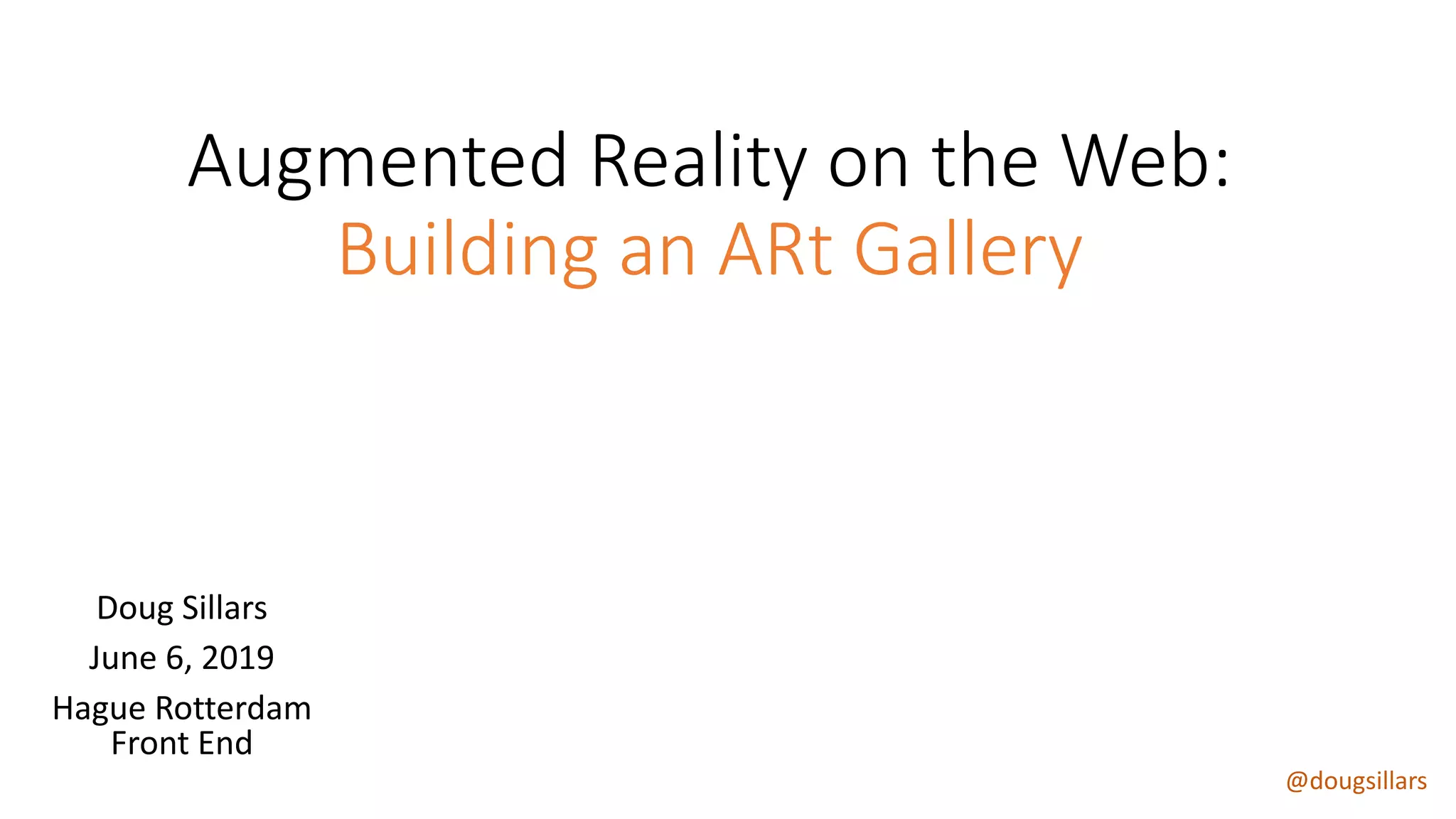

Augmented Reality on the Web:
Building an ARt Gallery
Doug Sillars
June 6, 2019
Hague Rotterdam
Front End

2. @dougsillars
Contact Me:
@DougSillars
Doug.Sillars@gmail.com
www.dougsillars.com
Doug Sillars
Freelance Developer Relations
Performance Audits: Web/Native
Workshops:
Performance/Images/Video/AR
http://bit.ly/HighPerformanceAndroidApps

3. Virtual Reality

4. Virtual Reality
https://www.flickr.com/photos/68158920@N08/17742136272

5. Virtual Reality

6. Virtual Reality

7. Augmented Reality

8. Augmented Reality

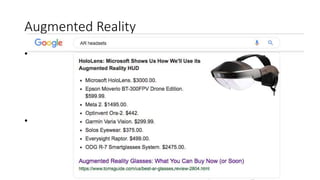

9. Augmented Reality
• Wearing fancy occulus with cameras
• Really $$$

10. Augmented Reality –
Smartphone
https://www.flickr.com/photos/bellemarematt/28124392062
https://www.flickr.com/photos/bagogames/28628142444

11. Augmented Reality –
Smartphone
https://www.flickr.com/photos/bellemarematt/28124392062
https://www.flickr.com/photos/bagogames/28628142444

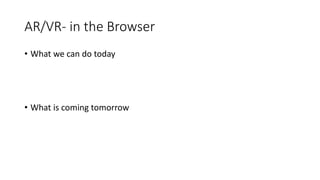

12. AR/VR- in the Browser
• What we can do today
• What is coming tomorrow

13. AR/VR- in the browser
• What we can do today
• A-Frame
• https://aframe.io
• https://github.com/dougsillars/ARtGallery

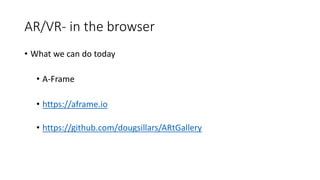

14. AR/VR- in the browser
• What we can do today
• A-Frame
• https://aframe.io
• https://github.com/dougsillars/ARtGallery

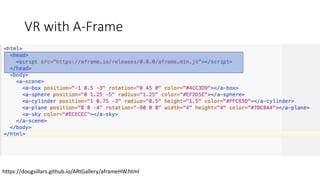

15. VR with A-Frame

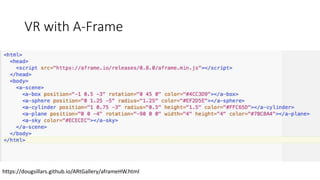

https://dougsillars.github.io/ARtGallery/aframeHW.html

16. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

17. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

18. VR with A-Frame

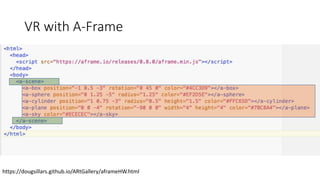

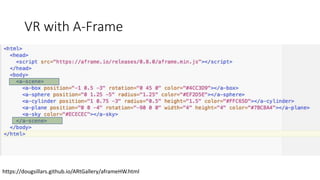

https://dougsillars.github.io/ARtGallery/aframeHW.html

19. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

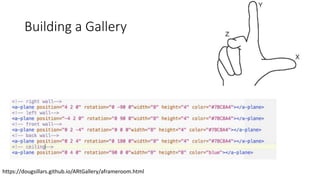

20. Building a Gallery
https://dougsillars.github.io/ARtGallery/aframeroom.html

21. VR ART

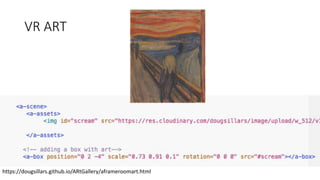

https://dougsillars.github.io/ARtGallery/aframeroomart.html

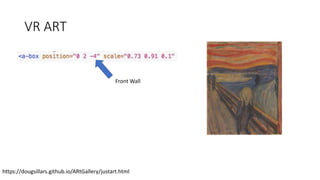

22. VR ART
https://dougsillars.github.io/ARtGallery/justart.html
Front Wall

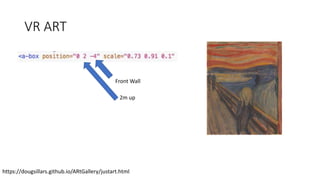

23. VR ART
https://dougsillars.github.io/ARtGallery/justart.html
Front Wall
2m up

24. VR ART

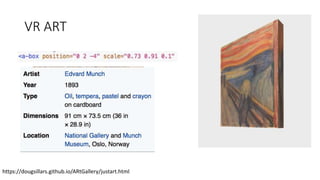

https://dougsillars.github.io/ARtGallery/justart.html

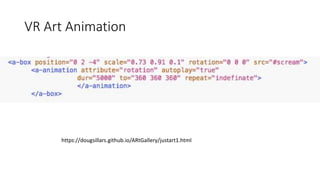

25. VR Art Animation
https://dougsillars.github.io/ARtGallery/justart1.html

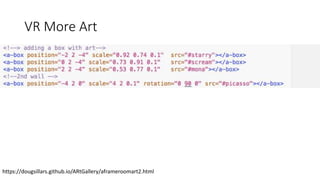

26. VR More Art

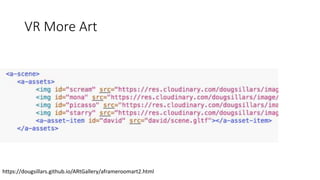

https://dougsillars.github.io/ARtGallery/aframeroomart2.html

27. VR More Art
https://dougsillars.github.io/ARtGallery/aframeroomart2.html

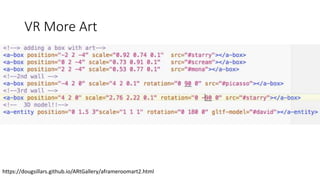

28. VR More Art
https://dougsillars.github.io/ARtGallery/aframeroomart2.html

29. GLTF Models

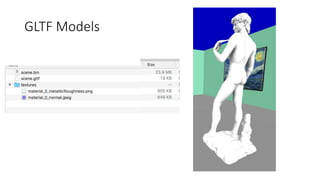

30. GLTF Models

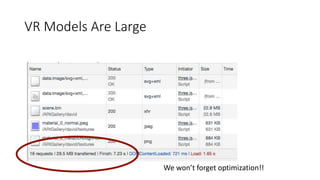

31. VR Models Are Large
We won’t forget optimization!!

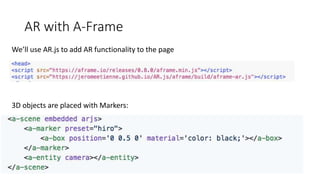

32. AR with A-Frame
We’ll use AR.js to add AR functionality to the page
3D objects are placed with Markers:

33. AR Markers
http://bit.ly/ARHiro

34. AR Markers

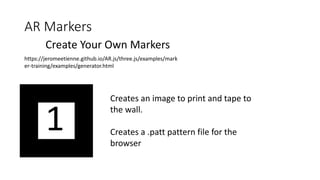

Create Your Own Markers
https://jeromeetienne.github.io/AR.js/three.js/examples/mark
er-training/examples/generator.html
Creates an image to print and tape to
the wall.
Creates a .patt pattern file for the
browser

35. AR Markers
Create Your Own Markers
https://jeromeetienne.github.io/AR.js/three.js/examples/mark
er-training/examples/generator.html
Creates an image to print and tape to
the wall.
Creates a .patt pattern file for the
browser

36. AR Markers
Create Your Own Markers

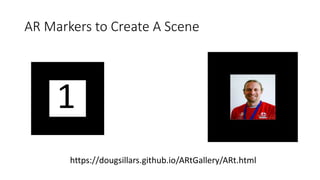

37. AR Markers to Create A Scene
https://dougsillars.github.io/ARtGallery/ARt.html

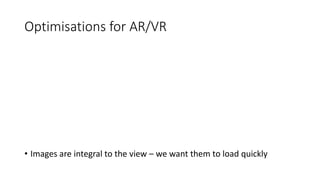

38. Optimisations for AR/VR

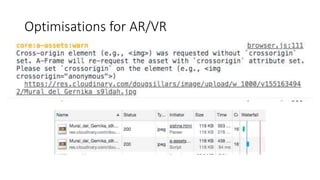

• Images are integral to the view – we want them to load quickly

39. Optimisations for AR/VR

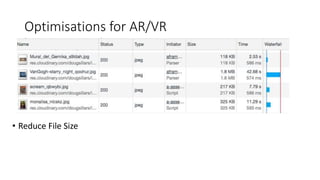

• Reduce File Size

40. Optimisations for AR/VR
• Reduce File Size

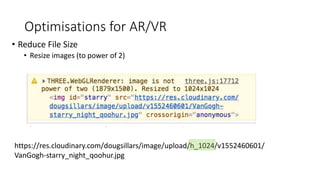

• Resize images (to power of 2)
https://res.cloudinary.com/dougsillars/image/upload/h_1024/v1552460601/

41. Optimisations for AR/VR

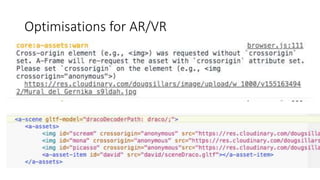

42. Optimisations for AR/VR

43. Optimisations for AR/VR
• Optimize Quality
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,/v1552460601/VanGogh-starry_night_qoohur.jpg

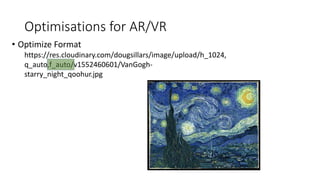

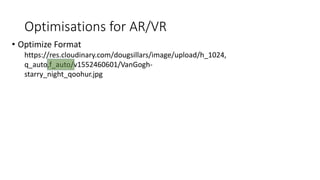

44. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,f_auto/v1552460601/VanGogh-

45. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,f_auto/v1552460601/VanGogh-

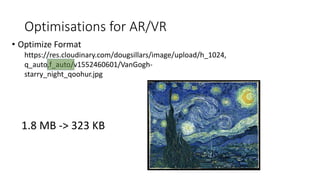

46. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,f_auto/v1552460601/VanGogh-
1.8 MB -> 323 KB

47. Optimisations for AR/VR
• Optimize Format

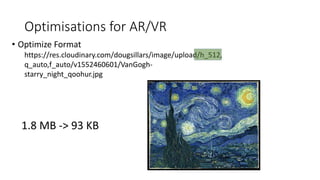

https://res.cloudinary.com/dougsillars/image/upload/h_512,
q_auto,f_auto/v1552460601/VanGogh-
1.8 MB -> 93 KB

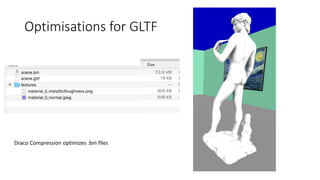

48. Optimisations for GLTF
Draco Compression optimizes .bin files

49. AR with WEBXR

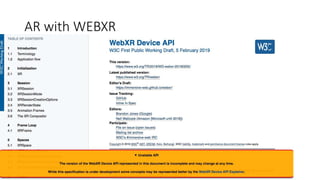

50. AR with WEBXR

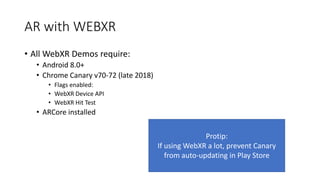

• All WebXR Demos require:
• Android 8.0+
• Chrome Canary v70-72 (late 2018)
• Flags enabled:
• WebXR Device API
• WebXR Hit Test
• ARCore installed
Protip:
If using WebXR a lot, prevent Canary
from auto-updating in Play Store

51. WEBXR Hit Test
https://codelabs.developers.google.com/codelabs/ar-with-webxr/#4

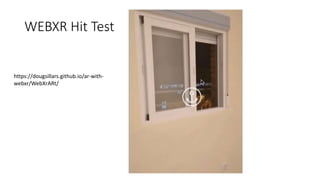

52. WEBXR Hit Test
https://dougsillars.github.io/ar-with-
webxr/WebXrARt/

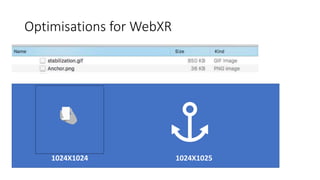

53. Optimisations for WebXR
1024X1024 1024X1025

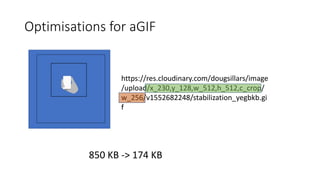

54. https://res.cloudinary.com/dougsillars/image
/upload/x_230,y_128,w_512,h_512,c_crop/
w_256/v1552682248/stabilization_yegbkb.gi
f
850 KB -> 174 KB
Optimisations for aGIF

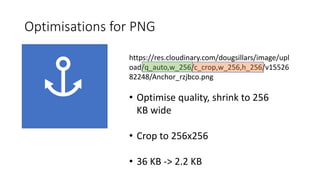

55. Optimisations for PNG
https://res.cloudinary.com/dougsillars/image/upl
oad/q_auto,w_256/c_crop,w_256,h_256/v15526
82248/Anchor_rzjbco.png
• Optimise quality, shrink to 256
KB wide
• Crop to 256x256
• 36 KB -> 2.2 KB

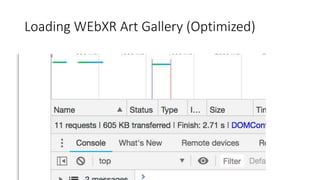

56. Loading WEbXR Art Gallery (Optimized)

57. Conclusions

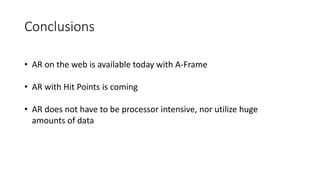

• AR on the web is available today with A-Frame
• AR with Hit Points is coming
• AR does not have to be processor intensive, nor utilize huge
amounts of data

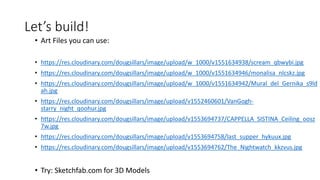

58. Let’s build!
• Art Files you can use:
• https://res.cloudinary.com/dougsillars/image/upload/w_1000/v1551634938/scream_qbwybi.jpg
• https://res.cloudinary.com/dougsillars/image/upload/w_1000/v1551634946/monalisa_nlcskz.jpg
• https://res.cloudinary.com/dougsillars/image/upload/w_1000/v1551634942/Mural_del_Gernika_s9ld
• https://res.cloudinary.com/dougsillars/image/upload/v1552460601/VanGogh-
• https://res.cloudinary.com/dougsillars/image/upload/v1553694737/CAPPELLA_SISTINA_Ceiling_oosz
• https://res.cloudinary.com/dougsillars/image/upload/v1553694758/last_supper_hykuux.jpg
• https://res.cloudinary.com/dougsillars/image/upload/v1553694762/The_Nightwatch_kkzvus.jpg
• Try: Sketchfab.com for 3D Models

59. Links
Code: https://github.com/dougsillars/ARtGallery
https://github.com/dougsillars/ar-with-webxr
WebXR spec: https://www.w3.org/TR/2019/WD-webxr-20190205/
Cloudinary: https://cloudinary.com

60. Love Building with Video and Images?
Media Developer Expert
mde-comm@cloudinary.com
Become a

61. Setup

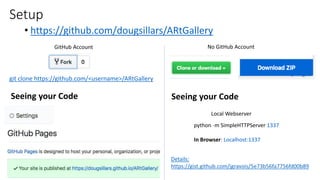

• https://github.com/dougsillars/ARtGallery
git clone https://github.com/<username>/ARtGallery
Seeing your Code
GitHub Account No GitHub Account
Details:
https://gist.github.com/jgravois/5e73b56fa7756fd00b89
Seeing your Code
Local Webserver
python -m SimpleHTTPServer 1337
In Browser: Localhost:1337
