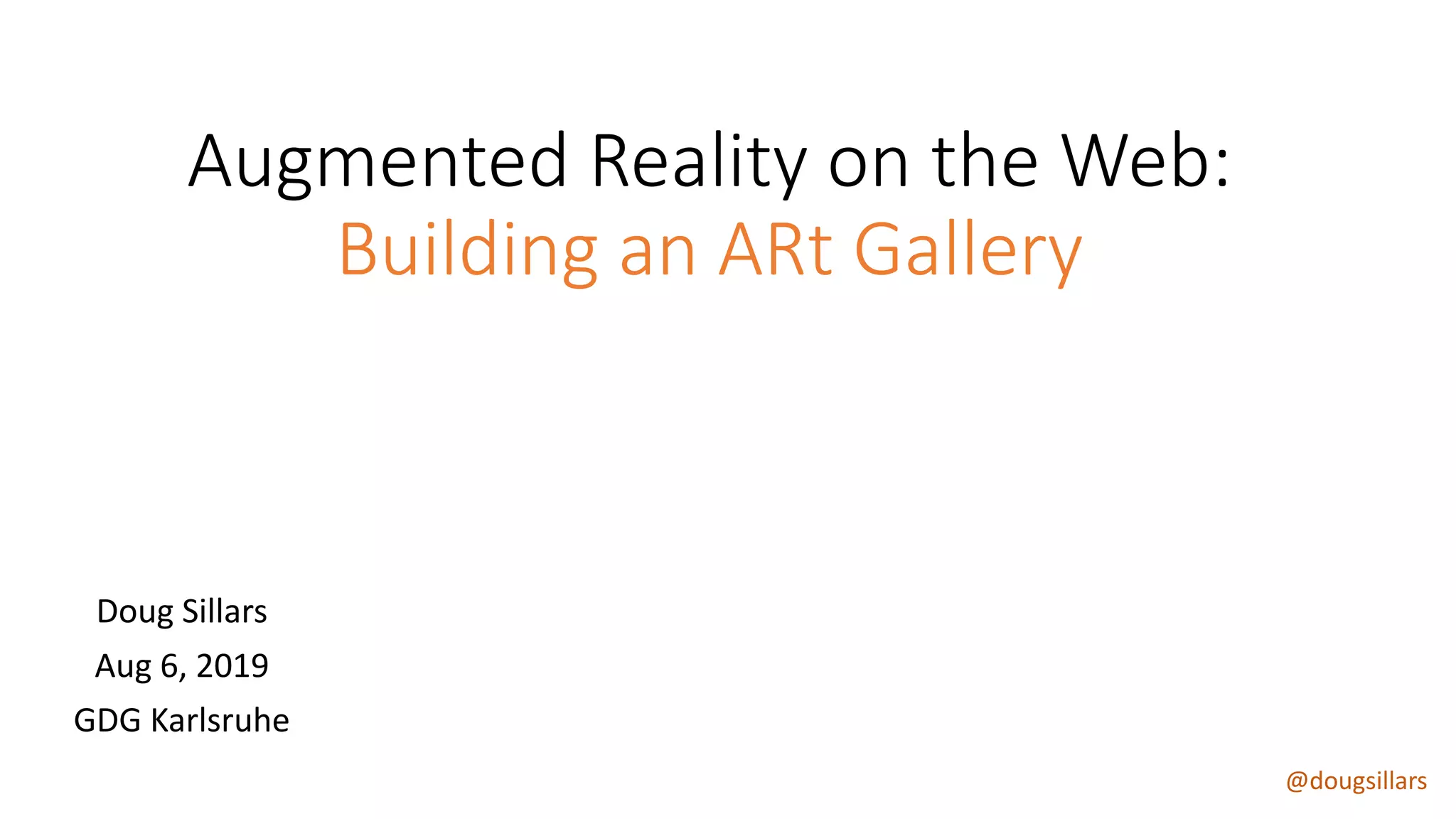

Augmented Reality on the Web:
Building an ARt Gallery
Doug Sillars
Aug 6, 2019
GDG Karlsruhe

2. @dougsillars
Contact Me:
@DougSillars
Doug.Sillars@gmail.com
www.dougsillars.com
Doug Sillars
Freelance Developer Relations
Performance Audits: Web/Native
Workshops:
Performance/Images/Video/AR
http://bit.ly/HighPerformanceAndroidApps

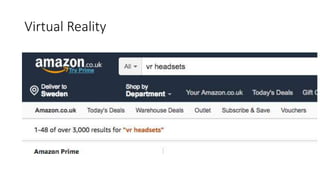

3. Virtual Reality

4. Virtual Reality
https://www.flickr.com/photos/68158920@N08/17742136272

5. Virtual Reality

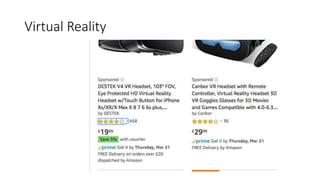

6. Virtual Reality

7. Augmented Reality

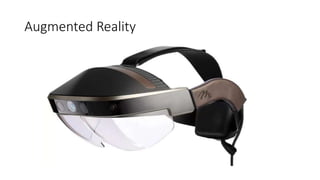

8. Augmented Reality

9. Augmented Reality

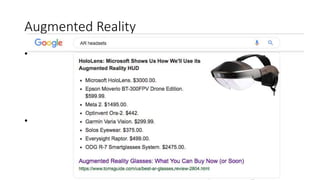

• Wearing fancy occulus with cameras
• Really $$$

10. Augmented Reality –
Smartphone
https://www.flickr.com/photos/bellemarematt/28124392062
https://www.flickr.com/photos/bagogames/28628142444

11. Augmented Reality –
Smartphone
https://www.flickr.com/photos/bellemarematt/28124392062
https://www.flickr.com/photos/bagogames/28628142444

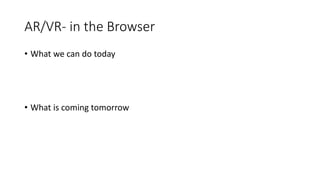

12. AR/VR- in the Browser
• What we can do today
• What is coming tomorrow

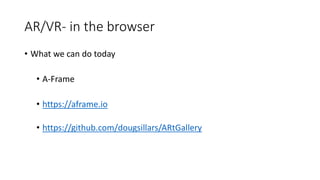

13. AR/VR- in the browser
• What we can do today
• A-Frame
• https://aframe.io
• https://github.com/dougsillars/ARtGallery

14. AR/VR- in the browser
• What we can do today
• A-Frame
• https://aframe.io
• https://github.com/dougsillars/ARtGallery

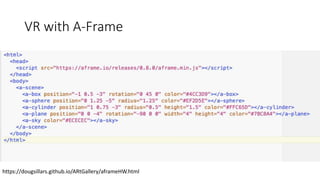

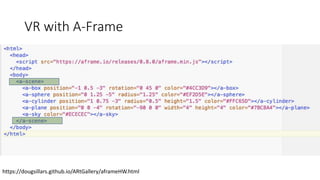

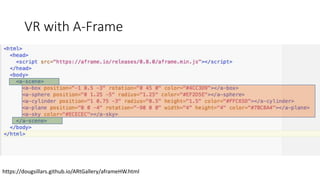

15. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

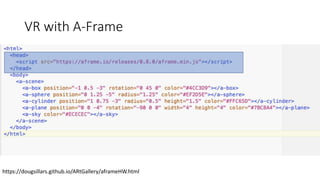

16. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

17. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

18. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

19. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

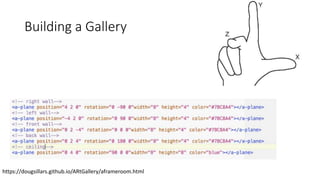

20. Building a Gallery
https://dougsillars.github.io/ARtGallery/aframeroom.html

21. VR ART
https://dougsillars.github.io/ARtGallery/aframeroomart.html

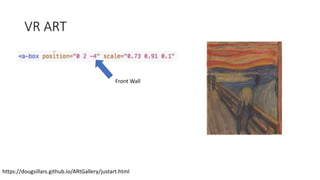

22. VR ART
https://dougsillars.github.io/ARtGallery/justart.html
Front Wall

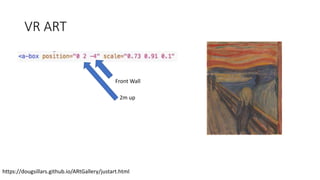

23. VR ART
https://dougsillars.github.io/ARtGallery/justart.html
Front Wall
2m up

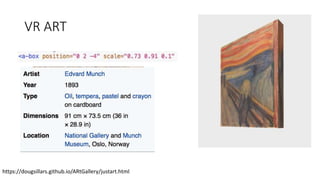

24. VR ART
https://dougsillars.github.io/ARtGallery/justart.html

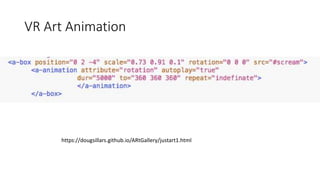

25. VR Art Animation
https://dougsillars.github.io/ARtGallery/justart1.html

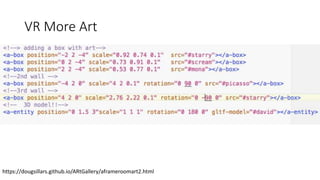

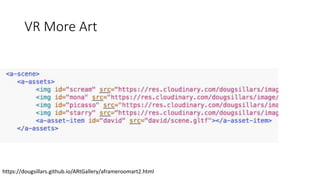

26. VR More Art
https://dougsillars.github.io/ARtGallery/aframeroomart2.html

27. VR More Art
https://dougsillars.github.io/ARtGallery/aframeroomart2.html

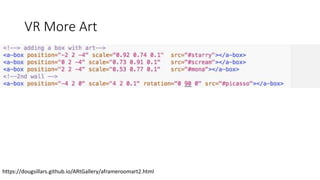

28. VR More Art
https://dougsillars.github.io/ARtGallery/aframeroomart2.html

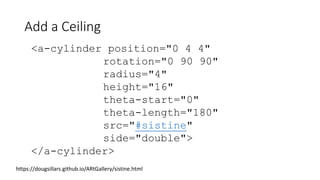

29. Add a Ceiling
https://dougsillars.github.io/ARtGallery/sistine.html

30. Add a Ceiling
https://dougsillars.github.io/ARtGallery/sistine.html

31. Add a Ceiling
https://dougsillars.github.io/ARtGallery/sistine.html
<a-cylinder position="0 4 4"
rotation="0 90 90"
radius="4"
height="16"
theta-start="0"
theta-length="180"
src="#sistine"
side="double">
</a-cylinder>

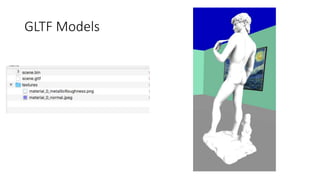

32. GLTF Models

33. GLTF Models

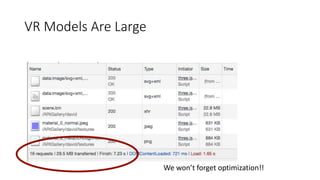

34. VR Models Are Large
We won’t forget optimization!!

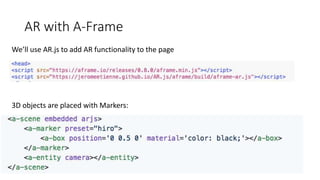

35. AR with A-Frame
We’ll use AR.js to add AR functionality to the page
3D objects are placed with Markers:

36. AR Markers
http://bit.ly/ARHiro

37. AR Markers
Create Your Own Markers
https://jeromeetienne.github.io/AR.js/three.js/examples/mark
er-training/examples/generator.html
Creates an image to print and tape to
the wall.
Creates a .patt pattern file for the
browser

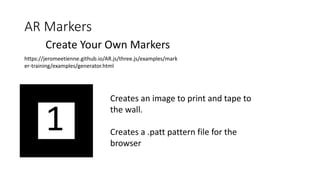

38. AR Markers
Create Your Own Markers
https://jeromeetienne.github.io/AR.js/three.js/examples/mark
er-training/examples/generator.html
Creates an image to print and tape to
the wall.
Creates a .patt pattern file for the
browser

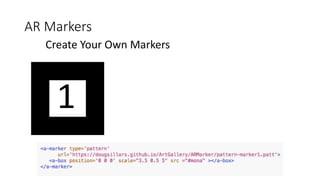

39. AR Markers
Create Your Own Markers

40. AR Markers to Create A Scene
https://dougsillars.github.io/ARtGallery/ARt.html

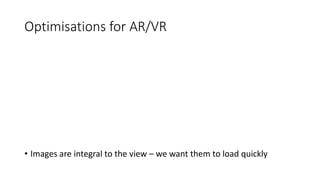

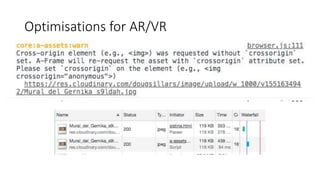

41. Optimisations for AR/VR
• Images are integral to the view – we want them to load quickly

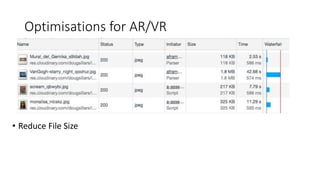

42. Optimisations for AR/VR
• Reduce File Size

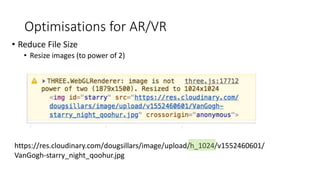

43. Optimisations for AR/VR
• Reduce File Size
• Resize images (to power of 2)
https://res.cloudinary.com/dougsillars/image/upload/h_1024/v1552460601/

44. Optimisations for AR/VR

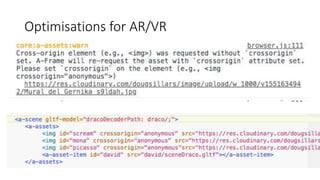

45. Optimisations for AR/VR

46. Optimisations for AR/VR
• Optimize Quality
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,/v1552460601/VanGogh-starry_night_qoohur.jpg

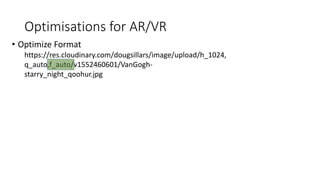

47. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,f_auto/v1552460601/VanGogh-

48. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,f_auto/v1552460601/VanGogh-

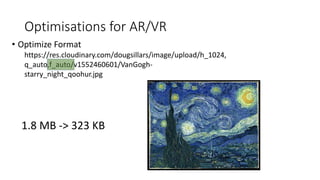

49. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,f_auto/v1552460601/VanGogh-
1.8 MB -> 323 KB

50. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_512,
q_auto,f_auto/v1552460601/VanGogh-
1.8 MB -> 93 KB

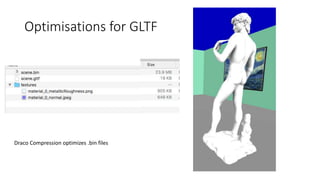

51. Optimisations for GLTF
Draco Compression optimizes .bin files

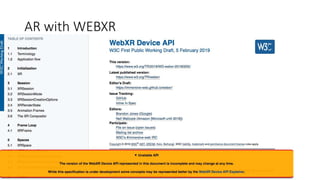

52. AR with WEBXR

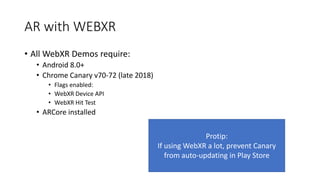

53. AR with WEBXR
• All WebXR Demos require:
• Android 8.0+
• Chrome Canary v70-72 (late 2018)
• Flags enabled:
• WebXR Device API
• WebXR Hit Test
• ARCore installed
Protip:
If using WebXR a lot, prevent Canary
from auto-updating in Play Store

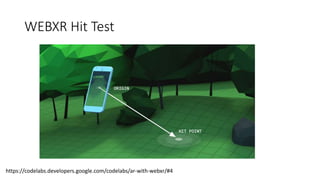

54. WEBXR Hit Test
https://codelabs.developers.google.com/codelabs/ar-with-webxr/#4

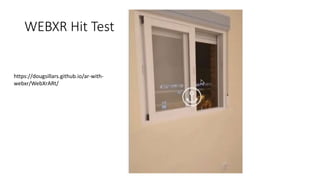

55. WEBXR Hit Test
https://dougsillars.github.io/ar-with-
webxr/WebXrARt/

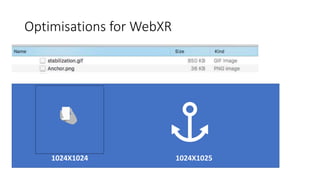

56. Optimisations for WebXR
1024X1024 1024X1025

57. https://res.cloudinary.com/dougsillars/image
/upload/x_230,y_128,w_512,h_512,c_crop/
w_256/v1552682248/stabilization_yegbkb.gi
f

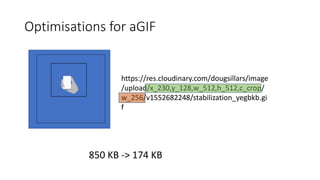

850 KB -> 174 KB
Optimisations for aGIF

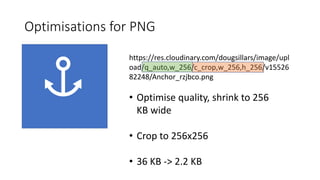

58. Optimisations for PNG
https://res.cloudinary.com/dougsillars/image/upl
oad/q_auto,w_256/c_crop,w_256,h_256/v15526
82248/Anchor_rzjbco.png
• Optimise quality, shrink to 256
KB wide
• Crop to 256x256
• 36 KB -> 2.2 KB

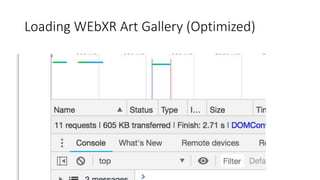

59. Loading WEbXR Art Gallery (Optimized)

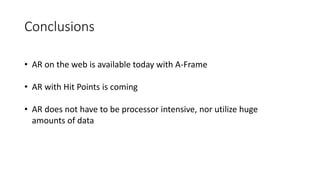

60. Conclusions
• AR on the web is available today with A-Frame
• AR with Hit Points is coming
• AR does not have to be processor intensive, nor utilize huge
amounts of data

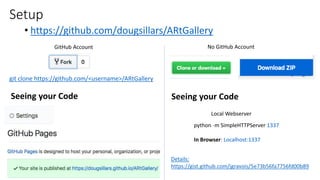

61. Setup
• https://github.com/dougsillars/ARtGallery
git clone https://github.com/<username>/ARtGallery
Seeing your Code
GitHub Account No GitHub Account
Details:
https://gist.github.com/jgravois/5e73b56fa7756fd00b89
Seeing your Code
Local Webserver
python -m SimpleHTTPServer 1337
In Browser: Localhost:1337

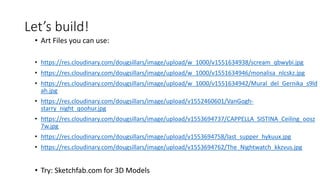

62. Let’s build!
• Art Files you can use:
• https://res.cloudinary.com/dougsillars/image/upload/w_1000/v1551634938/scream_qbwybi.jpg
• https://res.cloudinary.com/dougsillars/image/upload/w_1000/v1551634946/monalisa_nlcskz.jpg
• https://res.cloudinary.com/dougsillars/image/upload/w_1000/v1551634942/Mural_del_Gernika_s9ld
• https://res.cloudinary.com/dougsillars/image/upload/v1552460601/VanGogh-
• https://res.cloudinary.com/dougsillars/image/upload/v1553694737/CAPPELLA_SISTINA_Ceiling_oosz
• https://res.cloudinary.com/dougsillars/image/upload/v1553694758/last_supper_hykuux.jpg
• https://res.cloudinary.com/dougsillars/image/upload/v1553694762/The_Nightwatch_kkzvus.jpg
• Try: Sketchfab.com for 3D Models

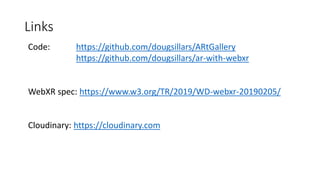

63. Links
