Doug Sillars discusses optimizing image performance on websites. He outlines 4 simple optimizations: 1) reducing image quality, 2) using optimized formats like WebP and SVG, 3) sizing images appropriately, and 4) lazy loading images below the fold. Properly implementing these techniques can significantly improve page load times and reduce data usage. Sillars also provides tips on monitoring image usage in the wild and considerations for different network conditions and user expectations.

1. Delivering Fast and Beautiful Images
Doug Sillars
@DougSillars
WordPress Novi Sad
September 18 , 2019

2. Contact Me:
@DougSillars
Doug.Sillars@gmail.com
www.dougsillars.com
Doug Sillars
Freelance Developer Relations
Performance Audits: Web/Native
Workshops:
Performance/Images/Video/AR/ML
http://bit.ly/HighPerformanceAndroidApps

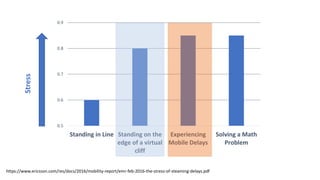

4. 0.5
0.6
0.7
0.8
0.9
Standing in Line Standing on the
edge of a virtual
cliff
Experiencing
Mobile Delays
Solving a Math
Problem
https://www.ericsson.com/res/docs/2016/mobility-report/emr-feb-2016-the-stress-of-steaming-delays.pdf
Stress

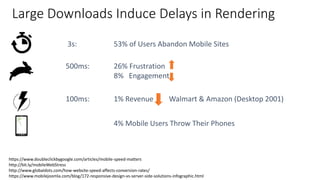

5. Large Downloads Induce Delays in Rendering
3s: 53% of Users Abandon Mobile Sites
500ms: 26% Frustration
8% Engagement
100ms: 1% Revenue Walmart & Amazon (Desktop 2001)
4% Mobile Users Throw Their Phones
https://www.doubleclickbygoogle.com/articles/mobile-speed-matters
http://bit.ly/mobileWebStress
http://www.globaldots.com/how-website-speed-affects-conversion-rates/
https://www.mobilejoomla.com/blog/172-responsive-design-vs-server-side-solutions-infographic.html

6. Images Dominate the Web
HTTPArchive mobile websites 04/2019

7. 4 Simple Image Optimizations

8. 4 Simple Image Optimizations
1. Quality
2. Format
3. Sizing
4. Lazy Loading

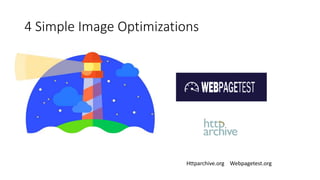

9. 4 Simple Image Optimizations
Httparchive.org Webpagetest.org

10. 4 Simple Image Optimizations
1. Quality
2. Format
3. Sizing
4. Lazy Loading

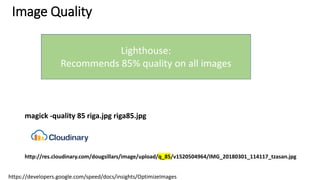

11. Image Quality
magick -quality 85 riga.jpg riga85.jpg
http://res.cloudinary.com/dougsillars/image/upload/q_85/v1520504964/IMG_20180301_114117_tzasan.jpg
Lighthouse:
Recommends 85% quality on all images
https://developers.google.com/speed/docs/insights/OptimizeImages

12. 100%
3.6 MB
http://res.cloudinary.com/dougsillars/image/upload/v1529005982/IMG_20180614_184507_ssuk1i.jpg

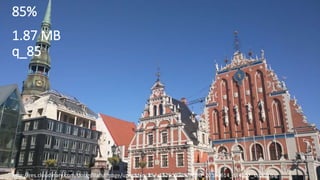

13. 85%
1.87 MB
q_85
http://res.cloudinary.com/dougsillars/image/upload/q_85/v1529005982/IMG_20180614_184507_ssuk1i.jpg

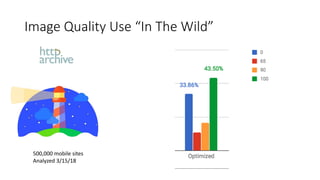

14. Image Quality Use “In The Wild”
500,000 mobile sites
Analyzed 3/15/18

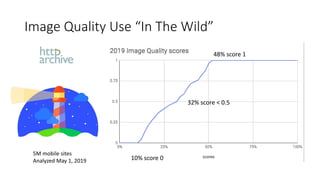

15. Image Quality Use “In The Wild”
5M mobile sites
Analyzed May 1, 2019
48% score 1
10% score 0
32% score < 0.5

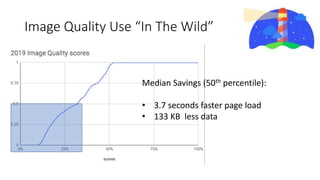

16. Image Quality Use “In The Wild”
Median Savings (50th percentile):
• 3.7 seconds faster page load
• 133 KB less data

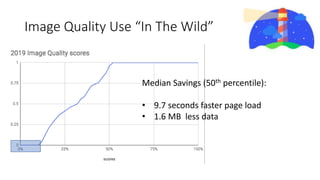

17. Image Quality Use “In The Wild”
Median Savings (50th percentile):
• 9.7 seconds faster page load
• 1.6 MB less data

18. 50%
914 KB
q_50
http://res.cloudinary.com/dougsillars/image/upload/q_50/v1529005982/IMG_20180614_184507_ssuk1i.jpg

19. 20%
513 KB
q_20
http://res.cloudinary.com/dougsillars/image/upload/q_20/v1529005982/IMG_20180614_184507_ssuk1i.jpg

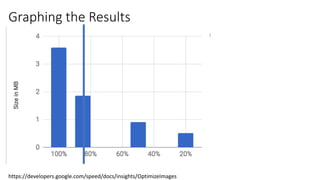

20. Graphing the Results
https://developers.google.com/speed/docs/insights/OptimizeImages

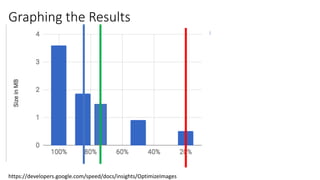

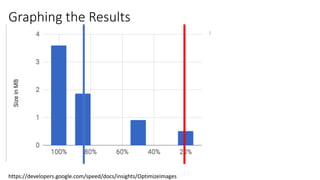

21. Graphing the Results
https://developers.google.com/speed/docs/insights/OptimizeImages

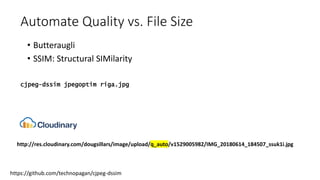

22. Automate Quality vs. File Size
• Butteraugli
• SSIM: Structural SIMilarity
https://github.com/technopagan/cjpeg-dssim
cjpeg-dssim jpegoptim riga.jpg
http://res.cloudinary.com/dougsillars/image/upload/q_auto/v1529005982/IMG_20180614_184507_ssuk1i.jpg

23. SSIM
1.46 MB
http://res.cloudinary.com/dougsillars/image/upload/q_auto/v1529005982/IMG_20180614_184507_ssuk1i.jpg

24. Graphing the Results
https://developers.google.com/speed/docs/insights/OptimizeImages

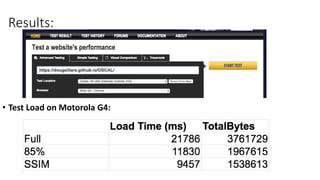

25. Results:
• Test Load on Motorola G4:

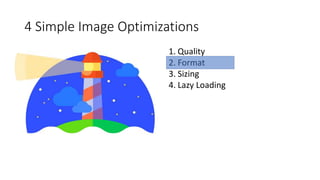

26. 4 Simple Image Optimizations
1. Quality
2. Format
3. Sizing
4. Lazy Loading

27. Image Formats – Average Size
HTTPArchive mobile websites 15/02/18

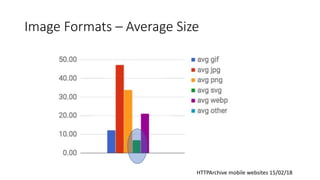

28. Image Formats – Average Size
HTTPArchive mobile websites 15/02/18

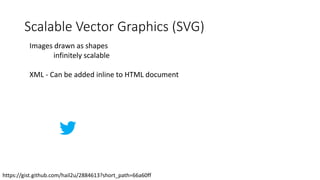

29. Scalable Vector Graphics (SVG)
Images drawn as shapes
infinitely scalable
XML - Can be added inline to HTML document
https://gist.github.com/hail2u/2884613?short_path=66a60ff

30. Scalable Vector Graphics (SVG)
Images drawn as shapes
infinitely scalable
XML - Can be added inline to HTML document
https://gist.github.com/hail2u/2884613?short_path=66a60ff

31. Scalable Vector Graphics (SVG)

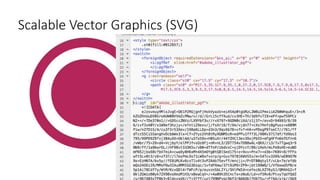

32. Scalable Vector Graphics (SVG)

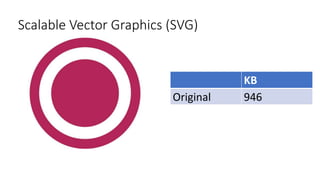

33. Scalable Vector Graphics (SVG)
KB
Original 946
Optimized 1

34. Scalable Vector Graphics (SVG)
KB
Original 946
Optimized 1

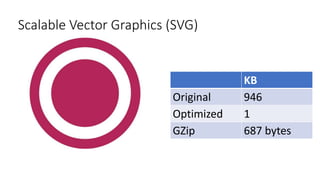

35. Scalable Vector Graphics (SVG)
KB
Original 946
Optimized 1
GZip 687 bytes

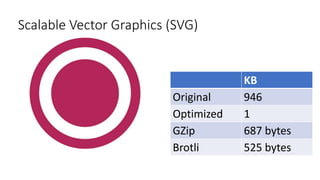

36. Scalable Vector Graphics (SVG)
KB
Original 946
Optimized 1
GZip 687 bytes
Brotli 525 bytes

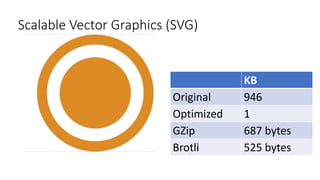

37. Scalable Vector Graphics (SVG)
KB
Original 946
Optimized 1
GZip 687 bytes
Brotli 525 bytes

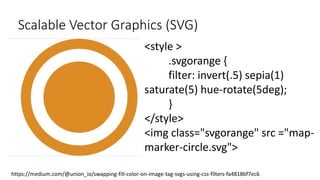

38. Scalable Vector Graphics (SVG)
<style >
.svgorange {
filter: invert(.5) sepia(1)
saturate(5) hue-rotate(5deg);
}
</style>
<img class="svgorange" src ="map-
marker-circle.svg">
https://medium.com/@union_io/swapping-fill-color-on-image-tag-svgs-using-css-filters-fa4818bf7ec6

39. Scalable Vector Graphics (SVG)

40. Image Formats – Average Size
HTTPArchive mobile websites 15/02/18

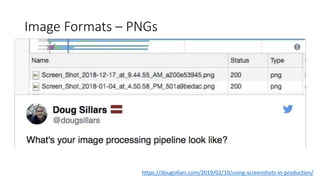

41. Image Formats – PNGs
https://dougsillars.com/2019/02/10/using-screenshots-in-production/

42. Image Formats – Screenshots -> JPG
https://dougsillars.com/2019/02/10/using-screenshots-in-production/

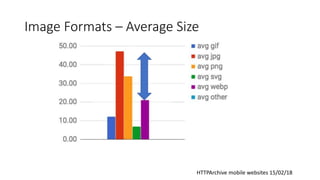

43. Image Formats – Average Size
HTTPArchive mobile websites 15/02/18

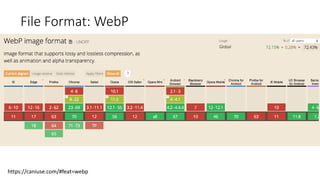

44. File Format: WebP
https://caniuse.com/#feat=webp

45. SSIM + WebP
986 KB
http://res.cloudinary.com/dougsillars/image/upload/q_auto,f_auto/v1529005982/IMG_20180614_184507_

46. File Format: Web
<picture>
<source width = "100%" type="image/webp" srcset=”riga.webp">
<img width = "100%" src=”riga_cjpeg_dssim.jpg"
alt=”Riga, Latvia">
</picture>

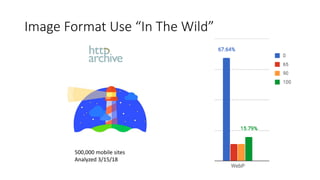

47. Image Format Use “In The Wild”
500,000 mobile sites
Analyzed 3/15/18

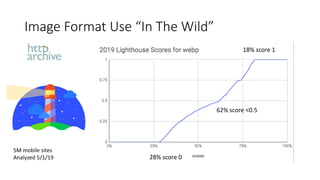

48. Image Format Use “In The Wild”
5M mobile sites
Analyzed 5/1/19
18% score 1
28% score 0
62% score <0.5

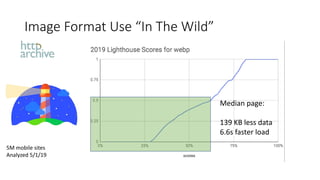

49. Image Format Use “In The Wild”
5M mobile sites
Analyzed 5/1/19
Median page:
139 KB less data
6.6s faster load

50. Image Format Use “In The Wild”
5M mobile sites
Analyzed 5/1/19
Median page:
2.4 MB less data
15s faster load

51. 4 Simple Image Optimizations
1. Quality
2. Format
3. Sizing
4. Lazy Loading

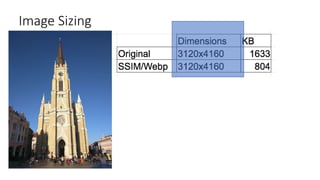

52. Image Sizing
-

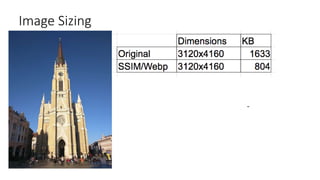

53. Image Sizing

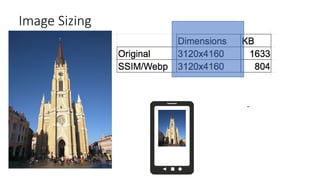

54. Image Sizing
-

55. Image Sizing
624
832
-

56. Image Sizing
624
832
12,979,000 pixels
519,000 pixels
_________________
-
12,460,000 pixels

57. Image Sizing
624
832
12,979,000 pixels
519,000 pixels
_________________
-
12,460,000 pixels

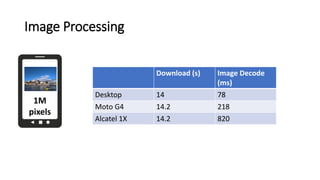

58. Image Processing
1M
pixels
Download (s) Image Decode
(ms)
Desktop 14 78
Moto G4 14.2 218
Alcatel 1X 14.2 820

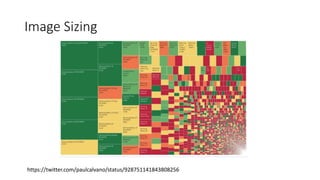

59. Image Sizing
https://twitter.com/paulcalvano/status/928751141843808256

60. Image Sizing
-
Responsive Images:
Generate a set of images
25 KB difference in size

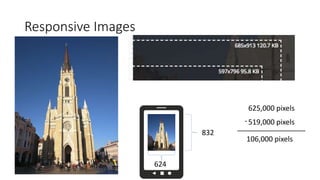

61. Responsive Images
624
832
625,000 pixels
-
106,000 pixels
519,000 pixels
_________________

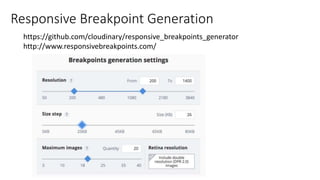

62. Responsive Breakpoint Generation
https://github.com/cloudinary/responsive_breakpoints_generator
http://www.responsivebreakpoints.com/

63. Responsive Images

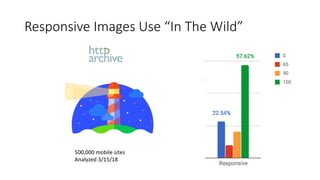

64. Responsive Images Use “In The Wild”
500,000 mobile sites
Analyzed 3/15/18

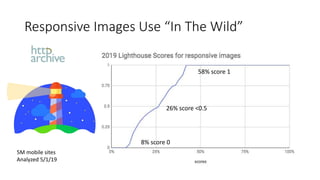

65. Responsive Images Use “In The Wild”
5M mobile sites
Analyzed 5/1/19
58% score 1
8% score 0
26% score <0.5

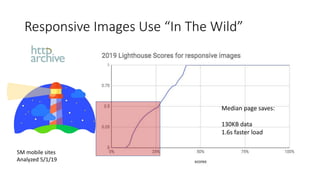

66. Responsive Images Use “In The Wild”
5M mobile sites
Analyzed 5/1/19
Median page saves:
130KB data
1.6s faster load

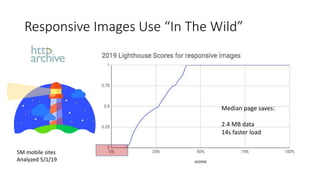

67. Responsive Images Use “In The Wild”
5M mobile sites
Analyzed 5/1/19
Median page saves:
2.4 MB data
14s faster load

68. 4 Simple Image Optimizations
1. Quality
2. Format
3. Sizing
4. Lazy Loading

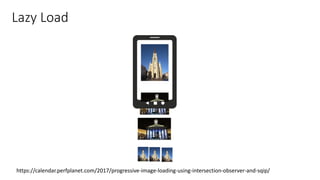

69. Lazy Load
https://calendar.perfplanet.com/2017/progressive-image-loading-using-intersection-observer-and-sqip/

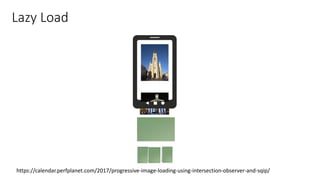

70. Lazy Load
https://calendar.perfplanet.com/2017/progressive-image-loading-using-intersection-observer-and-sqip/

71. Lazy Loading Use “In The Wild”
442,000 mobile sites
Analyzed 3/15/18

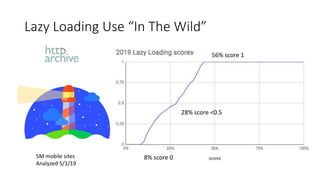

72. Lazy Loading Use “In The Wild”
5M mobile sites
Analyzed 5/1/19
56% score 1
8% score 0
28% score <0.5

73. Lazy Loading Use “In The Wild”
5M mobile sites
Analyzed 5/1/19
Median page saves:
334KB
3.1s

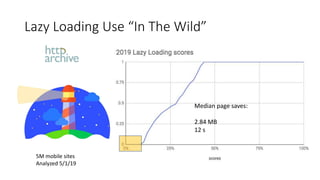

74. Lazy Loading Use “In The Wild”
5M mobile sites
Analyzed 5/1/19
Median page saves:
2.84 MB
12 s

75. Preview Images

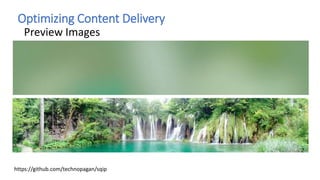

76. Optimizing Content Delivery
Preview Images
https://github.com/technopagan/sqip

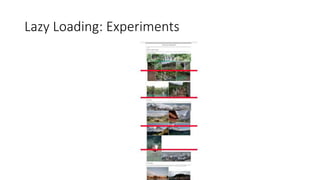

77. Lazy Loading: Experiments

78. Lazy Loading: Chrome Experiments

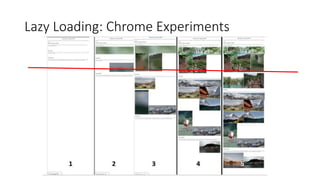

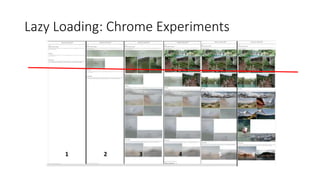

79. Lazy Loading: Chrome Experiments

80. Animated GIFs
Original MP4
1.4 MB

81. Animated GIFs

82. Animated GIFs
Animated GIF
3.8 MB
270% larger

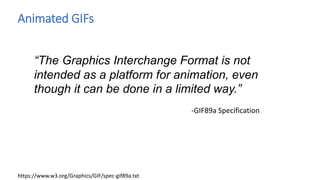

83. Animated GIFs
“The Graphics Interchange Format is not
intended as a platform for animation, even
though it can be done in a limited way.”
-GIF89a Specification
https://www.w3.org/Graphics/GIF/spec-gif89a.txt

84. Animated GIFs

85. Animated GIFs
MP4: 256 colors
247KB
93% smaller

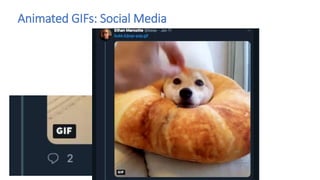

86. Animated GIFs: Social Media

87. Animated GIFs: Social Media
#FAKENEWS

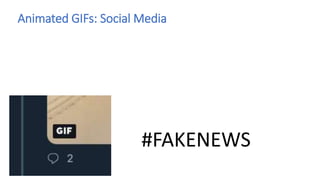

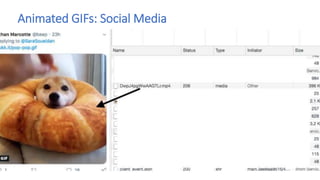

88. Animated GIFs: Social Media

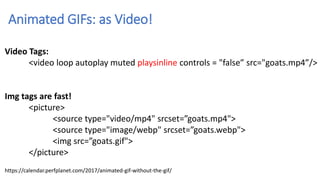

89. Animated GIFs: as Video!
Video Tags:
<video loop autoplay muted playsinline controls = "false” src="goats.mp4”/>
Img tags are fast!
<picture>
<source type="video/mp4" srcset=”goats.mp4">
<source type="image/webp" srcset=”goats.webp">
<img src=”goats.gif">
</picture>
https://calendar.perfplanet.com/2017/animated-gif-without-the-gif/

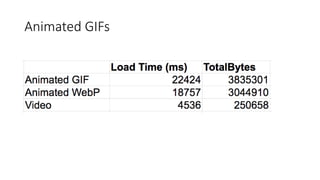

90. Animated GIFs

91. Addendum: What Are Your Customers Saying?

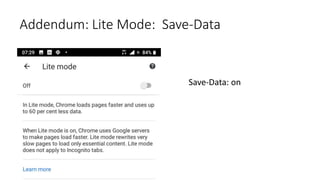

92. Addendum: Lite Mode: Save-Data
Save-Data: on

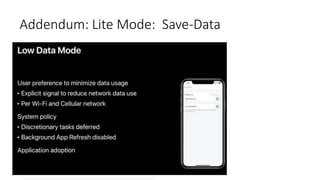

93. Addendum: Lite Mode: Save-Data

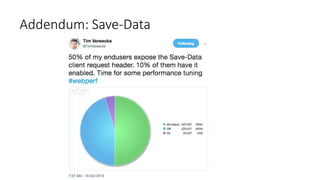

94. Addendum: Save-Data

95. Addendum: Save-Data
q_auto -> q_auto:eco
180KB -> 135 KB
https://res.cloudinary.com/dougsillars/image/upload/w_1400,q_auto/v1540978150/IMG_20181028_153301_okeb2b.jpg

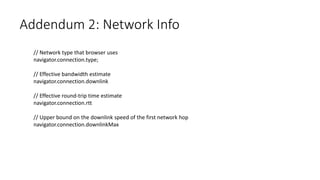

96. Addendum 2: Network Info

97. Addendum 2: Network Info
// Network type that browser uses
navigator.connection.type;
// Effective bandwidth estimate
navigator.connection.downlink
// Effective round-trip time estimate
navigator.connection.rtt
// Upper bound on the downlink speed of the first network hop
navigator.connection.downlinkMax

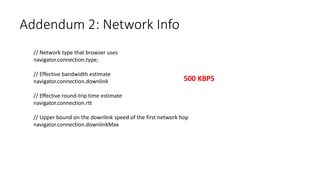

98. Addendum 2: Network Info
// Network type that browser uses
navigator.connection.type;
// Effective bandwidth estimate
navigator.connection.downlink
// Effective round-trip time estimate
navigator.connection.rtt
// Upper bound on the downlink speed of the first network hop
navigator.connection.downlinkMax
500 KBPS

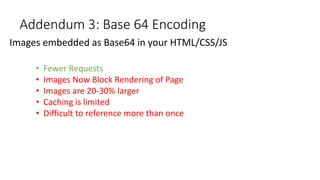

99. Addendum 3: Base 64 Encoding
Images embedded as Base64 in your HTML/CSS/JS
• Fewer Requests
• Images Now Block Rendering of Page
• Images are 20-30% larger
• Caching is limited
• Difficult to reference more than once

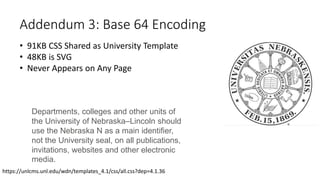

100. Addendum 3: Base 64 Encoding
• 91KB CSS Shared as University Template
• 48KB is SVG
• Never Appears on Any Page
Departments, colleges and other units of
the University of Nebraska–Lincoln should
use the Nebraska N as a main identifier,
not the University seal, on all publications,
invitations, websites and other electronic
media.
https://unlcms.unl.edu/wdn/templates_4.1/css/all.css?dep=4.1.36

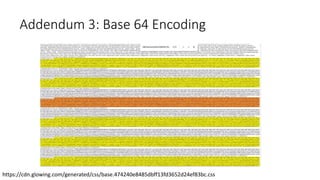

101. Addendum 3: Base 64 Encoding
https://cdn.glowing.com/generated/css/base.474240e8485dbff13fd3652d24ef83bc.css

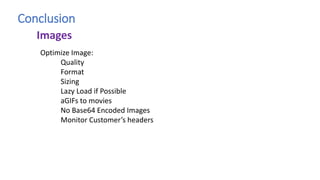

102. Conclusion
Optimize Image:
Quality
Format
Sizing
Lazy Load if Possible
aGIFs to movies
No Base64 Encoded Images
Monitor Customer’s headers
Images

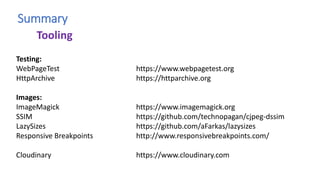

103. Summary
Testing:
WebPageTest https://www.webpagetest.org
HttpArchive https://httparchive.org
Images:
ImageMagick https://www.imagemagick.org
SSIM https://github.com/technopagan/cjpeg-dssim
LazySizes https://github.com/aFarkas/lazysizes
Responsive Breakpoints http://www.responsivebreakpoints.com/
Cloudinary https://www.cloudinary.com
Tooling

104. Conclusion
Images CAN Be Beautiful AND Fast

105. Love Building with Video and Images?
Media Developer Expert
mde-comm@cloudinary.com
Become a
