This document summarizes a presentation about building augmented reality (AR) and virtual reality (VR) experiences in the browser. It discusses using the A-Frame framework to create VR galleries and scenes that can be viewed today. It also covers adding AR capabilities using AR.js by placing 3D objects using markers. The presentation provides examples of optimizing assets for AR/VR experiences, such as resizing images, compressing formats, and using services like Cloudinary. Upcoming capabilities discussed include AR hit testing using the WebXR Device API in Chrome Canary. The document aims to demonstrate that AR does not need to be processor intensive or rely on large amounts of data.

1. @dougsillars
Augmented Reality on the Web:
Building an ARt Gallery
Doug Sillars
November 16, 2019
DevFest London

2. @dougsillars
Contact Me:
@DougSillars
Doug.Sillars@gmail.com
www.dougsillars.com
Doug Sillars
Freelance Developer Relations
Performance Audits: Web/Native
Workshops:
Performance/Images/Video/AR
http://bit.ly/HighPerformanceAndroidApps

3. Virtual Reality

4. Virtual Reality
https://www.flickr.com/photos/68158920@N08/17742136272

5. Virtual Reality

6. Virtual Reality

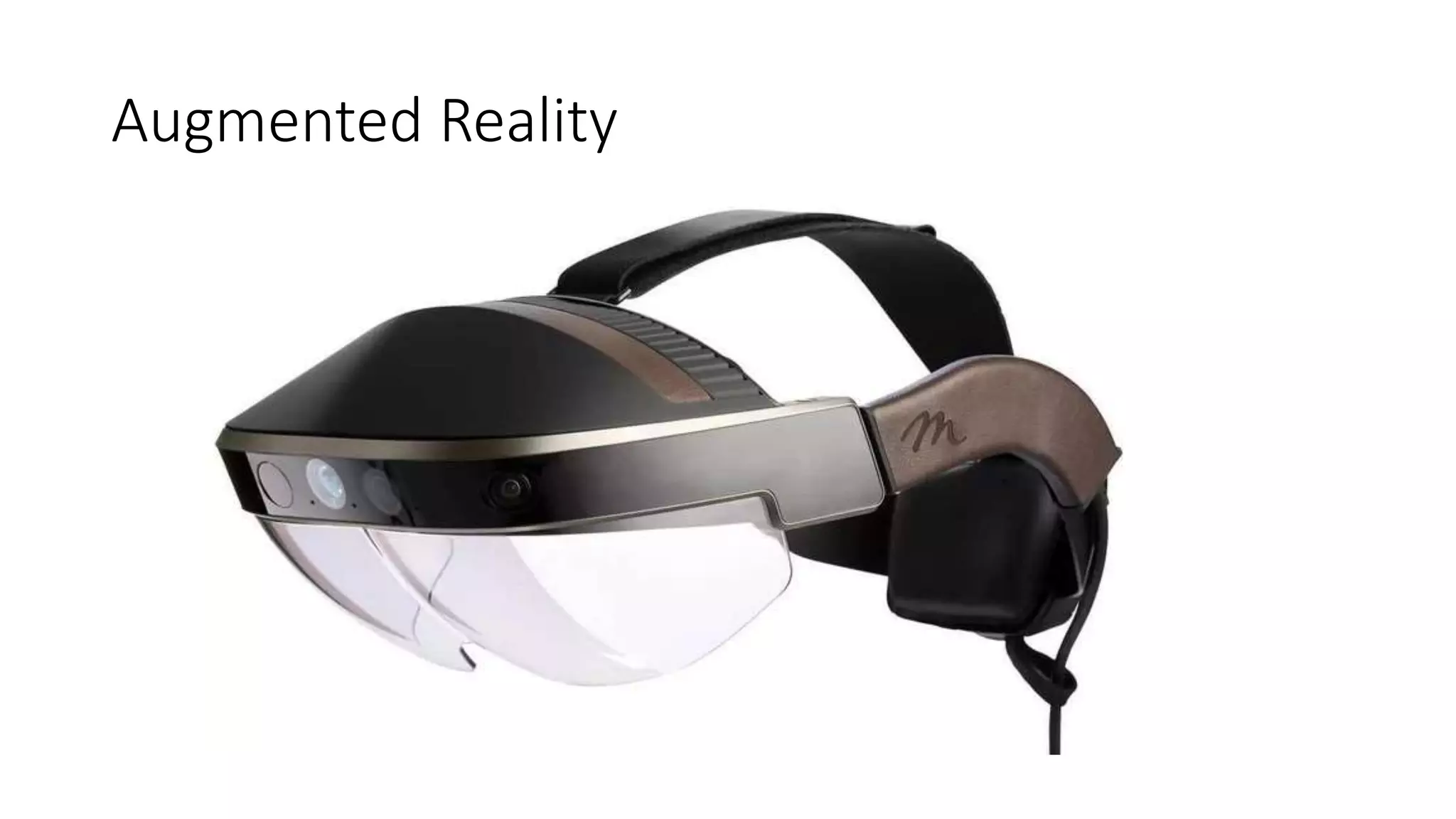

7. Augmented Reality

8. Augmented Reality

9. Augmented Reality

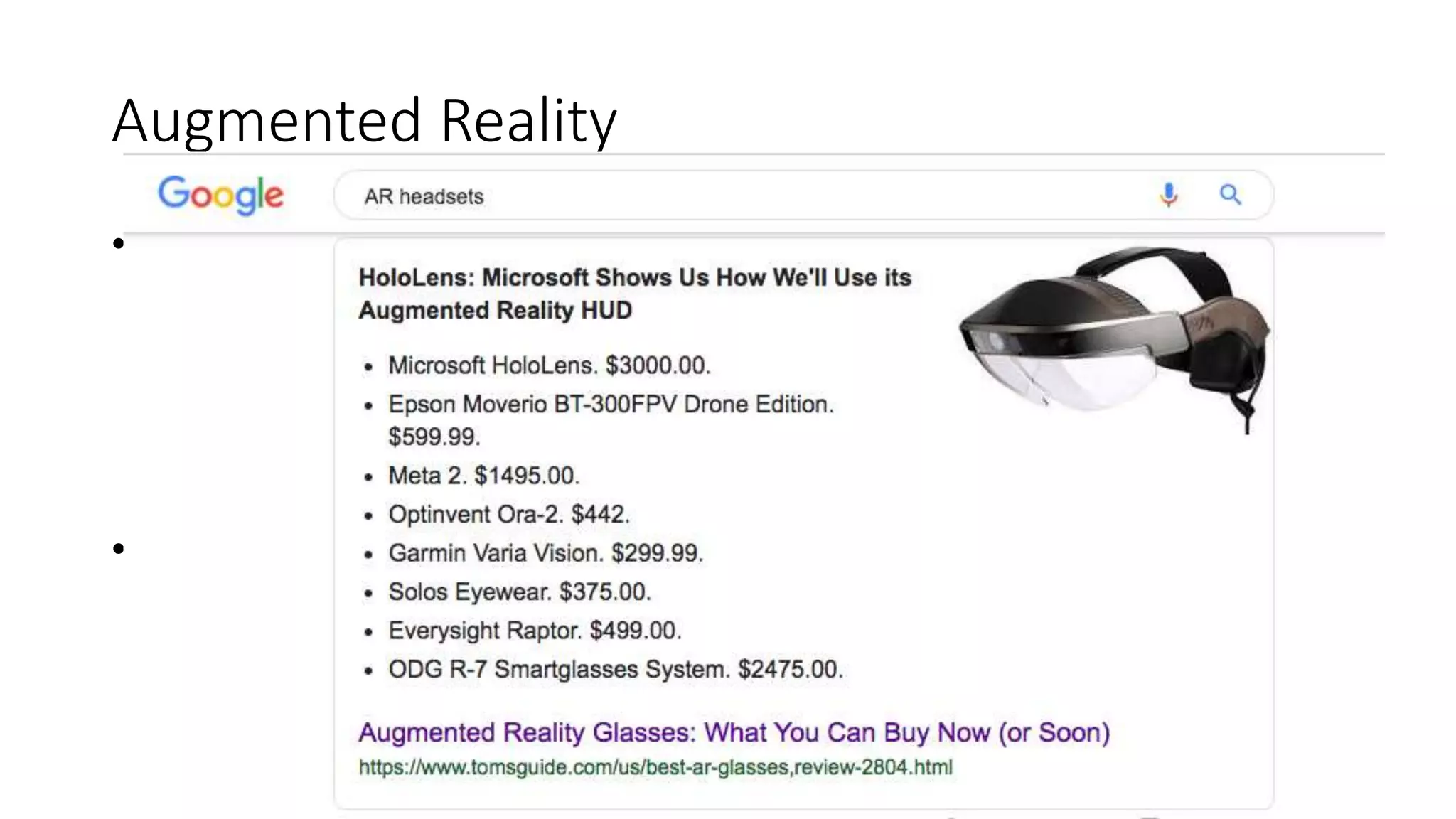

• Wearing fancy occulus with cameras
• Really $$$

10. Augmented Reality –
Smartphone
https://www.flickr.com/photos/bellemarematt/28124392062
https://www.flickr.com/photos/bagogames/28628142444

11. Augmented Reality –
Smartphone
https://www.flickr.com/photos/bellemarematt/28124392062
https://www.flickr.com/photos/bagogames/28628142444

12. AR/VR- in the Browser
• What we can do today
• What is coming tomorrow

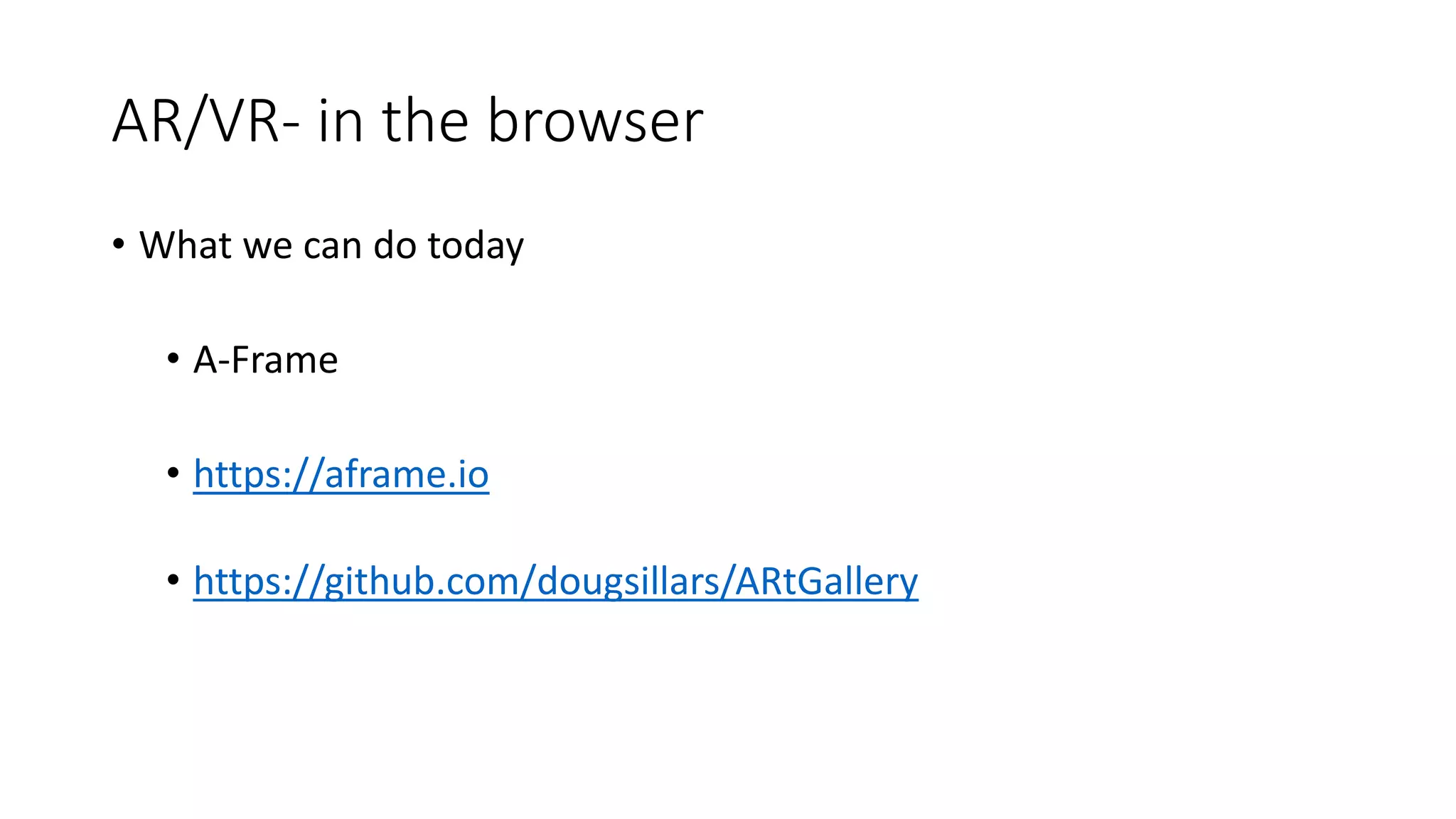

13. AR/VR- in the browser
• What we can do today
• A-Frame
• https://aframe.io
• https://github.com/dougsillars/ARtGallery

14. AR/VR- in the browser

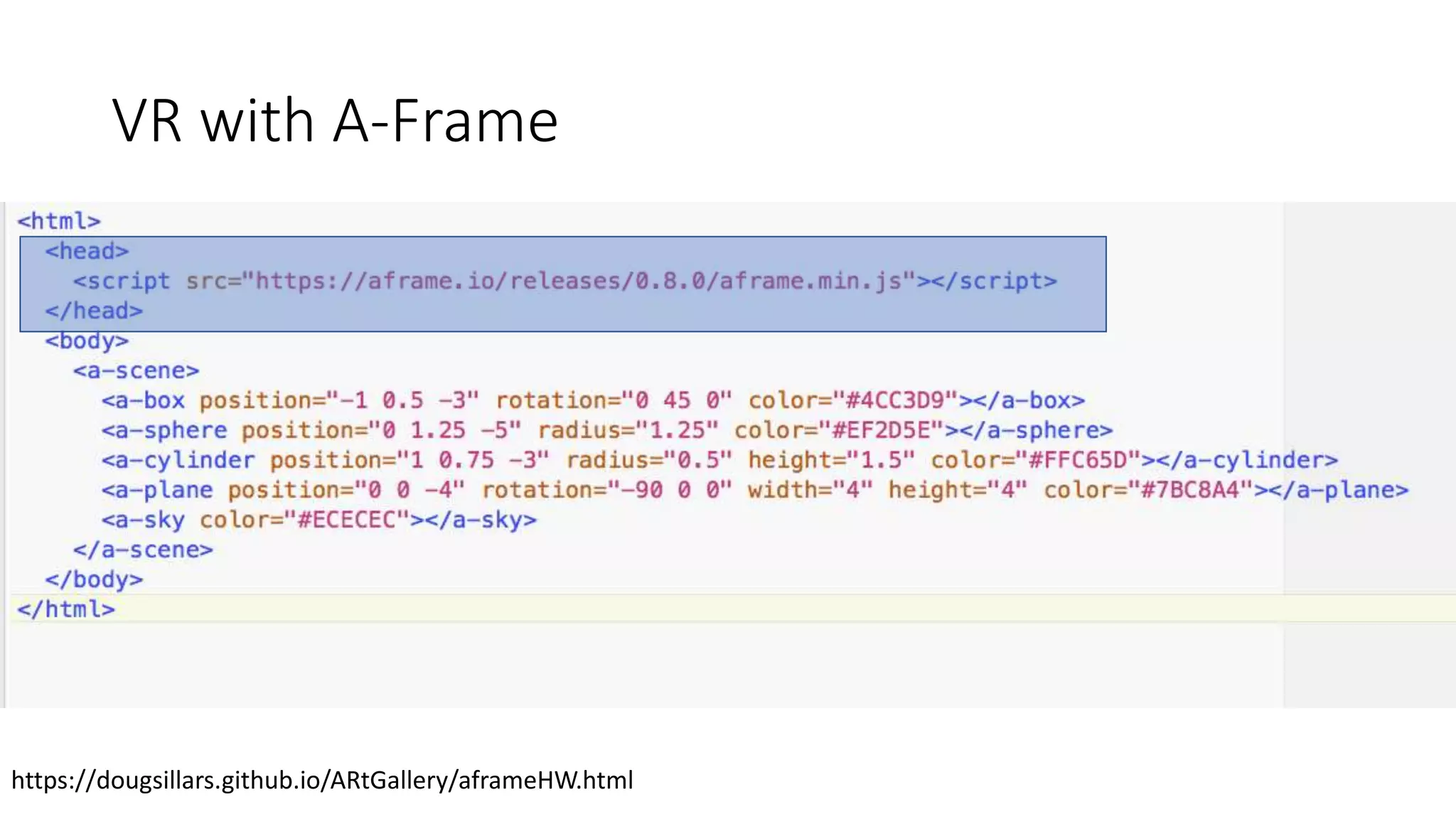

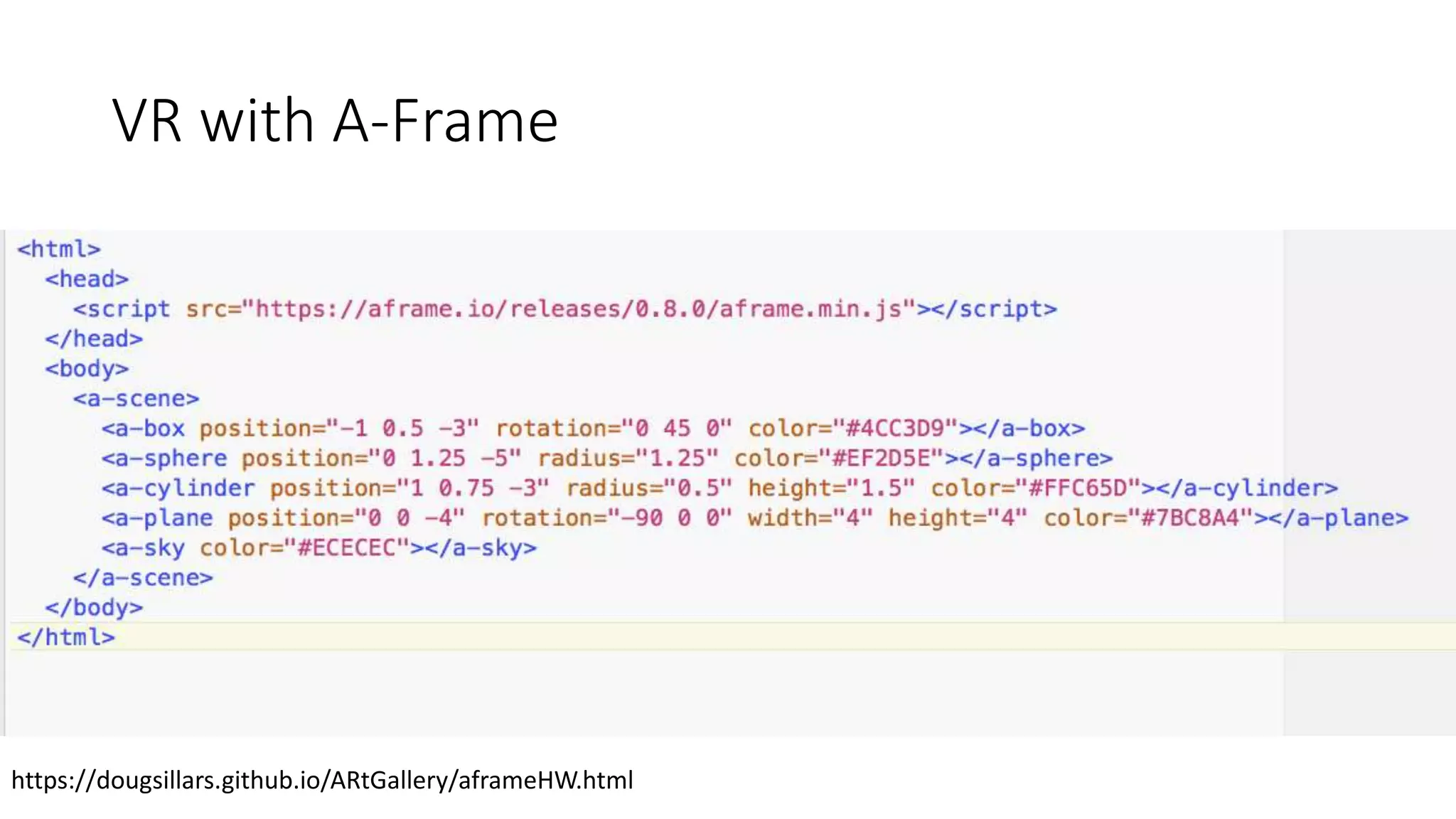

15. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

16. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

17. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

18. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

19. VR with A-Frame
https://dougsillars.github.io/ARtGallery/aframeHW.html

20. Building a Gallery
https://dougsillars.github.io/ARtGallery/aframeroom.html

21. VR ART
https://dougsillars.github.io/ARtGallery/aframeroomart.html

22. VR ART
https://dougsillars.github.io/ARtGallery/justart.html
Front Wall

23. VR ART
https://dougsillars.github.io/ARtGallery/justart.html
Front Wall
2m up

24. VR ART
https://dougsillars.github.io/ARtGallery/justart.html

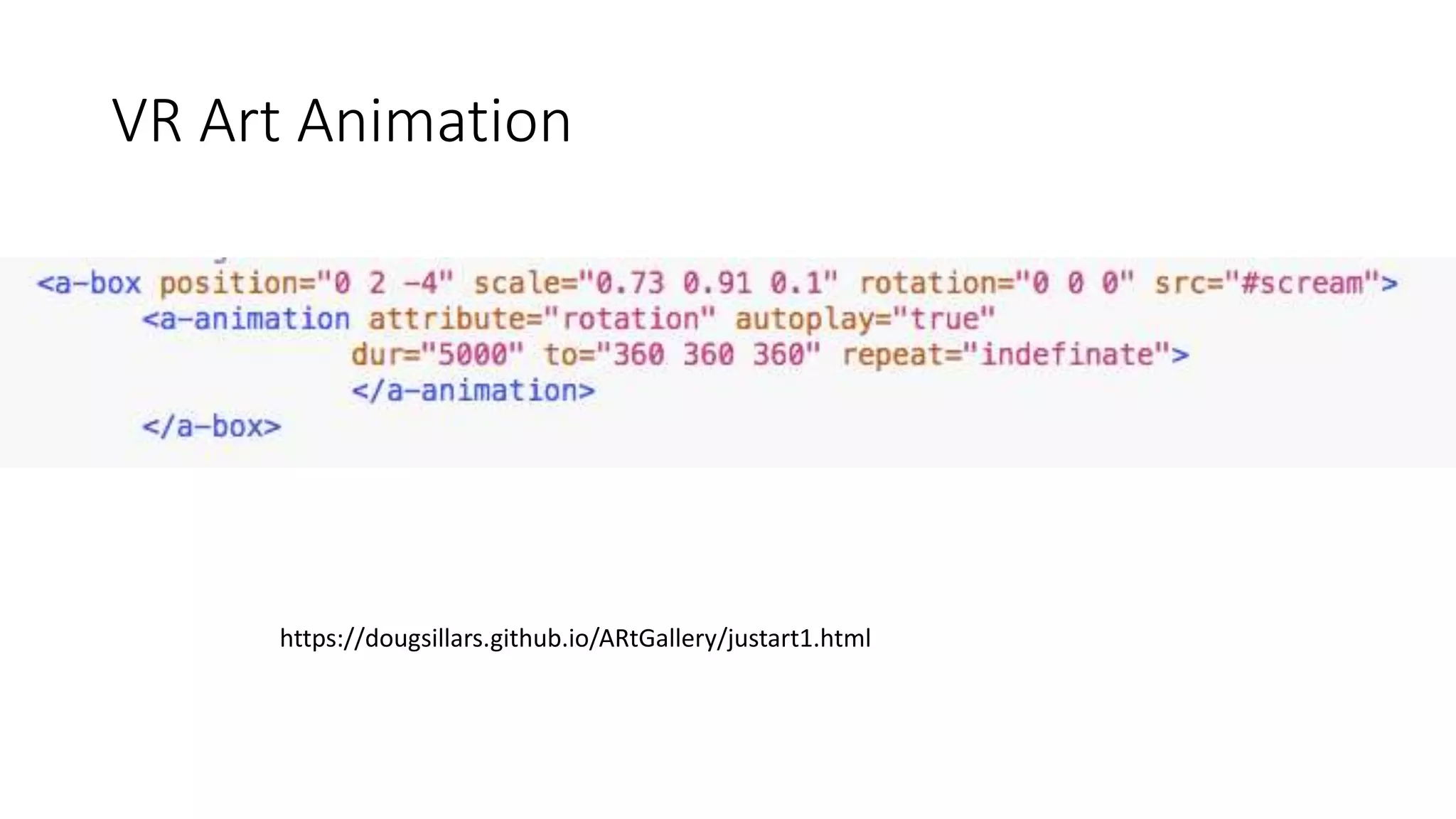

25. VR Art Animation
https://dougsillars.github.io/ARtGallery/justart1.html

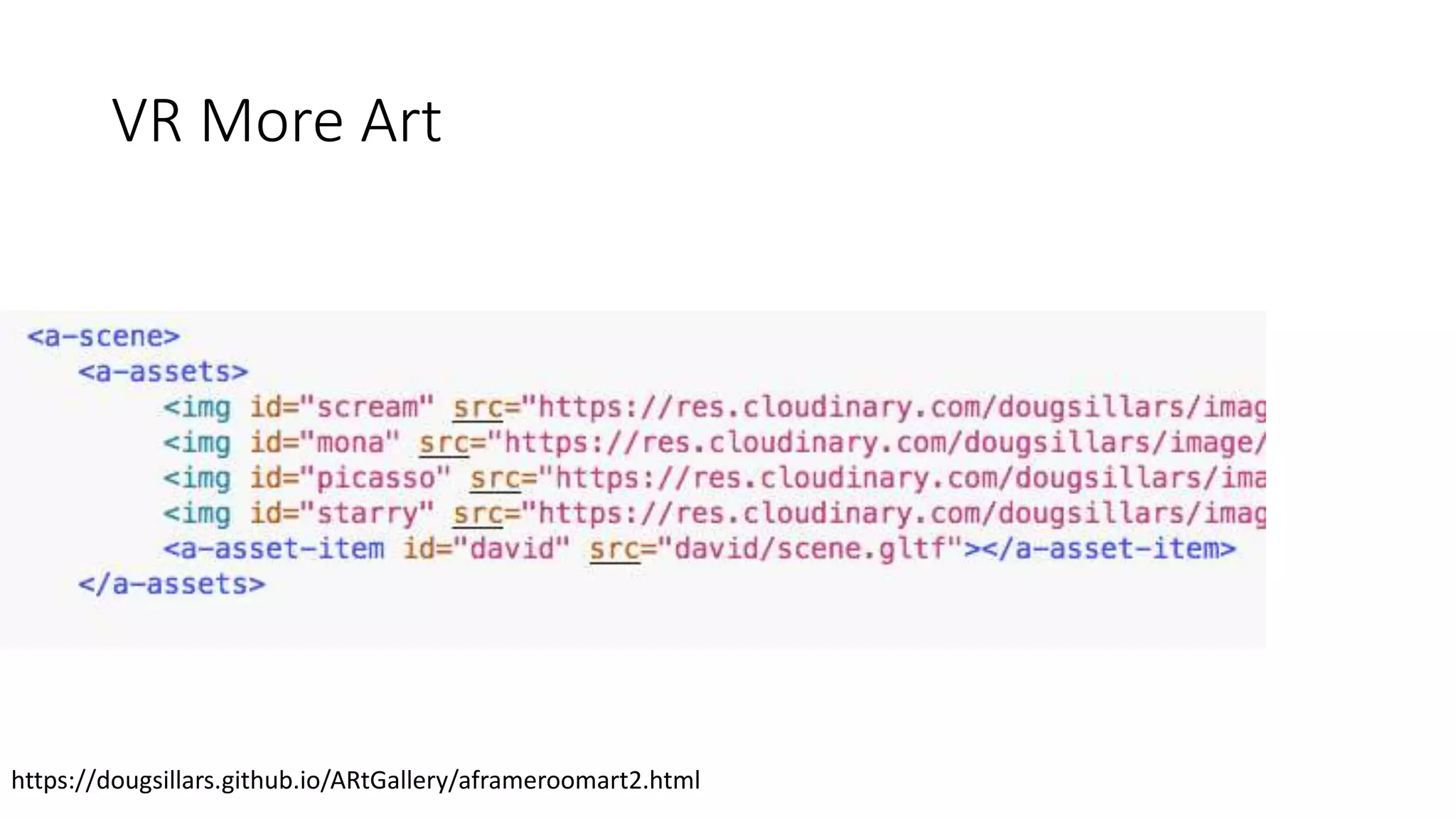

26. VR More Art
https://dougsillars.github.io/ARtGallery/aframeroomart2.html

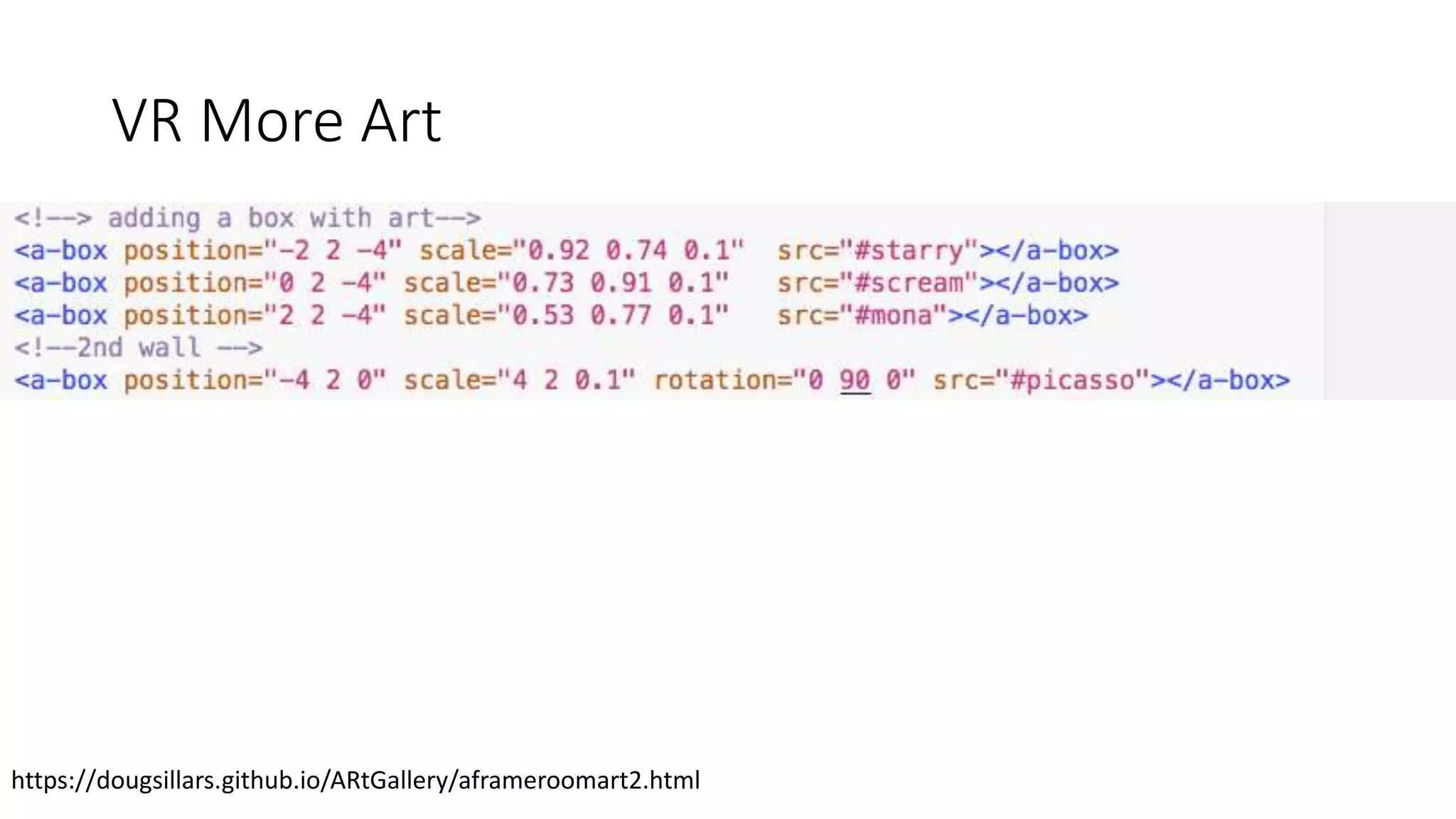

27. VR More Art
https://dougsillars.github.io/ARtGallery/aframeroomart2.html

28. VR More Art
https://dougsillars.github.io/ARtGallery/aframeroomart2.html

29. Add a Ceiling
https://dougsillars.github.io/ARtGallery/sistine.html

30. Add a Ceiling
https://dougsillars.github.io/ARtGallery/sistine.html

31. Add a Ceiling
https://dougsillars.github.io/ARtGallery/sistine.html
<a-cylinder position="0 4 4"
rotation="0 90 90"
radius="4"
height="16"
theta-start="0"
theta-length="180"
src="#sistine"
side="double">
</a-cylinder>

32. GLTF Models

33. GLTF Models

34. VR Models Are Large
We won’t forget optimization!!

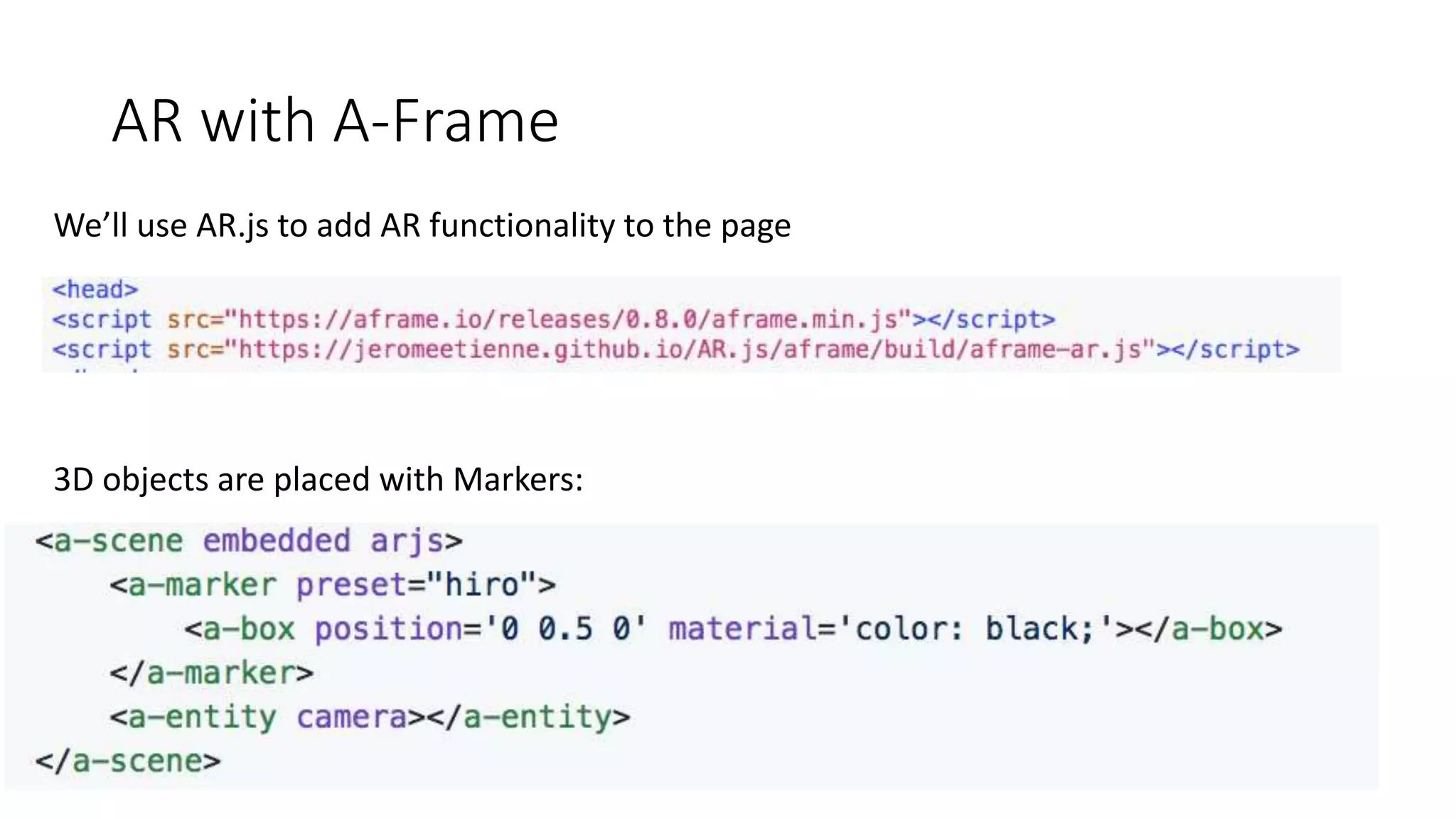

35. AR with A-Frame
We’ll use AR.js to add AR functionality to the page
3D objects are placed with Markers:

36. AR Markers

37. AR Markers
http://bit.ly/ARHiro

38. AR Markers http://bit.ly/ARHiro

39. AR Markers
Create Your Own Markers
https://jeromeetienne.github.io/AR.js/three.js/examples/mark
er-training/examples/generator.html
Creates an image to print and tape to
the wall.
Creates a .patt pattern file for the
browser

40. AR Markers
Create Your Own Markers
https://jeromeetienne.github.io/AR.js/three.js/examples/mark
er-training/examples/generator.html
Creates an image to print and tape to
the wall.
Creates a .patt pattern file for the
browser

41. AR Markers
Create Your Own Markers

42. AR Markers to Create A Scene
https://dougsillars.github.io/ARtGallery/ARt.html

43. Optimisations for AR/VR
• Images are integral to the view – we want them to load quickly

44. Optimisations for AR/VR
• Reduce File Size

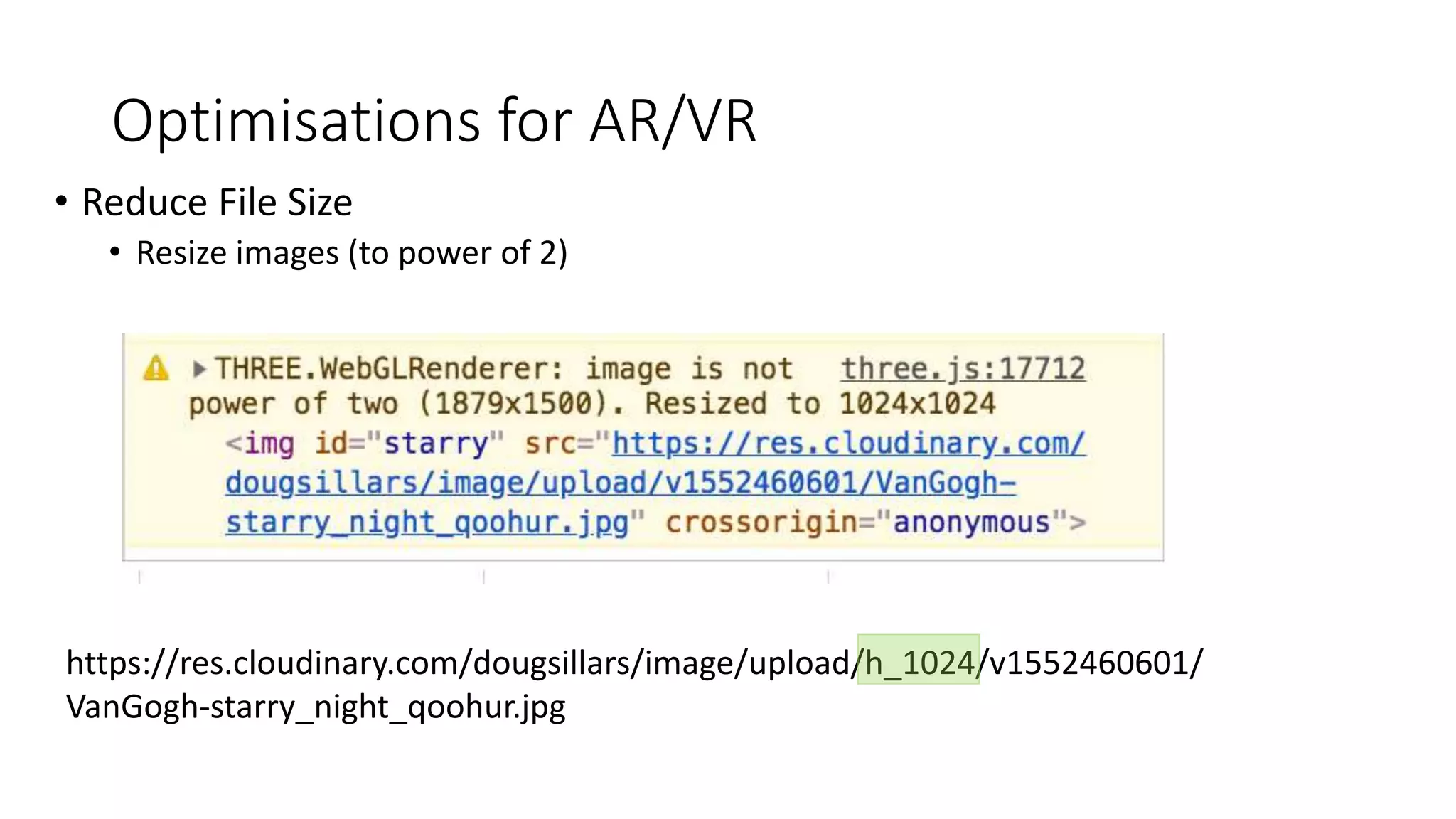

45. Optimisations for AR/VR
• Reduce File Size
• Resize images (to power of 2)
https://res.cloudinary.com/dougsillars/image/upload/h_1024/v1552460601/

46. Optimisations for AR/VR

47. Optimisations for AR/VR

48. Optimisations for AR/VR

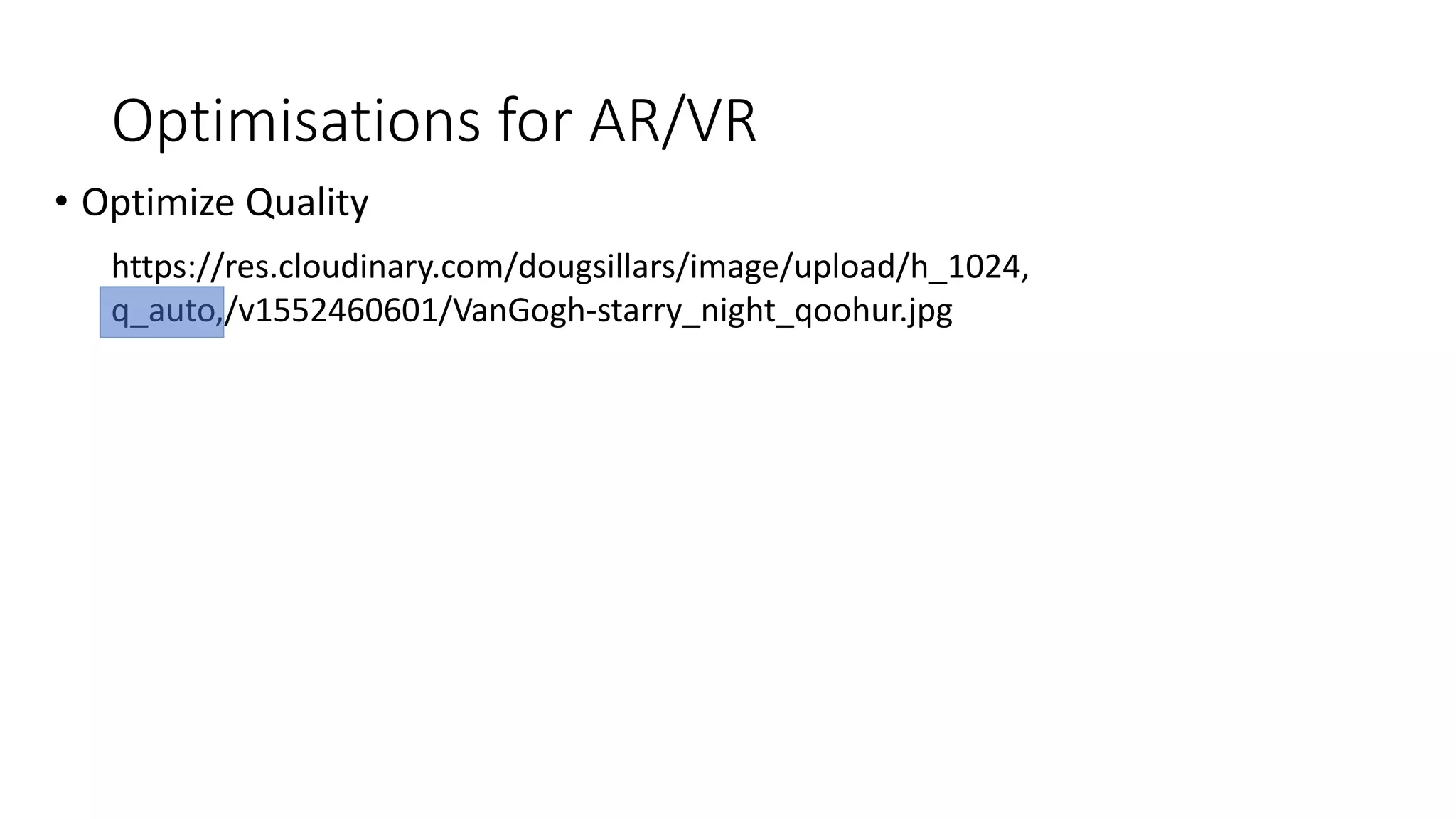

• Optimize Quality
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,/v1552460601/VanGogh-starry_night_qoohur.jpg

49. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,f_auto/v1552460601/VanGogh-

50. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,f_auto/v1552460601/VanGogh-

51. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_1024,
q_auto,f_auto/v1552460601/VanGogh-
1.8 MB -> 323 KB

52. Optimisations for AR/VR
• Optimize Format
https://res.cloudinary.com/dougsillars/image/upload/h_512,
q_auto,f_auto/v1552460601/VanGogh-
1.8 MB -> 93 KB

53. Optimisations for GLTF
Draco Compression optimizes .bin files

54. AR with WEBXR

55. AR with WEBXR
• All WebXR Demos require:
• Android 8.0+
• Chrome Canary v70-72 (late 2018)
• Flags enabled:
• WebXR Device API
• WebXR Hit Test
• ARCore installed
Protip:
If using WebXR a lot, prevent Canary
from auto-updating in Play Store

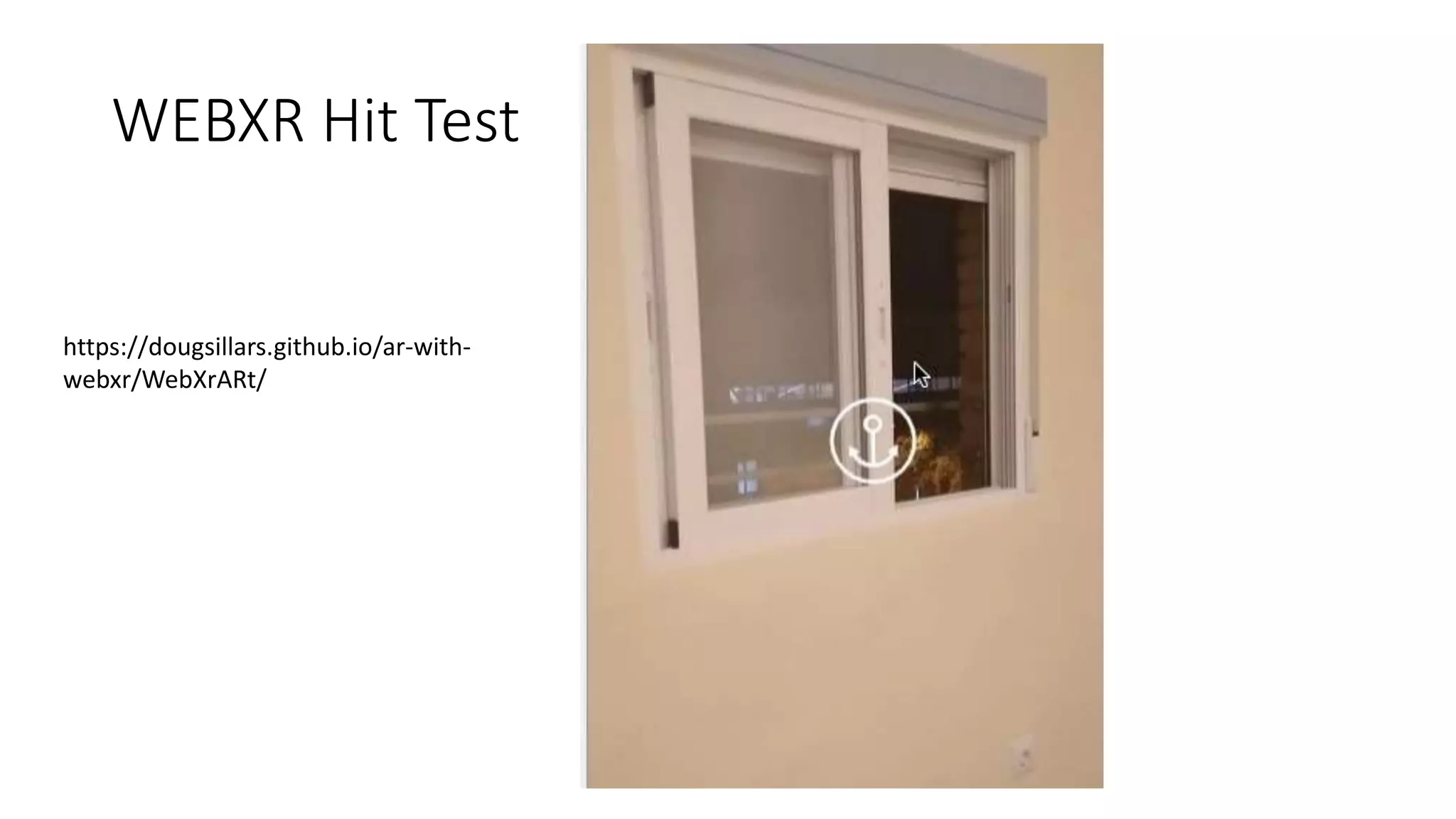

56. WEBXR Hit Test
https://codelabs.developers.google.com/codelabs/ar-with-webxr/#4

57. WEBXR Hit Test
https://dougsillars.github.io/ar-with-
webxr/WebXrARt/

58. Optimisations for WebXR
1024X1024 1024X1025

59. https://res.cloudinary.com/dougsillars/image
/upload/x_230,y_128,w_512,h_512,c_crop/
w_256/v1552682248/stabilization_yegbkb.gi
f
850 KB -> 174 KB
Optimisations for aGIF

60. Optimisations for PNG
https://res.cloudinary.com/dougsillars/image/upl
oad/q_auto,w_256/c_crop,w_256,h_256/v15526
82248/Anchor_rzjbco.png
• Optimise quality, shrink to 256
KB wide
• Crop to 256x256
• 36 KB -> 2.2 KB

61. Loading WEbXR Art Gallery (Optimized)

62. Conclusions
• AR on the web is available today with A-Frame
• AR with Hit Points is coming
• AR does not have to be processor intensive, nor utilize huge
amounts of data

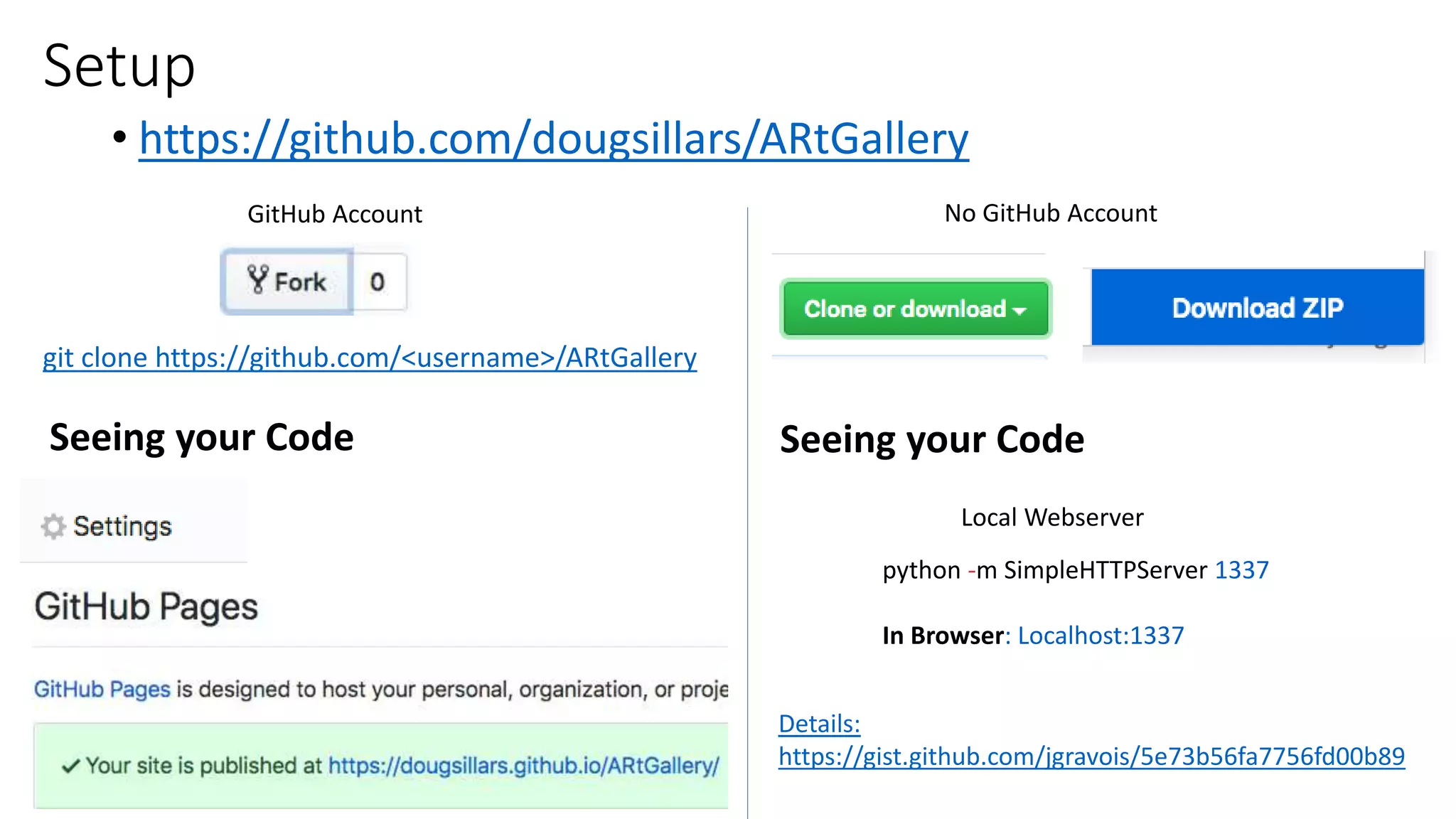

63. Setup
• https://github.com/dougsillars/ARtGallery
git clone https://github.com/<username>/ARtGallery
Seeing your Code
GitHub Account No GitHub Account
Details:
https://gist.github.com/jgravois/5e73b56fa7756fd00b89
Seeing your Code
Local Webserver
python -m SimpleHTTPServer 1337
In Browser: Localhost:1337

64. Let’s build!
• Art Files you can use:
• https://res.cloudinary.com/dougsillars/image/upload/w_1000/v1551634938/scream_qbwybi.jpg
• https://res.cloudinary.com/dougsillars/image/upload/w_1000/v1551634946/monalisa_nlcskz.jpg
• https://res.cloudinary.com/dougsillars/image/upload/w_1000/v1551634942/Mural_del_Gernika_s9ld
• https://res.cloudinary.com/dougsillars/image/upload/v1552460601/VanGogh-
• https://res.cloudinary.com/dougsillars/image/upload/v1553694737/CAPPELLA_SISTINA_Ceiling_oosz
• https://res.cloudinary.com/dougsillars/image/upload/v1553694758/last_supper_hykuux.jpg
• https://res.cloudinary.com/dougsillars/image/upload/v1553694762/The_Nightwatch_kkzvus.jpg
• Try: Sketchfab.com for 3D Models

65. Links
Code: https://github.com/dougsillars/ARtGallery
https://github.com/dougsillars/ar-with-webxr
WebXR spec: https://www.w3.org/TR/2019/WD-webxr-20190205/
Cloudinary: https://cloudinary.com

66. Love Building with Video and Images?
Media Developer Expert
mde-comm@cloudinary.com
Become a
