1. A PRESENTATION ON
ARCHITECTURAL DESIGN
By Drishya Phuel

2. Acknowledgement
I would like to express my sincere gratitude
to our respected teacher Engineer Ramesh
Tamang Sir for providing me with this
wonderful opportunity and helpful
materials to share my ideas on my today’s
topic.

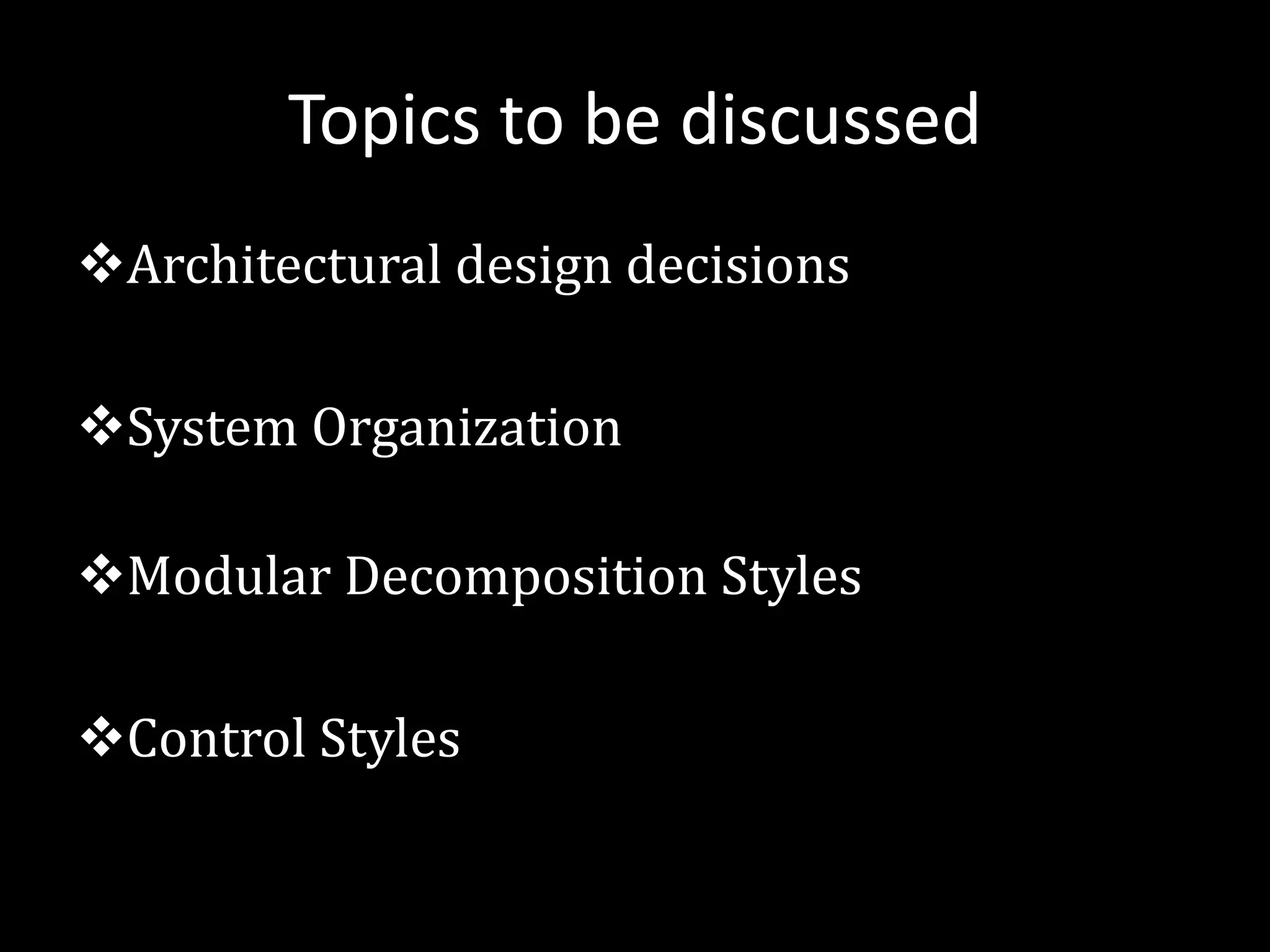

3. Topics to be discussed
vArchitectural design decisions
vSystem Organization
vModular Decomposition Styles
vControl Styles

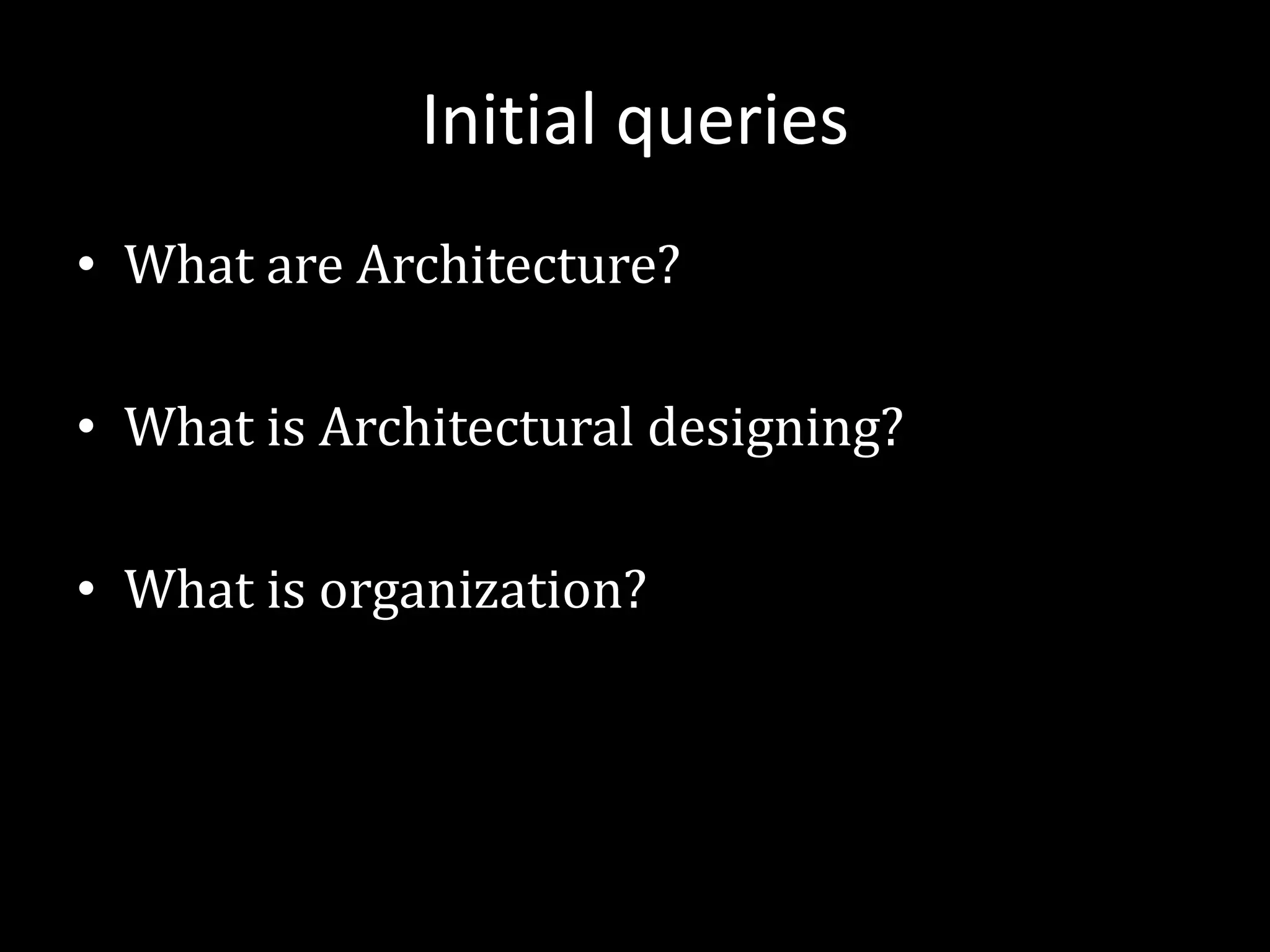

4. Initial queries
• What are Architecture?
• What is Architectural designing?
• What is organization?

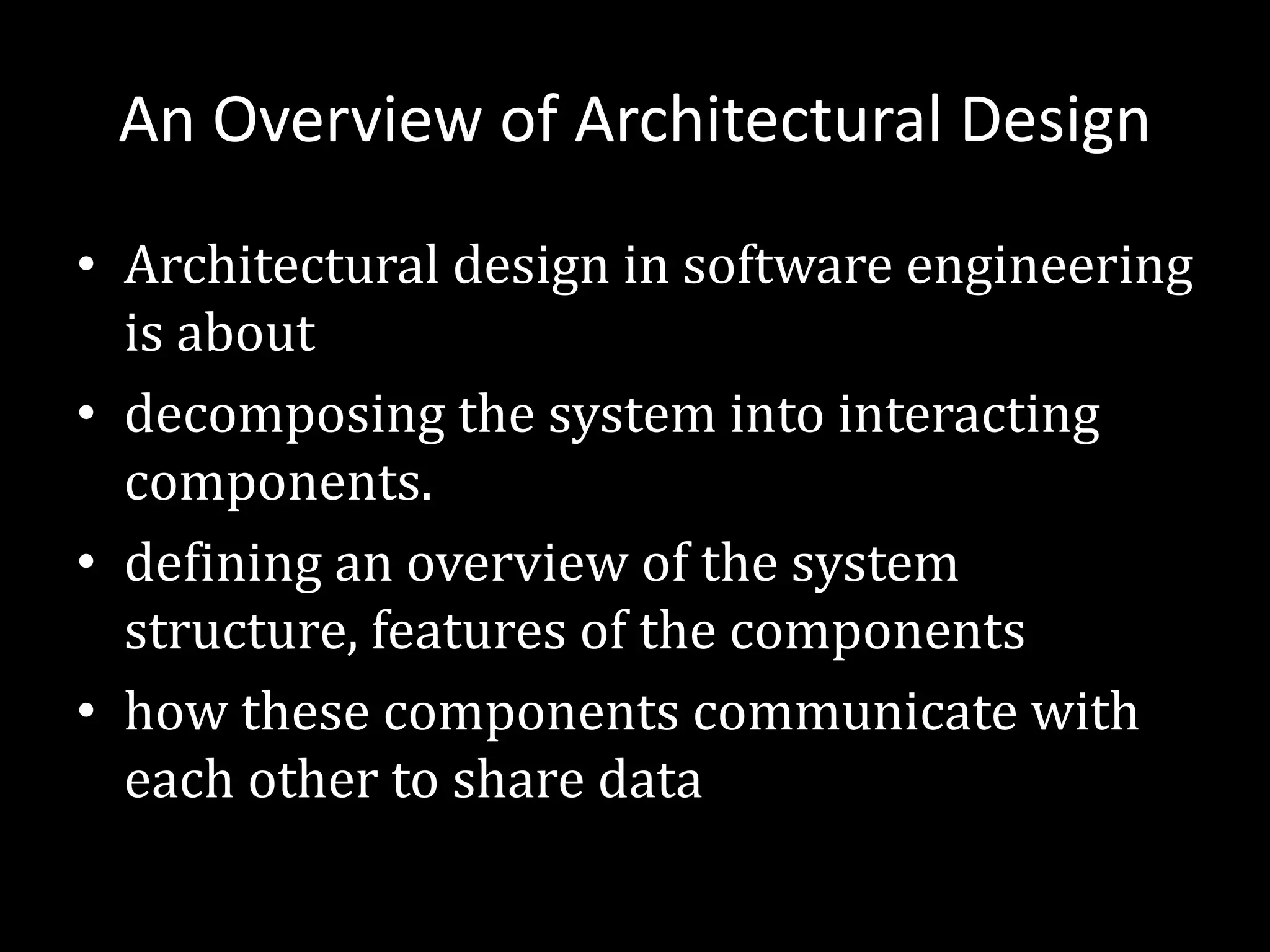

5. An Overview of Architectural Design
• Architectural design in software engineering
is about
• decomposing the system into interacting
components.
• defining an overview of the system
structure, features of the components
• how these components communicate with
each other to share data

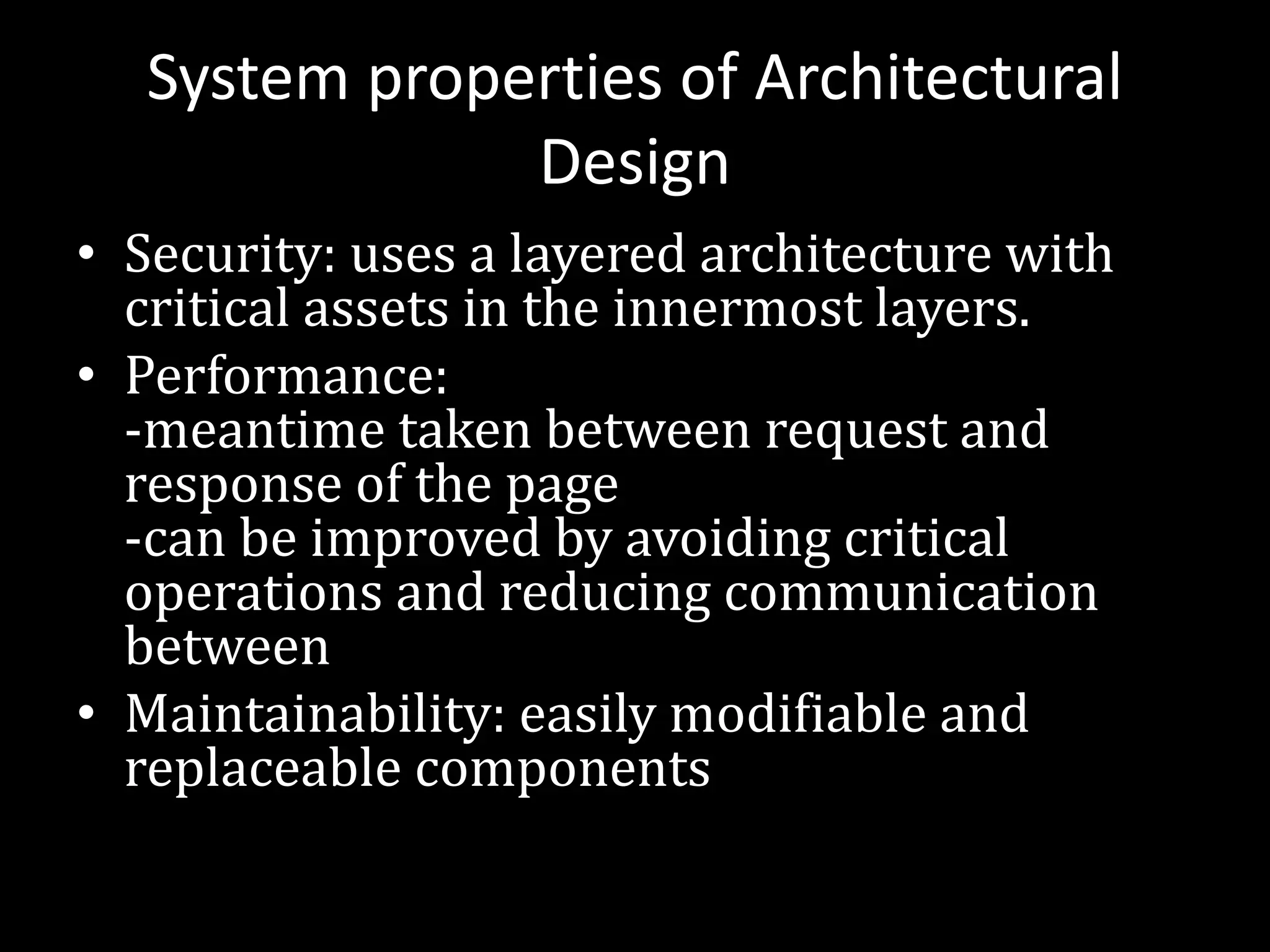

6. System properties of Architectural
Design
• Security: uses a layered architecture with
critical assets in the innermost layers.
• Performance:
-meantime taken between request and
response of the page
-can be improved by avoiding critical
operations and reducing communication
between
• Maintainability: easily modifiable and
replaceable components

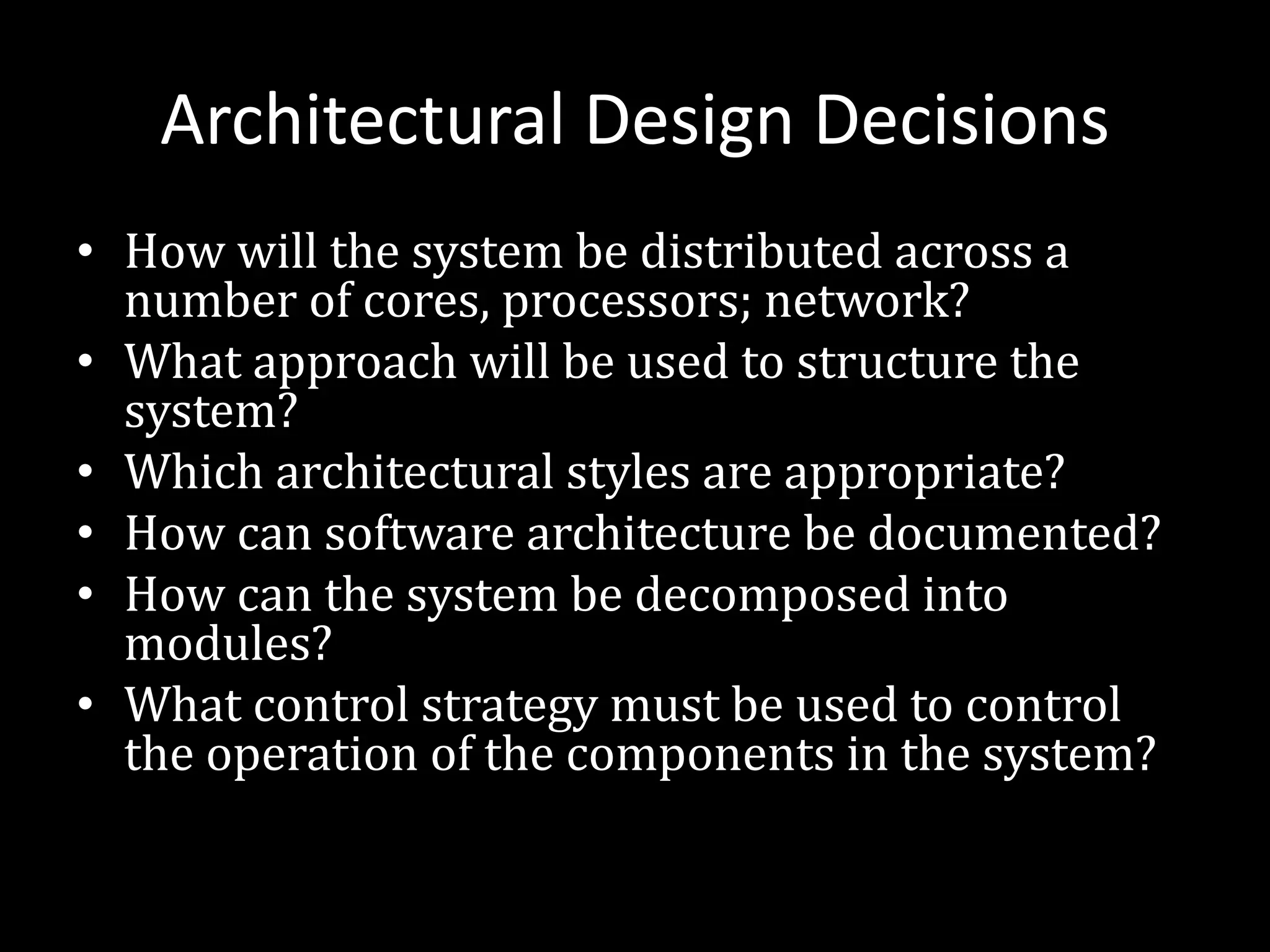

7. Architectural Design Decisions
• How will the system be distributed across a
number of cores, processors; network?
• What approach will be used to structure the
system?
• Which architectural styles are appropriate?
• How can software architecture be documented?
• How can the system be decomposed into
modules?
• What control strategy must be used to control
the operation of the components in the system?

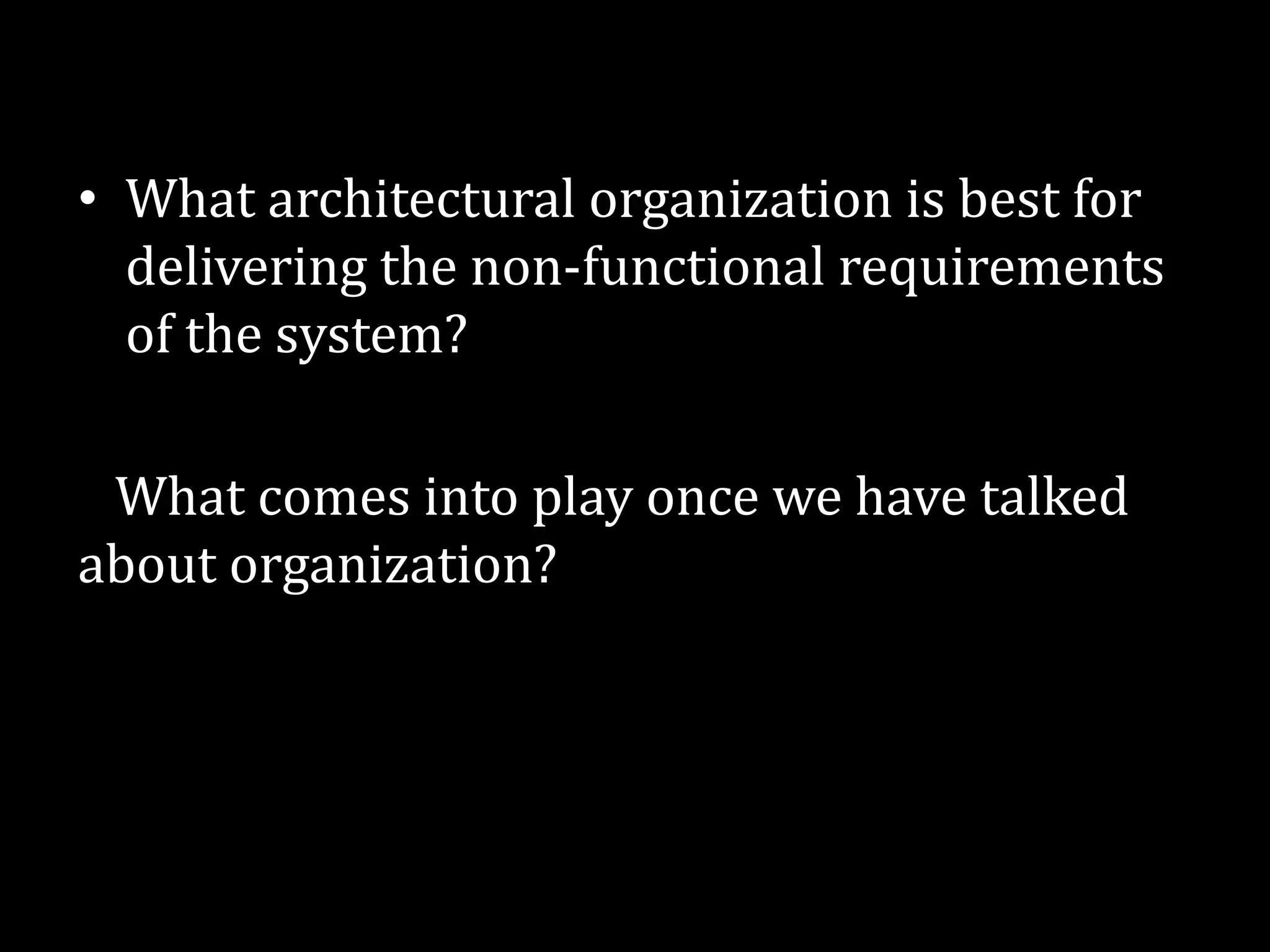

8. • What architectural organization is best for
delivering the non-functional requirements
of the system?
What comes into play once we have talked
about organization?

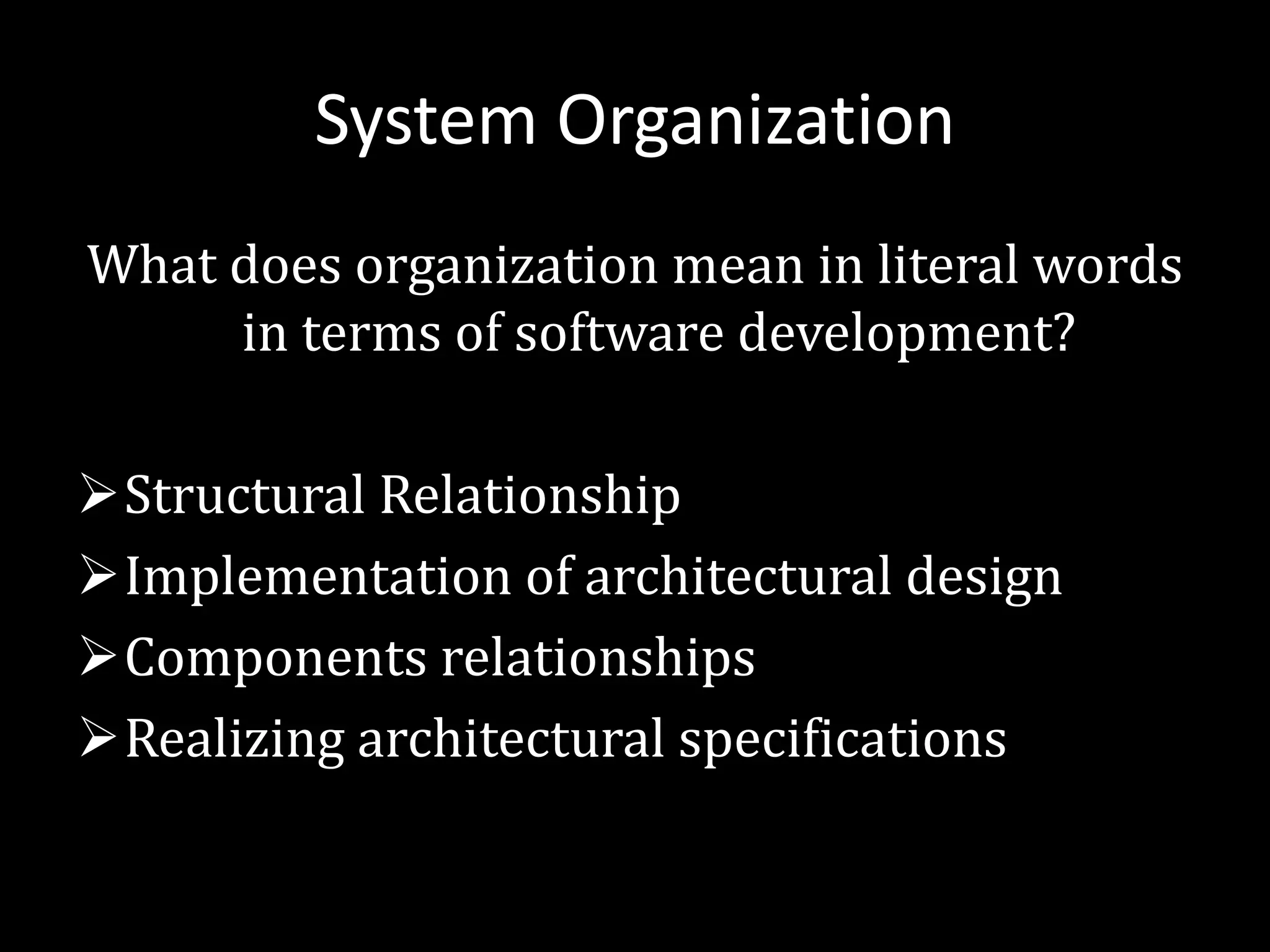

9. System Organization
What does organization mean in literal words
in terms of software development?
ØStructural Relationship
ØImplementation of architectural design
ØComponents relationships
ØRealizing architectural specifications

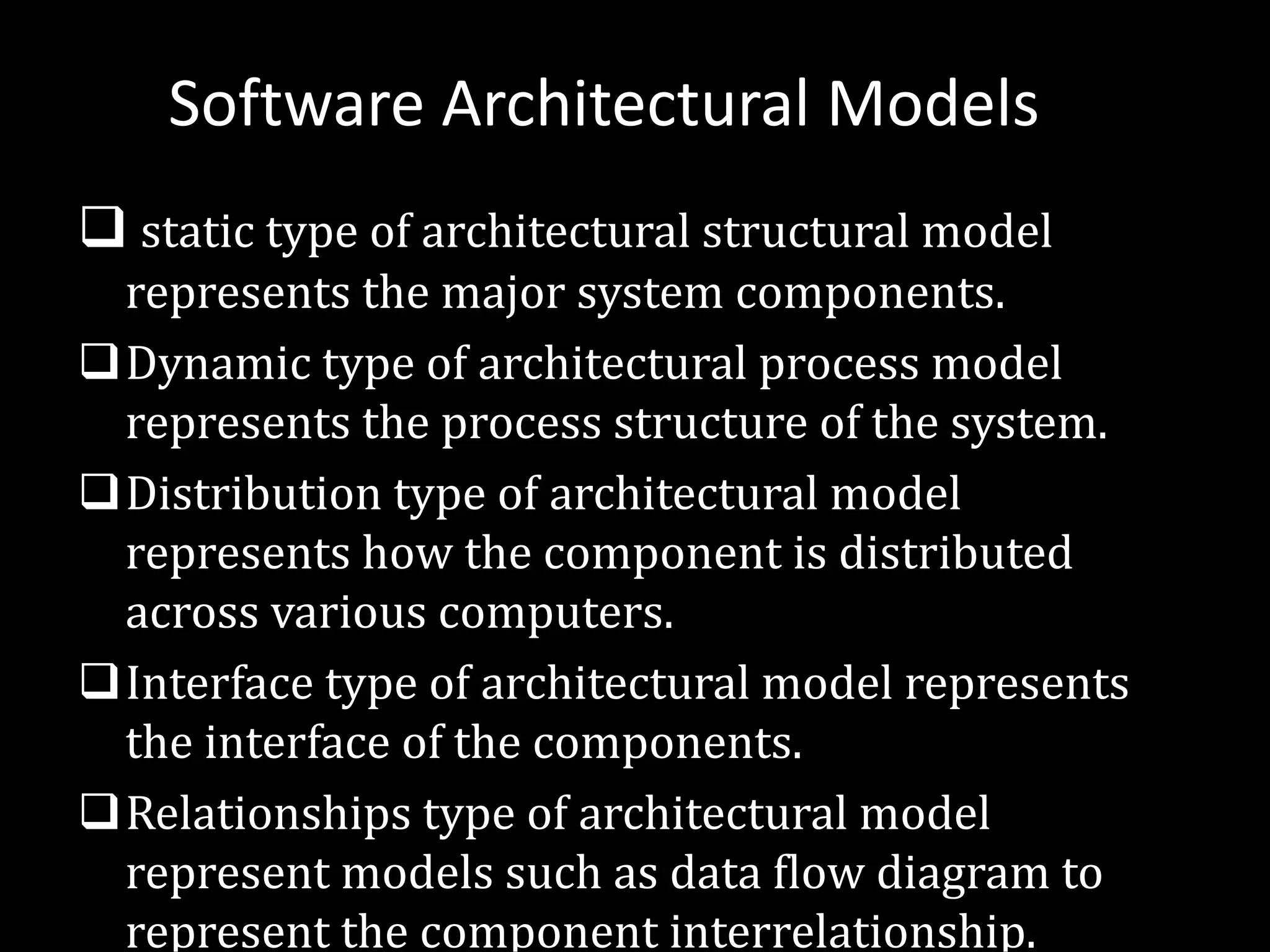

10. Software Architectural Models
q static type of architectural structural model
represents the major system components.
qDynamic type of architectural process model
represents the process structure of the system.
qDistribution type of architectural model
represents how the component is distributed
across various computers.
qInterface type of architectural model represents
the interface of the components.
qRelationships type of architectural model
represent models such as data flow diagram to
represent the component interrelationship.

11. Could this design process BE more
perfect?
To document the
architectural design
process, architectural
models are used.

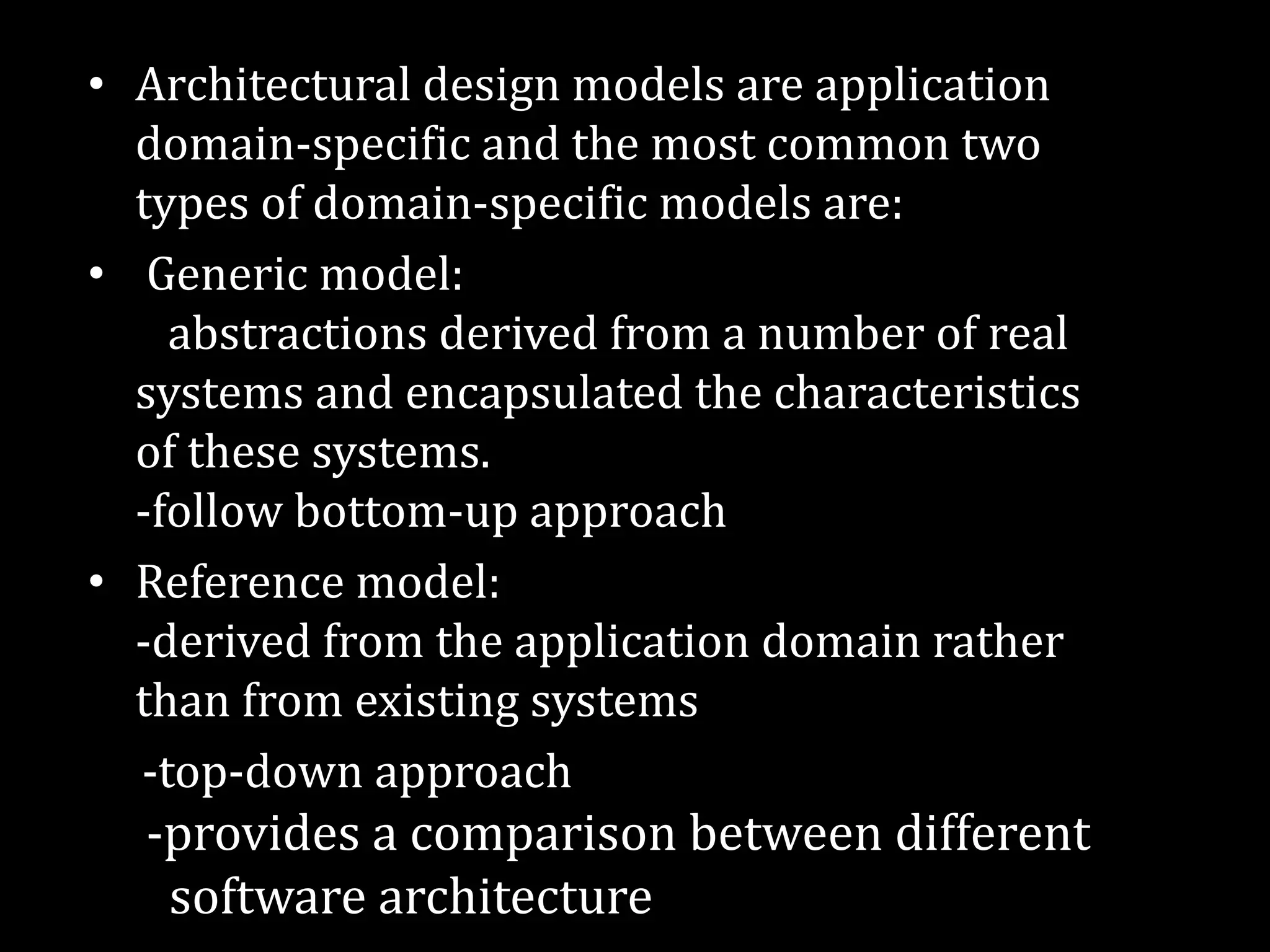

12. • Architectural design models are application
domain-specific and the most common two
types of domain-specific models are:
• Generic model:
abstractions derived from a number of real
systems and encapsulated the characteristics
of these systems.
-follow bottom-up approach
• Reference model:
-derived from the application domain rather
than from existing systems
-top-down approach
-provides a comparison between different
software architecture

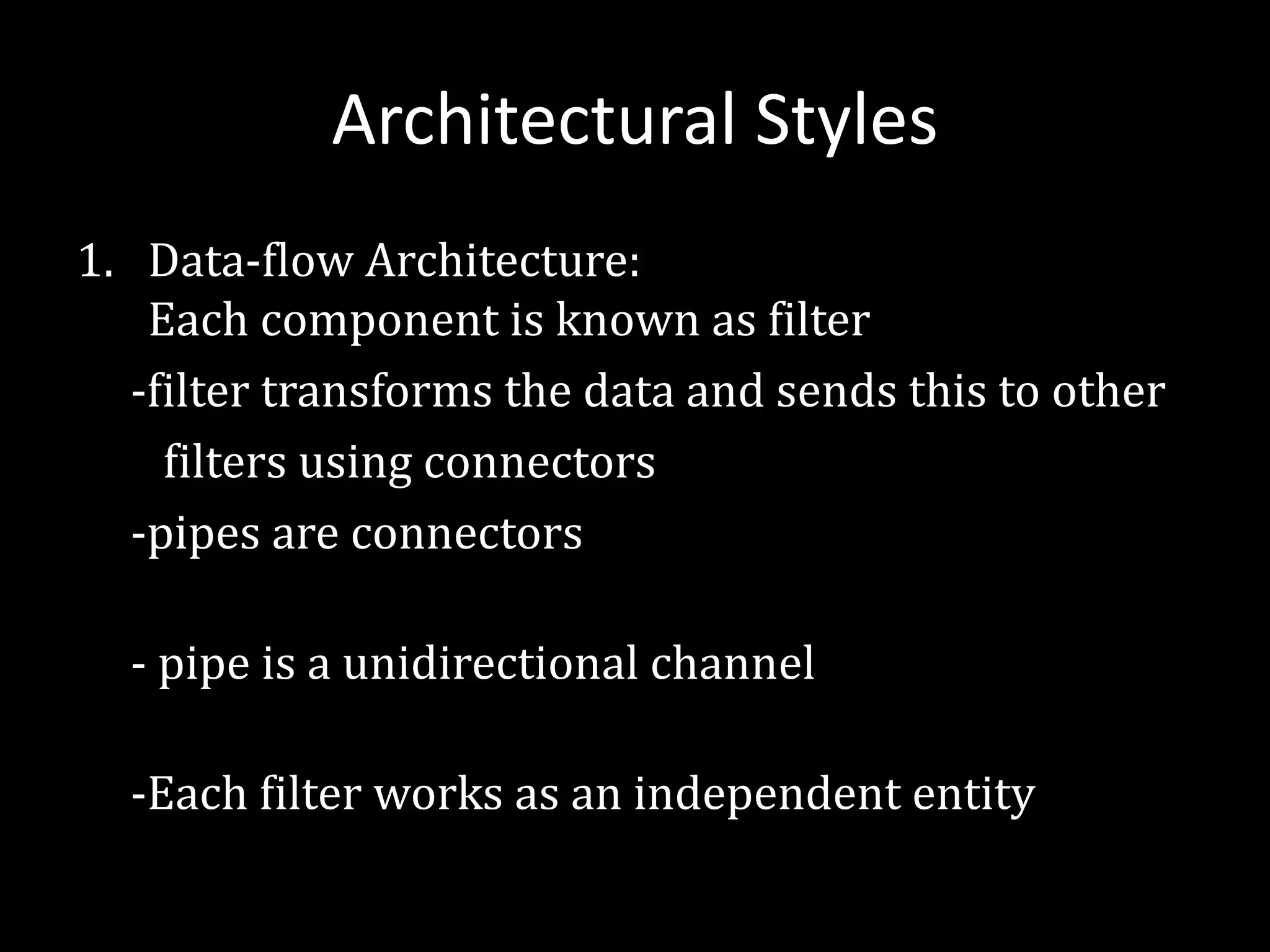

13. Architectural Styles
1. Data-flow Architecture:
Each component is known as filter
-filter transforms the data and sends this to other
filters using connectors
-pipes are connectors
- pipe is a unidirectional channel
-Each filter works as an independent entity

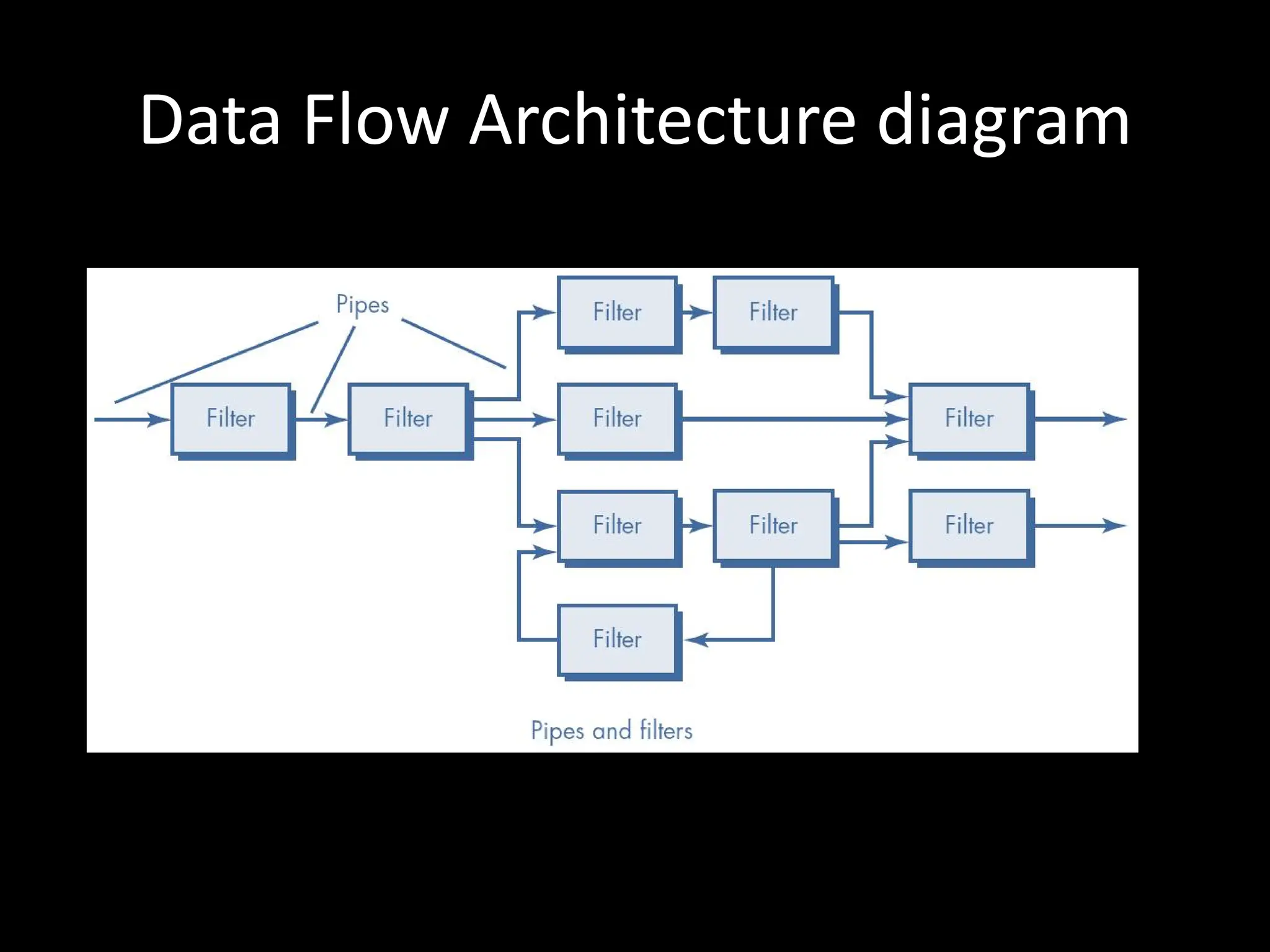

14. Data Flow Architecture diagram

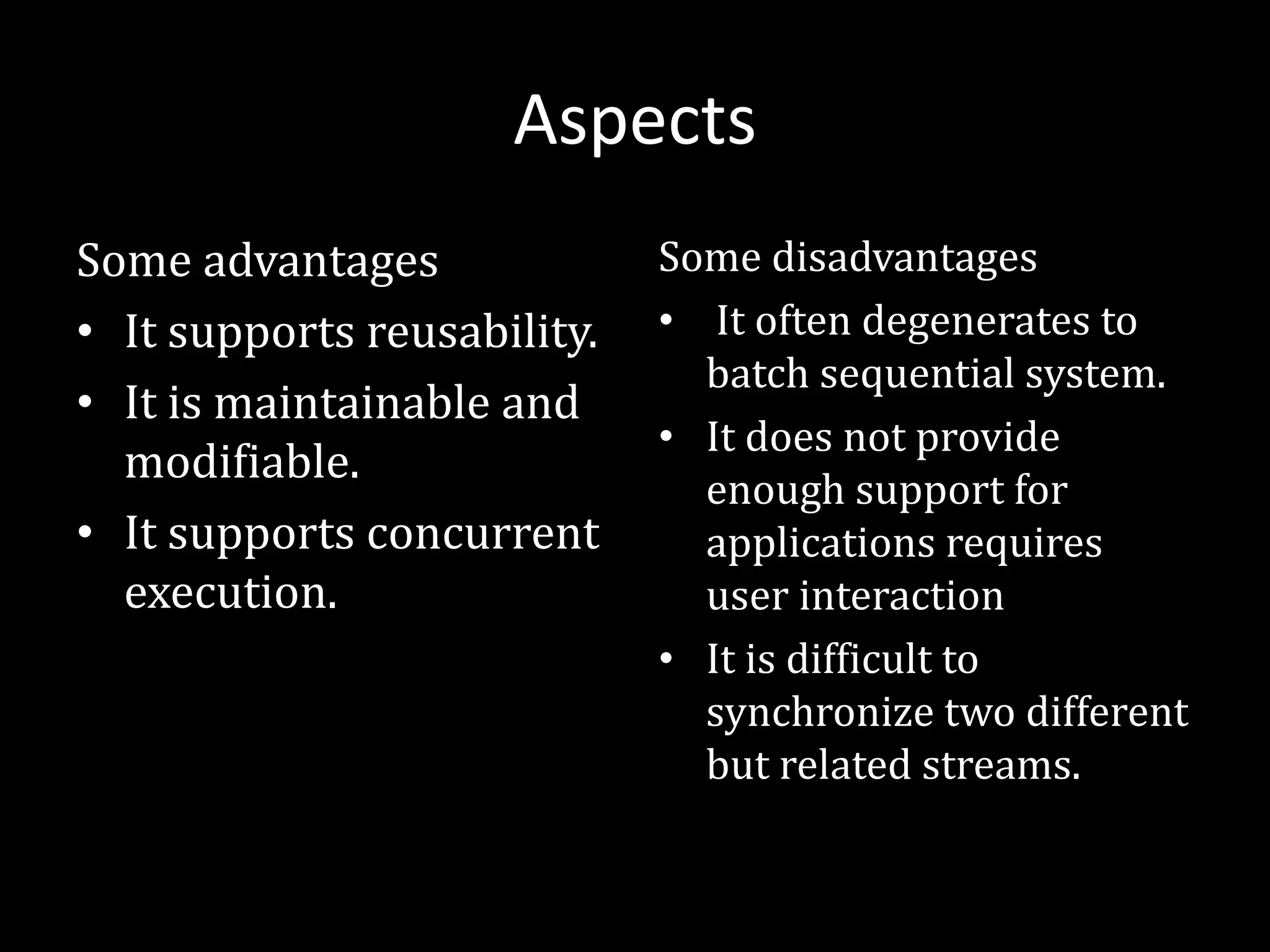

15. Aspects
Some advantages
• It supports reusability.
• It is maintainable and
modifiable.
• It supports concurrent
execution.
Some disadvantages
• It often degenerates to
batch sequential system.
• It does not provide
enough support for
applications requires
user interaction
• It is difficult to
synchronize two different
but related streams.

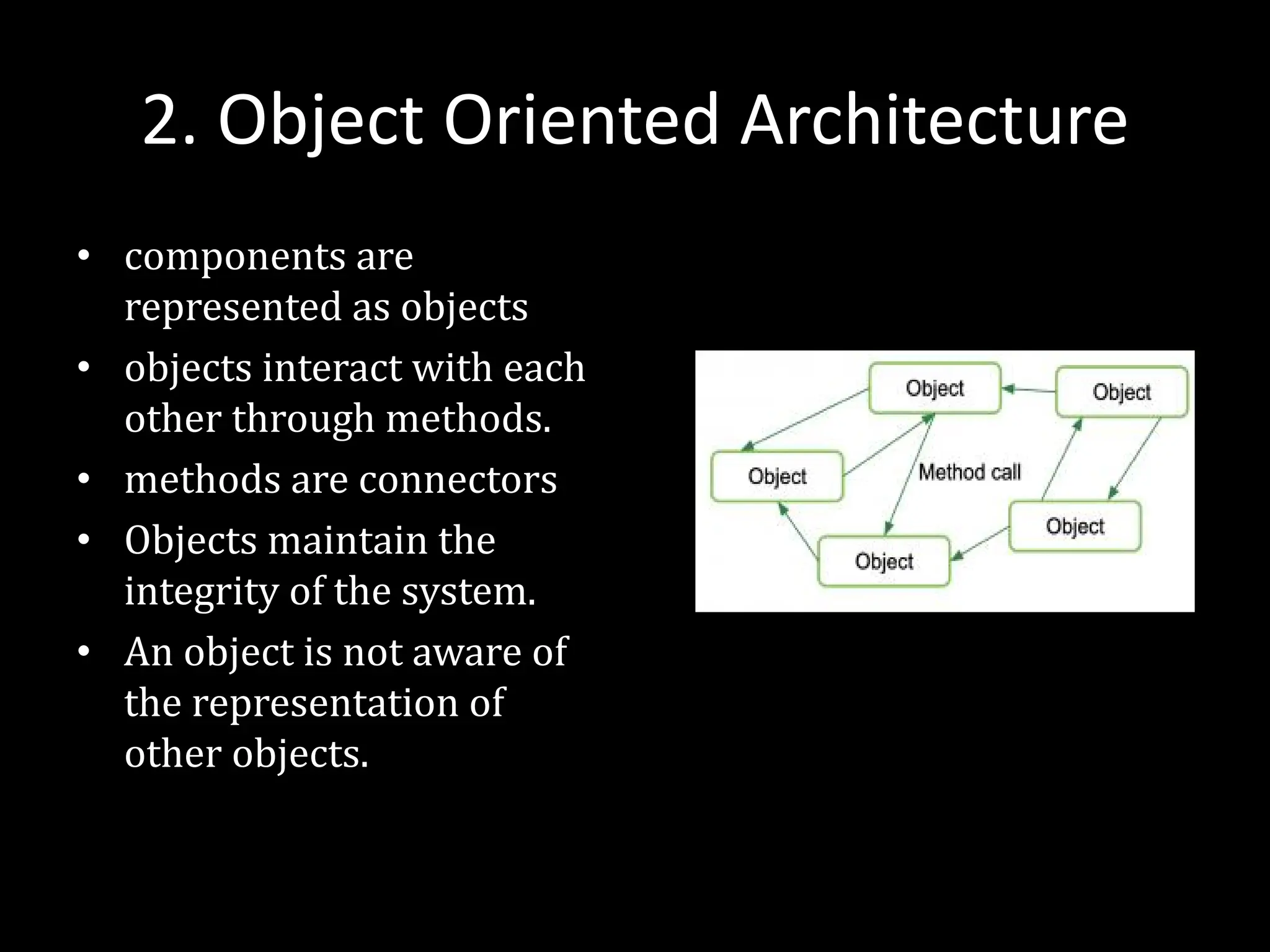

16. 2. Object Oriented Architecture
• components are
represented as objects
• objects interact with each
other through methods.
• methods are connectors
• Objects maintain the
integrity of the system.
• An object is not aware of
the representation of
other objects.

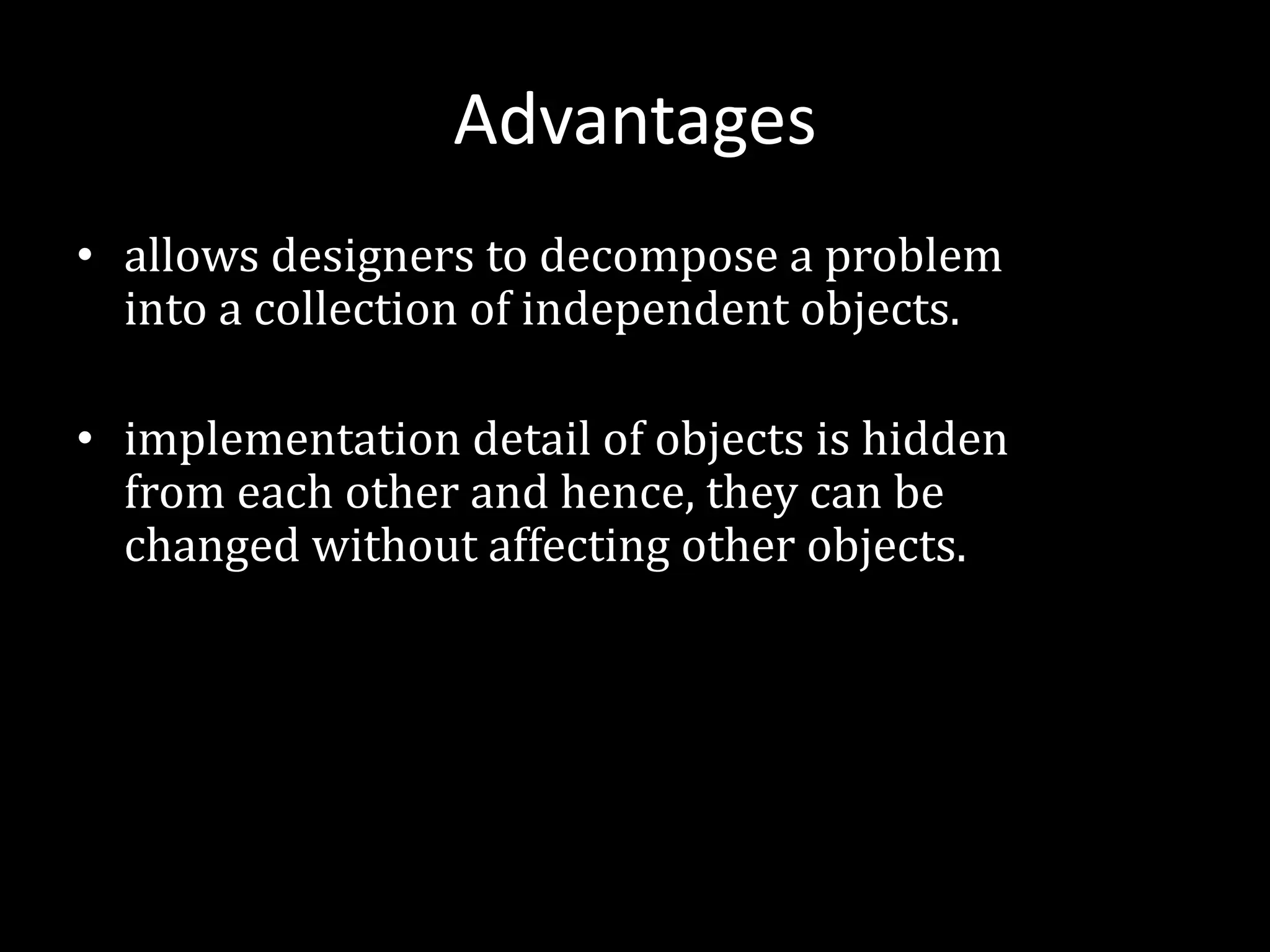

17. Advantages
• allows designers to decompose a problem
into a collection of independent objects.
• implementation detail of objects is hidden
from each other and hence, they can be
changed without affecting other objects.

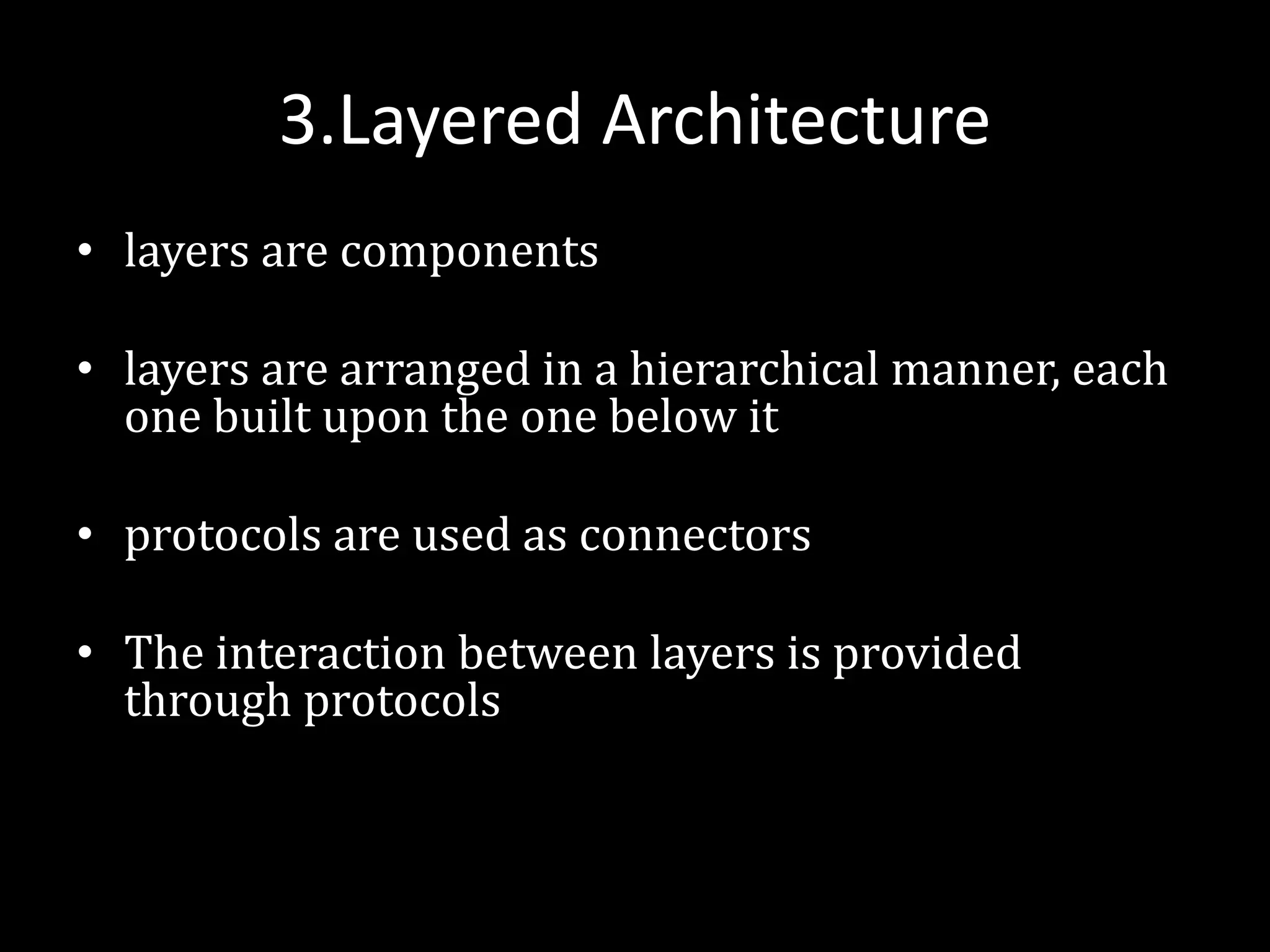

18. 3.Layered Architecture
• layers are components
• layers are arranged in a hierarchical manner, each
one built upon the one below it
• protocols are used as connectors
• The interaction between layers is provided
through protocols

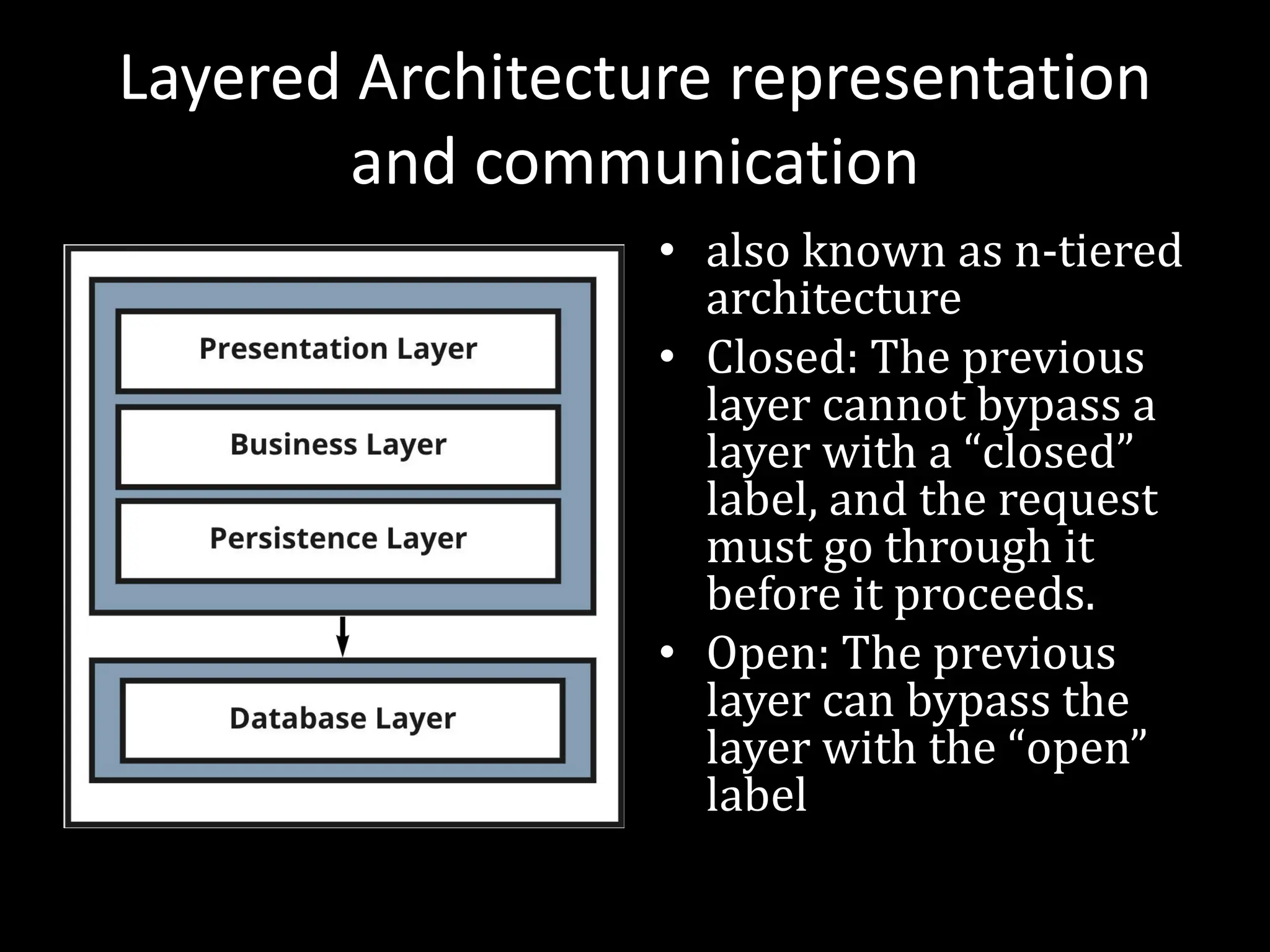

19. Layered Architecture representation
and communication
• also known as n-tiered
architecture
• Closed: The previous
layer cannot bypass a
layer with a “closed”
label, and the request
must go through it
before it proceeds.
• Open: The previous
layer can bypass the
layer with the “open”
label

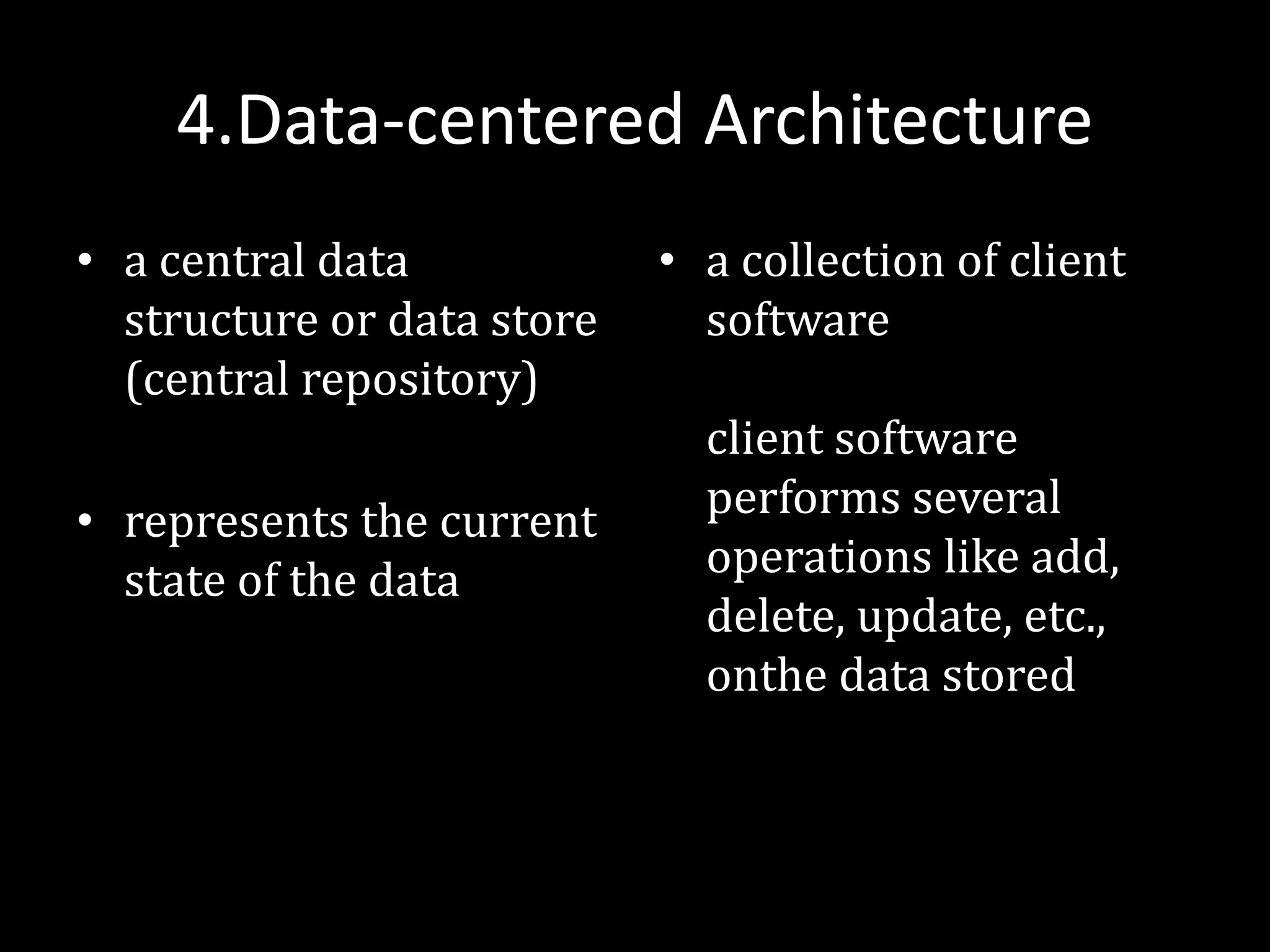

20. 4.Data-centered Architecture
• a central data
structure or data store
(central repository)
• represents the current
state of the data
• a collection of client
software
client software
performs several
operations like add,
delete, update, etc.,
onthe data stored

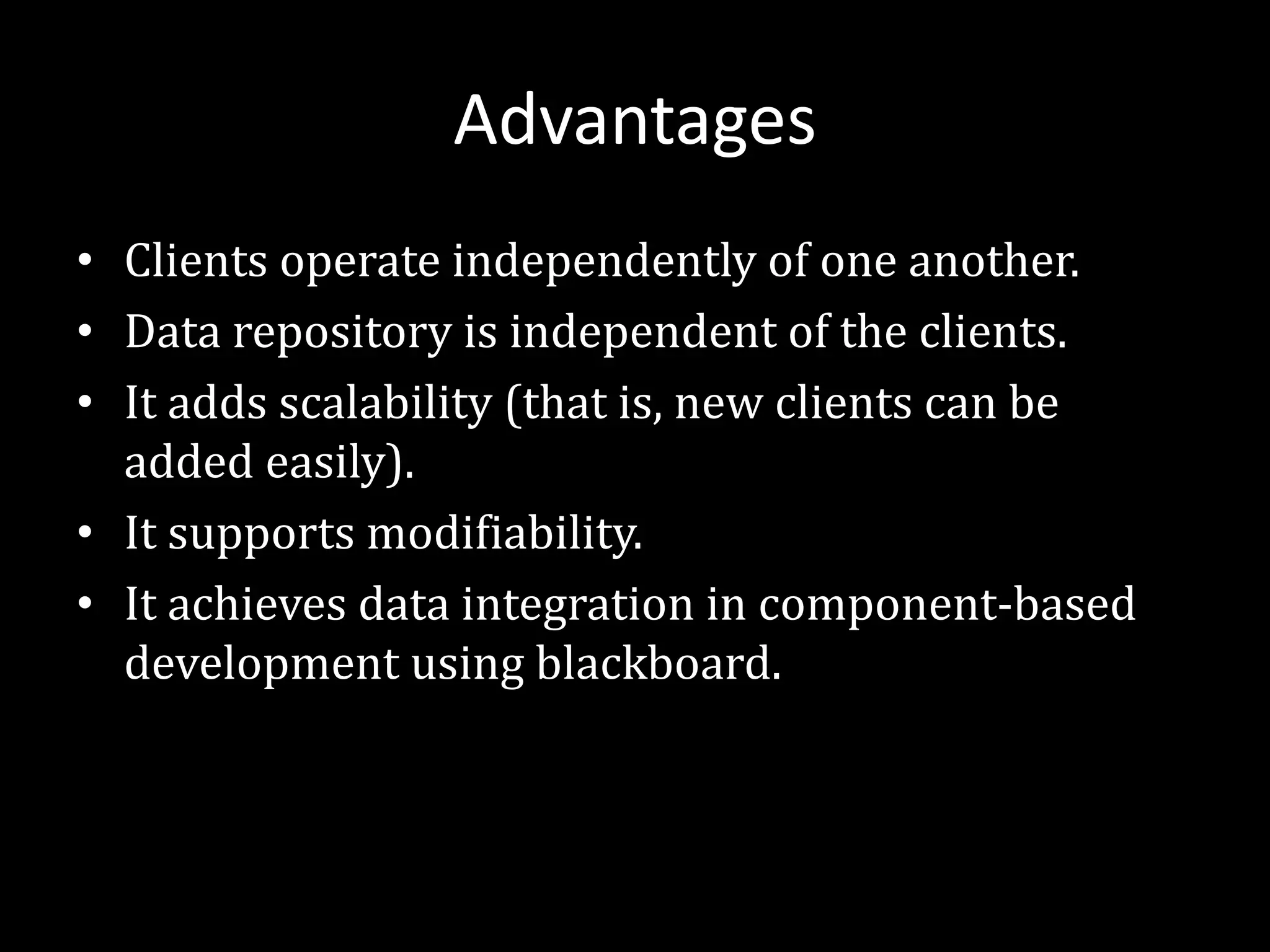

21. Advantages
• Clients operate independently of one another.
• Data repository is independent of the clients.
• It adds scalability (that is, new clients can be
added easily).
• It supports modifiability.
• It achieves data integration in component-based
development using blackboard.

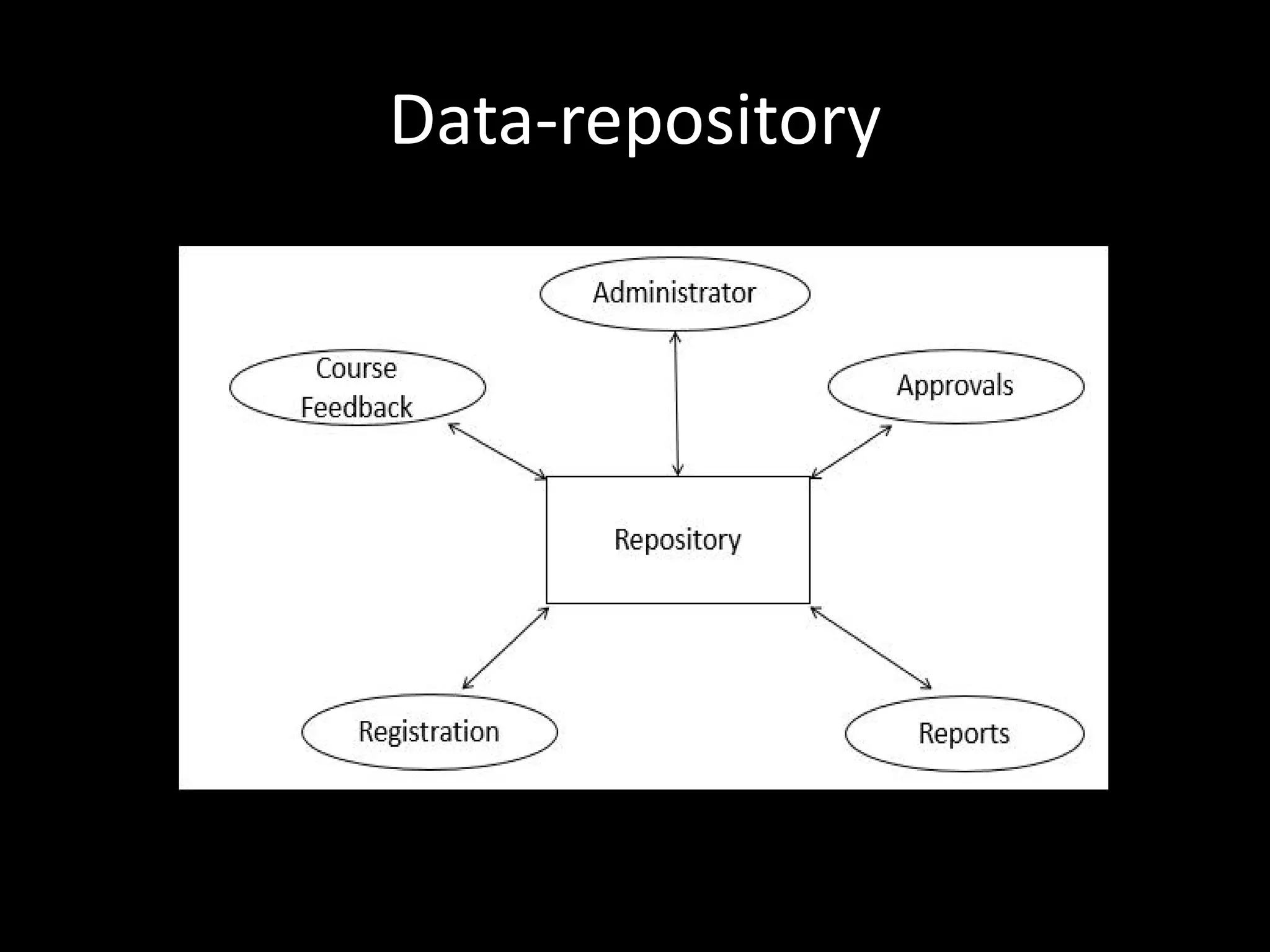

22. Data-repository

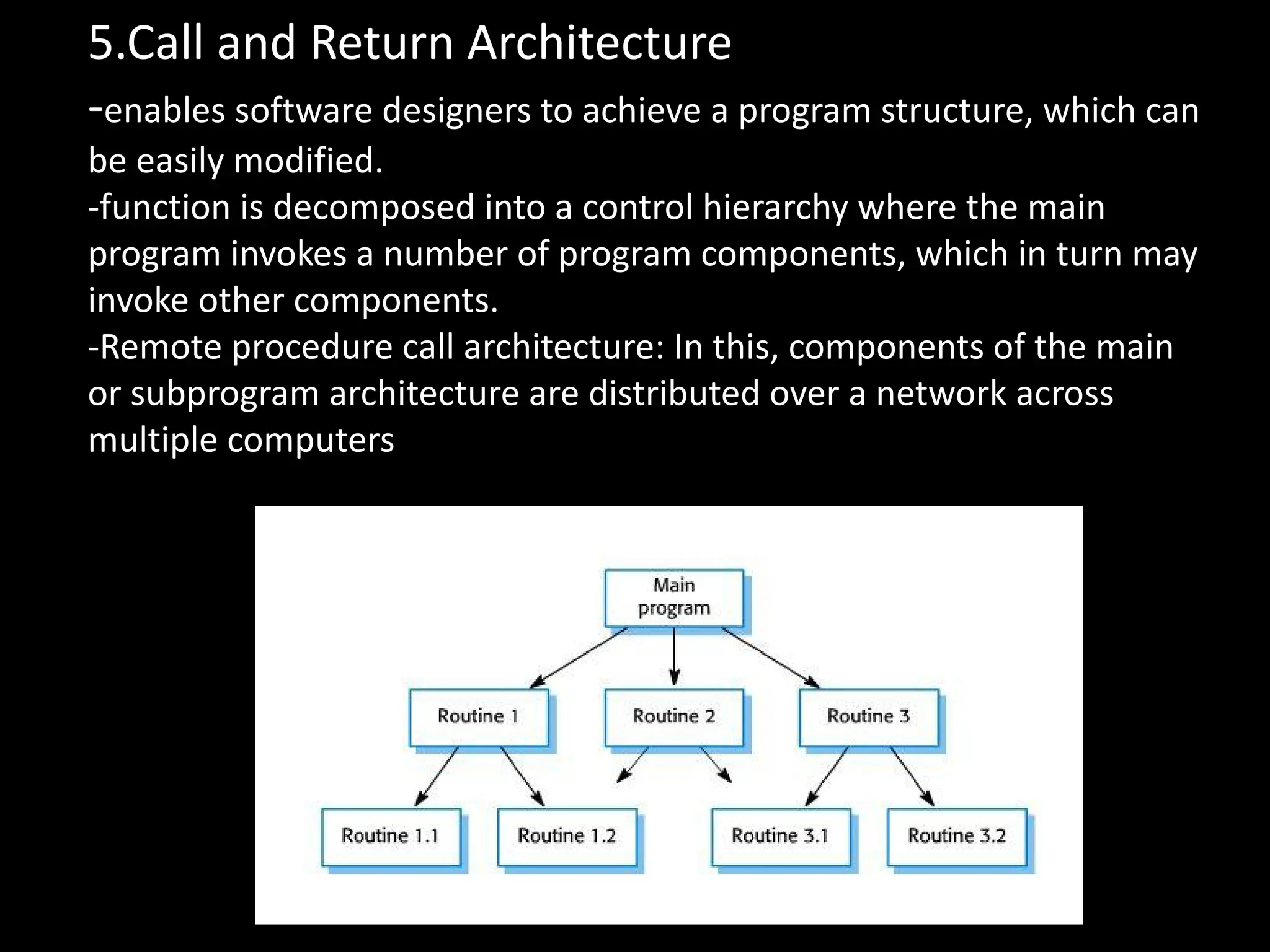

23. 5.Call and Return Architecture
-enables software designers to achieve a program structure, which can
be easily modified.
-function is decomposed into a control hierarchy where the main
program invokes a number of program components, which in turn may
invoke other components.
-Remote procedure call architecture: In this, components of the main
or subprogram architecture are distributed over a network across
multiple computers

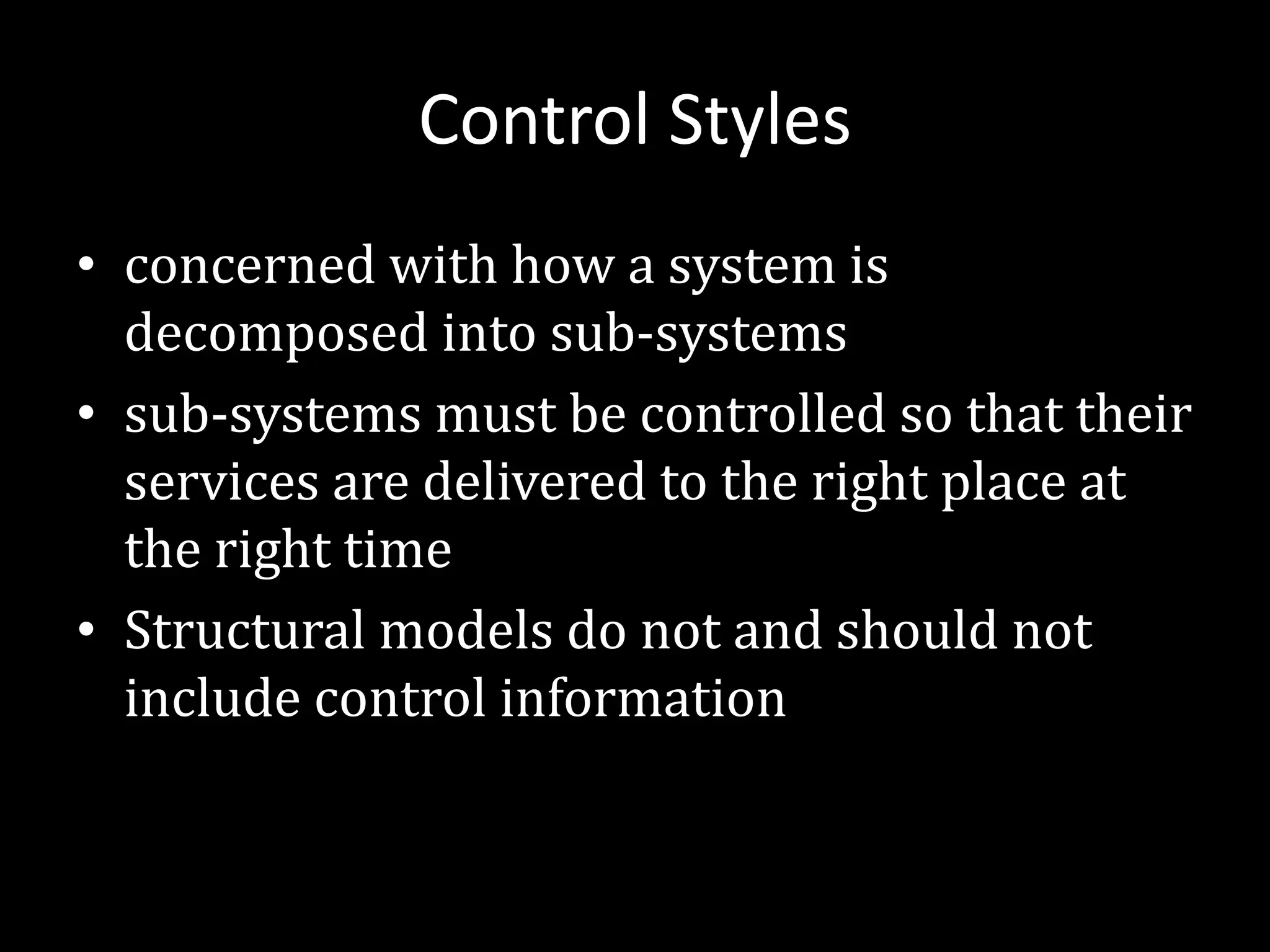

24. Control Styles
• concerned with how a system is
decomposed into sub-systems
• sub-systems must be controlled so that their
services are delivered to the right place at
the right time
• Structural models do not and should not
include control information

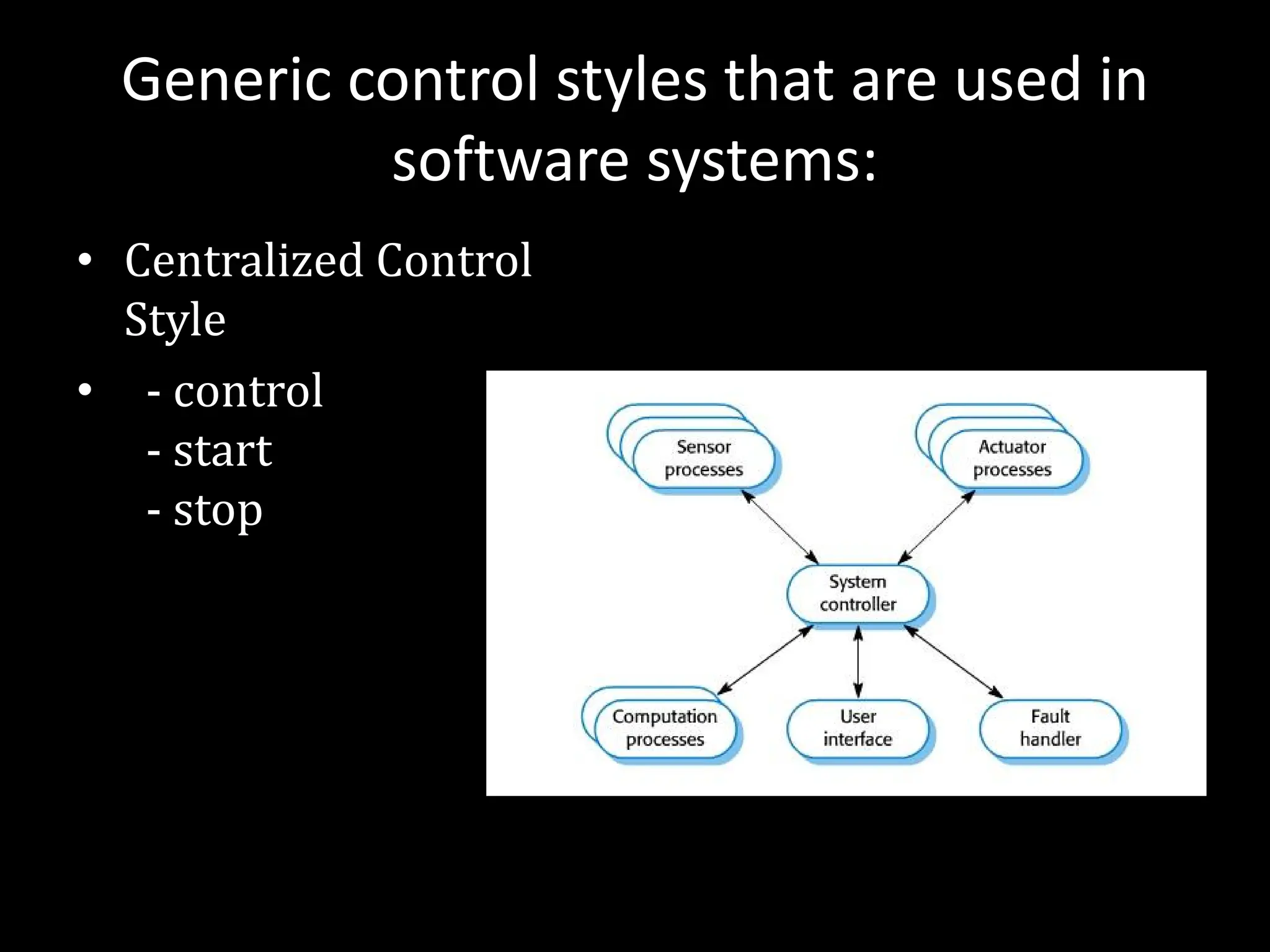

25. Generic control styles that are used in
software systems:
• Centralized Control
Style
• - control
- start
- stop

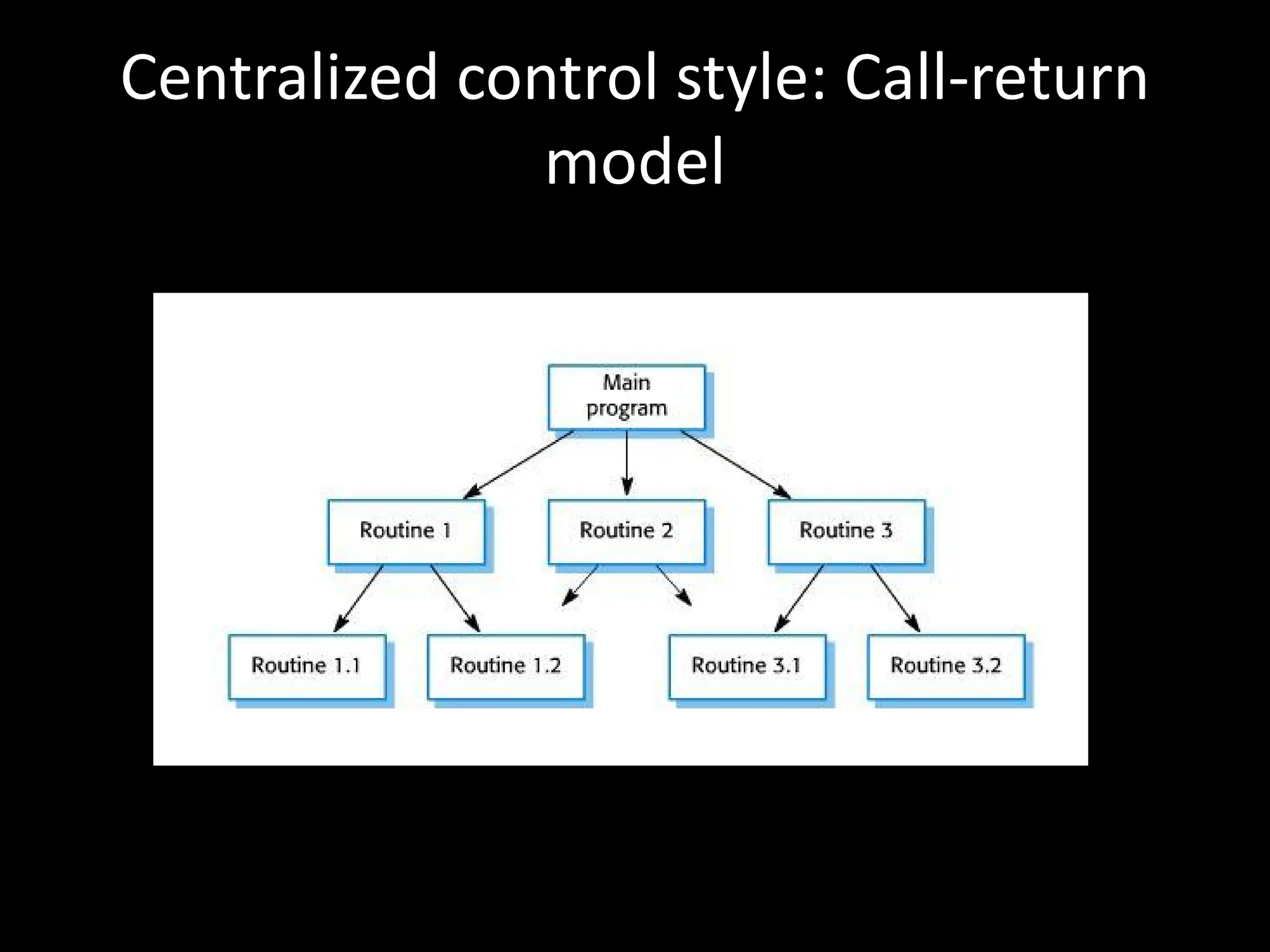

26. Centralized control style: Call-return
model

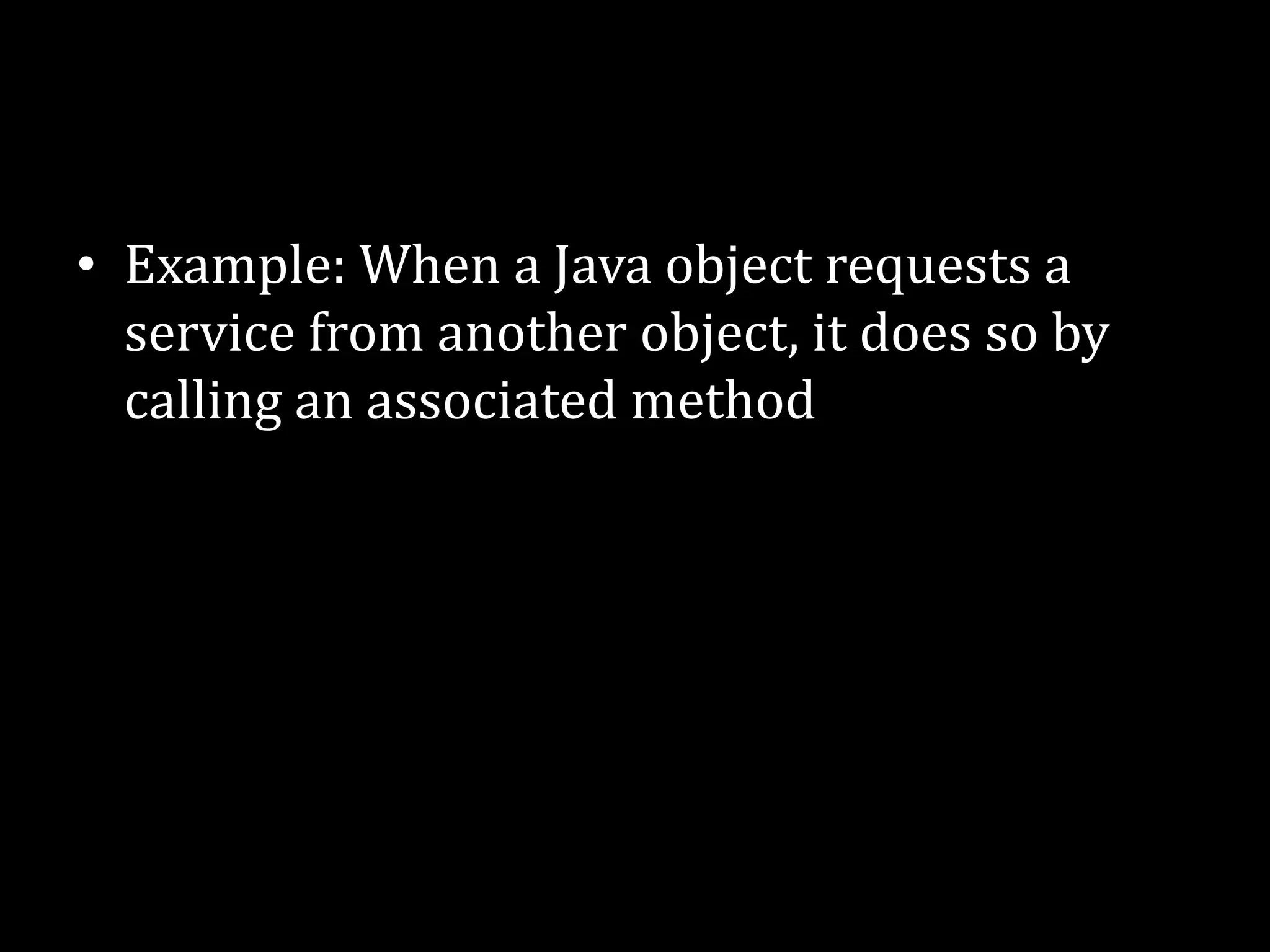

27. • Example: When a Java object requests a
service from another object, it does so by
calling an associated method

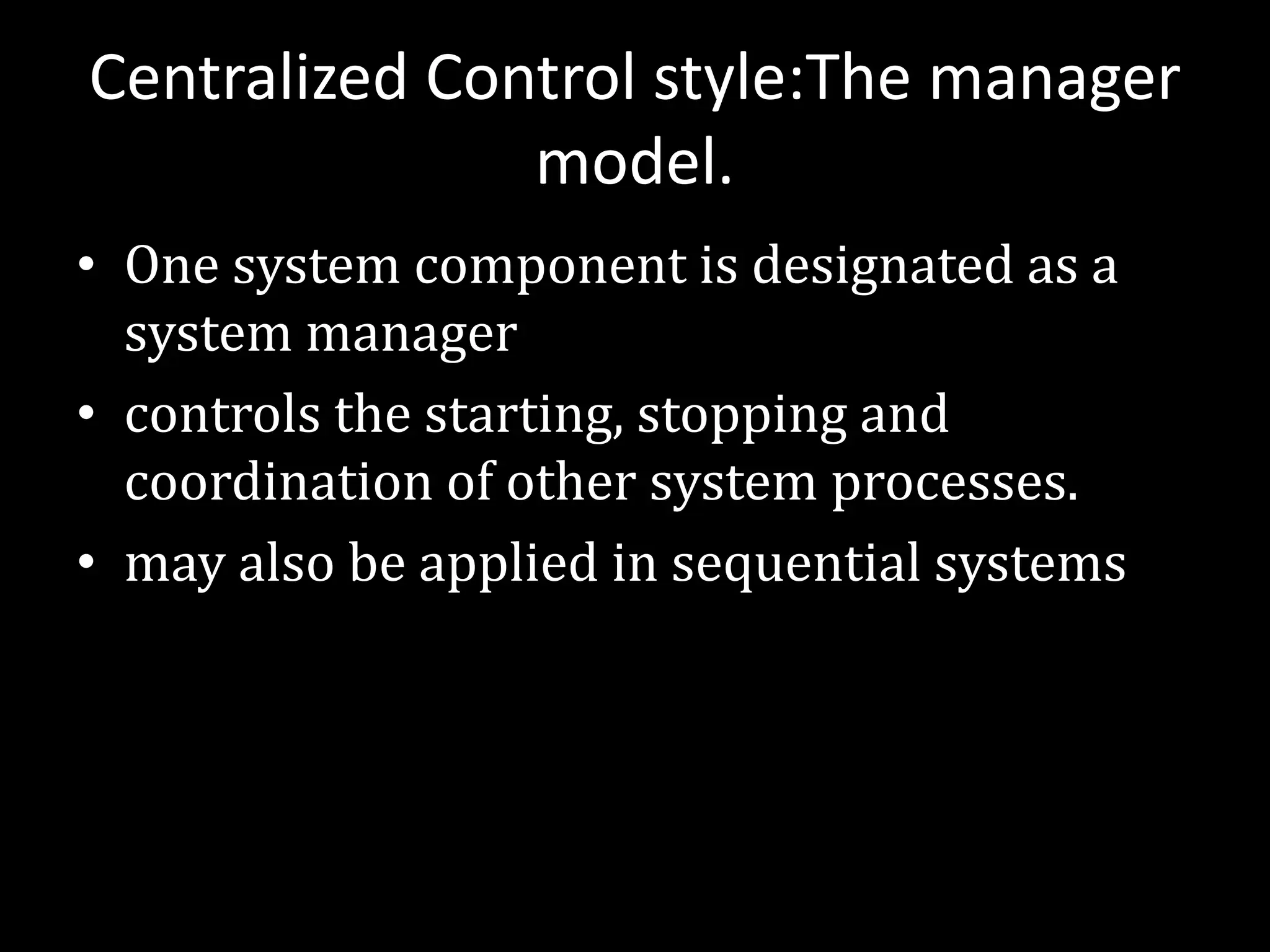

28. Centralized Control style:The manager
model.
• One system component is designated as a
system manager
• controls the starting, stopping and
coordination of other system processes.
• may also be applied in sequential systems

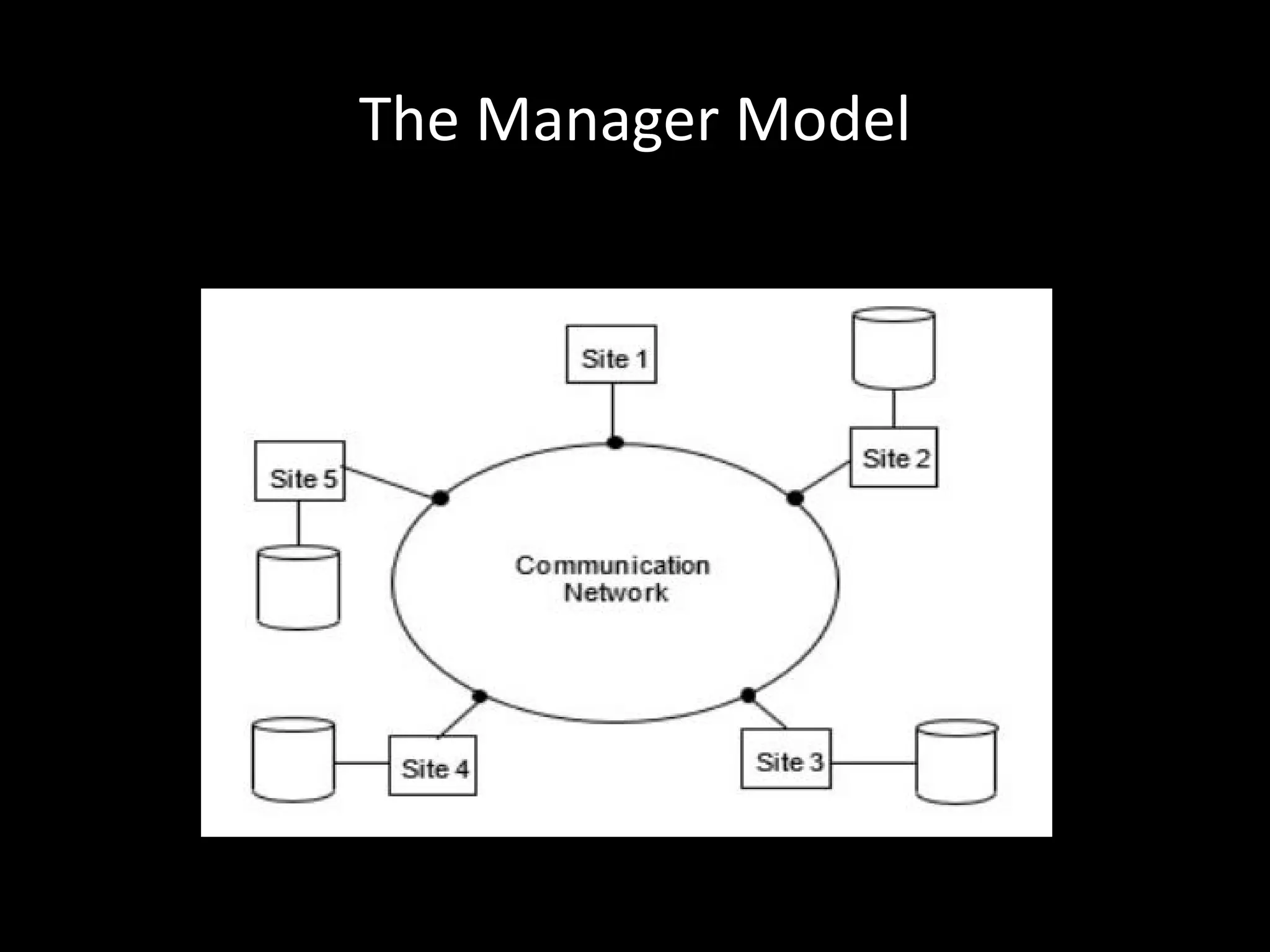

29. The Manager Model

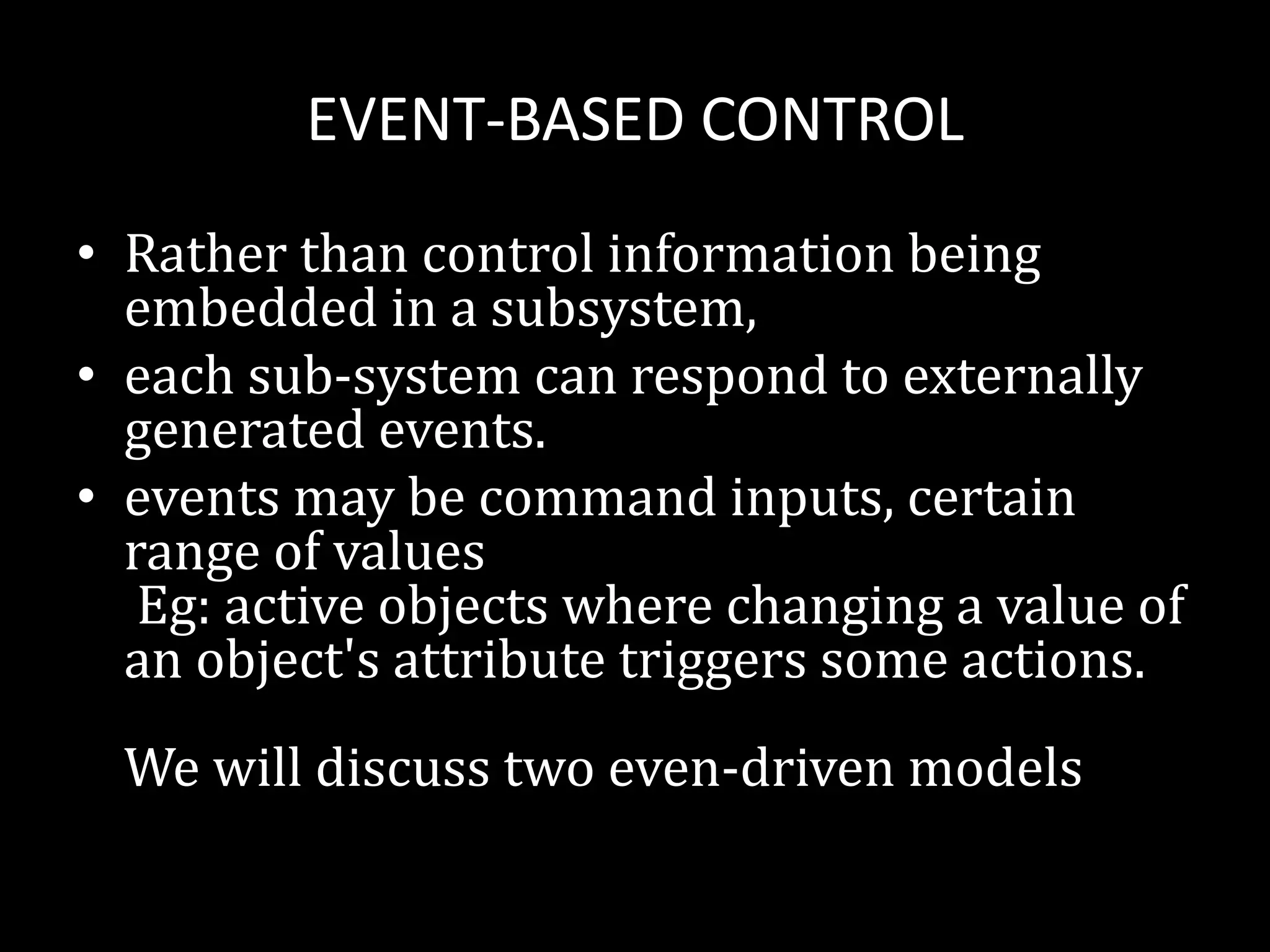

30. EVENT-BASED CONTROL
• Rather than control information being
embedded in a subsystem,
• each sub-system can respond to externally
generated events.
• events may be command inputs, certain
range of values
Eg: active objects where changing a value of
an object's attribute triggers some actions.
We will discuss two even-driven models

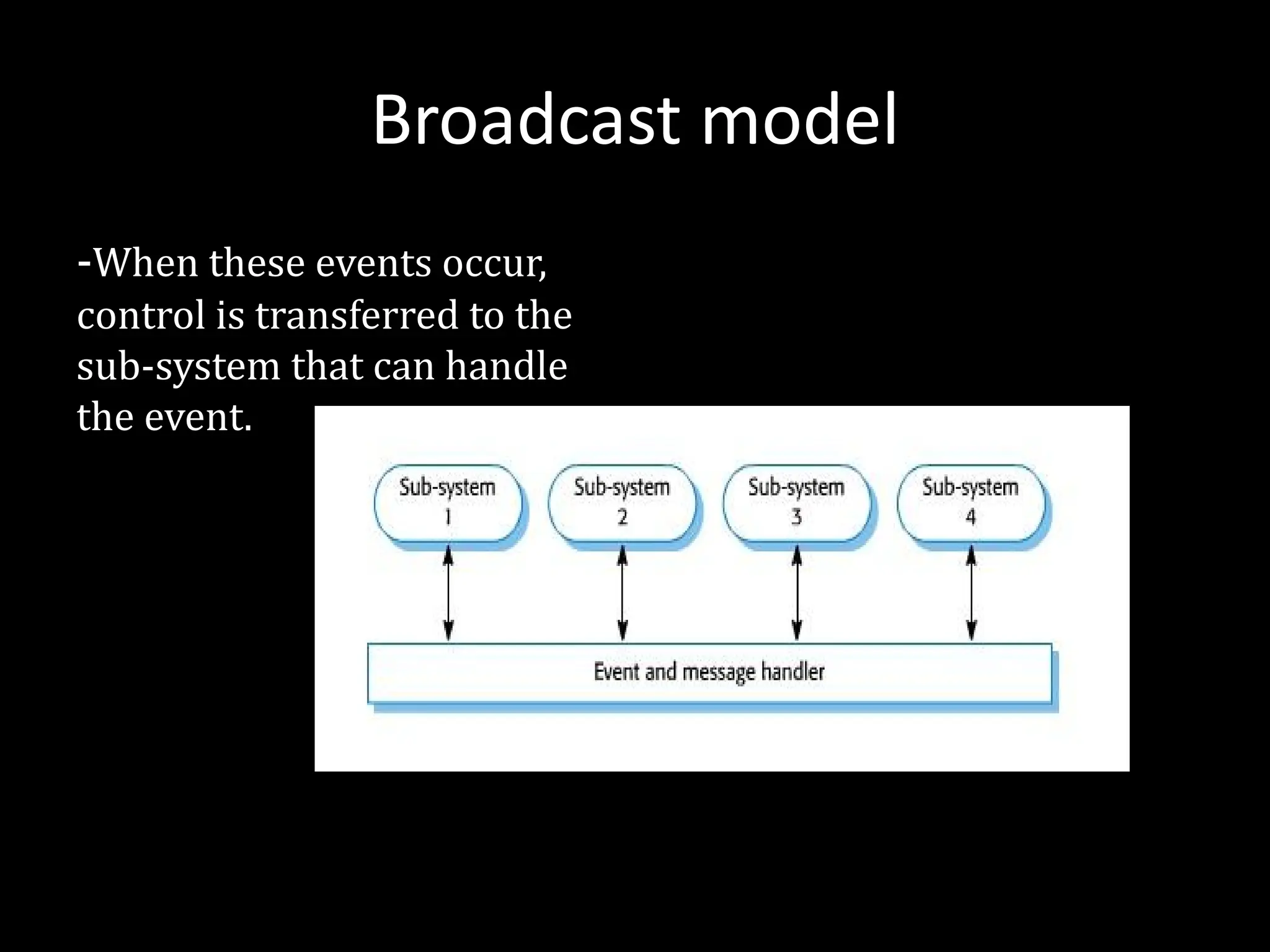

31. Broadcast model
-When these events occur,
control is transferred to the
sub-system that can handle
the event.

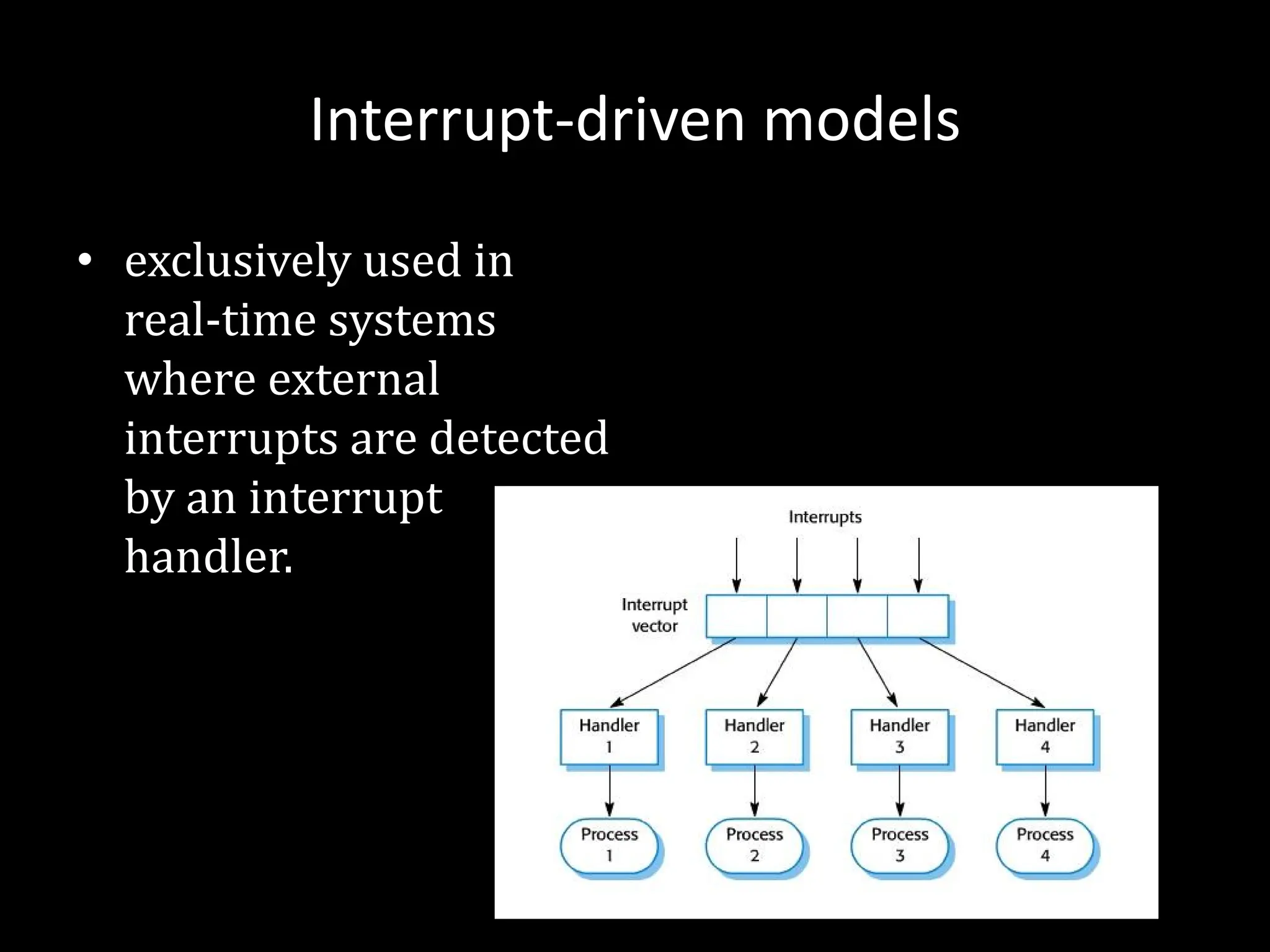

32. Interrupt-driven models
• exclusively used in
real-time systems
where external
interrupts are detected
by an interrupt
handler.

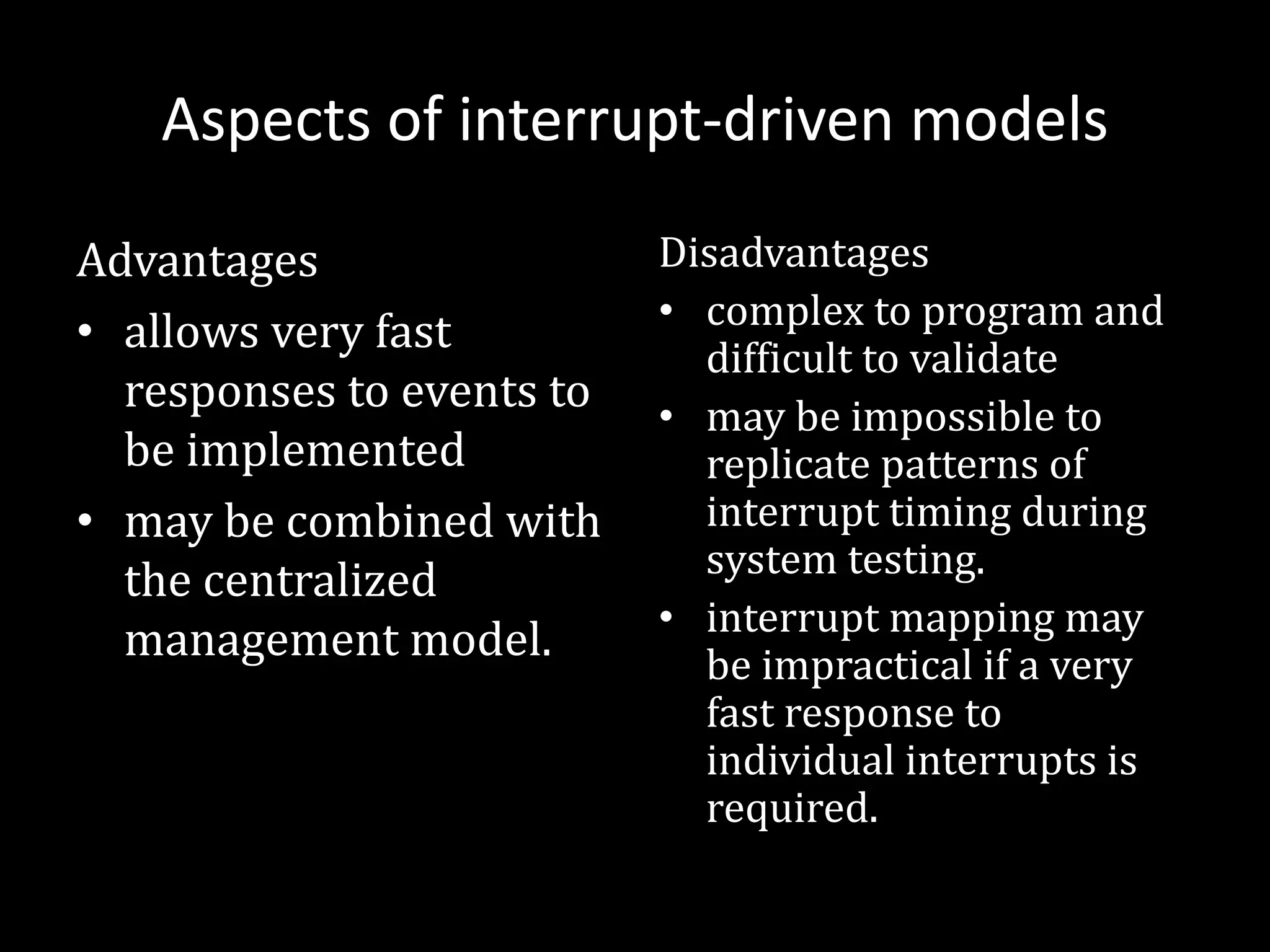

33. Aspects of interrupt-driven models
Advantages
• allows very fast
responses to events to
be implemented
• may be combined with
the centralized
management model.
Disadvantages
• complex to program and
difficult to validate
• may be impossible to
replicate patterns of
interrupt timing during
system testing.
• interrupt mapping may
be impractical if a very
fast response to
individual interrupts is
required.

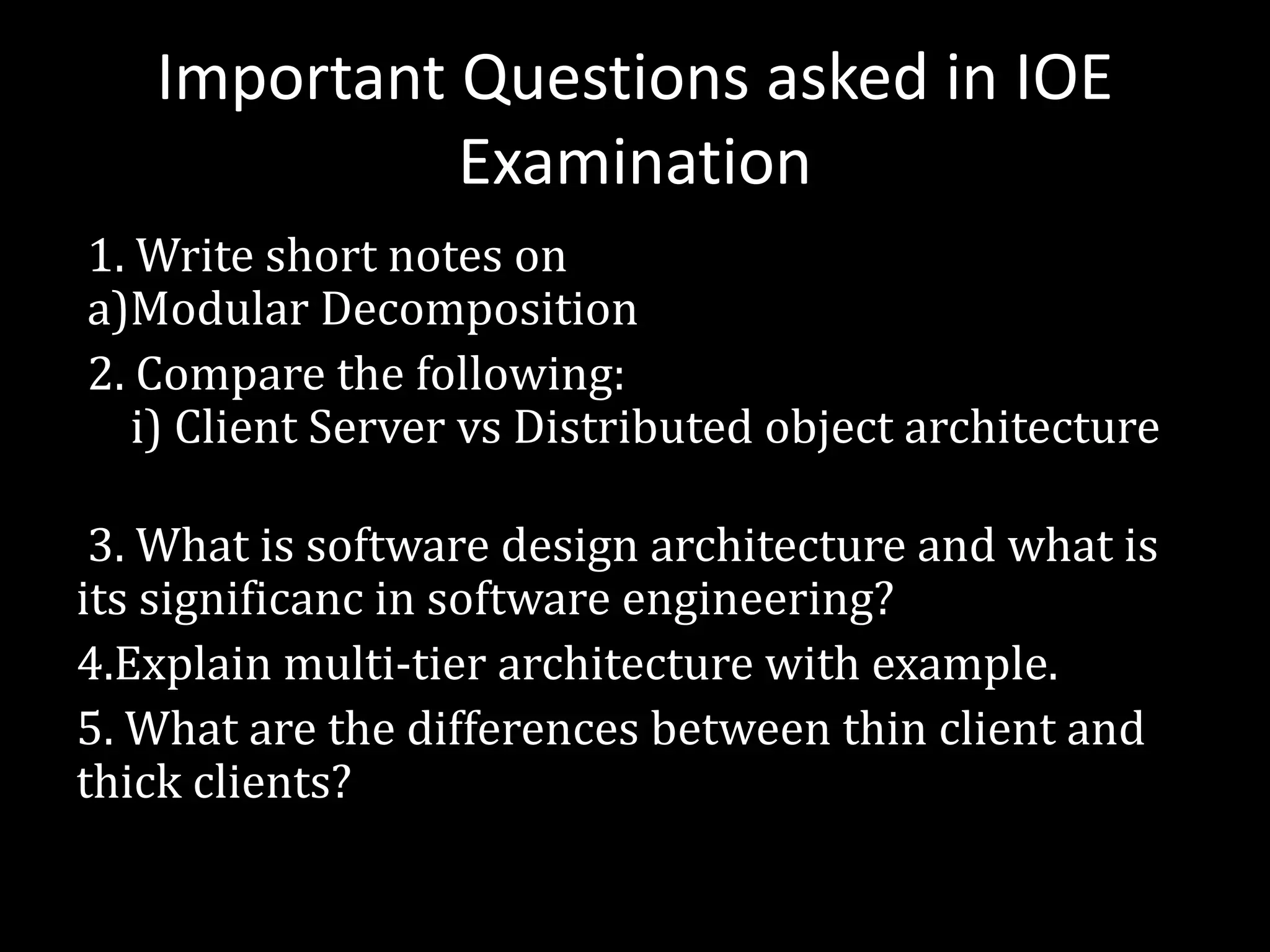

34. Important Questions asked in IOE
Examination
1. Write short notes on
a)Modular Decomposition
2. Compare the following:
i) Client Server vs Distributed object architecture
3. What is software design architecture and what is
its significanc in software engineering?
4.Explain multi-tier architecture with example.
5. What are the differences between thin client and
thick clients?

35. Oh My God!

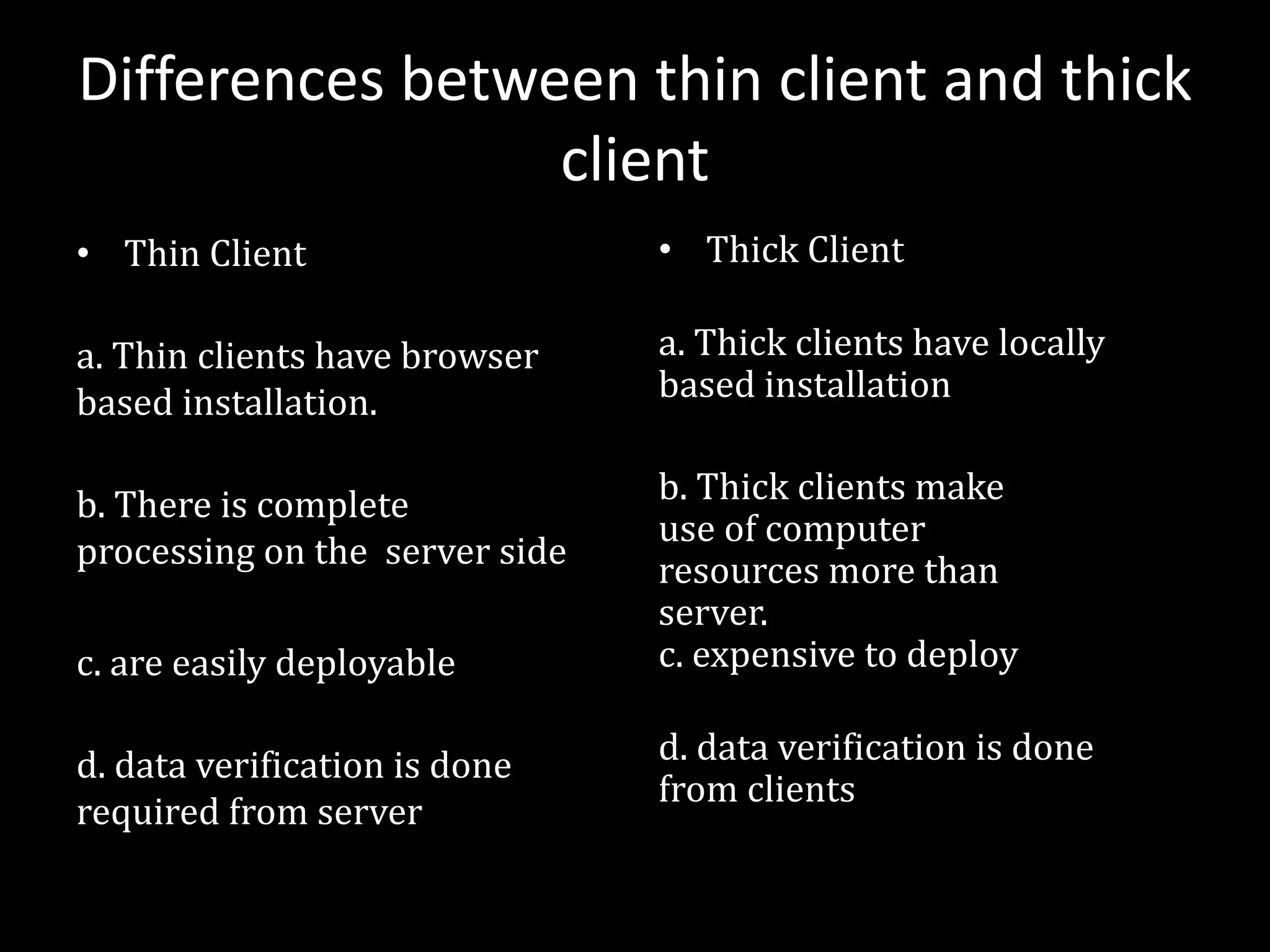

36. Differences between thin client and thick
client
• Thin Client
a. Thin clients have browser
based installation.
b. There is complete
processing on the server side
c. are easily deployable
d. data verification is done
required from server
• Thick Client
a. Thick clients have locally
based installation
b. Thick clients make
use of computer
resources more than
server.
c. expensive to deploy
d. data verification is done
from clients

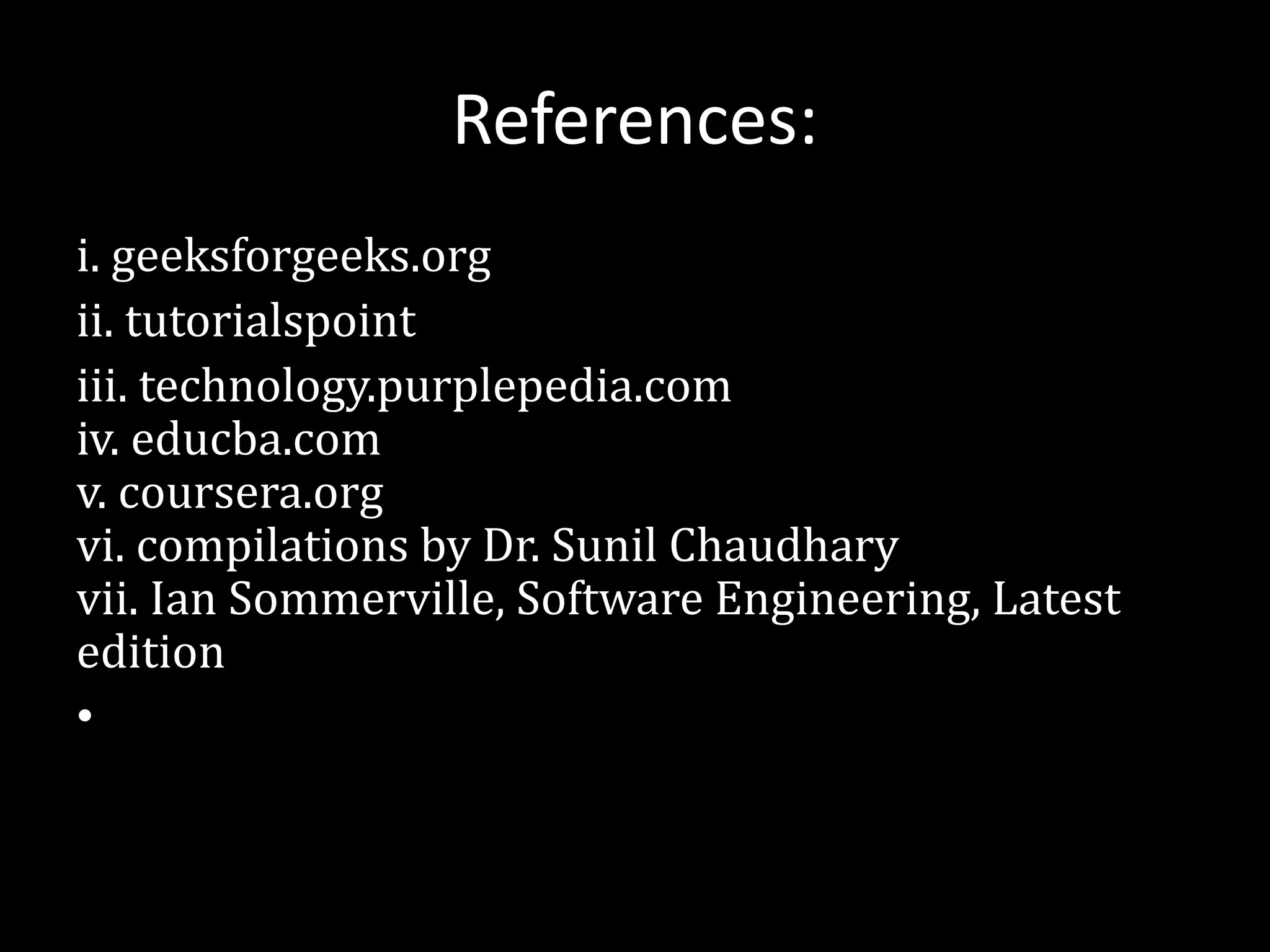

37. References:
i. geeksforgeeks.org
ii. tutorialspoint
iii. technology.purplepedia.com
iv. educba.com
v. coursera.org
vi. compilations by Dr. Sunil Chaudhary
vii. Ian Sommerville, Software Engineering, Latest
edition
•
