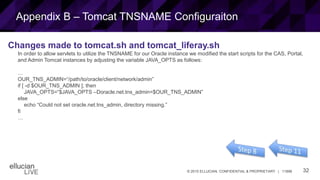

![32© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | 11898
Appendix B – Tomcat TNSNAME Configuraiton
Changes made to tomcat.sh and tomcat_liferay.sh
In order to allow servlets to utilize the TNSNAME for our Oracle instance we modified the start scripts for the CAS, Portal,
and Admin Tomcat instances by adjusting the variable JAVA_OPTS as follows:
…
OUR_TNS_ADMIN=“/path/to/oracle/client/network/admin”
if [ -d $OUR_TNS_ADMIN ]; then
JAVA_OPTS=“$JAVA_OPTS –Doracle.net.tns_admin=$OUR_TNS_ADMIN”
else
echo “Could not set oracle.net.tns_admin, directory missing.”
fi
…](https://image.slidesharecdn.com/v511898afullyredundantluminis5installation-151216215016/85/A-Fully-Redundant-Luminis-5-Installation-32-320.jpg)
Uploaded byWilliam Moore
A Fully Redundant Luminis 5 Installation
The University of Manitoba upgraded its Luminis system in 2013 to achieve full redundancy across hardware, operating systems, databases, and applications. Key improvements included a scalable virtualized server environment, active/passive database configuration, and updated portal software to Luminis 5. The resulting system enhanced user experience, stability, and supportability while addressing previous challenges with outages and limited future integration capabilities.
More Related Content
Similar to A Fully Redundant Luminis 5 Installation
A Fully Redundant Luminis 5 Installation
- 1. 1© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 A Fully Redundant Luminis 5 Installation William Moore University of Manitoba April 14, 2015 11898

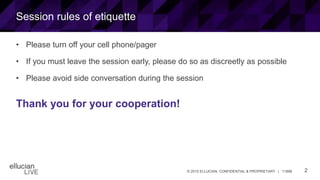

- 2. 2© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Session rules of etiquette • Please turn off your cell phone/pager • If you must leave the session early, please do so as discreetly as possible • Please avoid side conversation during the session Thank you for your cooperation!

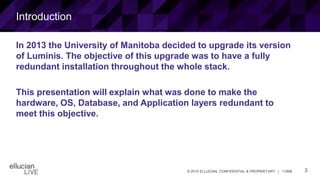

- 3. 3© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Introduction In 2013 the University of Manitoba decided to upgrade its version of Luminis. The objective of this upgrade was to have a fully redundant installation throughout the whole stack. This presentation will explain what was done to make the hardware, OS, Database, and Application layers redundant to meet this objective.

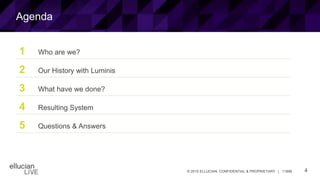

- 4. 4© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 1 Who are we? 2 Our History with Luminis 3 What have we done? 4 Resulting System 5 Questions & Answers Agenda
- 5. 5© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Who are we?
- 6. 6© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 About the University of Manitoba • Staff: 8,716 (4,754 Academic; 3,962 Support) • Students: 29,759 (25,363 Undergrad; 3,748 Graduate) • Distributed campuses

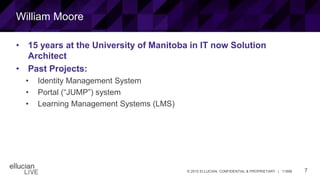

- 7. 7© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 William Moore • 15 years at the University of Manitoba in IT now Solution Architect • Past Projects: • Identity Management System • Portal (“JUMP”) system • Learning Management Systems (LMS)
- 8. 8© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Our History with Luminis

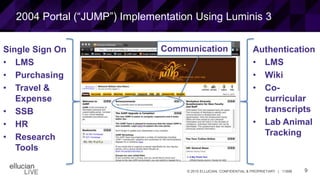

- 9. 9© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 2004 Portal (“JUMP”) Implementation Using Luminis 3 Single Sign On • LMS • Purchasing • Travel & Expense • SSB • HR • Research Tools Authentication • LMS • Wiki • Co- curricular transcripts • Lab Animal Tracking Communication

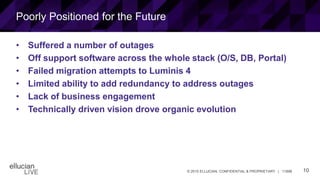

- 10. 10© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Poorly Positioned for the Future • Suffered a number of outages • Off support software across the whole stack (O/S, DB, Portal) • Failed migration attempts to Luminis 4 • Limited ability to add redundancy to address outages • Lack of business engagement • Technically driven vision drove organic evolution
- 11. 11© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 What have we done?

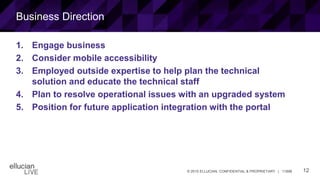

- 12. 12© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Business Direction 1. Engage business 2. Consider mobile accessibility 3. Employed outside expertise to help plan the technical solution and educate the technical staff 4. Plan to resolve operational issues with an upgraded system 5. Position for future application integration with the portal
- 13. 13© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Key elements of the technical solution 1. Scalable virtualized x86 Server environment 2. Active/Passive Database (DB) configuration 3. Redundant LDAP 4. Redundant CAS 5. Upgraded the Portal software to Luminis 5 LoadBalancer CAS Admin Portal App Server DBLayer LDAP Virtual Servers/Storage

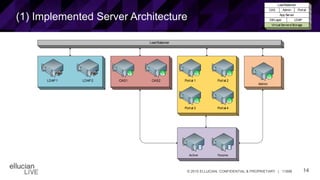

- 14. 14© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 (1) Implemented Server Architecture Portal 1 Portal 2CAS1 CAS2 LoadBalancer LDAP1 LDAP2 Admin Active Passive Portal 3 Portal 4 LoadBalancer CAS Admin Portal App Server DBLayer LDAP Virtual Servers/Storage

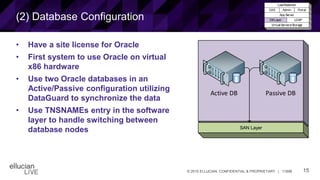

- 15. 15© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 (2) Database Configuration • Have a site license for Oracle • First system to use Oracle on virtual x86 hardware • Use two Oracle databases in an Active/Passive configuration utilizing DataGuard to synchronize the data • Use TNSNAMEs entry in the software layer to handle switching between database nodes Active DB Passive DB SAN Layer LoadBalancer CAS Admin Portal App Server DBLayer LDAP Virtual Servers/Storage

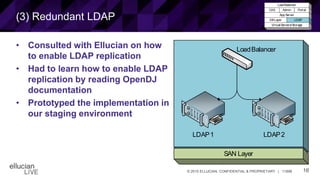

- 16. 16© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 (3) Redundant LDAP SAN Layer LDAP1 LDAP2 LoadBalancer • Consulted with Ellucian on how to enable LDAP replication • Had to learn how to enable LDAP replication by reading OpenDJ documentation • Prototyped the implementation in our staging environment LoadBalancer CAS Admin Portal App Server DBLayer LDAP Virtual Servers/Storage
- 17. 17© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 (4) CAS Configuration DBLayer LDAP SAN Layer CAS1 CAS2 LoadBalancer• Consulted with Ellucian on how to enable CAS redundancy • Had to learn how to enable storing the CAS session information in a database by going to JASIG • Prototyped the implementation in our development environment LoadBalancer CAS Admin Portal App Server DBLayer LDAP Virtual Servers/Storage

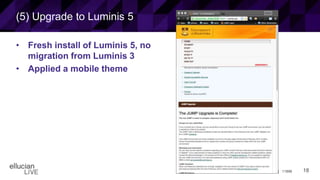

- 18. 18© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 (5) Upgrade to Luminis 5 • Fresh install of Luminis 5, no migration from Luminis 3 • Applied a mobile theme
- 19. 19© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Resulting System

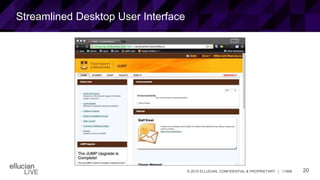

- 20. 20© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Streamlined Desktop User Interface

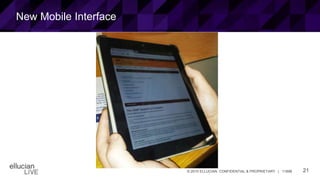

- 21. 21© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 New Mobile Interface

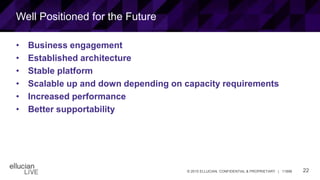

- 22. 22© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Well Positioned for the Future • Business engagement • Established architecture • Stable platform • Scalable up and down depending on capacity requirements • Increased performance • Better supportability

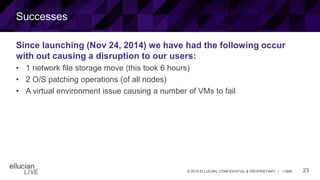

- 23. 23© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Successes Since launching (Nov 24, 2014) we have had the following occur with out causing a disruption to our users: • 1 network file storage move (this took 6 hours) • 2 O/S patching operations (of all nodes) • A virtual environment issue causing a number of VMs to fail

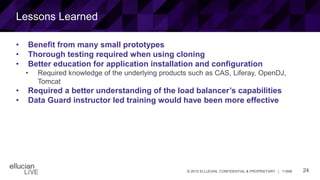

- 24. 24© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Lessons Learned • Benefit from many small prototypes • Thorough testing required when using cloning • Better education for application installation and configuration • Required knowledge of the underlying products such as CAS, Liferay, OpenDJ, Tomcat • Required a better understanding of the load balancer’s capabilities • Data Guard instructor led training would have been more effective
- 25. 25© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Questions & Answers
- 26. 26© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Thank you! William Moore William.moore@umanitoba.ca Please complete the online session evaluation form. Session ID 11898
- 27. 27© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Additional Information Slides
- 28. 28© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Load Balancer Configuration • Adjust LDAP idle timeout to 1,800 from 300 • Removed web caching from the HTTP pools • Configured LDAP health monitor • 5 second interval • Look for ou=site under ou=Luminis Configuration,o=cp • Configured HTTP health monitor • Poll a static image rather then the root document LoadBalancer LDAP CAS
- 29. 29© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Portal/Admin Tomcat tweaks • Some portlets did not behave well with terminating SSL at the load balancer • Configure Tomcat to enable TNSNAMES See Appendix B • Configured the Tomcat instances to masquerade as having received a secure request LoadBalancer User SecureRequestSecureResponse Tomcat Non secure request Non secure response Servlet ProcessRequest HTML Response Direction GetConnection Info server.xml … <Connector port=“80” proxyPort=“443” secure=“true” scheme=“https” …
- 30. 30© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Fault Tolerance Tests • Developed test cases to ensure our redundancy worked • Had all members in one room to work through the tests Portal Environment Component/Service Failover / HA Test Case Validation Steps Expected Results Tester(s) Test Date Pass/Fail Comments LDAP Uncontolled Shutdown of Server Add user See user in remaining LDAP. Successful login as new user. Brian, Margaret July 9, 2014 Passed Restart 2nd LDAP verify changes are replicated to restarted server. Successful login as modified user. Brian, Margaret July 9, 2014 Passed Shutdown 1st LDAP Add a user Brian, Margaret July 9, 2014 Passed Restart 1st LDAP User added in previous step is replicated to 1st LDAP Brian, Margaret July 9, 2014 Passed Controlled Shutdown of Server while users are being added Add 1000 users during shutdown if started just before shutdown initiated, some users should appear in both LDAP instances while some will only get added to the remaining available LDAP Margaret Bill (user data file) Sample Test Plan

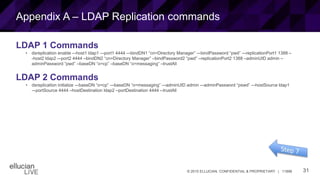

- 31. 31© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Appendix A – LDAP Replication commands LDAP 1 Commands • dsreplication enable –-host1 ldap1 –-port1 4444 –-bindDN1 “cn=Directory Manager” –-bindPassword “pwd” –-replicationPort1 1388 – -host2 ldap2 –-port2 4444 –bindDN2 “cn=Directory Manager” –bindPassword2 “pwd” –replicationPort2 1388 –adminUID admin – adminPassword “pwd” –baseDN “o=cp” –baseDN “o=messaging” –trustAll LDAP 2 Commands • dsreplication initialize –-baseDN “o=cp” –-baseDN “o=messaging” –-adminUID admin –-adminPassword “pswd” –-hostSource ldap1 –-portSource 4444 –hostDestination ldap2 –portDestination 4444 --trustAll
- 32. 32© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Appendix B – Tomcat TNSNAME Configuraiton Changes made to tomcat.sh and tomcat_liferay.sh In order to allow servlets to utilize the TNSNAME for our Oracle instance we modified the start scripts for the CAS, Portal, and Admin Tomcat instances by adjusting the variable JAVA_OPTS as follows: … OUR_TNS_ADMIN=“/path/to/oracle/client/network/admin” if [ -d $OUR_TNS_ADMIN ]; then JAVA_OPTS=“$JAVA_OPTS –Doracle.net.tns_admin=$OUR_TNS_ADMIN” else echo “Could not set oracle.net.tns_admin, directory missing.” fi …

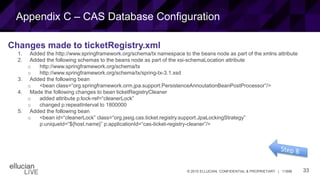

- 33. 33© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Appendix C – CAS Database Configuration Changes made to ticketRegistry.xml 1. Added the http://www.springframework.org/schema/tx namespace to the beans node as part of the xmlns attribute 2. Added the following schemas to the beans node as part of the xsi-schemaLocation attribute o http://www.springframework.org/schema/tx o http://www.springframework.org/schema/tx/spring-tx-3.1.xsd 3. Added the following bean o <bean class=“org.springframework.orm.jpa.support.PersistenceAnnoutationBeanPostProcessor”/> 4. Made the following changes to bean ticketRegistryCleaner o added attribute p:lock-ref=“cleanerLock” o changed p:repeatInterval to 1800000 5. Added the following bean o <bean id=“cleanerLock” class=“org.jasig.cas.ticket.registry.support.JpaLockingStrategy” p:uniqueId=“${host.name}” p:applicationId=“cas-ticket-registry-cleaner”/>

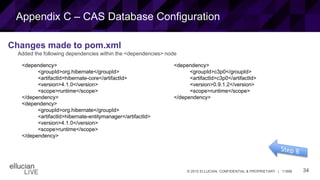

- 34. 34© 2015 ELLUCIAN.CONFIDENTIAL & PROPRIETARY | 11898 Appendix C – CAS Database Configuration Changes made to pom.xml Added the following dependencies within the <dependencies> node <dependency> <groupId>c3p0</groupId> <artifactId>c3p0</artifactId> <version>0.9.1.2</version> <scope>runtime</scope> </dependency> <dependency> <groupId>org.hibernate</groupId> <artifactId>hibernate-core</artifactId> <version>4.1.0</version> <scope>runtime</scope> </dependency> <dependency> <groupId>org.hibernate</groupId> <artifactId>hibernate-entitymanager</artifactId> <version>4.1.0</version> <scope>runtime</scope> </dependency>
