Magnetic saturation occurs when the magnetic material can no longer retain any additional magnetic flux. This affects the current waveform in transformers and inductors. When the core saturates, it causes the current to distort from the ideal sinusoidal waveform as the magnetic reluctance increases with higher flux densities.

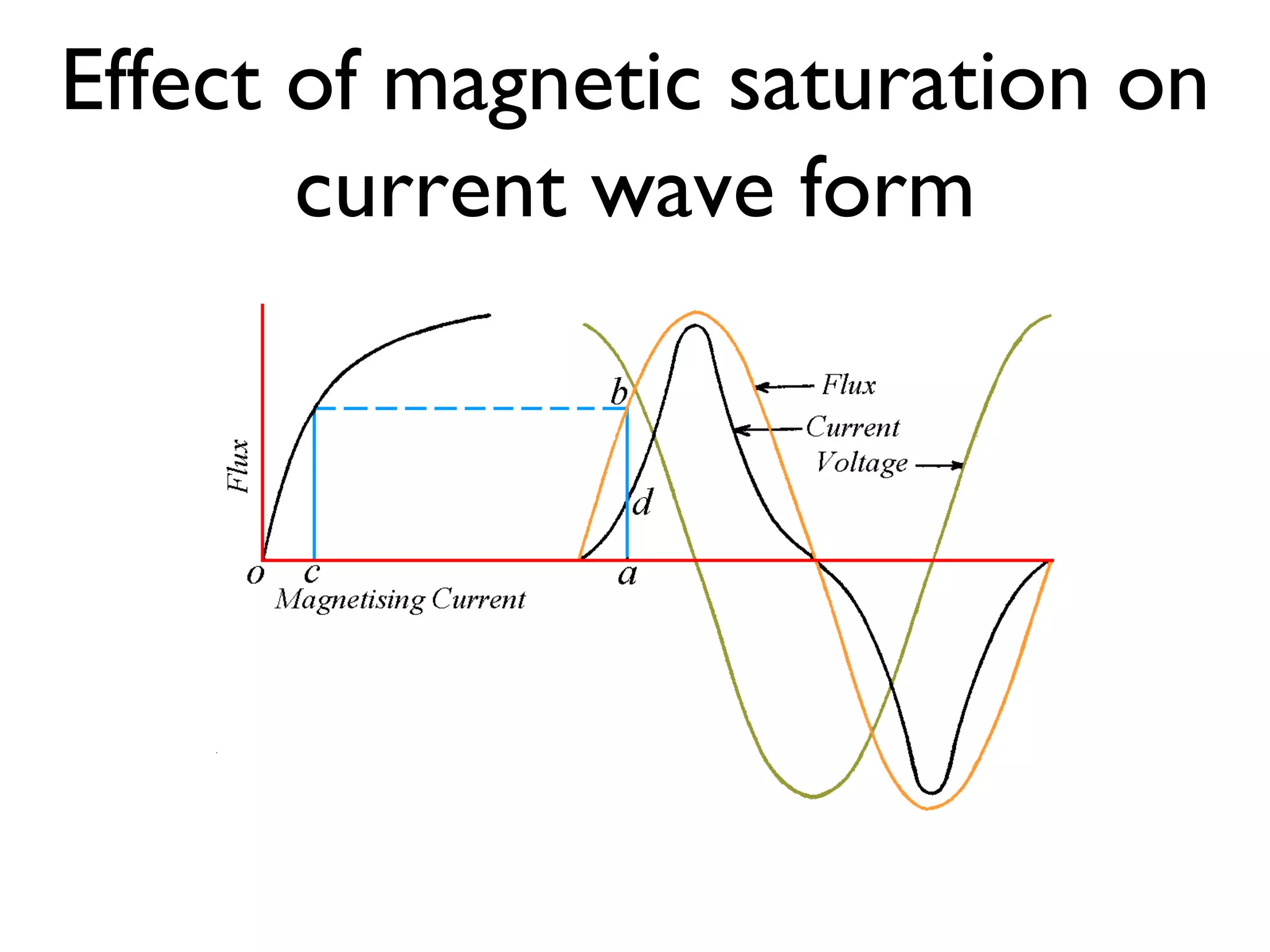

1. Effect of magnetic saturation on current wave form

2. Effect of magnetic saturation on current wave form
