1. Normal Radiographic
Anatomy
Dr .Hidayah Elyas

2. ► The radiographic recognition of disease requires a
sound knowledge of the radiographic appearance of
normal structures.
► Intelligent diagnosis mandates an appreciation of
the wide range of variation in the appearance of
normal anatomic structures.

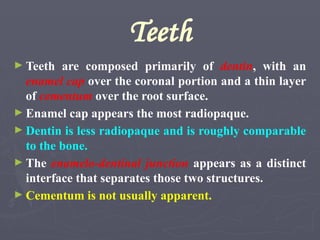

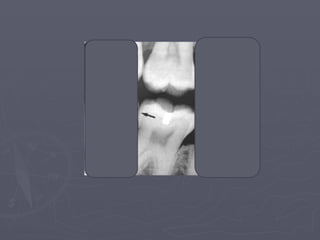

3. Teeth
► Teeth are composed primarily of dentin, with an
enamel cap over the coronal portion and a thin layer
of cementum over the root surface.
► Enamel cap appears the most radiopaque.
► Dentin is less radiopaque and is roughly comparable
to the bone.
► The enamelo-dentinal junction appears as a distinct
interface that separates those two structures.
► Cementum is not usually apparent.

5. ►The pulp of the normal teeth is composed of
soft tissue consequently appears radiolucent.
►It is composed of pulp chamber and root
canals.
►The apical foramen opens at the end of the
root apex. Sometimes it is not recognizable.
So it may open on the side of the root.

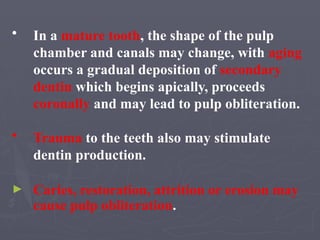

6. • In a mature tooth, the shape of the pulp
chamber and canals may change, with aging
occurs a gradual deposition of secondary
dentin which begins apically, proceeds
coronally and may lead to pulp obliteration.
• Trauma to the teeth also may stimulate
dentin production.
► Caries, restoration, attrition or erosion may
cause pulp obliteration.

7. Cervical Burnout
► It is a diffuse radiolucent
areas with ill-defined
borders on the mesial or
distal aspects of teeth in
the cervical region
between the enamel cap
and the crest of the
alveolar ridge.
► It is not to be confused
with root caries.

8. Supporting Structures
Radiolucent
►Periodontal ligament space
Radiopaque
►Lamina dura
►Alveolar crest
►Cancellous bone

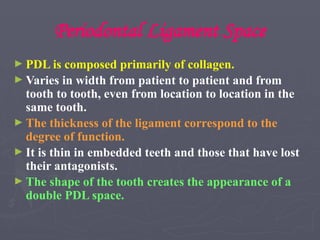

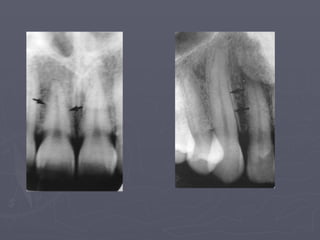

9. Periodontal Ligament Space
► PDL is composed primarily of collagen.
► Varies in width from patient to patient and from
tooth to tooth, even from location to location in the
same tooth.
► The thickness of the ligament correspond to the
degree of function.
► It is thin in embedded teeth and those that have lost
their antagonists.
► The shape of the tooth creates the appearance of a
double PDL space.

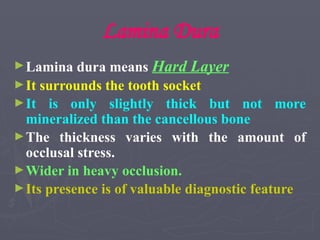

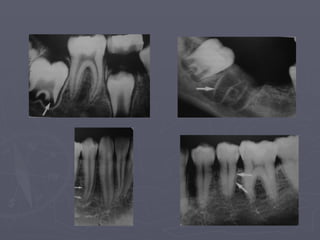

11. Lamina Dura
►Lamina dura means Hard Layer
►It surrounds the tooth socket
►It is only slightly thick but not more
mineralized than the cancellous bone
►The thickness varies with the amount of
occlusal stress.
►Wider in heavy occlusion.
►Its presence is of valuable diagnostic feature

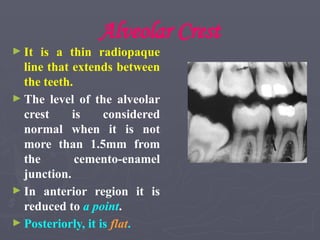

13. Alveolar Crest
► It is a thin radiopaque
line that extends between
the teeth.
► The level of the alveolar
crest is considered
normal when it is not
more than 1.5mm from
the cemento-enamel
junction.
► In anterior region it is
reduced to a point.
► Posteriorly, it is flat.

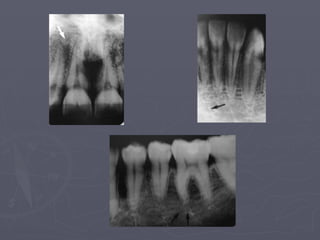

14. Cancellous bone
► Also called trabecular bone or spongiosa.
► Lies between the cortical plates in both jaws.
► It is composed of a thin radiopaque plates and rods
surrounding many small radiolucent pockets of
marrow.
► There is considerable variation between patients and
in the same patient.
► To evaluate a trabecular pattern, the practitioner
should examine the trabecular distribution, size and
density and compare them throughout both jaws.

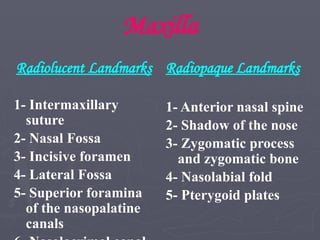

16. Maxilla
Radiolucent Landmarks
1- Intermaxillary
suture
2- Nasal Fossa
3- Incisive foramen
4- Lateral Fossa
5- Superior foramina
of the nasopalatine
canals
Radiopaque Landmarks
1- Anterior nasal spine
2- Shadow of the nose
3- Zygomatic process
and zygomatic bone
4- Nasolabial fold
5- Pterygoid plates

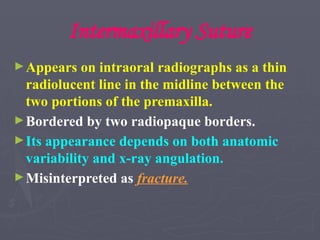

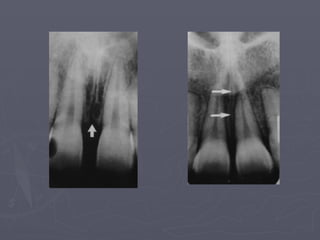

17. Intermaxillary Suture
►Appears on intraoral radiographs as a thin
radiolucent line in the midline between the
two portions of the premaxilla.
►Bordered by two radiopaque borders.
►Its appearance depends on both anatomic
variability and x-ray angulation.
►Misinterpreted as fracture.

19. Anterior Nasal Spine
►Demonstrated on a periapical radiograph
of the maxillary central incisors.

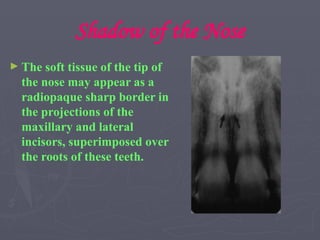

20. Shadow of the Nose
► The soft tissue of the tip of
the nose may appear as a
radiopaque sharp border in
the projections of the
maxillary and lateral
incisors, superimposed over
the roots of these teeth.

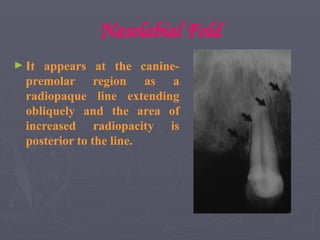

21. Nasolabial Fold
► It appears at the canine-
premolar region as a
radiopaque line extending
obliquely and the area of
increased radiopacity is
posterior to the line.

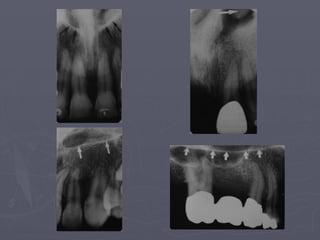

22. Nasal Fossa
►It appears in the central incisors projection.
►Nasal septum may appear.
►The shadow of the inferior chonchae may
appear extending laterally toward the nasal
septum.
►Misinterpreted as periapical pathosis

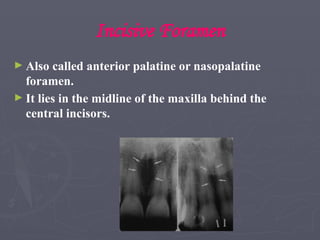

24. Incisive Foramen
► Also called anterior palatine or nasopalatine
foramen.
► It lies in the midline of the maxilla behind the
central incisors.

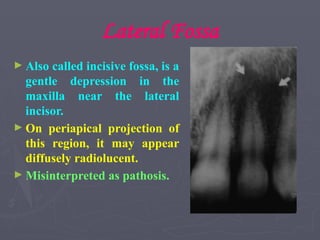

25. Lateral Fossa
► Also called incisive fossa, is a
gentle depression in the
maxilla near the lateral
incisor.
► On periapical projection of
this region, it may appear
diffusely radiolucent.
► Misinterpreted as pathosis.

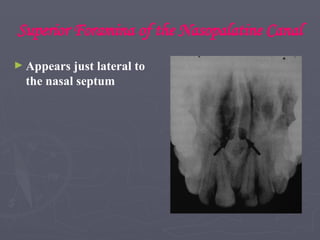

26. Superior Foramina of the Nasopalatine Canal
► Appears just lateral to
the nasal septum

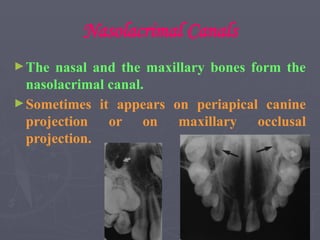

27. Nasolacrimal Canals
►The nasal and the maxillary bones form the
nasolacrimal canal.
►Sometimes it appears on periapical canine
projection or on maxillary occlusal
projection.

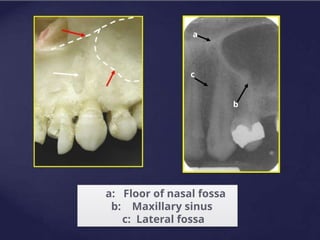

28. a: Floor of nasal fossa
b: Maxillary sinus
c: Lateral fossa
a
b
c

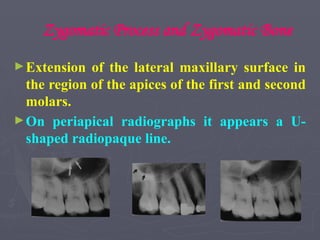

29. Zygomatic Process and Zygomatic Bone
►Extension of the lateral maxillary surface in
the region of the apices of the first and second
molars.
►On periapical radiographs it appears a U-
shaped radiopaque line.

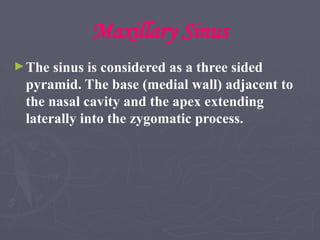

30. Maxillary Sinus
►The sinus is considered as a three sided
pyramid. The base (medial wall) adjacent to
the nasal cavity and the apex extending
laterally into the zygomatic process.

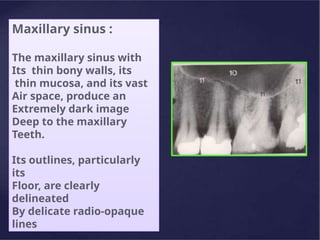

31. Maxillary sinus :
The maxillary sinus with
Its thin bony walls, its
thin mucosa, and its vast
Air space, produce an
Extremely dark image
Deep to the maxillary
Teeth.
Its outlines, particularly
its
Floor, are clearly
delineated
By delicate radio-opaque
lines

32. Pneumanization :expansion of sinus wall into
surrounding bone, usually in an area where
teeth have been lost prematurely.
It increases with age .

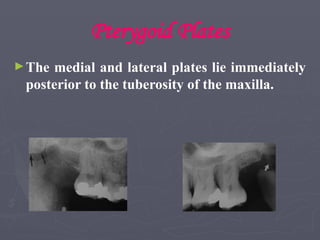

33. Pterygoid Plates
►The medial and lateral plates lie immediately
posterior to the tuberosity of the maxilla.

34. Mandible
Radiolucent Landmarks
►Symphysis
►Mental Fossa
►Mental Foramen
►Mandibular Canal
►Nutrient Canals
►Submandibular gland Fossa
Radiopaque Landmarks
►Genial Tubercles
►Mental Ridge
►Mylohyoid ridge
►External oblique ridge
►Inferior border of the mandible
►Coronoid process

35. Symphysis
► It appears in infants
radiographs.
► Occurs in the midline of
the jaw.
► Fuses by the end of first
year of life.
► If it occurs in adults, it
suggests a fracture or
cleft.

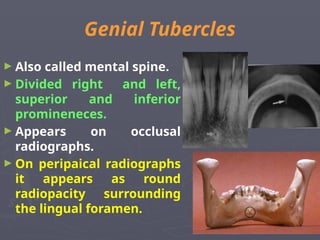

36. Genial Tubercles
► Also called mental spine.
► Divided right and left,
superior and inferior
promineneces.
► Appears on occlusal
radiographs.
► On peripaical radiographs
it appears as round
radiopacity surrounding
the lingual foramen.

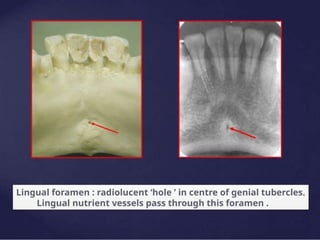

37. Lingual foramen : radiolucent ‘hole ’ in centre of genial tubercles.
Lingual nutrient vessels pass through this foramen .

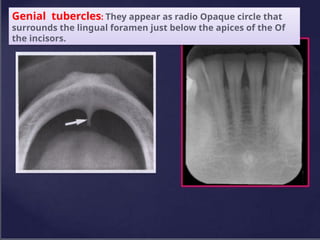

38. Genial tubercles: They appear as radio Opaque circle that
surrounds the lingual foramen just below the apices of the Of
the incisors.

39. Mental Ridge
► May appear as two radiopaque lines
sweeping bilaterally forward and upward
toward the midline.

40. Nutrient canals :
The arrows above
identify nutrient
Canals.
They are most often seen
in
Persons with thin bone
and in
Those with high blood
pressure
Or advanced
periodontitis.
Nutrient canals

41. Mental Fossa
► It is a depression on the
labial aspect of the
mandible.
► Sometimes mistaken as a
periapical disease.

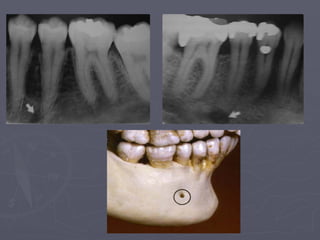

42. Mental Foramen
► It is the anterior limit of the inferior alveolar
canal.
► It doesn’t appear on every radiograph because
its opening is directed superiorly and posteriorly.
► It may be round, oblong, slit-like or very
irregular and partially or completely
corticated.
► The foramen is seen about half way between
the lower border of the mandible and the crest
of the alveolar process usually in the region of
the apex of the second premolar.
► Misinterpreted as a periapical pathosis.

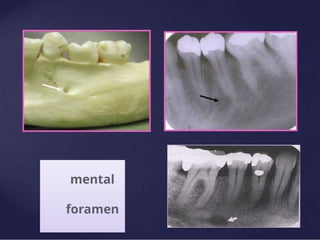

44. mental
foramen

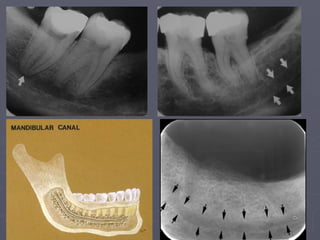

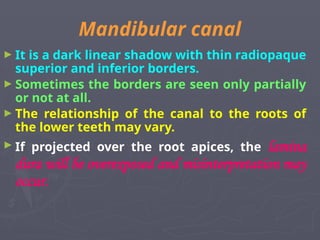

45. Mandibular canal
► It is a dark linear shadow with thin radiopaque
superior and inferior borders.
► Sometimes the borders are seen only partially
or not at all.
► The relationship of the canal to the roots of
the lower teeth may vary.
► If projected over the root apices, the lamina
dura will be overexposed and misinterpretation may
occur.

47. Submandibular Gland Fossa
► It occurs on the lingual surface of the
mandibular body just below the myelohyoid
ridge.
► May be misinterpreted as a bony lesion.

48. Myelohyoid Ridge
►Irregular crest of bone on the lingual
surface of the mandibular body.
►Extending from the lower third molars
to the lower border of the mandible in
the region of the chin.

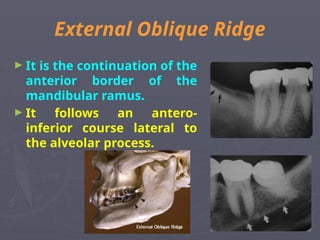

49. External Oblique Ridge
► It is the continuation of the
anterior border of the
mandibular ramus.
► It follows an antero-
inferior course lateral to
the alveolar process.

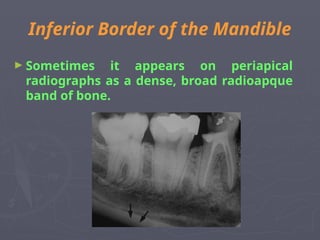

50. Inferior Border of the Mandible
► Sometimes it appears on periapical
radiographs as a dense, broad radioapque
band of bone.

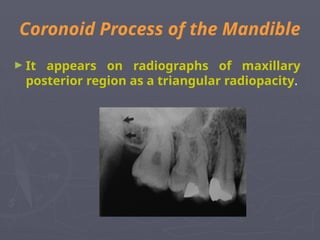

51. Coronoid Process of the Mandible
► It appears on radiographs of maxillary
posterior region as a triangular radiopacity.

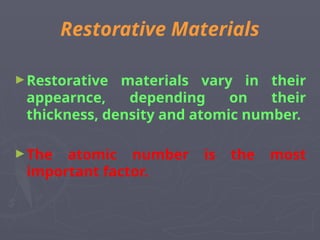

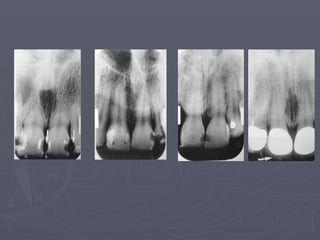

52. Restorative Materials
►Restorative materials vary in their
appearnce, depending on their
thickness, density and atomic number.
►The atomic number is the most
important factor.

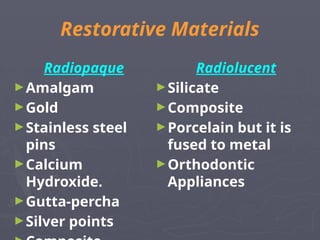

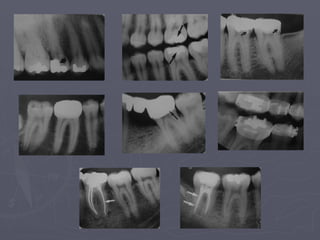

53. Restorative Materials
Radiopaque
►Amalgam
►Gold
►Stainless steel
pins
►Calcium
Hydroxide.
►Gutta-percha
►Silver points
Radiolucent
►Silicate
►Composite
►Porcelain but it is
fused to metal
►Orthodontic
Appliances
