The document discusses 6WIND and its 6WINDGate software. It begins by stating that 6WIND aims to replace dedicated networking hardware with commodity servers and virtualization using its software. It then provides facts about 6WIND, including that it has over 150 man years of experience developing 6WINDGate, which supports major hardware platforms. Finally, it outlines the key benefits of 6WINDGate, such as enabling high performance networking on standard platforms for both physical and virtual environments.

1. v1.0 | ©6WIND 2014. All rights reserved. All brand names, trademarks and copyright information cited in this presentation shall remain the property of its registered owners.
SPEED MATTERS

2. v1.0 | 2©6WIND 2014
 Enable open platform
ecosystem to replace
dedicated hardware
with commodity
servers and
virtualization.
 Close the
performance gap for
Service Providers to
upgrade their network
architecture.

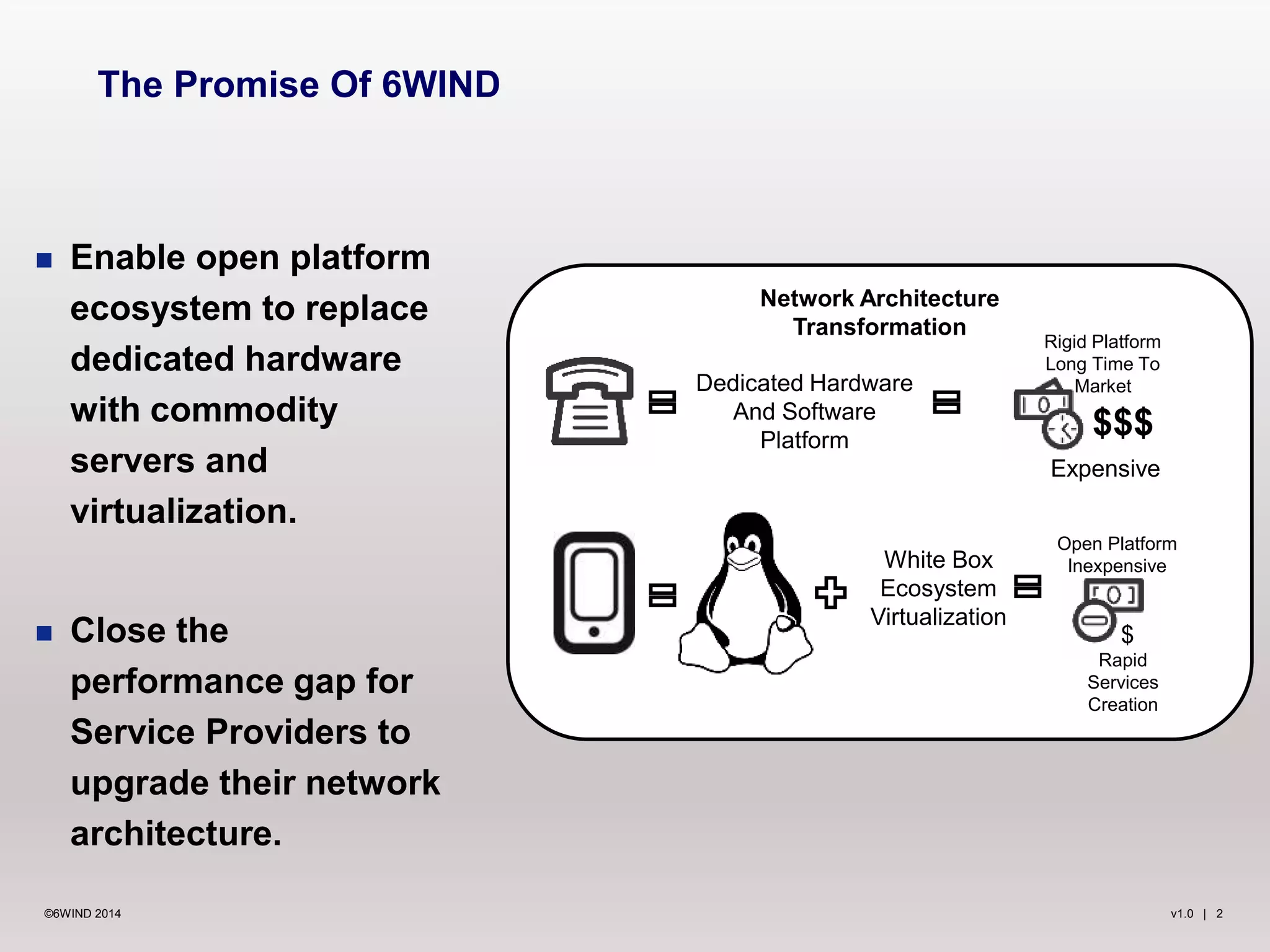

The Promise Of 6WIND
Network Architecture
Transformation
Dedicated Hardware
And Software
Platform
White Box
Ecosystem
Virtualization
Rigid Platform
Long Time To
Market
Open Platform
Inexpensive
Rapid
Services
Creation
$$$
Expensive
$

3. v1.0 | 3©6WIND 2014
 Best in class packet processing technology thanks to 6WIND deep
expertise in networking and more than 150 man years of
development.
 Since the first shipment of its 6WINDGate software in 2007, 6WIND
has been selected and deployed by Blue Chip companies to unlock
hidden infrastructure performance.
 6WIND is an independent software vendor and 6WINDGate is the
only heterogeneous networking stack to support major market-
leading hardware platforms.
 6WIND is privately held and headquartered in France, with offices in
Asia and the US.

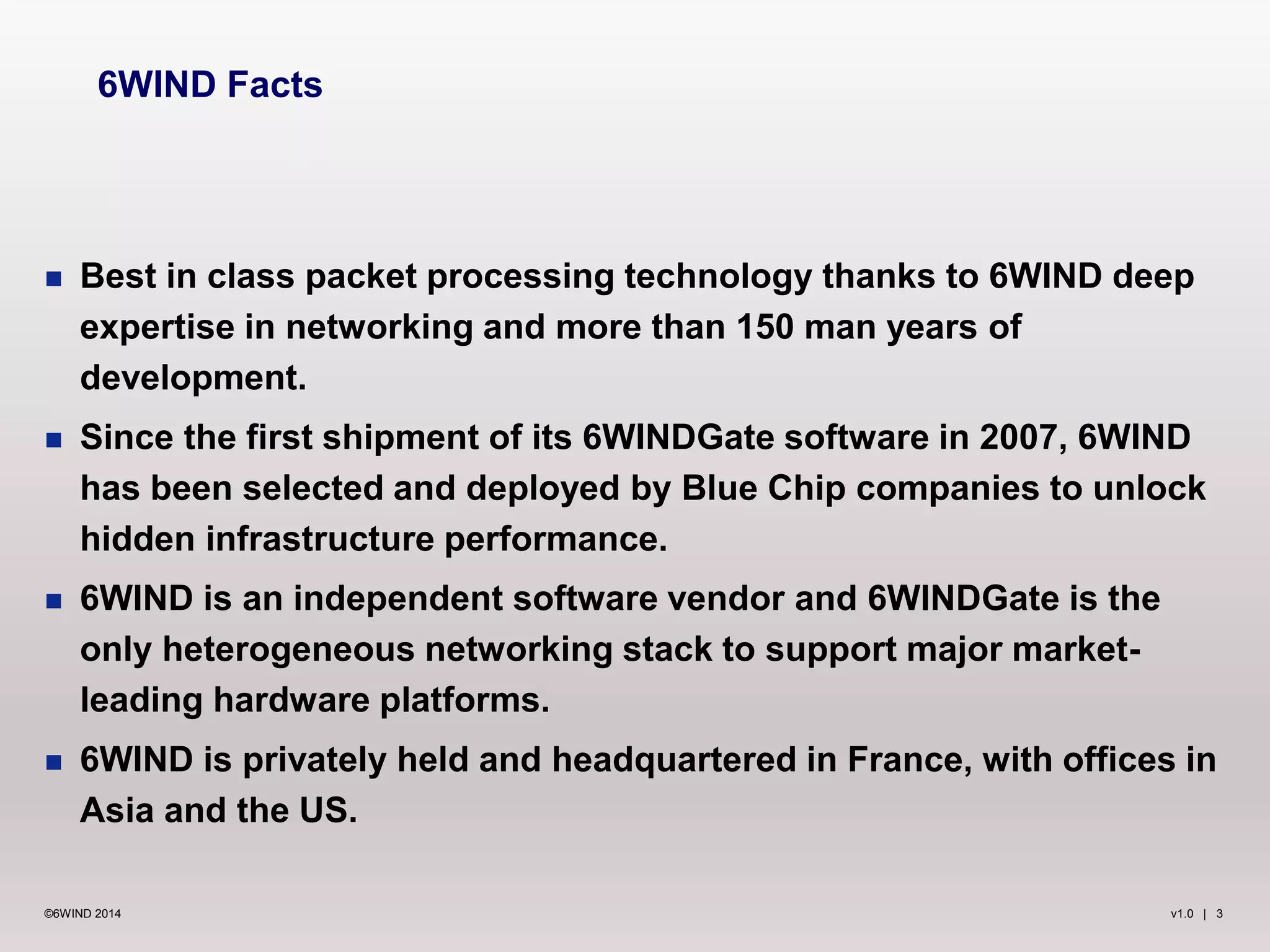

6WIND Facts

4. v1.0 | 4©6WIND 2014
Generic Hardware
Platform

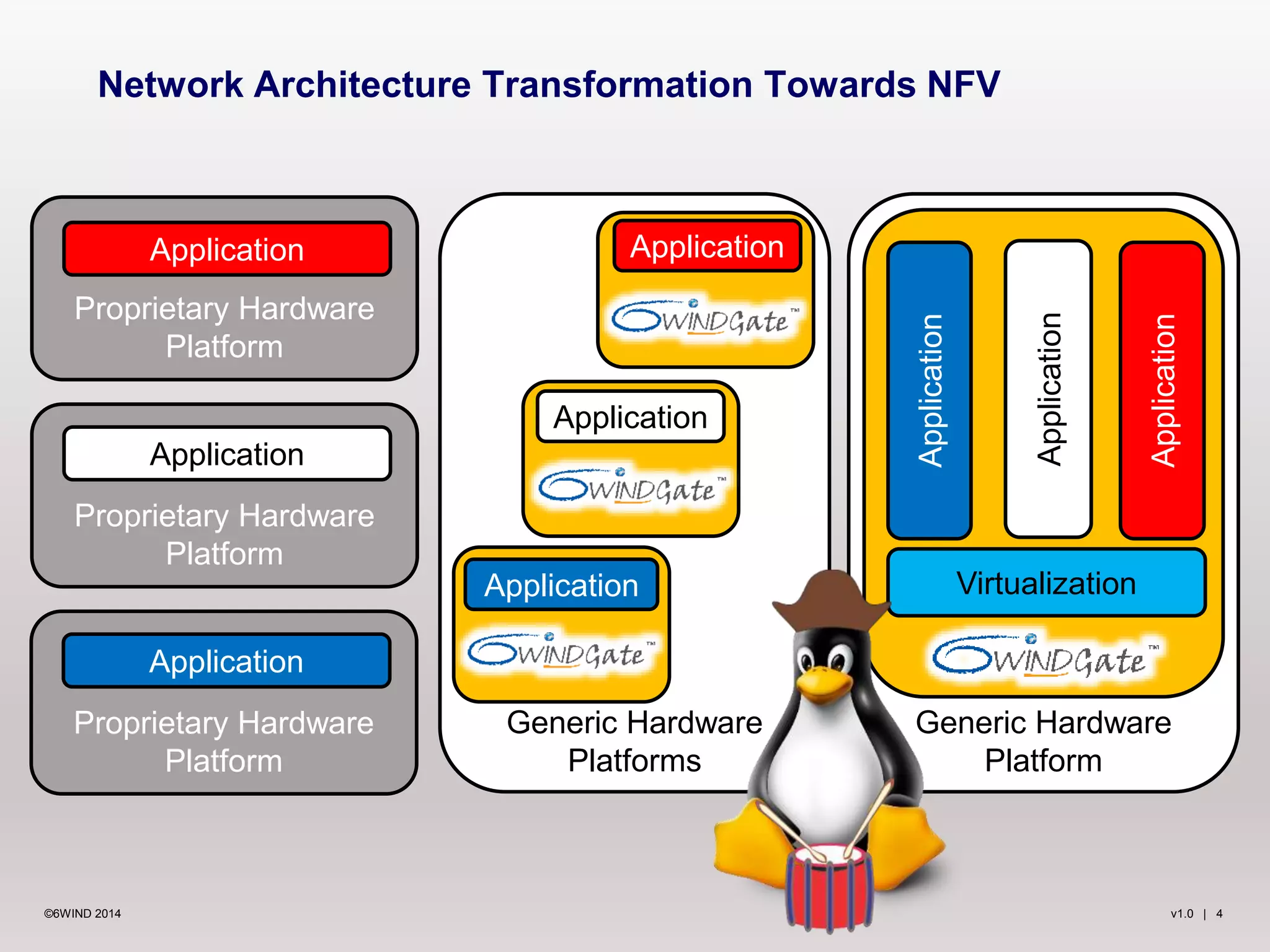

Network Architecture Transformation Towards NFV
Proprietary Hardware
Platform
Application
Proprietary Hardware
Platform
Application
Proprietary Hardware
Platform
Application
Application
Application
Application
Virtualization
Generic Hardware
Platforms
Application
Application
Application

5. v1.0 | 5©6WIND 2014

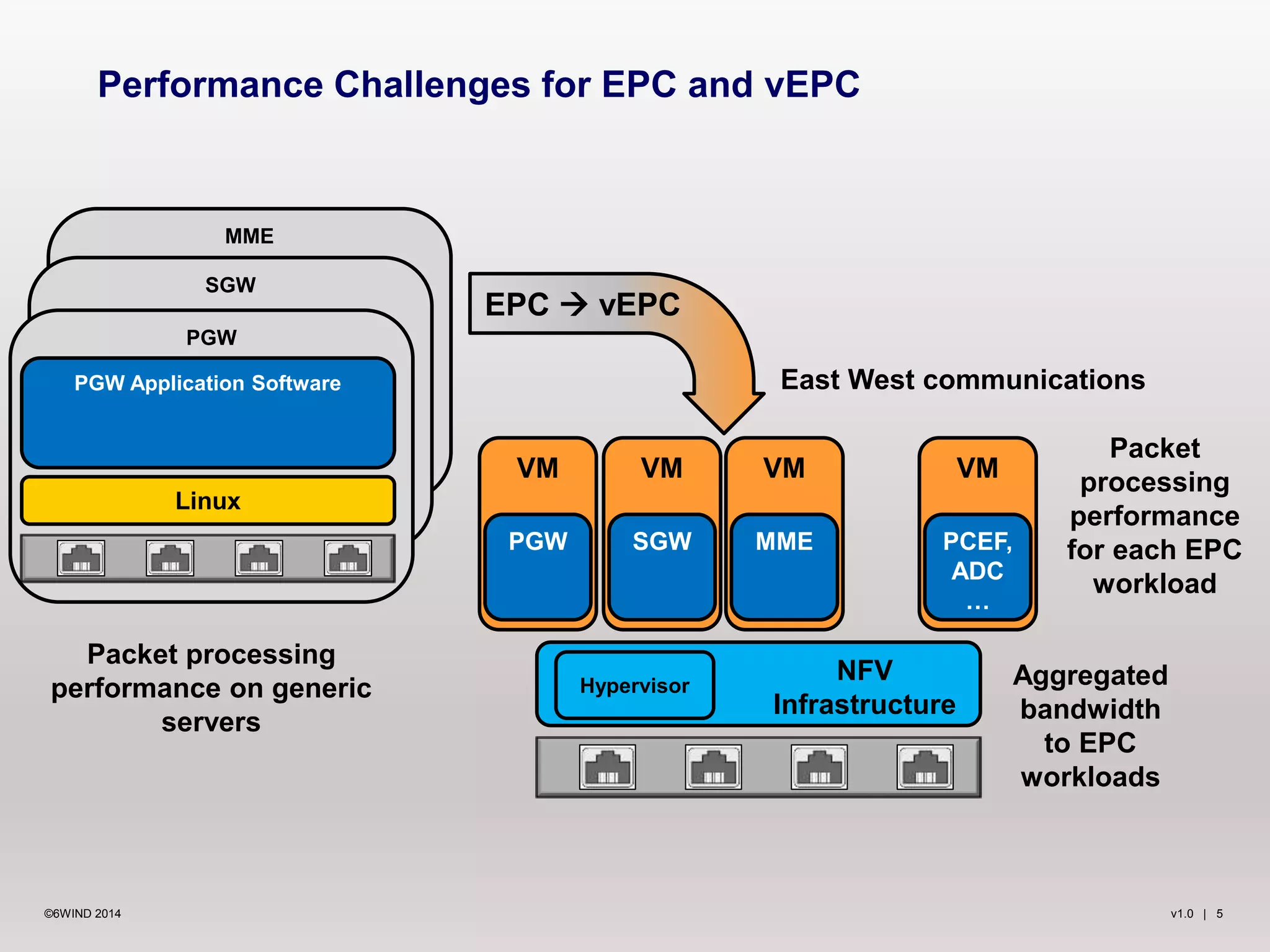

Performance Challenges for EPC and vEPC
EPC  vEPC
MME
SGW
PGW
Linux
PGW Application Software
VM
PCEF,
ADC
…
VM
MME
VM
SGW
VM
PGW
NFV
Infrastructure
Hypervisor
Packet processing
performance on generic
servers
Aggregated
bandwidth
to EPC
workloads
Packet
processing
performance
for each EPC
workload
East West communications

6. v1.0 | 6©6WIND 2014
 Fastest performance on the
market; in both physical and
virtual environments
 Transparent, no change
necessary to OS, hypervisor
and management
 Available across all major
platforms
 Native support for all major
network protocols
6WINDGate on Standard Platforms:
Paradigm Shift In Packet Processing Software

7. v1.0 | 7©6WIND 2014

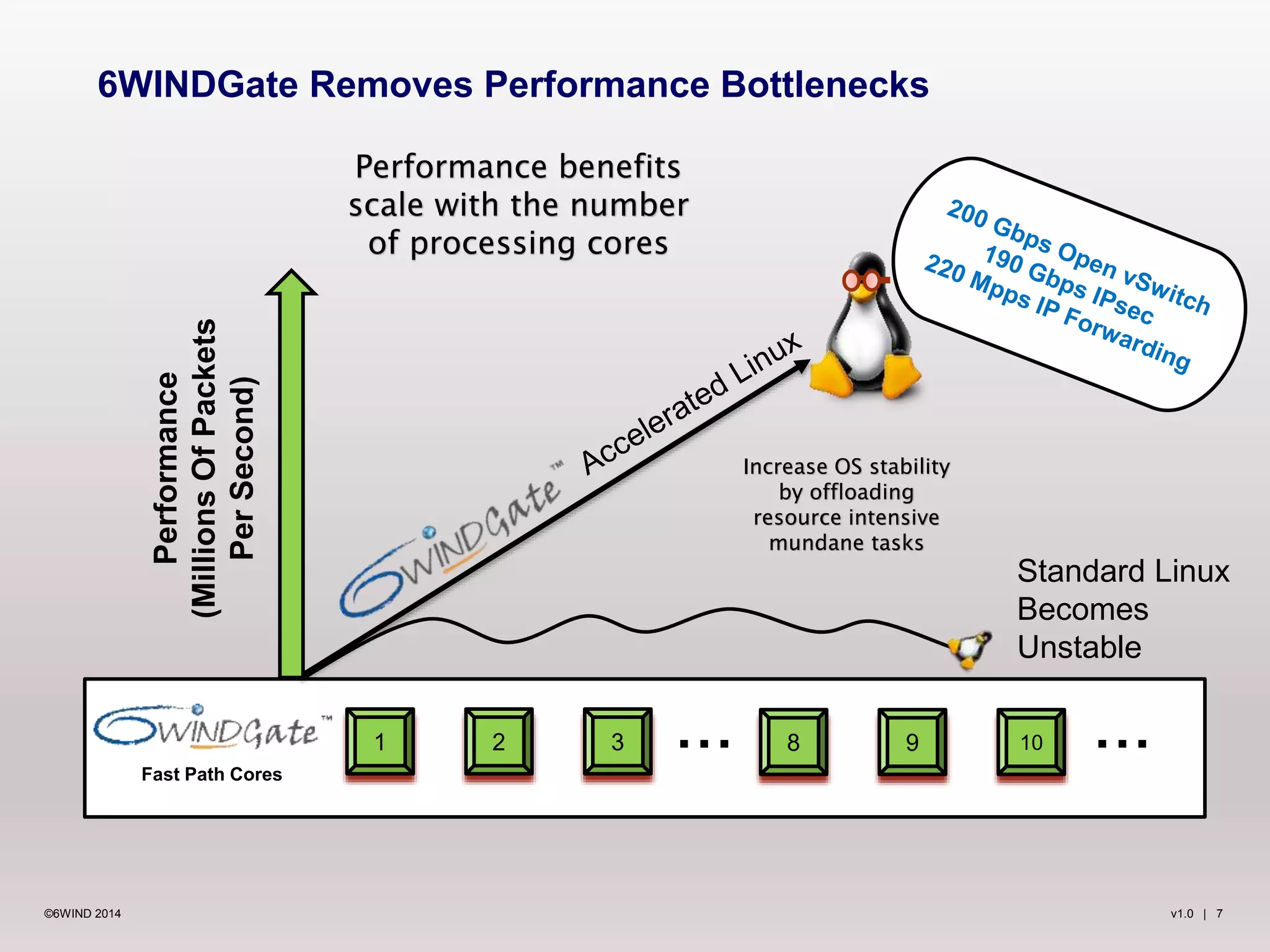

6WINDGate Removes Performance Bottlenecks
Performance
(MillionsOfPackets
PerSecond)
...
Fast Path Cores
...
Increase OS stability
by offloading
resource intensive
mundane tasks
Standard Linux
Becomes
Unstable
Performance benefits
scale with the number
of processing cores
1 2 3 8 9 10 ...

8. v1.0 | 8©6WIND 2014
Networking
Stack
Control
Plane
Fast
Path

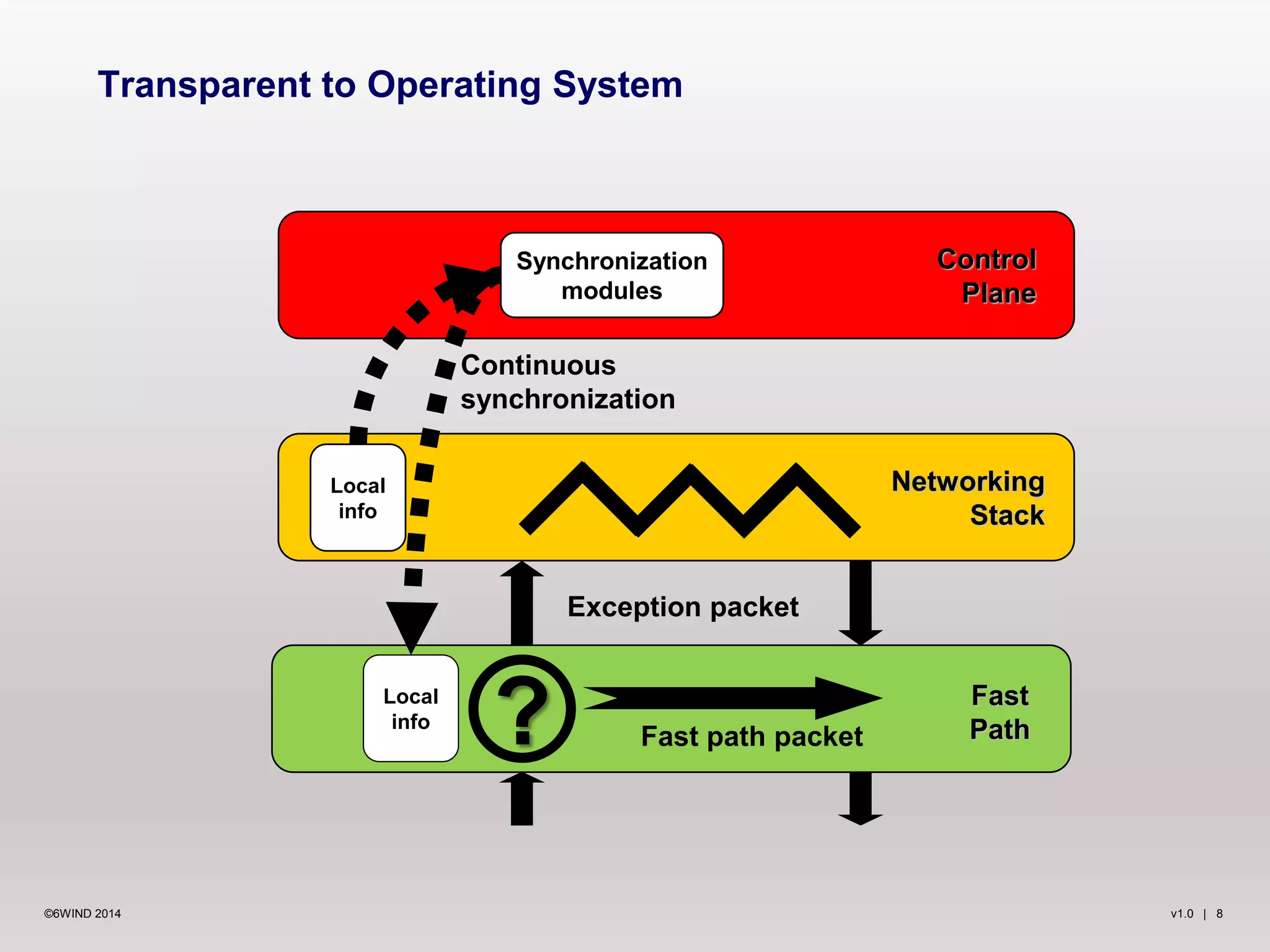

Transparent to Operating System
?Local
info
Local
info
Fast path packet
Continuous
synchronization
Exception packet
Synchronization
modules

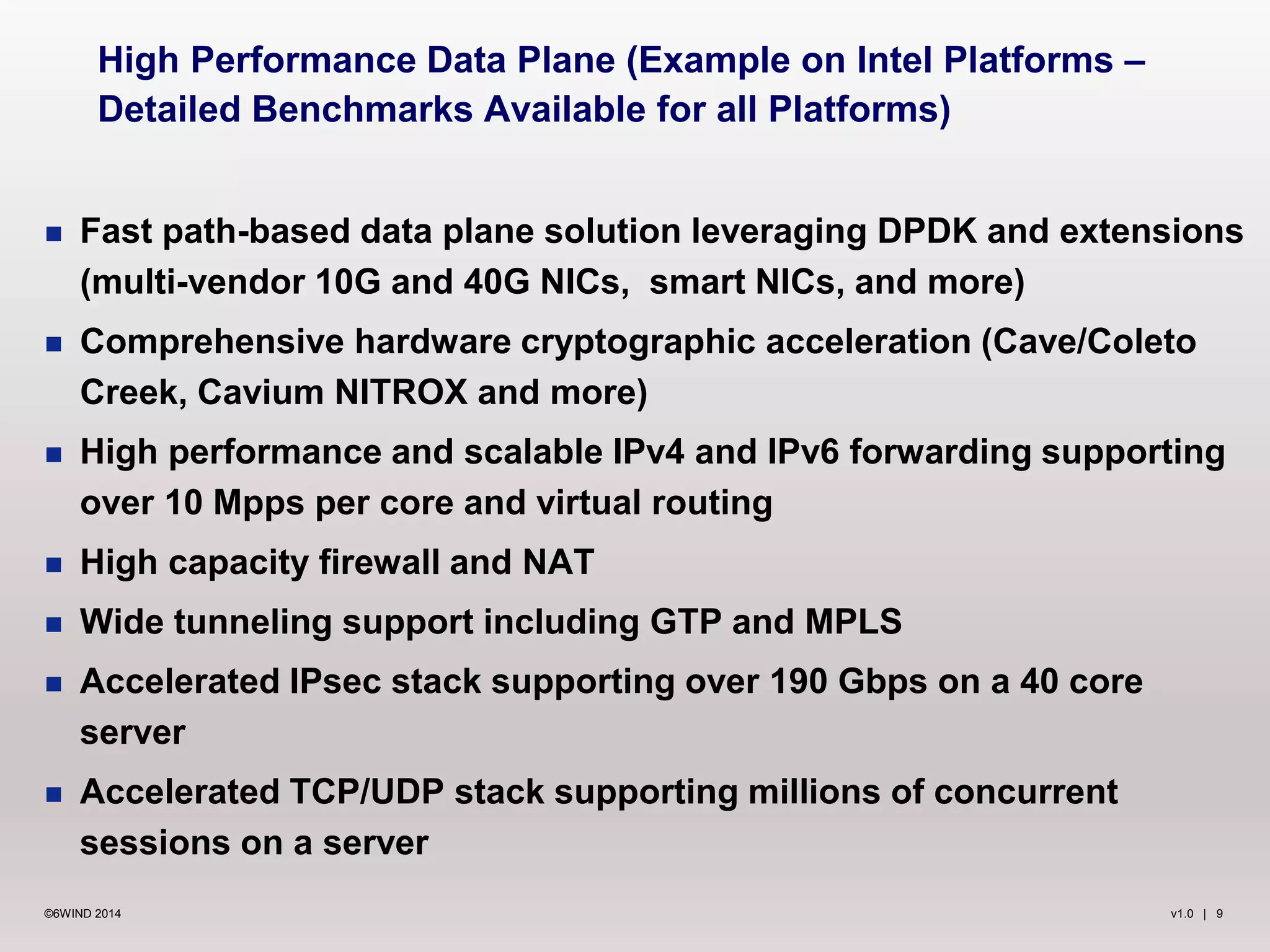

9. v1.0 | 9©6WIND 2014
 Fast path-based data plane solution leveraging DPDK and extensions
(multi-vendor 10G and 40G NICs, smart NICs, and more)
 Comprehensive hardware cryptographic acceleration (Cave/Coleto
Creek, Cavium NITROX and more)
 High performance and scalable IPv4 and IPv6 forwarding supporting
over 10 Mpps per core and virtual routing
 High capacity firewall and NAT
 Wide tunneling support including GTP and MPLS
 Accelerated IPsec stack supporting over 190 Gbps on a 40 core
server
 Accelerated TCP/UDP stack supporting millions of concurrent
sessions on a server
High Performance Data Plane (Example on Intel Platforms –
Detailed Benchmarks Available for all Platforms)

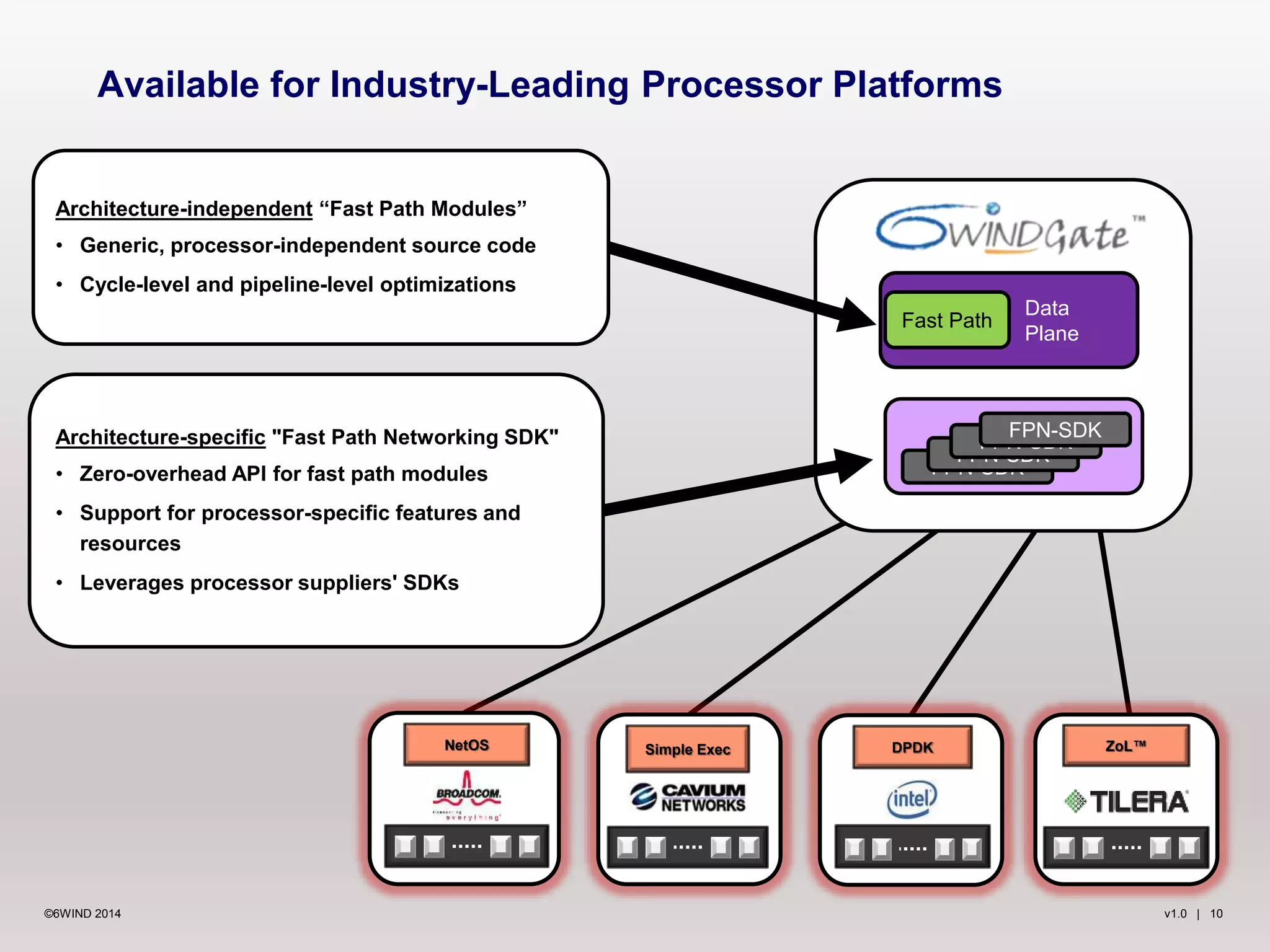

10. v1.0 | 10©6WIND 2014
Available for Industry-Leading Processor Platforms
ZoL™DPDKSimple ExecNetOS
Architecture-independent “Fast Path Modules”
• Generic, processor-independent source code
• Cycle-level and pipeline-level optimizations
Architecture-specific "Fast Path Networking SDK"
• Zero-overhead API for fast path modules
• Support for processor-specific features and
resources
• Leverages processor suppliers' SDKs
Data
Plane
Fast Path
FPN-SDK
FPN-SDK
FPN-SDK
FPN-SDK

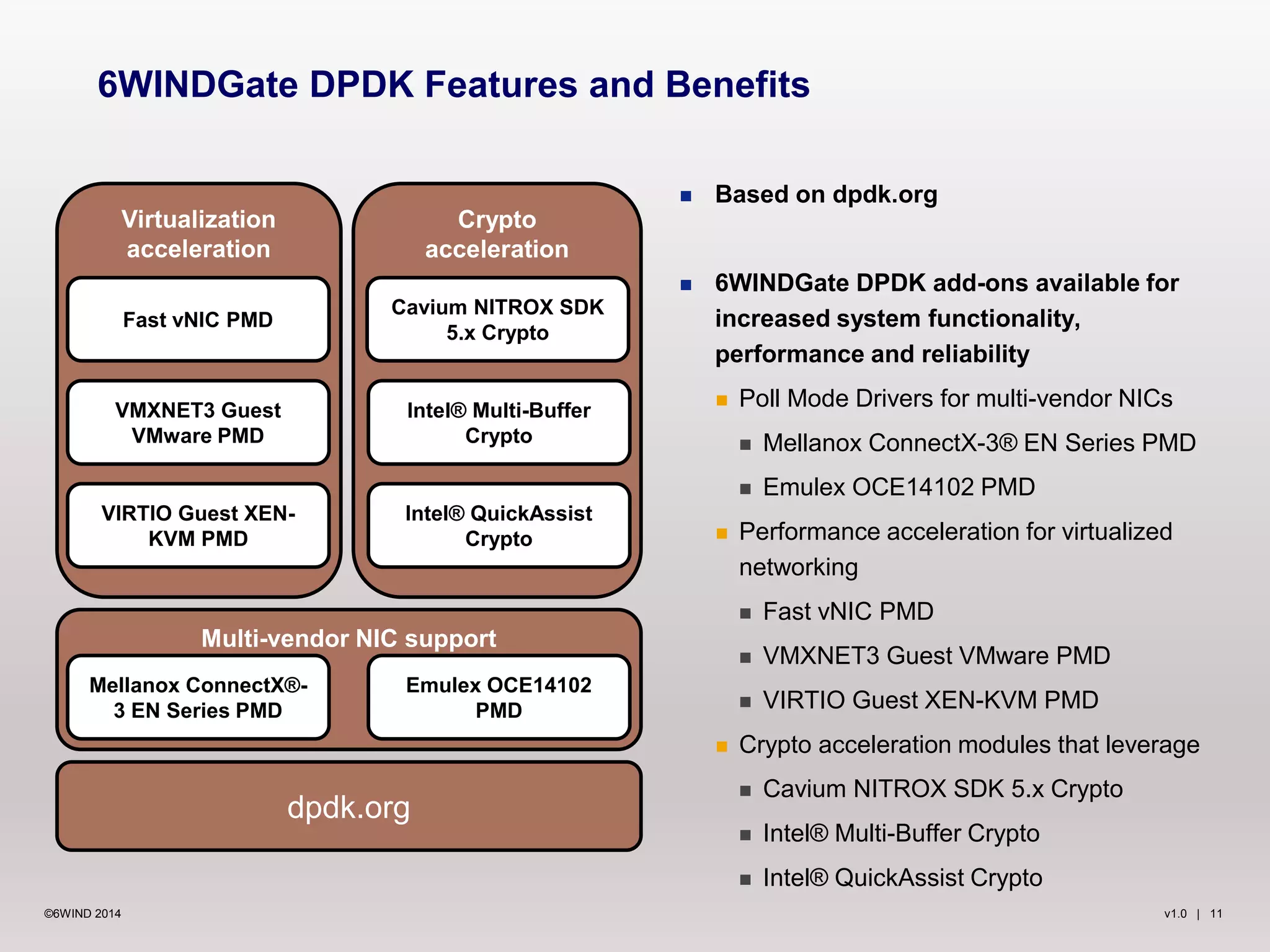

11. v1.0 | 11©6WIND 2014
 Based on dpdk.org
 6WINDGate DPDK add-ons available for
increased system functionality,
performance and reliability
 Poll Mode Drivers for multi-vendor NICs
 Mellanox ConnectX-3® EN Series PMD
 Emulex OCE14102 PMD
 Performance acceleration for virtualized
networking
 Fast vNIC PMD
 VMXNET3 Guest VMware PMD
 VIRTIO Guest XEN-KVM PMD
 Crypto acceleration modules that leverage
 Cavium NITROX SDK 5.x Crypto
 Intel® Multi-Buffer Crypto
 Intel® QuickAssist Crypto
6WINDGate DPDK Features and Benefits
Virtualization
acceleration
Fast vNIC PMD
VMXNET3 Guest
VMware PMD
VIRTIO Guest XEN-
KVM PMD
Crypto
acceleration
Cavium NITROX SDK
5.x Crypto
Intel® Multi-Buffer
Crypto
Intel® QuickAssist
Crypto
dpdk.org
Multi-vendor NIC support
Emulex OCE14102
PMD
Mellanox ConnectX®-
3 EN Series PMD

12. v1.0 | 12©6WIND 2014

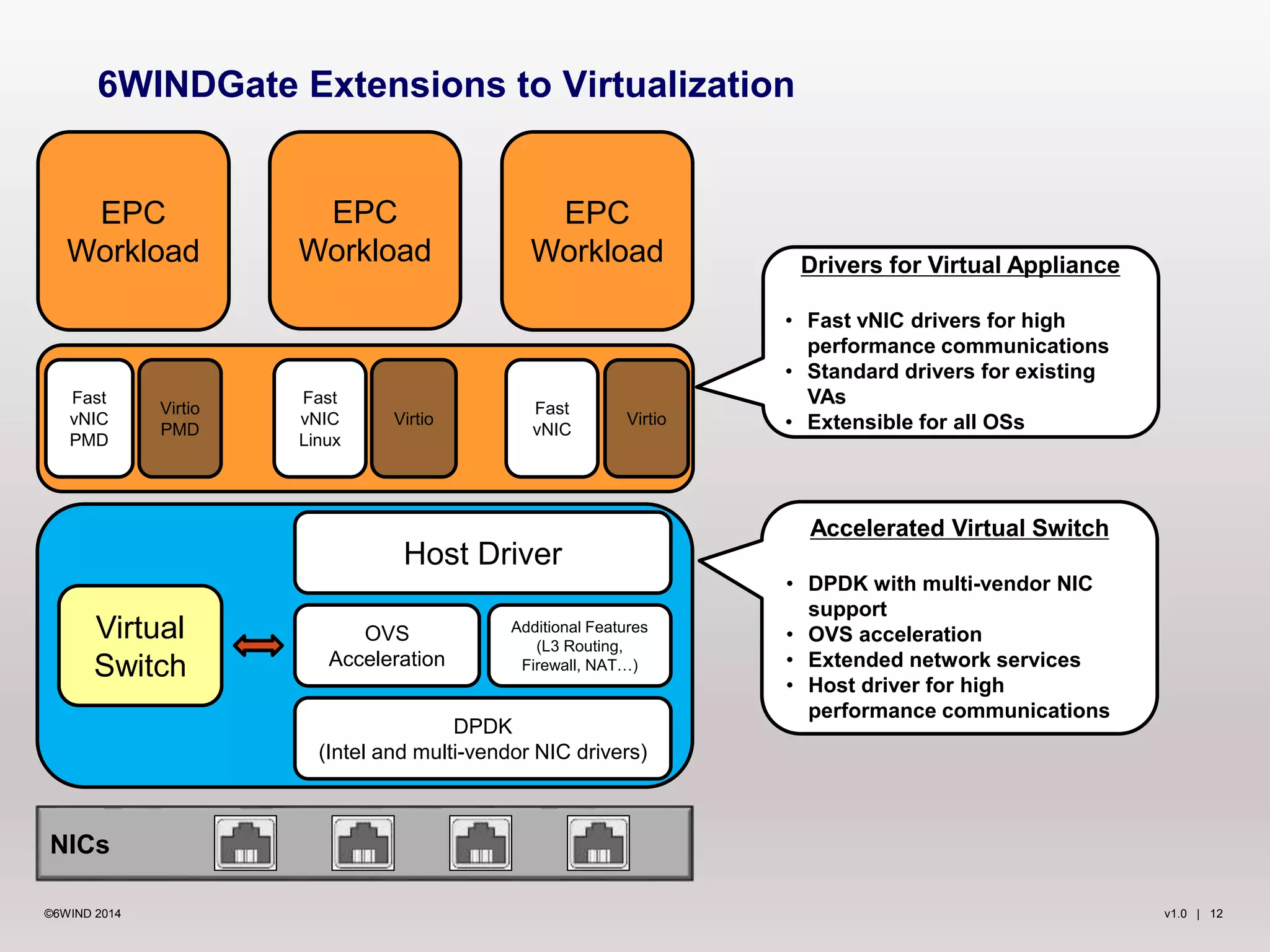

6WINDGate Extensions to Virtualization
NICs
DPDK
(Intel and multi-vendor NIC drivers)
Host Driver
OVS
Acceleration
Additional Features
(L3 Routing,
Firewall, NAT…)
Virtual
Switch
Fast
vNIC
PMD
Virtio
PMD
Fast
vNIC
Linux
Virtio Virtio
Fast
vNIC
EPC
Workload
EPC
Workload
EPC
Workload Drivers for Virtual Appliance
• Fast vNIC drivers for high
performance communications
• Standard drivers for existing
VAs
• Extensible for all OSs
Accelerated Virtual Switch
• DPDK with multi-vendor NIC
support
• OVS acceleration
• Extended network services
• Host driver for high
performance communications

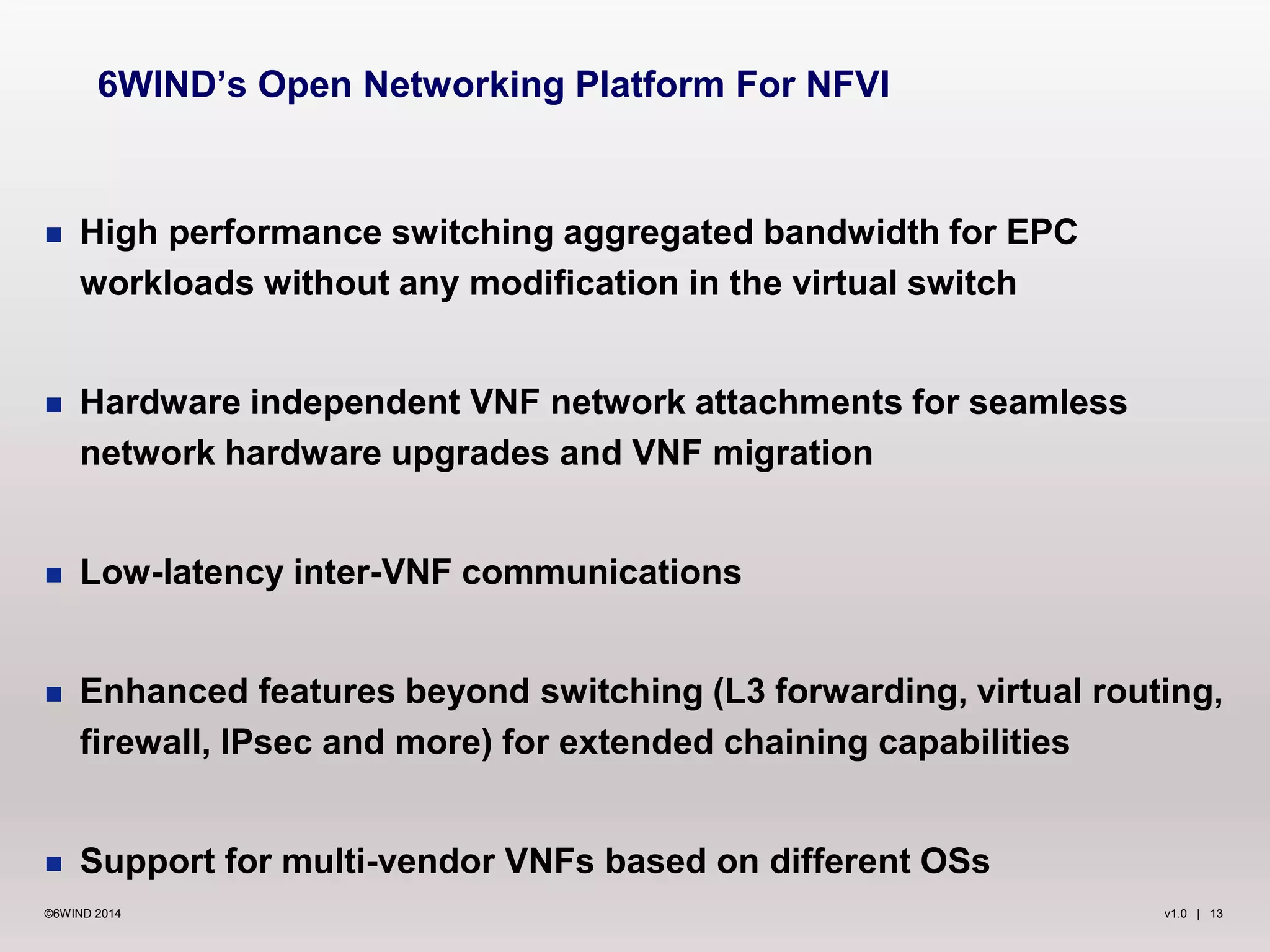

13. v1.0 | 13©6WIND 2014
 High performance switching aggregated bandwidth for EPC
workloads without any modification in the virtual switch
 Hardware independent VNF network attachments for seamless
network hardware upgrades and VNF migration
 Low-latency inter-VNF communications
 Enhanced features beyond switching (L3 forwarding, virtual routing,
firewall, IPsec and more) for extended chaining capabilities
 Support for multi-vendor VNFs based on different OSs
6WIND’s Open Networking Platform For NFVI

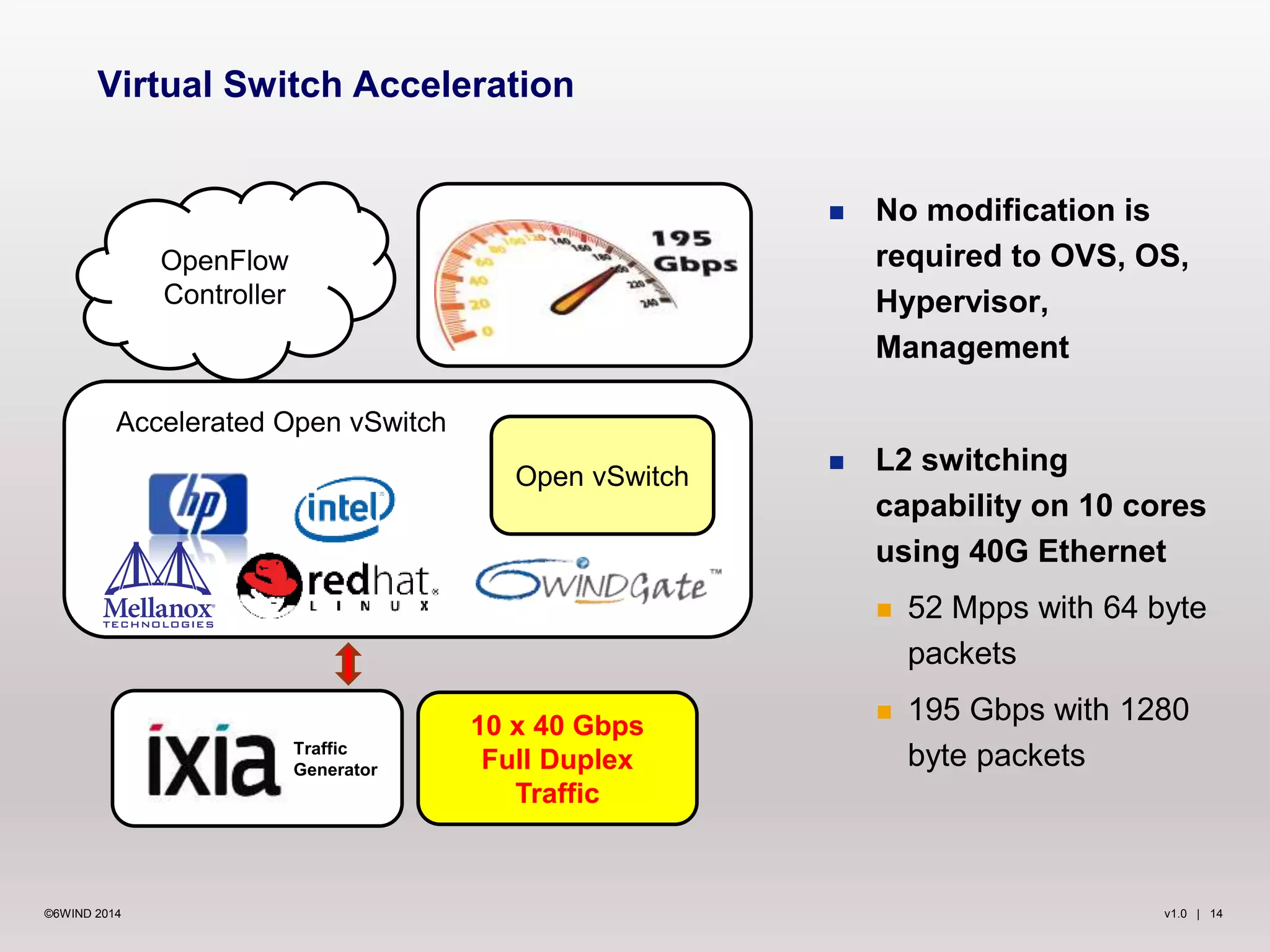

14. v1.0 | 14©6WIND 2014
10 x 40 Gbps
Full Duplex
Traffic
Virtual Switch Acceleration
Accelerated Open vSwitch
Open vSwitch
Traffic
Generator
 No modification is
required to OVS, OS,
Hypervisor,
Management
 L2 switching
capability on 10 cores
using 40G Ethernet
 52 Mpps with 64 byte
packets
 195 Gbps with 1280
byte packets
OpenFlow
Controller

15. v1.0 | 15©6WIND 2014
Virtual
Network
Function
Virtual
Network
Function
Virtual
Network
Function

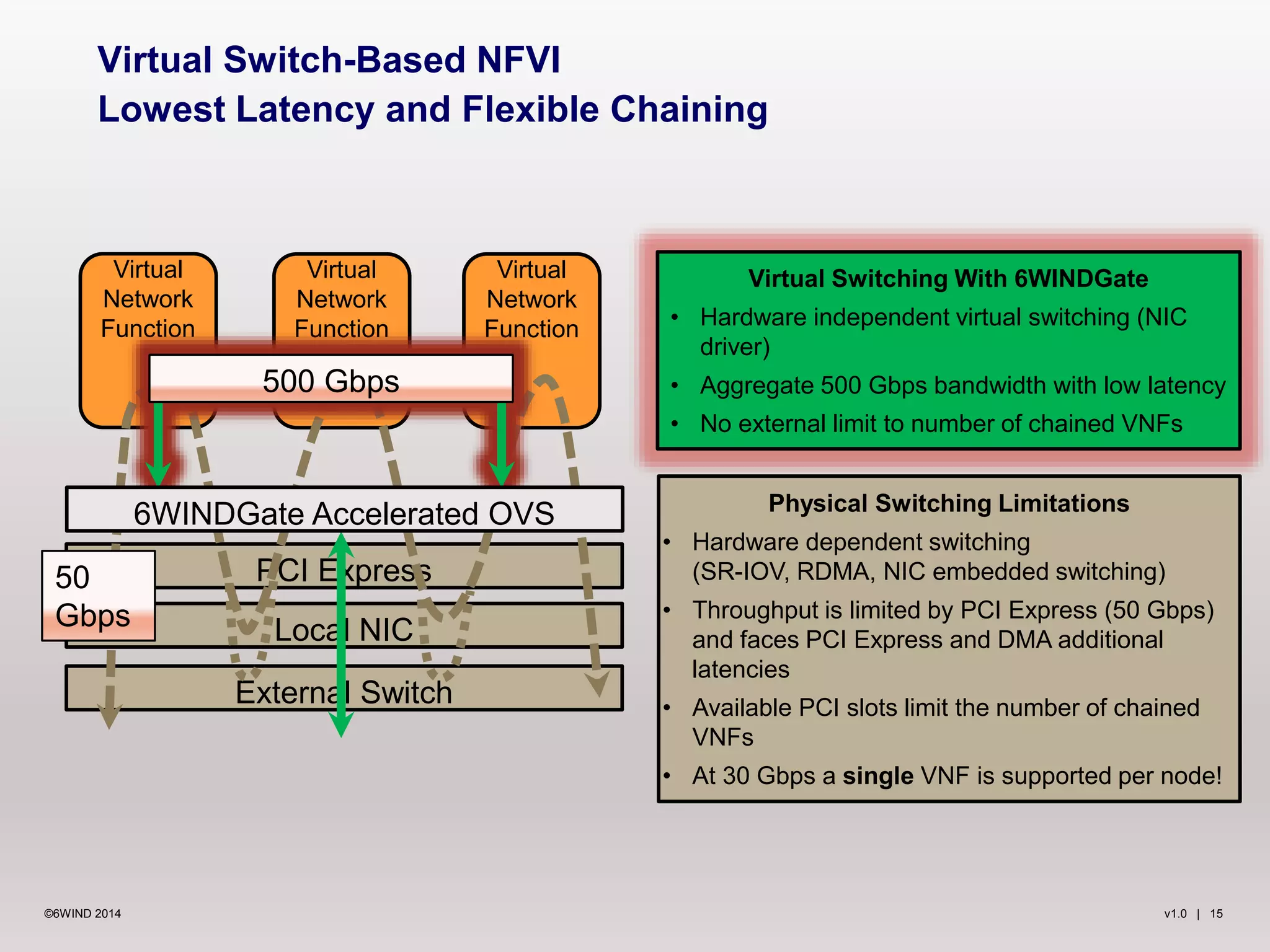

Virtual Switch-Based NFVI
Lowest Latency and Flexible Chaining
PCI Express
Local NIC
External Switch
Physical Switching Limitations
• Hardware dependent switching
(SR-IOV, RDMA, NIC embedded switching)
• Throughput is limited by PCI Express (50 Gbps)
and faces PCI Express and DMA additional
latencies
• Available PCI slots limit the number of chained
VNFs
• At 30 Gbps a single VNF is supported per node!
Virtual Switching With 6WINDGate
• Hardware independent virtual switching (NIC
driver)
• Aggregate 500 Gbps bandwidth with low latency
• No external limit to number of chained VNFs
50
Gbps
500 Gbps
6WINDGate Accelerated OVS

16. v1.0 | 16©6WIND 2014
FastPath
IPv4/IPv6
Forwarding
MPLS/VPLS
Encapsulation
IPv4/IPv6
Multi-cast
Filtering
IPv4/IPv6
IPsec SVTI
VLAN
Link
Aggregation
NAT
GRE
TCP/UDP
Termination
Flow
Inspection
L2TP/ PPPoE
BRAS
GTP-UVXLAN
Tunneling
(IPinIP)
IPsec
IPv4/IPv6
Ethernet
Bridging

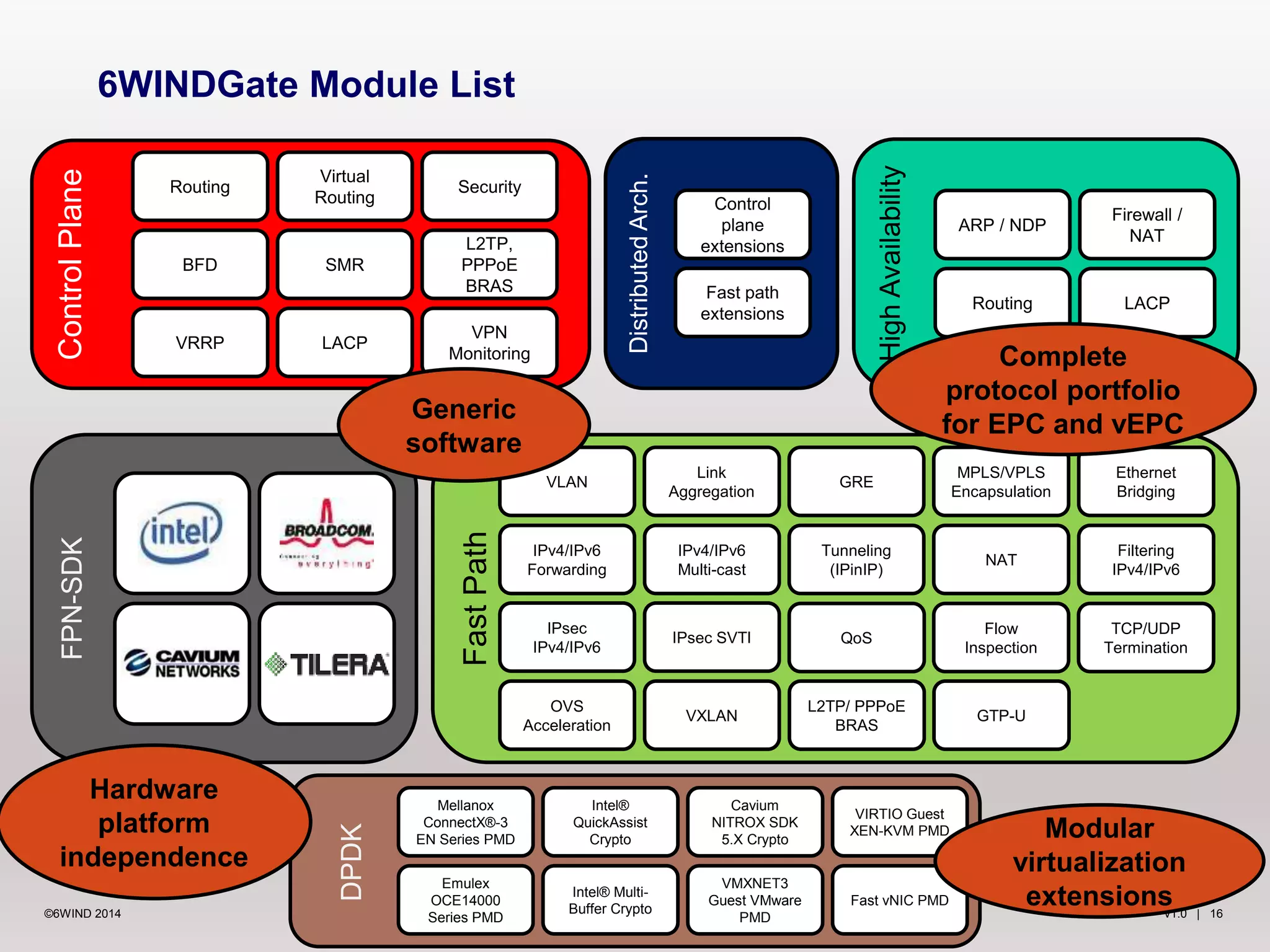

6WINDGate Module List
DistributedArch.
Fast path
extensions
Control
plane
extensions
ControlPlane
BFD SMR
L2TP,
PPPoE
BRAS
Routing
Virtual
Routing
Security
VRRP LACP
VPN
Monitoring
HighAvailability
LACP
Firewall /
NAT
Routing
ARP / NDP
DPDK
Fast vNIC PMD
VMXNET3
Guest VMware
PMD
Intel®
QuickAssist
Crypto
VIRTIO Guest
XEN-KVM PMD
Intel® Multi-
Buffer Crypto
Cavium
NITROX SDK
5.X Crypto
Mellanox
ConnectX®-3
EN Series PMD
FPN-SDK
OVS
Acceleration
Emulex
OCE14000
Series PMD
QoS
Hardware
platform
independence
Modular
virtualization
extensions
Complete
protocol portfolio
for EPC and vEPC
Generic
software

17. v1.0 | 17©6WIND 2014

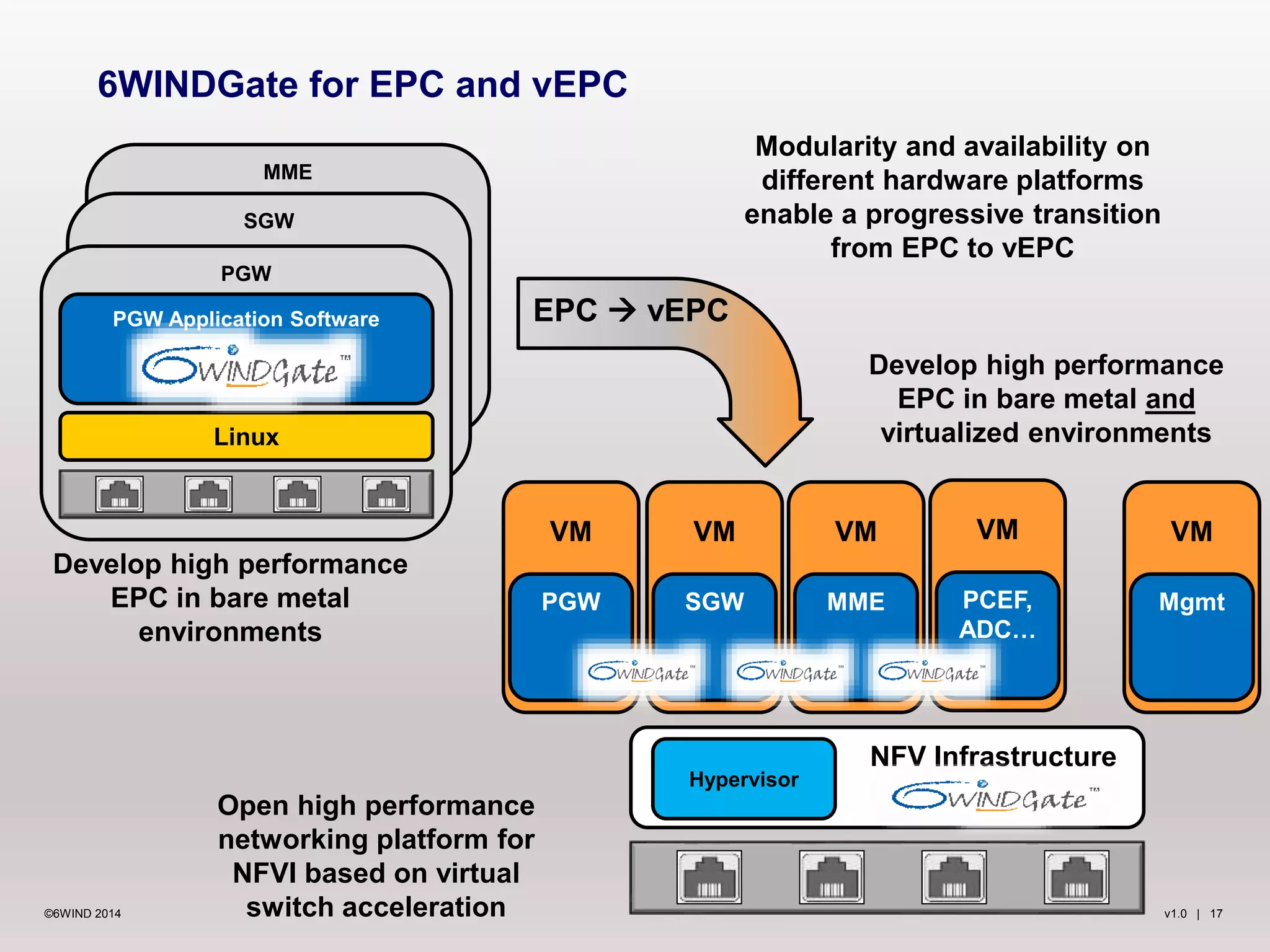

6WINDGate for EPC and vEPC
VM
PCEF,
ADC…
EPC  vEPC
MME
SGW
PGW
Linux
PGW Application Software
VM
Mgmt
VM
MME
VM
SGW
VM
PGW
NFV Infrastructure
Hypervisor
Develop high performance
EPC in bare metal and
virtualized environments
Open high performance
networking platform for
NFVI based on virtual
switch acceleration
Develop high performance
EPC in bare metal
environments
Modularity and availability on
different hardware platforms
enable a progressive transition
from EPC to vEPC
