The document discusses Oracle Golden Gate software. It provides real-time data integration across heterogeneous database systems with low overhead. It captures transactional data from source databases using log-based extraction and delivers the data to target systems with transactional integrity. Key features include high performance, flexibility to integrate various database types, and reliability during outages.

1. Networking Computers from
Different Geographical positions.

2. Oracle Golden Gate
an overview
Oracle Golden Gate delivers low-impact, real-time, data acquisition, distribution
and delivery across heterogeneous systems. Using this technology, it enables cost-
effective and low-impact real-time data integration and continuous availability of
solutions.
Oracle Golden Gate is the leading real-time data integration software available in
the industry. The software moves transactional data across heterogeneous
database, hardware and operating systems environment with minimal impact. The
software platform captures, routes, transforms and delivers data in real-time
enabling organizations to maintain continuous uptime for critical applications
during planned and unplanned outages. Additionally it moves data from
transaction processing environments to read-only reporting databases and
analytical applications for accurate, timely reporting and improved Business
Intelligence for the enterprise.

3. Features of Golden Gate
High Performance : Continuous capture and delivery of data from sources to targets
with end-to-end total latency of only sub-seconds. High performance and low overhead
even at high volumes.
Flexibility / Extensibility : Capture and delivery of data between a variety of relational,
open systems/open source, and legacy databases on all major platforms. It can be

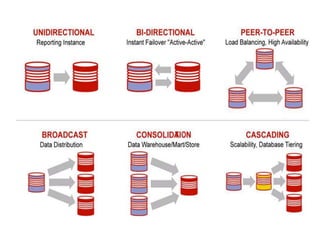

deployed unidirectional or bi-directional in multiple topologies including one to many,
many to many, many to one and cascading. It has the ability to feed third party ETL
solutions.
Low-Impact : Log-based capture and queueing changed data outside of the DBMS
results in negligible overhead source system. Moving only committed transaction with
compression minimizes network overhead.
Transaction Integrity : Maintains ACID (Atomicity, Consistency, Isolation and Durability)
of transactions during the data movement. Applies the data in the same order it was
commit in the source database.
Reliability : Enables guaranteed delivery and data integrity after interruptions / failures.

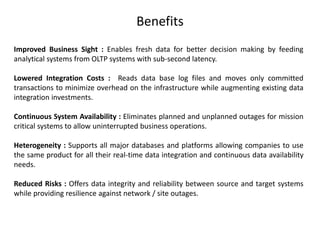

4. Benefits
Improved Business Sight : Enables fresh data for better decision making by feeding
analytical systems from OLTP systems with sub-second latency.
Lowered Integration Costs : Reads data base log files and moves only committed
transactions to minimize overhead on the infrastructure while augmenting existing data
integration investments.
Continuous System Availability : Eliminates planned and unplanned outages for mission
critical systems to allow uninterrupted business operations.
Heterogeneity : Supports all major databases and platforms allowing companies to use
the same product for all their real-time data integration and continuous data availability
needs.
Reduced Risks : Offers data integrity and reliability between source and target systems
while providing resilience against network / site outages.

5. OGG Supported processing methods and
databases:
Golden Gate enables the exchange and manipulation of data at the transaction level among
multiple, heterogeneous platforms across the enterprise. It’s modular architecture gives
you the flexibility to extract and replicate selected data records, transactional changes
across variety of topologies.
With this flexibility and the filtering, transformation and custom processing features of
Golden Gate you can support numerous business requirements as follows:
• Business Continuance and high availability
• Initial Load and database migration
• Data Integration
• Decision Support and data warehousing

7. Golden Gate is composed of the following components:
• Extract
• Data Pump
• Replicat
• Trails or Extract Files
• Checkpoints
• Manager
• Collector

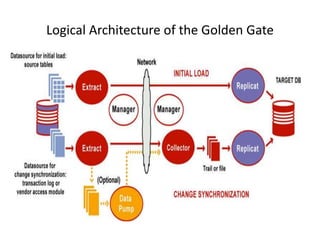

8. Logical Architecture of the Golden Gate

9. Overview of Extract
The Extract process runs on the source system and is the capture mechanism of the
Golden Gate.
Extract can be configured in two ways as follows:
Initial Loads : For Initial Data Loads, Extract extracts a current set of data directly
from their source objects.
Change Synchronization : To keep source data synchronized with another set of
data, Extract extracts transactional changes made to data (i.e., inserts, updates and
deletes) after the initial synchronization has taken place.
When processing transactional data changes, Extract obtains the data from a data
source that can be one of the following :
1) The database transaction logs (such as oracle redo logs). This method is also
known as log based extraction.

10. 2) A Golden Gate Vendor Access Module (VAM). The VAM is a communication layer that
passes data changes and transaction metadata to the Extract process.
Multiple extract processes can operate on different objects at the same time for
example one process could continuously extract transactional data changes and stream
them to a decision-support database, while another process performs batch extracts for
periodic reporting. Or two Extract processes could extract and transmit in parallel to 2
Replicat processes to minimize target latency when the databases are large.
Sample Extract parameter file
EXTRACT capt
USERID ggs, PASSWORD *********
DISCARDFILE /ggs/capt.dsc, PURGE
RMTHOST sysb, MGRPORT 7809
RMTTRAIL /ggs/dirdat/aa
TABLE fin.*;
TABLE sales.*;

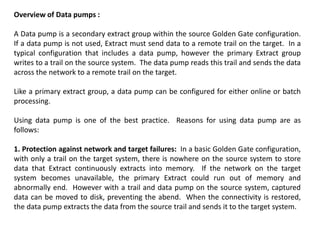

11. Overview of Data pumps :
A Data pump is a secondary extract group within the source Golden Gate configuration.
If a data pump is not used, Extract must send data to a remote trail on the target. In a
typical configuration that includes a data pump, however the primary Extract group
writes to a trail on the source system. The data pump reads this trail and sends the data
across the network to a remote trail on the target.
Like a primary extract group, a data pump can be configured for either online or batch
processing.
Using data pump is one of the best practice. Reasons for using data pump are as
follows:
1. Protection against network and target failures: In a basic Golden Gate configuration,
with only a trail on the target system, there is nowhere on the source system to store
data that Extract continuously extracts into memory. If the network on the target
system becomes unavailable, the primary Extract could run out of memory and
abnormally end. However with a trail and data pump on the source system, captured
data can be moved to disk, preventing the abend. When the connectivity is restored,
the data pump extracts the data from the source trail and sends it to the target system.

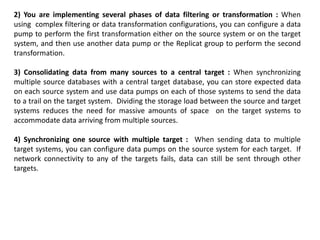

12. 2) You are implementing several phases of data filtering or transformation : When
using complex filtering or data transformation configurations, you can configure a data
pump to perform the first transformation either on the source system or on the target
system, and then use another data pump or the Replicat group to perform the second
transformation.
3) Consolidating data from many sources to a central target : When synchronizing
multiple source databases with a central target database, you can store expected data
on each source system and use data pumps on each of those systems to send the data
to a trail on the target system. Dividing the storage load between the source and target
systems reduces the need for massive amounts of space on the target systems to
accommodate data arriving from multiple sources.
4) Synchronizing one source with multiple target : When sending data to multiple
target systems, you can configure data pumps on the source system for each target. If
network connectivity to any of the targets fails, data can still be sent through other
targets.

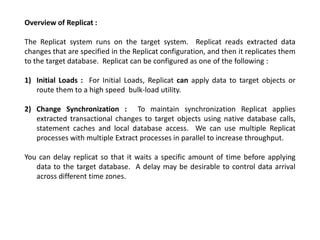

13. Overview of Replicat :
The Replicat system runs on the target system. Replicat reads extracted data
changes that are specified in the Replicat configuration, and then it replicates them
to the target database. Replicat can be configured as one of the following :
1) Initial Loads : For Initial Loads, Replicat can apply data to target objects or
route them to a high speed bulk-load utility.
2) Change Synchronization : To maintain synchronization Replicat applies
extracted transactional changes to target objects using native database calls,
statement caches and local database access. We can use multiple Replicat
processes with multiple Extract processes in parallel to increase throughput.
You can delay replicat so that it waits a specific amount of time before applying
data to the target database. A delay may be desirable to control data arrival
across different time zones.

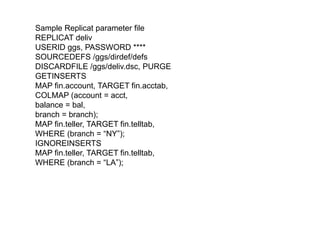

14. Sample Replicat parameter file
REPLICAT deliv
USERID ggs, PASSWORD ****
SOURCEDEFS /ggs/dirdef/defs
DISCARDFILE /ggs/deliv.dsc, PURGE
GETINSERTS
MAP fin.account, TARGET fin.acctab,
COLMAP (account = acct,
balance = bal,
branch = branch);
MAP fin.teller, TARGET fin.telltab,
WHERE (branch = “NY”);
IGNOREINSERTS
MAP fin.teller, TARGET fin.telltab,
WHERE (branch = “LA”);

15. Overview of Trail : To support the continuous extraction and replication of supported
database changes, Golden Gate stores those changes temporarily on disk in a series of
files called Trail. A Trail can exist on the source or target system, depending on how
you configure Golden Gate. The use of Trail also allows extraction and replication
activities to occur independently of each other. With those processes separated, you
have more choices for how data is delivered. For example, intead of extracting and
replicating changes continuously but store them in the Trail for replication to the target
later whenever the target layer need them.
Read and Write process to Trail :
The primary extract process writes to a trail. Only one extract process can write to a
trail.
Processes that read the trail are :
Data dump extract : Extracts data from a local trail for further processing. If needed,
and transfer it to the target system or to the next Golden Gate process downstream in
the Golden Gate configuration.
Replicat : Reads a trail to apply change data to the target database.

16. Trail Maintenance:
Trail files are created as needed during processing. By default each file in a trail is
10MB in size. All file names in a trail begin with the same two characters. As the files
are created, each name is appended with a unique, six-digit serial (unique) number
from 000000 to 999999. Ex. D:ggsdirdattr000009. By default, trails are stored in
the dirdat sub-directory of the Golden Gate directory.
How processes write to Trail : To maxize throughput, and to minimize Input/Output
load on the system, extracted data is sent into and out of a trail in large blocks.
Transactional order is preserved. By default, Golden Gate writes data to the trail in
universal data format, a proprietary format which allows it to be exchanged rapidly
and accurately among heterogeneous databases. However, the data can be written in
other formats that are compatible with different applications.
Extract operates in two modes : Append mode and Overwrite mode.
Trail file format : As of Golden Gate version 10.0 each file of a trail contains a file
header record that is stored at the beginning of the file. The file header contains the
information about the trail file itself.

17. Each data record in a Golden Gate trail file contains a header area and data area. The
header contains Information about the transaction environment, and the data area
contains the actual data values that were extracted.
Overview of Extract files :
When processing a one-time run, such as an initial load or a batch run that synchronizes
transactional changes Golden Gate stores the extracted changes in a extract file instead
of a trail. The extract file typically is a single file but can be configured to roll over into
multiple files in anticipation of limitations on the size of a file that are imposed by the
operating system. In this sense, it is similar to a trail, except that check points are not
recorded. The file or files are created automatically during the run. The same versioning
features that apply to trails also apply to extract files.

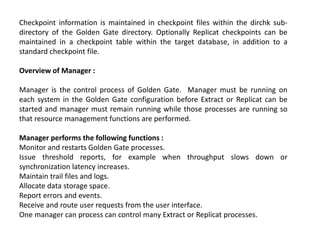

18. Overview of Checkpoints :
Checkpoints store current read and write positions of a process to disk for recovery
purpuses. Checkpoints ensure that database changes marked for synchronization are
extracted by Extract and replicat and they prevent redundant processing.
The read checkpoint of a process is always synchronized with write checkpoint. Thus if
Golden Gate needs to re-read something that is already sent to the target system (for
example in case of a process failure) checkpoints enable accurate recovery to the
point where a new transaction starts, and Golden Gate resume processing.
Checkpoints work with inter process acknowledgements to prevent messages from
being lost in the network.
Extract creates checkpoints for its positions in the data source and in the trail. Replicat
creates checkpoints for its position in the trail.
A checkpoint system is used for Extract and Replicat processes that operate
continuously, but it is not required for batch mode. A batch process can be re-run
from its start point, whereas continuous processing requires the support for planned
or unplanned interruptions that is provided by checkpoints.

19. Checkpoint information is maintained in checkpoint files within the dirchk sub-
directory of the Golden Gate directory. Optionally Replicat checkpoints can be
maintained in a checkpoint table within the target database, in addition to a
standard checkpoint file.
Overview of Manager :
Manager is the control process of Golden Gate. Manager must be running on
each system in the Golden Gate configuration before Extract or Replicat can be
started and manager must remain running while those processes are running so
that resource management functions are performed.
Manager performs the following functions :
Monitor and restarts Golden Gate processes.
Issue threshold reports, for example when throughput slows down or
synchronization latency increases.
Maintain trail files and logs.
Allocate data storage space.
Report errors and events.
Receive and route user requests from the user interface.
One manager can process can control many Extract or Replicat processes.

20. Overview of Collector :
Collector is a process that runs in the back ground on the target system. Collector
receives extracted database changes that are sent across the TCP/IP network and
it writes them to a trail or extract file. Manager starts collector automatically
when a network connection required. When manager starts collector the
process is known as Dynamic collector. We can run collector manually. This is
known as static collector.
When a dynamic collector is used, it can receive information from only one
Extract process, so there must be a dynamic collector for each extract that you
use. When a static collector is used, several extract processes can share one
collector. However a one-to-one ratio is optimal.
