Data Replication With Oracle GoldenGate
– Looking Behind The Scenes –
Robert Bialek
Principal Consultant
Partner

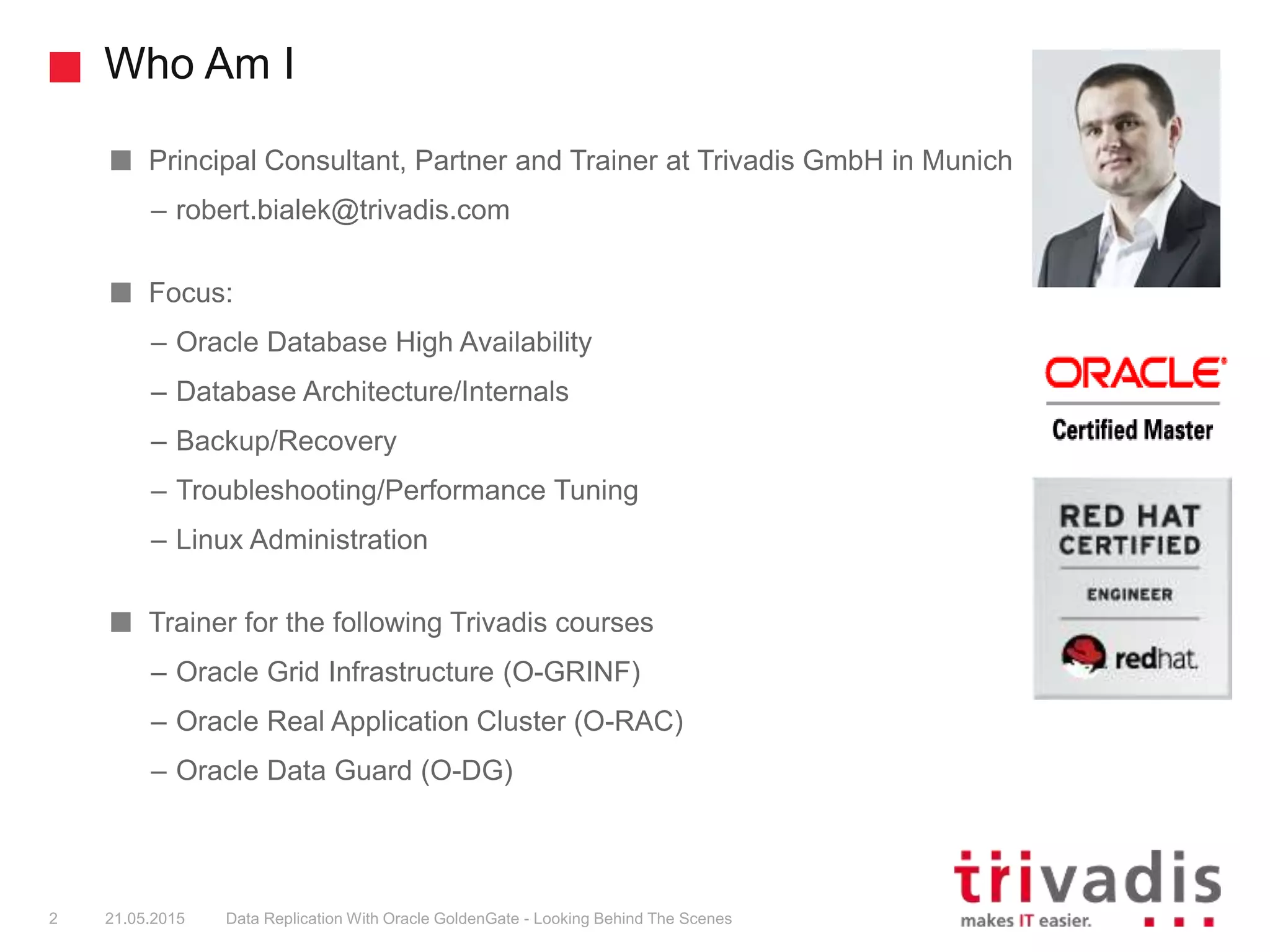

2. Who Am I
Principal Consultant, Partner and Trainer at Trivadis GmbH in Munich
– robert.bialek@trivadis.com
Focus:
– Oracle Database High Availability
– Database Architecture/Internals
– Backup/Recovery
– Troubleshooting/Performance Tuning
– Linux Administration
Trainer for the following Trivadis courses
– Oracle Grid Infrastructure (O-GRINF)
– Oracle Real Application Cluster (O-RAC)
– Oracle Data Guard (O-DG)
2 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

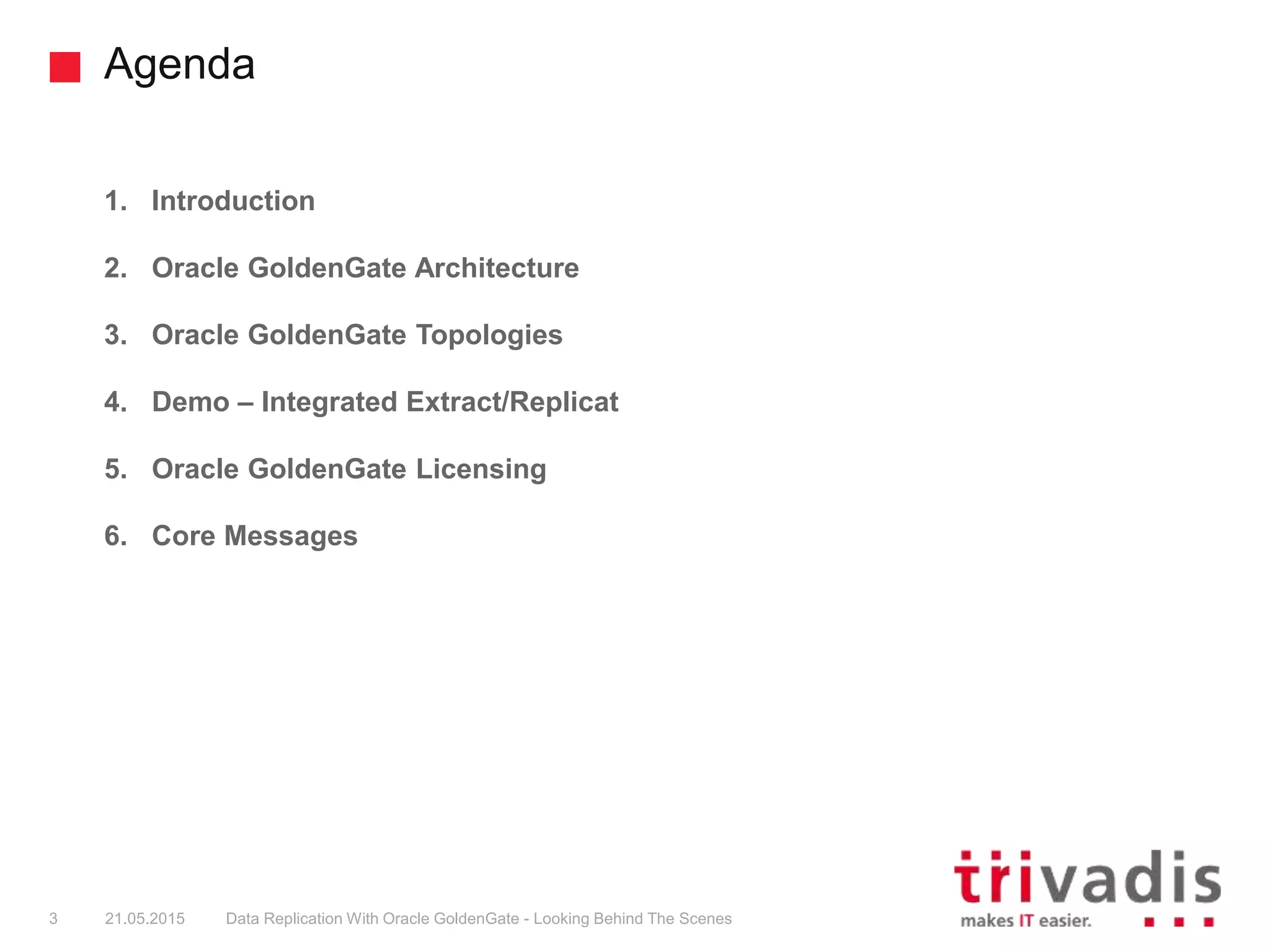

3. Agenda
3
1. Introduction
2. Oracle GoldenGate Architecture
3. Oracle GoldenGate Topologies
4. Demo – Integrated Extract/Replicat
5. Oracle GoldenGate Licensing
6. Core Messages
21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

4. Introduction
4 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

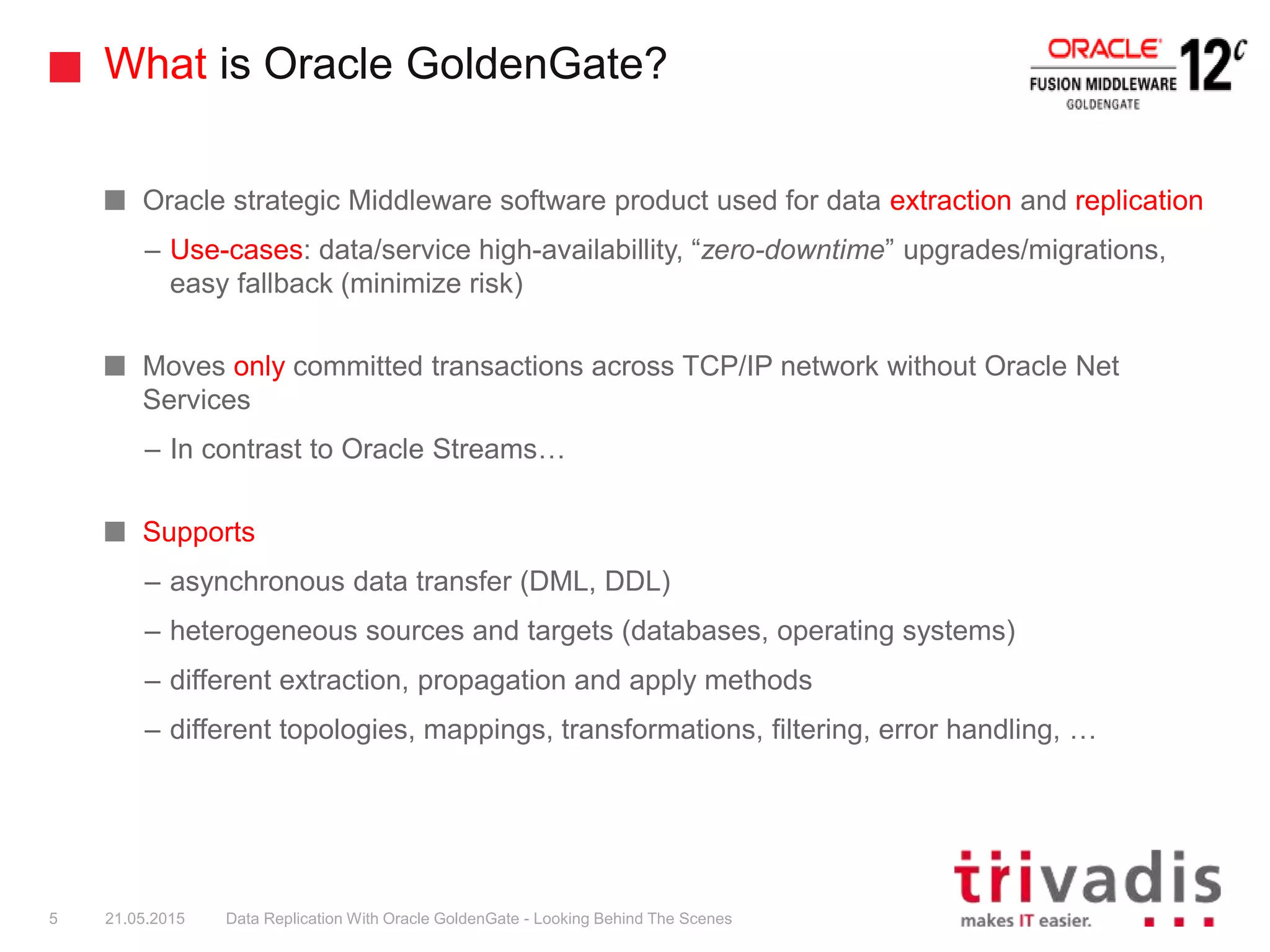

5. What is Oracle GoldenGate?
Oracle strategic Middleware software product used for data extraction and replication
– Use-cases: data/service high-availabillity, “zero-downtime” upgrades/migrations,
easy fallback (minimize risk)
Moves only committed transactions across TCP/IP network without Oracle Net
Services
– In contrast to Oracle Streams…
Supports
– asynchronous data transfer (DML, DDL)
– heterogeneous sources and targets (databases, operating systems)
– different extraction, propagation and apply methods
– different topologies, mappings, transformations, filtering, error handling, …
5 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

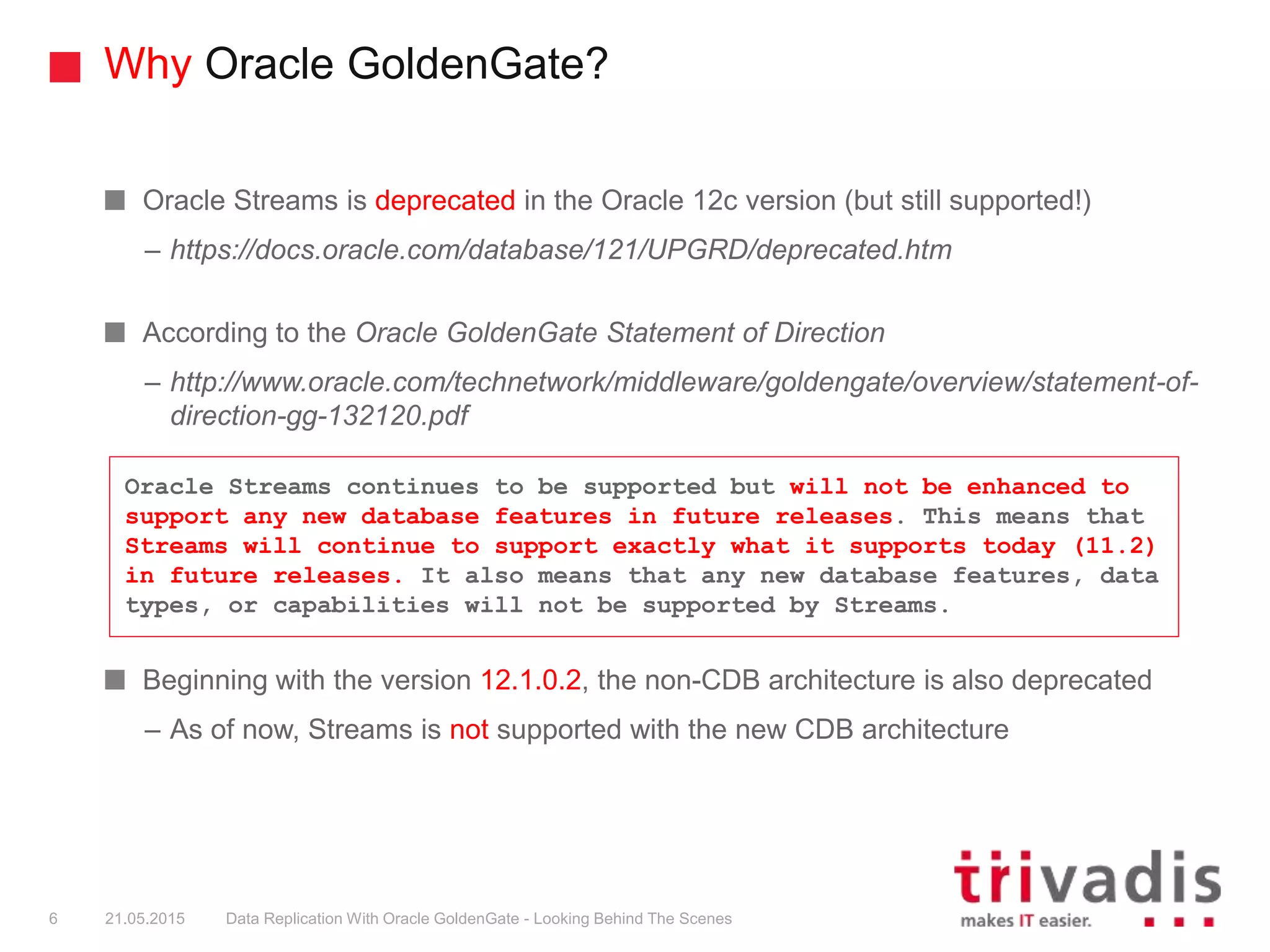

6. Why Oracle GoldenGate?
Oracle Streams is deprecated in the Oracle 12c version (but still supported!)
– https://docs.oracle.com/database/121/UPGRD/deprecated.htm
According to the Oracle GoldenGate Statement of Direction
– http://www.oracle.com/technetwork/middleware/goldengate/overview/statement-of-
direction-gg-132120.pdf
Beginning with the version 12.1.0.2, the non-CDB architecture is also deprecated
– As of now, Streams is not supported with the new CDB architecture
Oracle Streams continues to be supported but will not be enhanced to
support any new database features in future releases. This means that
Streams will continue to support exactly what it supports today (11.2)
in future releases. It also means that any new database features, data
types, or capabilities will not be supported by Streams.
6 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

7. Oracle GoldenGate Architecture
7 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

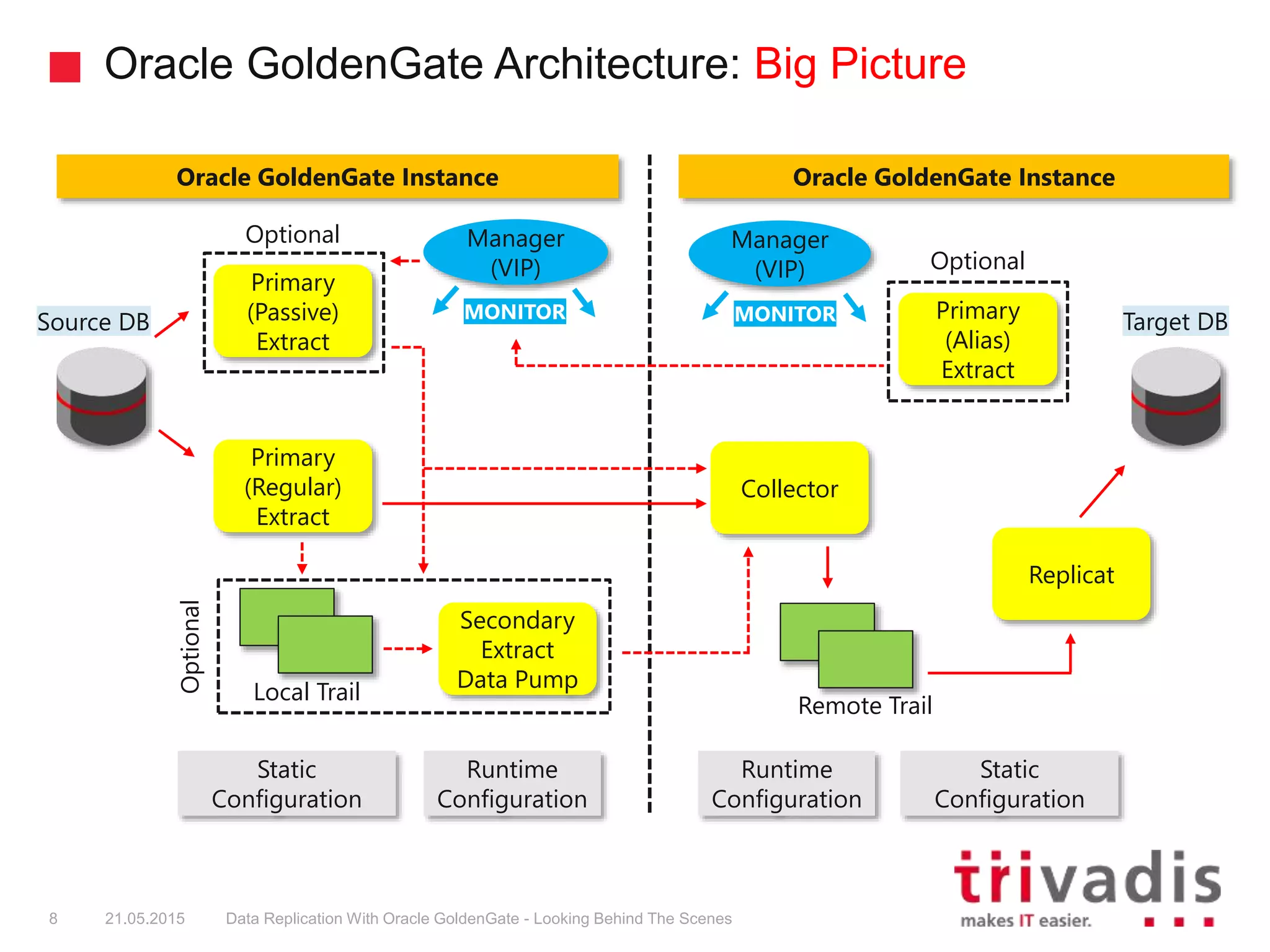

8. Oracle GoldenGate Architecture: Big Picture
8 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
Source DB Target DB
Primary
(Regular)
Extract
Primary
(Passive)
Extract
Secondary
Extract
Data Pump
Collector
Replicat
Local Trail
Remote Trail
Primary
(Alias)
Extract
Optional
Oracle GoldenGate Instance Oracle GoldenGate Instance
Static
Configuration
Runtime
Configuration
Runtime
Configuration
Static
Configuration
Optional
Optional
Manager
(VIP)
Manager
(VIP)
MONITORMONITOR

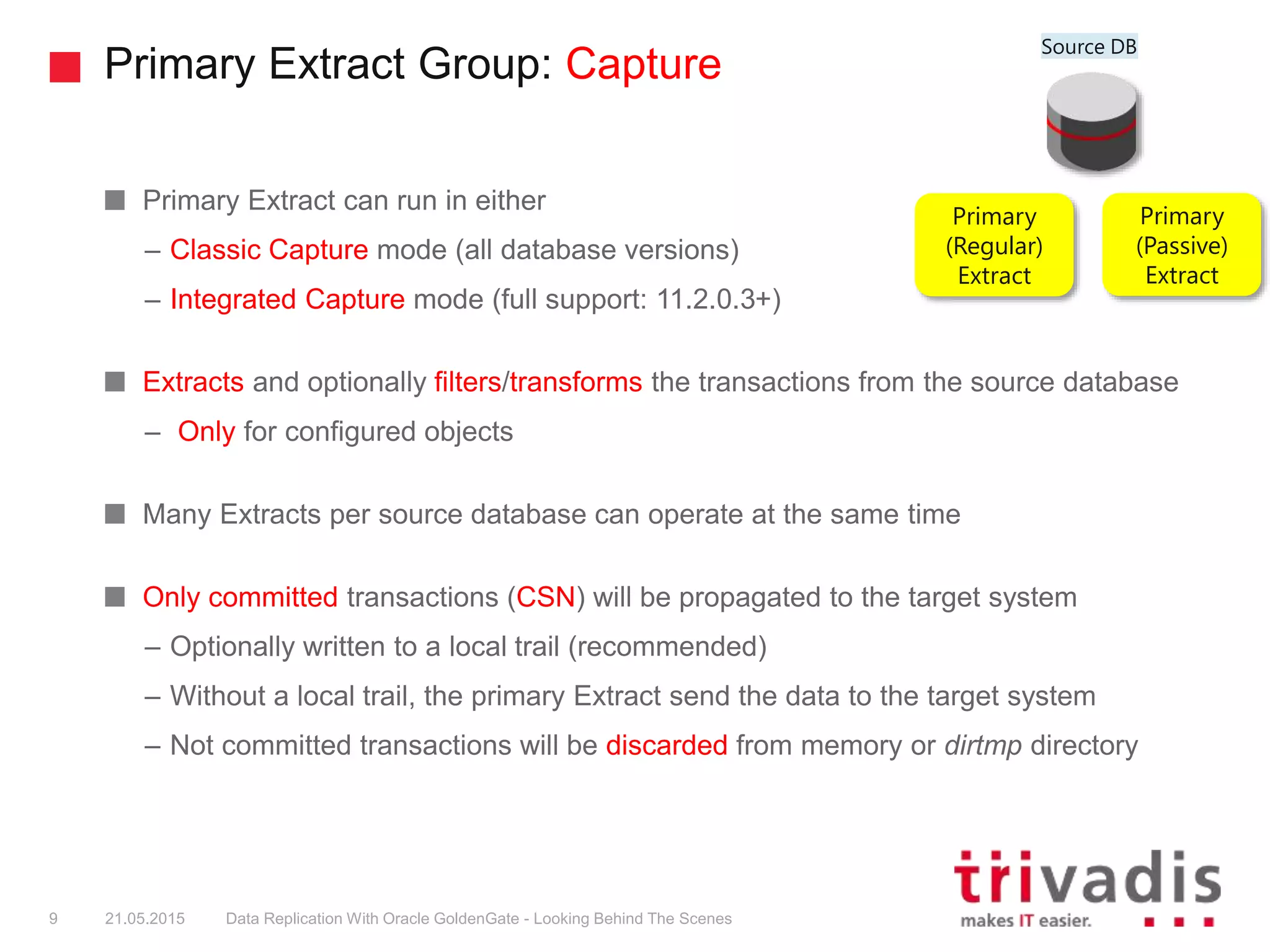

9. Primary Extract Group: Capture
Primary Extract can run in either
– Classic Capture mode (all database versions)
– Integrated Capture mode (full support: 11.2.0.3+)
Extracts and optionally filters/transforms the transactions from the source database
– Only for configured objects
Many Extracts per source database can operate at the same time
Only committed transactions (CSN) will be propagated to the target system
– Optionally written to a local trail (recommended)
– Without a local trail, the primary Extract send the data to the target system
– Not committed transactions will be discarded from memory or dirtmp directory
9
Primary
(Regular)
Extract
Primary
(Passive)
Extract
21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
Source DB

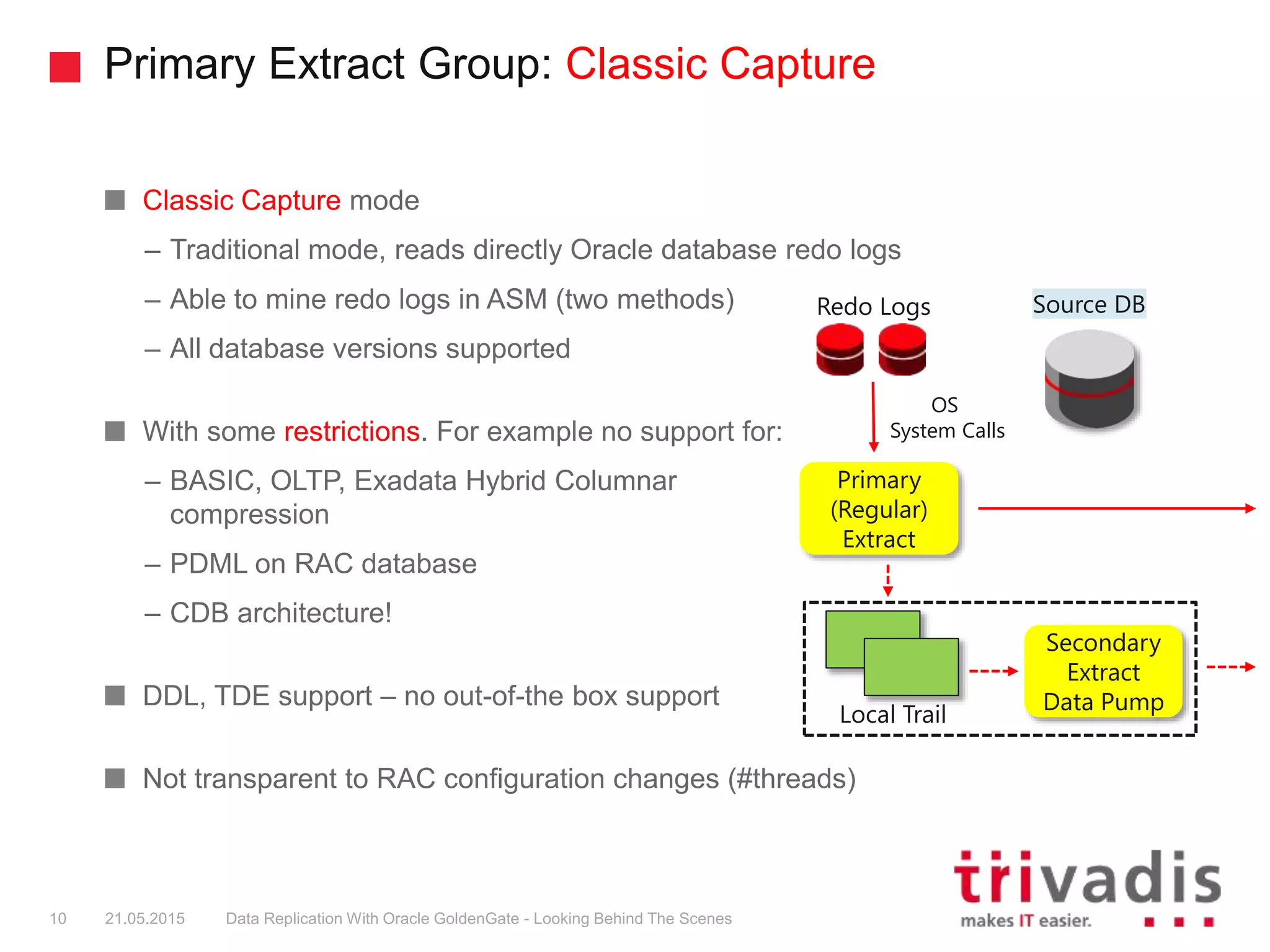

10. Primary Extract Group: Classic Capture
Classic Capture mode
– Traditional mode, reads directly Oracle database redo logs
– Able to mine redo logs in ASM (two methods)
– All database versions supported
With some restrictions. For example no support for:
– BASIC, OLTP, Exadata Hybrid Columnar
compression
– PDML on RAC database
– CDB architecture!
DDL, TDE support – no out-of-the box support
Not transparent to RAC configuration changes (#threads)
10 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
Source DB
Primary
(Regular)
Extract
Secondary
Extract
Data Pump
Local Trail
Redo Logs
OS
System Calls

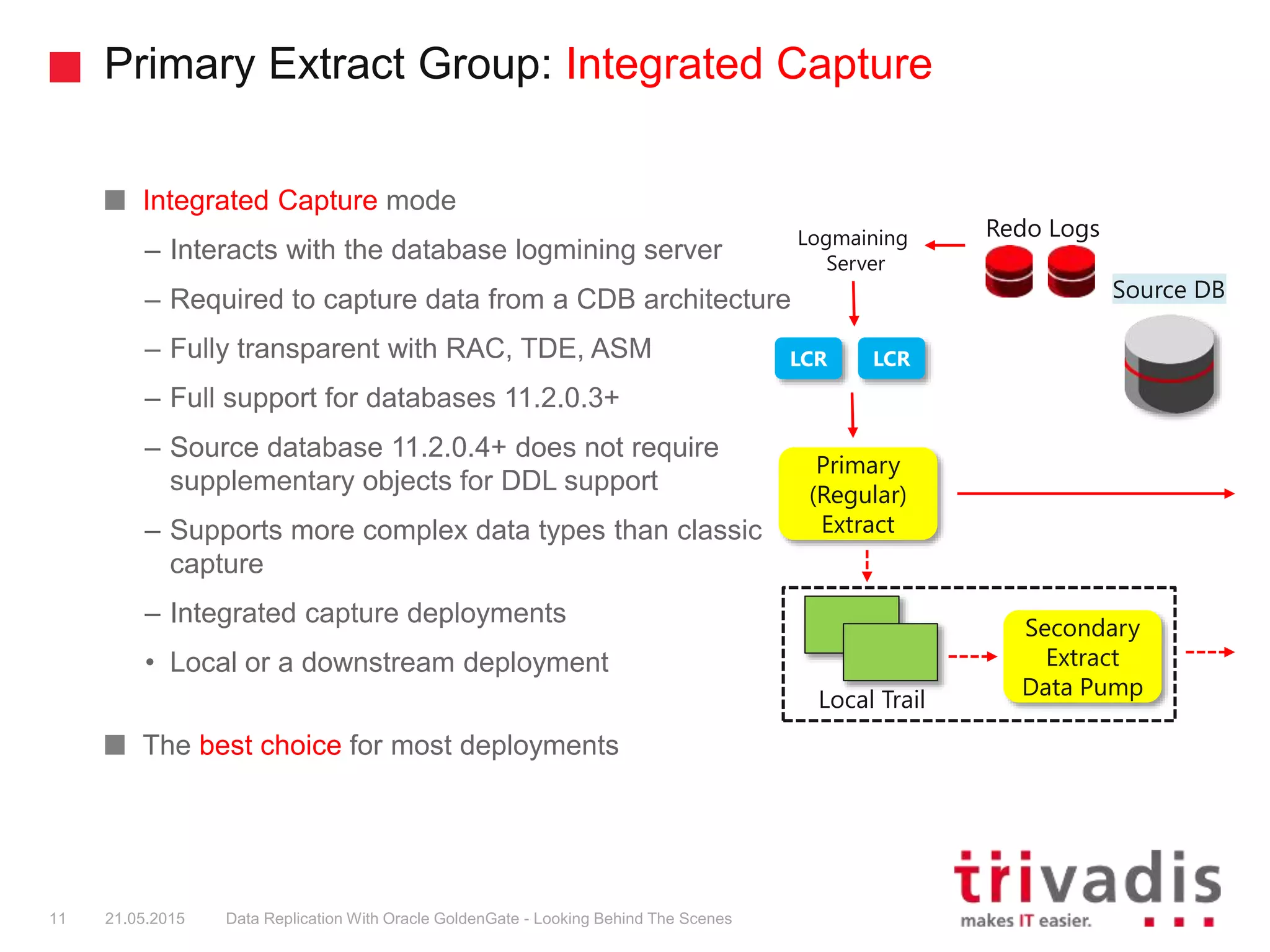

11. Primary Extract Group: Integrated Capture
Integrated Capture mode
– Interacts with the database logmining server
– Required to capture data from a CDB architecture
– Fully transparent with RAC, TDE, ASM
– Full support for databases 11.2.0.3+
– Source database 11.2.0.4+ does not require
supplementary objects for DDL support
– Supports more complex data types than classic
capture
– Integrated capture deployments
• Local or a downstream deployment
The best choice for most deployments
11 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
Source DB
Primary
(Regular)
Extract
Secondary
Extract
Data Pump
Local Trail
Redo LogsLogmaining
Server
LCR LCR

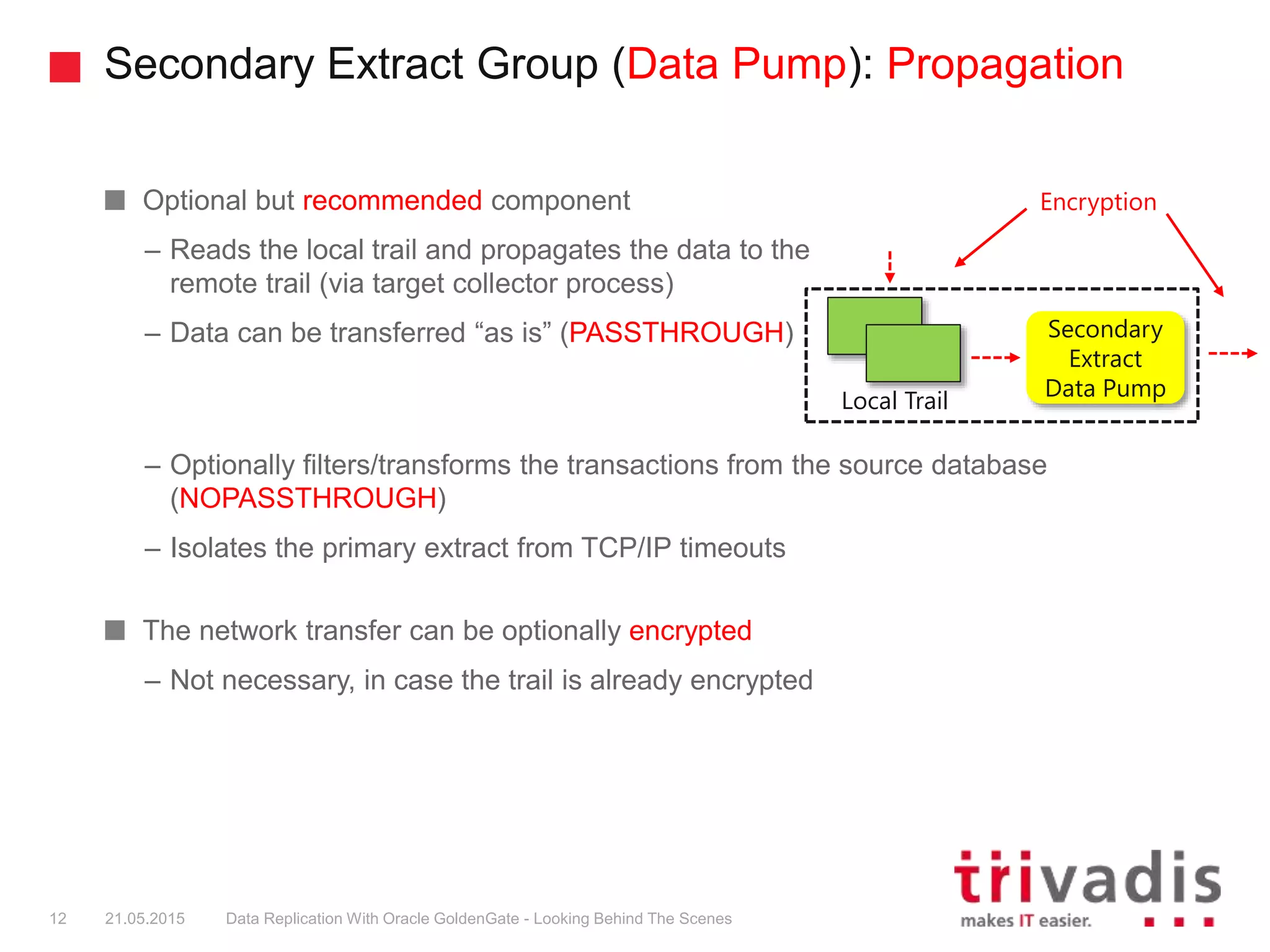

12. Secondary Extract Group (Data Pump): Propagation
Optional but recommended component
– Reads the local trail and propagates the data to the
remote trail (via target collector process)
– Data can be transferred “as is” (PASSTHROUGH)
– Optionally filters/transforms the transactions from the source database
(NOPASSTHROUGH)
– Isolates the primary extract from TCP/IP timeouts
The network transfer can be optionally encrypted
– Not necessary, in case the trail is already encrypted
12 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
Encryption
Secondary
Extract
Data Pump
Local Trail

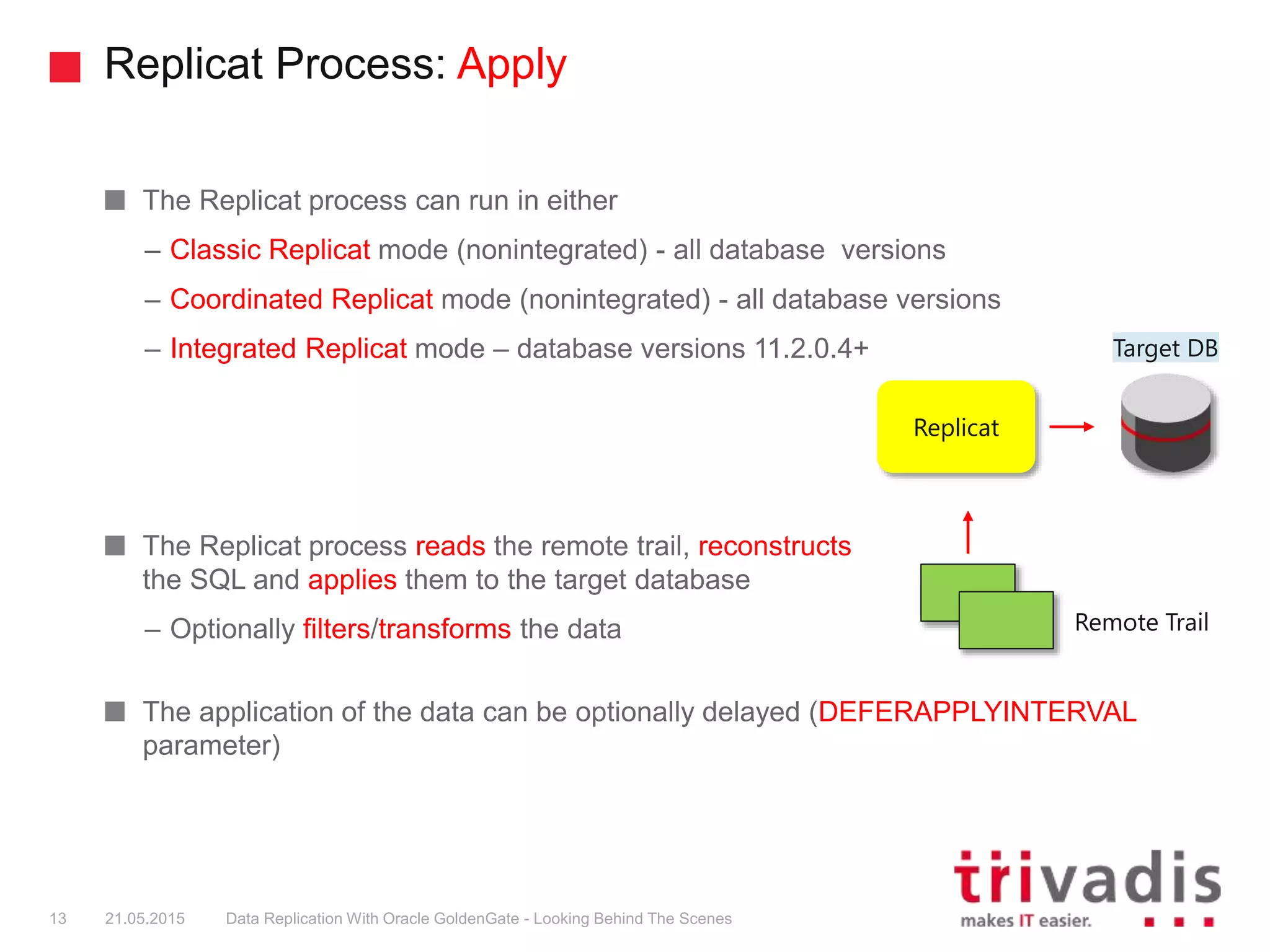

13. Replicat Process: Apply
The Replicat process can run in either
– Classic Replicat mode (nonintegrated) - all database versions
– Coordinated Replicat mode (nonintegrated) - all database versions
– Integrated Replicat mode – database versions 11.2.0.4+
The Replicat process reads the remote trail, reconstructs
the SQL and applies them to the target database
– Optionally filters/transforms the data
The application of the data can be optionally delayed (DEFERAPPLYINTERVAL
parameter)
13 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
Target DB
Replicat
Remote Trail

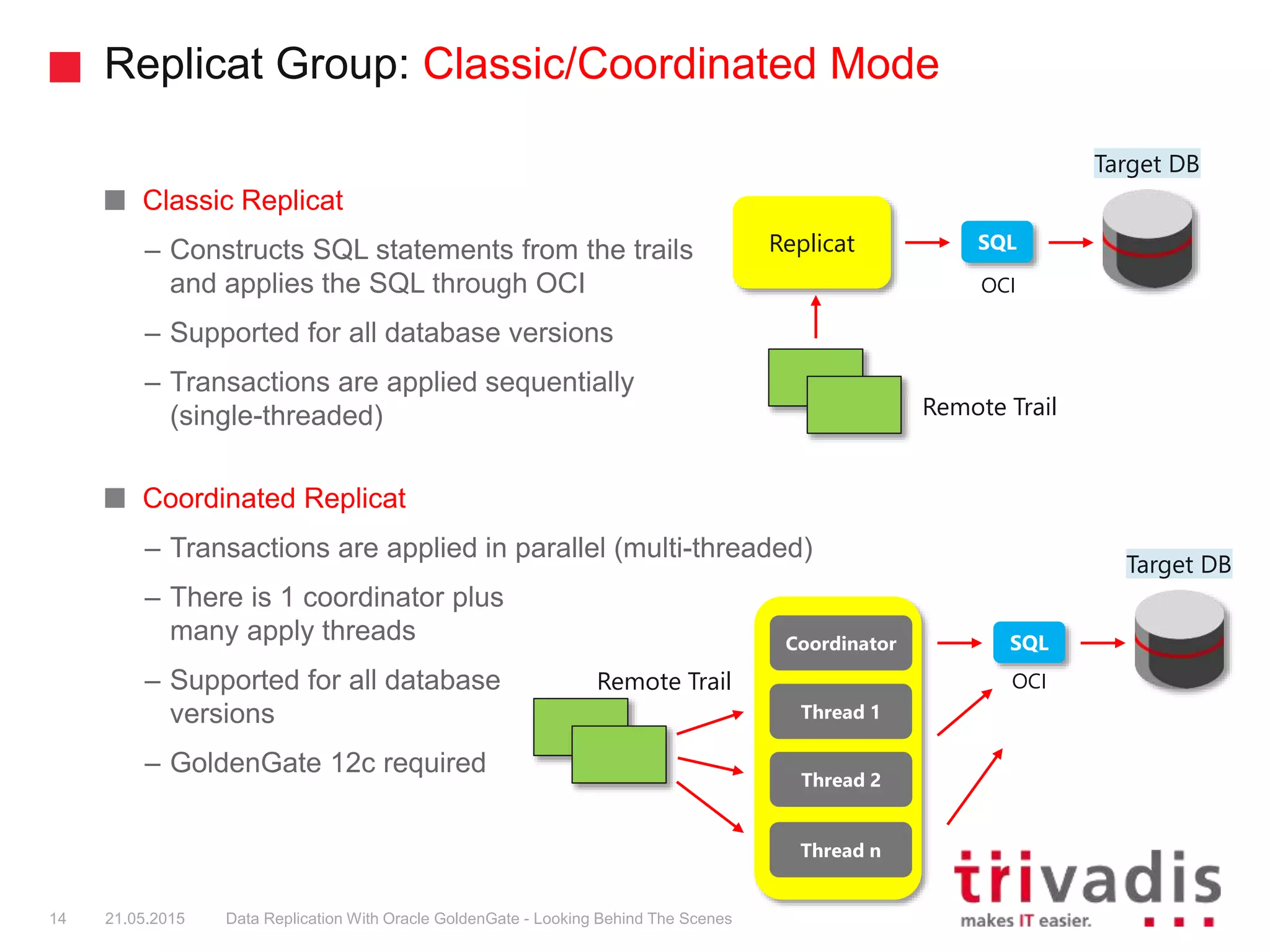

14. Replicat Group: Classic/Coordinated Mode
Classic Replicat
– Constructs SQL statements from the trails
and applies the SQL through OCI
– Supported for all database versions
– Transactions are applied sequentially
(single-threaded)
Coordinated Replicat
– Transactions are applied in parallel (multi-threaded)
– There is 1 coordinator plus
many apply threads
– Supported for all database
versions
– GoldenGate 12c required
14 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
OCI
SQL
Target DB
Replicat
Remote Trail
OCI
SQL
Target DB
Remote Trail
Coordinator
Thread 1
Thread 2
Thread n

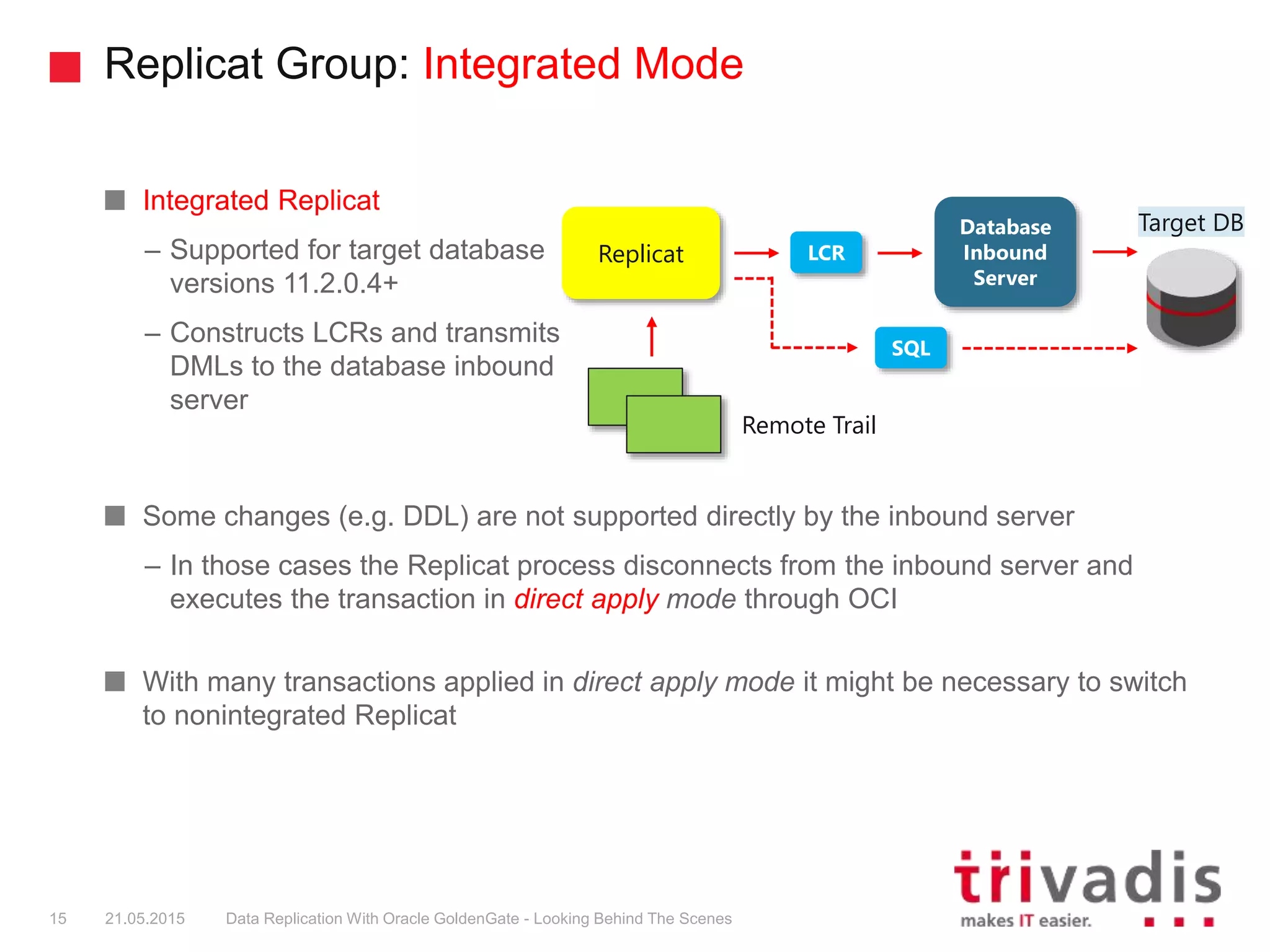

15. Replicat Group: Integrated Mode
Integrated Replicat
– Supported for target database
versions 11.2.0.4+
– Constructs LCRs and transmits
DMLs to the database inbound
server
Some changes (e.g. DDL) are not supported directly by the inbound server
– In those cases the Replicat process disconnects from the inbound server and
executes the transaction in direct apply mode through OCI
With many transactions applied in direct apply mode it might be necessary to switch
to nonintegrated Replicat
15 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
LCR
Target DB
Replicat
Remote Trail
Database
Inbound
Server
SQL

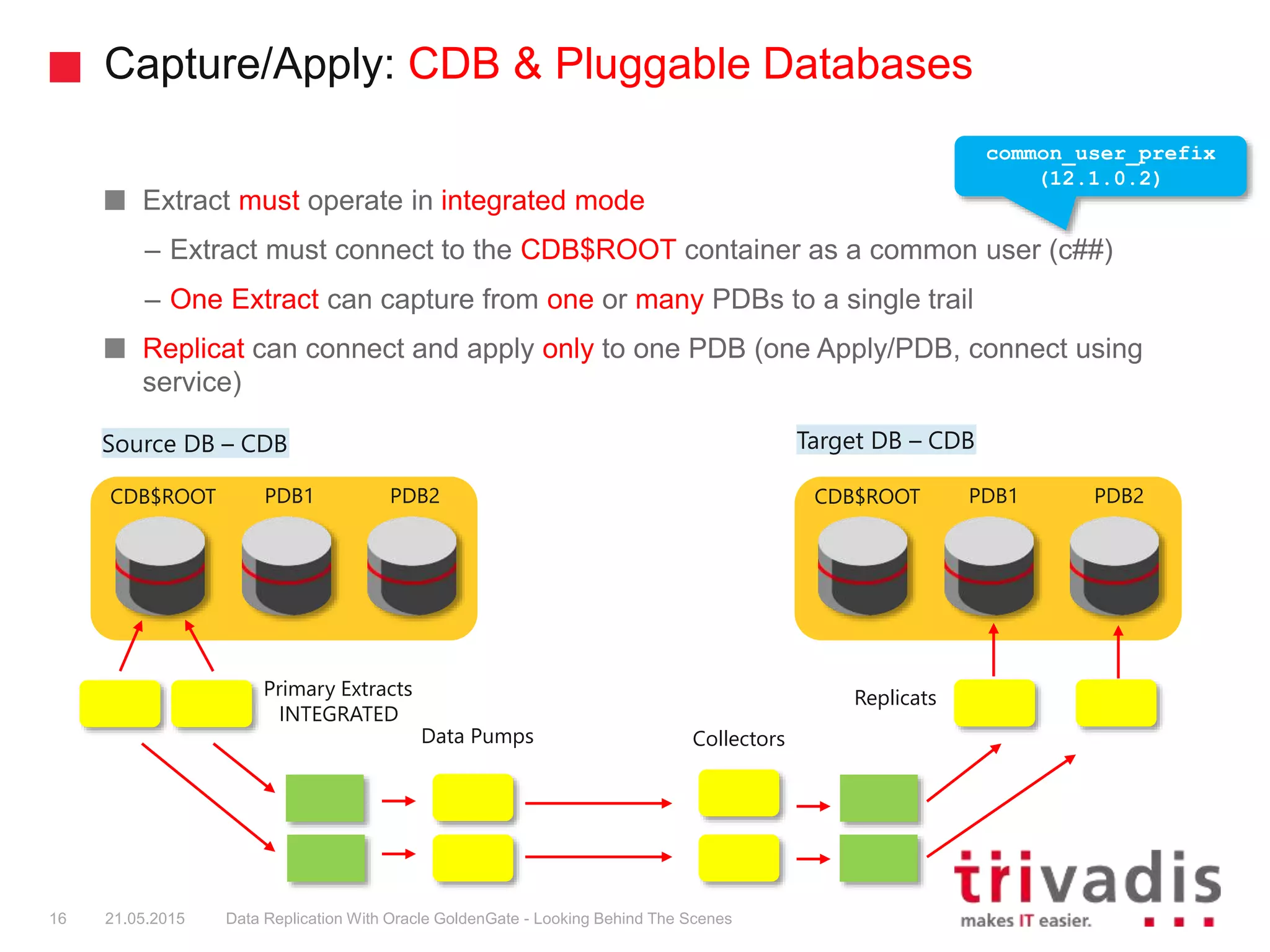

16. Capture/Apply: CDB & Pluggable Databases
Extract must operate in integrated mode
– Extract must connect to the CDB$ROOT container as a common user (c##)
– One Extract can capture from one or many PDBs to a single trail
Replicat can connect and apply only to one PDB (one Apply/PDB, connect using
service)
Source DB – CDB
CDB$ROOT PDB1 PDB2
Target DB – CDB
CDB$ROOT PDB1 PDB2
Primary Extracts
INTEGRATED
Data Pumps Collectors
Replicats
16 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
common_user_prefix
(12.1.0.2)

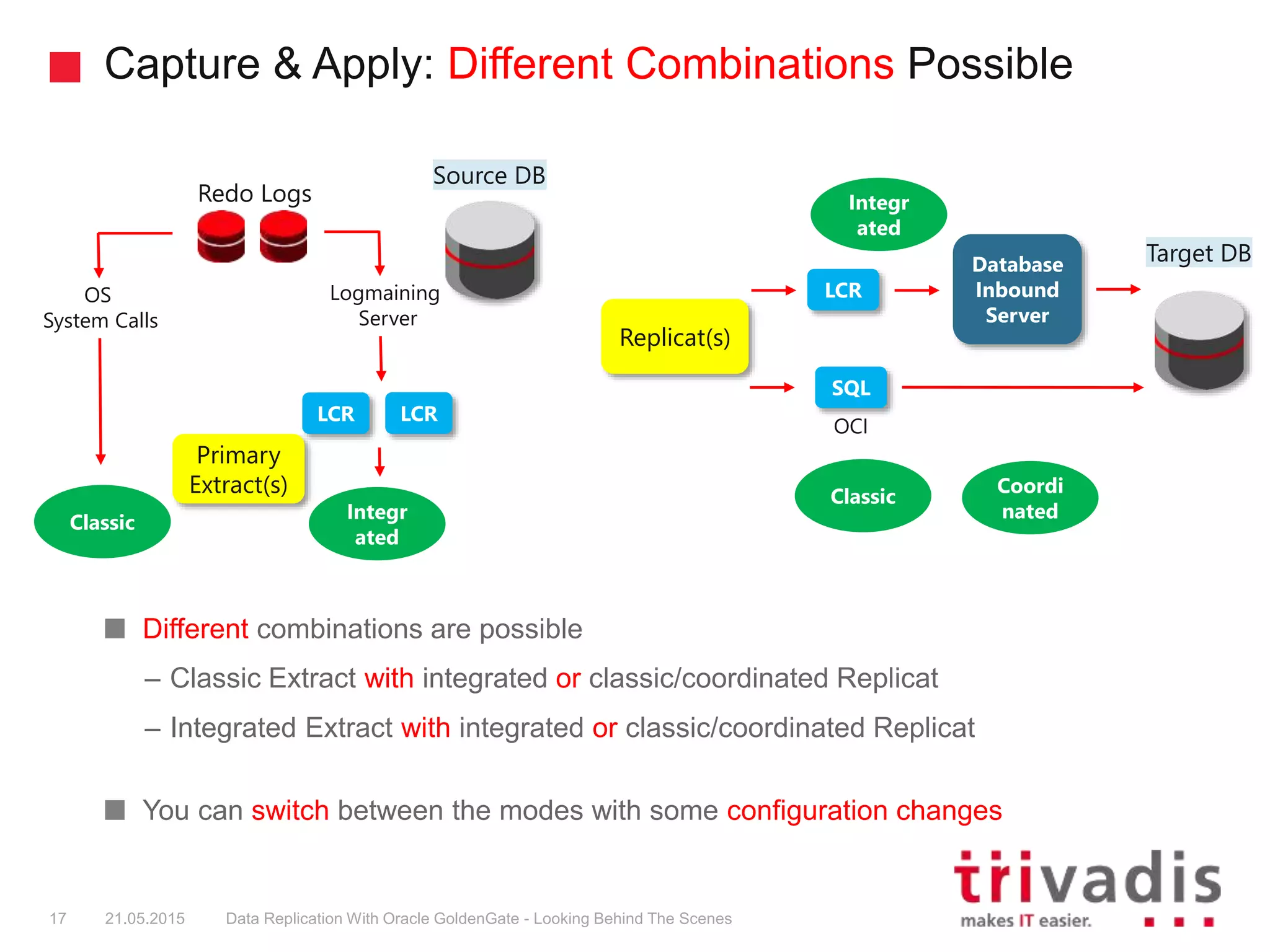

17. Capture & Apply: Different Combinations Possible
Different combinations are possible
– Classic Extract with integrated or classic/coordinated Replicat
– Integrated Extract with integrated or classic/coordinated Replicat
You can switch between the modes with some configuration changes
17 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
Source DB
Redo Logs
Logmaining
Server
LCR LCR
LCR
Target DB
Replicat(s)
Database
Inbound
Server
OS
System Calls
Primary
Extract(s)
OCI
SQL
Classic
Integr
ated
Integr
ated
Classic
Coordi
nated

18. Oracle GoldenGate Topologies
18 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

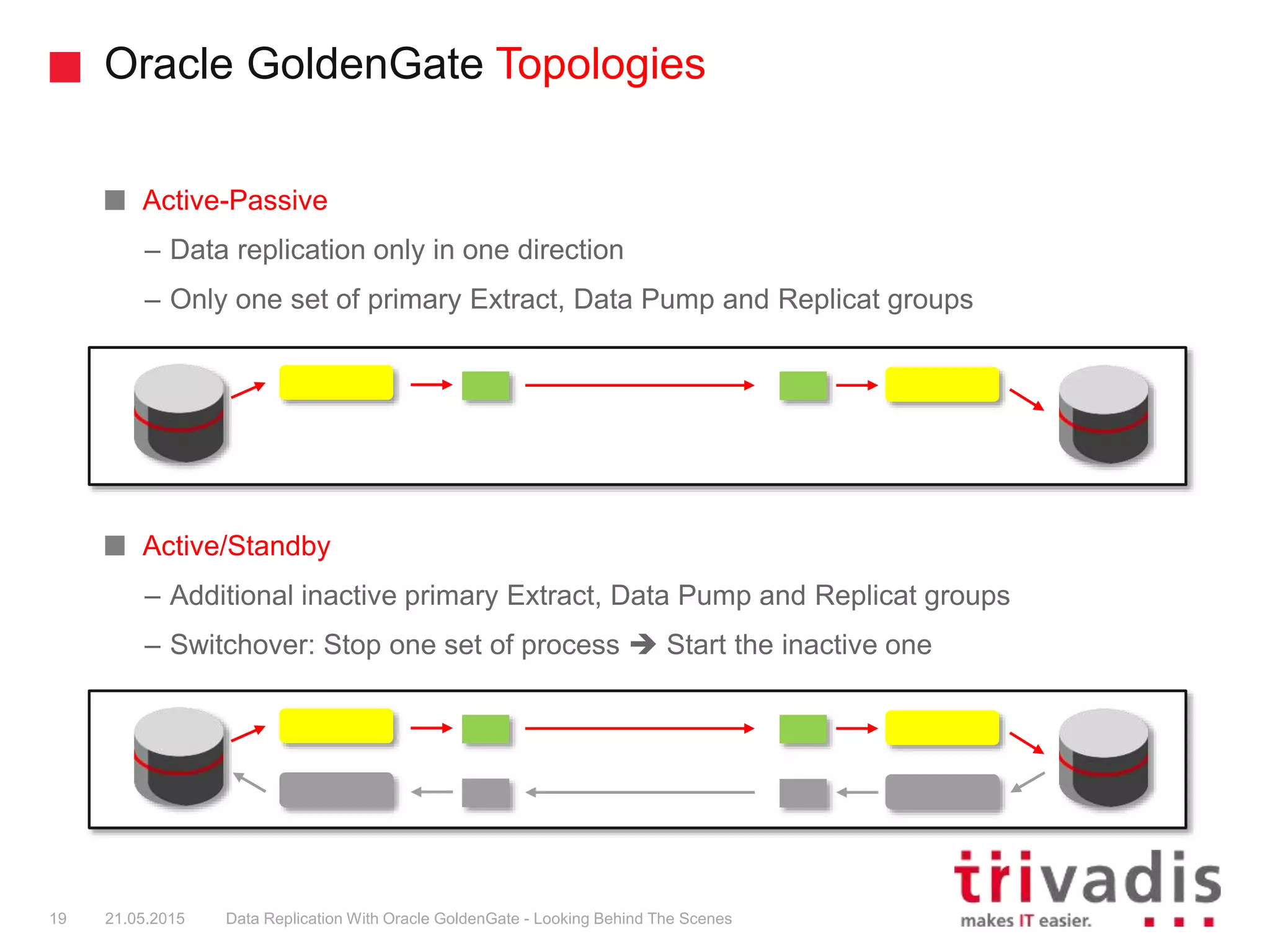

19. Oracle GoldenGate Topologies
Active-Passive
– Data replication only in one direction
– Only one set of primary Extract, Data Pump and Replicat groups
Active/Standby
– Additional inactive primary Extract, Data Pump and Replicat groups
– Switchover: Stop one set of process  Start the inactive one
19 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

20. Oracle GoldenGate Topologies

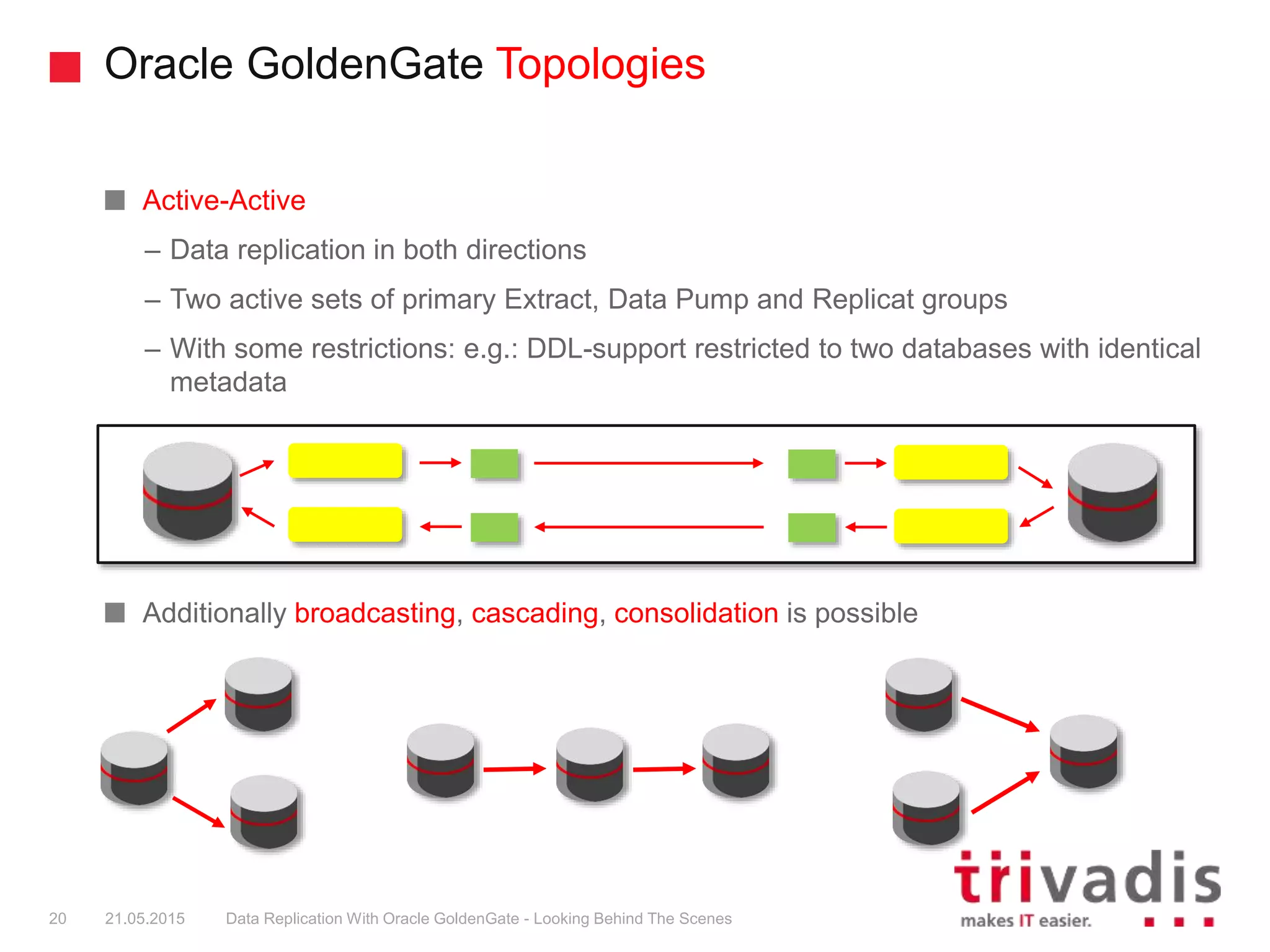

Active-Active
– Data replication in both directions
– Two active sets of primary Extract, Data Pump and Replicat groups
– With some restrictions: e.g.: DDL-support restricted to two databases with identical
metadata
Additionally broadcasting, cascading, consolidation is possible
20 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

21. Demo – Integrated Extract/Replicat
21 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

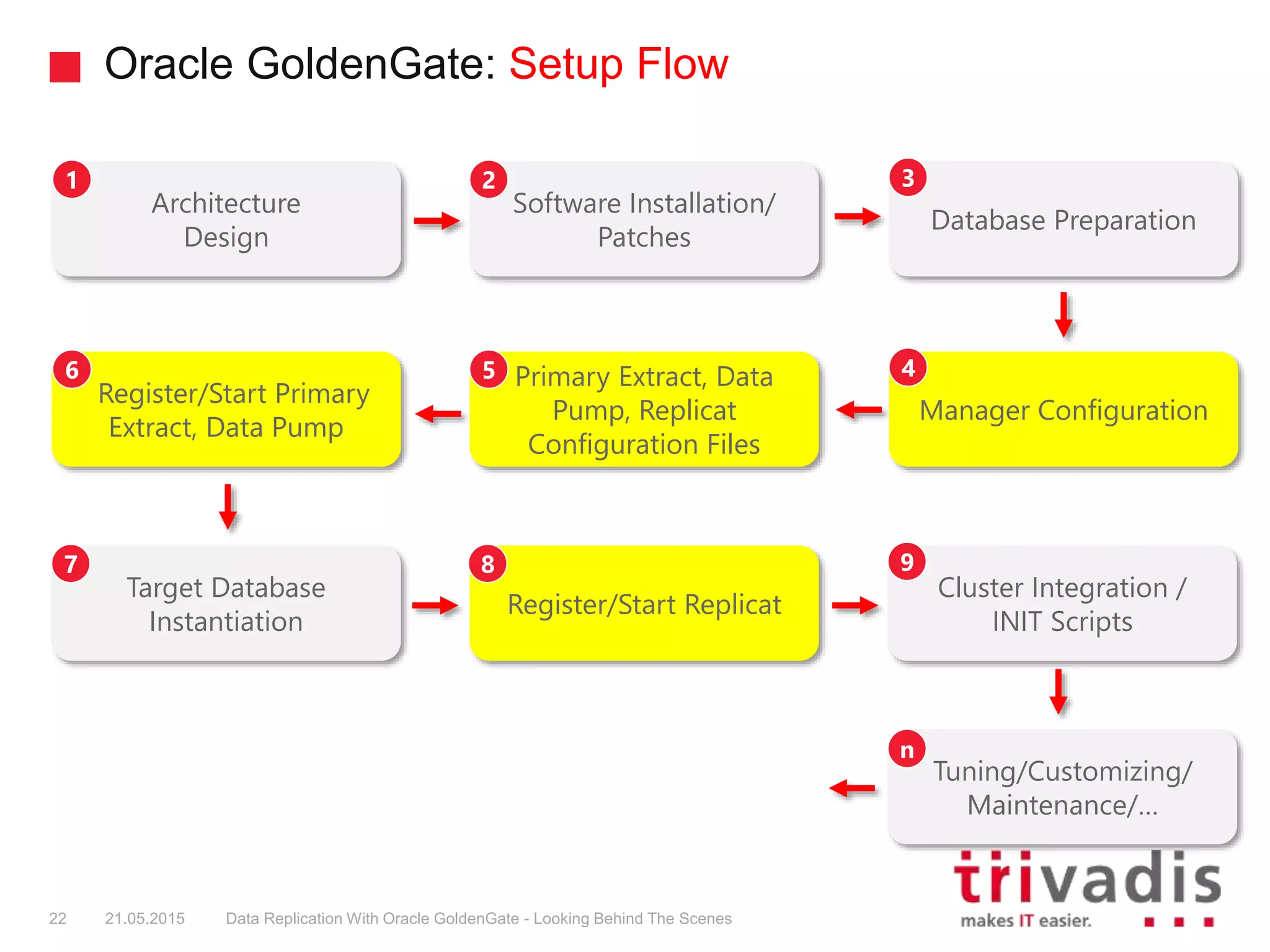

22. Oracle GoldenGate: Setup Flow
22 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
Architecture
Design
Software Installation/
Patches
Database Preparation
Manager Configuration
Primary Extract, Data
Pump, Replicat
Configuration Files
Target Database
Instantiation
Register/Start Primary
Extract, Data Pump
Register/Start Replicat
Cluster Integration /
INIT Scripts
Tuning/Customizing/
Maintenance/…
1 2 3
6 5 4
7 8 9
n

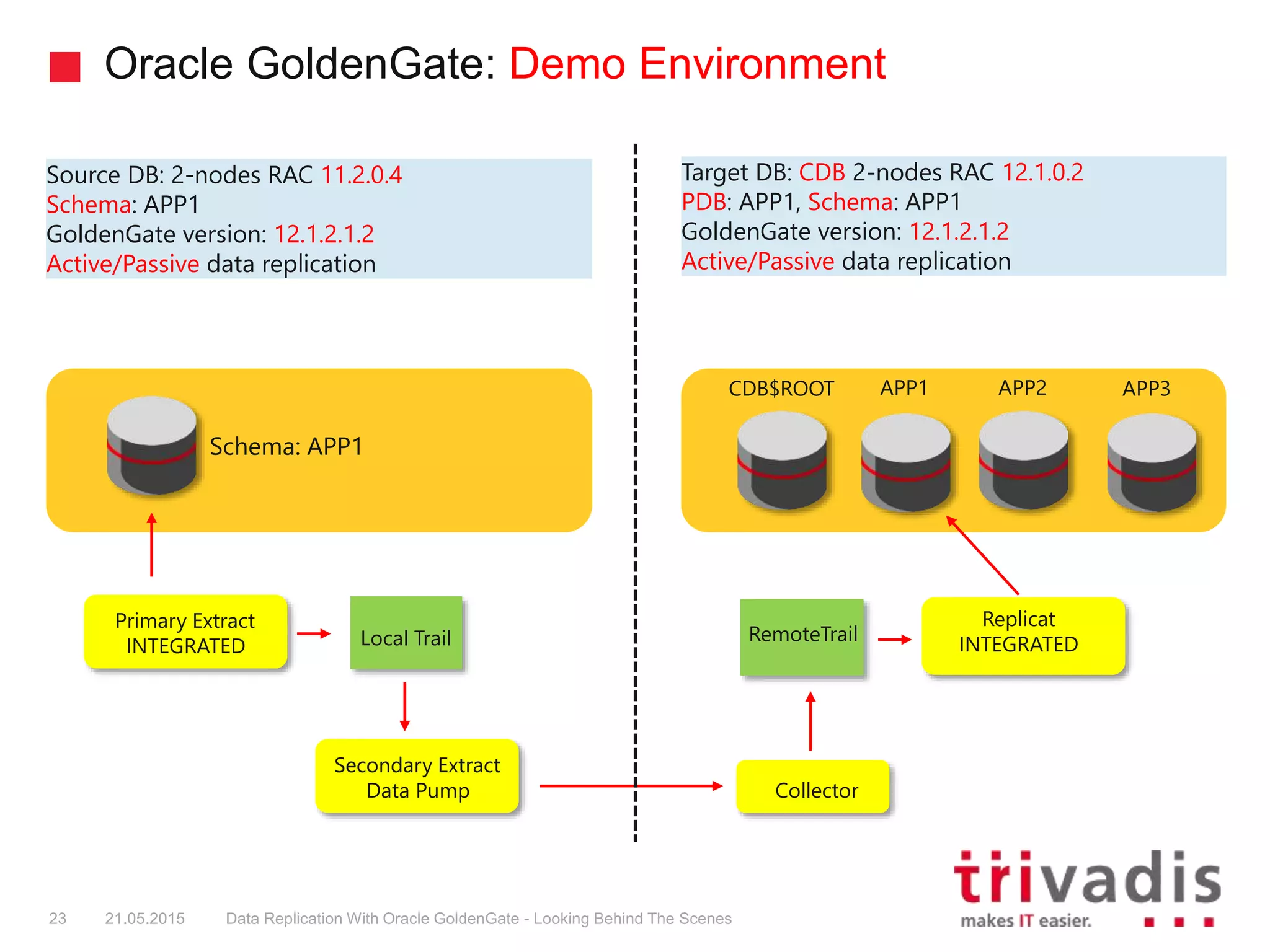

23. Oracle GoldenGate: Demo Environment
23 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
Source DB: 2-nodes RAC 11.2.0.4
Schema: APP1
GoldenGate version: 12.1.2.1.2
Active/Passive data replication
CDB$ROOT APP1 APP2
Primary Extract
INTEGRATED
Target DB: CDB 2-nodes RAC 12.1.0.2
PDB: APP1, Schema: APP1
GoldenGate version: 12.1.2.1.2
Active/Passive data replication
APP3
Schema: APP1
Local Trail
Secondary Extract
Data Pump
RemoteTrail
Collector
Replicat
INTEGRATED

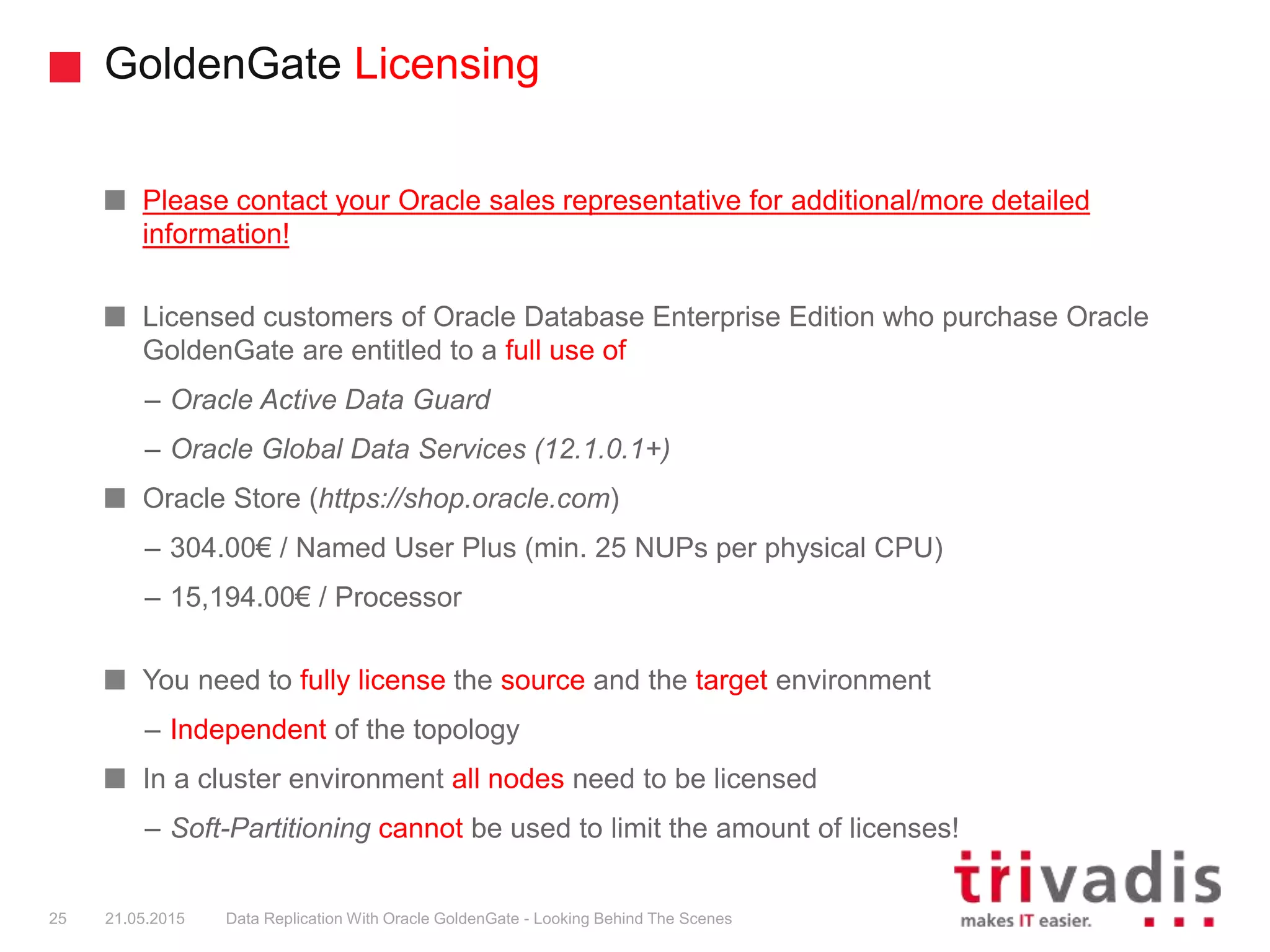

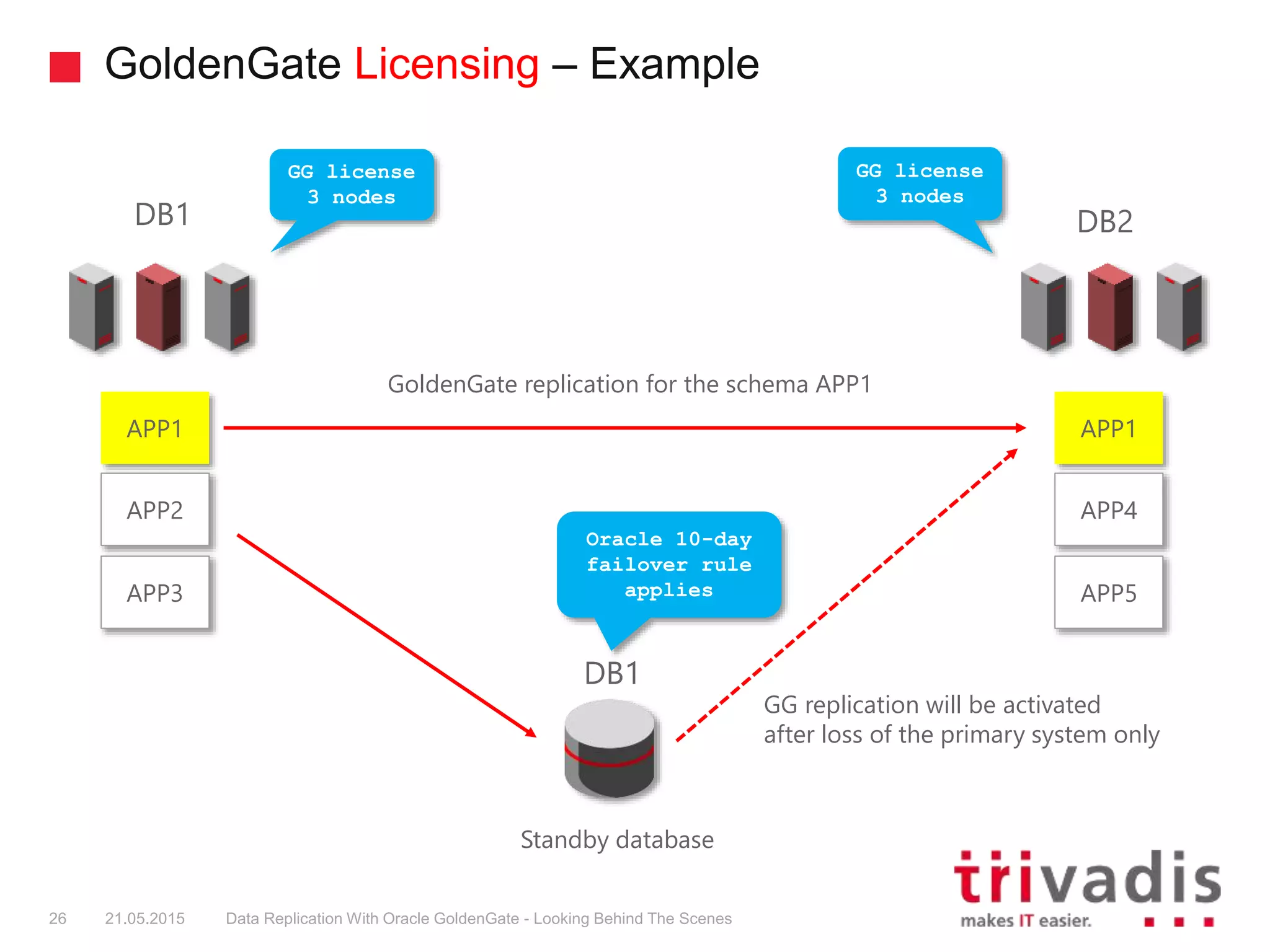

24. Licensing
24 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

25. GoldenGate Licensing
Please contact your Oracle sales representative for additional/more detailed
information!
Licensed customers of Oracle Database Enterprise Edition who purchase Oracle
GoldenGate are entitled to a full use of
– Oracle Active Data Guard
– Oracle Global Data Services (12.1.0.1+)
Oracle Store (https://shop.oracle.com)
– 304.00€ / Named User Plus (min. 25 NUPs per physical CPU)
– 15,194.00€ / Processor
You need to fully license the source and the target environment
– Independent of the topology
In a cluster environment all nodes need to be licensed
– Soft-Partitioning cannot be used to limit the amount of licenses!
25 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

26. GoldenGate Licensing – Example
26 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
DB1 DB2
APP1
APP2
APP3
APP1
APP4
APP5
GoldenGate replication for the schema APP1
DB1
Standby database
GG replication will be activated
after loss of the primary system only
GG license
3 nodes
GG license
3 nodes
Oracle 10-day
failover rule
applies

27. Core Messages
27 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

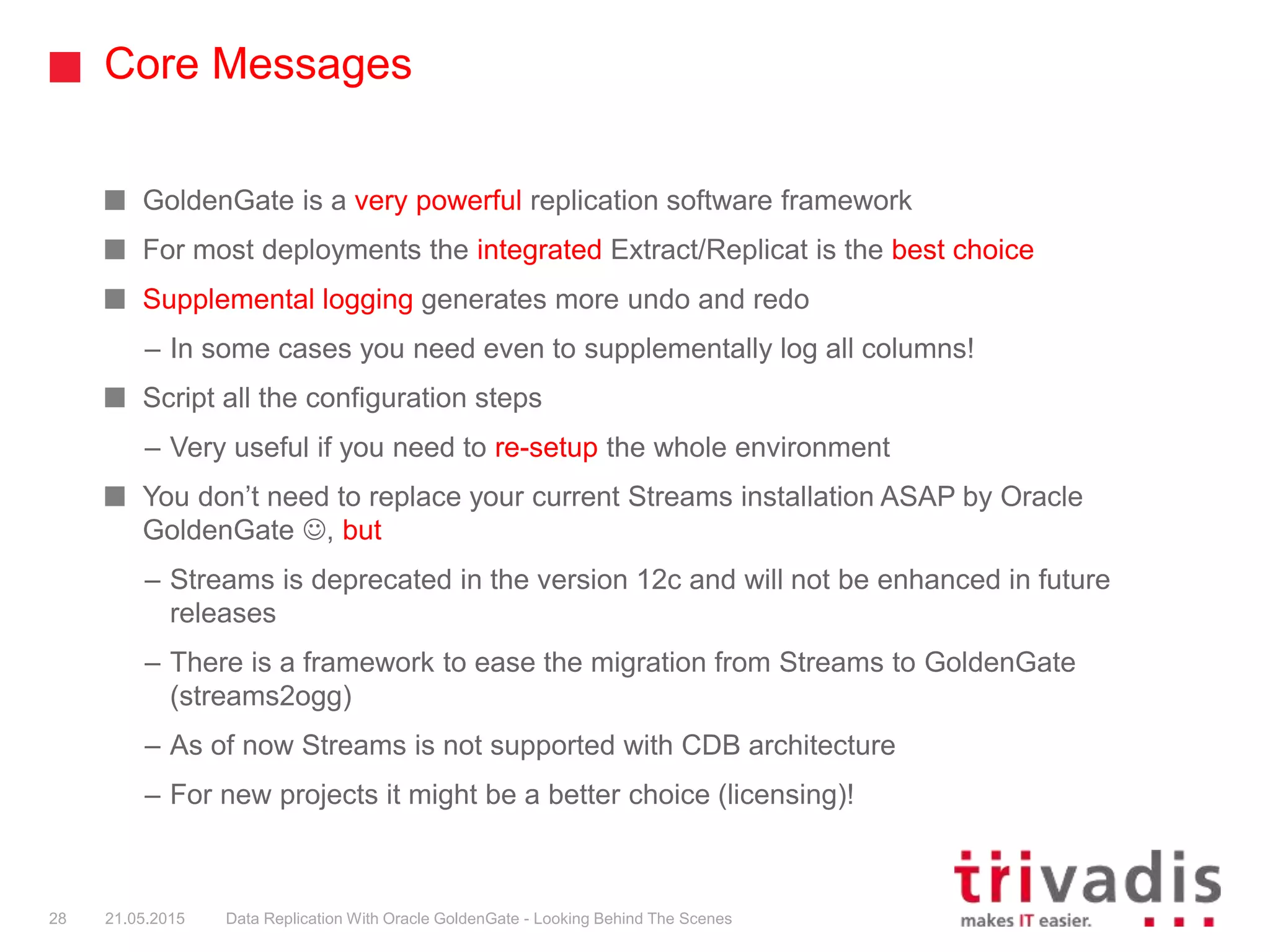

28. Core Messages
GoldenGate is a very powerful replication software framework
For most deployments the integrated Extract/Replicat is the best choice
Supplemental logging generates more undo and redo
– In some cases you need even to supplementally log all columns!
Script all the configuration steps
– Very useful if you need to re-setup the whole environment
You don’t need to replace your current Streams installation ASAP by Oracle
GoldenGate , but
– Streams is deprecated in the version 12c and will not be enhanced in future
releases
– There is a framework to ease the migration from Streams to GoldenGate
(streams2ogg)
– As of now Streams is not supported with CDB architecture
– For new projects it might be a better choice (licensing)!
28 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes

29. Questions and answers…
Robert Bialek
Principal Consultant
Partner
Tel. +49 89 99275930
robert.bialek@trivadis.com
29 21.05.2015 Data Replication With Oracle GoldenGate - Looking Behind The Scenes
