4100 1998 r2016
•
9 likes•5,964 views

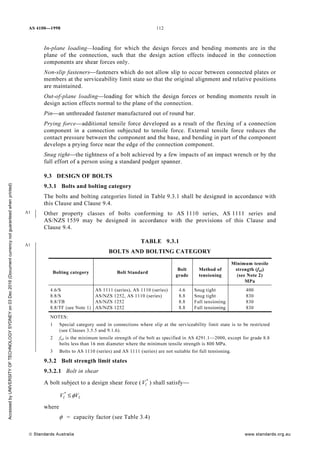

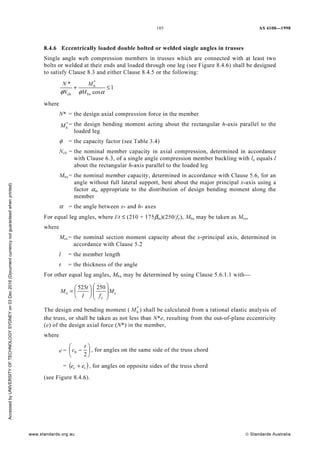

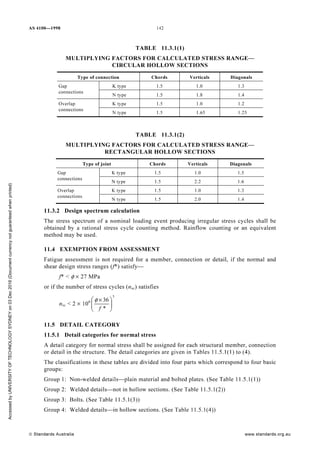

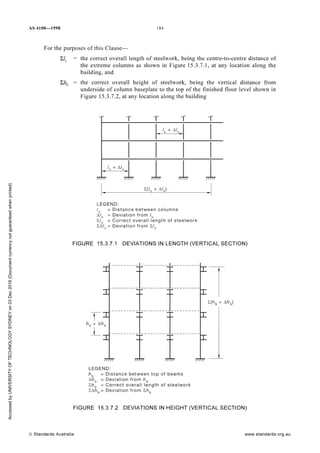

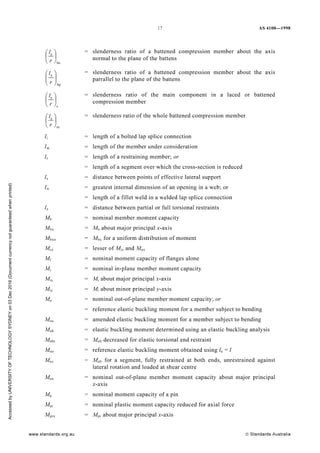

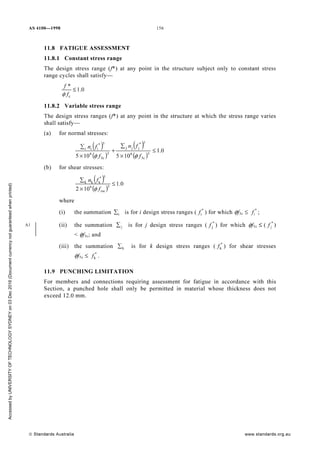

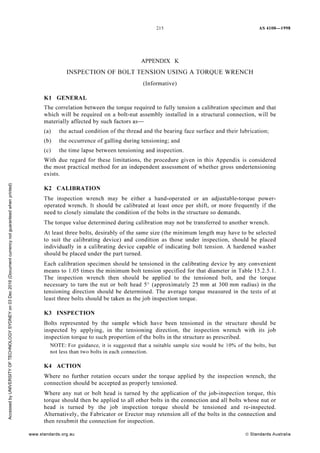

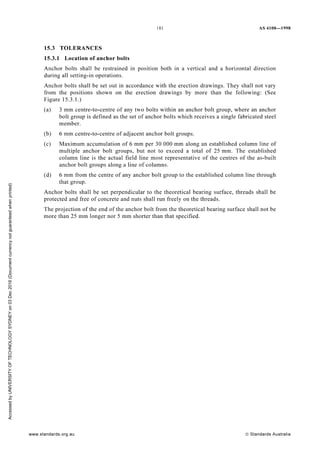

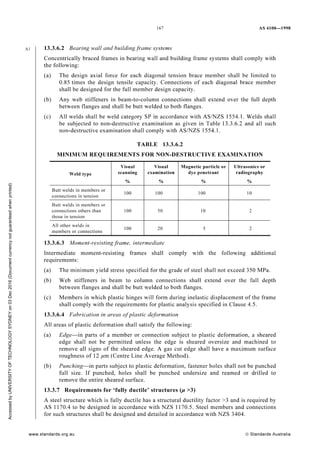

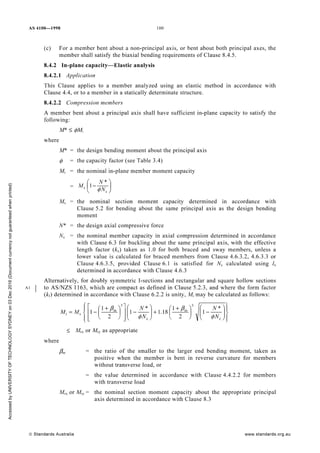

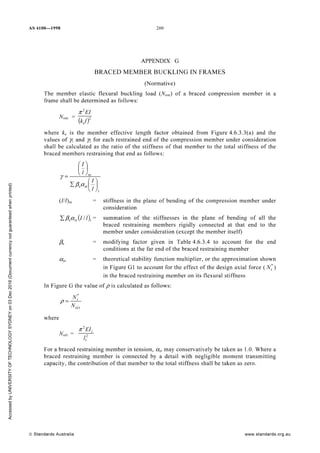

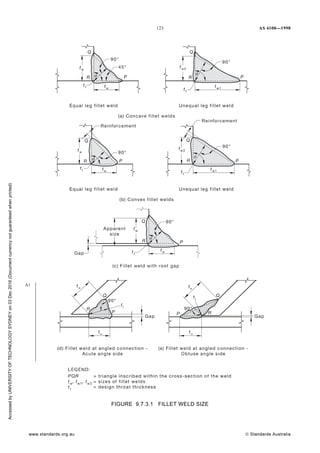

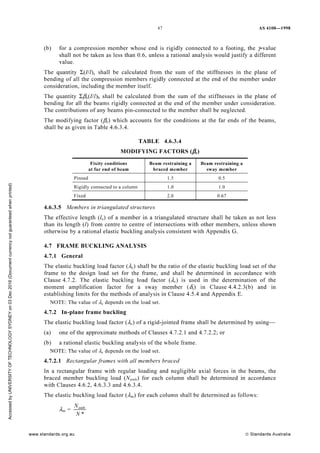

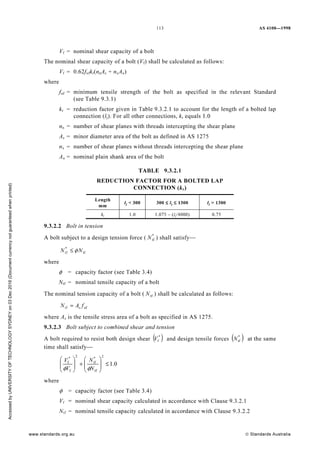

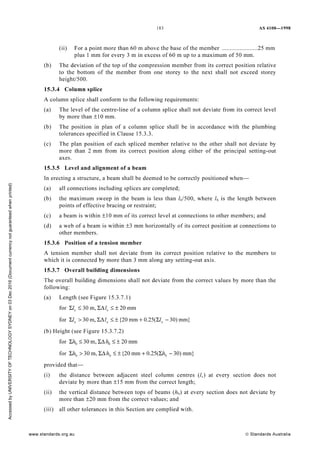

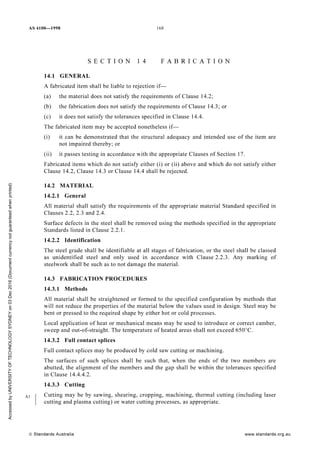

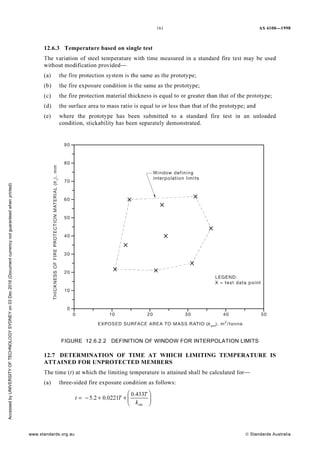

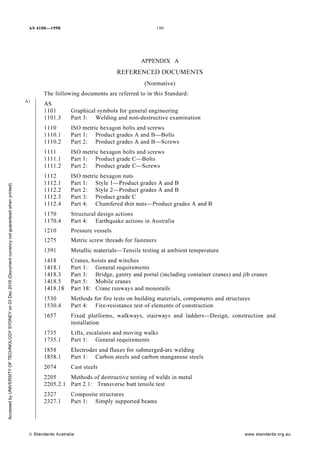

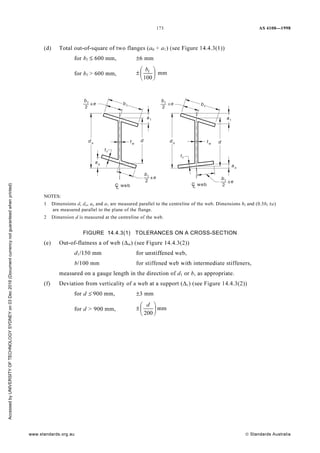

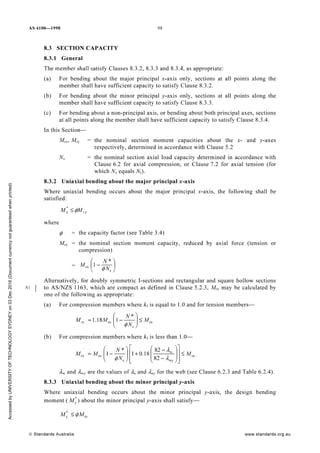

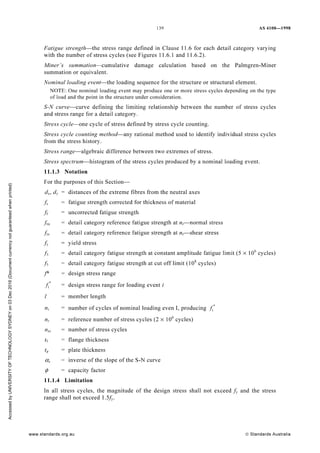

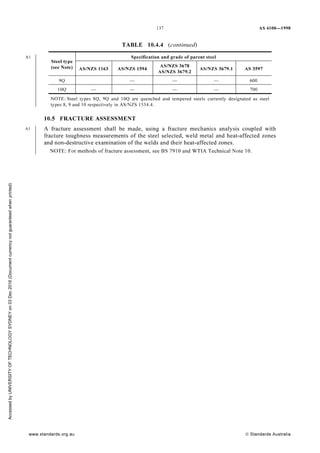

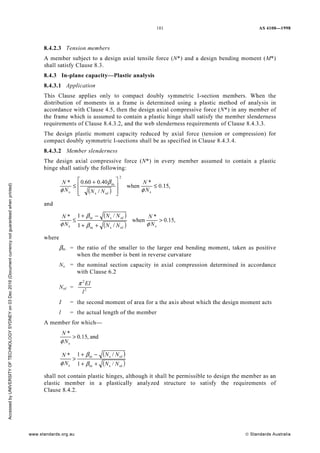

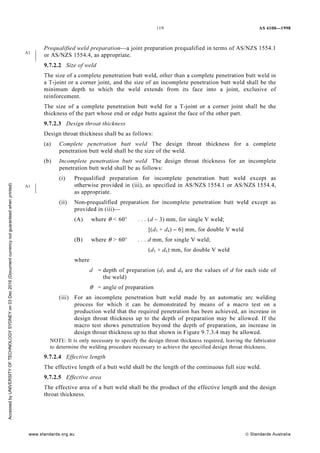

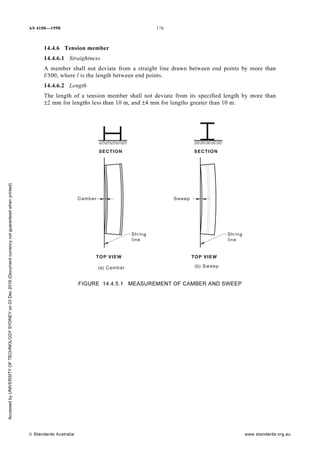

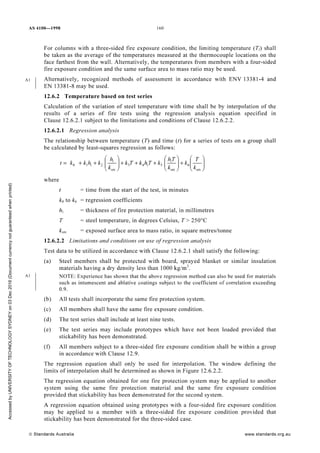

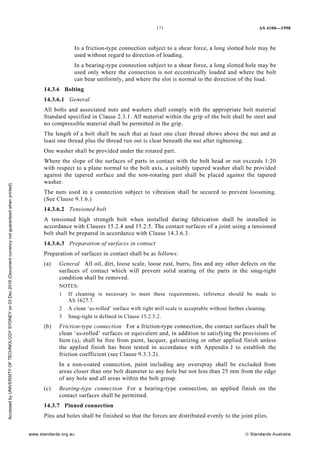

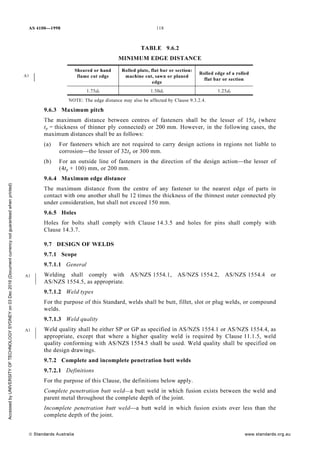

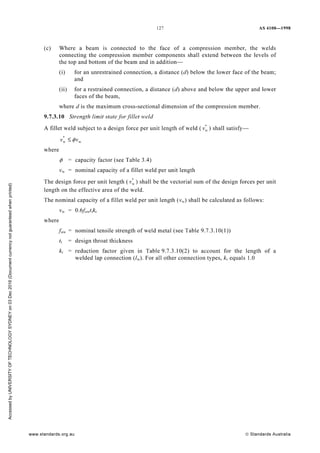

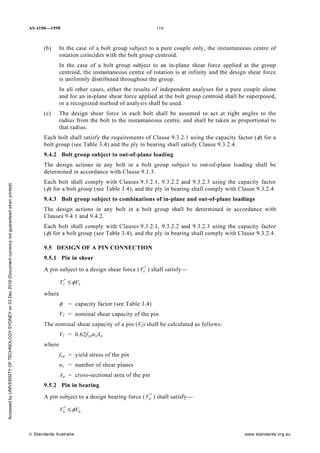

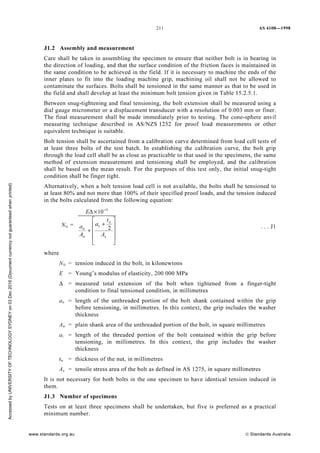

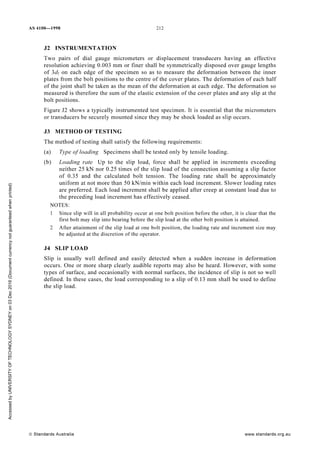

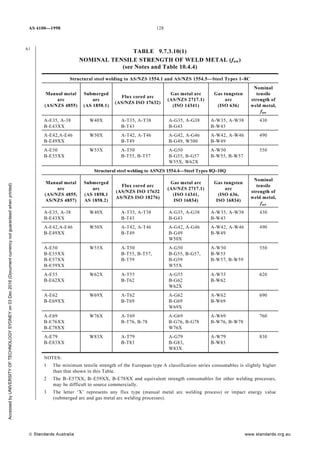

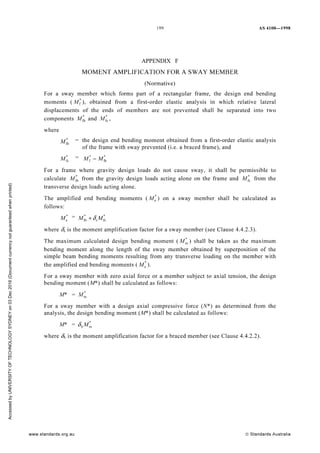

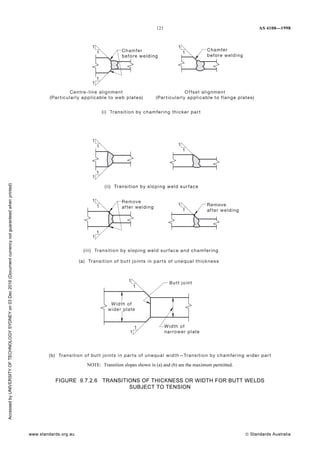

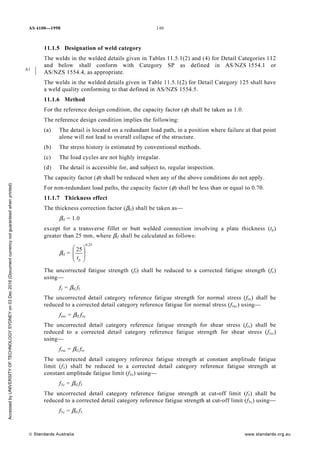

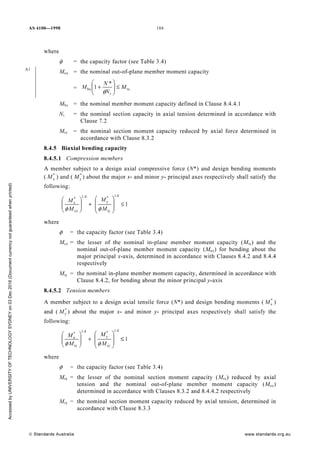

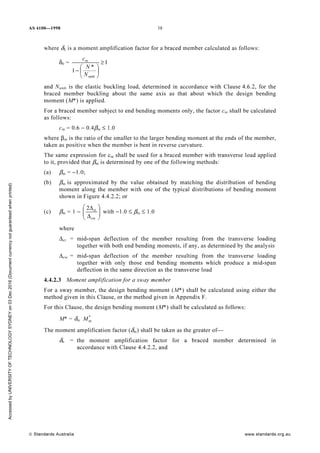

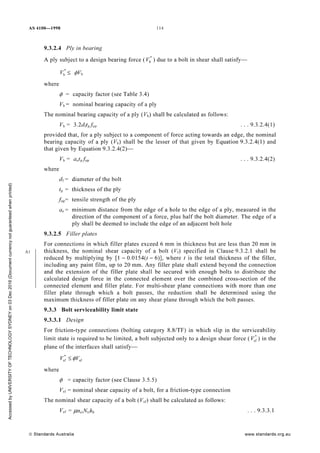

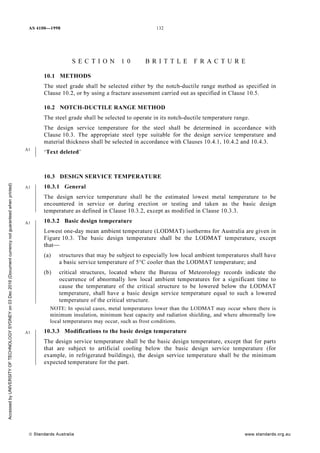

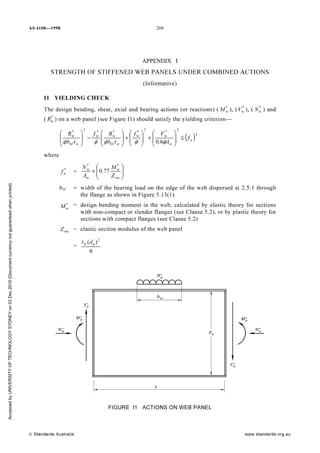

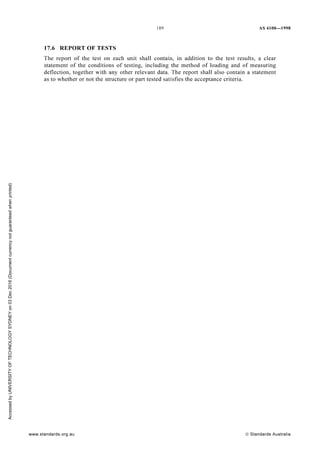

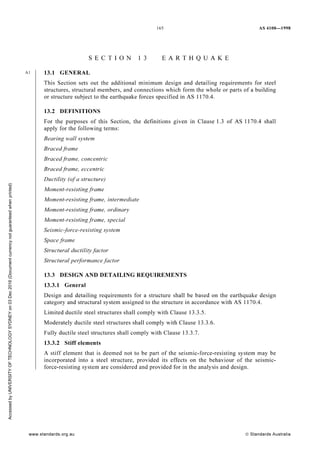

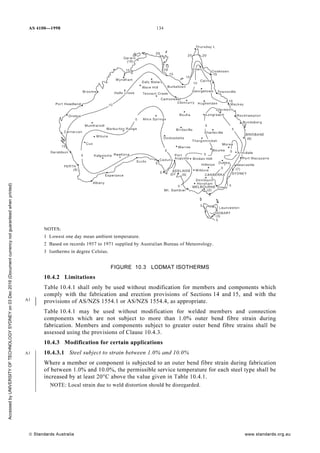

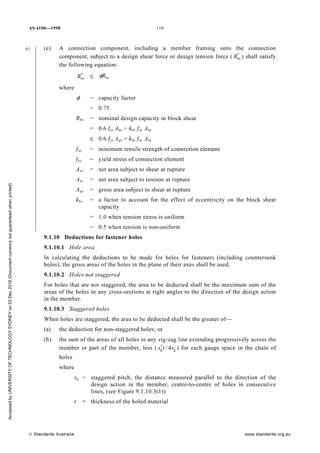

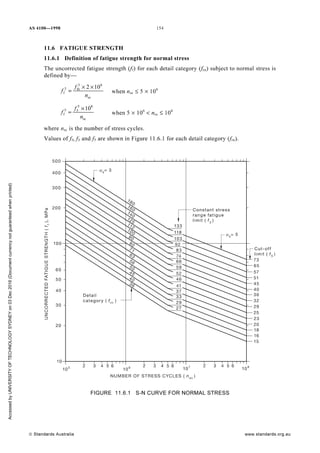

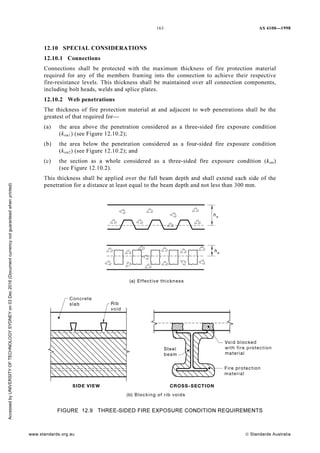

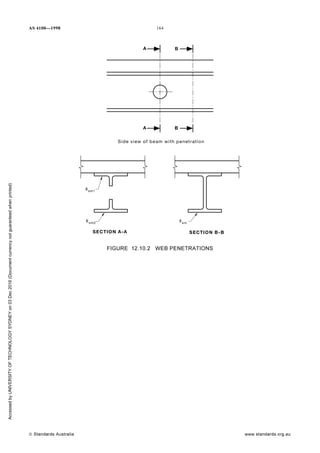

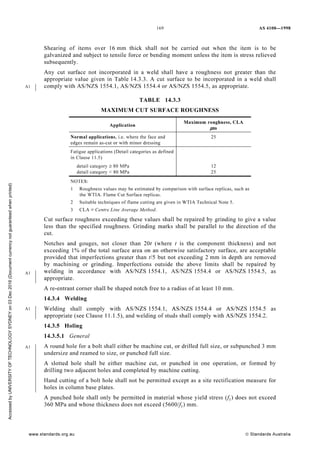

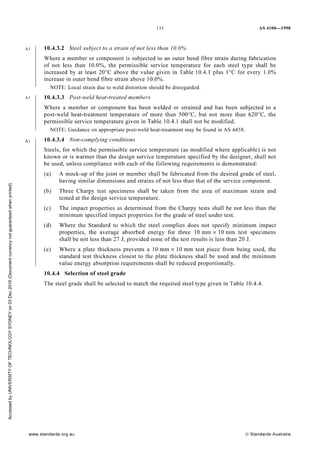

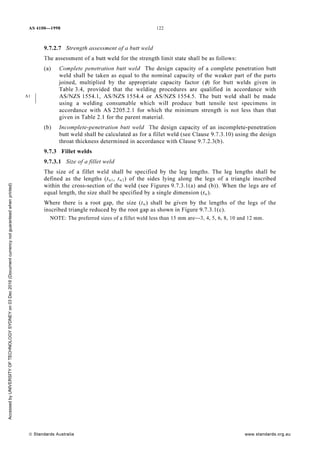

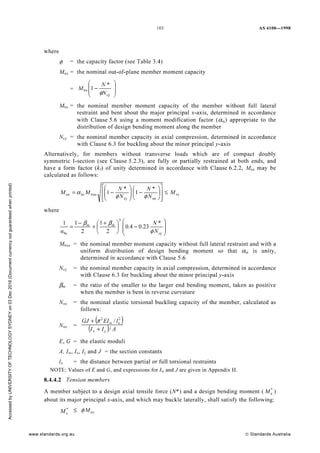

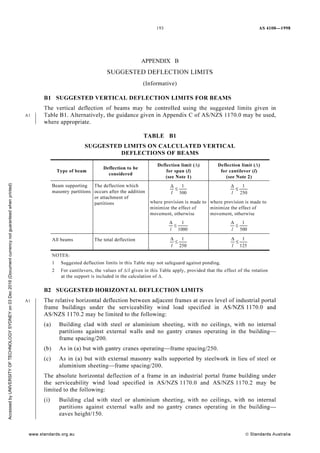

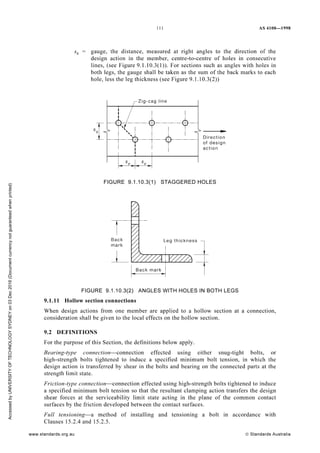

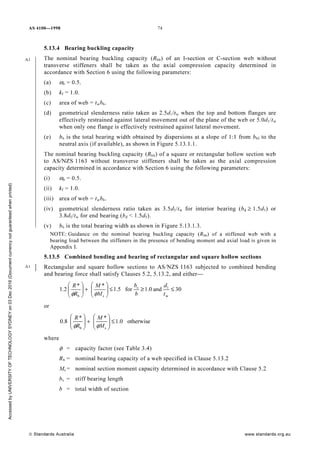

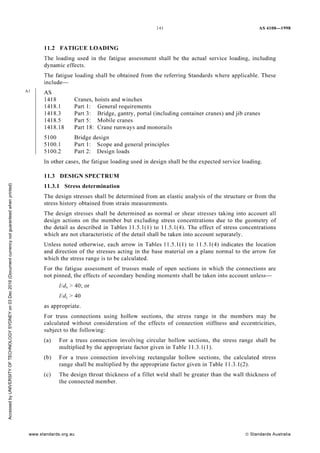

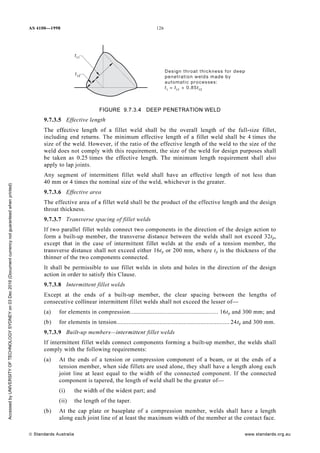

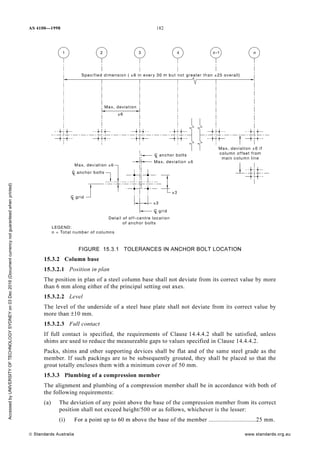

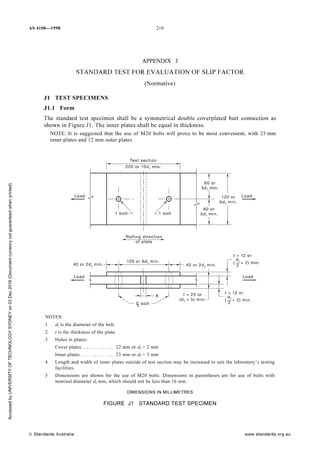

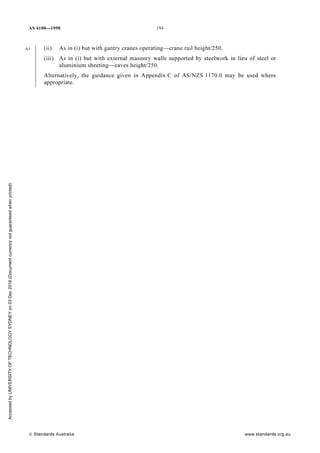

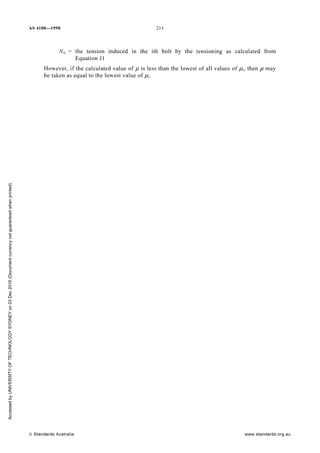

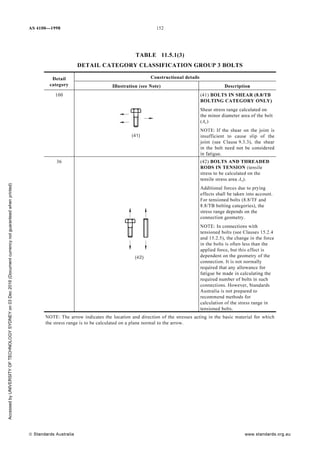

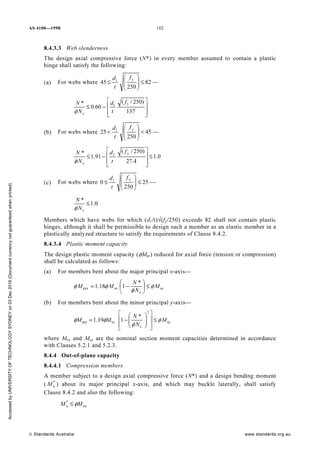

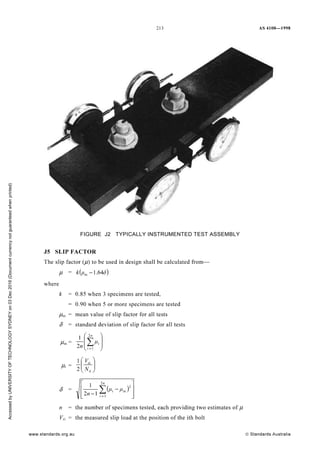

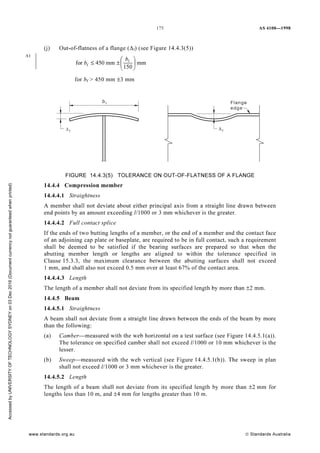

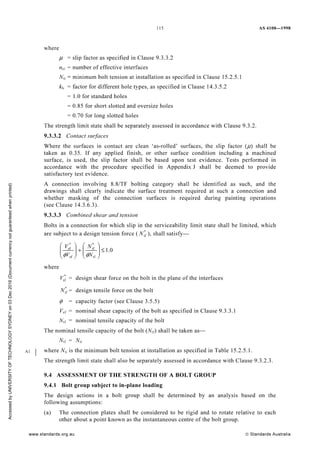

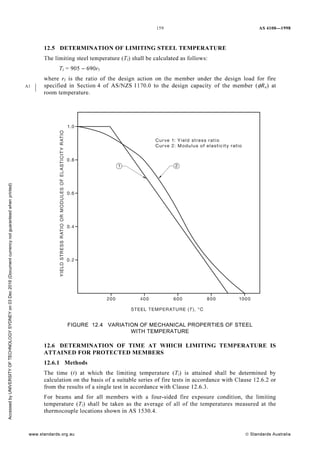

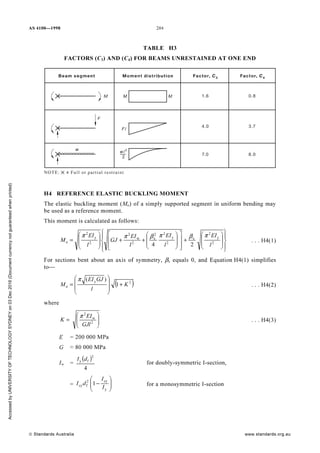

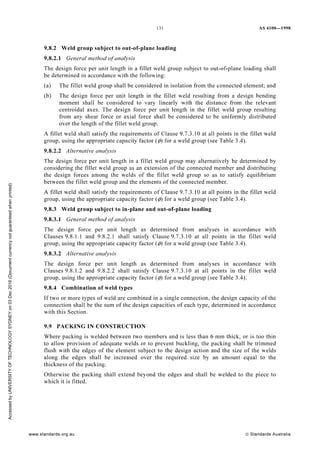

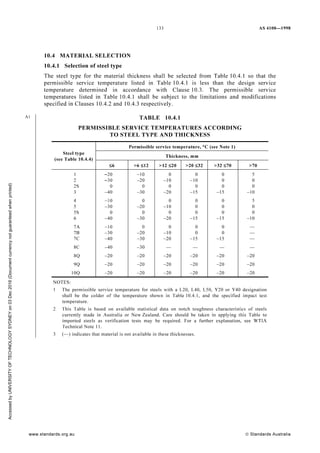

The current AS4100 standards australia specification for steel. Useful for engineers who don't have access to the SAI Global database, and for students whose university libraries only allow access for 2-3 users at a time.
Report
Share
Report
Share
Download to read offline
