2. 역할분담
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
김기현 (조장)
Frontend, Backend
및 DB
이서준 (팀원)
작품에 필요한 HW 센
서 연결 및 영상 처리
오현수 (팀원)
주차단속 앱 개발
3. 작품의 주요 내용으로는 소방구역 불법 주차 위반 차량의 단속을 중점으로 두고 프로젝트를 진행했으며 센서와
카메라 모듈을 이용해서 객체탐지를 통해 차량만 감지하여 차량 단속 및 번호판 인식을 하고 서버를 통해
데이터베이스로 단속차량의 정보가 넘어가면 전송된 정보를 이용하여 관리자가 조치를 취하는 것으로 진행된다.
프로젝트 소개Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
4. 기술 현황Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
국내・외 기술 현황
ㅇ 임베디드 실시간 차량 번호 인식 기술 (방범용 CCTV 적용)
ㅇ 자체 개발한 딥러닝 알고리즘 탑재
ㅇ 지능형 영상 보안 시장의 에지 기반(Edge-based) 솔루션
5. 개발 필요성Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
화재 발생 시 소방용수 확보는 무엇보다 중요한데 불법 주
정차 차량으로 인하여 소방 활동
골든타임 확보에 지장을 준다. 따라서 시민의 안전을 위협
하는 소화전 주변 불법 주·정차
행위 근절함으로써 소화전 사용이나 구조 활동에 피해를
주지 않도록 방지해야 한다.
6. 기대효과
ㅇ 불필요한 단속인원을 줄일 수 있고 또 신속하고 빠르게 단속하여 세수확보 및 국민 안전 확보.
ㅇ 단속 강화를 하여 시민의 행복과 안전 재산을 지킬 수 있다.
기대효과Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
7. 주차단속구역에 차량이 접근하여 3분이상 정차시 스피커 경고방송이 나오고 방송후에도 계속 차량 감지시
번호판 촬영 및 인식되고 인식된 번호판은 서버를 통해 DB로 정장되고 저장된 DB를 가지고 단속반 홈페이지에
정보를 띄움 단속반은 app또는 web으로 정보를 확인후 단속을 시행함
주요기능Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
8. 사용한 H/w 및 s/w
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
9. PPT PRESENTATION
Enjoy your stylish business and campus life with BIZCAM
1. 서비스 구성도
01 02
back-end
1.객체탐지: 번호판 인식을 하기 전에 객체 탐지를 통해서 차량의 정확도가 85%
이상일 때 자동 캡처를 해서 캡처된 이미지를 가지고 Open CV를 통해 번호판 인
식이 되도록 설계.
2.번호인식 및 텍스트추출: 카메라로 차량 번호판을 촬영 후 인식하여 번호만 추
출해서 이미지 파일로 저장하고 서버로 데이터를 전달한다.
3.데이터 DB 저장:추출된 번호판 텍스트와 차량에대한 단속정보(위치 시간 등)의
정보를 저장
front-end
4.단속반 어플리케이션: 단속반 어플리케이션을 통해서 단속차량 정보및 위치를
확인하고 단속시행
5.단속반 관리 화면:단속반 관리 화면에서는 어플리케이션과 같이 정보는 같으나
단속이 시행되고 있는지 출동여부를 확인
10. PPT PRESENTATION
Enjoy your stylish business and campus life with BIZCAM

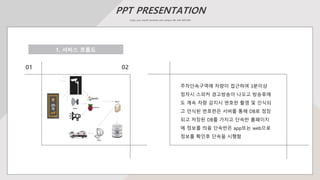

1. 서비스 흐름도
01 02
주차단속구역에 차량이 접근하여 3분이상
정차시 스피커 경고방송이 나오고 방송후에
도 계속 차량 감지시 번호판 촬영 및 인식되
고 인식된 번호판은 서버를 통해 DB로 정장
되고 저장된 DB를 가지고 단속반 홈페이지
에 정보를 띄움 단속반은 app또는 web으로
정보를 확인후 단속을 시행함
11. USECASE DIAGRAM
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
로그인> 아이디 패스워드 입력> 로그인> 단속정보화면
로그인 기능을 통해 지정된 사용자 외 사용 금지
12. USECASE DIAGRAM
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
Register(회원가입)> 아이디 패스워드 입력> register(회원가입) 버튼 > 정상 입력시 (성공메시지 출력)
성공시 나타나
는 부분
13. USECASE DIAGRAM
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
저번 학기 피드백사항으로 추가하기로 한 맵뷰
14. 하드웨어 구성도
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
센서 종류 연결 핀 설명
Buzzer
GND 라즈베리 파이의 GND에 연결
VCC 라즈베리 파이의 5V에 연결
SDA 라즈베리 파이의 18핀에 연결
SCL 라즈베리 파이의 17핀에 연결
Echo 1
GND 라즈베리 파이의 GND에 연결
VCC 라즈베리 파이의 5V에 연결
trig 라즈베리 파이의 20핀에 연결
echo 라즈베리 파이의 21핀에 연결
Echo 2
GND 라즈베리 파이의 GND에 연결
VCC 라즈베리 파이의 5V에 연결
trig 라즈베리 파이의 26핀에 연결
echo 라즈베리 파이의 19핀에 연결
Camera 카메라 핀
라즈베리 파이에 내장되어 있
는 커넥터 쪽에 연결
15. H/W 구성
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
라즈베리 파이를 중점으로 스피커 센서 초음파 센서 카
메라 모듈을 사용한다.
16. 소프트웨어 설계도
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
로그인
서버 전송
단속정보 화면
단속대상 상세
정보
단속반(앱)
17. APP 메뉴 구성도
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
시작하기 버튼을 클릭 시 intent 기능을 사용하여 구글 맵으로 넘어
간다. 서버에서 정보를 불러와 마커에 정보를 나타낸다.
18. APP 메뉴 구성도
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
통보
시작 버튼
클릭
서버 연결
단속위치
지도로 나
타냄
단속 완료
차량 db로
넘김
평산시
단속
APP
19. 화면 설계서
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
로그인
로그인 후 단속정보 화면
로그인 후 단속정보 화면
20. 화면 설계서
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
기능 번호 App-1
기능 명 신규/기존 선택
기능설명 앱의 첫 화면,
처리내용
∎시작하기
시작하기 버튼 클릭 시 다른 화면으로 전환하는 INTENT 기능을 사용하여
화면전화능 가능하게 하였다.
비고
∎연결되는 기능
: GOOGLE API
요구사항 명 INTENT
21. 화면 설계서
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
▶ 기능정보
기능명 GOOGLE MAP API
기능설명 구글 api 를 연결하여 어플리케이션에 구글 지도를 띄울수 있다.
처리내용
Google map api를 신청 및 발급 받아서 어플리케이션에 사용 할수 있도록 api주소를 입력한다.
Google map 에 마커 기능을 추가하여 지도에 원하는 위치에 마커를 나타 낼 수 있다.
관련번호 1
▶ 사용 예시 정보
설명 서버에서 단속에 필요한 정보를 받아서 지도에 있는 마커를 클릭 시 사진처럼
나 타 낼 수 있도록 한다.
입력 데이터
값
관리자한테 위치를 수신 받은 후 -> 지도에 마커 나타남 -> 마커 클릭 시 위치 및 단속정보 표시
22. 화면 설계서
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
위치 및 단속정보 수신
결과
관리자
23. 엔티티 관계도
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
MongoDB ERD
24. 기능 처리도
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
25. 기능 처리도
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
26. 알고리즘
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
1. 주차단속구역에 차량이 접근
2. 3분이상 정차시 스피커 경고방송
3. 방송후에도 계속 차량 감지시 번호판 촬영
및 인식
4. 인식된 번호판은 서버를 통해 DB로 저장
5. 저장된 DB를 가지고 단속반 홈페이지에 정
보를 띄움
6. 단속반은 app또는 web으로 정보를 확인후
단속을 시행함
27. 알고리즘 상세 설명서
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
28. 테이블 정의서
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
books Type 설명
Id objectid 오브젝트id
Isbn String 차량번호
Action String 위치
title String 단속 시간
users Type 설명
Id objectid 오브젝트id
Username String 아이디
password String 비밀번호
29. 핵심소스코드
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
화면 전환 기능을 사용하게 해주는 부분이다. 이 부분을 추가해야지
시작화면에서 버튼 클릭시 화면전환이 된다.
30. 핵심소스코드
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
구글맵 api를 사용하게 해주는 api 주소 입력 부분이다. 이 API 주소
값이 있어야 구글맵 을 사용할수 있다.
31. 핵심소스코드
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
위 소스는 앱에서 인터넷 을 사용할수있게 해주는 것이다.
32. 핵심소스코드
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
이것을 서버에서 db를 사용할수있게 만들어준다 .
(사용하기 위해서는 사용할 모델의 왼쪽에 세미클론을 없애준다.
37. 개발 환경 및 설명
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
구분 항목 적용내역
S/W
개발환경
스마트폰 App
개발
Android Studio (4.2.2) Android application 프로그램 개발
SQL LITE(3.19.3) 비콘 신호를 탐지하고 처리하기 위해 사용
서버
애플리케이션
개발
express
관리자 웹 페이지를 구동하는 웹 서버
MongoDB(1.26.1) 차량단속 데이터를 저장, 관리하는 데이터베이스
H/W
구성장비
Raspberry
Pi
초음파 센서
초음파 센서는 불법 주 정차 차량의 거리를 감지하기 위해 사용되며 Raspberry Pi의
하드웨어 구성에 포함된다. 센서를 사용하기 위해 Python에서 GPIO를 import하여 코
드를 작성한다.
스피커 센서
스피커 센서는 초음파 센서에 거리가 감지되어도 차량을 비키지 않는 운전자들에 대
한 경고 방송을 한다. 마찬가지로 센서를 사용하기 위해 GPIO를 import한다.
카메라 모듈
카메라 모듈은 스피커 센서로 경고방송을 해도 비키지 않는 차량들에 대해 번호판을
촬영한다. Raspberry Pi에 연동되는 Pixy Cam2를 사용하며 직접 연결이 가능하다.
Device Server-Client용 PC 서버 및 여러 개발환경을 위해 PC를 사용한다.
38. s/w 실사 사진
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
39. s/w 기능 실사 사진Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
로그인 로그인 후 단속정보 화면
로그인후 단속 정보가 서버에 나타낼수 있
도록 하였습니다.
40. H/W 기능 실사 사진
Enjoy your stylish business and campus life with BIZCAM
※성인 남녀 1,000명 대상 (2019. 12)
