1. 3D Printing

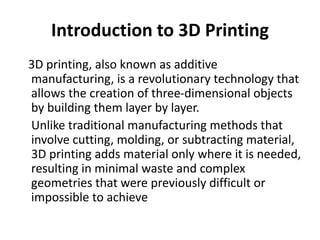

2. Introduction to 3D Printing
3D printing, also known as additive
manufacturing, is a revolutionary technology that
allows the creation of three-dimensional objects
by building them layer by layer.
Unlike traditional manufacturing methods that
involve cutting, molding, or subtracting material,
3D printing adds material only where it is needed,
resulting in minimal waste and complex
geometries that were previously difficult or
impossible to achieve

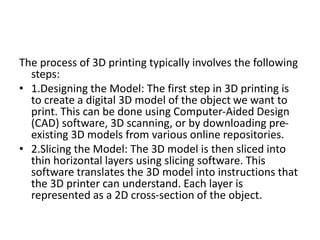

3. The process of 3D printing typically involves the following
steps:
• 1.Designing the Model: The first step in 3D printing is
to create a digital 3D model of the object we want to
print. This can be done using Computer-Aided Design
(CAD) software, 3D scanning, or by downloading pre-
existing 3D models from various online repositories.
• 2.Slicing the Model: The 3D model is then sliced into
thin horizontal layers using slicing software. This
software translates the 3D model into instructions that
the 3D printer can understand. Each layer is
represented as a 2D cross-section of the object.

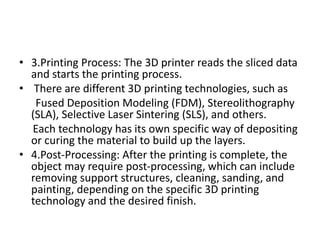

4. • 3.Printing Process: The 3D printer reads the sliced data
and starts the printing process.
• There are different 3D printing technologies, such as
Fused Deposition Modeling (FDM), Stereolithography
(SLA), Selective Laser Sintering (SLS), and others.
Each technology has its own specific way of depositing
or curing the material to build up the layers.
• 4.Post-Processing: After the printing is complete, the
object may require post-processing, which can include
removing support structures, cleaning, sanding, and
painting, depending on the specific 3D printing
technology and the desired finish.

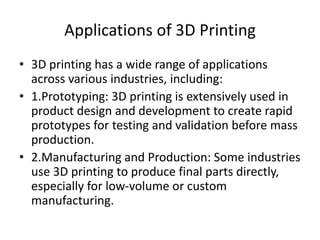

5. Applications of 3D Printing
• 3D printing has a wide range of applications
across various industries, including:
• 1.Prototyping: 3D printing is extensively used in
product design and development to create rapid
prototypes for testing and validation before mass
production.
• 2.Manufacturing and Production: Some industries
use 3D printing to produce final parts directly,
especially for low-volume or custom
manufacturing.

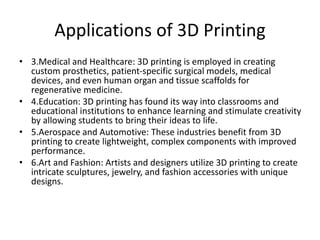

6. Applications of 3D Printing
• 3.Medical and Healthcare: 3D printing is employed in creating
custom prosthetics, patient-specific surgical models, medical
devices, and even human organ and tissue scaffolds for
regenerative medicine.
• 4.Education: 3D printing has found its way into classrooms and
educational institutions to enhance learning and stimulate creativity
by allowing students to bring their ideas to life.
• 5.Aerospace and Automotive: These industries benefit from 3D
printing to create lightweight, complex components with improved
performance.
• 6.Art and Fashion: Artists and designers utilize 3D printing to create
intricate sculptures, jewelry, and fashion accessories with unique
designs.

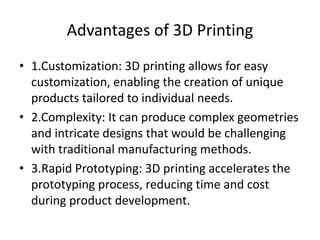

7. Advantages of 3D Printing
• 1.Customization: 3D printing allows for easy
customization, enabling the creation of unique
products tailored to individual needs.
• 2.Complexity: It can produce complex geometries
and intricate designs that would be challenging
with traditional manufacturing methods.
• 3.Rapid Prototyping: 3D printing accelerates the
prototyping process, reducing time and cost
during product development.

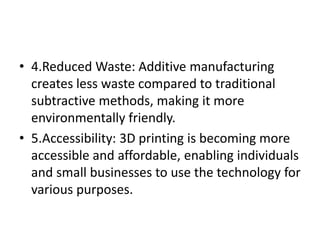

8. • 4.Reduced Waste: Additive manufacturing
creates less waste compared to traditional
subtractive methods, making it more
environmentally friendly.
• 5.Accessibility: 3D printing is becoming more
accessible and affordable, enabling individuals
and small businesses to use the technology for
various purposes.

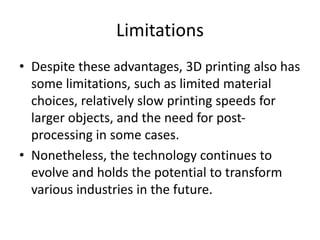

9. Limitations
• Despite these advantages, 3D printing also has
some limitations, such as limited material
choices, relatively slow printing speeds for
larger objects, and the need for post-
processing in some cases.
• Nonetheless, the technology continues to
evolve and holds the potential to transform
various industries in the future.

10. • Printing Process: The 3D printer reads the sliced data and starts the
printing process. There are different 3D printing technologies, such
as Fused Deposition Modeling (FDM), Stereolithography (SLA),
Selective Laser Sintering (SLS), and others. Each technology has its
own specific way of depositing or curing the material to build up
the layers.
• In FDM 3D printers, a thermoplastic filament is heated and
extruded through a nozzle. The nozzle moves in the X and Y axes
while the build platform moves in the Z-axis, layer by layer, to
create the final object.
• In SLA printers, a liquid resin is cured using an ultraviolet (UV) laser,
solidifying each layer one at a time until the entire object is
complete.
• SLS printers use a laser to selectively fuse or sinter powdered
material, such as nylon or metal, layer by layer.

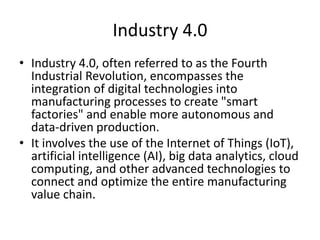

11. Industry 4.0
• Industry 4.0, often referred to as the Fourth
Industrial Revolution, encompasses the
integration of digital technologies into
manufacturing processes to create "smart
factories" and enable more autonomous and
data-driven production.
• It involves the use of the Internet of Things (IoT),
artificial intelligence (AI), big data analytics, cloud
computing, and other advanced technologies to
connect and optimize the entire manufacturing
value chain.

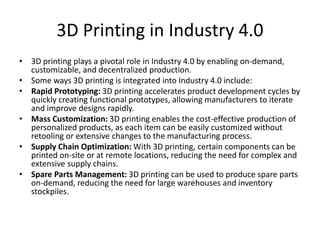

12. 3D Printing in Industry 4.0
• 3D printing plays a pivotal role in Industry 4.0 by enabling on-demand,
customizable, and decentralized production.
• Some ways 3D printing is integrated into Industry 4.0 include:
• Rapid Prototyping: 3D printing accelerates product development cycles by
quickly creating functional prototypes, allowing manufacturers to iterate
and improve designs rapidly.
• Mass Customization: 3D printing enables the cost-effective production of
personalized products, as each item can be easily customized without
retooling or extensive changes to the manufacturing process.
• Supply Chain Optimization: With 3D printing, certain components can be
printed on-site or at remote locations, reducing the need for complex and
extensive supply chains.
• Spare Parts Management: 3D printing can be used to produce spare parts
on-demand, reducing the need for large warehouses and inventory
stockpiles.

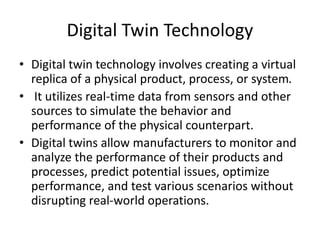

13. Digital Twin Technology
• Digital twin technology involves creating a virtual
replica of a physical product, process, or system.
• It utilizes real-time data from sensors and other
sources to simulate the behavior and
performance of the physical counterpart.
• Digital twins allow manufacturers to monitor and
analyze the performance of their products and
processes, predict potential issues, optimize
performance, and test various scenarios without
disrupting real-world operations.

14. Integration of 3D Printing and Digital
Twin
• The integration of 3D printing and digital twin technology enables
significant benefits for manufacturers:
• Design Validation: Digital twins can be used to virtually test 3D-
printed prototypes before producing physical models, allowing for
design validation and optimization.
• In-Process Monitoring and Control: Sensors on 3D printers can
collect real-time data during printing, which can be fed into the
digital twin model to monitor the quality and progress of the
printing process. This enables timely adjustments and ensures
consistent results.
• Predictive Maintenance: Digital twins can analyze sensor data from
3D printers to predict potential maintenance needs, reducing
downtime and improving overall equipment effectiveness.

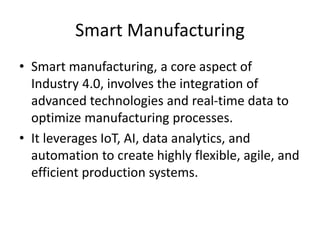

15. Smart Manufacturing
• Smart manufacturing, a core aspect of
Industry 4.0, involves the integration of
advanced technologies and real-time data to
optimize manufacturing processes.
• It leverages IoT, AI, data analytics, and
automation to create highly flexible, agile, and
efficient production systems.

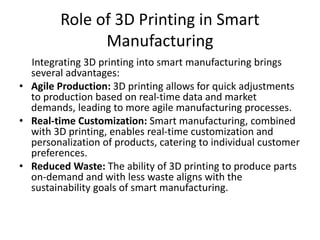

16. Role of 3D Printing in Smart
Manufacturing
Integrating 3D printing into smart manufacturing brings
several advantages:
• Agile Production: 3D printing allows for quick adjustments
to production based on real-time data and market
demands, leading to more agile manufacturing processes.
• Real-time Customization: Smart manufacturing, combined
with 3D printing, enables real-time customization and
personalization of products, catering to individual customer
preferences.
• Reduced Waste: The ability of 3D printing to produce parts
on-demand and with less waste aligns with the
sustainability goals of smart manufacturing.

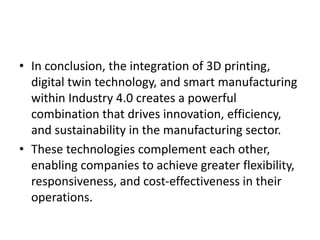

17. • In conclusion, the integration of 3D printing,
digital twin technology, and smart manufacturing
within Industry 4.0 creates a powerful
combination that drives innovation, efficiency,
and sustainability in the manufacturing sector.
• These technologies complement each other,
enabling companies to achieve greater flexibility,
responsiveness, and cost-effectiveness in their
operations.

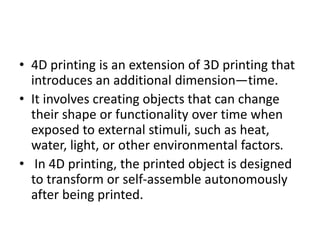

18. • 4D printing is an extension of 3D printing that
introduces an additional dimension—time.
• It involves creating objects that can change
their shape or functionality over time when
exposed to external stimuli, such as heat,
water, light, or other environmental factors.
• In 4D printing, the printed object is designed
to transform or self-assemble autonomously
after being printed.

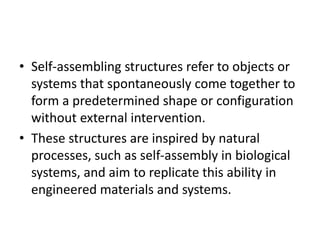

19. • Self-assembling structures refer to objects or
systems that spontaneously come together to
form a predetermined shape or configuration
without external intervention.
• These structures are inspired by natural
processes, such as self-assembly in biological
systems, and aim to replicate this ability in
engineered materials and systems.

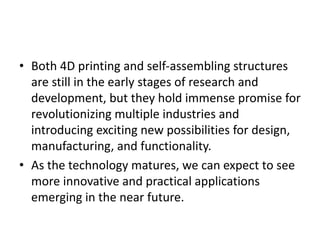

20. • Both 4D printing and self-assembling structures
are still in the early stages of research and
development, but they hold immense promise for
revolutionizing multiple industries and
introducing exciting new possibilities for design,
manufacturing, and functionality.
• As the technology matures, we can expect to see
more innovative and practical applications
emerging in the near future.
