The document discusses the evolution of the internet from 2D to 3D, emphasizing the enhanced user experience and interactive capabilities of a 3D internet. It outlines the architecture and methods of implementation using technologies such as VRML, highlighting the potential advantages like improved communication and information delivery, along with challenges like high-speed internet requirements and security risks. The conclusion asserts that 3D internet represents the future of online interaction, necessitating further research and investment to realize its full potential.

1. 3D INTERNET

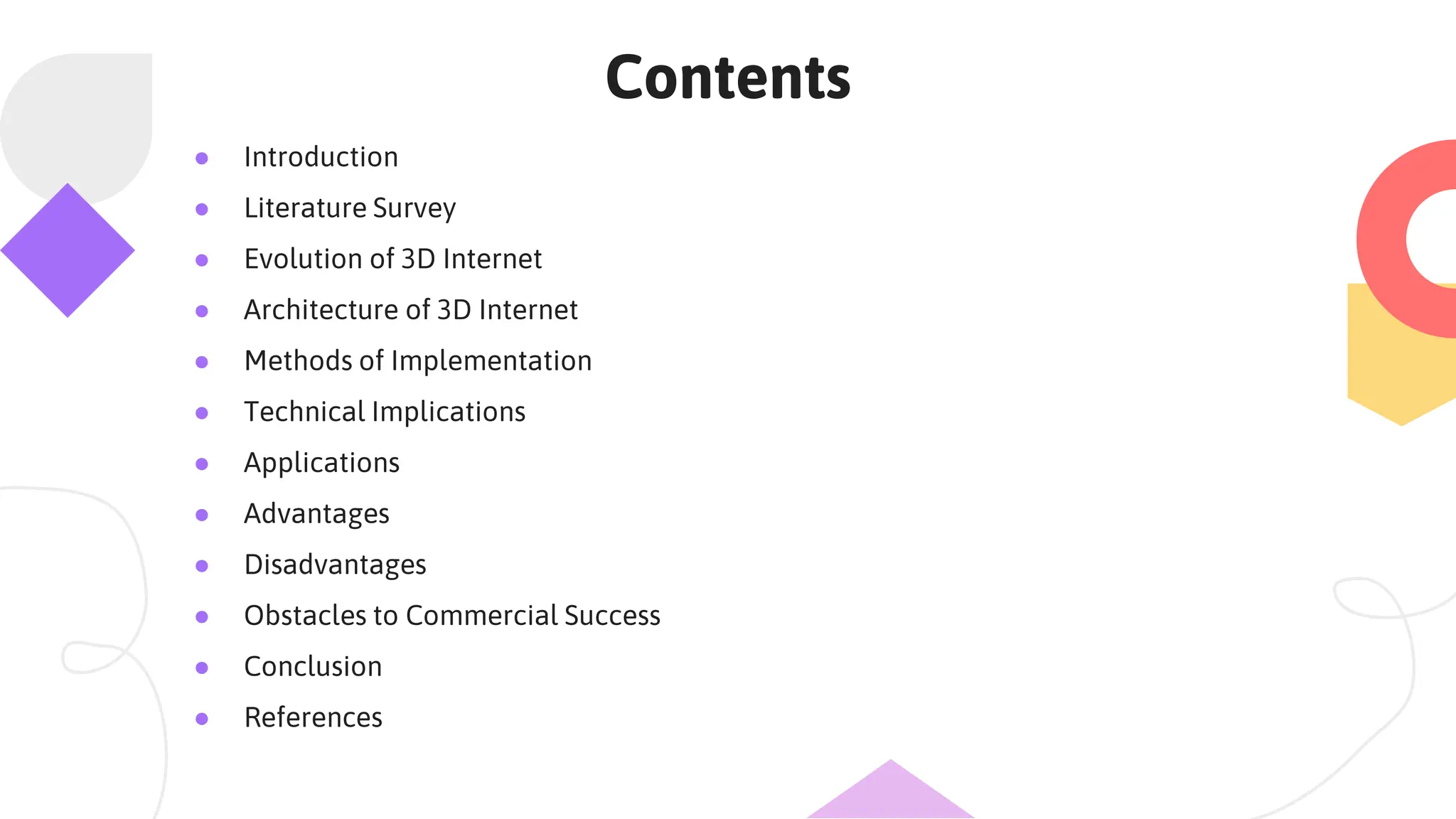

2. Contents

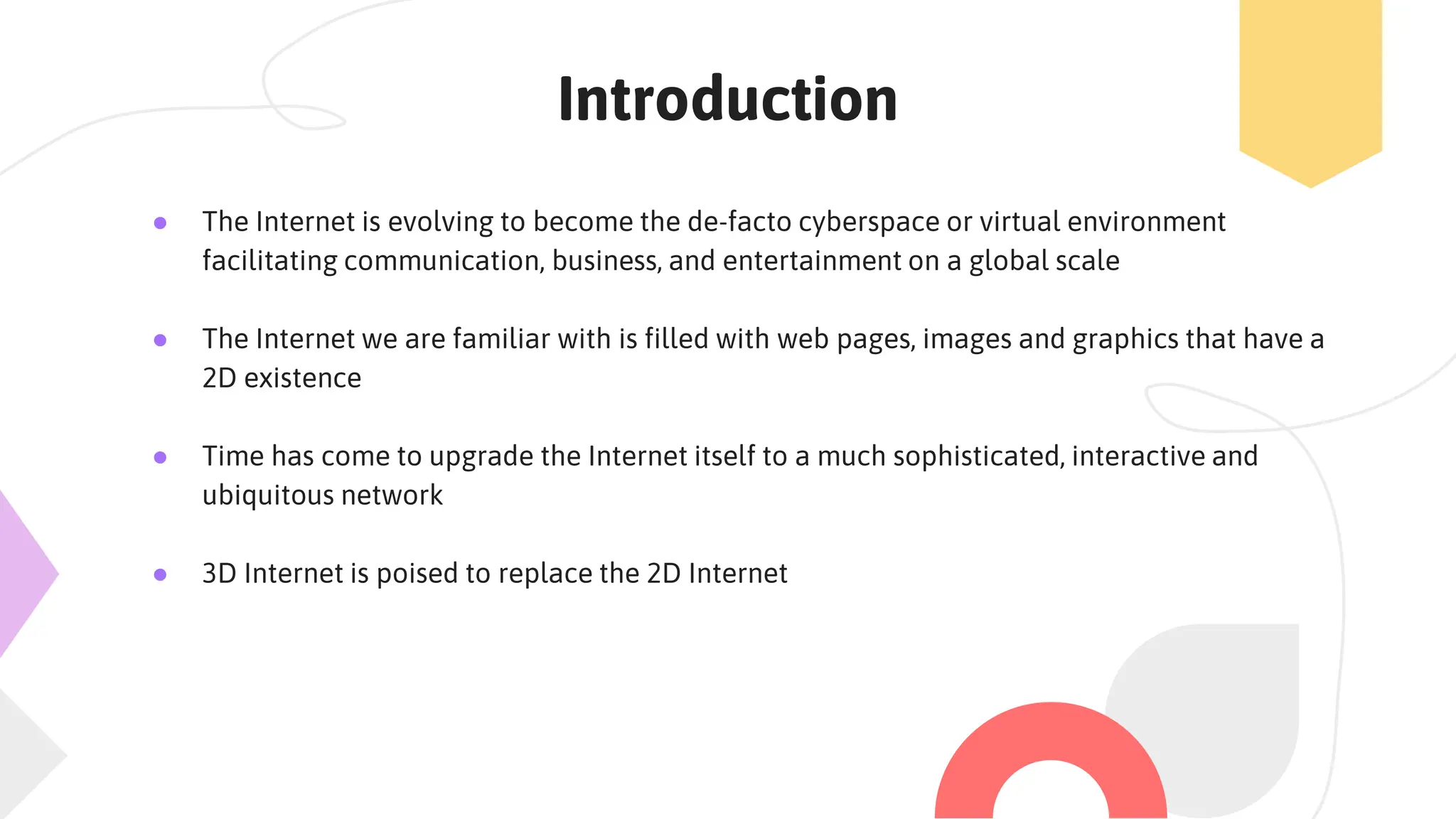

3. Introduction
● The Internet is evolving to become the de-facto cyberspace or virtual environment
facilitating communication, business, and entertainment on a global scale
● The Internet we are familiar with is filled with web pages, images and graphics that have a
2D existence
● Time has come to upgrade the Internet itself to a much sophisticated, interactive and
ubiquitous network
● 3D Internet is poised to replace the 2D Internet

5. Why do we need 3D Internet?

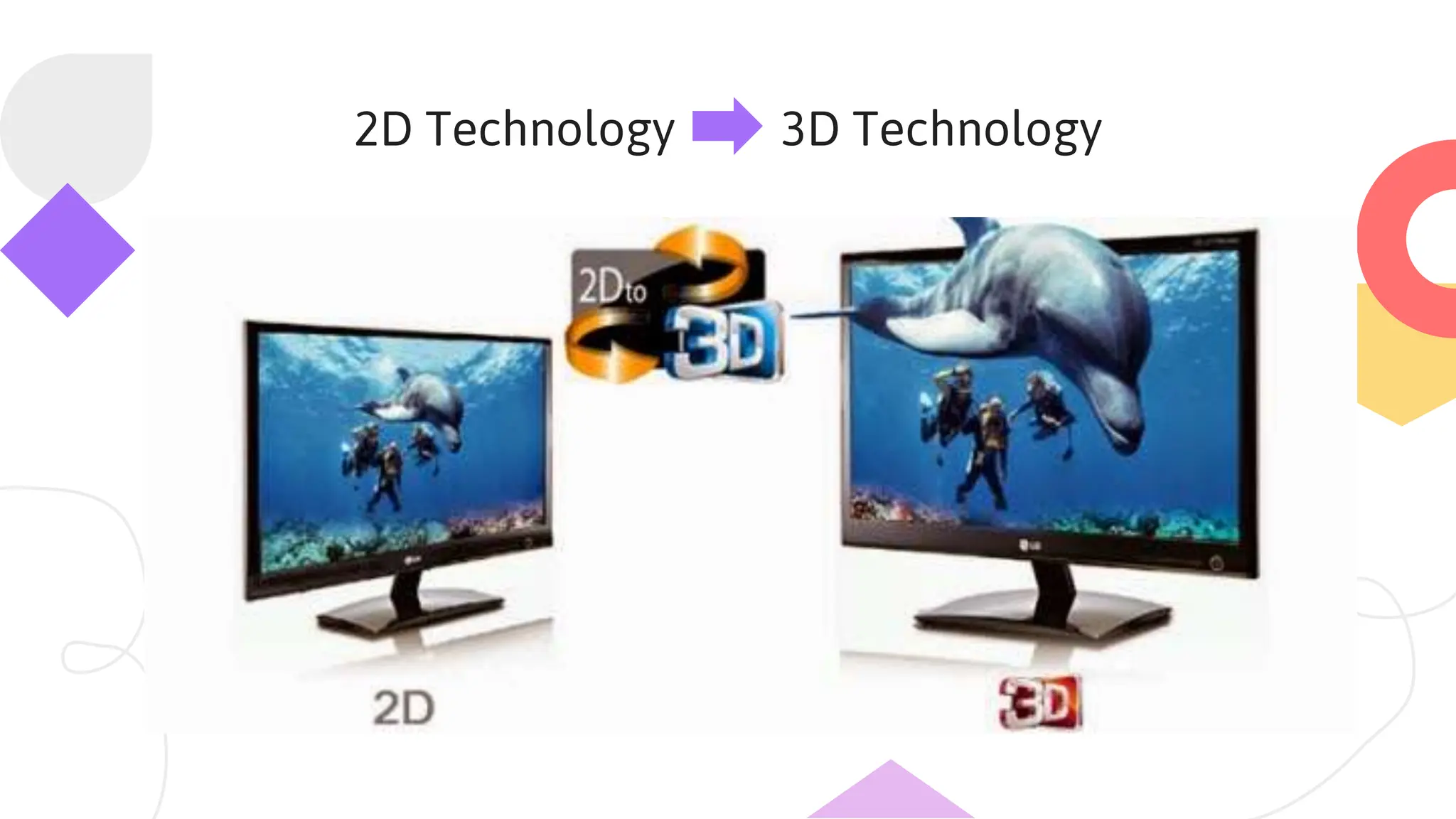

6. 2D Technology 3D Technology

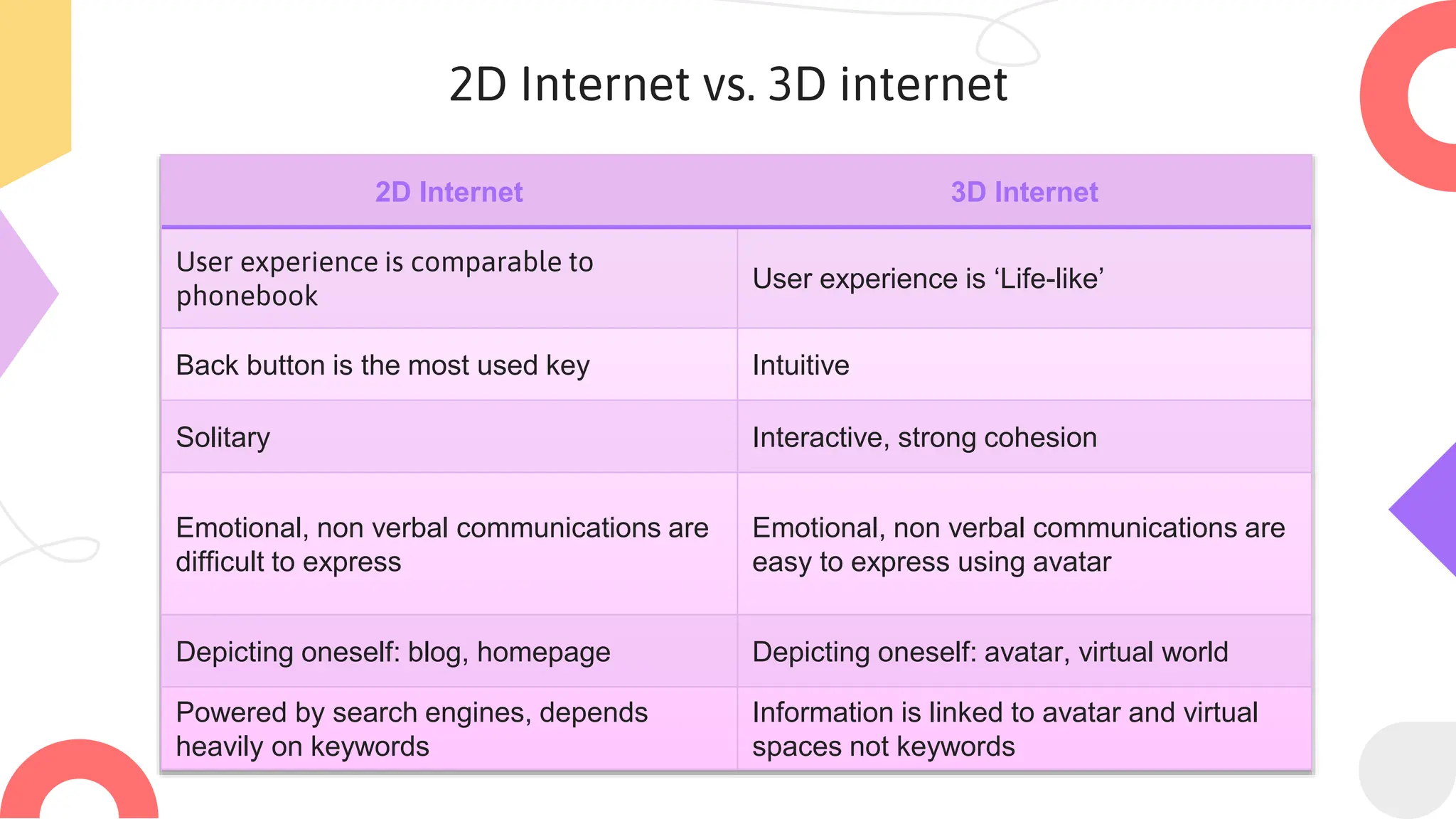

7. 2D Internet vs. 3D internet
2D Internet 3D Internet
User experience is comparable to
phonebook
User experience is ‘Life-like’
Back button is the most used key Intuitive
Solitary Interactive, strong cohesion
Emotional, non verbal communications are
difficult to express
Emotional, non verbal communications are
easy to express using avatar
Depicting oneself: blog, homepage Depicting oneself: avatar, virtual world
Powered by search engines, depends
heavily on keywords
Information is linked to avatar and virtual
spaces not keywords

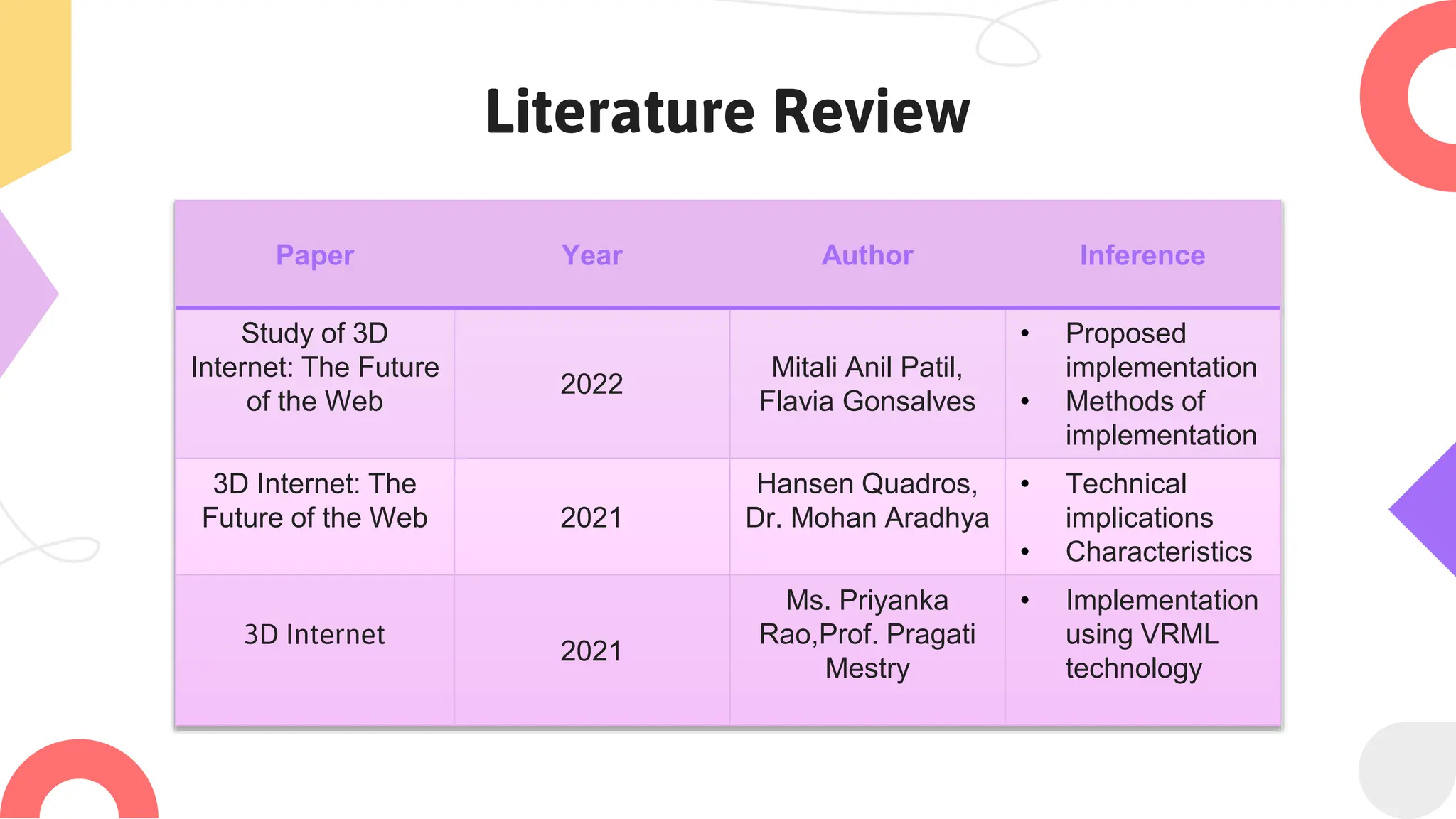

8. Literature Review
Paper Year Author Inference
Study of 3D
Internet: The Future
of the Web
2022
Mitali Anil Patil,
Flavia Gonsalves
• Proposed
implementation
• Methods of
implementation
3D Internet: The
Future of the Web 2021
Hansen Quadros,
Dr. Mohan Aradhya
• Technical
implications
• Characteristics
3D Internet
2021
Ms. Priyanka
Rao,Prof. Pragati
Mestry
• Implementation
using VRML
technology

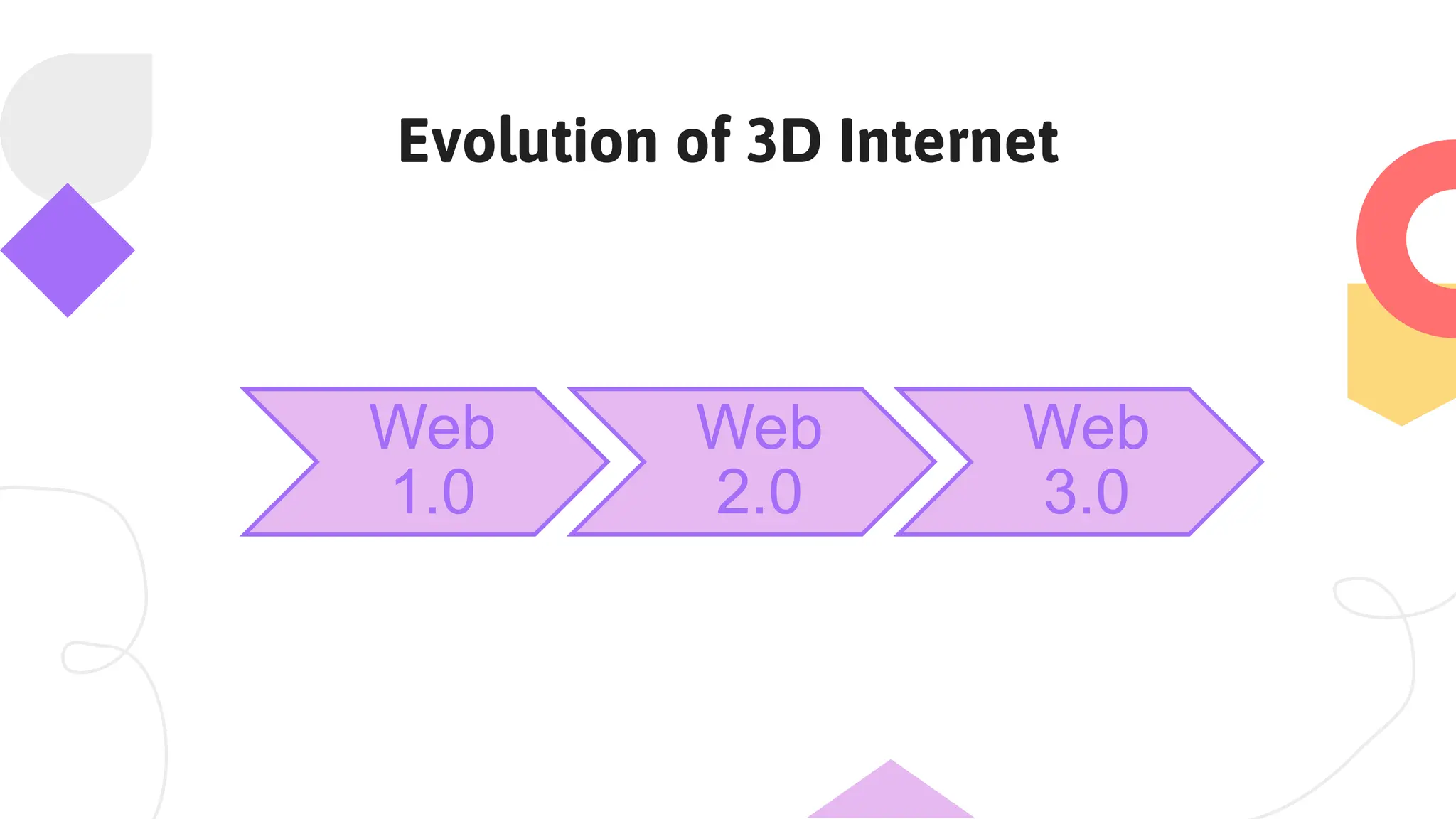

9. Evolution of 3D Internet
Web
1.0
Web
2.0
Web
3.0

10. Web 1.0

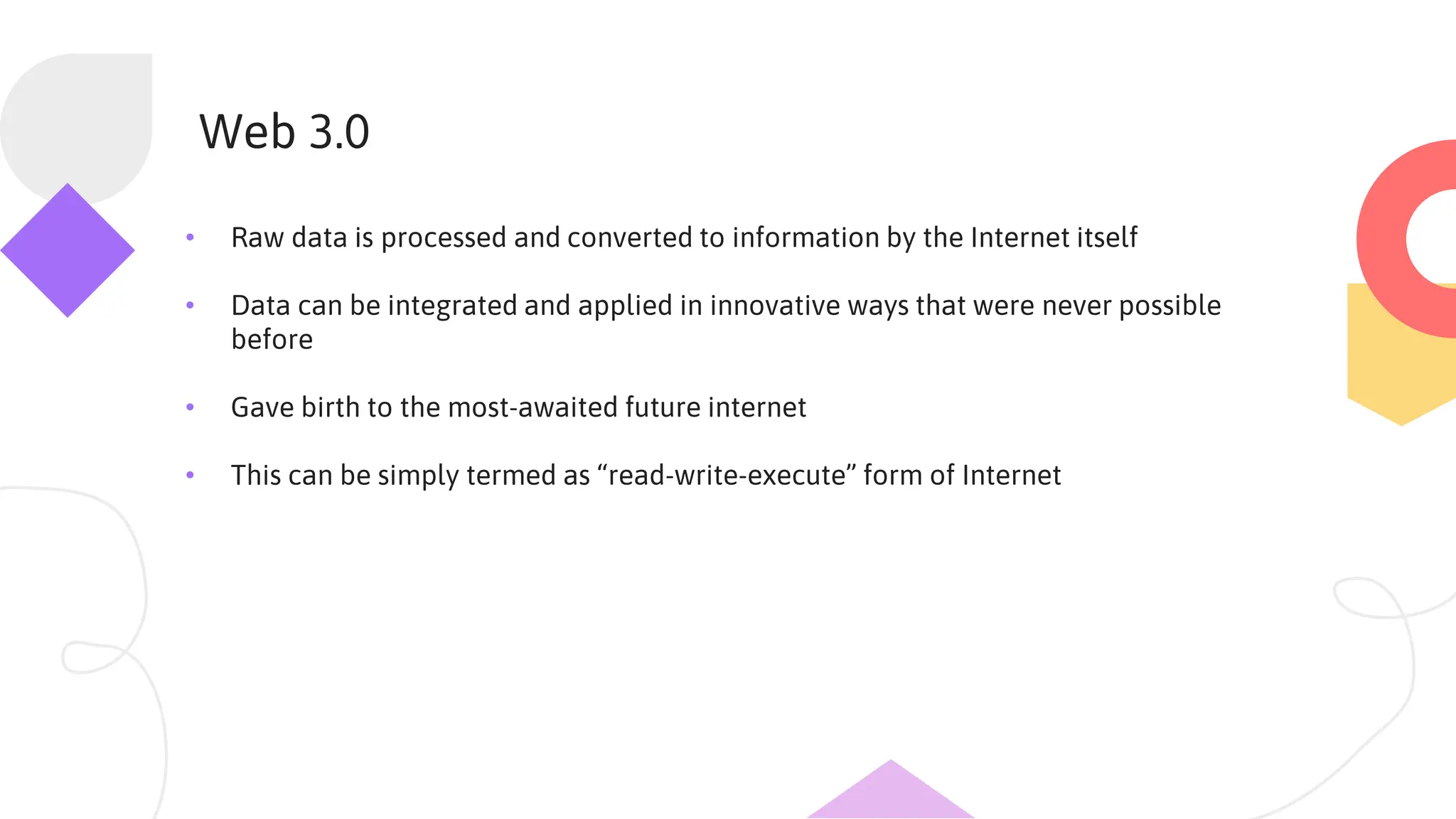

12. Web 3.0

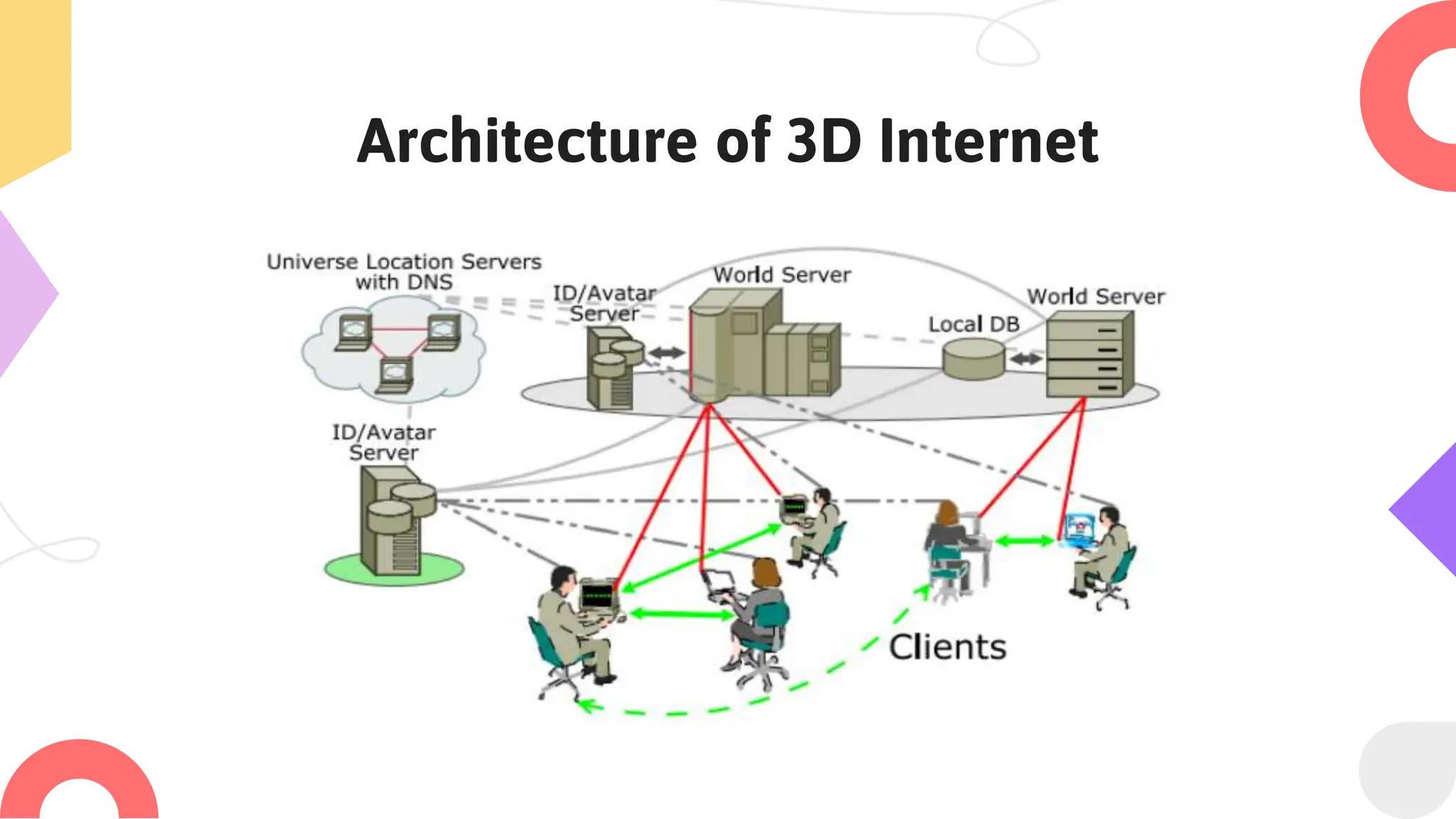

13. Architecture of 3D Internet

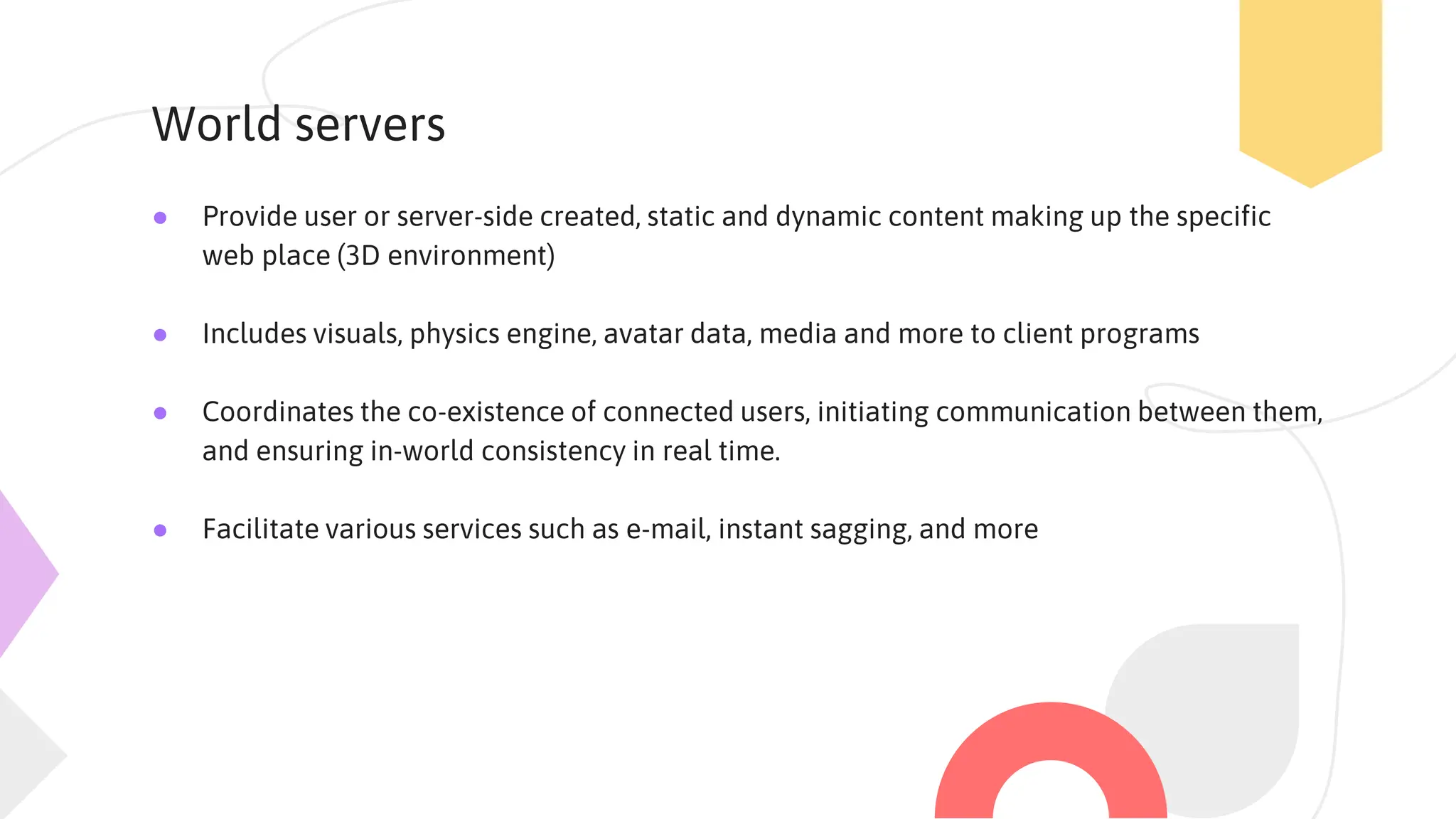

14. World servers
● Provide user or server-side created, static and dynamic content making up the specific
web place (3D environment)
● Includes visuals, physics engine, avatar data, media and more to client programs
● Coordinates the co-existence of connected users, initiating communication between them,
and ensuring in-world consistency in real time.
● Facilitate various services such as e-mail, instant sagging, and more

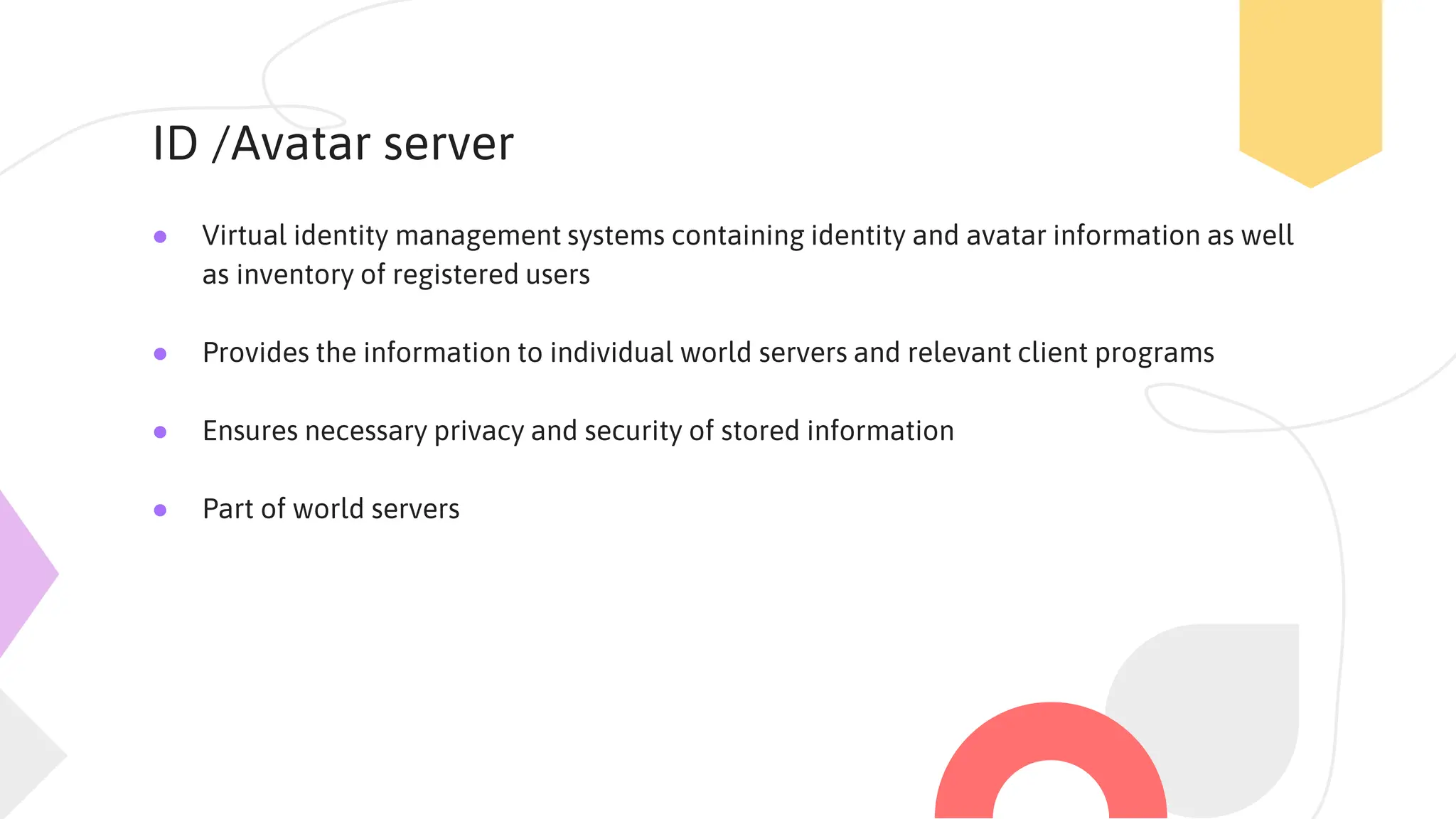

15. ID /Avatar server
● Virtual identity management systems containing identity and avatar information as well
as inventory of registered users
● Provides the information to individual world servers and relevant client programs
● Ensures necessary privacy and security of stored information
● Part of world servers

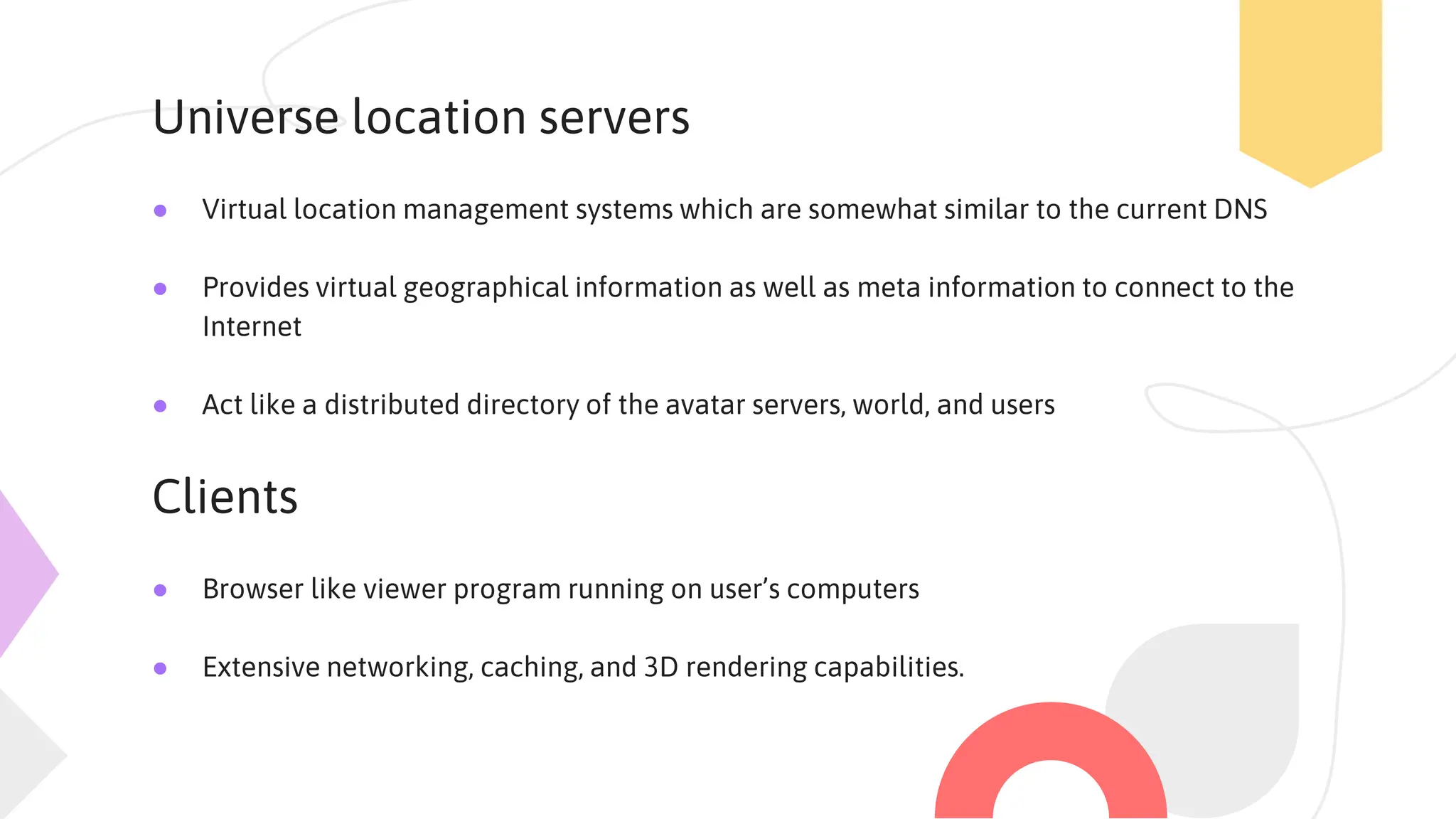

16. Universe location servers
● Virtual location management systems which are somewhat similar to the current DNS
● Provides virtual geographical information as well as meta information to connect to the
Internet
● Act like a distributed directory of the avatar servers, world, and users
Clients
● Browser like viewer program running on user’s computers
● Extensive networking, caching, and 3D rendering capabilities.

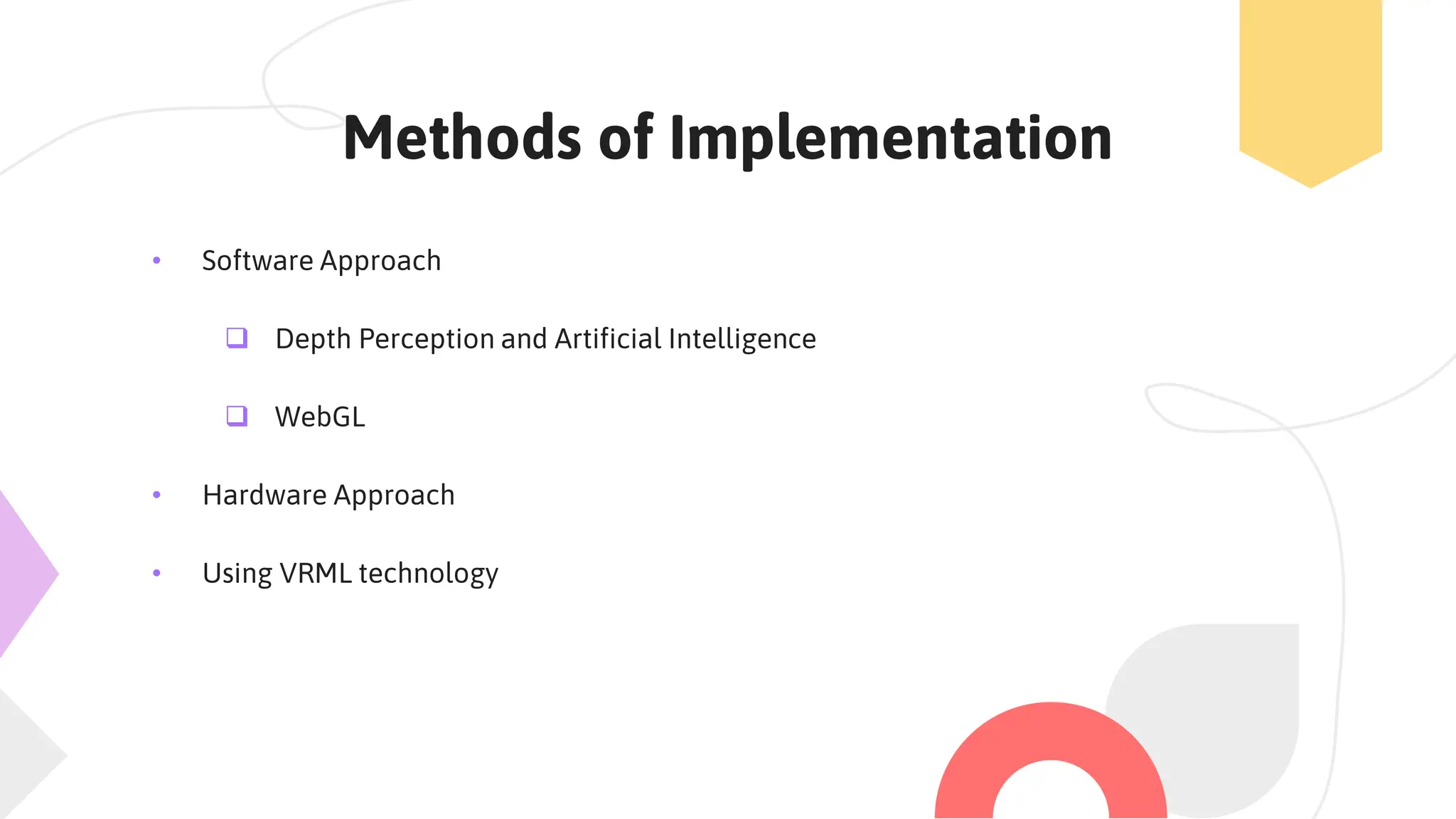

17. Methods of Implementation
• Software Approach
 Depth Perception and Artificial Intelligence

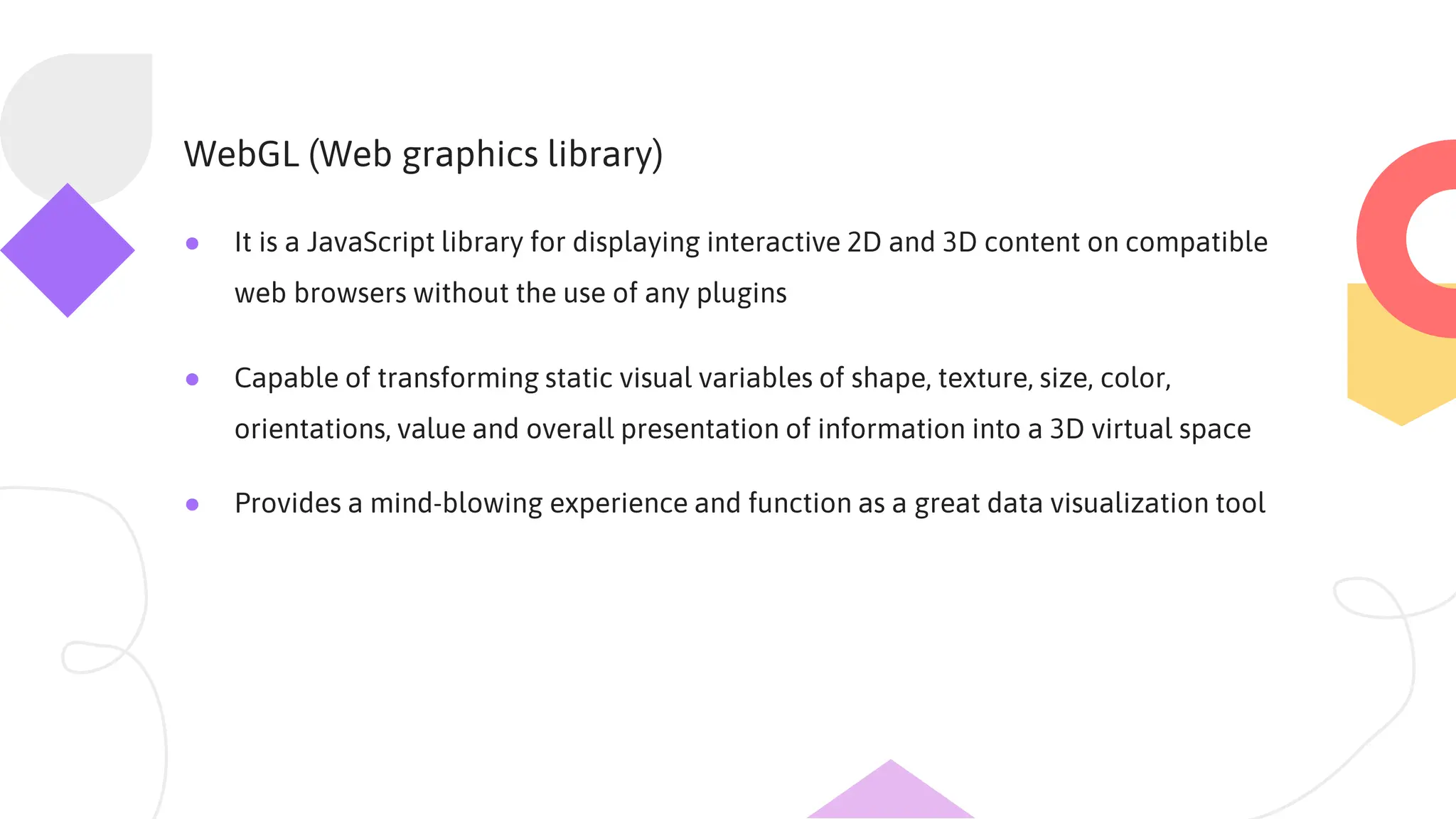

 WebGL
• Hardware Approach
• Using VRML technology

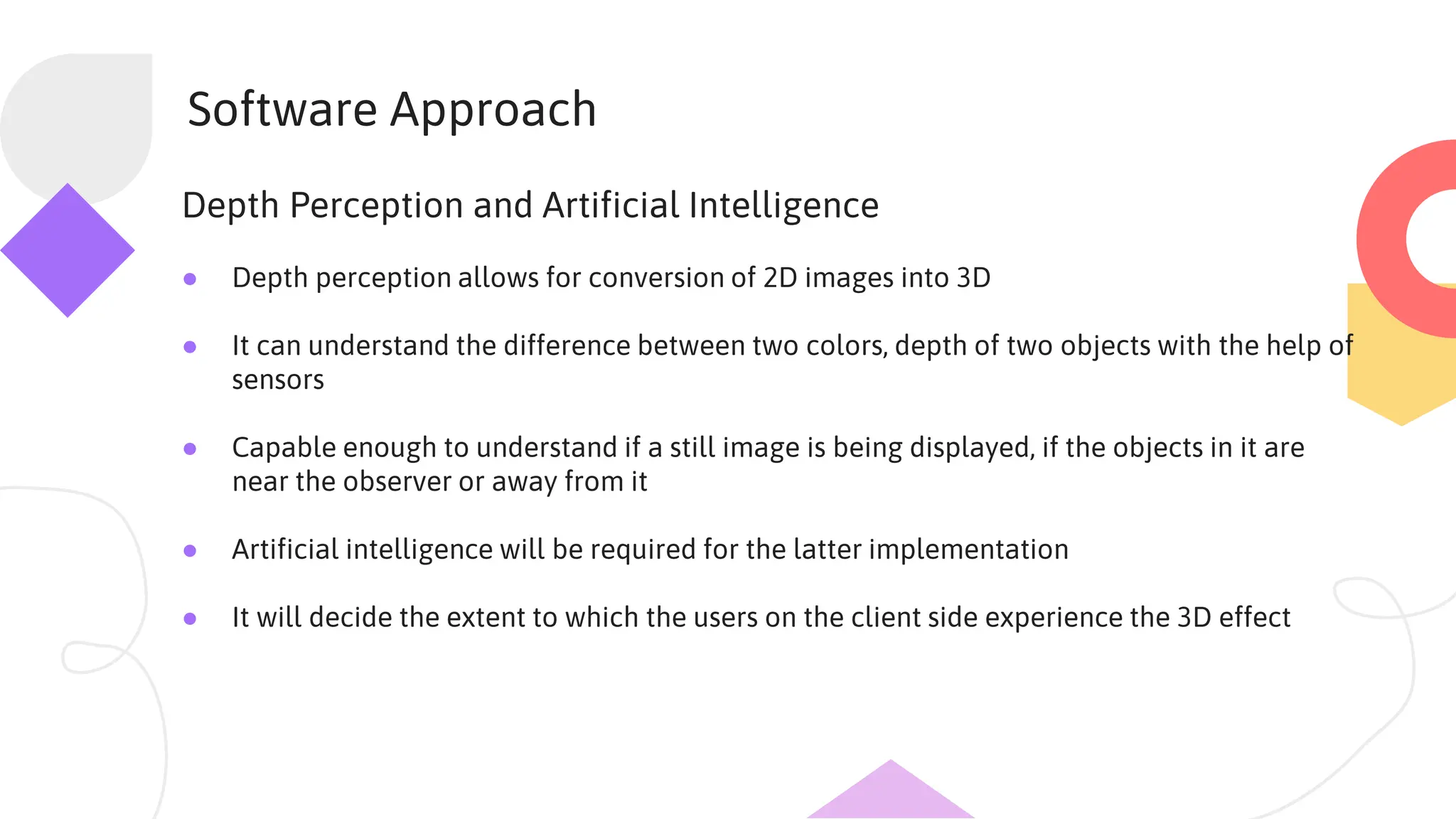

18. Software Approach

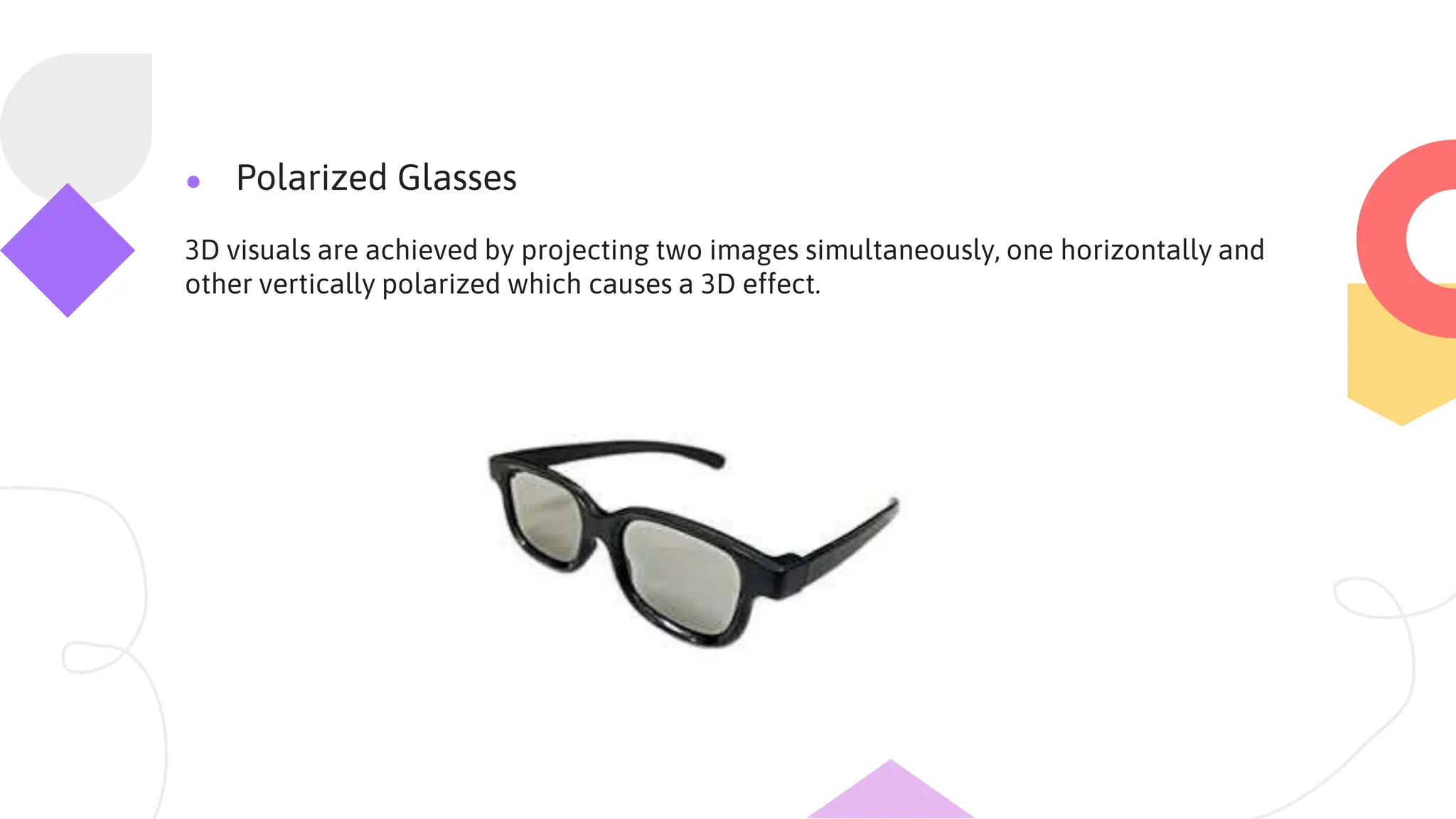

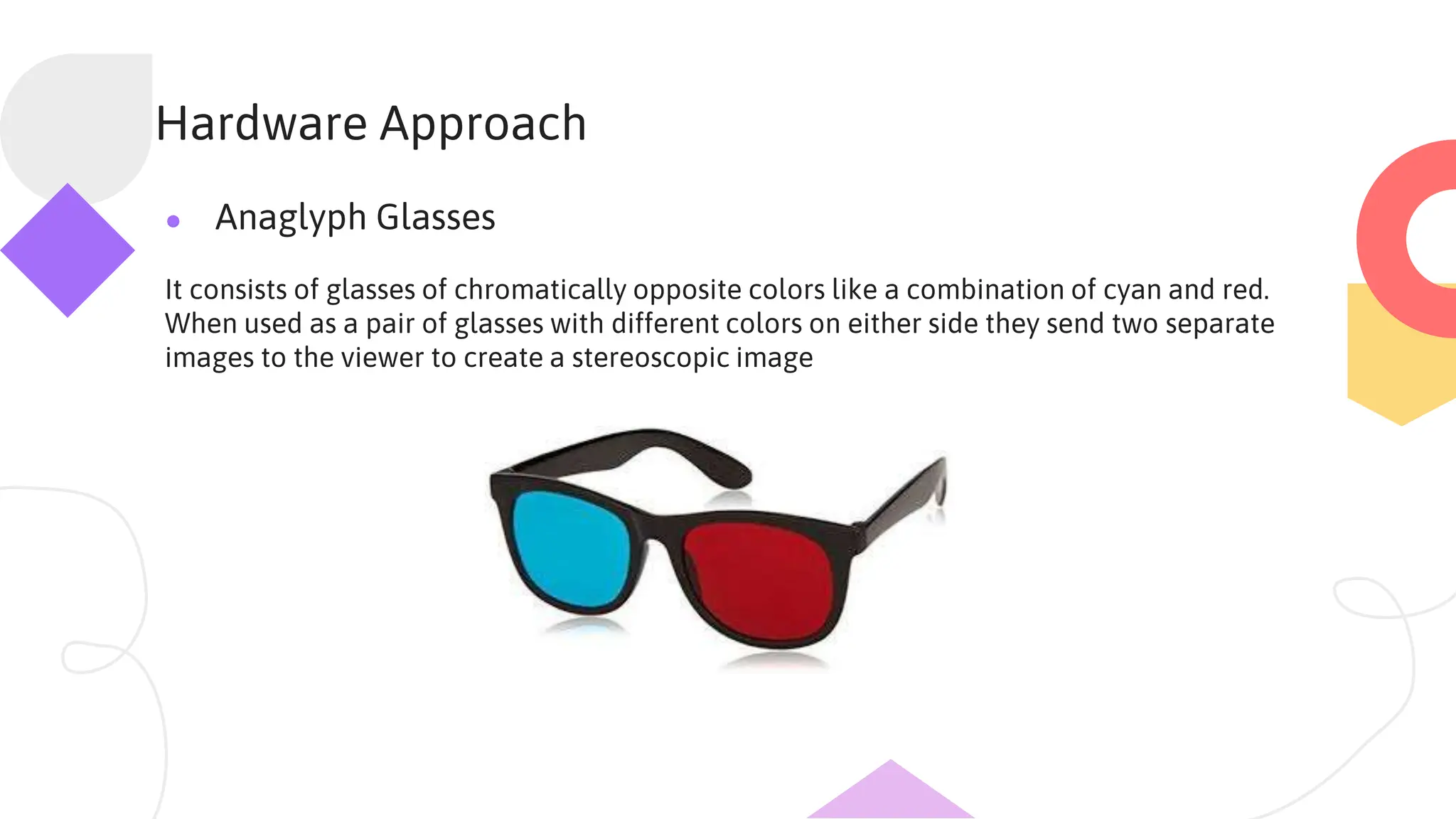

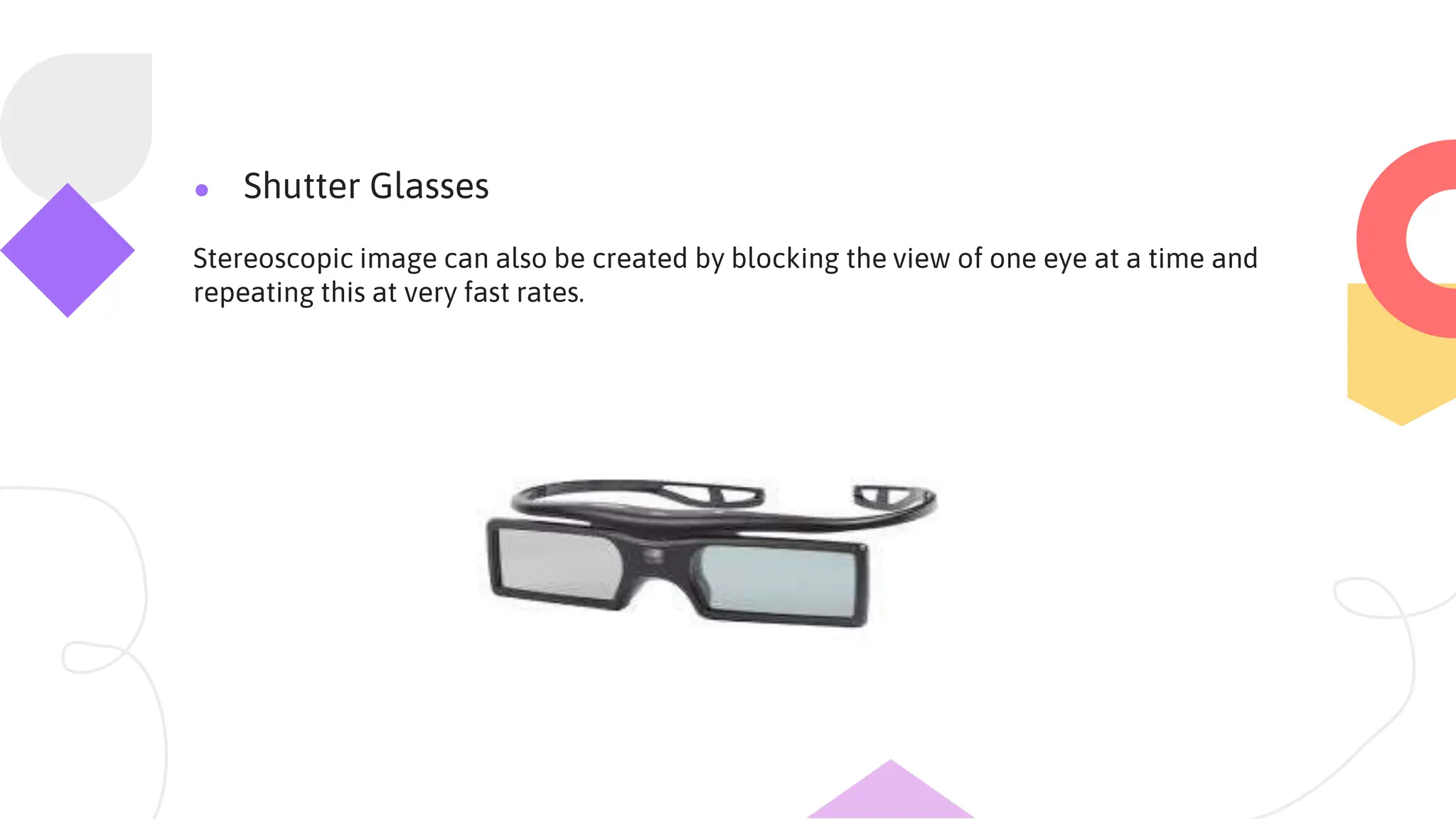

20. Hardware Approach

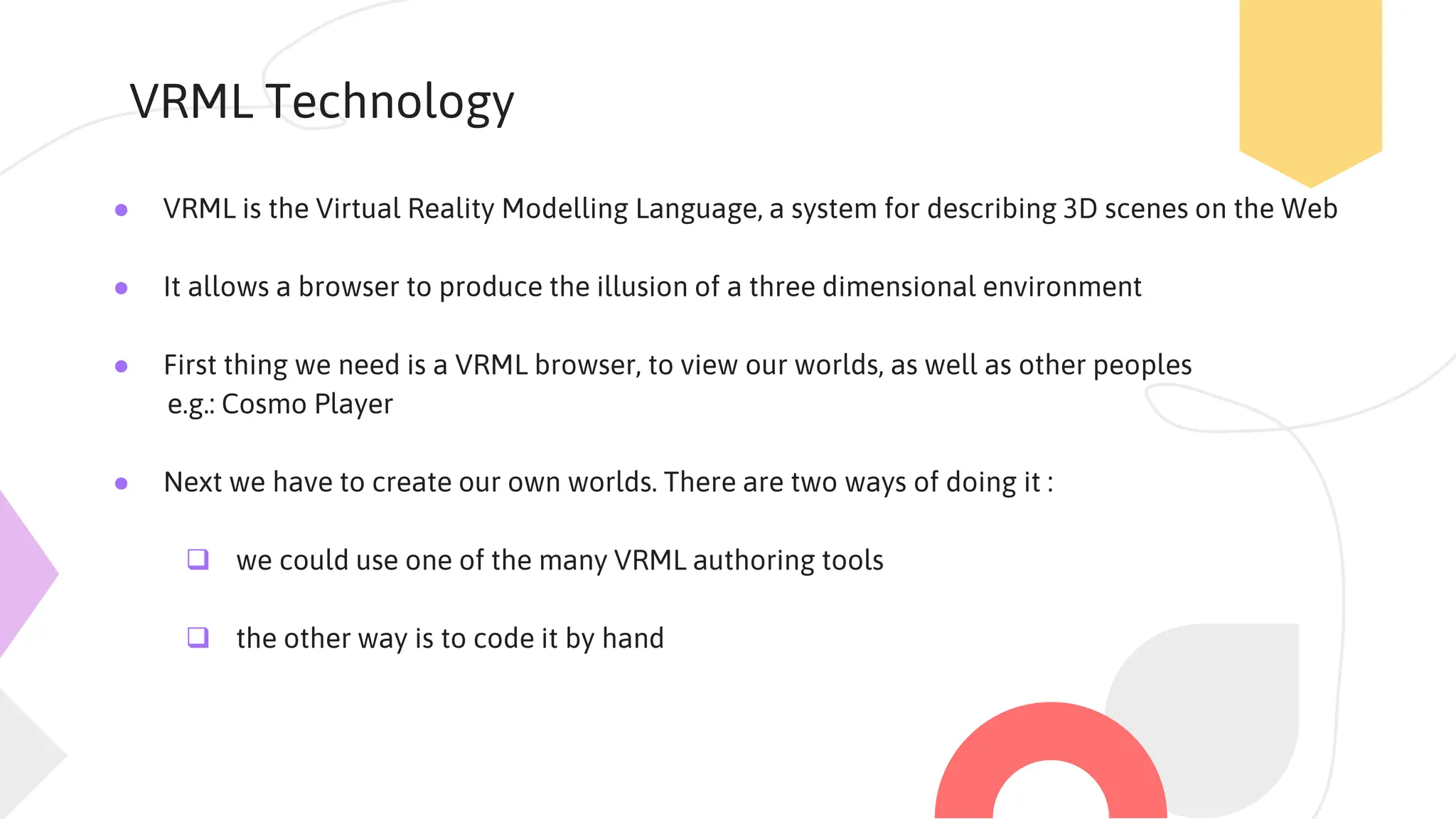

23. VRML Technology
● VRML is the Virtual Reality Modelling Language, a system for describing 3D scenes on the Web
● It allows a browser to produce the illusion of a three dimensional environment
● First thing we need is a VRML browser, to view our worlds, as well as other peoples
e.g.: Cosmo Player
● Next we have to create our own worlds. There are two ways of doing it :
 we could use one of the many VRML authoring tools
 the other way is to code it by hand

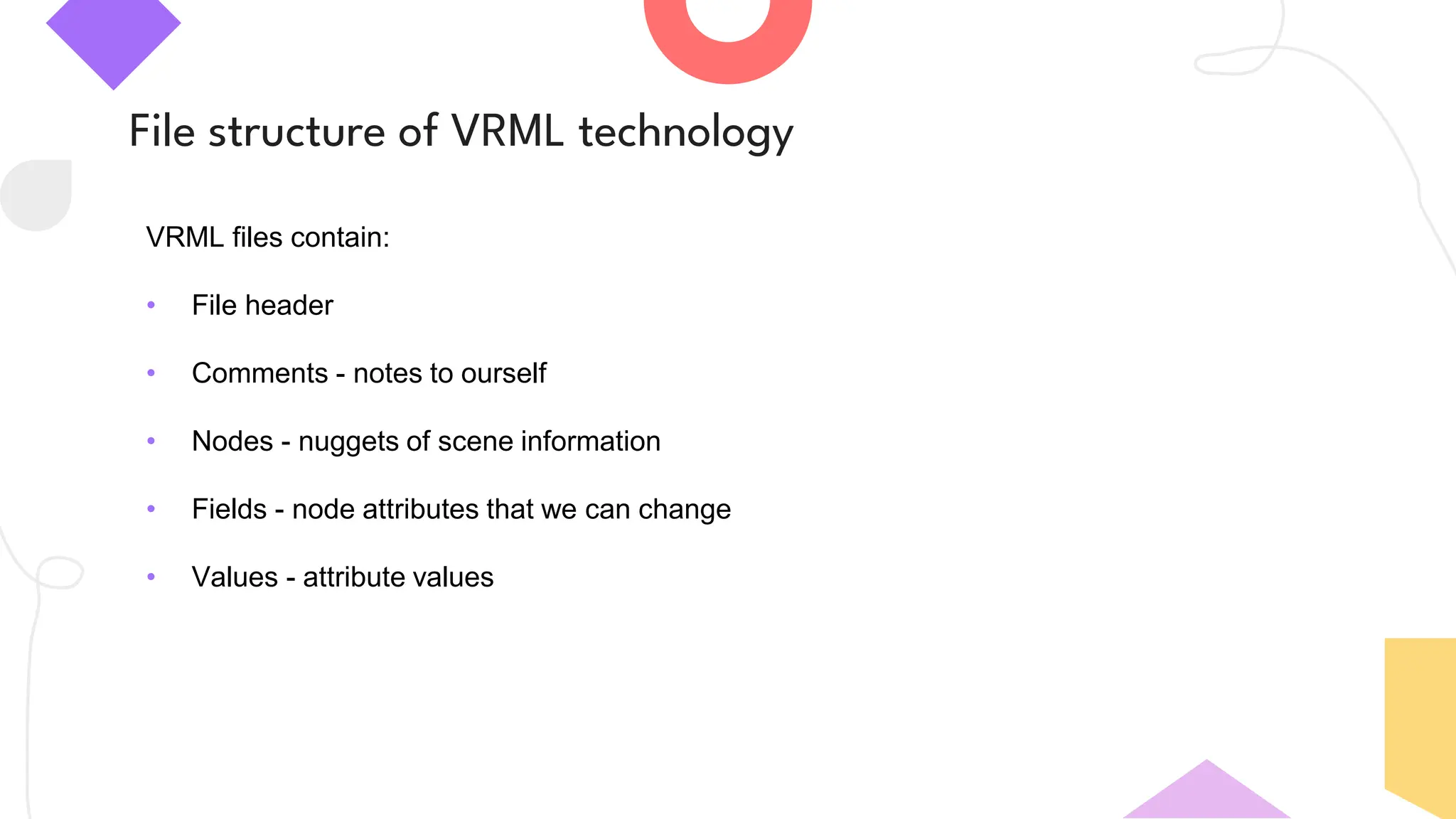

24. File structure of VRML technology
VRML files contain:
• File header
• Comments - notes to ourself
• Nodes - nuggets of scene information
• Fields - node attributes that we can change
• Values - attribute values

25. Simple code in VRML technology
#VRML V2.0 utf8
# A cylinder
Shape {
appearance Appearance {
material Material { }
}
geometry Cylinder {
height 2.0
radius 1.5
}
}

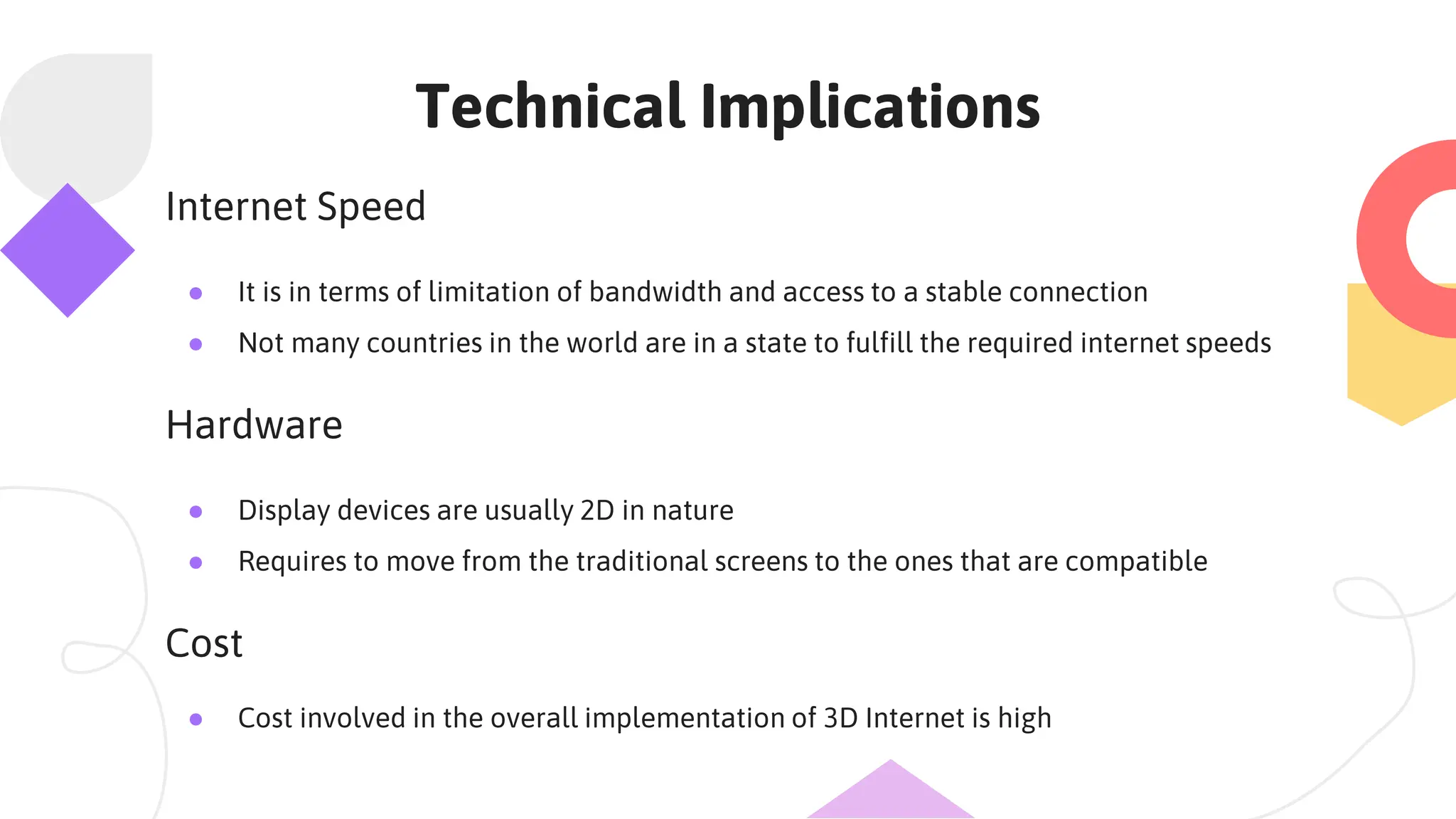

26. Technical Implications

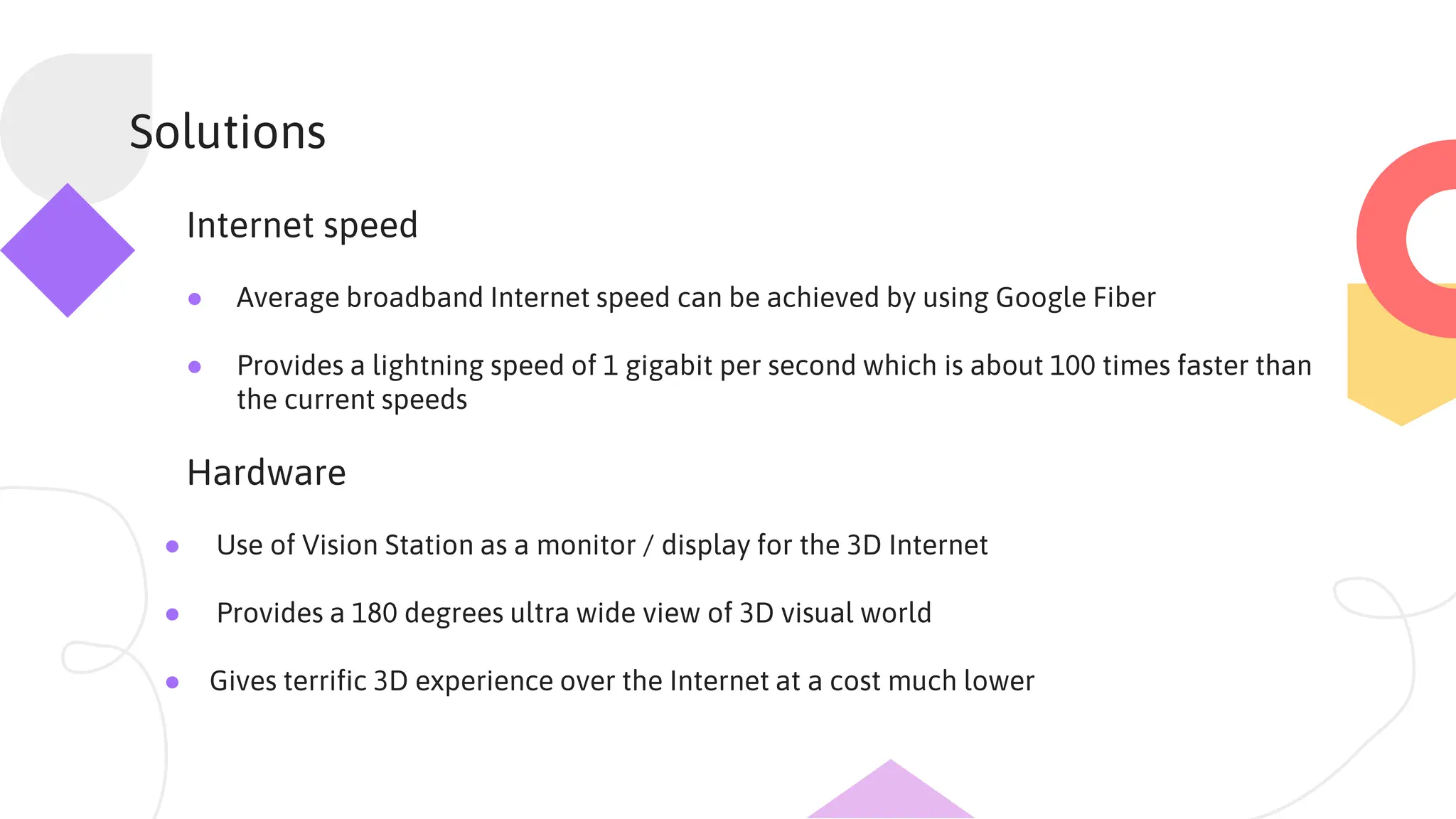

27. Solutions

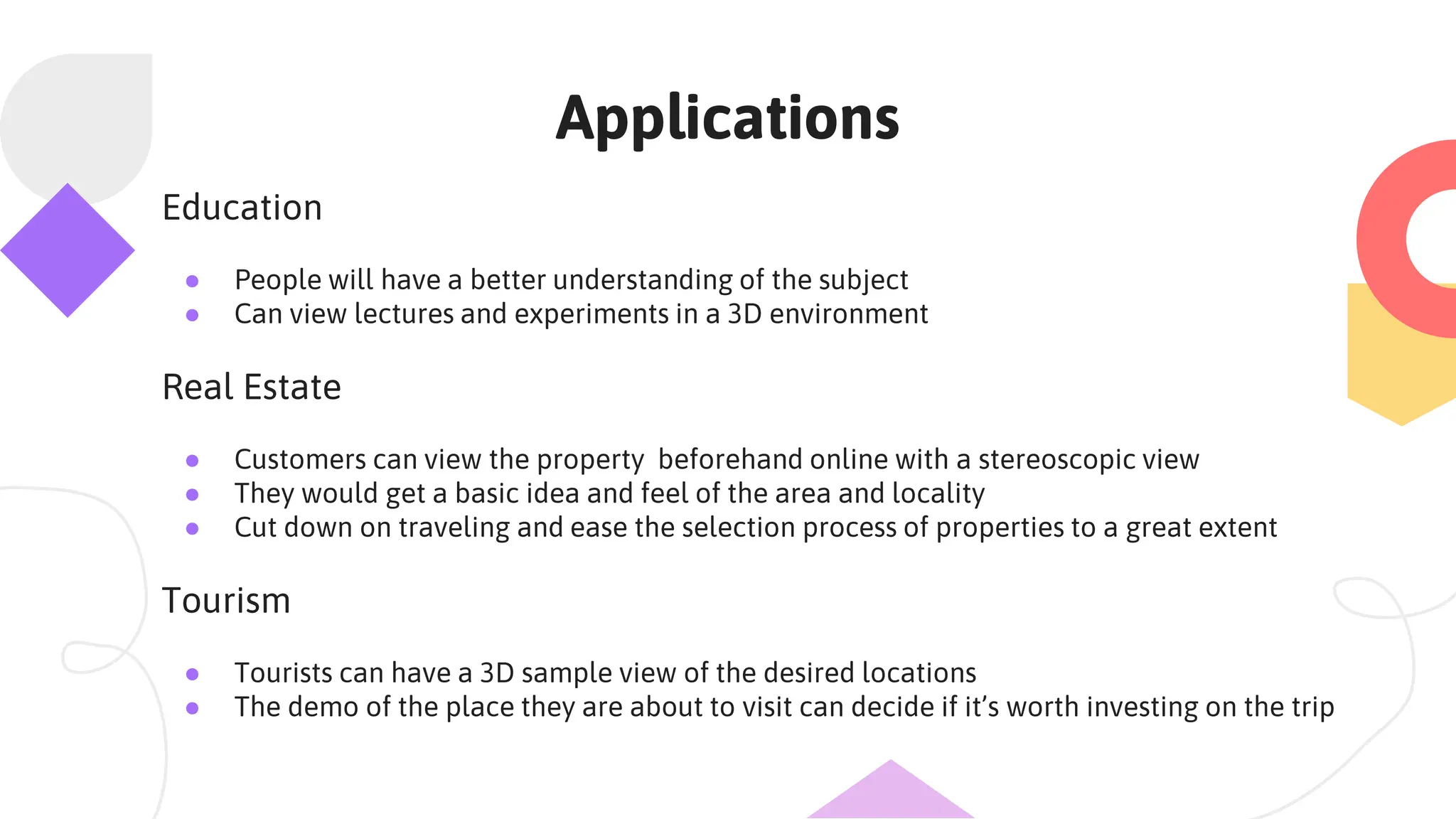

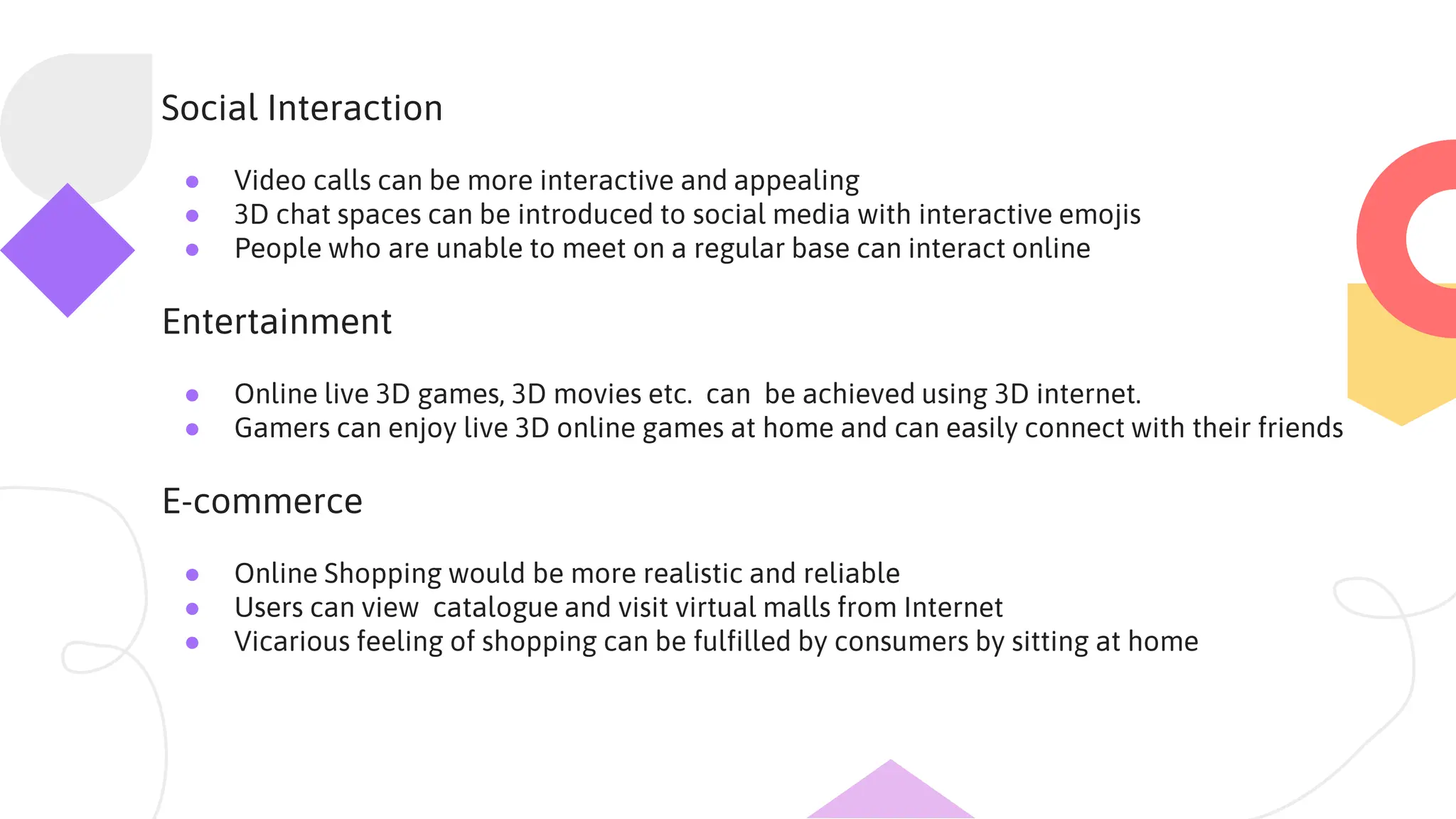

28. Applications

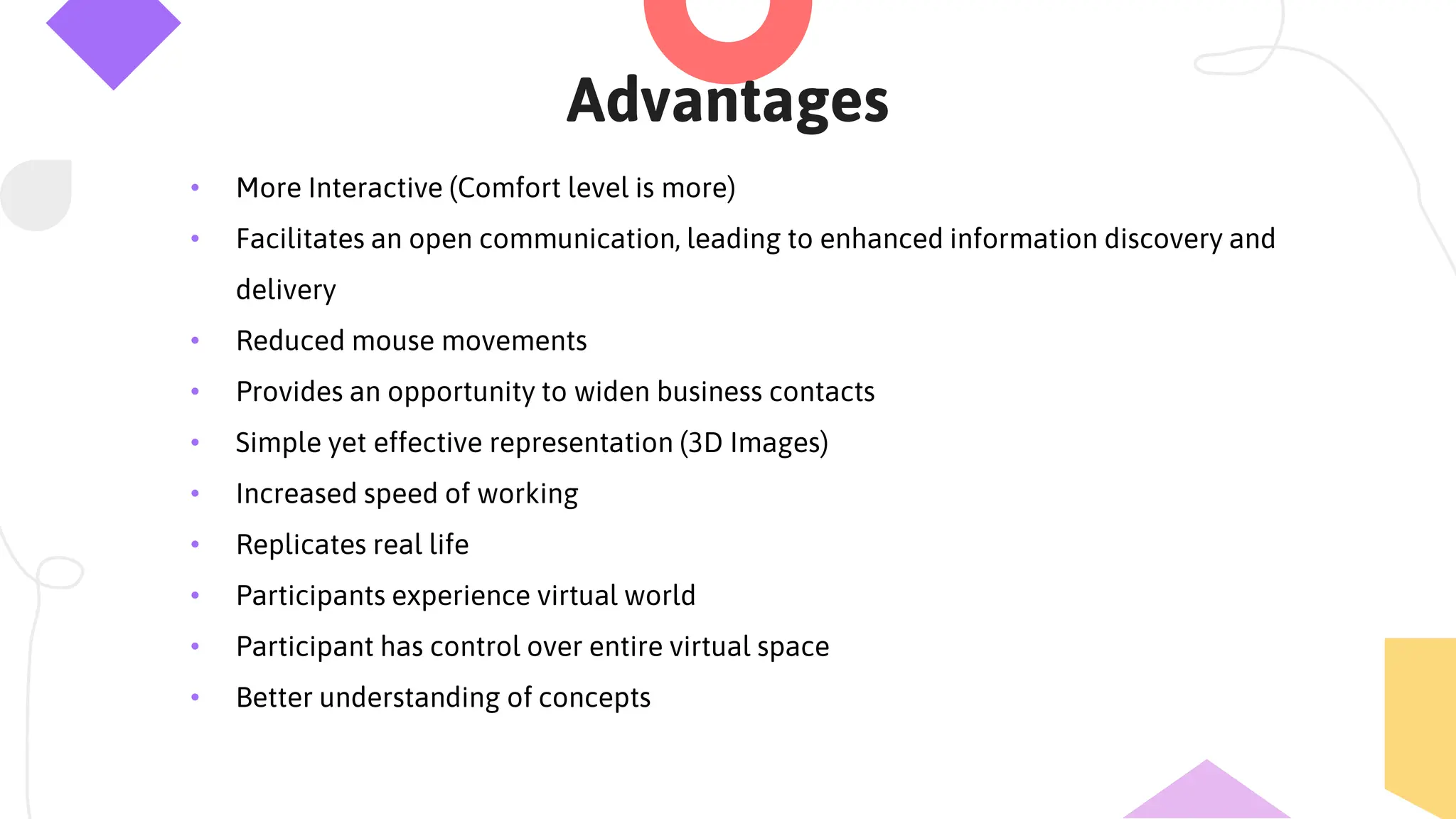

30. Advantages
• More Interactive (Comfort level is more)
• Facilitates an open communication, leading to enhanced information discovery and
delivery
• Reduced mouse movements
• Provides an opportunity to widen business contacts
• Simple yet effective representation (3D Images)
• Increased speed of working
• Replicates real life
• Participants experience virtual world
• Participant has control over entire virtual space
• Better understanding of concepts

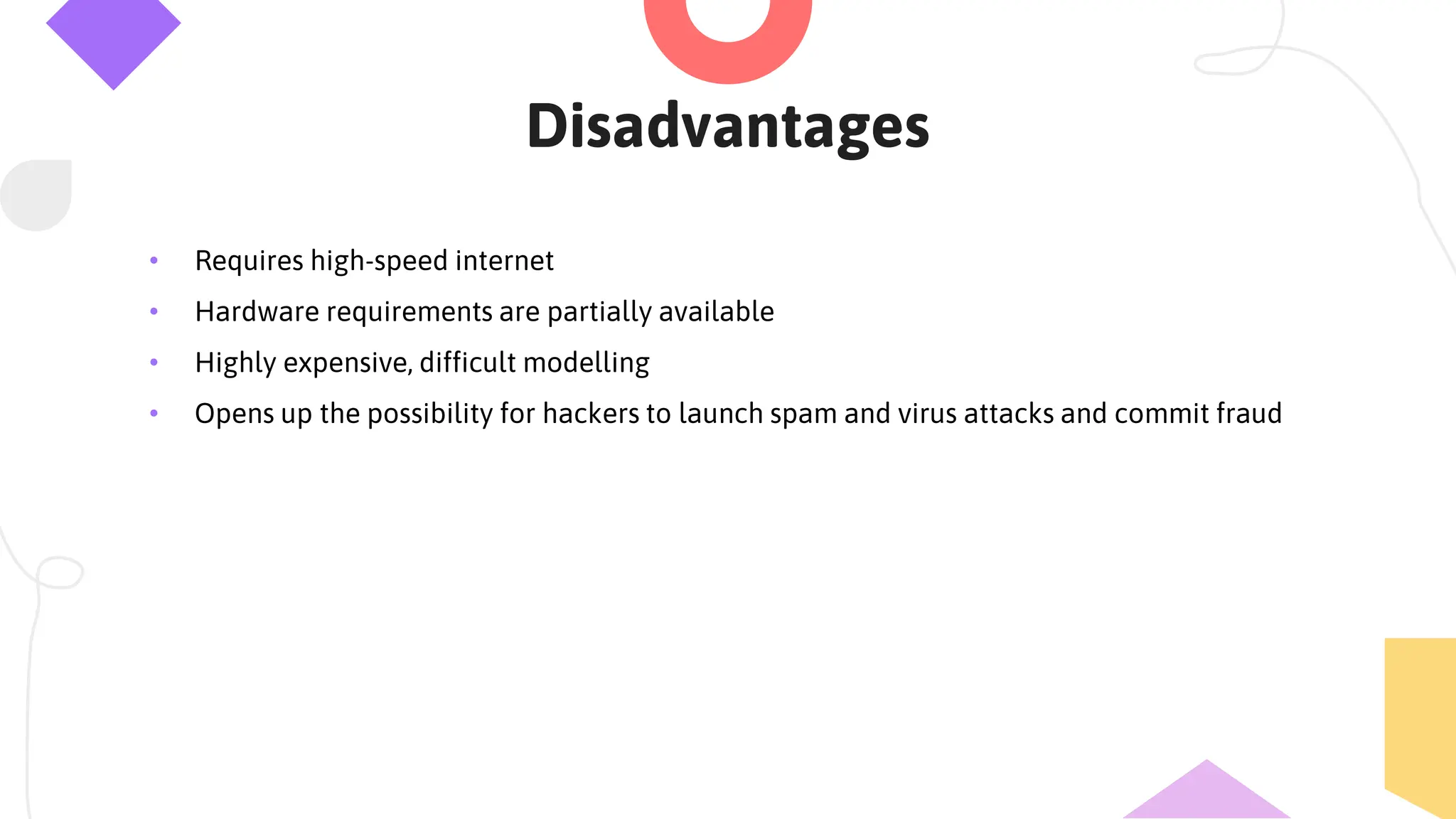

31. Disadvantages
• Requires high-speed internet
• Hardware requirements are partially available
• Highly expensive, difficult modelling
• Opens up the possibility for hackers to launch spam and virus attacks and commit fraud

32. Obstacles to Commercial Success

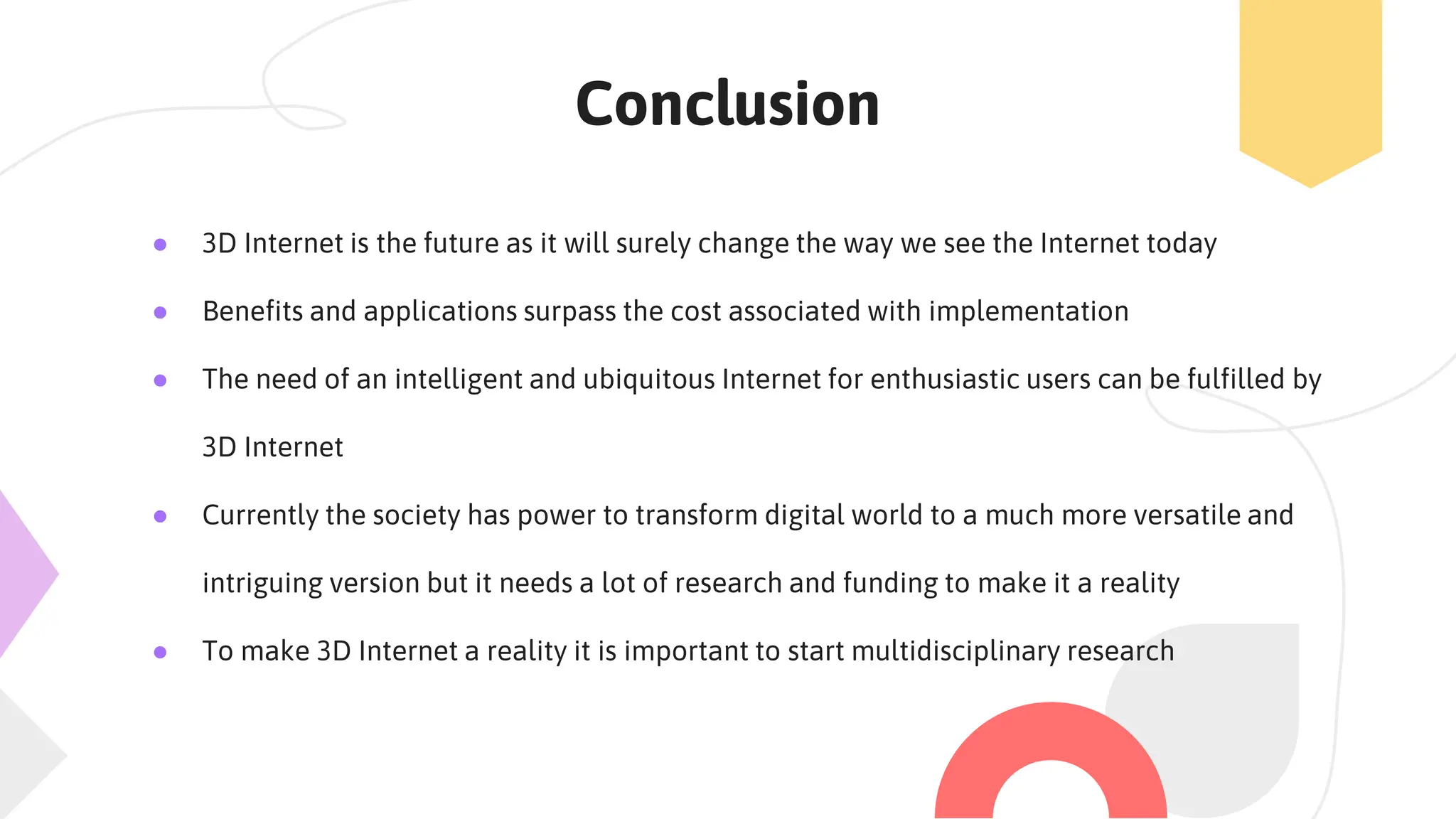

33. Conclusion
● 3D Internet is the future as it will surely change the way we see the Internet today
● Benefits and applications surpass the cost associated with implementation
● The need of an intelligent and ubiquitous Internet for enthusiastic users can be fulfilled by
3D Internet
● Currently the society has power to transform digital world to a much more versatile and
intriguing version but it needs a lot of research and funding to make it a reality
● To make 3D Internet a reality it is important to start multidisciplinary research
