Nginx, PHP, and Phalcon were installed and configured on Windows to serve web applications. Nginx was set up as a web server with PHP enabled through FastCGI. PHP and nginx processes were configured as Windows services using winsw. Phalcon was installed as a PHP extension. Testing involved accessing a phpinfo.php file to confirm PHP and Phalcon were installed correctly. Potential errors addressed included missing Visual C++ runtime libraries.

1. 行動APP開發管理實務
WNMP & Phalcon Micro App - Part I
2015.12.29 @ 淡江大學商管B217
Taien Wang <taien_wang@hiiir.com>
時間軸科技股份有限公司

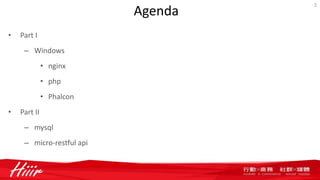

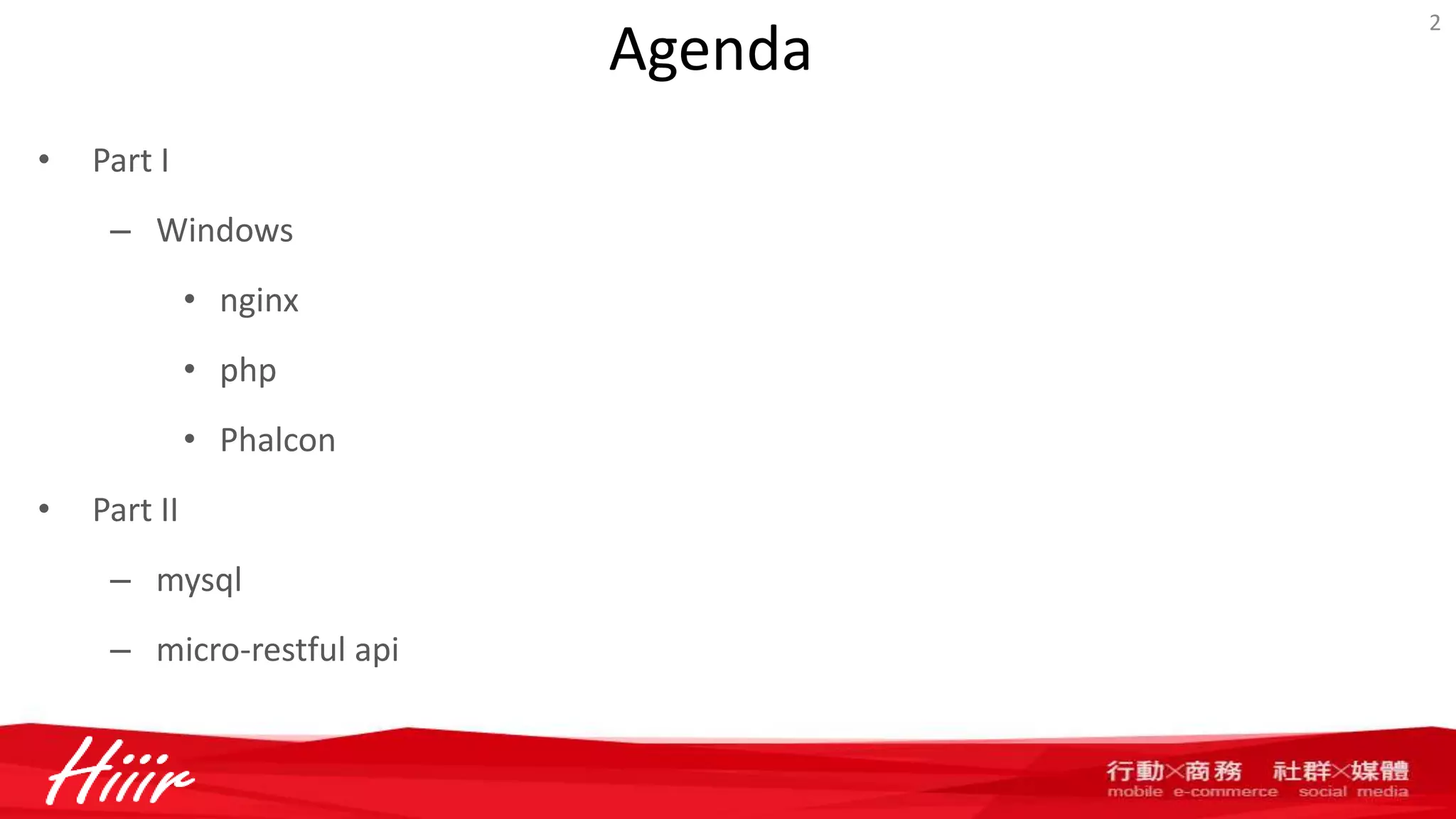

2. Agenda
• Part I
– Windows
• nginx
• php
• Phalcon
• Part II
– mysql
– micro-restful api
2

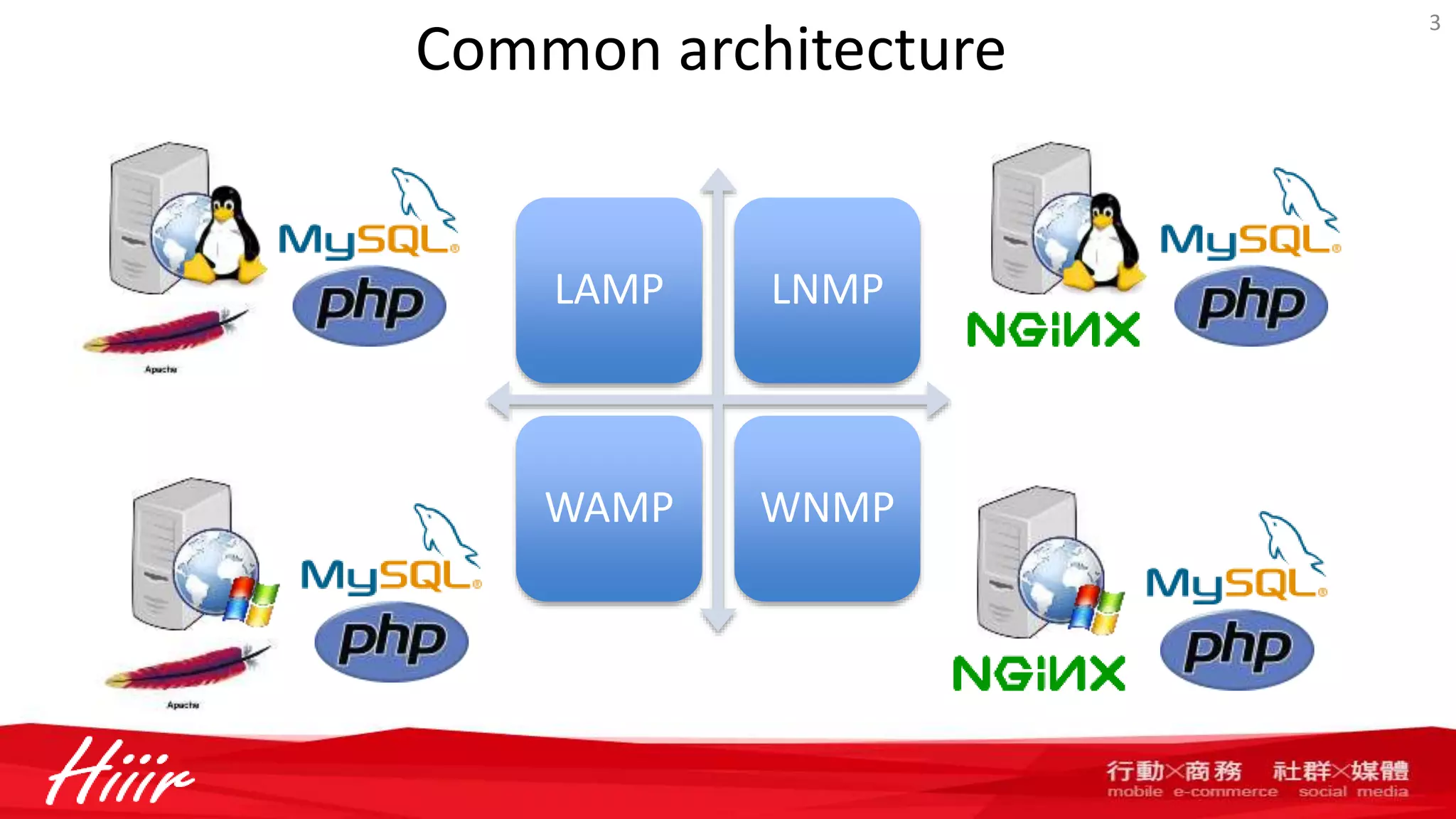

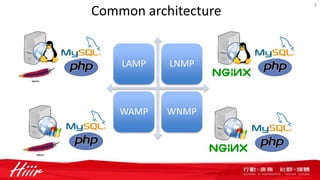

3. Common architecture
LAMP LNMP
WAMP WNMP
3

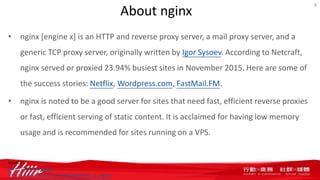

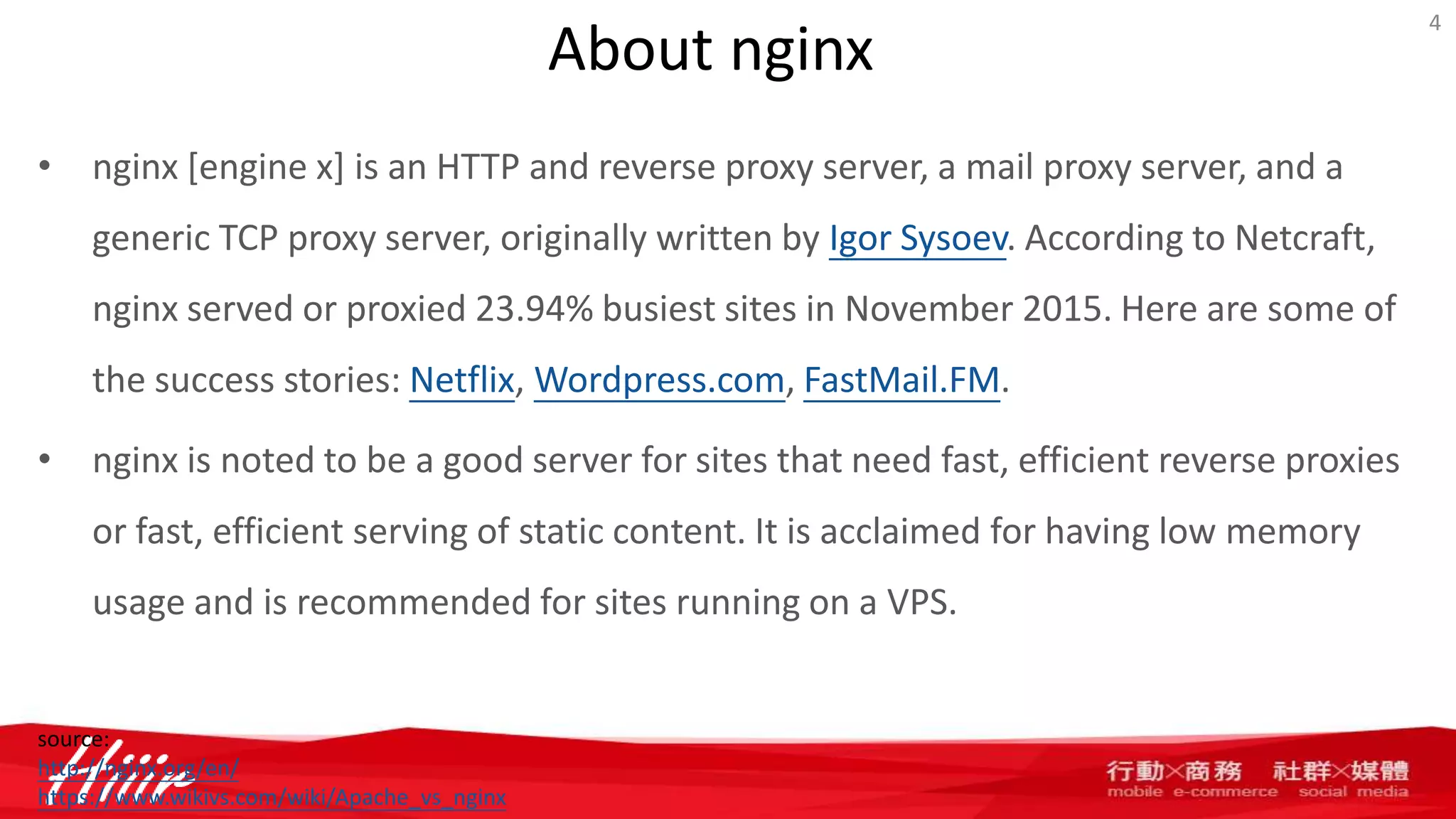

4. About nginx
• nginx [engine x] is an HTTP and reverse proxy server, a mail proxy server, and a
generic TCP proxy server, originally written by Igor Sysoev. According to Netcraft,
nginx served or proxied 23.94% busiest sites in November 2015. Here are some of
the success stories: Netflix, Wordpress.com, FastMail.FM.
• nginx is noted to be a good server for sites that need fast, efficient reverse proxies
or fast, efficient serving of static content. It is acclaimed for having low memory
usage and is recommended for sites running on a VPS.
4
source:
http://nginx.org/en/
https://www.wikivs.com/wiki/Apache_vs_nginx

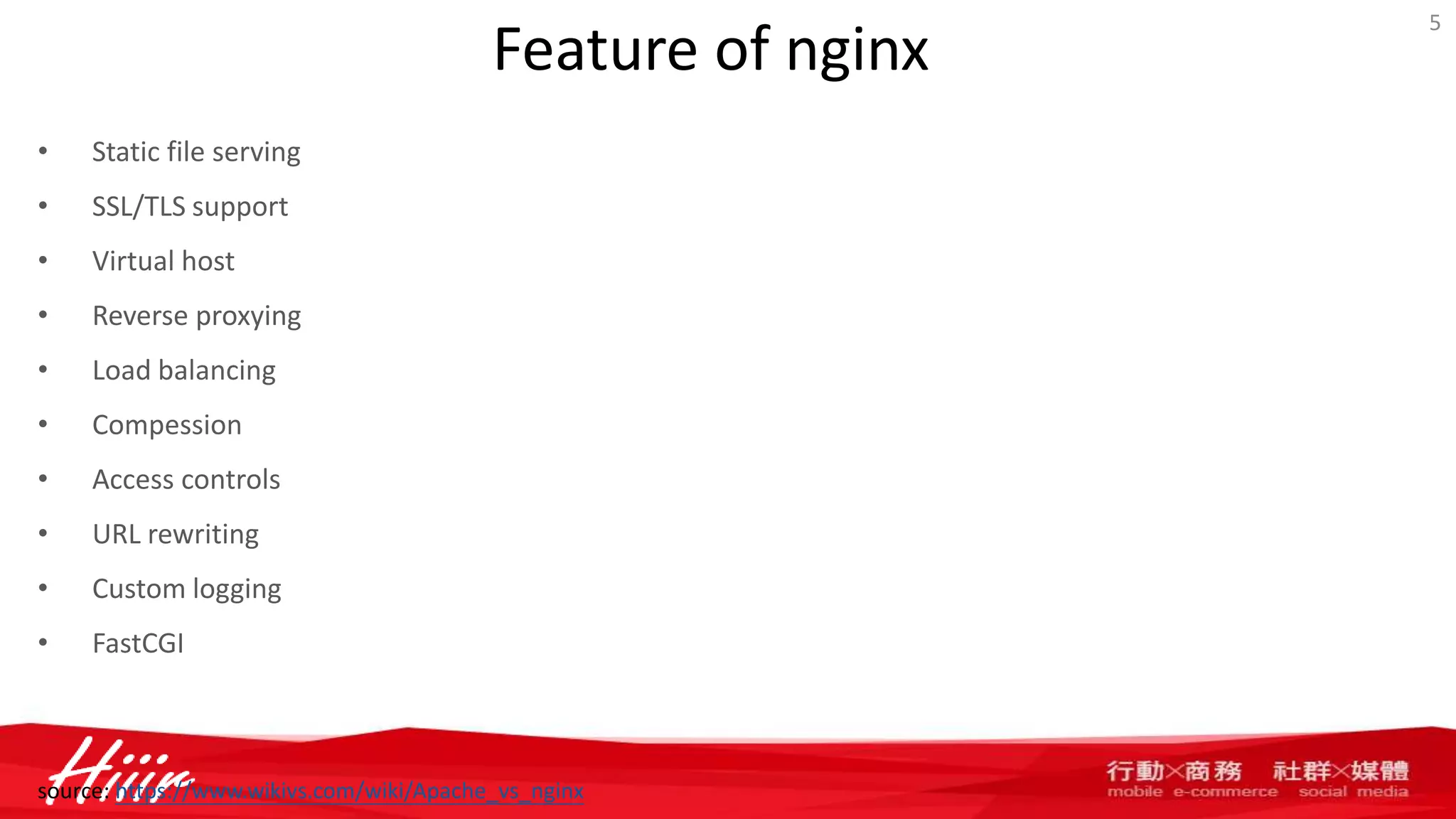

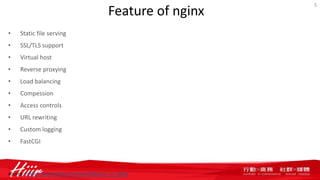

5. Feature of nginx
• Static file serving
• SSL/TLS support
• Virtual host
• Reverse proxying
• Load balancing
• Compession
• Access controls
• URL rewriting
• Custom logging
• FastCGI
5
source: https://www.wikivs.com/wiki/Apache_vs_nginx

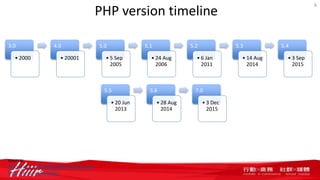

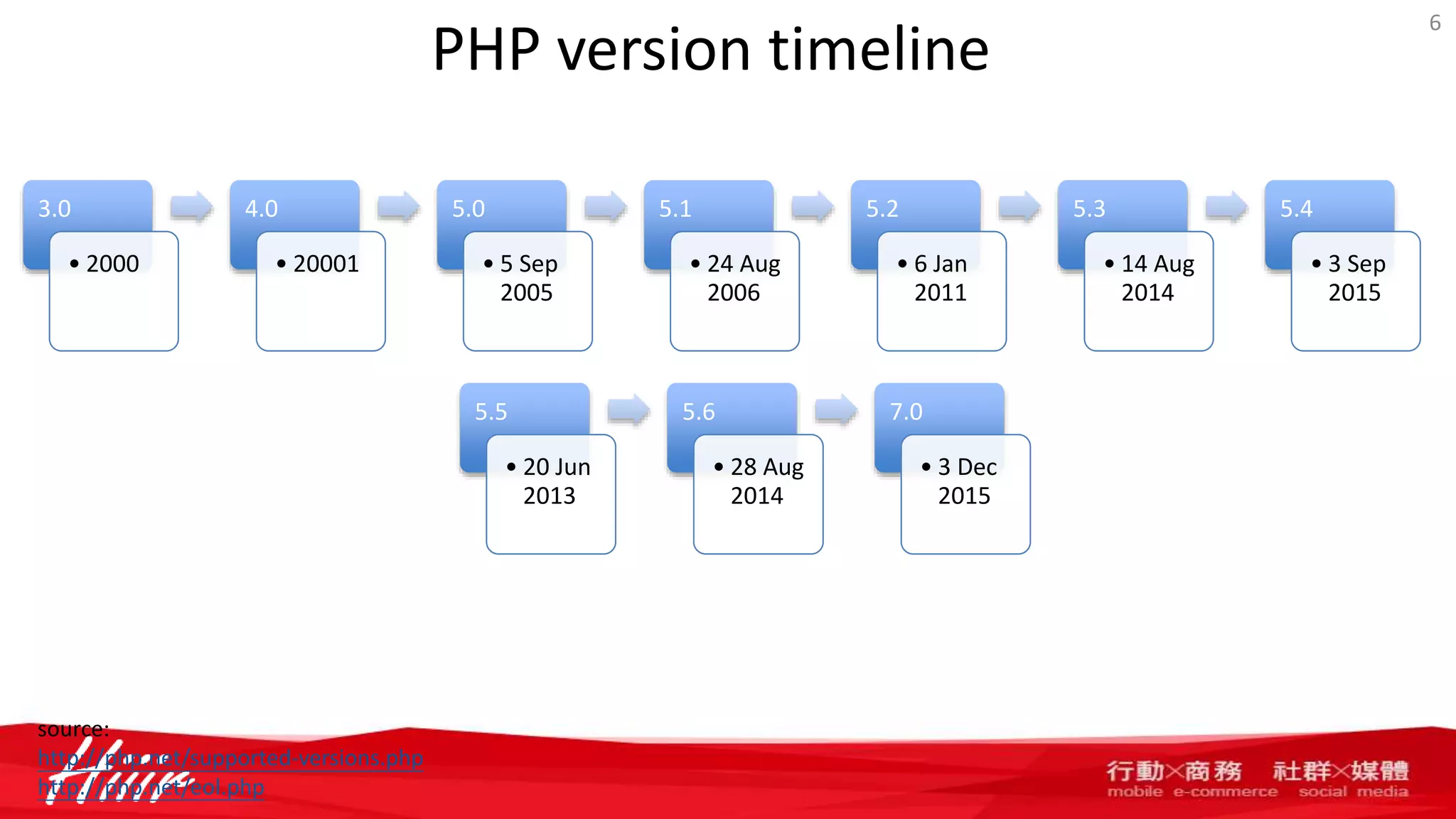

6. PHP version timeline
3.0
• 2000
4.0
• 20001
5.0
• 5 Sep
2005
5.1
• 24 Aug
2006
5.2
• 6 Jan
2011
5.3
• 14 Aug
2014
5.4
• 3 Sep
2015
6
5.5
• 20 Jun
2013
5.6
• 28 Aug
2014
7.0
• 3 Dec
2015
source:
http://php.net/supported-versions.php
http://php.net/eol.php

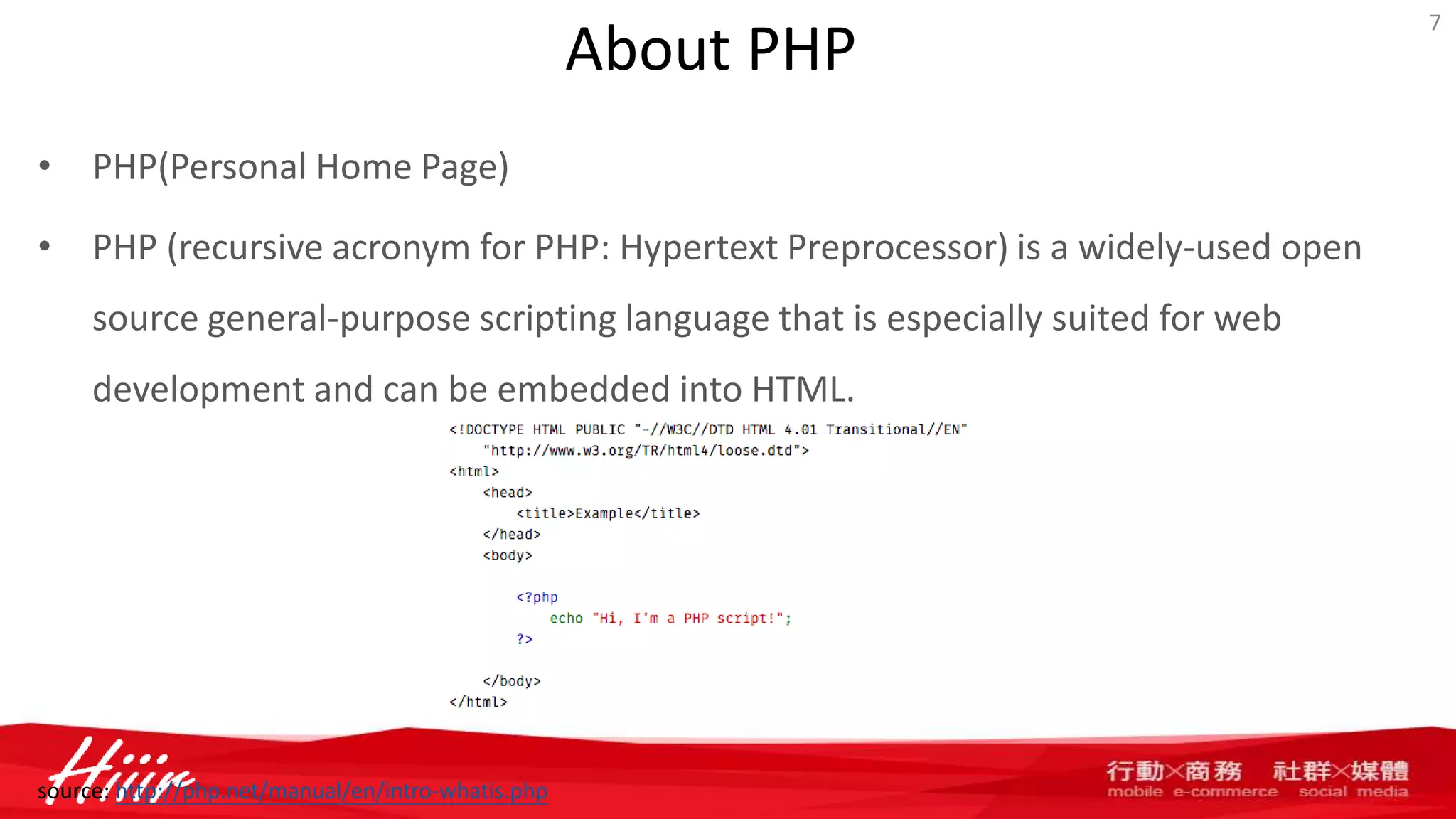

7. About PHP
• PHP(Personal Home Page)
• PHP (recursive acronym for PHP: Hypertext Preprocessor) is a widely-used open
source general-purpose scripting language that is especially suited for web
development and can be embedded into HTML.
7
source: http://php.net/manual/en/intro-whatis.php

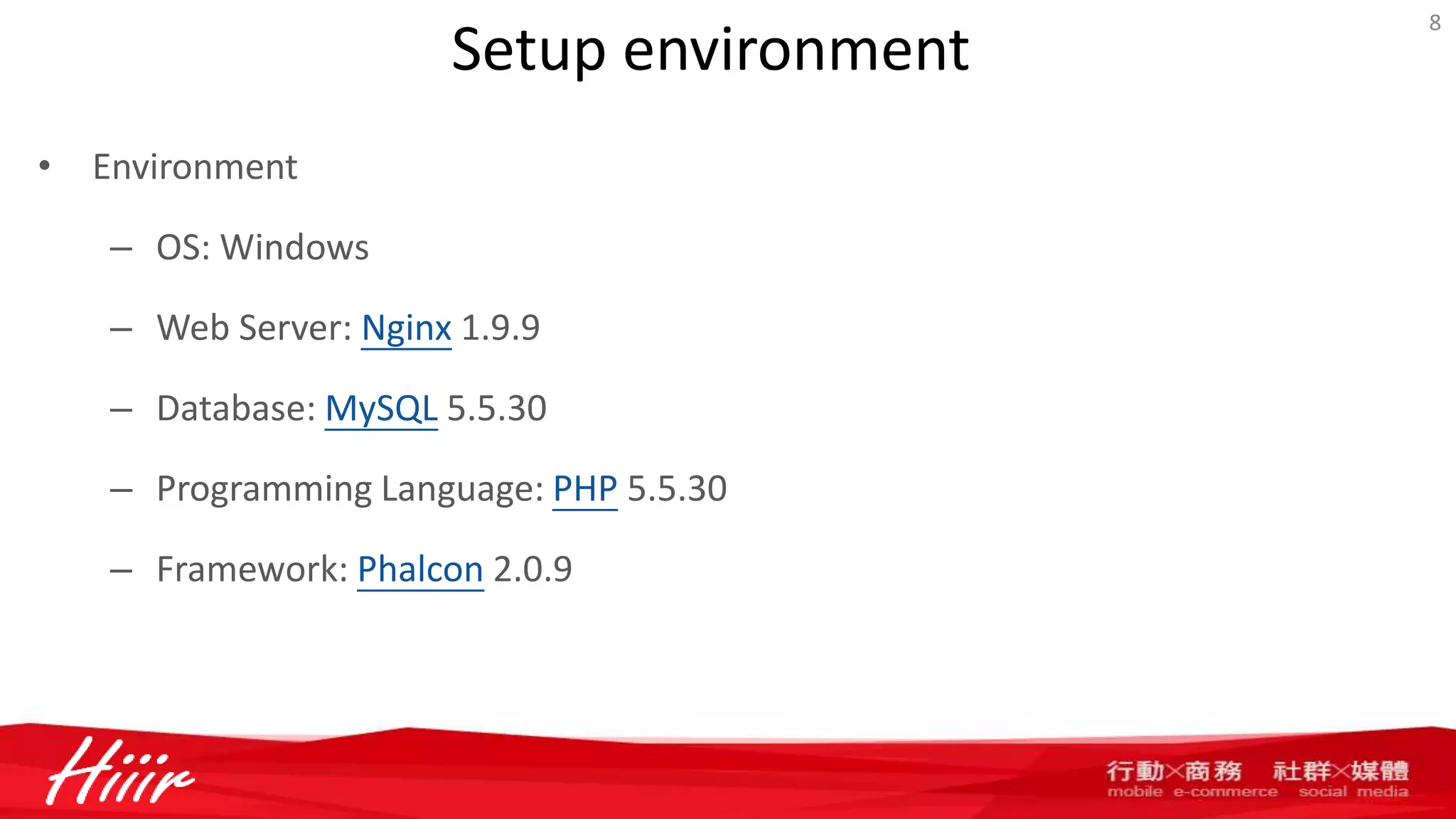

8. Setup environment
• Environment
– OS: Windows
– Web Server: Nginx 1.9.9
– Database: MySQL 5.5.30
– Programming Language: PHP 5.5.30
– Framework: Phalcon 2.0.9
8

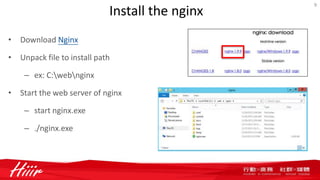

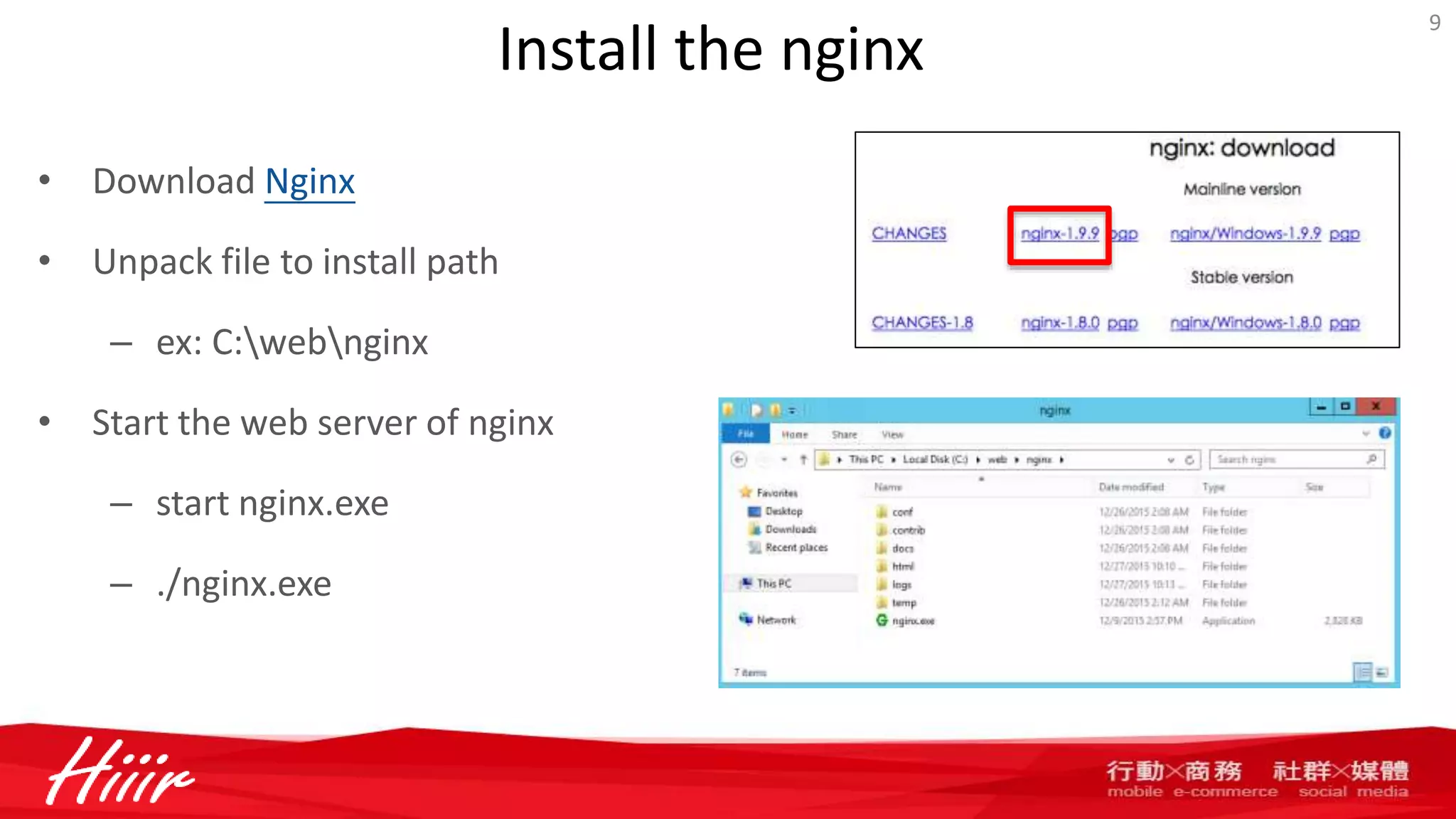

9. Install the nginx
• Download Nginx
• Unpack file to install path
– ex: C:webnginx
• Start the web server of nginx
– start nginx.exe
– ./nginx.exe
9

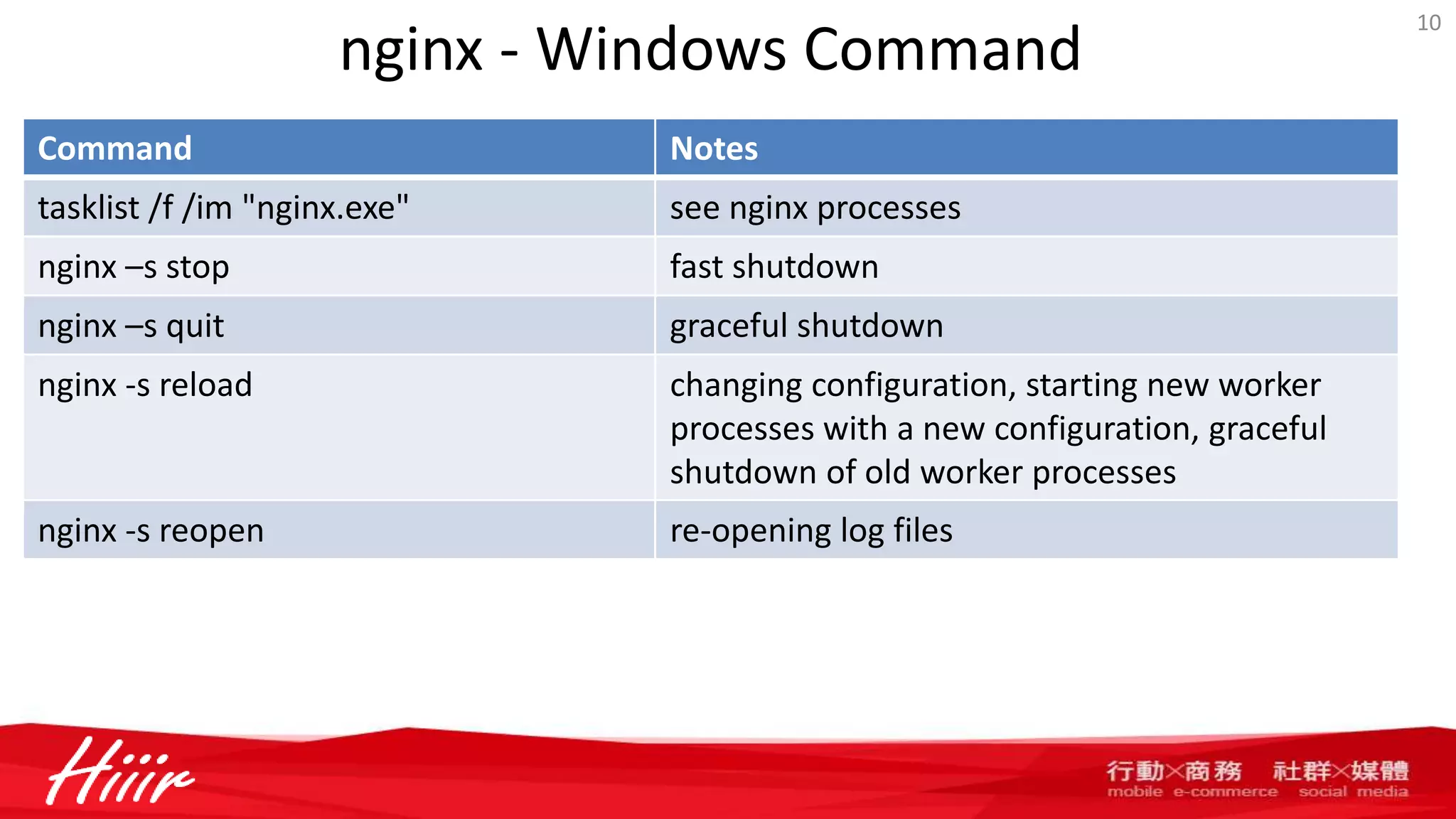

10. nginx - Windows Command
Command Notes
tasklist /f /im "nginx.exe" see nginx processes
nginx –s stop fast shutdown
nginx –s quit graceful shutdown
nginx -s reload changing configuration, starting new worker
processes with a new configuration, graceful
shutdown of old worker processes
nginx -s reopen re-opening log files
10

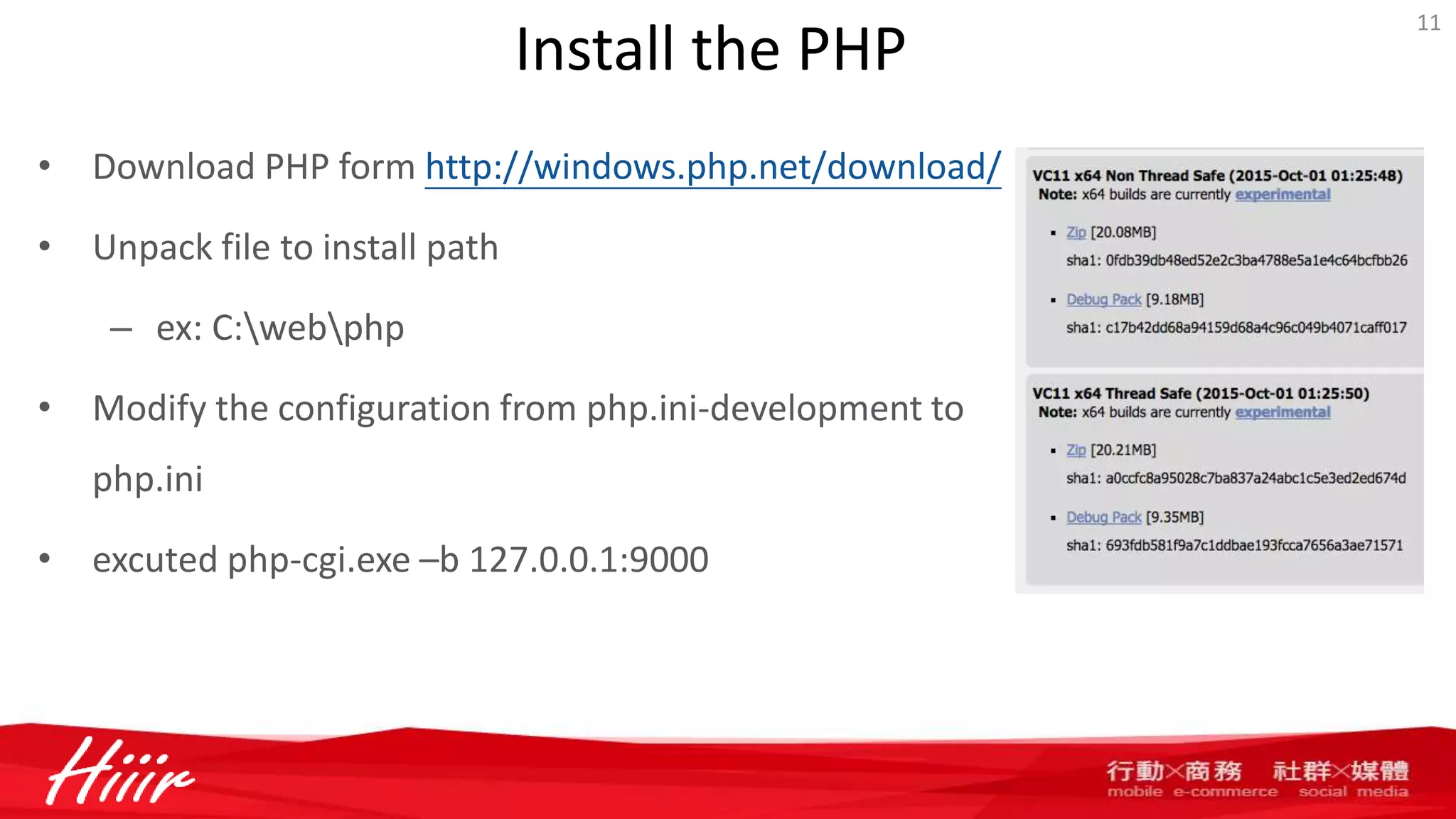

11. Install the PHP
• Download PHP form http://windows.php.net/download/
• Unpack file to install path
– ex: C:webphp
• Modify the configuration from php.ini-development to
php.ini
• excuted php-cgi.exe –b 127.0.0.1:9000
11

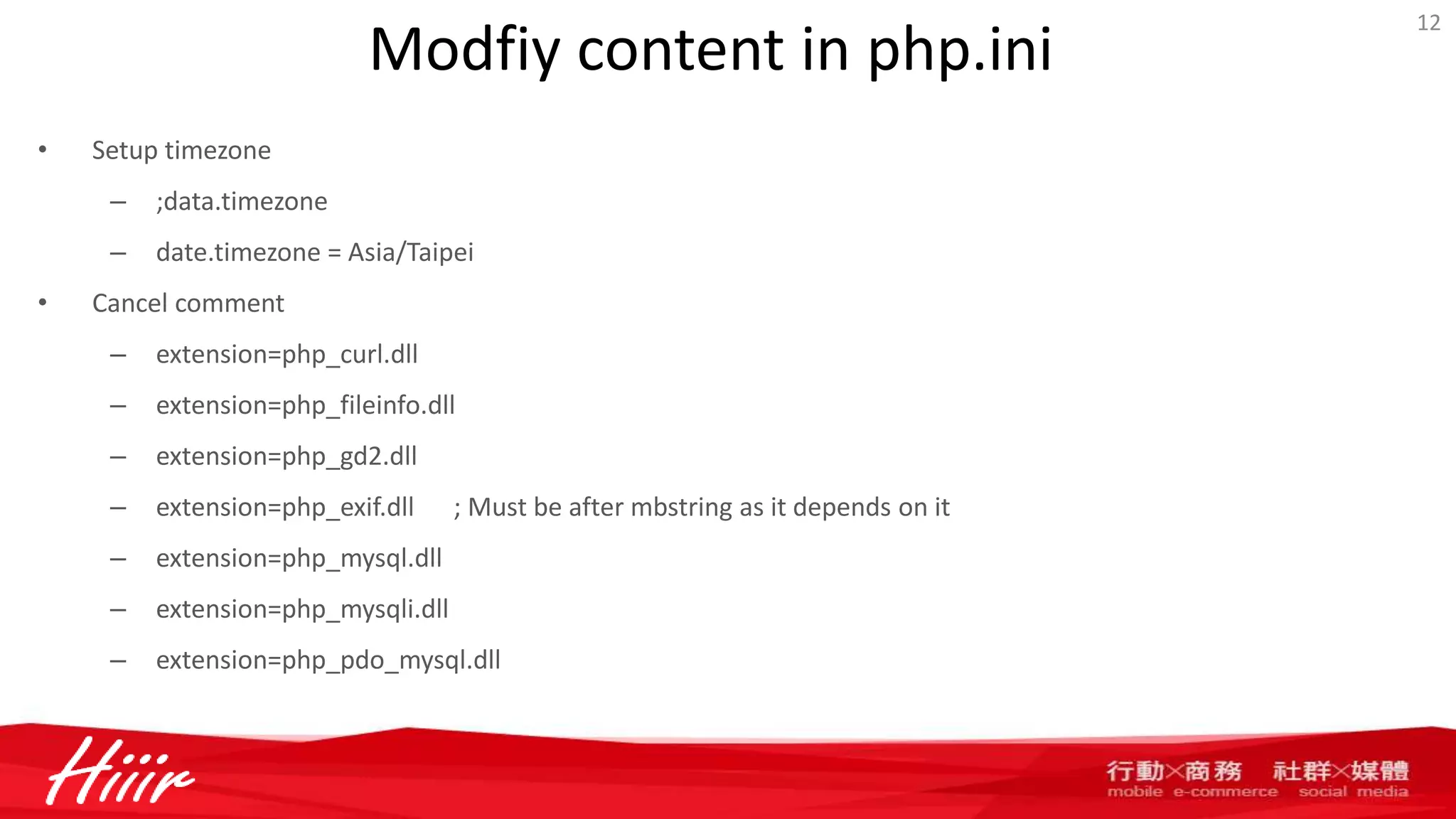

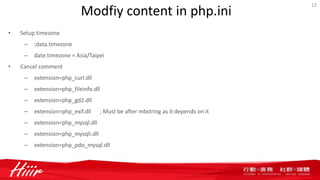

12. Modfiy content in php.ini
• Setup timezone
– ;data.timezone
– date.timezone = Asia/Taipei
• Cancel comment
– extension=php_curl.dll
– extension=php_fileinfo.dll
– extension=php_gd2.dll
– extension=php_exif.dll ; Must be after mbstring as it depends on it
– extension=php_mysql.dll
– extension=php_mysqli.dll
– extension=php_pdo_mysql.dll
12

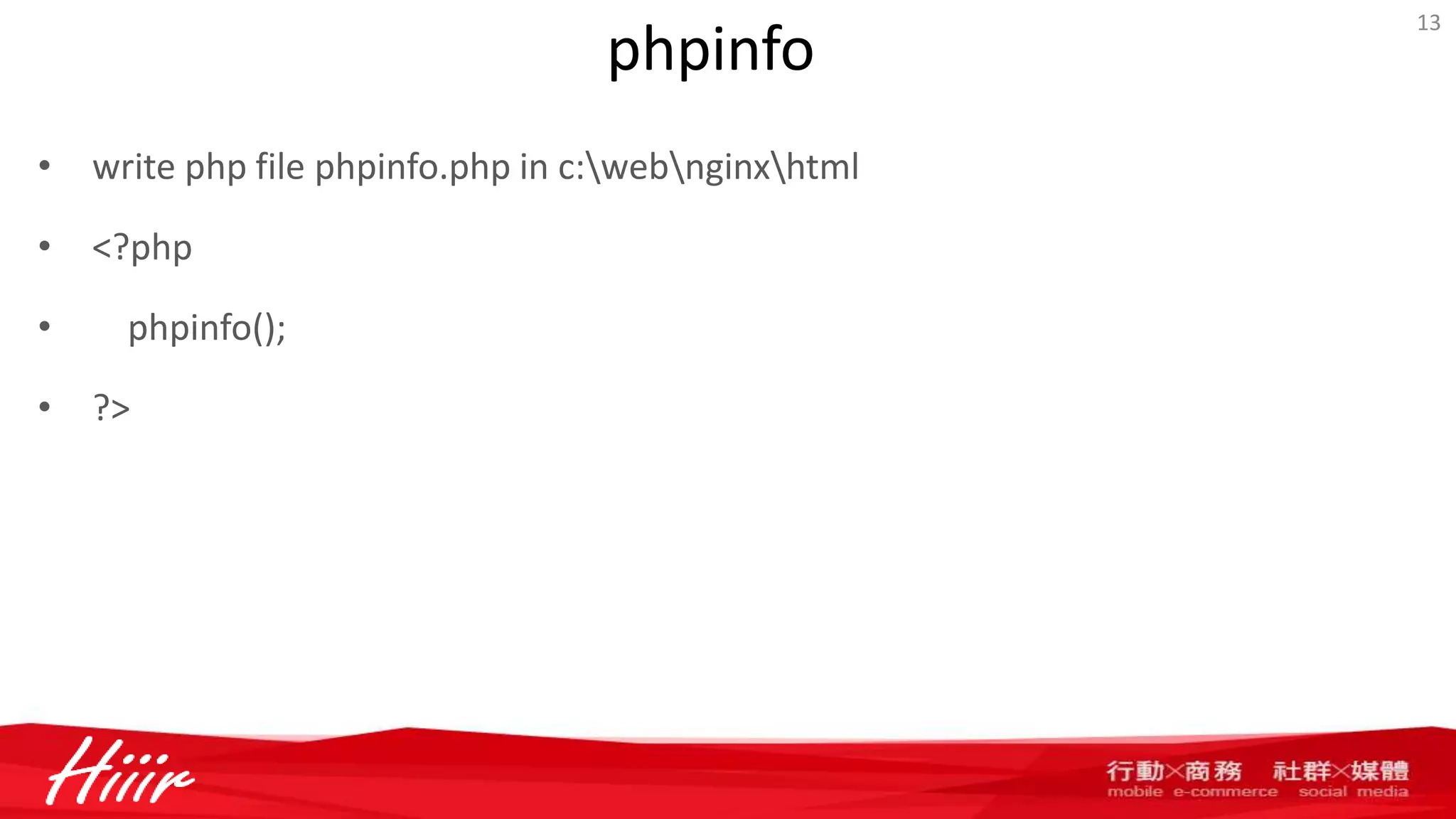

13. phpinfo
• write php file phpinfo.php in c:webnginxhtml
• <?php
• phpinfo();
• ?>
13

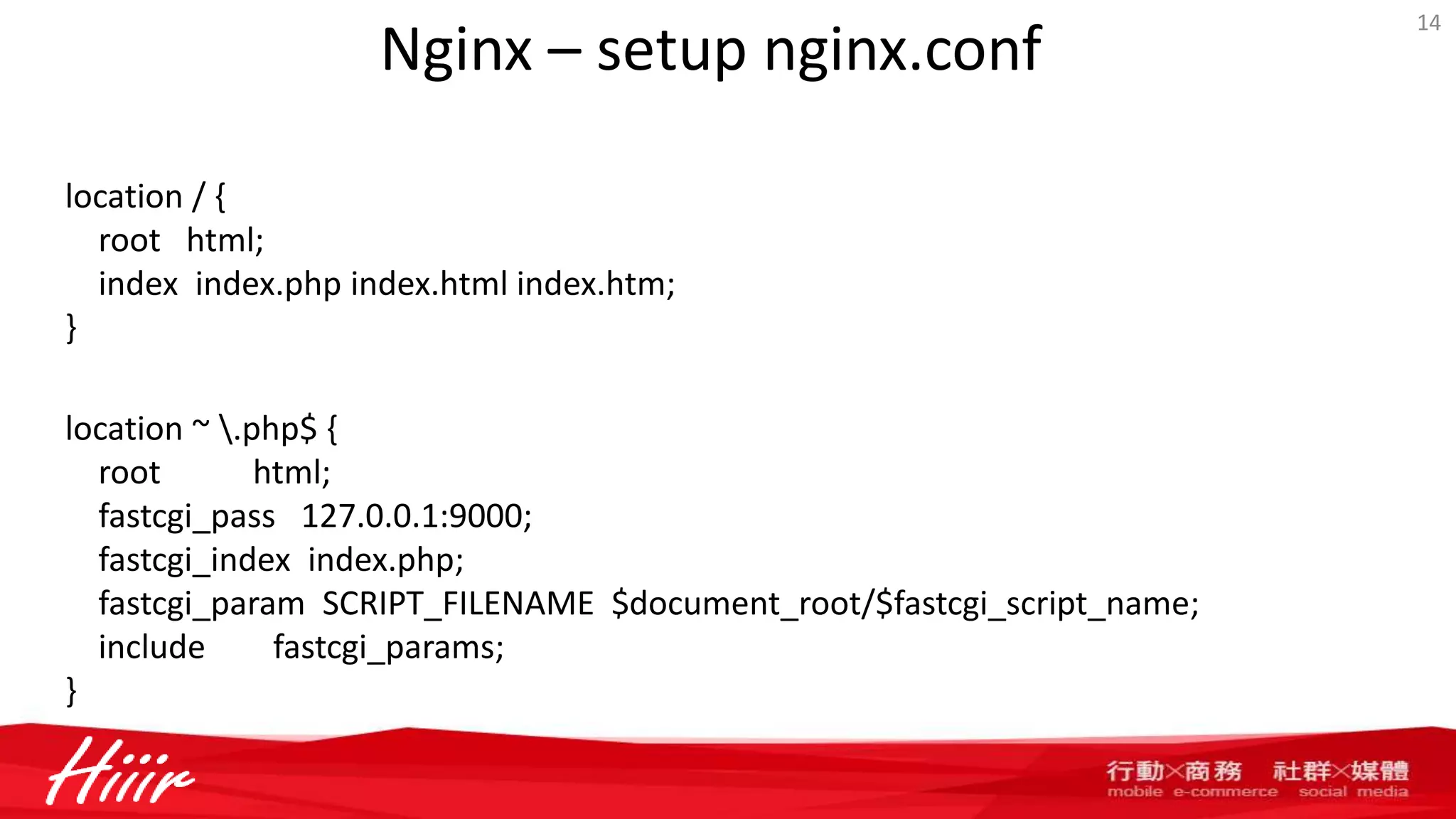

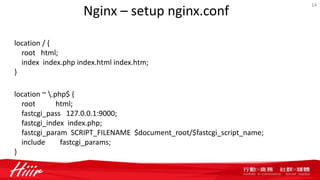

14. Nginx – setup nginx.conf
14
location / {
root html;
index index.php index.html index.htm;
}
location ~ .php$ {
root html;
fastcgi_pass 127.0.0.1:9000;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $document_root/$fastcgi_script_name;
include fastcgi_params;
}

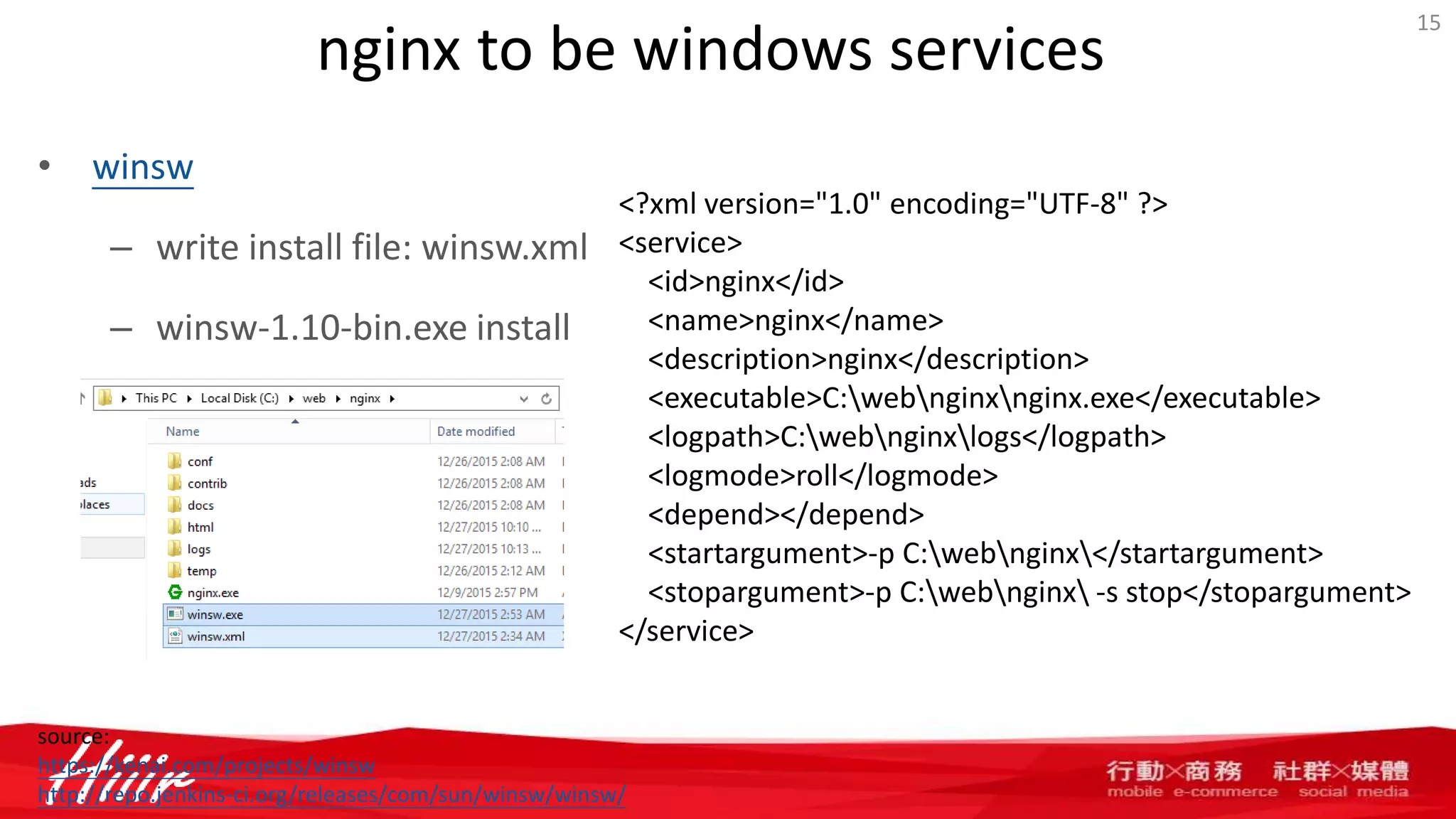

15. nginx to be windows services
• winsw
– write install file: winsw.xml
– winsw-1.10-bin.exe install
15
<?xml version="1.0" encoding="UTF-8" ?>
<service>
<id>nginx</id>
<name>nginx</name>
<description>nginx</description>
<executable>C:webnginxnginx.exe</executable>
<logpath>C:webnginxlogs</logpath>
<logmode>roll</logmode>
<depend></depend>
<startargument>-p C:webnginx</startargument>
<stopargument>-p C:webnginx -s stop</stopargument>
</service>
source:
https://kenai.com/projects/winsw
http://repo.jenkins-ci.org/releases/com/sun/winsw/winsw/

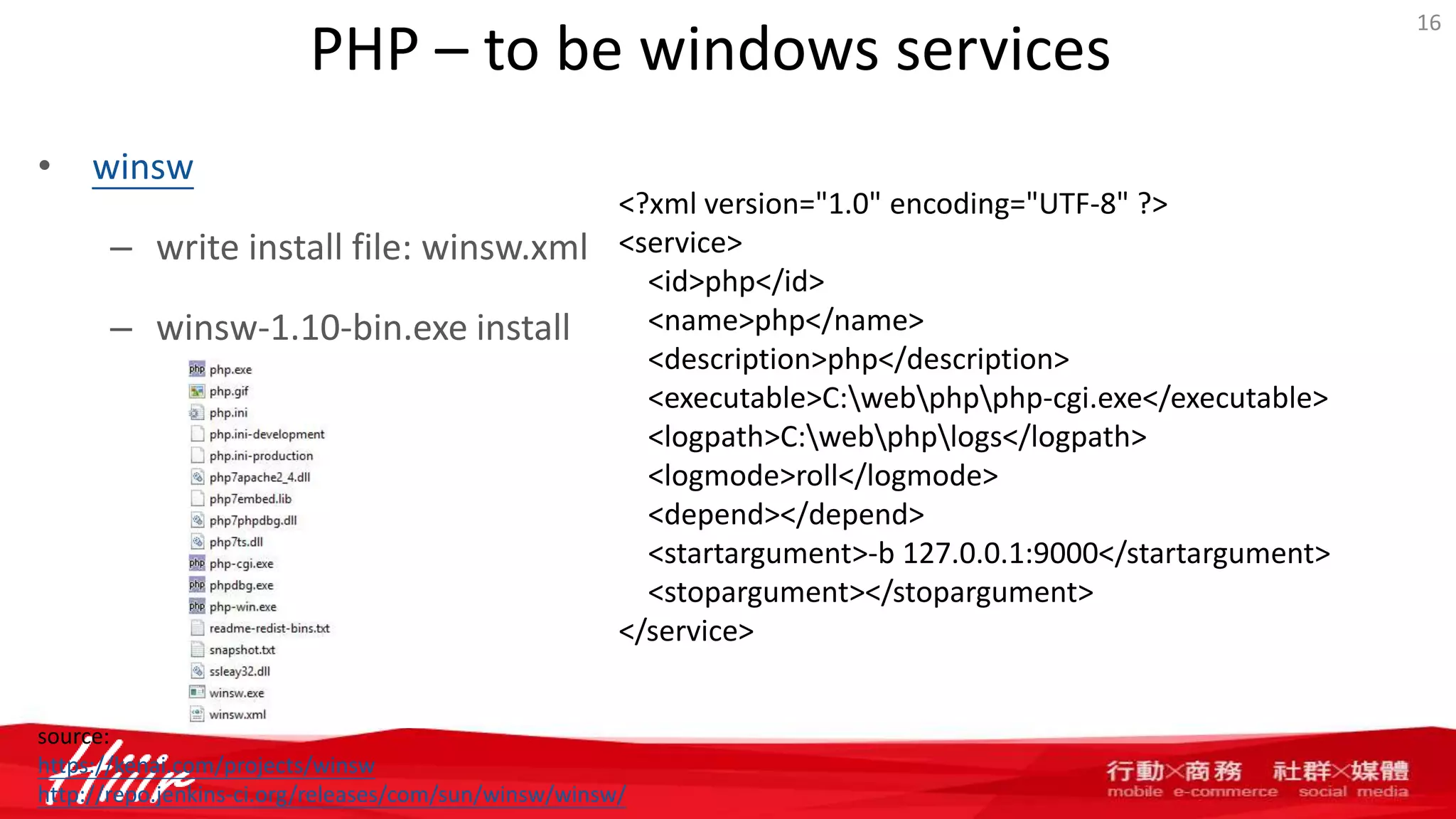

16. PHP – to be windows services
• winsw
– write install file: winsw.xml
– winsw-1.10-bin.exe install
16
<?xml version="1.0" encoding="UTF-8" ?>
<service>
<id>php</id>
<name>php</name>
<description>php</description>
<executable>C:webphpphp-cgi.exe</executable>
<logpath>C:webphplogs</logpath>
<logmode>roll</logmode>
<depend></depend>
<startargument>-b 127.0.0.1:9000</startargument>
<stopargument></stopargument>
</service>
source:
https://kenai.com/projects/winsw
http://repo.jenkins-ci.org/releases/com/sun/winsw/winsw/

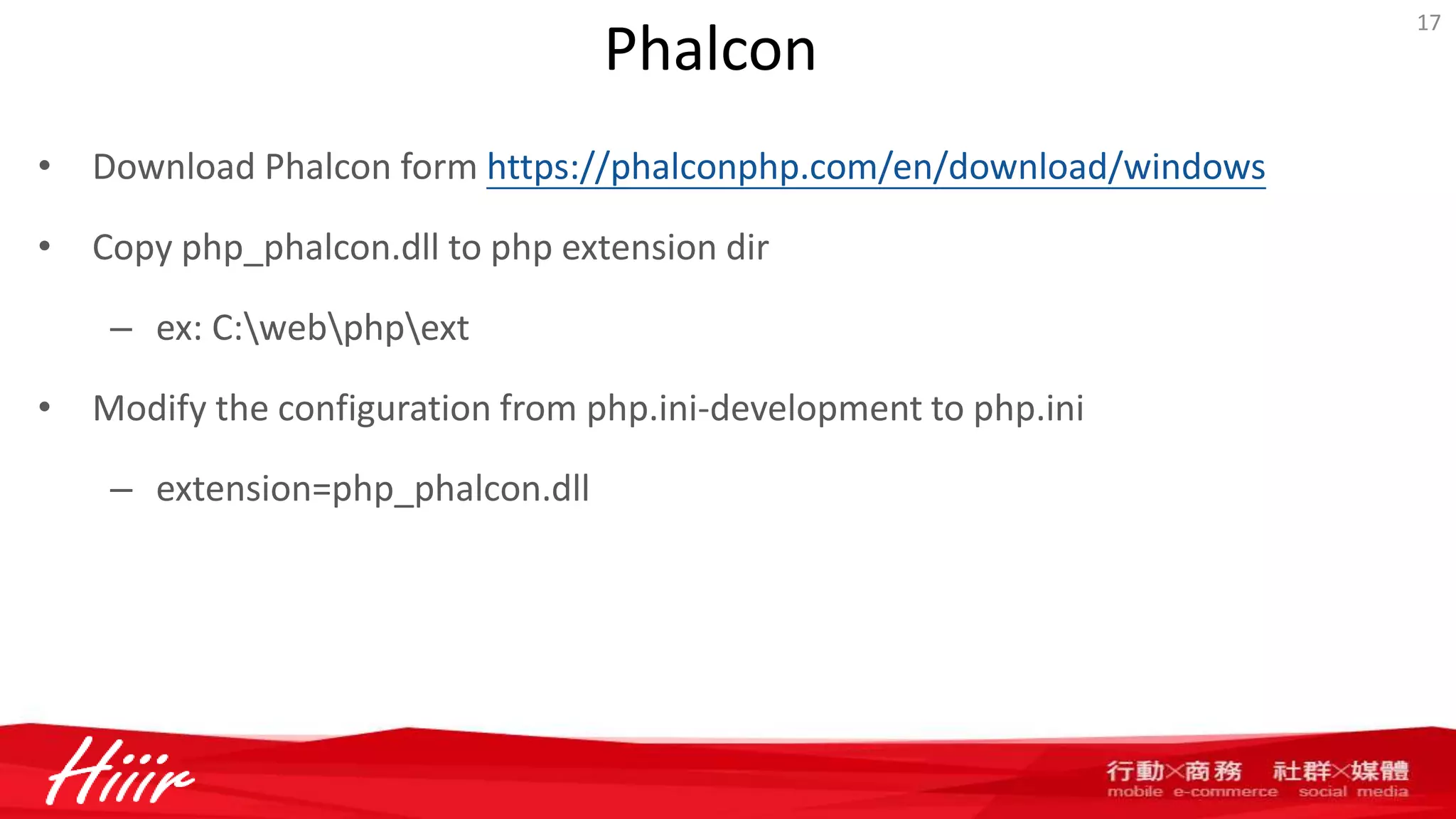

17. Phalcon
• Download Phalcon form https://phalconphp.com/en/download/windows
• Copy php_phalcon.dll to php extension dir
– ex: C:webphpext
• Modify the configuration from php.ini-development to php.ini
– extension=php_phalcon.dll
17

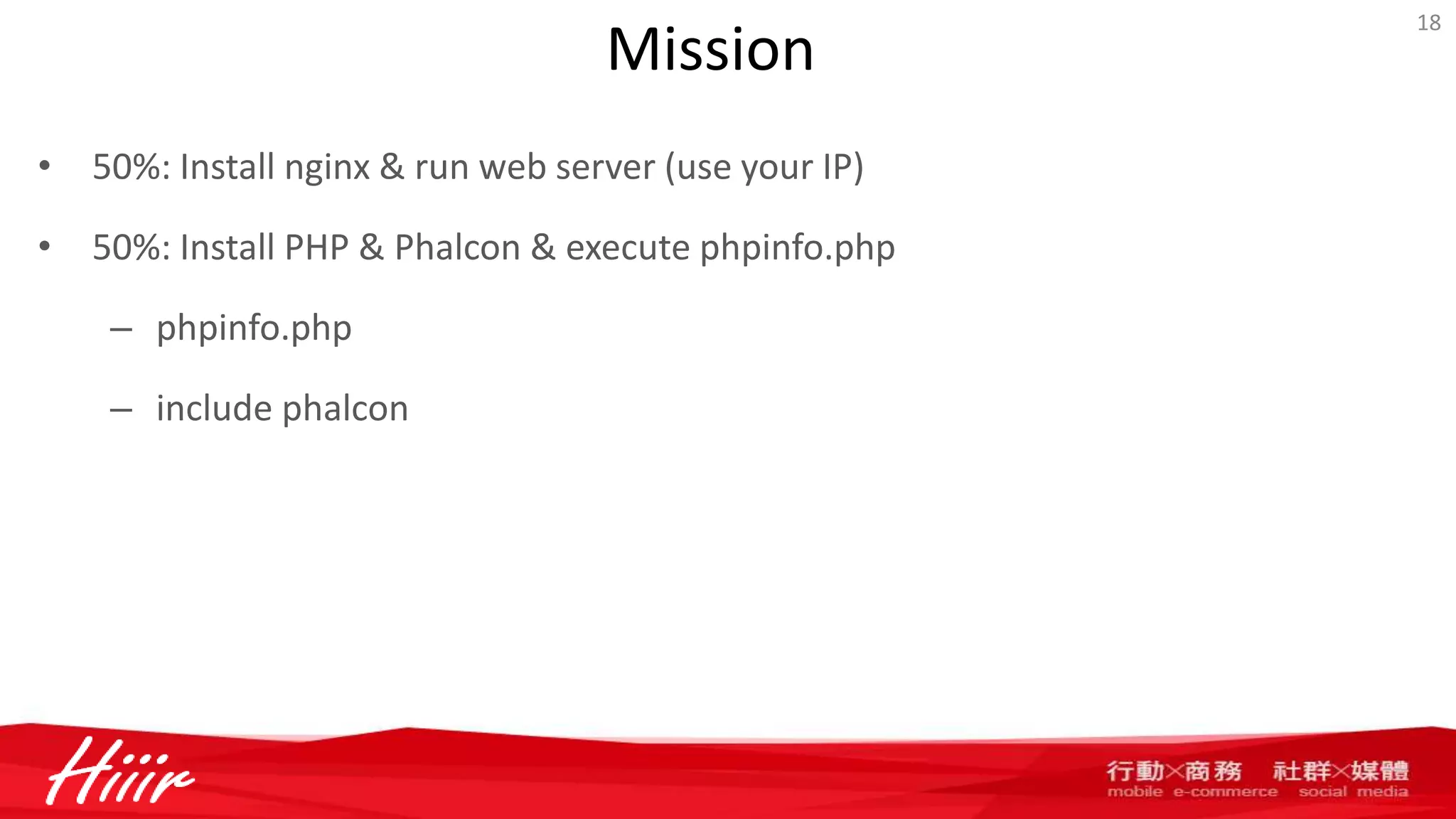

18. Mission
• 50%: Install nginx & run web server (use your IP)
• 50%: Install PHP & Phalcon & execute phpinfo.php
– phpinfo.php
– include phalcon
18

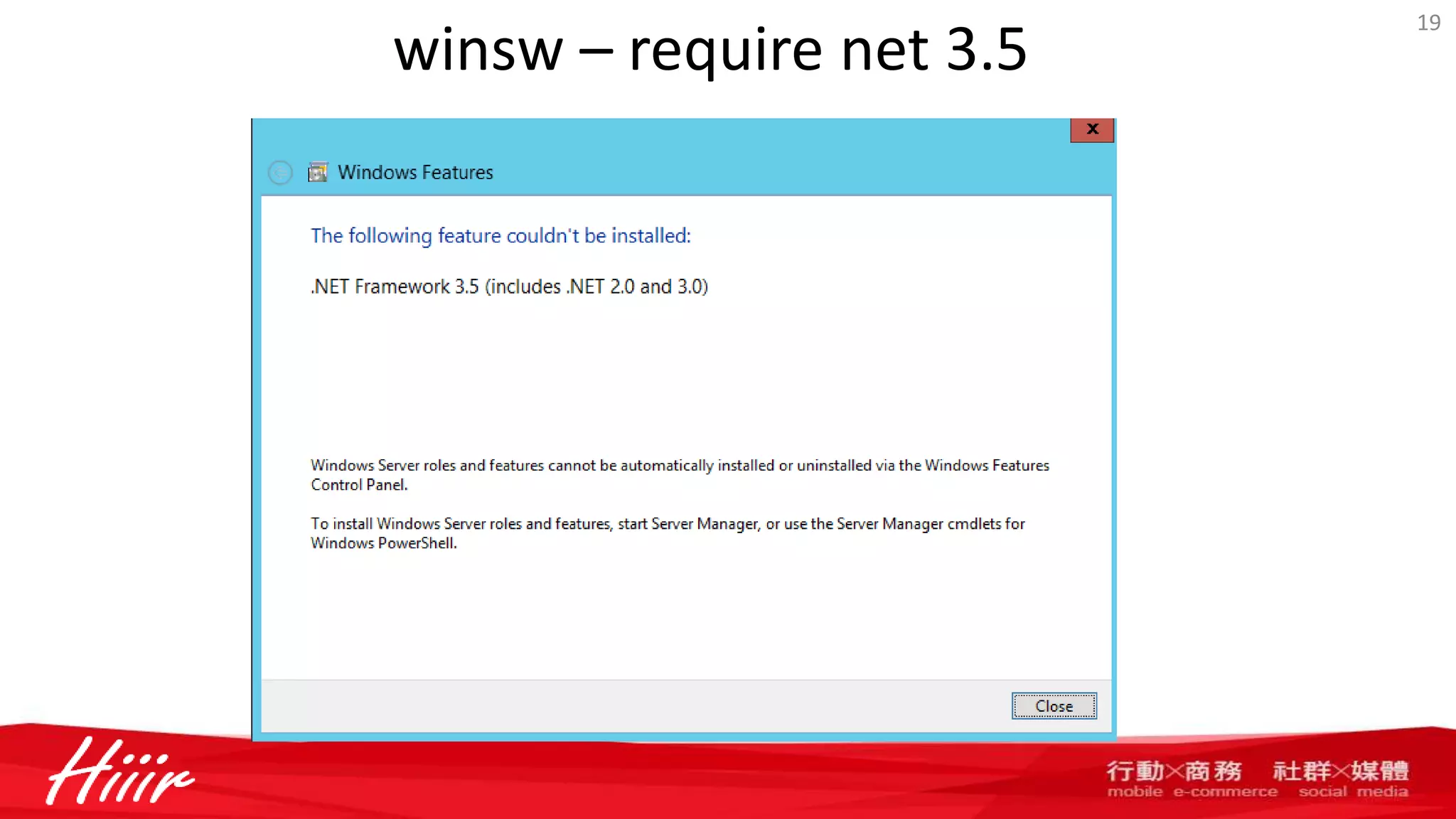

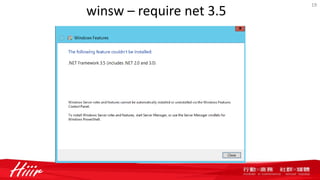

19. winsw – require net 3.5
19

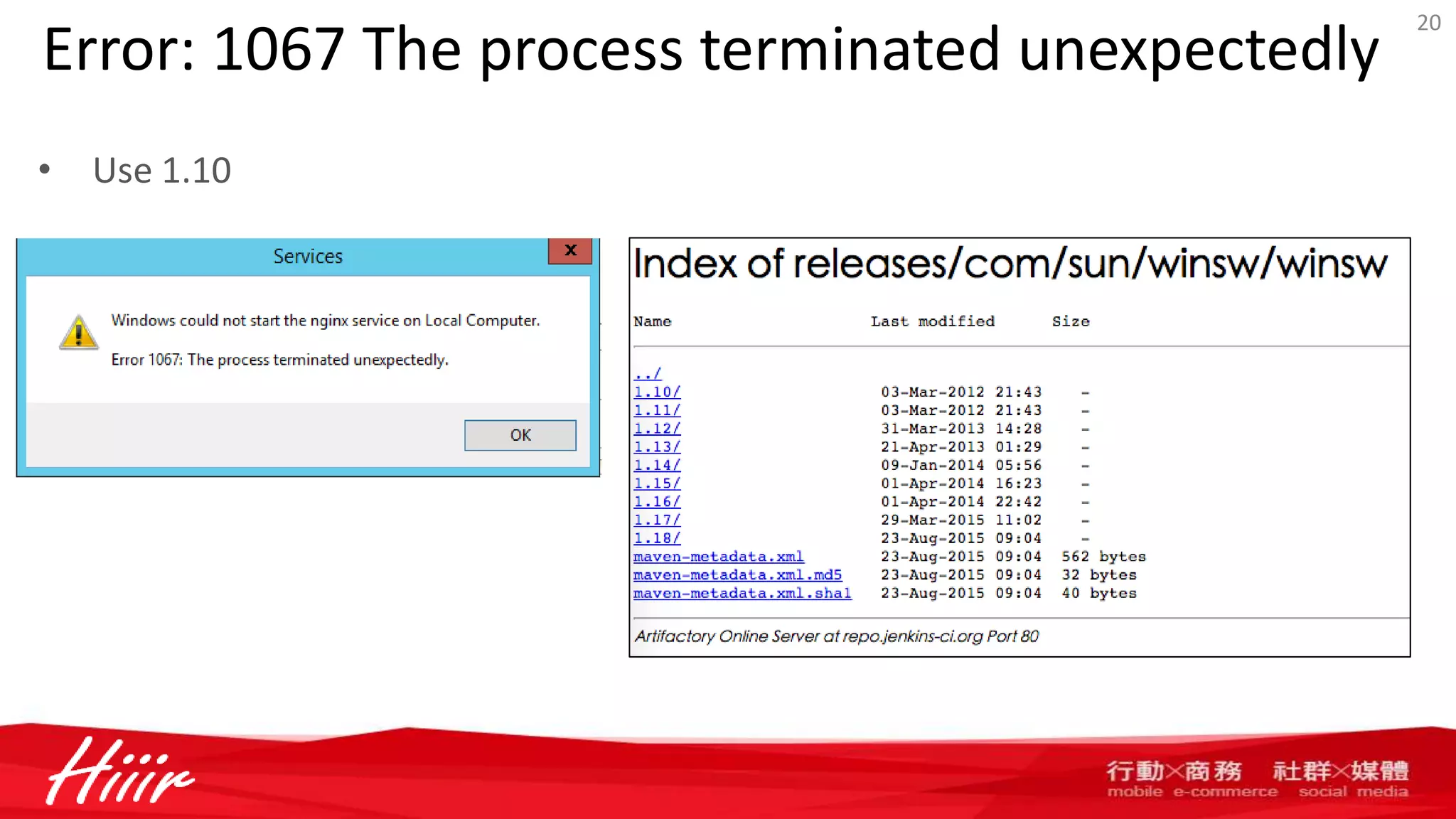

20. Error: 1067 The process terminated unexpectedly
• Use 1.10
20

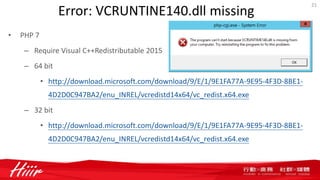

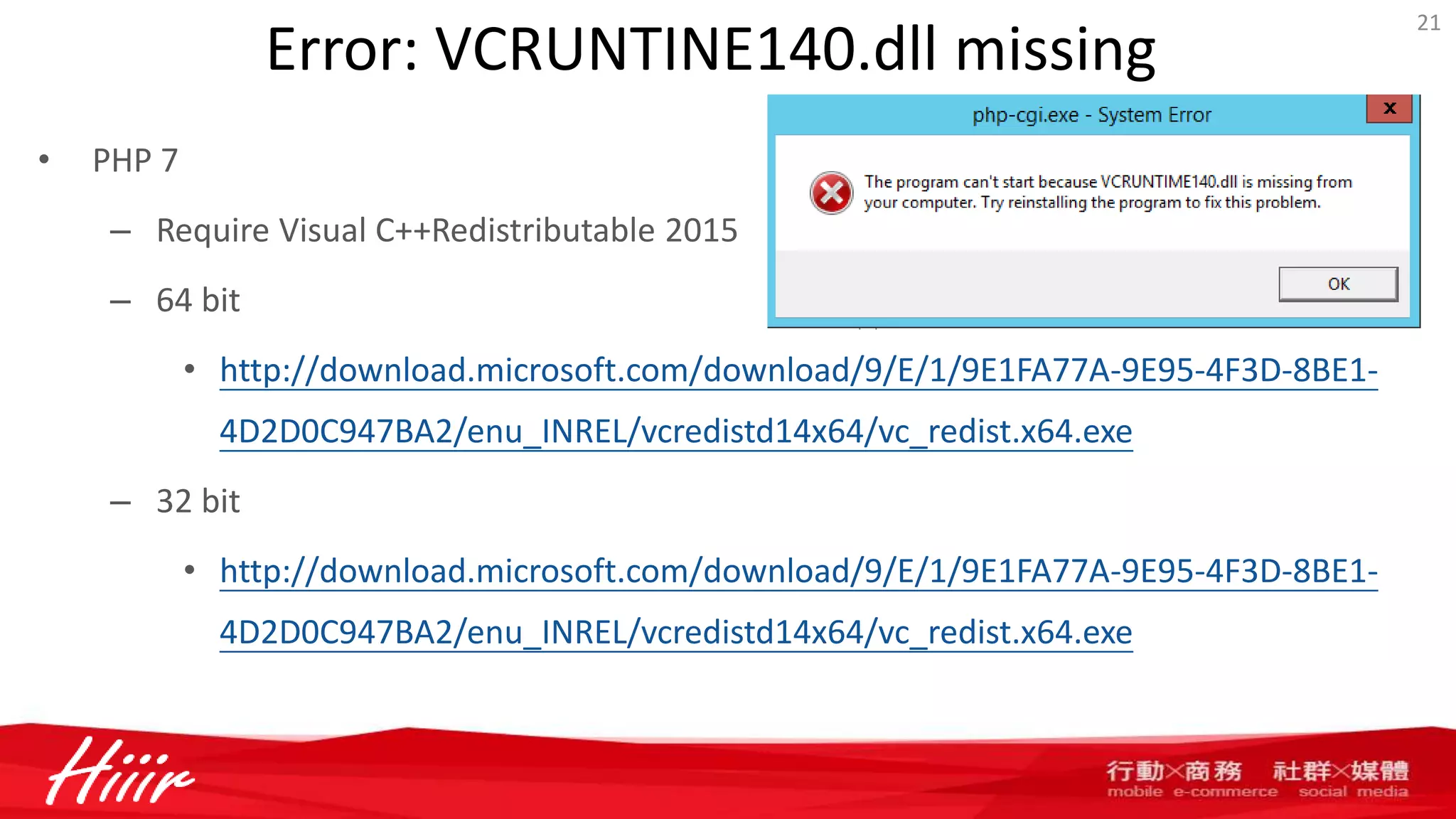

21. Error: VCRUNTINE140.dll missing
• PHP 7
– Require Visual C++Redistributable 2015
– 64 bit
• http://download.microsoft.com/download/9/E/1/9E1FA77A-9E95-4F3D-8BE1-
4D2D0C947BA2/enu_INREL/vcredistd14x64/vc_redist.x64.exe
– 32 bit
• http://download.microsoft.com/download/9/E/1/9E1FA77A-9E95-4F3D-8BE1-
4D2D0C947BA2/enu_INREL/vcredistd14x64/vc_redist.x64.exe
21

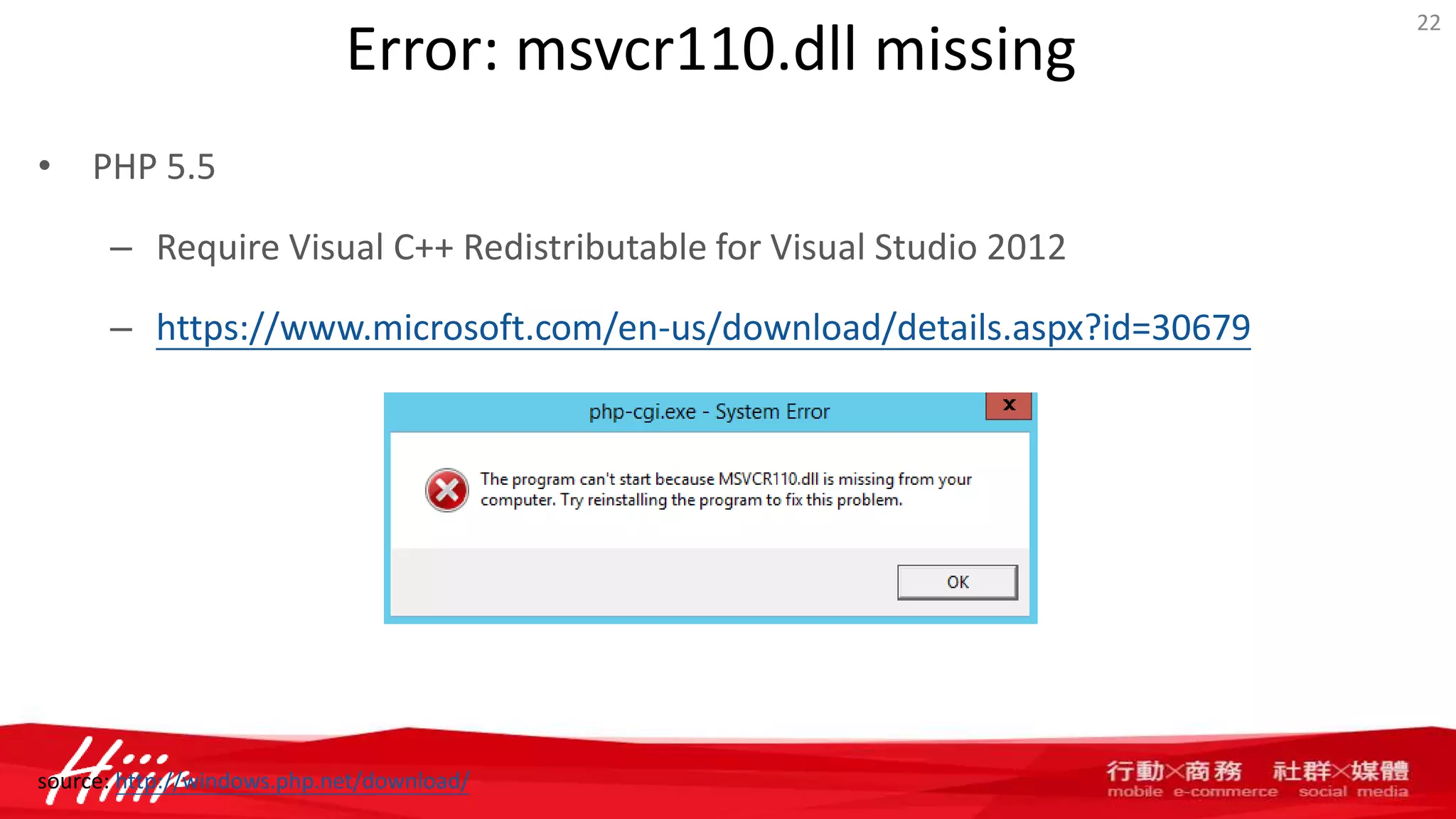

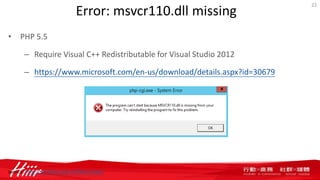

22. Error: msvcr110.dll missing
• PHP 5.5
– Require Visual C++ Redistributable for Visual Studio 2012
– https://www.microsoft.com/en-us/download/details.aspx?id=30679
22
source: http://windows.php.net/download/
