This document provides an overview of Microsoft Azure presented by SATO Naoki at a Rakuten TechTalk on August 20, 2014. It introduces Azure and its benefits including rapid setup of environments, ability to scale infrastructure, and increased efficiency at reduced costs. It outlines Azure's global footprint and lists some Fortune 500 companies and key metrics on usage. The document discusses how Azure differentiates through enterprise-grade capabilities and hybrid consistency across on-premises and cloud. It provides examples of Azure services and demos the Azure portal.

1. Rakuten TechTalk
Microsoft Azure
SATO Naoki
August 20, 2014

2. About me
•SATO Naoki
•Azure Technologist, Developer Experience &
Evangelism, Microsoft corporation
•SATO.Naoki@microsoft.com
•Twitter @satonaoki
•http://satonaoki.wordpress.com/

3. Why the cloud?

4. Why the cloud?
Rapidly setup environments to drive business priorities
Scale to meet peak demands
Increase daily activities, efficiency and reduced cost.

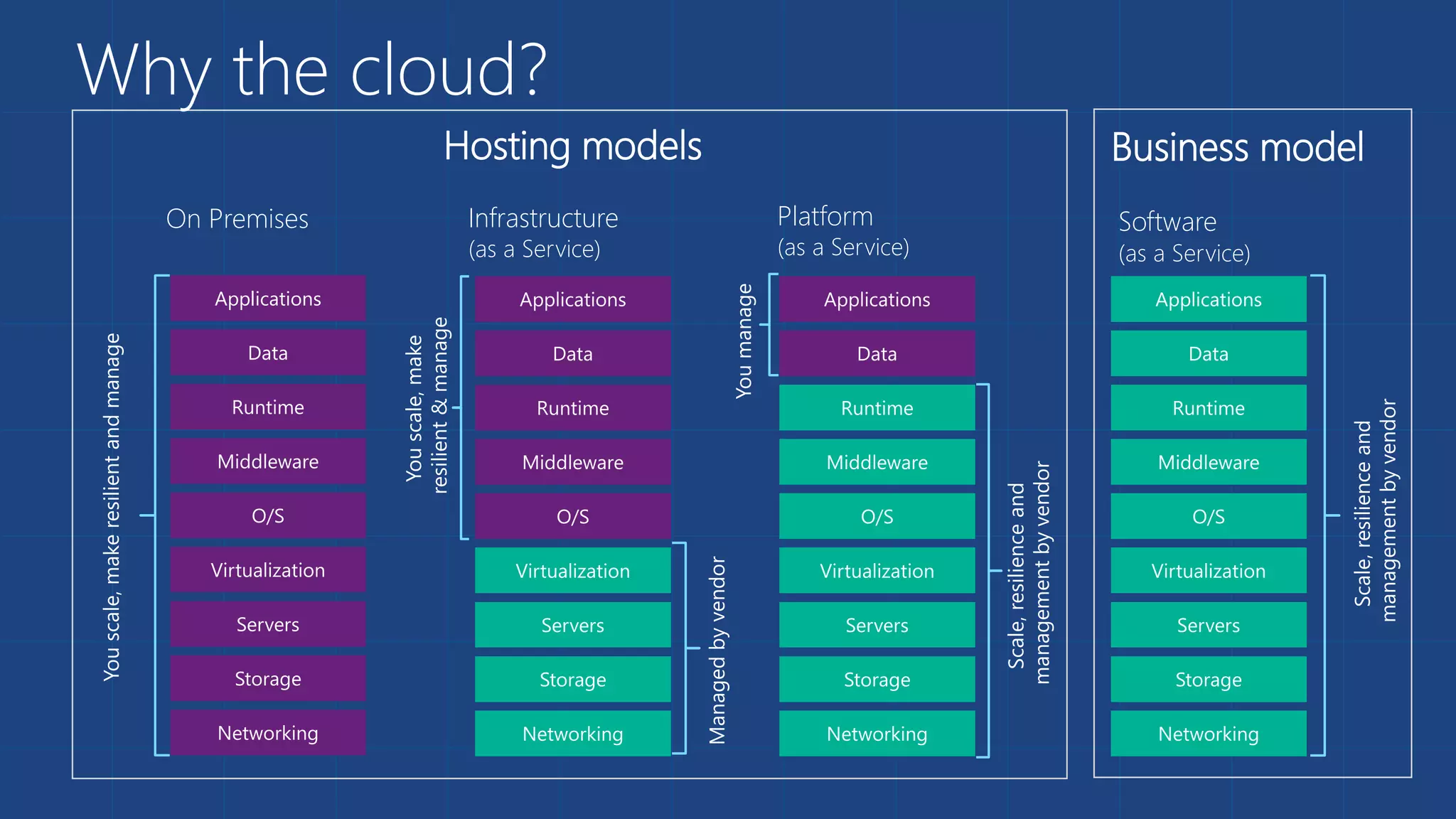

5. On Premises
Youscale,makeresilientandmanage
Infrastructure
(as a Service)
Managedbyvendor
Youscale,make
resilient&manage
Platform
(as a Service)
Scale,resilienceand
managementbyvendor
Youmanage
Hosting models
Software
(as a Service)
Business model
Applications
Scale,resilienceand
managementbyvendor
Why the cloud?

6. Azure

7. Azure
footprint
16 regions worldwide in 2014
Data Centers

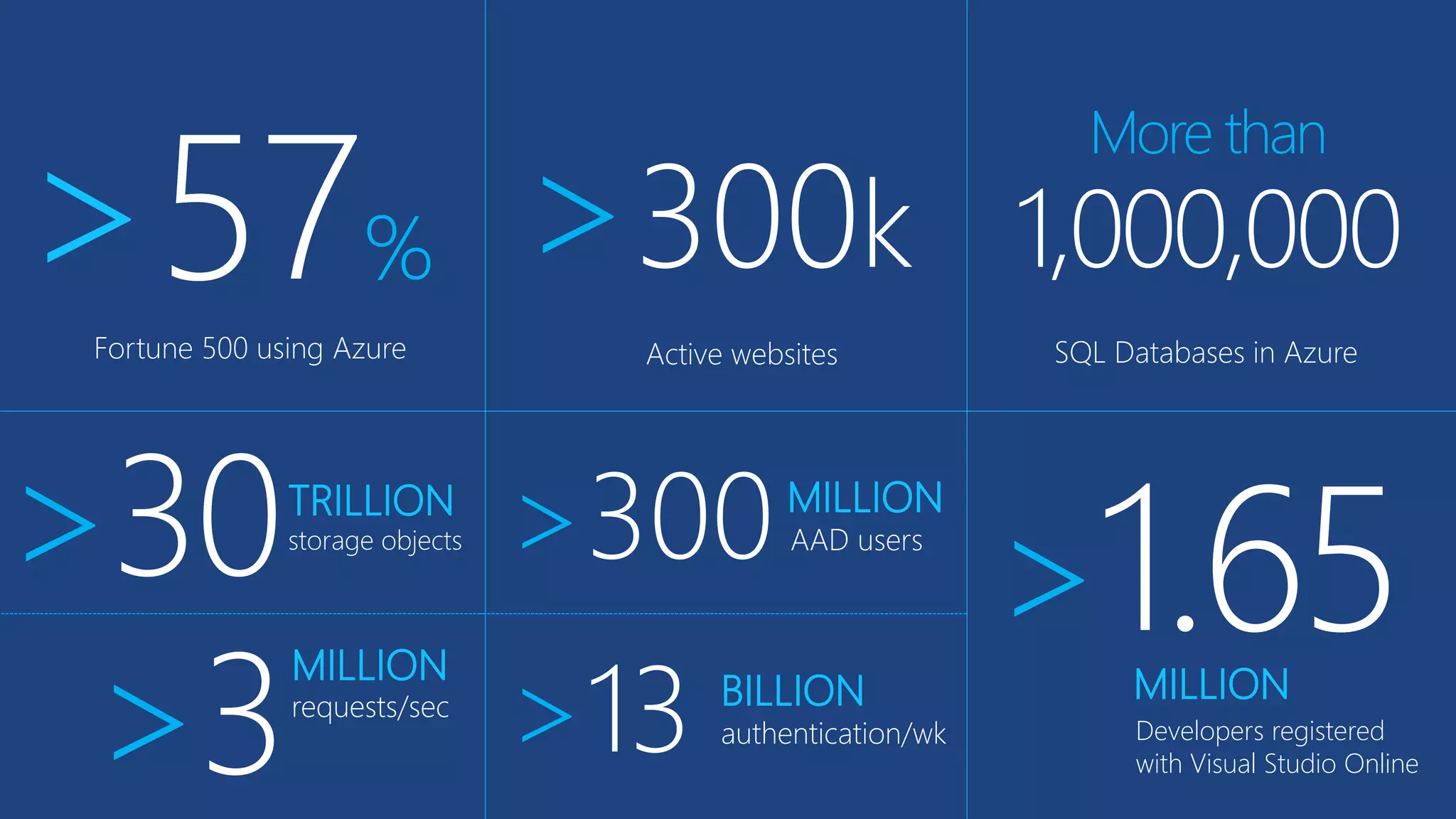

8. Fortune 500 using Azure
>57% >300k
Active websites
More than
1,000,000
SQL Databases in Azure
>30TRILLION
storage objects >300MILLION
AAD users
>13 BILLION
authentication/wk
>3
MILLION
requests/sec
>1.65MILLION
Developers registered
with Visual Studio Online

9. Partners

10. .NET Support2014
Offline Sync
Mobile Services
Networking Visual Studio & .NET
Virtual Machines
Memory Optimized Disk Optimized
Resource Manager
Portal
VSO GA
XamarinPoint-to-site VPN
Web Sites
SMB File System
IBIZA
Remote Debug
VM Management
SQL Database
Puppet Chef Docker
Powershell and DSC
Capture / Deploy
Autoscale
Dynamic Routing
Subnet Routing
Static IP
Storage
Autoscale
Traffic Mgr
Web Jobs
Backup
Java Support
ASP.NET MVC 5.1
ASP.NET Web API 2.1
AD support
Powershell Automation
Node.JS project support
Remote Debugging
Kindle Support
BD’s up to 500GB
99.95% SLA
Self Service Site Recovery
Active GEO replication
HDInsight
Hadoop 2.2
YARN support
.NET 4.5
.NET Foundation
Azure Redis Cache
API Management
Site Recovery
Remote Apps
Cordova
VSO Open
Api’s
Event Hub

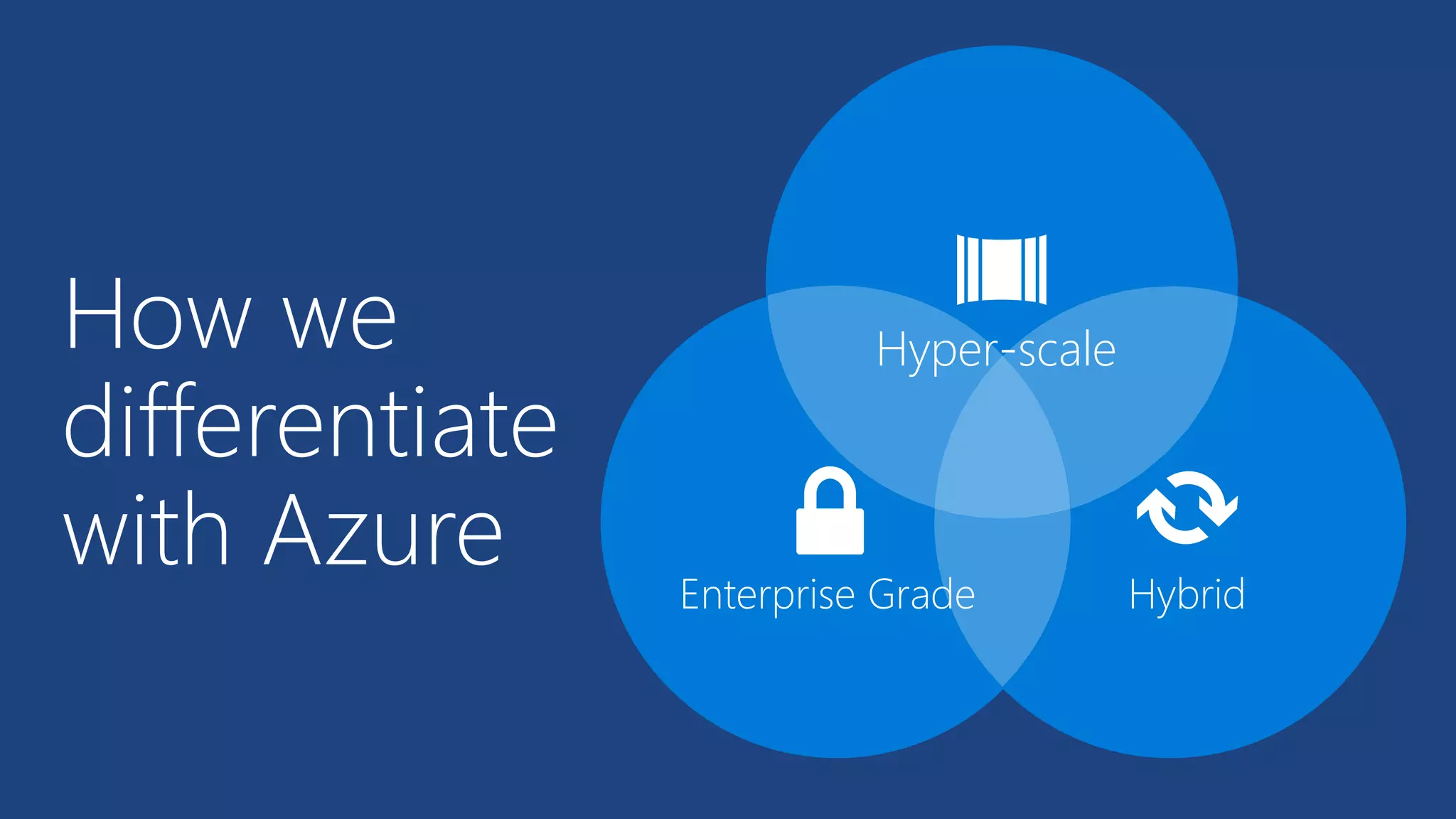

11. How we
differentiate
with Azure Enterprise Grade Hybrid
Hyper-scale

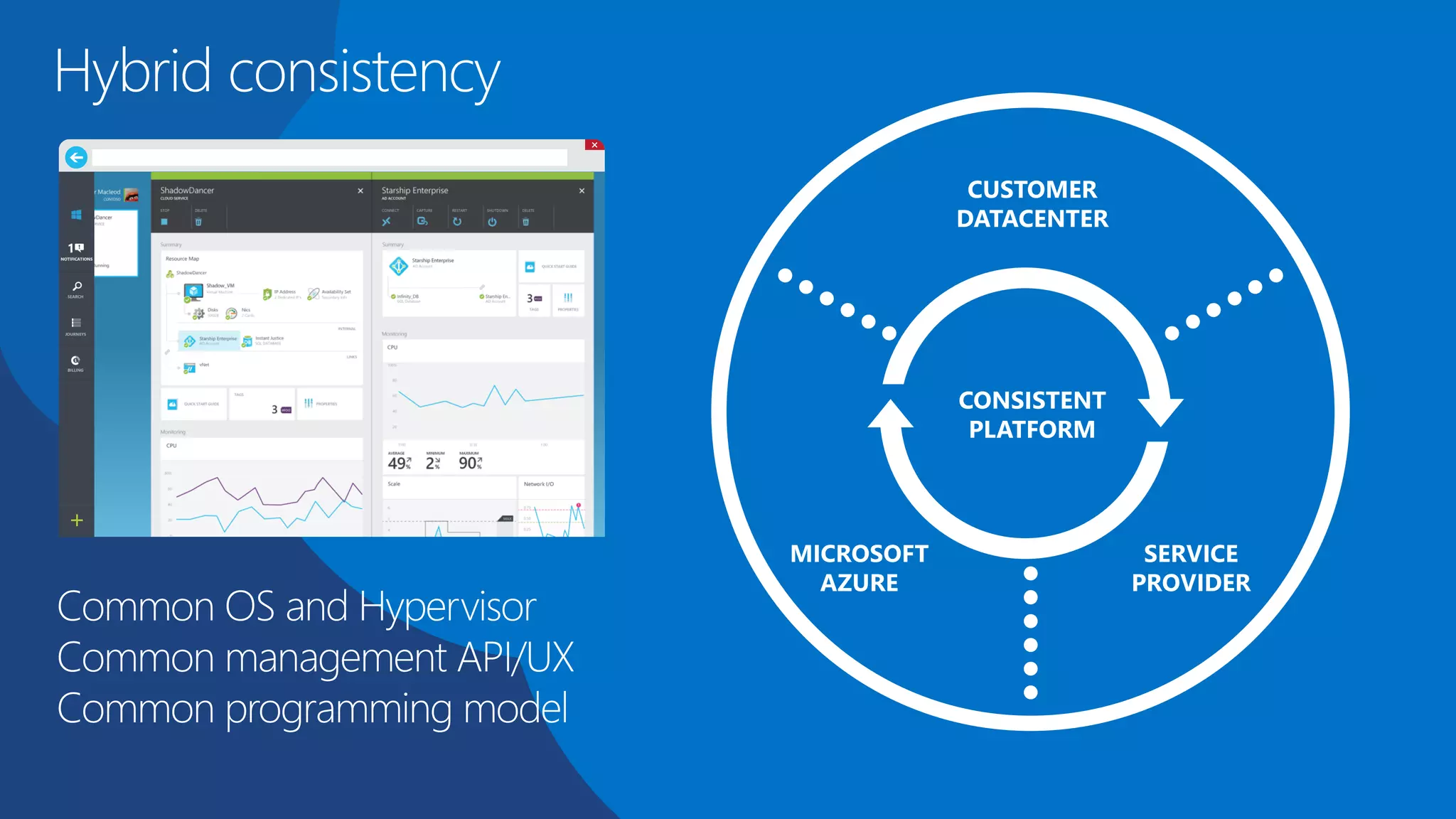

12. Hybrid consistency
CUSTOMER
DATACENTER
SERVICE
PROVIDER
MICROSOFT
AZURE
CONSISTENT
PLATFORM

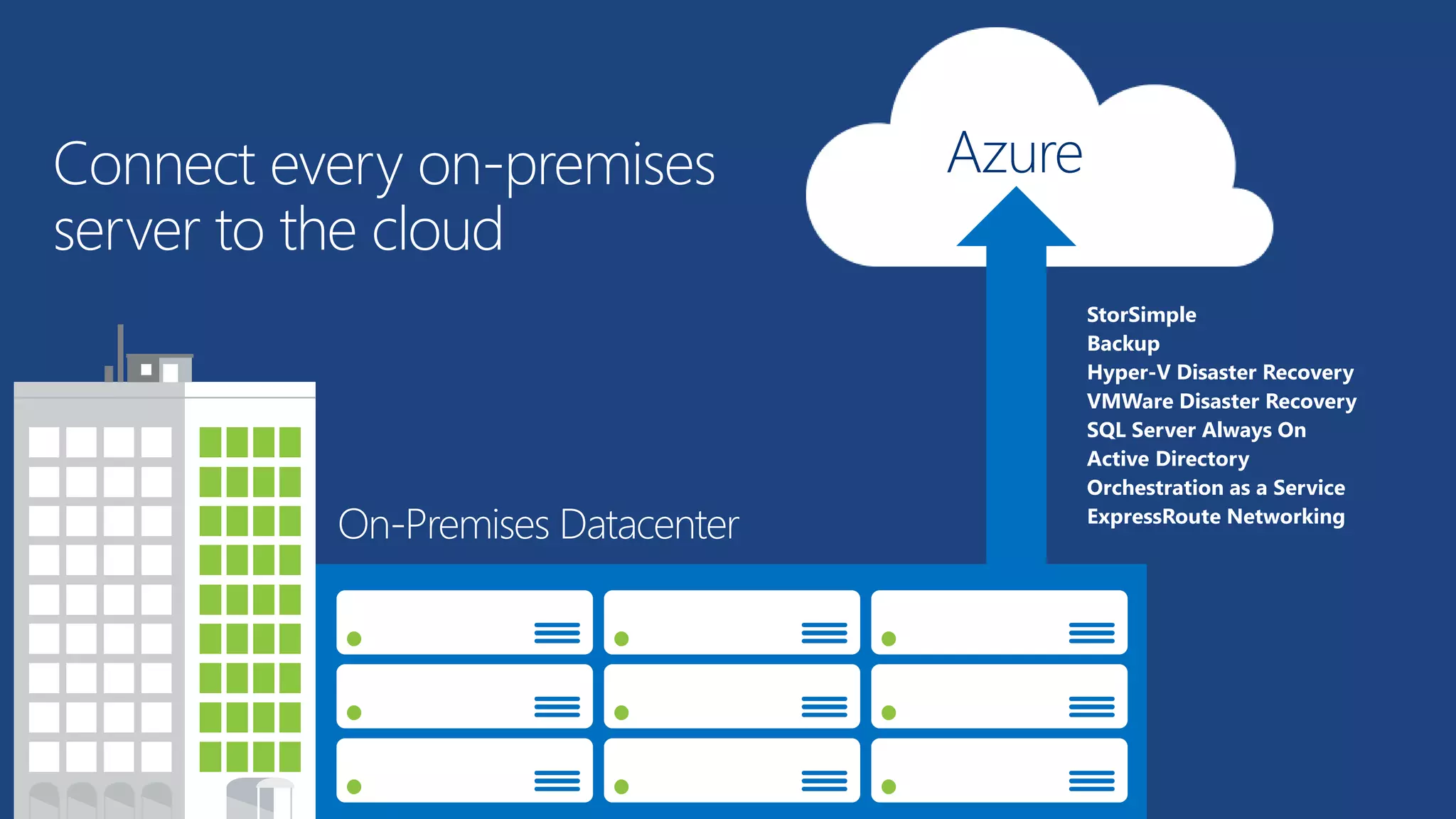

13. Connect every on-premises
server to the cloud
StorSimple
Backup
Hyper-V Disaster Recovery
VMWare Disaster Recovery
SQL Server Always On
Active Directory
Orchestration as a Service
ExpressRoute Networking
Azure
On-Premises Datacenter

14. Cloud OS Network
hosting and service
providers

15. Support for Open Source
Languages
CMS
Devices
Databases /
Apps
Operating
systems
Management

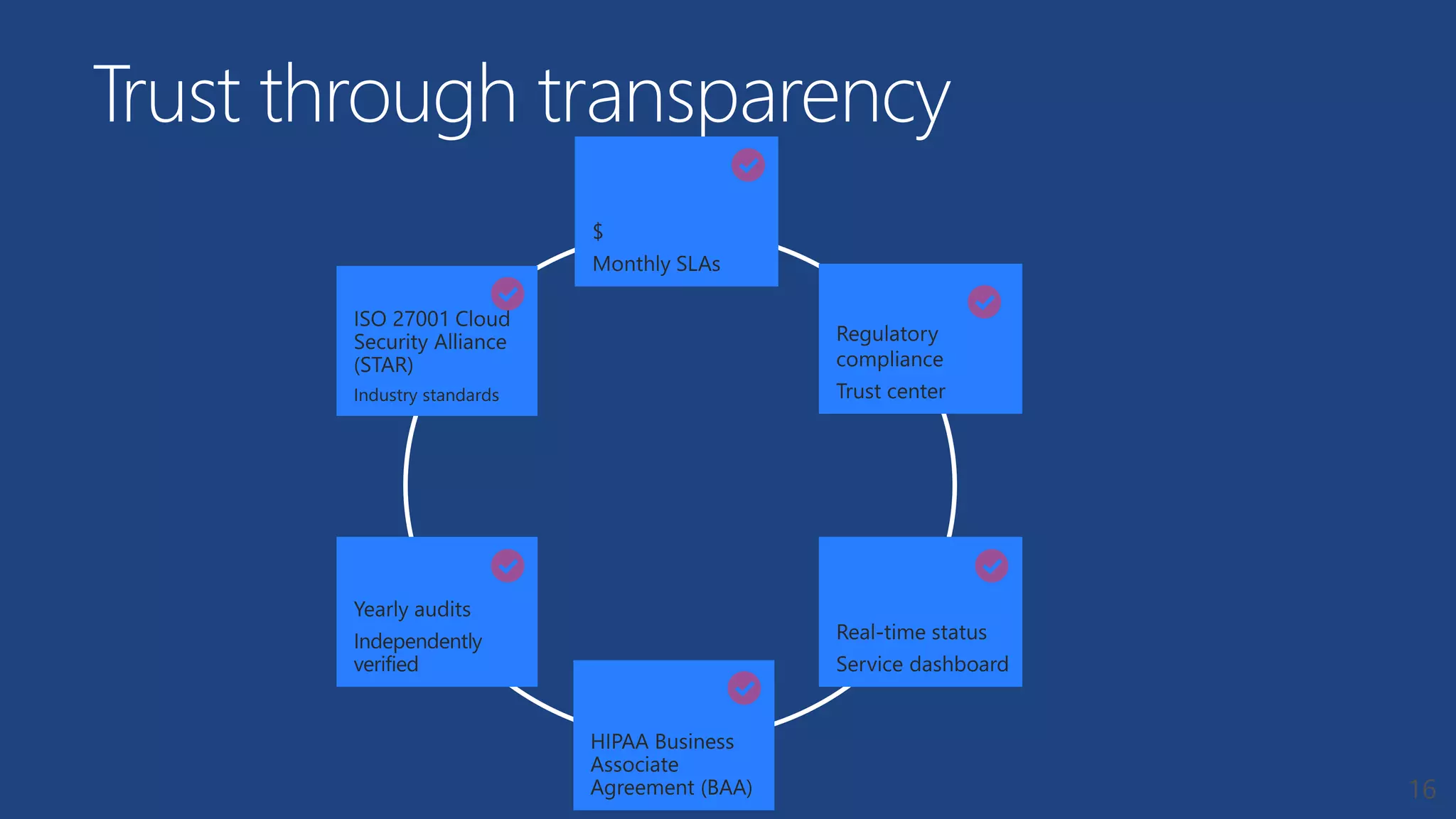

16. Trust through transparency
16

17. Compliance: aka.ms/AzureCompliance

18. Azure
Services

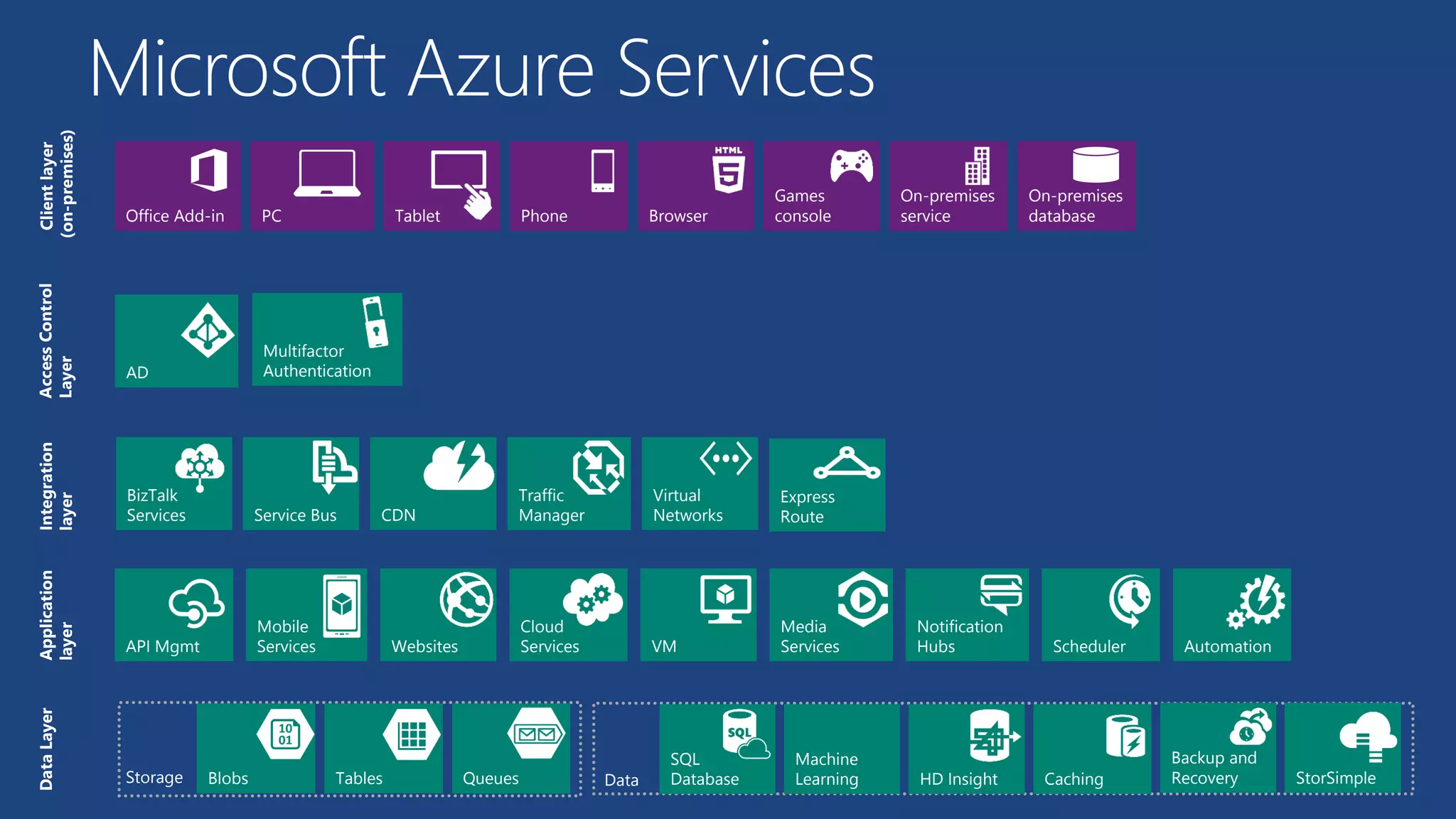

19. Microsoft Azure Services
Clientlayer
(on-premises)
Tablet Phone
Games
consolePC
On-premises
databaseBrowserOffice Add-in
On-premises
service
AD
Multifactor
Authentication
AccessControl
Layer
Integration
layer
Service Bus CDN
BizTalk
Services
Traffic
Manager
Virtual
Networks
Express
Route
Application
layer
API Mgmt Websites
Cloud
Services VM
Mobile
Services
Media
Services
Notification
Hubs Scheduler Automation
DataLayer
Storage Blobs Tables Queues Data
Machine
Learning HD Insight
Backup and
Recovery
SQL
Database Caching StorSimple

20. Demo: Azure Portal

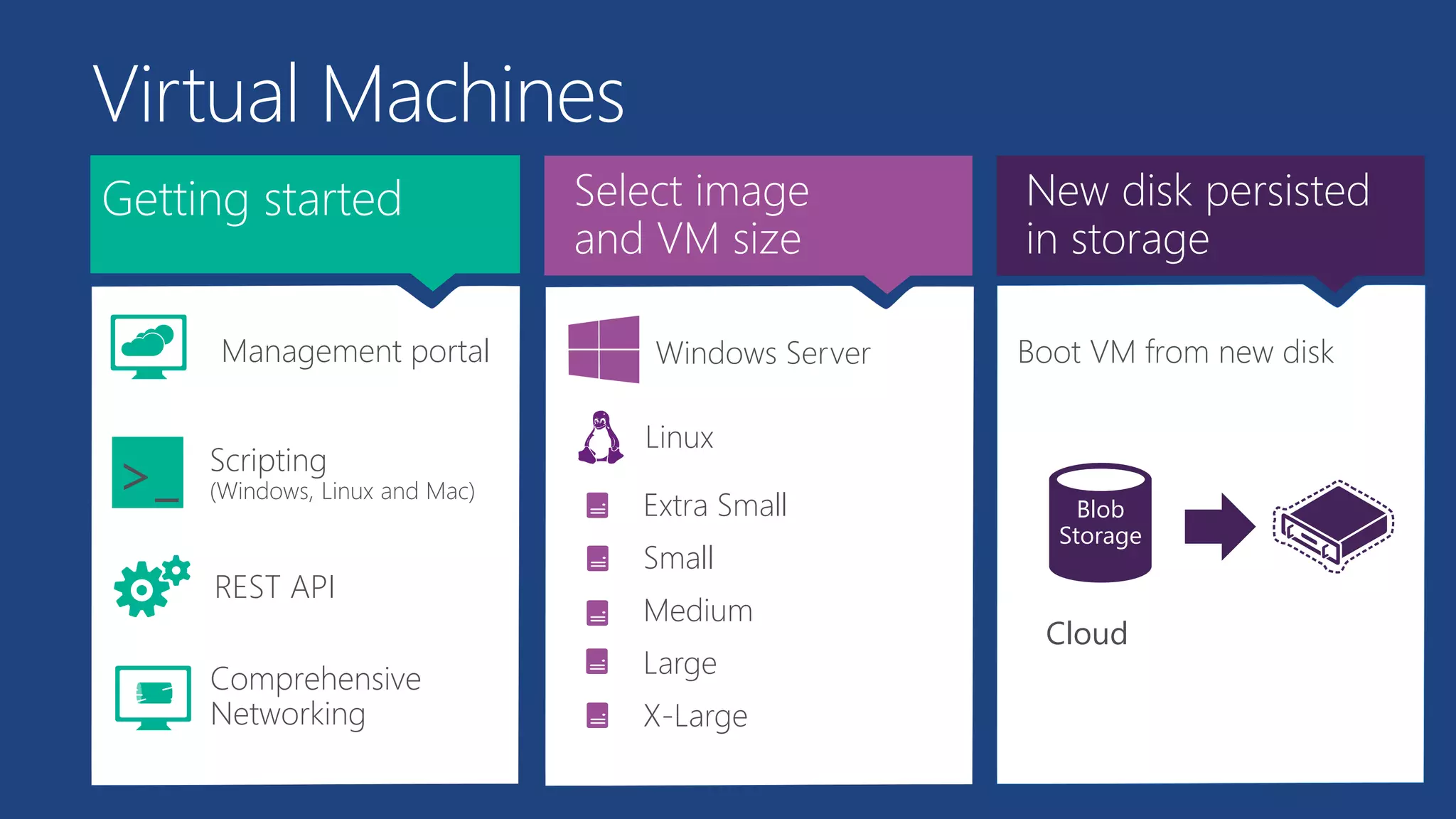

21. Getting started
>_
REST API
Virtual Machines
Management portal
Scripting
(Windows, Linux and Mac)
Select image
and VM size
Extra Small
Small
Medium
Large
X-Large
New disk persisted
in storage
Cloud
Blob
Storage
Comprehensive
Networking
Windows Server
Linux
Boot VM from new disk

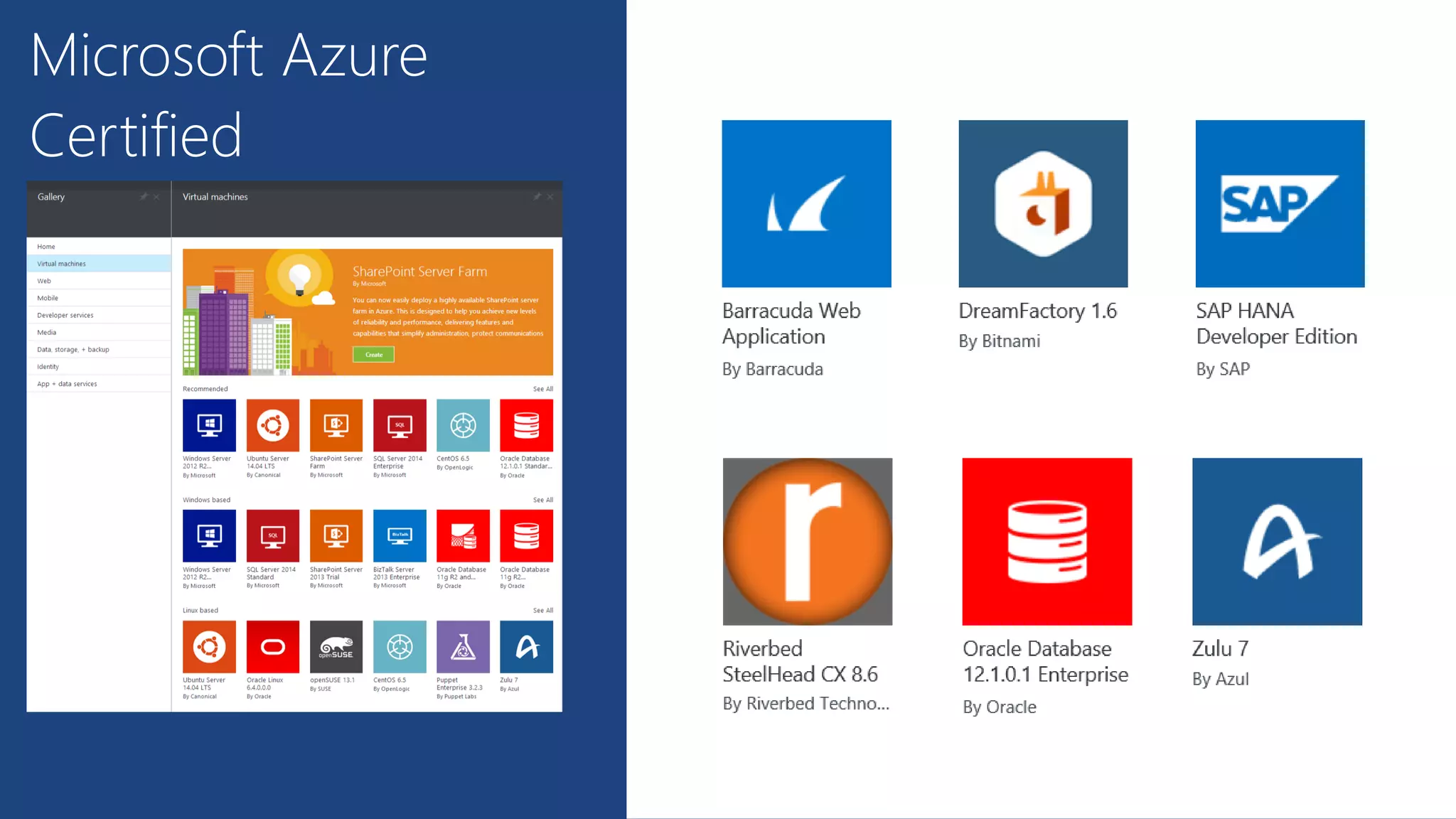

22. Microsoft Azure
Certified

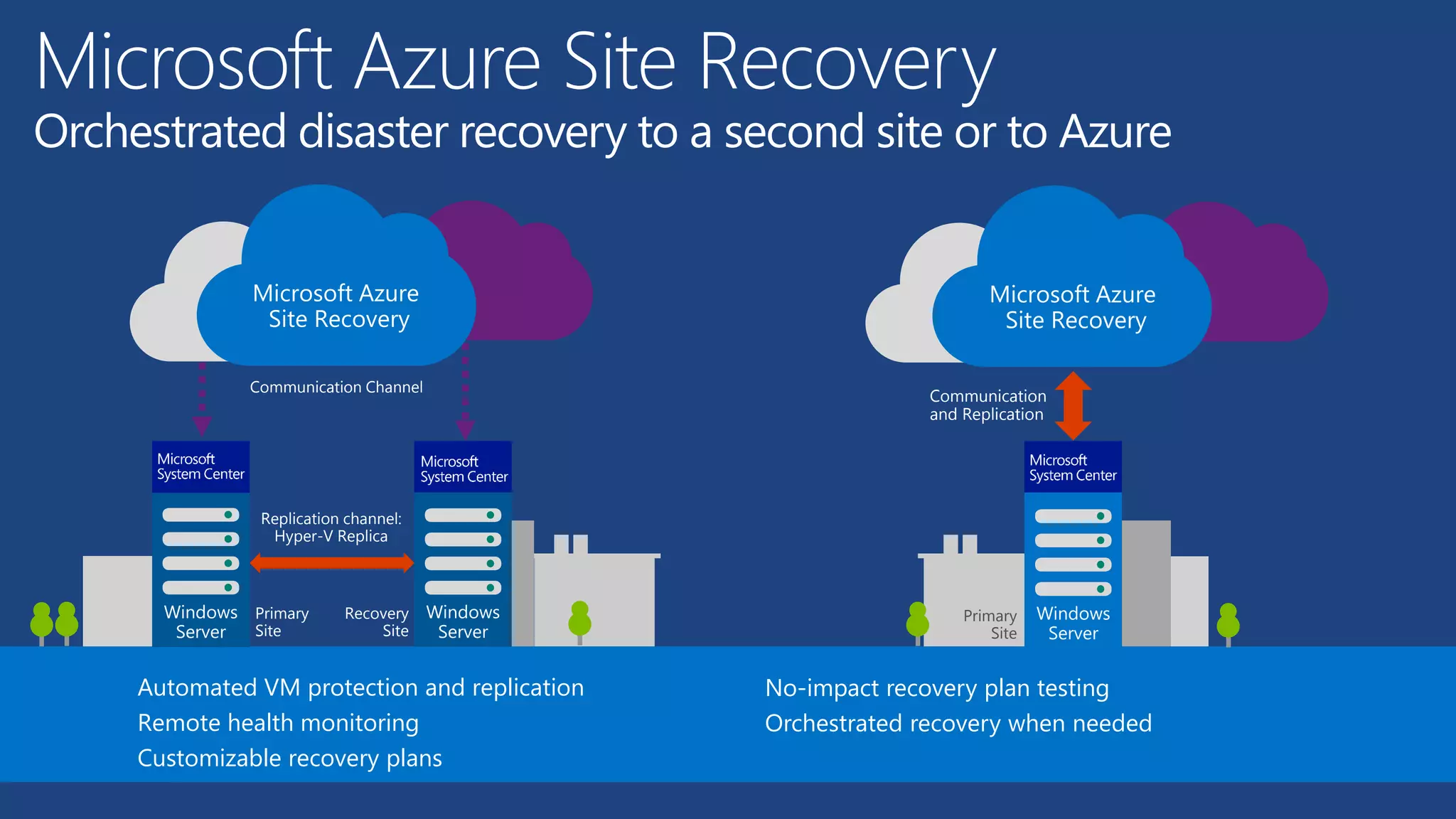

23. Microsoft Azure Site Recovery
Orchestrated disaster recovery to a second site or to Azure
Communication
and Replication
Microsoft Azure
Site Recovery
Communication Channel
Replication channel:
Hyper-V Replica
Primary
Site
Windows
Server
Recovery
Site
Windows
Server
Microsoft Azure
Site Recovery
Primary
Site
Windows
Server
Automated VM protection and replication
Remote health monitoring
Customizable recovery plans
No-impact recovery plan testing
Orchestrated recovery when needed

24.  Game sessions hosted
using Azure
 Hosted using >100,000
Azure Virtual Machines

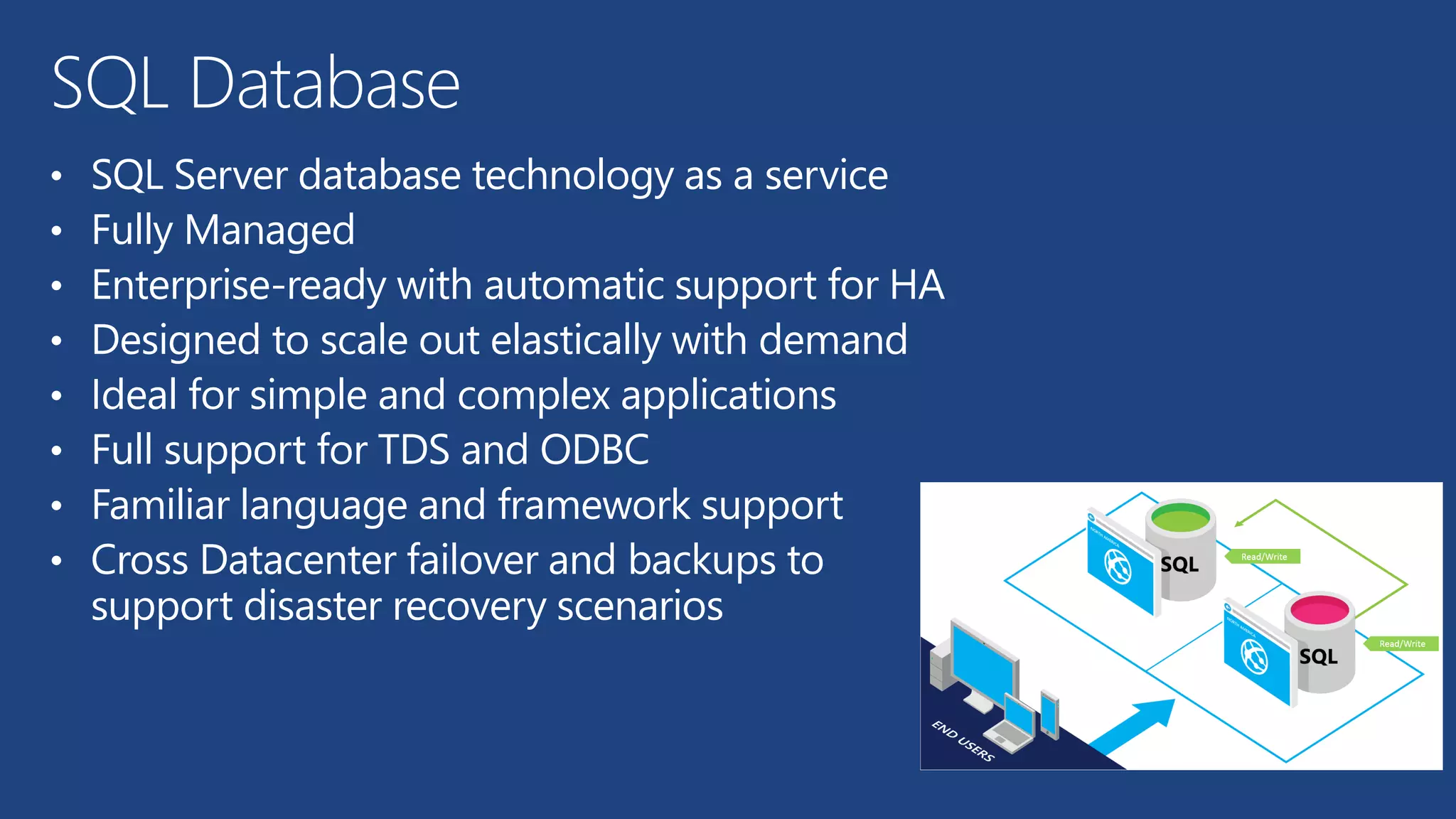

25. • SQL Server database technology as a service
• Fully Managed
• Enterprise-ready with automatic support for HA
• Designed to scale out elastically with demand
• Ideal for simple and complex applications
• Full support for TDS and ODBC
• Familiar language and framework support
• Cross Datacenter failover and backups to
support disaster recovery scenarios
SQL Database

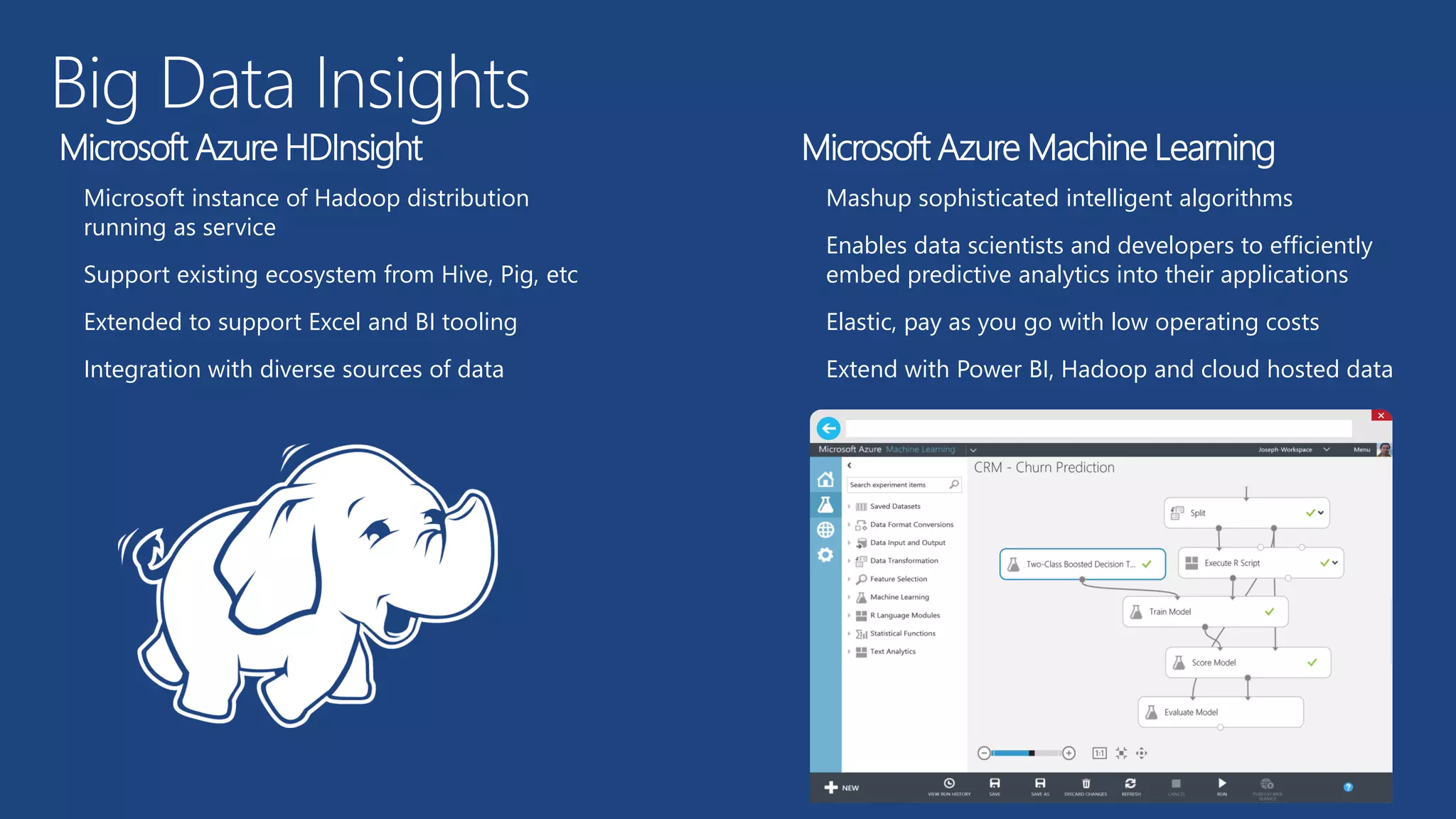

26. Big Data Insights
Microsoft Azure Machine Learning
Mashup sophisticated intelligent algorithms
Enables data scientists and developers to efficiently
embed predictive analytics into their applications
Elastic, pay as you go with low operating costs
Extend with Power BI, Hadoop and cloud hosted data
Microsoft Azure HDInsight
Microsoft instance of Hadoop distribution
running as service
Support existing ecosystem from Hive, Pig, etc
Extended to support Excel and BI tooling
Integration with diverse sources of data

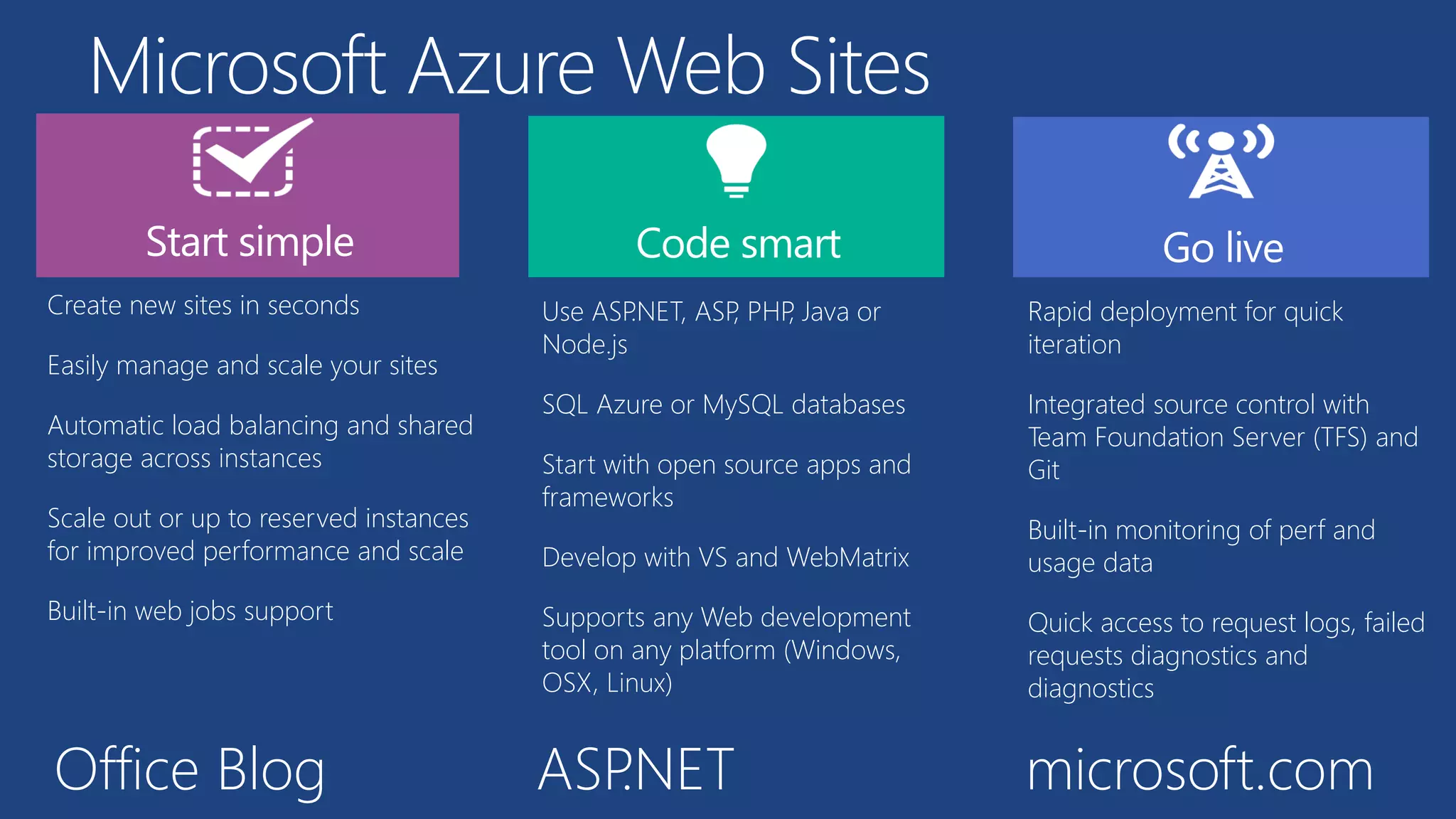

27. Microsoft Azure Web Sites
Create new sites in seconds
Easily manage and scale your sites
Automatic load balancing and shared
storage across instances
Scale out or up to reserved instances
for improved performance and scale
Built-in web jobs support
Use ASP.NET, ASP, PHP, Java or
Node.js
SQL Azure or MySQL databases
Start with open source apps and
frameworks
Develop with VS and WebMatrix
Supports any Web development
tool on any platform (Windows,
OSX, Linux)
Rapid deployment for quick
iteration
Integrated source control with
Team Foundation Server (TFS) and
Git
Built-in monitoring of perf and
usage data
Quick access to request logs, failed
requests diagnostics and
diagnostics
Office Blog ASP.NET microsoft.com

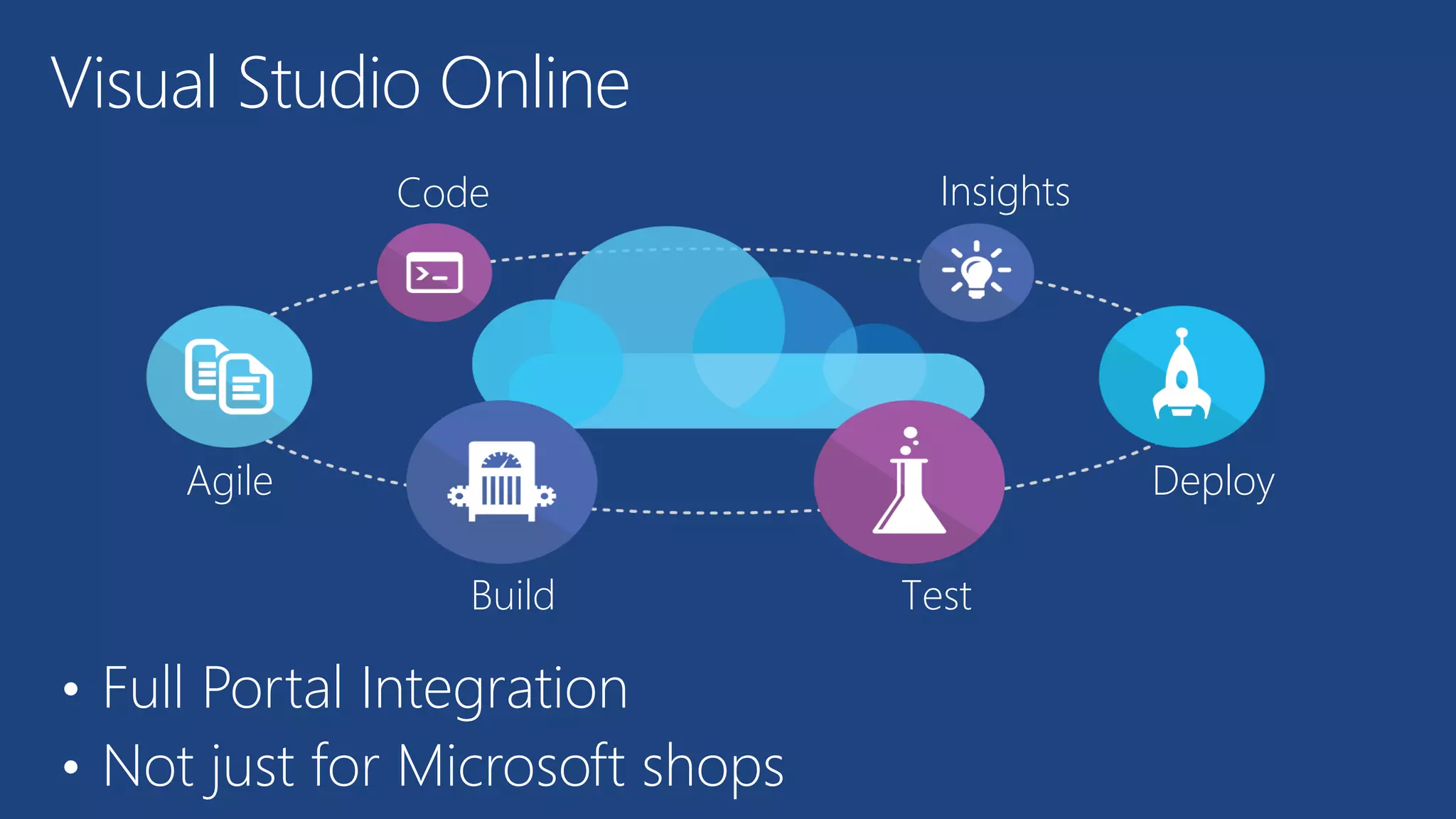

28. • Full Portal Integration
• Not just for Microsoft shops
Visual Studio Online
Agile
Build Test
Deploy
InsightsCode

29. Demo: Azure Preview
Portal

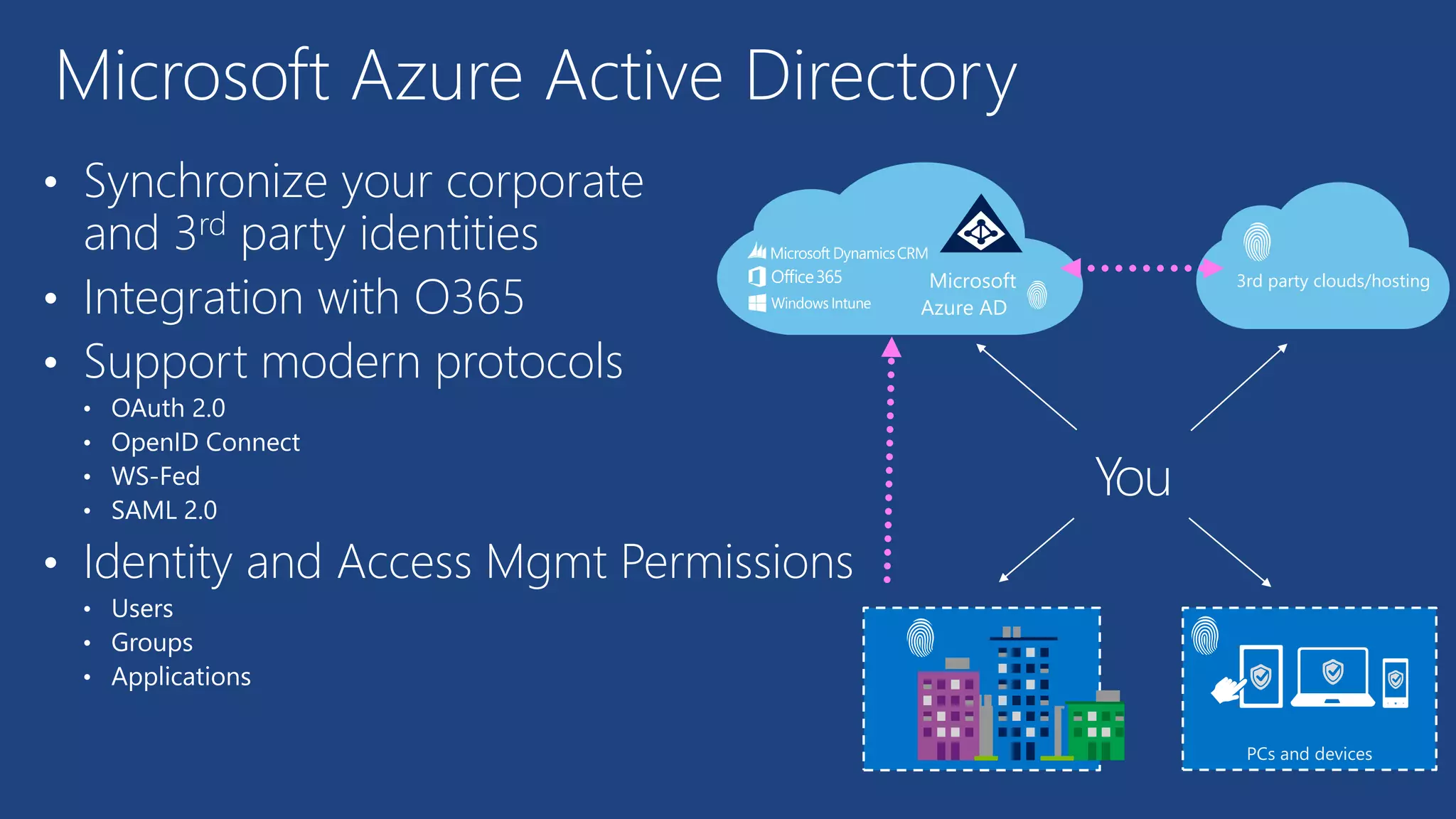

30. • Synchronize your corporate
and 3rd party identities
• Integration with O365
• Support modern protocols
• OAuth 2.0
• OpenID Connect
• WS-Fed
• SAML 2.0
• Identity and Access Mgmt Permissions
• Users
• Groups
• Applications
Microsoft Azure Active Directory
3rd party clouds/hostingMicrosoft
Azure AD
You

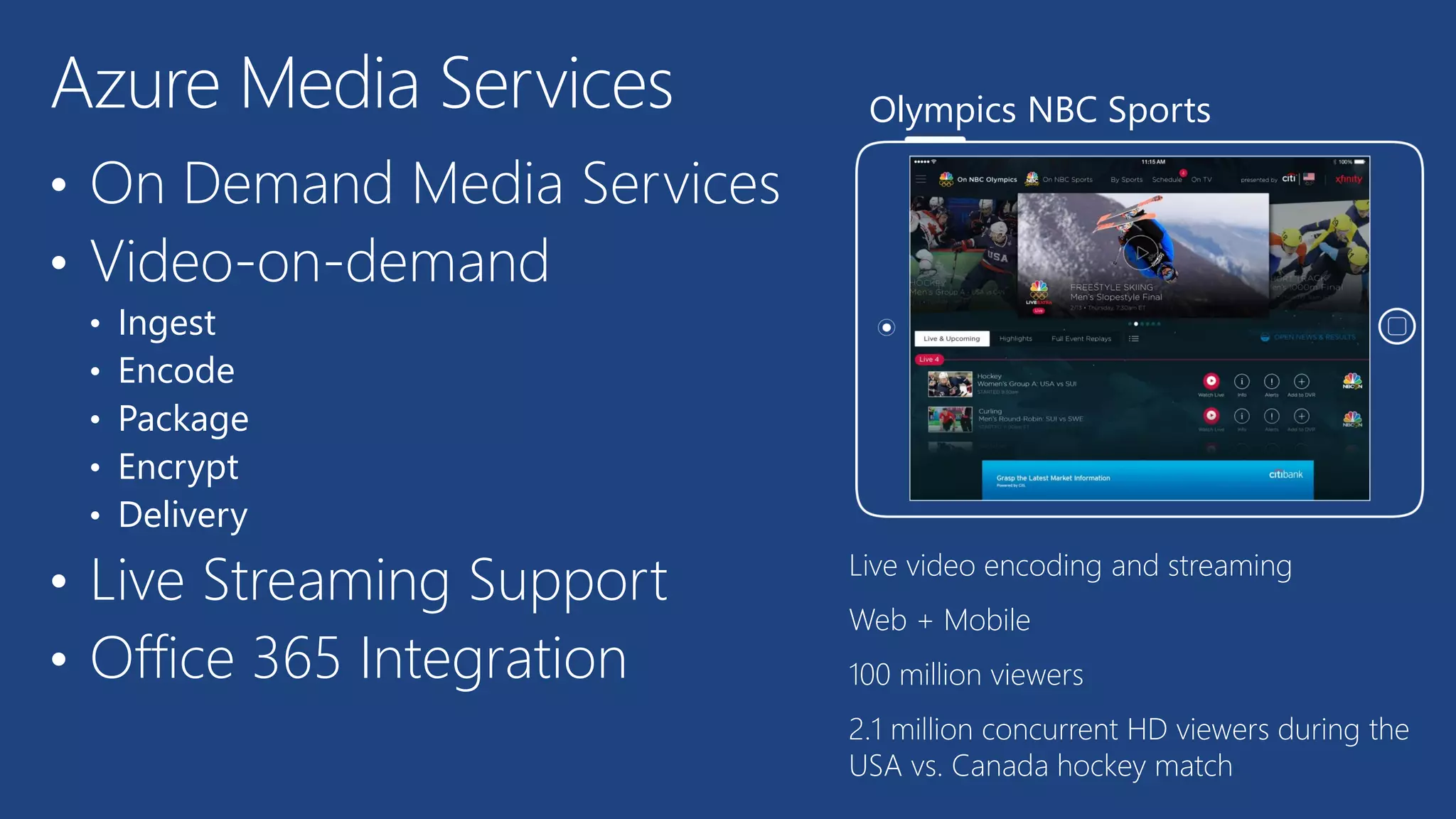

31. • On Demand Media Services
• Video-on-demand
• Ingest
• Encode
• Package
• Encrypt
• Delivery
• Live Streaming Support
• Office 365 Integration
Azure Media Services
Live video encoding and streaming
Web + Mobile
100 million viewers
2.1 million concurrent HD viewers during the
USA vs. Canada hockey match
Olympics NBC Sports

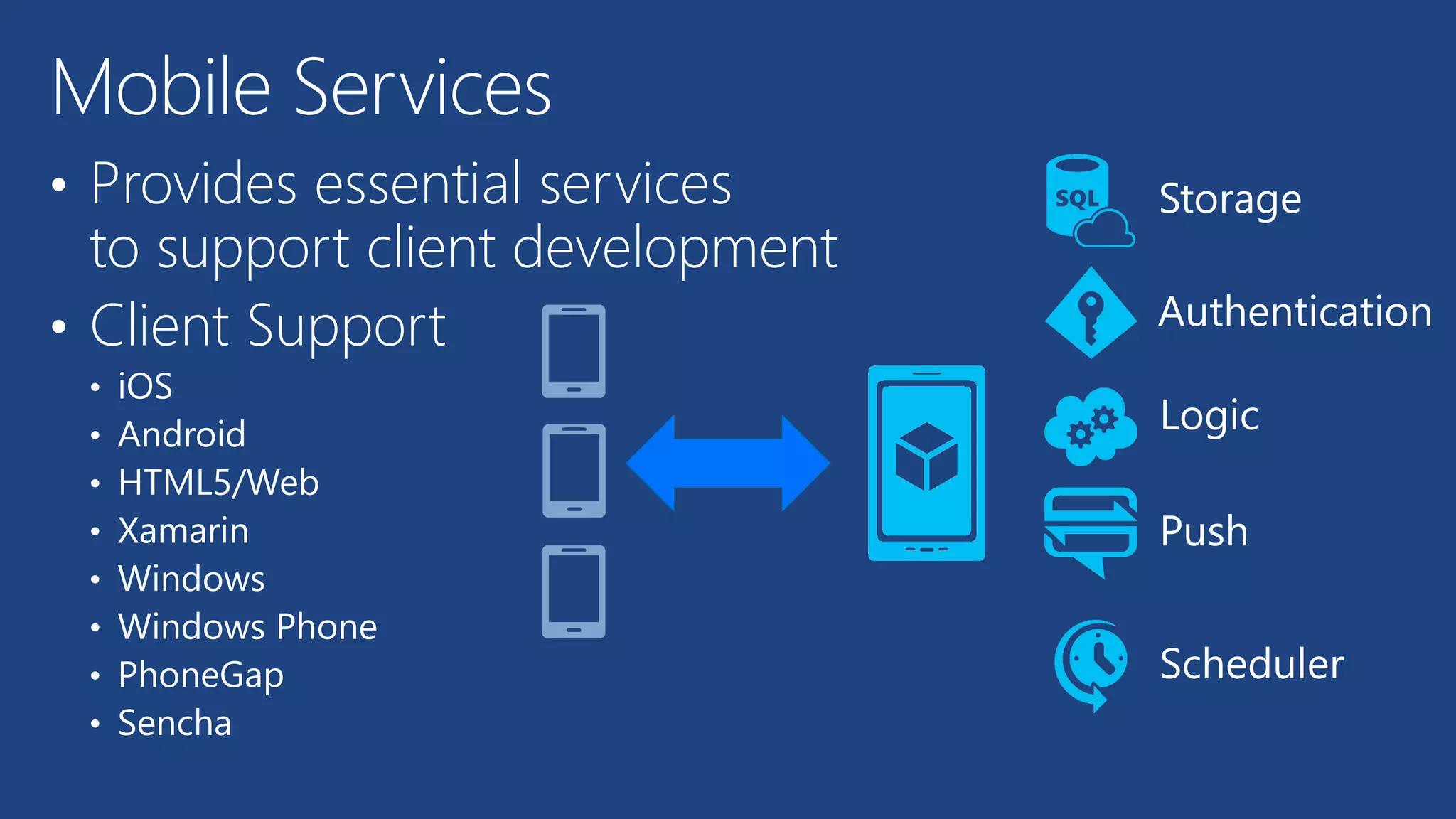

32. Mobile Services
Storage
Authentication
Logic
Push
Scheduler
• Provides essential services
to support client development
• Client Support
• iOS
• Android
• HTML5/Web
• Xamarin
• Windows
• Windows Phone
• PhoneGap
• Sencha

33. • Dev / Test
• Full test and dev environments in minutes
• VSO integration
• Lift and Shift
• Take existing work loads and run then in a certified instance
• Storage
• Archive key data in inexpensive cloud storage
• Big Data
• Process key data into business intelligence using Hadoop or Machine Learning
• Identity
• Synchronize all your identities through Azure AD to control access to Apps, Data and Services
• Web Apps
• Take your web apps to the cloud using inexpensive Web Sites
Key Scenarios to get started with Microsoft Azure

34. Activate your MSDN Benefits…
89
Countries
33%
off
Dev/Test VMs
25%
off
Other Dev/Test
3 VMs for 16 hrs a day 80 VMs for 20 hour load test Up to 100 web sites + DB
+
$150
per Month
Upto

35. Get started today at
http://azure.microsoft.com

36. Azure Case Studies in Rakuten
