For web applications you often need the ability to deploy new features continuously while making sure that all parts of your application still work correctly. Establishing an Continuous Integration process using an automated test suite can support you to meet those needs. This presentation tries to give an overview how this integration process can be established for Symfony2 applications and which types of tests apply.
The presentation was held on the Symfony User Group Berlin on 10 Okt. 2012
2. Introducing the speaker
Joachim Unger
@joeywannabe
Symfony Explorer since 2.0
Web Developer since 2010
Former scientist at ABB Robotics
Software Developer @LittleBird GmbH
Berlin

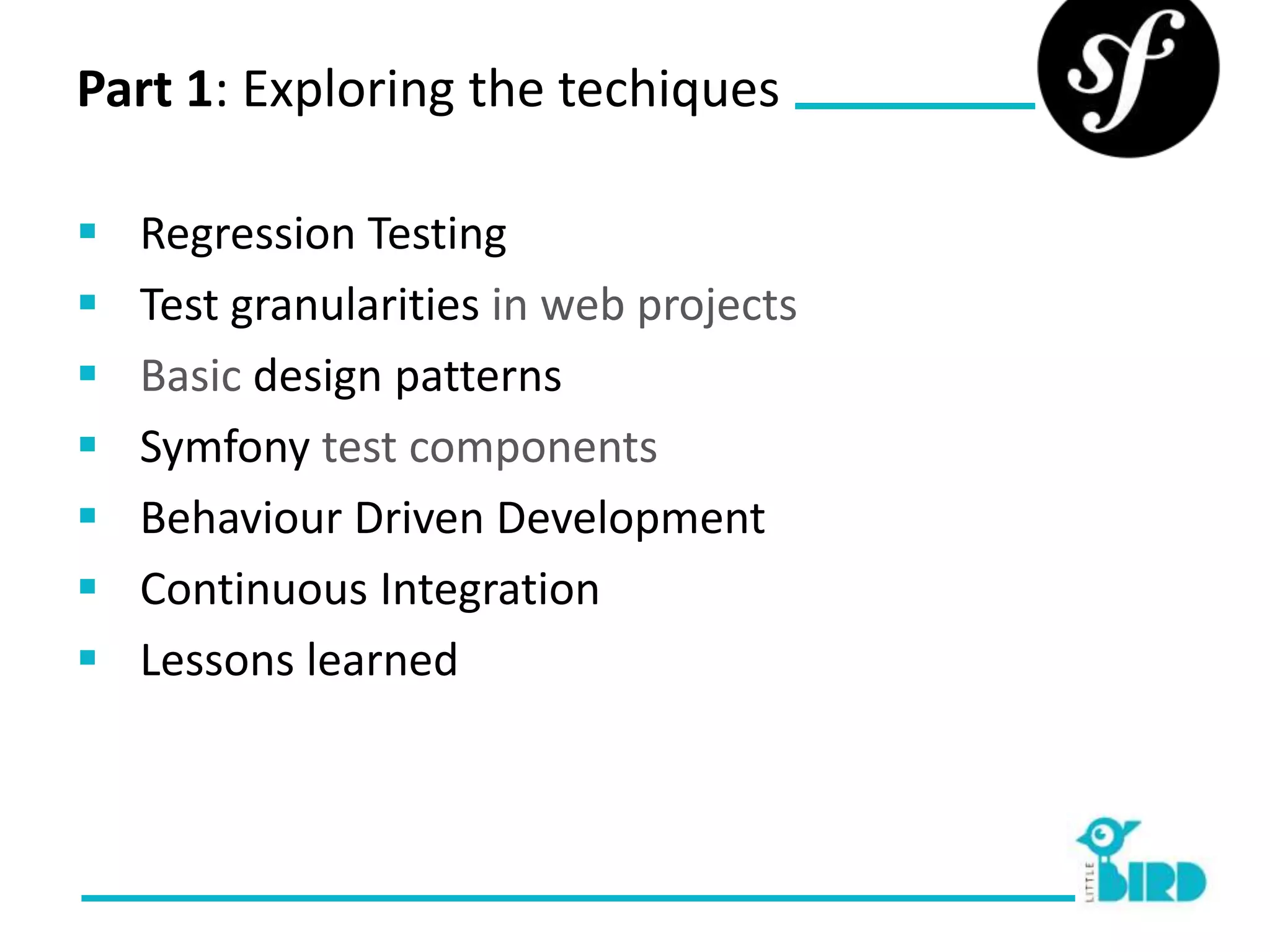

3. Part 1: Exploring the techiques
Regression Testing
Test granularities in web projects
Basic design patterns
Symfony test components
Behaviour Driven Development
Continuous Integration
Lessons learned

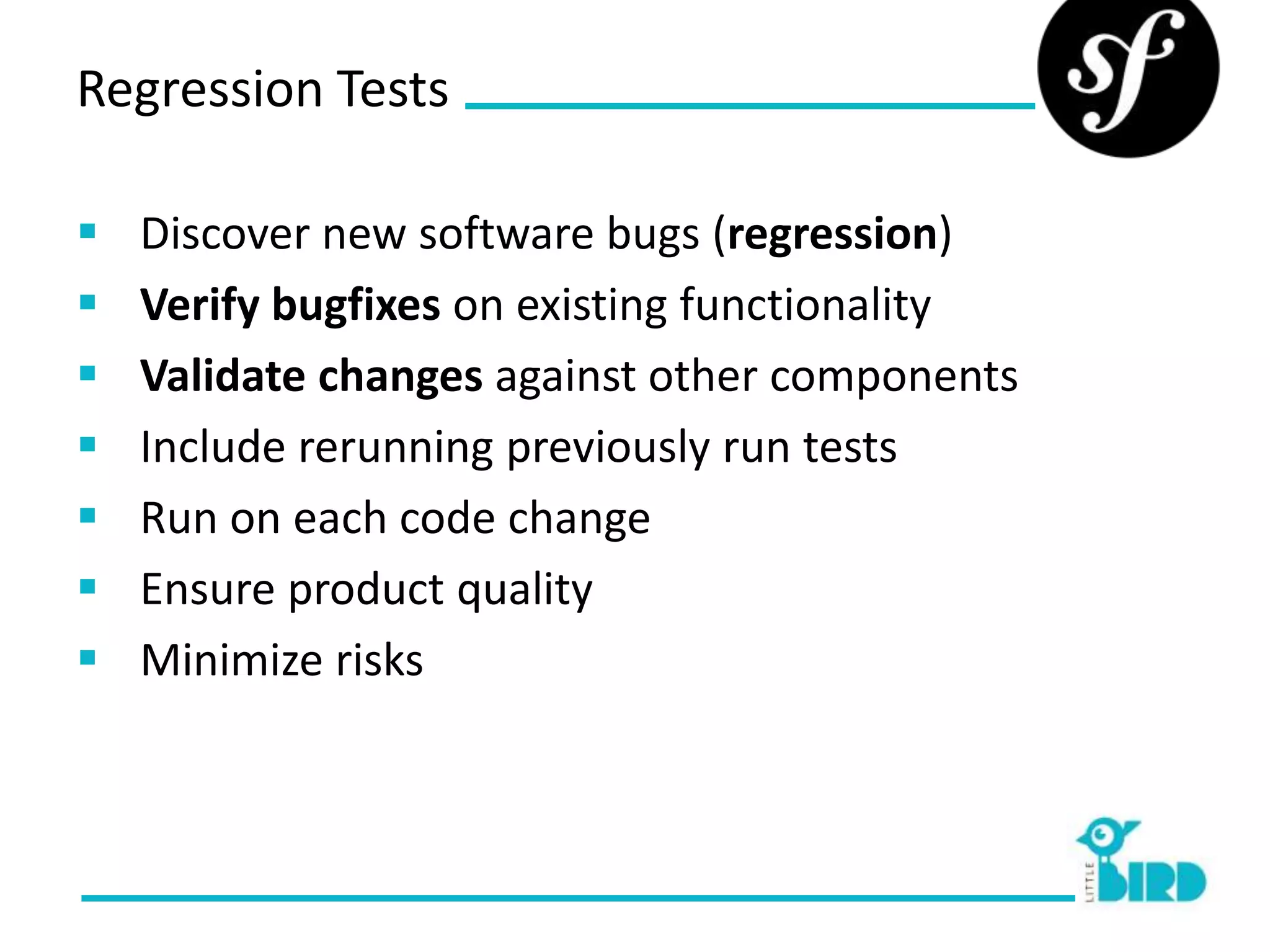

4. Regression Tests
Discover new software bugs (regression)
Verify bugfixes on existing functionality
Validate changes against other components
Include rerunning previously run tests
Run on each code change
Ensure product quality
Minimize risks

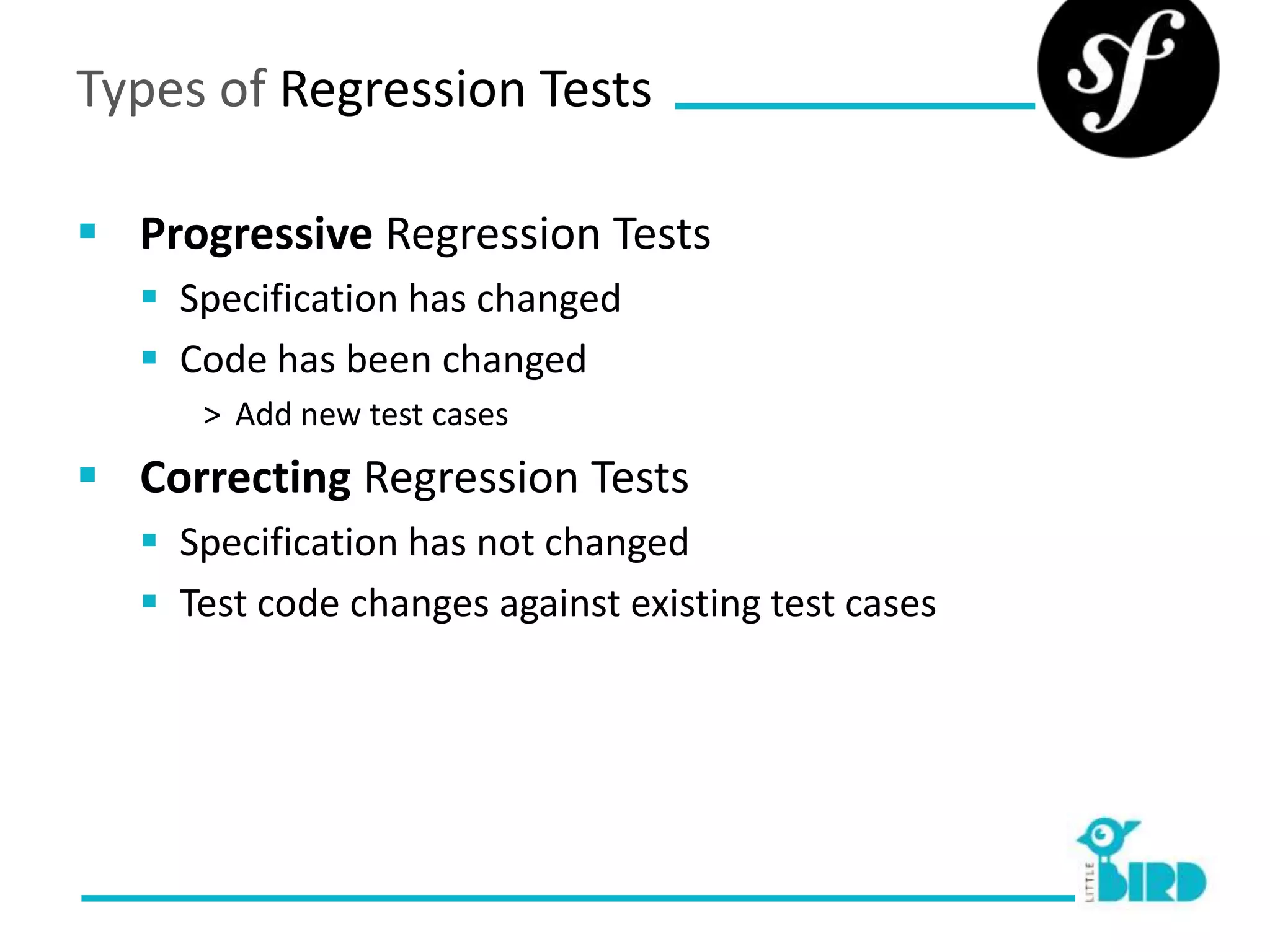

5. Types of Regression Tests
Progressive Regression Tests
Specification has changed
Code has been changed
> Add new test cases
Correcting Regression Tests
Specification has not changed
Test code changes against existing test cases

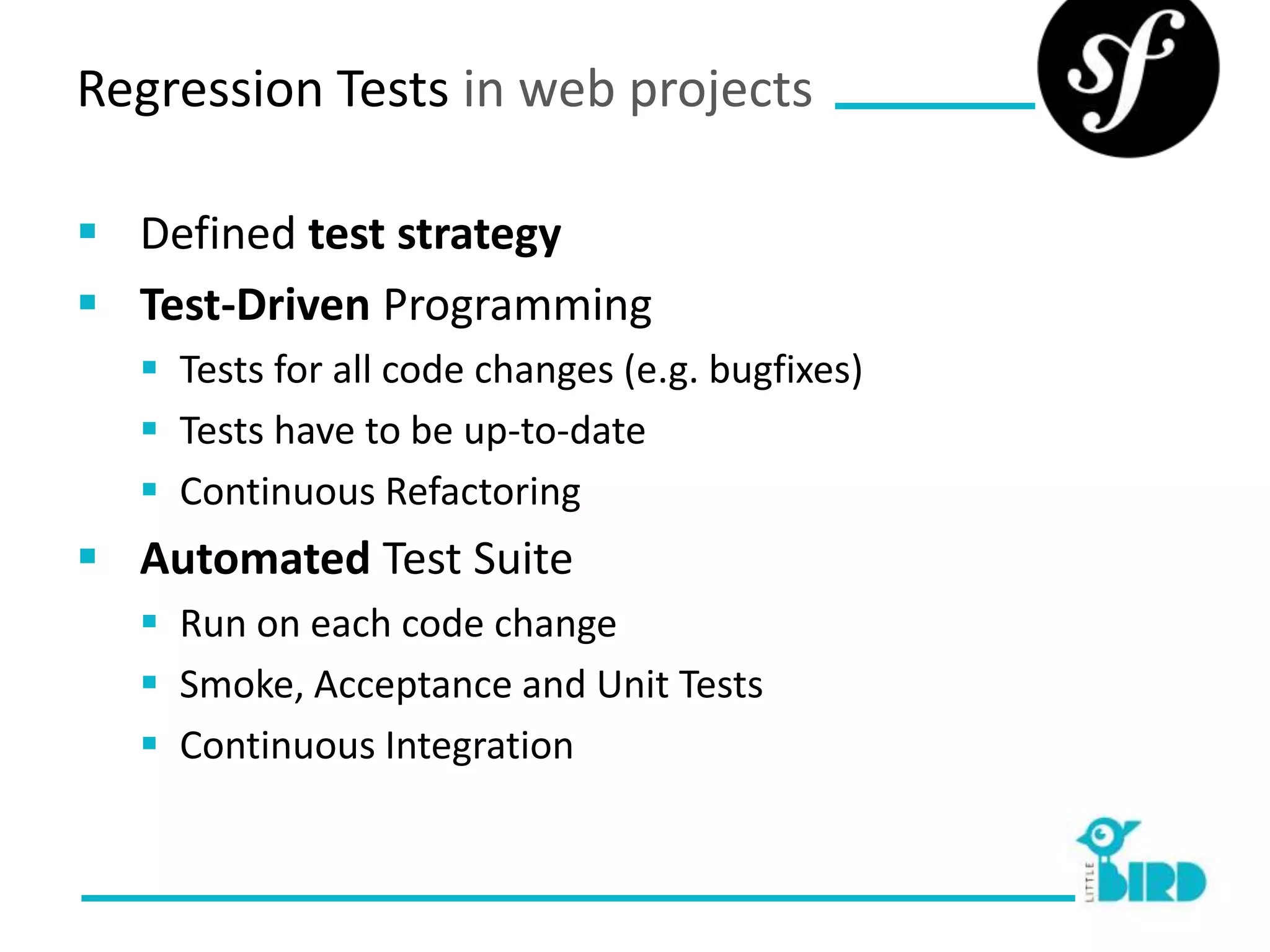

6. Regression Tests in web projects
Defined test strategy
Test-Driven Programming
Tests for all code changes (e.g. bugfixes)
Tests have to be up-to-date
Continuous Refactoring
Automated Test Suite
Run on each code change
Smoke, Acceptance and Unit Tests
Continuous Integration

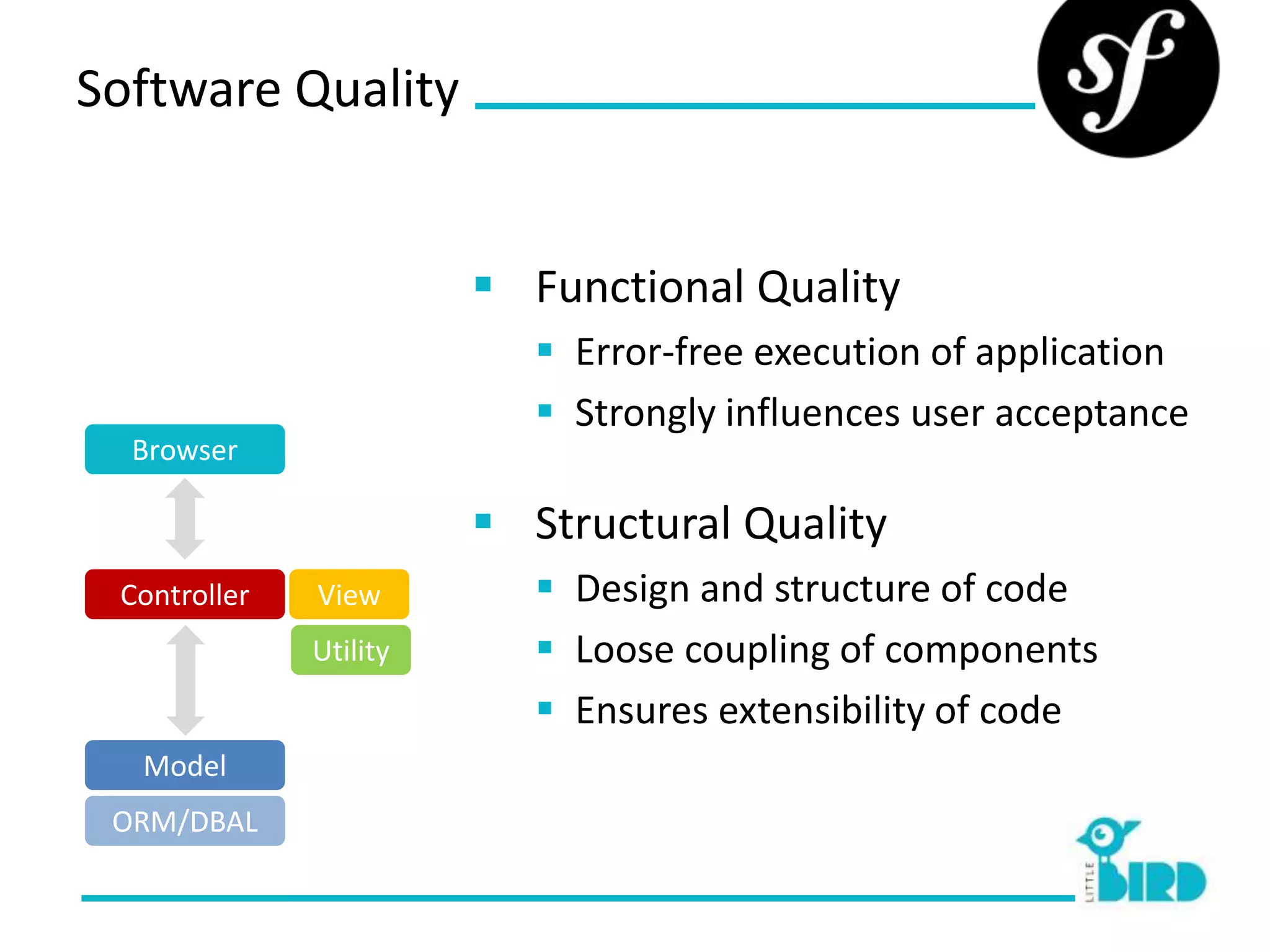

7. Software Quality
Functional Quality
Error-free execution of application
Strongly influences user acceptance
Browser
Structural Quality
Controller View Design and structure of code
Utility Loose coupling of components
Ensures extensibility of code
Model
ORM/DBAL

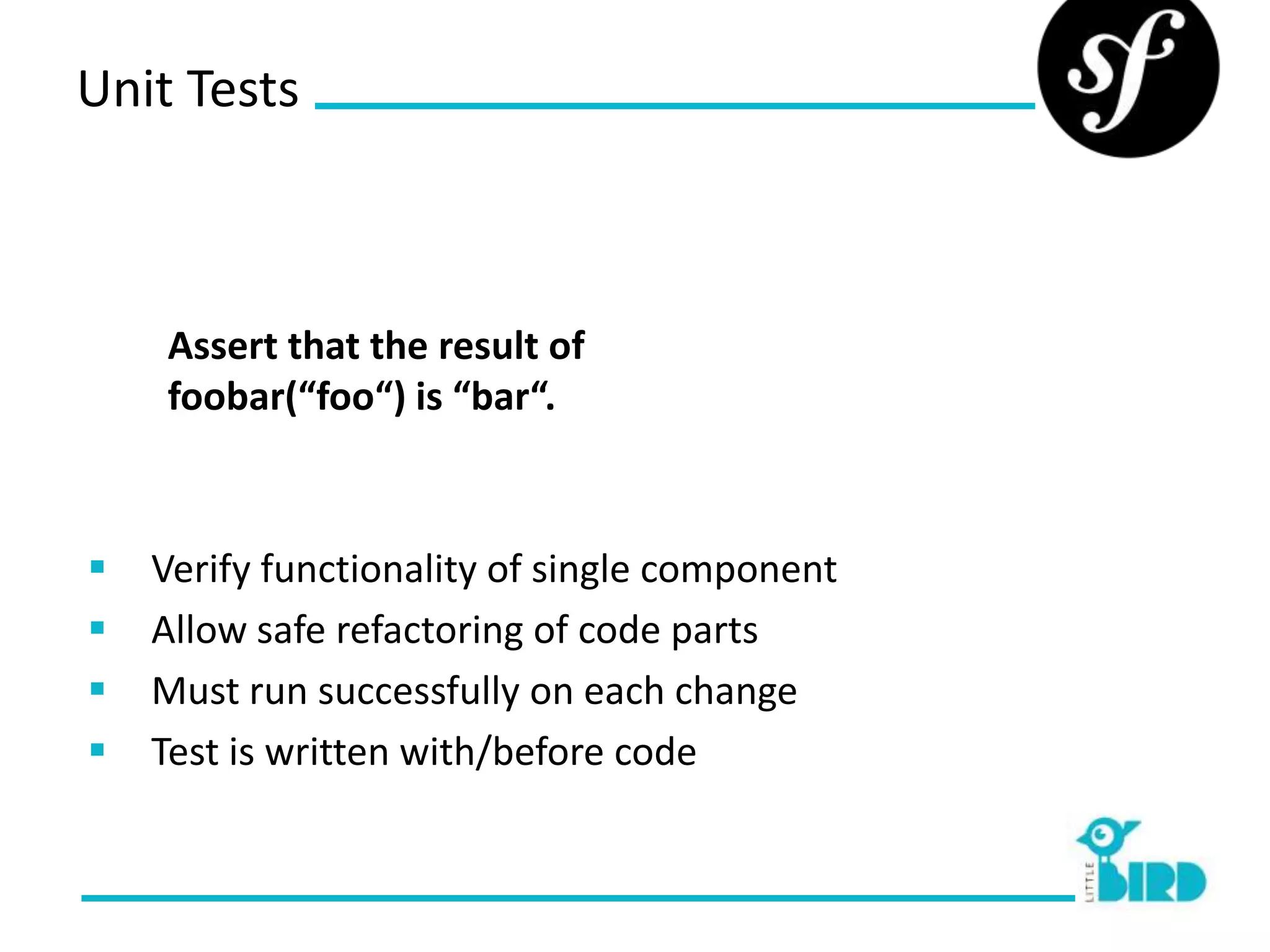

8. Unit Tests
Assert that the result of
foobar(“foo“) is “bar“.
Verify functionality of single component
Allow safe refactoring of code parts
Must run successfully on each change
Test is written with/before code

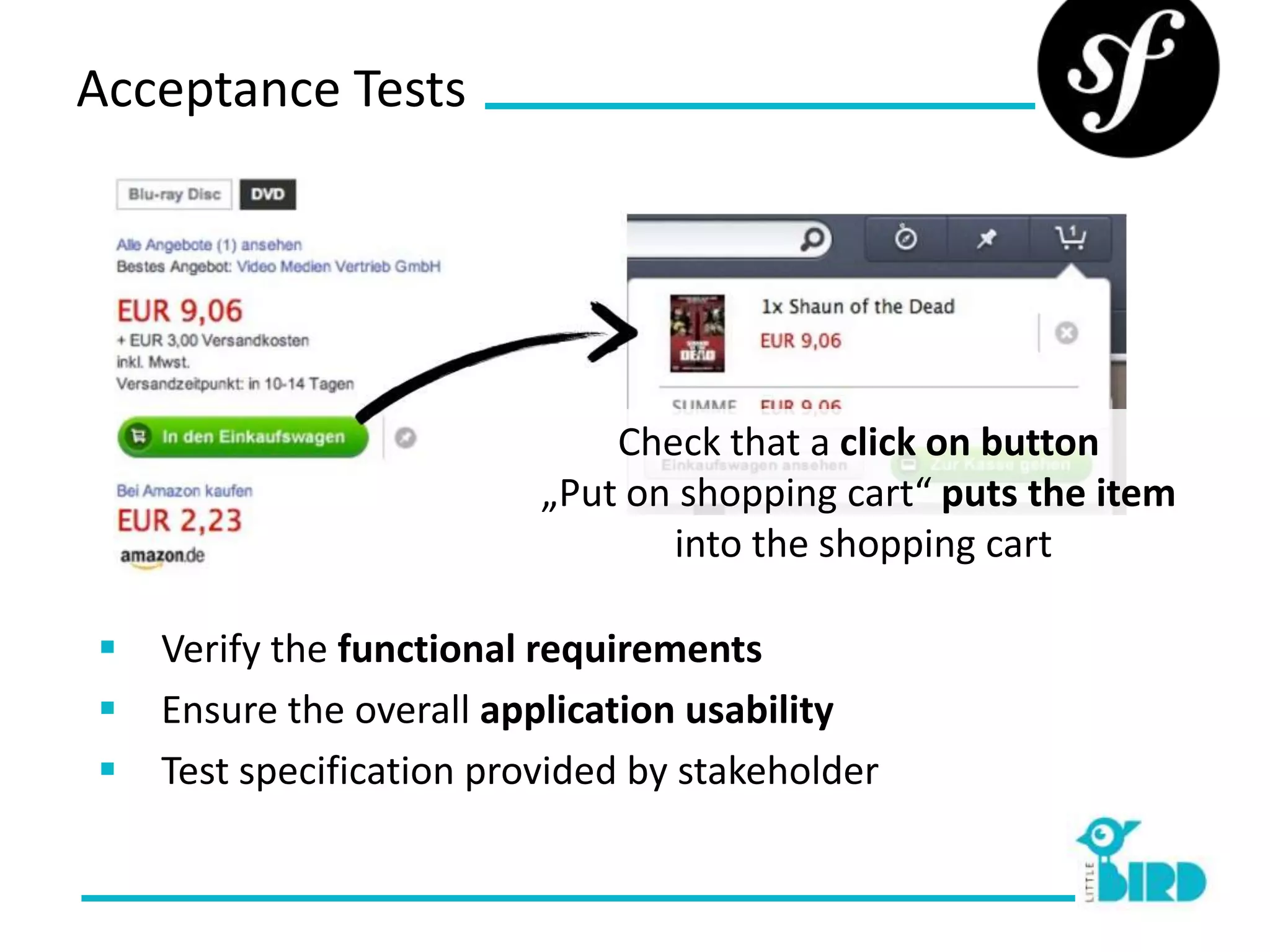

9. Acceptance Tests
Check that a click on button
„Put on shopping cart“ puts the item
into the shopping cart
Verify the functional requirements
Ensure the overall application usability
Test specification provided by stakeholder

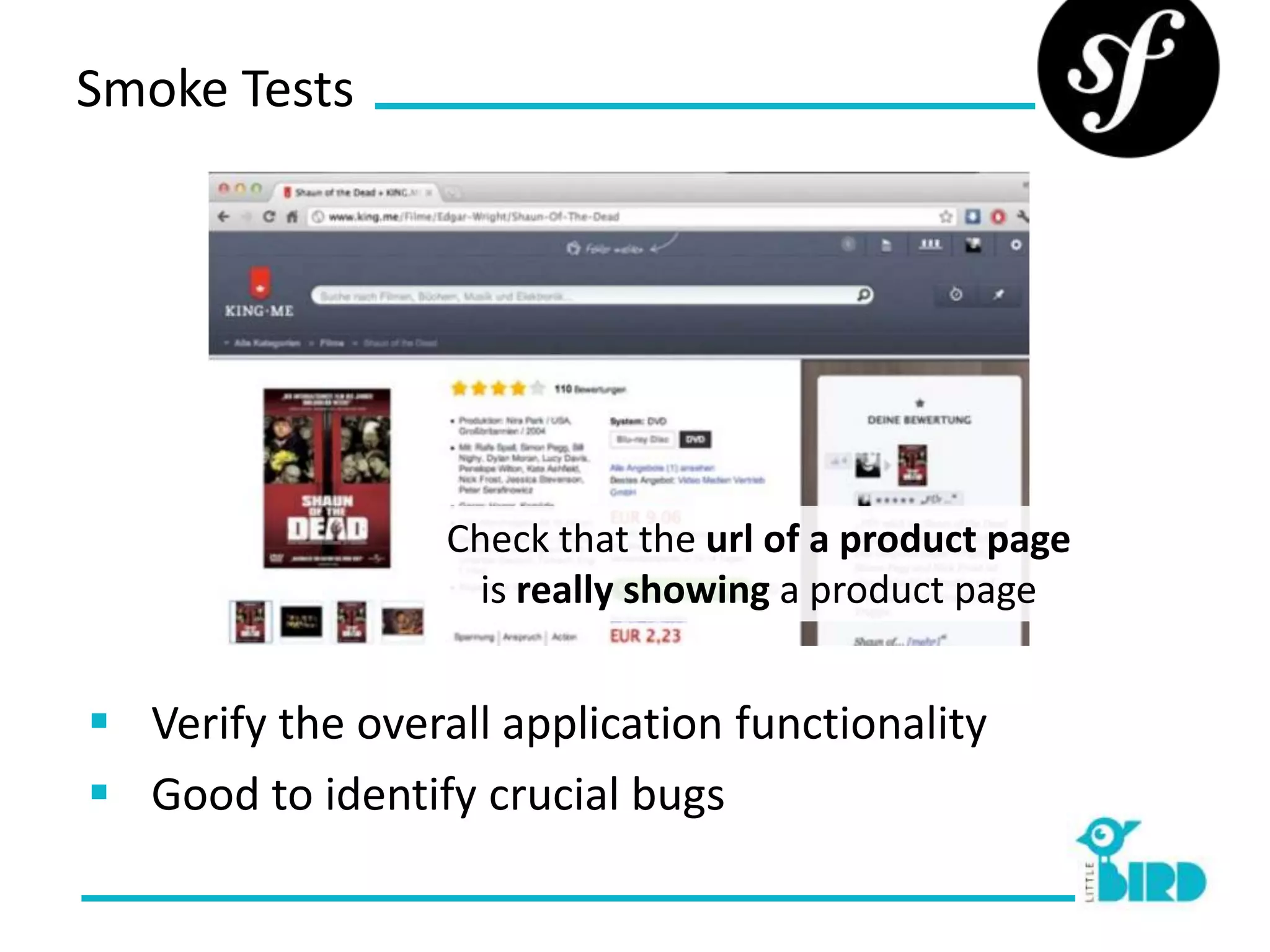

10. Smoke Tests
Check that the url of a product page
is really showing a product page
Verify the overall application functionality
Good to identify crucial bugs

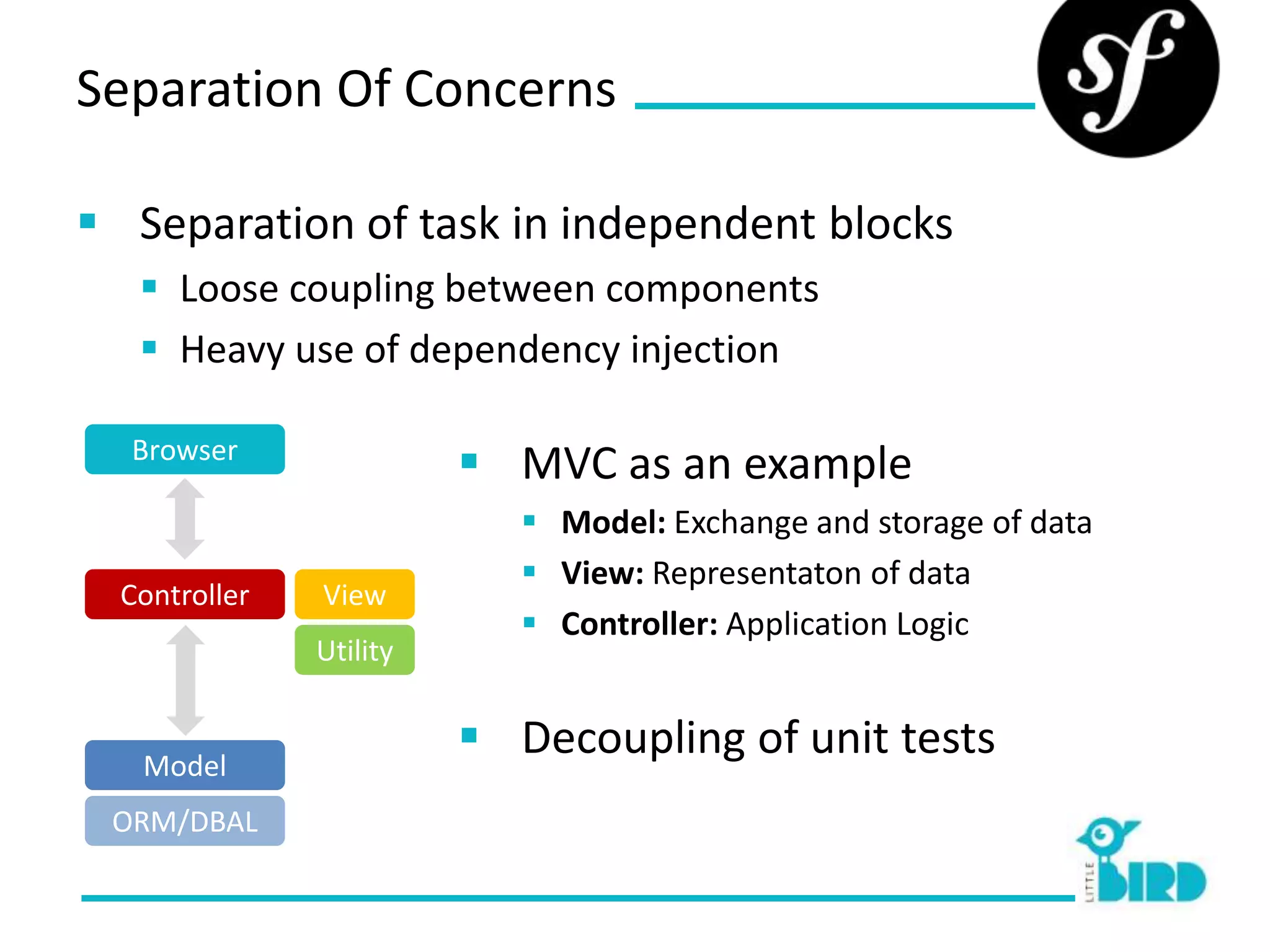

11. Separation Of Concerns
Separation of task in independent blocks
Loose coupling between components
Heavy use of dependency injection
Browser
MVC as an example
Model: Exchange and storage of data
View: Representaton of data
Controller View
Controller: Application Logic
Utility
Model
Decoupling of unit tests
ORM/DBAL

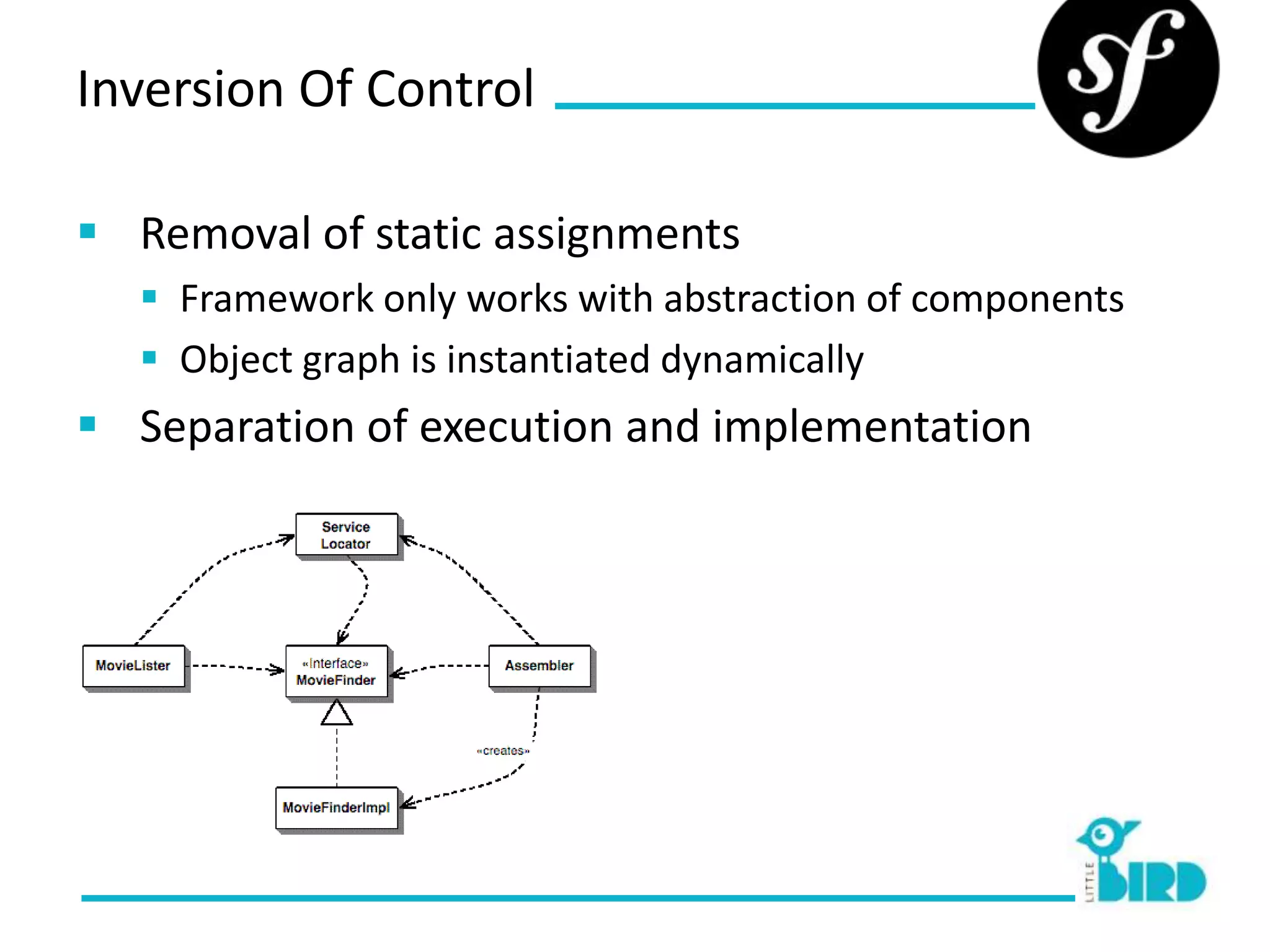

12. Inversion Of Control
Removal of static assignments
Framework only works with abstraction of components
Object graph is instantiated dynamically
Separation of execution and implementation

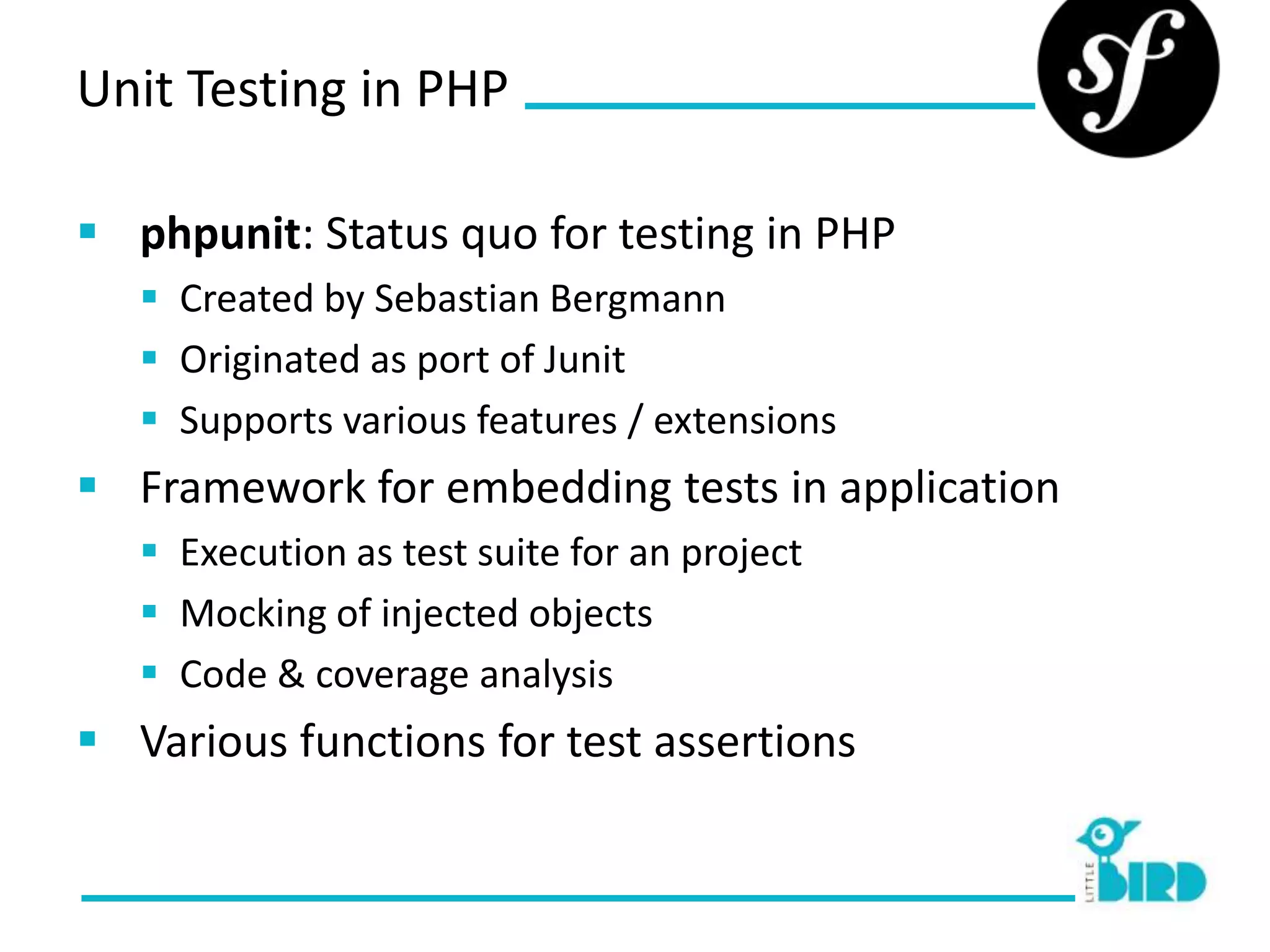

13. Unit Testing in PHP
phpunit: Status quo for testing in PHP
Created by Sebastian Bergmann
Originated as port of Junit
Supports various features / extensions
Framework for embedding tests in application
Execution as test suite for an project
Mocking of injected objects
Code & coverage analysis
Various functions for test assertions

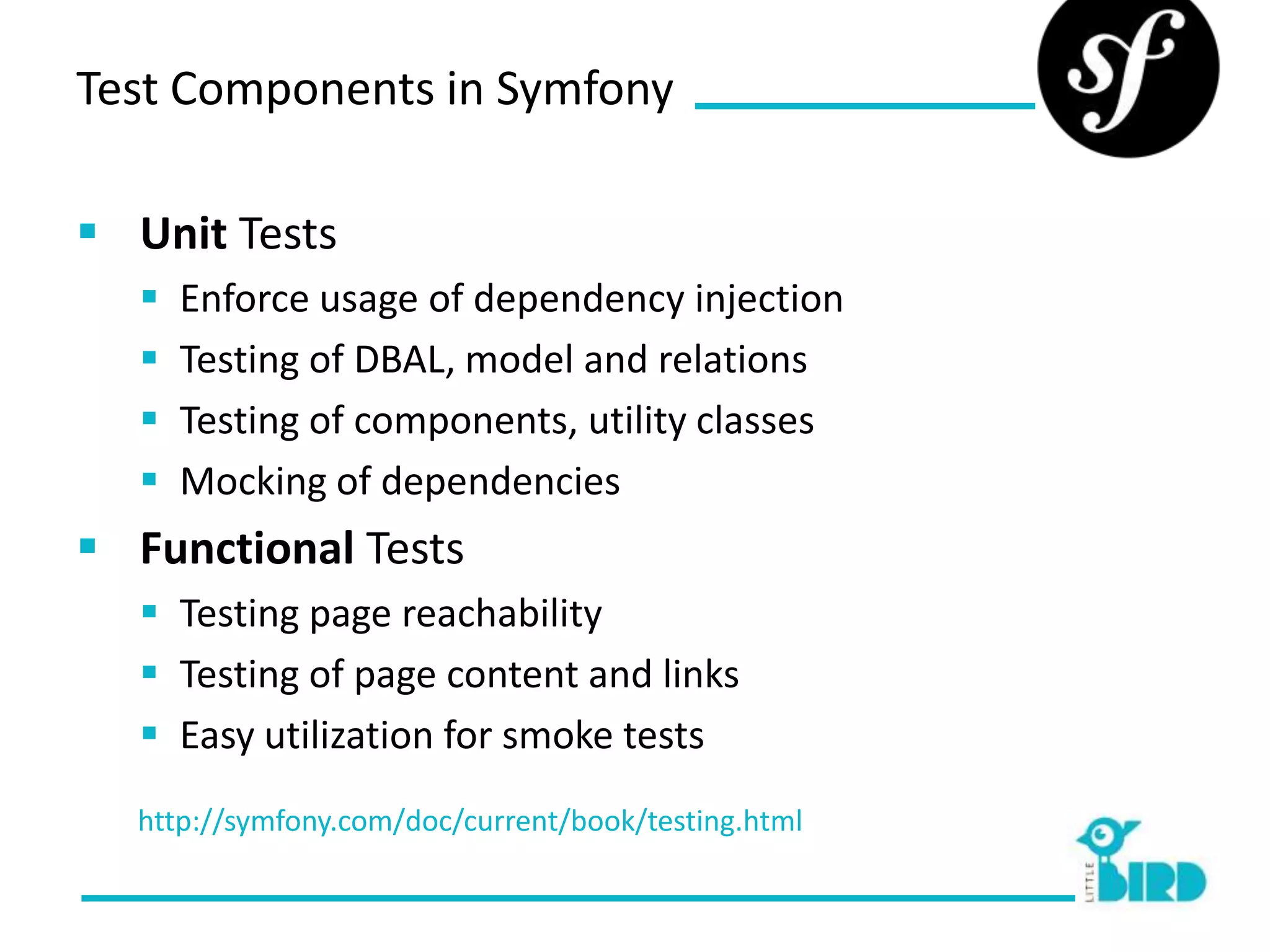

14. Test Components in Symfony
Unit Tests
Enforce usage of dependency injection
Testing of DBAL, model and relations
Testing of components, utility classes
Mocking of dependencies
Functional Tests
Testing page reachability
Testing of page content and links
Easy utilization for smoke tests
http://symfony.com/doc/current/book/testing.html

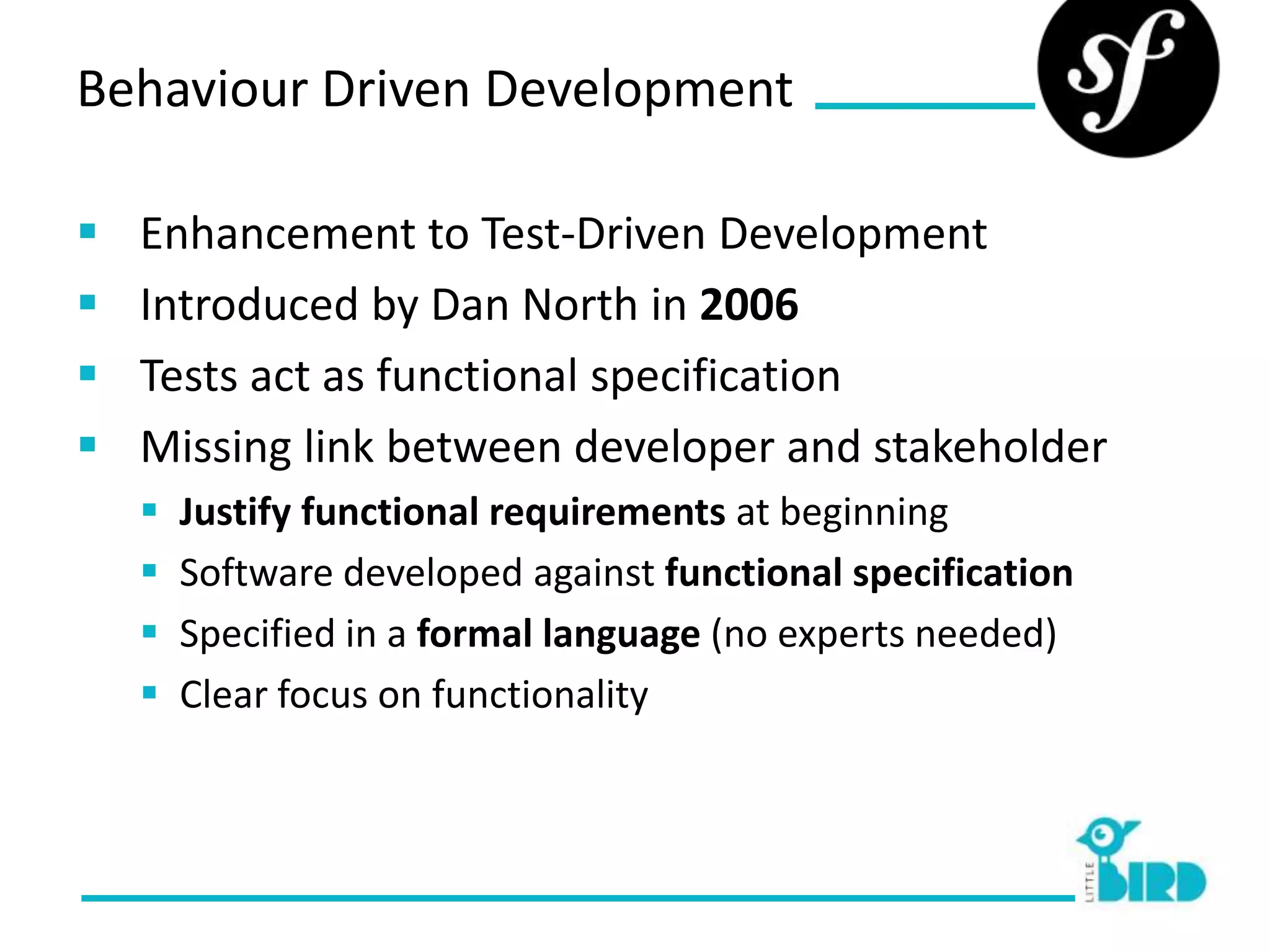

15. Behaviour Driven Development
Enhancement to Test-Driven Development
Introduced by Dan North in 2006
Tests act as functional specification
Missing link between developer and stakeholder
Justify functional requirements at beginning
Software developed against functional specification
Specified in a formal language (no experts needed)
Clear focus on functionality

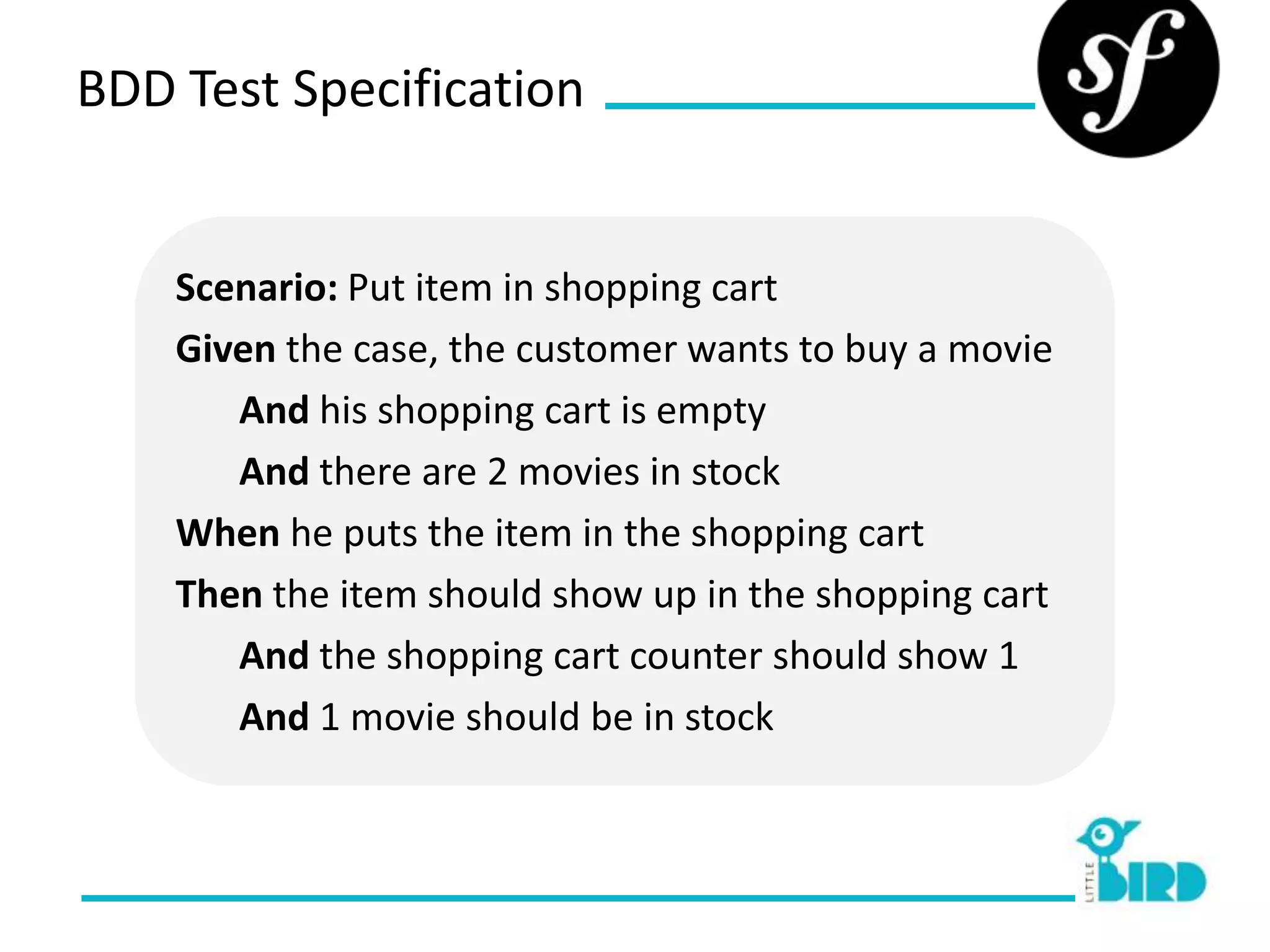

16. BDD Test Specification
Scenario: Put item in shopping cart
Given the case, the customer wants to buy a movie
And his shopping cart is empty
And there are 2 movies in stock
When he puts the item in the shopping cart
Then the item should show up in the shopping cart
And the shopping cart counter should show 1
And 1 movie should be in stock

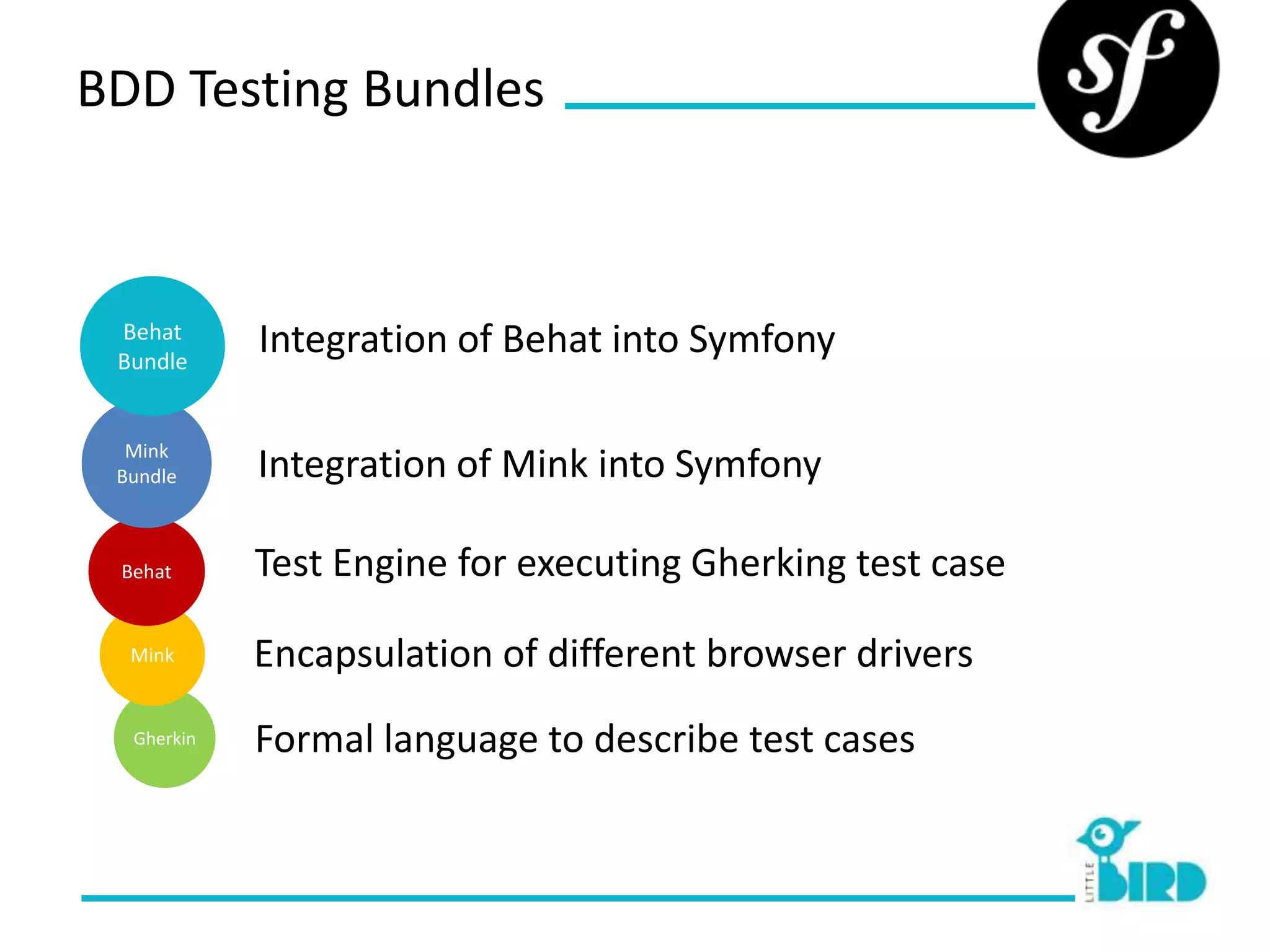

17. BDD Testing Bundles
Behat
Bundle
Integration of Behat into Symfony
Mink
Bundle Integration of Mink into Symfony
Behat Test Engine for executing Gherking test case
Mink Encapsulation of different browser drivers
Gherkin Formal language to describe test cases

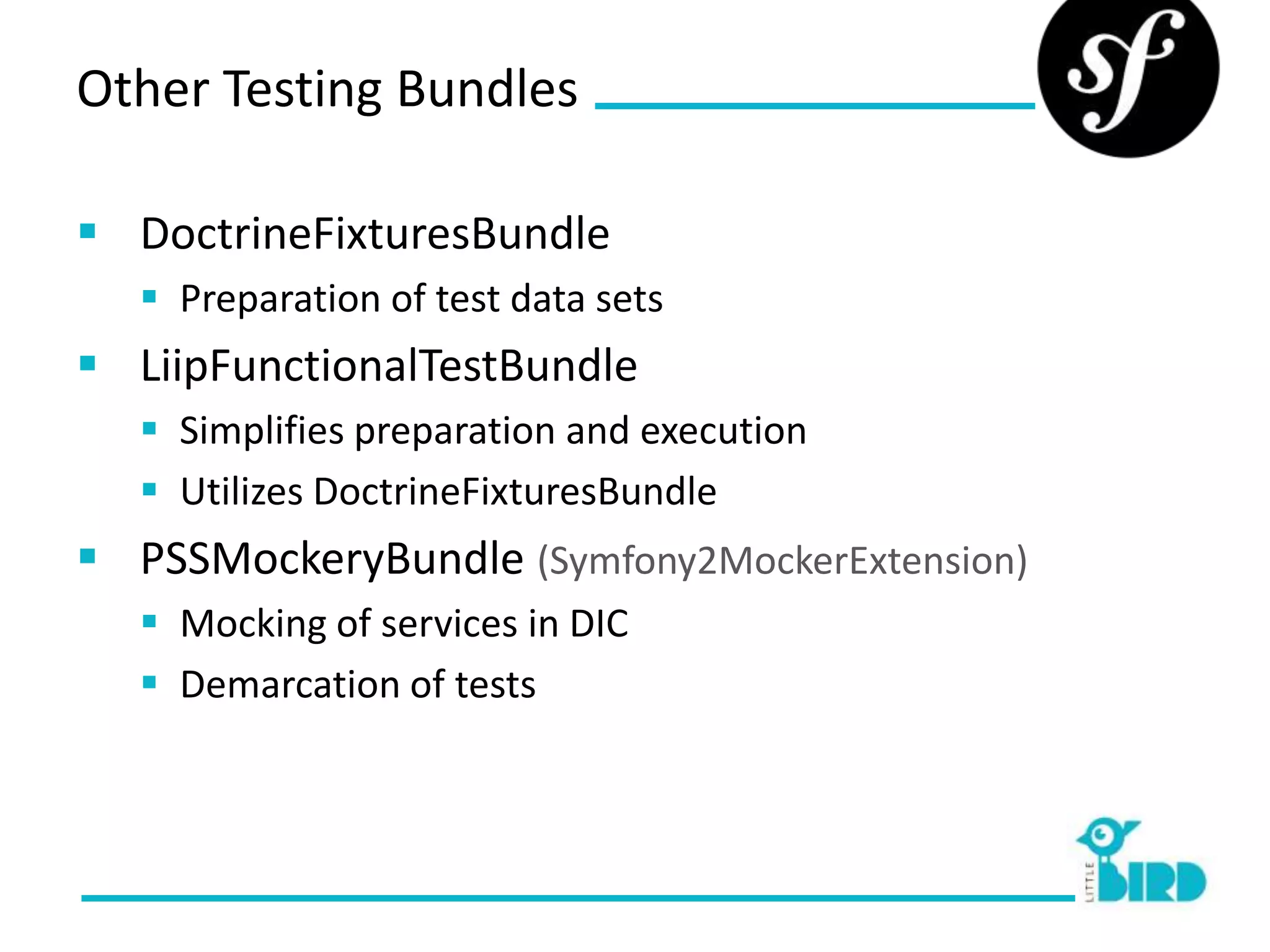

18. Other Testing Bundles
DoctrineFixturesBundle
Preparation of test data sets
LiipFunctionalTestBundle
Simplifies preparation and execution
Utilizes DoctrineFixturesBundle
PSSMockeryBundle (Symfony2MockerExtension)
Mocking of services in DIC
Demarcation of tests

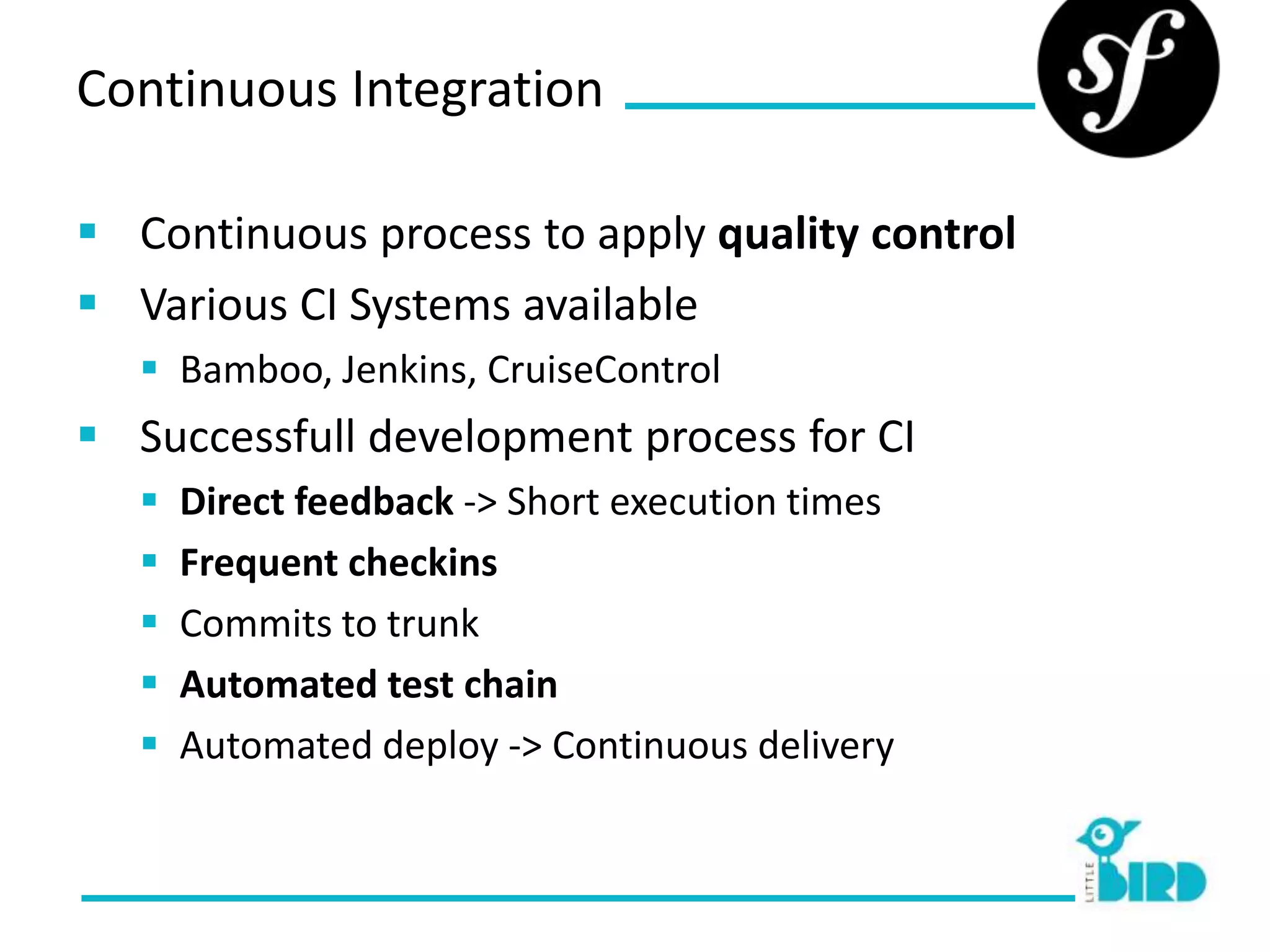

19. Continuous Integration
Continuous process to apply quality control
Various CI Systems available
Bamboo, Jenkins, CruiseControl
Successfull development process for CI
Direct feedback -> Short execution times
Frequent checkins
Commits to trunk
Automated test chain
Automated deploy -> Continuous delivery

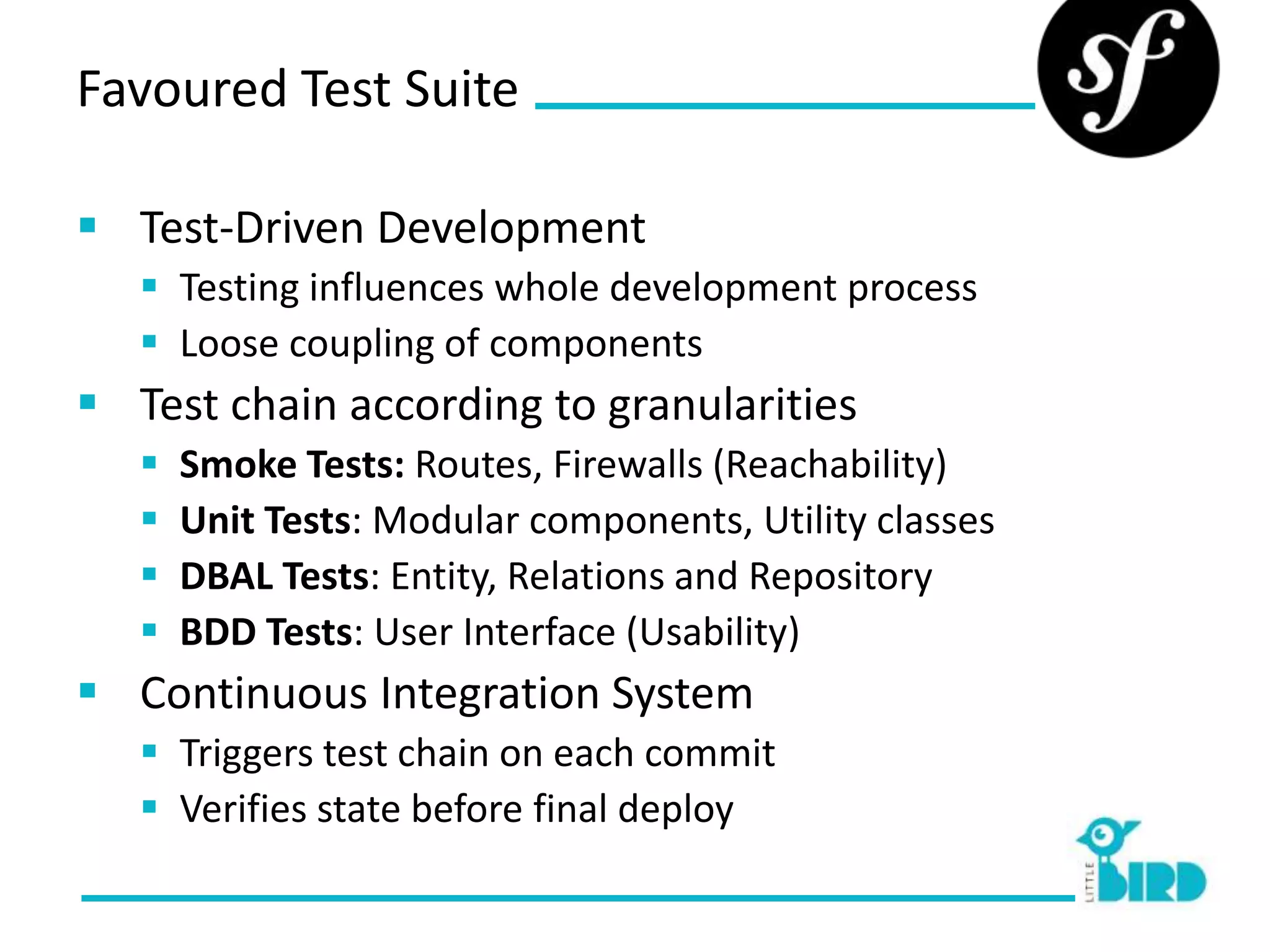

21. Favoured Test Suite
Test-Driven Development
Testing influences whole development process
Loose coupling of components
Test chain according to granularities
Smoke Tests: Routes, Firewalls (Reachability)
Unit Tests: Modular components, Utility classes
DBAL Tests: Entity, Relations and Repository
BDD Tests: User Interface (Usability)
Continuous Integration System
Triggers test chain on each commit
Verifies state before final deploy

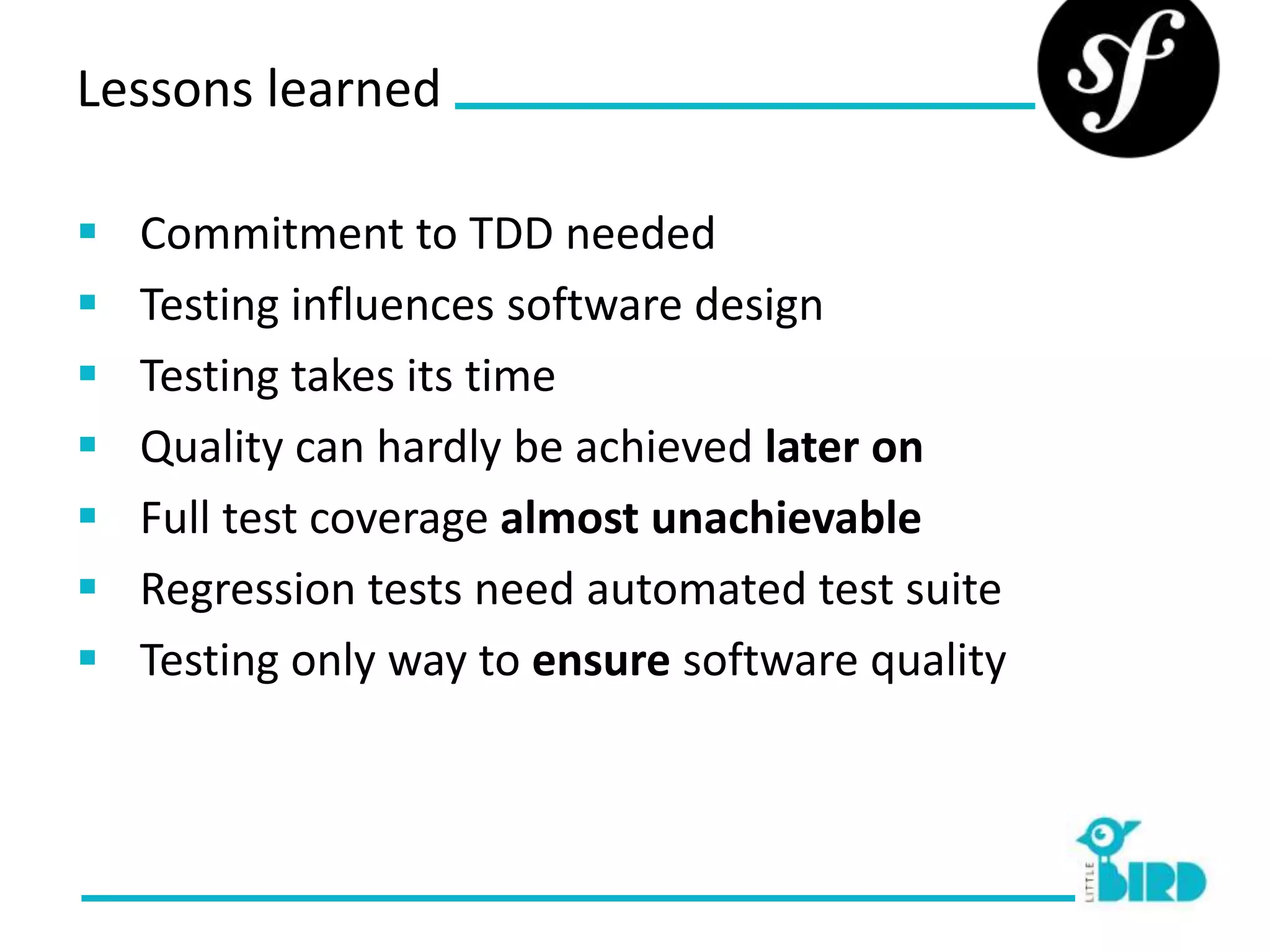

22. Lessons learned
Commitment to TDD needed
Testing influences software design
Testing takes its time
Quality can hardly be achieved later on
Full test coverage almost unachievable
Regression tests need automated test suite
Testing only way to ensure software quality
23. Questions
Questions regarding the practical
usage probably covered in part 2
