192.0.0.4 on android

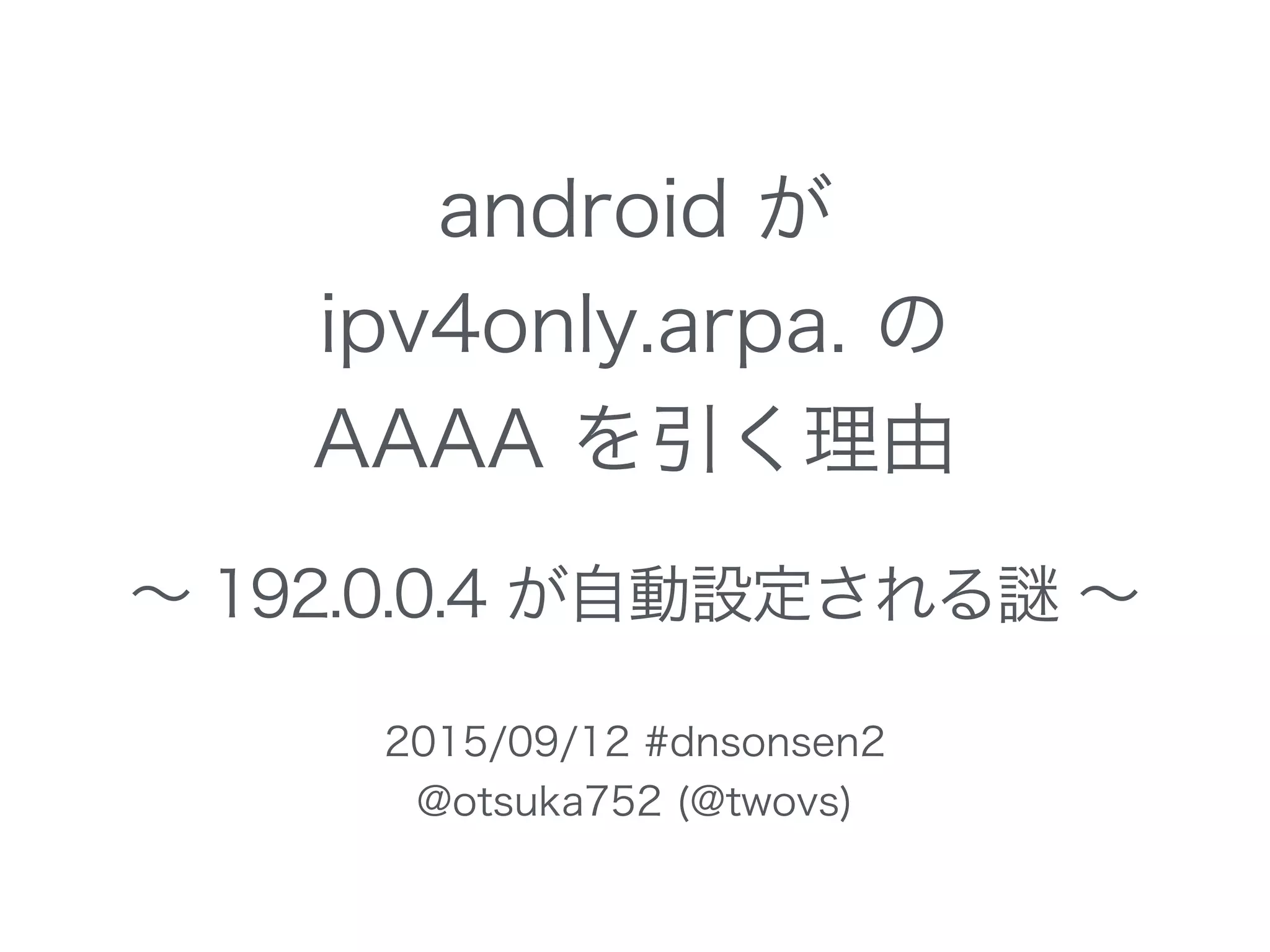

- 1. android が ipv4only.arpa. の AAAAを引く理由 ∼ 192.0.0.4 が自動設定される ∼ 2015/09/12 #dnsonsen2 @otsuka752 (@twovs)

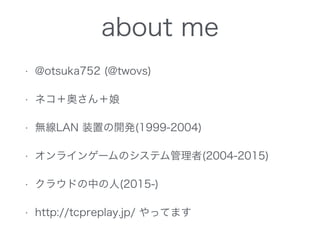

- 2. about me • @otsuka752(@twovs) • ネコ＋奥さん＋娘 • 無線LAN 装置の開発(1999-2004) • オンラインゲームのシステム管理者(2004-2015) • クラウドの中の人(2015-) • http://tcpreplay.jp/ やってます
- 3. about me (DNS) •2014年 : 某新 gTLD 申請 • SLD の権威サーバ運用せねば • 第一回 DNS 温泉参加! • 2015年 : 某新 gTLD 申請取り下げ • 取り下げはちょっと残念 • 第二回 DNS 温泉参加! ←いまここ • 2016年 • 第三回 DNS 温泉参加予定!
- 4.
- 5. © 2015 AppleInc. All rights reserved. Redistribution or public display not permitted without written permission from Apple. #WWDC15 Your App and Next Generation Networks Prabhakar Lakhera Core OS Networking Engineer Stuart Cheshire DEST System Frameworks Session 719 (抜粋)WWDC15 - Your App and Next Generation Network

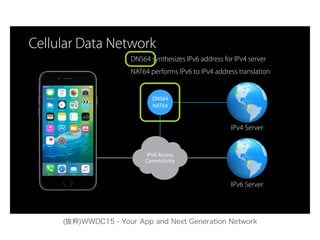

- 6. IPv4 Server Cellular DataNetwork DNS64 NAT64 IPv6 Server IPv6 Access Connectivity DNS64 synthesizes IPv6 address for IPv4 server NAT64 performs IPv6 to IPv4 address translation (抜粋)WWDC15 - Your App and Next Generation Network
- 7. IPv4 Server Cellular DataNetwork DNS64 NAT64 IPv6 Server IPv6 Access Connectivity DNS64 synthesizes IPv6 address for IPv4 server NAT64 performs IPv6 to IPv4 address translation (抜粋)WWDC15 - Your App and Next Generation Network

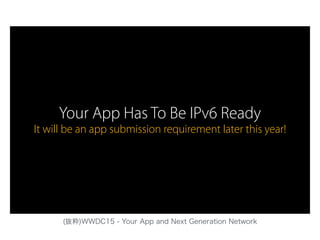

- 8. Your App HasTo Be IPv6 Ready It will be an app submission requirement later this year! (抜粋)WWDC15 - Your App and Next Generation Network
- 9.

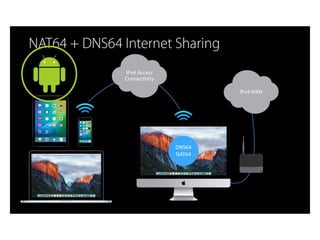

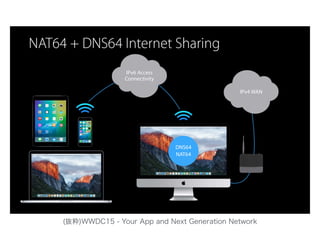

- 11. NAT64 + DNS64Internet Sharing IPv4 WAN IPv6 Access Connectivity DNS64 NAT64 (抜粋)WWDC15 - Your App and Next Generation Network

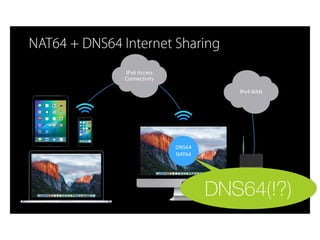

- 12. NAT64 + DNS64Internet Sharing IPv4 WAN IPv6 Access Connectivity DNS64 NAT64 DNS64(!?)
- 13. NAT64 + DNS64Internet Sharing IPv4 WAN IPv6 Access Connectivity DNS64 NAT64

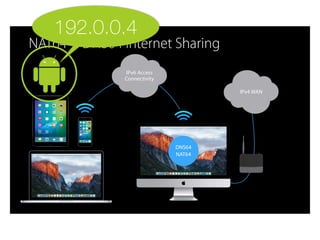

- 14. NAT64 + DNS64Internet Sharing IPv4 WAN IPv6 Access Connectivity DNS64 NAT64 192.0.0.4

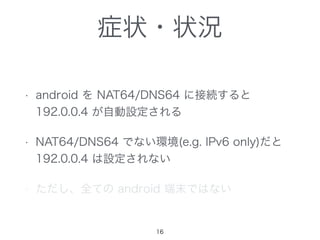

- 16. 症状・状況 • android をNAT64/DNS64 に接続すると 192.0.0.4 が自動設定される • NAT64/DNS64 でない環境(e.g. IPv6 only)だと 192.0.0.4 は設定されない • ただし、全ての android 端末ではない 16
- 17.

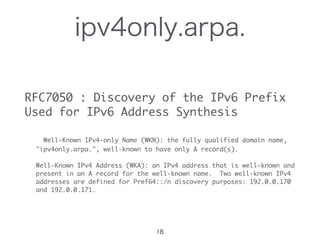

- 18. ipv4only.arpa. RFC7050 : Discovery of the IPv6 Prefix Used for IPv6 Address Synthesis Well-Known IPv4-only Name (WKN): the fully qualified domain name, "ipv4only.arpa.", well-known to have only A record(s). Well-Known IPv4 Address (WKA): an IPv4 address that is well-known and present in an A record for the well-known name. Two well-known IPv4 addresses are defined for Pref64::/n discovery purposes: 192.0.0.170 and 192.0.0.171. 18
- 19. ipv4only.arpa. $ dig @8.8.8.8 ipv4only.arpa. A (snip) ;; ANSWER SECTION: ipv4only.arpa. 86400 IN A 192.0.0.170 ipv4only.arpa. 86400 IN A 192.0.0.171 (snip) $ dig @8.8.8.8 ipv4only.arpa. AAAA (snip) ;; AUTHORITY SECTION: ipv4only.arpa. 1464 IN SOA sns.dns.icann.org. noc.dns.icann.org. 2015072119 7200 3600 604800 3600 (snip) 19
- 20. NAT64/DNS64 • NAT64(RFC6146) Stateful NAT64:Network Address and Protocol Translation from IPv6 Clients to IPv4 Servers • DNS64(RFC6147) DNS64: DNS Extensions for Network Address Translation from IPv6 Clients to IPv4 Servers 20

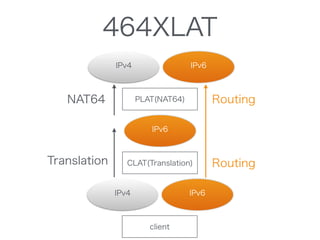

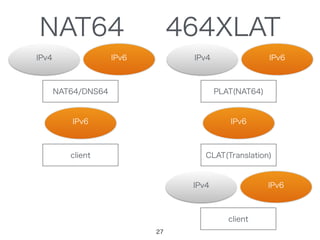

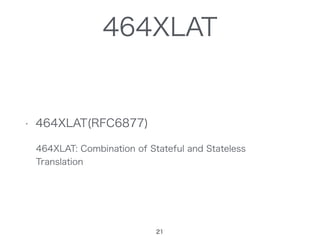

- 21. 464XLAT • 464XLAT(RFC6877) 464XLAT: Combinationof Stateful and Stateless Translation 21

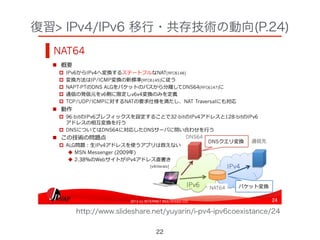

- 22. 2013 (c) INTERNETMULTIFEED CO. NAT64 IPv6 IPv4 − NAT[RFC6146] IP/ICMP [RFC6145] NAPT-PT DNS ALG DNS64[RFC6147] v6 v6v4 TCP/UDP/ICMP NAT NAT Traversal 96-bit IPv6 32-bit IPv4 128-bit IPv6 DNS DNS64 DNS ALG IPv4 MSN Messenger (2009 ) 2.38 Web IPv4 IPv6 IPv4 NAT64 DNS64 DNS [v4literals] 復習> IPv4/IPv6 移行・共存技術の動向(P.24) http://www.slideshare.net/yuyarin/i-pv4-ipv6coexistance/24 22

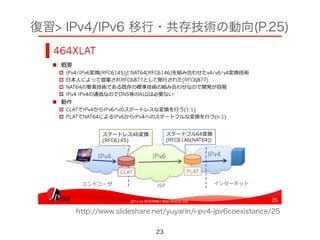

- 23. 2013 (c) INTERNETMULTIFEED CO. 464XLAT IPv4/IPv6 [RFC6145] NAT64[RFC6146] v4/v6/v4 RFC6877 [RFC6877] NAT64 IPv4-IPv4 DNS ALG CLAT IPv4 IPv6 (1:1) PLAT NAT64 IPv6 IPv4 − (n:1) IPv6 IPv4 PLAT −64 (RFC6146(NAT64)) IPv4 CLAT 46 (RFC6145) ISP 復習> IPv4/IPv6 移行・共存技術の動向(P.25) http://www.slideshare.net/yuyarin/i-pv4-ipv6coexistance/25 23

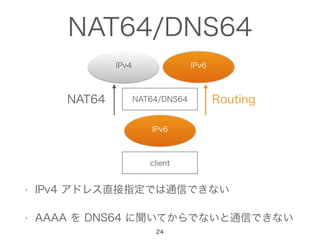

- 24. NAT64/DNS64 IPv4 IPv6 client IPv6 NAT64/DNS64 RoutingNAT64 • IPv4アドレス直接指定では通信できない • AAAA を DNS64 に聞いてからでないと通信できない 24
- 25.
- 26.
- 27.
- 28.

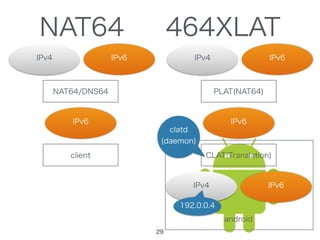

- 29.

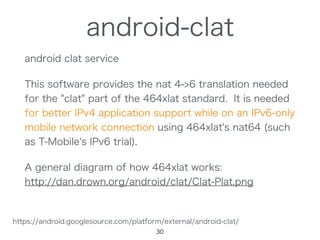

- 30. android-clat android clat service Thissoftware provides the nat 4->6 translation needed for the "clat" part of the 464xlat standard. It is needed for better IPv4 application support while on an IPv6-only mobile network connection using 464xlat's nat64 (such as T-Mobile's IPv6 trial). A general diagram of how 464xlat works: http://dan.drown.org/android/clat/Clat-Plat.png 30 https://android.googlesource.com/platform/external/android-clat/

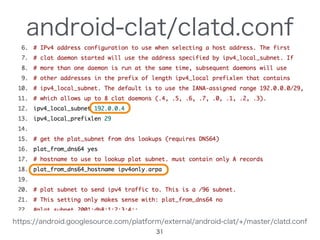

- 31.
- 32.

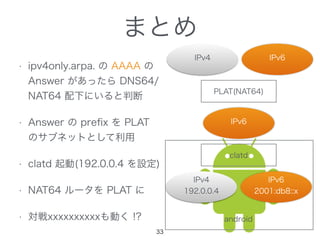

- 33. まとめ IPv6 android IPv4 PLAT(NAT64) IPv6 clatd IPv4 192.0.0.4 IPv6 2001:db8::x 33 • ipv4only.arpa. のAAAA の Answer があったら DNS64/ NAT64 配下にいると判断 • Answer の prefix を PLAT のサブネットとして利用 • clatd 起動(192.0.0.4 を設定) • NAT64 ルータを PLAT に • 対戦xxxxxxxxxxも動く !?
- 34.

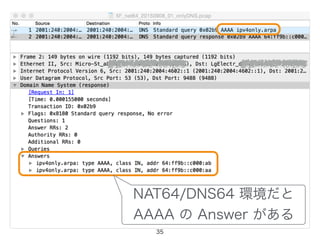

- 35. 35 NAT64/DNS64 環境だと AAAA のAnswer がある
- 36. 36 NAT64/DNS64 以外だと AAAA のAnswer は無し

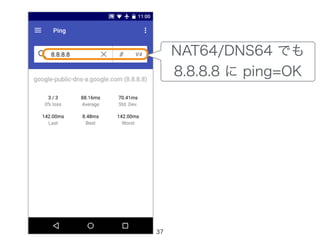

- 37. 37 NAT64/DNS64 でも 8.8.8.8 にping=OK
- 38.
