1. PeopleSoft in the Cloud for
PUM, Development or Production
- What's Involved?
Graham Smith
Cedar Consulting
UK

2. Once upon a time…..
2/27
We used to do this….

3. Once upon a time…..
3/27
Now… we do this.

4. Once upon a time…..
4/27
We used to do this….

5. Once upon a time…..
5/27
Now… we do this.

6. What is Cloud Computing?
 Solutions to common IT problems
 A set of subscription based services
 Infrastructure as a Service (hardware, operating systems, networks)
 Platform as a Service (databases, integration)
 Software as a Service (applications)
1. Infinite Capacity
2. Automated
3. Pay As You Go

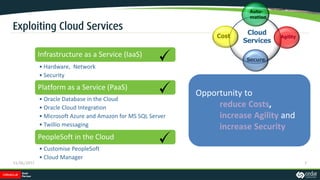

7. Exploiting Cloud Services
13/06/2017 7
Cloud
Services
Infrastructure as a Service (IaaS)
• Hardware, Network
• Security
Platform as a Service (PaaS)
• Oracle Database in the Cloud
• Oracle Cloud Integration
• Microsoft Azure and Amazon for MS SQL Server
• Twillio messaging
PeopleSoft in the Cloud
• Customise PeopleSoft
• Cloud Manager
Opportunity to
reduce Costs,
increase Agility and
increase Security
Auto-
mation
Cost
Secure
Agility

8. PeopleSoft Cloud Manager

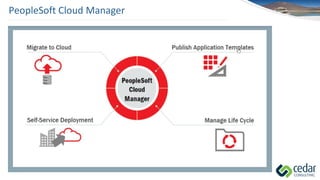

10. PeopleSoft Cloud Manager

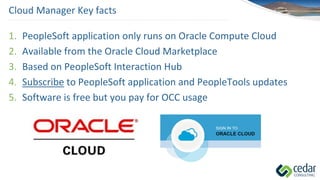

12. Cloud Manager Key facts
1. PeopleSoft application only runs on Oracle Compute Cloud
2. Available from the Oracle Cloud Marketplace
3. Based on PeopleSoft Interaction Hub
4. Subscribe to PeopleSoft application and PeopleTools updates
5. Software is free but you pay for OCC usage

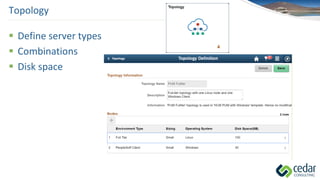

13. Topology
 Define server types
 Combinations
 Disk space

14. Environment Template
 Associate Image
database with
Topology
 Define security

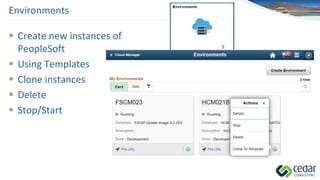

15. Environments
 Create new instances of
PeopleSoft
 Using Templates
 Clone instances
 Delete
 Stop/Start

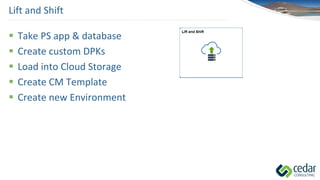

16. Lift and Shift
 Take PS app & database
 Create custom DPKs
 Load into Cloud Storage
 Create CM Template
 Create new Environment

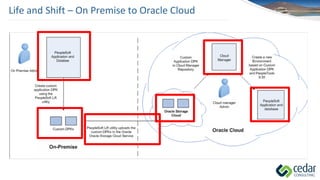

17. Life and Shift – On Premise to Oracle Cloud

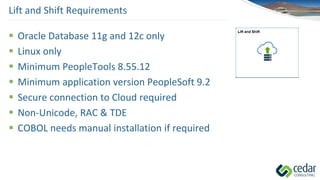

18. Lift and Shift Requirements
 Oracle Database 11g and 12c only
 Linux only
 Minimum PeopleTools 8.55.12
 Minimum application version PeopleSoft 9.2
 Secure connection to Cloud required
 Non-Unicode, RAC & TDE
 COBOL needs manual installation if required

19. First Steps into
Oracle Cloud

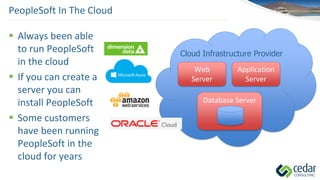

20. PeopleSoft In The Cloud
 Always been able
to run PeopleSoft
in the cloud
 If you can create a
server you can
install PeopleSoft
 Some customers
have been running
PeopleSoft in the
cloud for years
Web
Server
Application
Server
Database Server
Cloud Infrastructure Provider

21. Cloud Consulting from Cedar

22. Cedar Consulting chosen by Oxfam GB
 Supporting Oxfam’s move of PeopleSoft HCM
and Financials to the Cloud
 Using Microsoft Azure
 Exploring Cloud added value

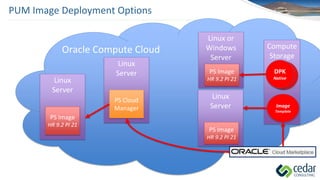

23. PUM Image Deployment Options
Oracle Compute Cloud Compute
Storage
Linux or
Windows
Server
DPKDPK
DPK
Native
PS Image
HR 9.2 PI 21
Template
Linux
Server
PS Image
HR 9.2 PI 21
Linux
Server
PS Cloud
Manager
Linux
Server
PS Image
HR 9.2 PI 21

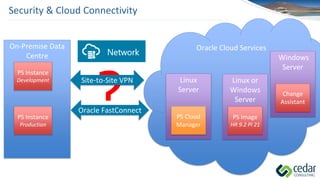

24. ?
Security & Cloud Connectivity
Oracle Cloud Services
Linux or
Windows
Server
PS Image
HR 9.2 PI 21
On-Premise Data
Centre
PS Instance
Development
PS Instance
Production
Linux
Server
PS Cloud
Manager
Site-to-Site VPN
Oracle FastConnect
Windows
Server
Change
Assistant

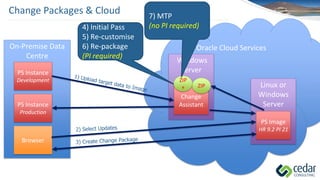

25. Change Packages & Cloud
Oracle Cloud Services
Linux or
Windows
Server
PS Image
HR 9.2 PI 21
On-Premise Data
Centre
PS Instance
Development
PS Instance
Production
Windows
Server
Change
Assistant
Browser
ZIP
4) Initial Pass
5) Re-customise
6) Re-package
(PI required)
ZIP
+
7) MTP
(no PI required)

26. PeopleSoft Cloud Patterns

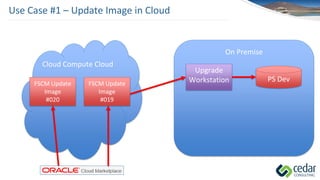

27. On Premise
Use Case #1 – Update Image in Cloud
Cloud Compute Cloud
Upgrade
WorkstationFSCM Update
#020
PS Dev
FSCM Update
#019

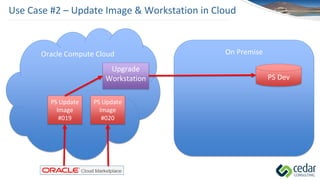

28. On Premise
Use Case #2 – Update Image & Workstation in Cloud
Oracle Compute Cloud
Upgrade
Workstation
PS Update
#019
PS Dev
PS Update
#020

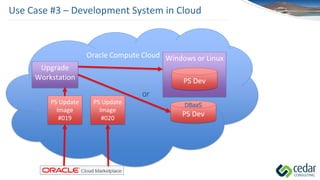

29. Use Case #3 – Development System in Cloud
Oracle Compute Cloud
Upgrade
Workstation
PS Update
#019
PS Update
#020
Windows or Linux
PS Dev
or
PS Dev
DBaaS

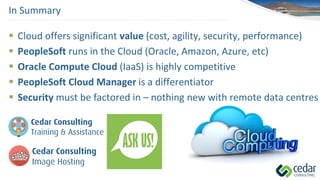

30.  Cloud offers significant value (cost, agility, security, performance)
 PeopleSoft runs in the Cloud (Oracle, Amazon, Azure, etc)
 Oracle Compute Cloud (IaaS) is highly competitive
 PeopleSoft Cloud Manager is a differentiator
 Security must be factored in – nothing new with remote data centres
In Summary

31. What does your company need to do well ?
“You don't get points for
using servers.
You get points for serving
customers.”
Jeff Lawson, CEO & cofounder of Twillio
