1. K U H O I W A I ( 1 3 2 1 3 6 5 2 )
K W U N T A N K I ( 1 3 2 0 7 4 1 5 )
X I E Z H E N G B A N G ( 1 3 2 5 1 4 7 3 )
O C T O B E R 1 0 , 2 0 1 3

2. WORK DIVISION
Task Member
Project Content/ Background
Survey and Data Processing
Data Analyze
PowerPoint Stying

3. PRESENTATION FROW
1
• Introduction
• Background
2
• Online Survey
• Survey Result
3
• Further Development
• Conclusion

4. RFID
RFID = Radio Frequency Identification
Electronic labeling and wireless identification of objects using radio frequency
Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
When these tags pass through a field generated by a compatible reader, they
transmit this information back to the reader, thereby identifying the object

5. RFID COMPONENTS
A basic RFID system consists of these components:
 A programmable RFID tag/inlay for storing item data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with the RFID chip
A reader/antenna system to interrogate the RFID inlay
Application software and a host computer system

6. RFID TAG
The RFID tag consists of an integrated circuit (IC) embedded in a thin film medium.
Information stored in the memory of the RFID chip is transmitted by the antenna
circuit embedded in the RFID inlay via radio frequencies, to an RFID reader
3 types
 Passive
 Semi-passive
 Active

7. TYPES OF RFID TAGS
•Use a battery
•communicate over distances of several meters
Active Tags
•Contain built-in batteries to power the chip’s circuitry, resist interference
and circumvent a lack of power from the reader signal due to long distance.
•They are different from active tags in that they only transmit data at the
time a response is received
Semi-passive Tags
•Derive their power from the field generated by the reader
•without having an active transmitter to transfer the information stored
Passive Tags

8. APPLICATIONS
Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to
Moderate
Mediu
m to
Low
• Smart Cards
• Payment (paywave)
Ultra High
Frequency (433,
868-928 Mhz)
3m -7m
(passive)
Moderate to
High
Low • Logistics and Supply
Chain
• Baggage Tracking
Microwave (2.45
& 5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking

9. CURRENT APPLICATIONS

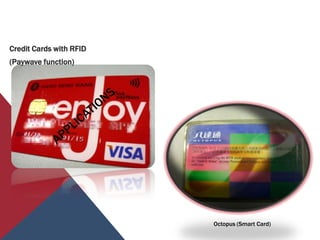

10. Credit Cards with RFID
(Paywave function)
Octopus (Smart Card)

11. Autotoll (Electronic toll collection)
Access Control

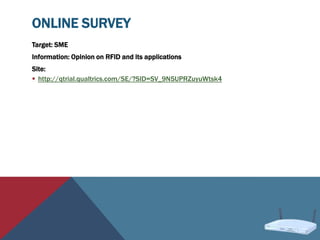

12. ONLINE SURVEY
Target: SME
Information: Opinion on RFID and its applications
Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

13. SURVEY RESULT
6%
23%
24%
29%
6%
12%
Types of the companies answersing the questionnaire
Education
Manufacturing
Retailing
Warehousing
Transportation
Others

14. FURTHER DEVELOPMENT
In medical uses and library management

15. VIDEO
http://www.youtube.com/watch?v=Egxq00V0b1Y

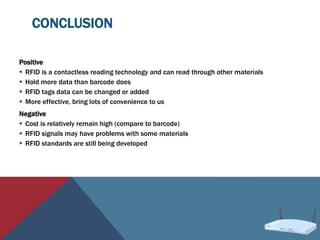

16. CONCLUSION
Positive
 RFID is a contactless reading technology and can read through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed
