1.2 Ed Parsons, Google
Ed Parsons of Google presents an Emergency Location Service (ELS) that sends a mobile phone's location directly to emergency operators during a 911 call. ELS uses Google's Fused Location Provider to determine location more quickly and accurately than traditional methods, with accuracy often within 17 meters. It has already provided over 10,000 emergency locations per day in tests in the UK. Parsons invites interested parties to contact him or visit a website to learn how to configure endpoints to receive emergency location data from Android devices.
More Related Content
1.2 Ed Parsons, Google
- 2. Ed Parsons eparsons@google.com @edparsons 112,999,911 +Lat,Lon ? Adding Handset location to Emergency calls in Android
- 3. 2/3 of theUK Population 90% Millennials Primary internet gateway The Smartphone Society Source : OFCOM 2015
- 4.

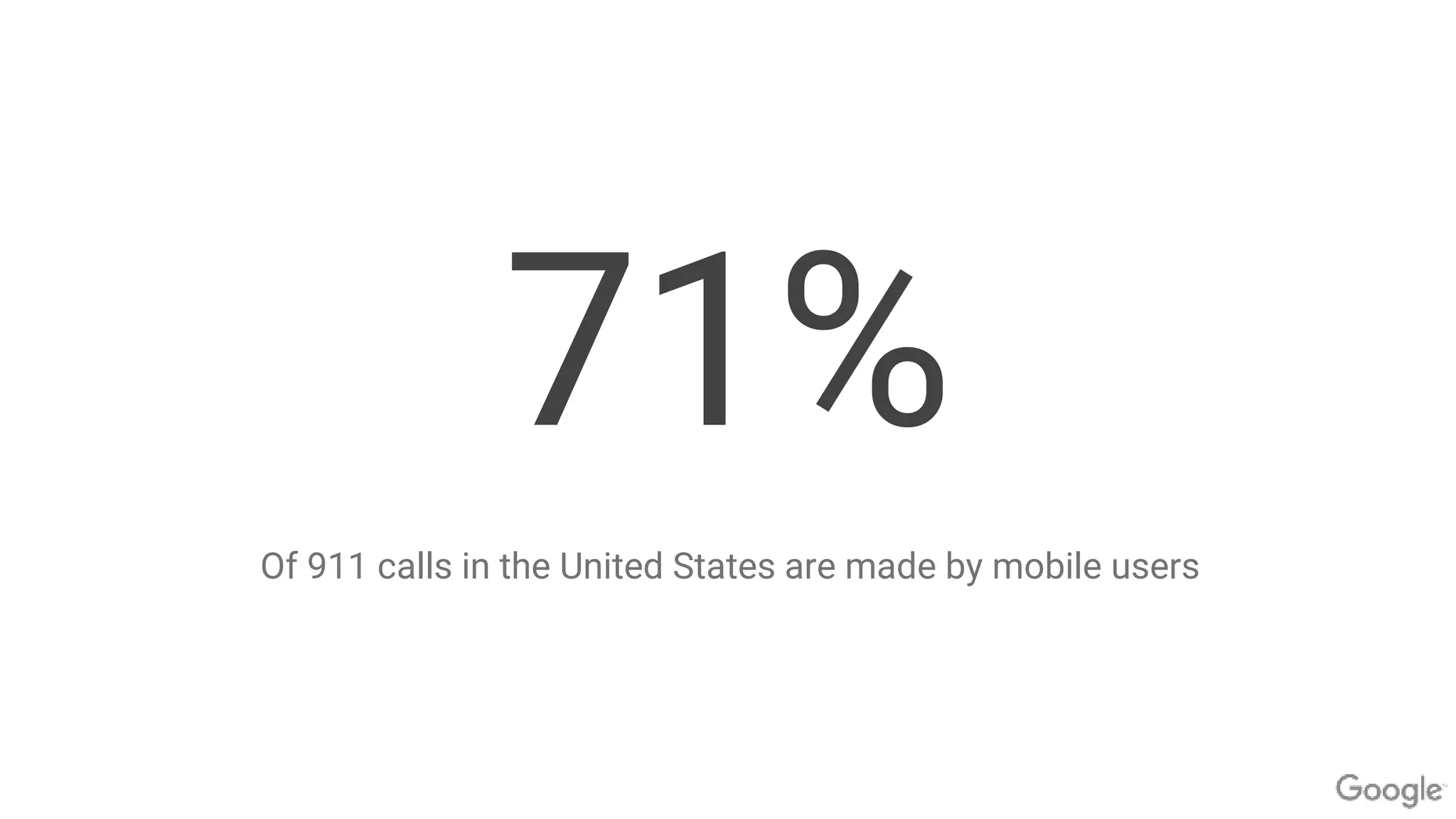

- 5. 71% Of 911 callsin the United States are made by mobile users
- 6. December, 29 2014,4am Shanell Latrice Anderson, 31 Calls 911 from her car..
- 7. “But my phoneknows where I am ?”
- 13.
- 14. Users reporting anincident are often unable to provide emergency services with accurate information about their location The goal: Reduce response times and save lives Motivation Cell Position 164 Meters AGPS Position 106 Meters Google FLP 16.8 Meters
- 16.
- 17. Overview ELS sends emergencylocation directly from the handset to operators Computed using Fused Location Provider Fuses GPS, Wi-Fi, and cell Faster and more accurate than traditional aGPS or cell- tower solutions Low energy use
- 18. How it works 1.User places emergency call. 2. Location is computed on-device using Fused Location Provider 3. Location sent directly from device to operator, using MCC/MNC to look up the appropriate endpoint (either HTTPs or Data SMS AML Message ).
- 19. Fundamental Principles 1. Device-Initiated:Location can only be initiated by a user explicitly dialing 112/999. Location is relayed directly from handset to specified endpoint (not visible to Google). 2. Backwards-Compatible: Live on > 99% of existing Android devices (2.3+) via Play Services. No OS or hardware upgrades required.
- 22. Test Results (USCarrier) Independently tested by Tier 1 US Carrier (One Test Location) Indoor Survey Point: ● Building, 6th Floor SW Stairwell (Deep Indoors) Over 100 Sessions Yield 1-Sigma (67%) Accuracy 2-Sigma (90%) Accuracy 2-Sigma (90%) Latency AGPS 63.11% 42.83m 106.67m 25.66s Cell Tower RTT 36.89% 153.69m 164.95m 25.04s Google FLP Location 90.2% 16.84m 17.62m 15.00s Meters < 17 meters AGPS Cell RTT Google FLP
- 23. How can youuse it? 1. Create an HTTPs and/or Data SMS endpoint for receiving emergency location 2. Specify to us the endpoints for integration with Android
- 25.
- 26. Early results fromthe UK.. 10,000 Locations per day !
- 27. Emergency Location ServiceConfiguration Configurations control: When Thunderbird is activated How Thunderbird gathers emergency location Where emergency locations are sent When: Which emergency numbers, and for which MCC/MNC values? How:
- 28. Next steps.. Contact me eparsons@google.com Orvisit http://goo.gl/x3P1pV
- 29.
Editor's Notes
- #15 Purely a public safety interest and not a business one. With faster and more accurate location, we hope to reduce response times and ultimately save lives.
- #18 Goal is for Android to... Facebook and Google Maps are able to get a faster and more accurate location fix than emergency services. Especially when users are indoors. Our goal is to make this accessible
