The Outdoor Badge Reader Model BR250/BR650/BR750 is a battery-operated, wireless badge reader used for arming and disarming security systems. It uses S2View encrypted wireless technology and has a weatherproof housing that operates between -20°C and +60°C. The badge reader identifies arm/disarm status with LED flashes and beeps, and has a dual tamper detection system to detect if the cover or wall is compromised. It is powered by lithium batteries that can last up to four years and transmits status checks every eight minutes including its ID, tamper status, and battery life.

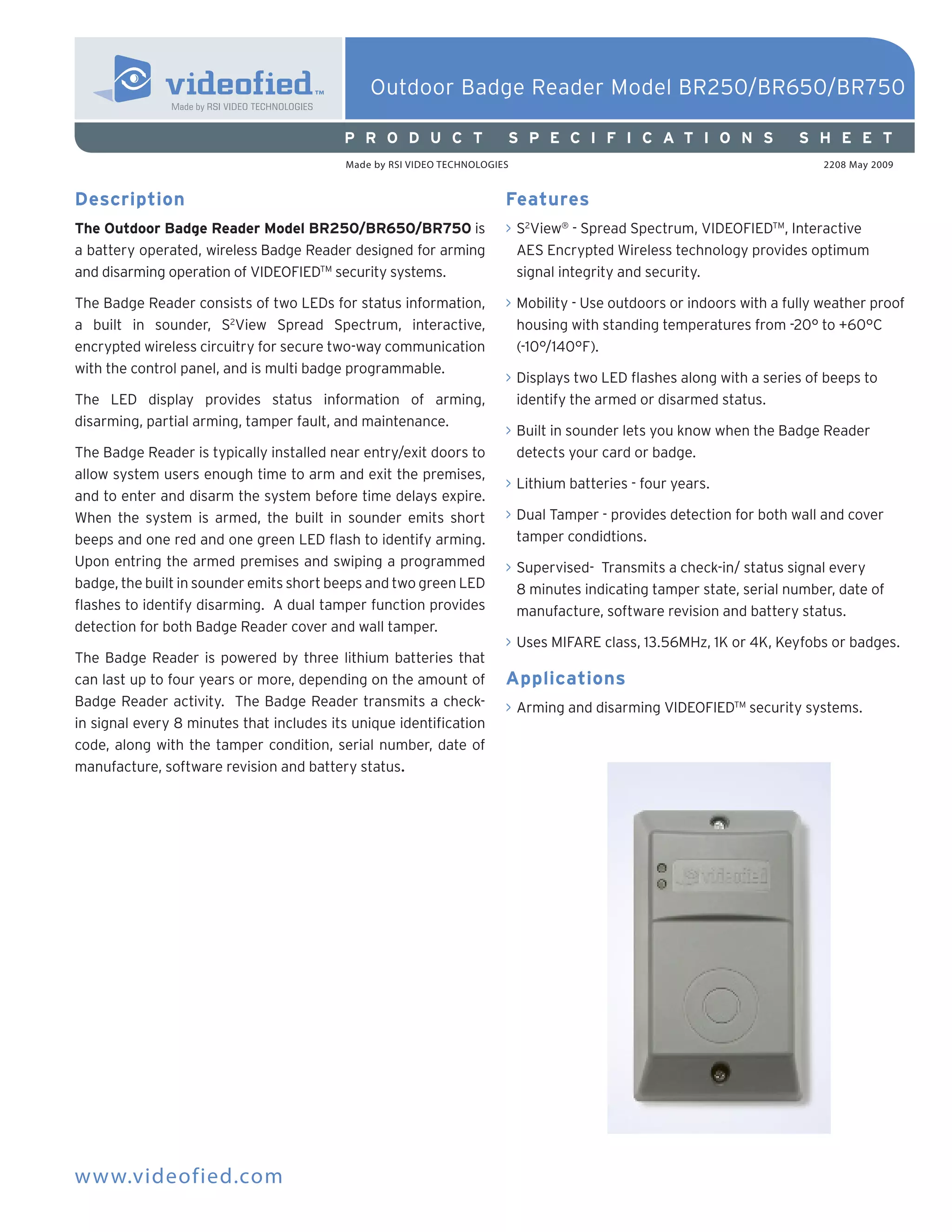

1. Outdoor Badge Reader Model BR250/BR650/BR750
P R O D U C T S P E C I F I C A T I O N S S H E E T
Made by RSI VIDEO TECHNOLOGIES 2208 May 2009
Description Features
The Outdoor Badge Reader Model BR250/BR650/BR750 is > S2View® - Spread Spectrum, VIDEOFIEDTM, Interactive
a battery operated, wireless Badge Reader designed for arming AES Encrypted Wireless technology provides optimum
and disarming operation of VIDEOFIEDTM security systems. signal integrity and security.
The Badge Reader consists of two LEDs for status information, > Mobility - Use outdoors or indoors with a fully weather proof
a built in sounder, S2View Spread Spectrum, interactive, housing with standing temperatures from -20° to +60°C
encrypted wireless circuitry for secure two-way communication (-10°/140°F).
with the control panel, and is multi badge programmable.
> Displays two LED flashes along with a series of beeps to
The LED display provides status information of arming, identify the armed or disarmed status.
disarming, partial arming, tamper fault, and maintenance.
> Built in sounder lets you know when the Badge Reader
The Badge Reader is typically installed near entry/exit doors to detects your card or badge.
allow system users enough time to arm and exit the premises,
> Lithium batteries - four years.
and to enter and disarm the system before time delays expire.
When the system is armed, the built in sounder emits short > Dual Tamper - provides detection for both wall and cover
beeps and one red and one green LED flash to identify arming. tamper condidtions.
Upon entring the armed premises and swiping a programmed > Supervised- Transmits a check-in/ status signal every
badge, the built in sounder emits short beeps and two green LED 8 minutes indicating tamper state, serial number, date of
flashes to identify disarming. A dual tamper function provides manufacture, software revision and battery status.
detection for both Badge Reader cover and wall tamper.
> Uses MIFARE class, 13.56MHz, 1K or 4K, Keyfobs or badges.
The Badge Reader is powered by three lithium batteries that
can last up to four years or more, depending on the amount of Applications
Badge Reader activity. The Badge Reader transmits a check- > Arming and disarming VIDEOFIEDTM security systems.
in signal every 8 minutes that includes its unique identification
code, along with the tamper condition, serial number, date of
manufacture, software revision and battery status.
www.videofied.com

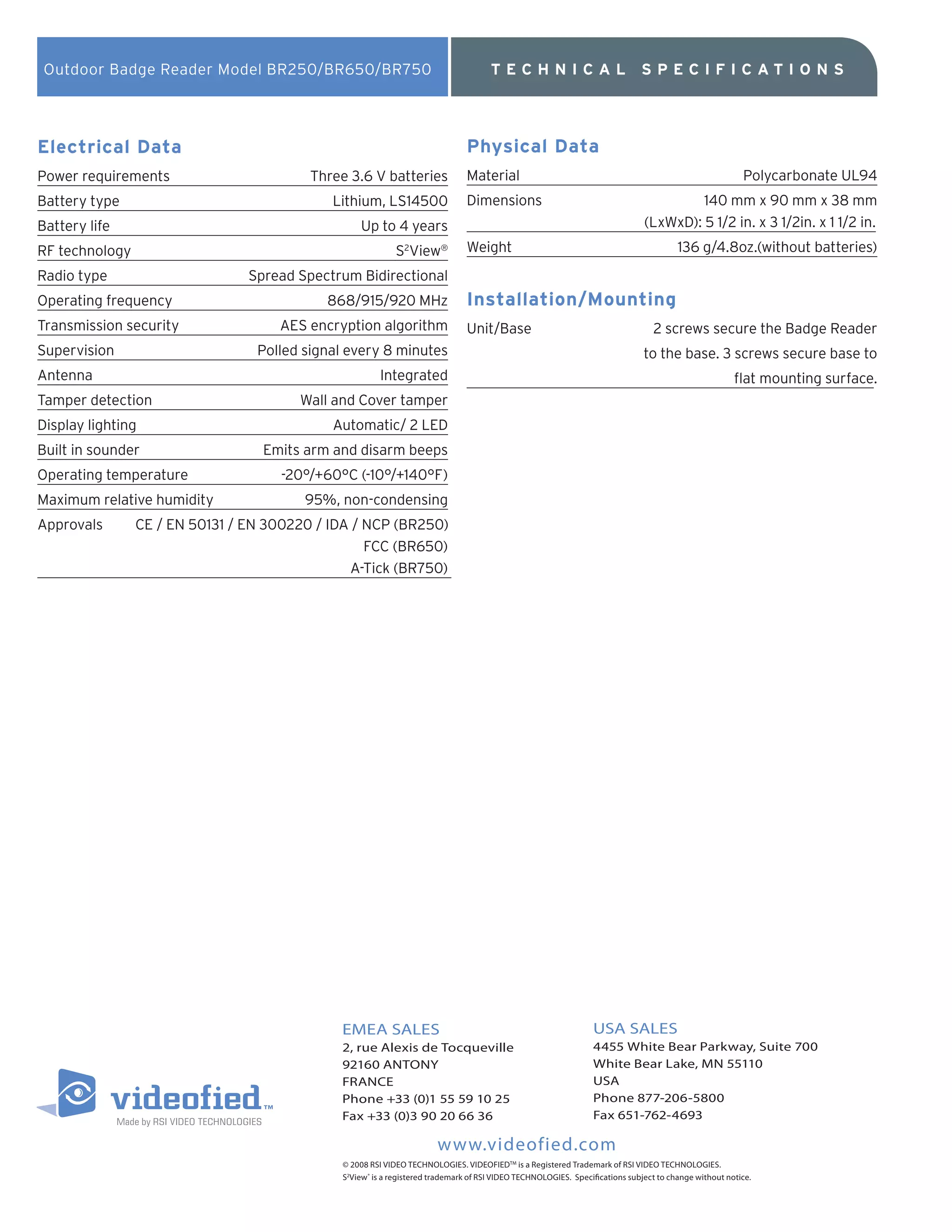

2. Outdoor Badge Reader Model BR250/BR650/BR750 TECHNICAL SPECIFICATIO NS
Electrical Data Physical Data
Power requirements Three 3.6 V batteries Material Polycarbonate UL94
Battery type Lithium, LS14500 Dimensions 140 mm x 90 mm x 38 mm
Battery life Up to 4 years (LxWxD): 5 1/2 in. x 3 1/2in. x 1 1/2 in.
RF technology S2View® Weight 136 g/4.8oz.(without batteries)
Radio type Spread Spectrum Bidirectional
Operating frequency 868/915/920 MHz Installation/Mounting
Transmission security AES encryption algorithm Unit/Base 2 screws secure the Badge Reader
Supervision Polled signal every 8 minutes to the base. 3 screws secure base to
Antenna Integrated flat mounting surface.
Tamper detection Wall and Cover tamper
Display lighting Automatic/ 2 LED
Built in sounder Emits arm and disarm beeps
Operating temperature -20°/+60°C (-10°/+140°F)
Maximum relative humidity 95%, non-condensing
Approvals CE / EN 50131 / EN 300220 / IDA / NCP (BR250)
FCC (BR650)
A-Tick (BR750)
EMEA SALES USA SALES
2, rue Alexis de Tocqueville 4455 White Bear Parkway, Suite 700
92160 ANTONY White Bear Lake, MN 55110
FRANCE USA
Phone +33 (0)1 55 59 10 25 Phone 877-206-5800
Fax +33 (0)3 90 20 66 36 Fax 651-762-4693
www.videofied.com
© 2008 RSI VIDEO TECHNOLOGIES. VIDEOFIEDTM is a Registered Trademark of RSI VIDEO TECHNOLOGIES.
S2View ® is a registered trademark of RSI VIDEO TECHNOLOGIES. Specifications subject to change without notice.
