The TT-2100 is a tracking device that: - Installs quickly and tracks fixed and movable assets using long-life batteries - Provides configurable reporting times and schedules - Offers environmental certifications and integrates with GPS Insight's vehicle tracking platform

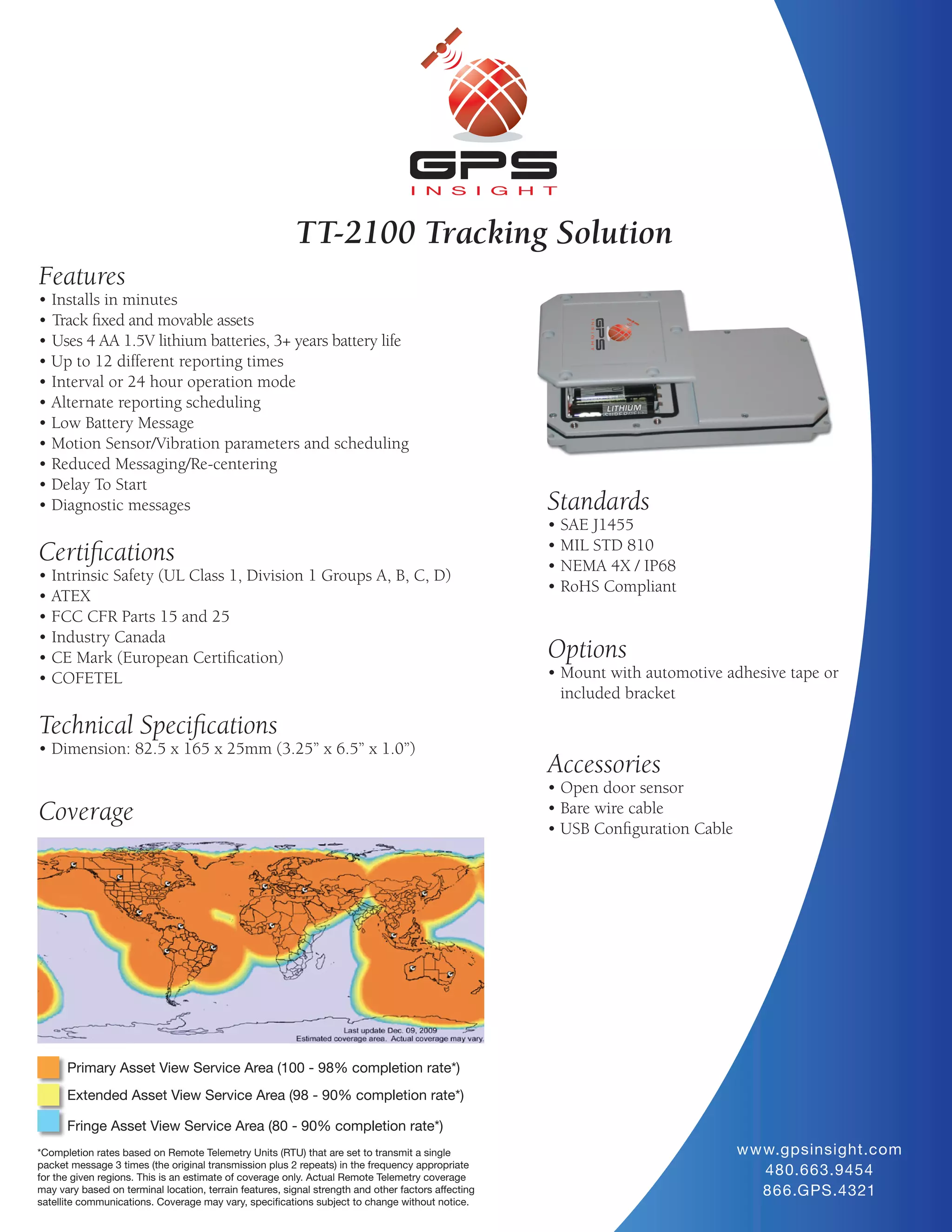

1. TT-2100 Tracking Solution
Features
• Installs in minutes
• Track fixed and movable assets
• Uses 4 AA 1.5V lithium batteries, 3+ years battery life
• Up to 12 different reporting times
• Interval or 24 hour operation mode
• Alternate reporting scheduling
• Low Battery Message
• Motion Sensor/Vibration parameters and scheduling
• Reduced Messaging/Re-centering
• Delay To Start
• Diagnostic messages Standards
• SAE J1455
• MIL STD 810
Certifications • NEMA 4X / IP68
• Intrinsic Safety (UL Class 1, Division 1 Groups A, B, C, D)
• RoHS Compliant
• ATEX
• FCC CFR Parts 15 and 25
• Industry Canada
• CE Mark (European Certification) Options
• COFETEL • Mount with automotive adhesive tape or
included bracket
Technical Specifications
• Dimension: 82.5 x 165 x 25mm (3.25” x 6.5” x 1.0”)
Accessories
• Open door sensor
Coverage • Bare wire cable
• USB Configuration Cable
Primary Asset View Service Area (100 - 98% completion rate*)
Extended Asset View Service Area (98 - 90% completion rate*)
Fringe Asset View Service Area (80 - 90% completion rate*)
*Completion rates based on Remote Telemetry Units (RTU) that are set to transmit a single w w w.gpsinsight.com
packet message 3 times (the original transmission plus 2 repeats) in the frequency appropriate
for the given regions. This is an estimate of coverage only. Actual Remote Telemetry coverage
480.663.9454
may vary based on terminal location, terrain features, signal strength and other factors affecting 866.GPS.4321
satellite communications. Coverage may vary, specifications subject to change without notice.

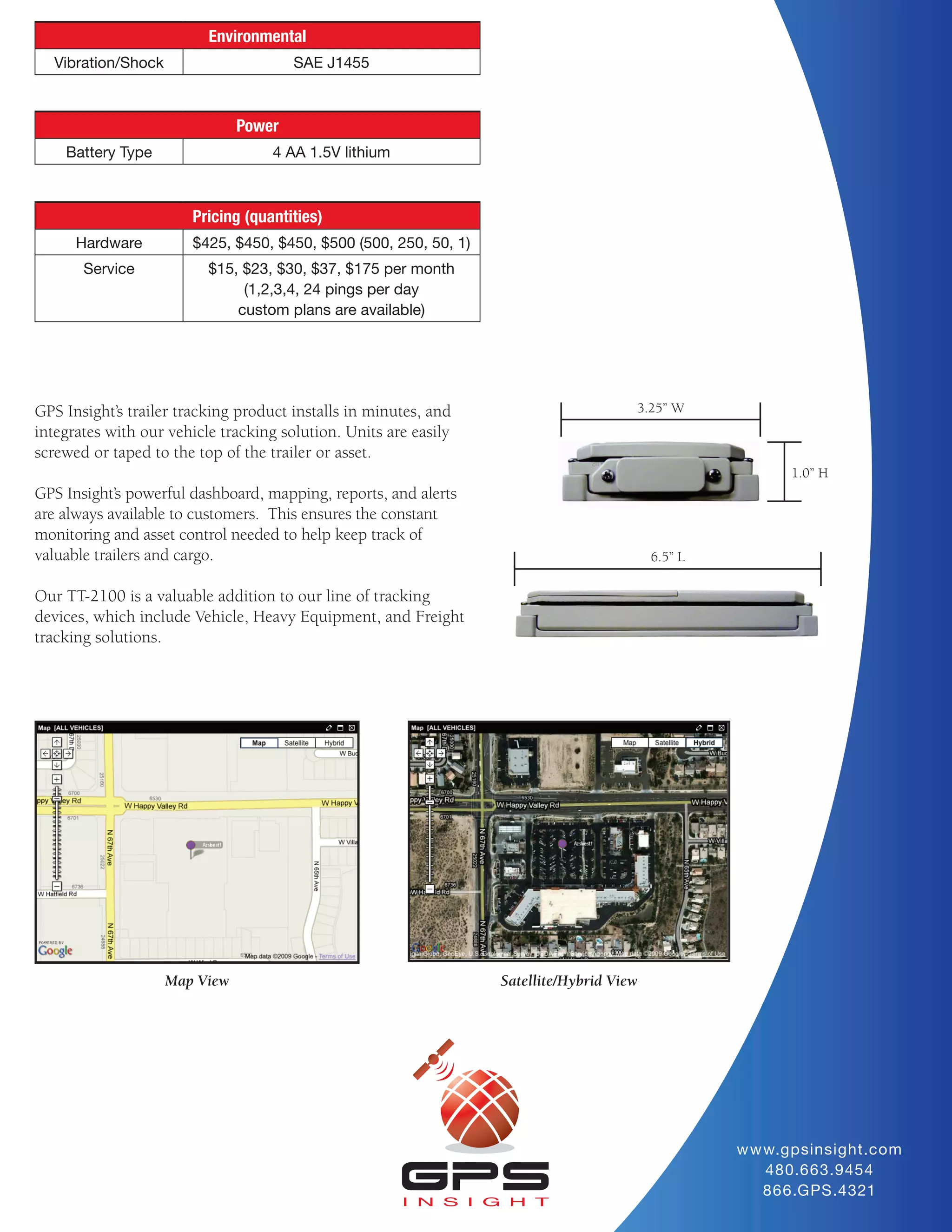

2. Environmental
Vibration/Shock SAE J1455
Power
Battery Type 4 AA 1.5V lithium
Pricing (quantities)
Hardware $425, $450, $450, $500 (500, 250, 50, 1)
Service $15, $23, $30, $37, $175 per month
(1,2,3,4, 24 pings per day
custom plans are available)
GPS Insight’s trailer tracking product installs in minutes, and 3.25” W
integrates with our vehicle tracking solution. Units are easily
screwed or taped to the top of the trailer or asset.
1.0” H
GPS Insight’s powerful dashboard, mapping, reports, and alerts
are always available to customers. This ensures the constant
monitoring and asset control needed to help keep track of
valuable trailers and cargo. 6.5” L
Our TT-2100 is a valuable addition to our line of tracking
devices, which include Vehicle, Heavy Equipment, and Freight
tracking solutions.
Map View Satellite/Hybrid View
w w w.gpsinsight.com
480.663.9454
866.GPS.4321
