1. Class Diagrams
Identifying and representing Classes
Object Web, Bapayya Choudhary Maganti

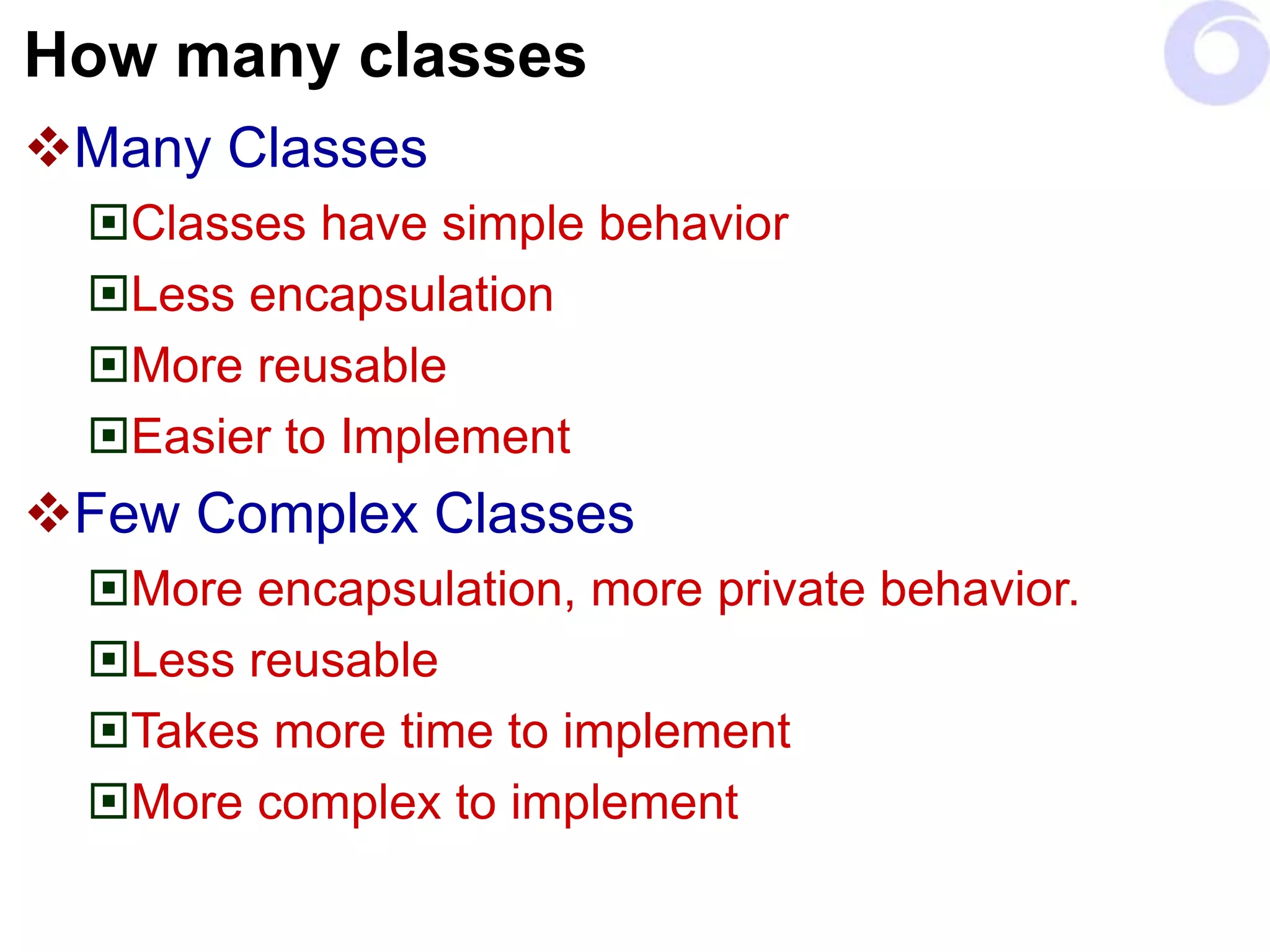

2. How many classes
Many Classes
Classes have simple behavior
Less encapsulation
More reusable
Easier to Implement
Few Complex Classes
More encapsulation, more private behavior.
Less reusable
Takes more time to implement
More complex to implement

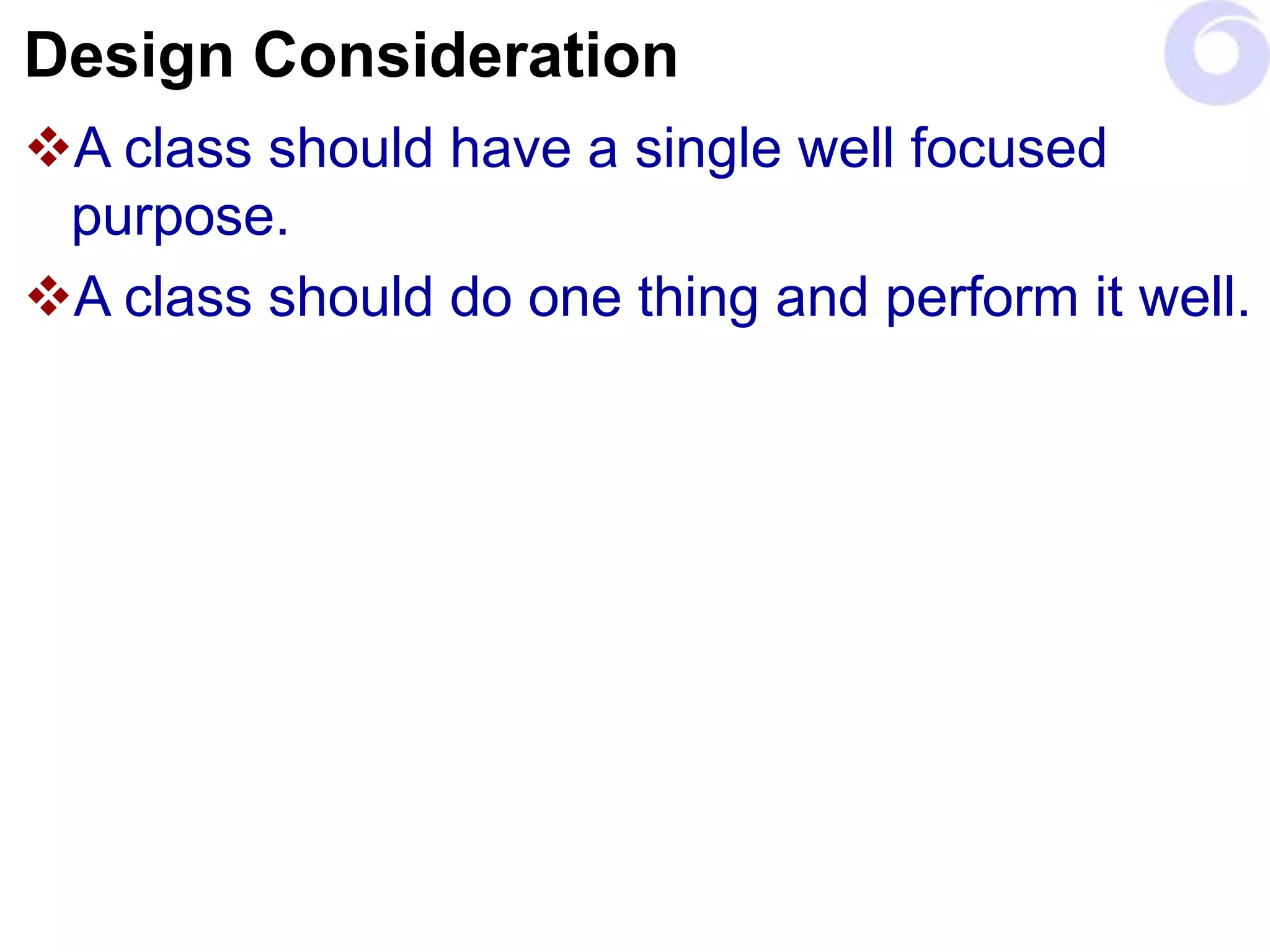

3. Design Consideration
A class should have a single well focused
purpose.
A class should do one thing and perform it well.

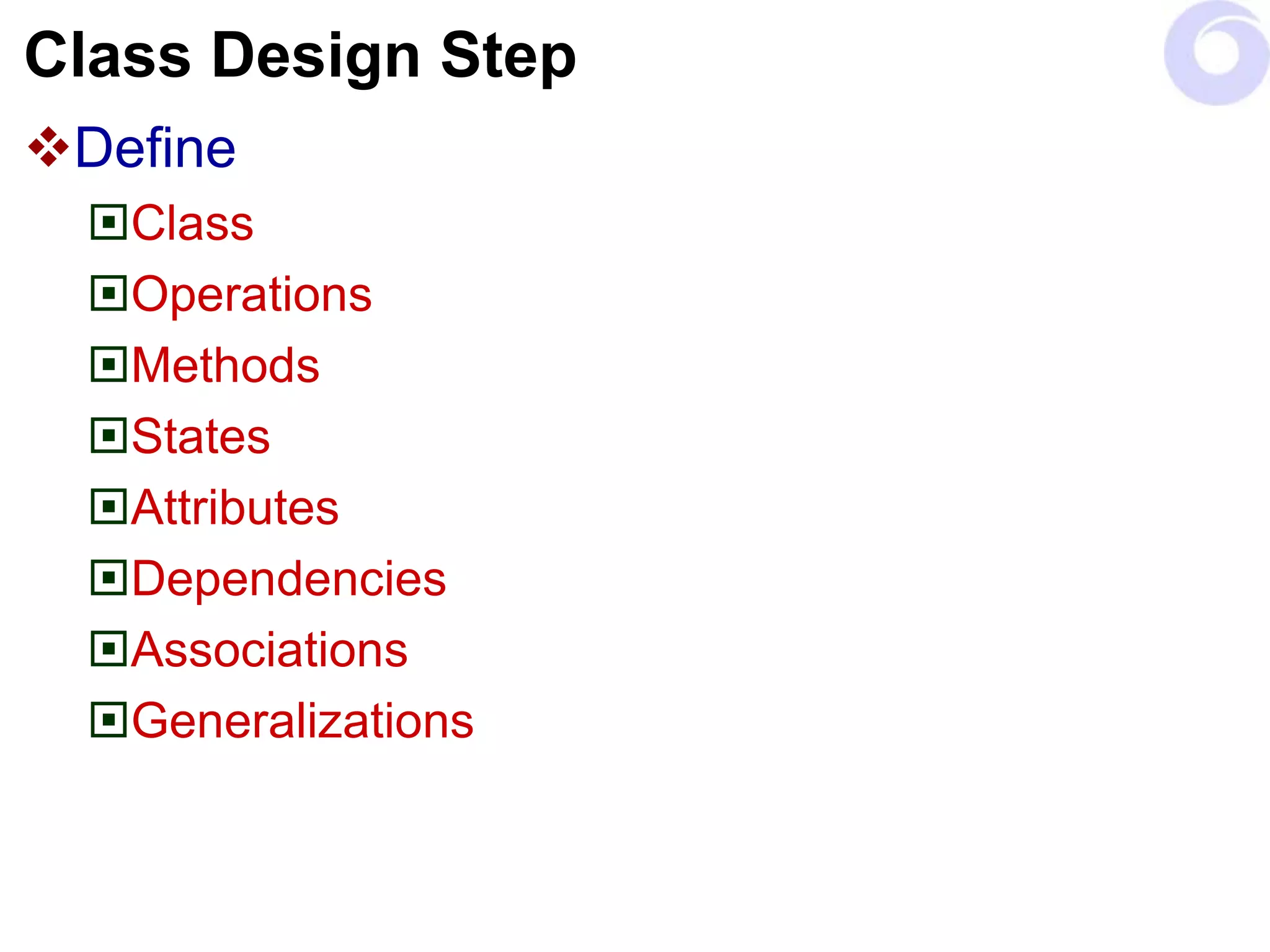

4. Class Design Step
Define
Class
Operations
Methods
States
Attributes
Dependencies
Associations
Generalizations

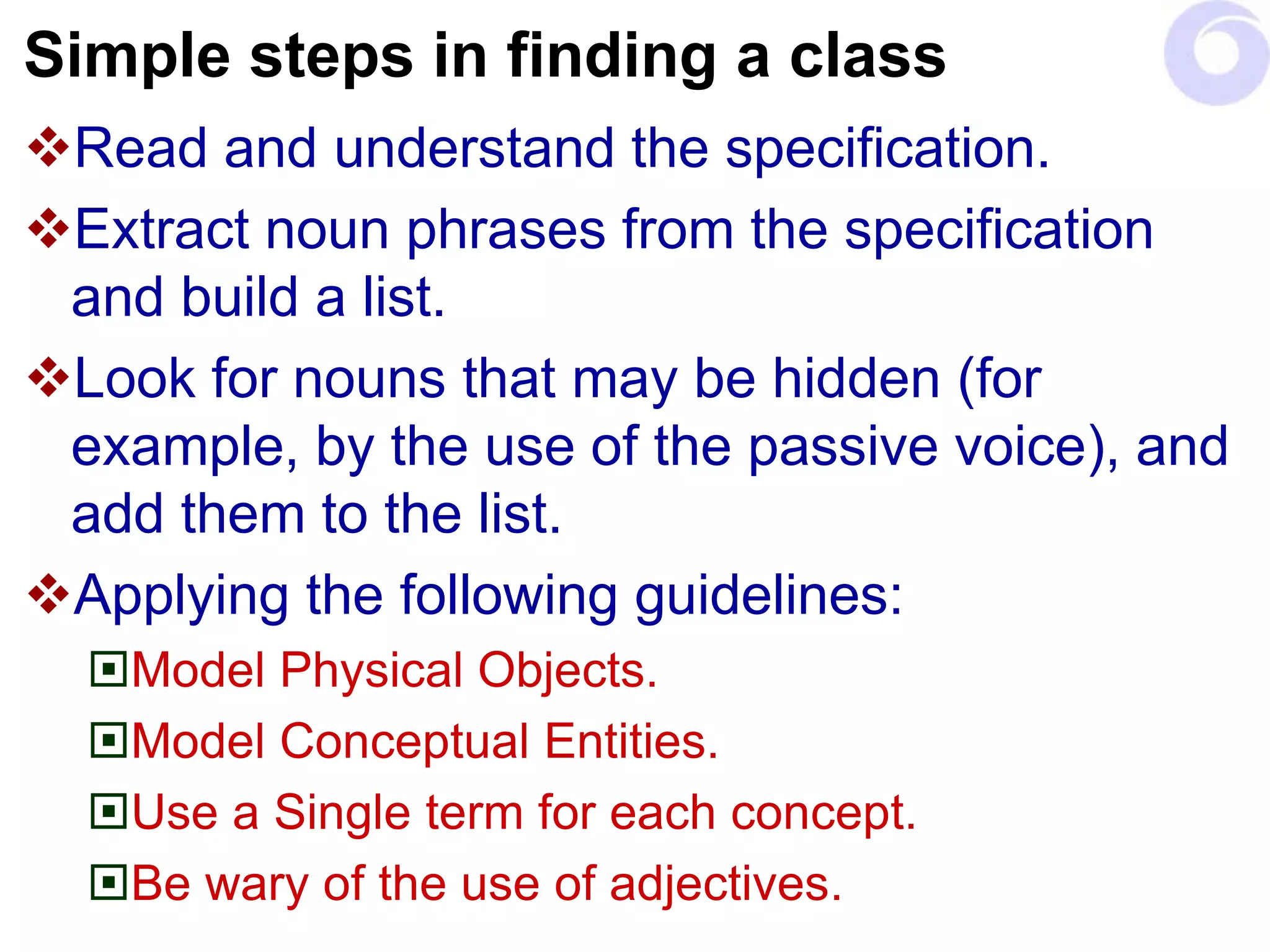

5. Simple steps in finding a class
Read and understand the specification.
Extract noun phrases from the specification
and build a list.
Look for nouns that may be hidden (for
example, by the use of the passive voice), and
add them to the list.
Applying the following guidelines:
Model Physical Objects.
Model Conceptual Entities.
Use a Single term for each concept.
Be wary of the use of adjectives.

6. … Classes:
Identify the candidates for abstract super
classes by grouping classes that share
common attributes.
Use packages to look for classes that may be
missing.

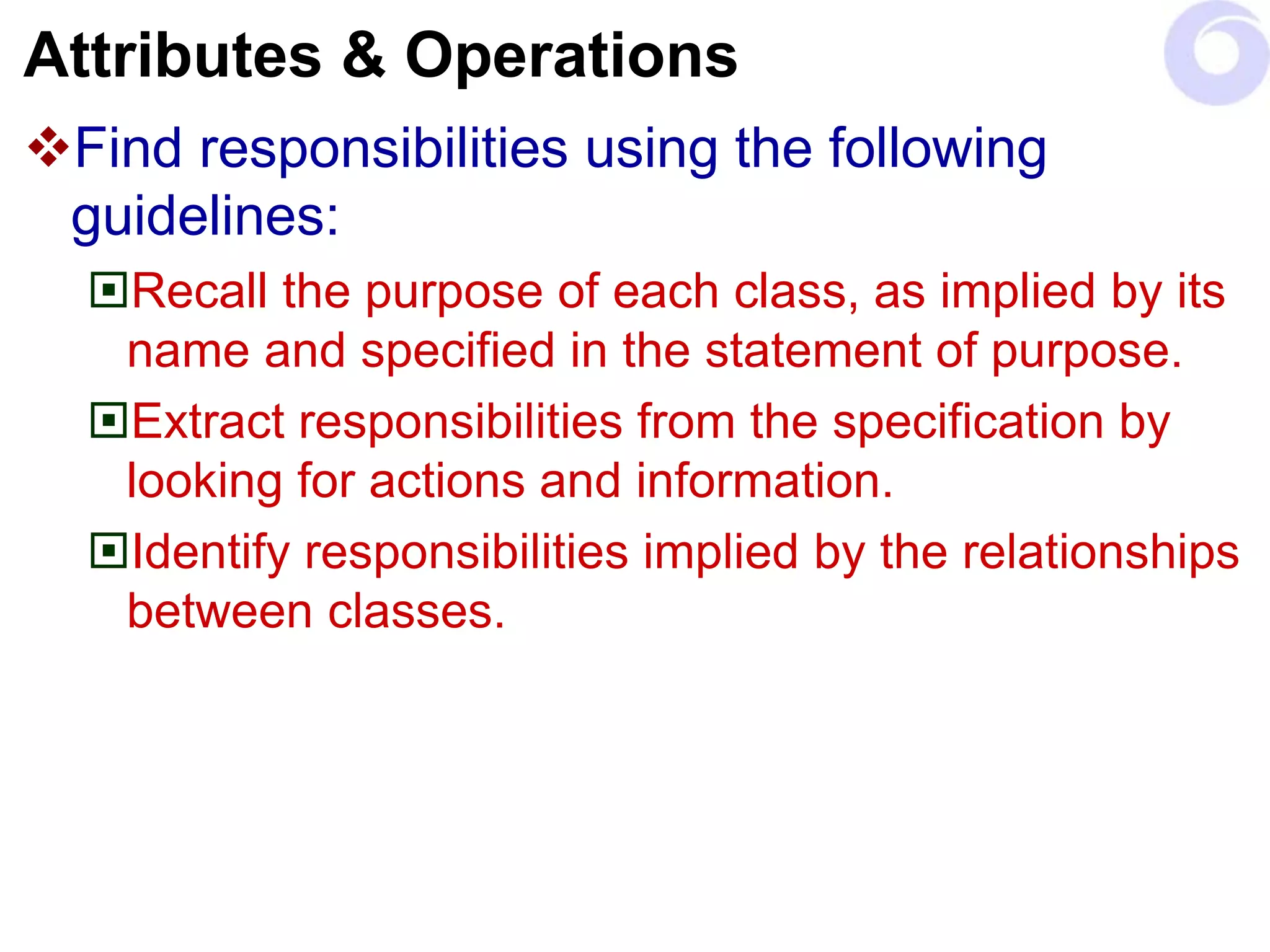

7. Attributes & Operations
Find responsibilities using the following
guidelines:
Recall the purpose of each class, as implied by its
name and specified in the statement of purpose.
Extract responsibilities from the specification by
looking for actions and information.
Identify responsibilities implied by the relationships
between classes.

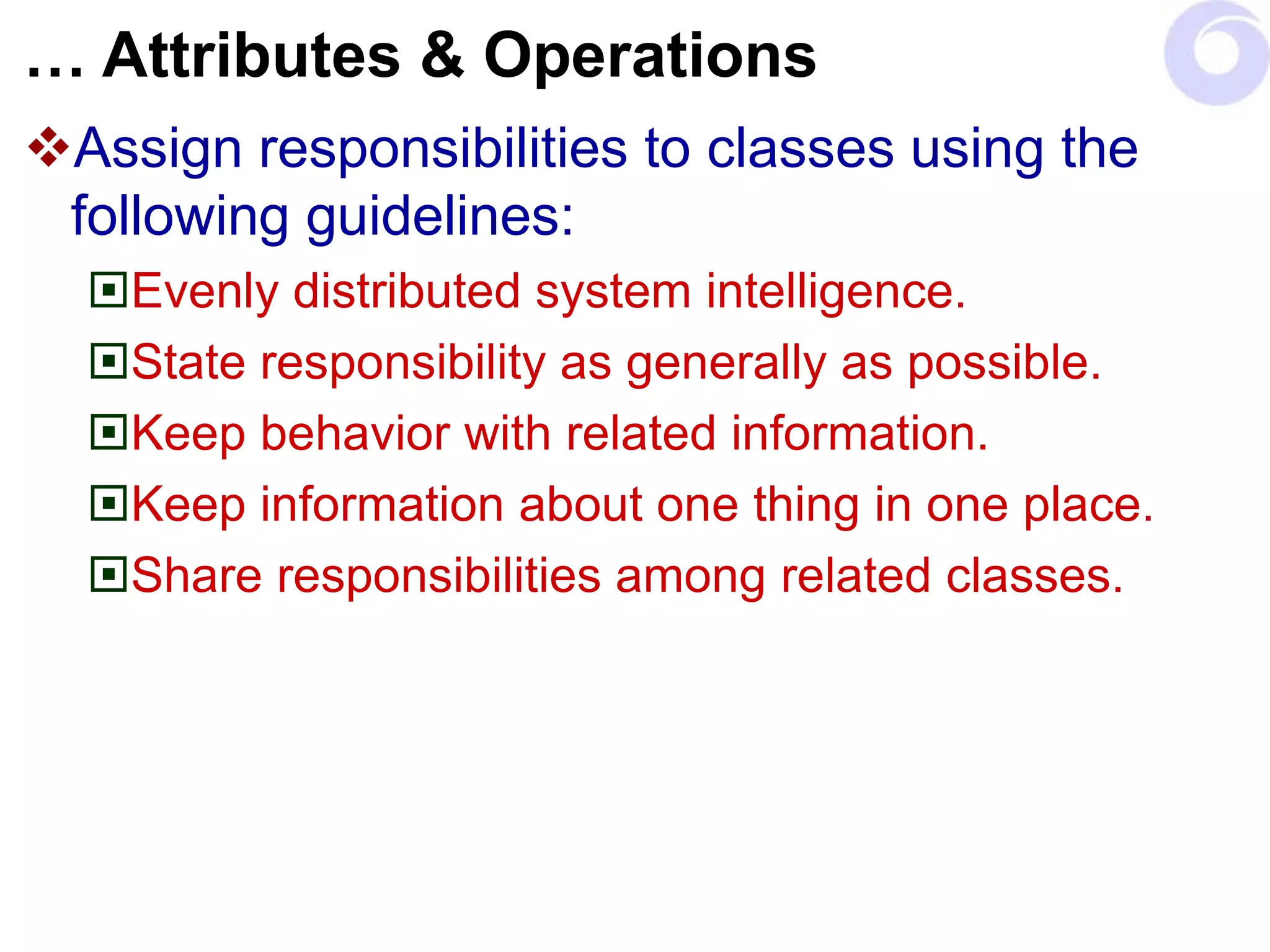

8. … Attributes & Operations
Assign responsibilities to classes using the
following guidelines:
Evenly distributed system intelligence.
State responsibility as generally as possible.
Keep behavior with related information.
Keep information about one thing in one place.
Share responsibilities among related classes.

9. … Attributes & Operations
Find additional responsibilities by looking for
relationships between classes.
is-kind-of
Use is-kind-of relationships to find inheritance relationships.
is-analogous-to
Use is-analogous-to relationships to find missing superclasses.
is-part-of
Use is-part-of relationships to find other missing classes.

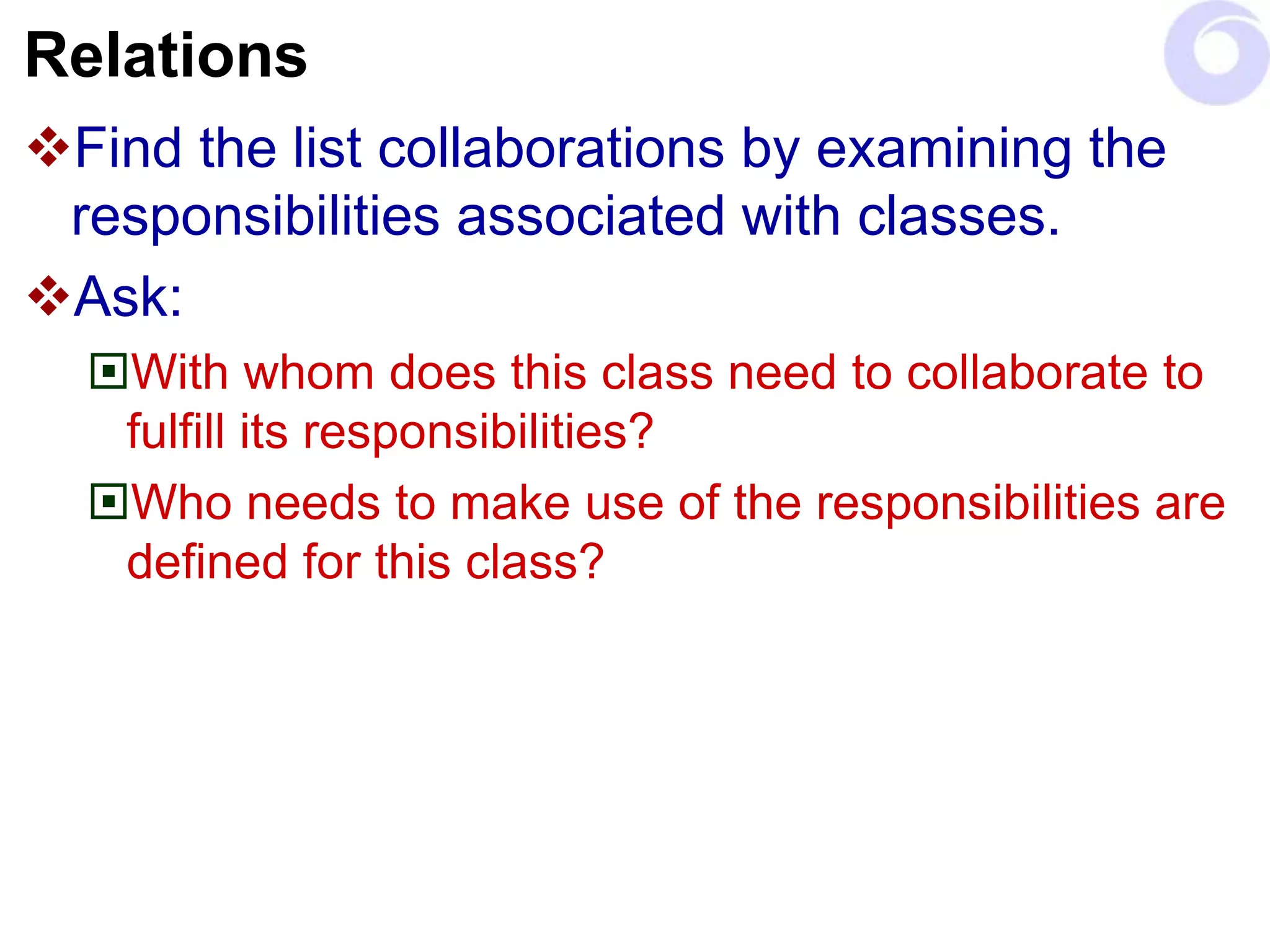

10. Relations
Find the list collaborations by examining the
responsibilities associated with classes.
Ask:
With whom does this class need to collaborate to
fulfill its responsibilities?
Who needs to make use of the responsibilities are
defined for this class?

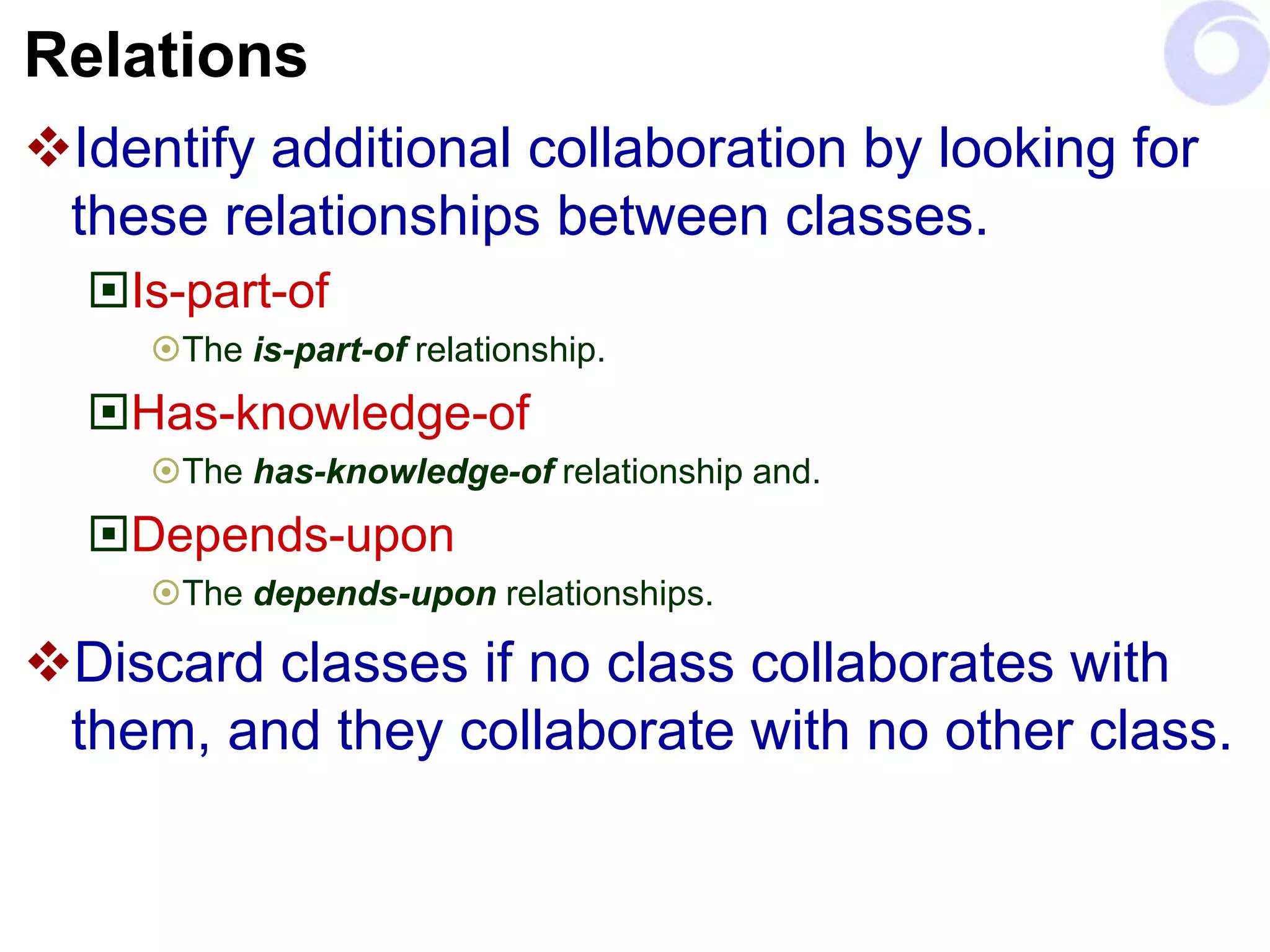

11. Relations
Identify additional collaboration by looking for
these relationships between classes.
Is-part-of
The is-part-of relationship.
Has-knowledge-of
The has-knowledge-of relationship and.
Depends-upon
The depends-upon relationships.
Discard classes if no class collaborates with
them, and they collaborate with no other class.

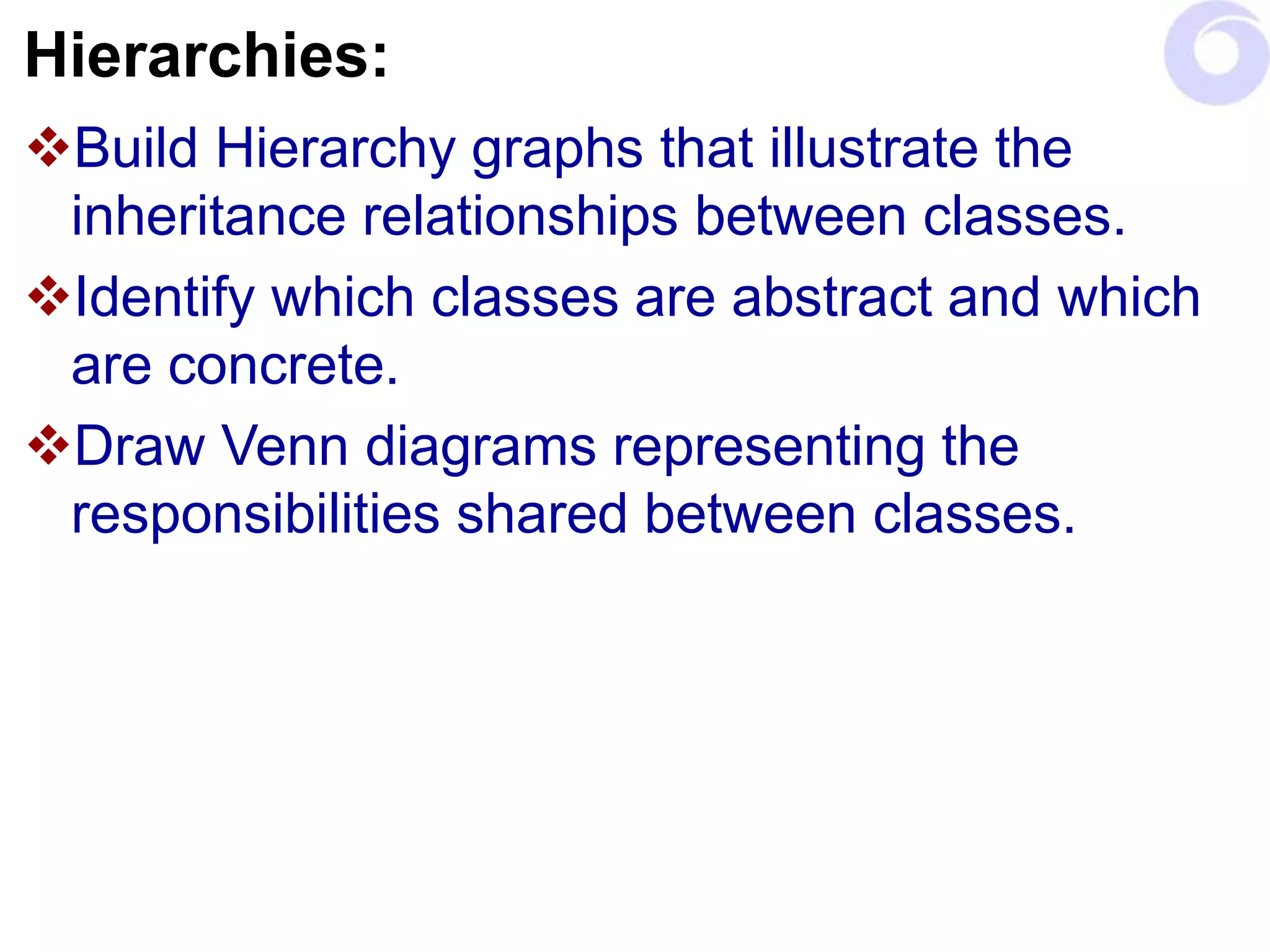

12. Hierarchies:
Build Hierarchy graphs that illustrate the
inheritance relationships between classes.
Identify which classes are abstract and which
are concrete.
Draw Venn diagrams representing the
responsibilities shared between classes.

13. … Hierarchies:
Construct class hierarchies using the following
guidelines:
Model a kind-of hierarchy.
Factor common responsibilities as high as
possible.
Make sure that abstract classes do not inherit from
concrete classes.
Eliminate classes that do not add functionality.

14. … Hierarchies:
Construct the contracts defined by each class
using the following guidelines:
Group responsibilities that are used by the same
clients.
Maximize the cohesiveness of classes.
Minimize the number of contracts per class.

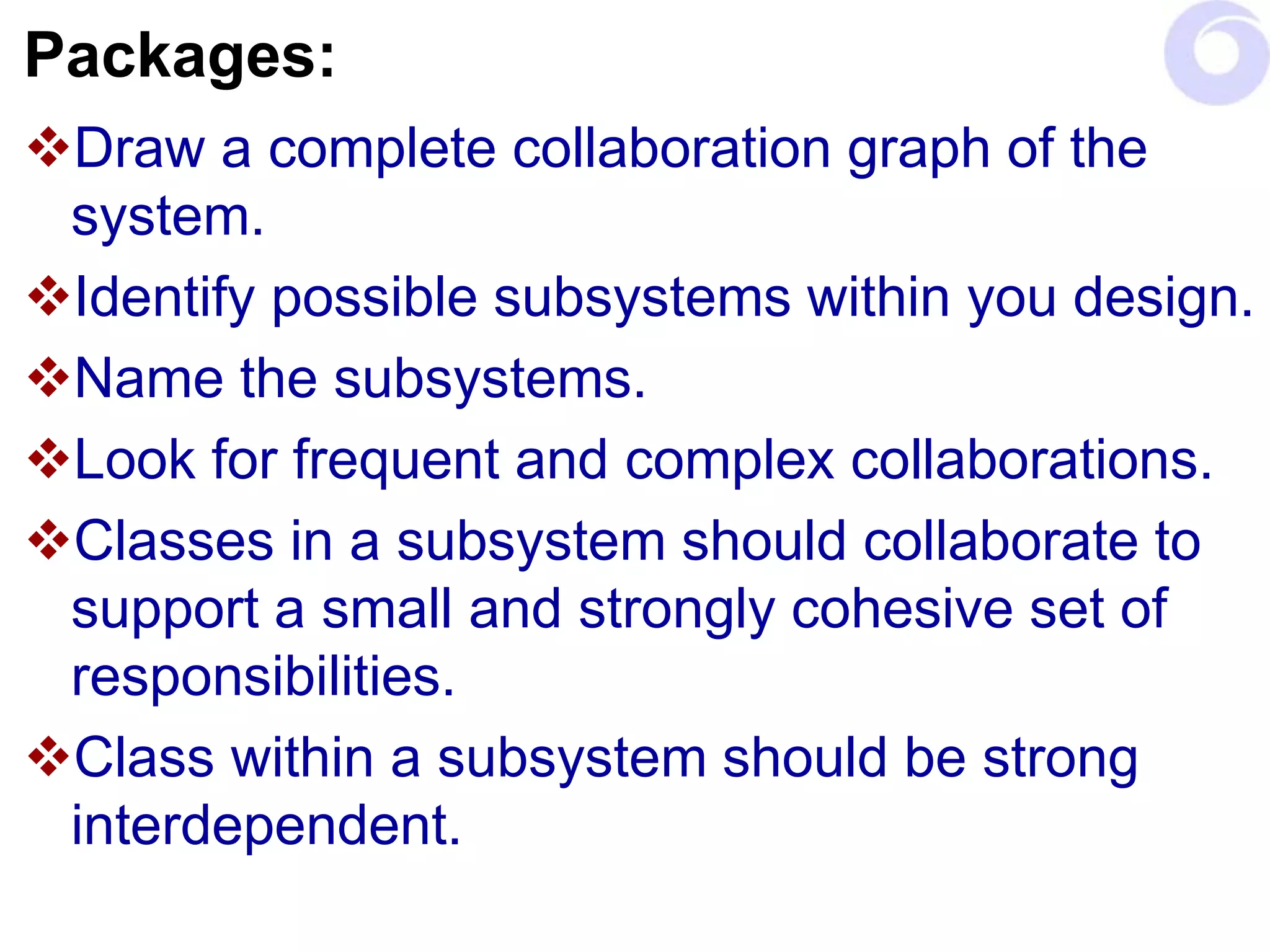

15. Packages:
Draw a complete collaboration graph of the
system.
Identify possible subsystems within you design.
Name the subsystems.
Look for frequent and complex collaborations.
Classes in a subsystem should collaborate to
support a small and strongly cohesive set of
responsibilities.
Class within a subsystem should be strong
interdependent.

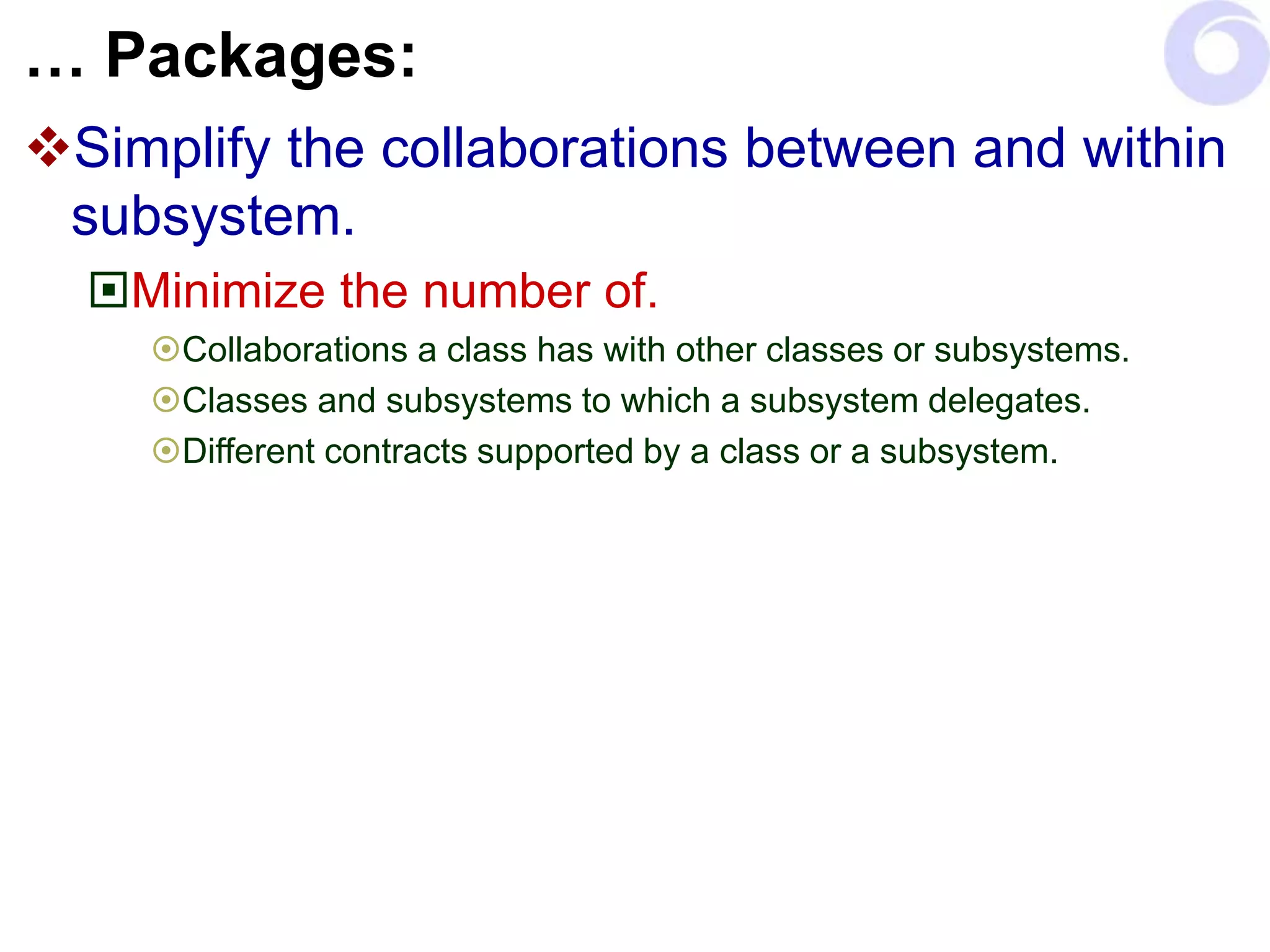

16. … Packages:
Simplify the collaborations between and within
subsystem.
Minimize the number of.
Collaborations a class has with other classes or subsystems.
Classes and subsystems to which a subsystem delegates.
Different contracts supported by a class or a subsystem.

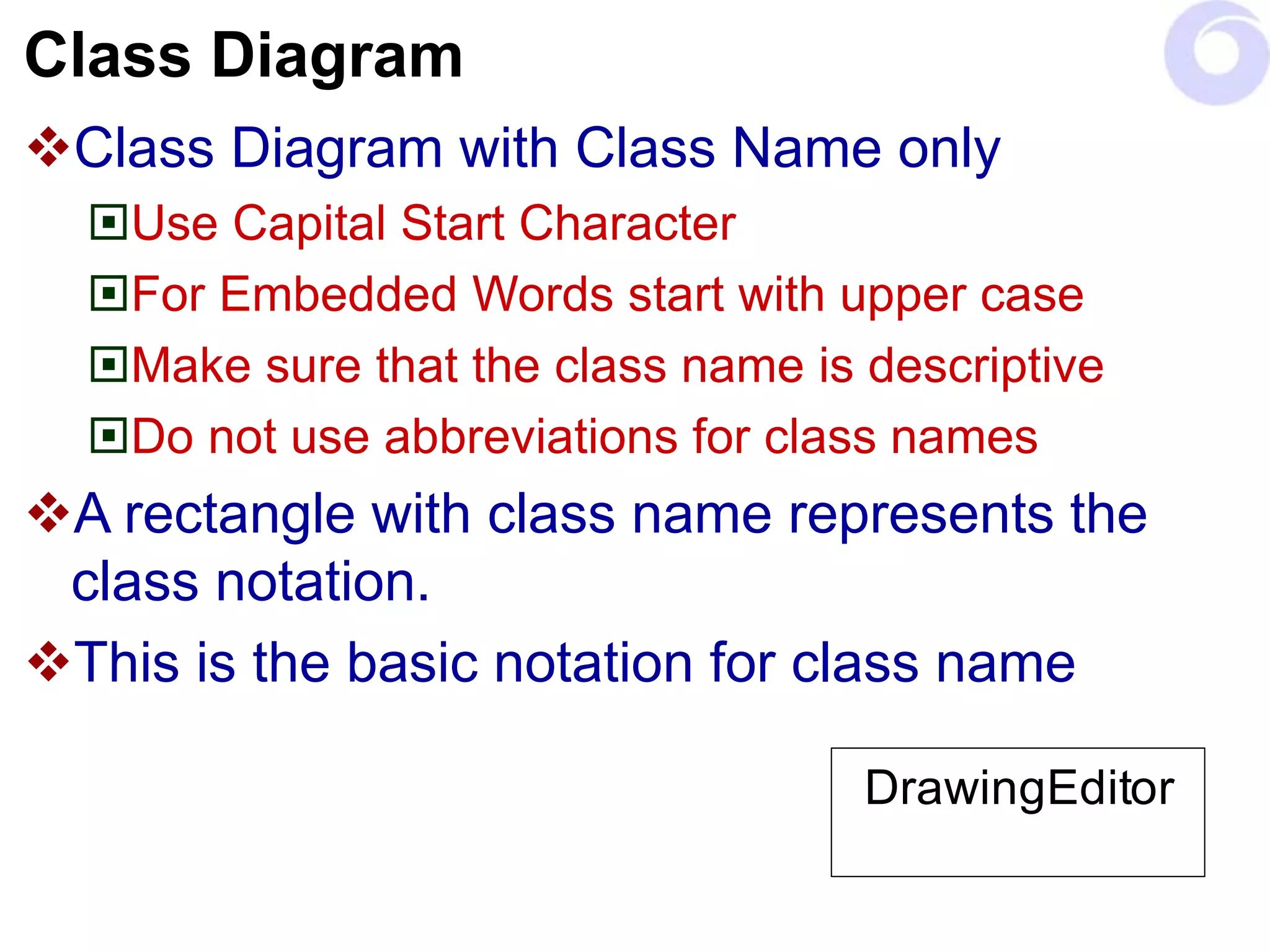

17. Class Diagram
Class Diagram with Class Name only
Use Capital Start Character
For Embedded Words start with upper case
Make sure that the class name is descriptive
Do not use abbreviations for class names
A rectangle with class name represents the
class notation.
This is the basic notation for class name
DrawingEditor

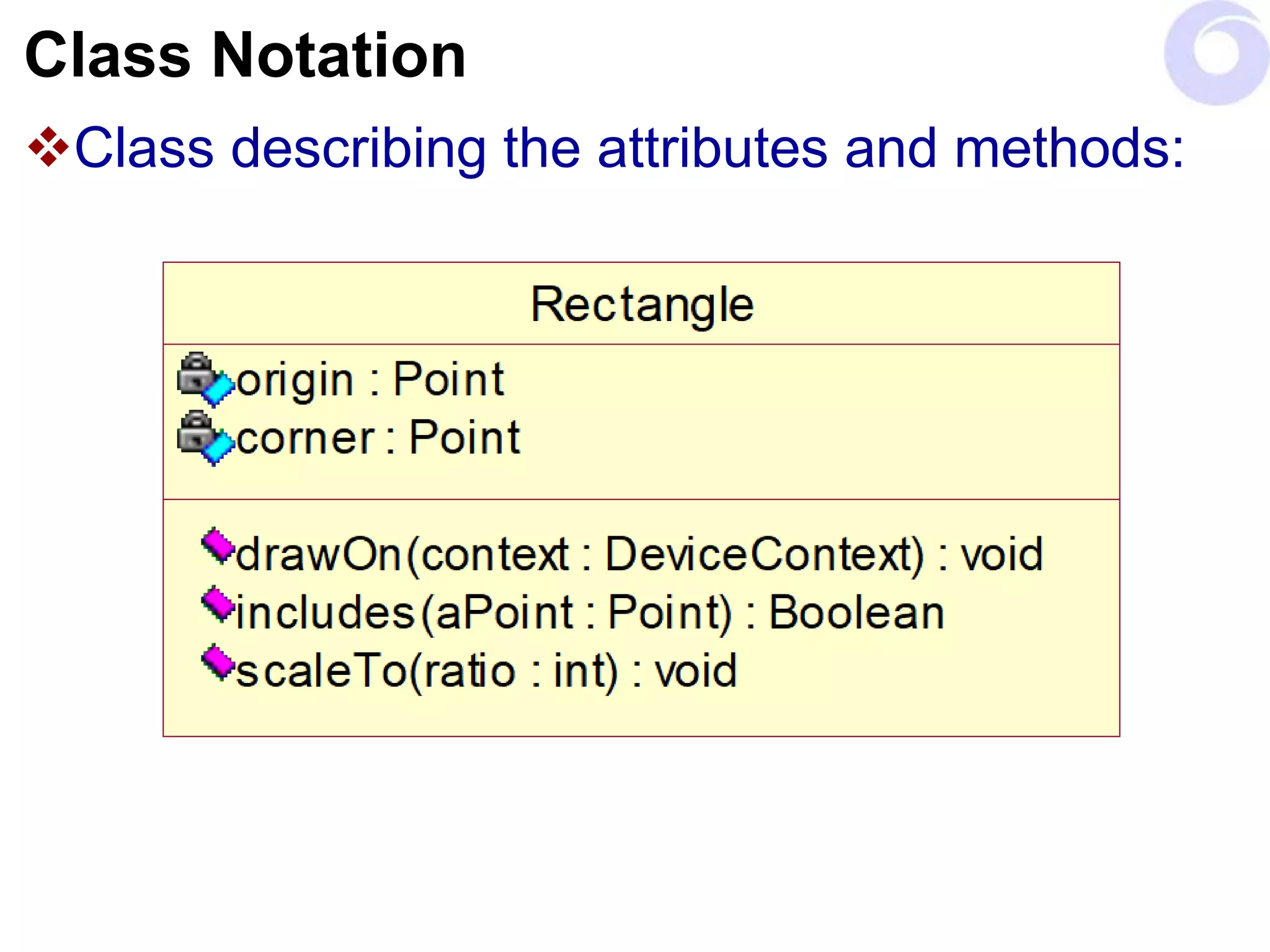

18. Class Notation
Class describing the attributes and methods:

19. Defining Variables and Methods
When defining variable
Use lower case character for instance variables
Use upper case character for class variables
Use upper case character for embedded words
Define attributes data type and default values
Use : to separate data type and = to assign initial
values
When defining methods
Use lower case character for all methods
Define method arguments with default values
Define return type after the function signature
prefixed by :

20. Access Modifiers
When defining the attributes and methods use
following conventions
- for private
+ for public
# for protected
$ for class (static) also by underlining the classifier
/ for derived
An attribute whose value may be calculated based on the value of
other attributes.
Used to represent a value which is not persistence but used to hold
a transient value (Performance vs. Memory)

21. Generalization
Single Inheritance
Tool is the super class
Creation Tool and Selection Tool are subclasses
Tool
CreationTool SelectionTool

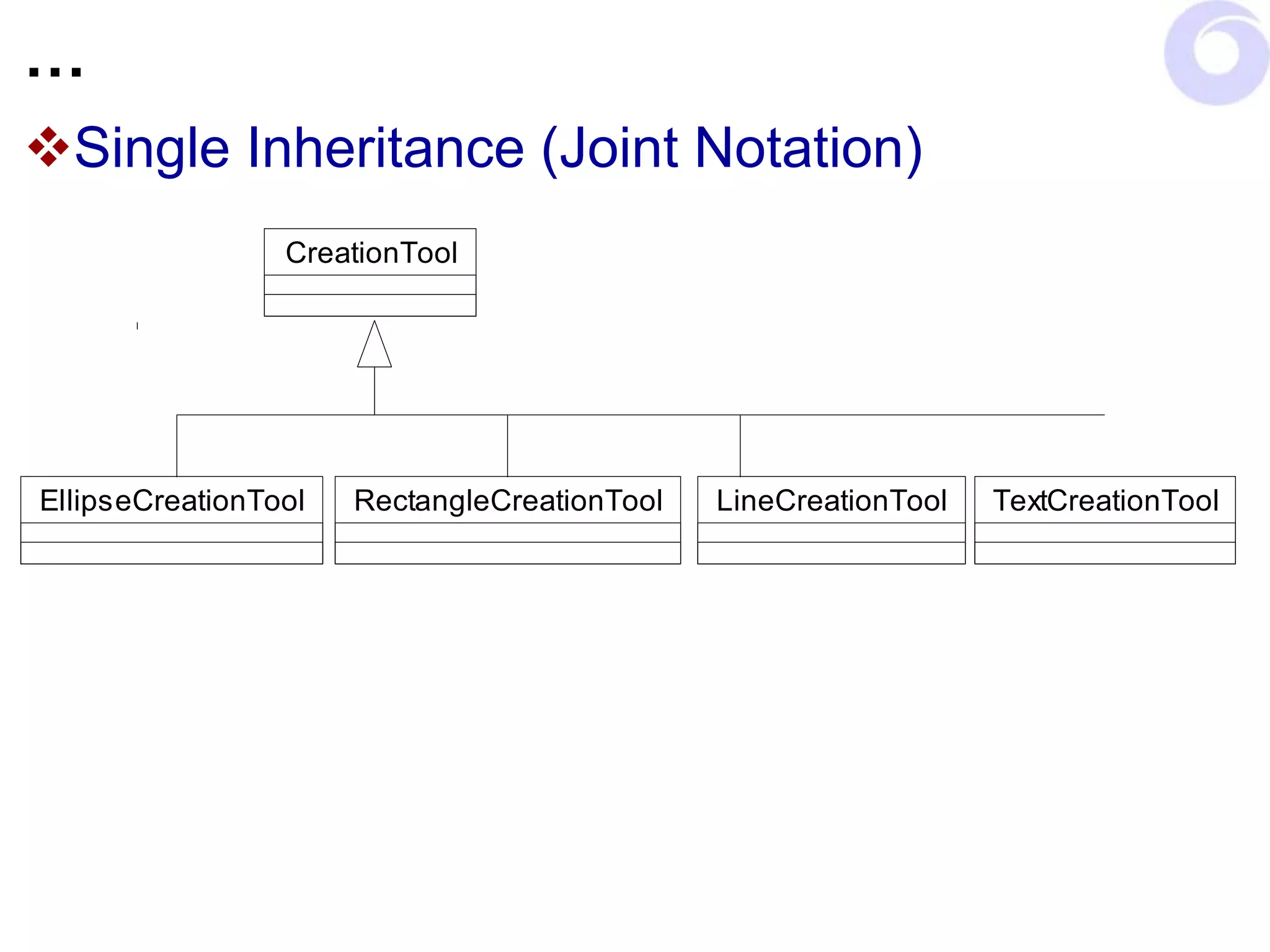

22. …
Single Inheritance (Joint Notation)
CreationTool
LineCreationTool
RectangleCreationTool
EllipseCreationTool TextCreationTool

23. …
Multiple Inheritance
Car Ship
CarShip

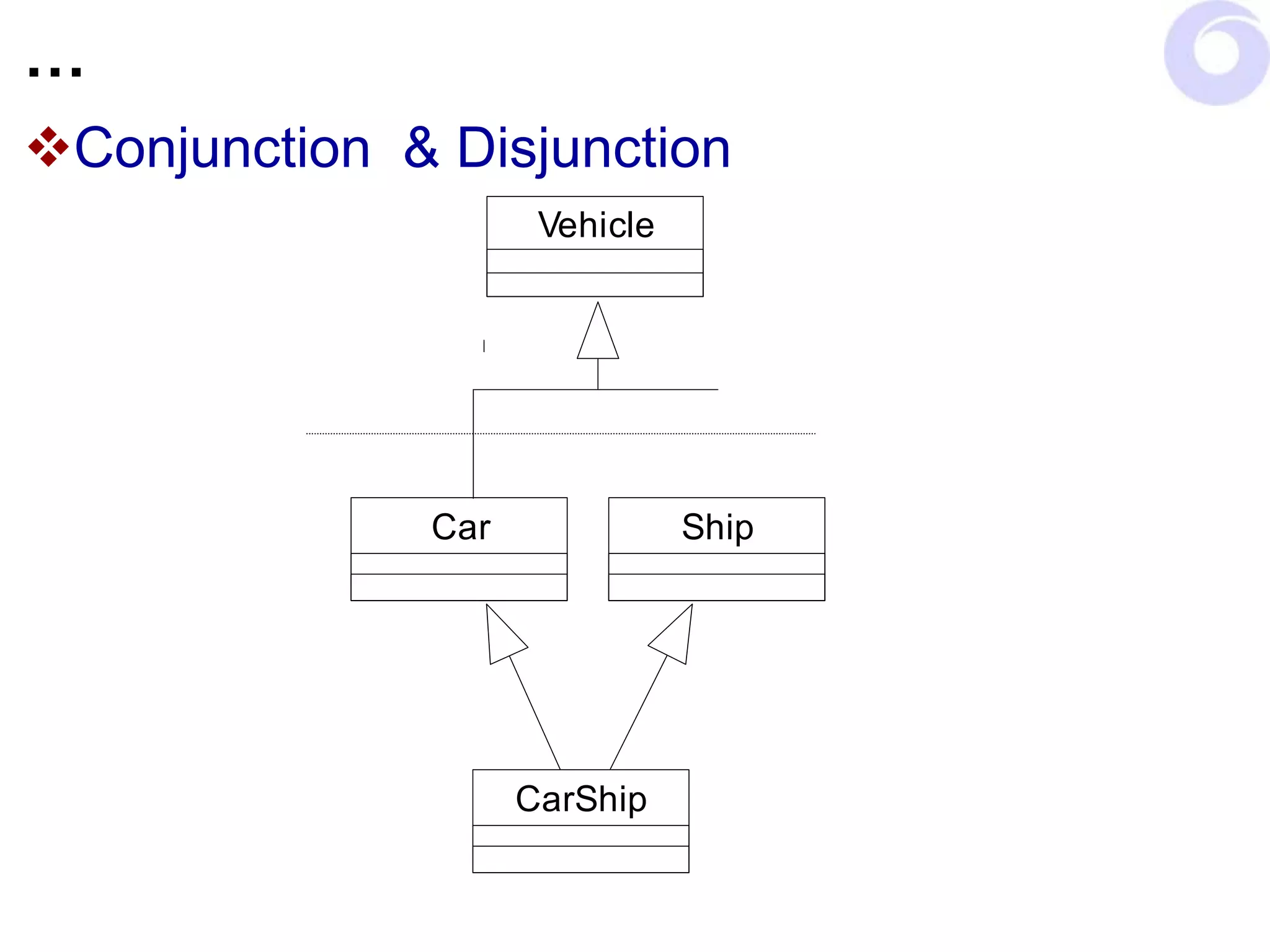

24. …
Conjunction & Disjunction
Car Ship
CarShip
Vehicle

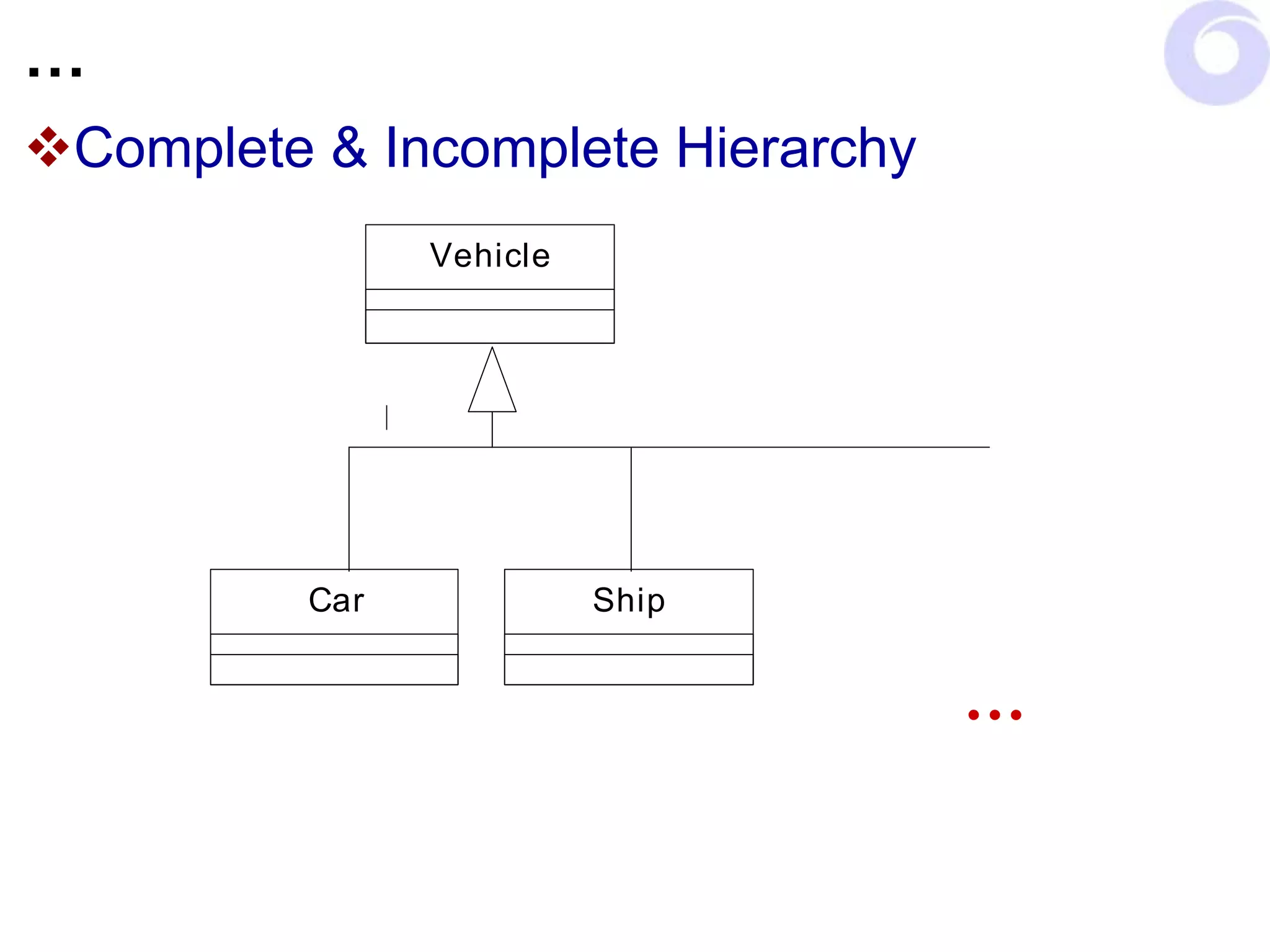

25. …
Complete & Incomplete Hierarchy
Car Ship
Vehicle
…

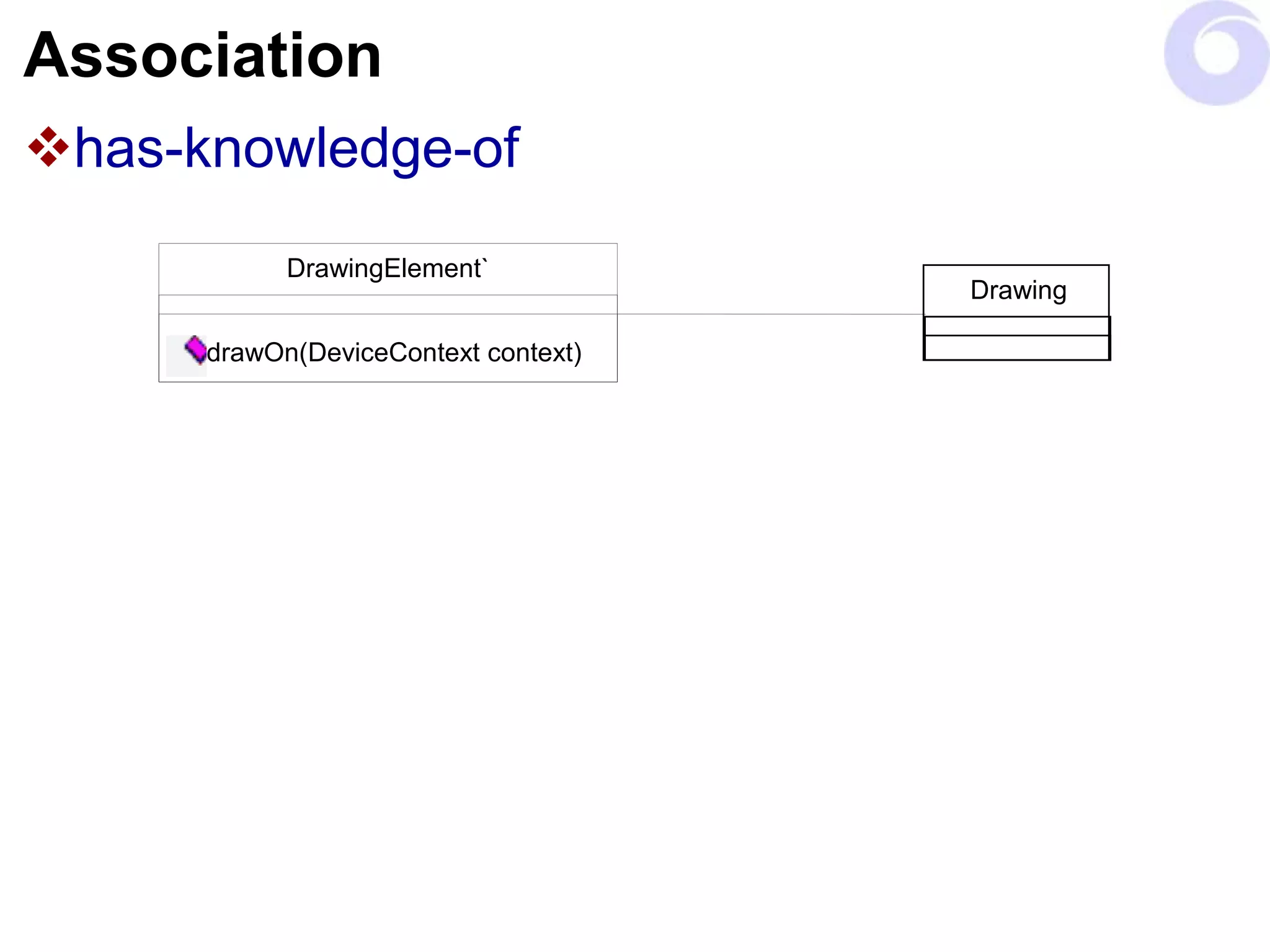

26. Association
has-knowledge-of
DrawingElement`
drawOn(DeviceContext context)
Drawing

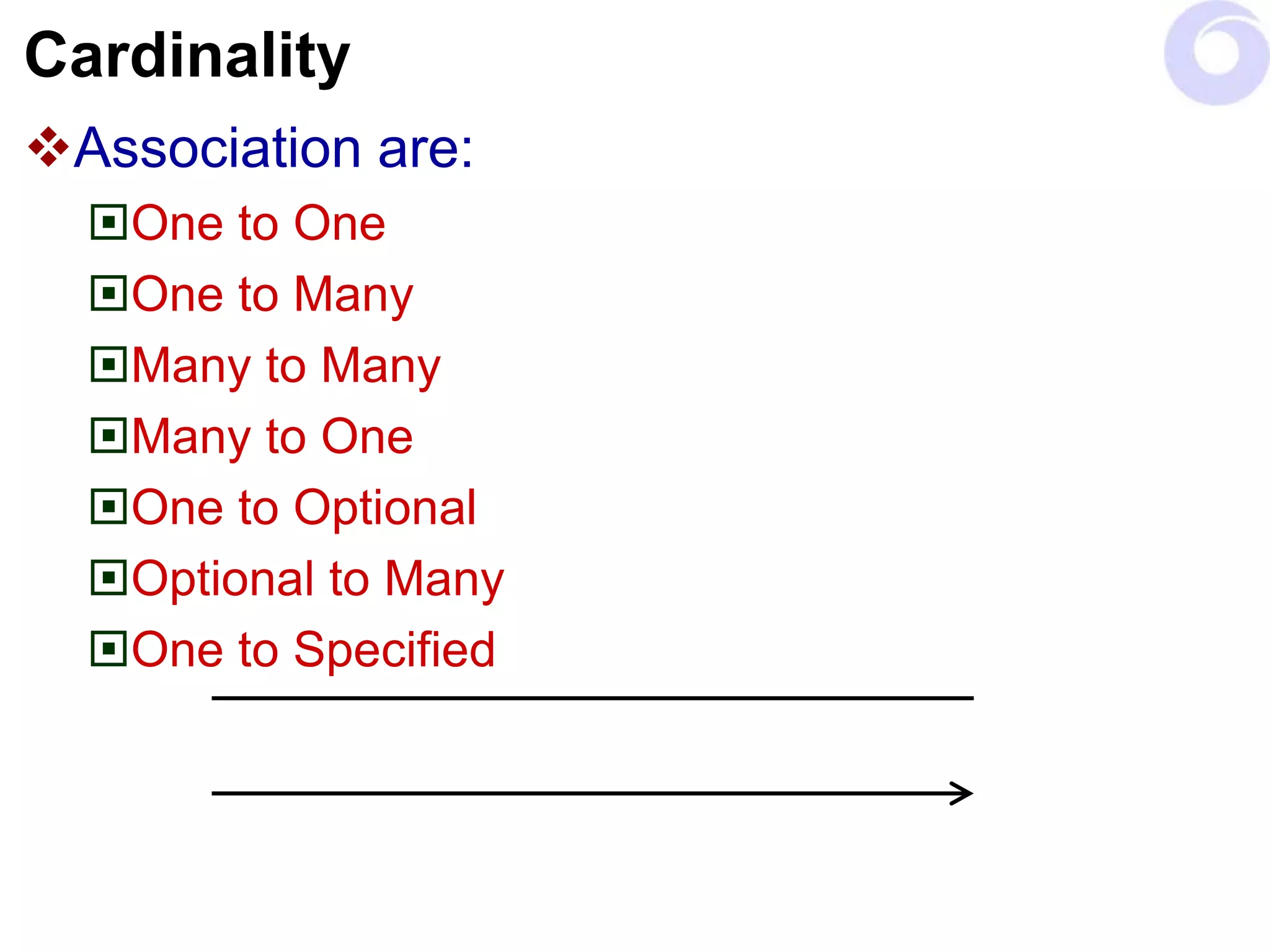

27. Cardinality
Association are:
One to One
One to Many
Many to Many
Many to One
One to Optional
Optional to Many
One to Specified

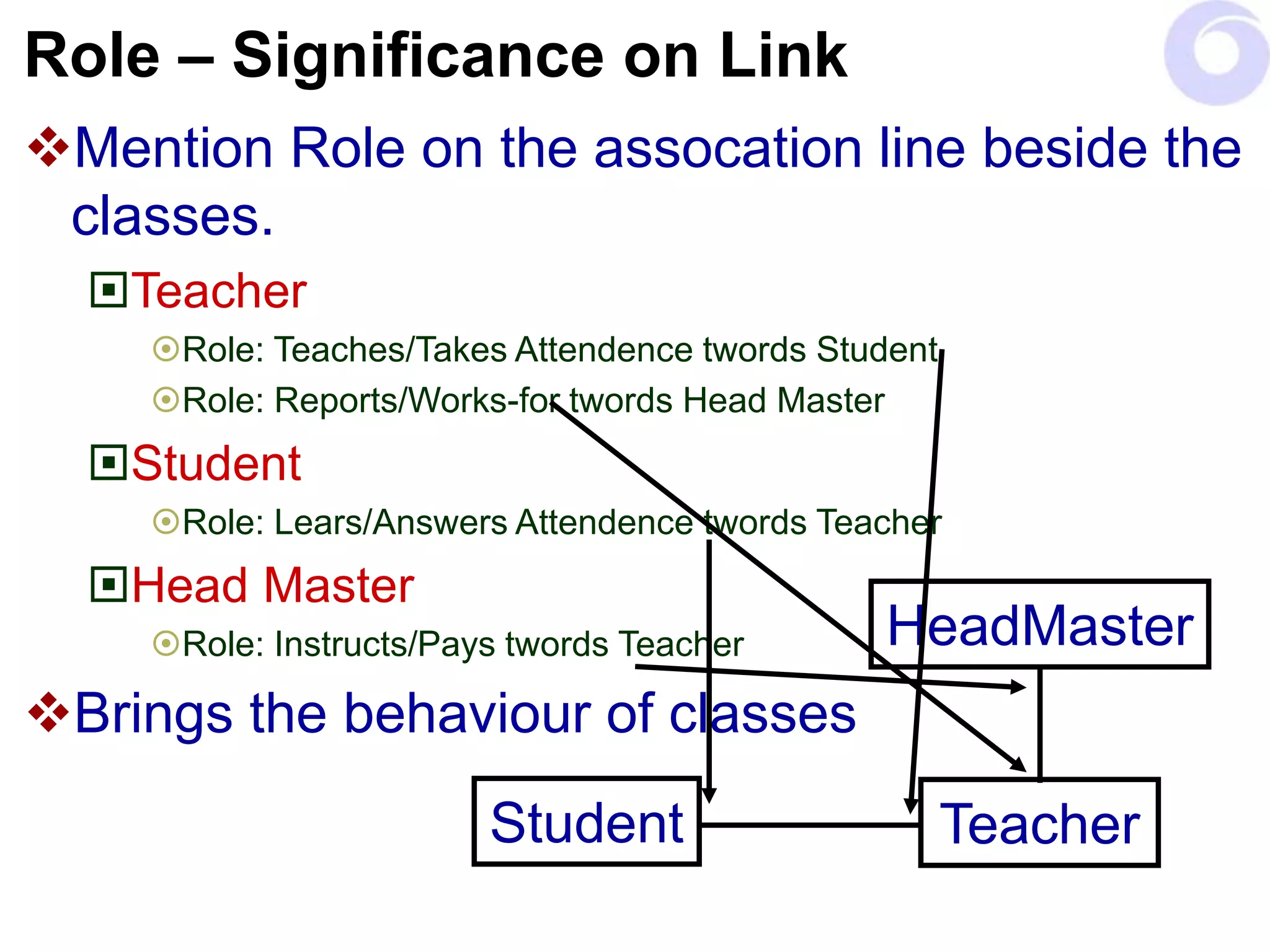

28. Role – Significance on Link
Mention Role on the assocation line beside the
classes.
Teacher
Role: Teaches/Takes Attendence twords Student
Role: Reports/Works-for twords Head Master
Student
Role: Lears/Answers Attendence twords Teacher
Head Master
Role: Instructs/Pays twords Teacher
Brings the behaviour of classes
Teacher
HeadMaster
Student

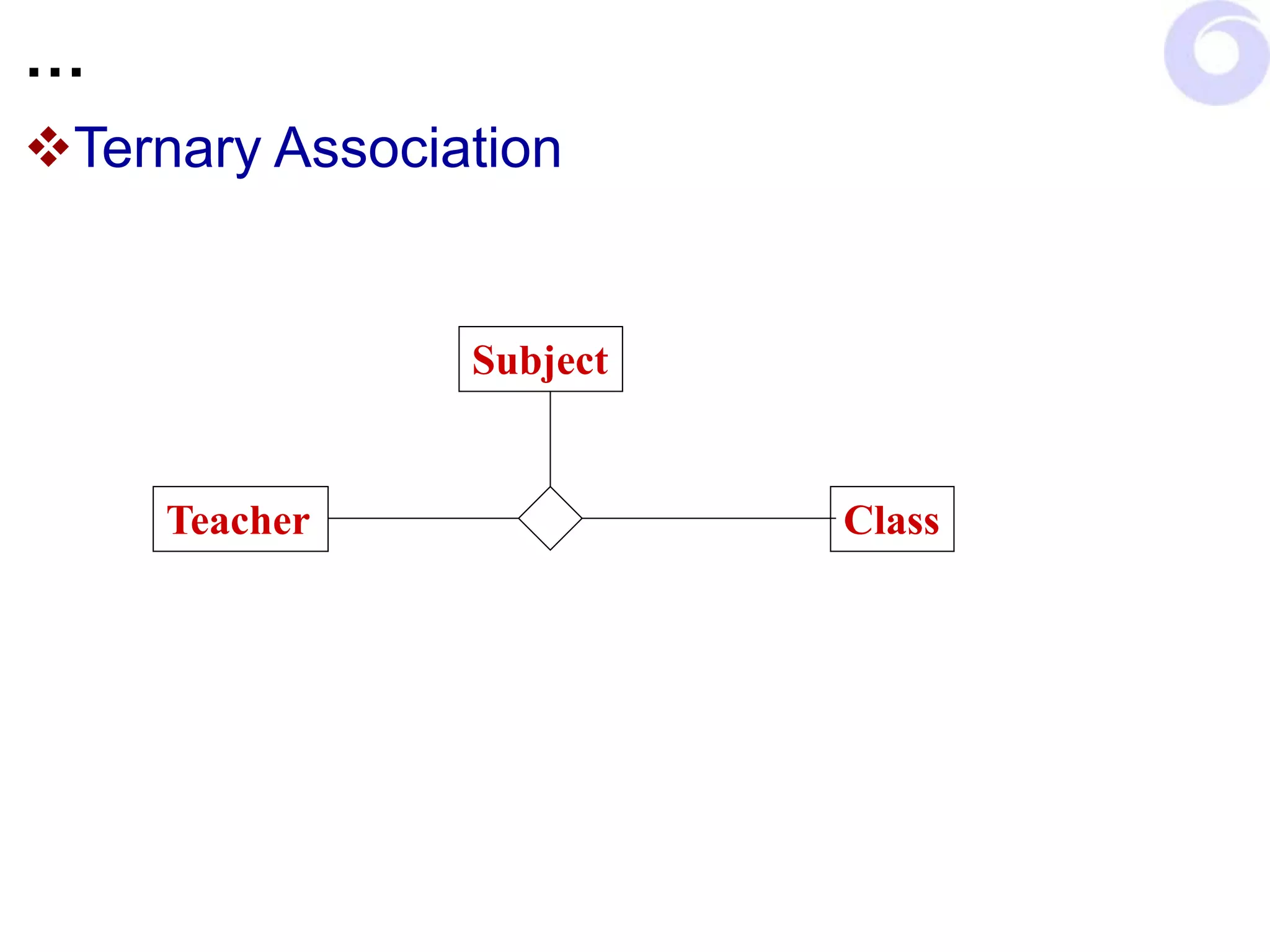

29. …
Ternary Association
Teacher Class
Subject

30. …
Link Association
Teacher Class
Subject
Schedule

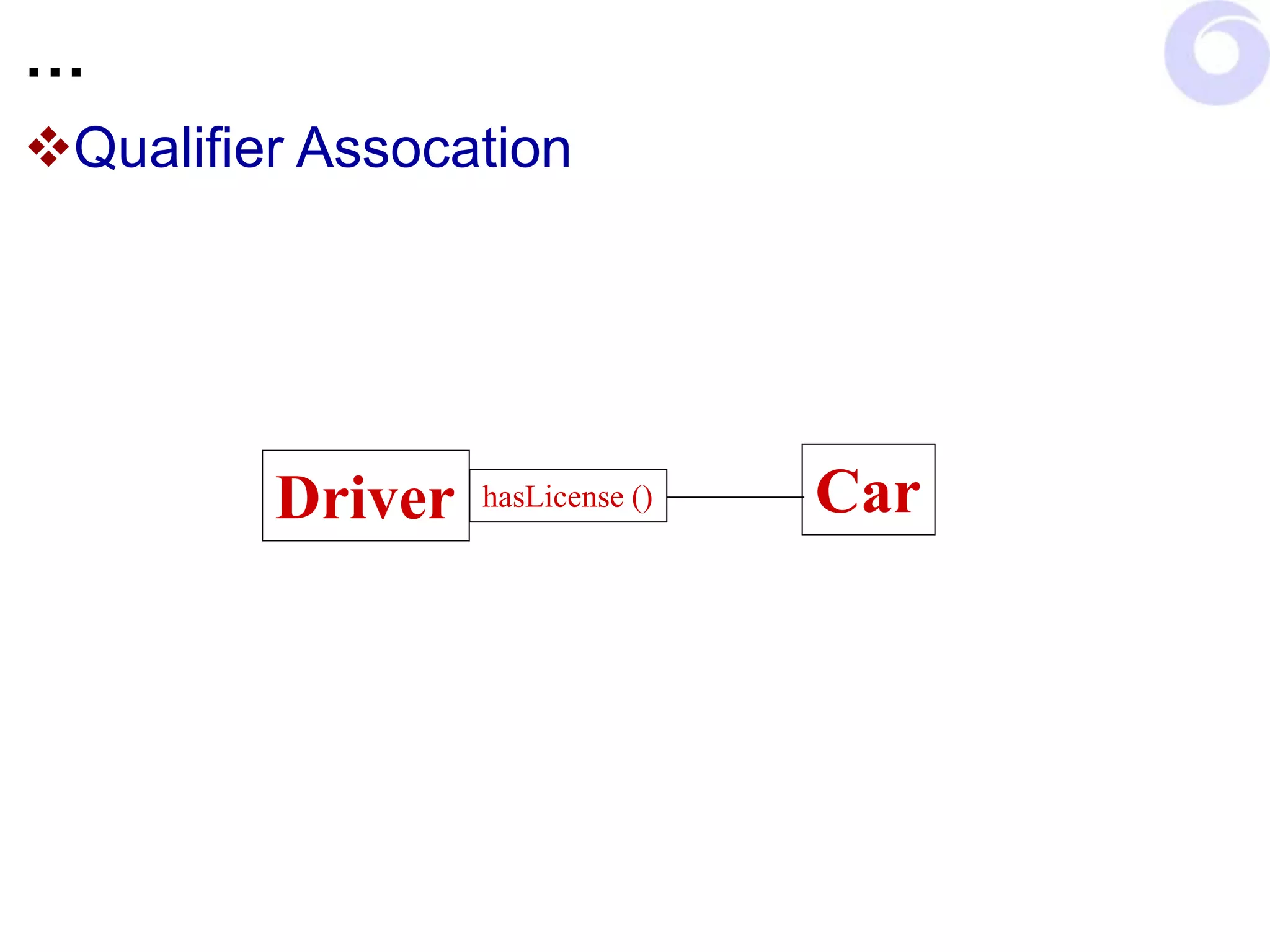

31. …
Qualifier Assocation
Driver Car
hasLicense ()

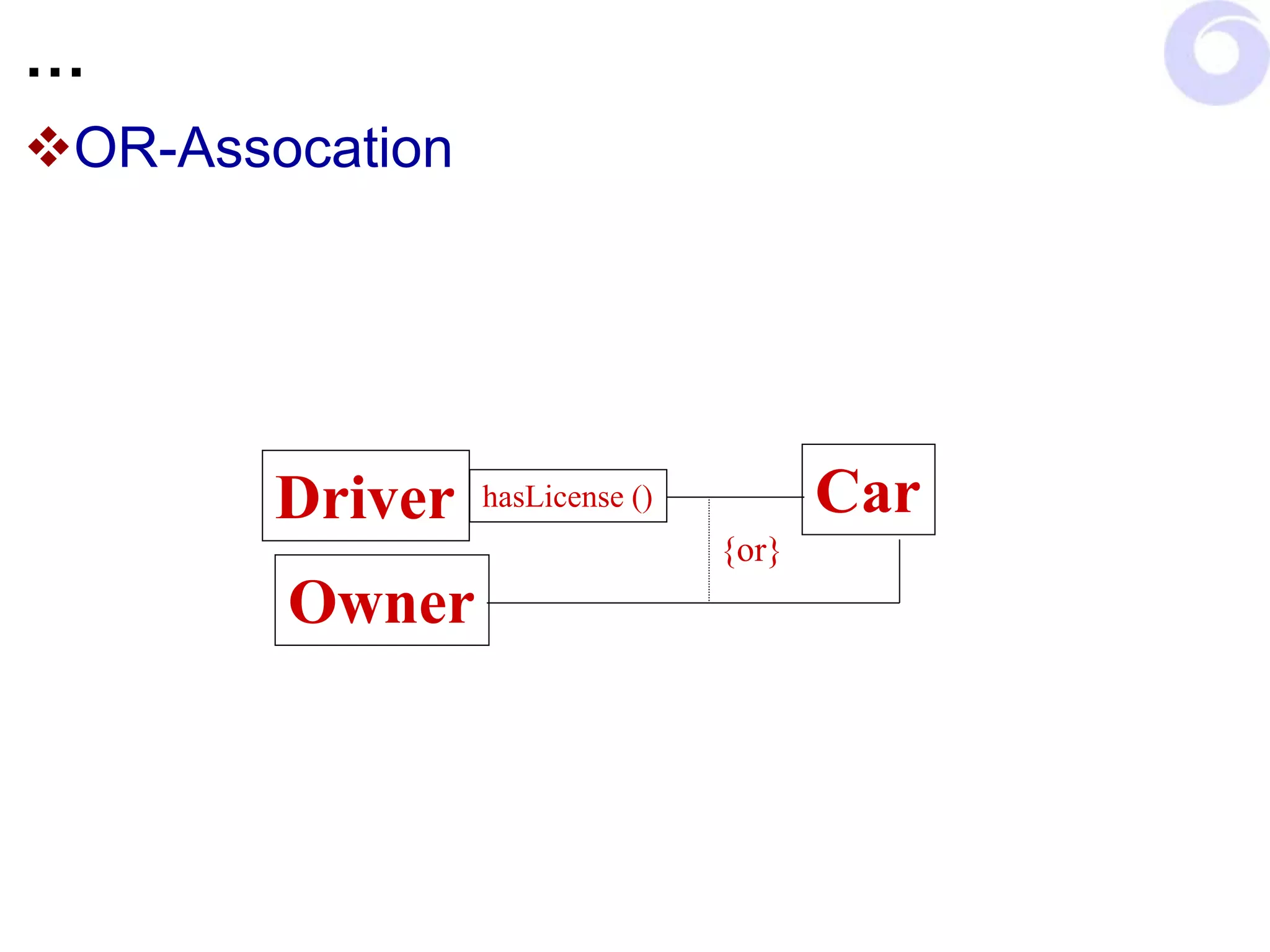

32. …
OR-Assocation
Driver Car
hasLicense ()
Owner
{or}

33. Aggregation
Is-Part-of
Word Sentence

34. Composition
Whole-of
TitleBar Window

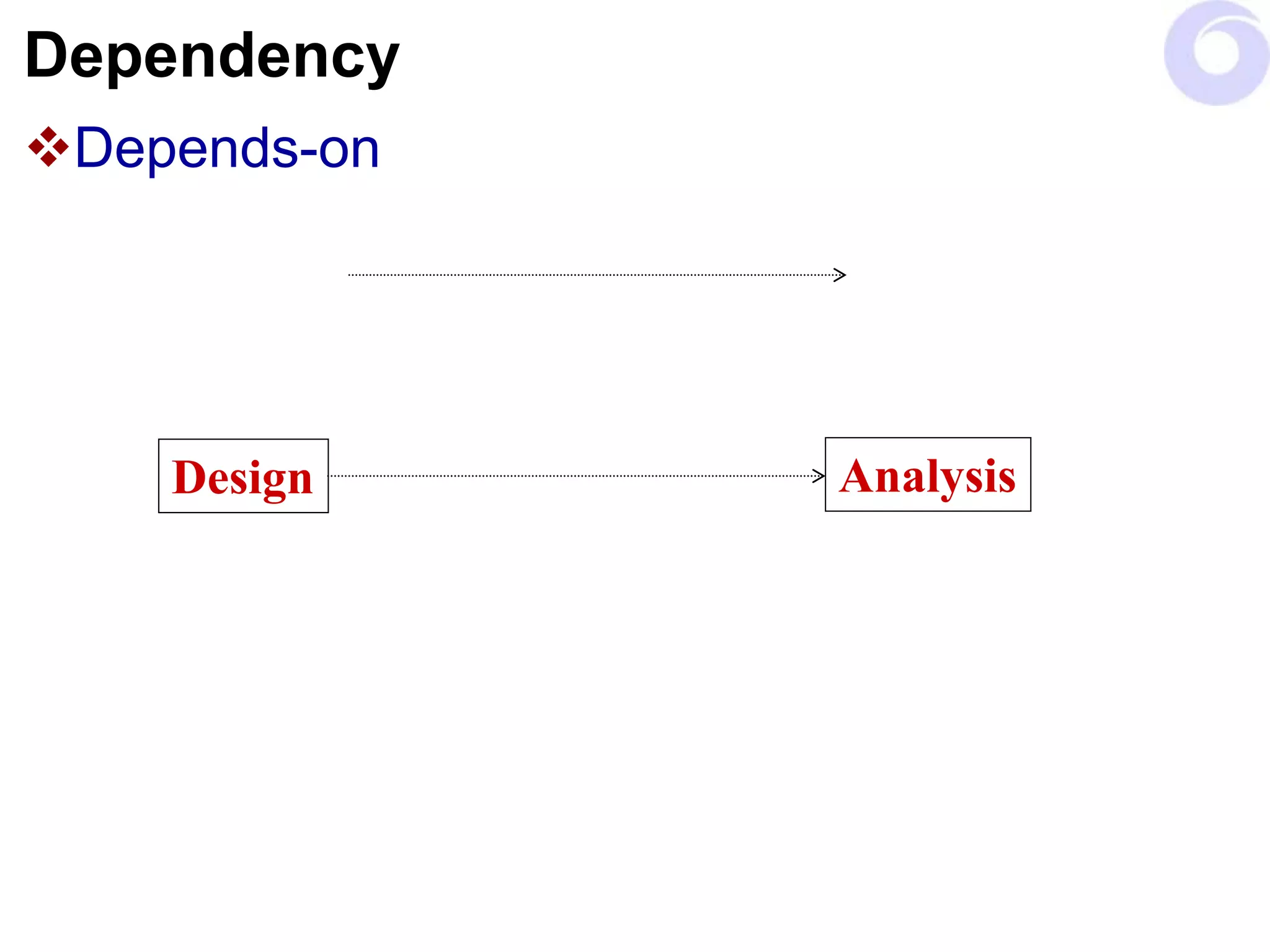

35. Dependency
Depends-on
Design Analysis

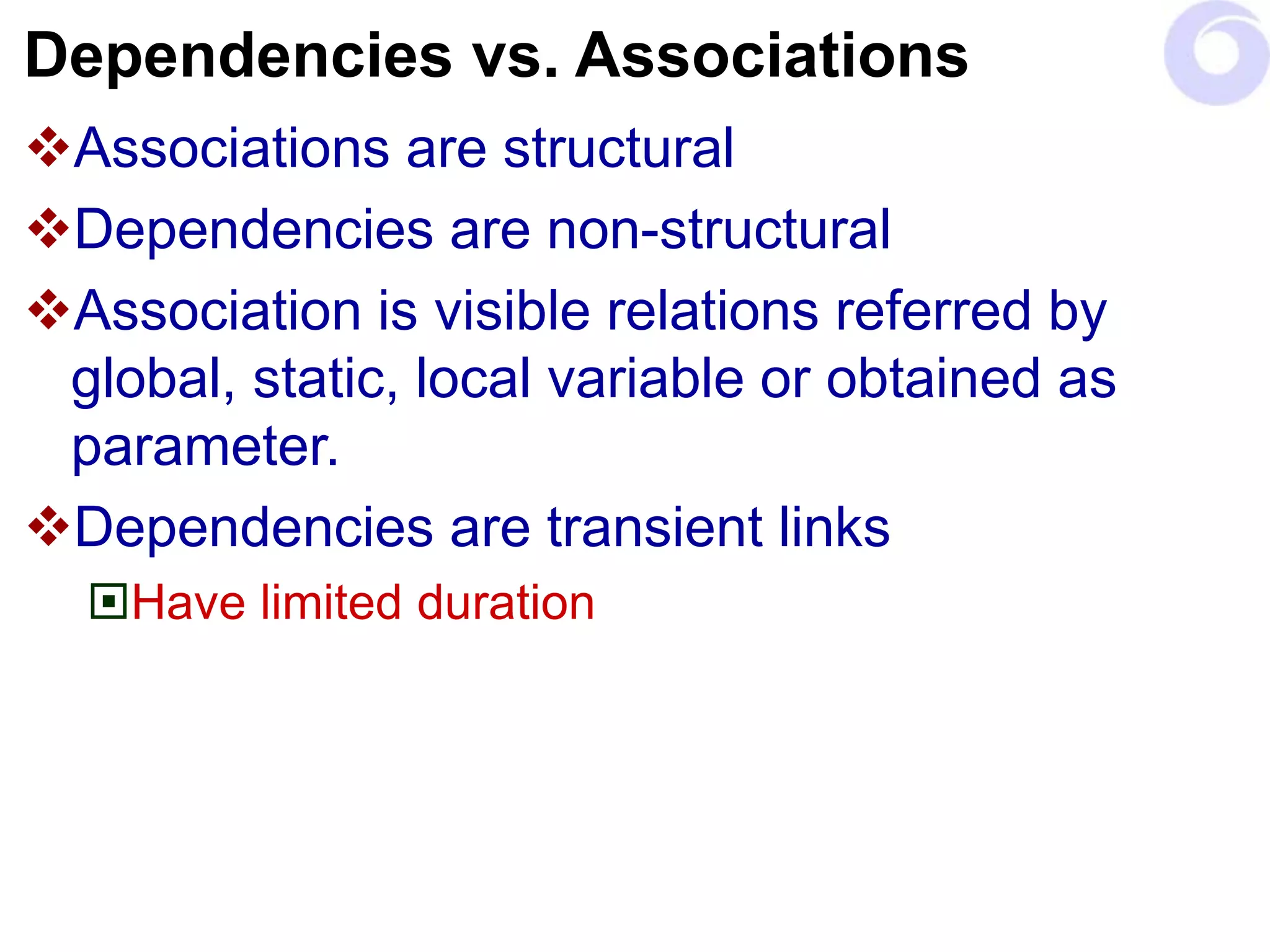

36. Dependencies vs. Associations
Associations are structural
Dependencies are non-structural
Association is visible relations referred by
global, static, local variable or obtained as
parameter.
Dependencies are transient links
Have limited duration

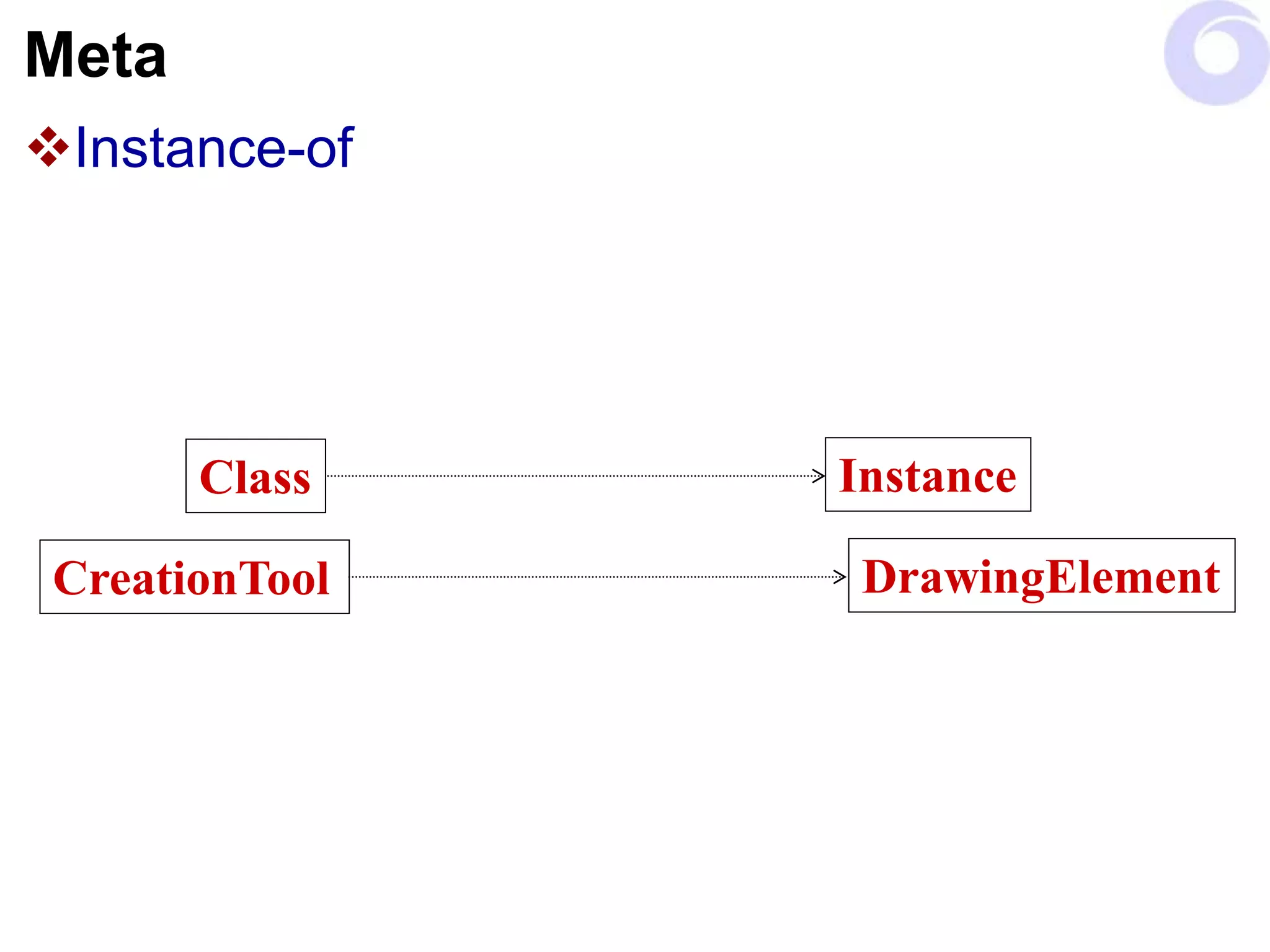

37. Meta
Instance-of
Class Instance
CreationTool DrawingElement

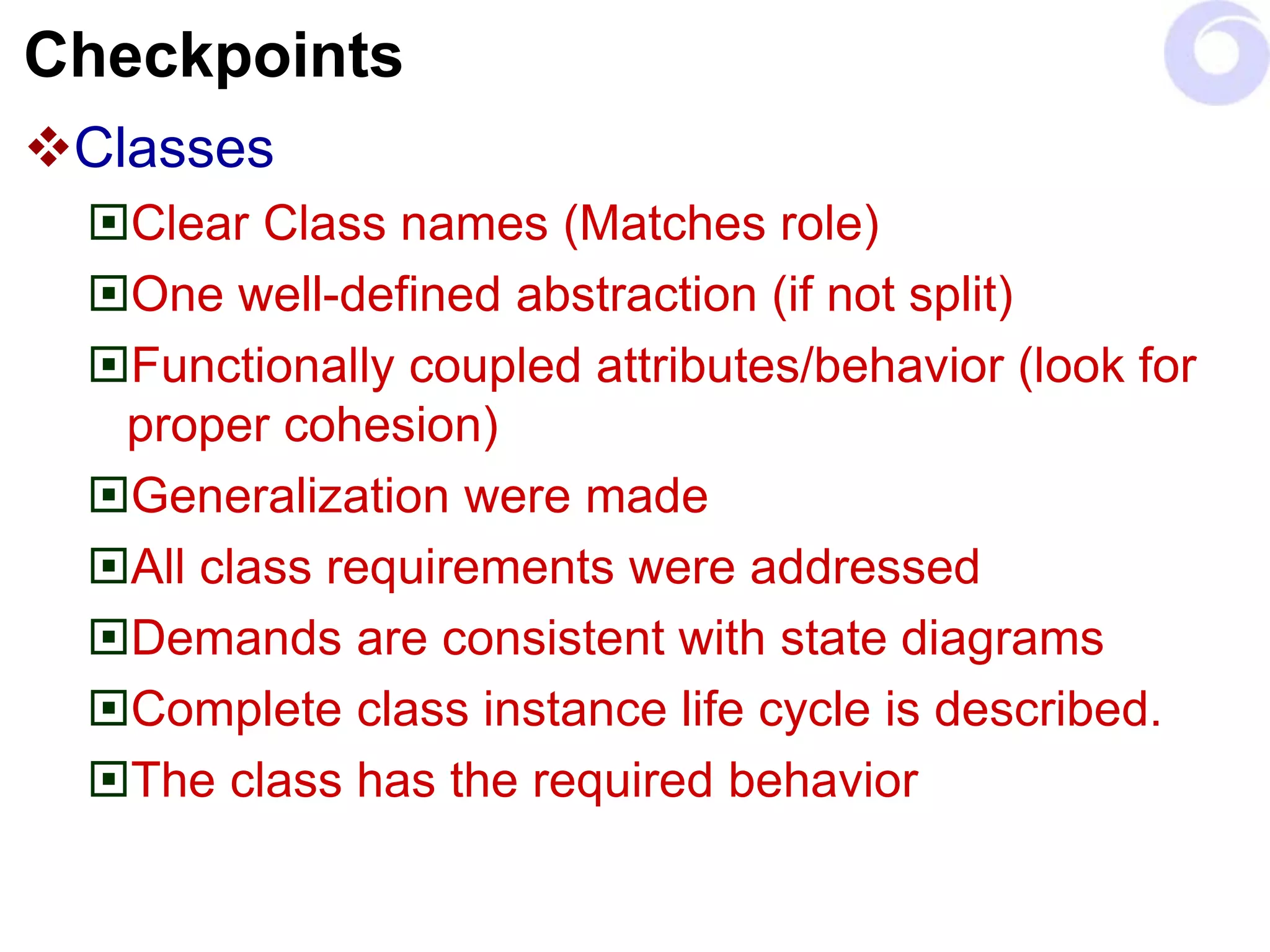

38. Checkpoints
Classes
Clear Class names (Matches role)
One well-defined abstraction (if not split)
Functionally coupled attributes/behavior (look for
proper cohesion)
Generalization were made
All class requirements were addressed
Demands are consistent with state diagrams
Complete class instance life cycle is described.
The class has the required behavior

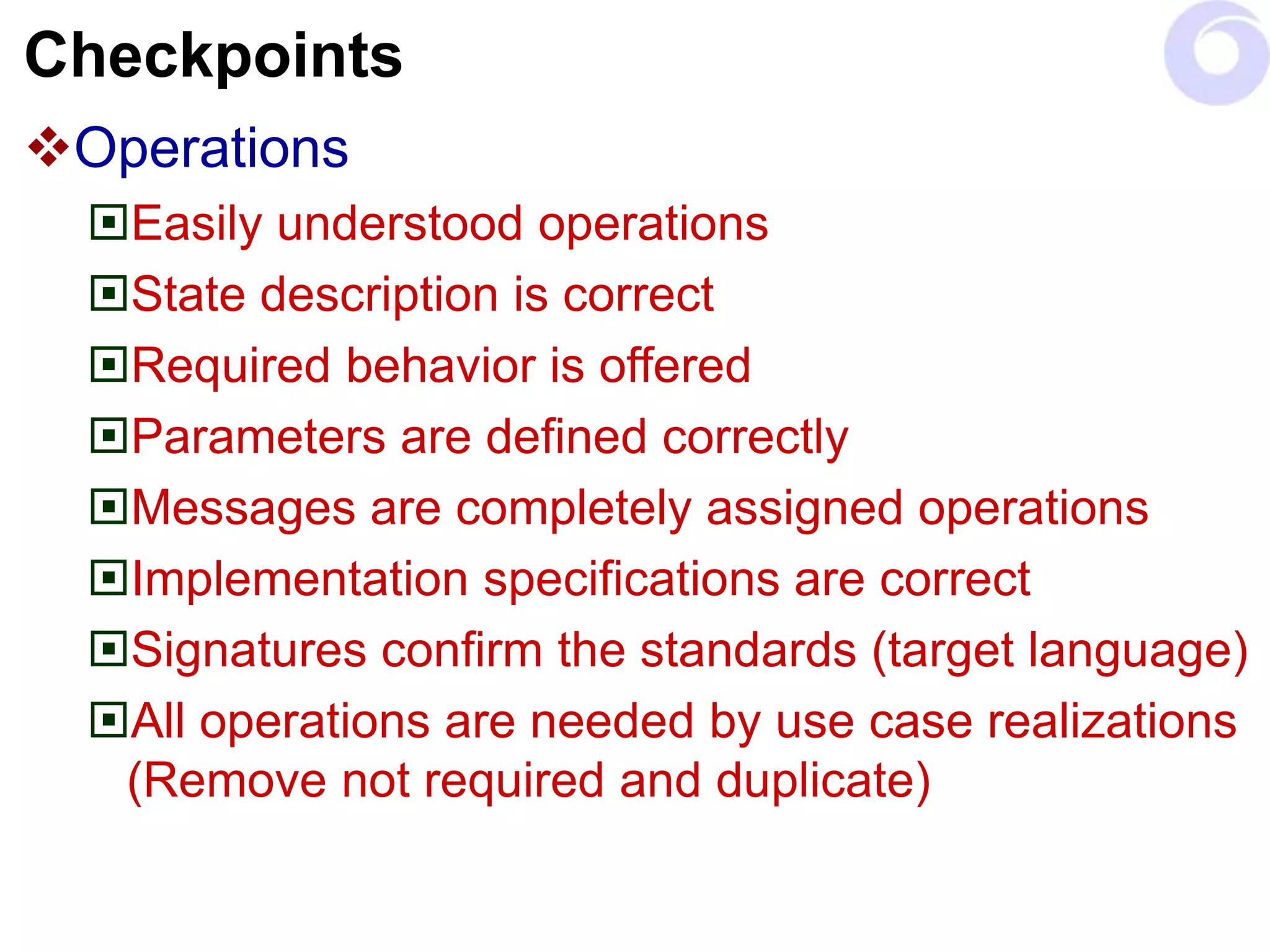

39. Checkpoints
Operations
Easily understood operations
State description is correct
Required behavior is offered
Parameters are defined correctly
Messages are completely assigned operations
Implementation specifications are correct
Signatures confirm the standards (target language)
All operations are needed by use case realizations
(Remove not required and duplicate)

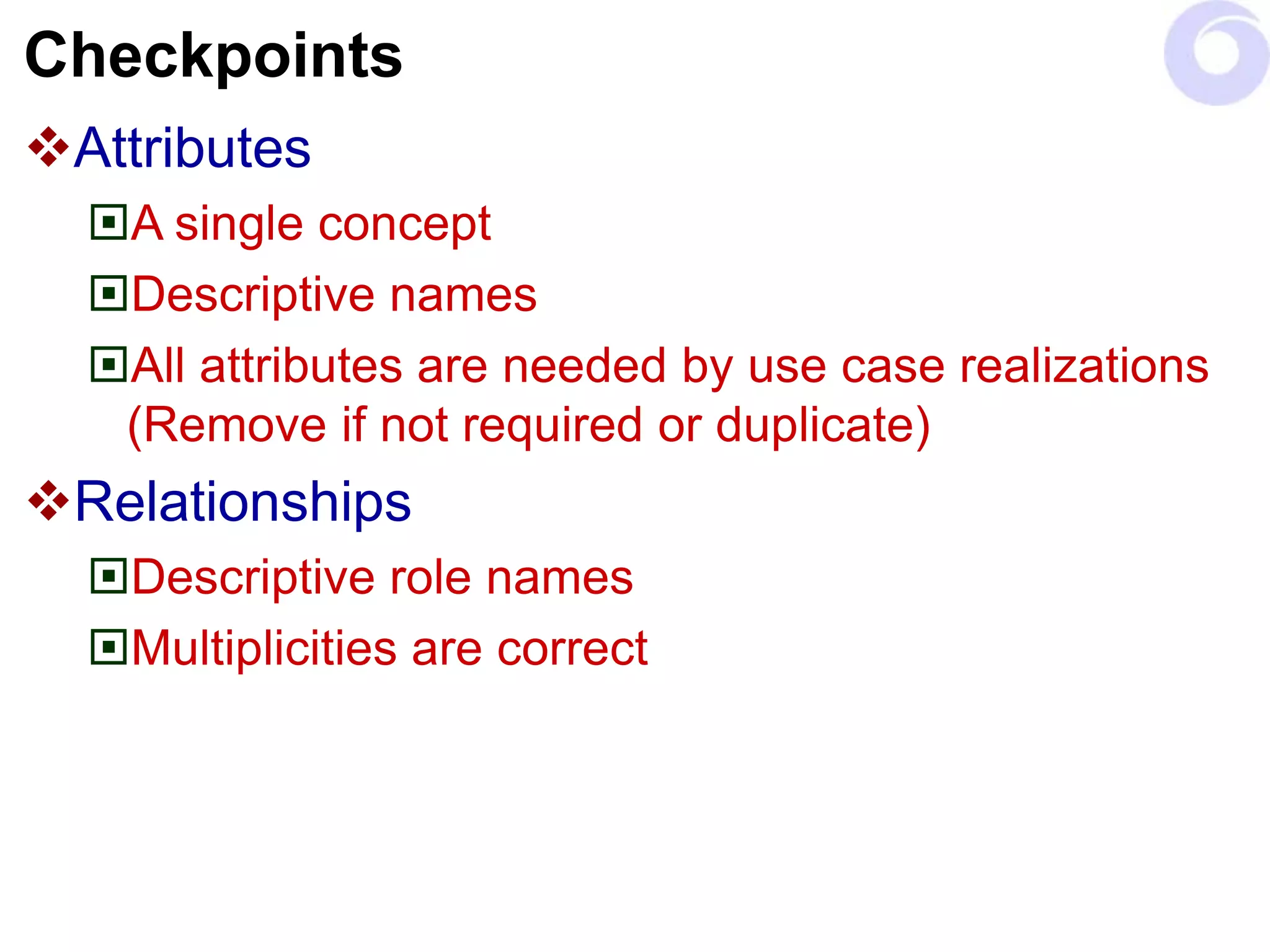

40. Checkpoints
Attributes
A single concept
Descriptive names
All attributes are needed by use case realizations
(Remove if not required or duplicate)
Relationships
Descriptive role names
Multiplicities are correct
