1. 1
Data Mining:
Concepts and Techniques
— Chapter 2 —

2. 2

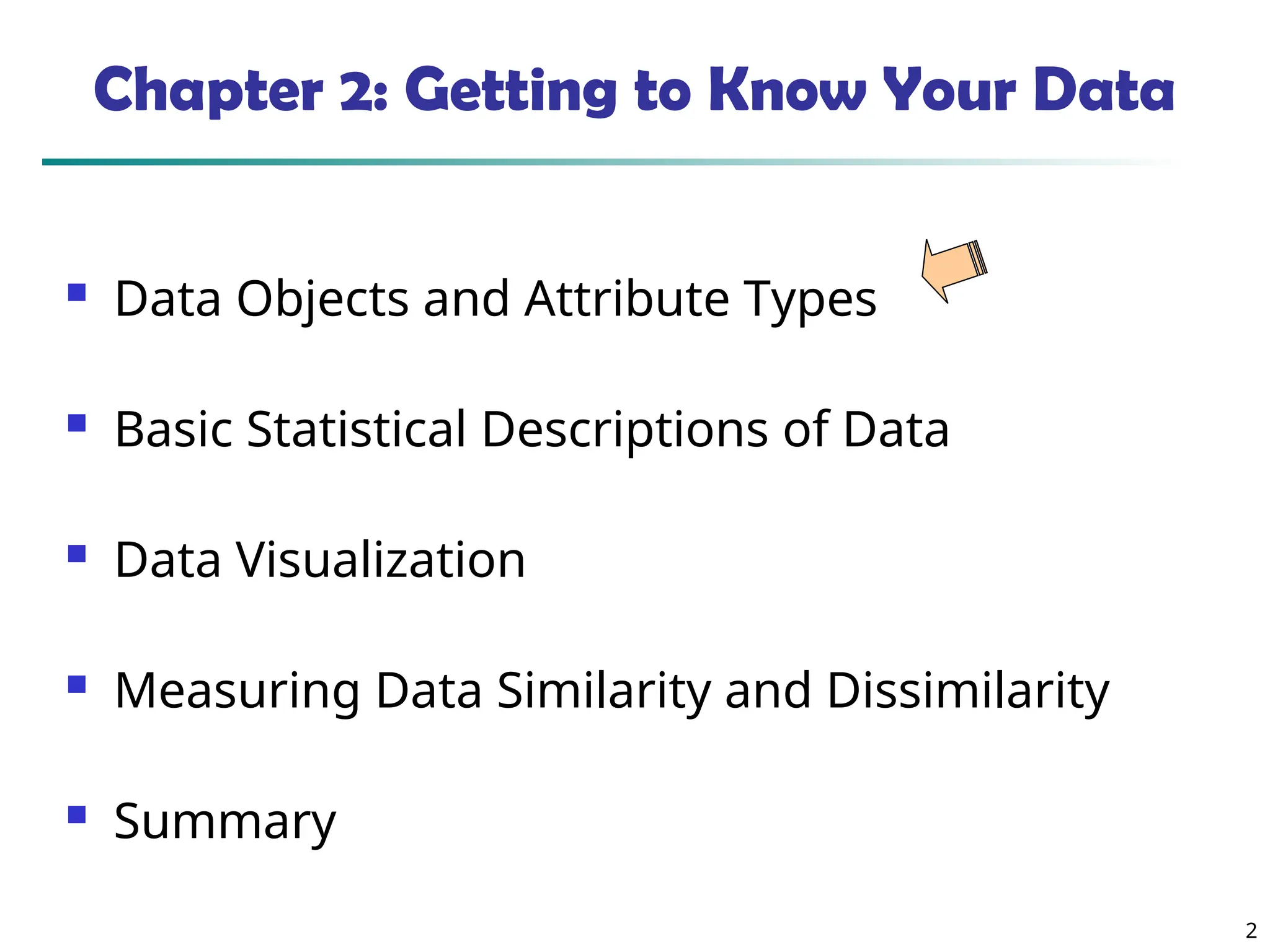

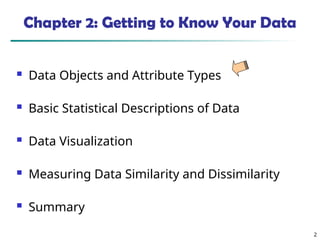

Chapter 2: Getting to Know Your Data
 Data Objects and Attribute Types
 Basic Statistical Descriptions of Data
 Data Visualization
 Measuring Data Similarity and Dissimilarity
 Summary

3. 3

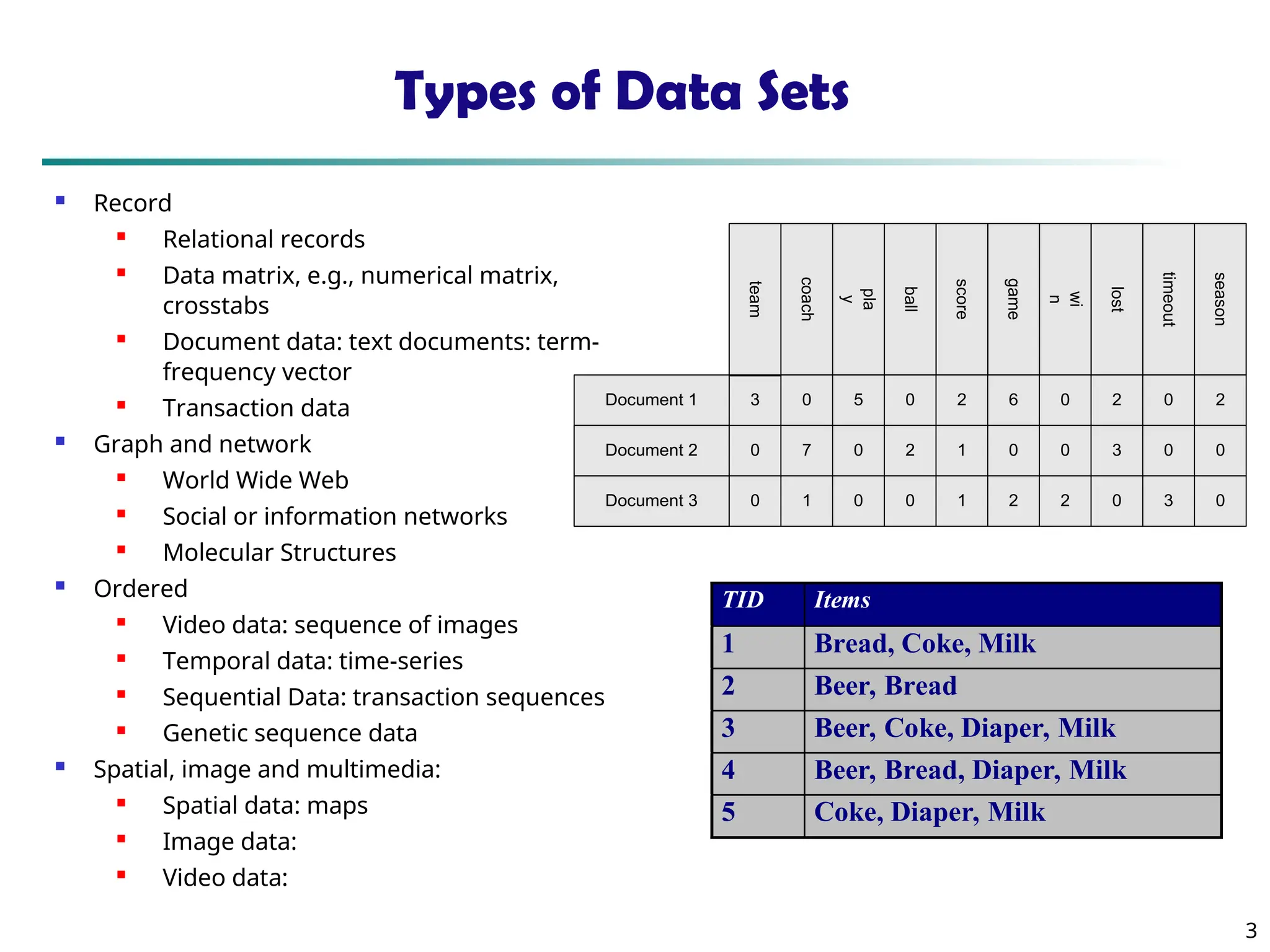

Types of Data Sets
 Record

Relational records
 Data matrix, e.g., numerical matrix,
crosstabs

Document data: text documents: term-
frequency vector
 Transaction data
 Graph and network
 World Wide Web

Social or information networks

Molecular Structures
 Ordered
 Video data: sequence of images
 Temporal data: time-series

Sequential Data: transaction sequences
 Genetic sequence data
 Spatial, image and multimedia:
 Spatial data: maps

Image data:
 Video data:
Document 1
season
timeout
lost
wi
n
game
score
ball
pla
y
coach
team
Document 2
Document 3
3 0 5 0 2 6 0 2 0 2
0
0
7 0 2 1 0 0 3 0 0
1 0 0 1 2 2 0 3 0
TID Items
1 Bread, Coke, Milk
2 Beer, Bread
3 Beer, Coke, Diaper, Milk
4 Beer, Bread, Diaper, Milk
5 Coke, Diaper, Milk

4. 4

5. 5

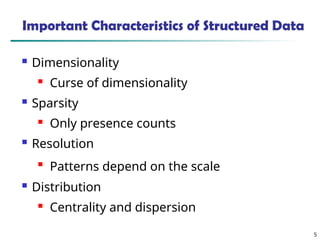

Important Characteristics of Structured Data
 Dimensionality
 Curse of dimensionality
 Sparsity
 Only presence counts
 Resolution

Patterns depend on the scale
 Distribution
 Centrality and dispersion

6. 6

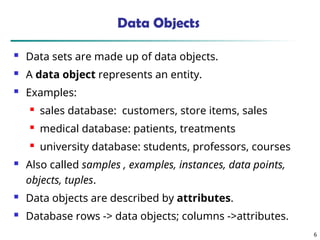

Data Objects
 Data sets are made up of data objects.
 A data object represents an entity.
 Examples:
 sales database: customers, store items, sales
 medical database: patients, treatments
 university database: students, professors, courses
 Also called samples , examples, instances, data points,
objects, tuples.
 Data objects are described by attributes.
 Database rows -> data objects; columns ->attributes.

7. 7

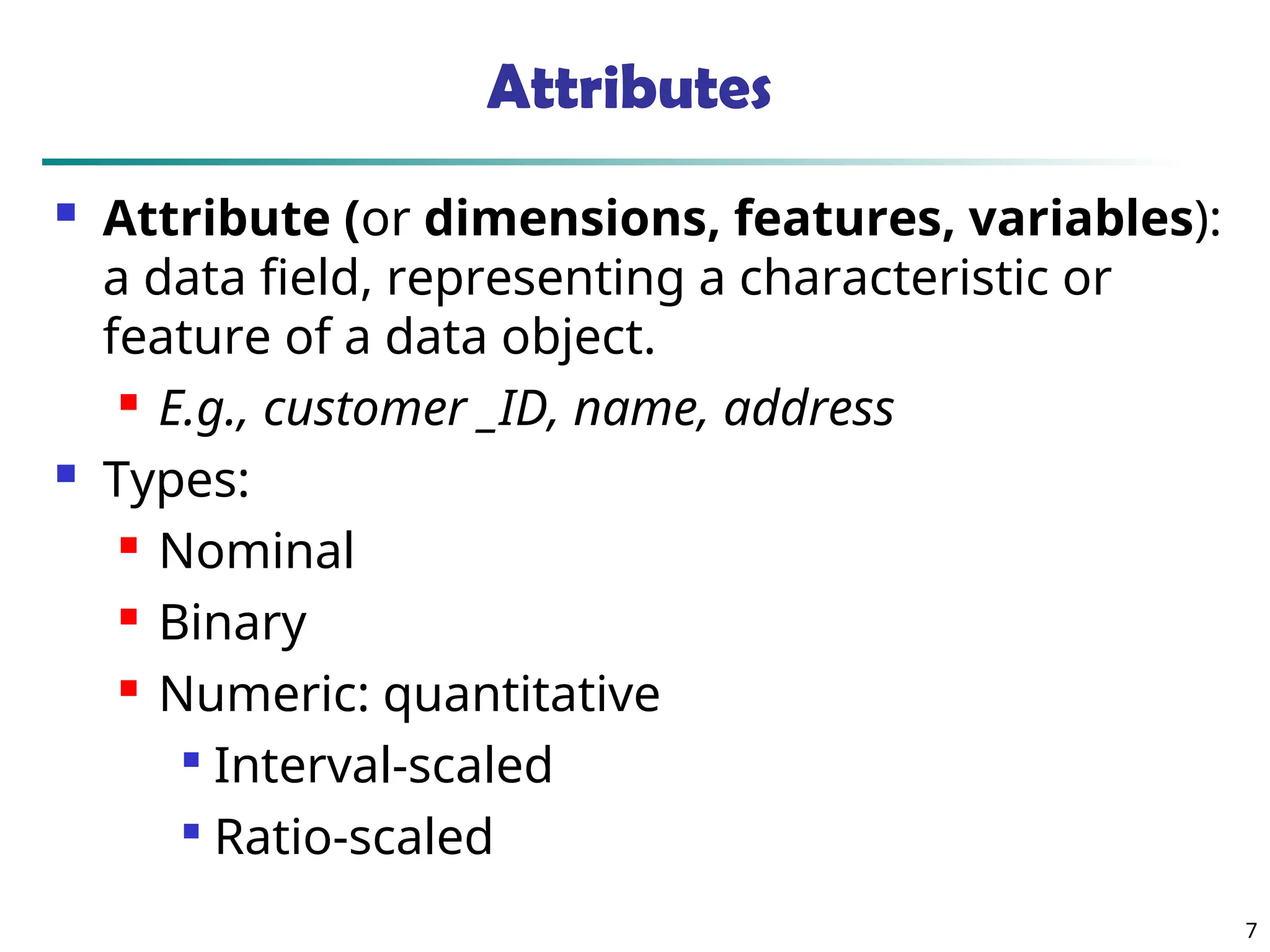

Attributes
 Attribute (or dimensions, features, variables):
a data field, representing a characteristic or
feature of a data object.
 E.g., customer _ID, name, address
 Types:
 Nominal
 Binary
 Numeric: quantitative

Interval-scaled

Ratio-scaled

8. 8

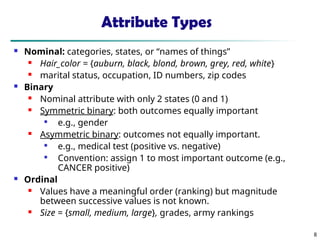

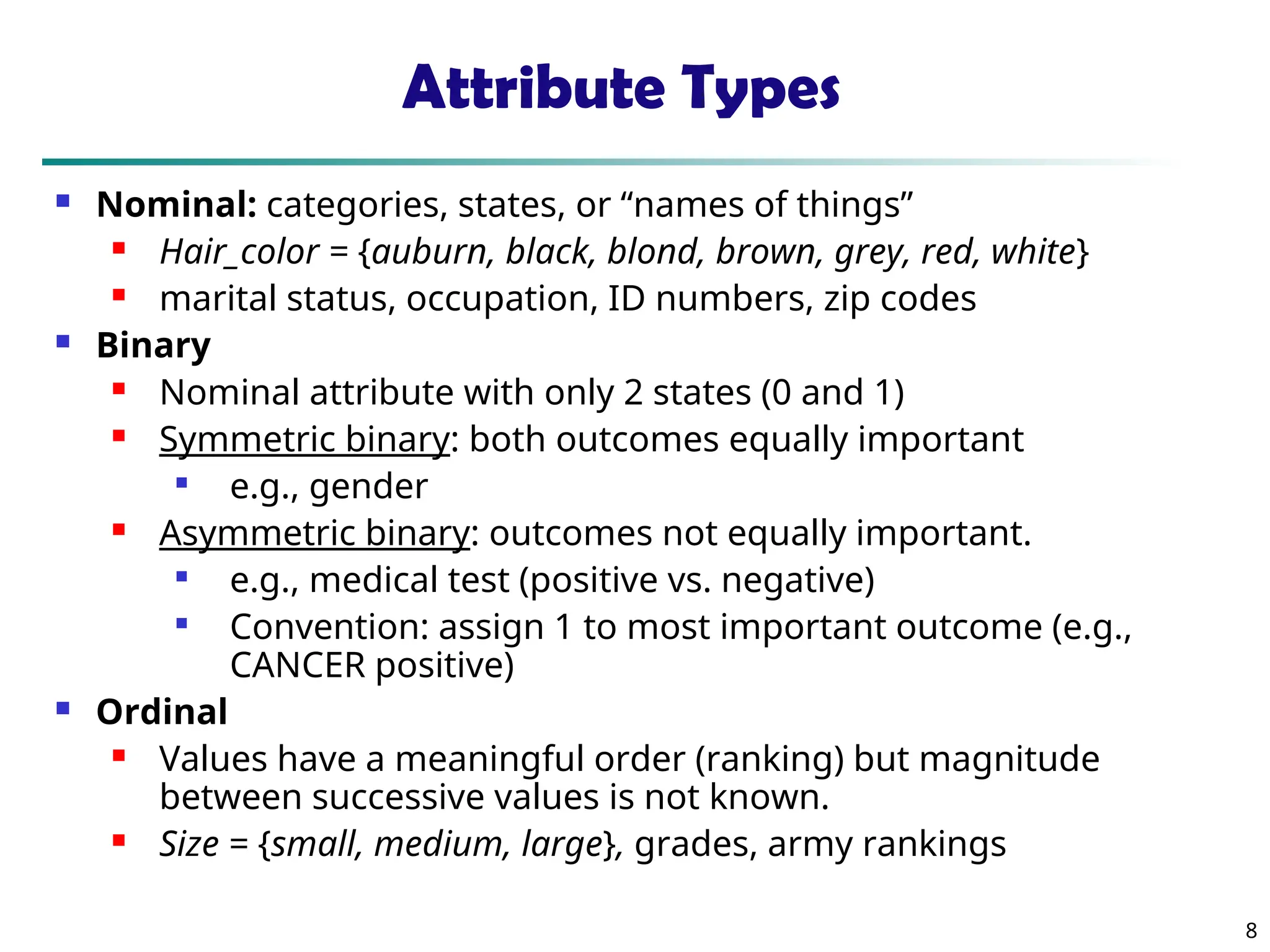

Attribute Types
 Nominal: categories, states, or “names of things”
 Hair_color = {auburn, black, blond, brown, grey, red, white}
 marital status, occupation, ID numbers, zip codes
 Binary
 Nominal attribute with only 2 states (0 and 1)
 Symmetric binary: both outcomes equally important

e.g., gender
 Asymmetric binary: outcomes not equally important.

e.g., medical test (positive vs. negative)

Convention: assign 1 to most important outcome (e.g.,
CANCER positive)
 Ordinal
 Values have a meaningful order (ranking) but magnitude
between successive values is not known.
 Size = {small, medium, large}, grades, army rankings

9. 9

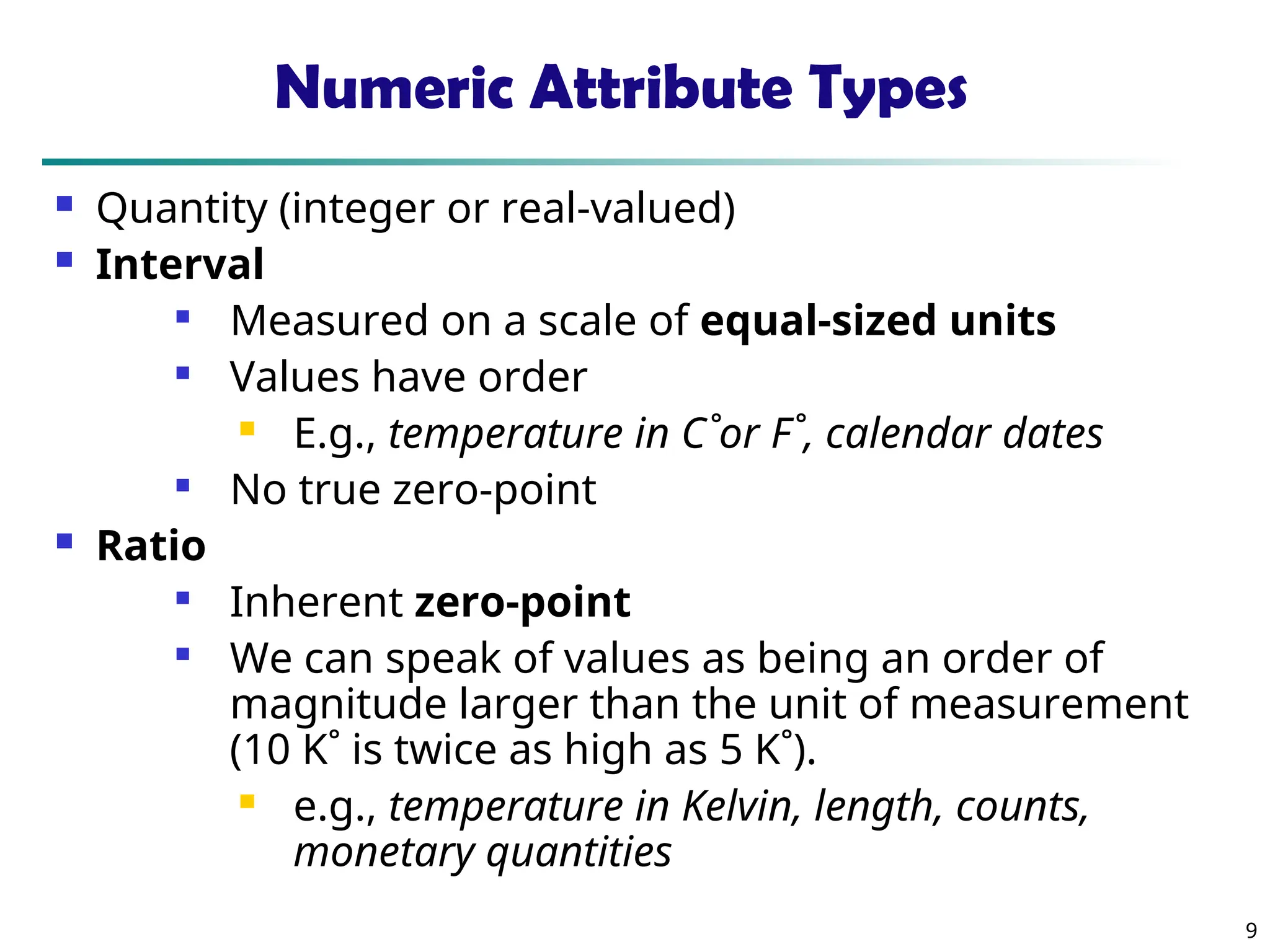

Numeric Attribute Types
 Quantity (integer or real-valued)
 Interval

Measured on a scale of equal-sized units

Values have order
 E.g., temperature in C˚or F˚, calendar dates

No true zero-point
 Ratio

Inherent zero-point

We can speak of values as being an order of
magnitude larger than the unit of measurement
(10 K˚ is twice as high as 5 K˚).
 e.g., temperature in Kelvin, length, counts,
monetary quantities

10. 10

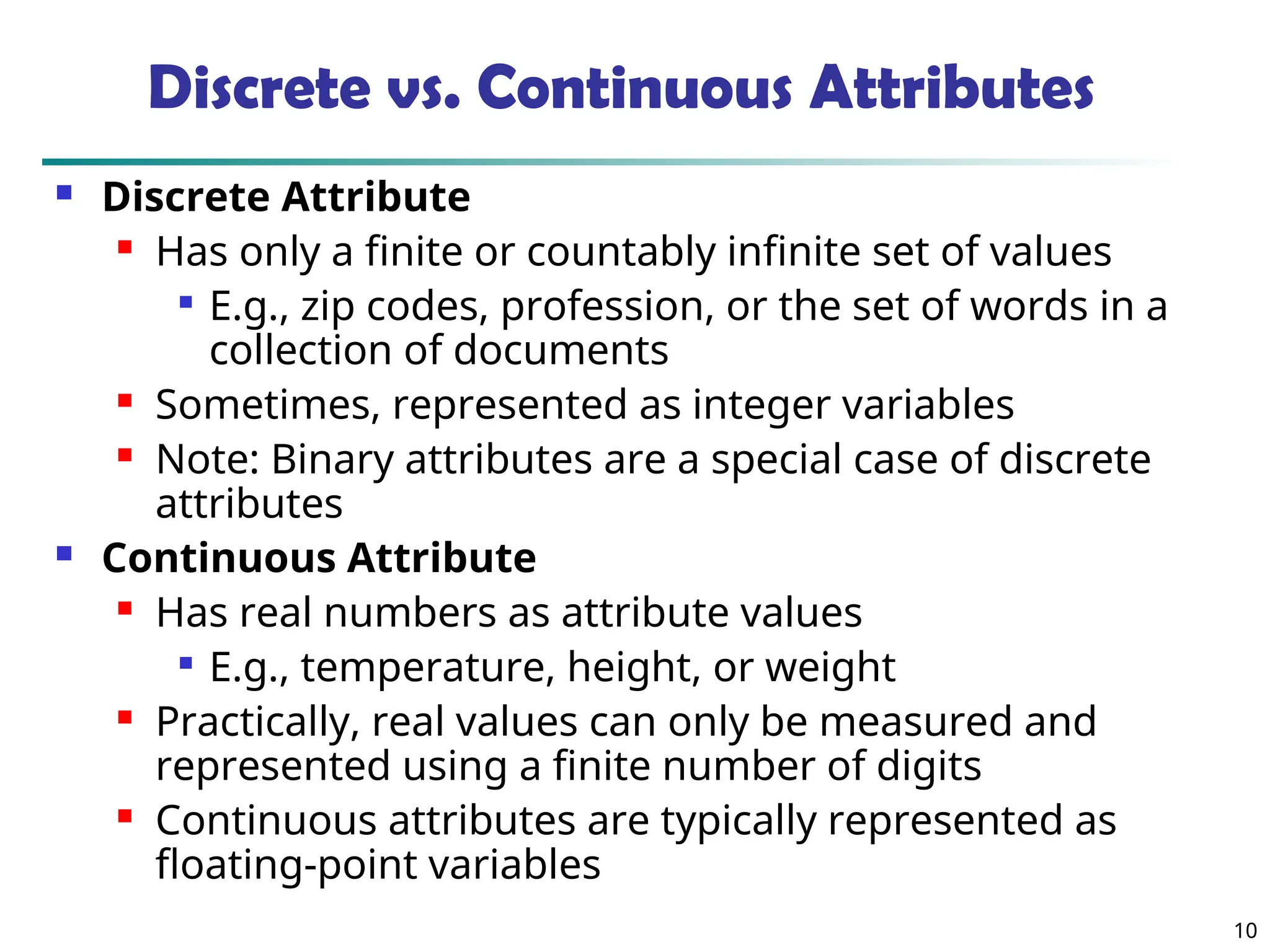

Discrete vs. Continuous Attributes
 Discrete Attribute
 Has only a finite or countably infinite set of values

E.g., zip codes, profession, or the set of words in a
collection of documents
 Sometimes, represented as integer variables
 Note: Binary attributes are a special case of discrete
attributes
 Continuous Attribute
 Has real numbers as attribute values

E.g., temperature, height, or weight
 Practically, real values can only be measured and
represented using a finite number of digits
 Continuous attributes are typically represented as
floating-point variables

11. 11

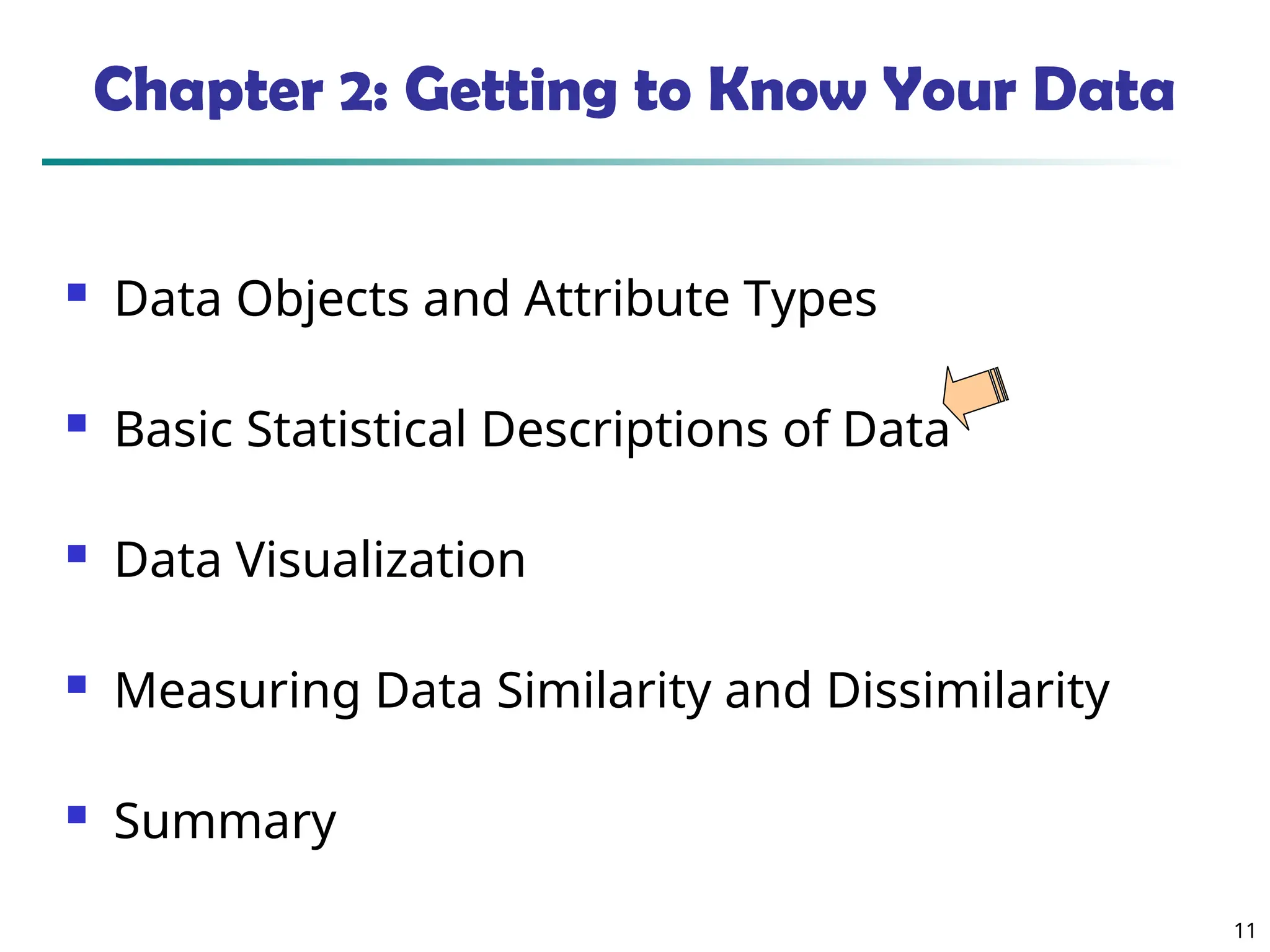

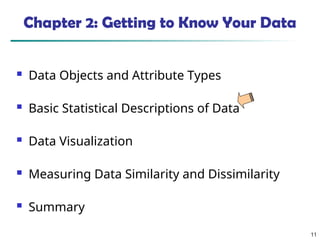

Chapter 2: Getting to Know Your Data
 Data Objects and Attribute Types
 Basic Statistical Descriptions of Data
 Data Visualization
 Measuring Data Similarity and Dissimilarity
 Summary

12. 12

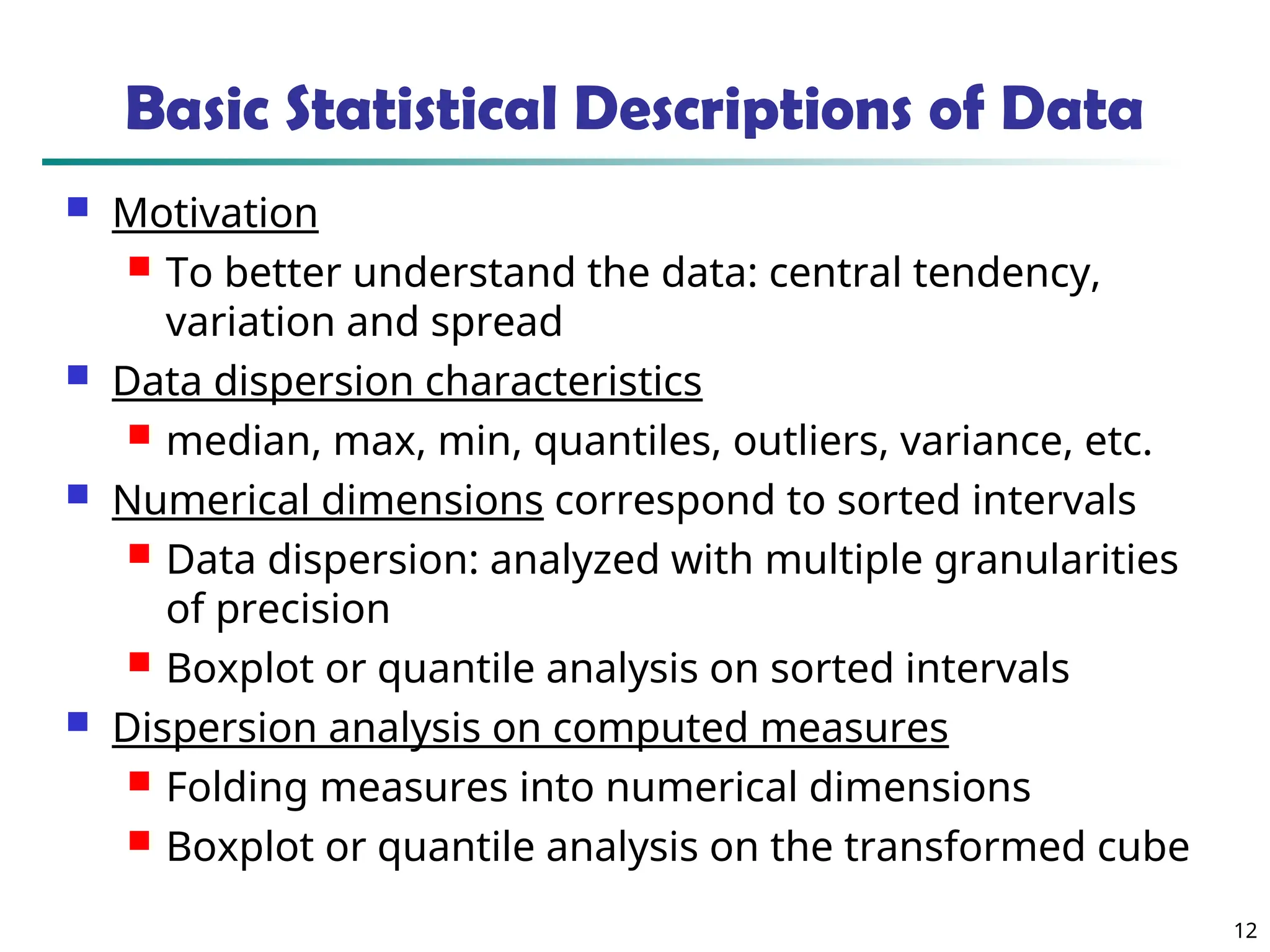

Basic Statistical Descriptions of Data
 Motivation
 To better understand the data: central tendency,
variation and spread
 Data dispersion characteristics
 median, max, min, quantiles, outliers, variance, etc.
 Numerical dimensions correspond to sorted intervals
 Data dispersion: analyzed with multiple granularities
of precision
 Boxplot or quantile analysis on sorted intervals
 Dispersion analysis on computed measures
 Folding measures into numerical dimensions
 Boxplot or quantile analysis on the transformed cube

13. 13

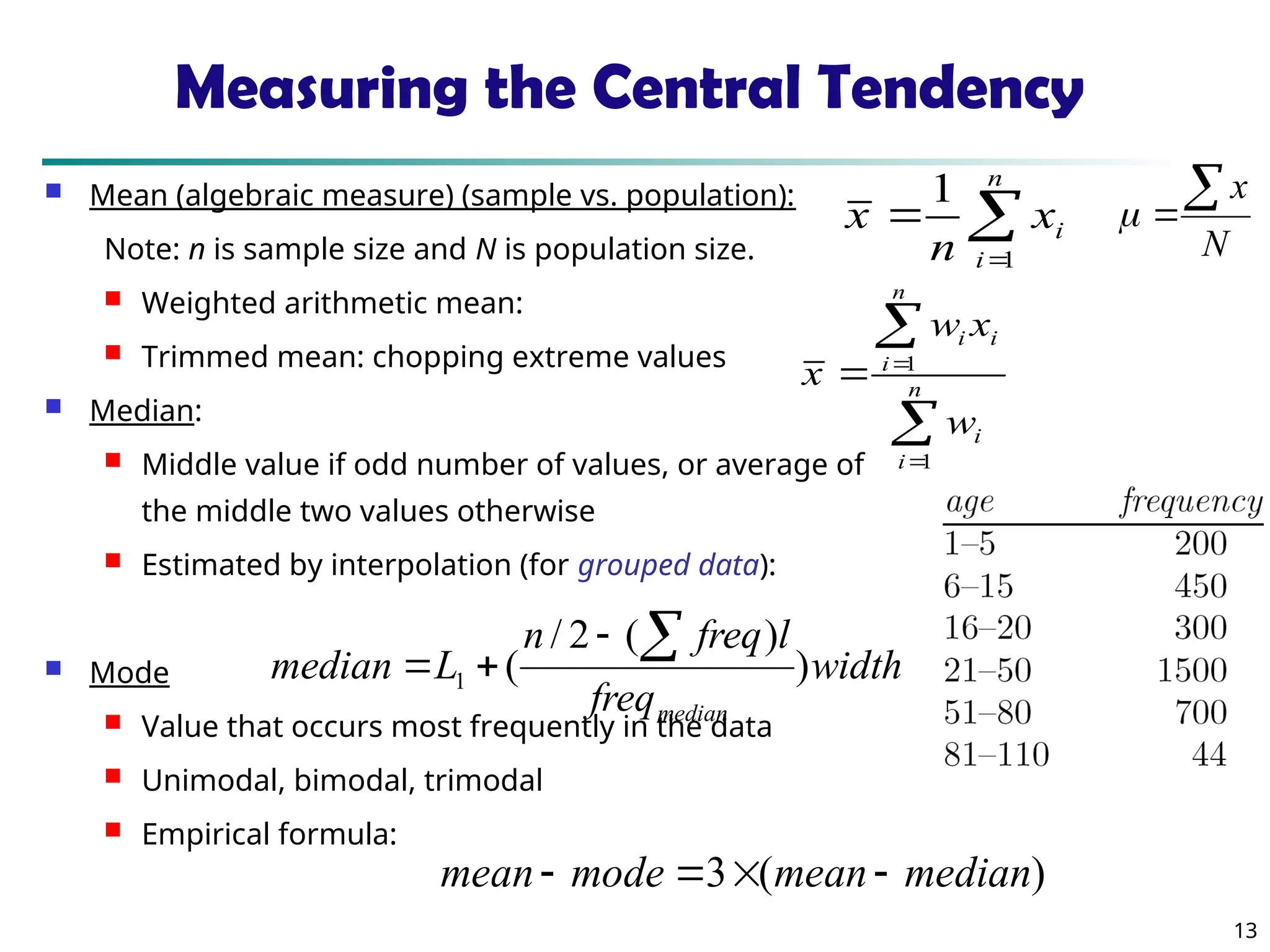

Measuring the Central Tendency
 Mean (algebraic measure) (sample vs. population):
Note: n is sample size and N is population size.
 Weighted arithmetic mean:
 Trimmed mean: chopping extreme values
 Median:
 Middle value if odd number of values, or average of
the middle two values otherwise
 Estimated by interpolation (for grouped data):
 Mode
 Value that occurs most frequently in the data
 Unimodal, bimodal, trimodal
 Empirical formula:



n
i
i
x
n
x
1
1




 n
i
i
n
i
i
i
w
x
w
x
1
1
width
freq
l
freq
n
L
median
median
)
)
(
2
/
(
1




)
(
3 median
mean
mode
mean 



N
x




14. November 8, 2024 Data Mining: Concepts and Techniques 14

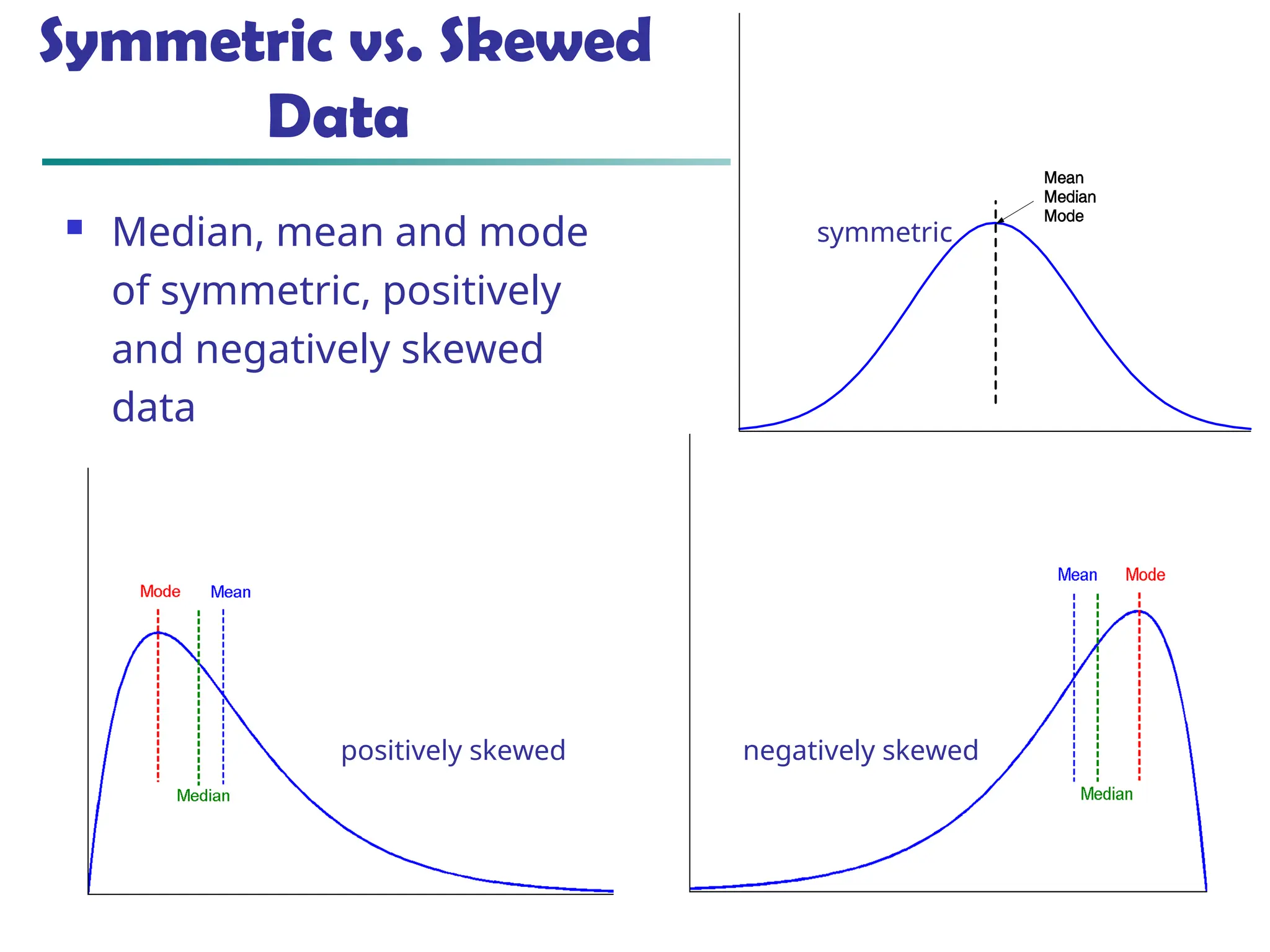

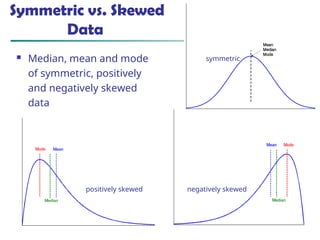

Symmetric vs. Skewed
Data
 Median, mean and mode
of symmetric, positively
and negatively skewed
data
positively skewed negatively skewed
symmetric

15. 15

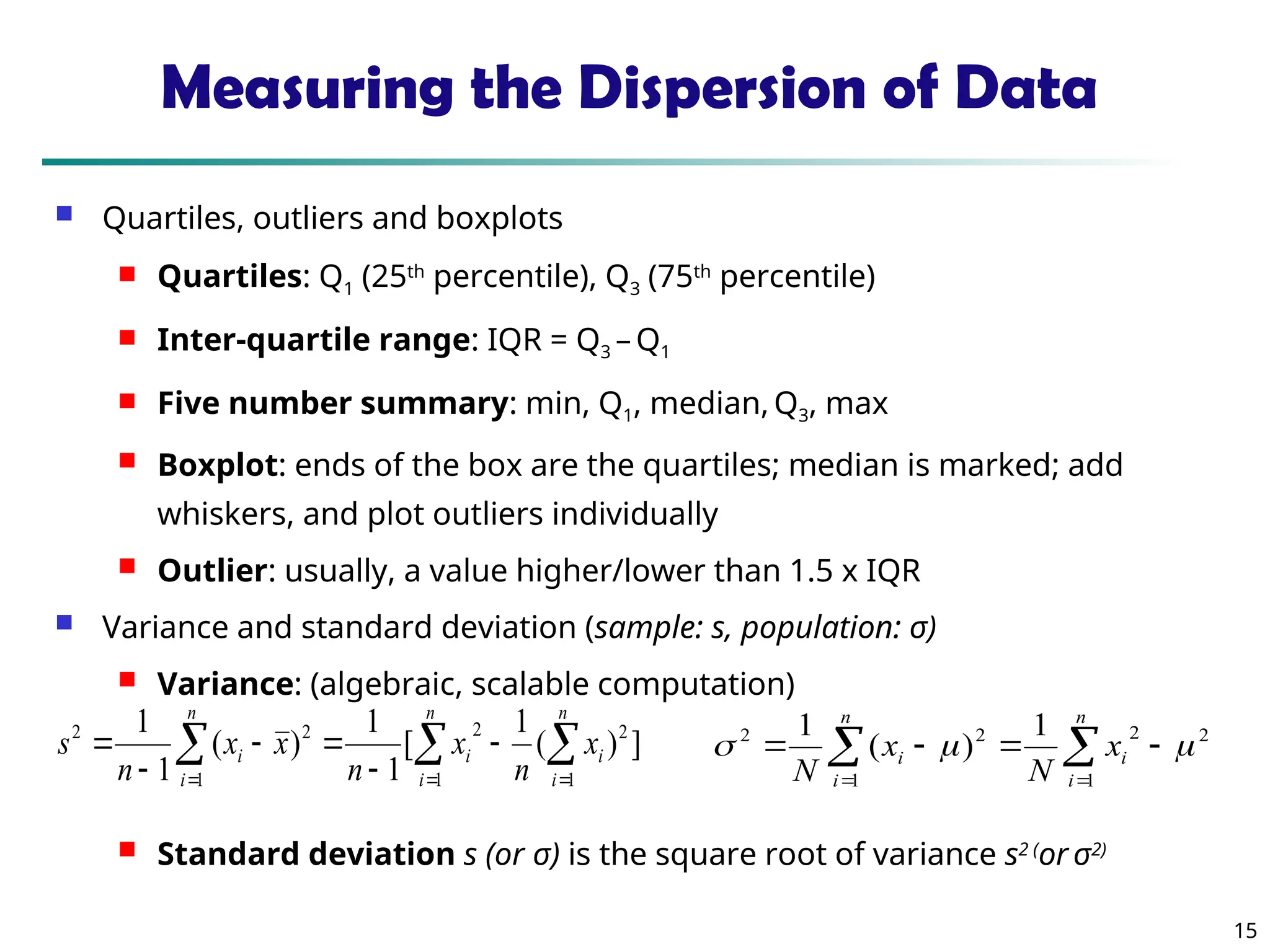

Measuring the Dispersion of Data
 Quartiles, outliers and boxplots
 Quartiles: Q1 (25th
percentile), Q3 (75th
percentile)
 Inter-quartile range: IQR = Q3 – Q1
 Five number summary: min, Q1, median, Q3, max
 Boxplot: ends of the box are the quartiles; median is marked; add
whiskers, and plot outliers individually
 Outlier: usually, a value higher/lower than 1.5 x IQR
 Variance and standard deviation (sample: s, population: σ)
 Variance: (algebraic, scalable computation)
 Standard deviation s (or σ) is the square root of variance s2 (
or σ2)
 
  







n
i
n
i
i
i
n
i
i x
n
x
n
x
x
n
s
1 1
2
2
1
2
2
]
)
(
1
[
1
1
)
(
1
1

 





n
i
i
n
i
i x
N
x
N 1
2
2
1
2
2 1
)
(
1




16. 16

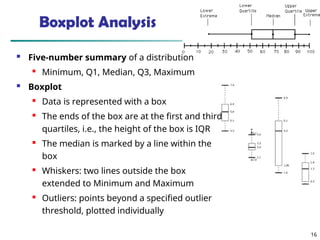

Boxplot Analysis
 Five-number summary of a distribution

Minimum, Q1, Median, Q3, Maximum
 Boxplot
 Data is represented with a box

The ends of the box are at the first and third
quartiles, i.e., the height of the box is IQR

The median is marked by a line within the
box
 Whiskers: two lines outside the box
extended to Minimum and Maximum

Outliers: points beyond a specified outlier
threshold, plotted individually

17. 17

18. 18

19. 19

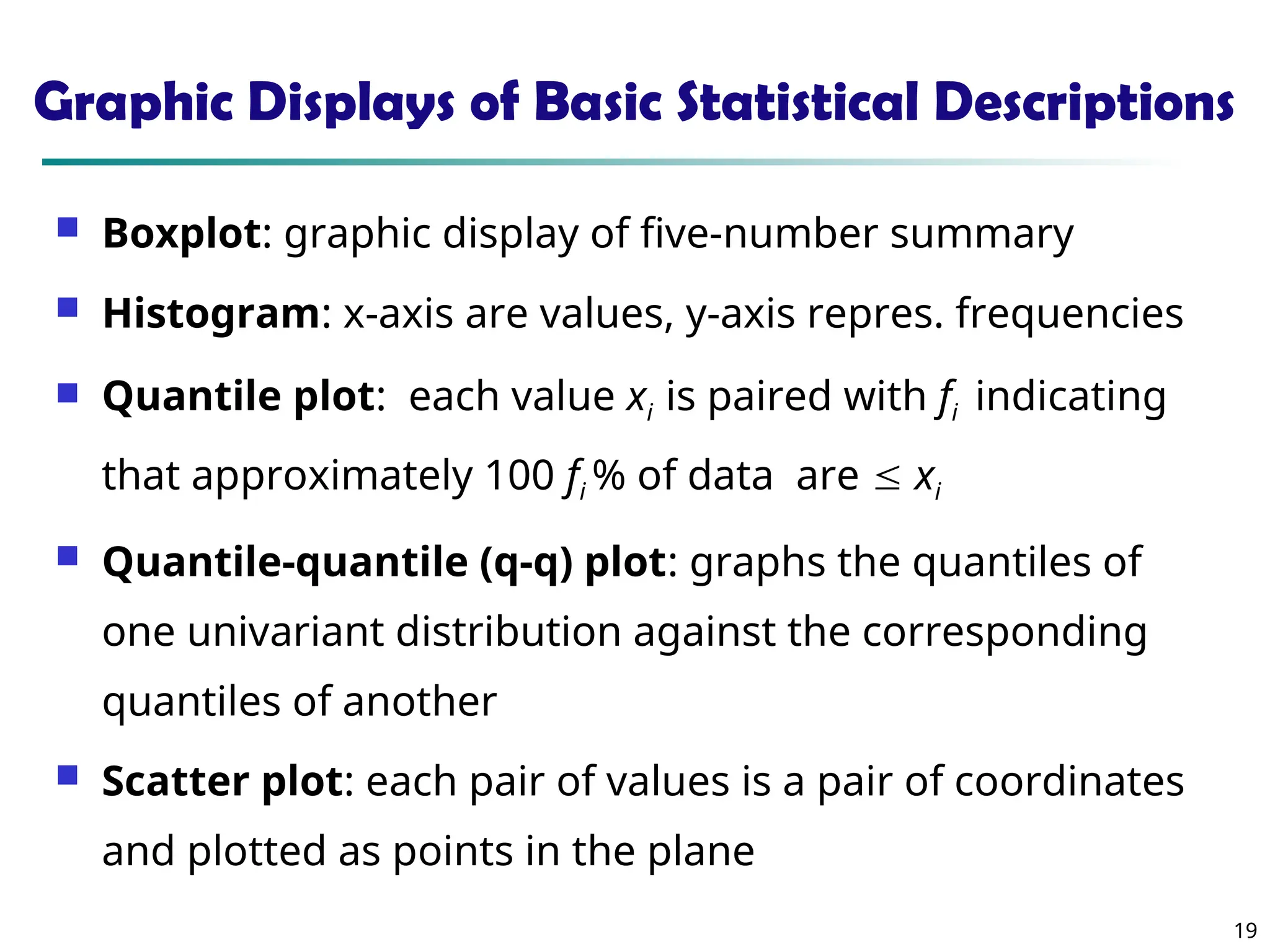

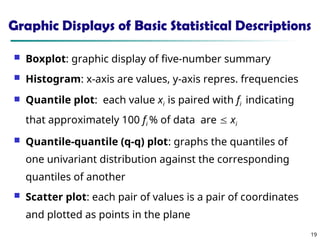

Graphic Displays of Basic Statistical Descriptions
 Boxplot: graphic display of five-number summary
 Histogram: x-axis are values, y-axis repres. frequencies
 Quantile plot: each value xi is paired with fi indicating
that approximately 100 fi % of data are  xi
 Quantile-quantile (q-q) plot: graphs the quantiles of
one univariant distribution against the corresponding
quantiles of another
 Scatter plot: each pair of values is a pair of coordinates
and plotted as points in the plane

20. 20

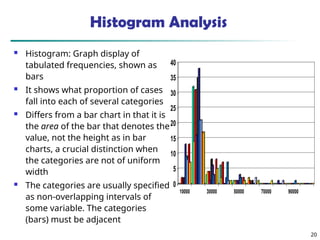

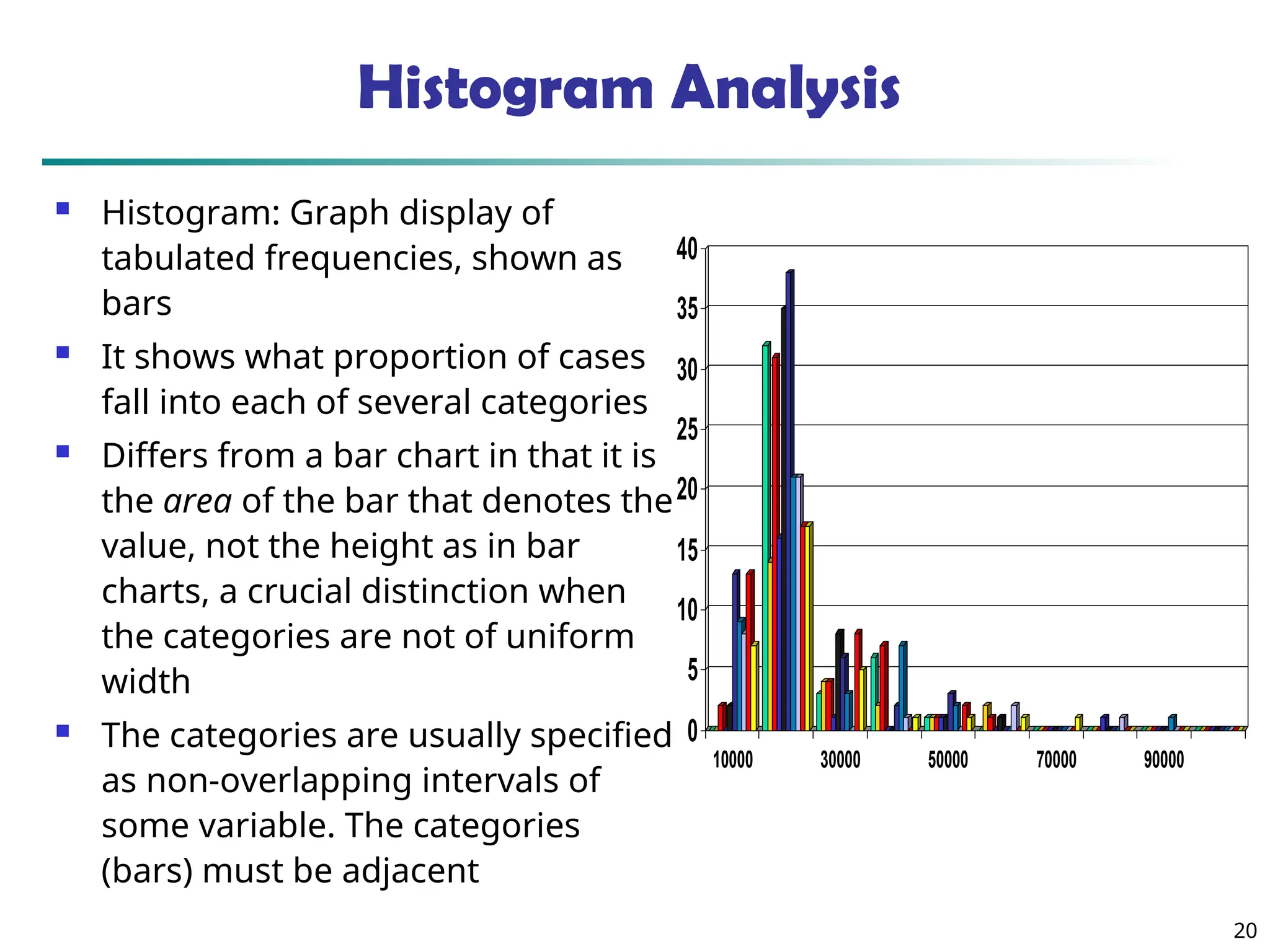

Histogram Analysis
 Histogram: Graph display of
tabulated frequencies, shown as
bars
 It shows what proportion of cases
fall into each of several categories
 Differs from a bar chart in that it is
the area of the bar that denotes the
value, not the height as in bar
charts, a crucial distinction when
the categories are not of uniform
width
 The categories are usually specified
as non-overlapping intervals of
some variable. The categories
(bars) must be adjacent
0
5
10
15
20
25
30
35
40
10000 30000 50000 70000 90000

21. 21

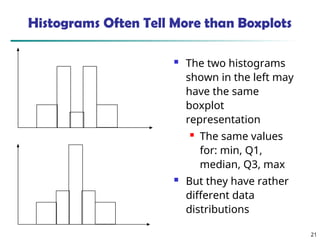

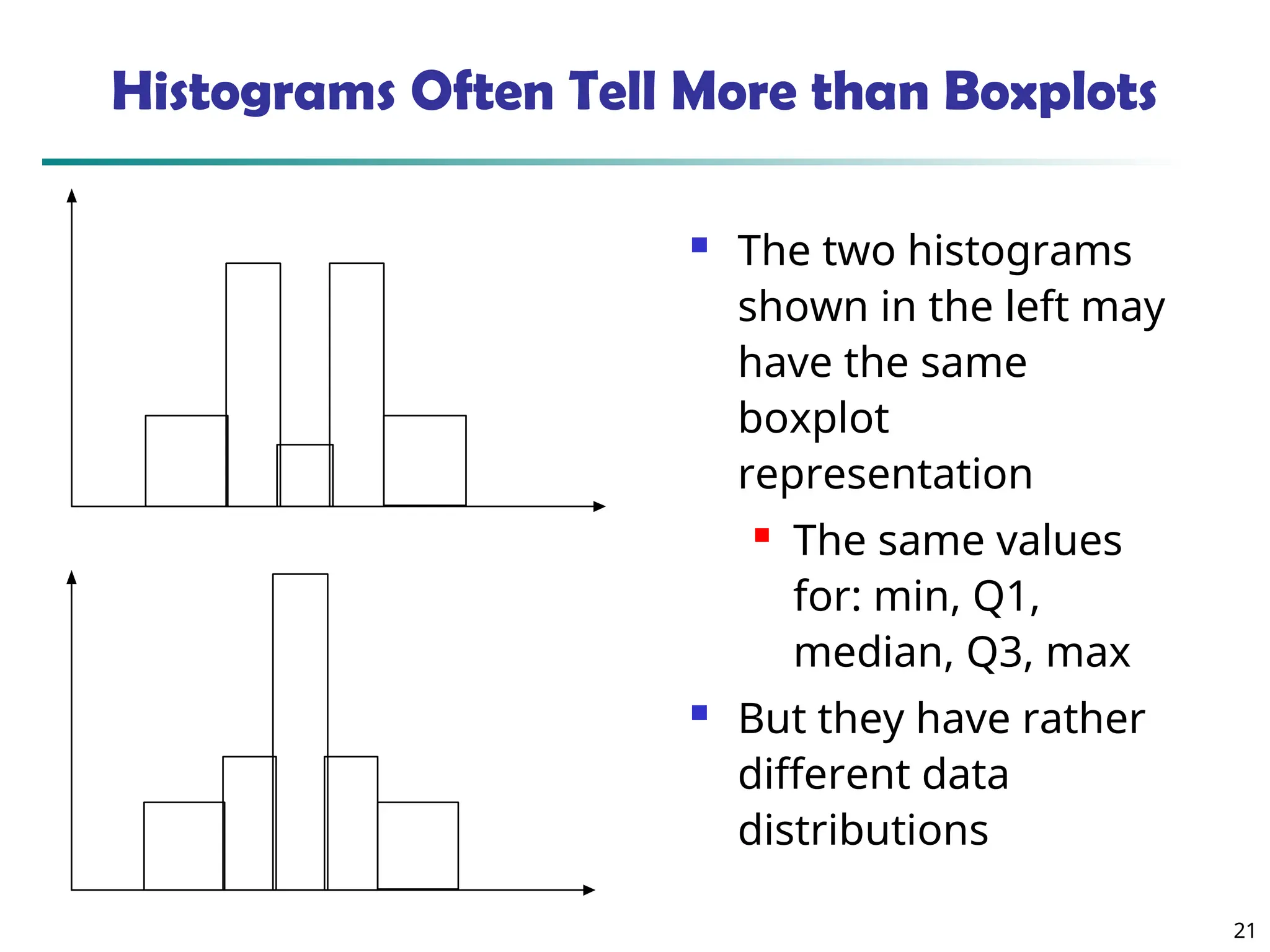

Histograms Often Tell More than Boxplots
 The two histograms
shown in the left may
have the same
boxplot
representation
 The same values
for: min, Q1,
median, Q3, max
 But they have rather
different data
distributions

22. 22

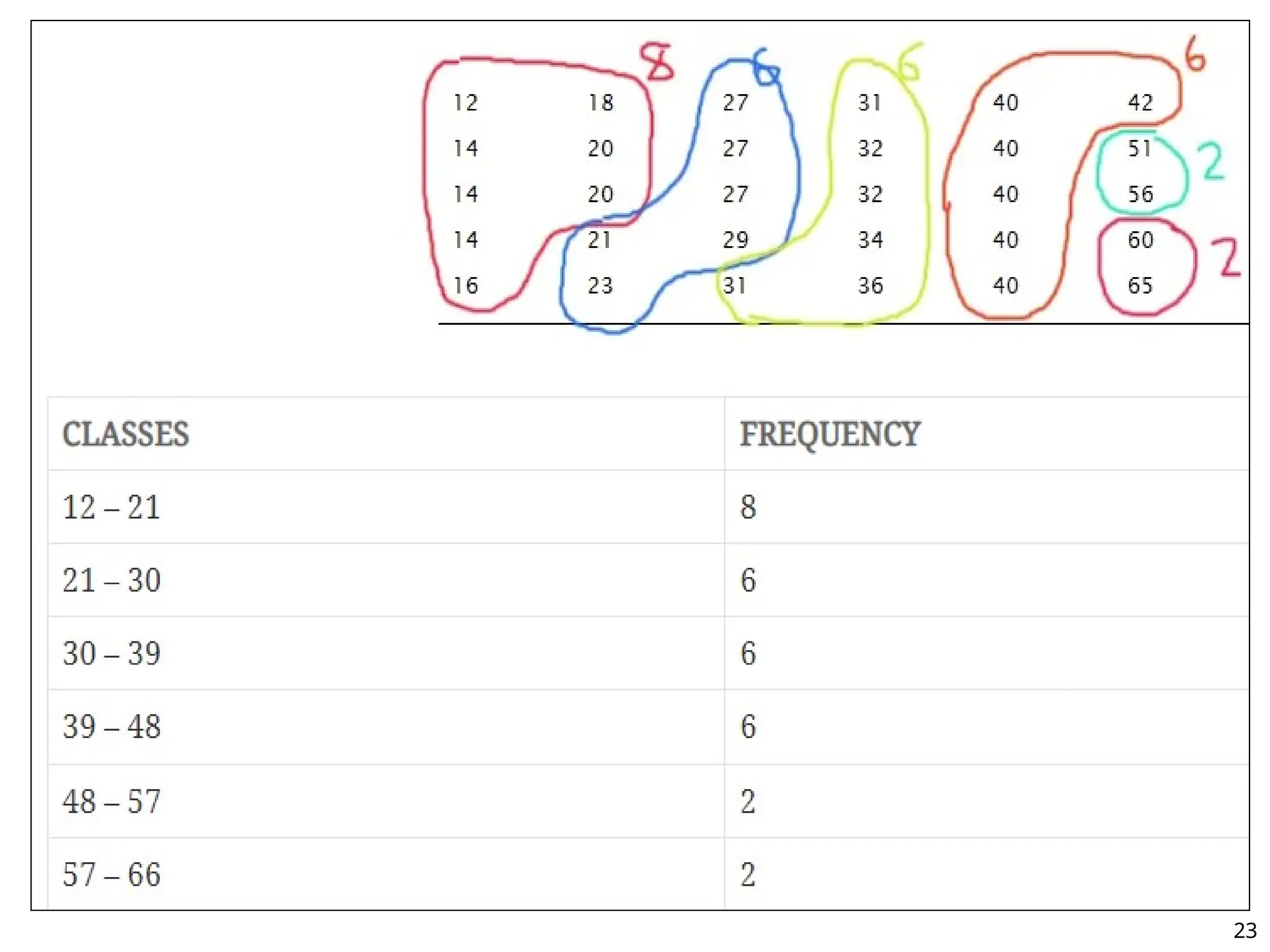

23. 23

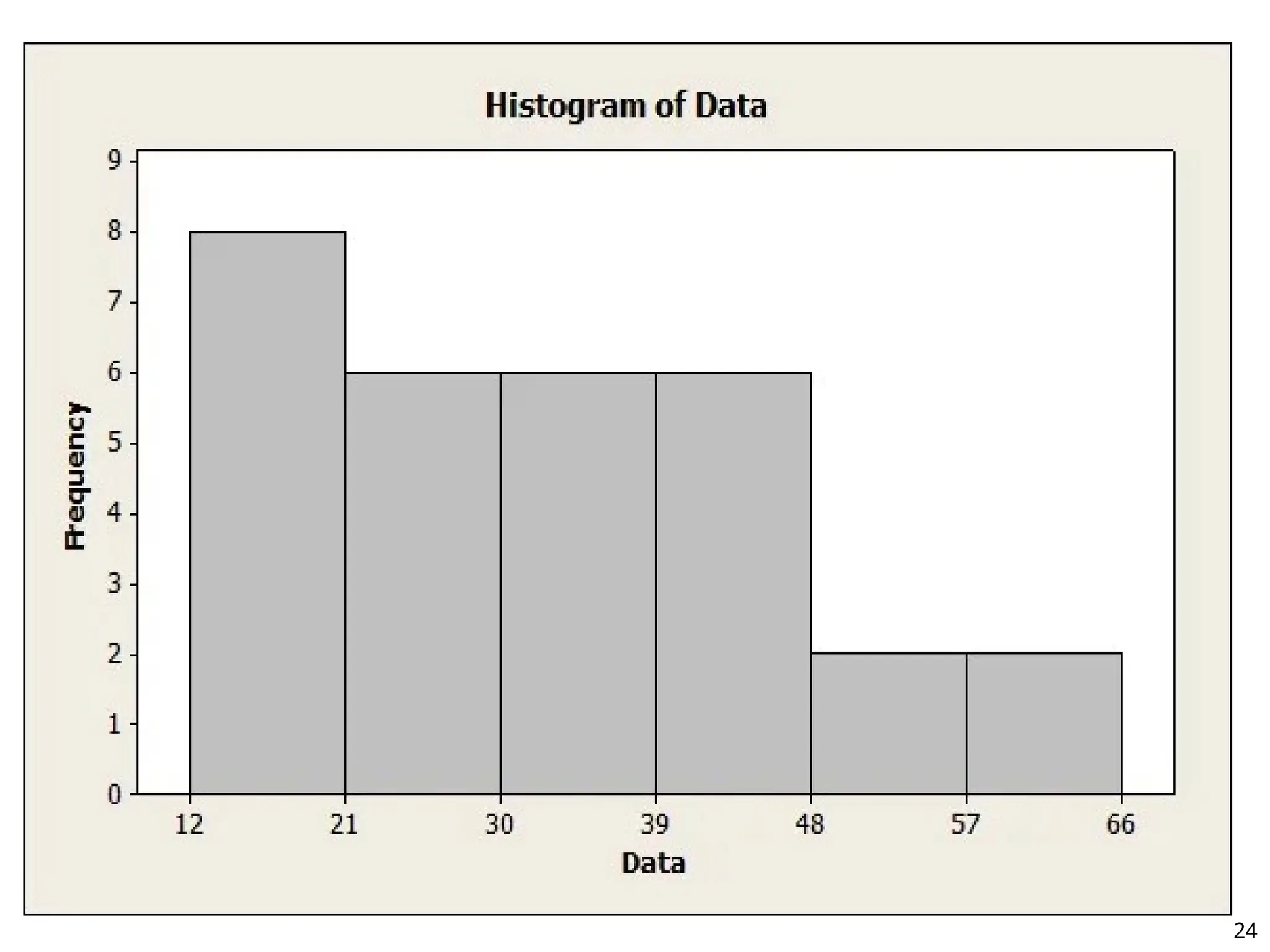

24. 24

25. 25

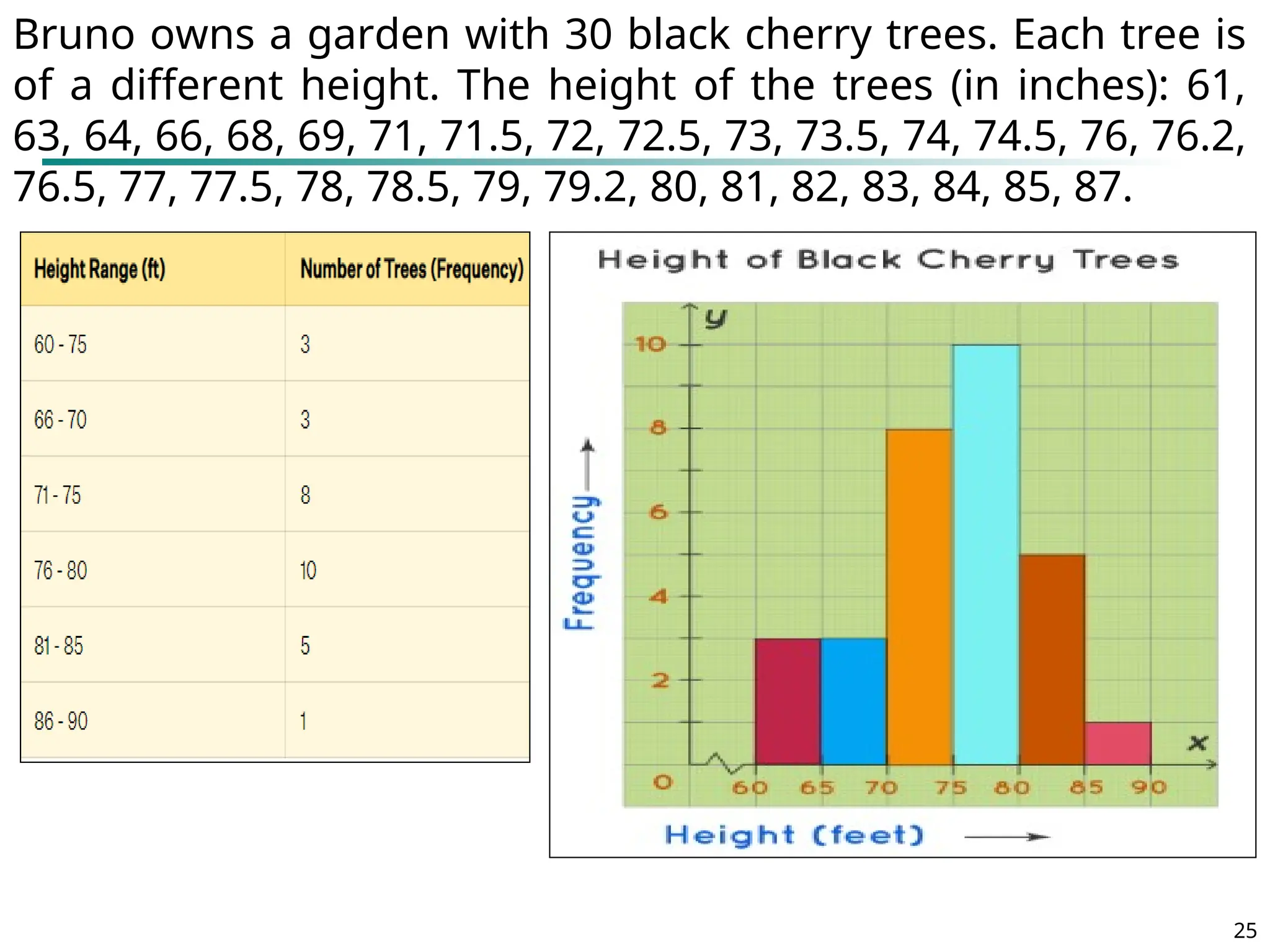

Bruno owns a garden with 30 black cherry trees. Each tree is
of a different height. The height of the trees (in inches): 61,
63, 64, 66, 68, 69, 71, 71.5, 72, 72.5, 73, 73.5, 74, 74.5, 76, 76.2,
76.5, 77, 77.5, 78, 78.5, 79, 79.2, 80, 81, 82, 83, 84, 85, 87.

26. Standard Deviation and Variance
 Suppose we have the following values for
salary (in thousands of dollars), shown in
increasing order:
30, 36, 47, 50, 52, 52, 56, 60, 63, 70, 70, 110.
26

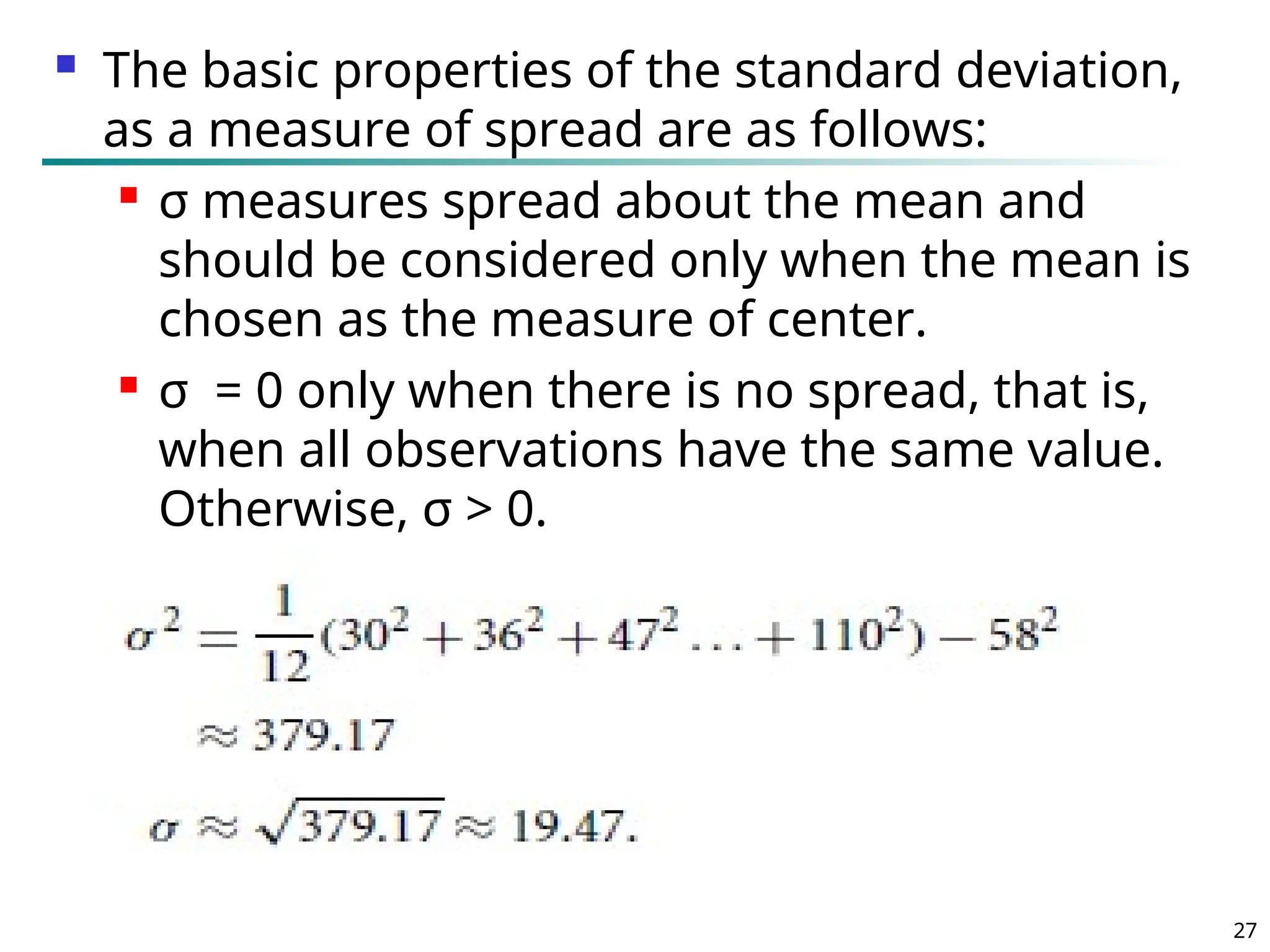

27.  The basic properties of the standard deviation,
as a measure of spread are as follows:
 σ measures spread about the mean and
should be considered only when the mean is
chosen as the measure of center.
 σ = 0 only when there is no spread, that is,
when all observations have the same value.
Otherwise, σ > 0.
27

28. Data Mining: Concepts and Techniques 28

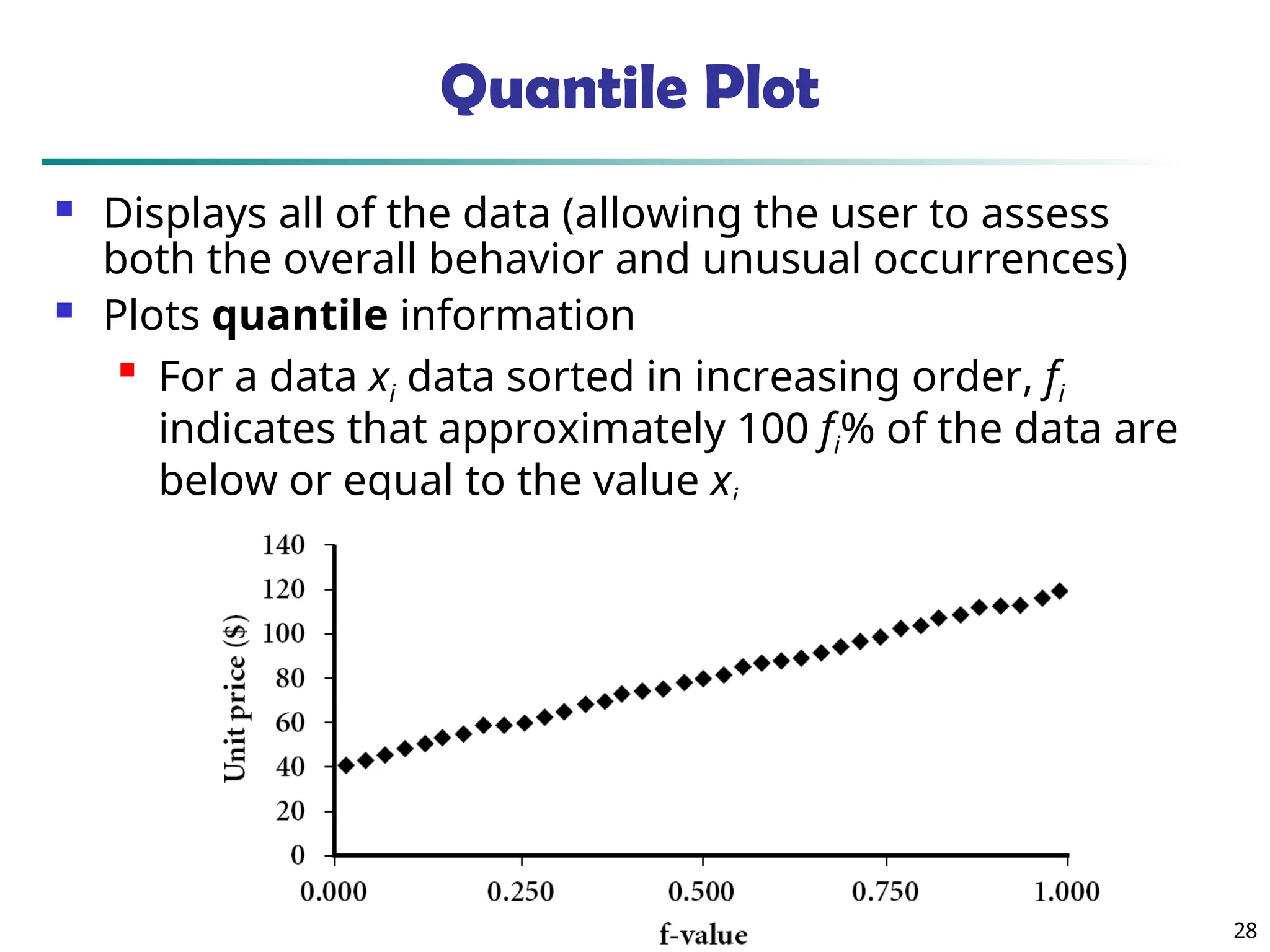

Quantile Plot
 Displays all of the data (allowing the user to assess
both the overall behavior and unusual occurrences)
 Plots quantile information

For a data xi data sorted in increasing order, fi
indicates that approximately 100 fi% of the data are
below or equal to the value xi

29. 29

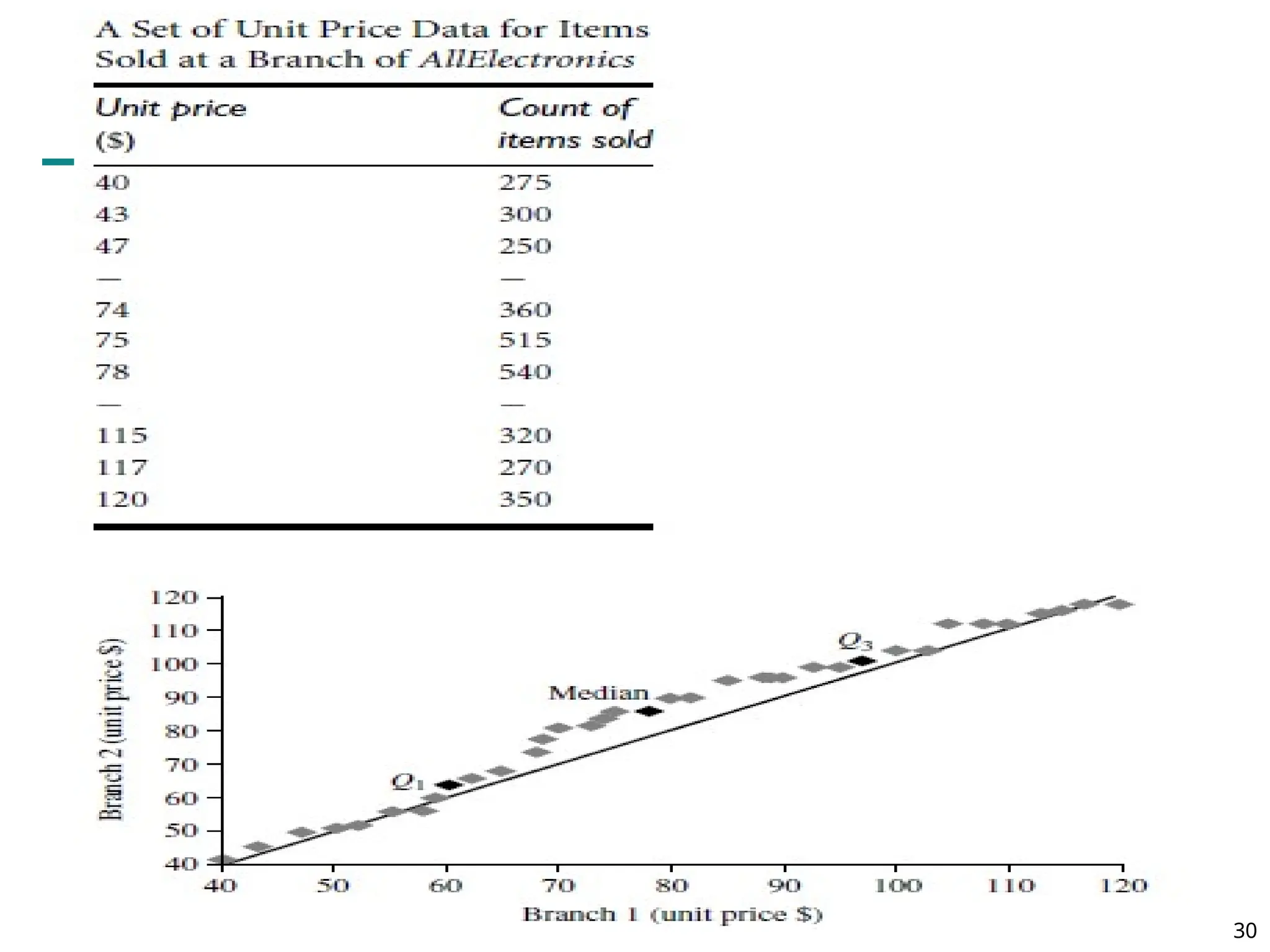

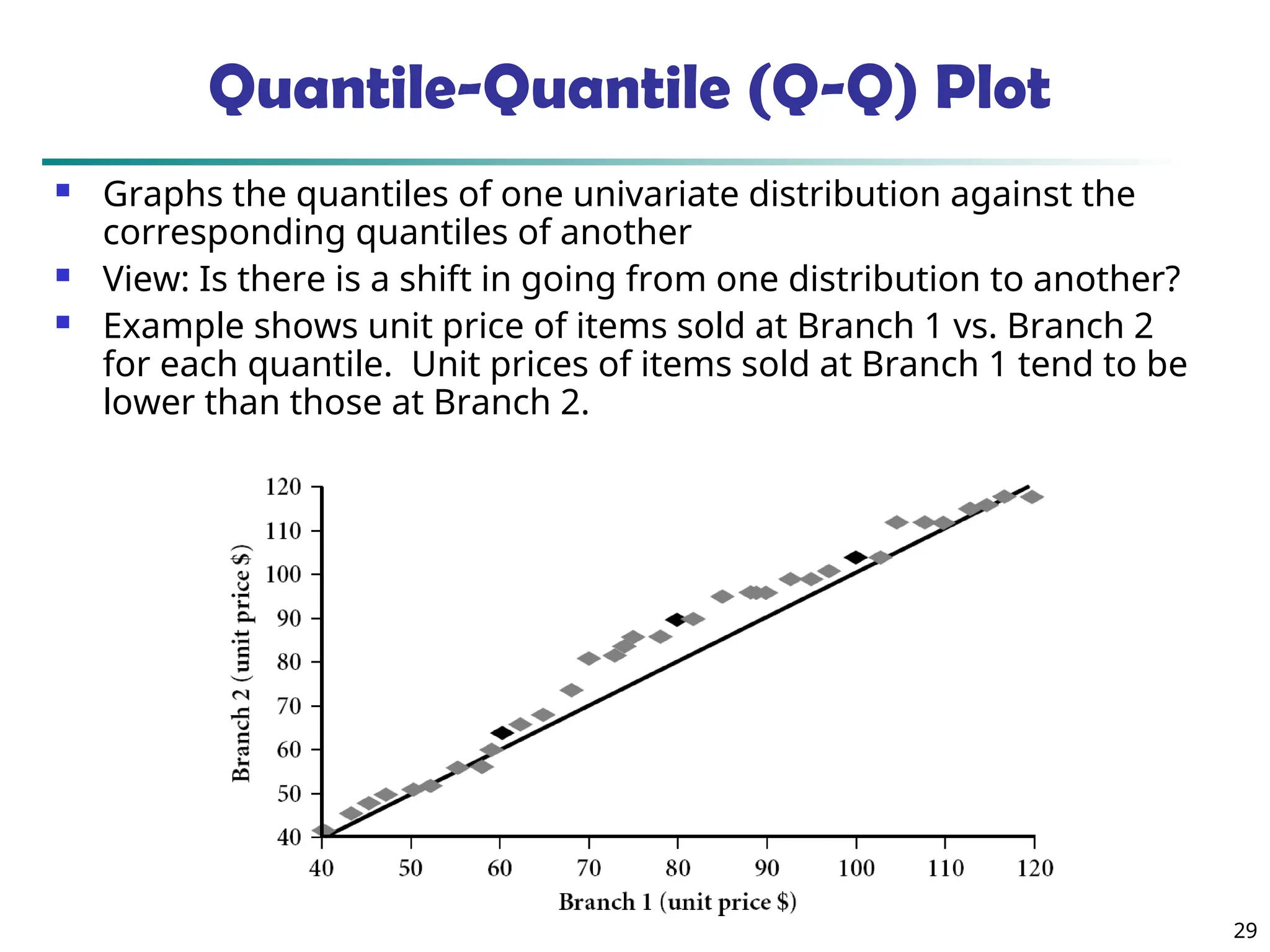

Quantile-Quantile (Q-Q) Plot
 Graphs the quantiles of one univariate distribution against the
corresponding quantiles of another
 View: Is there is a shift in going from one distribution to another?

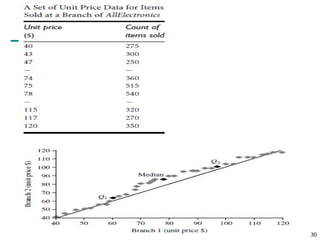

 Example shows unit price of items sold at Branch 1 vs. Branch 2
for each quantile. Unit prices of items sold at Branch 1 tend to be
lower than those at Branch 2.

30. 30

31. 31

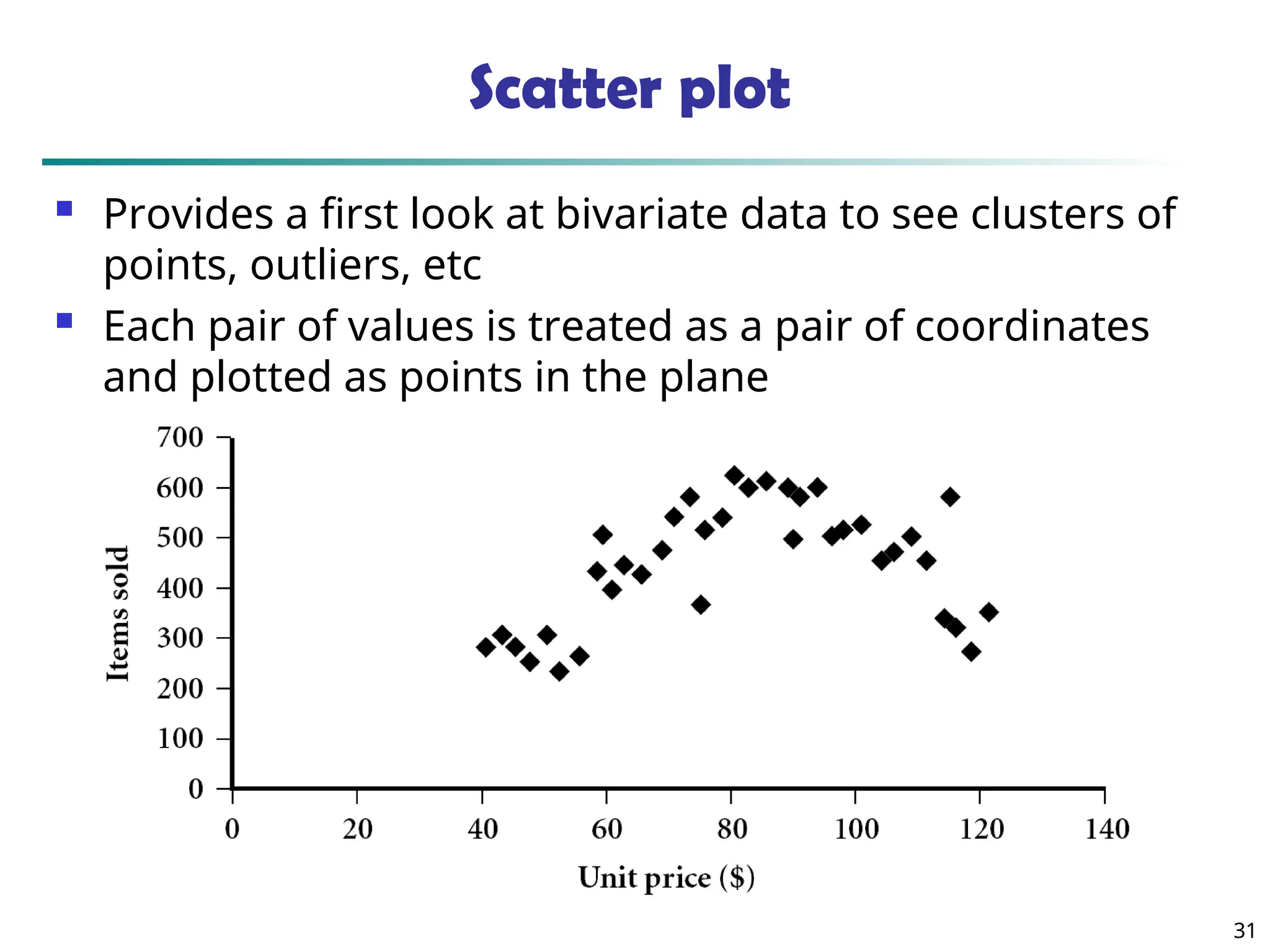

Scatter plot
 Provides a first look at bivariate data to see clusters of
points, outliers, etc
 Each pair of values is treated as a pair of coordinates
and plotted as points in the plane

32. 32
Positively and Negatively Correlated Data
 The left half fragment is positively
correlated
 The right half is negative correlated

33. 33

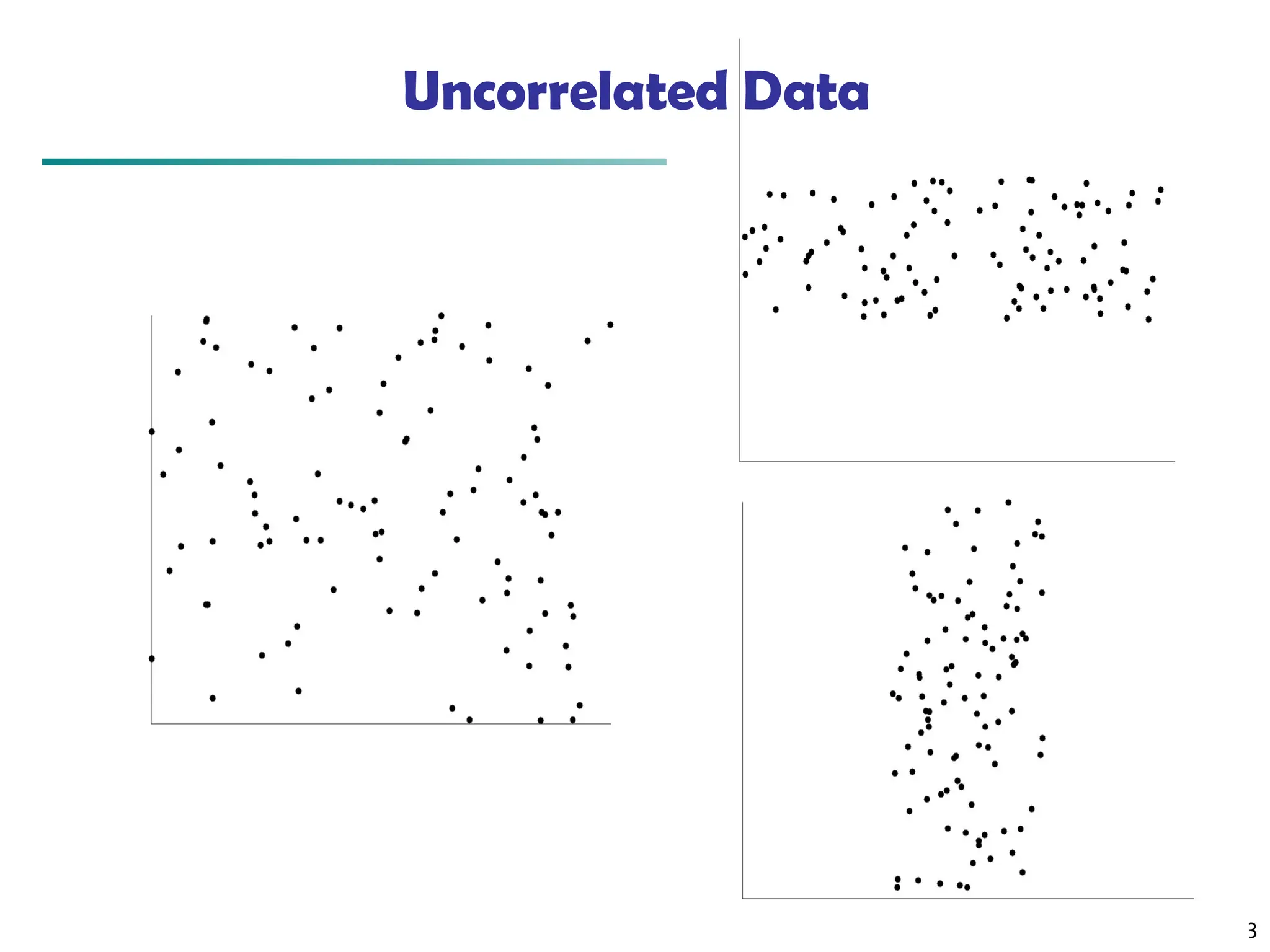

Uncorrelated Data

34. 34

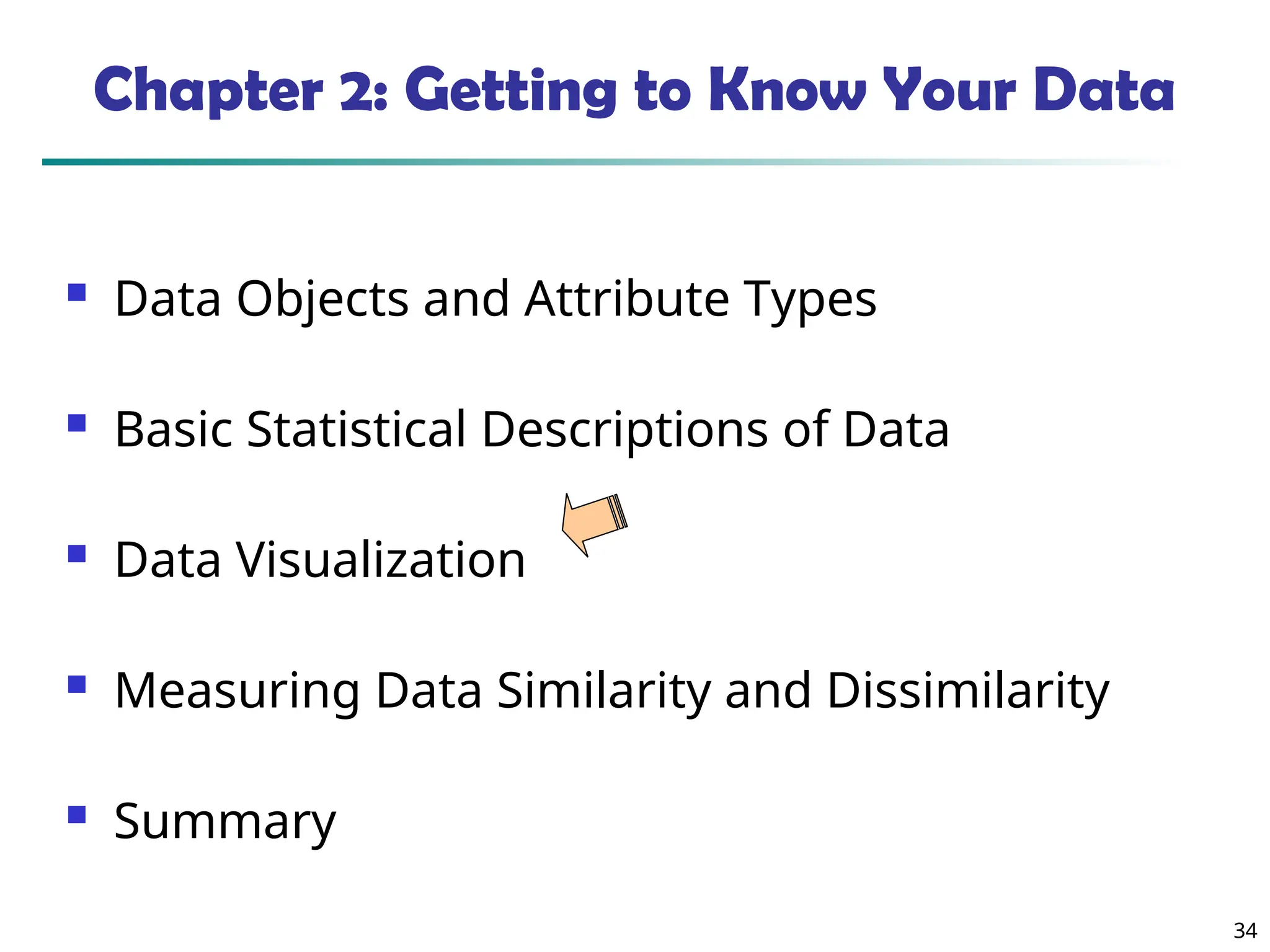

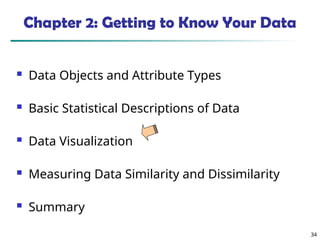

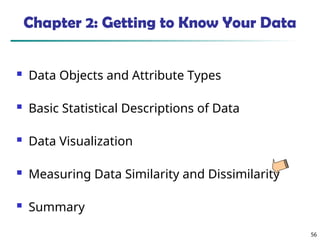

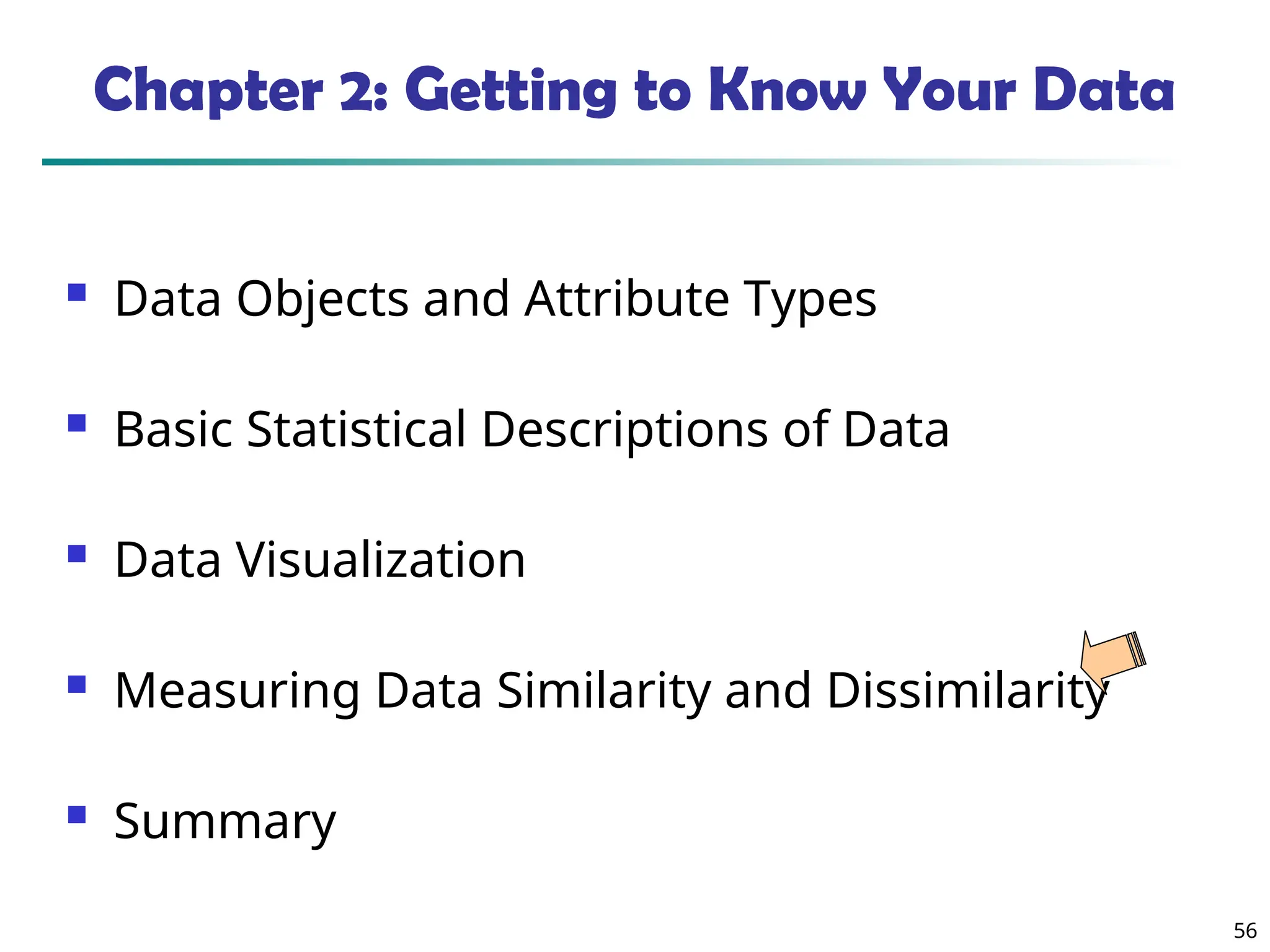

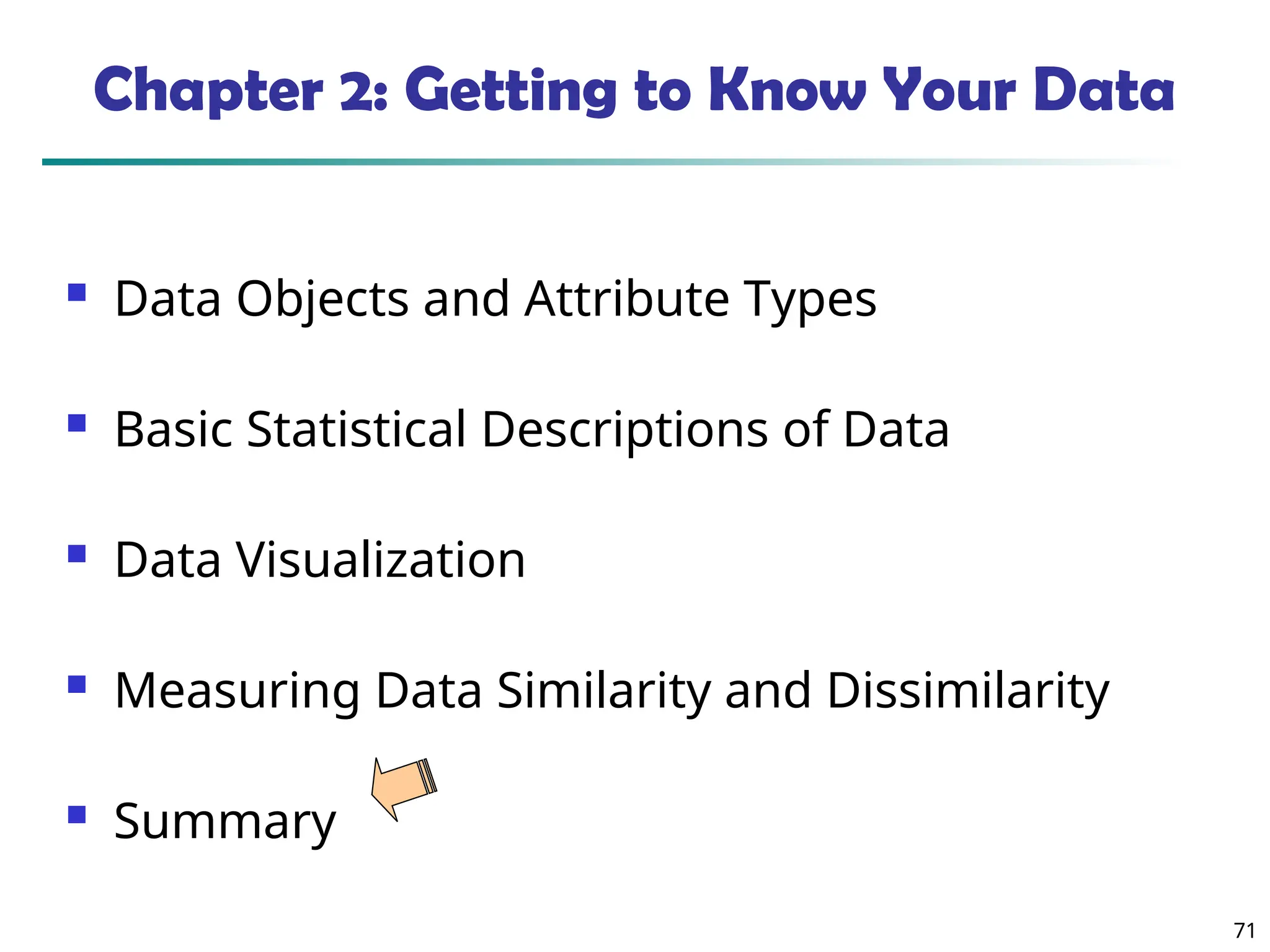

Chapter 2: Getting to Know Your Data
 Data Objects and Attribute Types
 Basic Statistical Descriptions of Data
 Data Visualization
 Measuring Data Similarity and Dissimilarity
 Summary

35. 35

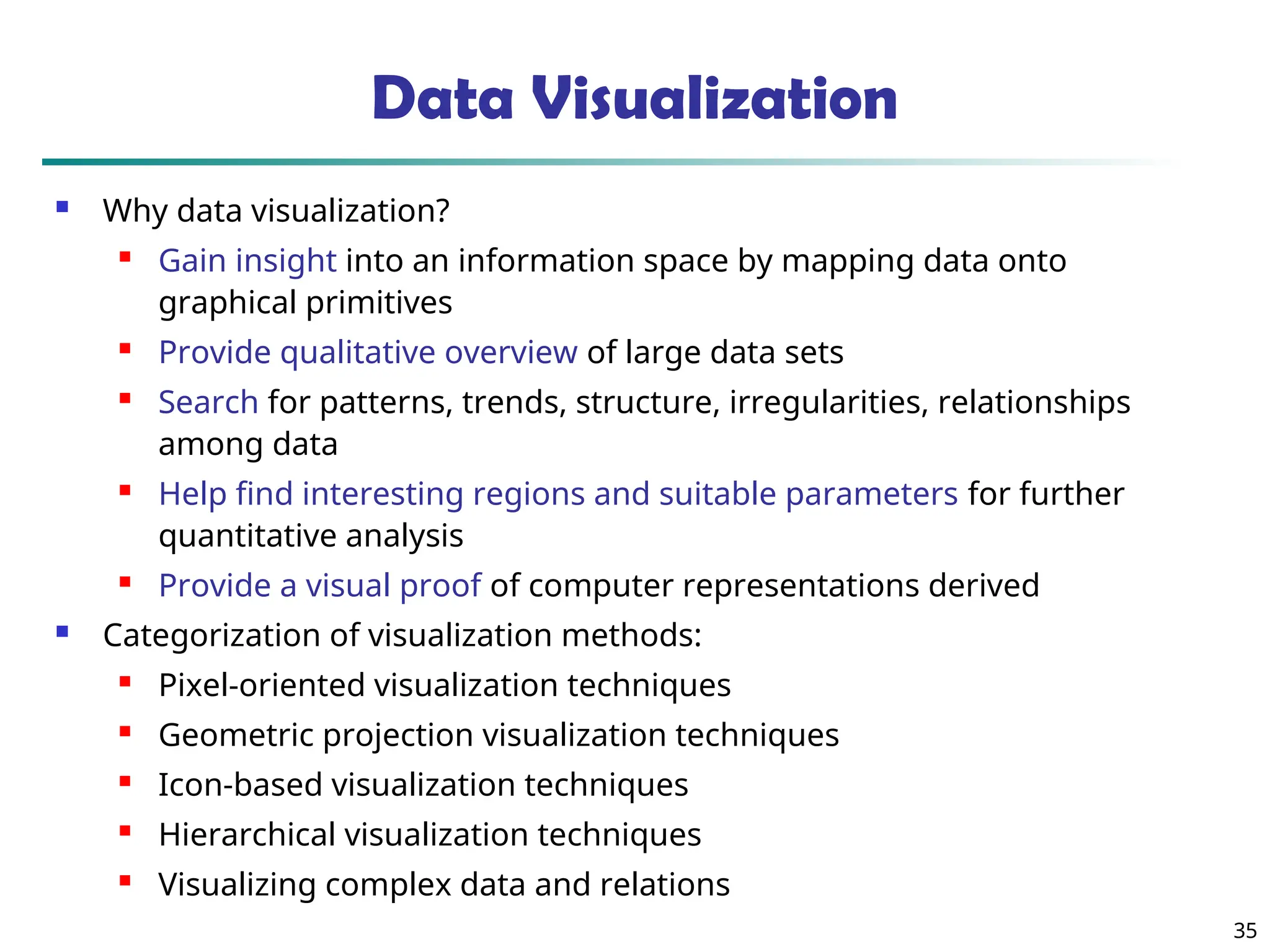

Data Visualization
 Why data visualization?
 Gain insight into an information space by mapping data onto
graphical primitives
 Provide qualitative overview of large data sets
 Search for patterns, trends, structure, irregularities, relationships
among data
 Help find interesting regions and suitable parameters for further
quantitative analysis
 Provide a visual proof of computer representations derived
 Categorization of visualization methods:
 Pixel-oriented visualization techniques
 Geometric projection visualization techniques
 Icon-based visualization techniques
 Hierarchical visualization techniques
 Visualizing complex data and relations

36. 36

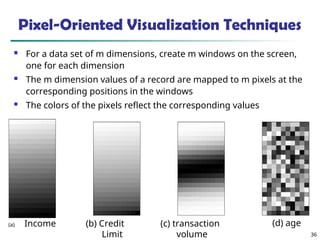

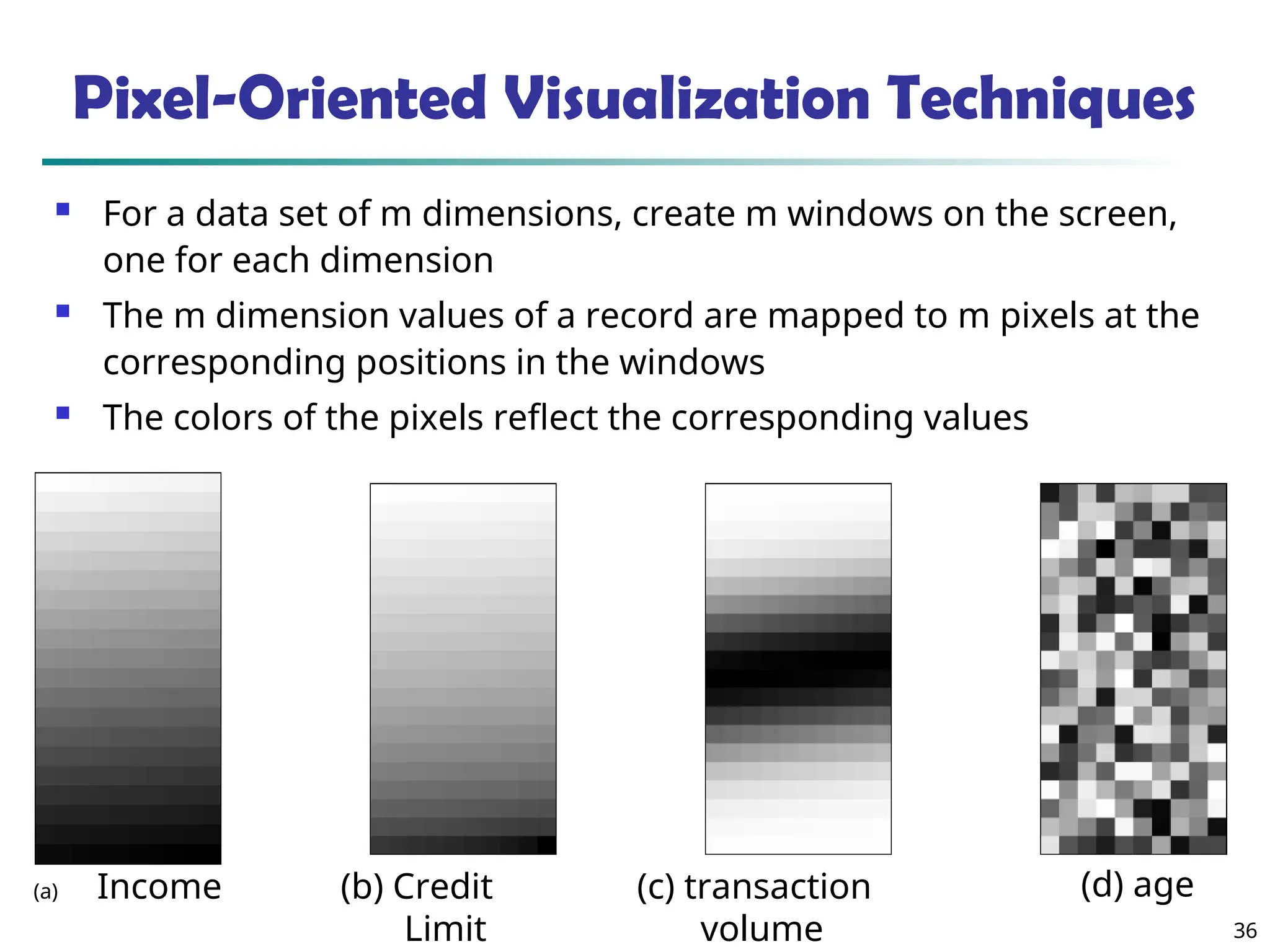

Pixel-Oriented Visualization Techniques
 For a data set of m dimensions, create m windows on the screen,
one for each dimension
 The m dimension values of a record are mapped to m pixels at the
corresponding positions in the windows
 The colors of the pixels reflect the corresponding values
(a) Income (b) Credit
Limit
(c) transaction
volume
(d) age

37. 37

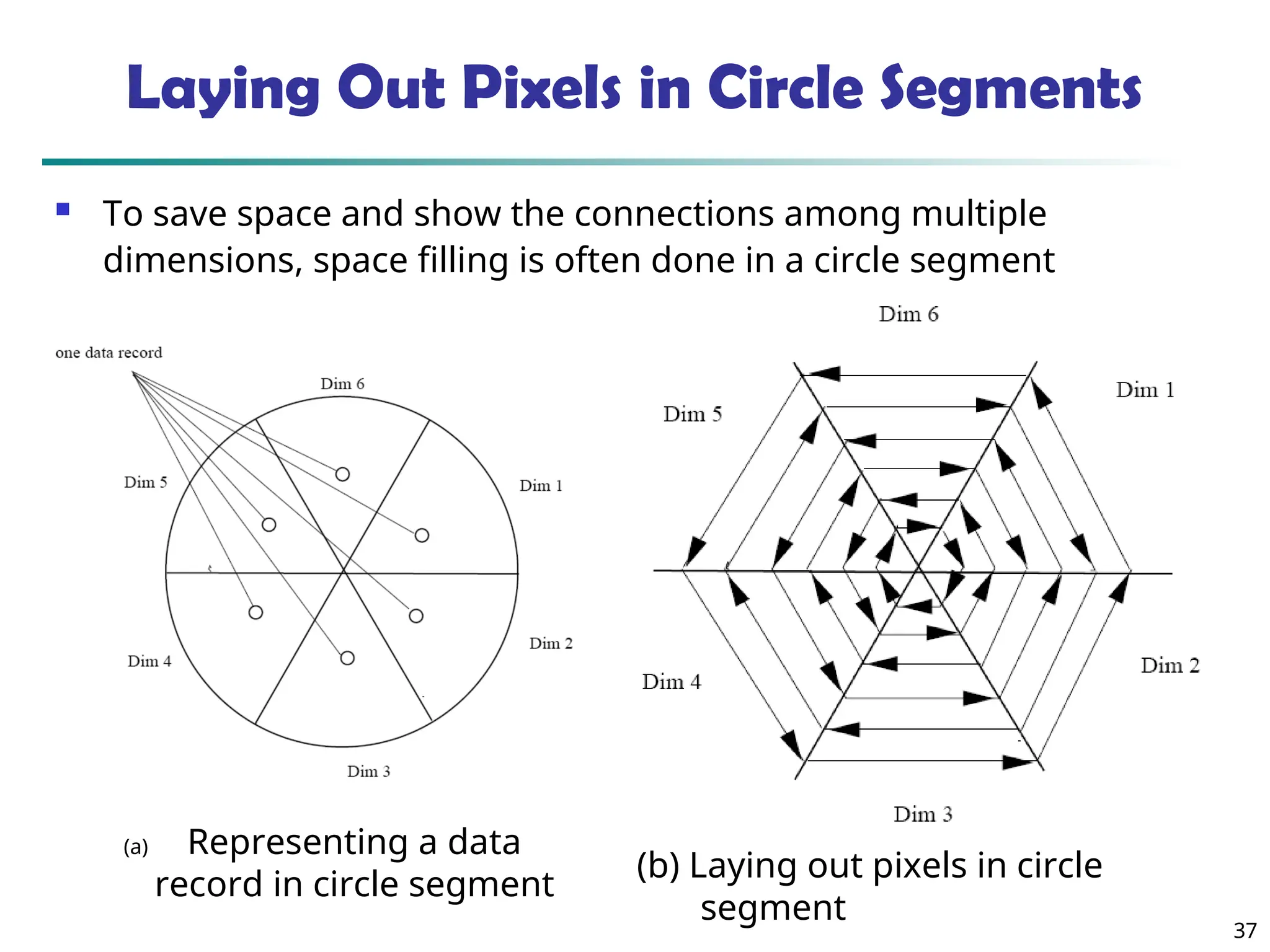

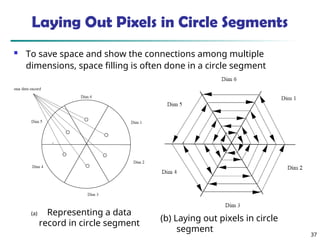

Laying Out Pixels in Circle Segments
 To save space and show the connections among multiple
dimensions, space filling is often done in a circle segment
(a) Representing a data
record in circle segment
(b) Laying out pixels in circle
segment

38. 38

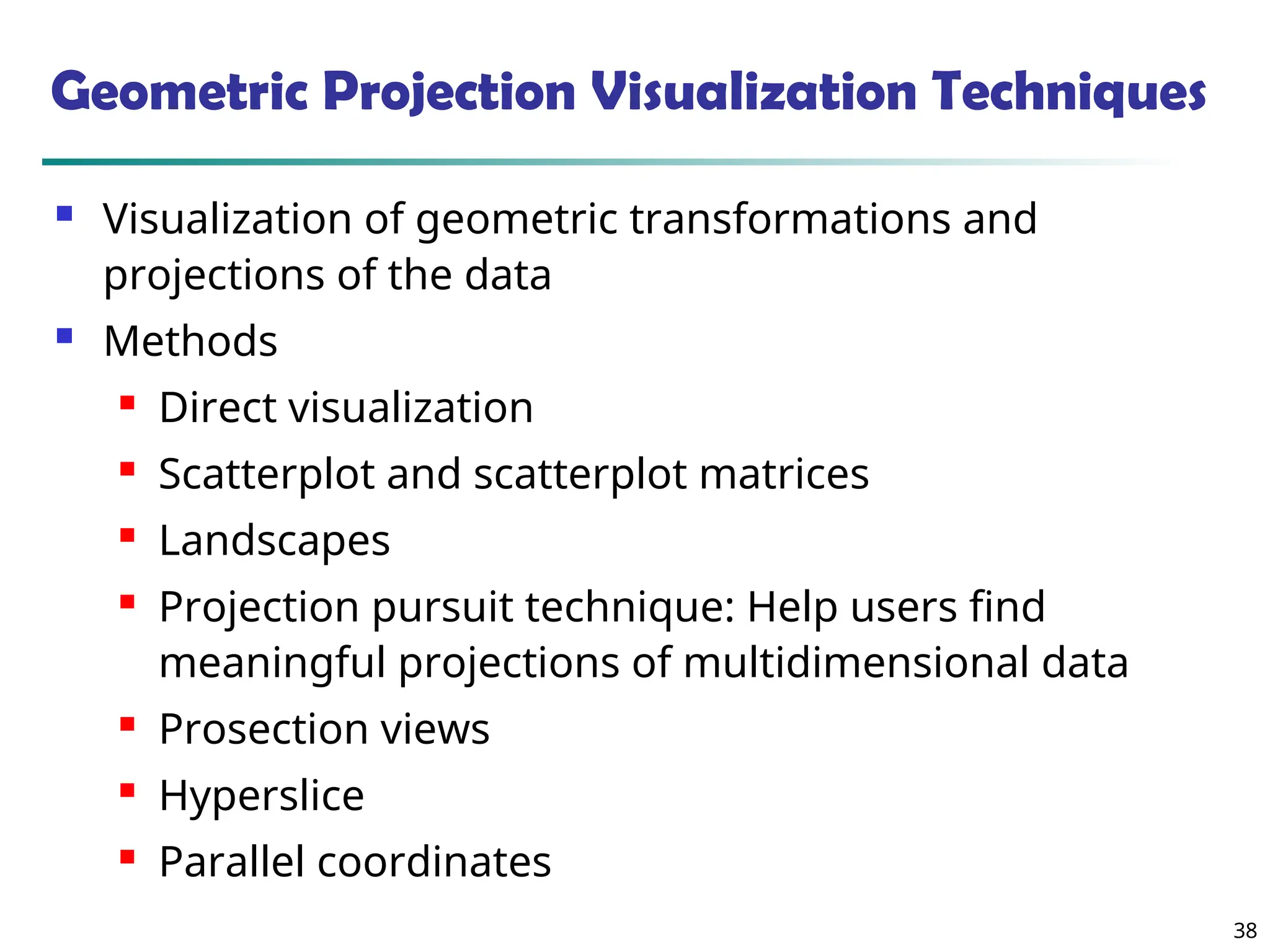

Geometric Projection Visualization Techniques
 Visualization of geometric transformations and
projections of the data
 Methods
 Direct visualization
 Scatterplot and scatterplot matrices
 Landscapes
 Projection pursuit technique: Help users find
meaningful projections of multidimensional data
 Prosection views
 Hyperslice
 Parallel coordinates

39. Data Mining: Concepts and Techniques 39

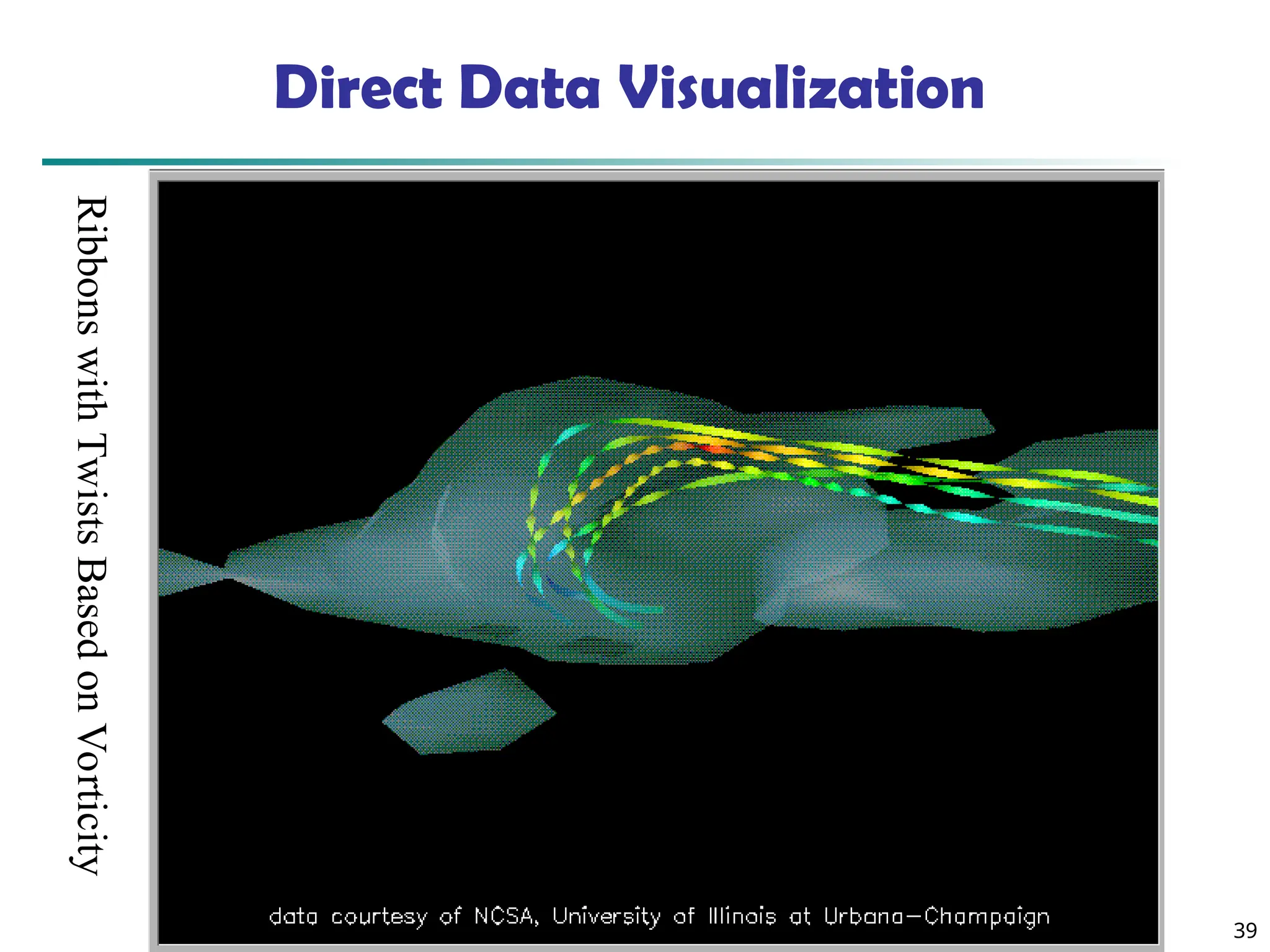

Direct Data Visualization
Ribbons
with
Twists
Based
on
Vorticity

40. 40

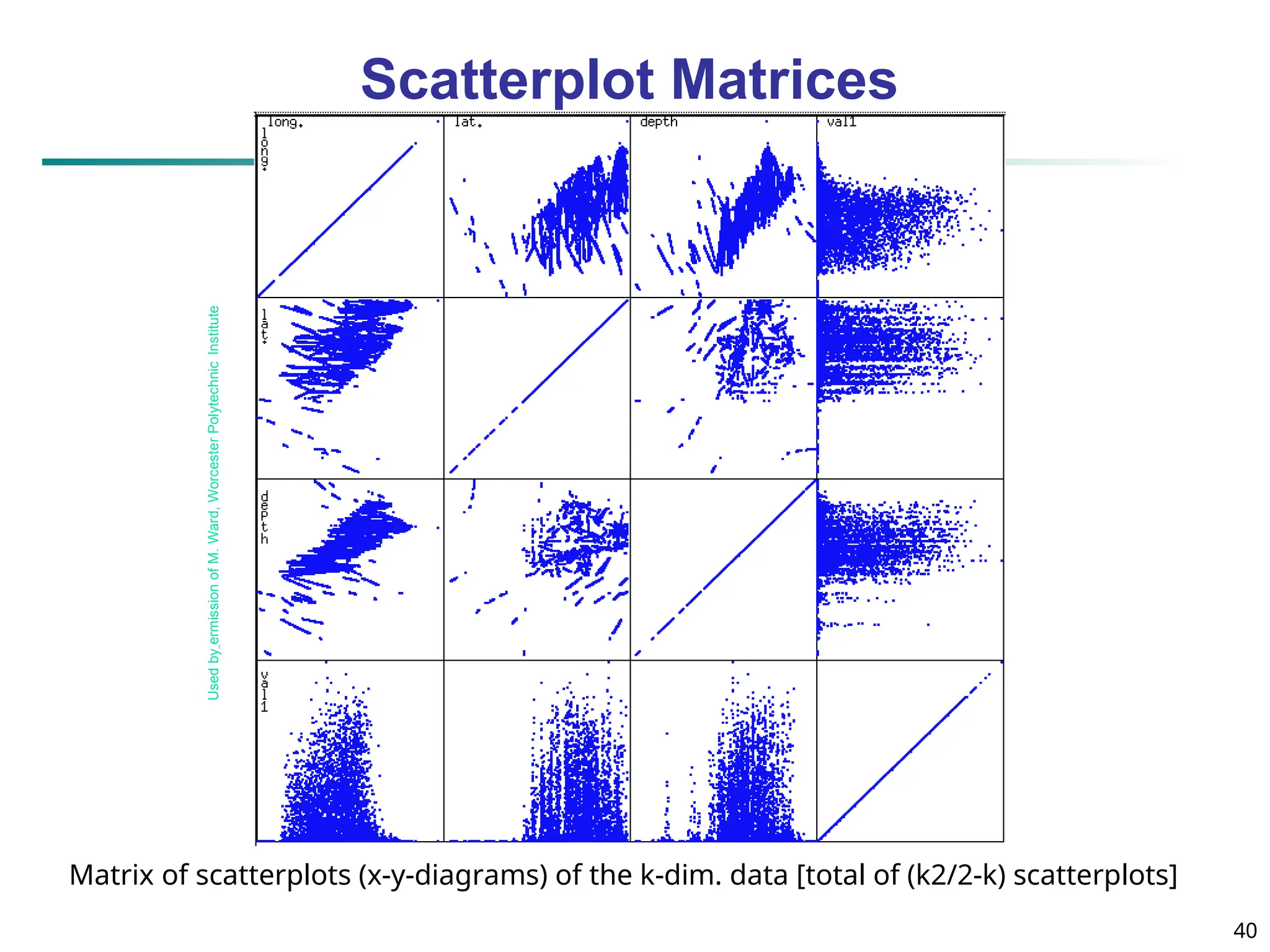

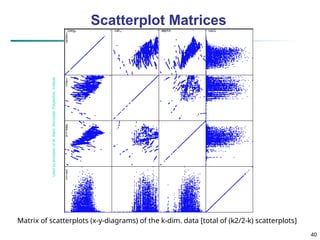

Scatterplot Matrices
Matrix of scatterplots (x-y-diagrams) of the k-dim. data [total of (k2/2-k) scatterplots]
Used
by
ermission
of
M.
Ward,
Worcester
Polytechnic
Institute

41. 41

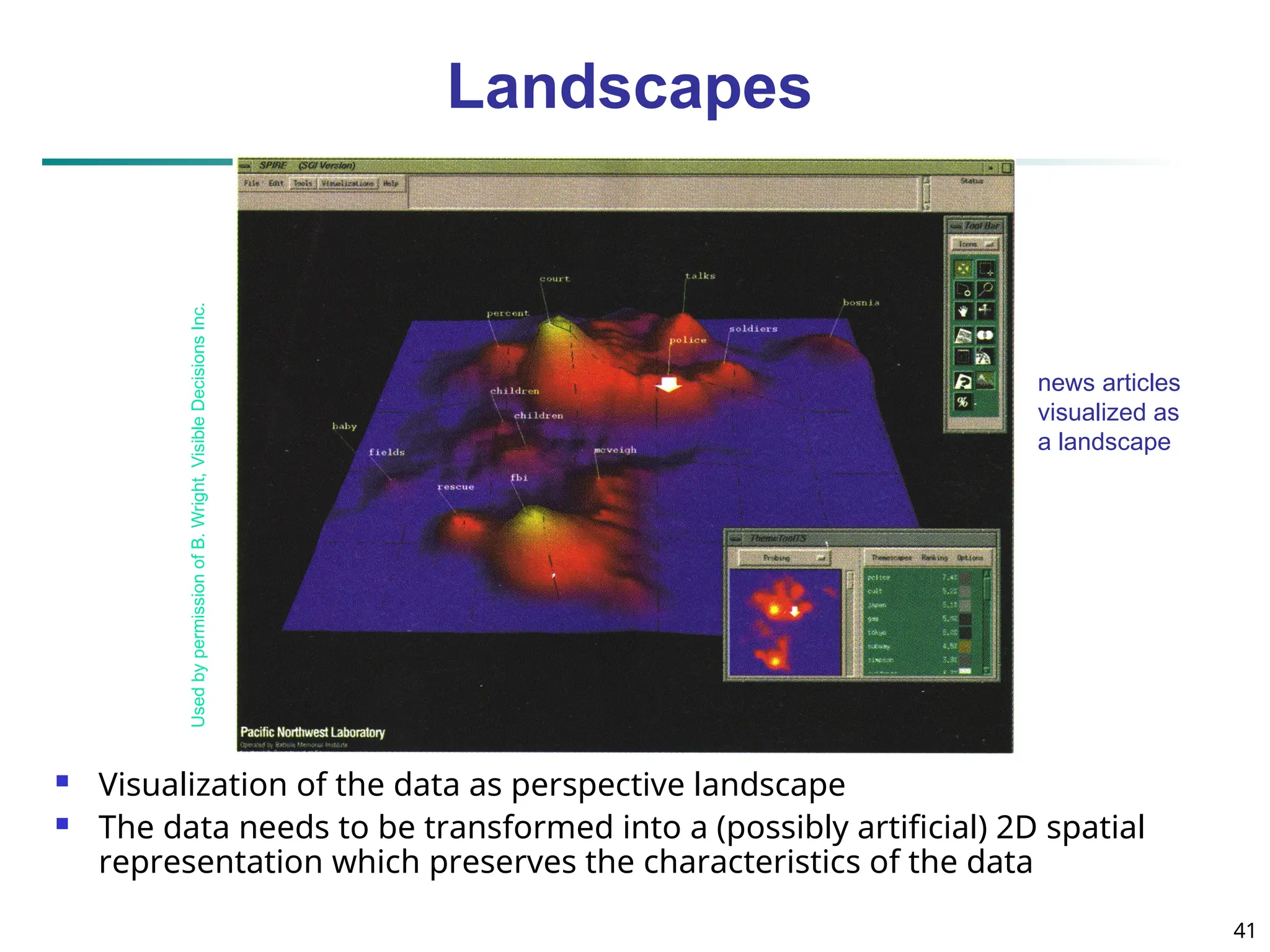

news articles
visualized as
a landscape
Used
by
permission
of
B.
Wright,
Visible
Decisions
Inc.

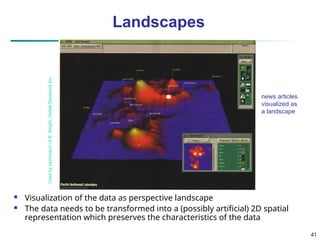

Landscapes
 Visualization of the data as perspective landscape
 The data needs to be transformed into a (possibly artificial) 2D spatial
representation which preserves the characteristics of the data

42. 42
Attr. 1 Attr. 2 Attr. k
Attr. 3
• • •
Parallel Coordinates
 n equidistant axes which are parallel to one of the screen axes and
correspond to the attributes
 The axes are scaled to the [minimum, maximum]: range of the
corresponding attribute
 Every data item corresponds to a polygonal line which intersects
each of the axes at the point which corresponds to the value for the
attribute

43. 43

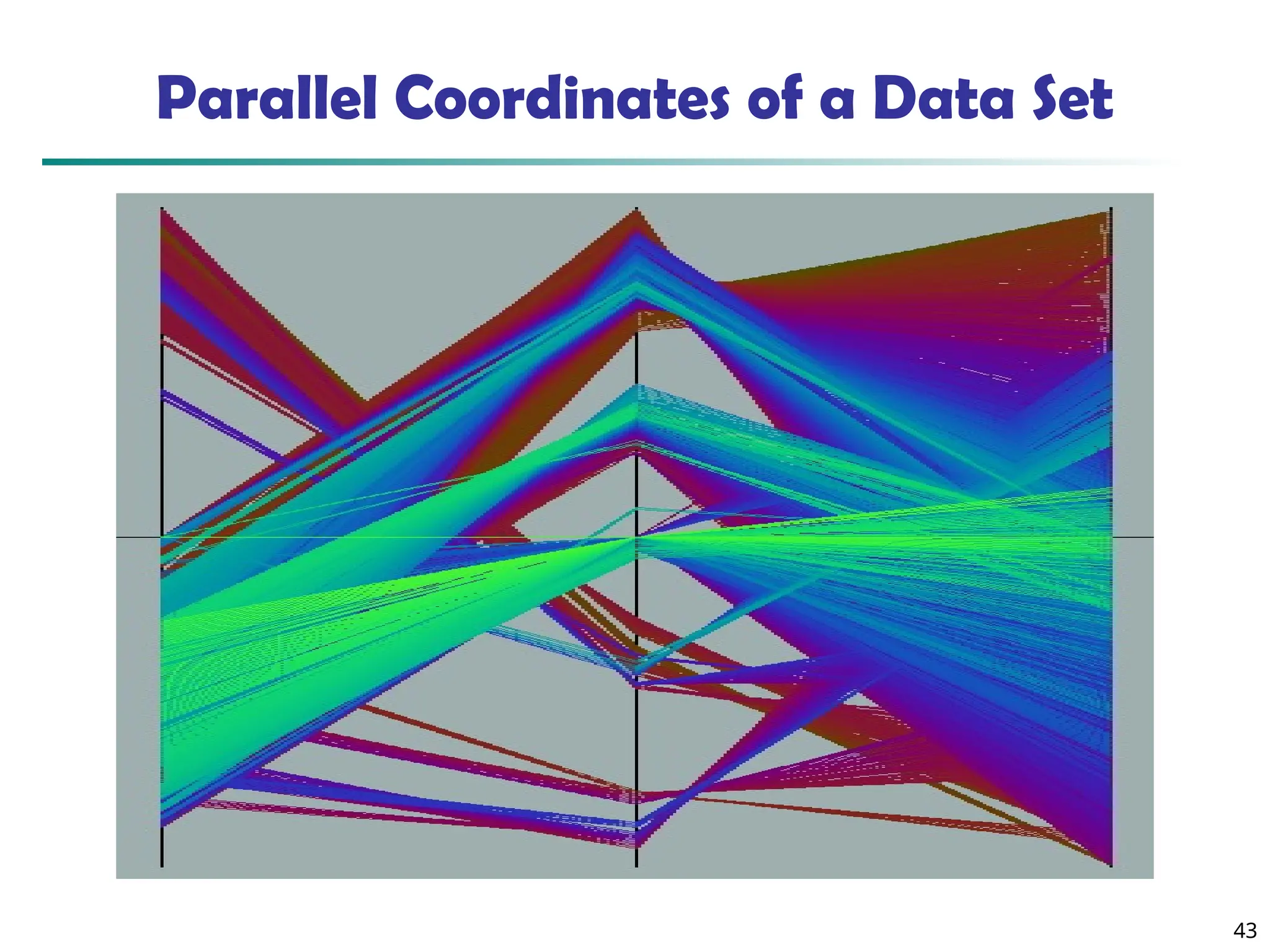

Parallel Coordinates of a Data Set

44. 44
Icon-Based Visualization Techniques
 Visualization of the data values as features of icons
 Typical visualization methods

Chernoff Faces

Stick Figures
 General techniques

Shape coding: Use shape to represent certain
information encoding

Color icons: Use color icons to encode more
information

Tile bars: Use small icons to represent the relevant
feature vectors in document retrieval

45. 45

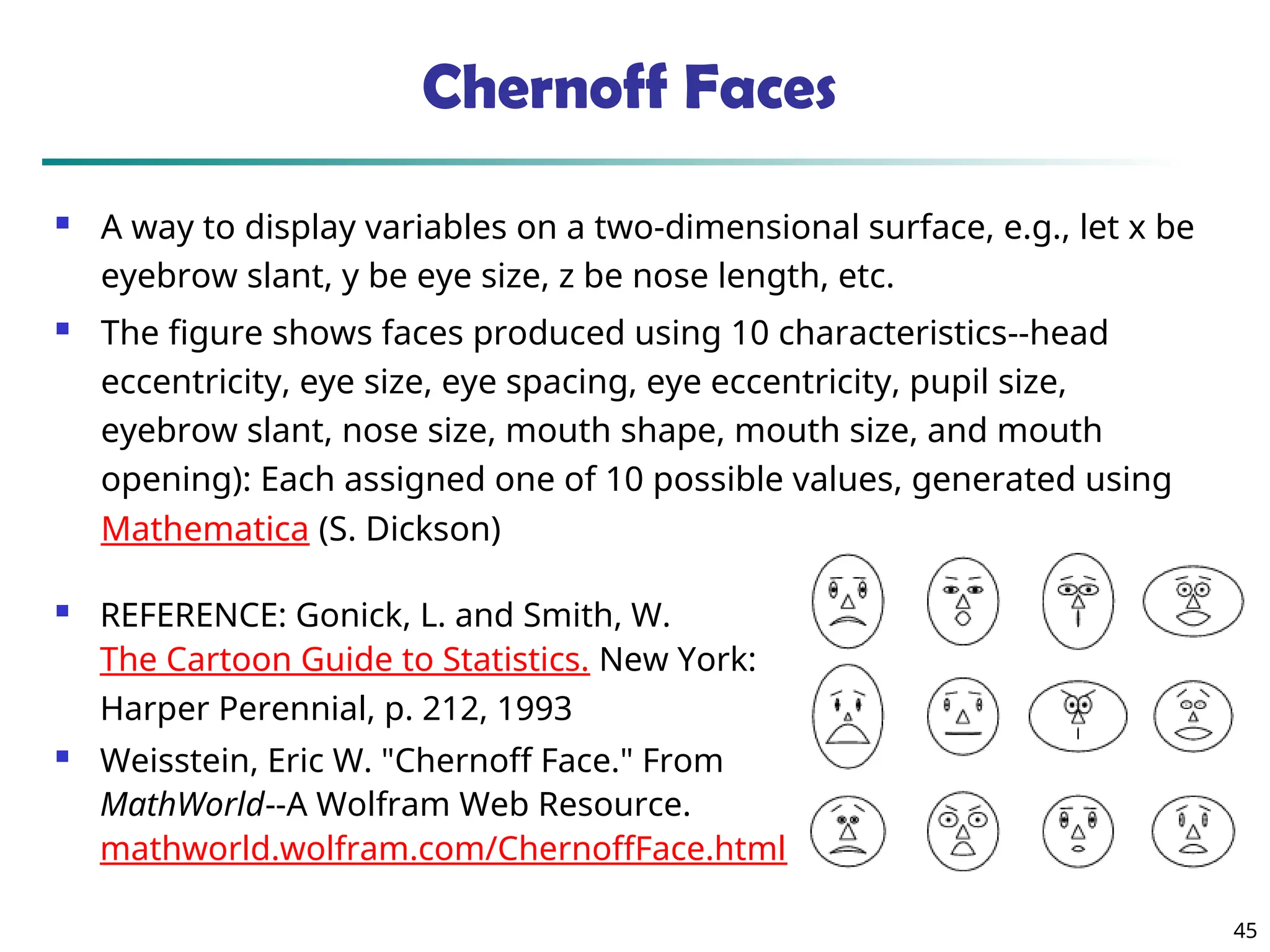

Chernoff Faces
 A way to display variables on a two-dimensional surface, e.g., let x be
eyebrow slant, y be eye size, z be nose length, etc.
 The figure shows faces produced using 10 characteristics--head
eccentricity, eye size, eye spacing, eye eccentricity, pupil size,
eyebrow slant, nose size, mouth shape, mouth size, and mouth
opening): Each assigned one of 10 possible values, generated using
Mathematica (S. Dickson)
 REFERENCE: Gonick, L. and Smith, W.
The Cartoon Guide to Statistics. New York:
Harper Perennial, p. 212, 1993
 Weisstein, Eric W. "Chernoff Face." From
MathWorld--A Wolfram Web Resource.
mathworld.wolfram.com/ChernoffFace.html

46. 46

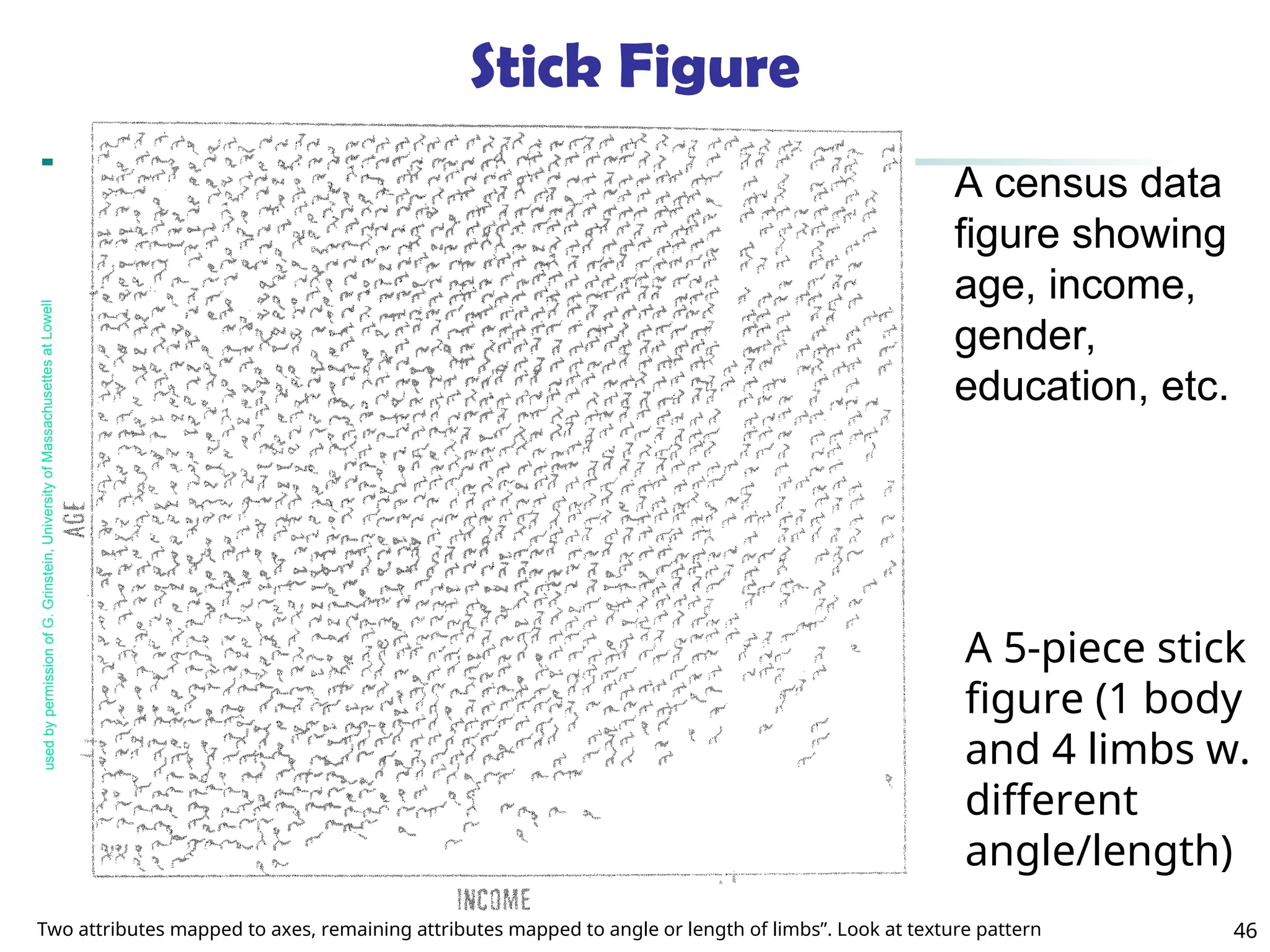

Two attributes mapped to axes, remaining attributes mapped to angle or length of limbs”. Look at texture pattern
A census data
figure showing
age, income,
gender,
education, etc.
used
by
permission
of
G.
Grinstein,
University
of
Massachusettes
at
Lowell
Stick Figure
A 5-piece stick
figure (1 body
and 4 limbs w.
different
angle/length)

47. 47
Hierarchical Visualization Techniques
 Visualization of the data using a hierarchical
partitioning into subspaces
 Methods
 Dimensional Stacking
 Worlds-within-Worlds
 Tree-Map
 Cone Trees
 InfoCube

48. 48
Dimensional Stacking
attribute 1
attribute 2
attribute 3
attribute 4
 Partitioning of the n-dimensional attribute space in 2-D
subspaces, which are ‘stacked’ into each other
 Partitioning of the attribute value ranges into classes. The
important attributes should be used on the outer levels.
 Adequate for data with ordinal attributes of low cardinality
 But, difficult to display more than nine dimensions
 Important to map dimensions appropriately

49. 49
Used by permission of M. Ward, Worcester Polytechnic Institute

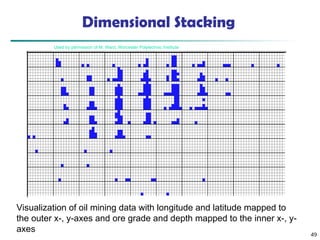

Visualization of oil mining data with longitude and latitude mapped to
the outer x-, y-axes and ore grade and depth mapped to the inner x-, y-
axes
Dimensional Stacking

50. 50

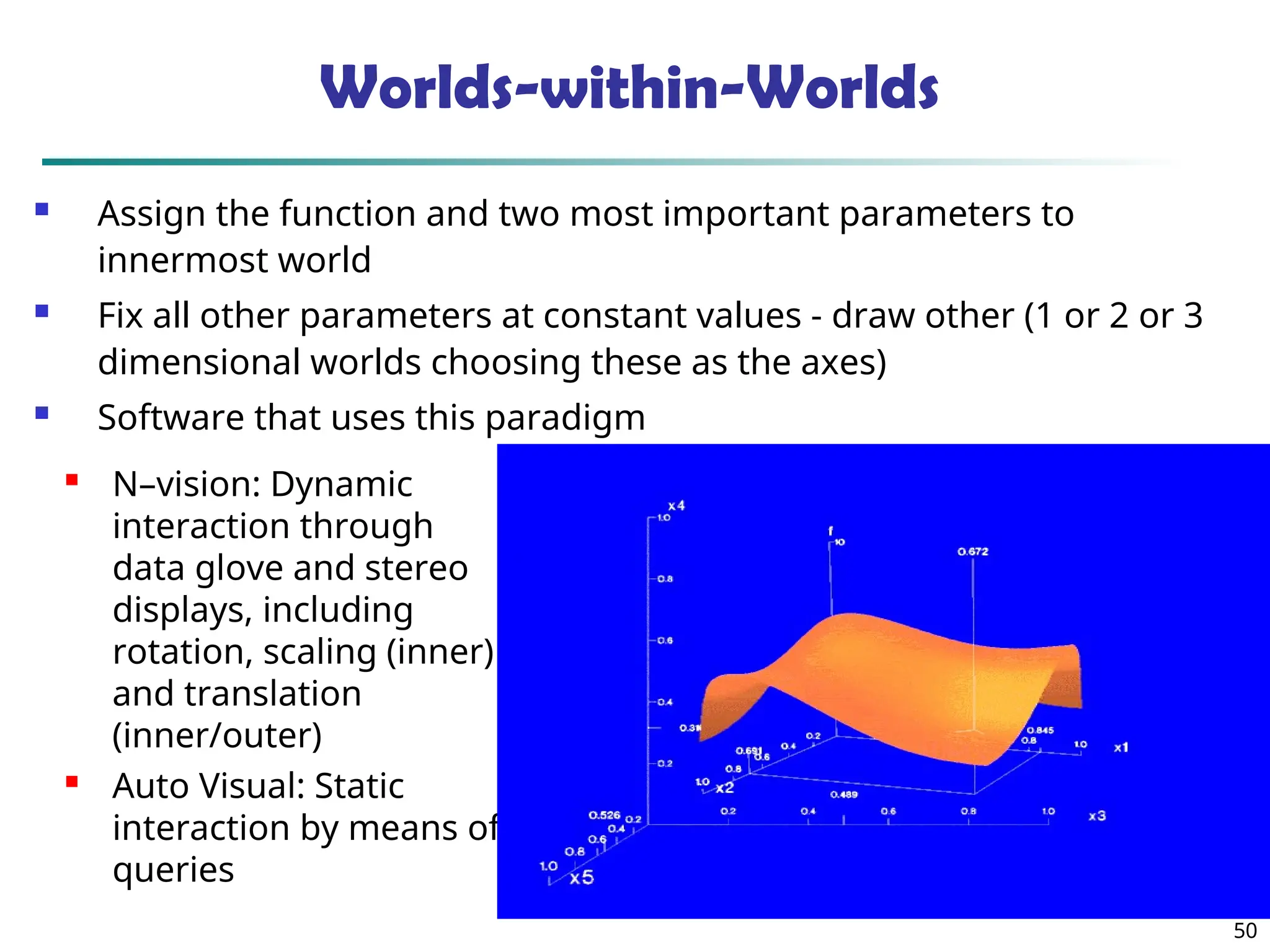

Worlds-within-Worlds
 Assign the function and two most important parameters to
innermost world
 Fix all other parameters at constant values - draw other (1 or 2 or 3
dimensional worlds choosing these as the axes)
 Software that uses this paradigm
 N–vision: Dynamic
interaction through
data glove and stereo
displays, including
rotation, scaling (inner)
and translation
(inner/outer)

Auto Visual: Static
interaction by means of
queries

51. 51

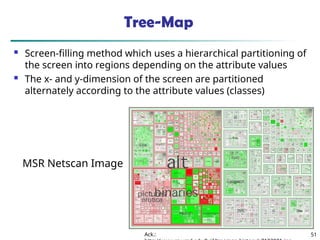

Tree-Map
 Screen-filling method which uses a hierarchical partitioning of
the screen into regions depending on the attribute values
 The x- and y-dimension of the screen are partitioned
alternately according to the attribute values (classes)
MSR Netscan Image
Ack.:

52. 52
Tree-Map of a File System (Schneiderman)

53. 53

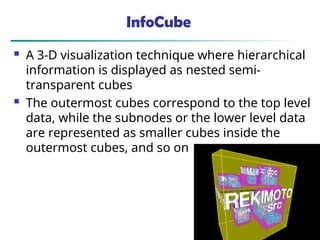

InfoCube
 A 3-D visualization technique where hierarchical
information is displayed as nested semi-
transparent cubes
 The outermost cubes correspond to the top level
data, while the subnodes or the lower level data
are represented as smaller cubes inside the
outermost cubes, and so on

54. 54

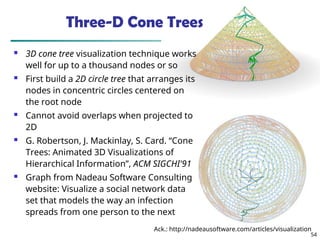

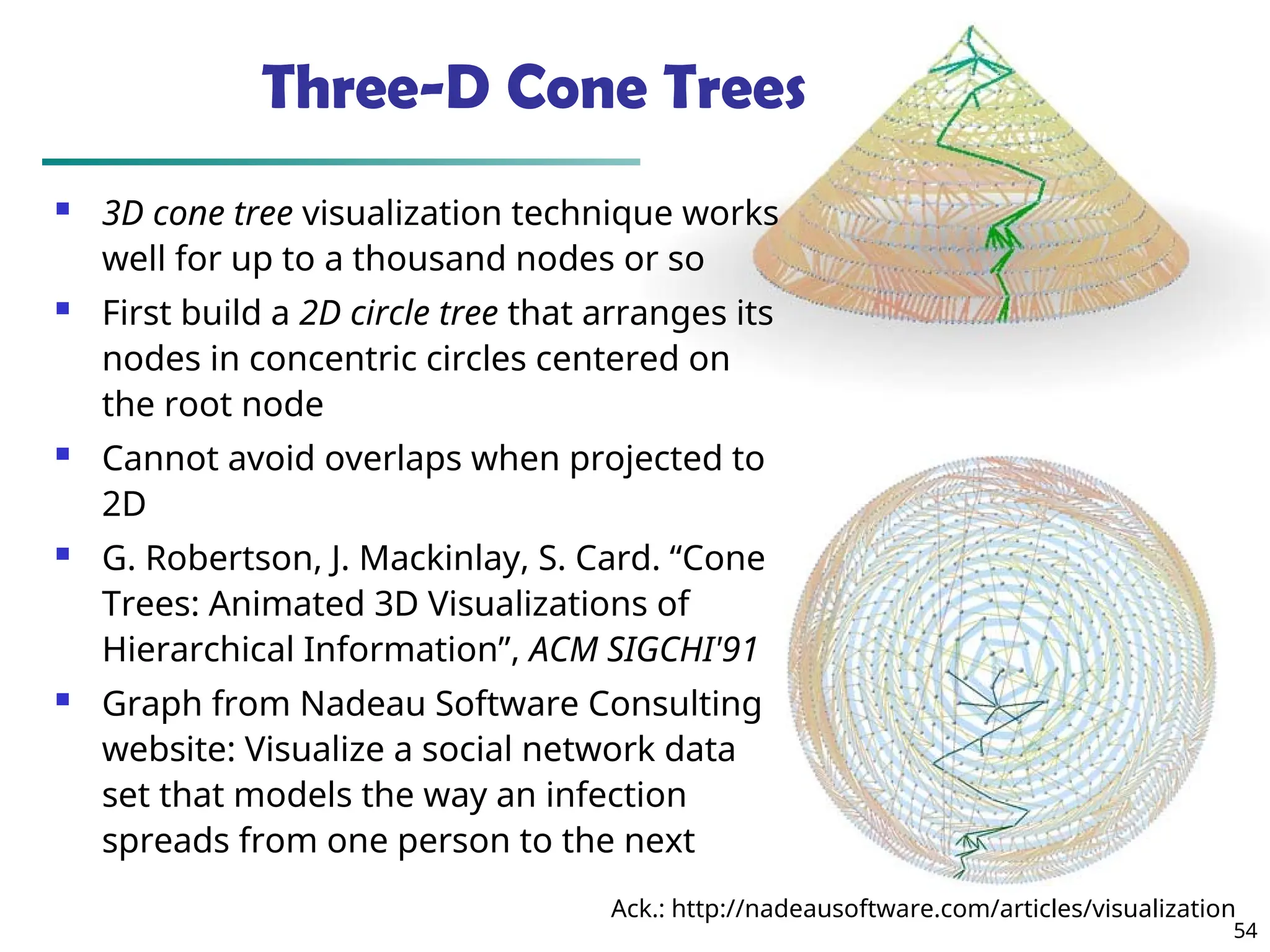

Three-D Cone Trees
 3D cone tree visualization technique works
well for up to a thousand nodes or so
 First build a 2D circle tree that arranges its
nodes in concentric circles centered on
the root node
 Cannot avoid overlaps when projected to
2D
 G. Robertson, J. Mackinlay, S. Card. “Cone
Trees: Animated 3D Visualizations of
Hierarchical Information”, ACM SIGCHI'91
 Graph from Nadeau Software Consulting
website: Visualize a social network data
set that models the way an infection
spreads from one person to the next
Ack.: http://nadeausoftware.com/articles/visualization

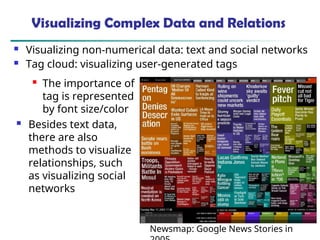

55. Visualizing Complex Data and Relations
 Visualizing non-numerical data: text and social networks
 Tag cloud: visualizing user-generated tags
 The importance of
tag is represented
by font size/color
 Besides text data,
there are also
methods to visualize
relationships, such
as visualizing social
networks
Newsmap: Google News Stories in

56. 56
Chapter 2: Getting to Know Your Data
 Data Objects and Attribute Types
 Basic Statistical Descriptions of Data
 Data Visualization
 Measuring Data Similarity and Dissimilarity
 Summary

57. 57

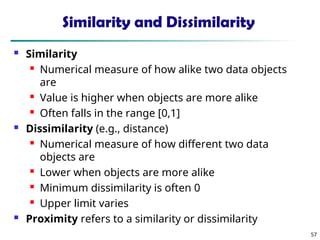

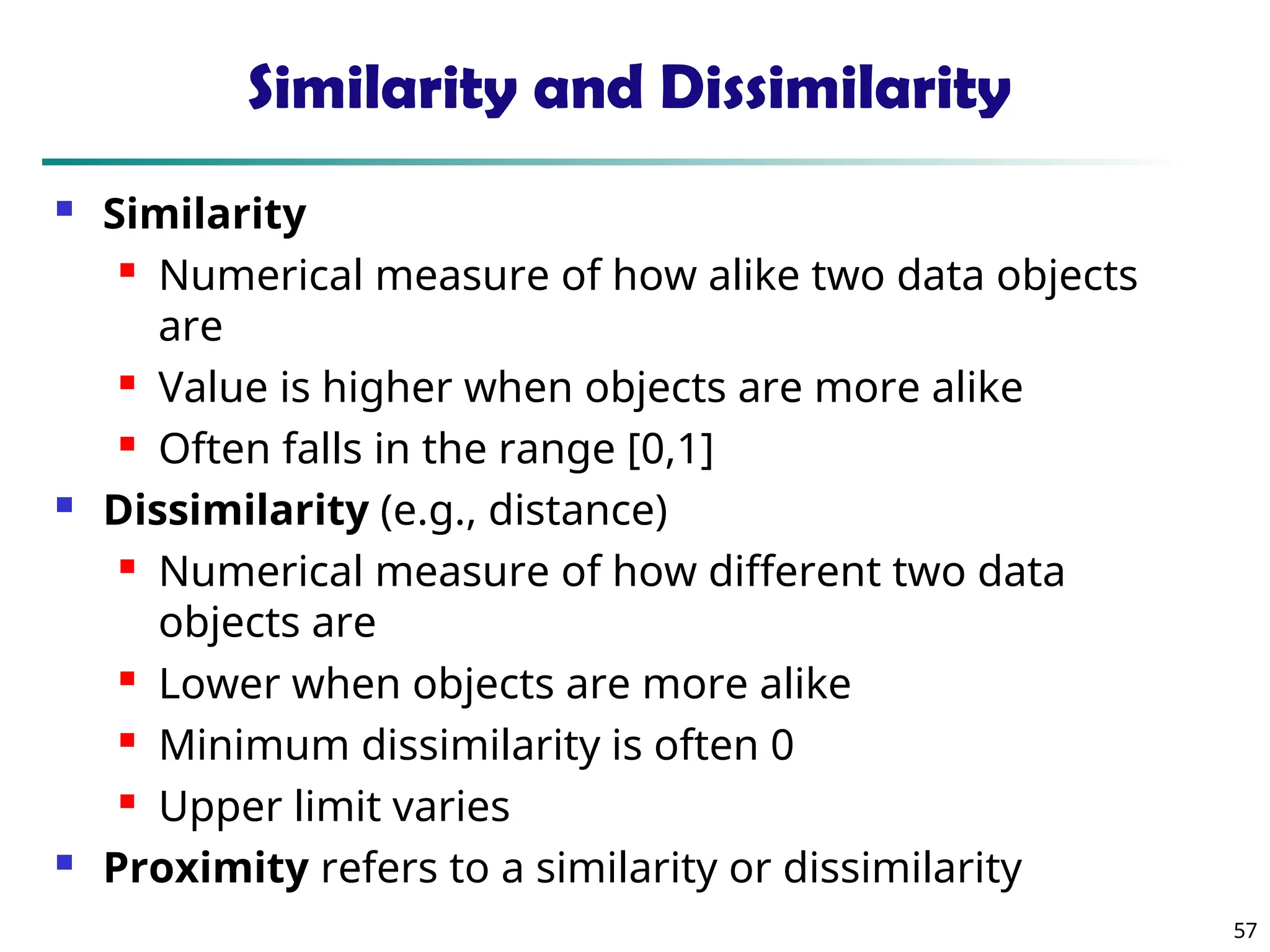

Similarity and Dissimilarity
 Similarity
 Numerical measure of how alike two data objects
are
 Value is higher when objects are more alike
 Often falls in the range [0,1]
 Dissimilarity (e.g., distance)
 Numerical measure of how different two data
objects are
 Lower when objects are more alike
 Minimum dissimilarity is often 0
 Upper limit varies
 Proximity refers to a similarity or dissimilarity

58. 58

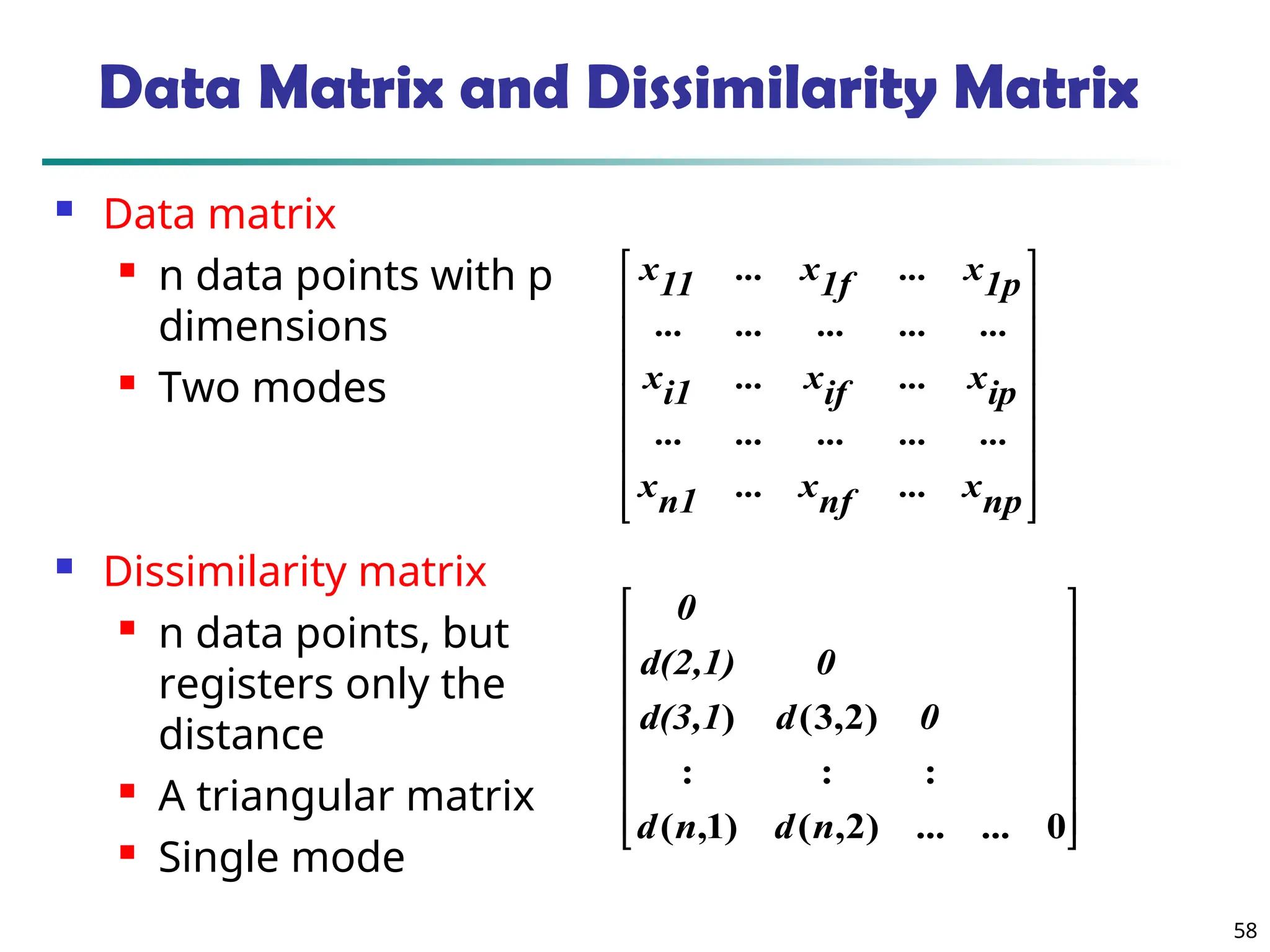

Data Matrix and Dissimilarity Matrix
 Data matrix
 n data points with p
dimensions
 Two modes
 Dissimilarity matrix
 n data points, but
registers only the
distance
 A triangular matrix
 Single mode


















np
x
...
nf
x
...
n1
x
...
...
...
...
...
ip
x
...
if
x
...
i1
x
...
...
...
...
...
1p
x
...
1f
x
...
11
x
















0
...
)
2
,
(
)
1
,
(
:
:
:
)
2
,
3
(
)
...
n
d
n
d
0
d
d(3,1
0
d(2,1)
0

59. 59

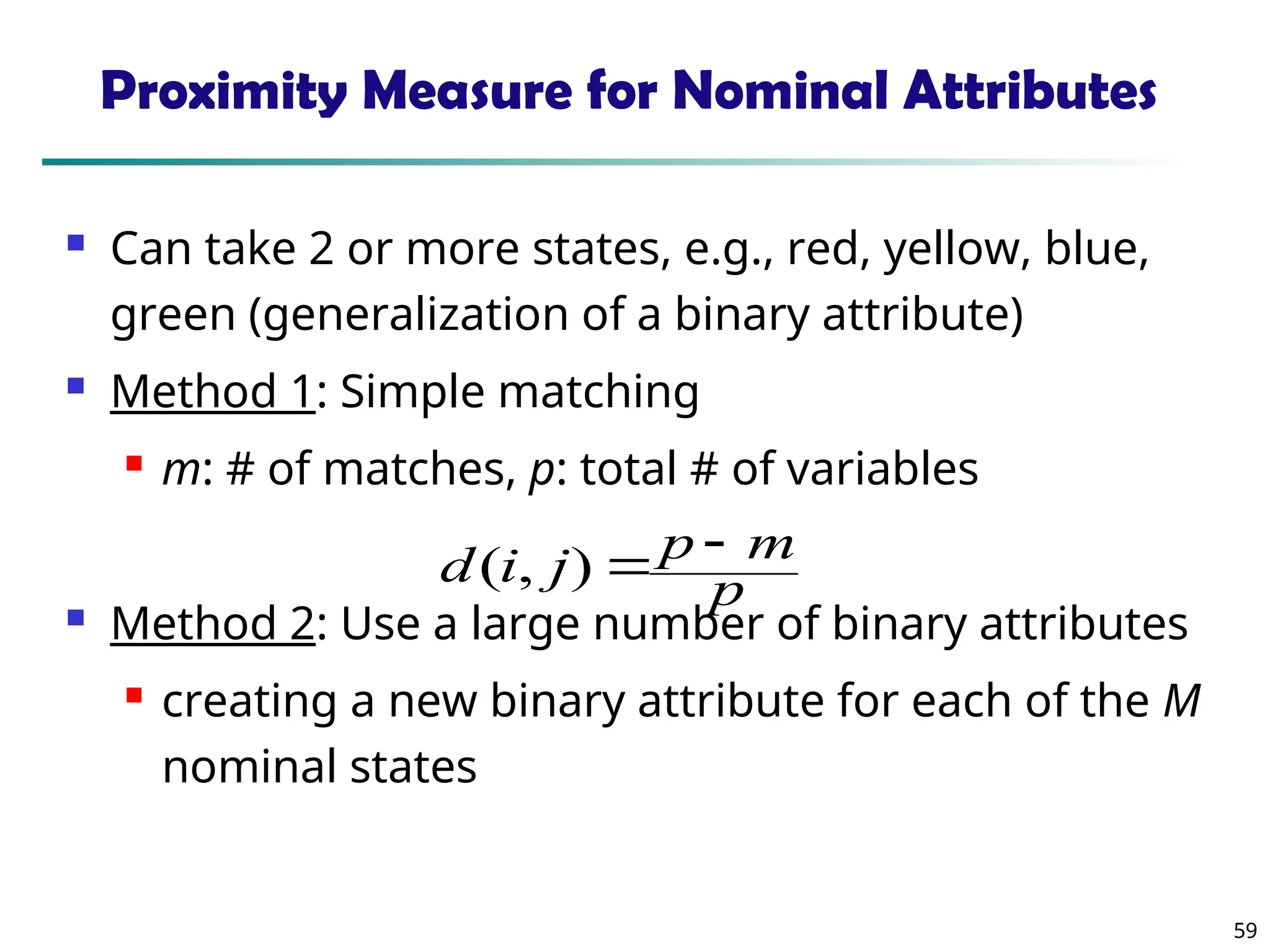

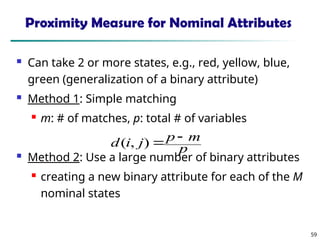

Proximity Measure for Nominal Attributes
 Can take 2 or more states, e.g., red, yellow, blue,
green (generalization of a binary attribute)
 Method 1: Simple matching
 m: # of matches, p: total # of variables
 Method 2: Use a large number of binary attributes
 creating a new binary attribute for each of the M
nominal states
p
m
p
j
i
d 

)
,
(

60. 60

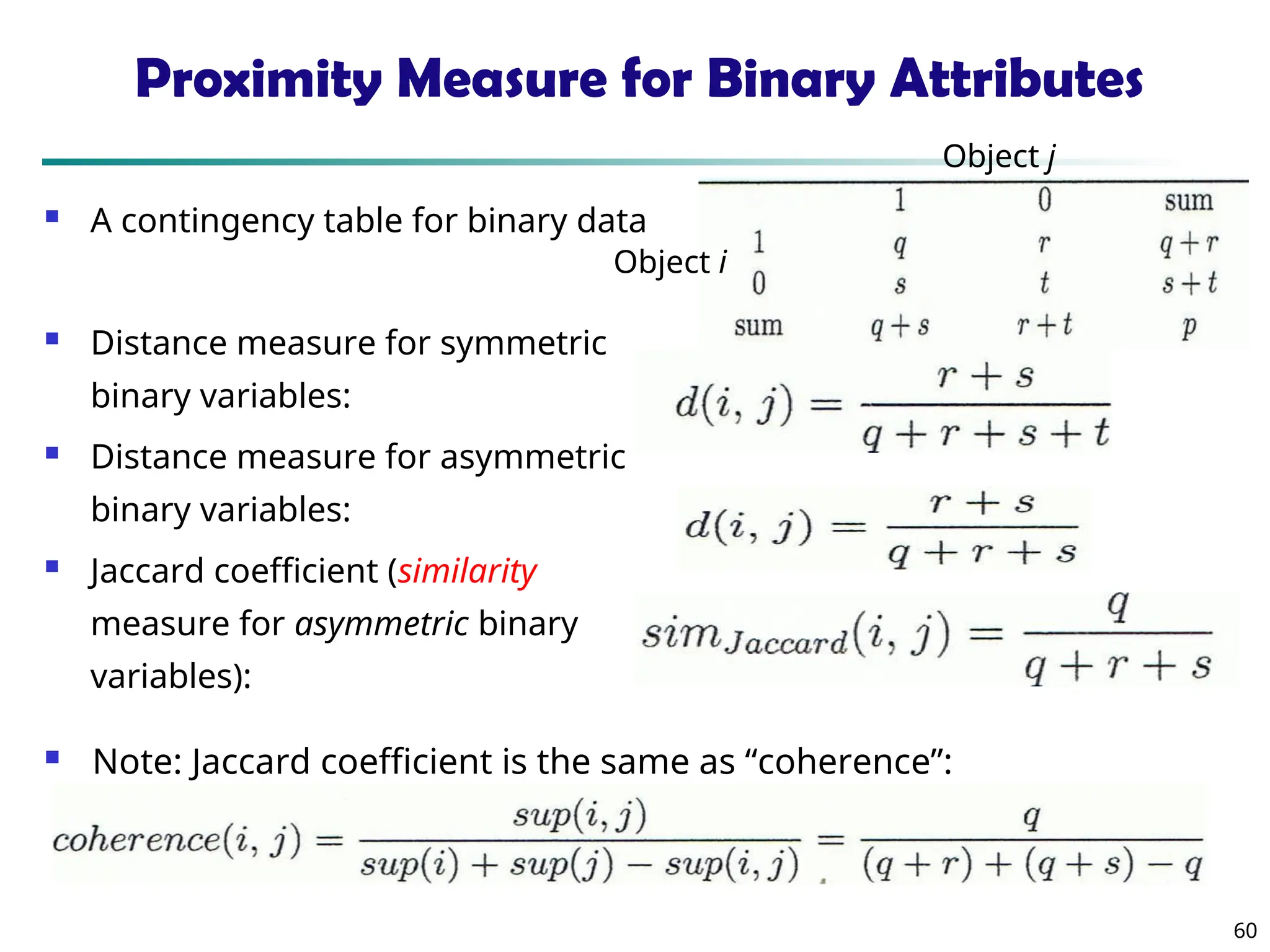

Proximity Measure for Binary Attributes
 A contingency table for binary data
 Distance measure for symmetric
binary variables:
 Distance measure for asymmetric
binary variables:
 Jaccard coefficient (similarity
measure for asymmetric binary
variables):
 Note: Jaccard coefficient is the same as “coherence”:
Object i
Object j

61. 61
Dissimilarity between Binary Variables
 Example
 Gender is a symmetric attribute
 The remaining attributes are asymmetric binary
 Let the values Y and P be 1, and the value N 0
Name Gender Fever Cough Test-1 Test-2 Test-3 Test-4
Jack M Y N P N N N
Mary F Y N P N P N
Jim M Y P N N N N
75
.
0
2
1
1
2
1
)
,
(
67
.
0
1
1
1
1
1
)
,
(
33
.
0
1
0
2
1
0
)
,
(















mary
jim
d
jim
jack
d
mary
jack
d

62. 62

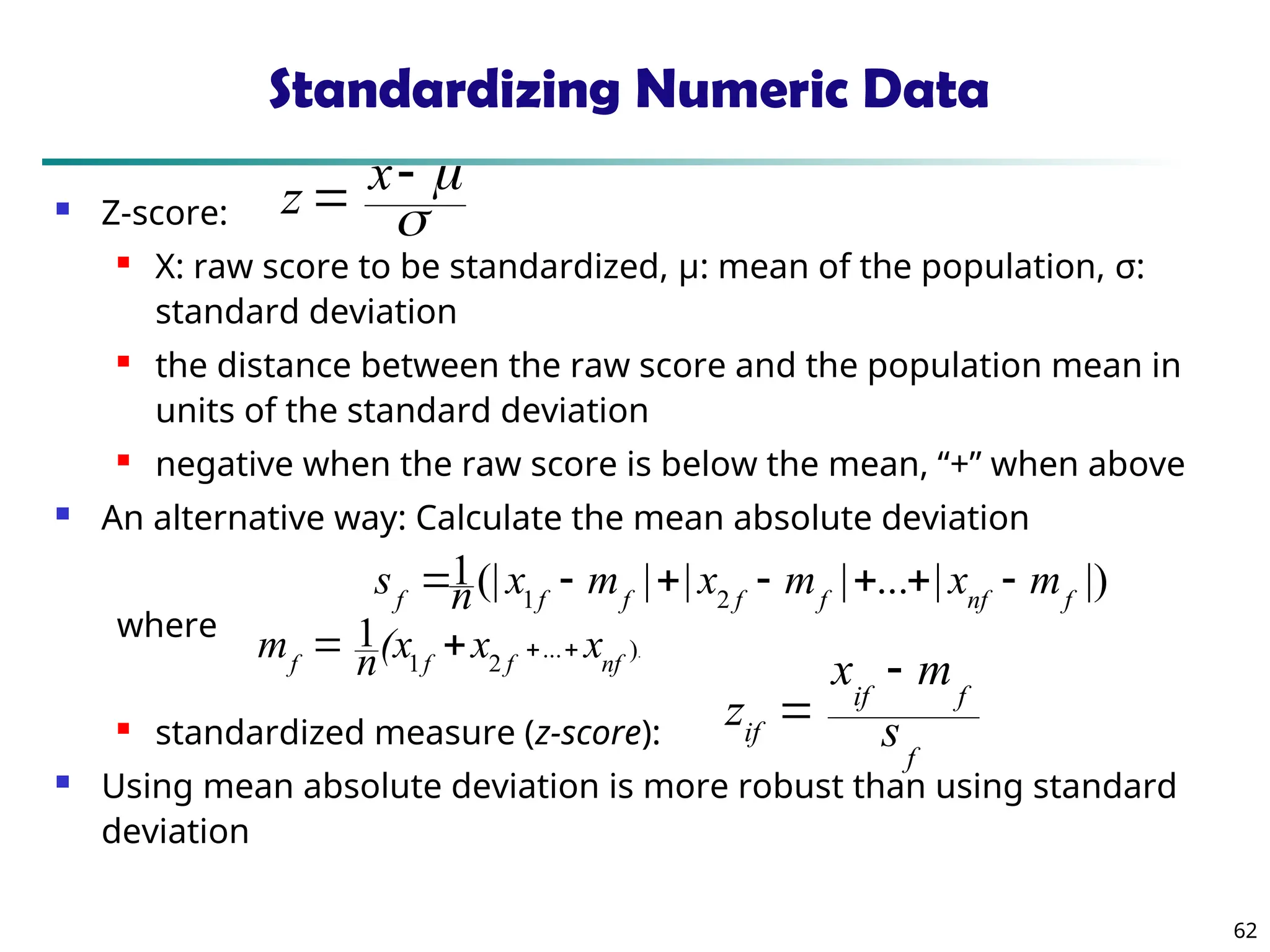

Standardizing Numeric Data
 Z-score:
 X: raw score to be standardized, μ: mean of the population, σ:
standard deviation
 the distance between the raw score and the population mean in
units of the standard deviation
 negative when the raw score is below the mean, “+” when above
 An alternative way: Calculate the mean absolute deviation
where
 standardized measure (z-score):
 Using mean absolute deviation is more robust than using standard
deviation
.
)
...
2
1
1
nf
f
f
f
x
x
(x
n
m 



|)
|
...
|
|
|
(|
1
2
1 f
nf
f
f
f
f
f
m
x
m
x
m
x
n
s 






f
f
if
if s
m
x
z





 x
z

63. 63

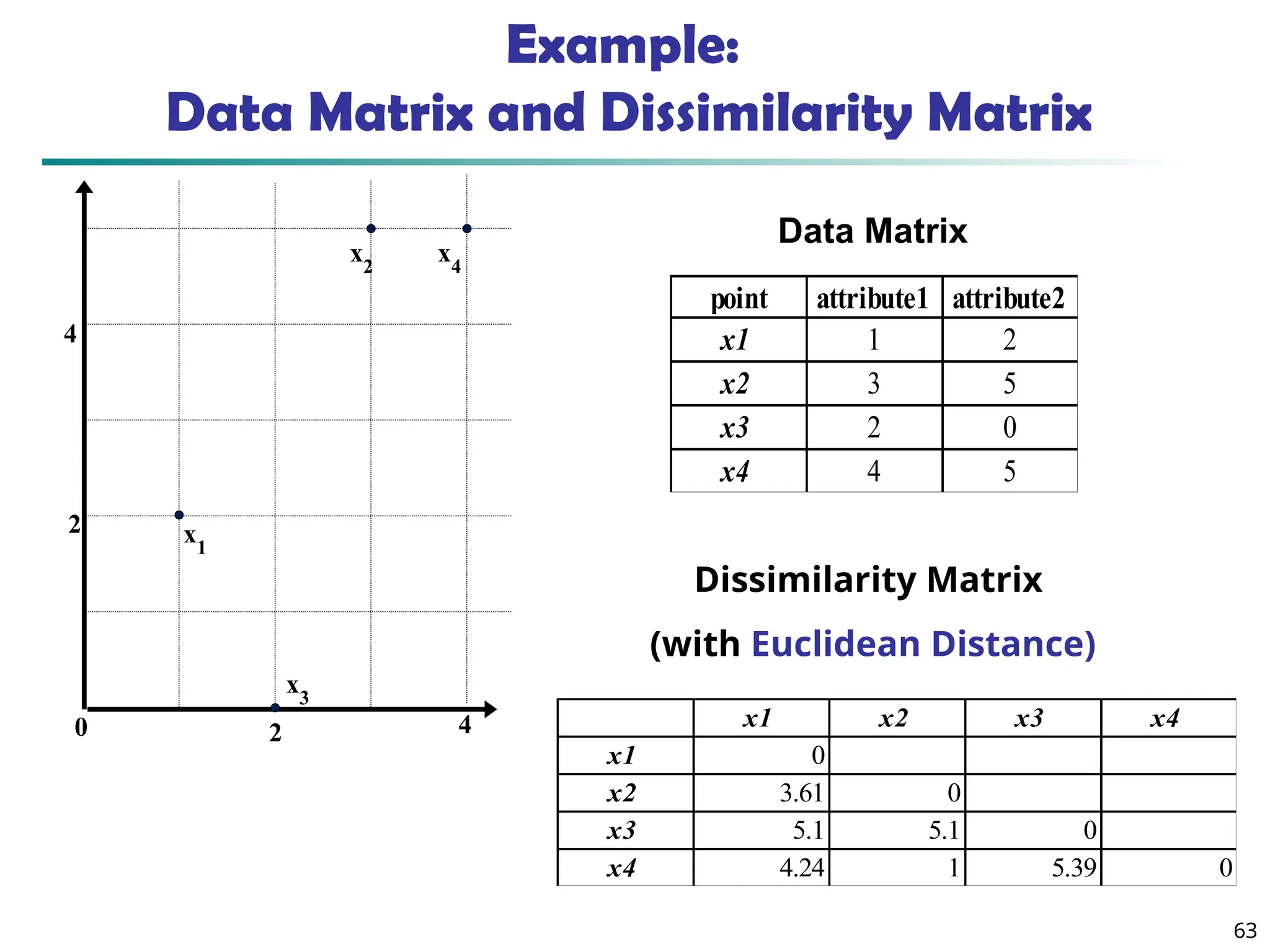

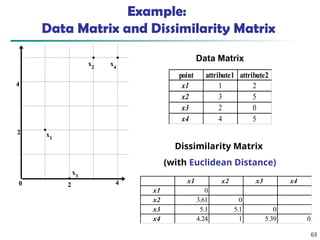

Example:
Data Matrix and Dissimilarity Matrix
point attribute1 attribute2
x1 1 2
x2 3 5
x3 2 0
x4 4 5
Dissimilarity Matrix
(with Euclidean Distance)
x1 x2 x3 x4
x1 0
x2 3.61 0
x3 5.1 5.1 0
x4 4.24 1 5.39 0
Data Matrix
0 2 4
2
4
x1
x2
x3
x4

64. 64

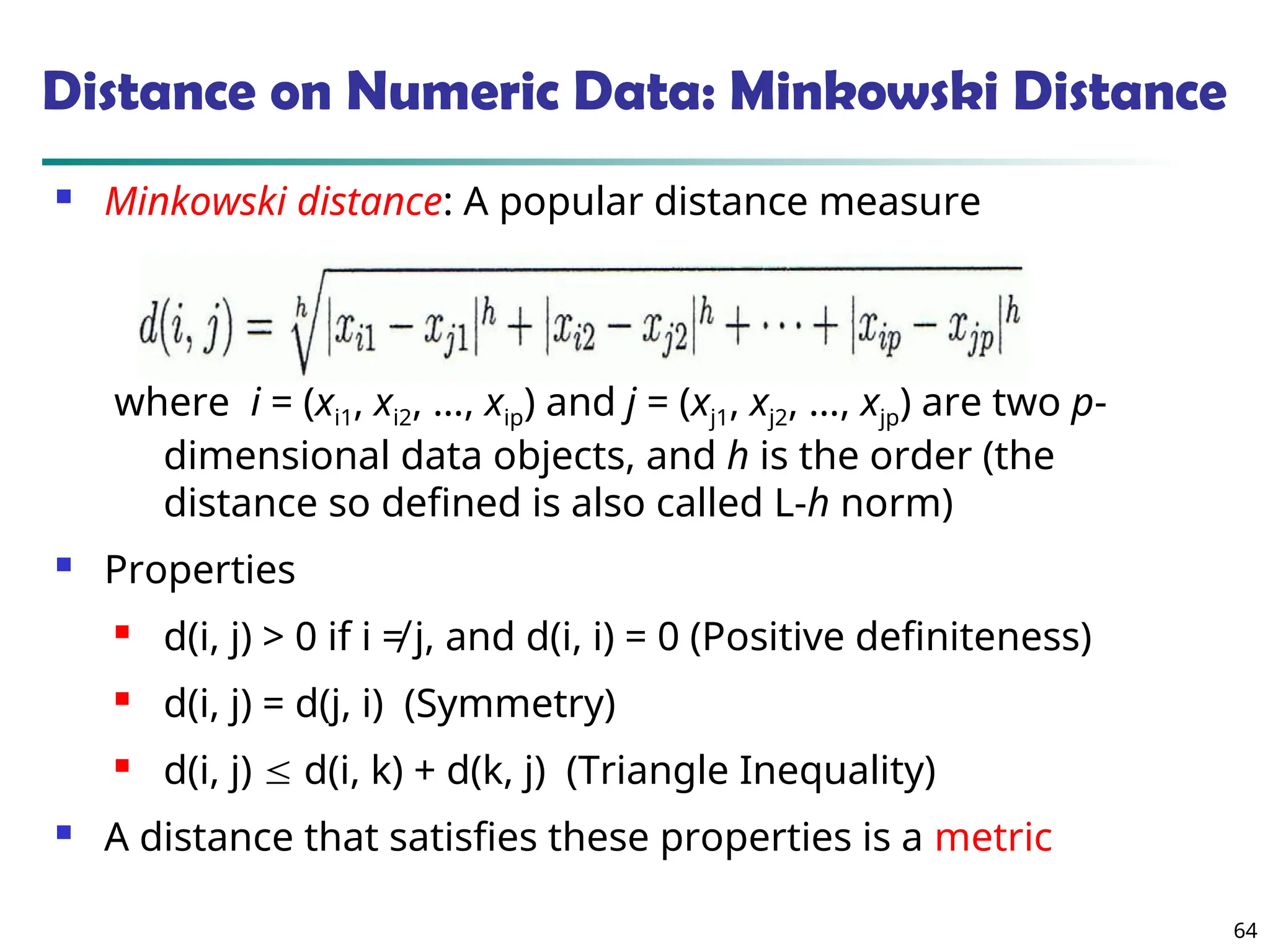

Distance on Numeric Data: Minkowski Distance
 Minkowski distance: A popular distance measure
where i = (xi1, xi2, …, xip) and j = (xj1, xj2, …, xjp) are two p-
dimensional data objects, and h is the order (the
distance so defined is also called L-h norm)
 Properties
 d(i, j) > 0 if i ≠ j, and d(i, i) = 0 (Positive definiteness)
 d(i, j) = d(j, i) (Symmetry)
 d(i, j)  d(i, k) + d(k, j) (Triangle Inequality)
 A distance that satisfies these properties is a metric

65. 65

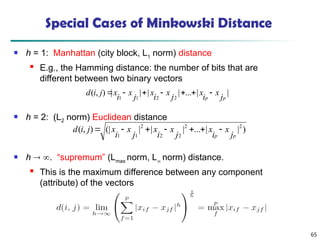

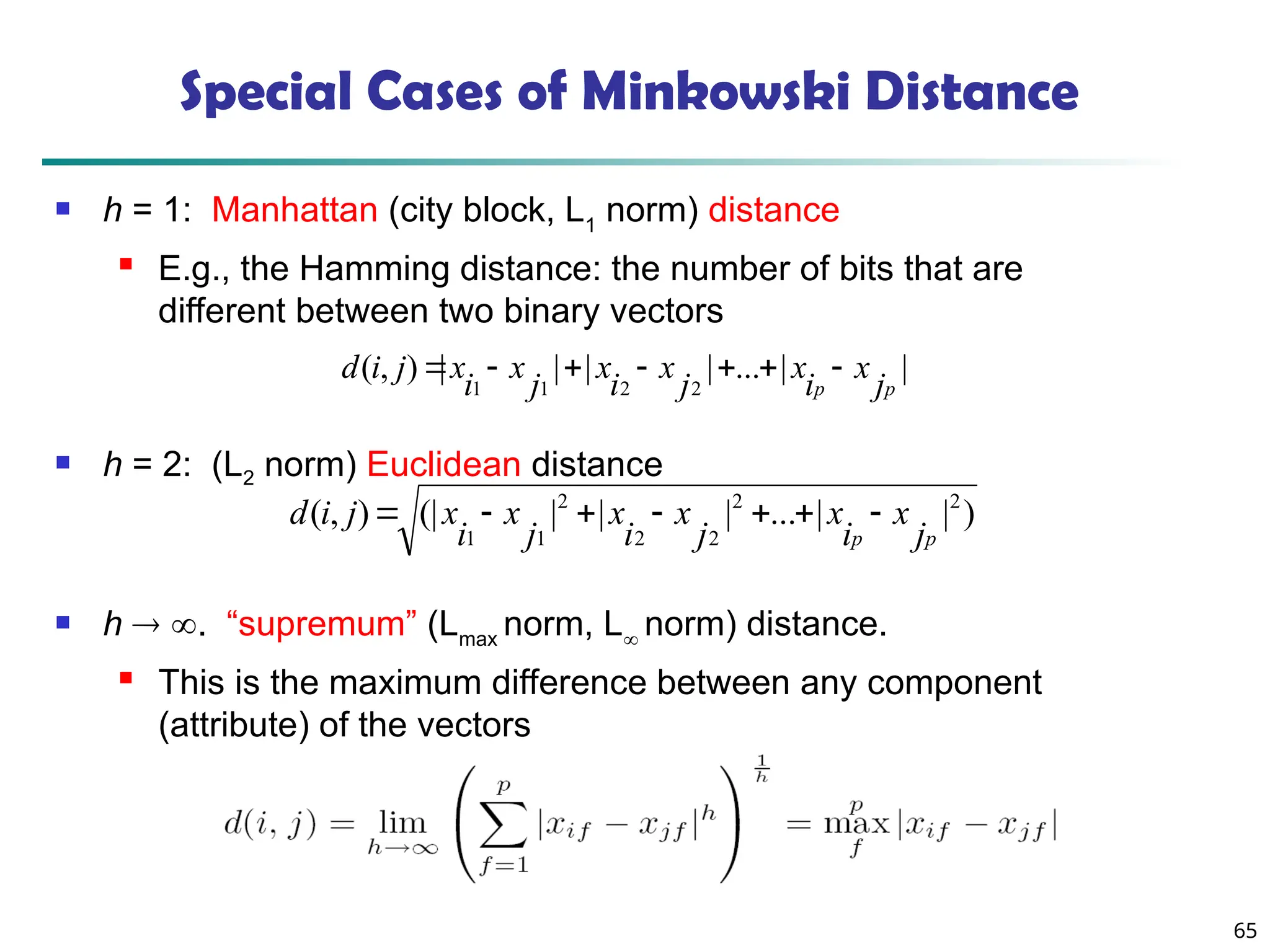

Special Cases of Minkowski Distance
 h = 1: Manhattan (city block, L1
norm) distance
 E.g., the Hamming distance: the number of bits that are
different between two binary vectors
 h = 2: (L2 norm) Euclidean distance
 h  . “supremum” (Lmax
norm, L
norm) distance.
 This is the maximum difference between any component
(attribute) of the vectors
)
|
|
...
|
|
|
(|
)
,
( 2
2
2
2
2
1
1 p
p j
x
i
x
j
x
i
x
j
x
i
x
j
i
d 






|
|
...
|
|
|
|
)
,
(
2
2
1
1 p
p j
x
i
x
j
x
i
x
j
x
i
x
j
i
d 







66. 66

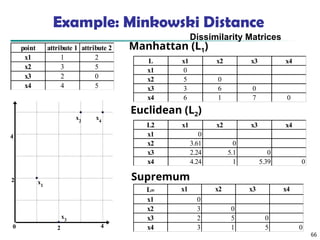

Example: Minkowski Distance
Dissimilarity Matrices
point attribute 1 attribute 2
x1 1 2
x2 3 5
x3 2 0
x4 4 5
L x1 x2 x3 x4
x1 0
x2 5 0
x3 3 6 0
x4 6 1 7 0
L2 x1 x2 x3 x4
x1 0
x2 3.61 0
x3 2.24 5.1 0
x4 4.24 1 5.39 0
L x1 x2 x3 x4
x1 0
x2 3 0
x3 2 5 0
x4 3 1 5 0
Manhattan (L1)
Euclidean (L2)
Supremum
0 2 4
2
4
x1
x2
x3
x4

67. 67

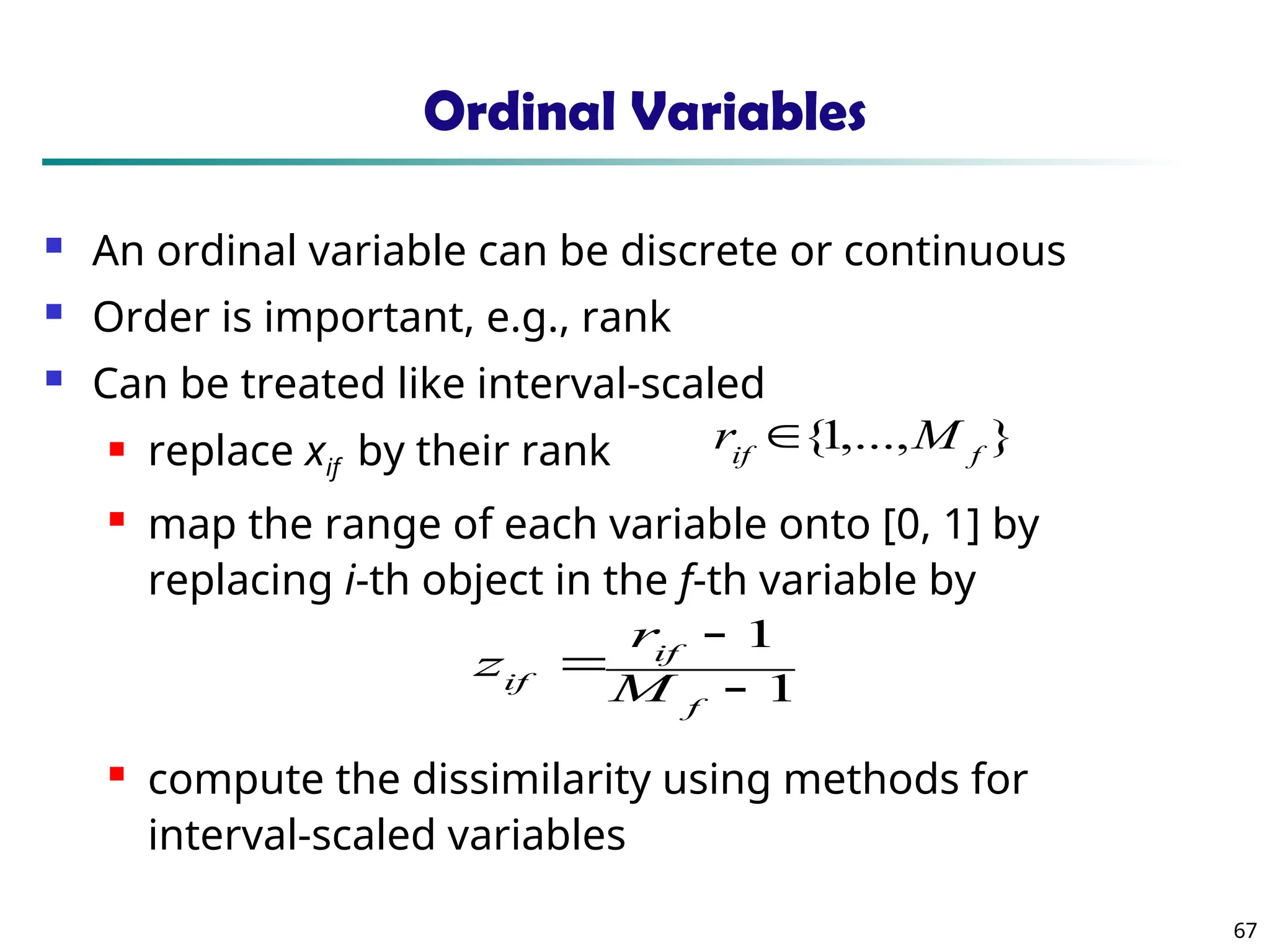

Ordinal Variables
 An ordinal variable can be discrete or continuous
 Order is important, e.g., rank
 Can be treated like interval-scaled
 replace xif by their rank
 map the range of each variable onto [0, 1] by
replacing i-th object in the f-th variable by
 compute the dissimilarity using methods for
interval-scaled variables
1
1



f
if
if M
r
z
}
,...,
1
{ f
if
M
r 

68. 68

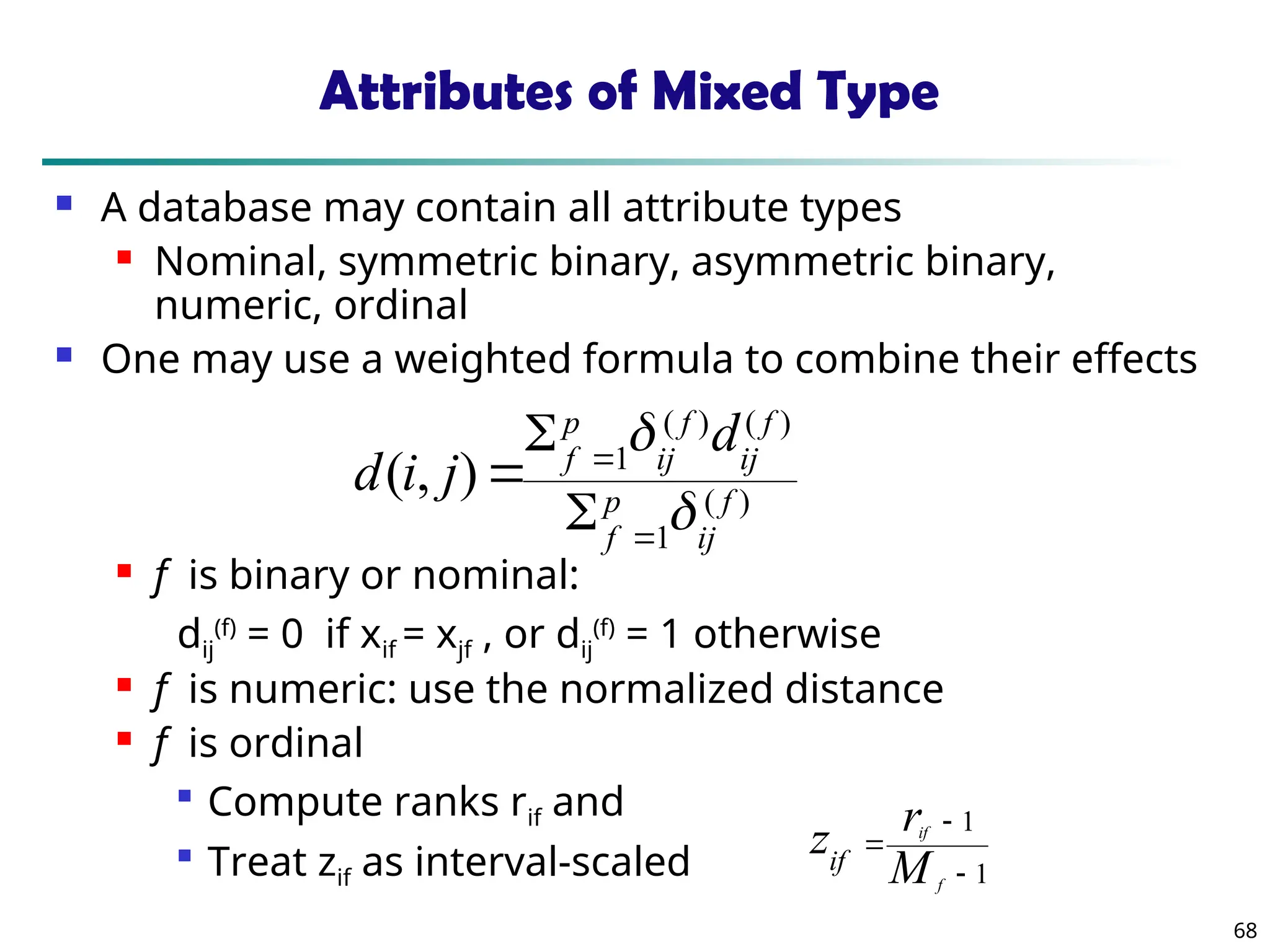

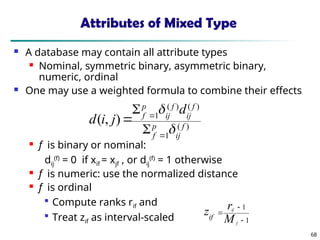

Attributes of Mixed Type
 A database may contain all attribute types
 Nominal, symmetric binary, asymmetric binary,
numeric, ordinal
 One may use a weighted formula to combine their effects
 f is binary or nominal:
dij
(f)
= 0 if xif = xjf , or dij
(f)
= 1 otherwise
 f is numeric: use the normalized distance
 f is ordinal

Compute ranks rif and

Treat zif as interval-scaled
)
(
1
)
(
)
(
1
)
,
( f
ij
p
f
f
ij
f
ij
p
f
d
j
i
d







1
1



f
if
M
r
zif

69. 69

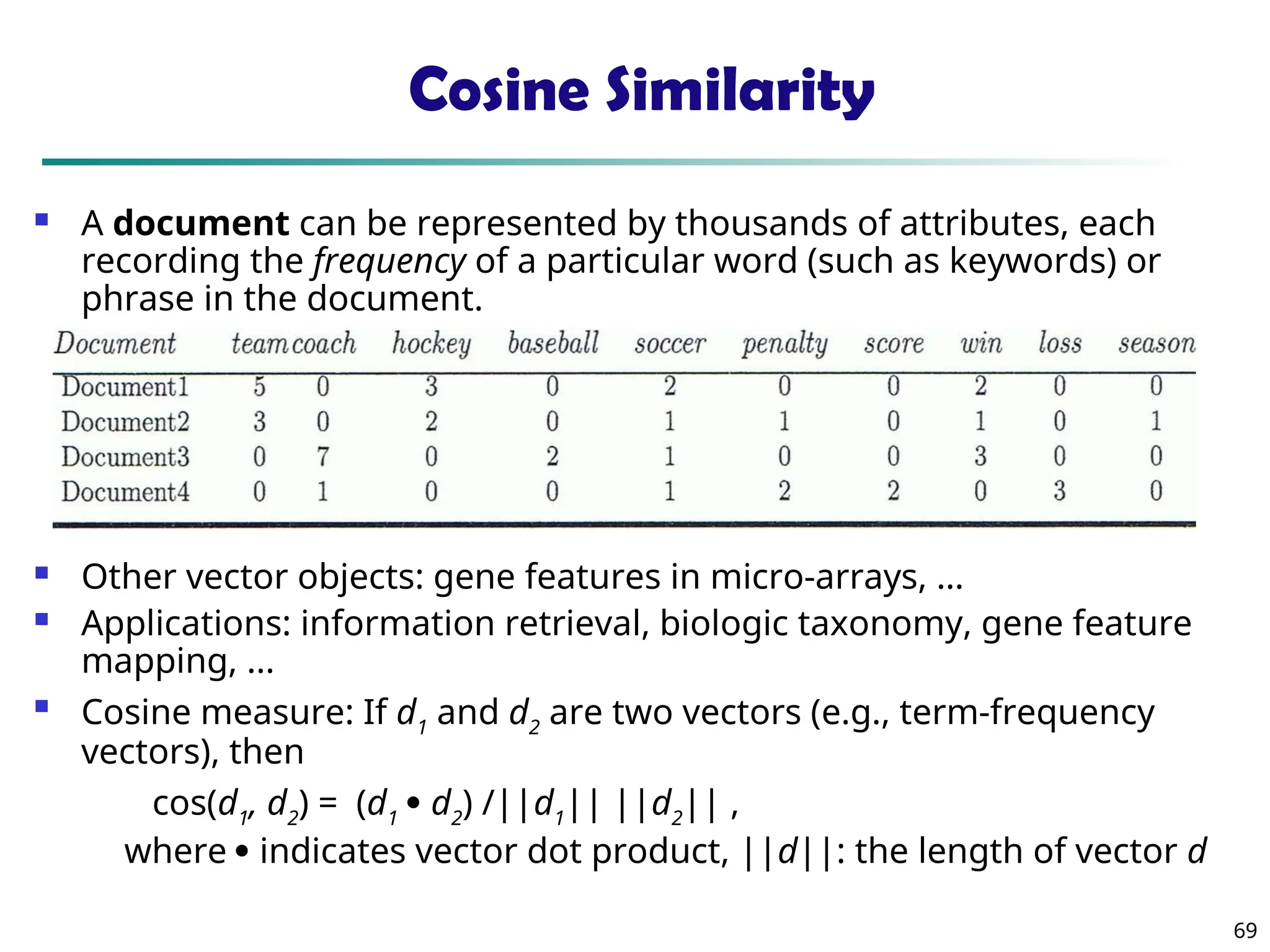

Cosine Similarity
 A document can be represented by thousands of attributes, each
recording the frequency of a particular word (such as keywords) or
phrase in the document.
 Other vector objects: gene features in micro-arrays, …
 Applications: information retrieval, biologic taxonomy, gene feature
mapping, ...

Cosine measure: If d1
and d2
are two vectors (e.g., term-frequency
vectors), then
cos(d1
, d2
) = (d1
 d2
) /||d1
|| ||d2
|| ,
where  indicates vector dot product, ||d||: the length of vector d

70. 70

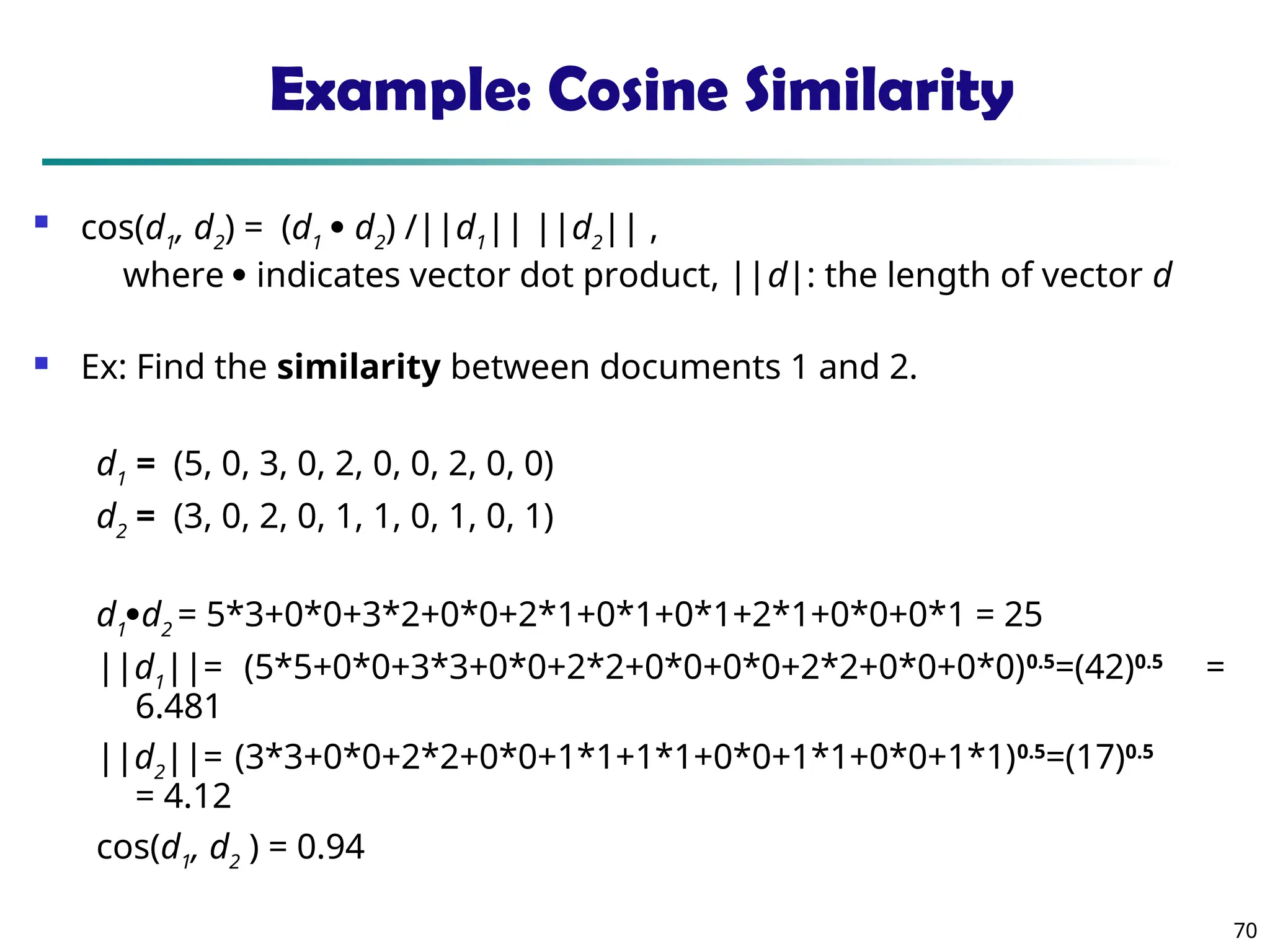

Example: Cosine Similarity

cos(d1
, d2
) = (d1
 d2
) /||d1
|| ||d2
|| ,
where  indicates vector dot product, ||d|: the length of vector d
 Ex: Find the similarity between documents 1 and 2.
d1
= (5, 0, 3, 0, 2, 0, 0, 2, 0, 0)
d2
= (3, 0, 2, 0, 1, 1, 0, 1, 0, 1)
d1
d2
= 5*3+0*0+3*2+0*0+2*1+0*1+0*1+2*1+0*0+0*1 = 25
||d1
||= (5*5+0*0+3*3+0*0+2*2+0*0+0*0+2*2+0*0+0*0)0.5
=(42)0.5
=
6.481
||d2
||= (3*3+0*0+2*2+0*0+1*1+1*1+0*0+1*1+0*0+1*1)0.5
=(17)0.5
= 4.12
cos(d1
, d2
) = 0.94

71. 71
Chapter 2: Getting to Know Your Data
 Data Objects and Attribute Types
 Basic Statistical Descriptions of Data
 Data Visualization
 Measuring Data Similarity and Dissimilarity
 Summary

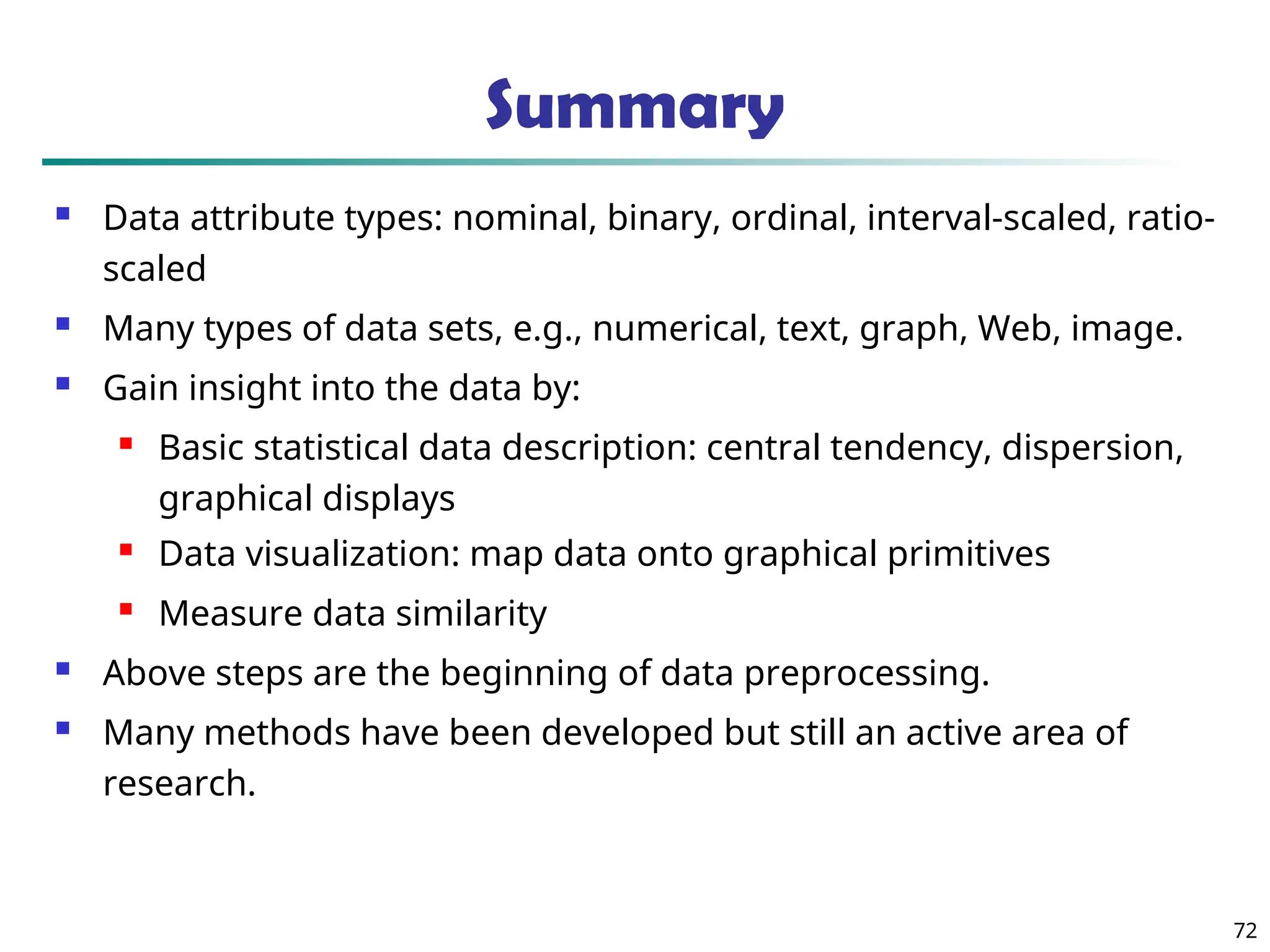

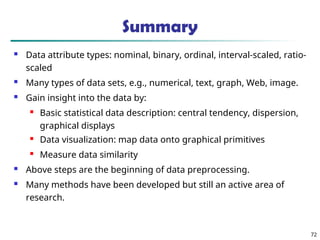

72. Summary
 Data attribute types: nominal, binary, ordinal, interval-scaled, ratio-
scaled
 Many types of data sets, e.g., numerical, text, graph, Web, image.
 Gain insight into the data by:
 Basic statistical data description: central tendency, dispersion,
graphical displays
 Data visualization: map data onto graphical primitives
 Measure data similarity
 Above steps are the beginning of data preprocessing.
 Many methods have been developed but still an active area of
research.
72

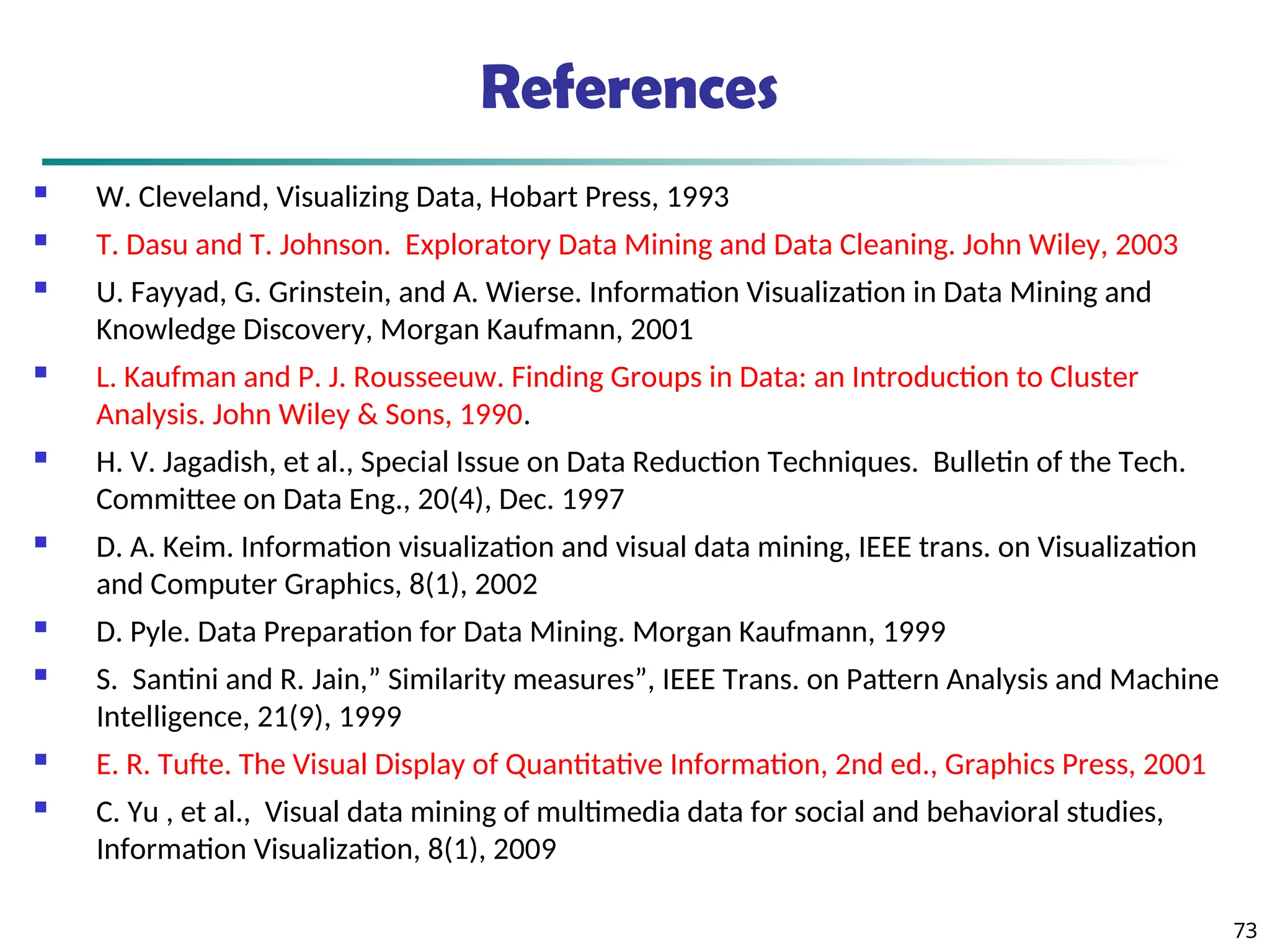

73. References
 W. Cleveland, Visualizing Data, Hobart Press, 1993
 T. Dasu and T. Johnson. Exploratory Data Mining and Data Cleaning. John Wiley, 2003
 U. Fayyad, G. Grinstein, and A. Wierse. Information Visualization in Data Mining and
Knowledge Discovery, Morgan Kaufmann, 2001
 L. Kaufman and P. J. Rousseeuw. Finding Groups in Data: an Introduction to Cluster
Analysis. John Wiley & Sons, 1990.
 H. V. Jagadish, et al., Special Issue on Data Reduction Techniques. Bulletin of the Tech.
Committee on Data Eng., 20(4), Dec. 1997
 D. A. Keim. Information visualization and visual data mining, IEEE trans. on Visualization
and Computer Graphics, 8(1), 2002
 D. Pyle. Data Preparation for Data Mining. Morgan Kaufmann, 1999
 S. Santini and R. Jain,” Similarity measures”, IEEE Trans. on Pattern Analysis and Machine
Intelligence, 21(9), 1999
 E. R. Tufte. The Visual Display of Quantitative Information, 2nd ed., Graphics Press, 2001
 C. Yu , et al., Visual data mining of multimedia data for social and behavioral studies,
Information Visualization, 8(1), 2009
73
