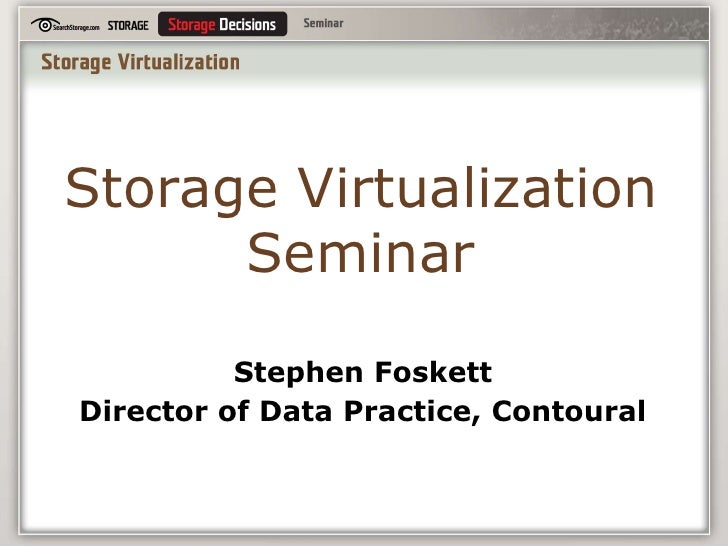

Storage Virtualization Seminar Stephen Foskett Director of Data Practice, Contoural
Part 1:Breaking the Connections Storage virtualization is here, breaking the connection between physical storage infrastructure and the logical way we use it
Agenda What is storage virtualization? Volume management Advanced file systems Virtualizing the SAN  Virtual NAS
Poll: Who is Already Using Storage Virtualization? ,[object Object]
…but your storage is already virtualized!
Disk drives map blocks
RAID is as old as storage (conceived 1978-1988)
Modern OSes include volume management and path management
Network-attached storage (NAS) redirectors and DFS
Storage arrays are highly virtualized (clustering, LUN carving, relocation, tiering, etc…)
According to ESG, 52% have already implemented storage virtualization and 48% plan to! (ESG 2008),[object Object]
What and Why? Virtualization removes the hard connection between storage hardware and users Address space is mapped to logical rather than physical locations The virtualizing service consistently maintains this meta-data I/O can be redirected to a new physical location We gain by virtualizing Efficiency, flexibility, and scalability Stability, availability, and recoverability
The Non-Revolution:Storage Virtualization Software ,[object Object]
Virtualization exists for both block and file storage networks
Can be located in server-based software, on network-based appliances, SAN switches, or integrated with the storage arraySwitch Appliance Array
Introducing Volume Management ,[object Object]
Volume managers abstract block storage (LUNs, disks, partitions) into virtual “volumes”
Very common – all* modern OSes have volume managers built in
Windows Logical Disk Manager, Linux LVM/EVMS, AIX LVM, HP-UX LVM, Solaris Solstice, Veritas Volume Manager
Mostly used for flexibility
Resize volumes
Protect data (RAID)
Add capacity (concatenate or expand stripe or RAID)
Mirror, snapshot, replicate
Migrate data,[object Object]
ZFS: Super File System! ,[object Object]
Open source (CDDL) project managed by Sun
Will probably replace UFS (Sun), HFS+ (Apple OS X Snow Leopard Server)
ZFS creates a truly flexible, extensible, and full-featured pool of storage across systems and disks
Filesystems contained in “zpools” on “vdevs” with striping and optional RAID-Z/Z2
128-bit addresses mean near-infinite capacity (in theory)
Blocks are “copy-on-write” with checksums for snapshots, clones, authentication
…but there are some limitations
Adding (and especially removing) vdevs is hard/impossible
Stacked RAID is impossible
There is no clustering (until Sun adds Lustre),[object Object]
Virtualizing the SAN ,[object Object]
Can require less reconfiguration and server work
Works with all servers and storage (potentially)
Resides on appliance or switch placed in the storage network
Some are in the data path, others are less so
Brocade and Cisco switches have application blades
Some use dedicated storage services modules (SSMs),[object Object]
SAN Virtualization Products
Virtual NAS ,[object Object]
IP network connectivity and host processing possibilities
Multitude of file servers? Virtualize!
Global namespace across all NAS and servers
Share excess capacity
Transparently migrate data (easier than redirecting users!)
Tier files on large “shares” with variety of data
Create multiple virtual file servers,[object Object]
Transformed Storage Systems ,[object Object]
Arrays create large RAID sets and “carve out” virtual LUNs for use by servers
Controller clusters (and grids) redirect activity based on workload and availability
Snapshots/mirrors and replication are common features
A new generation arrays with virtualization features is appearing, with tiered storage, thin provisioning, migration, de-duplication
Sub-disk RAID = the end of RAID as we know it?,[object Object]
Most arrays support multiple drive types
“Bulk” SATA or SAS drives are common (500 GB - 1 TB)
Solid-state drives are the latest innovation
