1.
ArduinoTHE OPEN-SOURCE ELECTRONICS PROTOTYPING
PLATFORM
BY: NIKET CHANDRAWANSHI
HTTP://WWW.NIKETCHANDRAWANSHI.ME/

2.

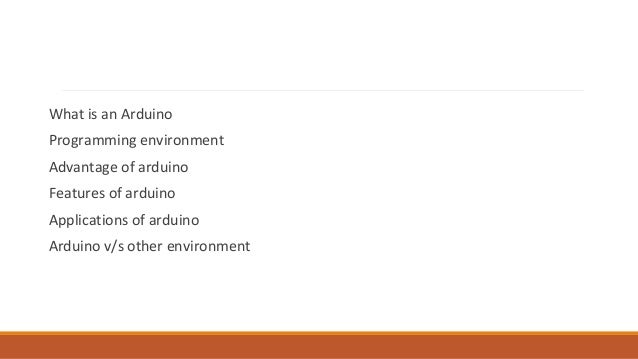

What is an Arduino
Programming environment
Advantage of arduino
Features of arduino
Applications of arduino
Arduino v/s other environment

3.
What is an Arduino ?

4.

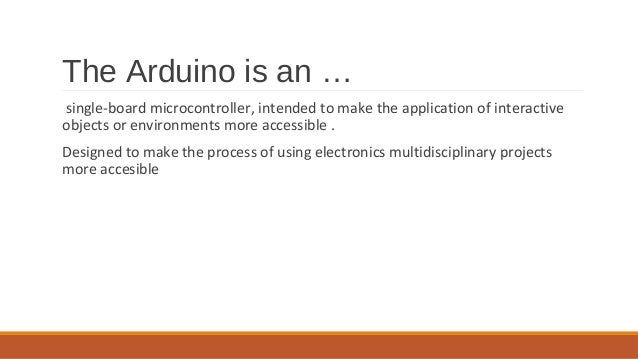

The Arduino is an …
single-board microcontroller, intended to make the application of interactive
objects or environments more accessible .
Designed to make the process of using electronics multidisciplinary projects
more accesible

5.

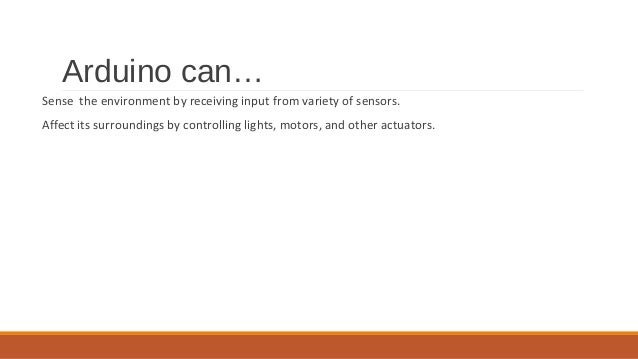

Arduino can…
Sense the environment by receiving input from variety of sensors.
Affect its surroundings by controlling lights, motors, and other actuators.

6.

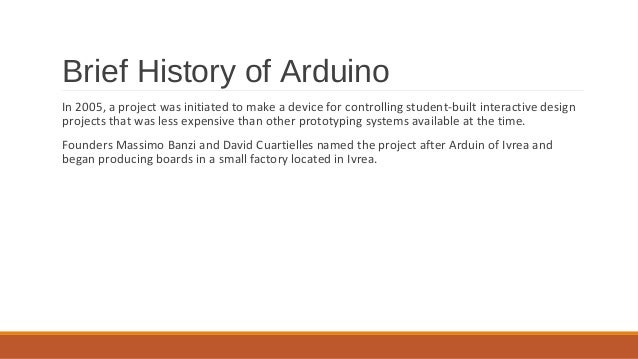

Brief History of Arduino
In 2005, a project was initiated to make a device for controlling student-built interactive design
projects that was less expensive than other prototyping systems available at the time.
Founders Massimo Banzi and David Cuartielles named the project after Arduin of Ivrea and
began producing boards in a small factory located in Ivrea.

7.

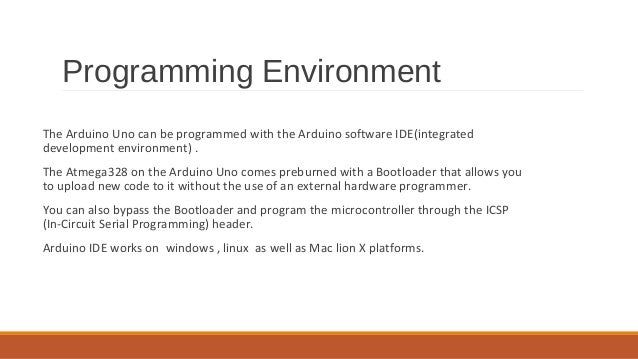

Programming Environment
The Arduino Uno can be programmed with the Arduino software IDE(integrated
development environment) .
The Atmega328 on the Arduino Uno comes preburned with a Bootloader that allows you
to upload new code to it without the use of an external hardware programmer.
You can also bypass the Bootloader and program the microcontroller through the ICSP
(In-Circuit Serial Programming) header.
Arduino IDE works on windows , linux as well as Mac lion X platforms.

8.

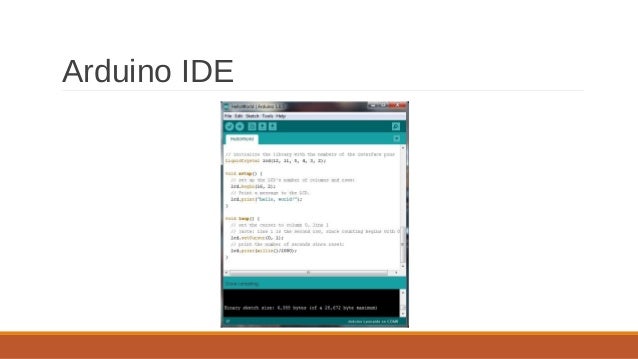

Arduino IDE

9.

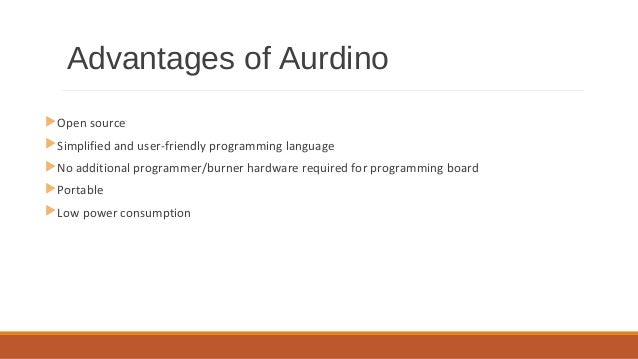

Advantages of Aurdino
Open source
Simplified and user-friendly programming language
No additional programmer/burner hardware required for programming board
Portable
Low power consumption

10.

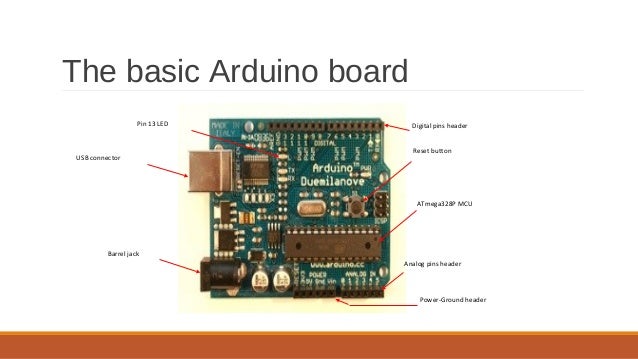

The basic Arduino board
ATmega328P MCU
Reset button
Analog pins header
Digital pins header
Power-Ground header
Pin 13 LED
USB connector
Barrel jack

11.

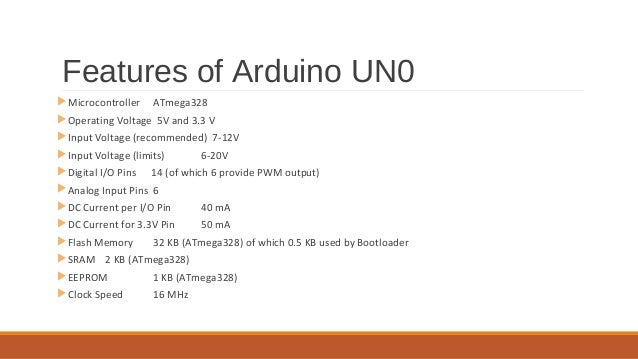

Features of Arduino UN0
Microcontroller ATmega328
Operating Voltage 5V and 3.3 V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 0.5 KB used by Bootloader
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Clock Speed 16 MHz

12.

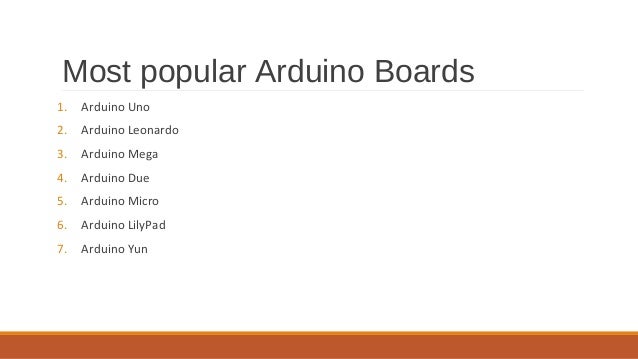

Most popular Arduino Boards
1. Arduino Uno
2. Arduino Leonardo
3. Arduino Mega
4. Arduino Due
5. Arduino Micro
6. Arduino LilyPad
7. Arduino Yun

13.
Applications of Arduino
Home Automations
Sensor prototyping
Robotics
ISP programming
Easy Wifi ,Gsm ,Ethernet , Bluetooth , zigbee Conectivity
a
w e r t y u i o p ⌫
s fd g h j k l ‘ Enter
q
z x c v b n m ., ?
Ctrl &123 < > ⌨

14.
Other prototyping platforms
Raspberry pie
Beagle board
Panda board
Cotton candy
CubieBoard
APC Rock
Hackberry
Gooseberry

15.

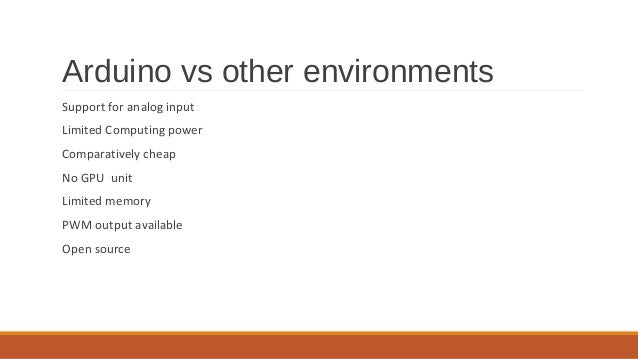

Arduino vs other environments
Support for analog input
Limited Computing power
Comparatively cheap
No GPU unit
Limited memory
PWM output available
Open source

16.

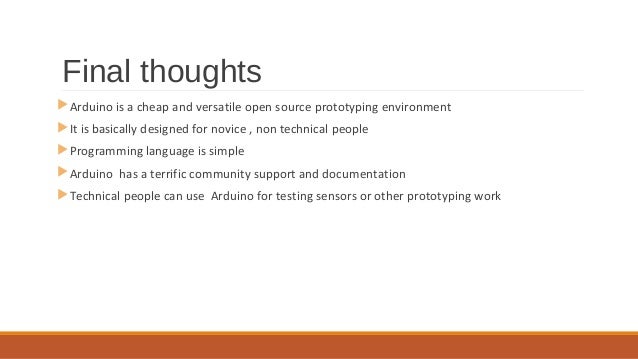

Final thoughts
Arduino is a cheap and versatile open source prototyping environment
It is basically designed for novice , non technical people
Programming language is simple
Arduino has a terrific community support and documentation
Technical people can use Arduino for testing sensors or other prototyping work

17.

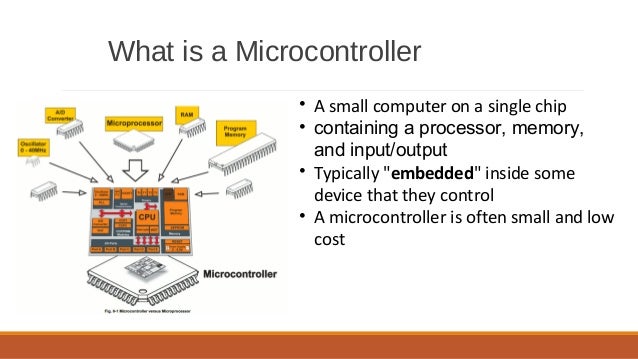

What is a Microcontroller
• A small computer on a single chip
• containing a processor, memory,
and input/output
• Typically "embedded" inside some
device that they control
• A microcontroller is often small and low
cost

18.

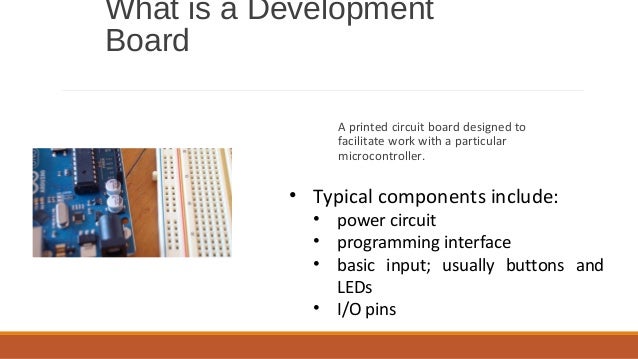

What is a Development
Board
A printed circuit board designed to
facilitate work with a particular
microcontroller.
• Typical components include:
• power circuit
• programming interface
• basic input; usually buttons and
LEDs
• I/O pins

19.

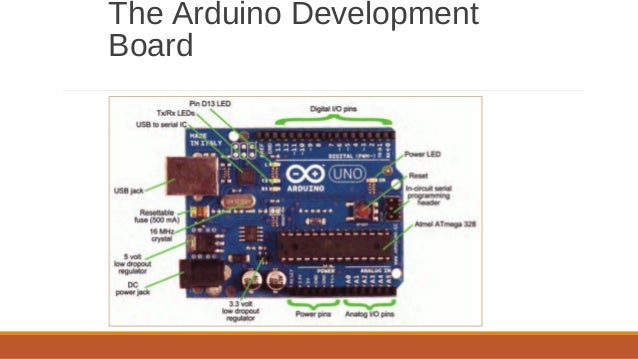

The Arduino Development
Board

20.

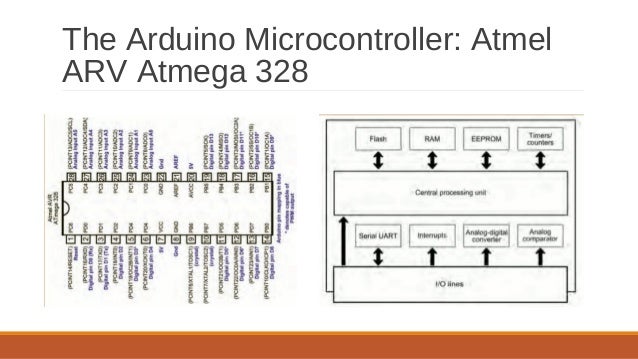

The Arduino Microcontroller: Atmel
ARV Atmega 328

21.

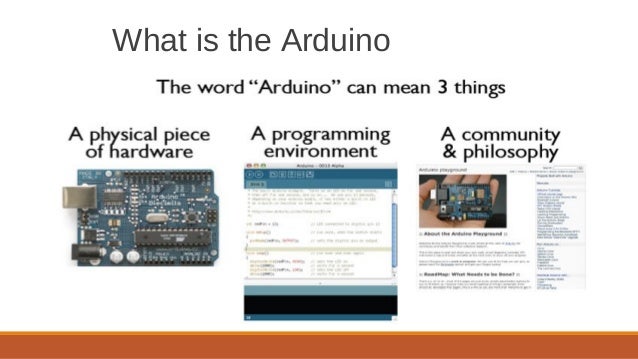

What is the Arduino

22.

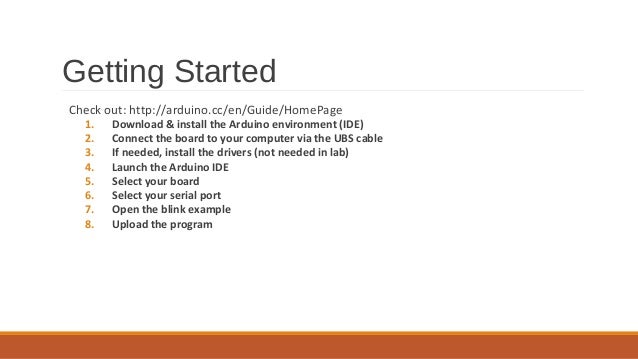

Getting Started
Check out: http://arduino.cc/en/Guide/HomePage
1. Download & install the Arduino environment (IDE)
2. Connect the board to your computer via the UBS cable
3. If needed, install the drivers (not needed in lab)
4. Launch the Arduino IDE
5. Select your board
6. Select your serial port
7. Open the blink example
8. Upload the program

23.
Try It: Connect the USB Cable
todbot.com/blog/bionicarduino

24.
Arduino IDE

25.
Select Serial Port and Board

26.

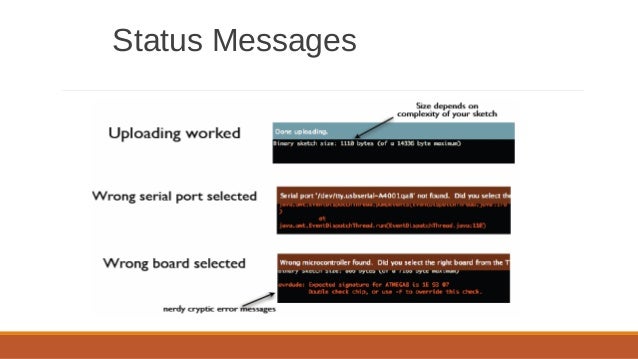

Status Messages

27.

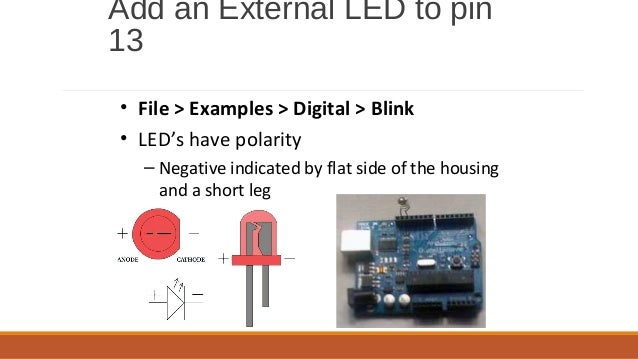

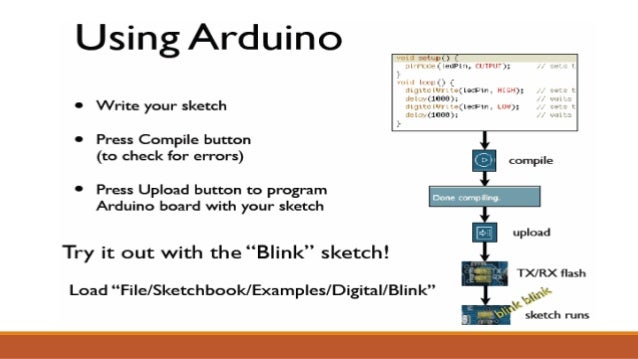

Add an External LED to pin
13
• File > Examples > Digital > Blink
• LED’s have polarity
– Negative indicated by flat side of the housing
and a short leg

28.

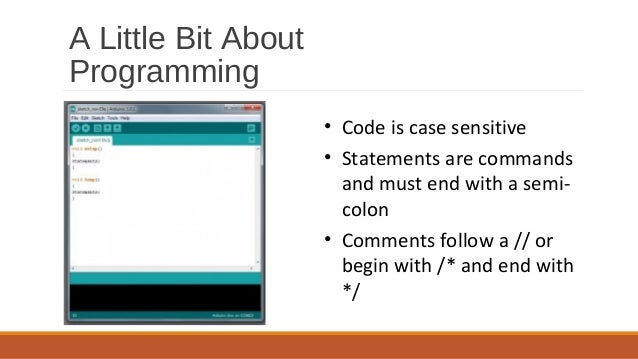

A Little Bit About
Programming
• Code is case sensitive
• Statements are commands
and must end with a semi-
colon
• Comments follow a // or
begin with /* and end with
*/

29.

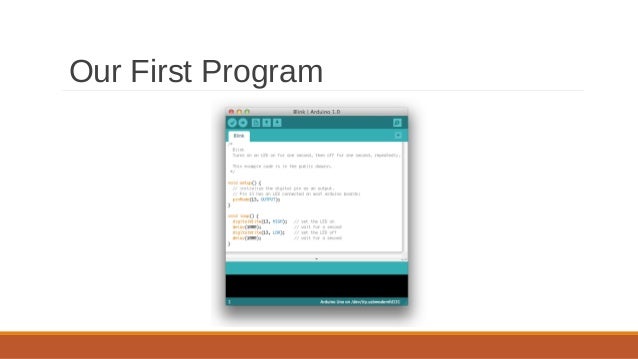

Our First Program

30.

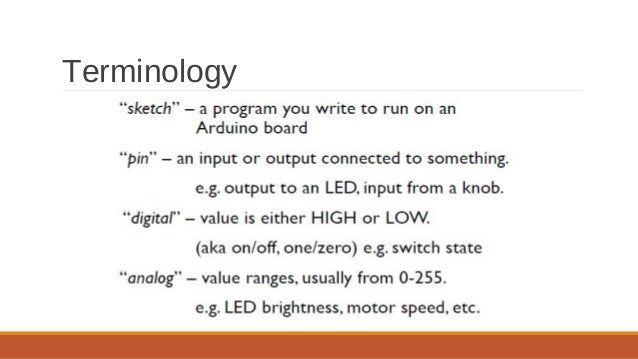

Terminology

31.

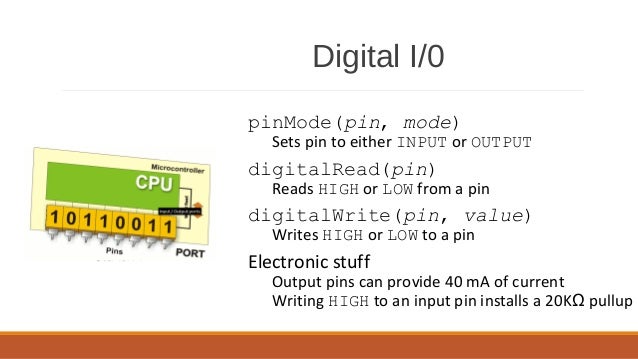

Digital I/0
pinMode(pin, mode)
Sets pin to either INPUT or OUTPUT
digitalRead(pin)
Reads HIGH or LOW from a pin
digitalWrite(pin, value)
Writes HIGH or LOW to a pin
Electronic stuff
Output pins can provide 40 mA of current
Writing HIGH to an input pin installs a 20KΩ pullup

32.

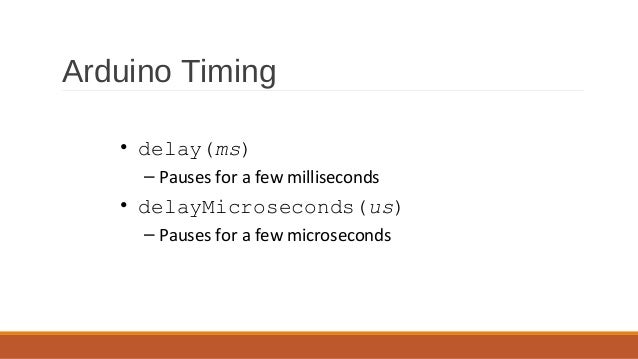

Arduino Timing
• delay(ms)
– Pauses for a few milliseconds
• delayMicroseconds(us)
– Pauses for a few microseconds

33.

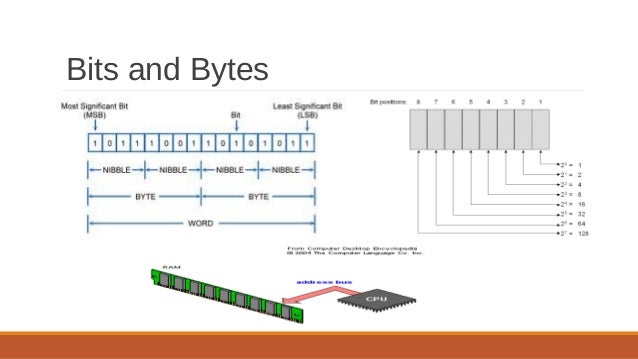

Bits and Bytes

34.

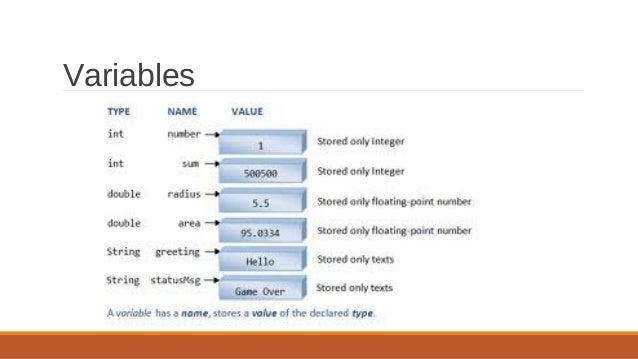

Variables

35.

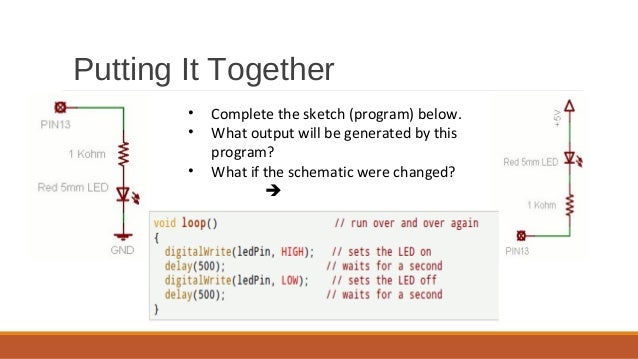

Putting It Together
• Complete the sketch (program) below.
• What output will be generated by this
program?
• What if the schematic were changed?


36.
Thank You
Niket Chandrawanshi
Contact: +91-7415045756
