The document discusses the Interplanetary Wayback (ipwb), a decentralized web archiving initiative aimed at improving the persistence and accessibility of archived web data. It highlights current issues with existing archiving methods, such as organizational dependency and lack of public participation, while proposing solutions based on decentralized technologies like IPFS. The paper emphasizes the need for further development to convert ipwb into a functional decentralized archiving system capable of supporting larger datasets.

1. Sawood Alam, Mat Kelly, Michele C. Weigle, Michael L. Nelson
Web Science and Digital Libraries Research Group
Old Dominion University
Norfolk, Virginia, USA
@WebSciDL
InterPlanetary Wayback
The Next Step Towards Decentralized Web Archiving
IPFS Lab Day, Decentralized Web Summit, 2018
San Francisco, CA (USA)
August 3, 2018
http://github.com/oduwsdl/ipwb

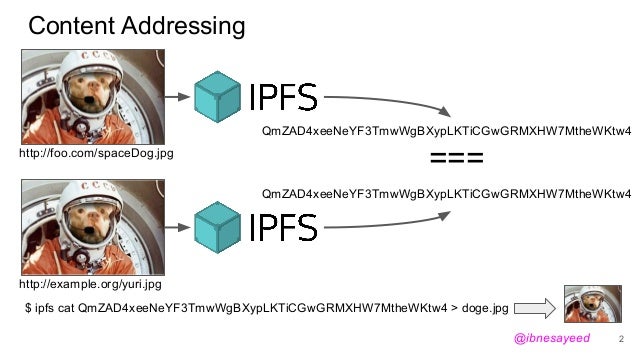

2. Content Addressing
http://foo.com/spaceDog.jpg
http://example.org/yuri.jpg
QmZAD4xeeNeYF3TmwWgBXypLKTiCGwGRMXHW7MtheWKtw4
QmZAD4xeeNeYF3TmwWgBXypLKTiCGwGRMXHW7MtheWKtw4
===
$ ipfs cat QmZAD4xeeNeYF3TmwWgBXypLKTiCGwGRMXHW7MtheWKtw4 > doge.jpg
2@ibnesayeed

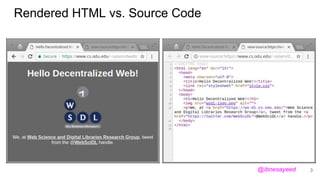

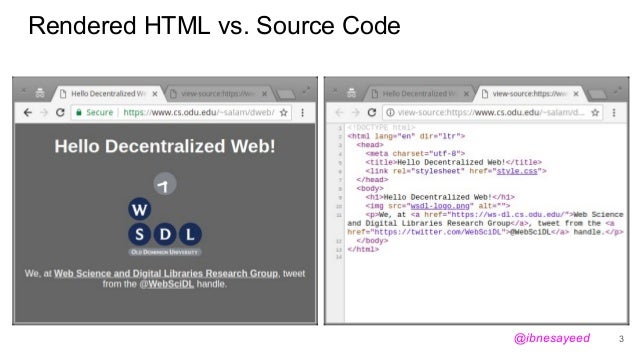

3. Rendered HTML vs. Source Code
3@ibnesayeed

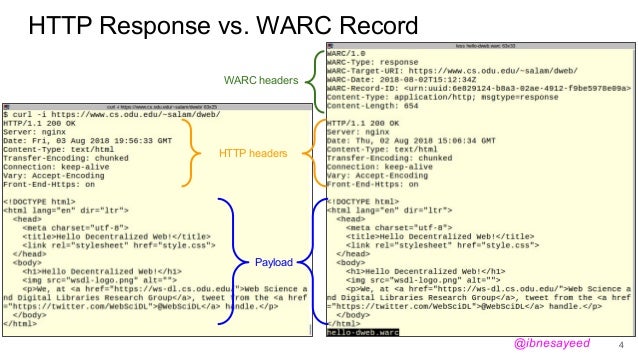

4. HTTP Response vs. WARC Record
4
HTTP headers
Payload
WARC headers
@ibnesayeed

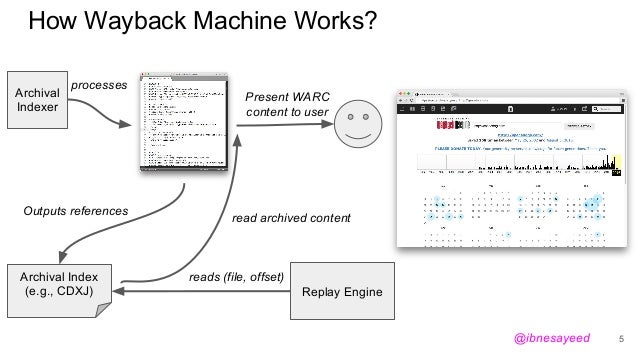

5. How Wayback Machine Works?
Archival
Indexer
Archival Index
(e.g., CDXJ) Replay Engine
processes
Outputs references
reads (file, offset)
read archived content
Present WARC
content to user
5@ibnesayeed

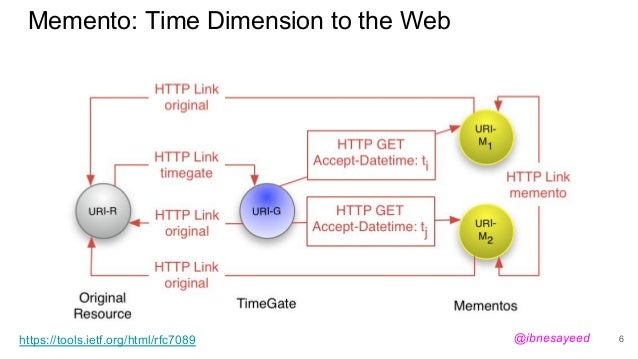

6. Memento: Time Dimension to the Web
https://tools.ietf.org/html/rfc7089 6@ibnesayeed

7. Why IPWB?
● Persistence of archived web dependent on resilience of
organizations
● Availability of data is subject to censorship
● Redundancy in web archive files of exact duplicate content
● Lack of public participation in web archiving
● Discoverability issue of small web archives
7@ibnesayeed

8. Indexing
8@ibnesayeed

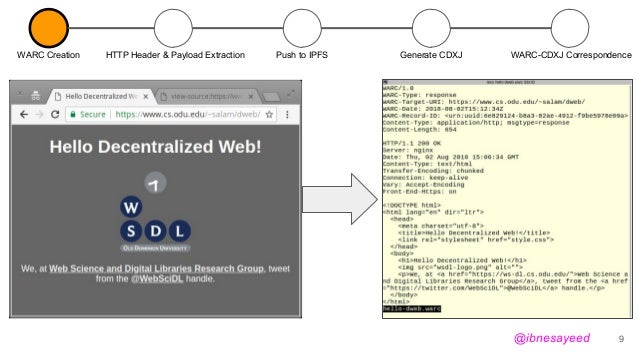

9. WARC Creation HTTP Header & Payload Extraction Push to IPFS Generate CDXJ WARC-CDXJ Correspondence
9@ibnesayeed

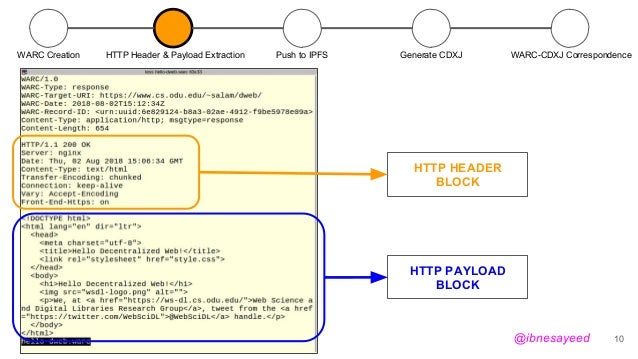

10. HTTP HEADER
BLOCK
HTTP PAYLOAD
BLOCK
WARC Creation HTTP Header & Payload Extraction Push to IPFS Generate CDXJ WARC-CDXJ Correspondence
10@ibnesayeed

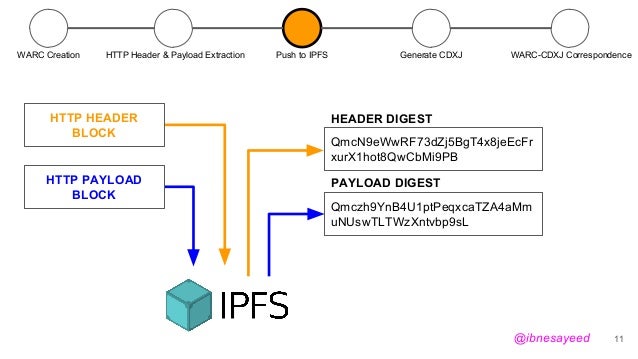

11. QmcN9eWwRF73dZj5BgT4x8jeEcFr
xurX1hot8QwCbMi9PB
Qmczh9YnB4U1ptPeqxcaTZA4aMm
uNUswTLTWzXntvbp9sL
HEADER DIGEST
PAYLOAD DIGEST
WARC Creation HTTP Header & Payload Extraction Push to IPFS Generate CDXJ WARC-CDXJ Correspondence
11
HTTP HEADER
BLOCK
HTTP PAYLOAD
BLOCK
@ibnesayeed

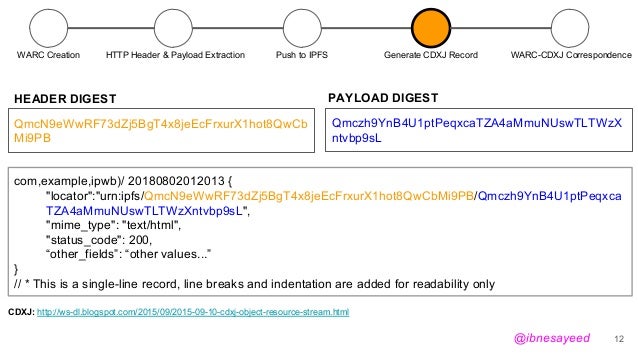

12. QmcN9eWwRF73dZj5BgT4x8jeEcFrxurX1hot8QwCb
Mi9PB
Qmczh9YnB4U1ptPeqxcaTZA4aMmuNUswTLTWzX
ntvbp9sL
HEADER DIGEST
com,example,ipwb)/ 20180802012013 {
"locator":"urn:ipfs/QmcN9eWwRF73dZj5BgT4x8jeEcFrxurX1hot8QwCbMi9PB/Qmczh9YnB4U1ptPeqxca
TZA4aMmuNUswTLTWzXntvbp9sL",
"mime_type": "text/html",
"status_code": 200,
“other_fields”: “other values...”
}
// * This is a single-line record, line breaks and indentation are added for readability only
PAYLOAD DIGEST
CDXJ: http://ws-dl.blogspot.com/2015/09/2015-09-10-cdxj-object-resource-stream.html
WARC Creation HTTP Header & Payload Extraction Push to IPFS Generate CDXJ Record WARC-CDXJ Correspondence
12@ibnesayeed

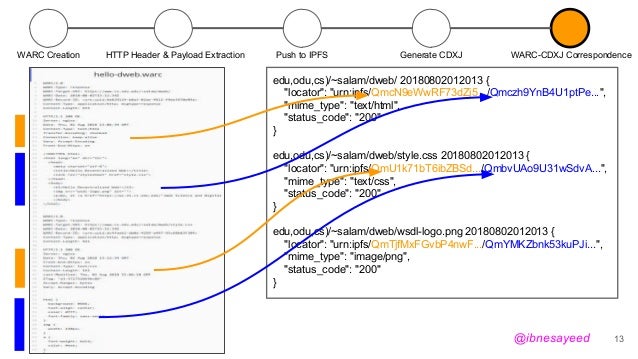

13. edu,odu,cs)/~salam/dweb/ 20180802012013 {
"locator": "urn:ipfs/QmcN9eWwRF73dZj5.../Qmczh9YnB4U1ptPe...",
"mime_type": "text/html",
"status_code": "200"
}
edu,odu,cs)/~salam/dweb/style.css 20180802012013 {
"locator": "urn:ipfs/QmU1k71bT6ibZBSd.../QmbvUAo9U31wSdvA...",
"mime_type": "text/css",
"status_code": "200"
}
edu,odu,cs)/~salam/dweb/wsdl-logo.png 20180802012013 {
"locator": "urn:ipfs/QmTjfMxFGvbP4nwF.../QmYMKZbnk53kuPJi...",
"mime_type": "image/png",
"status_code": "200"
}
WARC Creation HTTP Header & Payload Extraction Push to IPFS Generate CDXJ WARC-CDXJ Correspondence
13@ibnesayeed

14. Replay
14@ibnesayeed

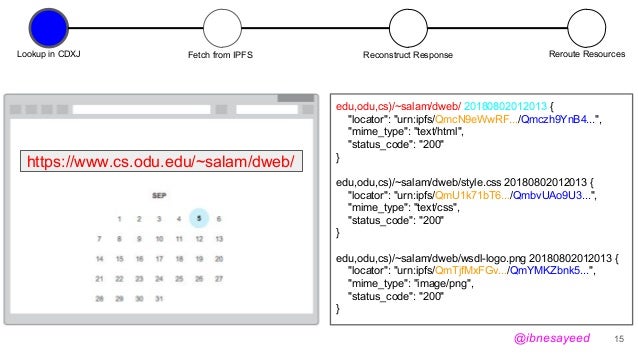

15. https://www.cs.odu.edu/~salam/dweb/
15
edu,odu,cs)/~salam/dweb/ 20180802012013 {
"locator": "urn:ipfs/QmcN9eWwRF.../Qmczh9YnB4...",
"mime_type": "text/html",
"status_code": "200"
}
edu,odu,cs)/~salam/dweb/style.css 20180802012013 {
"locator": "urn:ipfs/QmU1k71bT6.../QmbvUAo9U3...",
"mime_type": "text/css",
"status_code": "200"
}
edu,odu,cs)/~salam/dweb/wsdl-logo.png 20180802012013 {
"locator": "urn:ipfs/QmTjfMxFGv.../QmYMKZbnk5...",
"mime_type": "image/png",
"status_code": "200"
}
Fetch from IPFS Reroute ResourcesReconstruct ResponseLookup in CDXJ
@ibnesayeed

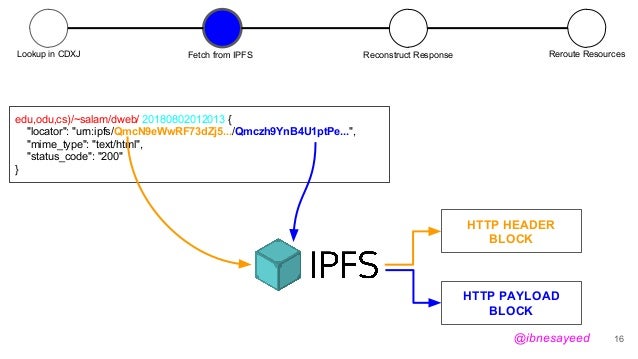

16. edu,odu,cs)/~salam/dweb/ 20180802012013 {
"locator": "urn:ipfs/QmcN9eWwRF73dZj5.../Qmczh9YnB4U1ptPe...",
"mime_type": "text/html",
"status_code": "200"
}
16
HTTP HEADER
BLOCK
HTTP PAYLOAD
BLOCK
Fetch from IPFS Reroute ResourcesReconstruct ResponseLookup in CDXJ
@ibnesayeed

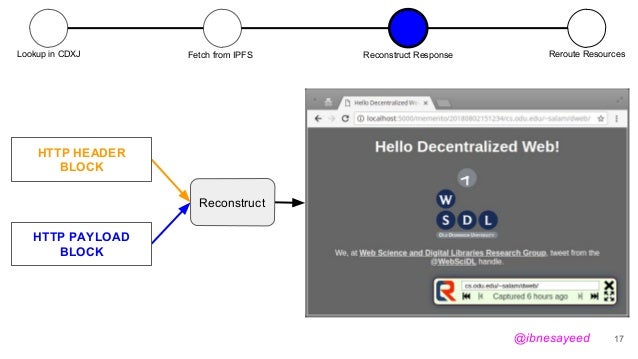

17. 17
HTTP HEADER
BLOCK
HTTP PAYLOAD
BLOCK
Fetch from IPFS Reroute ResourcesReconstruct ResponseLookup in CDXJ
Reconstruct
@ibnesayeed

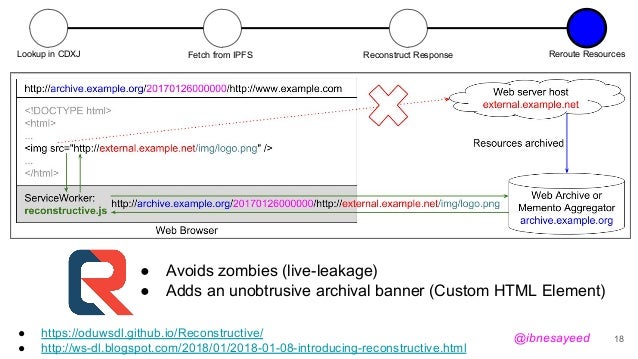

18. Fetch from IPFS Reroute Resources
18
● https://oduwsdl.github.io/Reconstructive/
● http://ws-dl.blogspot.com/2018/01/2018-01-08-introducing-reconstructive.html
● Avoids zombies (live-leakage)
● Adds an unobtrusive archival banner (Custom HTML Element)
Reconstruct ResponseLookup in CDXJ
@ibnesayeed

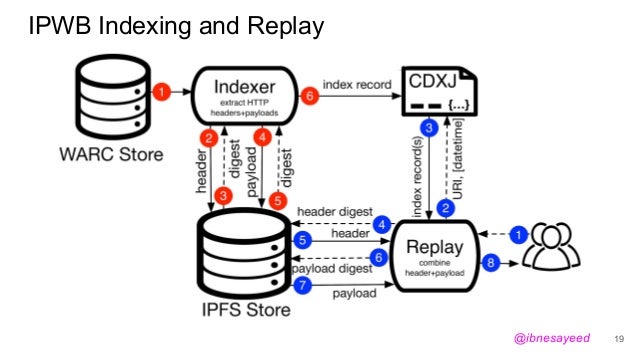

19. 19
IPWB Indexing and Replay
@ibnesayeed

20. Decentralization
20@ibnesayeed

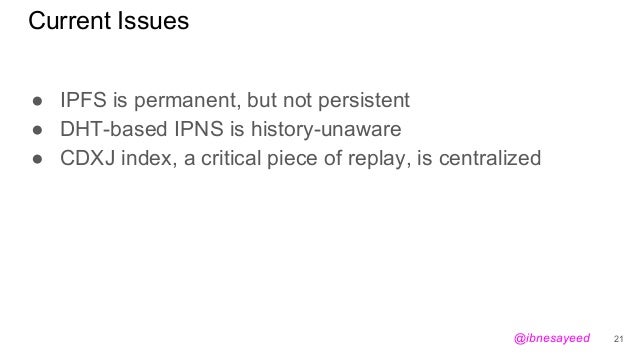

21. Current Issues
● IPFS is permanent, but not persistent
● DHT-based IPNS is history-unaware
● CDXJ index, a critical piece of replay, is centralized
21@ibnesayeed

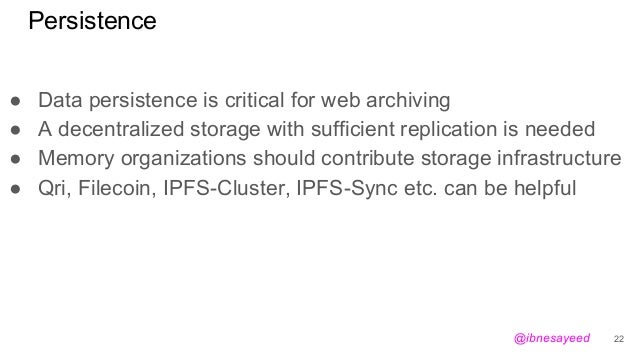

22. Persistence
● Data persistence is critical for web archiving
● A decentralized storage with sufficient replication is needed
● Memory organizations should contribute storage infrastructure
● Qri, Filecoin, IPFS-Cluster, IPFS-Sync etc. can be helpful
22@ibnesayeed

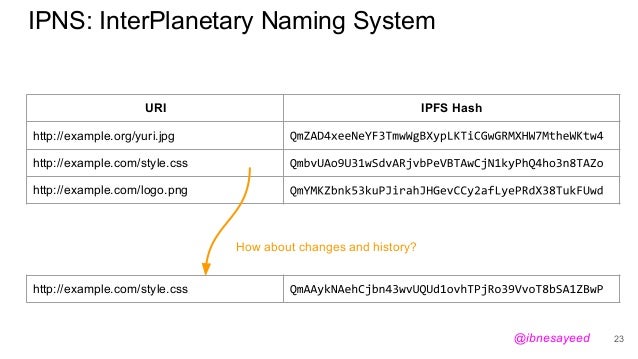

23. IPNS: InterPlanetary Naming System
URI IPFS Hash
http://example.org/yuri.jpg
http://example.com/style.css
http://example.com/logo.png
http://example.com/style.css
How about changes and history?
23@ibnesayeed

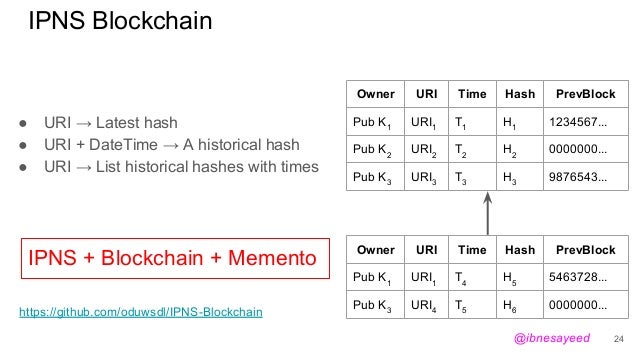

24. IPNS Blockchain
● URI → Latest hash
● URI + DateTime → A historical hash
● URI → List historical hashes with times
https://github.com/oduwsdl/IPNS-Blockchain
Owner URI Time Hash PrevBlock
Pub K1
URI1
T1
H1
1234567...
Pub K2
URI2
T2
H2
0000000...
Pub K3
URI3
T3
H3
9876543...
Owner URI Time Hash PrevBlock
Pub K1
URI1
T4
H5
5463728...
Pub K3
URI4
T5
H6
0000000...
IPNS + Blockchain + Memento
24@ibnesayeed

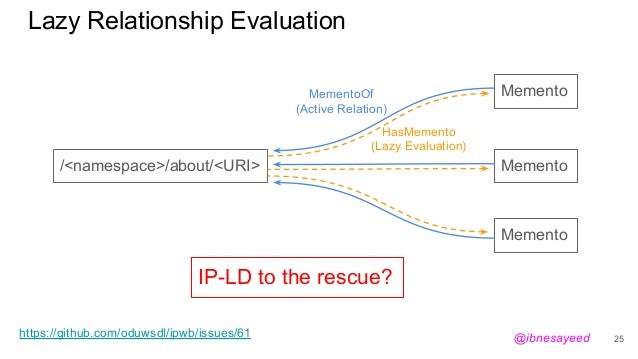

25. Lazy Relationship Evaluation
/<namespace>/about/<URI>
IP-LD to the rescue?
https://github.com/oduwsdl/ipwb/issues/61
Memento
Memento
Memento
MementoOf
(Active Relation)
HasMemento
(Lazy Evaluation)
25@ibnesayeed

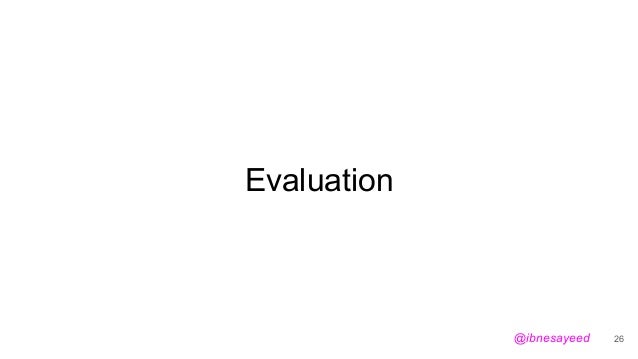

26. Evaluation
26@ibnesayeed

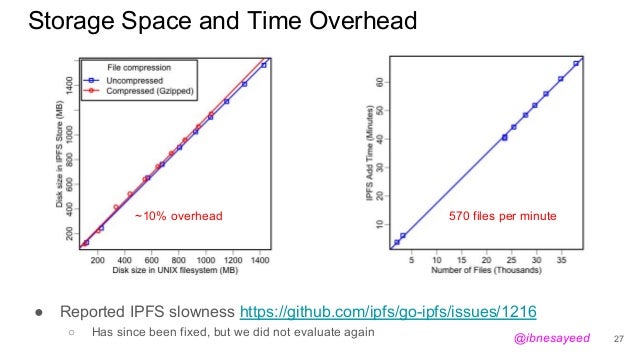

27. ● Reported IPFS slowness https://github.com/ipfs/go-ipfs/issues/1216
○ Has since been fixed, but we did not evaluate again
570 files per minute~10% overhead
27
Storage Space and Time Overhead
@ibnesayeed

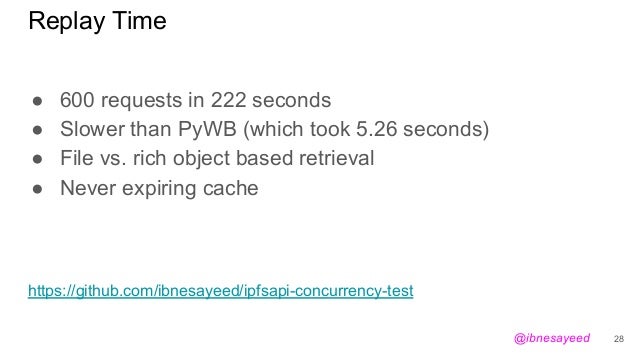

28. Replay Time
● 600 requests in 222 seconds
● Slower than PyWB (which took 5.26 seconds)
● File vs. rich object based retrieval
● Never expiring cache
28
https://github.com/ibnesayeed/ipfsapi-concurrency-test
@ibnesayeed

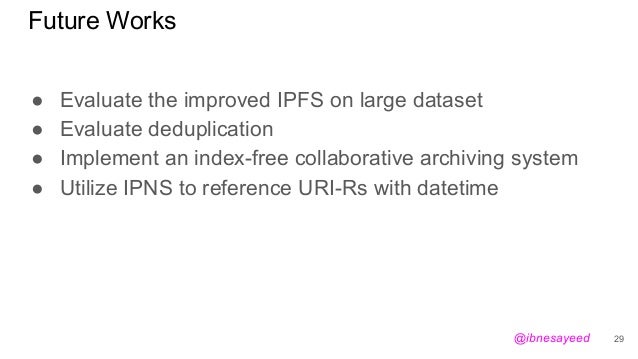

29. Future Works
● Evaluate the improved IPFS on large dataset
● Evaluate deduplication
● Implement an index-free collaborative archiving system
● Utilize IPNS to reference URI-Rs with datetime
29@ibnesayeed

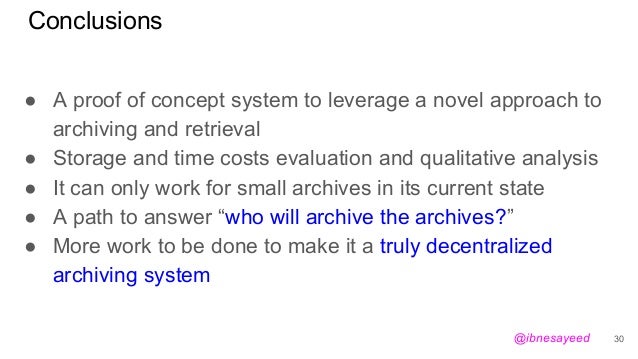

30. Conclusions
● A proof of concept system to leverage a novel approach to
archiving and retrieval
● Storage and time costs evaluation and qualitative analysis
● It can only work for small archives in its current state
● A path to answer “who will archive the archives?”
● More work to be done to make it a truly decentralized
archiving system
30@ibnesayeed

31. InterPlanetary Wayback
The Next Step Towards Decentralized Web Archiving
@WebSciDL
http://github.com/oduwsdl/ipwb
Supported in part by Protocol Labs, AMF 11600663, and NSF IIS-1526700
Sawood Alam, Mat Kelly, Michele C. Weigle, Michael L. Nelson
