A steam turbine power plant uses chemical energy from fuel to create heat energy through boiling water into steam in a boiler. The steam spins a turbine which powers a generator to produce electrical energy. The steam is then cooled back into water in a condenser before being circulated through the system again or used for other purposes like potable water.

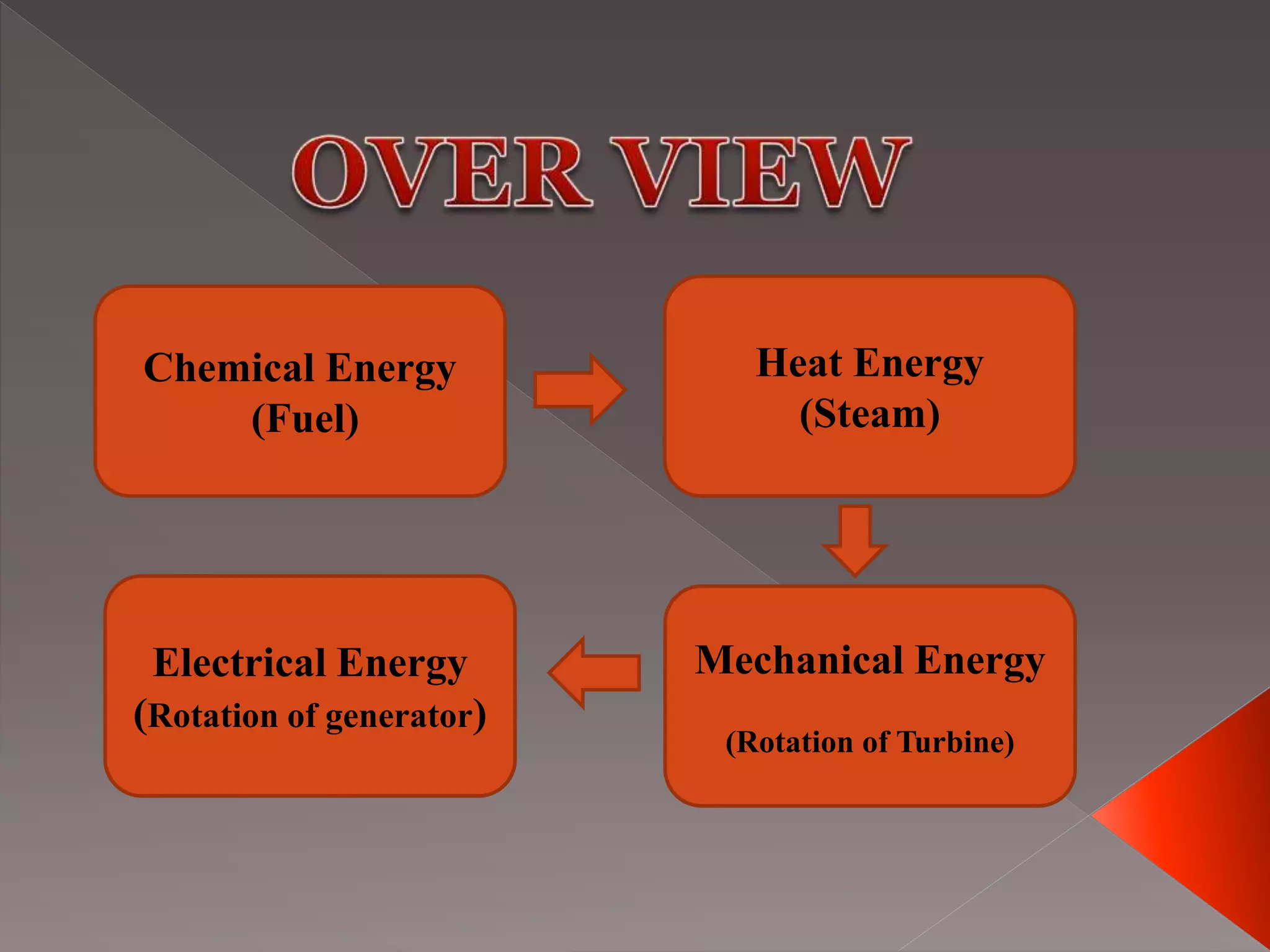

3. Chemical Energy
(Fuel)
Mechanical Energy
(Rotation of Turbine)
Heat Energy
(Steam)
Electrical Energy
(Rotation of generator)

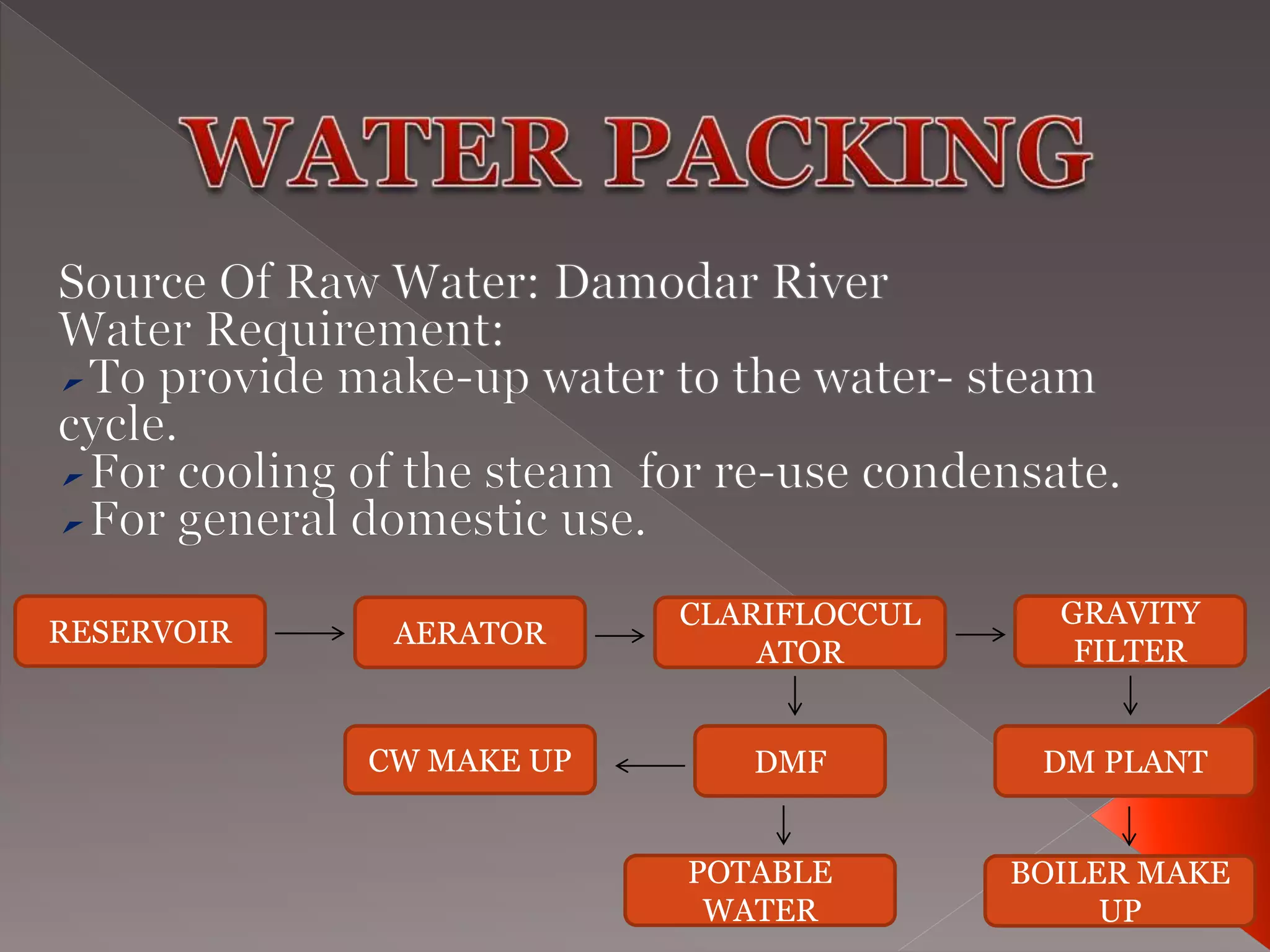

4. RESERVOIR AERATOR
CLARIFLOCCUL
ATOR
CW MAKE UP
BOILER MAKE
UP
DM PLANT
POTABLE
WATER
GRAVITY
FILTER
DMF

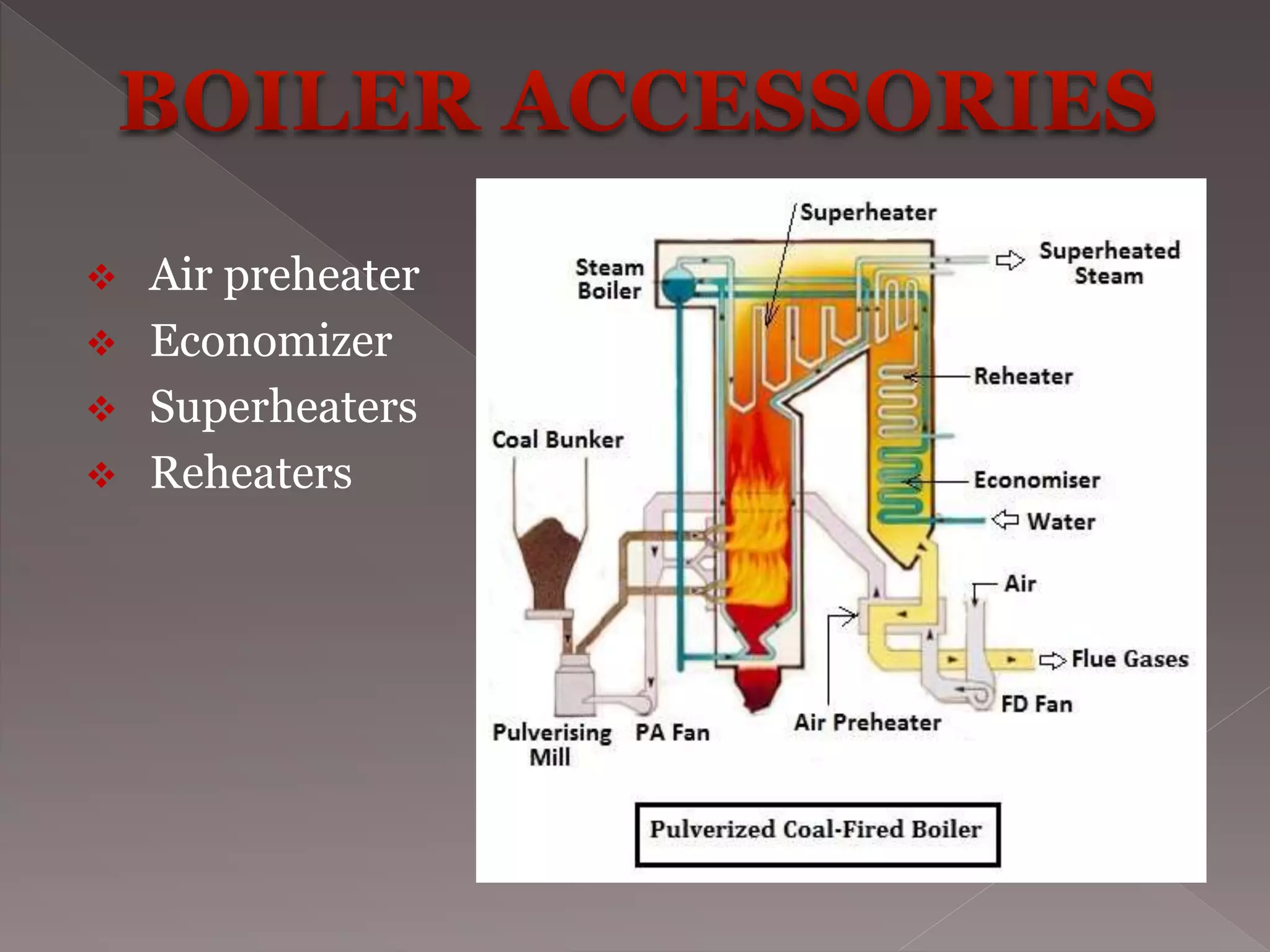

8.  Air preheater
 Economizer
 Superheaters
 Reheaters

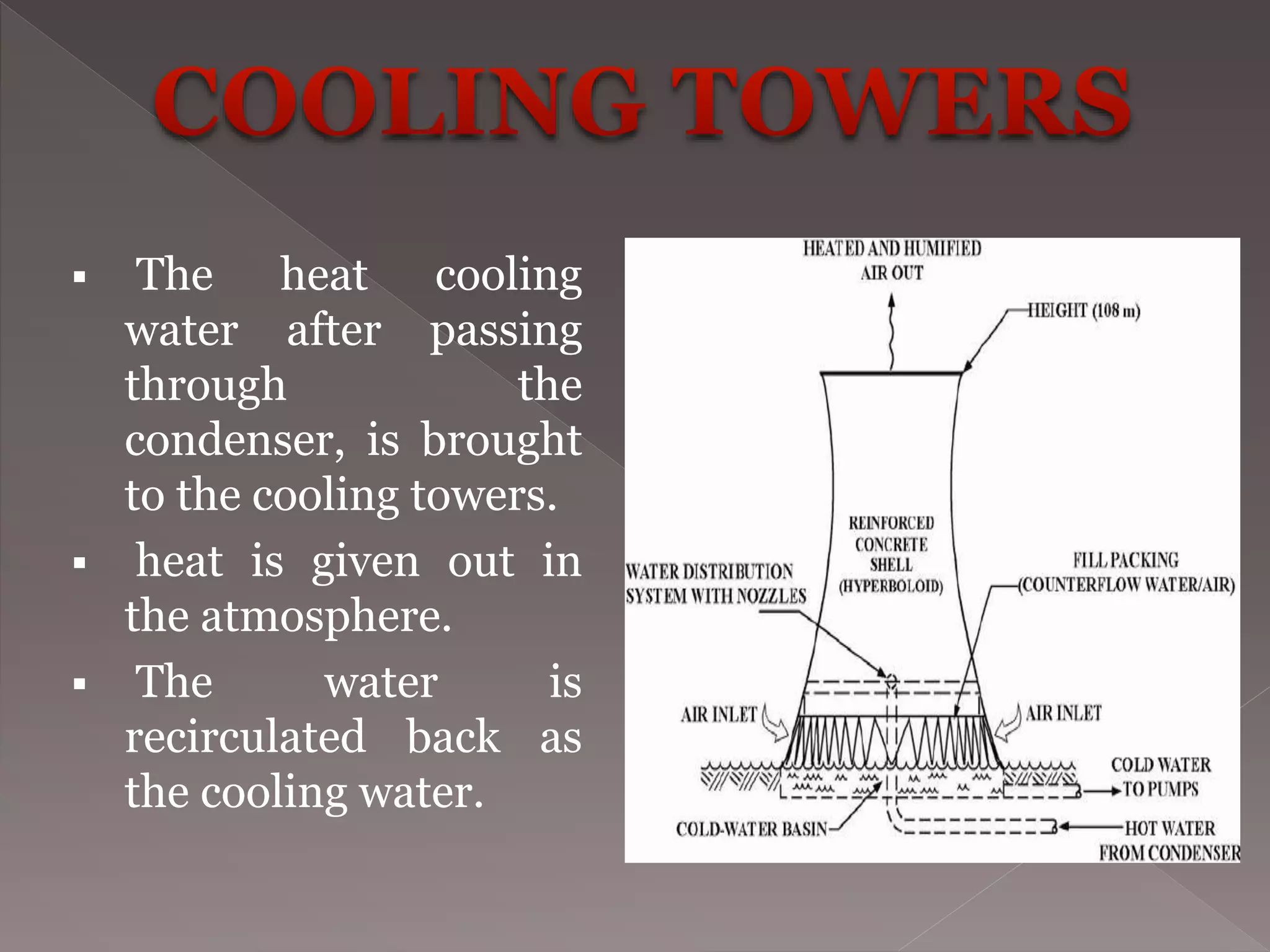

12.  The heat cooling
water after passing
through the
condenser, is brought
to the cooling towers.
 heat is given out in
the atmosphere.
 The water is
recirculated back as
the cooling water.

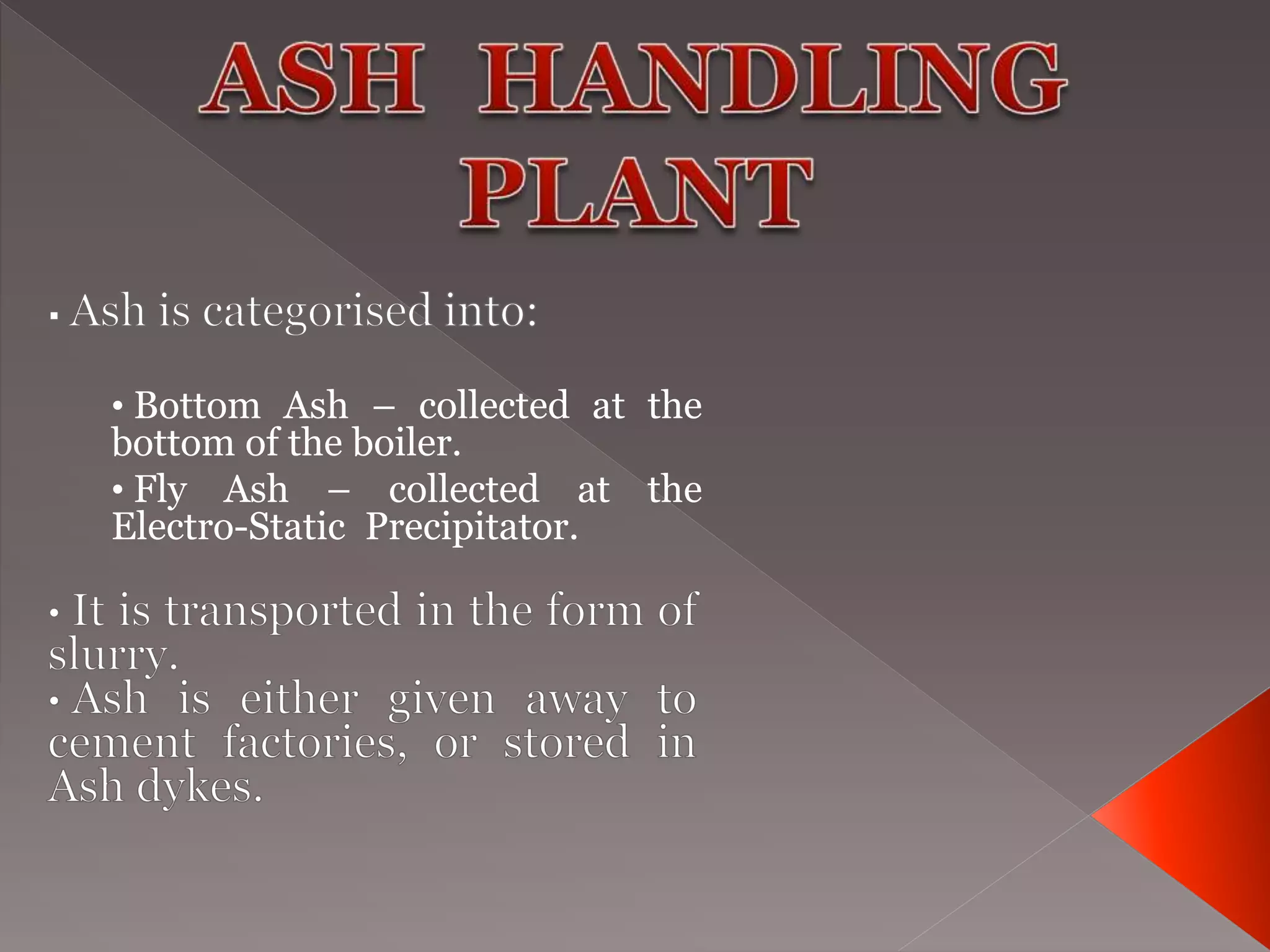

13. • Bottom Ash – collected at the
bottom of the boiler.
• Fly Ash – collected at the
Electro-Static Precipitator.
