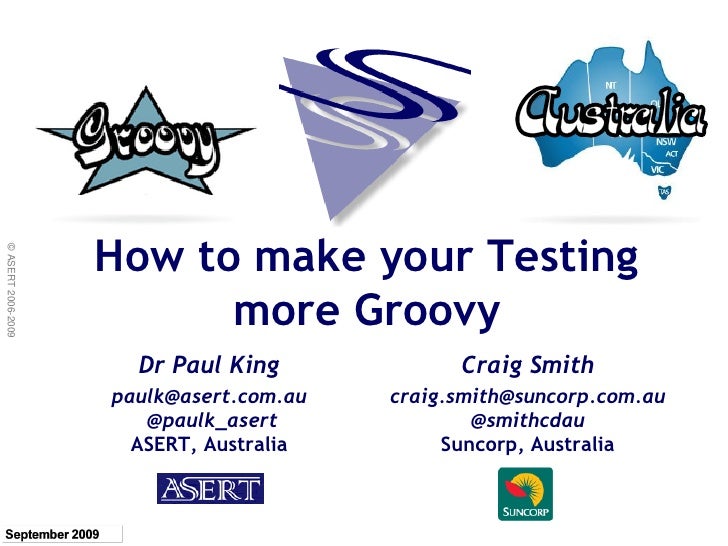

Groovy Testing Sep2009

How to make your Testing
© ASERT 2006-2009

more Groovy
Dr Paul King Craig Smith
paulk@asert.com.au craig.smith@suncorp.com.au
@paulk_asert @smithcdau
ASERT, Australia Suncorp, Australia

Topics
• Why Groovy for Testing?
• Groovy Intro
• Web Drivers
• Test Runners
• Non-web Drivers
• Other Tools
© ASERT 2006-2009

• Going beyond
Focus is on using the Groovy dynamic language
for primarily functional and acceptance testing
with a forward looking perspective. Also considers
polyglot options. The techniques and lessons
learned can be applied to other kinds of testing
and are also applicable to similar languages.
AJUG_SEP2009 - 2

Topics not covered in detail
• Coverage
– But coverage options available

• Mocking
– But built-in support and many libraries available

• CI Support
© ASERT 2006-2009

– Support in Hudson, Team City, Anthill Pro to call
Groovy
• Code Metrics
– CodeNarc and other tools available
• Build Tools
– Ant, Maven, GMaven, Gant, Gradle, ...

AJUG_SEP2009 - 3

Topics
 Why Groovy for Testing?
• Groovy Intro
• Web Drivers
– Native Groovy, HttpBuilder, HtmlUnit
WebTest, Watij, Selenium, WebDriver, ...
• Test Runners
© ASERT 2006-2009

– Native Groovy, JUnit, TestNG, Spock, EasyB, JBehave, ...
• Non-web Drivers
– SOAP/REST, Database, FEST, ...
• Other Tools
– SoapUI, ITest2, Sahi, JMeter, Twist, ...
• Going beyond
– Polyglot, Model-driven, Constraint/logic languages, Concurrency

AJUG_SEP2009 - 4

Why Test With Groovy?

?
© ASERT 2006-2009

AJUG_SEP2009 - 5

• Wrong first question!
• Perfect second question? 

X
© ASERT 2006-2009

Consider first the task at hand and the
organization and people fit!
AJUG_SEP2009 - 6

“People Fit” / “Organization Fit”
• People
– Developers (familiarity with languages)
– Testers (tools language familiarity)
– Responsibility to create/run/maintain
– BAs/SMEs (ability to read technical tests)
– Consider both development and maintenance
© ASERT 2006-2009

– Expected feedback from tests (JUnit/Reports)
• Organization
– Maturity level
– Degree of automation
– Tools in use
– Need for adaptability

AJUG_SEP2009 - 7

• Advantages
– Easy to learn
– Particularly good fit if the application you are testing
is built for the JVM or your developers work with Java
/ JVM languages
– Supports polyglot programming when needed
© ASERT 2006-2009

– Easy to plug and play different testing tools
– Good community & tools for professional agile
• Disadvantages
– Requires JVM
– Less advantages if your developers using Python,
.Net, PHP
– Maybe your testers already know Ruby
AJUG_SEP2009 - 8

Scripting/Dynamic Languages
• Advantages
– Lend themselves to succinct code/DSLs
– Powerful
– Increased Refactoring
– Increased Reuse
– Less prone to Brittleness
© ASERT 2006-2009

– Flexibility for tool integration
– Open APIs provide extensibility
• Disadvantages
– Can be too low level (but many options now)
– Sometimes less tool support (but changing now)

AJUG_SEP2009 - 9

Test Characteristics
• Coverage/Traceability
– Requirement coverage/traceability
– Code coverage: line, branch, path, state
– Transactional Tracing

• Purpose
– Unit, Integration, System, Customer

• Manageability
– Removing duplication
© ASERT 2006-2009

– Managing lifecycle: shared setUp/tearDown (@Before @After)

• Handling test data
– Data-driven, databases, Spreadsheets, tables, keywords, random, model-driven

• Large Test Volumes
– Speed of feedback, performance testing

• Tool evolution/longevity/cost/support/documentation
– Open Source/Commercial, Critical mass/popularity

• Combinability

AJUG_SEP2009 - 10

Key Testing Practices
• Use testing DSL’s
• Look to move up the testing stack
– It used to be all about the driver
– Now the driver is hidden in the framework or tool stack
• Apply good testing practices
– Pareto analysis, bug clusters, mutation testing, test early
© ASERT 2006-2009

– All pairs/equivalence partitions/orthogonal array testing
– Risk-based test selection, coding for testability, use CI
– Boundary value analysis, defensive programming
• Plug and play testing tools
– Run different drivers with different runners and different tools
• Complement automated tests with exploration
• Expand testing scope
– Test environment readiness, test deployments
AJUG_SEP2009 - 11

Groovy and Testing Tool Spectrum*
Utilities Runners
AllPairs, Combinations Native Groovy, JUnit, TestNG, Spock, EasyB,
Polyglot languages JBehave, Cucumber, Robot Framework
Logic programming
Threads, Parallel /
Web Database SOAP / Other
Concurrency libraries
Drivers Drivers REST Drivers
Data-driven libraries
Drivers
Networking libraries WebTest DbUnit FEST
© ASERT 2006-2009

XML Processing GroovyWS
WebDriver DataSets Email
Read/write files /
JWebUnit SqlUnit XML-RPC FTP
Excel / Word / CSV
Reporting, Logging Tellurium groovy.sql CXF AntUnit
Selenium JPA Axis2 Telnet
HtmlUnit JDO JAX-WS SSH
Tools Watij BigTable JAX-RS Exec
iTest2, SoapUI, Twist, HttpBuilder JDBC
IDEs, JMeter, Text Cyberneko
editors, Recorders,
Build Tools, CI

* Tools/libraries/frameworks don't always neatly fall into one category – still useful conceptually AJUG_SEP2009 - 12

Topics
 Groovy Intro
• Web Drivers
• Test Runners
© ASERT 2006-2009

• Non-web Drivers
• Other Tools
• Going beyond

AJUG_SEP2009 - 13

What is Groovy?
• “Groovy is like a super version
of Java. It can leverage Java's
enterprise capabilities but also
has cool productivity features like closures,
DSL support, builders and dynamic typing.”
© ASERT 2006-2009

Groovy = Java – boiler plate code
+ optional dynamic typing
+ closures
+ domain specific languages
+ builders
+ metaprogramming
AJUG_SEP2009 - 14

Groovy Goodies Overview
• Fully object oriented
• Closures: reusable
and assignable
pieces of code
• Operators can be • GPath: efficient
overloaded
© ASERT 2006-2009

object navigation
• Multimethods • GroovyBeans
• Literal declaration for • grep and switch
lists (arrays), maps,
ranges and regular • Templates, builder,
expressions swing, Ant, markup,
XML, SQL, XML-RPC,
Scriptom, Grails,
tests, Mocks AJUG_SEP2009 - 15

Growing Acceptance …
A slow and steady start but now gaining in
momentum, maturity and mindshare
Making
Java
Groovy
(soon)

Now free

… Growing Acceptance …
© ASERT 2006-2009

AJUG_SEP2009 - 17

© ASERT 2006-2009

Groovy and
Grails downloads:
70-90K per month
and growing

AJUG_SEP2009 - 18

© ASERT 2006-2009

Source: http://www.micropoll.com/akira/mpresult/501697-116746

Source: http://www.grailspodcast.com/
AJUG_SEP2009 - 19

© ASERT 2006-2009

http://www.jroller.com/scolebourne/entry/devoxx_2008_whiteboard_votes

http://www.java.net
AJUG_SEP2009 - 20

What alternative JVM language are you using or intending to use
© ASERT 2006-2009

http://www.leonardoborges.com/writings
AJUG_SEP2009 - 21

© ASERT 2006-2009

http://it-republik.de/jaxenter/quickvote/results/1/poll/44 (translated using http://babelfish.yahoo.com)
AJUG_SEP2009 - 22

… Growing Acceptance
© ASERT 2006-2009

AJUG_SEP2009 - 23

The Landscape of JVM Languages

optional
static
types
© ASERT 2006-2009

Dynamic features call
for dynamic types Java bytecode calls
for static types

The terms “Java Virtual Machine” and “JVM” mean a Virtual Machine for the Java™ platform.
AJUG_SEP2009 - 24

Groovy Starter
System.out.println("Hello, World!"); // optional semicolon,
println 'Hello, World!' // System.out, brackets,
// main() method, class defn

def name = 'Guillaume' // dynamic typing
println "$name, I'll get the car." // GString

String longer = """${name}, the car
is in the next row.""" // multi-line string
© ASERT 2006-2009

// with static typing

assert 0.5 == 1/2 // BigDecimal equals()

def printSize(obj) { // optional duck typing
print obj?.size() // safe dereferencing
}

def pets = ['ant', 'bee', 'cat'] // native list syntax
pets.each { pet -> // closure support
assert pet < 'dog' // overloading '<' on String
} // or: for (pet in pets)...
AJUG_SEP2009 - 25

A Better Java...
import java.util.List;
import java.util.ArrayList;

class Erase {
private List removeLongerThan(List strings, int length) { This code
List result = new ArrayList();
for (int i = 0; i < strings.size(); i++) {
is valid
String s = (String) strings.get(i); Java and
if (s.length() <= length) {
result.add(s); valid Groovy
}
}
© ASERT 2006-2009

return result;
}
public static void main(String[] args) {
List names = new ArrayList();
names.add("Ted"); names.add("Fred");
names.add("Jed"); names.add("Ned");
System.out.println(names);
Based on an
Erase e = new Erase(); example by
List shortNames = e.removeLongerThan(names, 3); Jim Weirich
System.out.println(shortNames.size());
for (int i = 0; i < shortNames.size(); i++) { & Ted Leung
String s = (String) shortNames.get(i);
System.out.println(s);
}
}
}
AJUG_SEP2009 - 26

...A Better Java...
import java.util.List;
import java.util.ArrayList;

class Erase {
private List removeLongerThan(List strings, int length) { Do the
List result = new ArrayList();
for (int i = 0; i < strings.size(); i++) {
semicolons
String s = (String) strings.get(i); add anything?
result.add(s); And shouldn‟t
}
} we us more
© ASERT 2006-2009

}
return result; modern list
public static void main(String[] args) { notation?
List names = new ArrayList();
names.add("Ted"); names.add("Fred"); Why not
names.add("Jed"); names.add("Ned");
System.out.println(names);
import common
Erase e = new Erase(); libraries?
List shortNames = e.removeLongerThan(names, 3);
System.out.println(shortNames.size());
for (int i = 0; i < shortNames.size(); i++) {
String s = (String) shortNames.get(i);
System.out.println(s);
}
}
}
AJUG_SEP2009 - 27

...A Better Java...
class Erase {
private List removeLongerThan(List strings, int length) {
List result = new ArrayList()
for (String s in strings) {
result.add(s)
}
}
return result
}

© ASERT 2006-2009

List names = new ArrayList()
names.add("Ted"); names.add("Fred")
names.add("Jed"); names.add("Ned")
System.out.println(names)
Erase e = new Erase()
List shortNames = e.removeLongerThan(names, 3)
System.out.println(shortNames.size())
for (String s in shortNames) {
System.out.println(s)
}
}
}

AJUG_SEP2009 - 28

...A Better Java...
class Erase {
private List removeLongerThan(List strings, int length) {
List result = new ArrayList()
for (String s in strings) {
result.add(s)
Do we need
} the static types?
}
return result Must we always
}
have a main
public static void main(String[] args) { method and
© ASERT 2006-2009

List names = new ArrayList()
names.add("Ted"); names.add("Fred") class definition?
names.add("Jed"); names.add("Ned")
System.out.println(names) How about
Erase e = new Erase()
List shortNames = e.removeLongerThan(names, 3)
improved
System.out.println(shortNames.size()) consistency?
for (String s in shortNames) {
}
}
}

AJUG_SEP2009 - 29

...A Better Java...
def removeLongerThan(strings, length) {
def result = new ArrayList()
for (s in strings) {
if (s.size() <= length) {
result.add(s)
}
}
return result
}
© ASERT 2006-2009

names = new ArrayList()
names.add("Ted")
names.add("Fred")
names.add("Jed")
names.add("Ned")
shortNames = removeLongerThan(names, 3)
for (s in shortNames) {
}

AJUG_SEP2009 - 30

...A Better Java...
def result = new ArrayList()
for (s in strings) {
if (s.size() <= length) {
result.add(s) Shouldn‟t we
}
} have special
return result notation for lists?
}
And special
© ASERT 2006-2009

names = new ArrayList() facilities for
names.add("Ted")
names.add("Fred") list processing?
names.add("Jed") Is „return‟
names.add("Ned")
System.out.println(names) needed at end?
for (s in shortNames) {
}

AJUG_SEP2009 - 31

...A Better Java...
strings.findAll{ it.size() <= length }
}

names = ["Ted", "Fred", "Jed", "Ned"]
shortNames.each{ System.out.println(s) }
© ASERT 2006-2009

AJUG_SEP2009 - 32

...A Better Java...
strings.findAll{ it.size() <= length }
}
Is the method
names = ["Ted", "Fred", "Jed", "Ned"] now needed?
shortNames = removeLongerThan(names, 3) Easier ways to
System.out.println(shortNames.size()) use common
shortNames.each{ System.out.println(s) }
methods?
© ASERT 2006-2009

Are brackets
required here?

AJUG_SEP2009 - 33

...A Better Java...
println names
shortNames = names.findAll{ it.size() <= 3 }
println shortNames.size()
shortNames.each{ println it }
© ASERT 2006-2009

AJUG_SEP2009 - 34

...A Better Java
println names
shortNames = names.findAll{ it.size() <= 3 }
println shortNames.size()
shortNames.each{ println it }
© ASERT 2006-2009

["Ted", "Fred", "Jed", "Ned"]
3
Ted
Jed
Ned

AJUG_SEP2009 - 35

Better Lists, Maps, Ranges
• Lists
– Special syntax for list literals
– Additional common methods (operator overloading)
def list = [3, new Date(), 'Jan']
assert list + list == list * 2

• Maps
© ASERT 2006-2009

– Special syntax for map literals
– Additional common methods
def map = [a: 1, b: 2]
assert map['a'] == 1 && map.b == 2

• Ranges
– Special syntax for various kinds of ranges
def letters = 'a'..'z'
def numbers = 0..<10
AJUG_SEP2009 - 36

Closures
• Traditional mainstream languages
– Data can be stored in variables, passed around,
combined in structured ways to form more complex
data; code stays put where it is defined
• Languages supporting closures
– Data and code can be stored in variables, passed
© ASERT 2006-2009

around, combined in structured ways to form more
complex algorithms and data
doubleNum = { num -> num * 2 }
println doubleNum(3) // => 6

processThenPrint = { num, closure ->
num = closure(num); println "num is $num"
}
processThenPrint(3, doubleNum) // => num is 6
processThenPrint(10) { it / 2 } // => num is 5
AJUG_SEP2009 - 37

SwingXBuilder

import groovy.swing.SwingXBuilder
© ASERT 2006-2009

import static java.awt.Color.*
import static java.lang.Math.*

def swing = new SwingXBuilder()
def frame = swing.frame(size: [300, 300]) {
graph(plots: [
[GREEN, {value -> sin(value)}],
[BLUE, {value -> cos(value)}],
[RED, {value -> tan(value)}]
])
}.show()
AJUG_SEP2009 - 38

Topics
• Groovy Intro
 Web Drivers
WebTest, Watij, Selenium, WebDriver
Tellurium, JWebUnit
© ASERT 2006-2009

• Test Runners
• Non-web Drivers
• Other Tools
• Going beyond
AJUG_SEP2009 - 39

Concept
Manual

HTTP Request / Response

Web Server
© ASERT 2006-2009

Automated Driver

Runner
<webtest name="myTest">

<steps>
<invoke
description="get Login Page"
url="login" />
<verifyTitle
description="we should see the login title"
text="Login Page" /> Read
</steps>
HTTP Request / Response
</webtest>
Script

AJUG_SEP2009 - 40

Driver Category
• Real browser invoker • Browser Emulators
– Runs on platform – Can simulate multiple
supported by real browsers
browser – Less platform
– May need multiple restrictions
platforms, e.g. IE6/IE7 – Good for CI
© ASERT 2006-2009

– Uses actual JavaScript – Easier to not download
engine images, resources
– Can be easier to use – Ability to optimise
with test recorders JavaScript interactions
– Automation – More extensible
capabilities differ – Ability to disable
across browsers JavaScript
– Can typically get to all – Scope for parallelism
aspects of browser
AJUG_SEP2009 - 41

Application under Test…
© ASERT 2006-2009

AJUG_SEP2009 - 42

…Application under Test...
© ASERT 2006-2009

AJUG_SEP2009 - 43

…Application under Test
© ASERT 2006-2009

AJUG_SEP2009 - 44

Native Groovy...
• Access URLs
• Built-in XML parsing
• Built-in friendly regular expression syntax
• Even for advanced cases, there is friendly
access to low-level things:
© ASERT 2006-2009

– Sockets, Processes
– Databases and other things
– Files
• Huge range of Java libraries
– PDF
– Reading, writing Excel

AJUG_SEP2009 - 45

...Native Groovy...
• Useful URL methods

def html = new URL('http://localhost:8080').text

assert html.contains('<title>Welcome to SimpBlog</title>')
© ASERT 2006-2009

html.find(~'<title>(.*)</title>') { all, title ->
assert title == 'Welcome to SimpBlog'
}

• Simple enough for GAE
– For public sites
– Can share test scripts easily
– No setup required
AJUG_SEP2009 - 46

...Native Groovy...
• Built-in XML Parsing

def page = new
XmlSlurper().parse('http://localhost:8080/viewPost?id=1')

assert page.body.h1.text().contains('Tis the season')
© ASERT 2006-2009

assert page.body.h3[1].text() == 'Category: Home'
assert page.body.h3[2].text() == 'Author: Bart'
assert page.body.table.tr.td.p.text() ==
"Aren't we forgeting the true meaning of Christmas?
You know, the birth of Santa."

AJUG_SEP2009 - 47

...Native Groovy
• Easy access to Java libraries

@Grab('nekohtml:nekohtml:1.9.6.2')
import org.cyberneko.html.parsers.SAXParser

def parser = new XmlSlurper(new SAXParser())
def page = parser.parse('http://localhost:8080/viewPost?id=1')
© ASERT 2006-2009

assert page.BODY.H1.text().contains('Tis the season')
assert page.BODY.H3[1].text() == 'Category: Home'
assert page.BODY.H3[2].text() == 'Author: Bart'
assert page.BODY.TABLE.TR.TD.P.text() ==
"Aren't we forgeting the true meaning of Christmas? You
know, the birth of Santa."

AJUG_SEP2009 - 48

HttpBuilder
• Builder for Http interactions
– Flexible: bogus posts, response codes, JSON, non-
HTML
@Grab(group='org.codehaus.groovy.modules.http-builder',
module='http-builder', version='0.5.0-RC1')
import groovyx.net.http.*
import static groovyx.net.http.ContentType.URLENC
© ASERT 2006-2009

def http = new HTTPBuilder('http://localhost:8080')
def postBody = [title:'Bart was here (and so was HttpBuilder)',
content:'Cowabunga Dude!', author:'1', category:'3']
http.post(path:'/addPost', body: postBody,
requestContentType: URLENC) { resp, html ->
assert resp.contentType == 'text/html'
assert resp.status == 200
assert html.BODY.H1.text().matches('Post.*: Bart was here.*')
assert html.BODY.H3[1].text() == 'Category: Home'
assert html.BODY.H3[2].text() == 'Author: Bart'
assert html.BODY.TABLE.TR.TD.P.text() == 'Cowabunga Dude!'
}
AJUG_SEP2009 - 49

HtmlUnit
• 100% Java-based headless browser emulator
– Can test any Web site: Java, .Net, PHP, Rails, ...
• Open Source
– Apache 2 license
– Hosted at SourceForge
– 7 committers (3 very active)
–
© ASERT 2006-2009

Very mature
• Useful for:
– Integration and acceptance testing
– Screen scraping, deployment automation, ...
• Used by other drivers:
– Canoo WebTest , JWebUnit , WebDriver , JSFUnit , Celerity
• Special features:
– Easy ajax mode, emulation of multiple browsers
AJUG_SEP2009 - 50

HtmlUnit Features...
• Support for the HTTP and HTTPS protocols
• Support for cookies
• Ability to specify whether failing responses from
the server should throw exceptions or should be
returned as "error" pages
• Support for submit methods POST and GET
© ASERT 2006-2009

– As well as HEAD, DELETE, ...
• Ability to customize the request headers being
sent to the server
• Support for HTML responses
– Wrapper for HTML pages that provides easy access to all
information contained inside them
– Support for submitting forms and clicking links
– Support for walking the DOM model of HTML documents
AJUG_SEP2009 - 51

...HtmlUnit Features
• Proxy server support
• Support for basic and NTLM authentication
• Excellent JavaScript support
– jQuery 1.2.6: Full support
– MochiKit 1.4.1: Full support
– GWT 1.6.4: Full support
© ASERT 2006-2009

– Sarissa 0.9.9.3: Full support
– MooTools 1.2.1: Full support
– Prototype 1.6.0: Very good support
– Ext JS 2.2: Very good support
– Dojo 1.0.2: Good support
– YUI 2.3.0: Good support

AJUG_SEP2009 - 52

HtmlUnit: Testing New Blog Post...
@Grab('net.sourceforge.htmlunit:htmlunit:2.6')
import com.gargoylesoftware.htmlunit.WebClient

def client = new WebClient()
def page = client.getPage('http://localhost:8080/postForm')
// check page title
assert 'Welcome to SimpBlog' == page.titleText
© ASERT 2006-2009

// fill in blog entry and post it
def form = page.getFormByName('post')
form.getInputByName('title').
setValueAttribute('Bart was here (and so was HtmlUnit)')
form.getSelectByName('category').getOptions().find{
it.text == 'Home' }.setSelected(true)
form.getTextAreaByName('content').setText('Cowabunga Dude!')
def result = form.getInputByName('btnPost').click()

...

AJUG_SEP2009 - 53

...HtmlUnit: Testing New Blog Post

...

// check blog post details
assert result.getElementsByTagName('h1').item(0).
textContent.matches('Post.*: Bart was here.*')
def h3headings = result.getElementsByTagName('h3')
© ASERT 2006-2009

assert h3headings.item(1).textContent == 'Category: Home'
assert h3headings.item(2).textContent == 'Author: Bart'

// expecting:
// <table><tr><td><p>Cowabunga Dude!</p></td></tr></table>
def cell = result.getByXPath('//TABLE//TR/TD')[0]
def para = cell.getFirstChild()
assert para.textContent == 'Cowabunga Dude!'

AJUG_SEP2009 - 54

Canoo WebTest
• Description
– Open source tool for automated testing of web applications
– Declarative approach in XML or testing DSL in Groovy
– Has Test Recorder
– Excellent reporting options
– Ant-based under the covers
<target name="login" >
<testSpec name="normal" >
© ASERT 2006-2009

&config;
<steps>
<invoke stepid="get Login Page"
url="login.jsp" />
<verifytitle stepid="we should see the login title"
text="Login Page" />
<setinputfield stepid="set user name"
name="username"
value="scott" />
<setinputfield stepid="set password"
name="password"
value="tiger" />
<clickbutton stepid="Click the submit button"
label="let me in" />
<verifytitle stepid="Home Page follows if login ok"
text="Home Page" />
</steps>
</testSpec>
</target>
AJUG_SEP2009 - 55

Canoo WebTest Features
• Strongly encourages declarative testing
– Supports testing DSLs, test structuring and reuse through
macrodefs and imports for XML flavor &
methods and closures for Groovy flavor
• Extensive support for HTML pages
– Including JavaScript
• Also supports other MIME types
© ASERT 2006-2009

– Generically as binary streams
– Special support for PDF, Excel, Emails
• Ant heritage provides easy IDE/CI hooks
• Excellent Documentation
• Excellent Community
• Eats own dog food
– high quality codebase
AJUG_SEP2009 - 56

Canoo WebTest Steps...
© ASERT 2006-2009

AJUG_SEP2009 - 57

...Canoo WebTest Steps...
© ASERT 2006-2009

AJUG_SEP2009 - 58

...Canoo WebTest Steps...
© ASERT 2006-2009

AJUG_SEP2009 - 59

...Canoo WebTest Steps
© ASERT 2006-2009

AJUG_SEP2009 - 60

WebTest: Testing New Blog Post...

<webtest name="Testing Posting a new Blog Entry">
<invoke url="http://localhost:8080/" description="Home Page"/>
<verifyTitle text="Welcome to SimpBlog"/>

<group description="Post New Blog Entry">
<clickLink label="New Blog Entry"/>
© ASERT 2006-2009

<setInputField name="title"
value="Bart was here (and so was WebTest)"/>
<setSelectField name="category" text="School"/>
<setInputField name="content" value="Cowabunga Dude!"/>
<clickButton name="btnPost"/>
</group>
...

AJUG_SEP2009 - 61

...WebTest: Testing New Blog Post...

...
<group description="Check Blog Post">
<verifyElementText type="h1" regex="true"
text="Post.*: Bart was here.*"/>
<verifyXPath xpath="//h3[2]/text()" text="Category: School"/>
© ASERT 2006-2009

<verifyXPath xpath="//h3[3]/text()" text="Author: Bart"/>
<verifyElementText type="p" text="Cowabunga Dude!"/>
</group>
<groovy>
println "Test run at: ${new Date()}"
</groovy>
</webtest>

AJUG_SEP2009 - 62

ant.webtest(name: 'Test SimpBlog') {
invoke url: "http://localhost:8080/",
description: "Home Page"
verifyTitle text: "Welcome to SimpBlog"
group description: "Post New Blog Entry", {
clickLink label: "New Blog Entry"
setInputField name: "title",
value: "Bart was here (and so was WebTest with Groovy)"
setSelectField name: "category", text: "School"
© ASERT 2006-2009

setInputField name: "content", value: "Cowabunga Dude!"
clickButton name: "btnPost"
}
group description: "Check Blog Post", {
verifyElementText type: "h1", regex: "true",
text: "Post.*: Bart was here.*"
verifyXPath xpath: "//h3[2]/text()", text: "Category: School"
verifyXPath xpath: "//h3[3]/text()", text: "Author: Bart"
verifyElementText type: "p", text: "Cowabunga Dude!"
}
}

AJUG_SEP2009 - 63

© ASERT 2006-2009

AJUG_SEP2009 - 64

...WebTest: Testing New Blog Post
© ASERT 2006-2009

AJUG_SEP2009 - 65

Firefox Recorder
© ASERT 2006-2009

AJUG_SEP2009 - 66

Watij
• Description
– Java API that provides control and automation of
Internet Explorer
– Supports actions like navigating, clicking links, filling
out forms, etc.
– Also supports more complex actions like file
© ASERT 2006-2009

downloading and uploading, popup windows and
dialogs, and screen captures
• Special Features
– Ability to work with IE interactively
– Can attach to an existing browser session
– Special browser commands, e.g. ie.fullScreen(true)
– Handles child browsers and popup dialogs

AJUG_SEP2009 - 67

Watij Features
• Finders
– tag(String tagName)
– attribute(String name, String value)
– index(int index)
– text(String text)
– name(String value)
– value(String value)
© ASERT 2006-2009

– caption(String value)
– id(String value)
– title(String value)
– alt(String value)
– src(String value)
– action(String value)
– method(String value)
– url(String value)
– href(String value)
– xpath(String expression)
AJUG_SEP2009 - 68

Watij: Testing New Blog Post...
import watij.runtime.ie.IE
import static watij.finders.SymbolFactory.*
import static watij.finders.FinderFactory.*

def ie = new IE()
ie.start('http://localhost:8080/postForm')

// check page title
© ASERT 2006-2009

assert ie.title() == 'Welcome to SimpBlog'

// fill in query form and submit it
ie.textField(name, 'title').
set('Bart was here (and so was Watij)')
ie.textField(name, 'content').set('Cowabunga dude!')
ie.selectList(name, "category").
option(text, "Home").select()
ie.button(name, 'btnPost').click()

...
AJUG_SEP2009 - 69

...Watij: Testing New Blog Post...

...

// check entered post is being displayed
assert ie.htmlElement(tag, 'H1').text().
matches('Post.*: Bart was here.*')
def h3headers = ie.htmlElements(tag, 'H3')
© ASERT 2006-2009

assert h3headers.get(1).text() == 'Category: Home'
assert h3headers.get(2).text() == 'Author: Bart'

// try a more advanced finder
// content is at: //TABLE/TBODY/TR/TD/P
def row = ie.htmlElement(xpath('//TABLE/TBODY/TR'))
assert row.cell(0).htmlElement(tag, 'P').text() ==
'Cowabunga dude!'

ie.close()

AJUG_SEP2009 - 70

...Watij: Testing New Blog Post
© ASERT 2006-2009

AJUG_SEP2009 - 71

Selenium...
• Description
– Tools to help
automate testing
for web-based
applications
– Support for
© ASERT 2006-2009

running tests on
multiple browser
platforms
• Components
– Selenium Core
– Selenium IDE
 Selenium RC Our focus

– Selenium Grid Source: http://seleniumhq.org/projects/remote-control/

AJUG_SEP2009 - 72

...Selenium
© ASERT 2006-2009

Source: http://seleniumhq.org/docs/01_introducing_selenium.html AJUG_SEP2009 - 73

Selenium: Testing New Blog Post...
import com.thoughtworks.selenium.DefaultSelenium
import org.openqa.selenium.server.SeleniumServer

// start auxiliary server
def server = new SeleniumServer()
server.start()

// uncomment one of below
//def browser = "*iexplore"
© ASERT 2006-2009

//def browser = "*firefox3" // if Firefox already in your path
//def browser = "*firefox3 C:/Program Files/Mozilla Firefox/firefox.exe"
def browser = "*firefox3 C:/Program Files (x86)/Mozilla
Firefox/firefox.exe"

def selenium = new DefaultSelenium("localhost", 4444, browser,
"http://localhost:8080")
selenium.start()

...

AJUG_SEP2009 - 74

...Selenium: Testing New Blog Post
...

// post blog
selenium.open "/postForm"
selenium.type "title", "Bart was here (and so was Selenium)"
selenium.select "category", "Home"
selenium.type "content", "Cowabunga Dude!"
selenium.click "btnPost"
© ASERT 2006-2009

selenium.waitForPageToLoad "5000"

// checks
assert selenium.isTextPresent('regex:Post.*: Bart was here')
assert selenium.isElementPresent('//h3[text()="Author: Bart"]')
assert selenium.isElementPresent('//h3[text()="Category: Home"]')
assert selenium.isElementPresent(
'//table//tr/td/p[text()="Cowabunga Dude!"]')

selenium.stop()
server.stop()

AJUG_SEP2009 - 75

Selenium IDE...

Features:
• Easy record and playback
© ASERT 2006-2009

• Intelligent field selection will use
IDs, names, or XPath as needed
• Autocomplete for all common
Selenium commands
• Walk through tests
• Debug and set breakpoints
• Save tests as HTML, Ruby
scripts, or any other format
• Support for Selenium user-
extensions.js file
• Option to automatically assert the
title of every page

AJUG_SEP2009 - 76

...Selenium IDE
© ASERT 2006-2009

more info: http://limcheekin.blogspot.com/2009/07/behavior-driven-development-generating.html
AJUG_SEP2009 - 77

Selenium Other Tools...
© ASERT 2006-2009

AJUG_SEP2009 - 78

...Selenium Other Tools...
© ASERT 2006-2009

AJUG_SEP2009 - 79

...Selenium Other Tools
© ASERT 2006-2009

Source: http://selenium-grid.seleniumhq.org/how_it_works.html AJUG_SEP2009 - 80

WebDriver
• Description
– Simple API to drive both real browsers
• for testing javascript heavy apps
– and a pure 'in memory' emulator solution
• for faster testing of simpler apps
• uses HtmlUnit under the covers in emulator mode
© ASERT 2006-2009

– Represents next generation of Selenium RC
• though merging into Selenium may happen under the covers
if you are a Selenium user
– Roadmap has plans to leverage some advanced
Selenium like features
• RemoteWebDriver
• FarmedWebDriver (think Selenium Grid)

AJUG_SEP2009 - 81

WebDriver: Testing New Blog Post...
import org.openqa.selenium.By
import org.openqa.selenium.htmlunit.HtmlUnitDriver

def driver = new HtmlUnitDriver()
driver.get('http://localhost:8080/postForm')
assert driver.title == 'Welcome to SimpBlog'

// fill in query form and submit it
© ASERT 2006-2009

driver.findElement(By.name('title')).
sendKeys('Bart was here (and so was WebDriver)')
driver.findElement(By.name('content')).
sendKeys('Cowabunga dude!')
def select = driver.findElement(By.name('category'))
select.findElements(By.tagName("option")).find{
it.text == 'Home' }.setSelected()
driver.findElement(By.name('btnPost')).click()

...

AJUG_SEP2009 - 82

...WebDriver: Testing New Blog Post

...

assert driver.findElement(By.tagName("h1")).text.
def h3headers = driver.findElements(By.tagName("h3"))
assert h3headers[1].text == 'Category: Home'
© ASERT 2006-2009

assert h3headers[2].text == 'Author: Bart'

// try a more advanced finder
// content is at: //TABLE/TBODY/TR/TD/P
def row = driver.findElement(By.xpath("//table/tbody/tr"))
def col = row.findElement(By.tagName("td"))
def para = col.findElement(By.tagName("p"))
assert para.text == 'Cowabunga dude!'

AJUG_SEP2009 - 83

Tellurium
• Description
– built on top of Selenium but tries to solve several
shortcomings
– "record and reply" style, difficult to refactor and
maintain, so instead define UI components
declaratively then write tests in terms of UI
© ASERT 2006-2009

– Provides many predefined UI objects for you to use
directly, such as Button, CheckBox, InputBox,
Selector, TextBox, and Table but also ability to write
your own custom UI objects
– Supports advanced locating mechanisms: composite
locator, "group locating"
– Supports testing DSL
– Supports data-driven tests
AJUG_SEP2009 - 84

Architecture
© ASERT 2006-2009

Source: http://code.google.com/p/aost/wiki/Introduction AJUG_SEP2009 - 85

Tellurium Example
• Selenium:
selenium.type("//input[@title='Google Search']", input)
selenium.click("//input[@name='btnG' and @type='submit']")

• Tellurium UI:
ui.Container(uid: "google_start_page",
© ASERT 2006-2009

clocator: [tag: "td"], group: "true") {
InputBox(uid: "searchbox",
clocator: [title: "Google Search"])
SubmitButton(uid: "googlesearch",
clocator: [name: "btnG", value: "Google Search"])
}

• Tellurium DSL Test:
type "google_start_page.searchbox", input
click "google_start_page.googlesearch"
AJUG_SEP2009 - 86

Tellurium: Testing New Blog Post...
ui.UrlLink(uid: "create_new_post",
clocator: [tag:'a', text: "New Blog Entry"])

ui.Form(uid: "blogform",
clocator: [tag: 'form', name:'post'], group: "true") {
InputBox(uid: "title", clocator: [name: "title"])
InputBox(uid: "content", clocator: [tag:'textarea', name: "content"])
Selector(uid: "category", clocator: [name: "category"])
Selector(uid: "author", clocator: [name: "author"])
© ASERT 2006-2009

SubmitButton(uid: "post_button",
clocator: [name: 'btnPost', value: "Create Post"])
}

ui.TextBox(uid: 'main_header', clocator: [tag: 'h1'])
ui.TextBox(uid: 'category_header', clocator: [tag: 'h3', position: '2'])
ui.TextBox(uid: 'author_header', clocator: [tag: 'h3', position: '3'])
ui.Container(uid: 'table', clocator: [tag: 'table']) {
ui.TextBox(uid: 'content_para', locator: '//tr/td/p')
}

AJUG_SEP2009 - 87

...Tellurium: Testing New Blog Post
openUrl "http://localhost:8080/"
click "create_new_post"
waitForPageToLoad 5000
assert title == 'Welcome to SimpBlog'

// post blog
type "blogform.title", "Bart was here (and so was Tellurium)"
selectByLabel "blogform.category", "Home"
© ASERT 2006-2009

selectByLabel "blogform.author", "Bart"
type "blogform.content", "Cowabunga Dude!"
click "blogform.post_button"
waitForPageToLoad 5000

// check contents
assert getText('main_header').matches('Post.*: Bart was here.*')
assert getText('category_header') == 'Category: Home'
assert getText('author_header') == 'Author: Bart'
assert getText('table.content_para') == 'Cowabunga Dude!'
shutDown

AJUG_SEP2009 - 88

TrUMP IDE
© ASERT 2006-2009

AJUG_SEP2009 - 89

JWebUnit...
• Description
– Java-based testing framework for web applications
– Intention is to provide a high-level "driver" Java API
– Wraps existing testing frameworks such as HtmlUnit
and Selenium with a unified, simple testing interface
– Support includes navigation via links, form entry and
© ASERT 2006-2009

submission, validation of table contents, and other
verification steps
– Includes some runner capabilities
– Useful in that it allows you to switch between
different lower level drivers without re-writing your
tests

AJUG_SEP2009 - 90

...JWebUnit
© ASERT 2006-2009

Source: http://jwebunit.sourceforge.net/ AJUG_SEP2009 - 91

JWebUnit: Testing New Blog Post
import net.sourceforge.jwebunit.junit.*

class TestSimpBlog extends WebTestCase {
void setUp() { setBaseUrl("http://localhost:8080") }

void testPostBlog() {
beginAt "/postForm"
assertTitleEquals "Welcome to SimpBlog"
setTextField "title", "Bart was here (and so was JWebUnit)"
© ASERT 2006-2009

setTextField "content", "Cowabunga Dude!"
selectOption "category", "Home"
clickButtonWithText "Create Post"
assert getElementByXPath('//H1').textContent.
def h3headings = getElementsByXPath('//H3')
assert h3headings[1].textContent == "Category: Home"
assert h3headings[2].textContent == "Author: Bart"
def cell = getElementByXPath('//TABLE//TR/TD')
assert cell.children[0].textContent == 'Cowabunga Dude!'
}
}
AJUG_SEP2009 - 92

Topics
• Groovy Intro
• Web Drivers
 Test Runners
© ASERT 2006-2009

– Native Groovy, JUnit, TestNG, Spock, EasyB, JBehave,
Cucumber, Robot Framework, FitNesse/Slim
• Non-web Drivers
• Other Tools
• Going beyond
AJUG_SEP2009 - 93

Native Groovy
• Groovy has a friendly ‘==‘
• Built-in assert
• Scripts are low ceremony
• By utilising @Grab are easy to share
• Many in-built testing capabilities are
© ASERT 2006-2009

accessible even from scripts
• Easy to version control or treat like
operating system scripts
• Out of the box detection of JUnit and
TestNG tests

AJUG_SEP2009 - 94

Built-in JUnit 3...
• Groovy distributions up to 1.6.X include JUnit 3
• Automatically invokes text runner
• Example uses HtmlUnit driver
class TestSimpBlogJUnit extends TestCase {
def page

void setUp() {
© ASERT 2006-2009

page = new WebClient().getPage('http://localhost:8080/postForm')
}

void testBartWasHere() {
// fill in blog entry and post it
form.getInputByName('title').setValueAttribute('Bart was here (and
form.getSelectByName('category').getOptions().find { it.text == 'H
...
AJUG_SEP2009 - 95

...Built-in JUnit 3...
...
form.getInputByName('title').setValueAttribute(
'Bart was here (and so was HtmlUnit)')
form.getSelectByName('category').getOptions().find {
it.text == 'Home' }.setSelected(true)

© ASERT 2006-2009

textContent.matches('Post.*: Bart was here.*')
assert h3headings.item(1).textContent == 'Category: Home'
assert h3headings.item(2).textContent == 'Author: Bart'

// expecting: <table><tr><td><p>Cowabunga Dude!</p></td></tr></tab
def para = cell.getFirstChild()
}
}
AJUG_SEP2009 - 96

...Built-in JUnit 3
© ASERT 2006-2009

AJUG_SEP2009 - 97

GroovyTestCase Tests
• Like JUnit but with some enhancements
– Additional assert methods
– fewer imports
– clean shouldFail syntax

class TestSimpBlogGUnit extends GroovyTestCase {
© ASERT 2006-2009

def page

void setUp() {
// ...
}

// ...
...

AJUG_SEP2009 - 98

JUnit 4.X
• Groovy distributions from 1.7 include JUnit 4
• Automatically invokes text runner if needed
• Example uses HtmlUnit driver (not shown)
import org.junit.*
class TestSimpBlogJUnit4 {
© ASERT 2006-2009

def page
@Before
void setUp() {
// ...
}
@Test
void bartWasHere() {
// ...
AJUG_SEP2009 - 99

JUnit 4.X Parameterized Tests
@RunWith(Parameterized)
class TestSimpBlogJUnit4DD {
def page, author, title, category, content

TestSimpBlogJUnit4DD(author, title,
category, content) {
this.author = author
this.title = title
© ASERT 2006-2009

this.category = category
this.content = content
}

@Parameters static data() {
return [
['Bart', 'Title 1', 'Home', 'Content 1'],
['Homer', 'Title 2', 'Work', 'Content 2'],
['Marge', 'Title 3', 'Food', 'Content 3']
].collect{ it as String[] }
}
...
AJUG_SEP2009 - 100

TestNG
• Groovy automatically invokes text runner if run
as a script
• Example shows grouping, driver not shown

import org.testng.annotations.*

class TestSimpBlogTestNG {
© ASERT 2006-2009

def page

@BeforeClass
void setUp() {
// ...
}

@Test(groups = [ "slow" ])
void bartWasHere() {
// ...

AJUG_SEP2009 - 101

TestNG Data Driven
import org.testng.annotations.*

class TestSimpBlogTestNGDD {
// ...

@DataProvider(name='SimpBlogDataProvider')
Object[][] data() {
© ASERT 2006-2009

return [
['Bart', 'Title 1', 'Home', 'Content 1'],
['Homer', 'Title 2', 'Work', 'Content 2'],
['Marge', 'Title 3', 'Food', 'Content 3']
].collect{ it as Object[] } as Object[]
}

@Test(dataProvider = "SimpBlogDataProvider")
void bartWasHere(author, title, category, content) {
// ...

AJUG_SEP2009 - 102

Spock Testing Framework...
© ASERT 2006-2009

AJUG_SEP2009 - 103

...Spock Testing Framework
• Testing framework for Java and Groovy
• Highly expressive specification language
– No assertion API
– No record &
replay @Speck
mocking API @RunWith(Sputnik)
– No class PublisherSubscriberSpeck {
superfluous def "events are received by all subscribers"() {
© ASERT 2006-2009

annotations def pub = new Publisher()
– Meaningful def sub1 = Mock(Subscriber)
assert error def sub2 = Mock(Subscriber)
messages pub.subscribers << sub1 << sub2

when:
pub.send("event")

then:
– Extensible 1 * sub1.receive("event")
– Compatible 1 * sub2.receive("event")
with JUnit }
reportingwise }
AJUG_SEP2009 - 104

Spock Example...
import spock.lang.*
import org.junit.runner.RunWith

@Speck ()
@RunWith (Sputnik)
class TestSimpBlogSpock {
def page, subheadings, para, form, result

@Unroll("When #author posts a #category blog with content '#content' it shoul
© ASERT 2006-2009

def "when creating a new blog entry"() {
given:
form = page.getFormByName('post')

when:
form.getInputByName('title').setValueAttribute("$author was here (and so
form.getSelectByName('category').getOptions().find { it.text == category
form.getSelectByName('author').getOptions().find { it.text == author }.se
form.getTextAreaByName('content').setText(content)
result = form.getInputByName('btnPost').click()
subheadings = result.getElementsByTagName('h3')
para = result.getByXPath('//TABLE//TR/TD/P')[0]
...
AJUG_SEP2009 - 105

...Spock Example
...
then:
page.titleText == 'Welcome to SimpBlog'
result.getElementsByTagName('h1').item(0).textContent.matches("Post.*: $auth
subheadings.item(1).textContent == "Category: $category"
subheadings.item(2).textContent == "Author: $author"

and:
// Optional use of 'and:'
para.textContent == content
© ASERT 2006-2009

where:
author << ['Bart', 'Homer', 'Lisa']
category << ['Home', 'Work', 'Food']
content << ['foo', 'bar', 'baz']
}
}

AJUG_SEP2009 - 106

EasyB
• Description: BDD, Rspec-like testing library
narrative 'segment flown', {
as_a 'frequent flyer'
i_want 'to accrue rewards points for every segment I fly'
so_that 'I can receive free flights for my dedication to the airline'
}

scenario 'segment flown', {
given 'a frequent flyer with a rewards balance of 1500 points'
© ASERT 2006-2009

when 'that flyer completes a segment worth 500 points'
then 'that flyer has a new rewards balance of 2000 points'
}

scenario 'segment flown', {
given 'a frequent flyer with a rewards balance of 1500 points', {
flyer = new FrequentFlyer(1500)
}
when 'that flyer completes a segment worth 500 points', {
flyer.fly(new Segment(500))
}
then 'that flyer has a new rewards balance of 2000 points', {
flyer.pointsBalance.shouldBe 2000
}
} AJUG_SEP2009 - 107

EasyB Example ...
• When run will be marked as pending
– perfect for ATDD

scenario "Bart posts a new blog entry", {
given "we are on the create blog entry page"
when "I have entered 'Bart was here' as the title"
and "I have entered 'Cowabunga Dude!' into the content"
and "I have selected 'Home' as the category"
© ASERT 2006-2009

and "I have selected 'Bart' as the author"
and "I click the 'Create Post' button"
then "I expect the entry to be posted"
}

AJUG_SEP2009 - 108

...EasyB Example...
description "Post Blog Entry Feature"

narrative "for feature", {
as_a "Blogger"
i_want "to be able to post a blog"
so_that "I can keep others informed"
}

before "posting blog", {
given "we are on the create blog entry page", {
© ASERT 2006-2009

webClient = new com.gargoylesoftware.htmlunit.WebClient()
page = webClient.getPage('http://localhost:8080/postForm')
}
}

scenario "Bart was here blog", {

when "I have entered 'Bart was here' as the title", {
form.getInputByName('title').setValueAttribute(
'Bart was here (and so was EasyB)')
}

...
AJUG_SEP2009 - 109

...EasyB Example...
...
and "I have entered 'Cowabunga Dude!' into the content", {
}

and "I have selected 'Home' as the category", {
form.getSelectByName('category').getOptions().find { it.text == 'Home' }.setSelected(
}

and "I click the 'Create Post' button", {
}
© ASERT 2006-2009

then "I expect the entry to be posted", {
assert result.getElementsByTagName('h1').item(0).textContent.matches('Post.*: Bart wa
assert h3headings.item(1).textContent == 'Category: Home' // traditional style
h3headings.item(2).textContent.shouldBe 'Author: Bart' // BDD style

// expecting: <table><tr><td><p>Cowabunga Dude!</p></td></tr></table>
def para = cell.firstChild
// para.shouldHave textContent: 'Cowabunga Dude!'
}
}

AJUG_SEP2009 - 110

...EasyB Example...
© ASERT 2006-2009

AJUG_SEP2009 - 111

...EasyB Example
2 scenarios (including 1 pending) executed successfully.

Story: simp blog initial

scenario Bart posts a new blog entry [PENDING]
given we are on the create blog entry page
when I have entered 'Bart was here' as the title
when I have entered 'Cowabunga Dude!' into the content [PENDING]
when I have selected 'Home' as the category [PENDING]
when I have selected 'Bart' as the author [PENDING]
when I click the 'Create Post' button [PENDING]
then I expect the entry to be posted [PENDING]

Story: simp blog easyb is preparing to process 2 file(s)
© ASERT 2006-2009

Post Blog Entry Feature Running simp blog initial story (SimpBlogInitialStory.groovy)
for feature Scenarios run: 1, Failures: 0, Pending: 1, Time elapsed: 1.049 sec
As a Blogger Running simp blog story (SimpBlogStory.groovy)
I want to be able to post a blog Scenarios run: 1, Failures: 0, Pending: 0, Time elapsed: 1.356 sec
So that I can keep others informed
given we are on the create blog entry page 2 total behaviors ran (including 1 pending behavior) with no failures
easyb execution passed
scenario Bart was here blog
when I have entered 'Bart was here' as the title
when I have entered 'Cowabunga Dude!' into the content
when I have selected 'Home' as the category
when I click the 'Create Post' button
then I expect the entry to be posted

AJUG_SEP2009 - 112

Cucumber
# language: en
• Description Feature: Addition
In order to avoid silly mistakes
– Loose coupling As a math idiot
between text spec I want to be told the sum of two numbers

and step defns Scenario Outline: Add two numbers
Given I have entered <input_1> into the calculator
And I have entered <input_2> into the calculator
When I press <button>
Then the stored result should be <output>

Examples:
© ASERT 2006-2009

| input_1 | input_2 | button | output |
| 20 | 30 | add | 50 |
| 2 | 5 | add | 7 |
| 0 | 40 | add | 40 |
# language: en
Feature: Division
In order to avoid silly mistakes
Cashiers must be able to calculate a fraction

Scenario: Regular numbers
Given I have entered 3 into the calculator
And I have entered 2 into the calculator
When I press divide
Then the stored result should be 1.5
AJUG_SEP2009 - 113

Cucumber Example...

# language: en
@newpost
Feature: New Blog Post
In order to create a new blog entry
Bloggers should be able to select their name and category and enter text
© ASERT 2006-2009

Scenario: New Posting
Given we are on the create blog entry page
When I have entered "Bart was here" as the title
And I have entered "Cowabunga Dude!" as the content
And I have selected "Home" from the "category" dropdown
And I have selected "Bart" from the "author" dropdown
And I click the 'Create Post' button
Then I should see a heading message matching "Post.*: Bart was here.*"

AJUG_SEP2009 - 114

...Cucumber Example...
© ASERT 2006-2009

AJUG_SEP2009 - 115

...Cucumber Example
this.metaClass.mixin(cuke4duke.GroovyDsl)

Given ~/we are on the create blog entry page/, { ->
}

When(~/I have entered "(.*)" as the title/) {String title ->
form.getInputByName('title').setValueAttribute(title + ' (and so was Cucumber)')
}

When(~'I have entered "(.*)" as the content') {String content ->
© ASERT 2006-2009

}

When(~'I have selected "(.*)" from the "(.*)" dropdown') {String option, String name ->
form.getSelectByName(name).getOptions().find {
it.text == option }.setSelected(true)
}

When(~"I click the 'Create Post' button") { ->
}

Then(~'I should see a heading message matching "(.*)"') {String pattern ->
// ensureThat result.getElementsByTagName('h1').item(0).textContent.matches(pattern)
assert result.getElementsByTagName('h1').item(0).textContent.matches(pattern)
}
AJUG_SEP2009 - 116

...Cucumber Data Driven Example
© ASERT 2006-2009

AJUG_SEP2009 - 118

JBehave
• Description
– Behaviour-driven development in Java
• Also works out of the box for Groovy
– Behavior scenarios written in text
• Use the words Given, When, Then and And.
– Mapped using regular expressions and annotations
© ASERT 2006-2009

to step methods
– Web Runner available for non-technical users to
easily run tests
– Hooks to Selenium available in JBehave Web
• Other Java libraries (e.g. HtmlUnit) easy to use too
– Supports parameter converters
• Getting 'String' parameters into appropriate Object values
– Supports a 'StepDoc' function
• For listing available scenario clauses
AJUG_SEP2009 - 119

JBehave Example...

import org.jbehave.scenario.Scenario
© ASERT 2006-2009

import org.jbehave.scenario.steps.Steps

class NewPostScenario extends Scenario {
NewPostScenario() {
super([new CreateBlogSteps()] as Steps[])
}
} Scenario:


AJUG_SEP2009 - 120

...JBehave Example...
import org.jbehave.scenario.steps.Steps
import org.jbehave.scenario.annotations.*

class CreateBlogSteps extends Steps {
def page, form, result

@Given("we are on the create blog entry page")
void gotoEntryPage() {
}
© ASERT 2006-2009

@When('I have entered "$title" as the title')
void enterTitle(String title) {
setValueAttribute(title + ' (and so was JBehave)')
}

@When('I have entered "$content" as the content')
void enterContent(String content) {
}
...
Example uses HtmlUnit which must be added to CLASSPATH AJUG_SEP2009 - 121

...JBehave Example
...
@When('I have selected "$option" from the "$name" dropdown')
void selectOption(String option, String name) {
form.getSelectByName(name).getOptions().find {
it.text == option }.setSelected(true)
}

@When("I click the 'Create Post' button")
void clickPostButton() {
© ASERT 2006-2009

}

@Then('I should see a heading message matching "$message"')
void checkPost(String pattern) {
textContent.matches(pattern)
}
}
Choose either traditional
style or BDD style
...
void checkPost(String pattern) {
ensureThat result.getElementsByTagName('h1').item(0).
textContent.matches(pattern)
}
... AJUG_SEP2009 - 122

JBehave Web Runner...
© ASERT 2006-2009

AJUG_SEP2009 - 123

...JBehave Web Runner
© ASERT 2006-2009

AJUG_SEP2009 - 124

Hacked* "JBehave Aware" GroovyConsole
© ASERT 2006-2009

* Not currently publically available AJUG_SEP2009 - 125

Robot Framework...
• Description
– Keyword-driven test automation framework
for acceptance level testing and acceptance
test-driven development (ATDD)
– Easy to use tabular syntax for creating test
– Easy to use test libraries implemented either with
© ASERT 2006-2009

Python or Java
– Open source, Apache License 2.0
– Supports creating data-driven test cases.
– Provides tagging to categorize and select test cases
to be executed
– Provides easy-to-read reports and logs in HTML
format
– XML-RPC interface for remote testing
AJUG_SEP2009 - 126

...Robot Framework...
• Tabular tests / Executable Specs
– In HTML or Text
© ASERT 2006-2009

***Settings***
Library OperatingSystem

***Variables***
${MESSAGE} Hello, world!

***Test Cases***
My Test [Documentation] Example test
Log ${MESSAGE}
My Keyword /tmp

Another Test
Should Be Equal ${MESSAGE} Hello, world!

***Keywords***
My Keyword [Arguments] ${path}
Directory Should Exist ${path}
AJUG_SEP2009 - 127

• Reporting
© ASERT 2006-2009

AJUG_SEP2009 - 128

• Reporting
© ASERT 2006-2009

AJUG_SEP2009 - 129

• Tools
© ASERT 2006-2009

AJUG_SEP2009 - 130

Robot Framework Example...
***Test Cases***

Submit post
© ASERT 2006-2009

***Keywords***

Open Browser http://localhost:8080/postForm ${BROWSER}
# Set Selenium Speed ${DELAY}
Title Should Be Welcome to SimpBlog

When I have entered "${text}" as the title
Input Text title ${text}

...

First look at the Python version using Selenium AJUG_SEP2009 - 131

...Robot Framework Example
...

And I have entered "${text}" as the content
Input Text content ${text}

And I have selected "${option}" from the "${list}" dropdown
Select From List ${list} ${option}

Click Button btnPost
© ASERT 2006-2009

Then I should see a heading message matching "${expected}"
${text} = Get Text xpath=//h1
Should Match Regexp ${text} ${expected}

***Settings***
Library ${LIBRARY}
Test Teardown Close Browser

***Variables***
${BROWSER} *firefox3 C:/Program Files (x86)/Mozilla Firefox/firefox.exe
${DELAY} 0
${LIBRARY} SeleniumLibrary

AJUG_SEP2009 - 132

Robot Framework with Groovy...
***Settings***
Library Remote localhost:8270 WITH NAME Groovy

***Test Case***
Multiple Blog Posts
Post Bart Home Title 1 Content 1
Post Homer Work Title 2 Content 2
Post Marge Food Title 3 Content 3
© ASERT 2006-2009

Pybot
TestCase.txt
Runner

XML-RPC

Groovy
Groovy/Java
XML RPC
Driver
Server

AJUG_SEP2009 - 133

...Robot Framework with Groovy...
import groovy.net.xmlrpc.*
import java.net.ServerSocket

def server = new XMLRPCServer()
server.get_keyword_names = { ["Post"] }
server.get_keyword_documentation = { "" }
server.get_keyword_arguments = { ["*args"] }
server.run_keyword = { name, args ->
assert name == 'Post'
def (author, category, title, content) = args
© ASERT 2006-2009

form.getInputByName('title').setValueAttribute("$title (entered with Robot Framework)")
form.getSelectByName('author').getOptions().find{ it.text == author }.setSelected(true)
form.getSelectByName('category').getOptions().find{ it.text == category }.setSelected(true)
assert result.getElementsByTagName('h1').item(0).textContent.matches("Post.*: $title.*")
assert h3headings.item(1).textContent == "Category: $category"
assert h3headings.item(2).textContent == "Author: $author"
def para = result.getByXPath('//TABLE//TR/TD/P')[0]
assert para.textContent == content
return [status:'PASS', output:"$name $args", error:'bad arg']
}

def serverSocket = new ServerSocket(8270)
server.startServer(serverSocket)

In the future, a generic version of this file may be possible AJUG_SEP2009 - 134

...Robot Framework with Groovy...
© ASERT 2006-2009

AJUG_SEP2009 - 135

...Robot Framework with Groovy
© ASERT 2006-2009

AJUG_SEP2009 - 136

FitNesse/SLIM
• Description
– Tool for enhancing collaboration
in software development
– Allows customers,
developers and
testers to easily
© ASERT 2006-2009

create and run
tests to compare
expected with
actual results
– Tests are captured
in wiki format and
mapped into code
using fixtures

Source: http://fitnesse.org/
AJUG_SEP2009 - 137

SLIM with Groovy...
© ASERT 2006-2009

AJUG_SEP2009 - 138

...SLIM with Groovy
package simpblog


class NewBlogPost {
String author, title, content, category
private result
def execute() {
© ASERT 2006-2009

setValueAttribute("$title (entered with Robot Framework)")
form.getSelectByName('author').getOptions().find{
it.text == author }.setSelected(true)
form.getSelectByName('category').getOptions().find{
it.text == category }.setSelected(true)
}
def mainHeading() {
def m = result.getElementsByTagName('h1').item(0).textContent =~
/Post .*: (.*) ([^)]*)/
m[0][1]
}
}

Example uses HtmlUnit to call SimpBlog web site but those details aren't important here AJUG_SEP2009 - 139

Topics
• Groovy Intro
• Web Drivers
• Test Runners
© ASERT 2006-2009

 Non-web Drivers
• Other Tools
• Going beyond

AJUG_SEP2009 - 140

Better SQL Manipulation...
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.Statement;
// ...
import java.sql.ResultSet;
finally {
import java.sql.SQLException;
// release database resources
close(rs); // close the ResultSet
public class JdbcJava {
close(stmt); // close the Statement
public static Connection getConnection() throws Exception {
close(conn); // close the Connection
String driver = "org.hsqldb.jdbcDriver";
}
String url = "jdbc:hsqldb:file:EMPDB";
}
String username = "sa"; String password = "";
Class.forName(driver);
private static void close(ResultSet rs) {
return DriverManager.getConnection(url, username, password);
try {
}
if (rs != null) rs.close();
} catch (SQLException e) {
© ASERT 2006-2009

Connection conn = null; e.printStackTrace();
Statement stmt = null; }
ResultSet rs = null; }
try {
conn = getConnection(); private static void close(Statement st) {
stmt = conn.createStatement(); try {
if (st != null) st.close();
String query =
"select id, lastname, firstname from Employees";
rs = stmt.executeQuery(query); e.printStackTrace();
}
while (rs.next()) {
System.out.println(rs.getString("id") + }
": " + rs.getString("firstname") +
" " + rs.getString("lastname")); private static void close(Connection cn) {
try {
}
if (cn != null) cn.close();
}
catch (Exception e) { } catch (SQLException e) {
// handle the exception e.printStackTrace();
e.printStackTrace(); }
System.err.println(e.getMessage()); }
} }
// ... AJUG_SEP2009 - 141

...Better SQL Manipulation...
import
import
java.sql.Connection;
java.sql.DriverManager; boilerplate
import java.sql.Statement;
// ...
import java.sql.ResultSet;
finally {
import java.sql.SQLException;
// release database resources
close(rs); // close the ResultSet
public class JdbcJava {
close(stmt); // close the Statement
public static Connection getConnection() throws Exception {
close(conn); // close the Connection
String driver = "org.hsqldb.jdbcDriver";
}
String url = "jdbc:hsqldb:file:EMPDB";
}
String username = "sa"; String password = "";
Class.forName(driver);
private static void close(ResultSet rs) {
return DriverManager.getConnection(url, username, password);
try {
}
if (rs != null) rs.close();
© ASERT 2006-2009

Connection conn = null; e.printStackTrace();
Statement stmt = null; }
ResultSet rs = null; }
try {
conn = getConnection(); private static void close(Statement st) {
stmt = conn.createStatement(); try {
if (st != null) st.close();
String query =
"select id, lastname, firstname from Employees";
rs = stmt.executeQuery(query); e.printStackTrace();
}
while (rs.next()) {
System.out.println(rs.getString("id") + }
": " + rs.getString("firstname") +
" " + rs.getString("lastname")); private static void close(Connection cn) {
try {
}
if (cn != null) cn.close();
}
catch (Exception e) { } catch (SQLException e) {
// handle the exception e.printStackTrace();
e.printStackTrace(); }
System.err.println(e.getMessage()); }
} }
// ... AJUG_SEP2009 - 142

...Better SQL Manipulation

import groovy.sql.Sql

def url = 'jdbc:hsqldb:file:EMPDB'
def username = 'sa'
def password = ''
© ASERT 2006-2009

def driver = 'org.hsqldb.jdbcDriver'

def db = Sql.newInstance(url, username, password, driver)

db.eachRow("SELECT id, firstname, lastname FROM Employees") {
println "$it.id: $it.firstname $it.lastname"
}

AJUG_SEP2009 - 143

More Details: Working with Databases
• Using standard SQL statements

def foo = 'cheese'
def db = Sql.newInstance("jdbc:mysql://localhost:3306/mydb",
"user", "pswd", "com.mysql.jdbc.Driver")

db.eachRow("select * from FOOD where type=${foo}") {
println "Gromit likes ${it.name}"
© ASERT 2006-2009

}

• Using DataSets

def db = Sql.newInstance("jdbc:mysql://localhost:3306/mydb",
"user", "pswd", "com.mysql.jdbc.Driver")

def food = db.dataSet('FOOD')
def cheese = food.findAll { it.type == 'cheese' }
cheese.each { println "Gromit likes ${it.name}" }
AJUG_SEP2009 - 144

WebTest testing Web Sites
def ant = new AntBuilder()

def webtest_home = System.properties.'webtest.home'

ant.taskdef(resource:'webtest.taskdef') {
classpath {
pathelement(location:"$webtest_home/lib")
fileset(dir:"$webtest_home/lib", includes:"**/*.jar")
}
}
© ASERT 2006-2009

def config_map = [:]
['protocol','host','port','basepath','resultfile',
'resultpath', 'summary', 'saveresponse','defaultpropertytype'].each {
config_map[it] = System.properties['webtest.'+it]
}

ant.testSpec(name:'groovy: Test Groovy Scripting at creation time') {
config(config_map)
steps {
invoke(url:'linkpage.html')
for (i in 1..10) {
verifyText(description:"verify number ${i} is on pages", text:"${i}")
}
}
}
AJUG_SEP2009 - 145

WebTest testing Emails
def ant = new AntBuilder()

def webtest_home = System.properties.'webtest.home'

ant.taskdef(resource:'webtest.taskdef'){
classpath(){
pathelement(location:"$webtest_home/lib")
fileset(dir:"$webtest_home/lib", includes:"**/*.jar")
}
}
© ASERT 2006-2009

ant.testSpec(name:'Email Test'){
steps {
emailSetConfig(server:'localhost', password:'password',
username:'devteam@mycompany.org', type:'pop3')
emailStoreMessageId(subject:'/Build notification/',
property:'msg')
emailStoreHeader(property:'subject',
messageId:'#{msg}', headerName:'Subject')
groovy('''def subject = step.webtestProperties.subject
assert subject.startsWith('Build notification')''')
emailMessageContentFilter(messageId:'#{msg}')
verifyText(text:'Failed build')
}
}
AJUG_SEP2009 - 146

SOAP Client and Server
class MathService {
double add(double a, double b) {
a + b
}
double square(double c) {
c * c
}
}
© ASERT 2006-2009

import groovy.net.soap.SoapServer

def server = new SoapServer('localhost', 6789)
server.setNode('MathService')
server.start()

import groovy.net.soap.SoapClient

def math = new SoapClient('http://localhost:6789/MathServiceInterface?wsdl')
assert math.add(1.0, 2.0) == 3.0
assert math.square(3.0) == 9.0

AJUG_SEP2009 - 147

FEST
• Description
– Framework for testing Swing GUIs (among other things)
– Simulation of user interaction with a GUI (e.g. mouse / keyboard input)
– Reliable GUI component lookup
• by type, by name or custom search criteria
– Support for all Swing components included in the JDK
– Compact and powerful API for creation and maintenance of functional
GUI tests
© ASERT 2006-2009

– Regular expression matching
– Supports Applet testing
– Ability to embed screenshots of failed GUI tests in HTML test reports
– Can be used with either TestNG or JUnit
– Supports testing violations of Swing's threading rules
– Experimental Groovy Builder support (coming soon!)

dialog.comboBox("domain").select("Users")
dialog.textBox("username").enterText("leia.organa")
dialog.button("login").click()
dialog.optionPane().requireErrorMessage()
.requireMessage("Please enter your .*")
AJUG_SEP2009 - 148

Topics
• Groovy Intro
• Web Drivers
• Test Runners
© ASERT 2006-2009

• Non-web Drivers
 Other Tools
• Going beyond

AJUG_SEP2009 - 149

...SoapUI
• Tool for testing Web Services has a built-
in Groovy editor for custom steps
© ASERT 2006-2009

AJUG_SEP2009 - 151

iTest2
• Tool for recording, refactoring and
running watir style tests
© ASERT 2006-2009

We have had success cutting and pasting recorded test steps – using metaprogramming to map to Groovy testing DSL
AJUG_SEP2009 - 152

Sahi...
• Description
– Tool for recording and running web tests
• Features
– Supports in-browser controls (cross-platform/browser)
– Ability to add assertions (check points) for validation
– Text based programmable scripts with ability to
• parametrize variables
© ASERT 2006-2009

• re-factor into functions
• organize and include other scripts
– Can run scripts in batch mode for automated testing
– Command line and ant integration
– Automatic html reporting with error logs
– Easily extensible via simple javascript
– Support for data-driven testing
– Multi-threaded playback
– HTTP, HTTPS and AJAX support
AJUG_SEP2009 - 153

...Sahi
© ASERT 2006-2009

Further Info:
http://sahi.co.in/w/

We have had success cutting and
pasting recorded test steps – using
metaprogramming to map to Groovy
testing DSL

AJUG_SEP2009 - 154

JMeter
• What is Apache JMeter?
Performance Testing

– Java desktop application designed to load test
functional behavior and measure performance
– Originally designed for testing Web Applications but
has since expanded to other test functions
© ASERT 2006-2009

JMeter can call out to Groovy – reusing your functional tests
AJUG_SEP2009 - 155

JMeter Case Study...
Part 1: Native JMeter Tests
* No JavaScript
* No reuse of functional tests
© ASERT 2006-2009

AJUG_SEP2009 - 156

...JMeter Case Study...
© ASERT 2006-2009

Further details about Statistical Aggregate plugin: http://rubenlaguna.com/wp/better-jmeter-graphs/
AJUG_SEP2009 - 157

Part 2: JMeter Groovy JUnitTests
* Reuse functional tests

import junit.framework.TestCase

class TestSimpBlogJUnit extends TestCase {
static lisaPostAndCheck = null
static bartPostAndCheck = null
static String script = '''
def page = new WebClient().getPage('http://localhost:8080/postForm')
© ASERT 2006-2009

form.getInputByName('title').setValueAttribute(title)
form.getSelectByName('category').getOptions().find { it.text == category }.setSelected(true)
form.getSelectByName('author').getOptions().find { it.text == author }.setSelected(true)
def titleResult = result.getElementsByTagName('h1').item(0).textContent
def categoryResult = h3headings.item(1).textContent
def authorResult = h3headings.item(2).textContent
def contentResult = para.textContent
return new ResultHolder(titleResult, contentResult, authorResult, categoryResult)
'''
void setUp() {
lisaPostAndCheck = setUpBlogger(lisaPostAndCheck, 'Lisa', "I'm Hungry", "Food")
bartPostAndCheck = setUpBlogger(bartPostAndCheck, 'Bart', "Don't have a cow dude", "Home")
}
...

AJUG_SEP2009 - 158

...
private setUpBlogger(orig, blogger, content, category) {
if (orig) return orig
def result = new GroovyShell().parse(script)
def binding = new Binding()
binding.setVariable('title', blogger + ' was here (and so was JMeter)')
binding.setVariable('content', content)
binding.setVariable('author', blogger)
binding.setVariable('category', category)
result.binding = binding
result
}

© ASERT 2006-2009

def result = bartPostAndCheck.run()
assert result.title.contains('Bart was here')
}

void testLisaWasHere() {
def result = lisaPostAndCheck.run()
assert result.title.contains('Lisa was here')
}
}

class ResultHolder {
String title, content, author, category
ResultHolder(String title, String content, String author, String category) {
this.title = title
}
}
AJUG_SEP2009 - 159

Topics
• Groovy Intro
• Web Drivers
• Test Runners
© ASERT 2006-2009

• Non-web Drivers
• Other Tools
 Going beyond

AJUG_SEP2009 - 163

All Combinations
• Description
test('MacOS', '4G', '250G')
– Don't have a bunch test('Linux', '4G', '250G')
of hard-coded, hard test('Vista', '4G', '250G')
to maintain manual test('MacOS', '8G', '500G')
test data or even test('Linux', '8G', '500G')
manually generated test('Vista', '8G', '500G')
// 30 more rows
CSV file
© ASERT 2006-2009

– Much better to
generate test cases [
from succinct ['MacOS', 'Linux', 'Vista'],
['2G', '4G', '6G', '8G'],
expressions of ['250G', '350G', '500G']
what you are trying ].combinations().each{
to achieve os, mem, disk ->
test(os, mem, disk)
}

AJUG_SEP2009 - 164

All Combinations Case Study

def combos = [["Bart", "Homer", "Marge", "Lisa", "Maggie"],
["Work", "School", "Home", "Travel", "Food"],
["foo", "bar", "baz"]].combinations()
println "Found ${combos.size()} combos"
combos.each { author, category, content ->
postAndCheck category, author, content
}
© ASERT 2006-2009

def postAndCheck(String category, String author, String content) {
// ...
// details not shown (ran with HtmlUnit)
// ...
}

Found 75 combos

AJUG_SEP2009 - 165

All Pairs
• Description
– Sometimes
called
pairwise
testing or
orthogonal
array testing
© ASERT 2006-2009

– Technique
to limit the
explosion of test cases by identifying samples of
important classes of test cases (equivalence classes)
• providing maximum coverage with minimum testing
– Instead of all combinations, systematically use pair-
wise combinations of interactions between objects
• as most faults result from adverse two-way interactions
AJUG_SEP2009 - 166

All Pairs Case Study...
class AllPairs {
private initialResults, results, rest Details here not important:
Given here for completeness as this
private buildPairs(Map partialCombinations, inputsLeft) { library is not publically available yet
def first = getFirstEntry(inputsLeft)
def partialResults = []
first.value.each {
def next = [(first.key): it] ...
getFirstEntry(next) private getFirstEntry(Map map) {
next.putAll(partialCombinations) return map.entrySet().toList().get(0)
partialResults << next }
}
if (inputsLeft.size() == 1) { private getAllPairsFromMap(map) {
initialResults.addAll(partialResults) if (!map || map.size() <= 1) return null
© ASERT 2006-2009

} else { def allPairs = new HashSet()
partialResults.each { def first = getFirstEntry(map)
def rest = inputsLeft.clone() def restMap = map.clone()
rest.remove(first.key) restMap.remove(first.key)
buildPairs(it, rest) restMap.each {
} def nextPair = new HashSet()
} nextPair << first
} nextPair << it
allPairs << nextPair
private adjustPairs() { }
results = initialResults.clone() def restPairs = getAllPairsFromMap(rest)
initialResults.each { if (restPairs != null) {
def restResults = results.clone() allPairs.addAll(restPairs)
restResults.remove(it) }
if (allPairsCovered(it, restResults)) { return allPairs
results.remove(it) }
} ...
}
}
... AJUG_SEP2009 - 167

...All Pairs Case Study...
...
private boolean allPairsCovered(candidate, remaining) {
def totalCount = 0
def pairCombos = getAllPairsFromMap(candidate)
pairCombos.each {candidatePair ->
def pairFound = false
def pairs = candidatePair.toList()
for (it in remaining) {
def entries = it.entrySet()
if (!pairFound && entries.contains(pairs[0]) && entries.contains(pairs[1])) {
pairFound = true
totalCount++
}
© ASERT 2006-2009

}
}
return (totalCount == pairCombos.size())
}

private updateUsedPairs(map) {
getAllPairsFromMap(map).each { usedPairs << it }
}

def generate(configurations) {
initialResults = new HashSet()
results = new HashSet()
buildPairs([:], configurations)
adjustPairs()
results Details here not important:
} Given here for completeness as this
} library is not publically available yet

AJUG_SEP2009 - 168

...All Pairs Case Study...

def pairs = new AllPairs().generate(
author: ["Bart", "Homer", "Marge", "Lisa", "Maggie"],
category: ["Work", "School", "Home", "Travel", "Food"],
content: ["foo", "bar", "baz"])
println "Found ${pairs.size()} pairs"
pairs.each {
println it // just for debugging purposes
© ASERT 2006-2009

postAndCheck it.category, it.author, it.content
}

def postAndCheck(String category, String author, String content) {
// ...
// details not shown (ran with HtmlUnit)
// ...
}

AJUG_SEP2009 - 169

...All Pairs Case Study
Found 18 pairs
[content:bar, category:Food, author:Bart]
[content:bar, category:School, author:Homer]
[content:foo, category:Work, author:Bart]
[content:baz, category:School, author:Homer]
[content:bar, category:Home, author:Maggie]
[content:foo, category:School, author:Marge]
[content:bar, category:Work, author:Bart]
© ASERT 2006-2009

[content:baz, category:Travel, author:Bart]
[content:foo, category:Home, author:Homer]
[content:bar, category:Travel, author:Marge]
[content:baz, category:Work, author:Homer]
[content:bar, category:Travel, author:Lisa]
[content:baz, category:Travel, author:Maggie]
[content:baz, category:Home, author:Marge]
[content:baz, category:Food, author:Homer]
[content:baz, category:Travel, author:Lisa]
[content:foo, category:Food, author:Maggie]
[content:foo, category:Travel, author:Lisa]
AJUG_SEP2009 - 170

gpars/GParallelizer...
• Description
– Library classes and DSL sugar providing intuitive
ways for Groovy developers to handle tasks
concurrently. Four logical parts:
• Actors provide a Groovy implementation of Scala-like
actors, both thread-bound actors and thread pool-
© ASERT 2006-2009

bound (event-driven) ones
• Dataflow Concurrency allows for very natural shared-
memory concurrency model, based on single-
assignment variables
• Asynchronizer extends the Java 1.5 built-in support
for executor services to enable multi-threaded
collection and closure processing
• Parallelizer uses JSR-166y Parallel Arrays to enable
multi-threaded collection processing
AJUG_SEP2009 - 171

...gpars/GParallelizer...

// run multiple closures in parallel
Asynchronizer.withAsynchronizer {
assert [10, 20] == AsyncInvokerUtil.doInParallel(
{calculateA()},
{calculateB()}
)
© ASERT 2006-2009

}

// multiply numbers asynchronously
Parallelizer.withParallelizer(5) {
final List result = [1, 2, 3, 4, 5].collectAsync {it * 2}
assert ([2, 4, 6, 8, 10].equals(result))
}

AJUG_SEP2009 - 172

...gpars/GParallelizer...

// support for dataflow to avoid doing synchronisation
import static org.gparallelizer.dataflow.DataFlow.thread

final def x = new DataFlowVariable()
final def y = new DataFlowVariable()
final def z = new DataFlowVariable()
© ASERT 2006-2009

thread {
z << x.val + y.val
println "Result: ${z.val}"
}

thread { x << 10 }

thread { y << 5 }

AJUG_SEP2009 - 173

...gpars/GParallelizer

// actor support
import static org.gparallelizer.actors.pooledActors.PooledActors.*

def me = actor {
friend.send('Hi')
react(10.seconds) {
© ASERT 2006-2009

// continue conversation
}
}
me.metaClass.onTimeout = {->
friend.send('I see, busy as usual. Never mind.')}
me.start()

AJUG_SEP2009 - 174

gpars and SimpBlog
@Grab('org.gparallelizer:GParallelizer:0.8.3')
import static org.gparallelizer.Parallelizer.*

def testCases = [
['Home', 'Bart', 'Content 1'],
['Work', 'Homer', 'Content 2'],
['Travel', 'Marge', 'Content 3'],
© ASERT 2006-2009

['Food', 'Lisa', 'Content 4']
]

withParallelizer(3) { Note:
Testing
testCases.eachAsync{ category, author, content -> DSL makes
postAndCheck category, author, content tests more
readable
}
}

private postAndCheck(category, author, content) {
...
AJUG_SEP2009 - 175

Native Groovy Versions also possible

Thread.start {
postAndCheck 'Home', 'Bart', 'Content 1' Or use:
} ant.parallel {
Thread.start { //...
postAndCheck 'Work', 'Homer', 'Content 2' }
© ASERT 2006-2009

}
Thread.start {
postAndCheck 'Travel', 'Marge', 'Content 3'
}
Thread.start {
postAndCheck 'Food', 'Lisa', 'Content 4'
} Or use:
"command".execute()

private postAndCheck(category, author, content) {
...
AJUG_SEP2009 - 176

Constraint/Logic Programming...
• Description
– Style of programming where relations between
variables are stated in the form of constraints
– First made popular by logic programming languages
such as Prolog but the style is now also used outside
logic programming specific languages
© ASERT 2006-2009

– Constraints differ from the common primitives of
other programming languages in that they do not
specify one or more steps to execute but rather the
properties of a solution to be found
– Popular libraries used with Groovy supporting
constraint programming include Gecode/J, Choco
and tuProlog
– We'll look at Choco as an example

AJUG_SEP2009 - 177

...Constraint/Logic Programming...
// requires choco 2.1.0-basic.jar from http://choco.emn.fr/
import static choco.Choco.*
import choco.kernel.model.variables.integer.IntegerVariable

def m = new choco.cp.model.CPModel()
def s = new choco.cp.solver.CPSolver()

def menu = [ Found a solution:
© ASERT 2006-2009

'Mixed fruit' : 215, 7 * Mixed fruit
'French fries' : 275, Found a solution:
'Side salad' : 335, 1 * Mixed fruit
'Hot wings' : 355, 2 * Hot wings
'Mozzarella sticks' : 420, 1 * Sampler plate
'Sampler plate' : 580
]
def numOrdered = new IntegerVariable[menu.size()]
def priceEach = new int[menu.size()]
def sum = 1505
...
AJUG_SEP2009 - 179

...Constraint/Logic Programming
...
menu.eachWithIndex { name, price, i ->
// number ordered >= 0
// number ordered * price <= sum
numOrdered[i] = makeIntVar(name, 0, sum.intdiv(price))
priceEach[i] = price
}
m.addConstraint(eq(scalar(numOrdered, priceEach), sum))
© ASERT 2006-2009

s.read(m)

def more = s.solve()
while (more) {
println "Found a solution:"
numOrdered.each {
def v = s.getVar(it)
if (v.val) println " $v.val * $v.name"
}
more = s.nextSolution()
}
AJUG_SEP2009 - 180

SimpBlog Case Study...
• You have been asked to set up some test
cases representing the Simpsons weekly
blogging habits
• After some careful study you observe the
following strange behavior
© ASERT 2006-2009

– They never blog on the same day
– Marge blogs only on a Saturday or Sunday
– Maggie blogs only on a Tuesday or Thursday
– Lisa blogs only on a Monday, Wednesday or Friday
– Bart blogs only on the day after Lisa
– Homer only blogs if noone else blogged the previous
day and doesn't allow anyone to blog the next day

AJUG_SEP2009 - 181

...SimpBlog Case Study...
// requires choco 2.1.0-basic.jar from http://choco.emn.fr/
import static choco.Choco.*

def m = new choco.cp.model.CPModel()
def s = new choco.cp.solver.CPSolver()

daysOfWeek = ["Sunday", "Monday", "Tuesday", "Wednesday",
© ASERT 2006-2009

"Thursday", "Friday", "Saturday"]

def bart = makeIntVar('Bart', 0, 6)
def homer = makeIntVar('Homer', 0, 6)
def marge = makeIntVar('Marge', 0, 6)
def lisa = makeIntVar('Lisa', 0, 6)
def maggie = makeIntVar('Maggie', 0, 6)
def simpsons = [bart, homer, marge, lisa, maggie]
...

AJUG_SEP2009 - 182

...SimpBlog Case Study...
...
// They never blog on the same day
for (i in 0..<simpsons.size())
for (j in 0..<i) m.addConstraint(neq(simpsons[i], simpsons[j]))

// Marge blogs only on a Saturday or Sunday
m.addConstraint(or(eq(marge, 0), eq(marge, 6)))

// Maggie blogs only on a Tuesday or Thursday
m.addConstraint(or(eq(maggie, 2), eq(maggie, 4)))
© ASERT 2006-2009

// Lisa blogs only on a Monday, Wednesday or Friday
m.addConstraint(or(eq(lisa, 1), eq(lisa, 3), eq(lisa, 5)))

// Bart blogs only on the day after Lisa
m.addConstraint(eq(plus(lisa, 1), bart))
// Homer only blogs if noone else blogged the previous
// day and doesn't allow anyone to blog the next day
m.addConstraint(and(distanceNEQ(homer, marge, 1),
distanceNEQ(homer, bart, 1),
distanceNEQ(homer, maggie, 1),
distanceNEQ(homer, lisa, 1)))
...
AJUG_SEP2009 - 183

...SimpBlog Case Study
...
s.read(m)
def more = s.solve()
if (!more) println "No Solutions Found"
else println pad("Solutions:") +
simpsons.collect{ pad(it.name) }.join()
while (more) {
print pad("")
println simpsons.collect {
© ASERT 2006-2009

def v = s.getVar(it)
pad(daysOfWeek[v.val])
}.join()
more = s.nextSolution()
}

def pad(s) { s.padRight(12) }

Solutions: Bart Homer Marge Lisa Maggie
Thursday Saturday Sunday Wednesday Tuesday
Tuesday Saturday Sunday Monday Thursday
Saturday Tuesday Sunday Friday Thursday
Thursday Sunday Saturday Wednesday Tuesday
AJUG_SEP2009 - 184

Polyglot Programming...

@Grab('org.clojure:clojure:1.0.0')
import clojure.lang.Compiler
import clojure.lang.RT ...
def jy = getEngine("jython")
def src = new File('temp.clj') jy?.eval('''
src.text = ''' def factorial(n):
(ns groovy) i=fact=1
© ASERT 2006-2009

(defn factorial [n] while i <= n:
(if (< n 2) fact=fact*i
1 i=i+1
(* n (factorial (- n 1)))) return fact
'''
result = factorial(4)
src.withReader { reader -> ''')
Compiler.load reader println jy?.result
}

def fac = RT.var('groovy', 'factorial')
println fac.invoke(4)
AJUG_SEP2009 - 185

...Polyglot Programming
• But so what?
– I can use Groovy for Scripting my
environment and or leveraging its runners
and other testing capabilities
– I can call out to other languages when needed
© ASERT 2006-2009

• Cucumber via JRuby for more native control
• Watir instead of Watij
• ScalaCheck for test data generation
• Jython for Robot Framework for more native
control
• Rhino for JavaScript testing
• Rules engine integration

AJUG_SEP2009 - 186

ModelJUnit...
• Description
– Supports model-based testing
– Allows you to write simple finite
state machine (FSM) models or
extended finite state machine
(EFSM) models in Java or Groovy
© ASERT 2006-2009

– You can then generate tests from
those models and measure various
model coverage metrics

AJUG_SEP2009 - 187

...ModelJUnit...
// require modeljunit.jar
import nz.ac.waikato.modeljunit.coverage.*
import nz.ac.waikato.modeljunit.*

class VendingMachineModel implements FsmModel {
def state = 0 // 0,25,50,75,100
void reset(boolean testing) {state = 0}

boolean vendGuard() {state == 100}
@Action void vend() {state = 0}

boolean coin25Guard() {state <= 75}
© ASERT 2006-2009

@Action void coin25() {state += 25}

boolean coin50Guard() {state <= 50}
@Action void coin50() {state += 50}
}

def tester = new RandomTester(new VendingMachineModel())
tester.buildGraph()
def metrics = [new ActionCoverage(), new StateCoverage(),
new TransitionCoverage(), new TransitionPairCoverage()]
metrics.each { tester.addCoverageMetric it }

tester.addListener "verbose"
tester.generate 20

println 'nMetrics Summary:'
tester.printCoverage()
AJUG_SEP2009 - 188

...ModelJUnit...
...
done (0, coin50, 50)
done (50, coin25, 75)
done (75, coin25, 100)
done Random reset(true)
done (50, coin25, 75)
done (75, coin25, 100)
done (100, vend, 0)
...
© ASERT 2006-2009

done (50, coin50, 100) Metrics Summary:
done (100, vend, 0) action coverage: 3/3
done (0, coin25, 25) state coverage: 5/5
done (25, coin25, 50) transition coverage: 7/8
done Random reset(true) transition-pair coverage: 8/12
...
done (50, coin25, 75)
done (75, coin25, 100)
done (100, vend, 0)
done (50, coin25, 75)
...
AJUG_SEP2009 - 189

ModelJUnit: SimpBlog Case Study...
• Does the order in which form information
is entered affect the application?
– Could AJAX effects be causing unexpected results?
...
void reset(boolean testing) {
authorSelected = false
// require modeljunit.jar, htmlunit.jar categorySelected = false
© ASERT 2006-2009

import nz.ac.waikato.modeljunit.coverage.* titleEntered = false
import nz.ac.waikato.modeljunit.* contentEntered = false
import com.gargoylesoftware.htmlunit.WebClient client = new WebClient()
page = client.getPage('http://localhost:8080/postForm')
class SimpBlogModel implements FsmModel { assert 'Welcome to SimpBlog' == page.titleText
boolean authorSelected = false form = page.getFormByName('post')
boolean categorySelected = false }
...
boolean titleEntered = false
boolean contentEntered = false
int count = 0
def client, page, form

// Special known method, allows equivalence class definition
// example states: __ __ __ __, AU __ __ __, AU CA TI CO
def getState() {
"${authorSelected ? ' AU ' : ' __ '}${categorySelected ? ' CA ' : ' __ '}" +
"${titleEntered ? ' TI ' : ' __ '}${contentEntered ? ' CO ' : ' __ '}"
}
...
AJUG_SEP2009 - 190

...ModelJUnit: SimpBlog Case Study...
...
boolean "enter title Guard"() { !titleEntered }
@Action void "enter title "() { titleEntered = true
form.getInputByName('title').setValueAttribute("Title ${count++}")
}

boolean enterContentGuard() { !contentEntered }
@Action void enterContent() { contentEntered = true
form.getTextAreaByName('content').setText("Content ${count++}")
}

boolean chooseAuthorGuard() { !authorSelected }
@Action void chooseAuthor() { authorSelected = true // simple version just Lisa
© ASERT 2006-2009

form.getSelectByName('author').getOptions().find{ it.text == 'Lisa' }.setSelected(true)
}

boolean pickCategoryGuard() { !categorySelected }
@Action void pickCategory() { categorySelected = true // simple version just Home
form.getSelectByName('category').getOptions().find{ it.text == 'Home' }.setSelected(true)
}

boolean "submit post Guard"() { categorySelected && authorSelected &&
titleEntered && contentEntered }
@Action void "submit post "() {
assert result.getElementsByTagName('h1').item(0).textContent.matches('Post.*: Title .*')
// could do more asserts here
reset(true)
}
} // end of SimpBlogModel class definition
...

AJUG_SEP2009 - 191

def tester = new RandomTester(new SimpBlogModel())
tester.buildGraph()
def metrics = [
new ActionCoverage(),
new StateCoverage(),
new TransitionCoverage(),
new TransitionPairCoverage()
]
metrics.each {
© ASERT 2006-2009

tester.addCoverageMetric it
}

tester.addListener "verbose"
tester.generate 50

println 'nMetrics Summary:'
tester.printCoverage()

def graphListener = tester.model.getListener("graph")
graphListener.printGraphDot "simpblog.dot"
println "nGraph contains " + graphListener.graph.numVertices() +
" states and " + graphListener.graph.numEdges() + " transitions."

AJUG_SEP2009 - 192

done ( __ __ __ __ , pickCategory, __ CA __ __ ) ...
done ( __ CA __ __ , enterContent, __ CA __ CO ) done ( __ __ __ __ , pickCategory, __ CA __ __ )
done ( __ CA __ CO , enter title , __ CA TI CO ) done ( __ CA __ __ , enterContent, __ CA __ CO )
done ( __ CA TI CO , chooseAuthor, AU CA TI CO ) done ( __ CA __ CO , chooseAuthor, AU CA __ CO )
done ( AU CA TI CO , submit post , __ __ __ __ ) done ( AU CA __ CO , enter title , AU CA TI CO )
done ( __ __ __ __ , pickCategory, __ CA __ __ ) done ( AU CA TI CO , submit post , __ __ __ __ )
done ( __ CA __ __ , chooseAuthor, AU CA __ __ ) done ( __ __ __ __ , chooseAuthor, AU __ __ __ )
done ( AU CA __ __ , enter title , AU CA TI __ ) done ( AU __ __ __ , pickCategory, AU CA __ __ )
done ( AU CA TI __ , enterContent, AU CA TI CO ) done ( AU CA __ __ , enterContent, AU CA __ CO )
done ( AU CA TI CO , submit post , __ __ __ __ ) done ( AU CA __ CO , enter title , AU CA TI CO )
done ( __ __ __ __ , chooseAuthor, AU __ __ __ ) done ( AU CA TI CO , submit post , __ __ __ __ )
done ( AU __ __ __ , pickCategory, AU CA __ __ ) done ( __ __ __ __ , chooseAuthor, AU __ __ __ )
done ( AU CA __ __ , enter title , AU CA TI __ ) done ( AU __ __ __ , enter title , AU __ TI __ )
done ( AU CA TI __ , enterContent, AU CA TI CO ) done ( AU __ TI __ , pickCategory, AU CA TI __ )
done ( AU CA TI CO , submit post , __ __ __ __ ) done ( AU CA TI __ , enterContent, AU CA TI CO )
© ASERT 2006-2009

done ( __ __ __ __ , enterContent, __ __ __ CO ) done ( AU CA TI CO , submit post , __ __ __ __ )
done ( __ __ __ CO , pickCategory, __ CA __ CO ) done Random reset(true)
done ( __ CA __ CO , chooseAuthor, AU CA __ CO ) done ( __ __ __ __ , pickCategory, __ CA __ __ )
done ( AU CA __ CO , enter title , AU CA TI CO ) done ( __ CA __ __ , enterContent, __ CA __ CO )
done ( AU CA TI CO , submit post , __ __ __ __ ) done ( __ CA __ CO , enter title , __ CA TI CO )
done ( __ __ __ __ , pickCategory, __ CA __ __ ) done ( __ CA TI CO , chooseAuthor, AU CA TI CO )
done ( __ CA __ __ , enter title , __ CA TI __ )
done ( __ CA TI __ , chooseAuthor, AU CA TI __ ) Metrics Summary:
done ( AU CA TI __ , enterContent, AU CA TI CO ) action coverage: 5/5
done ( AU CA TI CO , submit post , __ __ __ __ ) state coverage: 12/16
done ( __ __ __ __ , chooseAuthor, AU __ __ __ ) transition coverage: 19/33
done ( AU __ __ __ , pickCategory, AU CA __ __ ) transition-pair coverage: 26/56
done ( AU CA __ __ , enter title , AU CA TI __ )
done ( AU CA TI __ , enterContent, AU CA TI CO ) Graph contains 16 states and 33 transitions.
done ( AU CA TI CO , submit post , __ __ __ __ )
...

AJUG_SEP2009 - 193

ScalaCheck
• Description
– Tool for testing Scala, Java and Groovy programs
– Based on property specifications and automatic
random test data generation
> scala -classpath ScalaCheck-1.5.jar
Welcome to Scala version 2.7.6.final
© ASERT 2006-2009

scala> import org.scalacheck.Prop.forAll

scala> val propConcatLists = forAll { (l1: List[Int], l2: List[Int]) =>
| l1.size + l2.size == (l1 ::: l2).size }
propConcatLists: org.scalacheck.Prop = Prop

scala> propConcatLists.check
+ OK, passed 100 tests.

scala> val propSqrt = forAll { (n: Int) => scala.Math.sqrt(n*n) == n }
propSqrt: org.scalacheck.Prop = Prop

scala> propSqrt.check
! Falsified after 2 passed tests.
> ARG_0: "-1" (1 shrinks, original arg: "-2")
AJUG_SEP2009 - 196

ScalaCheck: SimpBlog Case Study...
class SimpBlogChecker {
static postAndCheck = null
static clean(s) { s.replace('', '').replace('n', 'n') }
static ResultHolder postAndReturn(String title, String content,
String author, String category) {
if (!postAndCheck) postAndCheck = new GroovyShell().parse('''
def page = new WebClient().getPage('http://localhost:8080/postForm')
form.getInputByName('title').setValueAttribute(title)
© ASERT 2006-2009

form.getSelectByName('category').getOptions().find {
it.text == category }.setSelected(true)
form.getSelectByName('author').getOptions().find {
it.text == author }.setSelected(true)
def titleResult = result.getElementsByTagName('h1').item(0).textContent
def categoryResult = h3headings.item(1).textContent
def authorResult = h3headings.item(2).textContent
def contentResult = para.textContent
return new ResultHolder(titleResult, contentResult, authorResult, categoryResult)
''')
...

AJUG_SEP2009 - 197

...ScalaCheck: SimpBlog Case Study...
...
def binding = new Binding()
binding.setVariable('title', title)
binding.setVariable('content', clean(content))
binding.setVariable('author', author)
binding.setVariable('category', category)
postAndCheck.binding = binding
postAndCheck.run()
}
}
© ASERT 2006-2009

class ResultHolder {
String title, content, author, category
ResultHolder(String title, String content,
String author, String category) {
this.title = title
}
}

> groovyc SimpBlogChecker.groovy
AJUG_SEP2009 - 198

//CheckSimpBlog.scala

import org.scalacheck.Prop._
import org.scalacheck.ConsoleReporter.testStatsEx
import org.scalacheck.Test.check
import org.scalacheck.Arbitrary._
import org.scalacheck.Gen._

object CheckSimpBlog {
© ASERT 2006-2009

val fieldsGen = for {
title <- elements("Title 1", "Title 2")
content <- arbitrary[String]
author <- elements("Bart", "Homer", "Lisa", "Marge", "Maggie")
category <- elements("Home", "Work", "Food", "Travel")
} yield (title, content, author, category)
...

> scalac -classpath .;../lib/ScalaCheck-1.5.jar;
../../groovy-1.7-beta-2-SNAPSHOT/embeddable/groovy-all-
1.7-beta-2-SNAPSHOT.jar CheckSimpBlog.scala

AJUG_SEP2009 - 199

...
val enterFieldsAcceptedAndEchoedProperty = forAll(fieldsGen)(
fields =>
{
val (title, content, author, category) = fields
val result = SimpBlogChecker.postAndReturn(title, content, author, category)
result.getTitle contains title
result.getContent contains content
result.getAuthor contains author
result.getCategory contains category
}
)
© ASERT 2006-2009

val tests = scala.List(
("enterFieldsAcceptedAndEchoedProperty",
enterFieldsAcceptedAndEchoedProperty)
)

def main(args: scala.Array[String]) =
tests foreach { case (name, p) => testStatsEx(name, check(p)) }
}

> scala -classpath .;../lib/ScalaCheck-1.5.jar;../../groovy-1.7-beta
-2-SNAPSHOT/embeddable/groovy-all-1.7-beta-2-SNAPSHOT.jar;../../
groovy-1.7-beta-2-SNAPSHOT/lib/ivy-2.1.0-rc2.jar CheckSimpBlog
+ OK, passed 100 tests.
AJUG_SEP2009 - 200

More Information about Groovy
• Web sites
– http://groovy.codehaus.org
– http://grails.codehaus.org
– http://pleac.sourceforge.net/pleac_groovy (many examples)
– http://www.asert.com.au/training/java/GV110.htm (workshop)
• Mailing list for users
– user@groovy.codehaus.org
© ASERT 2006-2009

• Information portals
– http://www.aboutgroovy.org
– http://www.groovyblogs.org
• Documentation (1000+ pages)
– Getting Started Guide, User Guide, Developer Guide, Testing
Guide, Cookbook Examples, Advanced Usage Guide
• Books
– Several to choose from ...
AJUG_SEP2009 - 202

More Information: Groovy in Action
© ASERT 2006-2009

Second edition of GinA, ‘ReGinA’ now under development AJUG_SEP2009 - 203

Groovy Testing Sep2009

More Related Content

What's hot

Viewers also liked

Similar to Groovy Testing Sep2009

More from Paul King

Recently uploaded

Groovy Testing Sep2009
