  • 1. Building Next-Gen Web APIswith JSON-LD and HydraMarkus Lanthaler

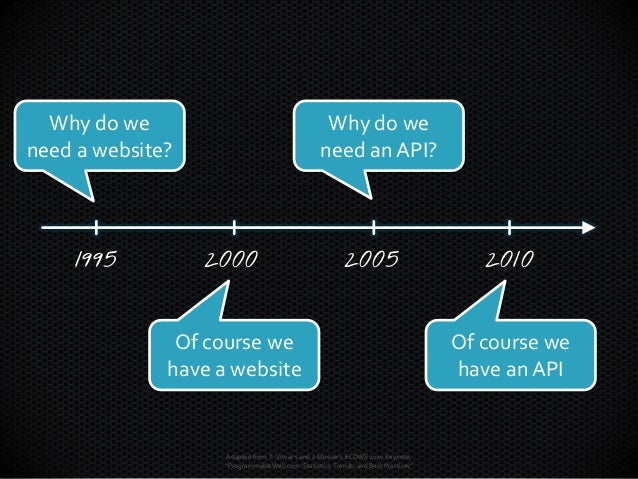

  • 2. Why do weneed a website?Of course wehave a websiteWhy do weneed an API?1995 2000 2005 2010Of course wehave an APIAdapted from T. Vitvar’s and J. Musser’s ECOWS 2010 Keynote,“ProgrammableWeb.com:Statistics, Trends, and Best Practices”
  • 3. Using Web APIs is still challenging

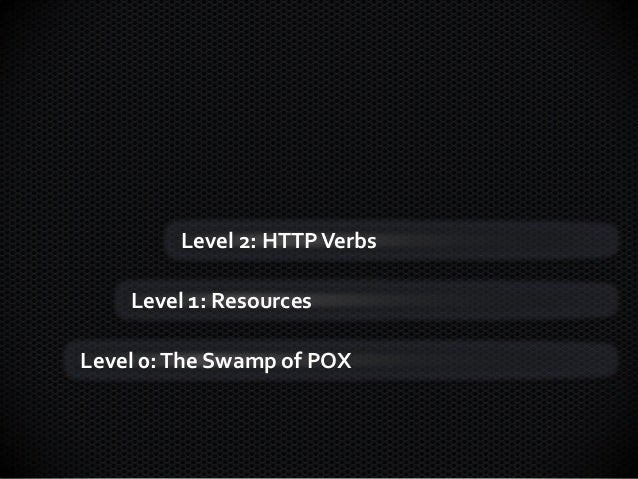

  • 4. Level 0:The Swamp of POXLevel 1: ResourcesLevel 2: HTTPVerbs

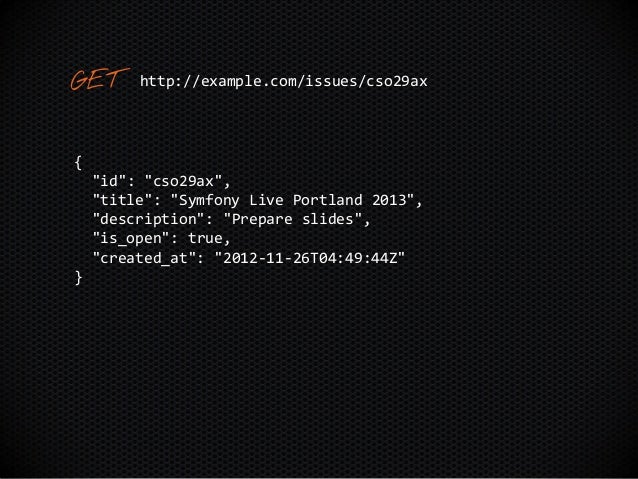

  • 5. {"id": "cso29ax","title": "Symfony Live Portland 2013","description": "Prepare slides","is_open": true,"created_at": "2012-11-26T04:49:44Z"}http://example.com/issues/cso29ax
  • 6. BILLION DOLLARQUESTIONthe

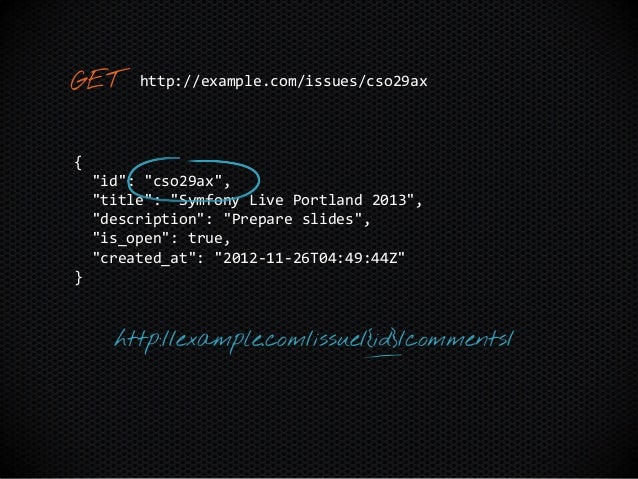

  • 7. {"id": "cso29ax","title": "Symfony Live Portland 2013","description": "Prepare slides","is_open": true,"created_at": "2012-11-26T04:49:44Z"}http://example.com/issues/cso29axhttp://example.com/issue/{id}/comments/

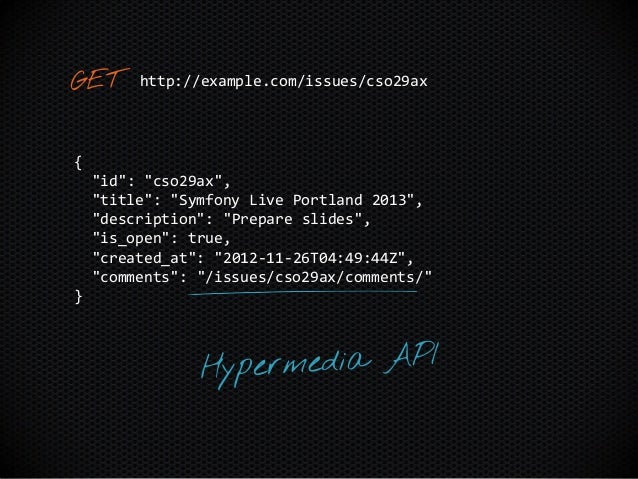

  • 8. {"id": "cso29ax","title": "Symfony Live Portland 2013","description": "Prepare slides","is_open": true,"created_at": "2012-11-26T04:49:44Z","comments": "/issues/cso29ax/comments/"}http://example.com/issues/cso29ax

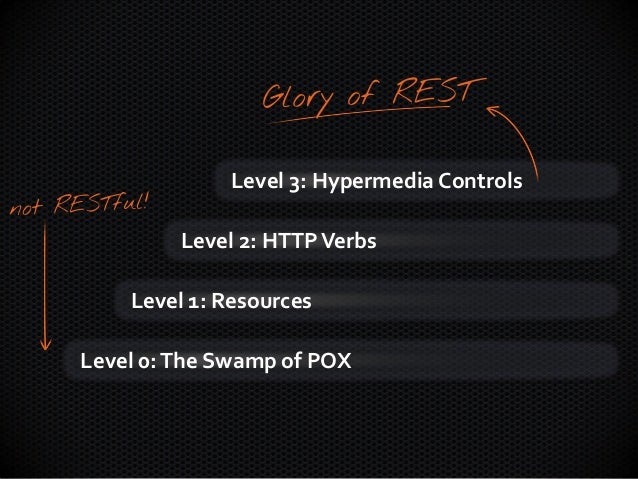

  • 9. Level 0:The Swamp of POXLevel 1: ResourcesLevel 2: HTTPVerbsLevel 3: Hypermedia Controls
  • 10. {"id": "cso29ax","title": "Symfony Live Portland 2013","description": "Prepare slides","is_open": true,"created_at": "2012-11-26T04:49:44Z","comments": "/issues/cso29ax/comments/"}http://example.com/issues/cso29ax
  • 11. Every API is a snowflake
  • 12. Result: tightly coupled & brittle systems

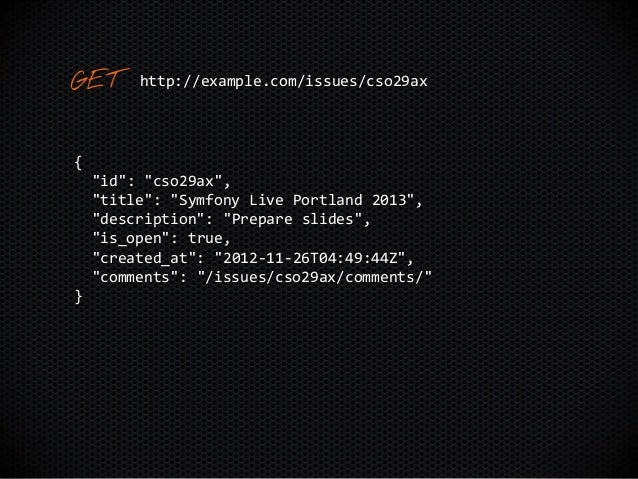

  • 13. {"id": "cso29ax","title": "Symfony Live Portland 2013","description": "Prepare slides","is_open": true,"created_at": "2012-11-26T04:49:44Z","comments": "/issues/cso29ax/comments/"}http://example.com/issues/cso29ax

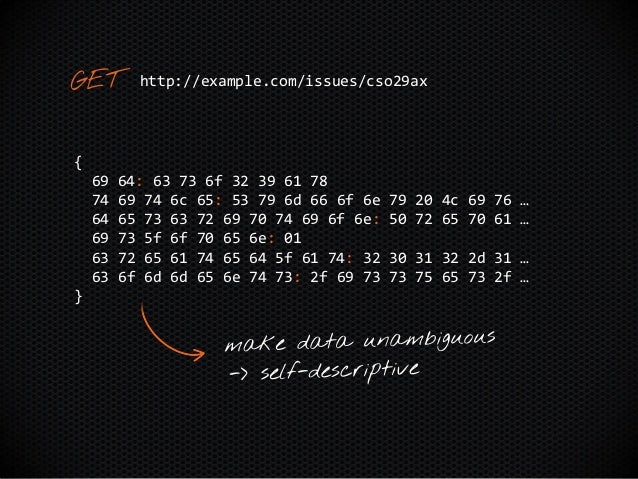

  • 14. {69 64: 63 73 6f 32 39 61 7874 69 74 6c 65: 53 79 6d 66 6f 6e 79 20 4c 69 76 …64 65 73 63 72 69 70 74 69 6f 6e: 50 72 65 70 61 …69 73 5f 6f 70 65 6e: 0163 72 65 61 74 65 64 5f 61 74: 32 30 31 32 2d 31 …63 6f 6d 6d 65 6e 74 73: 2f 69 73 73 75 65 73 2f …}http://example.com/issues/cso29ax
  • 15. Identifiers on the Web: URIs

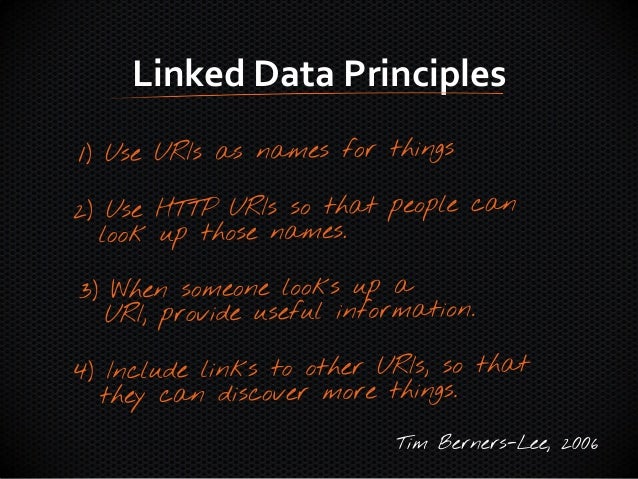

  • 16. Linked Data PrinciplesTim Berners-Lee, 2006

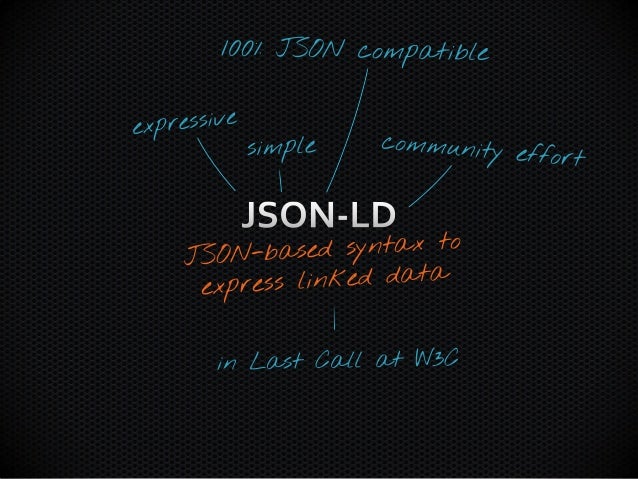

  • 17. JSON-LD
  • 18. Make data self-descriptive bymapping concepts to URLs
  • 19. {"id": "markus","firstname": "Markus","lastname": "Lanthaler","homepage": "http://www.markus-lanthaler.com/"}

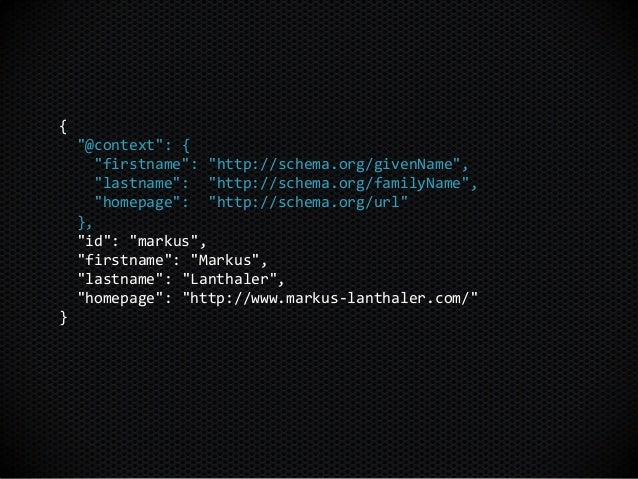

  • 20. {"@context": {"firstname": "http://schema.org/givenName","lastname": "http://schema.org/familyName","homepage": "http://schema.org/url"},"id": "markus","firstname": "Markus","lastname": "Lanthaler","homepage": "http://www.markus-lanthaler.com/"}

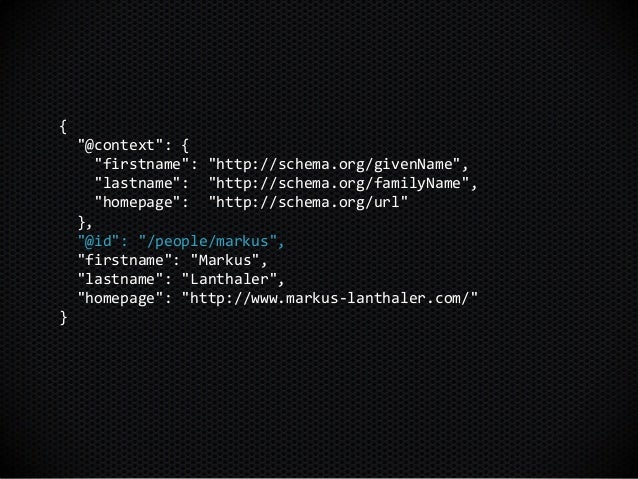

  • 21. {"@context": {"firstname": "http://schema.org/givenName","lastname": "http://schema.org/familyName","homepage": "http://schema.org/url"},"@id": "/people/markus","firstname": "Markus","lastname": "Lanthaler","homepage": "http://www.markus-lanthaler.com/"}
  • 22. {"@context": {"firstname": "http://schema.org/givenName","lastname": "http://schema.org/familyName","homepage": "http://schema.org/url"},"@id": "/people/markus","firstname": "Markus","lastname": "Lanthaler","homepage": "http://www.markus-lanthaler.com/"}

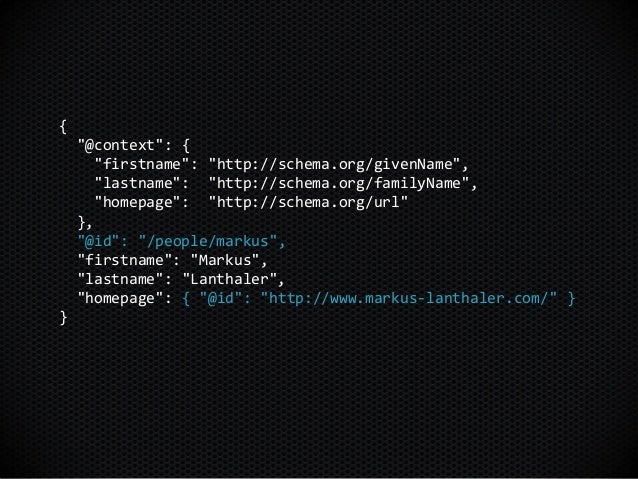

  • 23. {"@context": {"firstname": "http://schema.org/givenName","lastname": "http://schema.org/familyName","homepage": "http://schema.org/url"},"@id": "/people/markus","firstname": "Markus","lastname": "Lanthaler","homepage": { "@id": "http://www.markus-lanthaler.com/" }}
  • 24. {"@context": {"firstname": "http://schema.org/givenName","lastname": "http://schema.org/familyName","homepage": {"@id": "http://schema.org/url", "@type": "@id" },},"@id": "/people/markus","firstname": "Markus","lastname": "Lanthaler","homepage": "http://www.markus-lanthaler.com/"}

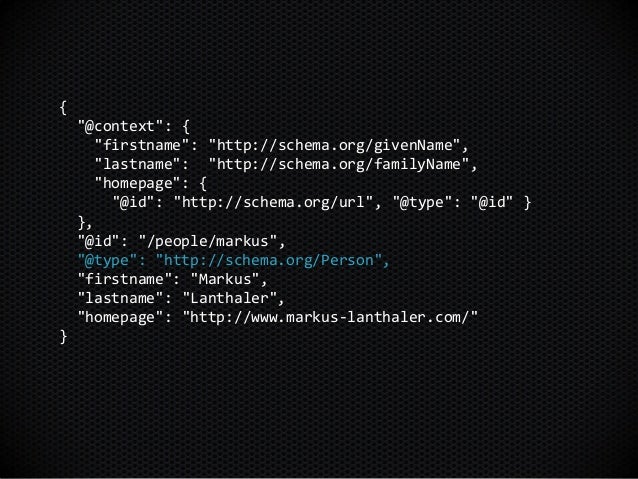

  • 25. {"@context": {"firstname": "http://schema.org/givenName","lastname": "http://schema.org/familyName","homepage": {"@id": "http://schema.org/url", "@type": "@id" }},"@id": "/people/markus","@type": "http://schema.org/Person","firstname": "Markus","lastname": "Lanthaler","homepage": "http://www.markus-lanthaler.com/"}

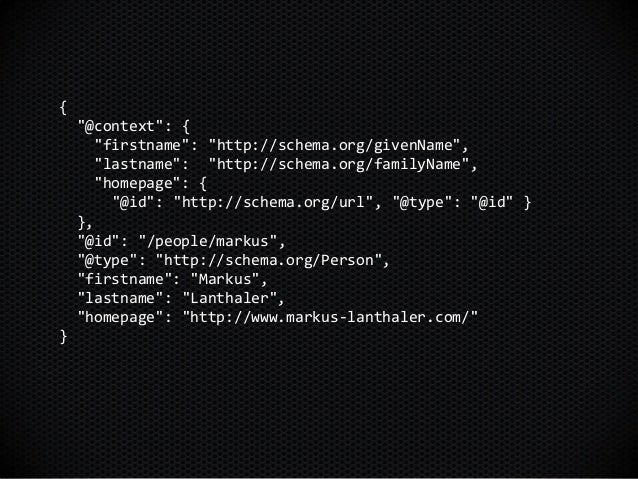

  • 26. {"@context": {"firstname": "http://schema.org/givenName","lastname": "http://schema.org/familyName","homepage": {"@id": "http://schema.org/url", "@type": "@id" }},"@id": "/people/markus","@type": "http://schema.org/Person","firstname": "Markus","lastname": "Lanthaler","homepage": "http://www.markus-lanthaler.com/"}

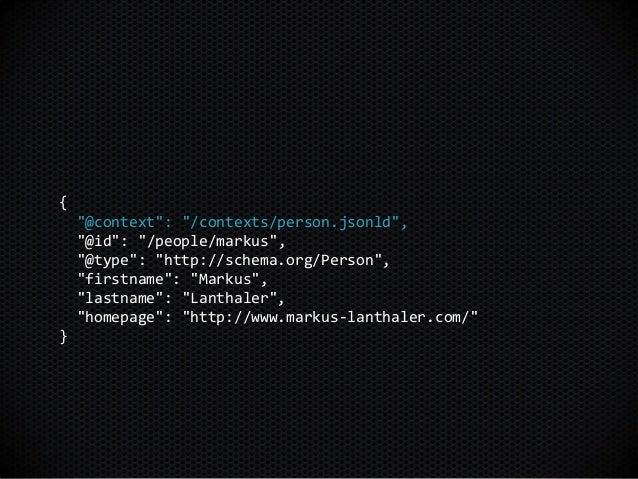

  • 27. {"@context": "/contexts/person.jsonld","@id": "/people/markus","@type": "http://schema.org/Person","firstname": "Markus","lastname": "Lanthaler","homepage": "http://www.markus-lanthaler.com/"}
  • 28. CMF
  • 29. {"id": "cso29ax","title": "Symfony Live Portland 2013","description": "Prepare slides","is_open": true,"created_at": "2012-11-26T04:49:44Z","comments": "/issues/cso29ax/comments/"}http://example.com/issues/cso29ax

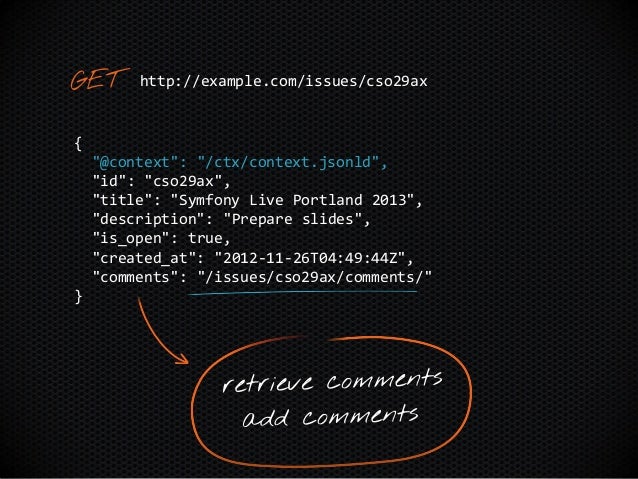

  • 30. {"@context": "/ctx/context.jsonld","id": "cso29ax","title": "Symfony Live Portland 2013","description": "Prepare slides","is_open": true,"created_at": "2012-11-26T04:49:44Z","comments": "/issues/cso29ax/comments/"}http://example.com/issues/cso29ax
  • 31. {"@context": "/ctx/context.jsonld","id": "cso29ax","title": "Symfony Live Portland 2013","description": "Prepare slides","is_open": true,"created_at": "2012-11-26T04:49:44Z","comments": "/issues/cso29ax/comments/"}http://example.com/issues/cso29ax

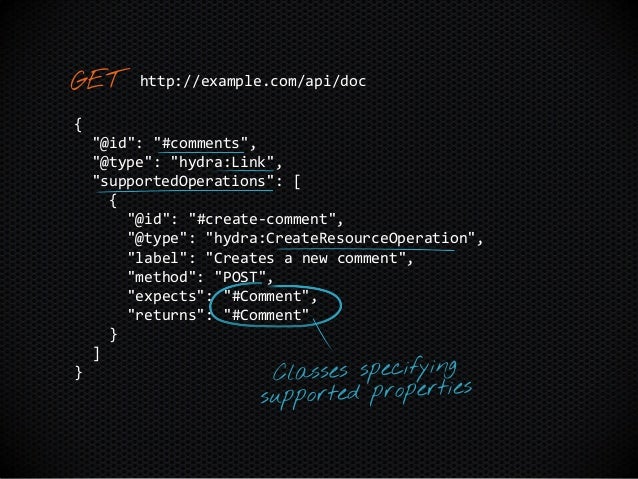

  • 32. {"@id": "#comments","@type": "hydra:Link","supportedOperations": [{"@id": "#create-comment","@type": "hydra:CreateResourceOperation","label": "Creates a new comment","method": "POST","expects": "#Comment","returns": "#Comment"}]}http://example.com/api/doc
  • 33. {"@id": "#Comment","@type": "hydra:Class","supportedProperties": [{"property": "#text","required": true,"readonly": false,"writeonly": false}]}http://example.com/api/doc
  • 34. /*** An Issue tracked by the system.** @HydraExpose()*/class Issue{/*** The comments associated with this issue** @HydraExpose()* @HydraCollection("issue_comments")* @HydraOperations("issue_comment_create")*/private $comments;// ... other members and methods ...}
  • 35. $ php app/console hydra:generate:crud--entity=MLDemoBundle:Issue--route-prefix=/issues/--with-write--no-interactionCRUD generationGenerating the CRUD code: OKYou can now start using the generated code!
  • 36. /*** Issue controller** @Route("/issues")*/class IssueController extends HydraController{/*** Creates a new Issue** @Route("/", name="issue_create")* @Method("POST")** @HydraOperation(expect = "MLDemoBundleEntityIssue")** @return MLDemoBundleEntityIssue*/public function collectionPostAction(Request $request){...
  • 37. Hydra Console
  • 38. © 2013, Markus Lanthaler. Some Rights Reserved.http://creativecommons.org/licenses/by-nc-sa/3.0/Thank You
  • 39. Questions?Markus Lanthalerhttp://www.markus-lanthaler.com@MarkusLanthalermail@markus-lanthaler.com
