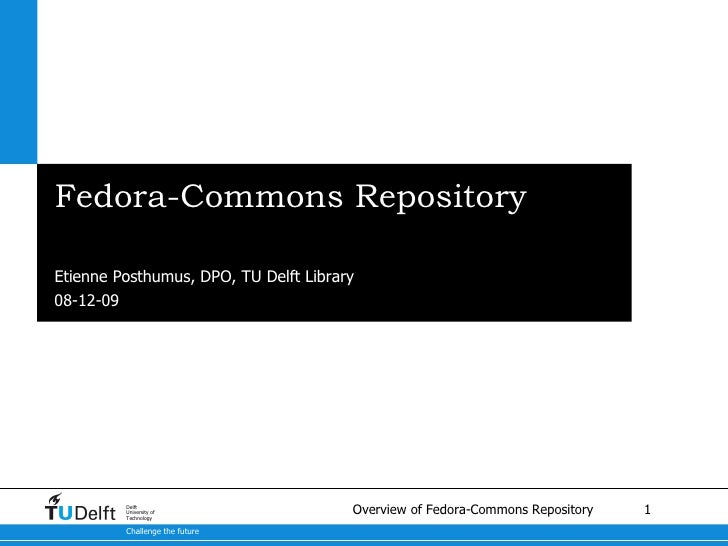

Fedora-Commons Repository A brief overview Etienne Posthumus, DPO, TU Delft Library 08-06-09

A brief overview

What is it? Fedora is a general-purpose, open-source digital object repository system.

Fedora is a general-purpose, open-source digital object repository system.

What is it? Fedora is a general-purpose, open-source digital object repository system. "Flexible Extensible Digital Object Repository Architecture" NOT the Linux distribution

Fedora is a general-purpose, open-source digital object repository system.

"Flexible Extensible Digital Object Repository Architecture"

NOT the Linux distribution

What is it? Fedora is a general-purpose, open-source digital object repository system. …a persistence and service delivery platform

Fedora is a general-purpose, open-source digital object repository system.

…a persistence and service delivery platform

What is it? Fedora is a general-purpose, open-source digital object repository system. …a persistence and service delivery platform …implemented as a set of Java services (Tomcat)

Fedora is a general-purpose, open-source digital object repository system.

…a persistence and service delivery platform

…implemented as a set of Java services (Tomcat)

What is it? Fedora is a general-purpose, open-source digital object repository system. A well-funded active community with a long history.

Fedora is a general-purpose, open-source digital object repository system.

A well-funded active community with a long history.

Conforms to the OAIS reference model Open Archival Information System - an ISO model defined by Consultative Committee for Space Data Systems widely adopted in Archives community Built on sub-systems Open Source, Open Standards

Conforms to the OAIS reference model

Open Archival Information System

- an ISO model defined by Consultative Committee for Space Data Systems widely adopted in Archives community

Persistent digital archive ‘files on disk’ bootstrappeable in the face of disaster XML containers asset management Built on sub-systems Open Source, Open Standards

Persistent digital archive ‘files on disk’

bootstrappeable in the face of disaster

XML containers

asset management

Persistent digital archive ‘files on disk’ bootstrappeable in the face of disaster XML containers asset management Scaleable triple-store Mulgara Built on sub-systems Open Source, Open Standards

Persistent digital archive ‘files on disk’

bootstrappeable in the face of disaster

XML containers

asset management

Scaleable triple-store

Mulgara

Persistent digital archive ‘files on disk’ bootstrappeable in the face of disaster XML containers asset management Scaleable triple-store Mulgara Service delivery XSLT via Saxon built-in others pluggable Built on sub-systems Open Source, Open Standards

Persistent digital archive ‘files on disk’

bootstrappeable in the face of disaster

XML containers

asset management

Scaleable triple-store

Mulgara

Service delivery

XSLT via Saxon built-in

others pluggable

Advantages? Scaling Integrated Asset management Extensive Versioning Audit trails Large(ish) community, esp. mindshare General ‘fit and polish’ Goal is support for > 10 million objects

Scaling

Integrated Asset management

Extensive Versioning

Audit trails

Large(ish) community, esp. mindshare

General ‘fit and polish’

Downsides? It’s a toolbox not a complete solution (front-end support) Java code base (for some this is an advantage ;-) Moving target in terms of innovation (also debatable) Complexity of some concepts, steep learning curve A lot of DIY is needed

It’s a toolbox not a complete solution (front-end support)

Java code base (for some this is an advantage ;-)

Moving target in terms of innovation (also debatable)

Complexity of some concepts, steep learning curve

Digital Object Model Compound objects, aggregate items per object

Compound objects, aggregate items per object

Digital Object Model Compound objects, aggregate items per object Some ‘reserved’ item IDs

Compound objects, aggregate items per object

Some ‘reserved’ item IDs

Digital Object Model Compound objects, aggregate items per object Some ‘reserved’ item IDs Essentially an XML container

Compound objects, aggregate items per object

Some ‘reserved’ item IDs

Essentially an XML container

Digital Object Model <foxml:digitalObject PID=&quot;demo:31&quot; VERSION=&quot;1.1&quot; xmlns:foxml=&quot;info:fedora/fedora-system:def/foxml#&quot; xmlns:xsi=&quot;http://www.w3.org/2001/XMLSchema-instance&quot; xsi:schemaLocation=&quot;info:fedora/fedora-system:def/foxml# http://www.fedora.info/definitions/1/0/foxml1-1.xsd&quot;> <foxml:objectProperties> <foxml:property NAME=&quot;info:fedora/fedora-system:def/model#state&quot; VALUE=&quot;Active&quot;/> <foxml:property NAME=&quot;info:fedora/fedora-system:def/model#ownerId&quot; VALUE=&quot;fedoraAdmin&quot;/> <foxml:property NAME=&quot;info:fedora/fedora-system:def/model#createdDate&quot; VALUE=&quot;2008-07-02T05:09:42.015Z&quot;/> <foxml:property NAME=&quot;info:fedora/fedora-system:def/view#lastModifiedDate&quot; VALUE=&quot;2008-07-02T05:09:42.015Z&quot;/> </foxml:objectProperties> <foxml:datastream CONTROL_GROUP=&quot;X&quot; ID=&quot;DC&quot; STATE=&quot;A&quot; VERSIONABLE=&quot;true&quot;> <foxml:datastreamVersion CREATED=&quot;2008-07-02T05:09:43.328Z&quot; FORMAT_URI=&quot;http://www.openarchives.org/OAI/2.0/oai_dc/&quot; ID=&quot;DC1.0&quot; LABEL=&quot;Dublin Core Record for this object&quot; MIMETYPE=&quot;text/xml&quot;> <foxml:xmlContent> <oai_dc:dc xmlns:dc=&quot;http://purl.org/dc/elements/1.1/&quot; xmlns:oai_dc=&quot;http://www.openarchives.org/OAI/2.0/oai_dc/&quot;> <dc:title>Apache Batik 1.5 Demo Directory</dc:title> <dc:creator>Chris Wilper</dc:creator> <dc:creator>The Apache Group</dc:creator> <dc:subject>svg</dc:subject> <dc:publisher>The Apache Group</dc:publisher> <dc:format>image/svg+xml</dc:format> <dc:identifier>demo:31</dc:identifier> <dc:relation>http://xml.apache.org/batik/</dc:relation> <dc:rights>The Apache License</dc:rights> </oai_dc:dc> </foxml:xmlContent> </foxml:datastreamVersion> </foxml:datastream> <foxml:datastream CONTROL_GROUP=&quot;E&quot; ID=&quot;DS1&quot; STATE=&quot;A&quot; VERSIONABLE=&quot;true&quot;> <foxml:datastreamVersion CREATED=&quot;2008-07-02T05:09:43.328Z&quot; ID=&quot;DS1.0&quot; LABEL=&quot;Local copy of batikBatik.svg&quot; MIMETYPE=&quot;image/svg+xml&quot;> <foxml:contentLocation REF=&quot;http://www.fedora-commons.org/demo/misc/batikBatik.svg&quot; TYPE=&quot;URL&quot;/> </foxml:datastreamVersion> </foxml:datastream> An Example

Content Model Architecture “ an integrated structure for persisting and delivering the essential characteristics of digital objects in Fedora” Modelling behaviours and structure of objects. Complicated, fairly new, not widely implemented yet, in flux. … can also be safely ignored when starting out. (which we did not realise)

Fedora at TU Delft Library Used to create a repository Infrastructure

Used to create a repository Infrastructure

Fedora at TU Delft Library Used to create a Repository Infrastructure Multiple projects: Institutional Repository (academic output) Special Collections (Tresor, bouwkunde dias) Expert Search (finding People) 3TU Datacentrum

Used to create a Repository Infrastructure

Multiple projects:

Institutional Repository (academic output)

Special Collections (Tresor, bouwkunde dias)

Expert Search (finding People)

3TU Datacentrum

Implementation Front-end is Django application

Front-end is Django application

Implementation Front-end is Django application We use the REST API for communication

Front-end is Django application

We use the REST API for communication

Implementation Front-end is Django application We use the REST API for communication Middleware as Python code providing a web API

Front-end is Django application

We use the REST API for communication

Middleware as Python code providing a web API

Implementation Front-end is Django application We use the REST API for communication Middleware as Python code providing a web API MOAI flexible OAI-PMH service

Front-end is Django application

We use the REST API for communication

Middleware as Python code providing a web API

MOAI flexible OAI-PMH service

Implementation Front-end is Django application We use the REST API for communication Middleware as Python code providing a web API MOAI flexible OAI-PMH service Indexing via SOLR subsequently linked to DISCOVER

Front-end is Django application

We use the REST API for communication

Middleware as Python code providing a web API

MOAI flexible OAI-PMH service

Indexing via SOLR subsequently linked to DISCOVER

Conversion of existing repository Legacy Stellent CMS stored in Oracle Circa 12000 items Mostly PDF plus metadata Conversion scripts in Python Bulk ingest

Legacy Stellent CMS stored in Oracle

Circa 12000 items

Mostly PDF plus metadata

Conversion scripts in Python

Bulk ingest

Community Participation NL Fedora Usergroup Contact with key Fedora participants at conferences Presentations and workshop Developer days planned Possible collaboration on development Sponsorship of open-source components

NL Fedora Usergroup

Contact with key Fedora participants at conferences

Presentations and workshop

Developer days planned

Possible collaboration on development

Sponsorship of open-source components

Plans Convert existing repository with existing functionality Incrementally build in new features on ongoing basis Extend APIs and services Linked Data repository More innovative repository applications

Convert existing repository with existing functionality

Incrementally build in new features on ongoing basis

Extend APIs and services

Linked Data repository

More innovative repository applications

Questions? [email_address] http://www.fedora-commons.org/

[email_address]

http://www.fedora-commons.org/
