MAP AND COMPASS Learning the Basics
MAP AND COMPASS <ul><li>Where things are and how to get to them </li></ul><ul><li>Describe the shape of the land </li></ul...
MAP AND COMPASS Primary highway Secondary highway Light-duty road Unimproved road Trail Railroad: single track Railroad: d...
MAP AND COMPASS Map Problem It’s July.  Let’s suppose you’re starting a hike at A and heading for Q. PROBLEM 1. For local ...
MAP AND COMPASS Direction of Travel Arrow Magnifying Glass Bearing  Index Orienting Arrow and fluorescent dots North-south...
MAP AND COMPASS THE SYLVA SYSTEM – Easy as 1-2-3 Point the baseplate to your destination
MAP AND COMPASS THE SYLVA SYSTEM – Easy as 1-2-3 Set Compass Heading
MAP AND COMPASS THE SYLVA SYSTEM – Easy as 1-2-3 Follow Your Heading
MAP AND COMPASS
Upcoming SlideShare
Loading in...5
×

Map And Compass

1,414

Published on

M2 Sunnoto and Silva Compass and Map class

0 Comments
2 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
1,414
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
79
Comments
0
Likes
2
Embeds 0
No embeds

No notes for slide
  • Map And Compass

    1. 1. MAP AND COMPASS Learning the Basics

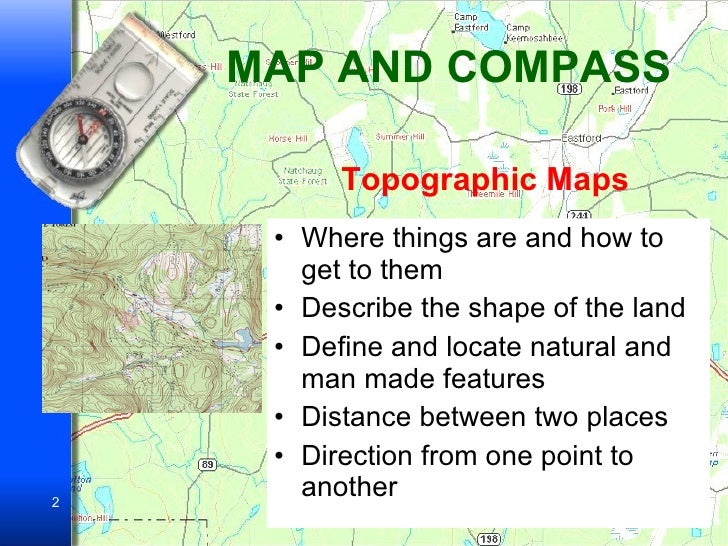

    2. 2. MAP AND COMPASS <ul><li>Where things are and how to get to them </li></ul><ul><li>Describe the shape of the land </li></ul><ul><li>Define and locate natural and man made features </li></ul><ul><li>Distance between two places </li></ul><ul><li>Direction from one point to another </li></ul>Topographic Maps
    3. 3. MAP AND COMPASS Primary highway Secondary highway Light-duty road Unimproved road Trail Railroad: single track Railroad: double track Bridge Tunnel Footbridge Overpass - Underpass Buildings School -- church Woodland Orchard Scrub Well water – spring Rapids March (swamp) Falls TOPOGRAPHIC MAP SYMBOLS

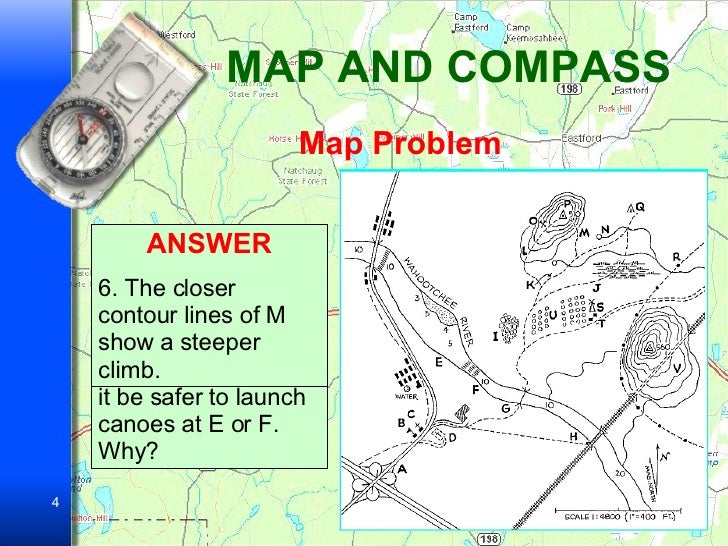

    4. 4. MAP AND COMPASS Map Problem It’s July. Let’s suppose you’re starting a hike at A and heading for Q. PROBLEM 1. For local information or in case of emergency would you go to B, C, or D? Why? ANSWER 1. C has telephone lines next to it. B is a school and probably closed in summer. D is a cemetery. PROBLEM 2.The Wahootchee River flows NW to SE. To paddle downstream, would it be safer to launch canoes at E or F. Why? ANSWER 2. Launch them at F. The map shows rapids between E and F. PROBLEM 3.Would you cross the river at G or H? Why? ANSWER 3. Use the footbridge at G. H is a railroad bridge. PROBLEM 4. Where would you most likely find firewood – I or U? Why? ANSWER 4. At I. Because I is scrub woods. U is an orchard Problem 5. Which trail would you take – J or K? Why? ANSWER 5. K. J goes through a swamp. PROBLEM 6. Which is the easier way to reach P – Trail L or M? Why? ANSWER 6. The closer contour lines of M show a steeper climb.
    5. 5. MAP AND COMPASS Direction of Travel Arrow Magnifying Glass Bearing Index Orienting Arrow and fluorescent dots North-south lines or orienting lines Compass needle – Red points North Dial or Graduation ring
    6. 6. MAP AND COMPASS THE SYLVA SYSTEM – Easy as 1-2-3 Point the baseplate to your destination

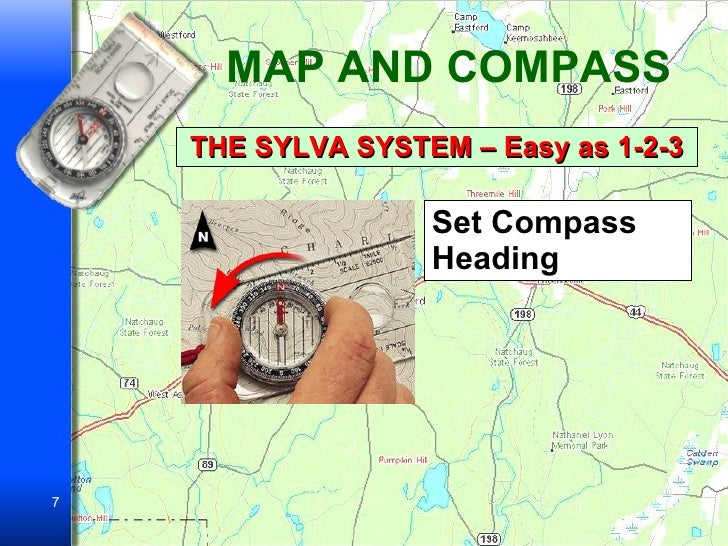

    7. 7. MAP AND COMPASS THE SYLVA SYSTEM – Easy as 1-2-3 Set Compass Heading

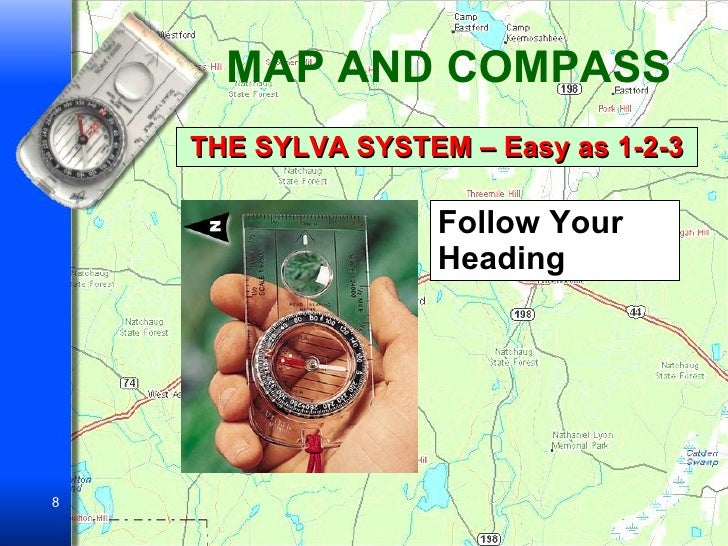

    8. 8. MAP AND COMPASS THE SYLVA SYSTEM – Easy as 1-2-3 Follow Your Heading
    9. 9. MAP AND COMPASS
