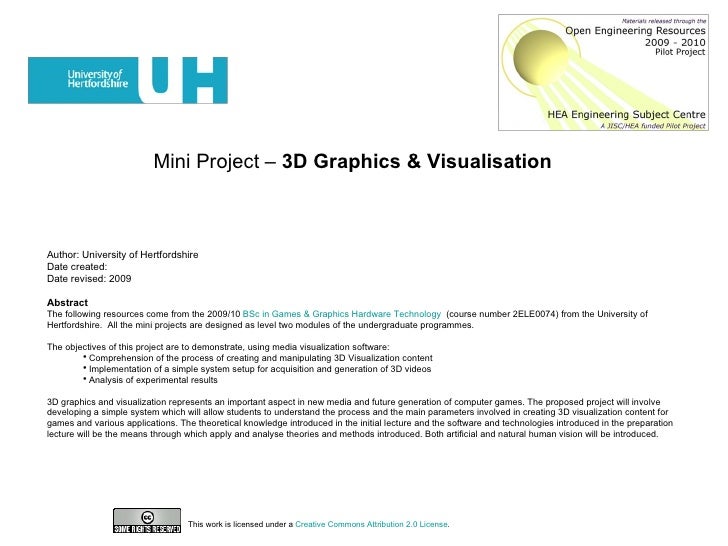

Mini Project –  3D Graphics & Visualisation  <ul><li>Author: University of Hertfordshire </li></ul><ul><li>Date created: <...
<ul><li>Section 1. Project Introduction ………………………… 3 </li></ul><ul><li>Section 2. Project Lecture ……………………………… 6 </li></ul...
Section 1. Project Introduction <ul><li>Learning Outcomes Assessed  (as taken from the DMD) </li></ul><ul><li>All Learning...
<ul><li>4. Project Summary: (50 words max) </li></ul><ul><li>3D graphics and visualization represents an important aspect ...
<ul><li>8. Day 2 </li></ul><ul><li>Expected Outcomes for the day </li></ul><ul><li>Students will be expected to understand...
S. Livatino <ul><li>All about Stereo and Depth Perception in natural and artificial vision </li></ul><ul><li>Systems and A...
Class Objectives and Keywords <ul><li>Human Eye </li></ul><ul><li>Visual Display </li></ul><ul><li>Accommodation / converg...
Human Eye <ul><li>Iris : adjusts amount of incoming light </li></ul><ul><li>Pupil : Opening of the Iris </li></ul><ul><li>...
S. Livatino Human Eye  <ul><li>Retina : in the back of the eye, where there are photoreceptors, cells that react to light ...
NEARSIGHTEDNESS (MYOPIA) FARSIGHTEDNESS (HYPEROPIA )
Eye Parameters <ul><li>FOV  (Field of View) </li></ul><ul><li>Visual Acuity </li></ul><ul><li>Human Visual Acuity -> Fovea...
Human Eye => Visual Display
S. Livatino <ul><li>Occulo-motor Cues </li></ul><ul><li>Focus =  Accommodate  by changing the shape of the eye’s lenses </...
Retinal Disparity S. Livatino
S. Livatino <ul><li>Same image for both eyes. </li></ul><ul><li>Accomodation & Concergence on the display screen, regardle...
Monocular Depth Cues <ul><li>Monocular depth cues are the basis for the perception of depth in visual displays. </li></ul>...
S. Livatino Human Stereo Vision <ul><li>Left and right eye have different perspective viewpoints (slightly different) </li...
S. Livatino <ul><li>Stereo, Binocular Depth. </li></ul><ul><ul><li>Individual images for each eye. </li></ul></ul><ul><ul>...
Crosstalk <ul><li>One of both the eyes see an image of the unwanted perspective view </li></ul><ul><li>Ghosting = perceive...
Steresocopic Photograph <ul><li>How many cameras do we need for a stereo photo? </li></ul>S. Livatino
Role of Baseline <ul><li>Static picture or synchronized… </li></ul>S. Livatino DEMO
<ul><li>Passive Stereo </li></ul><ul><li>Active Stereo </li></ul><ul><li>Autostereoscopic Stereo </li></ul>APPROACHES TO S...
<ul><li>Display Size </li></ul><ul><li>Display Structure </li></ul><ul><li>Projection Modality </li></ul><ul><li>Image Qua...
*  Livatino, Mattiolo, Castello, Randazzo. ”The Role of Photorealism in VR Games”. IEEE Int. Conf. VRIC, Laval, France, 20...
S. Livatino Head Mounted Display (HMD)
S. Livatino
S. Livatino
S. Livatino
This resource was created by the University of Hertfordshire and released as an open educational resource through the Open...
